CYP AVX-101F-RX User manual

AVX-101F-RX
UHD+HDMI over Fiber Receiver
OPERATION MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2021/07/09 Preliminary release

CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents ......................................... 1
4. System Requirements ..................................1
5. Features.........................................................2
6. Operation Controls and Functions ..............3
6.1 Front Panel.............................................................3
6.2 Rear Panel...............................................................4
7. Connection Diagram ....................................5
8. Specifications................................................6
8.1 Technical Specifications ....................................6
8.2 Video Specifications............................................7
8.3 Audio Specifications...........................................8
8.3.1 Digital Audio ..............................................8
8.4 Cable Specifications ...........................................9
9. Acronyms.....................................................10

1
1. INTRODUCTION
This 4K UHD+HDMI over Fiber Receiver is designed for high-quality AV
extension with minimum latency. By using a sophisticated ultra-light
compression scheme (lossless for most content) it’s a great solution
for extending 4K@60Hz (4:4:4) HDMI audio/video streams. Advanced
HDMI content such as HDR (High Dynamic Range), 10-bit colour and
multi-channel HD Bitstream audio can be easily transmitted. The use of
interchangeable, eld replaceable, SFP+ modules allows for transmission
distances of up to 30km (Maximum transmission distance depends on the
SFP+ modules used). Additionally, this unit’s compact form factor makes
it ideal for installation in tight spaces, or inclusion in A/V travel kits.
2. APPLICATIONS
A/V extension without RF interference
Long distance data and video transmission
Household entertainment
Lecture halls, meeting rooms, and classrooms
Point-to-Point Secure Video Conferencing
3. PACKAGE CONTENTS
1× UHD+HDMI over Fiber Receiver
1× 5V/2.6A DC Power Adapter
1× Shockproof Feet (Set of 4)
1× Operation Manual
4. SYSTEM REQUIREMENTS
HDMI receiving equipment such as an HDTV, monitor, or audio
amplifier
Compatible fiber-based transmitter
IEEE 802.3ae compatible SFP+ fiber module supporting a dual-optical
fiber connection style, such as LC, or a pre-terminated crossover dual-
optical fiber cable
Note: Single-mode and multi-mode support is dependent on the SFP+
modules used.

2
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
1 ber (SFP+) input
1 HDMI output
Ultra-light compression, lossless for most content
Extension up to 30km (maximum distance depends on the SFP+
module and type of ber used)
Supports up to 4K UHD+(18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
Supports pass-through of 10/12-bit HDR sources
Supports pass-through of audio formats including LPCM (up to 8
channels), Bitstream and HD Bitstream
Simple, hassle free, point-to-point connection

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
HDMI OUT
VIDEO SFP+
DC 5VSERVICE
HDMI IN SFP+VIDEO
1 3
2
4 5
1Power ( ) LED: This LED will illuminate to indicate the unit is on and
receiving power.
Note: This LED will blink during the firmware update process.
2System ( ) LED: This LED will illuminate to indicate that the system is
stable and ready to process audio/video streams.
Note: This LED will blink during the firmware update process.
3VIDEO LED: This LED will illuminate to indicate that the video source
is stable, and streaming is in process.
4HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for
digital video and audio output.
5SFP+ Port: Insert a standard SFP+ module, and connect the
appropriate optical cable to allow data reception from a compatible
transmitter.
Note: The SFP+ module must support a dual-optical fiber connection
style, such as LC, or be pre-terminated dual-optical fiber cables. Single-
mode and multi-mode support is dependent on the SFP+ modules used.

4
6.2 Rear Panel
DC 5VSERVICE
DC 5VSERVICE
HDMI IN SFP+VIDEO
1 2
1SERVICE (USB Mini-B) Port: This port is for rmware update only.
2DC 5V Port: Plug the 5V DC power adapter into this port and connect
it to an AC wall outlet for power.

5

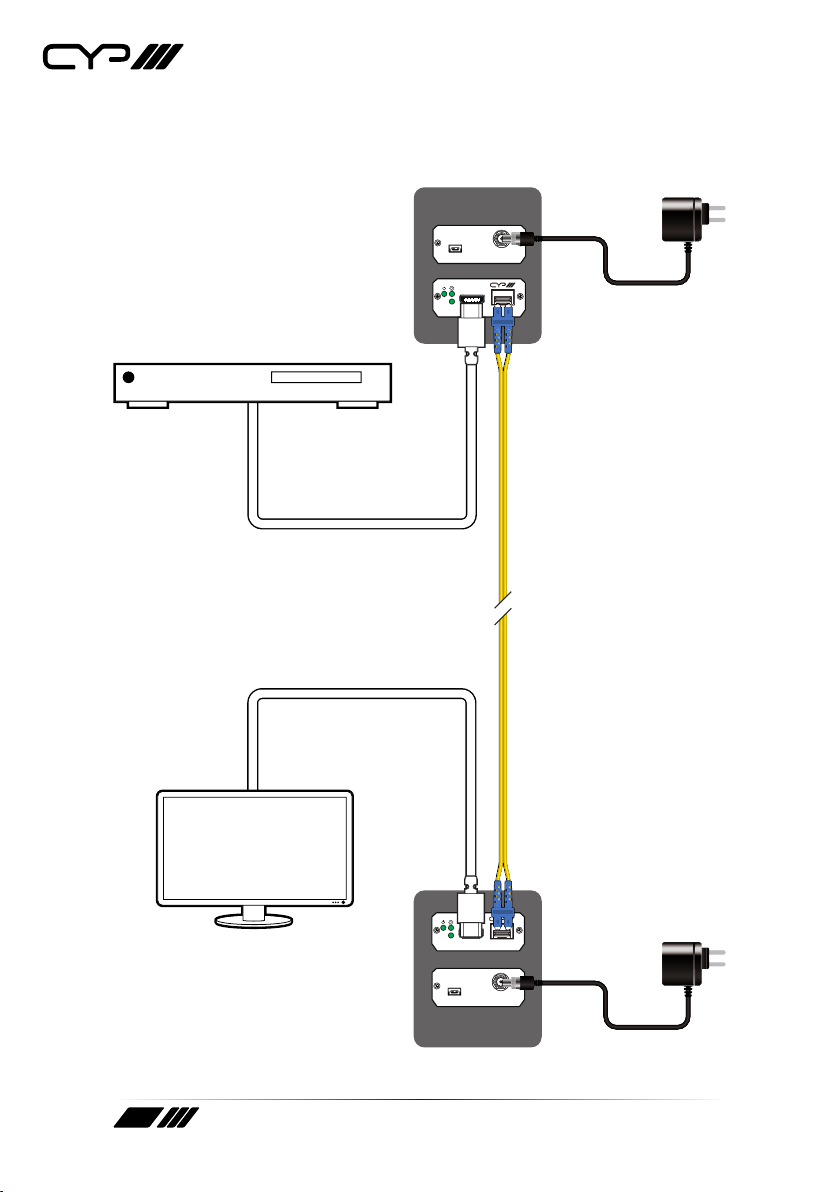

7. CONNECTION DIAGRAM
TX
RX
HDMI OUT
VIDEO SFP+
DC 5VSERVICE
HDMI IN
VIDEO SFP+
DC 5VSERVICE
Media Player
Smart TV
Power
Supply
Power
Supply
HDMI
Input
HDMI
Output

6
8. SPECIFICATIONS
8.1 Technical Specifications
HDMI Bandwidth 18Gbps
Fiber Bandwidth 10Gbps
Input Ports 1×10GbE (SFP+)
Output Ports 1×HDMI (Type-A)
SFP+ Module 1×Single/Multi-mode (LC)
Service Port 1×USB 2.0 (Mini-B)
Power Supply 5V/2.6A DC
(US/EU standards, CE/FCC/UL certied)
ESD Protection (HBM) ±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions (W×H×D) 57mm×20.6mm×87mm [Case Only]
60mm×20.6mm×87mm [All Inclusive]
Weight 139g
Chassis Material Metal (Steel)
Chassis Colour Black
Operating Temperature 0˚C – 50˚C/32˚F – 122˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 4.62W

7
8.2 Video Specifications
Supported Resolutions (Hz)
Input Output
10GbE HDMI
720×400p@70/85  
640×480p@60/72/75/85  
720×480i@60  
720×480p@60  
720×576i@50  
720×576p@50  
800×600p@56/60/72/75/85  
848×480p@60  
1024×768p@60/70/75/85  
1152×864p@75  
1280×720p@50/60  
1280×768p@60/75/85  
1280×800p@60/75/85  
1280×960p@60/85  
1280×1024p@60/75/85  
1360×768p@60  
1366×768p@60  
1400×1050p@60  
1440×900p@60/75  
1600×900p@60RB  
1600×1200p@60  
1680×1050p@60  
1920×1080i@50/60  
1920×1080p@24/25/30  
1920×1080p@50/60  

8
Supported Resolutions (Hz)
Input Output
10GbE HDMI
1920×1200p@60RB  
2560×1440p@60RB  
2560×1600p@60RB  
2048×1080p@24/25/30  
2048×1080p@50/60  
3840×2160p@24/25/30  
3840×2160p@50/60 (4:2:0)  
3840×2160p@24, HDR10  
3840×2160p@50/60 (4:2:0), HDR10  
3840×2160p@50/60  
4096×2160p@24/25/30  
4096×2160p@50/60 (4:2:0)  
4096×2160p@24, HDR10  
4096×2160p@50/60 (4:2:0), HDR10  
4096×2160p@50/60  
8.3 Audio Specifications
8.3.1 Digital Audio
10GbE Input / HDMI Output
LPCM
Max Channels 8 Channels
Sampling Rate (kHz) 32, 44.1, 48
Bitstream
Supported Formats Standard & High-Denition

9
8.4 Cable Specifications
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Output 15m 10m 5m 3m
Fiber Cable
Multi-mode Fiber (OM3) 300m
Multi-mode Fiber (OM4) 550m
Single-mode Fiber 30km
Bandwidth Category Examples:
1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit colour
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
4K30 (4K UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
4K60 (4K UHD+Video)
- 4K@50/60Hz (4:4:4, 8-bit)
- 4K@50/60Hz (4:2:0, 10-bit HDR)
- Data rates higher than 10.2Gbps

10
9. ACRONYMS
ACRONYM COMPLETE TERM
10GbE 10 Gigabit Ethernet
4K UHD 4K Ultra-High-Denition (10.2Gbps max)
4K UHD+4K Ultra-High-Denition (18Gbps max)
AV Audio/Video
AVoIP Audio/Video over IP
Cat.5e Enhanced Category 5 cable
Cat.6 Category 6 cable
Cat.6A Augmented Category 6 cable
Cat.7 Category 7 cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
EDID Extended Display Identication Data
Gbps Gigabits per second
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
kHz Kilohertz
LAN Local Area Network
LED Light-Emitting Diode
LPCM Linear Pulse-Code Modulation
MHz Megahertz
TMDS Transition-Minimised Dierential Signaling
USB Universal Serial Bus
