CYP PUV-3050RX-UA User manual

PUV-3050RX-UA
UHD+ HDMI Over HDBaseT3 Receiver
with Analogue Audio I/O & USB 2.0
OPERATION MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2021/12/06 Preliminary release

CONTENTS
1. Introduction..................................................1
2. APPLICATIONS .............................................. 1
3. PACKAGE CONTENTS ....................................1
4. SYSTEM REQUIREMENTS..............................1
5. Features.........................................................2
6. Operation Controls and Functions..............3
6.1 Front Panel ............................................................3
6.2 Rear Panel...............................................................4
6.3 IR Cable Pinouts ...................................................5
6.4 Serial Pinout ..........................................................5
6.5 Audio Pinouts........................................................5
7. Connection Diagram ....................................6
8. Specications................................................7
8.1 Technical Specifications ....................................7
8.2 Video Specifications............................................8
8.3 Audio Specifications........................................ 10
8.3.1 Digital Audio ........................................... 10
8.3.2 Analogue Audio..................................... 10
8.4 Cable Specifications ........................................ 11
8.5 HDBaseT Features............................................. 12
9. Acronyms.....................................................13

1
1. INTRODUCTION
This 4K UHD+HDMI over HDBaseT receiver uses HDBaseT 3.0, the newest
generation of HDBaseT technology, and is the perfect solution for
extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video
with HD audio via a single run of Cat.6A/7 cable over distances of up to 40
meters. Multiple control and data signals may also be transmitted along
with the audio and video, including IR, RS-232, and USB 2.0. This receiver
is ideal for use in any video extension scenario, especially when latency-
free, uncompressed, high resolution video is critical, such as medical
installations, live conferences, and education.
When used with its matched transmitter, 2 micro USB host connections
are available (1 on the transmitter, 1 on the receiver) for connecting a
single USB host (such as a laptop or PC) to devices on up to 4 USB 2.0
(Type-A) ports (2 on the transmitter, 2 on the receiver) forming a highly
exible KVM extension conguration.
2. APPLICATIONS
Household entertainment sharing and control
Lecture hall/classroom display and control
Meeting room presentation and control
3. PACKAGE CONTENTS
1× UHD+HDMI over HDBaseT Receiver with USB KVM
2× 3-pin Terminal Block
1× 8-pin Terminal Block
1× Operation Manual
4. SYSTEM REQUIREMENTS
A compatible HDBaseT transmitter with PoH (PSE) support is required.
HDMI receiving equipment such as an HDTV, monitor, or audio
amplifier.
The use of Premium High Speed HDMI cables, and industry standard
Cat.6A or Cat.7 Ethernet cable is highly recommended.

2
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
1 HDMI input, 1 HDMI output, and 1 HDBaseT input
Supports up to 4K UHD+(18Gbps, 4K@60Hz 4:4:4, 8-bit) video input
and output over both HDMI and HDBaseT
Supports Deep Colour input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports CEC bypass/extract
HDBaseT extends video, audio and data over a single Cat.6A/7 cable
and can reach distances up to 40m/131ft
HDBaseT feature support: HD Video and Audio, PoH (PD), Bi-directional
audio (analogue), and Control (bi-directional USB/IR/RS-232 pass-
through)
2 USB 2.0 Type-A device ports and 1 Micro USB host port
Selectable HDMI audio extraction/analogue audio bypass functionality
when paired with a compatible transmitter
Powered directly via PoH from the connected transmitter

3
6. OPERATION CONTROLS AND FUNCTIONS

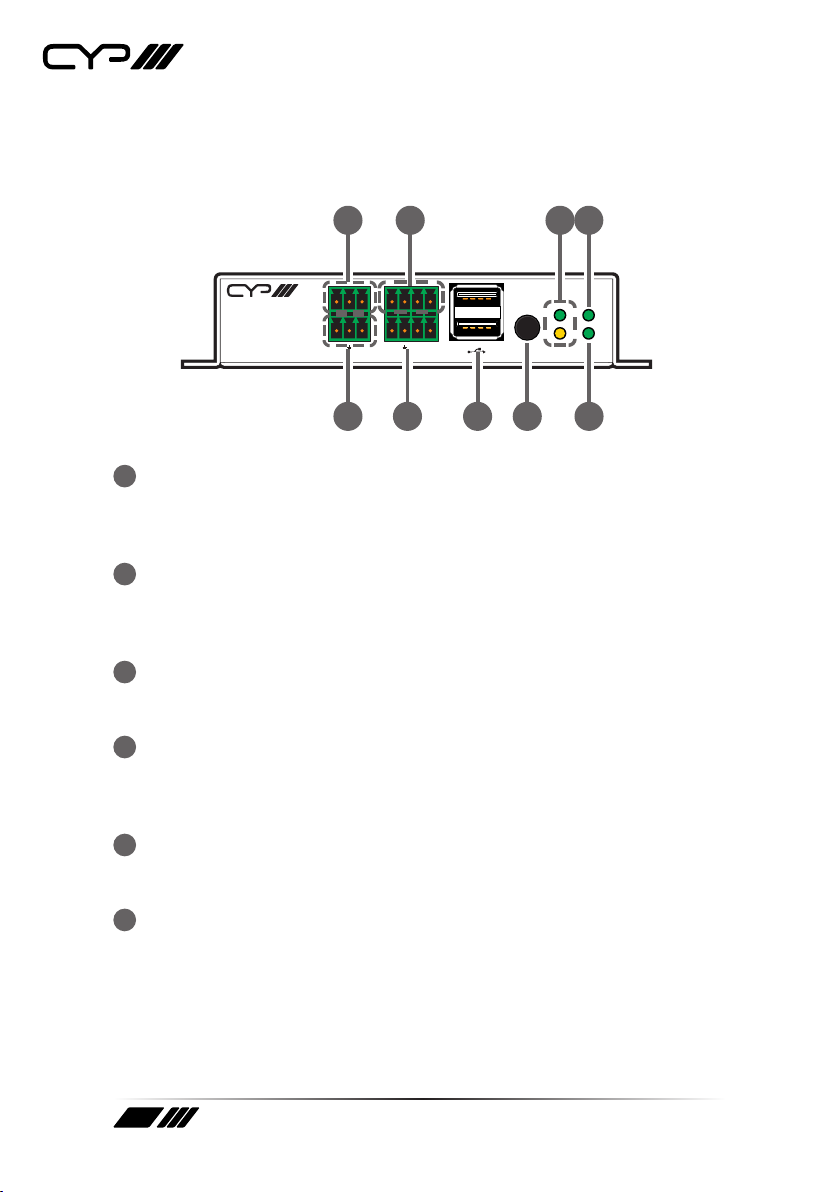

6.1 Front Panel
AUDIO IR
IN
OUT LR R PWRT
AUDIO BYPASS
EXTRACT LINK
2
1 3 7 8
4 5 6 9
PUV-3050RX-UA
1AUDIO IN 3-pin Terminal Block: Connect to the analogue audio
output of a device such as a media player or game console using a
3-pin adapter cable. Audio is sent to the analogue audio output on
the connected compatible receiver.
2AUDIO OUT 3-pin Terminal Block: Connect to powered speakers or
an amplier for analogue audio output using a 3-pin adapter cable.
Audio is sourced from the analogue audio input on the connected
compatible receiver.
3RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial
controllable device with a 4-pin adapter cable for the extension of
RS-232 signals between both ends of the HDBaseT connection.
4IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and
Extender using a 4-pin Y-adapter cable to transmit and receive IR
control signals and extend them to devices connected to the other
end of the HDBaseT connection.
5USB 2.0 Ports (Type-A): Connect directly to standard USB devices
such as a mouse, keyboard, or ash drive to extend their USB
functionality to the currently active Micro-USB host port.
6AUDIO Button: Press this button to toggle the connected
transmitter’s analogue audio stream source between the analogue
audio input (bypass) and the HDMI input’s audio (extract).
Note: HDMI audio extraction is only available with LPCM 2.0 sources. This
feature requires connection to a fully compatible transmitter.

4
7BYPASS & EXTRACT LEDs: These LEDs will illuminate to indicate if the
unit is in audio bypass or extract mode.
8POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
9LINK LED: This LED will illuminate solidly when a live connection with
a compatible transmitter is active.
6.2 Rear Panel
USB HDMI OUTHDMI INCAT6A/7 IN
1 2 3 4
1USB 2.0 Port (Micro-B) & LED: Connect directly to a standard USB
host such as a PC or laptop to extend their USB functionality to
all currently connected USB devices on both ends of the HDBaseT
connection. The LED will illuminate solidly to indicate when the USB
port is active.
Note: If USB hosts are connected to both the transmitter and receiver at
the same time, only the most recently connected host will be active.
2CAT6A/7 IN Port: Connect to a compatible HDBaseT transmitter with
a single Cat.6A/7 cable for extension of all data signals. Power via PoH
will also be supplied to this unit when connected to a compatible PSE
transmitter.
Note: A compatible PoH (PSE) transmitter is REQUIRED to power this
receiver.
3HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
Note: If this HDMI input is connected, its video will automatically be
output over the local HDMI output, overriding any current HDBaseT video
source.
4HDMI OUT port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.

5

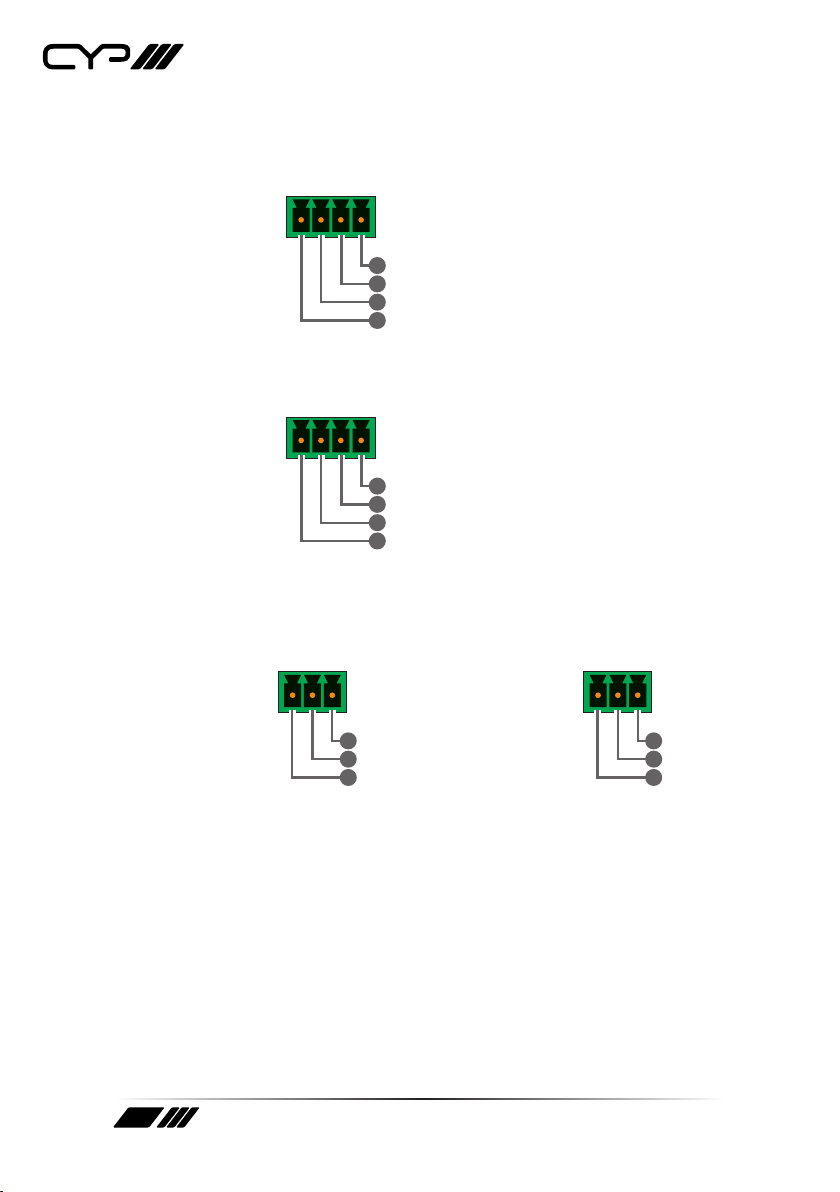

6.3 IR Cable Pinouts
IR Blaster + IR Extender
1
2
3
4
RxD
3.3V
TxD
GND
4-pin
Terminal Block
6.4 Serial Pinout
1
2
3
4
GND
NC
TxD
RxD
4-pin
Terminal Block
6.5 Audio Pinouts
Stereo Audio Input Stereo Audio Output
1
2
3
GND
RIGHT
LEFT
3-pin Terminal Block
1
2
3
GND
RIGHT
LEFT
3-pin Terminal Block

6
7. CONNECTION DIAGRAM
AUDIO IR
IN
OUT LR R PWRT
AUDIO BYPASS
EXTRACT LINK
AUDIO IR
IN
OUT LR R PWRT
AUDIO BYPASS
EXTRACT LINK
DC24V 2.7A USB HDMI OUTHDMI INCAT6A/7 OUT
USB HDMIOUTHDMI INCAT6A/7 IN
TX
RX
7m3m 3m
60°
1.5m
60°
1.5m
60°
7m3m 3m
60°
HDTV
Local Monitor
Serial Controlled
Device
Tower PC
Power
Supply
Cat 6A/7
Cable
IR Input &
Output
IR Input &
Output
HDMI
Output
HDMI
Input
HDMI
Output Keyboard &
Mouse
RS-232
RS-232
USB
USB
USB
USB

7
8. SPECIFICATIONS
8.1 Technical Specications
HDMI Bandwidth 18Gbps
HDBaseT Bandwidth 18Gbps
Input Ports 1×HDBaseT (RJ-45)
1×HDMI (Type-A)
1×Analogue Stereo (3-pin Terminal Block)
Output Ports 1×HDMI (Type-A)
1×Analogue Stereo (3-pin Terminal Block)
Pass-through Ports 1×IR In/Out (4-pin Terminal Block)
1×RS-232 (4-pin Terminal Block)
2×USB 2.0 (Type-A)
Pass-through/Service Port 1×USB 2.0 (Micro-B)
IR Frequency 30 ~ 50kHz
(30 ~ 60kHz under ideal conditions)
Baud Rate Up to 115200
Power Supply PoH (from Tx)
ESD Protection (HBM) ±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions (W×H×D) 128mm×25mm×108mm [Case Only]
128mm×25mm×109.5mm [All Inclusive]
Weight 390g
Chassis Material Metal (Steel)
Chassis Colour Black
Operating Temperature 0˚C – 50˚C/32˚F – 122˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 14W

8
8.2 Video Specications
Supported Resolutions (Hz)
Input Output
HDMI HDBT HDMI
720×400p@70/85 
640×480p@60/72/75/85 
720×480i@60 
720×480p@60 
720×576i@50 
720×576p@50 
800×600p@56/60/72/75/85 
848×480p@60 
1024×768p@60/70/75/85 
1152×864p@75 
1280×720p@50/60 
1280×768p@60/75/85 
1280×800p@60/75/85 
1280×960p@60/85 
1280×1024p@60/75/85 
1360×768p@60 
1366×768p@60 
1400×1050p@60 
1440×900p@60/75 
1600×900p@60RB 
1600×1200p@60 
1680×1050p@60 
1920×1080i@50/60 

9
Supported Resolutions (Hz)
Input Output
HDMI HDBT HDMI
1920×1080p@24/25/30 
1920×1080p@50/60 
1920×1200p@60RB 
2560×1440p@60RB 
2560×1600p@60RB 
2048×1080p@24/25/30 
2048×1080p@50/60 
3840×2160p@24/25/30 
3840×2160p@50/60 (4:2:0) 
3840×2160p@24, HDR10 
3840×2160p@50/60 (4:2:0),
HDR10 
3840×2160p@50/60 
4096×2160p@24/25/30 
4096×2160p@50/60 (4:2:0) 
4096×2160p@24, HDR10 
4096×2160p@50/60 (4:2:0),
HDR10 
4096×2160p@50/60 

10
8.3 Audio Specications
8.3.1 Digital Audio
HDMI & HDBaseT Input / HDMI Output
LPCM
Max Channels 8 Channels
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
Bitstream
Supported Formats Standard & High-Denition
8.3.2 Analogue Audio
Analogue Input
Max Audio Level 2Vrms
Impedance 10kΩ
Type Unbalanced
Analogue Output
Max Audio Level 2Vrms
THD+N < −80dB@0dBFS 1kHz (A-wt)
SNR > 80dB@0dBFS
Frequency Response < ±0.5dB@20Hz~20kHz
Crosstalk < −71dB@10kHz
Impedance 499Ω
Type Unbalanced

11
8.4 Cable Specications
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Input 10m 10m 5m 3m
HDMI Output 10m 10m 5m 3m
Ethernet Cable
Cat.5e/6 40m
Cat.6A/7 40m
Bandwidth Category Examples:
1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit colour
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
4K30 (4K UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
4K60 (4K UHD+ Video)
- 4K@50/60Hz (4:4:4, 8-bit)
- 4K@50/60Hz (4:2:0, 10-bit HDR)
- Data rates higher than 10.2Gbps

12
8.5 HDBaseT Features
HDBaseT Feature Set Receiver
Video & Audio Extension Supported
LAN Extension Unsupported
Send power to Transmitter Unsupported
Accept power from Transmitter Supported (PoH)
IR Extension Supported
RS-232 Extension Supported
USB 2.0 Extension Supported

13
9. ACRONYMS
ACRONYM COMPLETE TERM
4K UHD 4K Ultra-High-Denition (10.2Gbps max)
4K UHD+4K Ultra-High-Denition (18Gbps max)
AVoIP Audio/Video over IP
Cat.5e Enhanced Category 5 cable
Cat.6 Category 6 cable
Cat.6A Augmented Category 6 cable
Cat.7 Category 7 cable
DVI Digital Visual Interface
EDID Extended Display Identication Data
GbE Gigabit Ethernet
Gbps Gigabits per second
HDBT HDBaseT
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
IR Infrared
kHz Kilohertz
LED Light-Emitting Diode
LPCM Linear Pulse-Code Modulation
MHz Megahertz
PD Powered Device
PoH Power over HDBaseT
PSE Power Sourcing Equipment
TMDS Transition-Minimized Dierential Signaling

14
ACRONYM COMPLETE TERM
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced
Blanking)
XGA Extended Graphics Array

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue,
Shepperton, Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
RDV1
