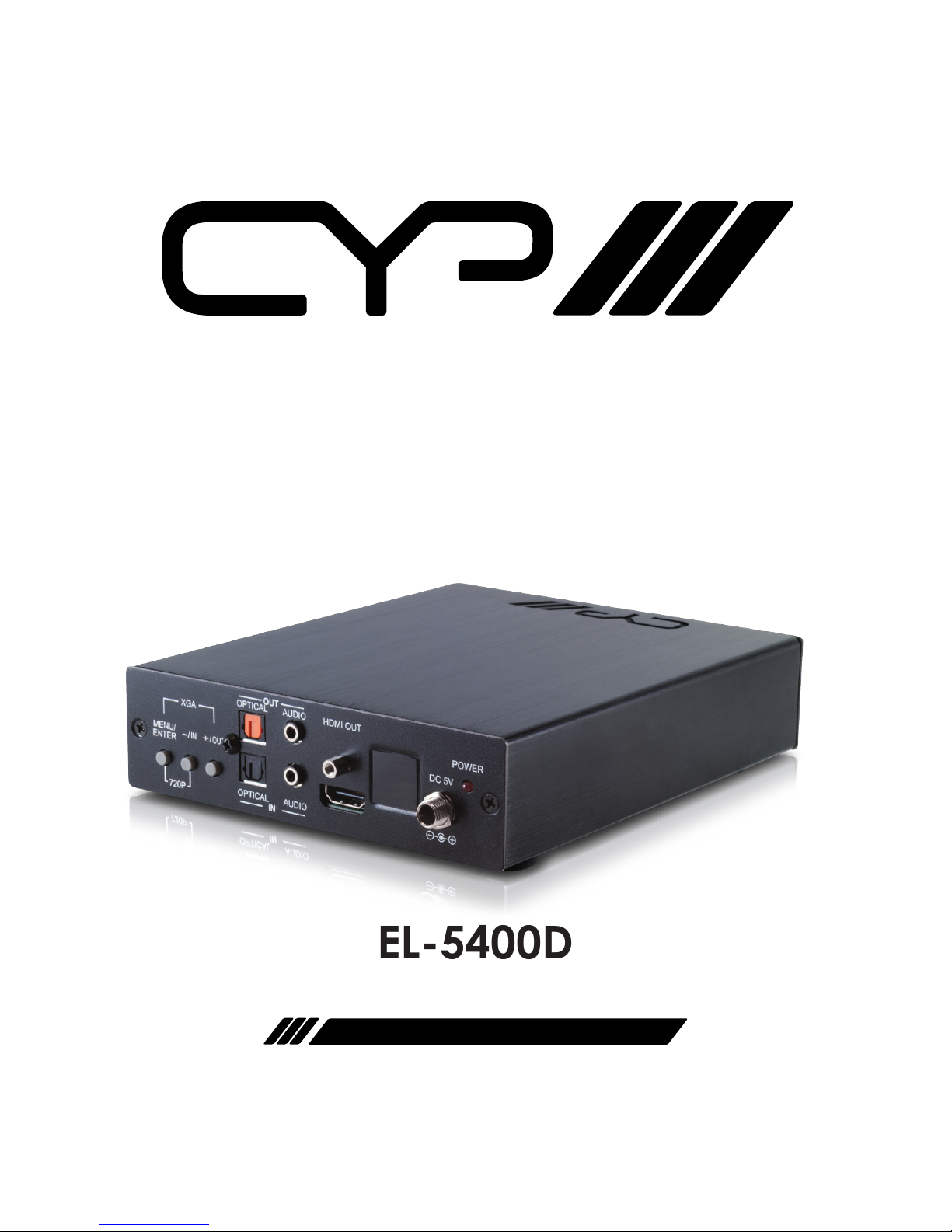

CYP EL-5400D User manual

EL-5400D
DVI/VGA/Display Port Presentation Switch
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 16/12/2013 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel...................................................10
7. OSD Menu and Function List ............. 11
8. Remote Control................................... 12
8.1 RS-232 Protocols......................................13
8.2 RS-232 Commands..................................14
9. Connection and Installation .............. 16
10. Specications.................................... 17
10.1 PC, HDMI, DP Input Timing................18
10.2 Output Resolution ................................20
11. Acronyms .......................................... 21

6
1. INTRODUCTION
The EL-5400D Presentation Switch with integral scaler is designed to
be used with Dual-link DVI, Mini Display-Port, and PC/Component
sources allowing users to switch and scale these sources to it's HDMI
output. Digital Optical and Analogue Stereo Audio inputs and outputs
can be managed for bi-directional conversion, extraction, and insertion
from the individual ports for full audio embedding and de-embedding
functionality. Control is via the IR remote, or RS-232 protocol.
2. APPLICATIONS
Scale Dual-Link DVI, Mini-DisplayPort and PC/Component inputs to
HDMI output
3. PACKAGE CONTENTS
HD High Resolution Scaler
VGA to 3RCA converter cable
5V/2.6A DC power adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input Dual-Link DVI/Mini-DisplayPort/PC sources and output with
HDMI display.

7
5. FEATURES
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Integrate and switch DVI, VGA, and Mini Display-Port sources to a
single HDMI output
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Audio support: Dolby Digital, Dolby DTS, Dolby Digital Plus, Dolby
True HD, DTS-HD Master Audio, LPCM Multi-channel, LPCM Stereo,
Analogue Stereo
Resolution Support: Component up to 1080p@60Hz / Dual-Link DVI &
Mini Display-Port up to 2560×1600@60Hz (Reduced Blanking) / PC up
to 1920×1200@60/75Hz
Supports component input when connected VGA to 3-RCA adaptor
(not supplied)

8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
XGA
720P
ENTER
MENU/
OPTICAL
OUT
IN
AUDIO HDMI OUT
DC 5V
POWER
OPTICAL AUDIO
1
6 7 8 9 10
2 3 4 5
1MENU/ENTER
Press this button to ENTER the OSD menu. Press again to conrm the
selection. Press it together with - button to switch output to 720p or
with + button to switch output to XGA instantly.
2-/IN
a.“-“: When in OSD page, press this button repeatedly to move
down through the OSD selection.
b. “IN”: Press this button for quick input port selections.
3+/OUT
a.“+”: When in OSD page, press this button repeatedly to move up
through the OSD selection.
b. “OUT”: Press this button for quick output resolution selections.
4OPTICAL OUT
This slot is to connect to amplier with OPTICAL cable and from
amplier to speakers or directly to active speaker with OPTICAL cable.
5AUDIO L/R OUT
This slot is to connect to speaker or amplier with 3.5mm audio phone
jack cable.

9
6OPTICAL IN
This slot is to connect from the input OPTICAL audio source
equipment such as Blu-ray or DVD player.
7AUDIO L/R IN
This slot is to connect from the L/R input audio source equipment
such as PC/laptop.
8HDMI OUT
This slot is to connect to HDMI display with HDMI cable.
9IR sensor
10 DC 5V & POWER
Plug the 5V DC power supply into the unit and connect the adaptor
to AC wall outlet. Once the power supply is connected the power LED
will illuminate

10

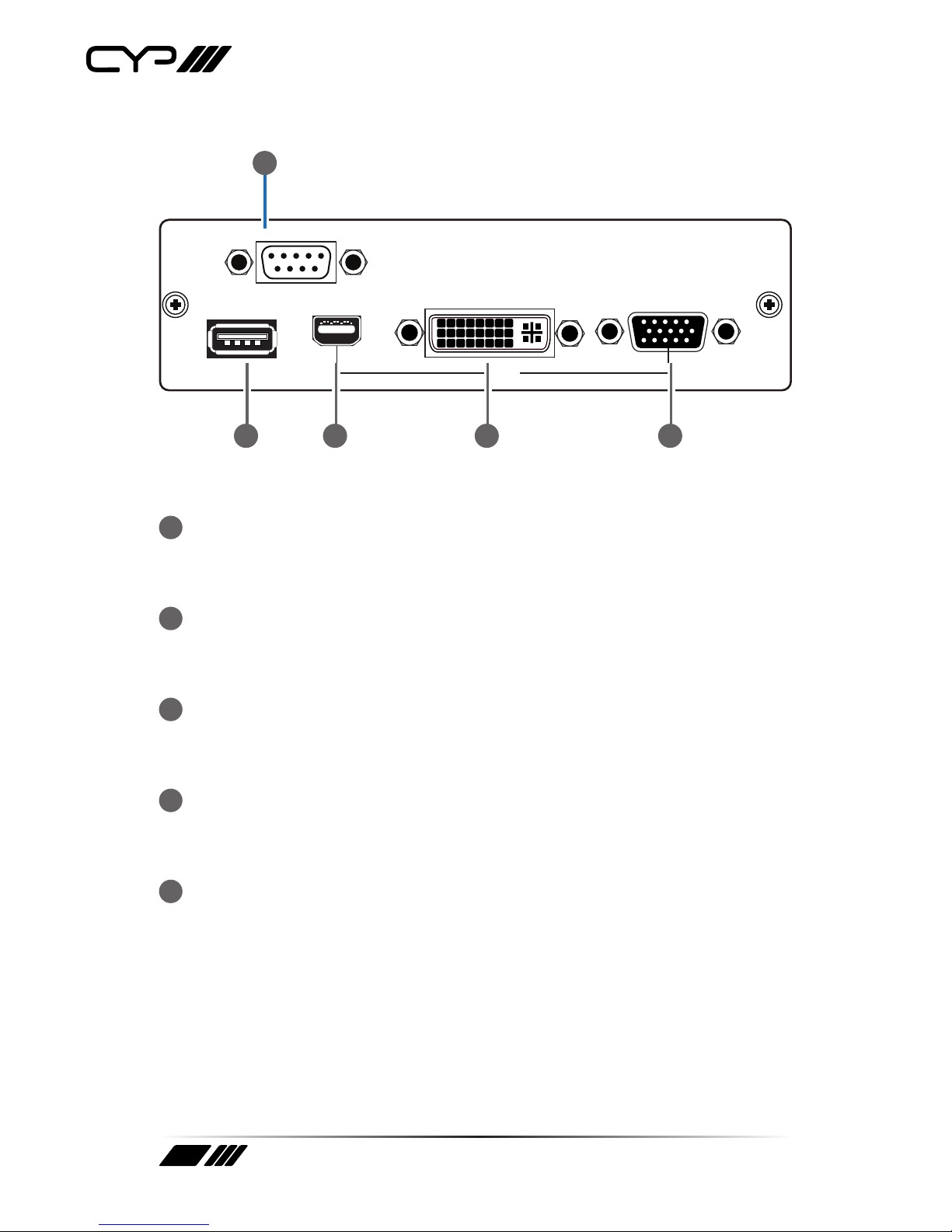

6.2 Rear Panel
RS232
SERVICEMDP
Dual-Link DVI PC/COMP
IN
1
2 3 4 5
1RS232
This slot is to connect with D-Sub 9pin cable from the PC/NB device
for RS-232 control.
2SERVICE
This slot is to connect with USB cable for manufacturers’ rmware
update only.
3Mini-DisplayPort IN
This slot is to connect with MiniDisplayPort source output for
DisplayPort signal sending.
4Dual-Link DVI IN
This slot is to connect with Dual-Link DVI sources output for Dual-Link
DVI signal sending.
5PC/COMP IN
This slot is to connect with PC/NB or DVD/Set-Top Box source
equipment with D-Sub 15-pin cable for PC source signal input or with
D-Sub 15-pin to 3 RCA adaptor for component signal input.

11
7. OSD MENU AND FUNCTION LIST
Main Menu 2nd Layer
Input Video PC
COMP
DVI
MDP
Exit
Input Audio AUDIO
Optical
MDP
Mute
Exit
Output Resolution 720x480P
1280x720P
1920x1080P
640x480
800x600
1024x768
1280x1024
1600x1200
1920x1200
1280x800
By Native
Exit
Misc. Setup EDID Mode Internal / External
/ Exit
Info. OSD Mode Off / On / Exit
About EL-5400D FW Ver.
Factory Reset System Reset
Exit
Exit

12

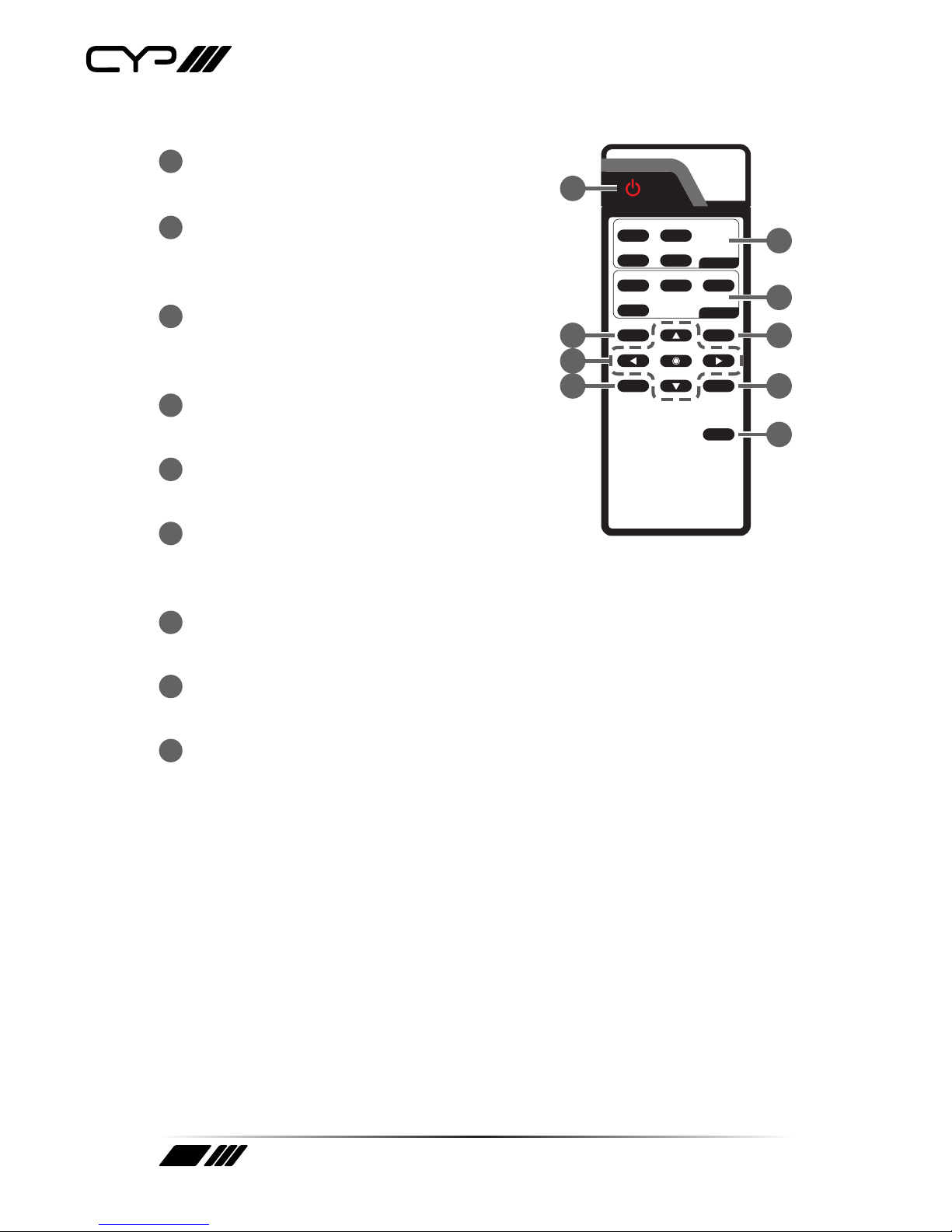

8. REMOTE CONTROL
1Power
Press to turn ON/OFF the system.
2VIDEO IN
Press to select DVI/MDP/PC/Component
input source.
3AUDIO IN
Press to select AUDIO/OPTICAL/MDP
input audio or MUTE the system.
4EXIT
Press the EXIT the OSD selection.
5MENU
Press this button to ENTER the OSD menu.
6ENTER Q
Press ENTER to conrm the selection or press the arrow buttons to
select OSD selection.
7INFO
To show input and output resolution information.
8OUTPUT
Press to show the output resolution table.
9Native
Press to switch to Native resolution.
MDP
MENU
OUTPUTINFO
DVI
PC
AUDIO
MUTE
EXIT
NATIVE
MDP
COMP
OPTICAL
ENTER
CR-123
AUDIO IN
VIDEO IN
2
4
1
7
6
3
5
8
9

13
8.1 RS-232 Protocols
RS-232 modem cable.
Pin denition of modem cable
EL-5400D Remote Controller
PIN Denition PIN Denition
1 NC 1 NC
2TxD 2 RxD
3 RxD →3TxD
4 NC 4 NC
5 GND ←5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1 bit
Flow Control: None

14
8.2 RS-232 Commands
User Command Code Description
POWER ?Power Status
POWER ON Power On
POWER OFF Power O
VIDEO ?Video Input Source
DVI Video Input in DVI
MDP Video Input in Mini-DisplayPort
PC Video Input in PC
COMP Video Input in Component
AUDIO ?Audio Input Source
AUDIO Audio Input in AUDIO
OPTICAL Audio Input in OPTICAL
MDPA Audio Input in MDP
MUTE ?Mute Status
MUTE ON Mute On
MUTE OFF Mute O
INFO ?Info.OSD Status
INFO ON Info.OSD On
INFO OFF Info.OSD O
INFO DISPLAY Info.OSD On/O
OUTPUT ?Output Status
480P Output in 480P
720P Output in 720P
1080P Output in 1080P
VGA Output in VGA(640x480)

15
User Command Code Description
SVGA Output in SVGA(800x600)
XGA Output in XGA(1024x768)
SXGA Output in SXGA(1280x1024)
UXGA Output in UXGA(1600x1200)
WUXGA Output in WUXGA(1920x1200)
WXGA Output in WXGA(1280x800)
NATIVE Output by Native
EDID ?EDID Status
EDID INT EDID By Internal
EDID EXT EDID By External
FEEDBACK ?Key Feedback Status
FEEDBACK ON Key Feedback Enable
FEEDBACK OFF Key Feedback Disable
STATE ?Video Input Signal Status
VERSION ?Firmware Version
DEFAULT Reset to Factory Default
About ?About EL-5400D
Note: Any commands will not be executed unless followed by a carriage
return. Commands are not case-sensitive.

16

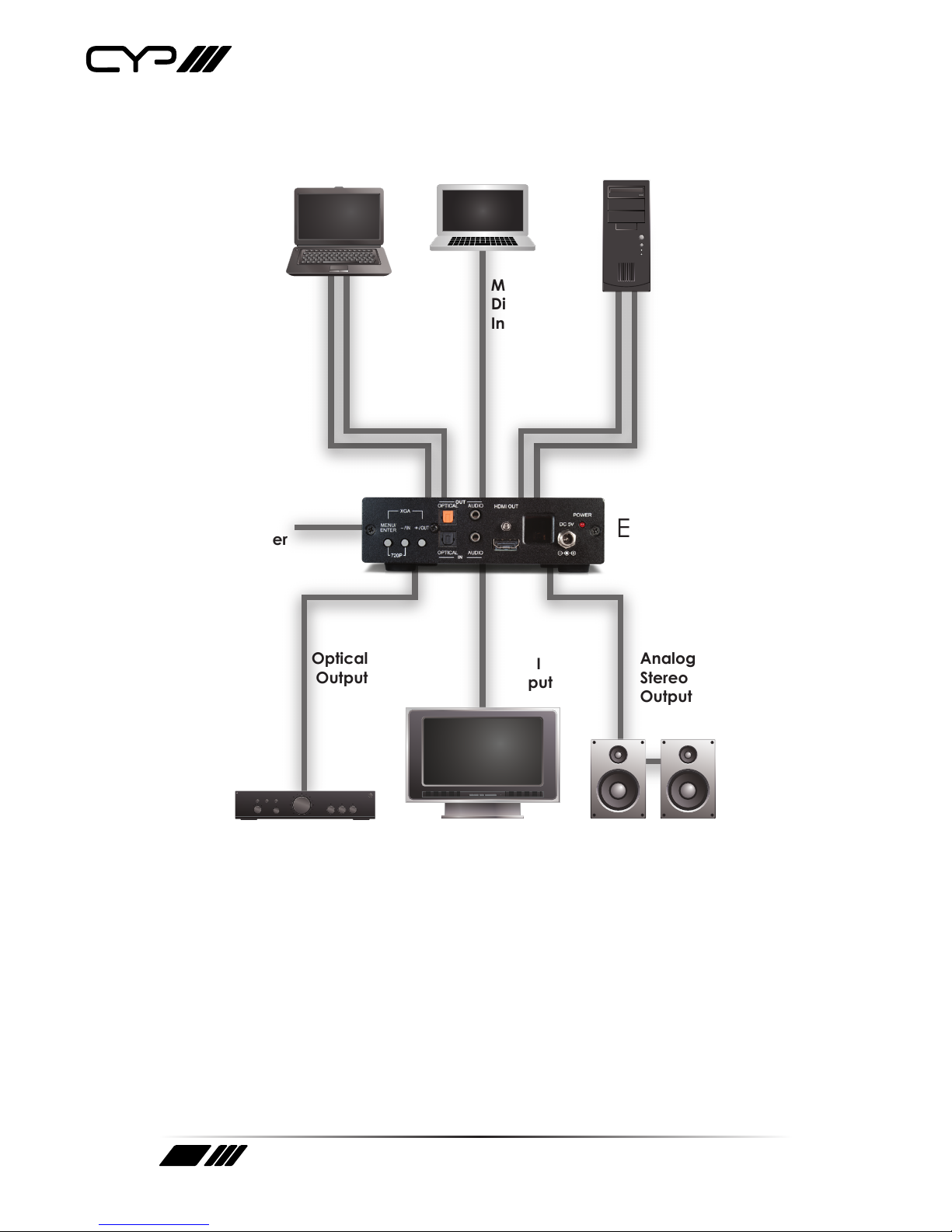

9. CONNECTION AND INSTALLATION
EL-5400D
LaptopLaptop PC
VGA
Input
DVI
Input
HDMI
Output
Optical
Output
Analogue
Stereo
Output
Analogue
Stereo
Input
Display
Mini
DisplayPort
Input
RS232
Controller
Optical
Input
Amplifier Active Speakers

17
10. SPECIFICATIONS
DP Input Frequency
Bandwidth
2.7 Gbps & 1.62 Gbps/Lane
Input Ports 1×Dual-Link DVI (Female type),
1×Mini-DisplayPort,
1×PC/COMP
Audio Input Ports 1×L/R, 1xOptical
Output Ports 1×HDMI, 1×L/R, 1×Optical
Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL
certied)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions 141 mm (W)×179 mm (D)×38 mm (H)
Weight 700 g
Chassis Material Aluminum
Chassis Colour Black
Operating Temperature 0 ˚C ~ 40 ˚C / 32 ˚F ~ 104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 9W

18
10.1 PC, HDMI, DP Input Timing
Input Resolution PC DVI MDP CVBS
640×350@85    ×
640×400@85    ×
720×400@85    ×
VGA640×480@60/72/75/85    ×
SVGA800×600@56/60/72/75/85/120R    ×
848×480@60Hz    ×
XGA1024×768@43i/60/75/85/120R    ×
1280×720@60    ×
1280×768@60R/60/75/85/120R    ×
1280×800@60R/60/75/85/120R    ×
1280×960@60/85    ×
1280×1024@60/75/85    ×
1360×768@60/120R    ×
1366×768@60/60R    ×
SXGA+1400×1050@60R/60/75    ×
WXGA+1440×900@60R/60/75/85    ×
1600×900@60R    ×
UXGA1600×1200@60    ×
WSXGA1680×1050@60/60R    ×
1792×1344@60/75 ×  ×
1856×1392@60/75 ×× ×
1920×1080@60    ×

19
Input Resolution PC DVI MDP CVBS
1920×1200@60R/60

@60R
only
  ×
1920×1440@60 ×  ×
720×480i/p ×××
720×576i/p ×××
720i/p@24/25/30/50/60 ×××
1080i@50/60 ×××
1080p@24/30/50/60 ×××
2048×1080@50/60    ×
2048×1152@60R ×  ×
2560×1600@60R ×  ×

20
10.2 Output Resolution
Output Resolution HDMI
640*480 
800*600 
1024*768 
1280*1024 
1600*1200 
1920*1200@60 
1280*800 
720*480P 
1280*720P(Default) 
1920*1080P 
Note: When output timing is set to 'By Native' yet the timing does not match
the built-in support timing,output timing will set to default at 1280×720p
automatically.
