EL-8100V
Advanced 4K Multi-Format to HDMI/HDBaseT Presentation
Switch (with HDMI, USB-C and VGA inputs)
OPERATION MANUAL
®

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2020 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2021/04/20 Preliminary release

CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents ......................................... 2
4. System Requirements ..................................2
5. Features.........................................................3
6. Operation Controls and Functions ..............4
6.1 Front Panel.............................................................4
6.2 Rear Panel...............................................................5

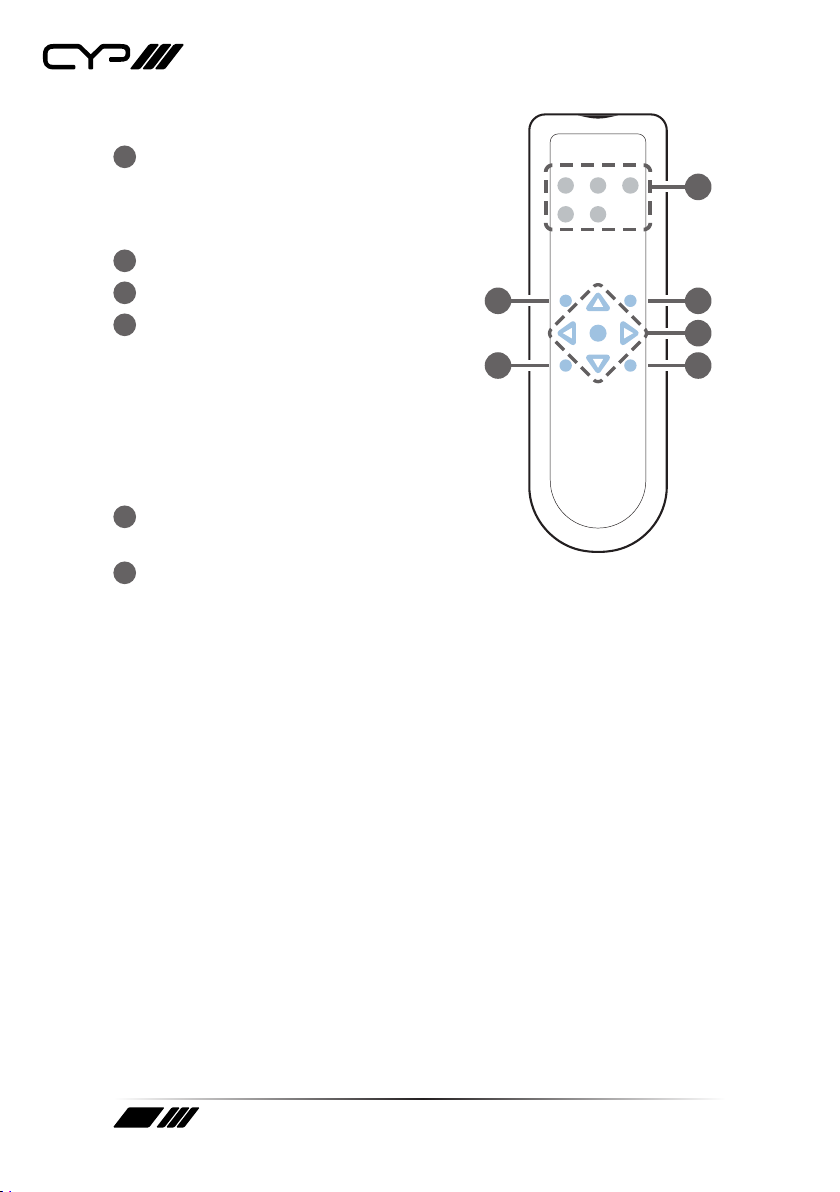

6.3 Remote Control....................................................7

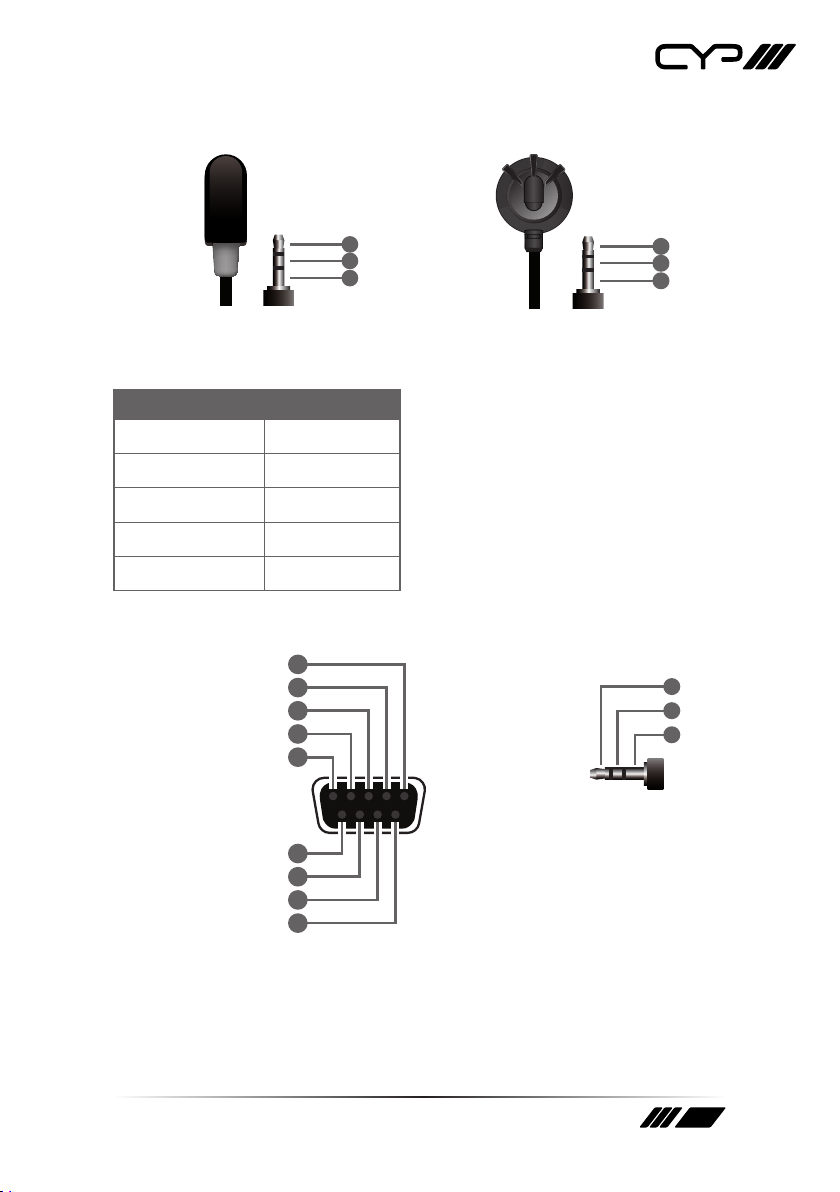

6.4 IR Cable Pinouts ...................................................8
6.5 RS-232 Pinout and Defaults.............................8
6.6 OSD Menu..............................................................9
6.7 WebGUI Control ................................................ 26
6.7.1 Status and Video Tab............................28
6.7.2 Audio and System Tab .........................32
6.8 Telnet Control..................................................... 37
6.9 Serial and Telnet Commands........................ 37
7. Connection Diagram ..................................63
8. Specications..............................................64
8.1 Technical Specifications ................................. 64
8.2 Video Specifications......................................... 66
8.3 Audio Specifications........................................ 68
8.3.1 Digital Audio ...........................................68
8.3.2 Analogue Audio.....................................69
9. Acronyms.....................................................72

1
1. INTRODUCTION
This 5 by 2 multi-format scaling switcher provides HDMI, USB-C,
HDBaseT, and VGA inputs which can be freely selected for output at a
scaled resolution of the user’s choosing over the mirrored HDMI and
HDBaseT outputs. The HDMI and USB-C ports support resolutions up
to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic
colour subsampling of 4K50/60(4:4:4) sources to 4K50/60(4:2:0). The VGA
inputs support resolutions up to WUXGA. The HDBaseT output provides
a great solution to extend your audio and video up to 100 meters over a
single run of Cat.6A cable as well as providing PoH power to compatible
HDBaseT transmitters and receivers.
This unit also includes multiple analogue stereo audio inputs and a
microphone input (with support for optional 48V phantom power) along
with an analogue stereo output to provide a range of audio routing and
mixing flexibility. The included audio DSP engine also provides auto-
gain functionality, allowing for the mic source to be mixed with the audio
from one of the video sources while reducing the background audio level
in order to enhance the primary audio source. The ability to switch back
and forth between mixed and non-mixed audio greatly simplifies the
presentation experience.
A trigger input interface is also provided to allow the easy addition of a
remote control keypad, or other trigger-supporting products, which can
be installed within a podium or within a table in a conference room or
classroom. This interface can allow the user to activate functions with
the simple press of a button. Standard control is available via front panel
buttons with an OSD, WebGUI, Telnet, and RS-232 making it exceptionally
versatile.
2. APPLICATIONS
Analogue and digital source integration
Upscaling low resolution video for high-definition displays
Conference centers
Lecture halls
Schools and universities

2
3. PACKAGE CONTENTS
1× HDMI/USB-C/VGA to HDMI/HDBaseT Scaler
1× 24V/5A DC Power Adapter
1× Remote Control (CR-192)
1× IR Blaster Cable
1× IR Extender Cable
1× 3.5mm to 9-pin D-sub Male Cable
1× 6-pin Terminal Block
1× Shockproof Feet (Set of 4)
1× Operation Manual
4. SYSTEM REQUIREMENTS
HDMI/USB-C source equipment such as media players, video game
consoles, or set-top boxes.
VGA source equipment such as PCs, laptops, or set-top boxes.
HDMI receiving equipment such as an HDTV, monitor, or audio
amplifier.
Analogue audio receiving equipment such as headphones, an audio
amplifier, or powered speakers.
A compatible HDBaseT receiver with PoH support is recommended.
The use of Premium High Speed HDMI cables, and industry standard
Cat.6, Cat.6A, or Cat.7 Ethernet cable is highly recommended.

3
5. FEATURES
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
5 video inputs (2×HDMI, 1×USB-C, 2×VGA)
2 mirrored video outputs (1×HDMI, 1×HDBaseT)
Supports switching and scaling of all AV inputs for display over the
mirrored HDMI and HDBaseT outputs
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video
input (HDMI, USB-C) and output (HDMI)
VGA input supports resolutions up to 1080p60/WUXGA (RB)
HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit)
or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) output will be
automatically colour space converted to fit within the available
bandwidth
HDBaseT output extends video, audio, and data over a single
Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when
using Cat.6a/7
HDBaseT feature support: HD Video & Audio, 100BaseT Ethernet,
PoH(PSE), and Control (Bi-directional IR/RS-232 pass-through)
Supports pass-through of LPCM 2.0 digital audio
Supports embedding any analogue audio source with any video
source
Audio mixer function allows the mixing of audio from any LPCM 2.0
audio source with the microphone input with auto-gain functionality
Trigger input block supports direct input selection
IR remote control provides discrete input source selection
USB Type-C port provides up to 60W of power to connected devices
Provides PoH (PSE) from the HDBaseT output to power a connected
HDBaseT (PD) receiver (compatible receivers only)
Comprehensive EDID and HDCP management
Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI,
and triggers

4
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
LOCK
+
-
ENTER
MENU
SELECT
HDMI
1
USB-CHDMI
2
1
VGA
2
VGA LOCK
EL-8100V
81 23 4 5 6 7
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2IR Window: Accepts IR signals from the included IR remote for control
of this unit only.
3ENTER Button: Press to confirm a selection within the OSD or to go
deeper into a menu item.
4MENU Button: Press to enter the OSD menu, or to back out from
menu items.
5-/+ (MINUS/PLUS) Buttons: Press to move up and down or adjust
selections within OSD menus.
Note: Pressing “Menu” and “+” together will reset the output resolution
to XGA@60Hz (1024×768). Pressing “Menu” and “-” together will reset the
output resolution to 1080p@60Hz.
6SELECT Button: Press this button to sequentially switch through the
available inputs.
7LOCK Button: Press and hold for 3 seconds to lock all button functions
on the front panel. Press and hold for 3 seconds again to release the
lock function. The "LOCK" LED will be lit when the front panel is in the
locked state.
8Input & Status LEDs: These LEDs indicate the currently selected
source as well as the current front panel lock state.

5
6.2 Rear Panel
VGA 2VGA 1LINE INMIC INSERVICE IR OUTIR IN RS232
BYPASS RS-232
LINE OUT
CAT5e/6/7 OUTHDMI OUT
HDMI 2 INHDMI 1 IN
INPUT CONTROL
C12345
LAN
OFF
ON
PHANTOM
VGA 2 INVGA 1 IN DC 24V
USB-C IN
USB-C IN
AUDIO IN
13
15
12
3 4 5 6 7 8 9 10 11 12 14
1HDMI 1~2 IN Ports: Connect to HDMI source equipment such as
media players, game consoles, or set-top boxes. DVI sources are
supported with the use of an HDMI to DVI adapter.
USB-C IN Port: Connect to USB Type-C source equipment such as a PC
or laptop. Can provide up to 60W of power to the connected device.
Note: Not all devices with USB Type-C ports can support video output.
Please verify that the intended device supports video output from the USB
Type-C port before connecting it.
VGA 1~2 IN Ports: Connect to VGA source equipment such as a PC or
laptop. YUV sources, such as DVD players, are also supported with the
use of a 15-pin to 3-RCA adapter.
2HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for
digital video and audio output.
CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT receiver with
a single Cat.5e/6/7 cable for transmission of all data signals. PoH will
also be supplied to a connected compatible PD receiver.
3SERVICE Port: This slot is reserved for firmware update use only.
4LINE OUT Port: Connect to powered speakers or an amplifier for
stereo analogue audio output.
5MIC IN Port: Connect to a standard microphone using a 6.35mm plug.
Phantom power mics are supported.
6PHANTOM/OFF/ON Switch: Set the switch to“ON”for standard
condenser mics (5V) or “PHANTOM” for professional (48V) phantom
power mics. Set the switch to “OFF” for mics that don’t require
additional power.

6
7LINE IN Port: Connect to the stereo analogue output of a device such
as a CD player or PC.
8VGA 1~2 Ports: Connect to the stereo analogue output of the device
connected to the associated VGA input port.
9IR OUT Port: Connect to an IR Blaster to transmit IR signals from the
other end of the HDBaseT connection to devices within direct line-of-
sight of the IR Blaster.
10 IR IN Port: Connect to an IR Extender to receive local IR control
signals and extend them to devices connected to the other end of
the HDBaseT connection. Ensure that the remote being used is within
direct line-of-sight of the IR Extender.
11 RS-232 BYPASS Port: Connect to a PC, laptop, or serial controllable
device with a 3.5mm adapter cable for the extension of RS-232 signals
between both ends of the HDBaseT connection.
12 INPUT CONTROL 6-pin Terminal Block: This terminal block is used
for direct source input selection. Short the ground pin (marked as
"C") with any one of the following 5 pins to make individual source
selections.
Note: The pin assignments can be changed within the WebGUI. By default,
the pins are assigned as follows:
Default Trigger Assignment
Pin 1 HDMI 1 IN
Pin 2 HDMI 2 IN
Pin 3 USB-C IN
Pin 4 VGA 1 IN
Pin 5 VGA 2 IN
13 RS-232 Port: Connect directly to a PC, laptop, or other serial control
device to send RS-232 commands to control the unit.
14 LAN Port: Connect directly, or through a network switch, to your
PC/laptop to control the unit via Telnet/WebGUI and to extend the
network across the HDBaseT connection.
15 DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.

7
6.3 Remote Control
1HDMI 1~2, USB-C & VGA 1~2:
Press any of these buttons to switch
immediately to the corresponding
input.
2MENU: Access the OSD menu.
3EXIT: Exit the OSD menu.
4▲/▼: Navigate up/down within the
OSD menu items.
◄/► & VOL -/+: Adjust the selected
item’s parameters (+) or (-) within the
OSD menu or adjust output volume.
OK: Confirm your selections within the
OSD menu.
5AUTO ADJUST: Automatically adjust
and center analogue PC sources.
6RESET: Return to factory default settings.
CR-165
HDMI2 DP
MENU
OK
EXIT
PC2PC1
HDMI1
RESETAUTO
ADJUST
+
VOL
-
1
32
4
65

8
6.4 IR Cable Pinouts
IR Blaster
Cable
1
2
3
Infrared
Power
Not Used
IR Extender
Cable
1
2
3
Infrared
Power
Ground
6.5 RS-232 Pinout and Defaults
Serial Port Default Settings
Baud Rate 19200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
RS-232 (Control) RS-232 (Bypass)
1
2
3
4
5
8
7
6
9
N/A
TxD
RxD
N/A
GND
N/A
N/A
N/A
N/A
DE-9 Female Port
3.5mm to DE-9
Adapter Cable
RxD
TxD
GND
1
2
3

9
6.6 OSD Menu
All functions of this unit can be controlled by using the OSD (On Screen
Display) which is activated by pressing the MENU button on the front of
the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the
OSD menu. Press the MENU button to back out from any menu item and
then press it again to close the menu.
MAIN MENU
Video
Audio
OSD
Ethernet
EDID
System
Factory
Information
The individual functions of the OSD will be introduced in the following
section. Items marked in BOLD are the factory default settings.

10
VIDEO
2ND LEVEL 3RD LEVEL 4TH LEVEL
Output Routing HDMI 1
HDMI 2
USB-C
VGA 1
VGA 2
Output Resolution NATIVE HDMI
Native HDBT
640×480 60
800×600 60
1024×768 60
1280×768 60
1280×800 60
1280×1024 60
1360×768 60
1400×1050 60
1440×900 60
1600×1200 60
1680×1050 60
1920×1200 60 RB
2560×1600 60 RB
1920×1080 60
1280×720 60
2048×1080 50
2040×1080 60

11
VIDEO
2ND LEVEL 3RD LEVEL 4TH LEVEL
2560×1440 60 RB
720×480p 60
1280×720p 60
1920×1080p 60
720×576p 50
1280×720p 50
1920×1080p 50
1920×1080p 24
1920×1080p 25
1920×1080p 30
2560×1080p 50
2560×1080p 60
3840×2160p 24
3840×2160p 25
3840×2160p 30
3840×2160p 50
3840×2160p 60
4096×2160p 24
4096×2160p 25
4096×2160p 30
4096×2160p 50
4096×2160p 60

12
VIDEO
2ND LEVEL 3RD LEVEL 4TH LEVEL
Aspect FULL
Best Fit
Pan Scan
Letterbox
Under 2
Under 1
Follow In
Over Scan
No Signal Colour BLACK
White
Blue
Red
Green
Blank OFF
On
Freeze OFF
On
Auto Setting Auto Sync O OFF
30s
60s
3 min
5 min
10 min
Auto Video Routing AUTO SWTICH
O

13
VIDEO
2ND LEVEL 3RD LEVEL 4TH LEVEL
HDCP Setting HDMI 1 HDCP Support O
Refer to Source
REFER TO DISPLAY
HDMI 2 HDCP Support O
Refer to Source
REFER TO DISPLAY
USB-C HDCP Support O
Refer To Source
REFER TO DISPLAY
PC Setting PC Auto Setup Execute
PC H Position 0~250
PC V Position 0~250
PC Phase 0~250
PC Clock 0~255
PC Reset
1) Output Routing: Select the video input to route to both outputs.
2) Output Resolution: Select the output resolution to use. Selecting
a “Native”resolution option will make the unit automatically select
an output resolution based on the detected EDID of the connected
display.
Note: 4K@50/60Hz (4:4:4, 8-bit) output resolutions will be automatically
colour space converted to 4K@50/60 (4:2:0, 8-bit) when output over
HDBaseT.

14
3) Aspect: Select the aspect ratio to use when outputting the source.
“Full” stretches the source to fill the output resolution, regardless
of the original aspect ratio, while“Best Fit” will always attempt to
retain the original source’s correct aspect ratio by adding black bars
if necessary.“Follow In” centers the source on the screen, without any
scaling (1:1 pixel reproduction).
4) No Signal Colour: select the full screen colour to display when there
is no signal.
5) Blank: Enable or disable blanking the video output.
6) Freeze: Enable or disable freezing the video output.
7) Auto Setting:
Auto Sync O: Sets the amount of time to continue outputting
sync with the “no signal colour” if there is no live source and no
operations have been executed on the unit. Setting this to“OFF”
forces the unit to always output sync.
Auto Video Routing: Enable or disable automatically switching to
any newly detected source.
8) HDCP Setting: Provides control over the HDCP behaviour of each
input.
9) PC SETTING: This menu is only available when a VGA source is active.
PC Auto: Provides a way to manually activate the auto detection of
the VGA source’s signal parameters. Press “Enter” to activate.
Note: For best results, a VGA source with a bright image that extends to
all 4 edges of the screen should be displayed when this is activated.
PC H/V Position: Set the horizontal and vertical position of the
current VGA input’s signal.
PC Phase: Set the PC phase setting for the current VGA input.
PC Clock: Set the PC clock setting for the current VGA input.
PC Reset: Reset all PC picture settings back to their factory defaults.

15
2ND LEVEL 3RD LEVEL
Colour Gain R 0~1023 (512)
Colour Gain G 0~1023 (512)
Colour Gain B 0~1023 (512)
Colour Oset R 0~1023 (512)
Colour Oset G 0~1023 (512)
Colour Oset B 0~1023 (512)
Brightness 0~60 (30)
Contrast 0~60 (30)
Hue 0~60 (30)
Saturation 0~60 (30)
Sharpness 0~63 (0)
NR OFF
Low
Middle
High
Auto
Reset Picture
1) Colour Gain R/G/B: Set the red, green, and blue colour gain level of
the scaled output.
2) Colour Oset R/G/B: Set the red, green, and blue colour offset level
of the scaled output.
3) Brightness/Contrast: Set the overall brightness and contrast of the
scaled output image.
4) Hue: Set the hue shift of the scaled output image.
5) Saturation: Set the colour saturation level of the scaled output image.
6) Sharpness: Set the amount of sharpness processing to apply to the
scaled output image.
