CYP PUV-3150TR-UEAO User manual

PUV-3150TR-UEAO
UHD+ HDMI over HDBaseT 3.0 Transceiver with USB,
KVM, LAN with Analogue & Digital Audio Pathways
OPERATION MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
v1.00 2021/04/07 Preliminary release

CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents .........................................2
3.1 Single Unit..............................................................2
3.2 Dual Unit Set .........................................................2
4. System Requirements ..................................2
5. Features.........................................................3
6. Operation Controls and Functions..............4
6.1 Front Panel.............................................................4
6.2 Rear Panel...............................................................6
6.3 IR Cable Pinouts ...................................................7
6.4 RS-232 Pinout........................................................7
7. Connection Diagram ....................................8
8. Specications................................................9
8.1 Technical Specications ....................................9
8.2 Video Specications......................................... 11
8.3 Audio Specications........................................ 13
8.3.1 Digital Audio ........................................... 13
8.3.2 Analogue Audio..................................... 14
8.4 Cable Specications ........................................ 15
8.5 HDBaseT Features............................................. 16
9. Acronyms.....................................................17

1
1. INTRODUCTION
This 4K UHD+HDMI over HDBaseT Transceiver uses HDBaseT 3.0, the
newest generation of HDBaseT technology, and is the perfect solution for
extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video
with HD audio as well as Ethernet and control via a single run of Cat.6A/7
cable over distances of up to 100 meters. This transceiver unit can be
congured to function as either a transmitter or a receiver, enhancing the
exibility of any installation. Multiple control and data signals may also be
transmitted along with the audio and video, including bi-directional IR,
RS-232, USB 2.0, and Gigabit Ethernet.
When two of these transceivers are used together, 2 USB 2.0 host (Type-B)
connections are available (1 on the transmitter, 1 on the receiver) which
will connect the host to devices on up to 4 USB 2.0 (Type-A) ports (2
on the transmitter, 2 on the receiver) forming a highly exible KVM
extension conguration (Note: Only 1 USB host may be active at a time).
This transceiver is ideal for use in any video extension scenario, but it
excels when latency-free, uncompressed video is critical, such as medical
installations, live conferences, and education. This unit is controllable via
front panel buttons.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Meeting room presentation and control
Classroom display and control

2
3. PACKAGE CONTENTS
3.1 Single Unit
1× UHD+HDMI over HDBaseT Transceiver with USB KVM
1× 48V/0.83A DC Power Adapter
3× 3-pin Terminal Block
1× Operation Manual
3.2 Dual Unit Set
2× UHD+HDMI over HDBaseT Transceiver with USB KVM
1× 48V/0.83A DC Power Adapter
6× 3-pin Terminal Block
1× Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such a media player, video game console, or
set-top box.
HDMI receiving equipment such as an HDTV, monitor, or audio
amplier.
The use of Premium High Speed HDMI cables, and industry standard
Cat.6A or Cat.7 Ethernet cable is highly recommended.

3
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
Supports up to 4K UHD+(18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output over both HDMI and HDBaseT
Supports Deep Colour input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports CEC bypass
HDBaseT extends video, audio and data over a single Cat.6A/7 cable
and can reach distances up to 100m/328ft
HDBaseT feature support: HD Video and Audio, Gigabit Ethernet,
Bi-directional PoH, Bi-directional audio (optical and analogue), and
Control
(bi-directional USB/IR/RS-232 pass-through)
Selectable HDMI or HDBaseT input in receiver mode
2 USB 2.0 Type-A device ports and 1 USB 2.0 Type-B host port
Note: Only one host port can be active at a time. The active USB host port
is automatically selected between the connected transmitter and receiver.
HDMI output functions as a local monitor when in transmitter mode
Can either receive or provide power via PoH over the HDBaseT
connection allowing for exible installation options.
Controllable via front panel buttons.

4
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER
PUV-3150TR-UEAO
T/R AUDIO
OUTIN OUTINLINK
T
R
HDMI
HDBT
LR LR
USBOPTICALVIDEO
IN
USB
(SERVICE)
10 116 7 12 8 952
1
3 4
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2LINK LED: This LED will illuminate solidly when a live connection with
a compatible transmitter/receiver is active.
3T & R LEDs: These LEDs will illuminate to indicate if the unit is in
transmitter (T) or receiver (R) mode.
4T/R Button: Press this button to toggle the unit’s mode between
transmitter mode and receiver mode.
Note: The switching modes will also result in the unit rebooting.
5HDMI & HDBT LEDs: These LEDs will illuminate to indicate which
input is currently selected.
Note: When the unit is in the transmitter mode, only the HDMI input can
be selected as a source.
6VIDEO IN Button: Press this button to toggle between the HDMI and
HDBaseT inputs when in receiver mode.
Note: This button has no function when the unit is in transmitter mode.
7AUDIO IN 3-pin Terminal Block: Connect to the analogue audio
output of a device such as a media player or game console using
a 3-pin adapter cable. Audio is sent to the analogue audio 3-pin
terminal block output on the connected compatible transmitter/
receiver.
8AUDIO OUT 3-pin Terminal Block: Connect to powered speakers or
an amplier for analogue audio output using a 3-pin adapter cable.
Audio is sourced from the analogue audio 3-pin terminal block input
on the connected compatible transmitter/receiver.

5
9OPTICAL IN Port: Connect to the optical audio output of a device
such as a media player or game console using an appropriate optical
cable. Audio is sent to the optical audio output on the connected
compatible transmitter/receiver.
10 OPTICAL OUT Port: Connect to powered speakers or an amplier
for digital audio output using an appropriate optical cable. Audio
is sourced from the optical audio input port on the connected
compatible transmitter/receiver.
11 USB (SERVICE) Port (Type-B): Connect directly to a standard USB
host such as a PC or laptop to extend their USB functionality to all
currently connected USB devices.
Note: Only one USB host (Type-B) port may be active at a time. If a new
host is connected to another USB Type-B port, both the transmitter and
receiver will automatically reboot to complete the host change.
12 USB Ports (Type-A): Connect directly to a standard USB device such
as a mouse, keyboard, or ash drive to extend their USB functionality
to the currently active USB host (Type-B) port.

6

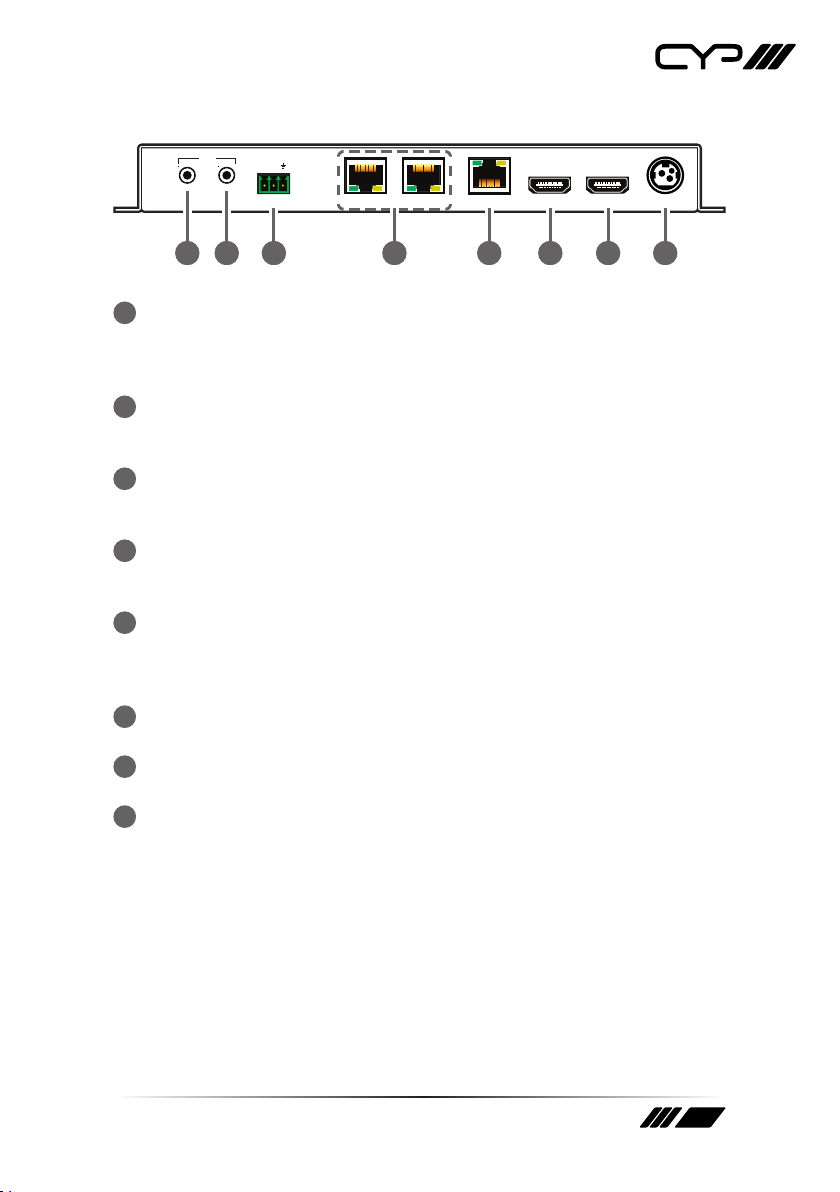

6.2 Rear Panel
TX RX
RS-232 LAN 2 HDMI IN HDMI OUT DC 48VOUTIN
IR
LAN 1CAT6A/7
1 2 3 4 5 6 7 8
1IR IN Port: Connect to an IR Extender to receive local IR control
signals and extend them to devices connected to the other end of
the HDBaseT connection. Ensure that the remote being used is within
direct line-of-sight of the IR Extender.
2IR OUT Port: Connect to an IR Blaster to transmit IR signals from the
other end of the HDBaseT connection to devices within direct line-of-
sight of the IR Blaster.
3RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial
controllable device with a 3-pin adapter cable for the extension of RS-
232 signals between both ends of the HDBaseT connection.
4LAN 1 & 2 Ports: Connect to Ethernet supporting devices or to your
local network, as appropriate, to extend the network to both ends of
the HDBaseT connection.
5CAT6/7 Port: Connect to a compatible HDBaseT transmitter/receiver
with a single Cat.6A/7 cable for extension of all data signals. PoH
can also be supplied to or received from a connected compatible
transmitter/receiver.
6HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
7HDMI OUT port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
8DC 48V Port: Plug the 48V DC power adapter into this port and
connect it to an AC wall outlet for power.
Note: Optional, not required when powered by PoH.

7

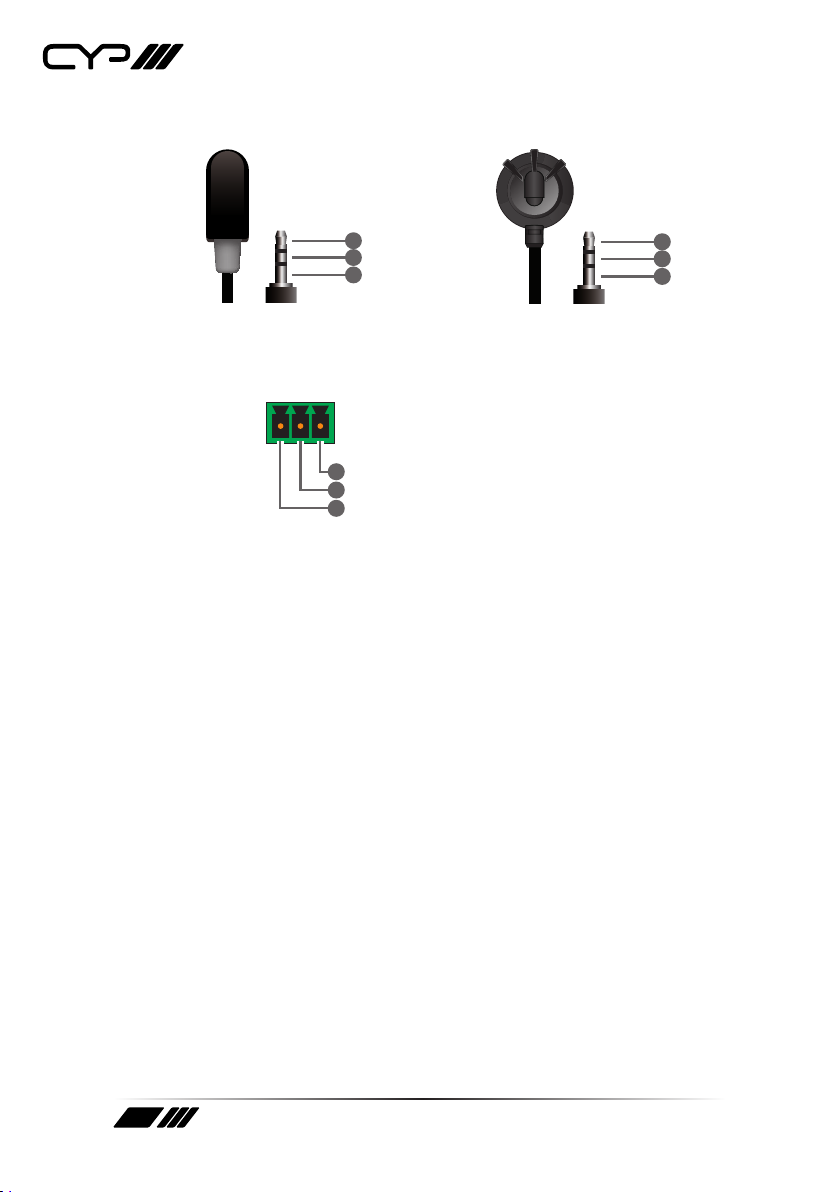

6.3 IR Cable Pinouts
IR Blaster
Cabl
e
1
2
3
Infrared
Power
Not Used
IR Extender
Cabl
e
1
2
3
Infr
ared
Power
Groun
d
6.4 RS-232 Pinout
1
2
3
RxD
GND
TxD
3-pin
Terminal Block

8
7. CONNECTION DIAGRAM
TX RX
RS-232 LAN 2 HDMI IN HDMI OUT DC 48VOUTIN
IR
LAN 1CAT6A/7
TX RX
RS-232 LAN 2 HDMI IN HDMI OUT DC 48VOUTIN
IR
LAN 1CAT6A/7
POWER
PUV-3150TR-UEAO
T/R AUDIO
OUTIN OUTINLINK
T
R
HDMI
HDBT
LR LR
USBOPTICALVIDEO
IN
USB
(SERVICE)
POWER
PUV-3150TR-UEAO
T/R AUDIO
OUTIN OUTINLINK
T
R
HDMI
HDBT
LR LR
USBOPTICALVIDEO
IN
USB
(SERVICE)
7m3m 3m
60°
1.5m
60°
1.5m
60°
7m3m 3m
60°
Local Monitor
Smart TVSerial Controlled Device
Tower PC
Router
Power
Supply
HDMI
Input
HDMI
Output
IR Input &
Output
Cat.5e/6/7
Cable
IR Input &
Output
HDMI
Output
Keyboard
&
Mouse
LAN
RS-232
RS-232
USB
LAN

9
8. SPECIFICATIONS
8.1 Technical Specications
HDMI Bandwidth 18Gbps
HDBaseT Bandwidth 18Gbps
Input Ports 1×HDMI (Type-A)
1×Digital Audio (TOSLINK)
1×Analogue Audio (3-pin Terminal Block)
Output Ports 1×HDMI (Type-A)
1×Digital Audio (TOSLINK)
1×Analogue Audio (3-pin Terminal Block)
Bi-directional Port 1×HDBaseT (RJ-45)
Pass-through Ports 1×IR Extender (3.5mm)
1×IR Blaster (3.5mm)
1×RS-232 (3-pin Terminal Block)
2×LAN (RJ-45)
2×USB 2.0 (Type-A)
Pass-through/Service Port 1×USB 2.0 (Type-B)
IR Frequency 30~50kHz
(30 ~ 60kHz under ideal conditions)
Baud Rate Up to 115200
Power Supply 48V/0.83A DC or PoH
(US/EU standards, CE/FCC/UL certied)
ESD Protection (HBM) ±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions (W×H×D) 213.5mm×25mm×108mm [Case Only]
213.5mm×25mm×116.7mm [All Inclusive]
Weight 700g
Chassis Material Metal (Steel)

10
Chassis Colour Black
Operating Temperature 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 30.48W

11
8.2 Video Specications
Supported Resolutions (Hz)
Input Output
HDMI HDBT HDMI HDBT
720×400p@70/85 
640×480p@60/72/75/85 
720×480i@60 
720×480p@60 
720×576i@50 
720×576p@50 
800×600p@56/60/72/75/85 
848×480p@60 
1024×768p@60/70/75/85 
1152×864p@75 
1280×720p@50/60 
1280×768p@60/75/85 
1280×800p@60/75/85 
1280×960p@60/85 
1280×1024p@60/75/85 
1360×768p@60 
1366×768p@60 
1400×1050p@60 
1440×900p@60/75 
1600×900p@60RB 
1600×1200p@60 
1680×1050p@60 
1920×1080i@50/60 

12
Supported Resolutions (Hz)
Input Output
HDMI HDBT HDMI HDBT
1920×1080p@24/25/30 
1920×1080p@50/60 
1920×1200p@60RB 
2560×1440p@60RB 
2560×1600p@60RB 
2048×1080p@24/25/30 
2048×1080p@50/60 
3840×2160p@24/25/30 
3840×2160p@50/60 (4:2:0) 
3840×2160p@24, HDR10 
3840×2160p@50/60
(4:2:0),HDR10

3840×2160p@50/60 
4096×2160p@24/25/30 
4096×2160p@50/60 (4:2:0) 
4096×2160p@24, HDR10 
4096×2160p@50/60
(4:2:0),HDR10

4096×2160p@50/60 

13
8.3 Audio Specications
8.3.1 Digital Audio
HDMI & HDBaseT Input / Output
LPCM
Max Channels 8 Channels
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
Bitstream
Supported Formats Standard & High-Denition
S/PDIF Input / Output
LPCM
Max Channels 2 Channels
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
Bitstream
Supported Formats Standard

14
8.3.2 Analogue Audio
Analogue Input
Max Audio Level 2Vrms
Impedance 10kΩ
Type Unbalanced
Analogue Output
Max Audio Level 2Vrms
THD+N < −80dB@0dBFS 1kHz (A-wt)
SNR > 93dB@0dBFS
Frequency Response < ±0.5dB@20Hz~20kHz
Crosstalk < −71dB@10kHz
Impedance 500Ω
Type Unbalanced

15
8.4 Cable Specications
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Input 15m 10m 5m 3m
HDMI Output 15m 10m 5m 3m
Ethernet Cable
Cat.5e/6 100m 70m 70m
Cat.6A/7 100m 100m 100m
Bandwidth Category Examples:
1080p (FHD Video)
-Up to 1080p@60Hz, 12-bit colour
-Data rates lower than 5.3Gbps or below 225MHz TMDS clock
4K30 (4K UHD Video)
-4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
-Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
4K60 (4K UHD+Video)
-4K@50/60Hz (4:4:4, 8-bit)
-4K@50/60Hz (4:2:0, 10-bit HDR)
-Data rates higher than 10.2Gbps
