Cyrusher LCD-S700 User manual

www.cyrusher.com
LCD-S700
Computer Manual
For Bike Models
XF650/XF690/XF770
S700
mph
mile
km
km / h
SPEED AVGMAX
Auto
WALK
PAS
Manual
TRIPODOTM RMDSTERRWATT
POWER

CYRUSHER.COM Page 1
LCD-S700 COMPUTER MANUAL
Introduction

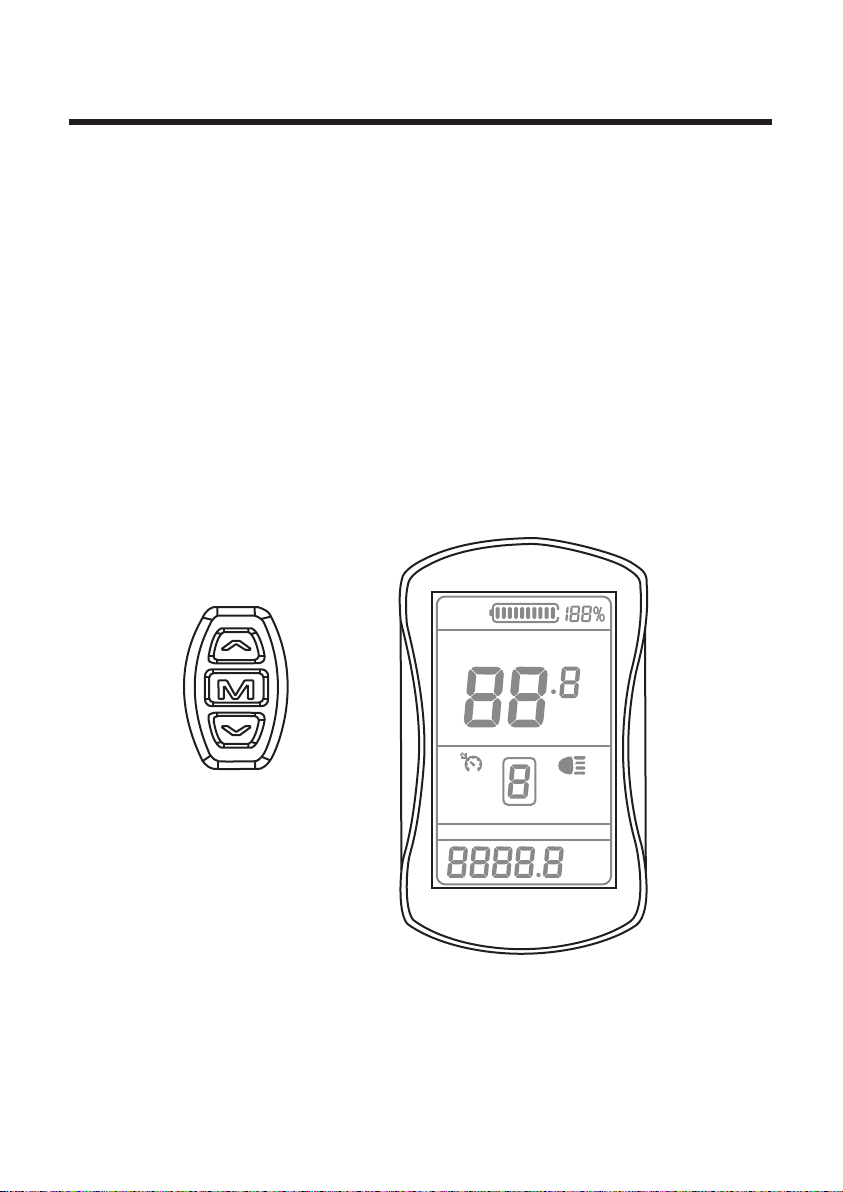

Handlebar
Control
LCD Display
S700
mph
mile
km
km / h
SPEED AVGMAX
Auto
WALK
PAS
Manual
TRIPODO TM RM DSTERRWATT
POWER
Dear users, in order to use the LCD-S700 display correctly, please read the user
manual and related precautions carefully. We will use the simplest language to
help you understand and familiarize yourself with the functions of the instrument,
including how to operate the bike, how to set system parameters, how to achieve
the best matching state of the motor, and how to improve the electrical control
performance of the motor. The contents of this manual include installation,
operation, system parameter setting and correct use of the instrument, which
can help you solve problems and concerns in actual use. If you are using other
Cyrusher models, please contact Cyrusher Sports Team for help.

1)
4) Intelligent battery display: display the battery’s remaining capacity
CYRUSHER.COM
Product Introduction and Function Overview
2) Speed display: Including real-time speed, MAX SPEED, AVG SPEED
3) Kilometer/mile display: setting the kilometers(K/h) and miles( Mph) according to
customers’ habits
5) Headlight control:turn on and off the headlight via an external button
6) Backlight brightness three adjustment: set backlighting according to
customers’ using habits, 1 grade means-darkest, 3 grade means-lightest
7) Five gears control: according to customers’ requirements, you can choose the
assisted gears 0-5 by the outer button, and 0 means neutral gear, no assistance
(The default is 5 gear)
8) Mileage display: the cumulative mileage can be displayed is 0D0, single mileage
TRIP, riding time.
9) Fault code prompt: the details is in the error code definitions and schedule 1
10) 6KM power-assisted mode: it displays cruising WALK in the 6KM
power-assisted
11) Parameters setting: all parameters can be set by setting the interface,
including gear, wheel
Page 2
use the 3button on the computer to rater the bike

1) Battery Indicator: 10 bars energy indicators
Headlight display
Error code display
Battery Indicator
Speed mode
Speed value display
6KMwalking mode
Gear display
Mileage Mode
Riding Time
S700
mph
mile
km
km / h
SPEED AVGMAX
Auto
WALK
PAS
Manual
TRIPODO TM RM DSTERRWATT
POWER
Liquid crystal display content and description
2) Speed mode: AVG SPEED, MAX SPEED, SPEED
3) Speed value display: Km/h or MPH
4) 6KM cruise mode: it displays cruising WALK in the 6KM
5) PAS Level: Level 0-5, and 0 means no power, PAS 5 means highest power
6) Headlight display:it displays when the headlight and backlight is on
7) Mileage Mode :including the single mileage TRIP and the total mileage
ODO ,
8) Riding Time: displays the riding times
9) Error code display: ERRO code are displayed when the fault is detected
CYRUSHER.COM Page 3

means UP
Handlebar
Control
UP
MODE
DOWN

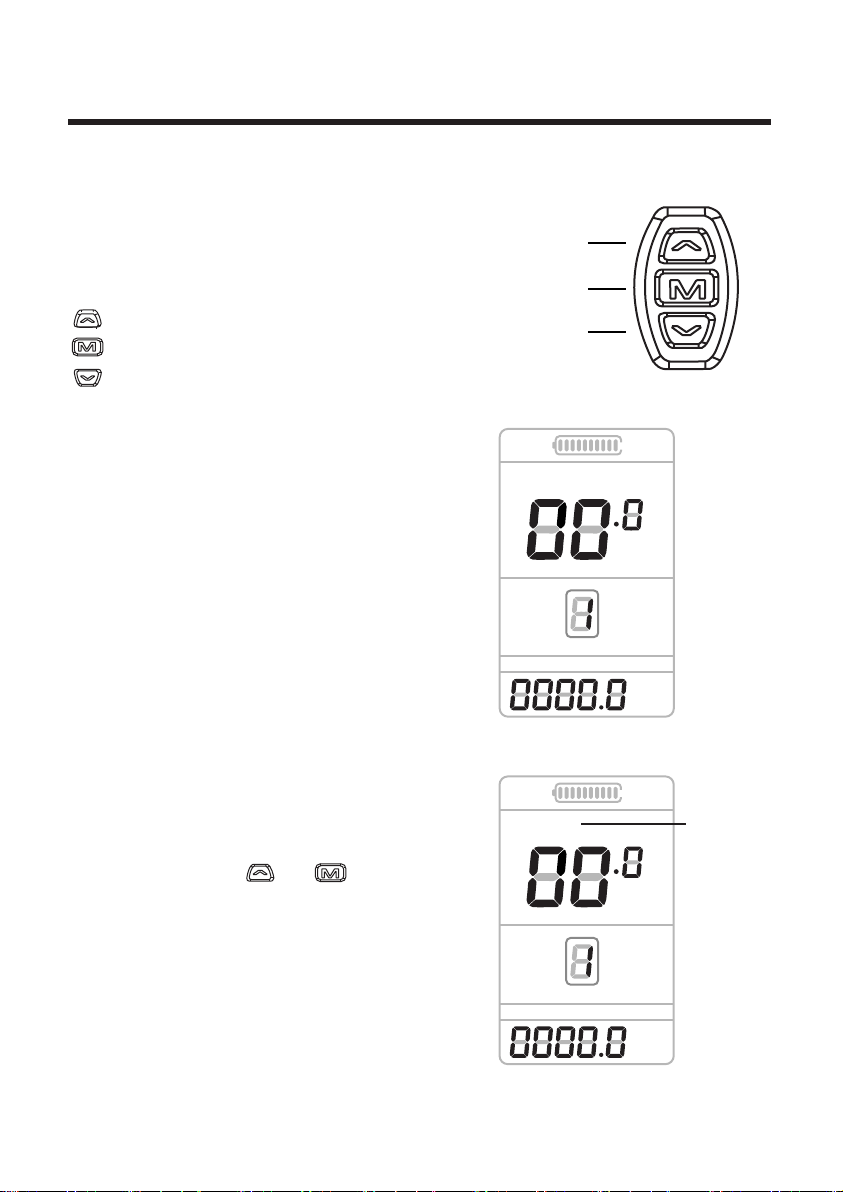

Instructions for operating methods and functions
1) turn on or turn off the bike computer
LCD-S700 uses the LCD part and external
3- button to control teh bike
There are three buttons
Long-press the MODE button for 3 seconds
2) Speed Mode Switch
Long press the button and to
change the display information of
speed,show the real-time speed → the
max speed → the average speed .
External key definition
CYRUSHER.COM Page 4
Image 1
km
km / h
SPEED
PAS
POWER
ODO
Image 2
km
km / h
SPEED
PAS
POWER
ODO
Real-time
Speed
to turn on or turn off the bike computer
means MODE
means DOWN

Instructions for operating methods and functions

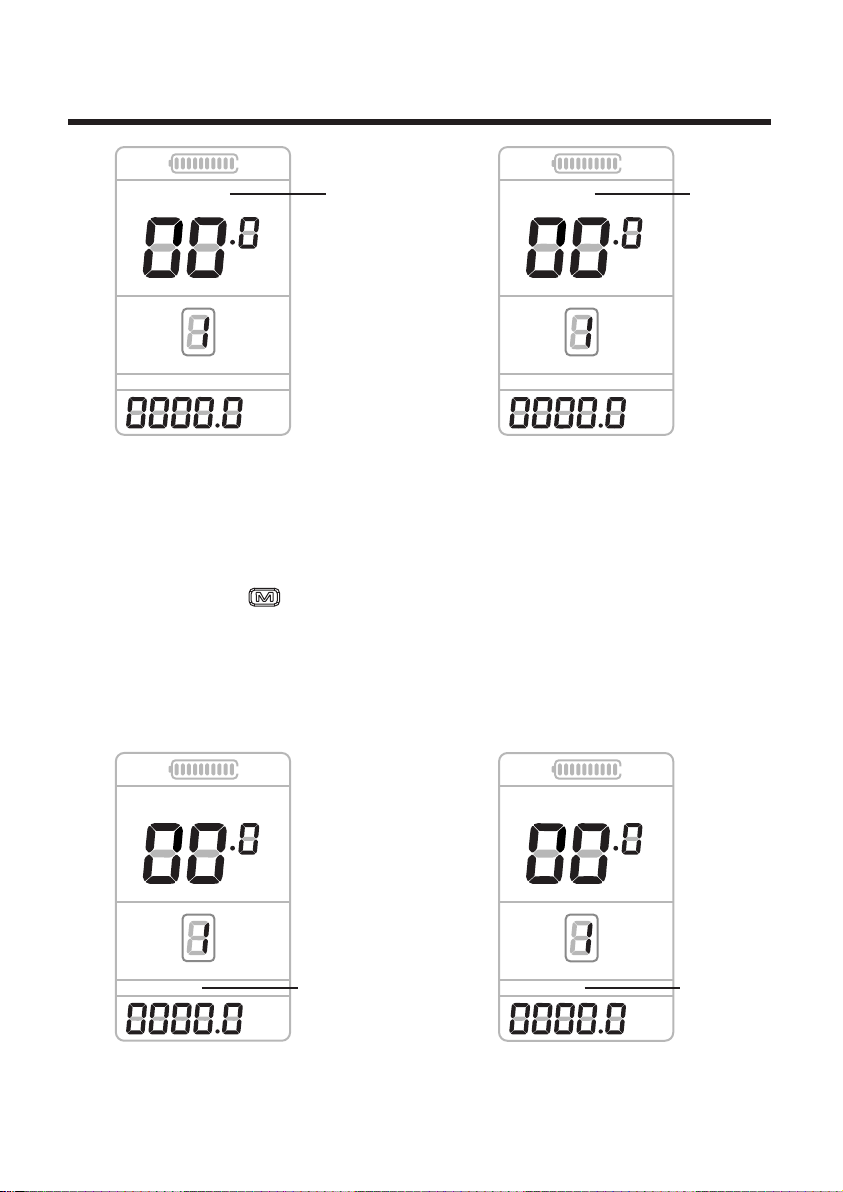

3) Mileage Mode、Riding Time、Error
Code switch
CYRUSHER.COM Page 5
Max Speed
Image 3
km
km / h
SPEED
PAS
POWER
ODO
MAX
Image 4
km
km / h
SPEED
PAS
POWER
ODO
AVG Average
Speed
Image 6
km
km / h
SPEED
PAS
POWER
ODO ODO
Short press the button to switch the
display of Mileage Mode、Riding Time、Error
Code, show the Trip → ODO → Riding Time →
ERR
The display interface of switch mode are as the
Image 5,6,7,8 shown.
TRIP
Image 5
km
km / h
SPEED
PAS
POWER
Trip

Instructions for operating methods and functions
CYRUSHER.COM Page 6
TM
Image 7
km
km / h
SPEED
PAS
POWER
Riding time
4)
Shortly press the button or to change
ERR
Image 8
km
km / h
SPEED
PAS
POWER
ERR
Image 9
km
km / h
SPEED
PAS
POWER
ODO
Image 10
km
km / h
SPEED
PAS
POWER
ODO
PAS Level setting
the PAS level.O means no power assist. 5 means the MAX level
Level 0 Level 5

6)
Instructions for operating methods and functions
CYRUSHER.COM Page 7

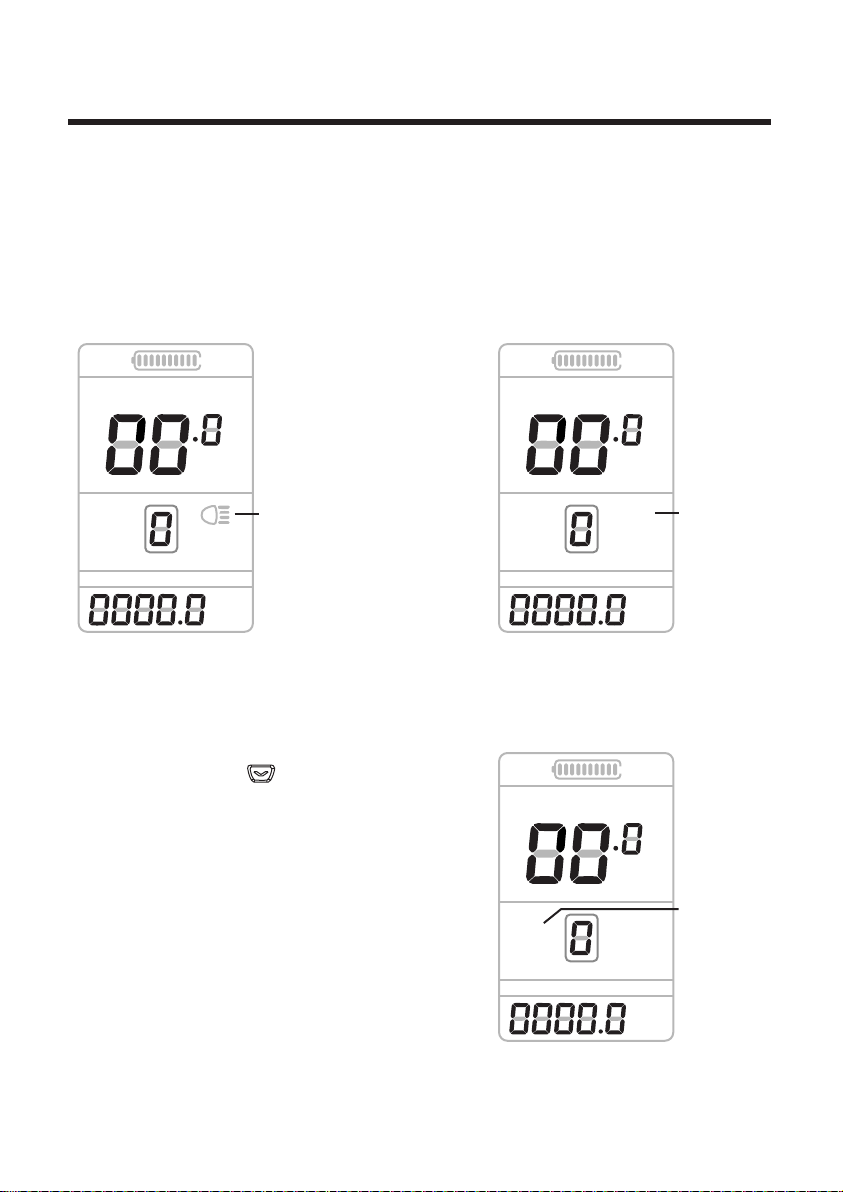

5) Headlight Switch
Long press the button for 3 seconds
Image 11
km
km / h
SPEED
PAS
POWER
ODO
Image 12
km
km / h
SPEED
PAS
POWER
ODO
WALK
Image 13
km
km / h
SPEED
PAS
POWER
ODO
AVG
Symbol
WALK
Use the extra button to turn on or off the headlight
6KM Cruise (walk mode)
to active the walk mode,then press any button
or use the brake to exit walking mode

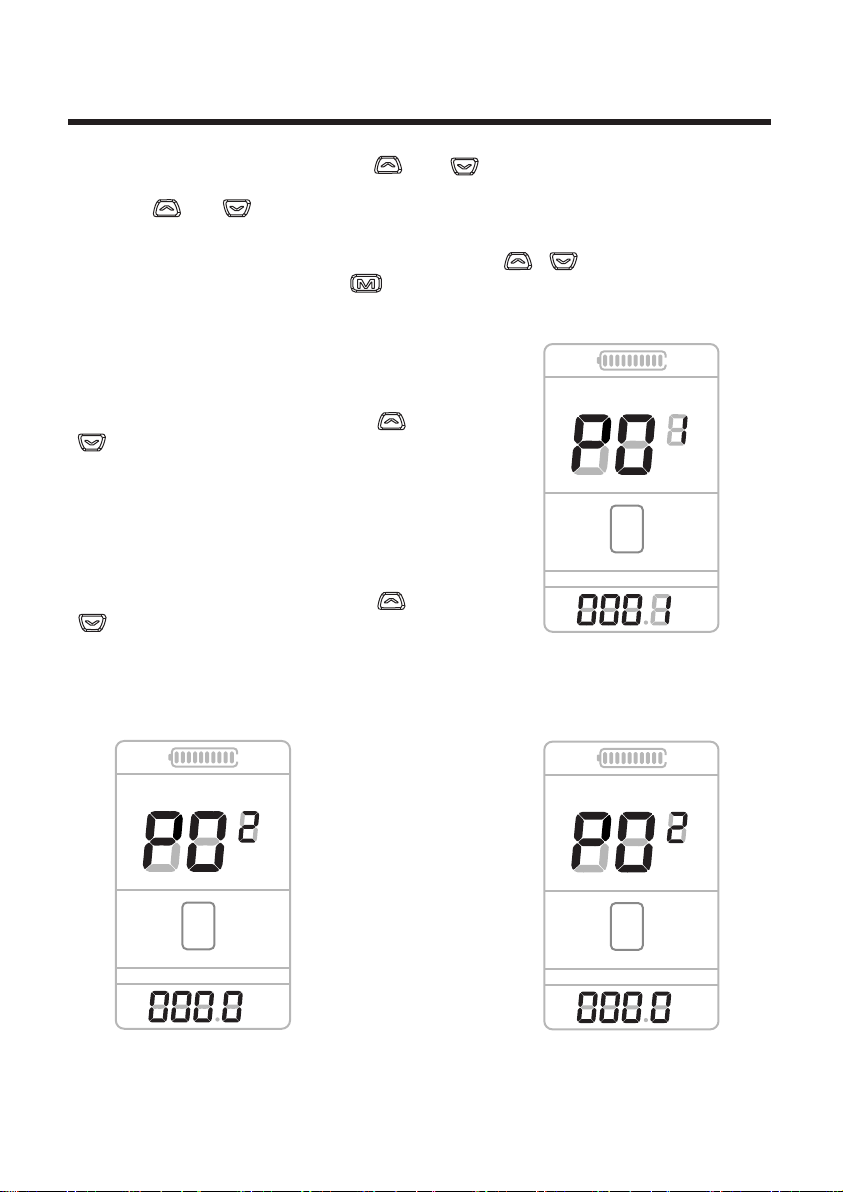

System Parameter Settings
CYRUSHER.COM Page 8
, long press the button and , the system enters parameter
setting state(image 14). Under this state, setting the bike computer, then long press
the button and again to exit the setting state or No Operation(10s) and to exit
setting state automatically.
In the parameter setting state, shortly press the button / to adjust the figure of
parameter setting, press the button to switch setting item and save the parameter
figure of the last item
2) Metric/Imperial
Image 14
SPEED
1) Back Brightness
Showing P01, shortly press the button
/ to show 1-3,1 is the darkest backlight, 3
is the brightest. 2 is the default state, as the
image 14 shows
Showing P02, shortly press the button
/ to switch the display of km/h or mph to
change the unitl, the default state is km/h,
as the image 15,16 shows
Image 15
km
SPEED
mile
Image 16
SPEED
Turn on the LCD

System Parameter Settings
CYRUSHER.COM Page 9
4) Sleep Time
3) Voltage setting
Showing P03, shortly press the button /
shows 24~48,each up step is 12, the default is 36V,
as the image 17 shows.(Most bike is 48V)
Image 17
SPEED
Showing P04,shortly press the button / ,
and shows 0~60, which indicates the time of
automatic shutdown when the bike stops or
there is no operation.0 means “won’t automatic
shutdown”. The default sleep time are 5 minutes,
as the image 18 shows

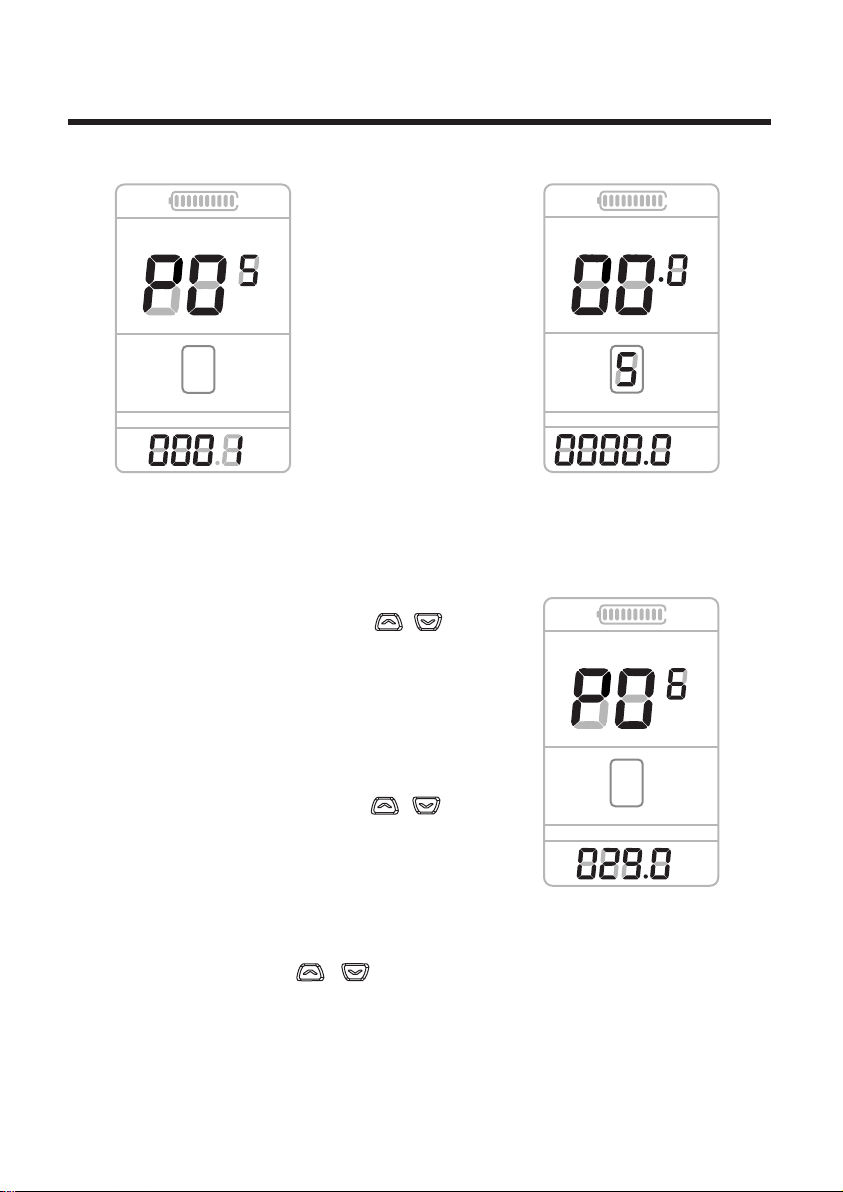

5)
Showing P05, shortly press the button /
and it displays 0,1,2.
1,2,3;
1,2,3,4,5.
1,2,3,4,5,6,7,8,9.
modes on the operation interface, as the image 19
、20 shows
Image 18
SPEED
PAS level setting
0: PAS leve is 3-level mode, which are level
1: PAS leve is 5-level mode, which are level
2: PAS leve is 9-level mode, which are level

Display P08 short press key /
key to switch display The speed limit range 0 ~
100KM/H, 100 means no limit, as shown
in image 23
System Parameter Settings
CYRUSHER.COM Page 10
7) Number of Speed Magnet
6) Wheel Diameter Choose
Showing P06, shortly press the button / ,
switch to teh right wheel diameter, the unit is
inch, accuracy: 0.1, as the image 21 shows
Image 19
SPEED

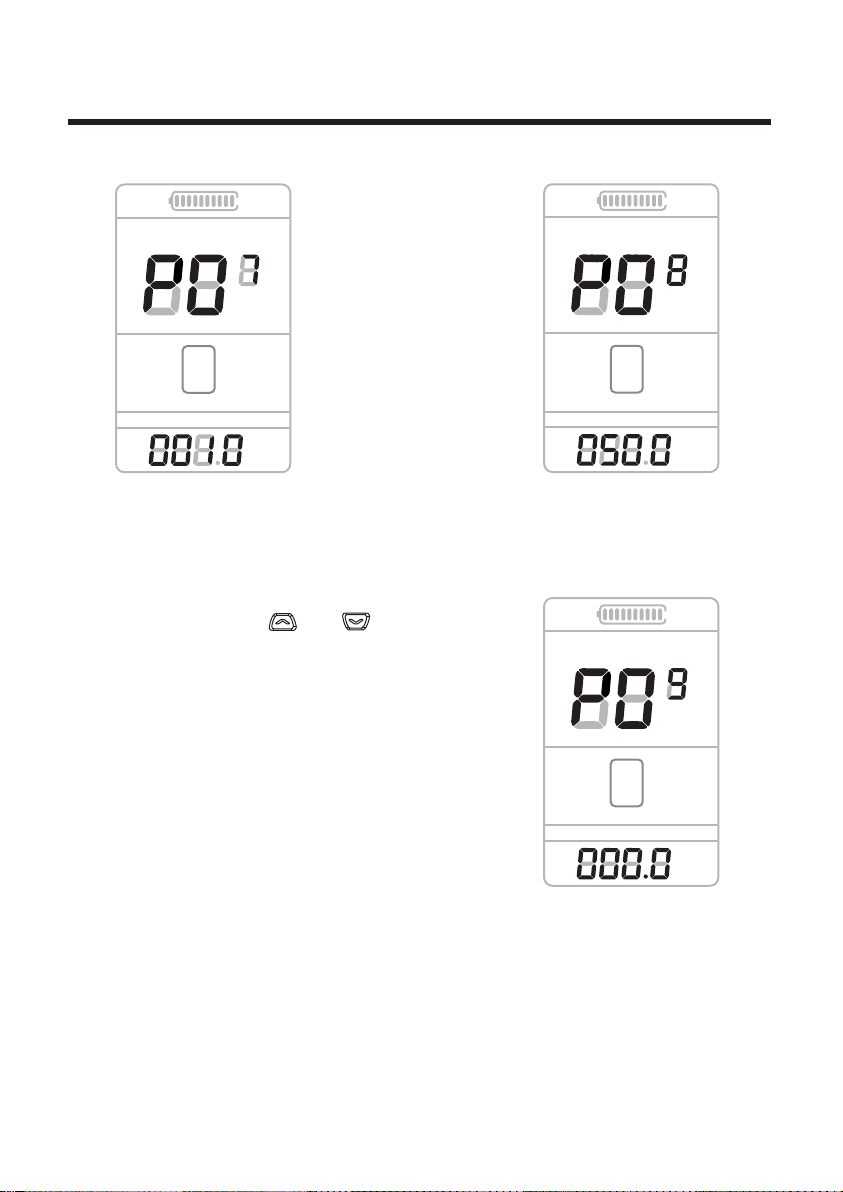

showing P07, shortly press the button /
to switch the display, range 1-100, as the image 22
shows
8) Speed adjustment
Image 21
SPEED
Image 20
km
km / h
SPEED
PAS
POWER
ODO

shown in image 24

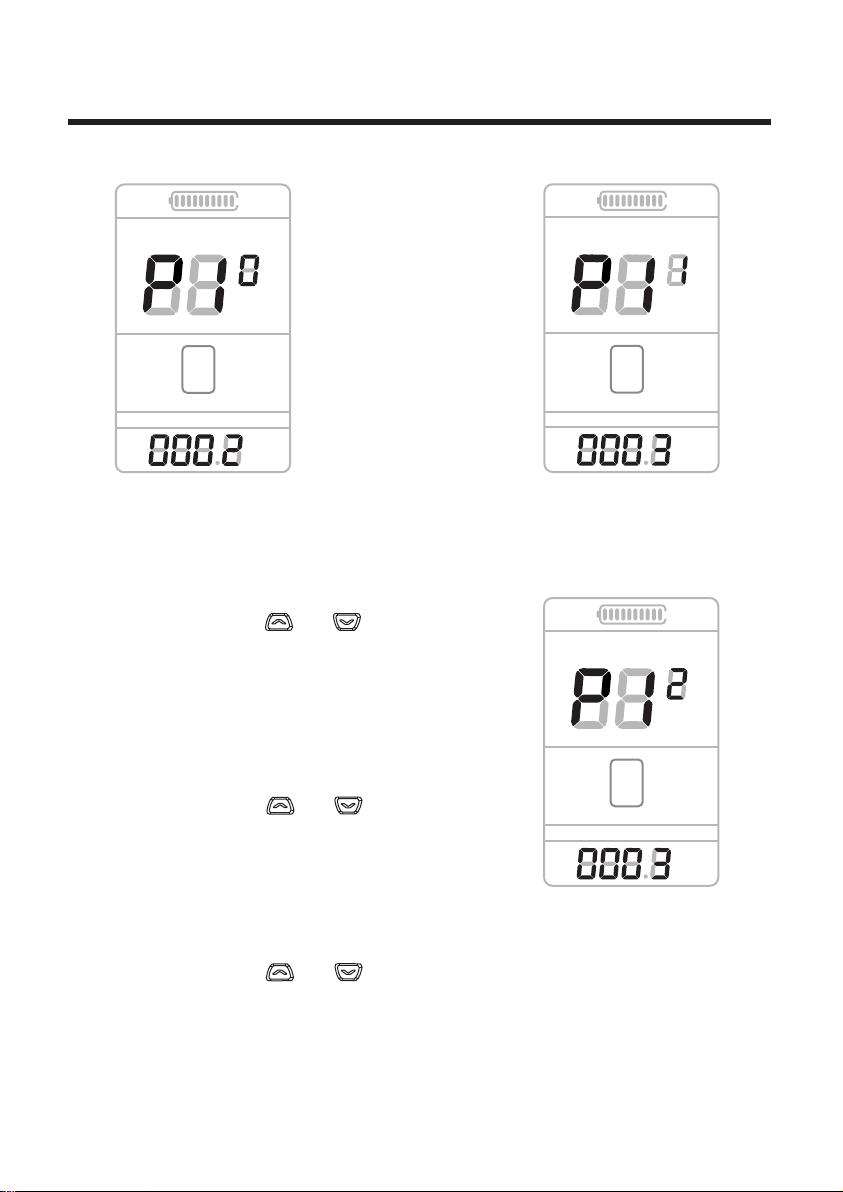

Display P09, short press key/ key to switch
display 0, 1. 0: zero start, 1: non-zero start, as
System Parameter Settings
CYRUSHER.COM Page 11
10) Drive mode setting
9) Zero boot, non-zero boot setting
Image 22
SPEED
Image 24
SPEED
Image 23
SPEED
Controller updated ,this function no longer in use

display 5,8,12 disk type, as shown in image 28
display 1~24. as shown in iamge 26

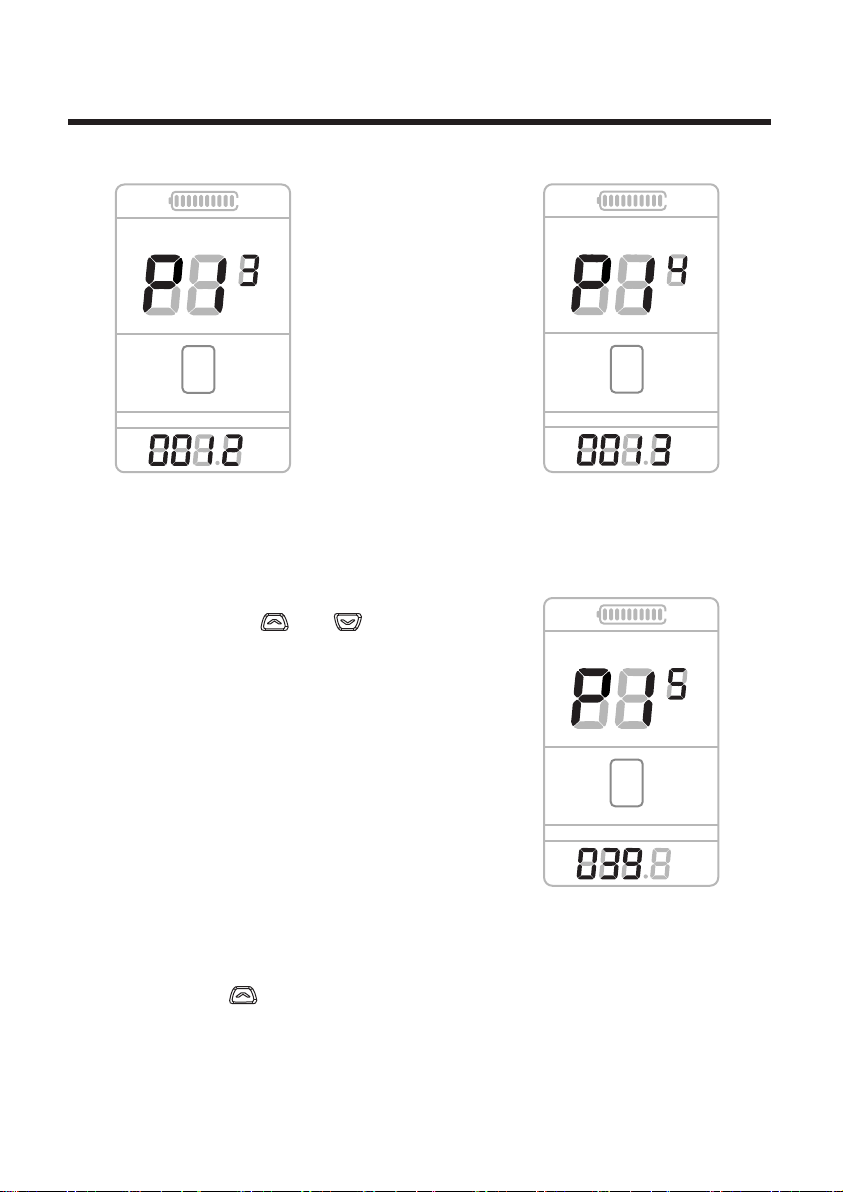

Display P13, short press key/ key to switch,
Display P12, short press key/ key to switch,
display range from 0 to 5, as shown in image 27
Display P11, short press key/ key to switch
System Parameter Settings
CYRUSHER.COM Page 12
12) Start strength setting
11)
Image 25
SPEED
13) Booster disk type setting
Image 27
SPEED
Image 26
SPEED
POWER
PAS sensitivity setting

Display P16, The speed position shows the current
total mileage, long key(5s), when the
speed shows 0, the mileage goes to zero.
shown as image 31
display P14 short press key/ key to switch,
display range from 1~20A, as shown in image 29
display P15, display the controller low voltage
value, shown asie 30
System Parameter Settings
CYRUSHER.COM Page 13
15) The controller low voltage value
14) Controller current limit etting
Image 28
SPEED

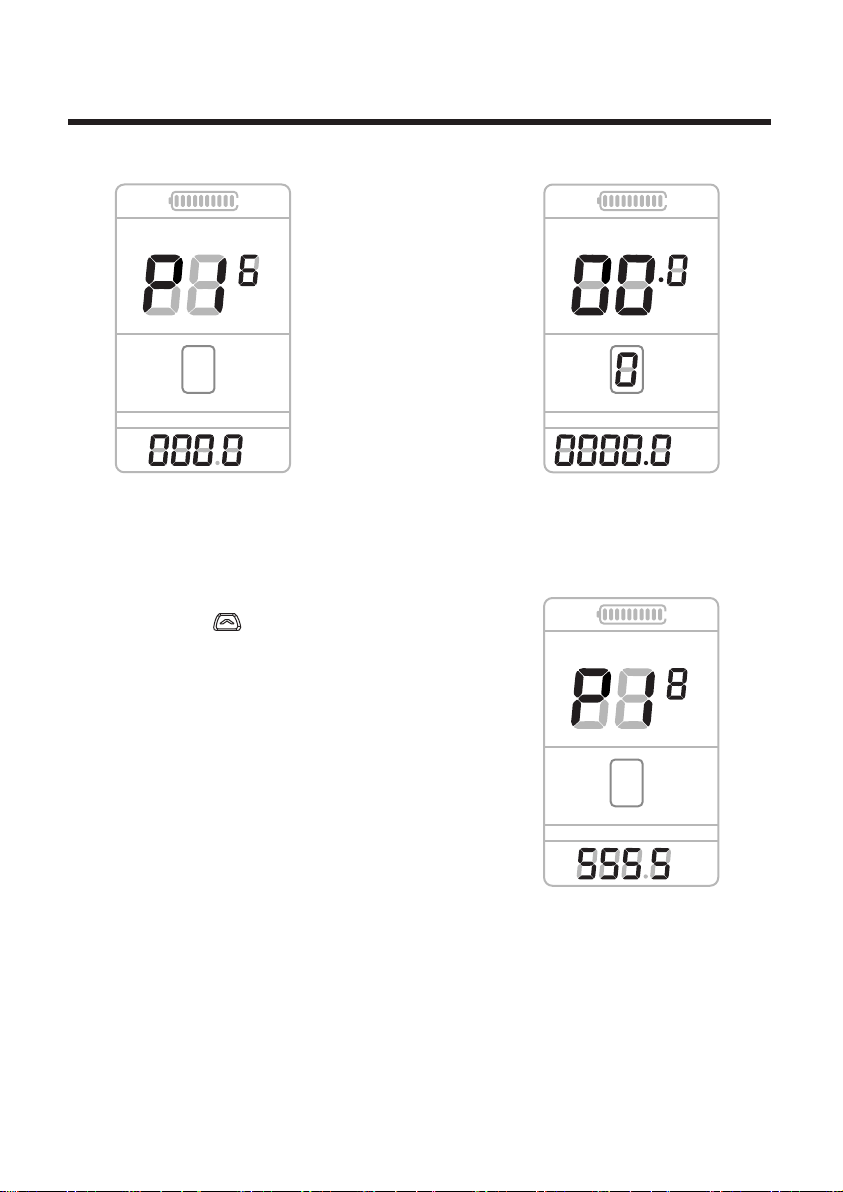

16) The mileage clearance
Image 30
SPEED
Image 29
SPEED
POWER

Display P18, long key(5s),when the speed
shows SSSS, it means restore factory settings
(except totall mileage), as image 33 shows
1）24V，36V，48V power supply
2）Rated working current 10mA
3）Maximum working current 30mA
4）Shutdown leakage current is less than 1uA
5）Supply controller working current 50mA
6）Temperature: - 18 ~ 65 ℃
7）Storage temperature: - 30 ~ 80 ℃
System Parameter Settings
CYRUSHER.COM Page 14
Instrument specification parameter
17) Restore factory settings
Image 31
SPEED
Image 33
SPEED
Image 32
km
km / h
SPEED
PAS
POWER
ODO

Pay attention to safe driving in use and avoid LCD displayt crashing. Try not to use it
Check the wires of the LCD
S700 can provide warning for the bike fault, the LCD shows the ERROR icon when
a failure is detected,ERROR code shows
System Parameter Settings
CYRUSHER.COM Page 15
Error code definition
In use, the time interval between starting and shutdown should not be less than 3
seconds, and do not press the MODE key when it is turned off
in harsh conditions, such as heavy rain, heavy snow, and so on. Try to avoid the use
of battery in low voltage and avoid damage to the batteries.
When the temperature is under 10℃, the screen will turn dark .
Maters needing attention
question:why it can not be started?
Answer: checking whether the wire is connected in good condition
with the controller.
question: How should the fault code be handled?
Answer: ask our aftersale team for help
Frequently questions and answers
Status code
（decimalism）
0
6
7
8
9
10
11
Normal
Battery low voltage
Motor fault
throttle fault
Controller fault
Reception fault
Communication fault
Battery need charge or replace
Check whether the power line is loose
Check the wires, if it is normal, then
replace the throttle
Check wires, replace the controller
State Process mode
Check the wires of the LCD
