Cyrusher LCD-S700 User manual

www.cyrusher.com
LCD-S700
Computer Manual
For Bike Models
XF650/XF690/XF770
S700
mph
mile
km
km / h
SPEED AVGMAX
Auto
WALK
PAS
Manual
TRIPODOTM RMDSTERRWATT
POWER

CYRUSHER.COM Page 1
LCD-S700 COMPUTER MANUAL
Introduction
Dear users, for your correct use of LCD - S700 LCD display instrument,please
read the user's manual and relevant notes carefully before using.We will help you
to understand and familiarize the instrument’s functions with the simplest
language, including how to operate the instrument, how to set system parame-
ters, how to achieve the optimal matching state of motor, controller and instru-
ment and how to improve the electric control performance of electric motor.The
contents of this manual contain the installation, operation, system parameter
setting and proper use of the instrument, which can help you to solve the prob-
lems and doubts in actual use.
Handlebar
Control
LCD Display
S700
mph
mile
km
km / h
SPEED AVGMAX
Auto
WALK
PAS
Manual
TRIPODO TM RM DSTERRWATT
POWER

CYRUSHER.COM
Product Introduction and Function Overview
1) The two-way communication protocol and external three-way button facilitate
the operation for customers
2) Speed display: Including real-time speed, MAX SPEED, AVG SPEED
3) Kilometer/mile display: setting the kilometers(K/h) and miles( Mph) according to
customers’ habits
4) Intelligent battery display: display the battery’s current power
5) Headlight control: control the opening and closing of headlights through
external keys
6) Backlight brightness three adjustment: set backlighting according to
customers’ using habits, 1 grade means-darkest, 3 grade means-lightest
7) Five gears control: according to customers’ requirements, you can choose the
assisted gears 0-5 by the outer button, and 0 means neutral gear, no assistance
(The default is 5 gear)
8) Mileage display: the cumulative mileage can be displayed is 0D0, single mileage
TRIP, riding time.
9) Fault code prompt: the details is in the error code definitions and schedule 1
10) 6KM power-assisted mode: it displays cruising WALK in the 6KM
power-assisted
11) Parameters setting: all parameters can be set by setting the interface,
including gear, wheel
Page 2

Headlight display
Error code display
Battery Indicator
Speed mode
Speed value display
6KM power-assisted
display
Gear display
Mileage Mode
Riding Time
S700
mph
mile
km
km / h
SPEED AVGMAX
Auto
WALK
PAS
Manual
TRIPODO TM RM DSTERRWATT
POWER
Liquid crystal display content and description
1) Battery Indicator: 10 segments energy indicators, can set the voltage values of
each segment according to customers’ requirements
2) Speed mode: AVG SPEED, MAX SPEED, SPEED
3) Speed value display: Km/h, kilometres per hour, MPH miles per hour
4) 6KM power-assisted display: it displays cruising WALK in the 6KM
power-assisted mode
5) Gear display: display the current assisted gear, 0-5, and 0 means neutral gear,
no assistance
6) Headlight display:it displays when the headlight and backlight is on
7) Mileage Mode :including the single mileage TRIP and the cumulative mileage
0D0,
8) Riding Time: displays the riding times
9) Error code display: ERRO and error code are displayed when the fault is
detected
CYRUSHER.COM Page 3

Handlebar
Control
UP
MORE
DOWN
Instructions for operating methods and functions
1) Starting up shutdown
LCD-S700 adopts the LCD part and external
three - to - button separation in the form of
design, the communication is connected by the
bottom lead.
There are three keys, using the key
replaces “UP”,
replaces“MORE”,
replaces “DOWN”.
Long-press the MODE button for 3 seconds
when the instrument is off, the instrument
fully shows and starts working, turn on the
controller power; In boot state , long press
the button for 3 seconds, the
cyclocomputer be power off and close the
controller power supply. If there is no riding
or not any operations to the instrument in
10 minutes( set time by the user), the
instrument will power off automatically. In
the shutdown state, the power consumption
of the instrument and the controller is 0.
The instrument boot display interface is as
the image 1 shown
2) Speed Mode Switch
Long press the button and to
change the display information of
speed,show the real-time speed → the
max speed → the average speed cyclically.
Display interface of speed mode、riding
time are as the image 2,3,4 shown
External key definition
CYRUSHER.COM Page 4
Image 1
km
km / h
SPEED
PAS
POWER
ODO
Image 1
km
km / h
SPEED
PAS
POWER
ODO
Real-time
Speed

Instructions for operating methods and functions
3) Mileage Mode、Riding Time、Error
Code switch
CYRUSHER.COM Page 5
Max Speed
Image 3
km
km / h
SPEED
PAS
POWER
ODO
MAX
Image 4
km
km / h
SPEED
PAS
POWER
ODO
AVG Average
Speed
Image 6
km
km / h
SPEED
PAS
POWER
ODO ODO
Shortly press the button to switch the
display of Mileage Mode、Riding Time、Error
Code, show the Trip → ODO → Riding Time →
ERR cyclically.
The display interface of switch mode are as the
Image 5,6,7,8 shown.
TRIP
Image 5
km
km / h
SPEED
PAS
POWER
Trip

Instructions for operating methods and functions
CYRUSHER.COM Page 6
TM
Image 7
km
km / h
SPEED
PAS
POWER
Riding time
4) Assistance Stall Chose
Shortly press the button and to switch
the assistance stalls, change
the motor assistance power, min stall 1, max
stall 5. It is stall 1 by default in boot state, stall
0 is
neutral, which can be seen as the image 9,10
shown
ERR
Image 8
km
km / h
SPEED
PAS
POWER
ERR
Image 9
km
km / h
SPEED
PAS
POWER
ODO
Stall 0
Image 10
km
km / h
SPEED
PAS
POWER
ODO
Stall 5

Instructions for operating methods and functions
CYRUSHER.COM Page 7

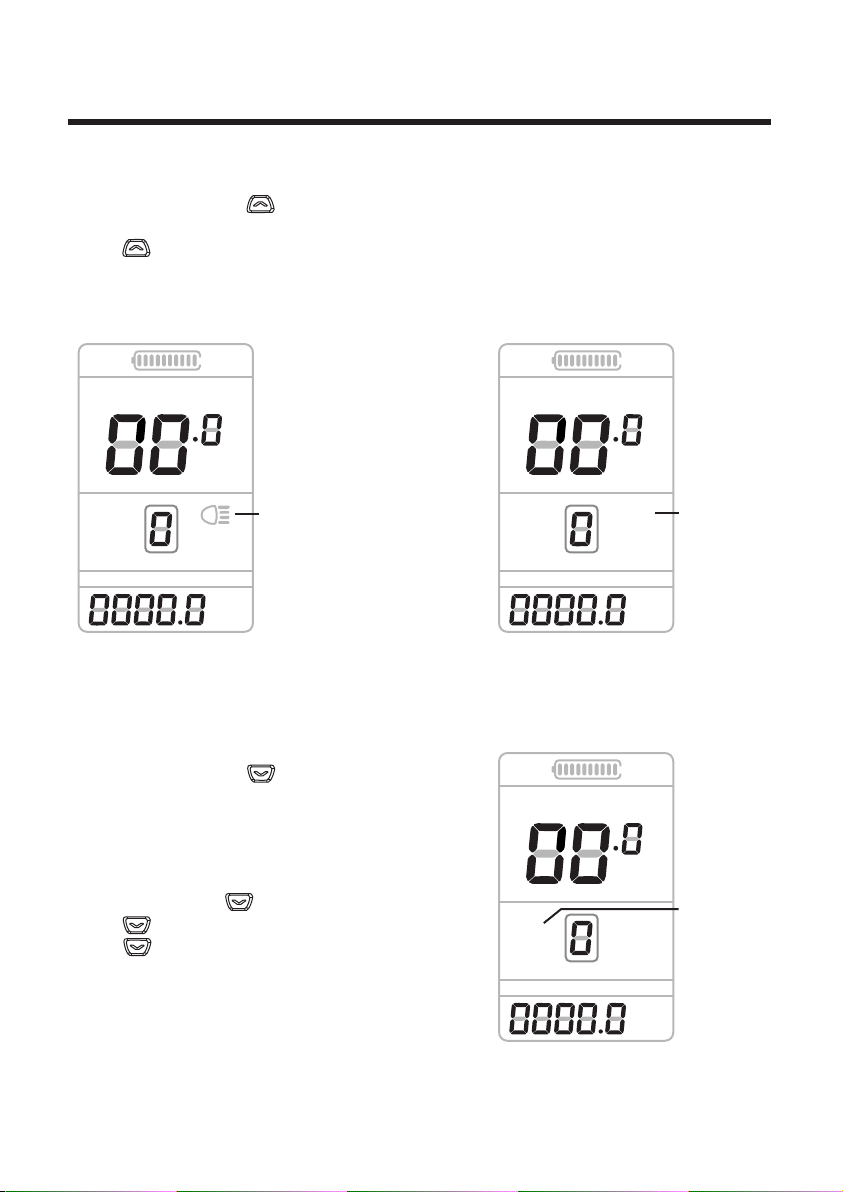

5) Headlight Switch
Long press the button for 3 seconds to
open the bike light. Long press the
button for 3 seconds again to close the
bike light. The headlight display interface are
as the image 11,12 shown.
6) 6KM Assistant Drive (walk mode)
Long press the button for 3 seconds when
in bike is in still state, then the ebike
begin assistant drive state, speed presentation
is according to the external conditions
(Showing Figure is 4.5~7.5km/h), showing the
symbol of WALK.
Release the button (or longpress the
button for 3 seconds or shortly press the
button ), the ebike would exit WALK mode.
There are two ways of exiting WALK mode,
Long press and shortly press.
The specific using method will be according to
the customer’s request. As the Image 13
shows
Image 11
km
km / h
SPEED
PAS
POWER
Headlight
Open
ODO
Image 12
km
km / h
SPEED
PAS
POWER
ODO
Headlight
Close
WALK
Image 13
km
km / h
SPEED
PAS
POWER
ODO
AVG
Symbol
WALK

System Parameter Settings
CYRUSHER.COM Page 8
In the boot state, long press the button and , the system enters parameter
setting state(image 14). Under this state, setting the cyclocomputer, then long press
the button and again to exit the setting state or No Operation(10s) and to exit
setting state automatically.
In the parameter setting state, shortly press the button / to adjust the figure of
parameter setting, press the button to switch setting item and save the parameter
figure of the last item
2) Metric/Imperial
Image 14
SPEED
1) Back Brightness
Showing P01, shortly press the button
/ to show 1-3,1 is the darkest backlight, 3
is the brightest. 2 is the default state, as the
image 14 shows
Showing P02, shortly press the button
/ to switch the display of km/h or mph to
set metric/imperial, the default state is km/h,
as the image 15,16 shows
Image 15
km
SPEED
mile
Image 16
SPEED

System Parameter Settings
CYRUSHER.COM Page 9
4) Sleep Time
3) Cyclocomputer Support Voltage
Showing P03, shortly press the button /
shows 24~48,each up step is 12, the default is 36V,
as the image 17 shows.(Most bike is 48V)
Image 17
SPEED
Showing P04,shortly press the button / ,
and shows 0~60, which indicates the time of
automatic shutdown when the bike is in still state or
there is no operation.0 presents “won’t automatic
shutdown”. The default sleep time are 5 minutes,
as the image 18 shows
5) Assistance Stall
Showing P05, shortly press the button /
and it displays 0,1,2.
0: the assistant stall is 3-stall mode, which are stall
1,2,3;
1: the assistant stall is 5-stall mode, which are
stall1,2,3,4,5.
2: the assistant stall is 9-stall mode, which are
stall1,2,3,4,5,6,7,8,9.
When the assistant stall is 1, there are 5 stall
modes on the operation interface, as the image 19
、20 shows
Image 18
SPEED

Display P08 short press key /
key to switch display The speed limit range 0 ~
100KM/H, 100 indicates the speed limit, as shown
in figure 23 display speed limit
System Parameter Settings
CYRUSHER.COM Page 10
7) Number of Speed Magnet
6) Wheel Diameter Choose
Showing P06, shortly press the button / ,
switch to corresponding wheel diameter, the unit is
inch, accuracy: 0.1, as the image 21 shows
Image 19
SPEED
showing P07, shortly press the button /
to switch the display range 1-100, as the image 22
shows the number of measured magnetic steel
8) Speed adjustment
Image 21
SPEED
Image 20
km
km / h
SPEED
PAS
POWER
ODO

Display P10, short press key/ key to switch
display 0, 1, 2, as shown in figure 25.
0: power driver (which determines how much power
the output is through the power of the help gear,
and then turns invalid);
1: electric drive (by turning the driver, the gear is
invalid at this time);
2: power drive and electric drive coexist
simultaneously (electrically driven zero-start state is
invalid).
Display P09, short press key/ key to switch
display 0, 1. 0: zero start, 1: non-zero start, as
shown in figure 24 display startup mode
System Parameter Settings
CYRUSHER.COM Page 11
10) Drive mode setting
9) Zero boot, non-zero boot setting
Image 22
SPEED
Image 24
SPEED
Image 23
SPEED

Display P13, short press key/ key to switch
display 5,8,12 disk type, as shown in figure 28
display the booster disk type setting mode
Display P12, short press key/ key to switch
display range from 0 to 5, as shown
in figure 27.display the power start strength mode
Display P11, short press key/ key to switch

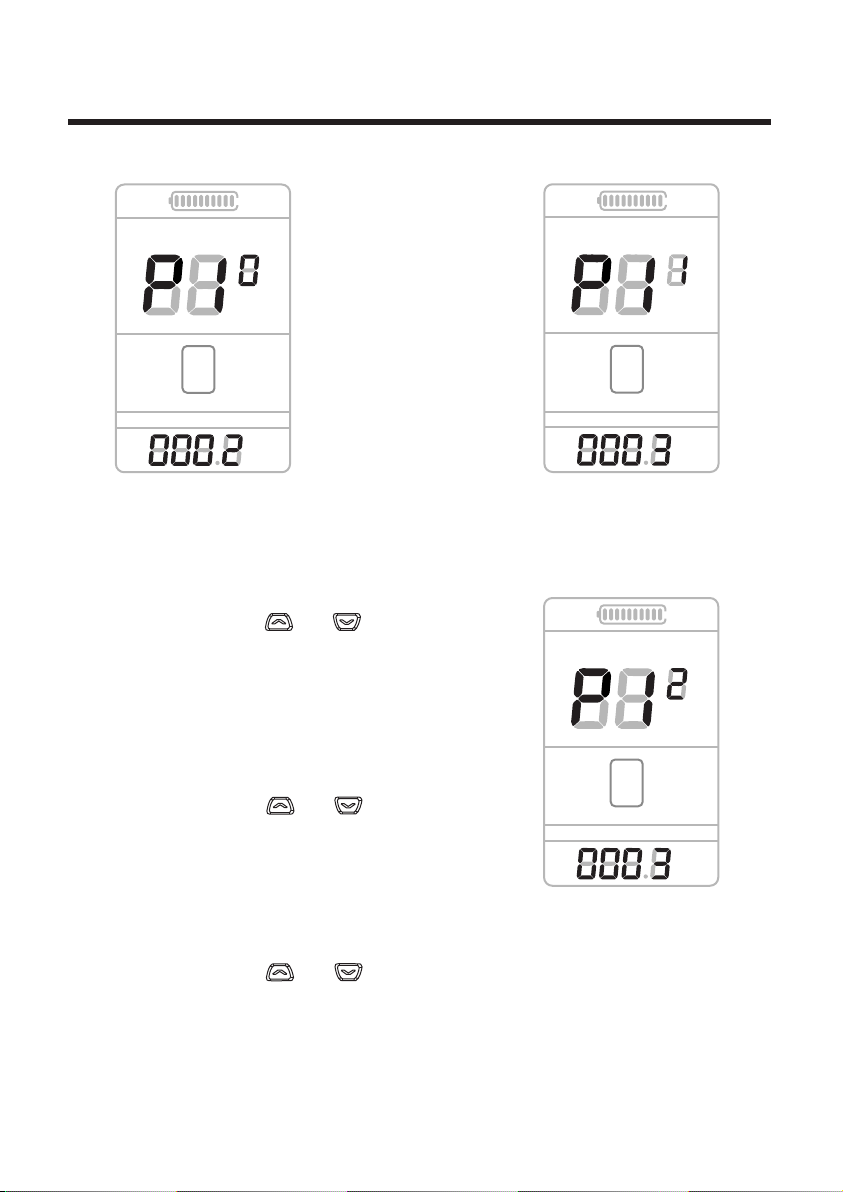

display 1~24. as shown in figure 26 display the
support sensitivity mode
System Parameter Settings
CYRUSHER.COM Page 12
12) Power start strength setting
11) Support sensitivity setting
Image 25
SPEED
13) Booster disk type setting
Image 27
SPEED
Image 26
SPEED
POWER

Display P16, The speed position shows the current
cumulative mileage, long key(5s), when the
speed shows 0, the cumulative mileage is zero.
shown as figure 31(display0000), 32(the cumulative
mileage is zero)
display P14 short press key/ key to switch
display range from 1~20A, as shown in figure
29.display the controller limit flow mode press
display P15, display the controller undervoltage
value, shown as figure 30 display the controller
undervoltage value mode
System Parameter Settings
CYRUSHER.COM Page 13
15) The controller undervoltage value
14) Controller limit flow setting
Image 28
SPEED
16) The cumulative mileage is zero
Image 30
SPEED
Image 29
SPEED
POWER

Display P18, long key(5s),when the speed
shows SSSS, it means restore factory settings
(except cumulative mileage), shown as figure 33
display SSSS
1）24V，36V，48V power supply
2）Rated working current 10mA
3）Maximum working current of meter 30mA
4）Shutdown leakage current is less than 1uA
5）Supply controller side working current 50mA
6）Temperature: - 18 ~ 65 ℃
7）Storage temperature: - 30 ~ 80 ℃
System Parameter Settings
CYRUSHER.COM Page 14
Instrument specification parameter
17) Restore factory settings
Image 31
SPEED
Image 33
SPEED
Image 32
km
km / h
SPEED
PAS
POWER
ODO

S700 can provide warning for the vehicle fault, in the LCD shows the ERROR icon when
a failure is detected, the position ERROR code displayed ERROR code n, n = 0 ~ 11
shows ERROR, ERROR code comparison table 1 table as shown below
System Parameter Settings
CYRUSHER.COM Page 15
Error code definition
In use, the time interval between starting and shutdown should not be less than 3
seconds, and do not press the MODE key when it is turned off
Pay attention to safe driving in use and avoid instrument crashing. Try not to use it
in harsh conditions, such as heavy rain, heavy snow, and exposure. Try to avoid the use
of battery under voltage and avoid damage to electric car batteries.
When the temperature is under 10℃, the screen will turn dark with the reduce of the
temperature.
Maters needing attention
question:why it can not be started?
Answer: checking whether the wire harness of the instrument is in good contact
with the controller.
question: How should the fault code be handled?
Answer: coming to the ebike agent for maintenance
Frequently questions and answers
Status code
（decimalism）
0
6
7
8
9
10
11
Normal
Battery under voltage
Motor fault
Handle fault
Controller fault
Reception fault
Communication fault
Battery charge
Check whether the power line is loose
Check the links, if it is normal, then
replace the handle
Check the links
Check the links of the instrument cable
State Process mode
Check the links of the instrument cable
