D-Link DAP-1320 Assembly instructions

1
How do I setup and install my DAP-1320?
How do I setup and install my DAP-?
The DAP-1320 can be setup by two different methods:
1. Push button WPS (Wi-Fi Protected Setup)
2. Manual
Note: In order to setup the DAP-1320 using WPS, you must have a WPS compatible router/access
point
Push Button WPS

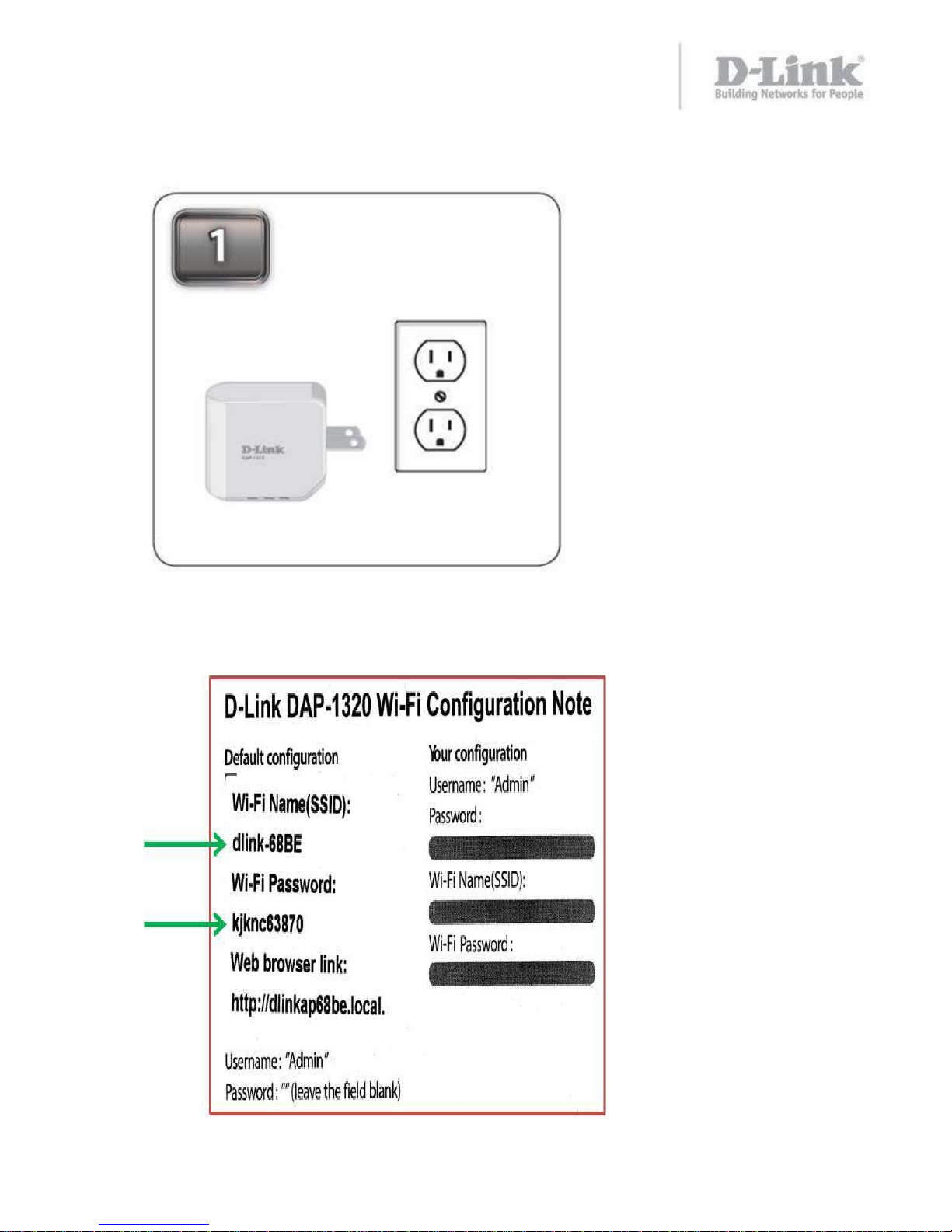

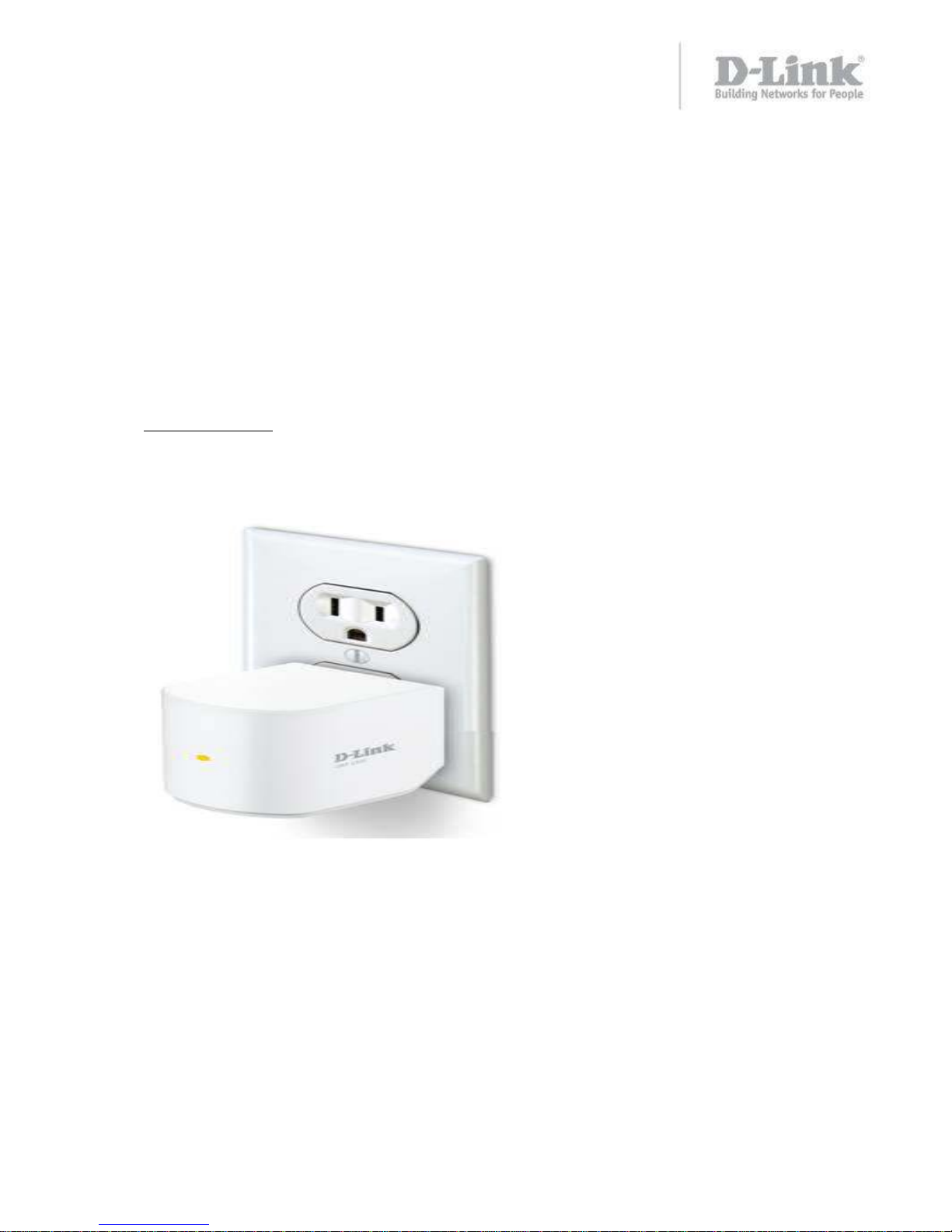

Step 1: Plug in the DAP-1320
Note: The light should turn red and then start blinking orange

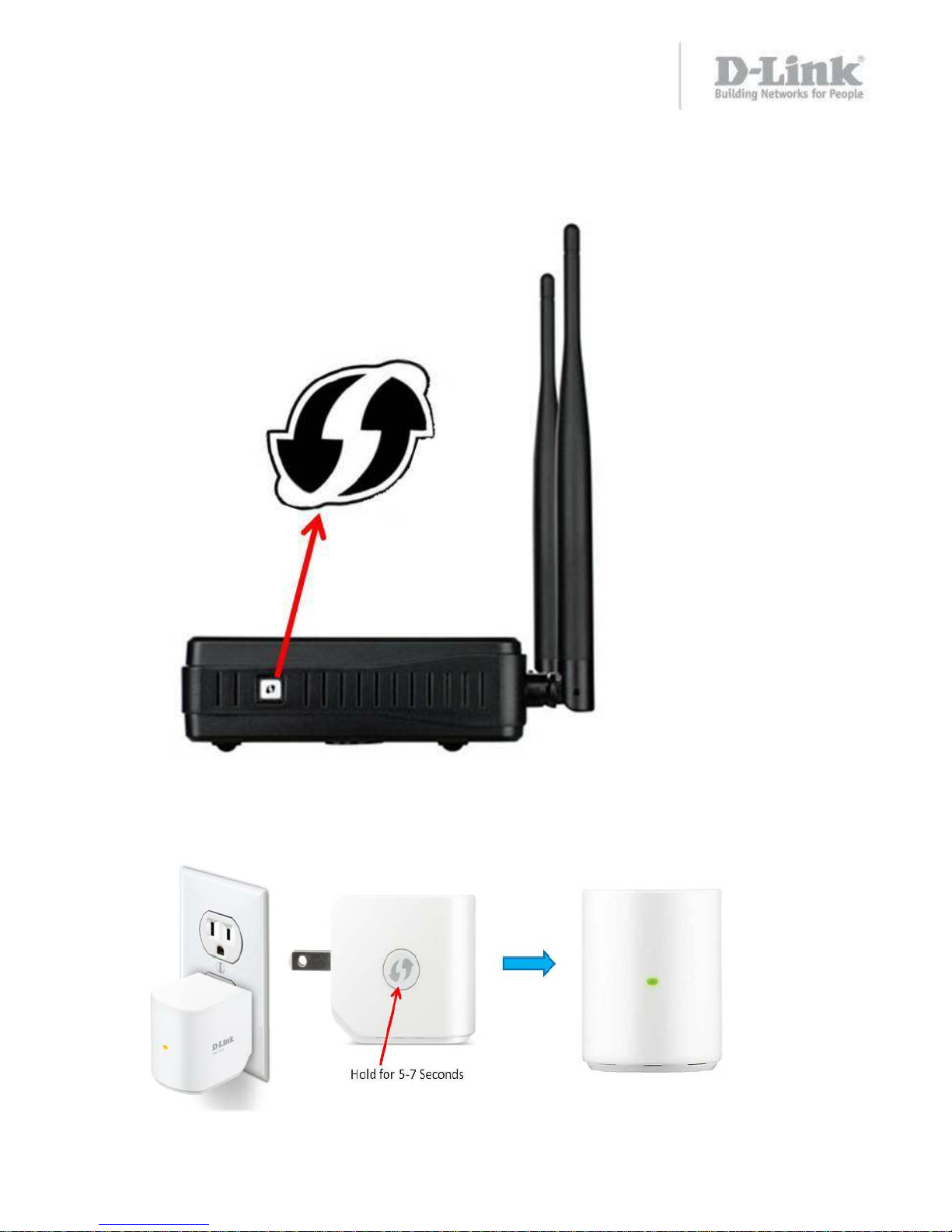

Step 2: Press the WPS button on your router/AP

2
How do I setup and install my DAP-1320?
Step 3: Press and hold the WPS button on the DAP-1320 until it starts blinking green and then
release. Once connected, the LED will be solid GREEN.

3
How do I setup and install my DAP-1320?
Step 4: Unplug and place the DAP-1320 approx half way between the router and the desired con-
nection area.

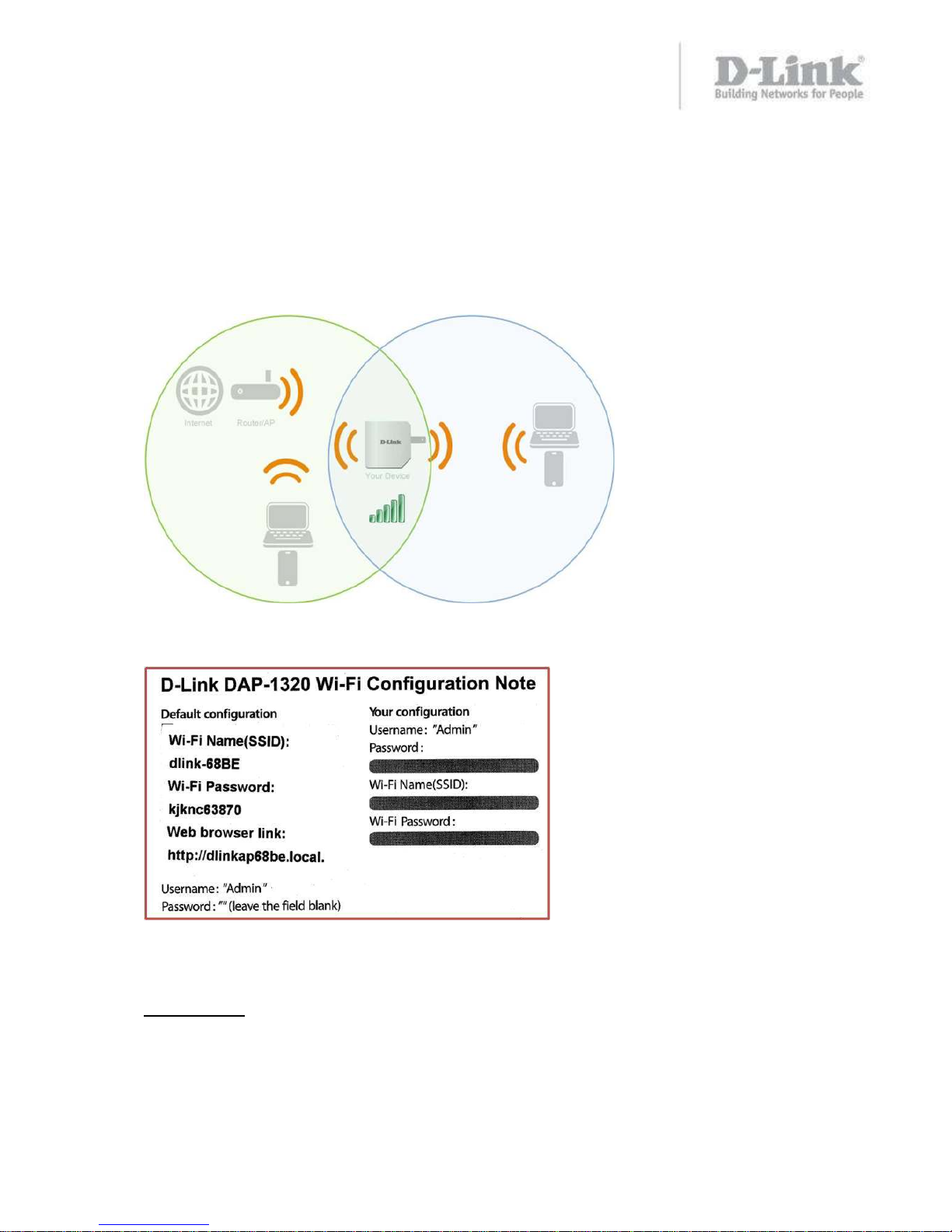

Note: To connect wireless to the DAP-1320, use the Wi-Fi Network Name (SSID) and Wi-Fi Pass-
word information located on your configuration note.-á
Manual Setup
Step 1: Plug in the DAP-1320
Note: The light should turn red and then start blinking orange

4
How do I setup and install my DAP-1320?
Step 2: From a wireless computer/device, scan for available networks and connect to the pre-
defined SSID
(Located on the Companion Card supplied with the DAP-1320 and on the bottom of the DAP-1320)
example: Dlink-6DFC .

5
How do I setup and install my DAP-1320?

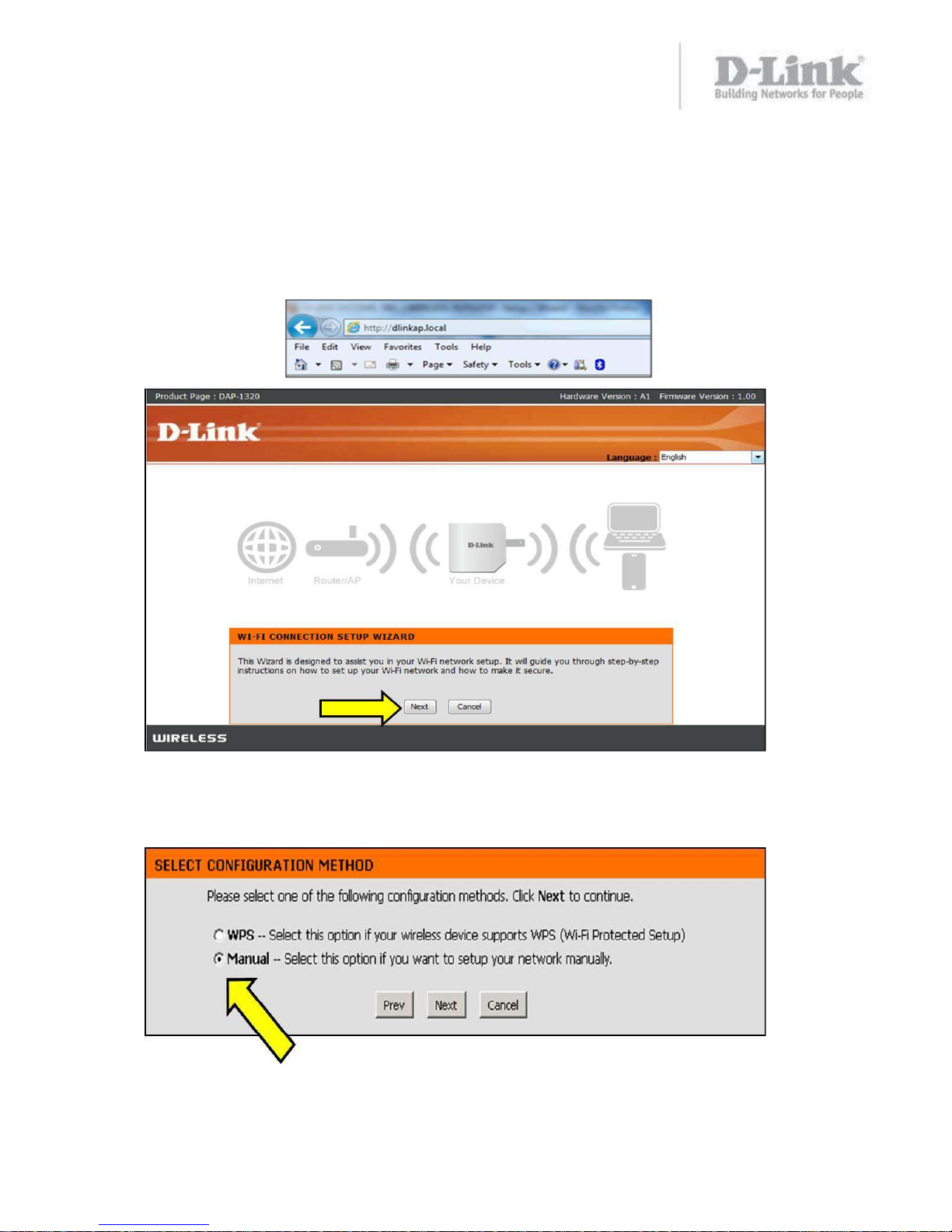

Step 3: Open a Web browser and type dlinkap.local.
You will be directed to the d-link setup page. Click next to start the setup.
Step 4: Select the Manual configuration method and click “Next”.
The DAP-1320 will scan for available wireless networks. Select the Wi-Fi network you would like the
DAP-1320 to extend and click “Connect”

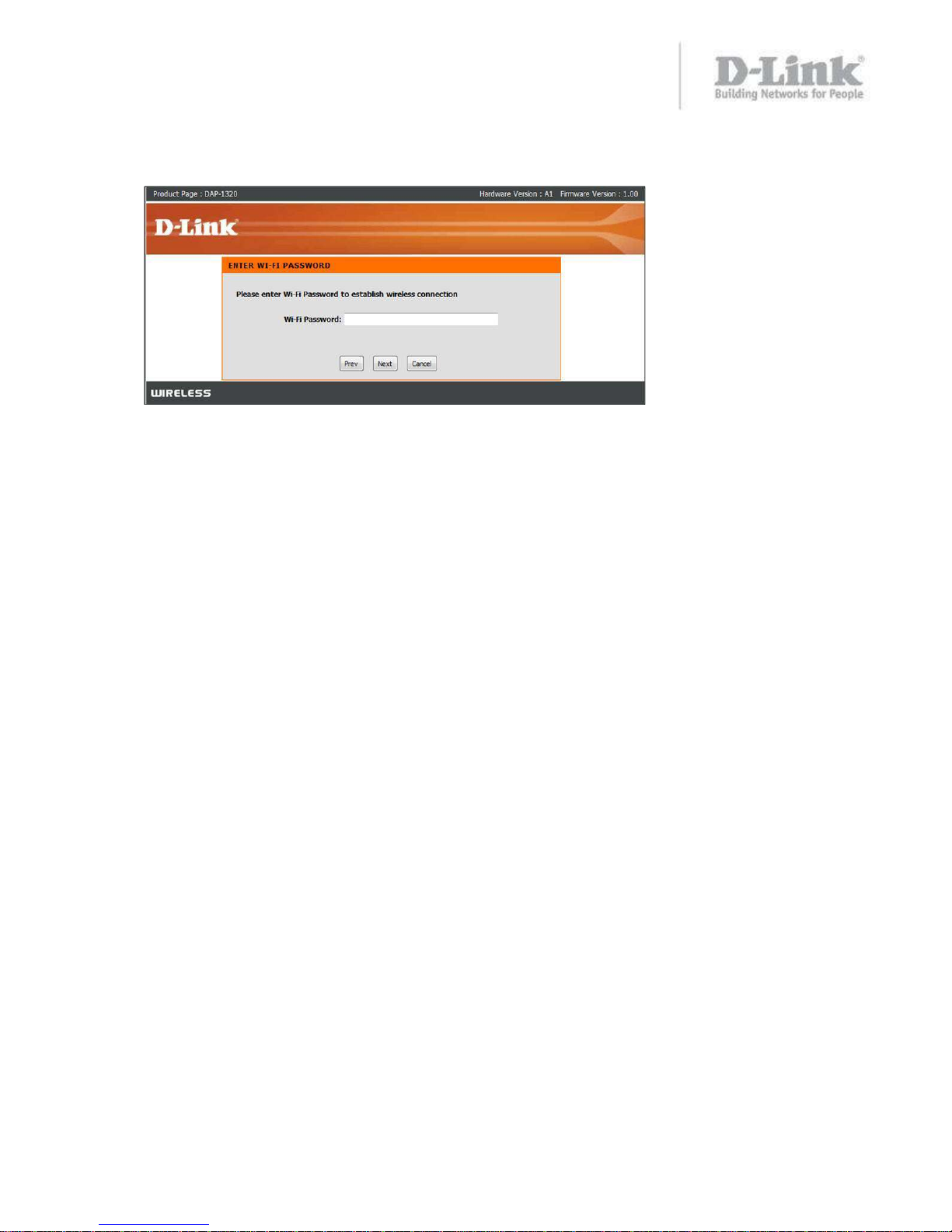

Note: If the wireless network you are trying to extend is security enabled, you will be prompted for
the Wi-Fi password.

6
How do I setup and install my DAP-1320?
Step 5: Next you need to create a wireless network name and password for your extended net-
work. It is suggested to configure a name that is different from your "Primary" wireless network.
Click Next
Step 6: Confirm your wireless settings and click save
Setup is now complete. Once the DAP-1320 has applied its settings, its light should be Green and
you should be able to connect to the Extended Wi-Fi Network.
