D-Link DHP-W310 User manual

DHP-W310AV
User Manual
PowerLine AV 500 Wireless N Mini Extender
Version 3.00 | 12/03/2015

2D-Link DHP-W310AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2016 by D-Link Corporation.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc.
This purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby mode or use a power
management mode. If you wish to power down this product, please simply unplug it from the power outlet.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network Standby
mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.
Network Standby: 4.11 watts
Preface
Revision Date Description
1.0 23 December, 2013 • Initial release for A1 version
2.0 21 August, 2014 • add Windows 8
3.0 03 December, 2015 • add Windows 10

3D-Link DHP-W310AV User Manual
Table of Contents
Preface................................................................................................2
Manual Revisions............................................................................................. 2
Trademarks ........................................................................................................ 2
Power Usage ..................................................................................................... 2
Product Overview..............................................................................5
Package Contents ........................................................................................... 5
System Requirements.................................................................................... 6
Introduction ...................................................................................................... 6
Connections............................................................................................. 8
LEDs ............................................................................................................ 9
Hardware Installation .....................................................................10
Wireless Installation Considerations ......................................................11
PowerLine Installation Considerations..................................................12
Safety.................................................................................................................13
Conguration...................................................................................14
Setup..................................................................................................................14

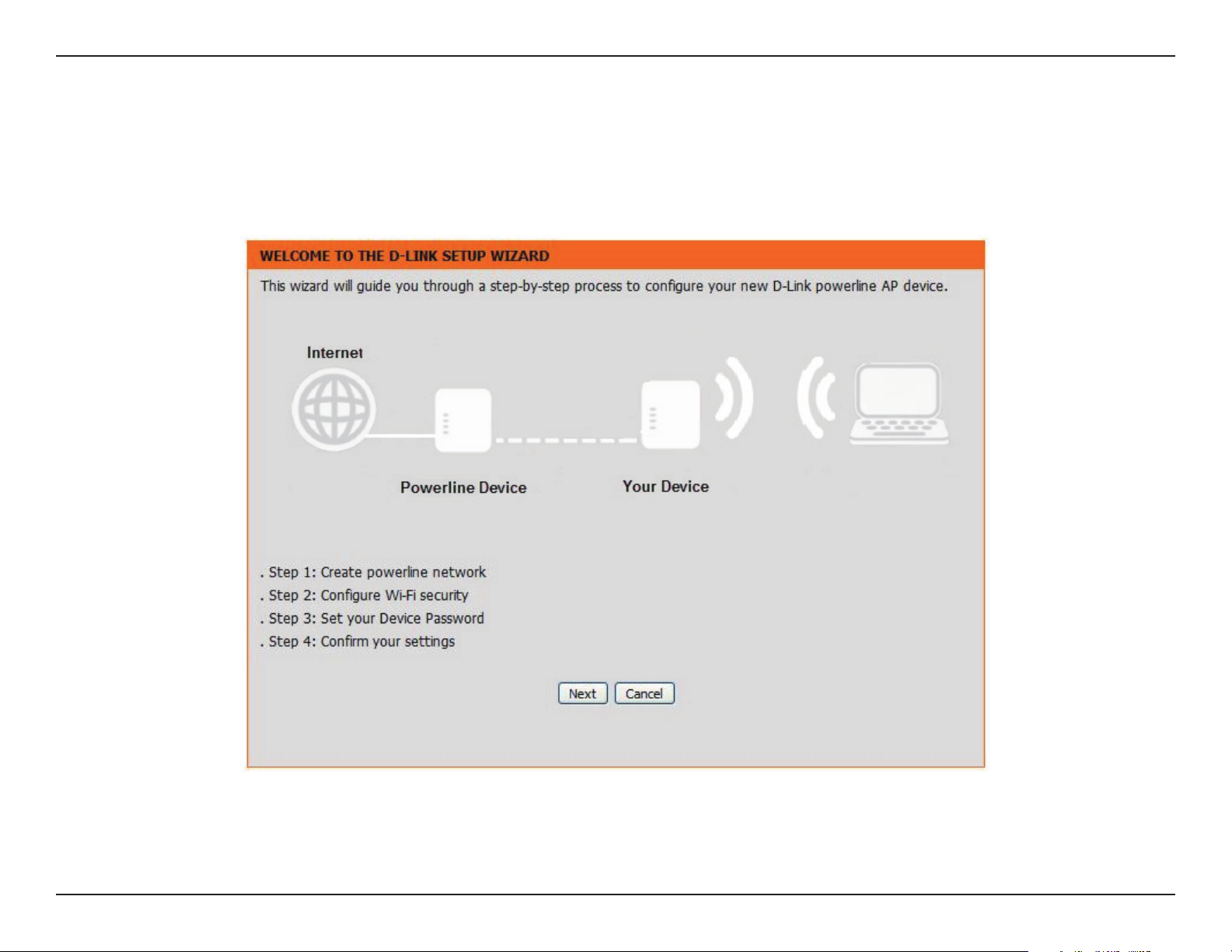

Setup Wizard..........................................................................................15

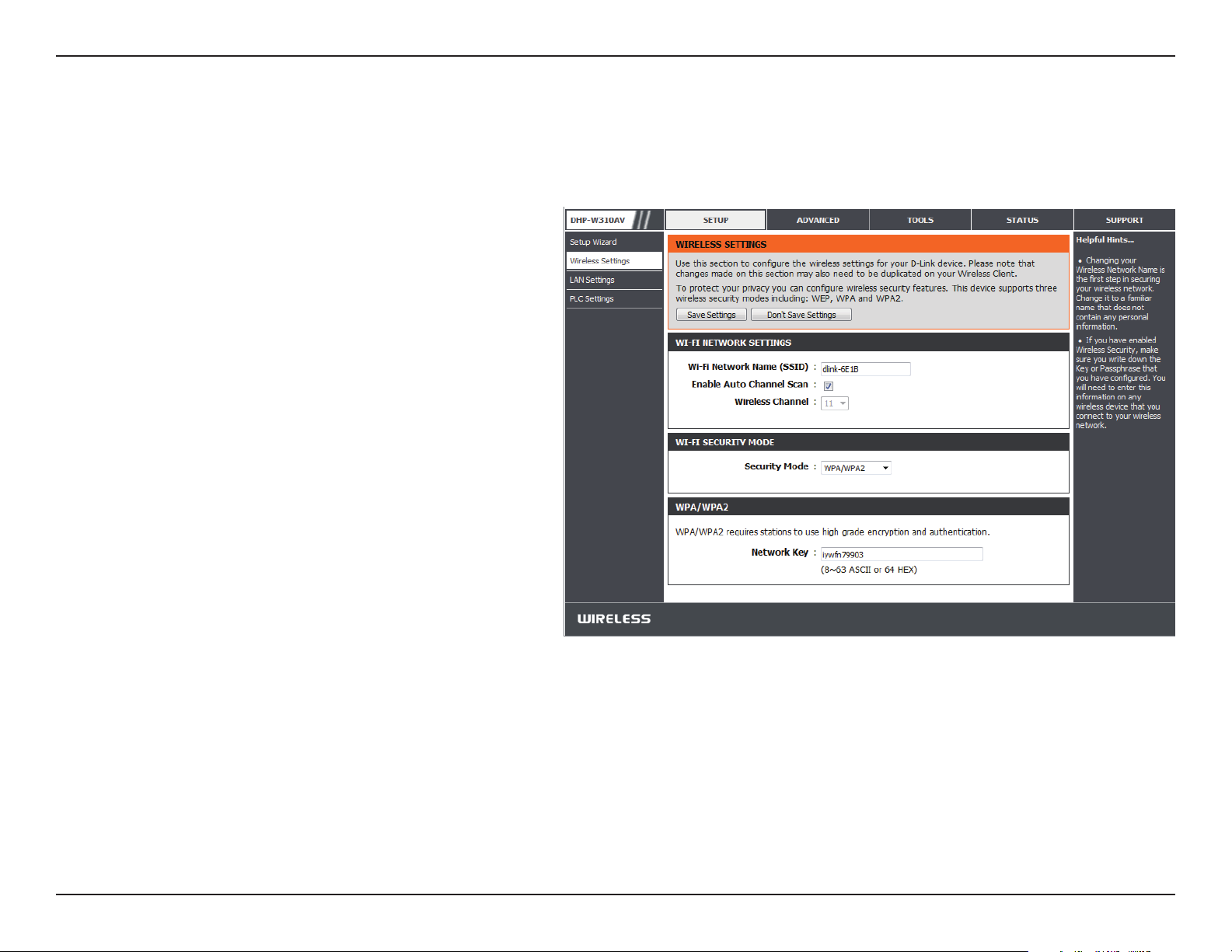

Wireless Settings ..................................................................................16

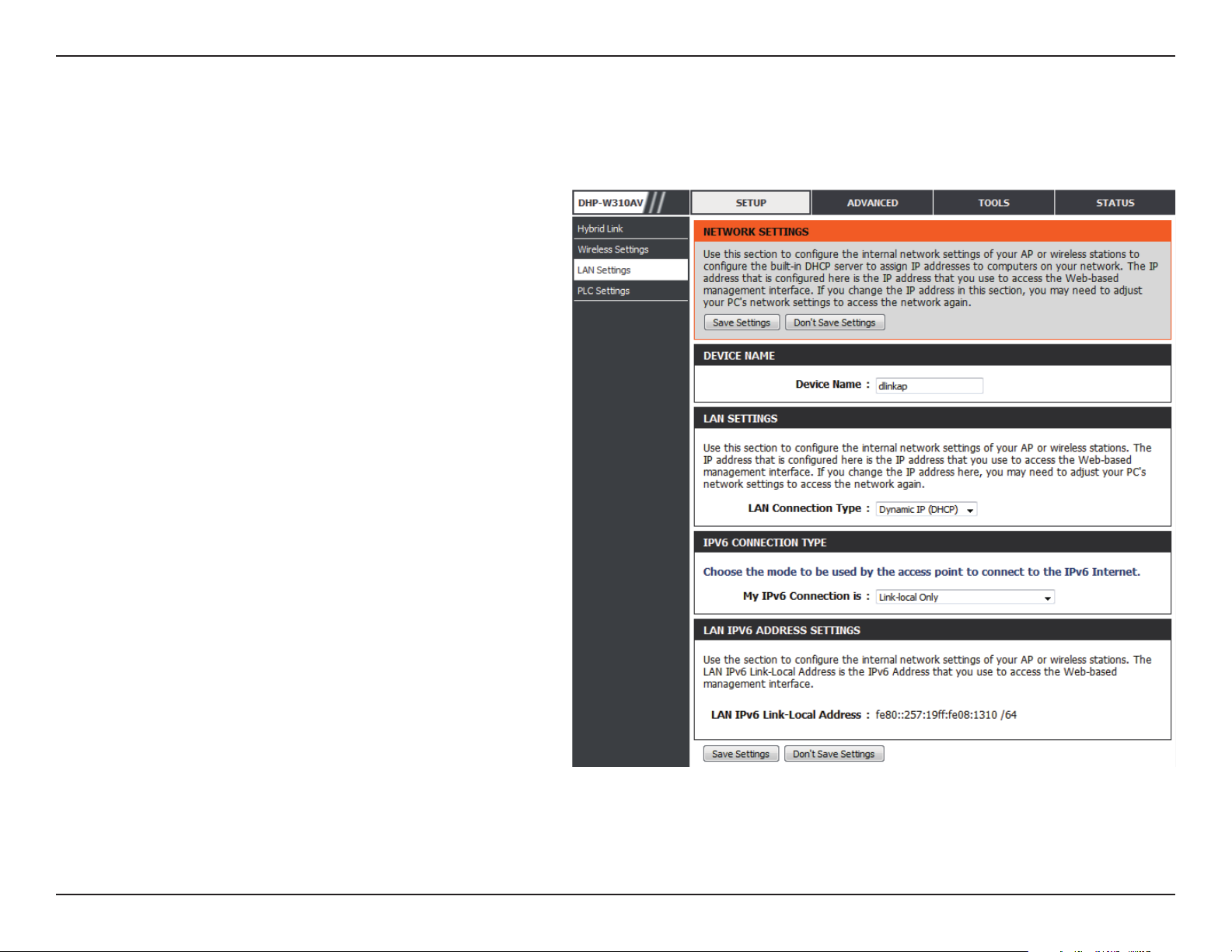

LAN Settings ..........................................................................................17

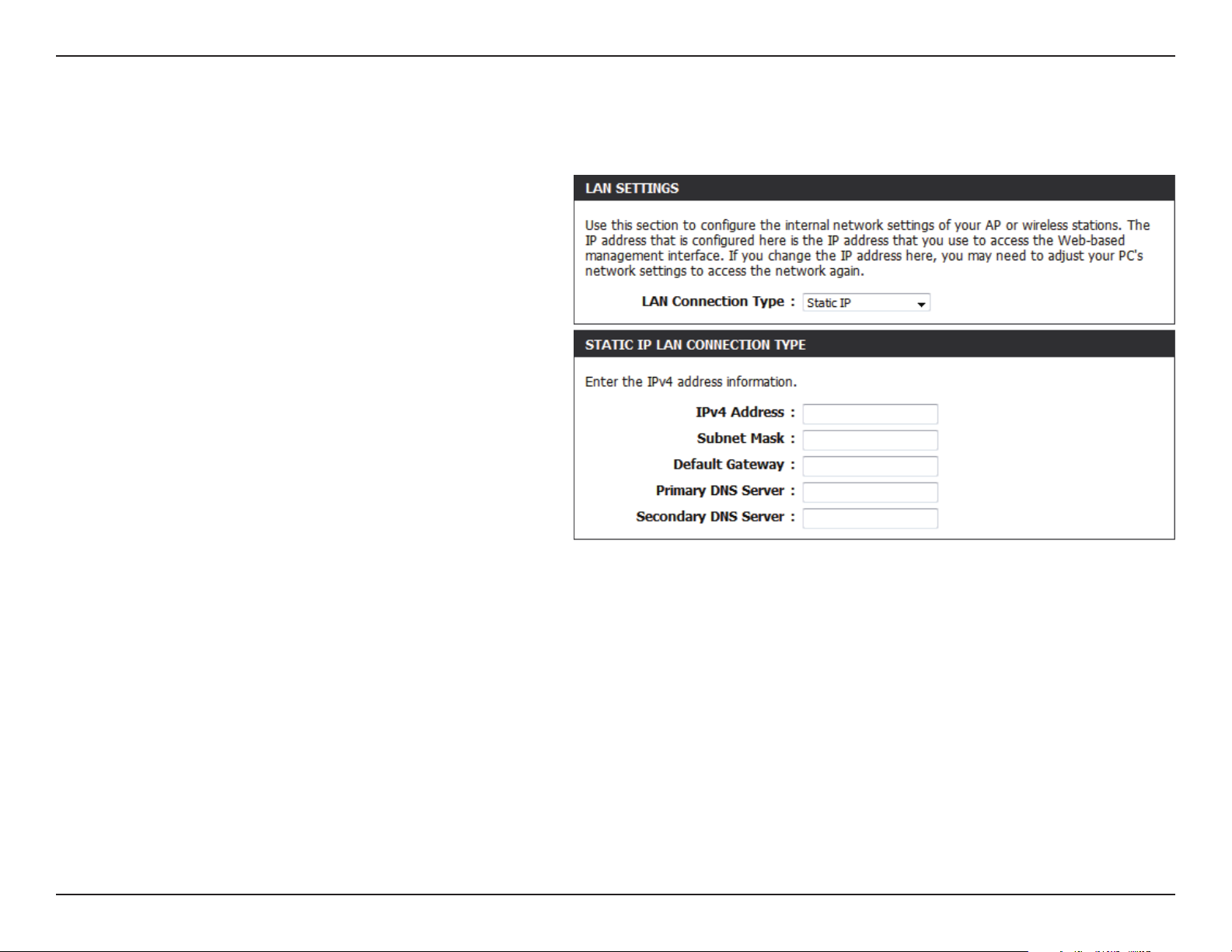

LAN Settings - Static IP .................................................................18
PLC Settings ..........................................................................................19
Advanced .........................................................................................................20

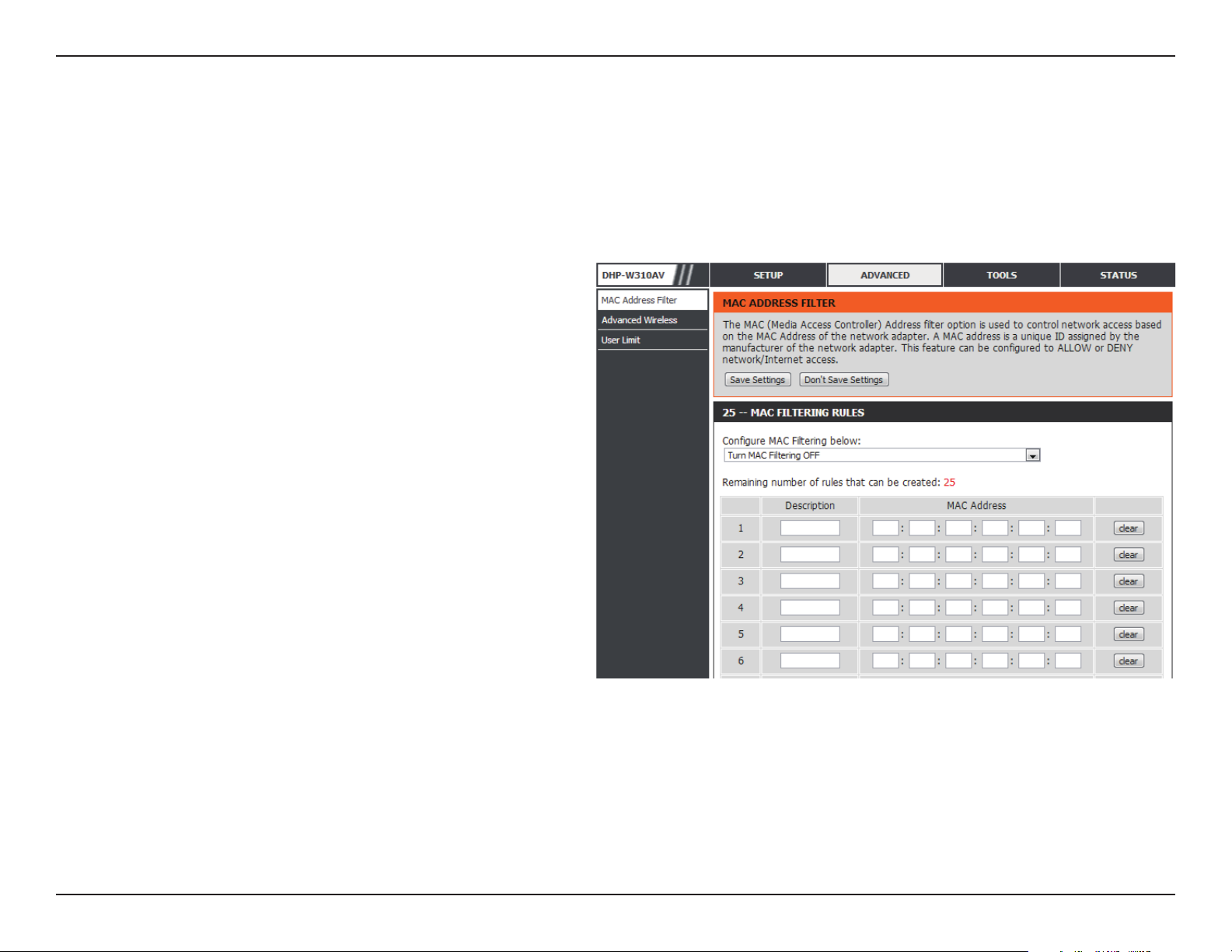

MAC Address Filter...............................................................................20
Advanced Wireless...............................................................................21
User Limit................................................................................................22
Tools...................................................................................................................23
Admin.......................................................................................................23
System......................................................................................................24
Firmware..................................................................................................25
Time ..........................................................................................................26
System Check ........................................................................................27
Status.................................................................................................................28
Device Info..............................................................................................28
Logs...........................................................................................................29
Statistics...................................................................................................30
Wireless....................................................................................................31
IPv6............................................................................................................32
Support.............................................................................................................33
Wireless Security .............................................................................34
What is WEP?...................................................................................................34
What is WPA?...................................................................................................35
Conguring WEP ...........................................................................................36
Conguring WPA/WPA2 Personal............................................................37
Connecting to a Wireless Network .................................................38
Using Windows®10 ......................................................................................38
Using Windows®8..........................................................................................40
Using Windows®7..........................................................................................42
Using Windows Vista®..................................................................................45
Table of Contents

4D-Link DHP-W310AV User Manual
Table of Contents
Conguring Wireless Security..........................................................47
Using Windows®XP.......................................................................................49
Conguring WPA-PSK .........................................................................50
Troubleshooting ..............................................................................52
Wireless Basics ................................................................................54
What is Wireless? ...........................................................................................55
How does wireless work? ..................................................................55
Wireless Local Area Network (WLAN) ...........................................55
Networking Basics...........................................................................58
Check your IP address..................................................................................58
Statically Assign an IP address..................................................................59
Technical Specications..................................................................60

5D-Link DHP-W310AV User Manual
Section 1 - Product Overview
D-Link DHP-W310AV PowerLine AV 500 Wireless N Mini Extender
CAT5 Ethernet Cable
CD-ROM with User Manual
Wi-Fi Conguration Card
Wi-Fi Conguration Note
Package Contents
Product Overview

6D-Link DHP-W310AV User Manual
Section 1 - Product Overview
Introduction
The DHP-W310AV allows you to connect both wired and wireless computers, high-denition TVs, networking devices, and gaming consoles using
the most pervasive medium in your home - the electrical wiring. Share Internet connections and experience smooth le transfers, streaming
multimedia, online gaming and more. The PowerLine AV 500 Wireless N Mini Extender features easy plug-and-play installation and can be connected
to any Ethernet-enabled device.
The PowerLine AV 500 Wireless N Mini Extender incorporates the latest technology to improve on the AV technology’s data speeds over a home’s
existing electrical wiring. This fast transmission speed provides ample bandwidth suitable for streaming high-quality video HDTV signals while
simultaneously providing high-speed Internet access throughout the home.With Quality of Service (QoS) support, the performance of applications
which require real-time communication, such as VoIP phonecalls and multiplayer online games, will not be compromised even while streaming
Internet TV and music.
System Requirements
Network Requirements
• IEEE 802.11n or 802.11g wireless clients
• 10/100 Ethernet clients
Browser Requirements
• Internet Explorer 7.0 or higher
• Firefox 3.5 or higher
• Safari 4.0 or higher
• Chrome 8.0 or higher
CD Requirements
• Windows® 7 / Vista® /XP /8 /10/Mac OS 8 above
• CD-ROM drive
• PC with 1.5 Ghz processor
• 1 GB memory

7D-Link DHP-W310AV User Manual
Section 1 - Product Overview
Data Transmission Over electrical Wiring
The D-Link DHP-W310AV PowerLine AV 500 Wireless N Mini Extender, compliant with the HomePlug AV standard, uses your home’s existing electrical
wiring1to create a network or extend your existing network. It turns every power outlet into a potential network connection to access digital media
devices, game consoles, print servers, computers, and network storage devices throughout your home. Additionally,Wireless N provides high speed
transfers without the need for unsightly network cables.
Faster Wireless Speeds & Wider Operational Range
TheWireless N technology incorporated into the DHP-W310AV oers increased speed and range beyond standard 802.11g technology. Initial wireless
setup can be accomplished quickly, thanks to a convenient setup wizard. WPA and WPA2 encryption keep your network trac safe and secure.
Ideal For Bandwidth-Intensive Applications
The DHP-W310AV is capable of delivering PowerLine AV data transfer rates even higher than the old AV standard. This rapid transmission speed makes
it ideal for bandwidth-intensive applications, guaranteeing smooth HD video streaming, clear VoIP calls, and lag-free online gaming experiences.
In addition, it prioritizes Internet trac, ensuring that multimedia applications do not experience glitches while web surng and downloads are in
progress. This device provides ample network bandwidth, enabling digital home consumers to tap into existing electrical wiring for high-quality
multimedia streaming.
Convenient Setup and Secure Operation
The DHP-W310AV plugs directly into a power outlet, and does not require any additional cables. Extend your home network by connecting multiple
devices in the farthest corners of your home via Ethernet cable or Wireless N. For convenient setup, wired or wireless encryption keys can be quickly
congured with the push of a button on top of the device. The adapter implements 128-bit AES data encryption to protect the network from
unauthorized wiretapping. With hassle-free plug and play installation, the DHP-W310AV is an ideal solution to create a wall-to-wall home network.

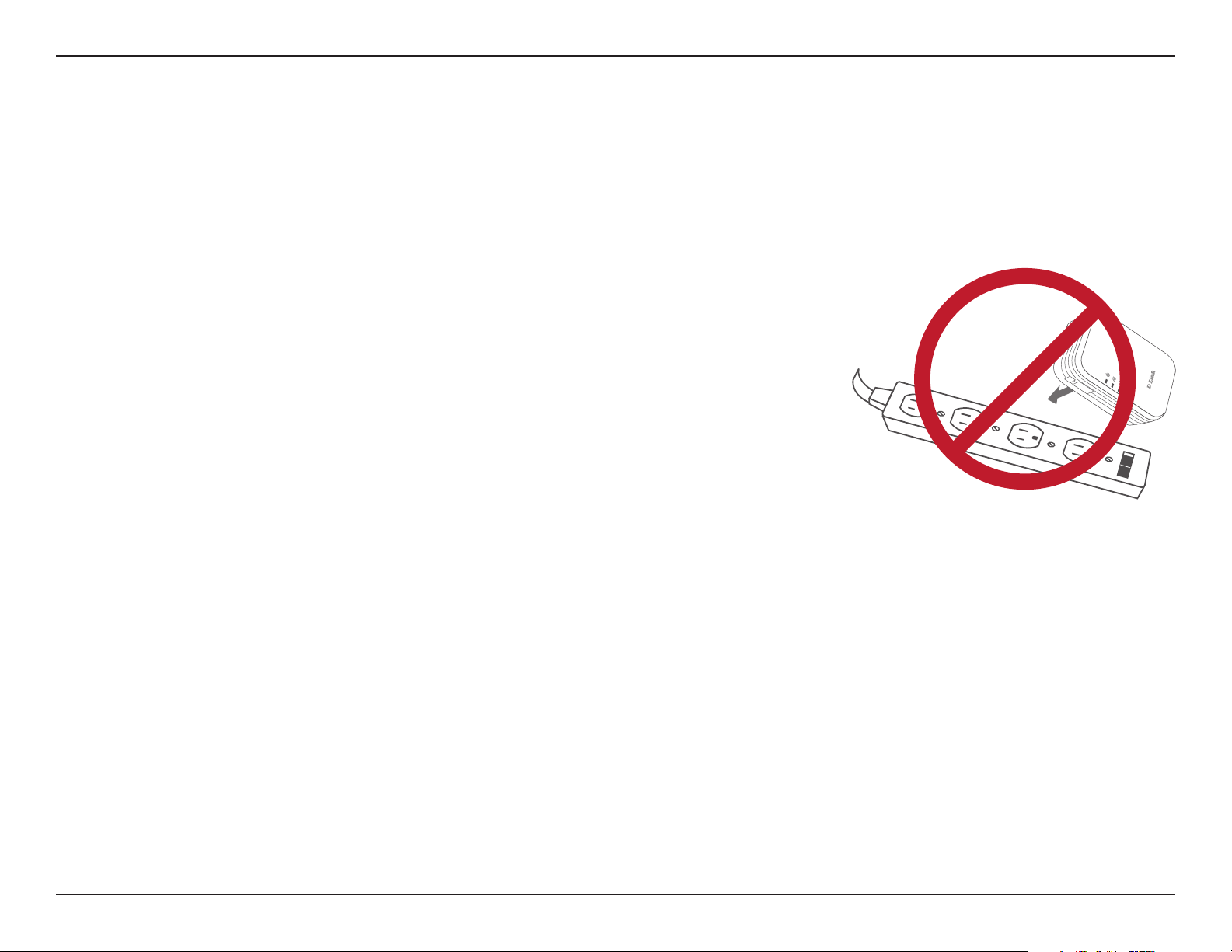

1Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and conguration, may aect the performance of this product.
Additional D-Link PowerLine AV adapters are required to add new devices to the network. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network. Connecting this product to a power
strip with a surge protector may adversely aect the performance of this product. For best results, plug the adapter directly into a wall outlet.

8D-Link DHP-W310AV User Manual
Section 1 - Product Overview

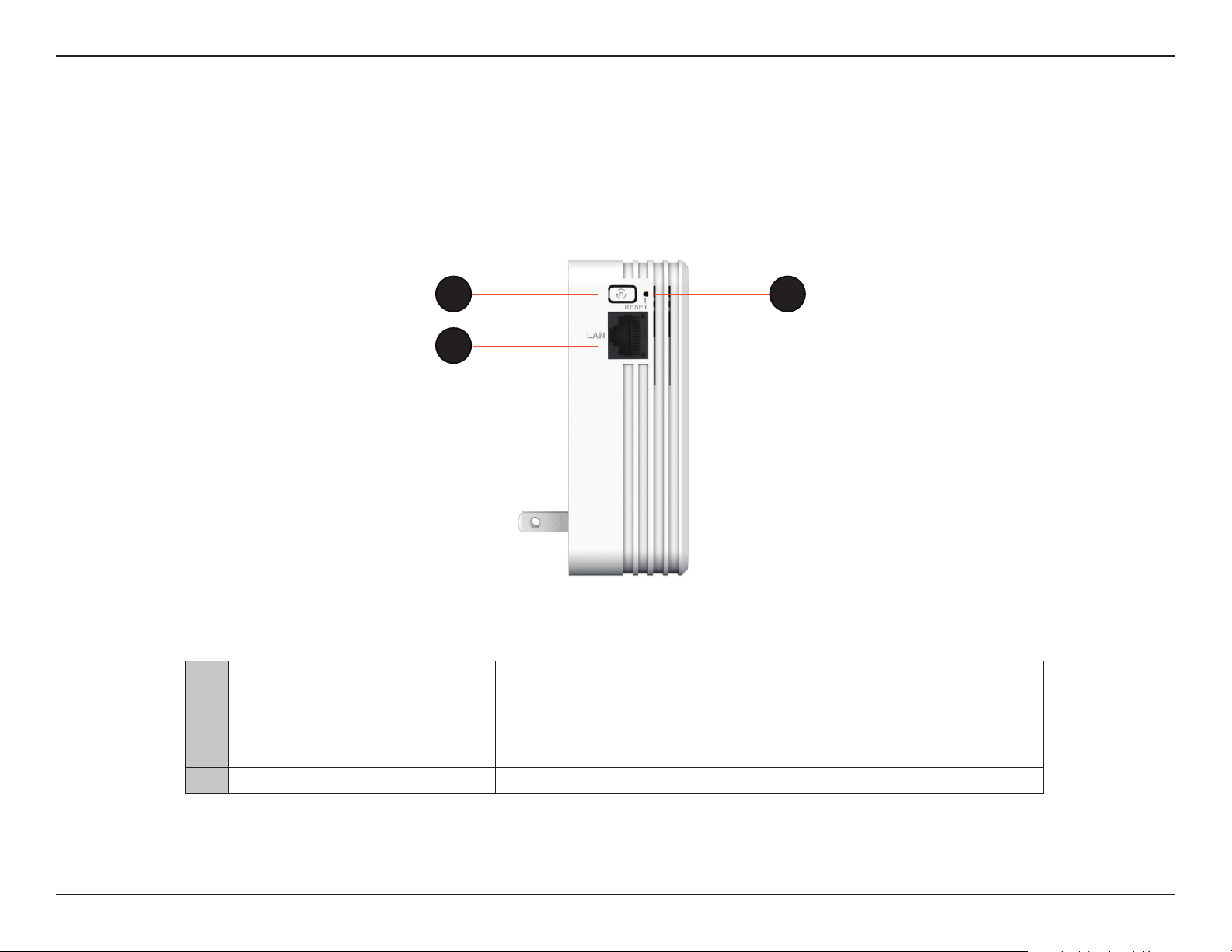

Hardware Overview
Connections
1Common Connect Button
Push this button to create a secure PowerLine connection with another adapter. More
on this connection is available at “Hardware Installation” on page 10. It can also be
used to connect using Wi-Fi Protected Setup (WPS). To connect using WPS, press this
button, then press the WPS button on your wireless client.
2RJ-45 10/100BASE-TX Ethernet Port Connects to Digital Media Devices, PCs, Game Consoles, Network Storage Devices
3Reset Button Press and hold the button for 5 seconds to reset to factory default.
1
2
1 3

9D-Link DHP-W310AV User Manual
Section 1 - Product Overview
Hardware Overview

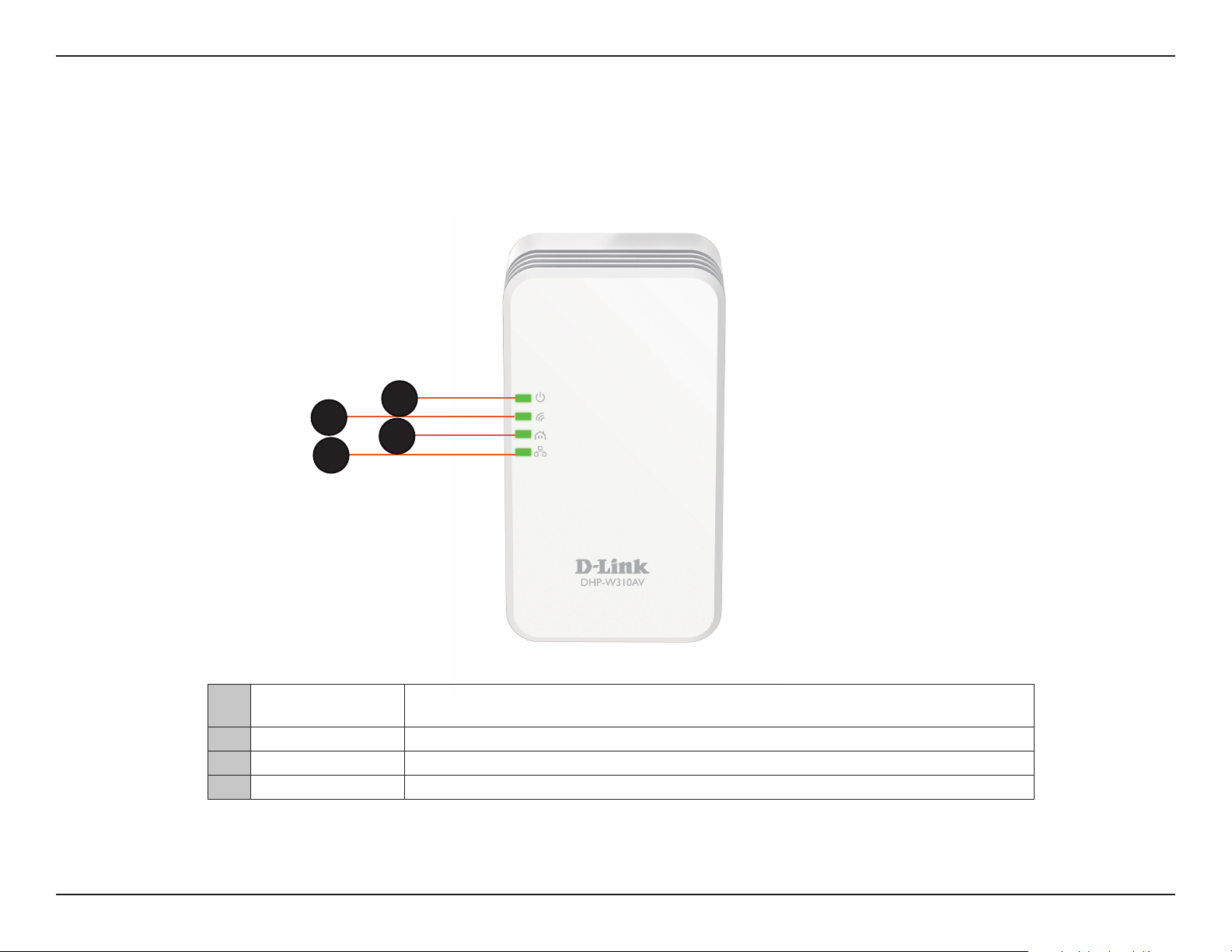

LEDs
1Power LED A solid light indicates a proper connection to the power supply. A blinking light indicates it is in
sleep mode or seeking a PowerLine connection.
2Wireless LED A solid light indicates that the wireless segment is ready.
3PowerLine LED A solid light indicates that a PowerLine connection is established.
4Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
2
2
4
1
3

10D-Link DHP-W310AV User Manual
Section 2 - Installation
Hardware Installation
Power
Plug the DHP-W310AV into an AC wall outlet where you want to extend your network. The Power LED on the DHP-W310AV will turn on to indicate
it is receiving power. This may take up to 60 seconds.
Plug in the Ethernet Cable
Connect one end of the supplied CAT5 Ethernet cable to the Ethernet port on the DHP-W310AV and the other end of the cable to the device’s
Ethernet interface.
Connect to Existing Network
Press the Common Connect Button on the existing PowerLine AV device for 3 seconds. Then, press the Common Connect Button on the DHP-
W310AV PowerLine AV 500 Wireless N Mini Extender for 3 seconds. This must be done within two minutes after pressing the Common Connect
Button on the rst device. The PowerLine devices will reboot. Read the Wi-Fi advice on the next page, and continue to Conguration.
Note: Network connectivity is conrmed when the PowerLine LEDs indicators on both PowerLine devices are steadily lit. This will indicate that your
network is now secure.
Note: A minimum of two PowerLine devices (your DHP-W310AV and another pre-existing device) are required to create a PowerLine network.

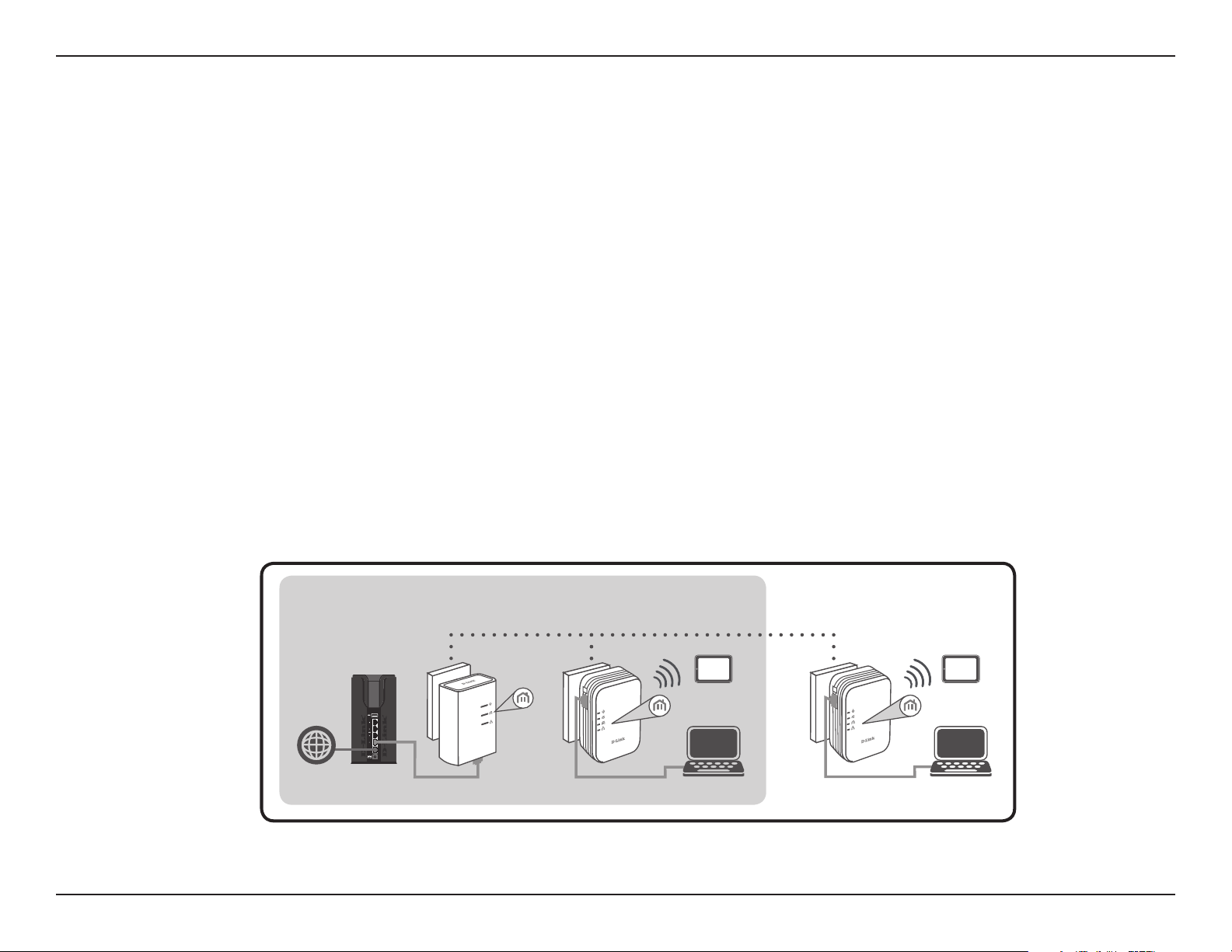

ROOM A ROOM B ROOM C
DHP-W310AV DHP-W310AV
DHP-308AV
RouterInternet Notebook Notebook
iPad iPad

11D-Link DHP-W310AV User Manual
Section 2 - Installation
Wireless Installation Considerations
The DHP-W310AV lets you access your network using a wireless connection from anywhere within the operating range of your wireless network.
Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the
range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to
maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the DHP-W310AV and other network devices to a minimum. Each wall or ceiling can reduce your
adapter’s range by 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters) at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position the wireless
DHP-W310AV and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or wireless products such as ceiling fans, lights, and home security systems, your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base
transmits a signal even if the phone is not in use.

12D-Link DHP-W310AV User Manual
Section 2 - Installation
PowerLine Installation Considerations
Plan the location of your PowerLine devices:
1. Connect PowerLine devices to electrical outlets that are not controlled by a wall switch to avoid accidentally turning o
power to the device.
2. Do not connect the PowerLine devices to an extension cord, surge protector, or
power strip as this might prevent it from working correctly, or negatively impact
network performance.
3. Avoid using the PowerLine devices in an electrical outlet that is located near an
appliance that uses a lot of power, such as a washer or dryer, or a refrigerator. This
may prevent the adapter from working correctly, or negatively impact network
performance.
4. Verify that your PowerLine devices are electrically rated to operate with the power
available in your location.
5. To help prevent against electrical shock, be sure to plug the power cables into properly grounded electrical outlets.

13D-Link DHP-W310AV User Manual
Section 2 - Installation
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service the device.
3. Ensure that the device is plugged into the wall in a vertical position.
4. Use the device in a dry location, and avoid placing it in humid environments.
5. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it
from the power outlet and use a damp towel.
6. Keep the device out of direct sunlight.
7. Do not cover or block the vents on the device.
8. Make sure that the device has adequate room for ventilation.
9. Avoid placing the device near a heater or radiator.
Safety

14D-Link DHP-W310AV User Manual
Section 3 - Conguration
Conguration
Setup
If you wish to change the default settings or optimize the performance
of the DHP-W310AV, you may use the web-based conguration utility.

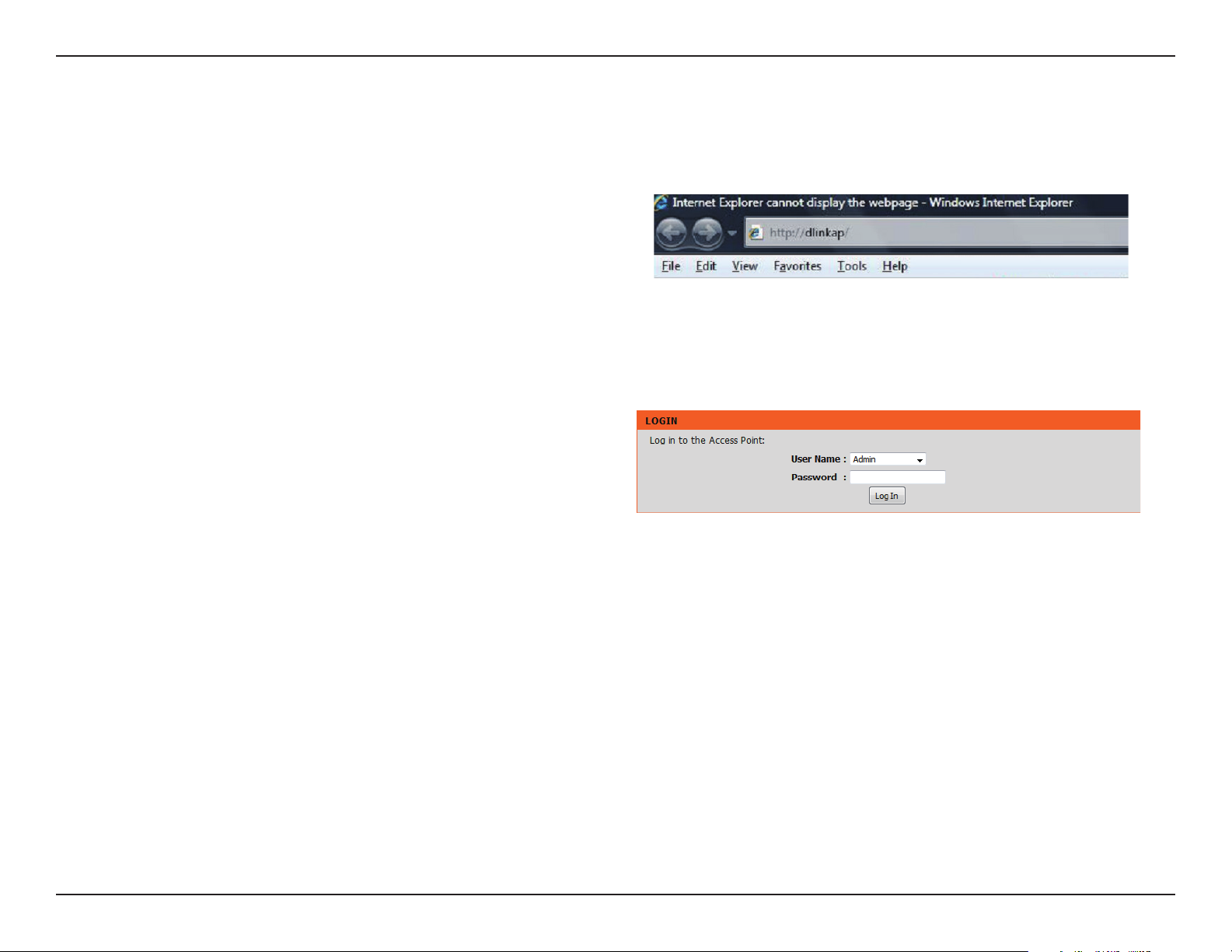

To access the conguration utility, open a web browser such as Internet
Explorer and enter either http://dlinkapWXYZ.local. (this is on theWi-Fi
Conguration Card) or http://192.168.0.50 in the address eld.
By default, Admin will be the User Name . Leave the password blank.
If you receive a “Page Cannot be Displayed” error, please refer to
“Troubleshooting”on page 52 for assistance.
You will automatically proceed to the Setup heading after logging in.

15D-Link DHP-W310AV User Manual
Section 3 - Conguration
Setup Wizard
Use the wizard’s on-screen incstructions to conveniently set up your network if you have not yet. You can also manually congure your network.
Wi-Fi settings are covered at “Wireless Settings” on page 16 and PowerLine settings are at “PLC Settings”on page 19.

16D-Link DHP-W310AV User Manual
Section 3 - Conguration
Wireless Settings
Service Set Identier (SSID) is the name
of your wireless network. Create a name
using up to 32 characters.The SSID is case-
sensitive.
The Auto Channel Scan setting can be
selected to allow the DHP-W310 to choose
the channel with the least amount of
interference.
By default the channel is set to 1. The
Channel can be changed to t the channel
setting for an existing wireless network or
to customize the wireless network. If you
enable Auto Channel Selection, this option
will be greyed out.
WPA/WPA2 is more secure than WEP. WEP
should only be used if you have older
devices that are unable to use WPA. Use of
TKIP/AES security framework provides the
optimum mix of security and compatibility.
Please refer to“Wireless Security”on page 34
for more information.
Choose a password that is strong. A good password uses both letters and numbers in unpredictable places. Example bad
passwords could be password or 12345678.
Wireless Network
Name:
Enable Auto
Channel Scan:
Wireless Channel:
Wireless Security &
WPA:
Password:
The DHP-W310AV lets you customize your wireless settings for your access point. This device allows you to extend your current network so you can
roam about the house while staying connected the entire time.

17D-Link DHP-W310AV User Manual
Section 3 - Conguration
LAN Settings
This section will allow you to change the local network settings of the DHP-W310AV and to congure the DHCP settings.
Enter the Device Name of this DHP-W310AV.
You will use this name to connect to it
through a web browser. The default name
is listed on your Wi-Fi Conguration Card.
Use the drop-down menu to select Dynamic
IP (DHCP) to automatically obtain an IP
address on the LAN/private network. For
Static IP setup, see the next page.
Your Internet Service Provider (ISP) may
require this to be set a certain way for
Internet access. Contact your ISP regarding
such requirements.
This shows the current IPv6 address of the
DHP-W310AV on your network.
Click Save Settings to save and activate the
new changes.
Device Name:
LAN Connection
Type:
IPv6 Connection
Type:
LAN IPv6 Address
Settings:
Save Settings:

18D-Link DHP-W310AV User Manual
Section 3 - Conguration
Select Static IP to manually enter the IP address, subnet mask, and default gateway addresses.
LAN Connection
Type:
IP Address:
Subnet Mask:
Default Gateway:
DNS Server:
Save Settings:
Select Static IP from the drop-down menu.
Enter the IP address of the DHP-W310AV.
The default IP address is 192.168.0.50. If you
change the IP address, once you click Apply,
you will need to enter the new IP address in
your browser to return to the conguration
utility. You can also connect with the device
name. (See previous page.)
Enter the Subnet Mask.
Enter the Gateway.This is usually the LAN or
internal IP address of your router.
This is the Domain Name Server that looks
up addresses on the Internet, you may have a
specic one you need to connect to.
Click Save Settings to save and activate the
new changes.
LAN Settings - Static IP

19D-Link DHP-W310AV User Manual
Section 3 - Conguration
This section will show you how to congure your new D-Link PowerLine AV using the web-based conguration utility.
PLC Settings
Power Saving:
Network
Name:
Public
Network
Name:
Private
Network
Name:
Scan:
Member List:
QoS Setting:
MAC Address/
Port Number:
Power save mode.
You can set the name of your network and to make
it either public or private. Make sure the Network
Name of all of the devices within your PowerLine
network is the same.
Select this option if you would like to make
your PowerLine network public with the default
Network Name of “HomePlugAV”. Since this is a
commonly used Network Name, it is less secure
than a private Network Name.
Select this option if you wish to make your
PowerLine network more secure by using a private
Network Name.
Click this button to scan for new PowerLine
devices. This is automatically done periodically
and upon loading this page.
This section provides information on the PowerLine
AV devices on your PowerLine network.
Here you can set the Quality of Service (QoS)
settings for each network device. QoS helps you
prioritize network trac based on device or the
port the trac is on.
Select a device from the Computer Name dropdown box and then click the << above Computer Name to automatically ll in
the device’s MAC Address. Or, Set the priority for the device under the Priority dropdown box. Clear settings for a rule with the
Clear button. Remember to click Save Settings after making changes.

20D-Link DHP-W310AV User Manual
Section 3 - Conguration
Use MAC (Media Access Control) Filters to authorize wireless clients to access your network by their MAC addresses. When enabled, you can choose
to block the devices listed, or only allow the devices listed.
MAC Address Filter
MAC Filtering
Rules:
Description:
MAC Address:
Clear:
Save Settings:
Set MAC Filtering to ALLOW, DENY, or OFF.
ALLOW means only the devices listed can
access the network. DENY means the devices
listed cannot access the network. OFF means
this function is currently disabled.
You may make a note for your convenience,
such as “My PC” or “My friend’s smartphone”
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please
refer to “Networking Basics” on page 58. Click
Save Settings to activate and save.
Note: If you are ltering to ALLOW only the
listed devices, make sure to add your own
computer to the list or you will be denied access
to the network and the conguration utility. If
you DENY the listed addresses be sure not to
include your computer.
Clear the rule from the list. Note you will have to save the settings in order for it to take eect.
Click Save Settings to save and activate the new changes.
Advanced
