D-Link DAP-1325/E User manual

User Manual
Version 1.00 | 2016/12/02
N300 Wi-Fi Range Extender
DAP-1325

iD-Link DAP-1325 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2017 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation.
Revision Date Description
1.00 December 03, 2016 • Initial release
Preface
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save
energy.
Network Standby: 1.39 watts

iiD-Link DAP-1325 User Manual
Table of Contents
Preface................................................................................. i
Product Overview..............................................................1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ...................................................................................3
Features....................................................................................3
What is a Wireless Extender? ............................................4
Hardware Overview.....................................................................5
Front ..........................................................................................5
Wireless Signal Strength Indicator LED.........................7
Bottom......................................................................................8
Back............................................................................................9
Installation.......................................................................10
Wireless Installation Considerations....................................10
Hardware Setup ..........................................................................11
Getting Started................................................................12
WPS-PBC Conguration ...........................................................13
QRS Mobile App Setup.............................................................14
Web-based Setup.......................................................................19
Setup Wizard ................................................................................20
Connecting Your Device via WPS..................................21
WPS Successful...............................................................22
WPS Unsuccessful..........................................................22
Extend an Existing Network............................................23
Add Wireless to Your Wired Network...........................26
Congure Administrator Password..............................28
Save Your Conguration...................................................29
Conguration...................................................................30
Home ..............................................................................................30
Settings ..........................................................................................32
Extender Settings ...............................................................32
Network Settings................................................................33
Autoconguration (SLAAC/DHCPv6)......................34
Static IPv6 .........................................................................35
Link-local Only ................................................................36
Management................................................................................37
Admin .....................................................................................37
System ....................................................................................38
Upgrade .................................................................................39
Statistics.................................................................................40
Connecting Wireless Clients to the Extended Network 41
WPS Button...................................................................................41
Windows® 8...................................................................................42
WPA/WPA2 ............................................................................42
Windows® 7...................................................................................44
WPA/WPA2 ............................................................................44
Windows Vista®............................................................................47
WPA/WPA2 ............................................................................48
Troubleshooting ..............................................................50
Table of Contents

iiiD-Link DAP-1325 User Manual
Table of Contents
Wireless Basics .................................................................52
Tips...................................................................................................53
Technical Specications..................................................54
GPL Code Statement........................................................55
Safety Statements ...........................................................70

1D-Link DAP-1325 User Manual
Section 1 - Product Overview
Package Contents
Wi-Fi Conguration Note
If any of the above items are missing, please contact your reseller.
DAP-1325 N300 Wi-Fi Range Extender
Wi-Fi Conguration Card
Quick Installation Guide

2D-Link DAP-1325 User Manual
Section 1 - Product Overview
Network Requirements • A wireless router with an active Internet connection.
• 802.11n, 802.11g wireless clients/devices
Web-based Conguration
Utility Requirements
A Computer or Mobile Device with the following:
•Windows®, Apple® Mac OS®, or Linux-based operating system
• Wireless adapter or Wi-Fi functionality
• An Apple® iPhone®, iPod touch®, iPad®, or Android™ mobile
device
Browser Requirements:
• Internet Explorer® 9 or later
• Firefox® 20.0 or later
• Safari® 5.1 or later
• Google Chrome™ 25.0 or later
System Requirements

3D-Link DAP-1325 User Manual
Section 1 - Product Overview
Introduction
Features
Easily Extend Your Existing Network
The DAP-1325 N300 Wi-Fi Range Extender lets you easily extend a secure wireless network with a press of a button. Connect the
DAP-1325 to a router via Wi-Fi or Ethernet and share your high-speed Internet access in more places throughout your home or small
oce.
High-speed Wireless Performance With Wireless 802.11n Technology
Thanks to the latest Wireless N technology, the DAP-1325 provides a wireless connection at up to 300 Mbps* with other 802.11n
wireless devices. This feature lets you participate in real-time activities online, such as video streaming, online gaming, and real-time
audio with smooth performance.
Simple Setup
All it takes is a press of a button to connect compatible WPS devices to the DAP-1325. Its easy-to-use web interface lets you quickly
and easily connect the DAP-1325 to an uplink router, congure the extended wireless network, and manage the administrative
settings. The setup wizard will even guide you through the setup process, getting your extended wireless network up and running
in no time. Alternatively, connect an Ethernet cable to your existing network infrastructure to quickly and easily create a wireless
network.
Compatibility
The DAP-1325 is fully compatible with 802.11n, and it is also backwards compatible with IEEE 802.11g wireless devices, so you can
use your existing devices without sacricing performance.
LatestWireless Network Security and Encryption
The DAP-1325 supports wireless security features to prevent unauthorized access from the wireless network. Support for WPA/
WPA2 standards ensure that you’ll be able to use the best possible encryption methods with your compatible wireless devices.
* Maximum wireless signal rate derived from standard IEEE specications. Actual data throughput will vary. Network conditions and environmental factors, including volume
of network trac, building materials and construction, and network overhead may lower actual data throughput rate. Environmental conditions will adversely aect wireless
signal range.

4D-Link DAP-1325 User Manual
Section 1 - Product Overview
What is a Wireless Extender?
The DAP-1325 acts as a repeater to extend the range of an existing wireless network to provide a better signal for parts of your
home or oce that may have poor or no reception. Your existing wireless signal will be re-broadcast by the DAP-1325, allowing
you to reach the farthest corners of your home or oce. The extended network can simply use the same network credentials as the
existing network, or you can specify a dierent network name and password, giving you the exibility to control network access.
You may also use the DAP-1325 as a wireless access point by connecting an Ethernet cable.

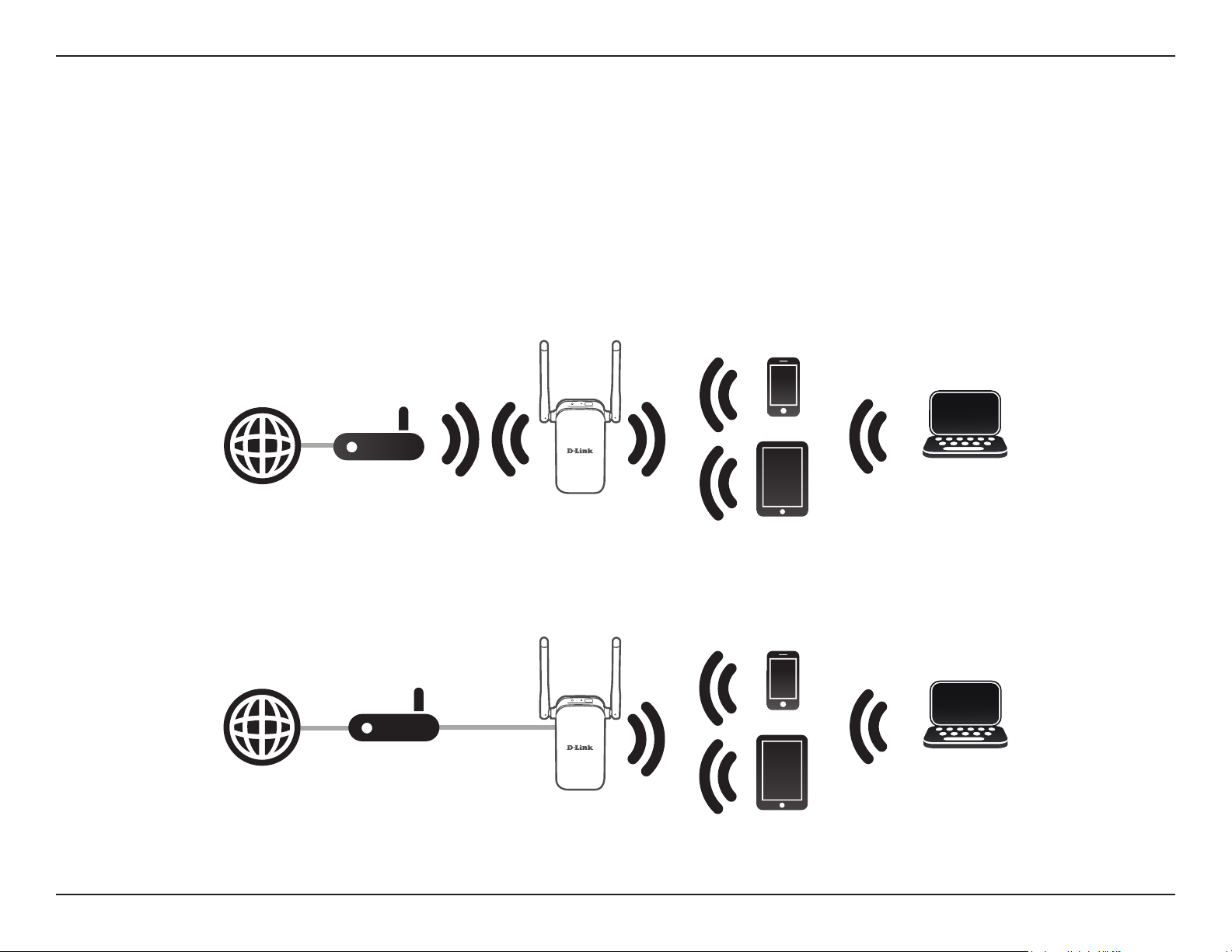

Extend Your Wireless Network using Wi-Fi
Create a Wireless Network using Ethernet
Router
Internet DAP-1325
Extender
Wireless Devices
Computer
Router
Internet DAP-1325
Access Point
Wireless Devices
Computer

5D-Link DAP-1325 User Manual
Section 1 - Product Overview

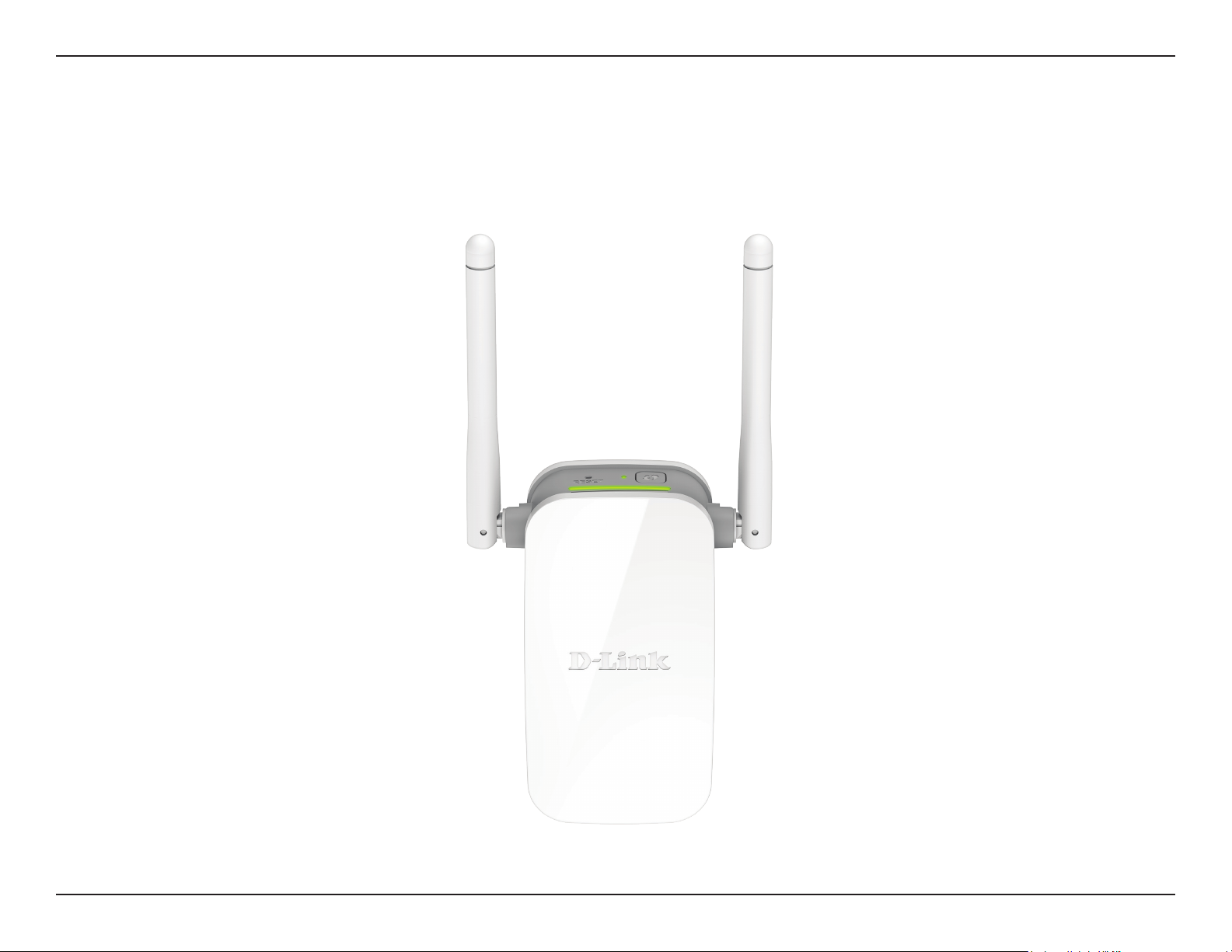

Hardware Overview
Front

6D-Link DAP-1325 User Manual
Section 1 - Product Overview

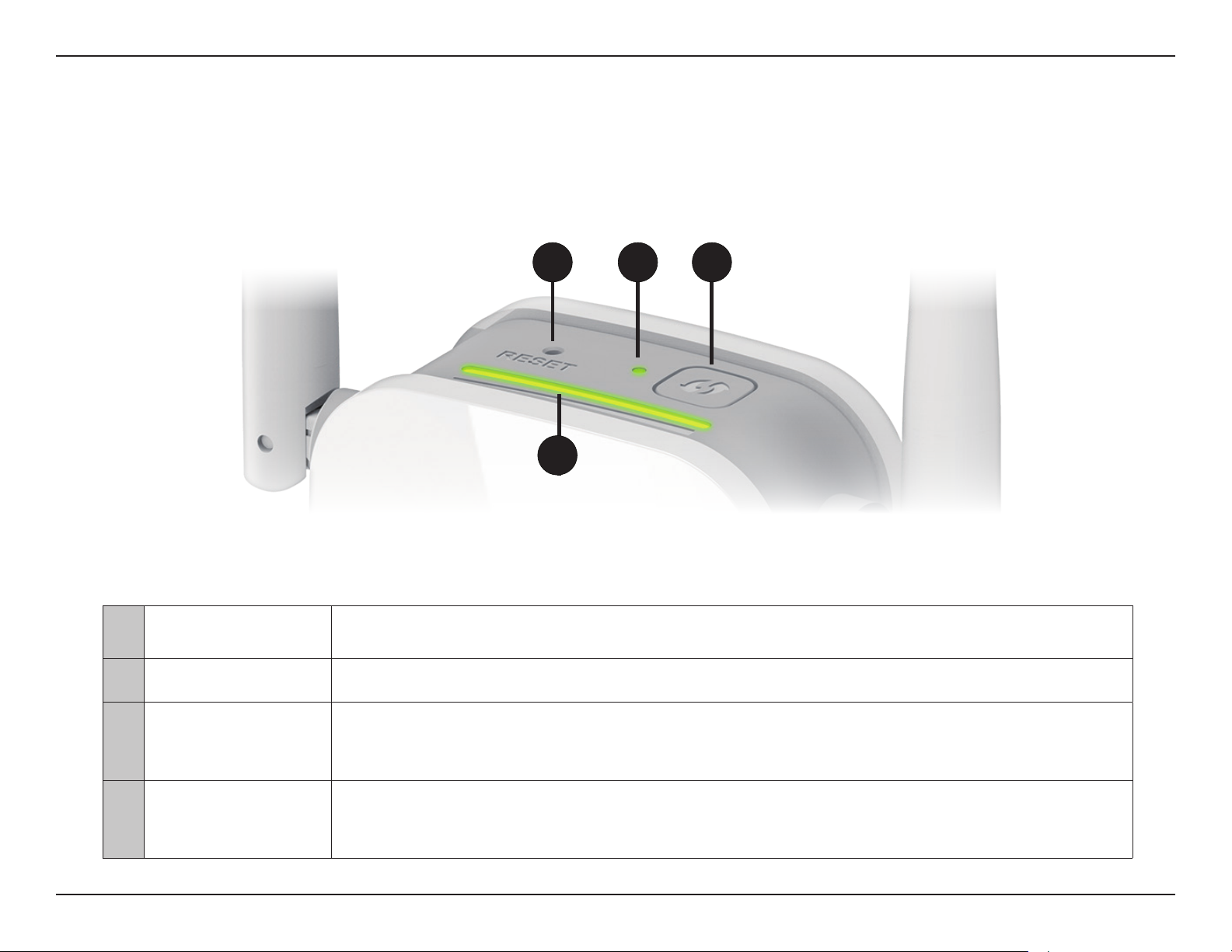

Status/WPS LED Indicator
1 2 3
4
1Reset Button Use an unfolded paperclip to press and hold the reset button on the bottom of DAP-1325 for 10 seconds
to restore the factory default settings.
2Status/WPS LED This LED indicates the current status of the DAP-1325, as detailed on the next page.
3WPS Button
Press to establish a connection with anotherWPS compatible device. Pressing theWPS button for 1 second allows
you to connect with Wi-Fi clients using Wi-Fi Protected Setup. Refer to “WPS-PBC Configuration” on page 13 for
more information
4Signal Indicator LED
The more lit green bars on the Signal Indicator LED, the better the wireless signal to the host network. A
single solid amber LED indicates a weak Wi-Fi signal. Refer to “Wireless Signal Strength Indicator LED” on
page 7.

7D-Link DAP-1325 User Manual
Section 1 - Product Overview
The Status/WPS LED will turn solid green when the DAP-1325 has connected successfully to an uplink wireless network and is
extending that network. If the Signal Indicator LED has a single amber bar after the connection process has nished, the DAP-1325
has established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve
the connection quality, the DAP-1325 should be relocated closer to the source wireless router.

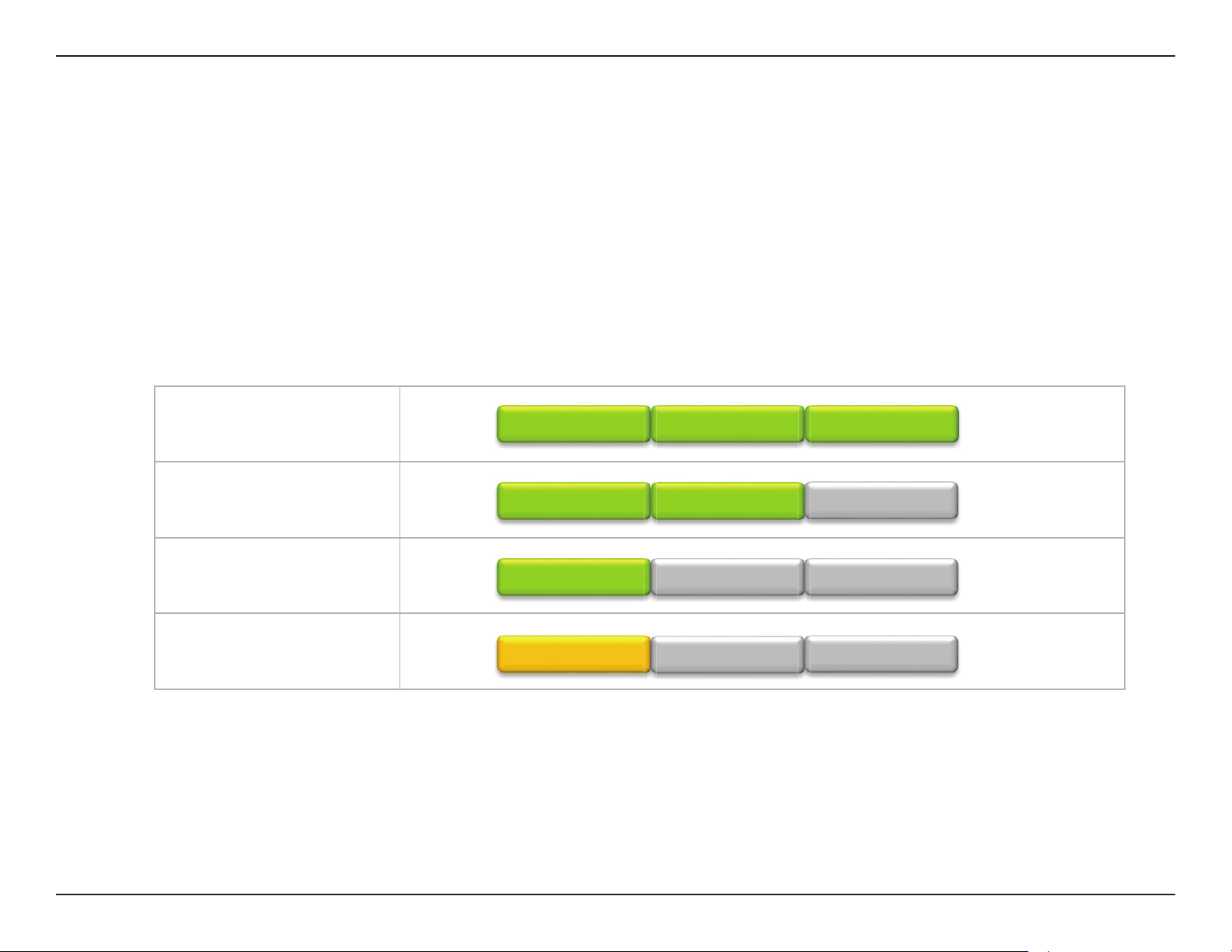

Wireless Signal Strength Indicator LED
Best
Good
Ok
Poor

8D-Link DAP-1325 User Manual
Section 1 - Product Overview
Hardware Overview
Bottom
1

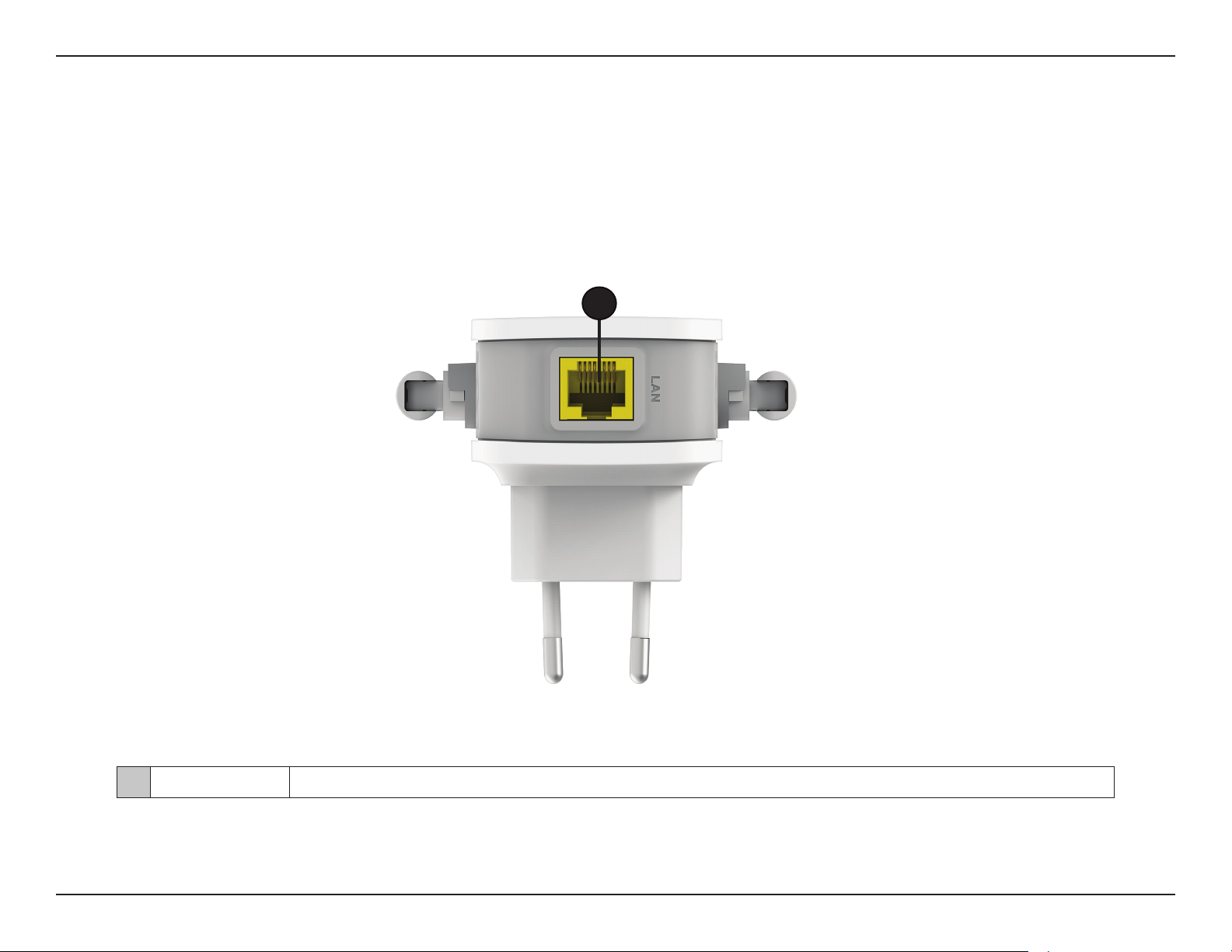

1LAN Connect an Ethernet cable if you are adding wireless to an existing wired network.

9D-Link DAP-1325 User Manual
Section 2 - Installation
You may locate the Wi-Fi name (SSID) and password for your DAP-1325. This information is printed on the specication sticker on
the back of the device. You will need this information to connect your computer or mobile device to the default network (SSID) of
your DAP-1325.This information is also provided on the Wi-Fi conguration card.
Hardware Overview

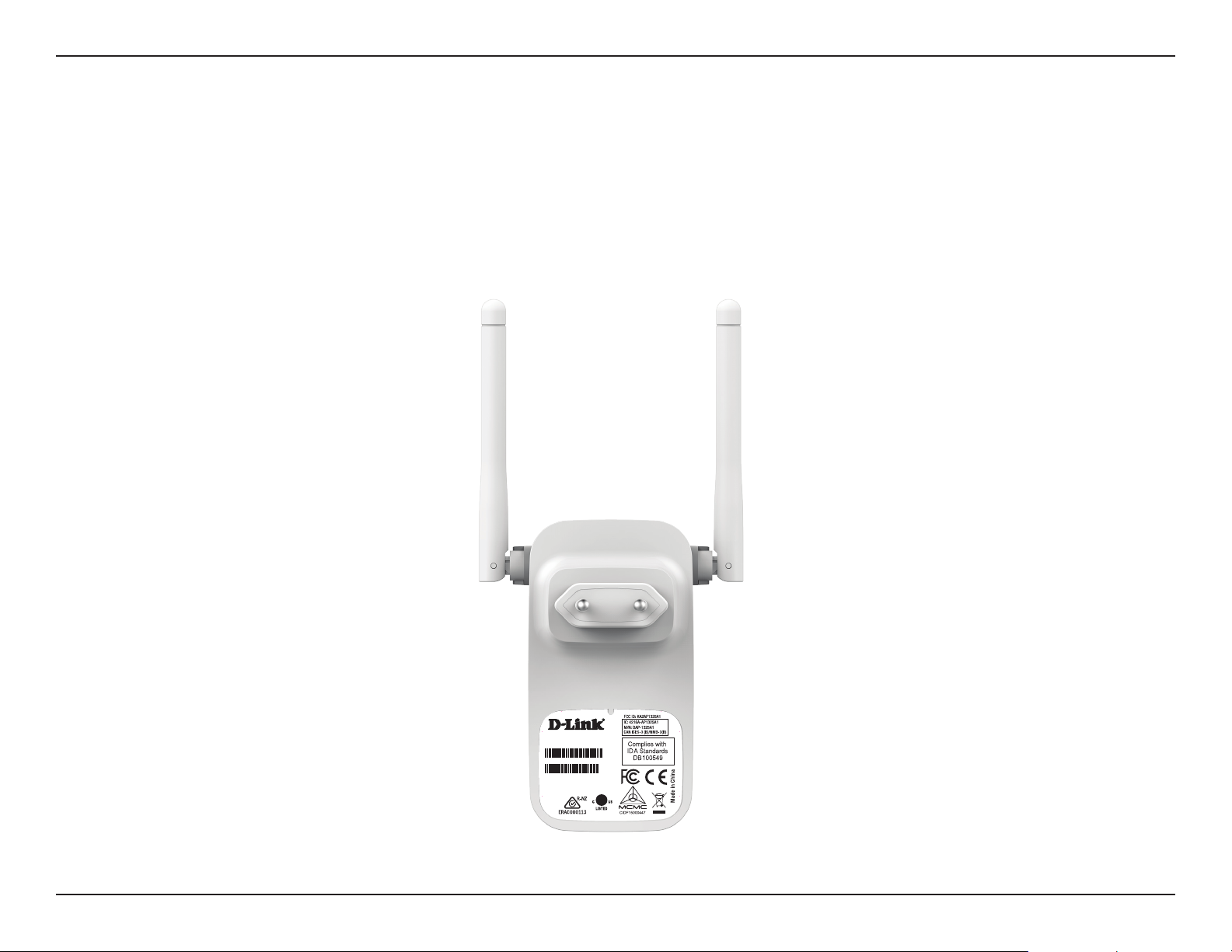

Back
I.T.EE1416658
Input:100-250Vac,50-60Hz,16AMax
P/N:EAP1325EEU...A1E
S/N:S01Q1YMXXXXXX
MACID:XXXXXXXXXXXX
H/WVer.:A1F/WVer.:XXXX
Wi-FiName(SSID):XXXXXXXX
Wi-FiPassword:XXXXXXXX
ModelName：DAP-1325

10D-Link DAP-1325 User Manual
Section 2 - Installation
Installation
Wireless Installation Considerations
The DAP-1325 lets you extend your existing wireless network’s coverage as long as it is within range of the uplink network. Keep in
mind that the DAP-1325’s extension network’s range may be limited by the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through.Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business.The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link extender and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position extenders, access points, wireless routers, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.

11D-Link DAP-1325 User Manual
Section 2 - Installation

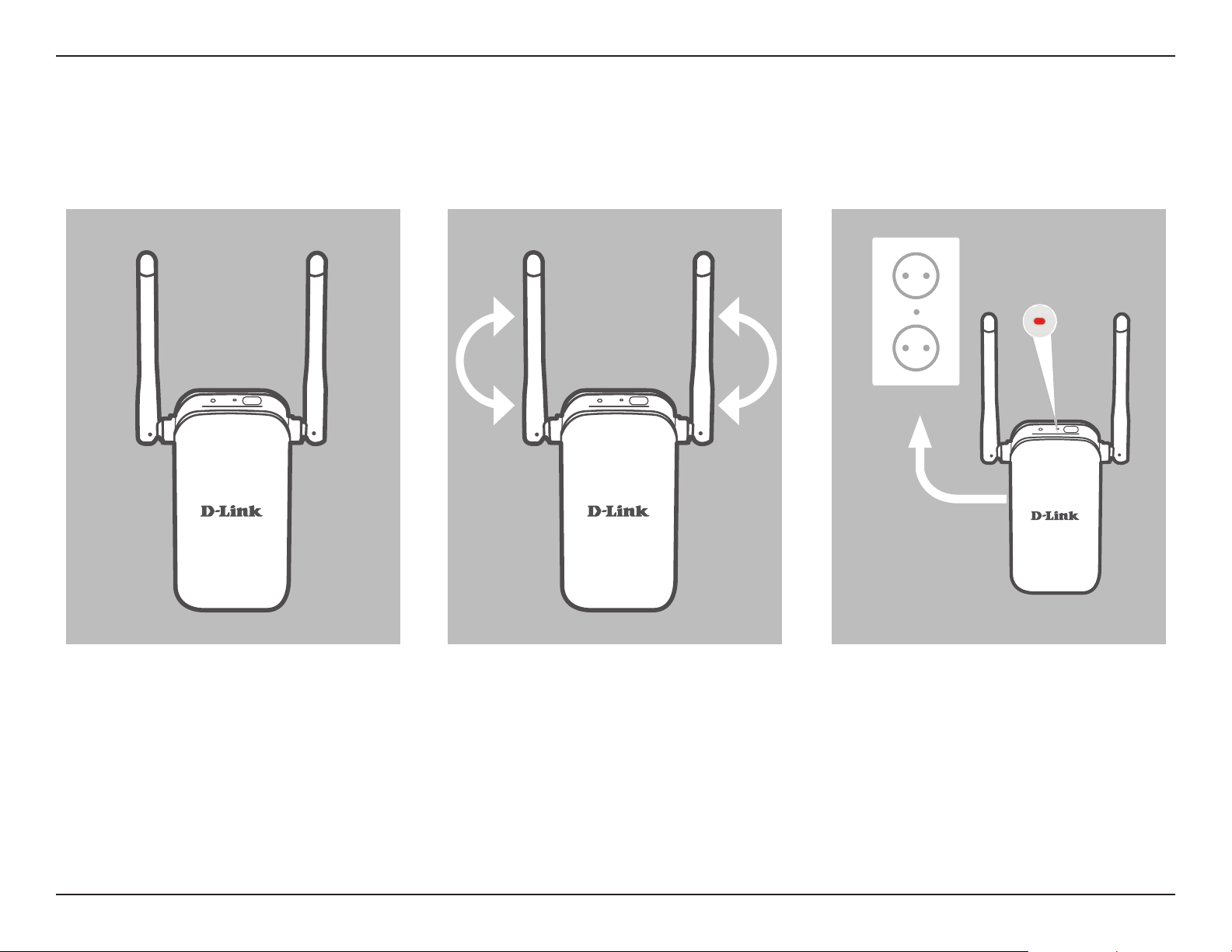

Move the antennas to their upward
position before plugging in the
extender.
Position Antennas
Locate your DAP-1325 to an area which

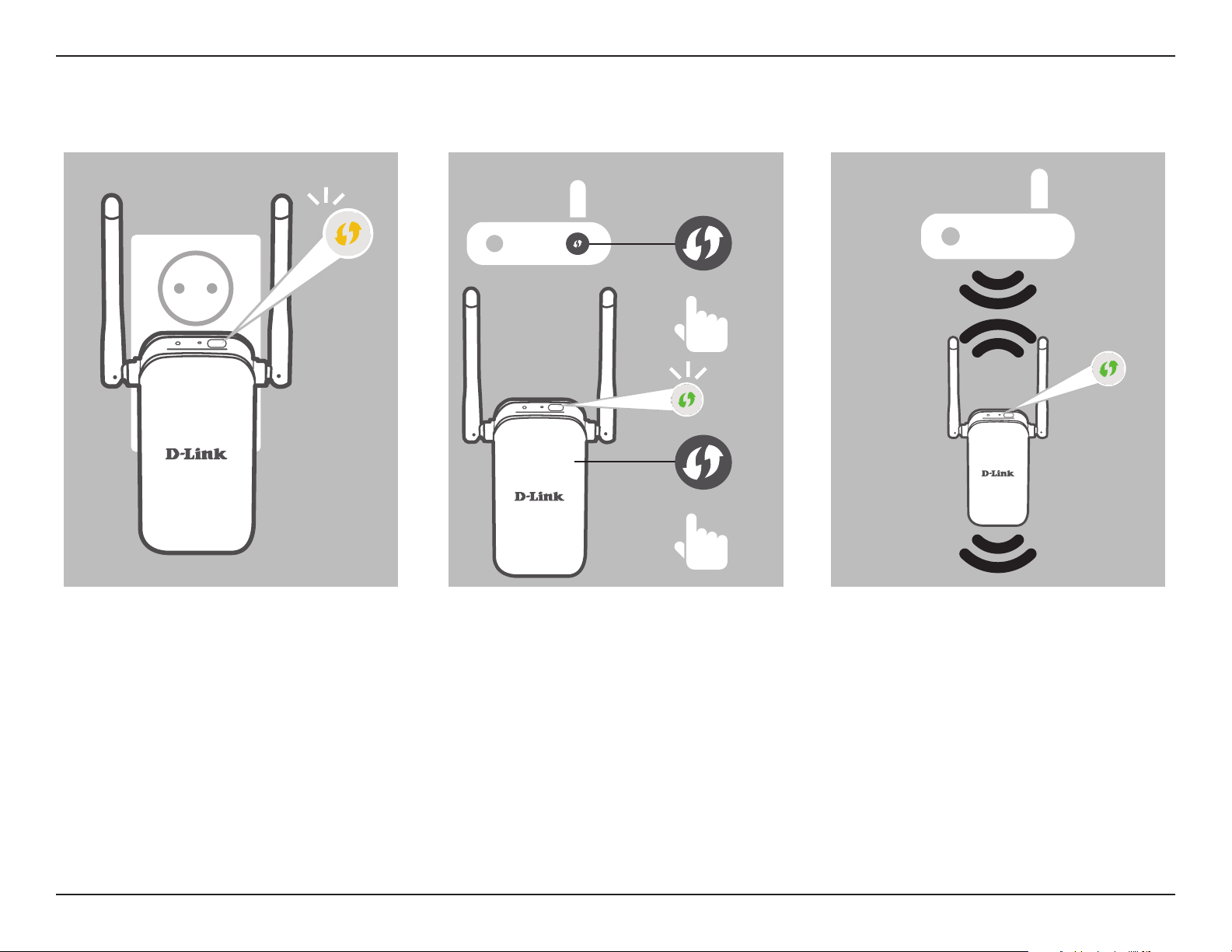

you wish to extend Wi-Fi to.
Find a location
Plug in the DAP-1325 to an outlet or
power strip. The WPS/Status LED will
immediately activate to indicate the
device is booting up.
Plug-in Extender
Hardware Setup
Outlet

12D-Link DAP-1325 User Manual
Section 3 - Conguration
There are several conguration tools you can use to set up your DAP-1325.
• WPS PBC - To easily extend an existing wireless network refer to “WPS-PBC Conguration” on page 13 for setup
instructions.
• QRS Mobile App - Use your Android device or iPhone, iPad, or iPod touch to congure your extender. Refer to “QRS
Mobile App Setup”on page 14 for setup instructions.
• D-Link Setup Wizard - This wizard will launch when you log into the Extender’s web conguration utility for the rst
time. Refer to ”Setup Wizard” on page 20 for setup instructions.
• Manual Conguration - Advanced users who wish to manually setup extender or adjust its settings may refer to
“Conguration”on page 30 for more information.
Getting Started

13D-Link DAP-1325 User Manual
Section 3 - Conguration
WPS-PBC Conguration
The device is ready to connect to an
uplink network once the WPS/Status
LED is blinking amber.
Push the WPS buttons on both the
source wireless router or access point.
The Status/WPS LED on the DAP-1325
will start to blink green. Please allow up
to two minutes for the process to nish
The Status/WPS LED will turn solid
green once the DAP-1325 has
connected successfully to the uplink
wireless network. The new extension
network will be named:
(Source SSID)-EXT
The password be the same as the
source network’s.
WPS Button
WPS Button
Blinking
Blinking

14D-Link DAP-1325 User Manual
Section 3 - Conguration

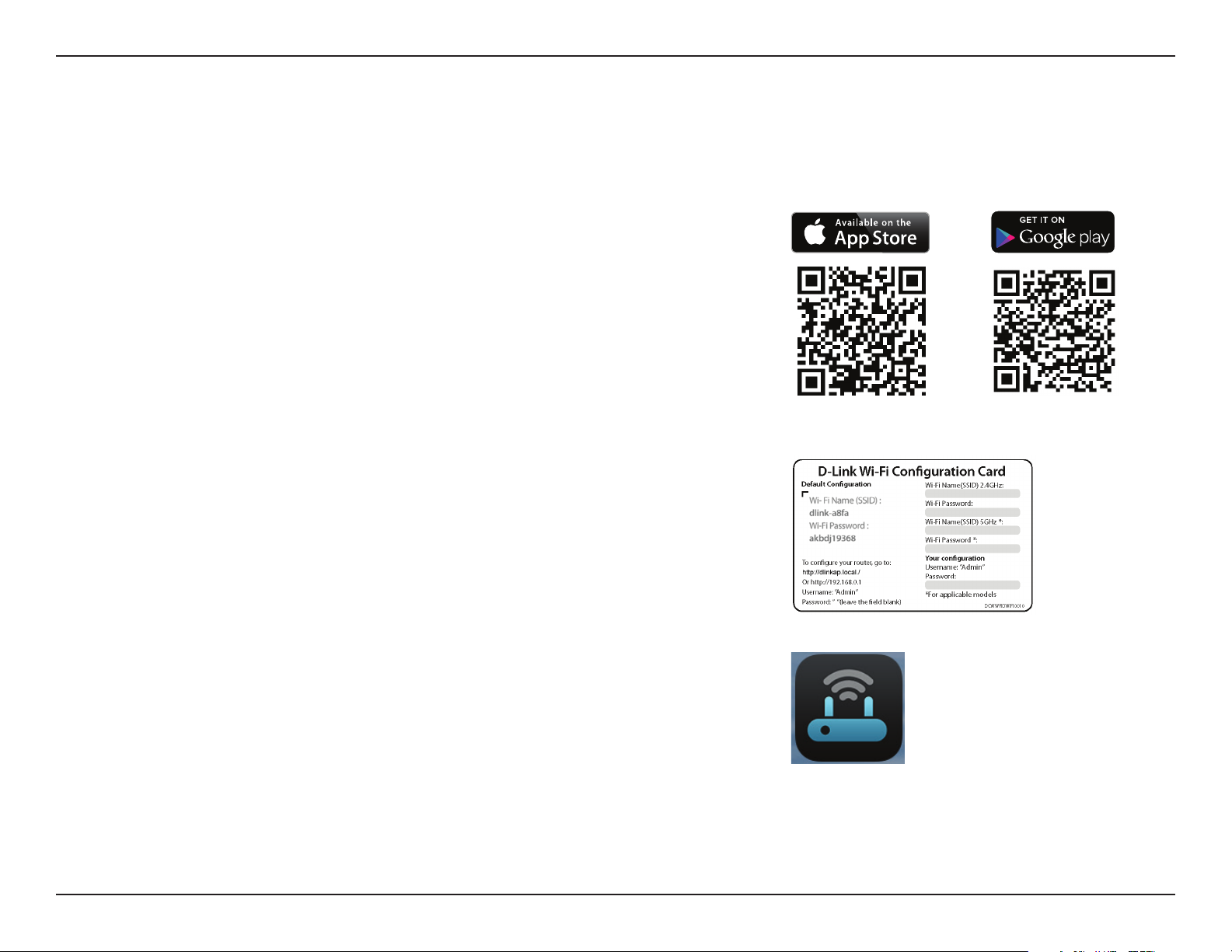

QRS Mobile App Setup
The DAP-1325 can be set up from your iPhone, iPod touch, iPad, or Android smartphone or tablet device using the QRS Mobile app.
Step 2
Once your app is installed, you may now congure your extender. Connect to the
router wirelessly by going to your wireless utility on your device. Scan for the Wi-
Fi name (SSID) as listed on the supplied conguration card. Select and then enter
your Wi-Fi password.
Step 3
Once wirelessly connected to the extender, launch the QRS Mobile app from the
Home screen of your device.
Note: The following steps show the iOS interface of the QRS Mobile app. If you are
using an Android device, the appearance may be dierent to that of the screenshots,
but the process is the same.
Step 1
Search for the free QRS Mobile App on the Apple App Store or Google Play.
Note: The screenshots may be dierent depending on your mobile device’s OS version.

15D-Link DAP-1325 User Manual
Section 3 - Conguration

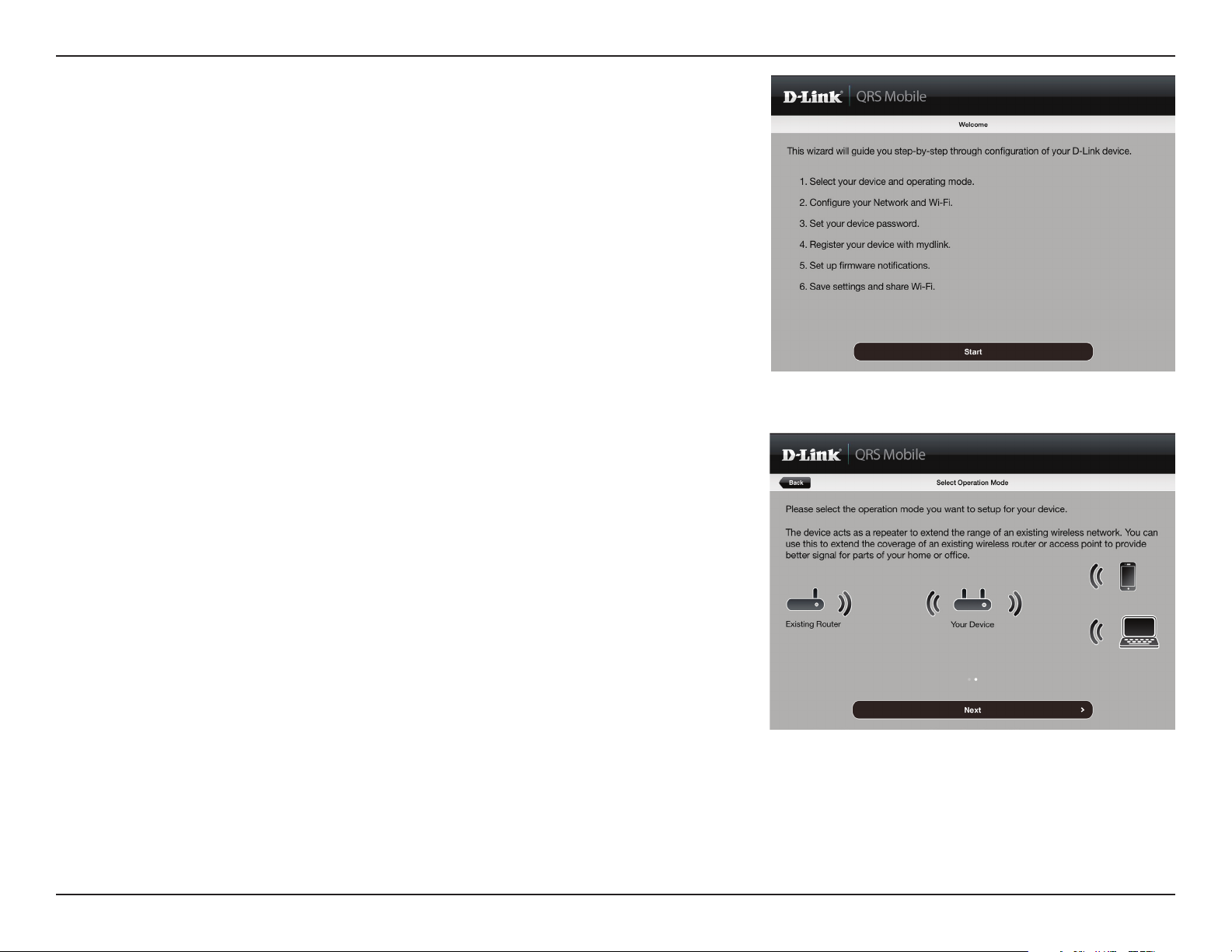

Click Start to continue.
Click Next to continue.

16D-Link DAP-1325 User Manual
Section 3 - Conguration

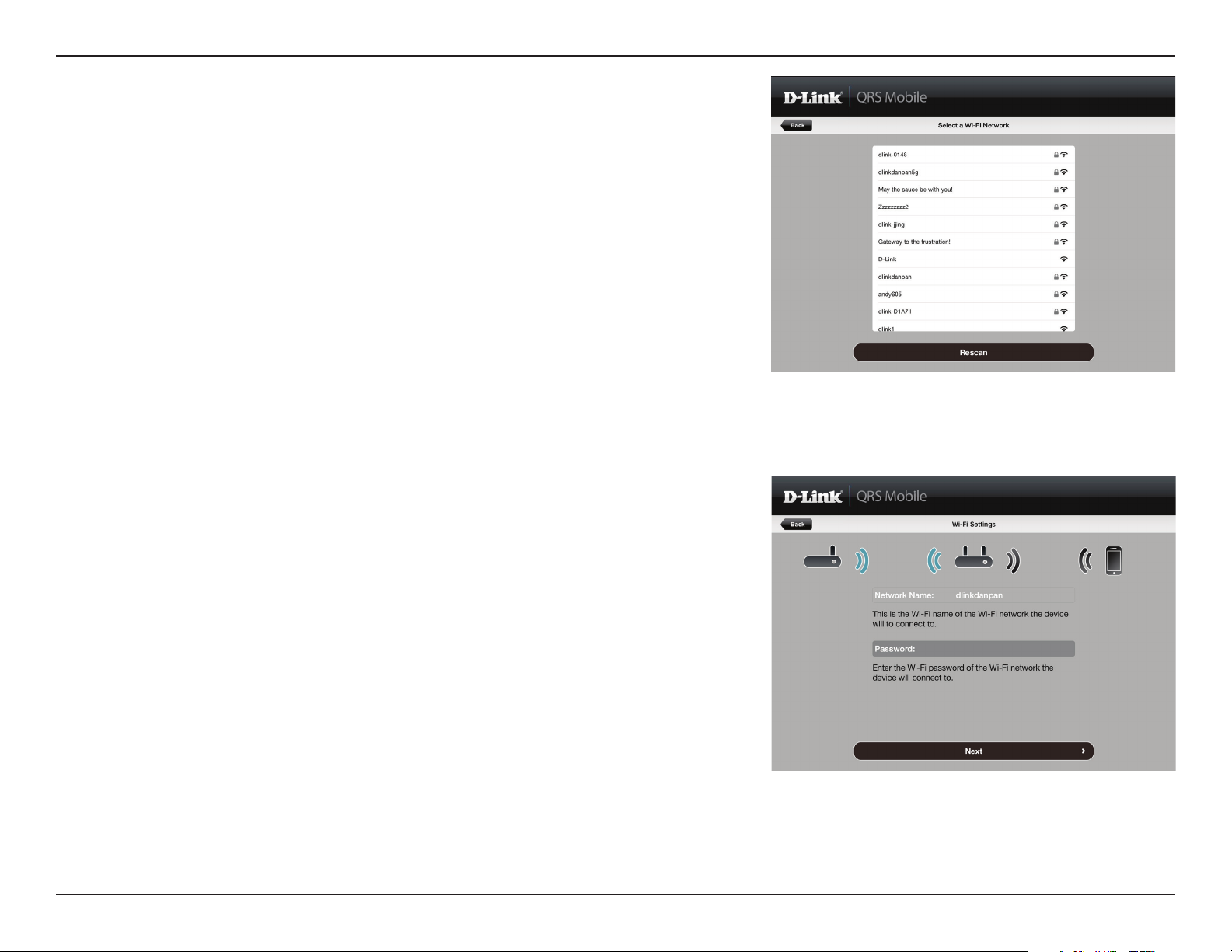

Enter a password for the existing Wi-Fi network. Click Next to
continue.
QRS Mobile will rst detect your DAP-1325, then scan for available
Wi-Fi networks. Select the network you wish to extend. Tap Rescan
if your network doesn’t show up the rst time.
