FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
Technical Support Setup Procedure
FAQ : How To Connect Range Extender to iPhone
Release date : 1/06/2015
Model Support : DAP-1320
H/W:A1 , B1
S/W:1.x , 2.x

-2-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
Technical Support Setup Procedure
How do I connect my iPhone to my Wi-Fi Extender?
1 : Settings home iPhone 

-3-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
2 : Wi-Fi Settings

-4-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
3 : 

-5-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
4 : Wi-Fi extender Join

-6-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
5 : iPhone 

-7-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
6 : iPhone IP Address 

-8-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

-9-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
Technical Support Setup Procedure
How do I connect my iPhone to my Wi-Fi Extender?

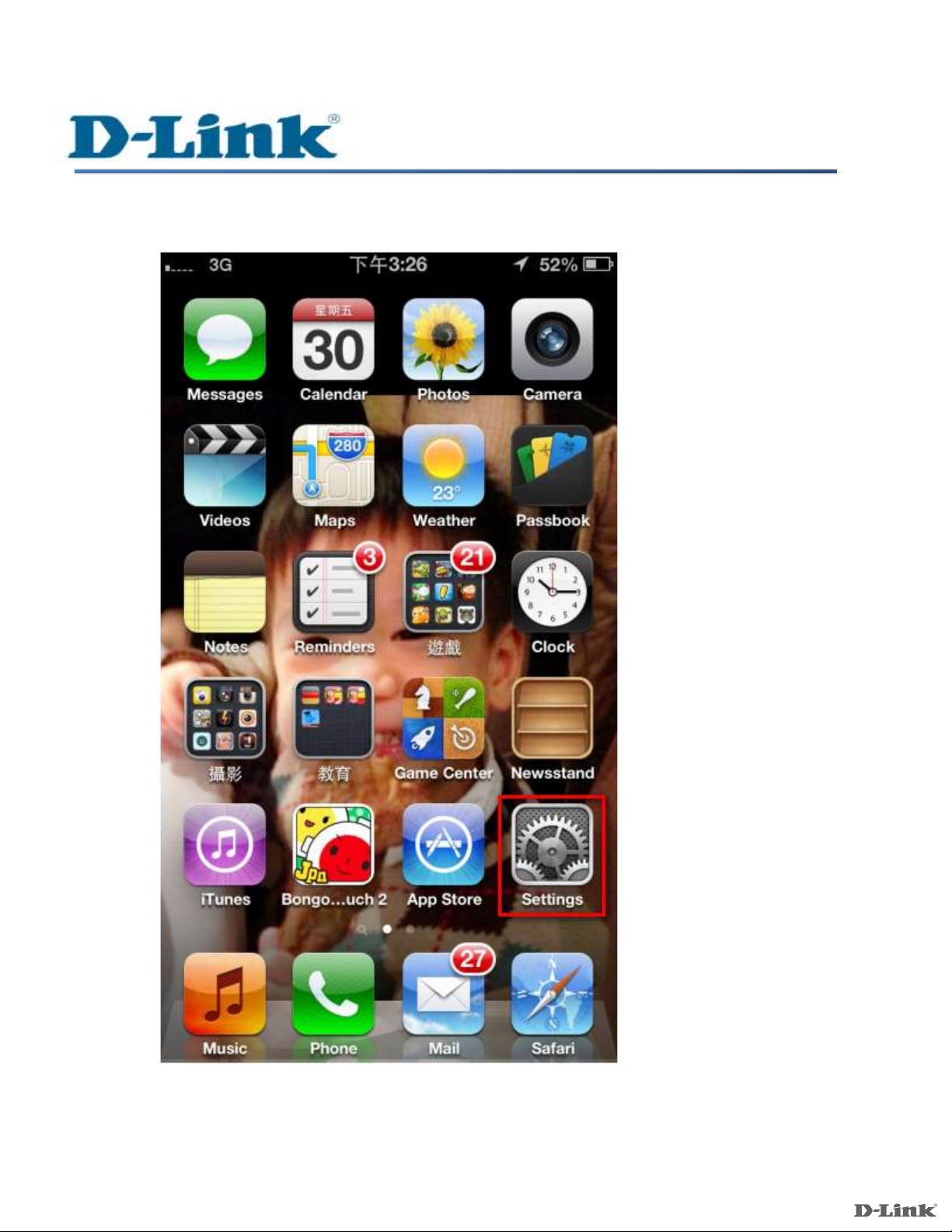

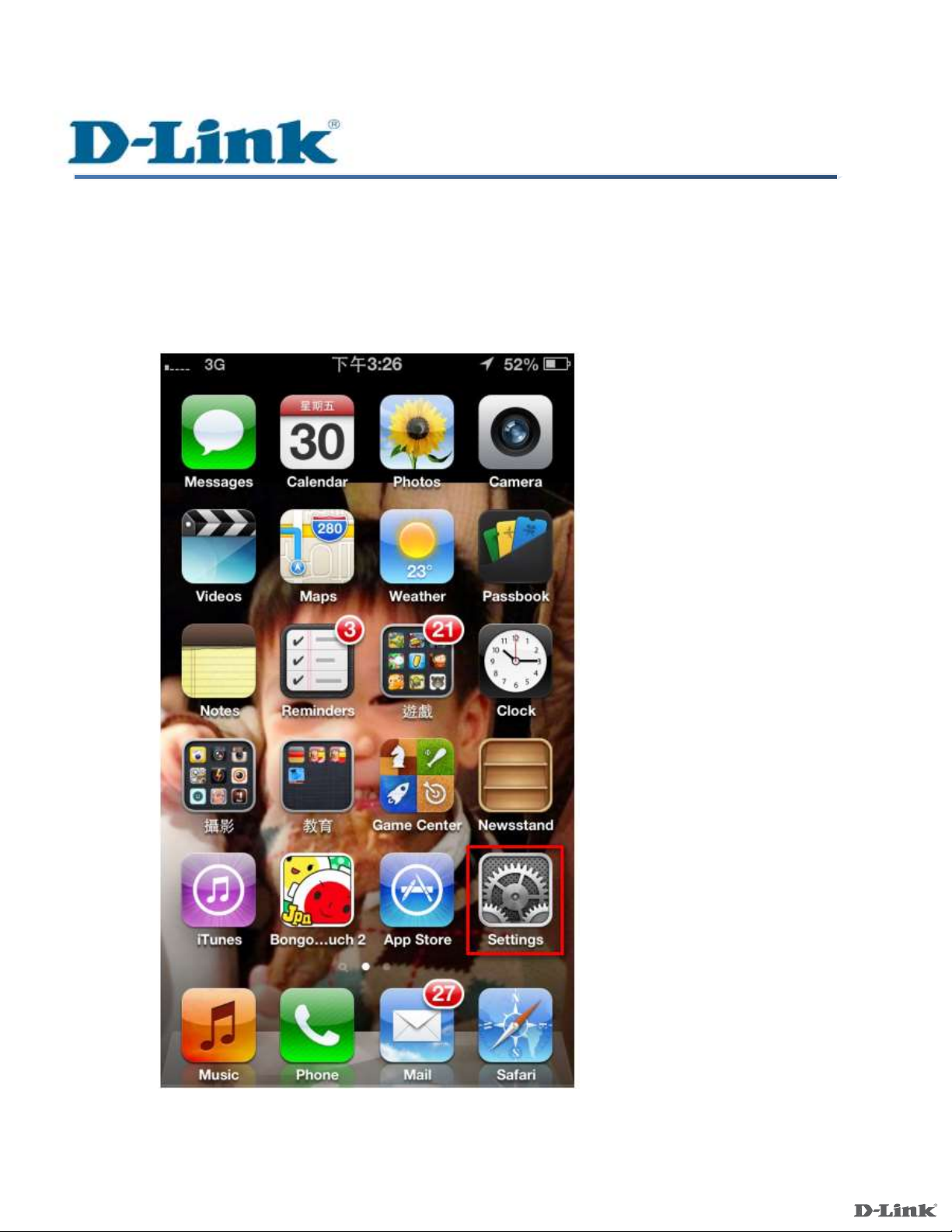

Step 1: Tap the Settings icon on the home screen of your iPhone.

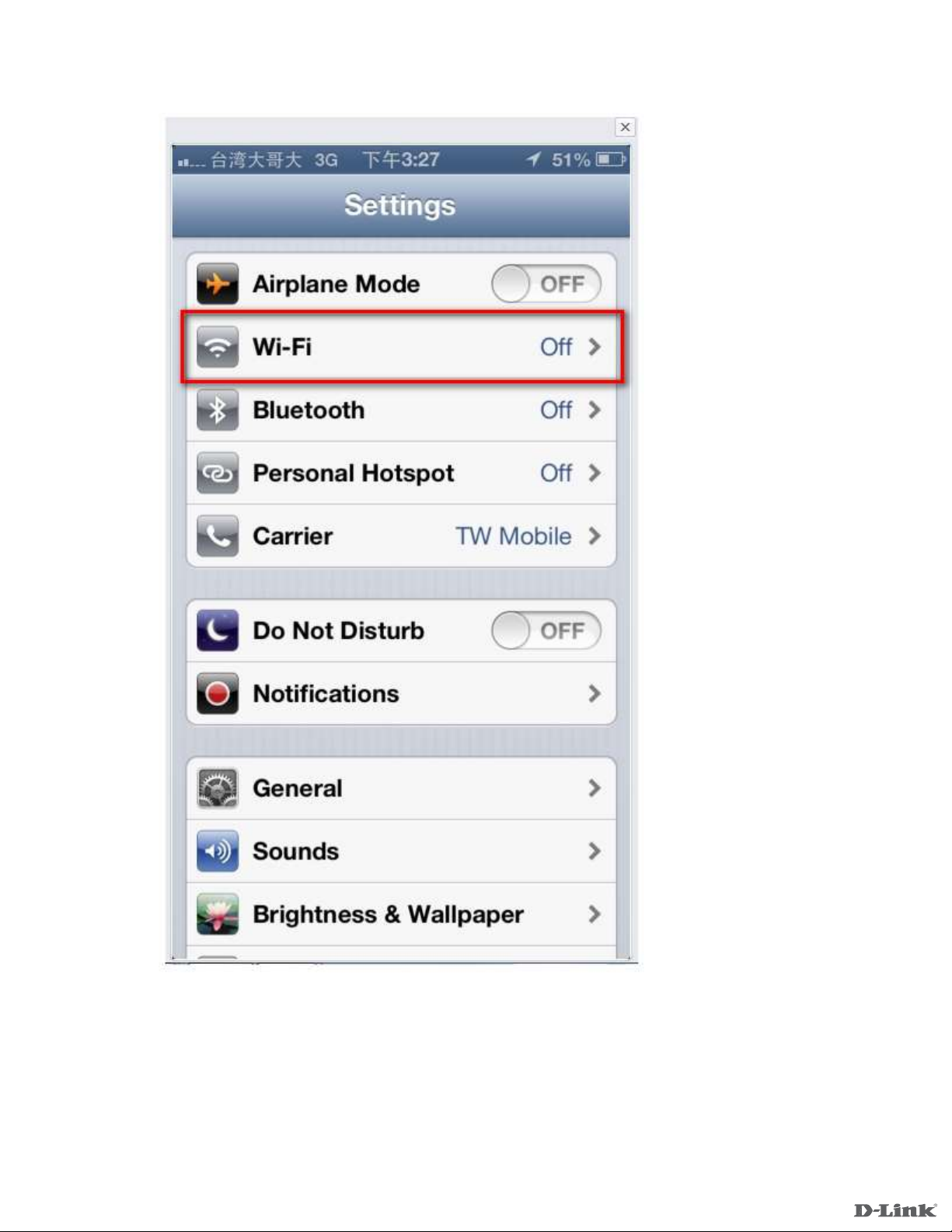

Step 2: Tap to open the Wi-Fi settings.

-10-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

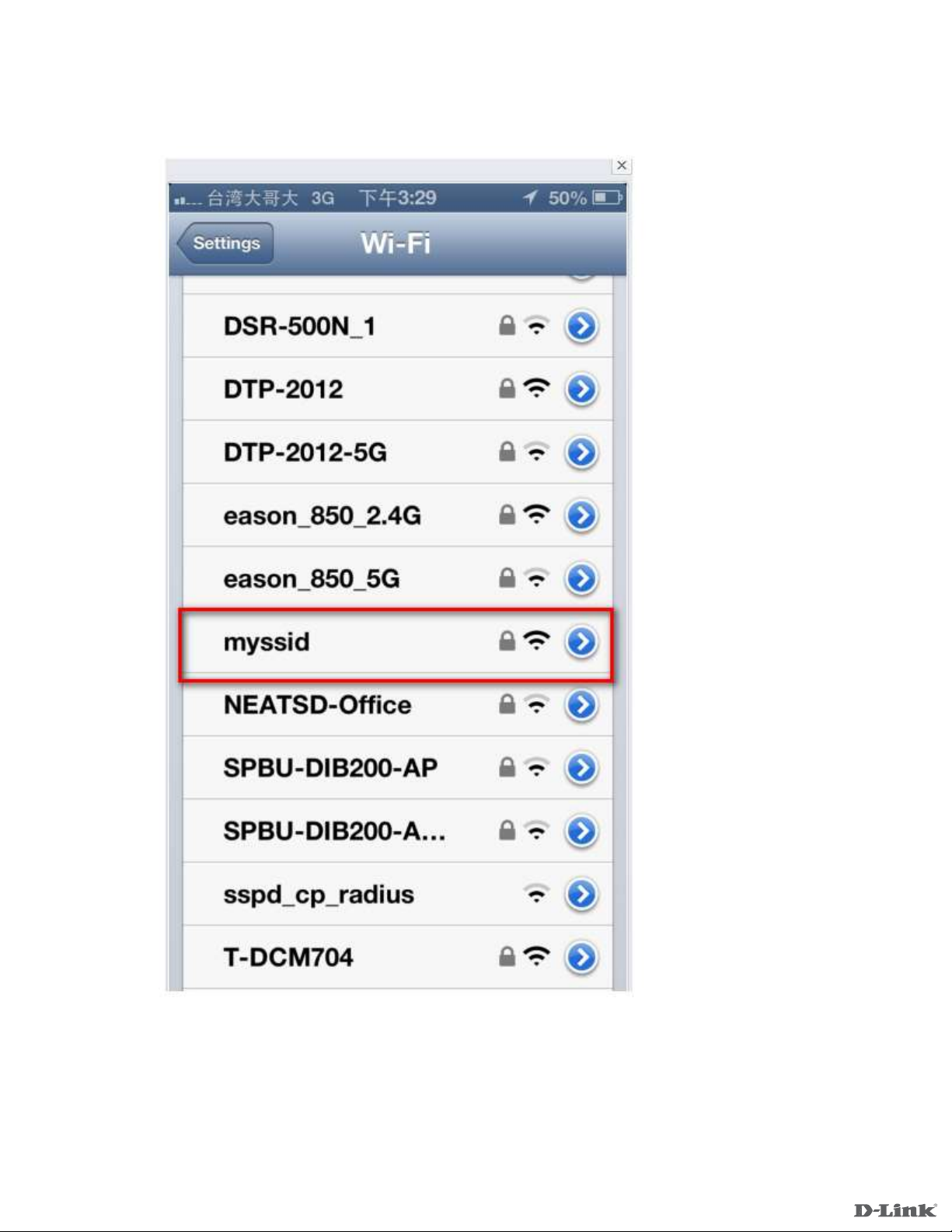

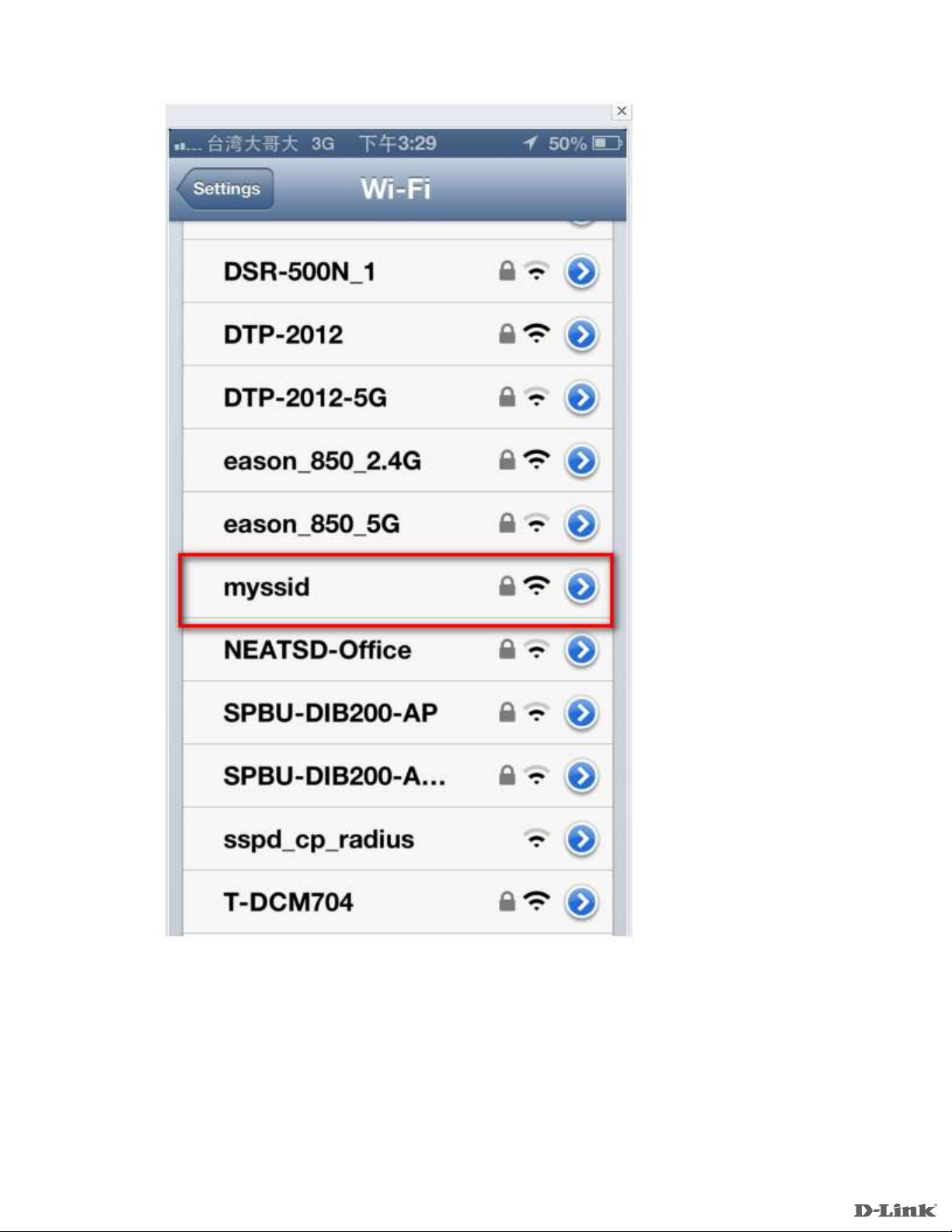

Step 3: Select the wireless network you want to connect by tapping the network name from the
list.

-11-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

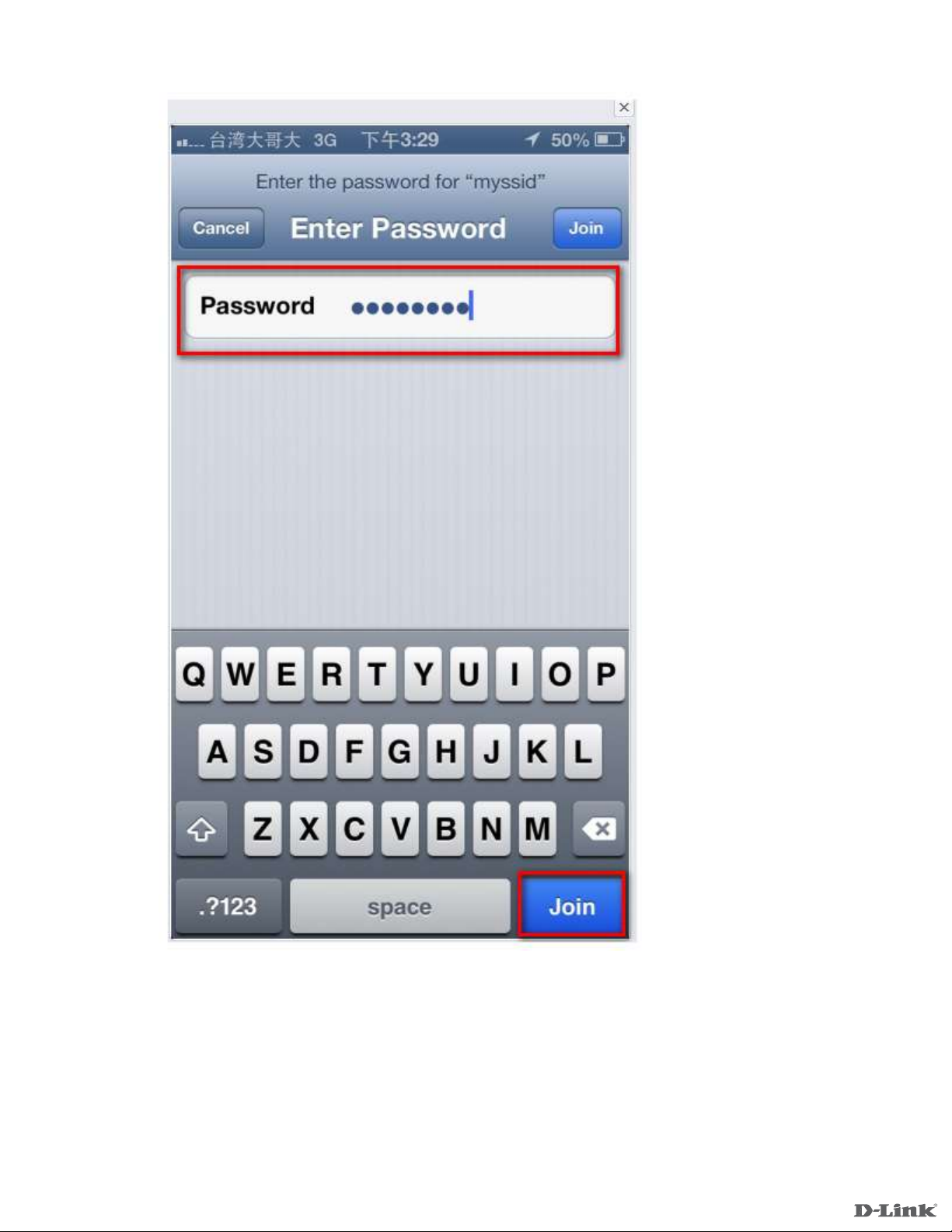

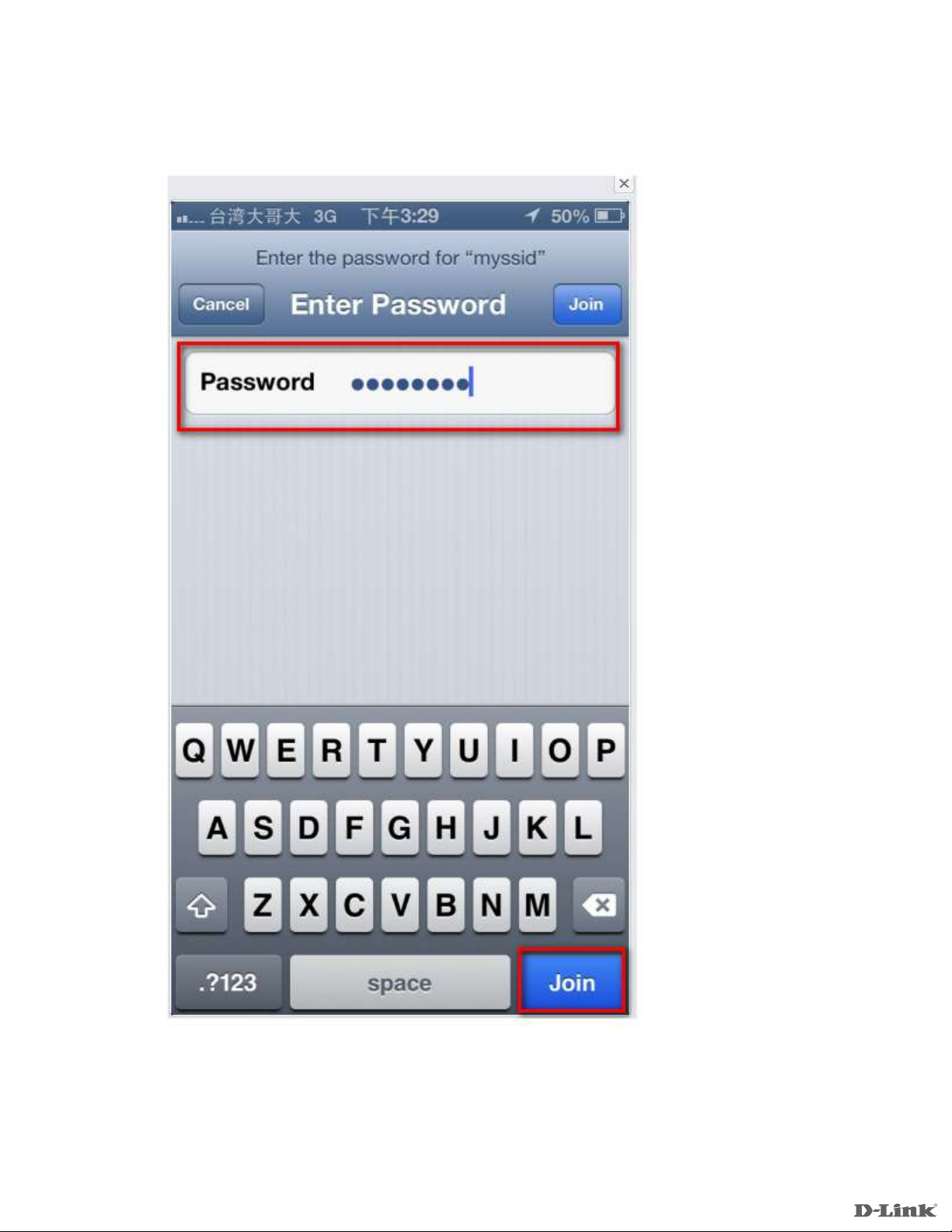

Step 4: If you have a Wi-Fi password configured on your extender, enter the password and tap
Join.

-12-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
Step 5: The iPhone is now connected to your wireless network.

-13-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

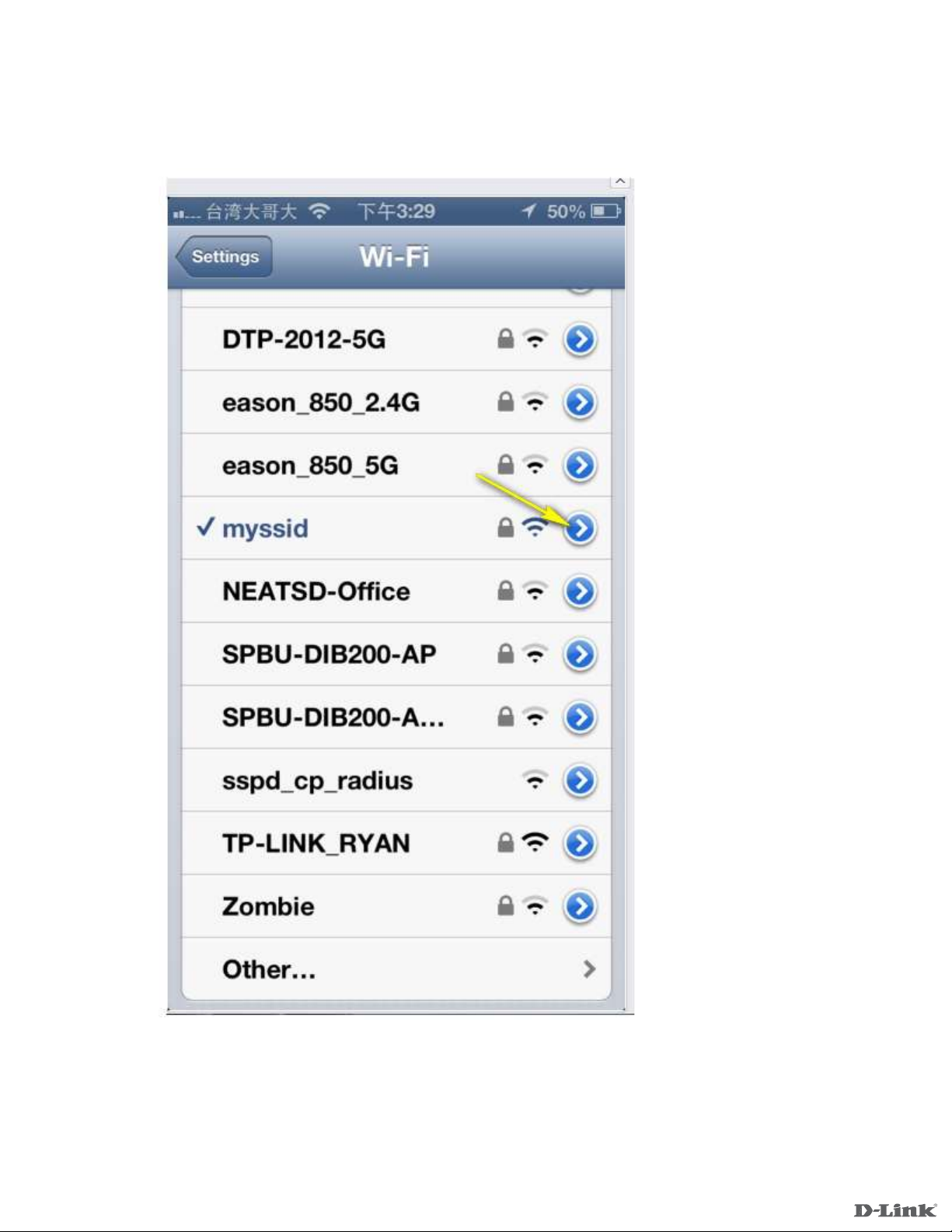

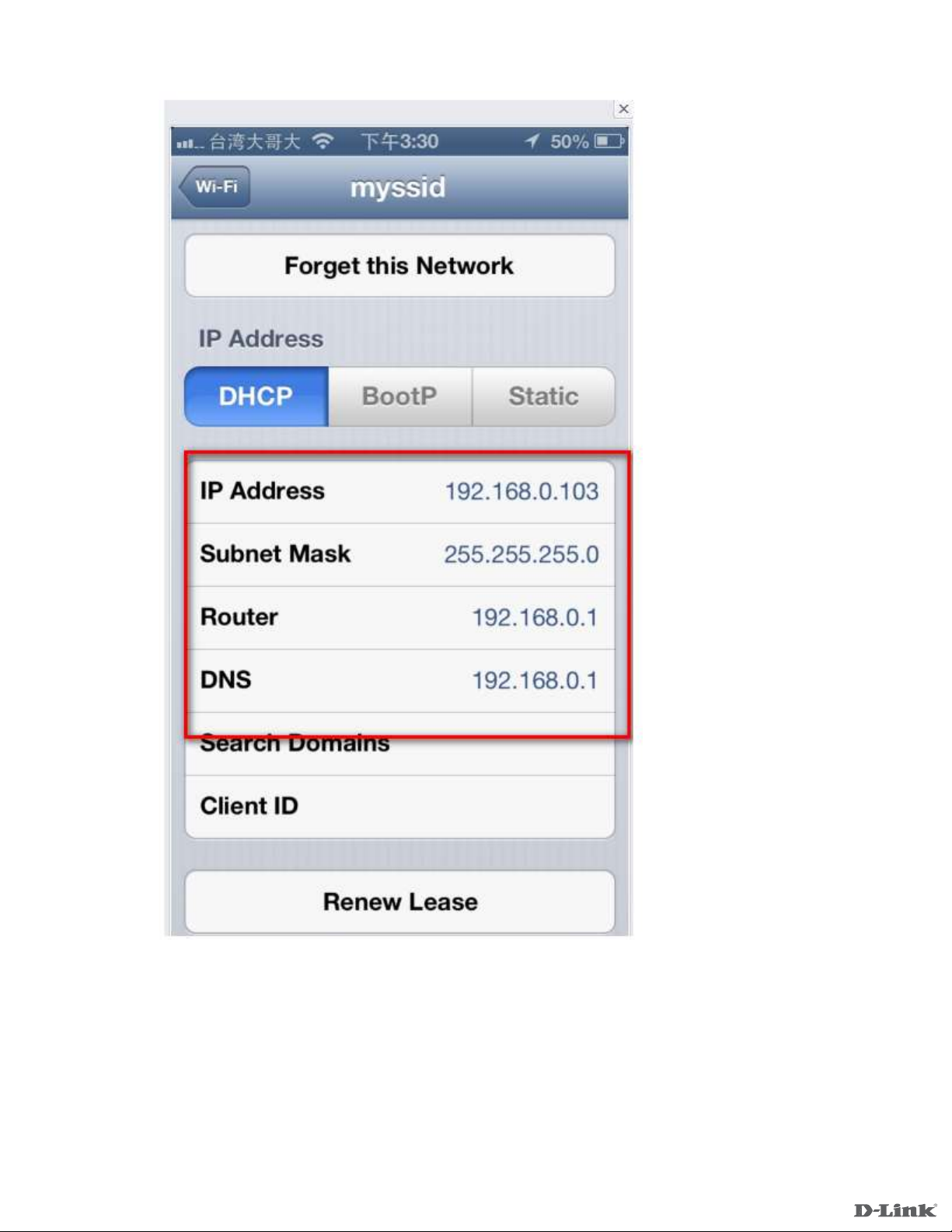

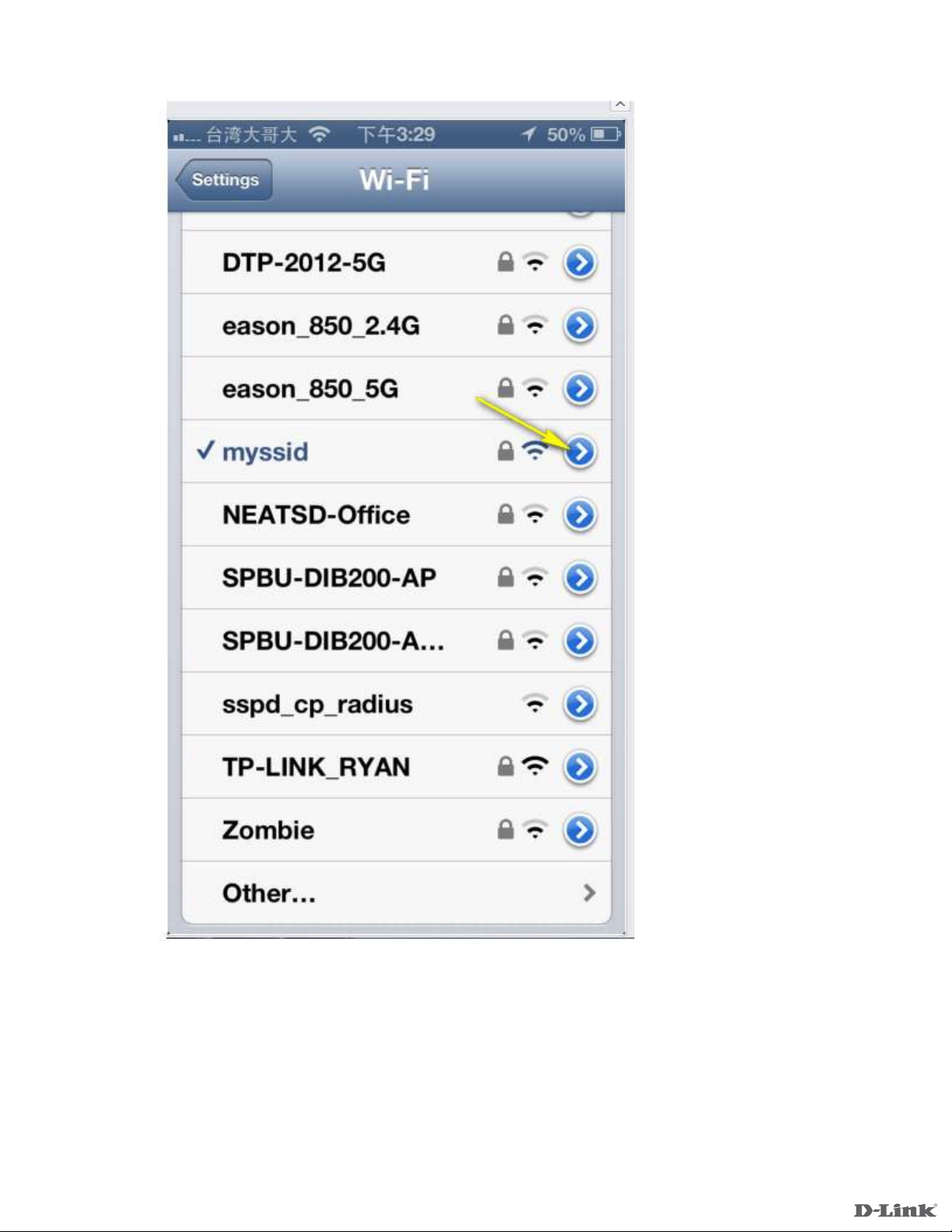

Step 6: Tap the arrow button to go to the connection settings page and confirm that the iPhone
has received an IP address.

-14-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

-15-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

-16-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00
ฝ่ ายสนับสนุนทางด้านเทคนิค
Call Center หมายเลขโทรศัพท์ 02-6617997
ภาษาไทย : จันทร์ ถึง ศุกร์ เวลา 9.00 น. –18.00 น.
Thai : Mon –Fri : Time 9.00 –18.00.
ภาษาอังกฤษ : เสาร์ , อาทิตย์ , วันหยุดนขัตฤกษ์ และ วันธรรมดา หลัง 18.00 น.
English : Sat –Sun , Public Holiday and after 18.00 weekday.
Website : www.dlink.co.th
email: [email protected].sg
Facebook : http://www.facebook.com/DLinkThailandFans

-17-
FAQ : How to connect Range Extender to iPhone (DAP-1320) Version 1.00

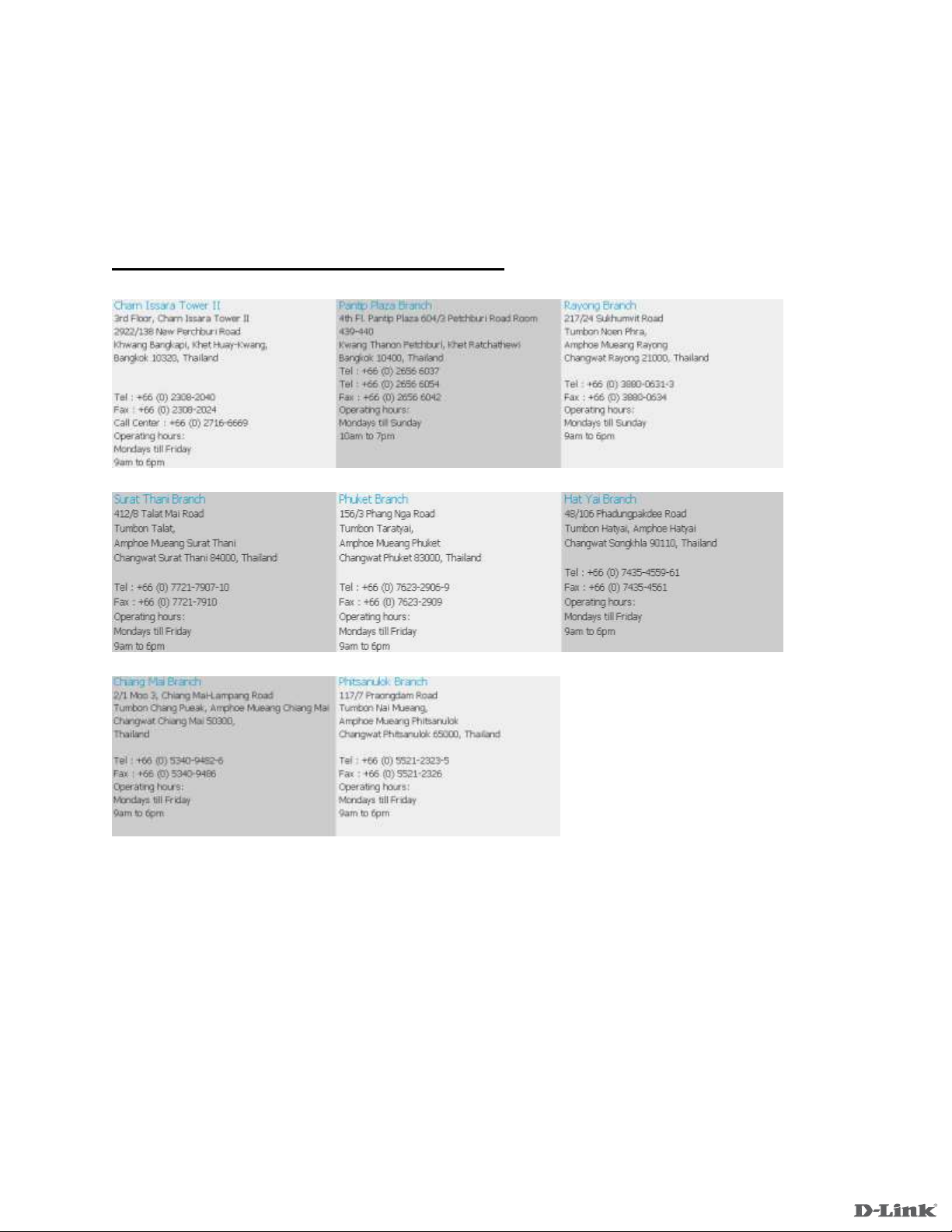

Nationwide D-Link Service Centres :
