DCH-G020
mydlink™ Connected Home Hub
User’s Manual
Version 01.0
Oct. 15th, 2014

DCH-G020 D-Link Corporation
Manual Page 2 10/16/2014
1. PRODUCT DESCRIPTION
The DCH-G020 is a Connected Home Z-Wave Gateway used to control a
variety of Z-wave home sensors for the application of home automation.
It is able to talk to variety of Z-Wave sensors and communicate with other D-
Link connected Home devices.
2. APPEARANCE
Front Panel
lLED: Status indicator
Rear Panel
lUSB port (Type A): reserved for future support .
lLAN port x2
lWireless button: device pair/ un-pair

DCH-G020 D-Link Corporation
Manual Page 3 10/16/2014
lPower jack: 5V/2A
Bottom Panel
lReset button
3. APPLICATIONS
4. INSTALLATION & CONFIGURATION
Step 1 Make sure your mobile device connected to the same network as DCH-G020
Step 2 Follow the Quick Install Card to scan the QR code to download the App.
Step 3 Install App and run it.
Step 4 Register an account for mydlink home service and login the App.

DCH-G020 D-Link Corporation
Manual Page 4 10/16/2014

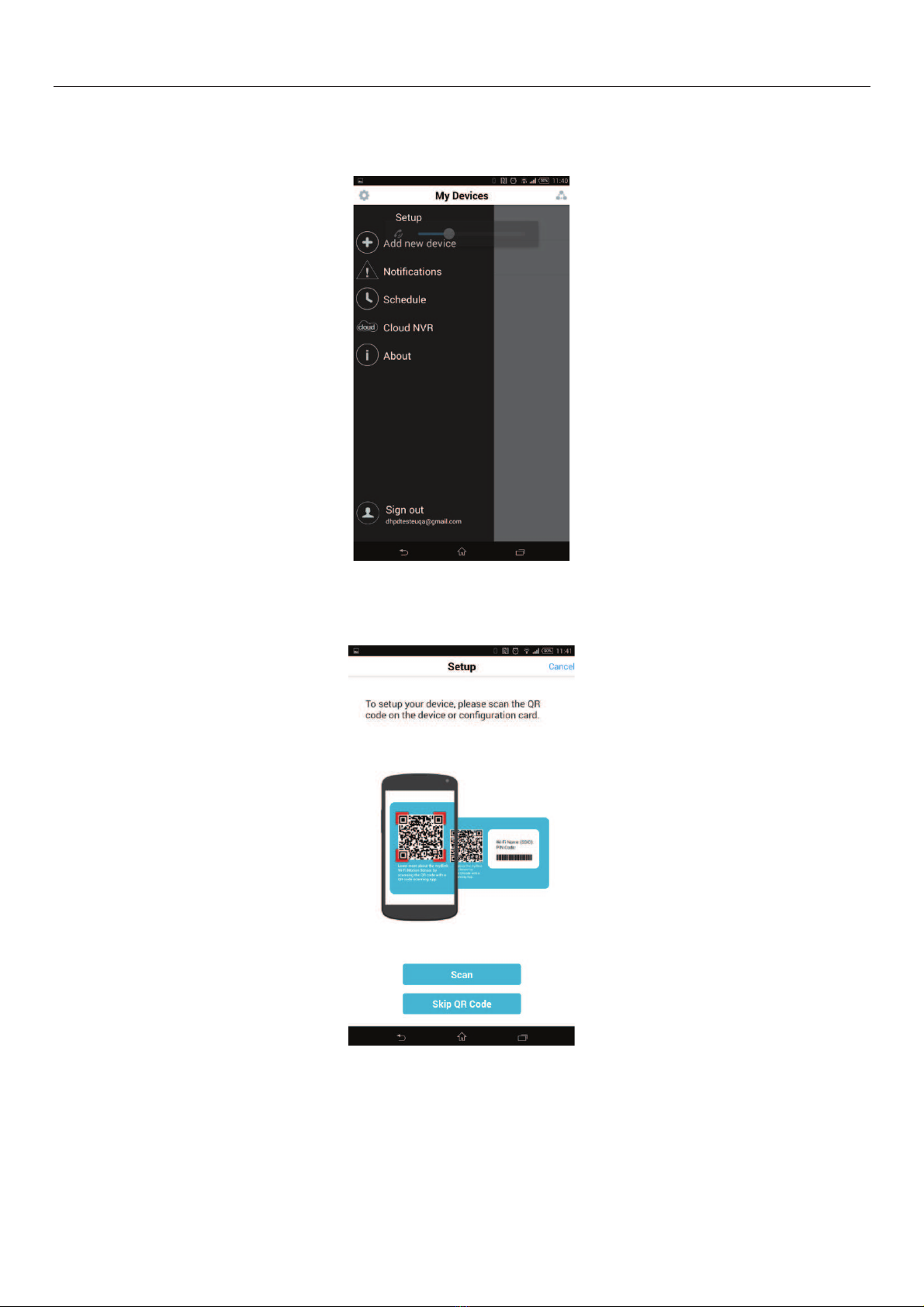

Step 5 Add a new device and select Gateway DCH-G020.
A. Select Add new device to add a new device.
B. Scan device QR code or skip the QR code to manual select the device.

DCH-G020 D-Link Corporation
Manual Page 5 10/16/2014

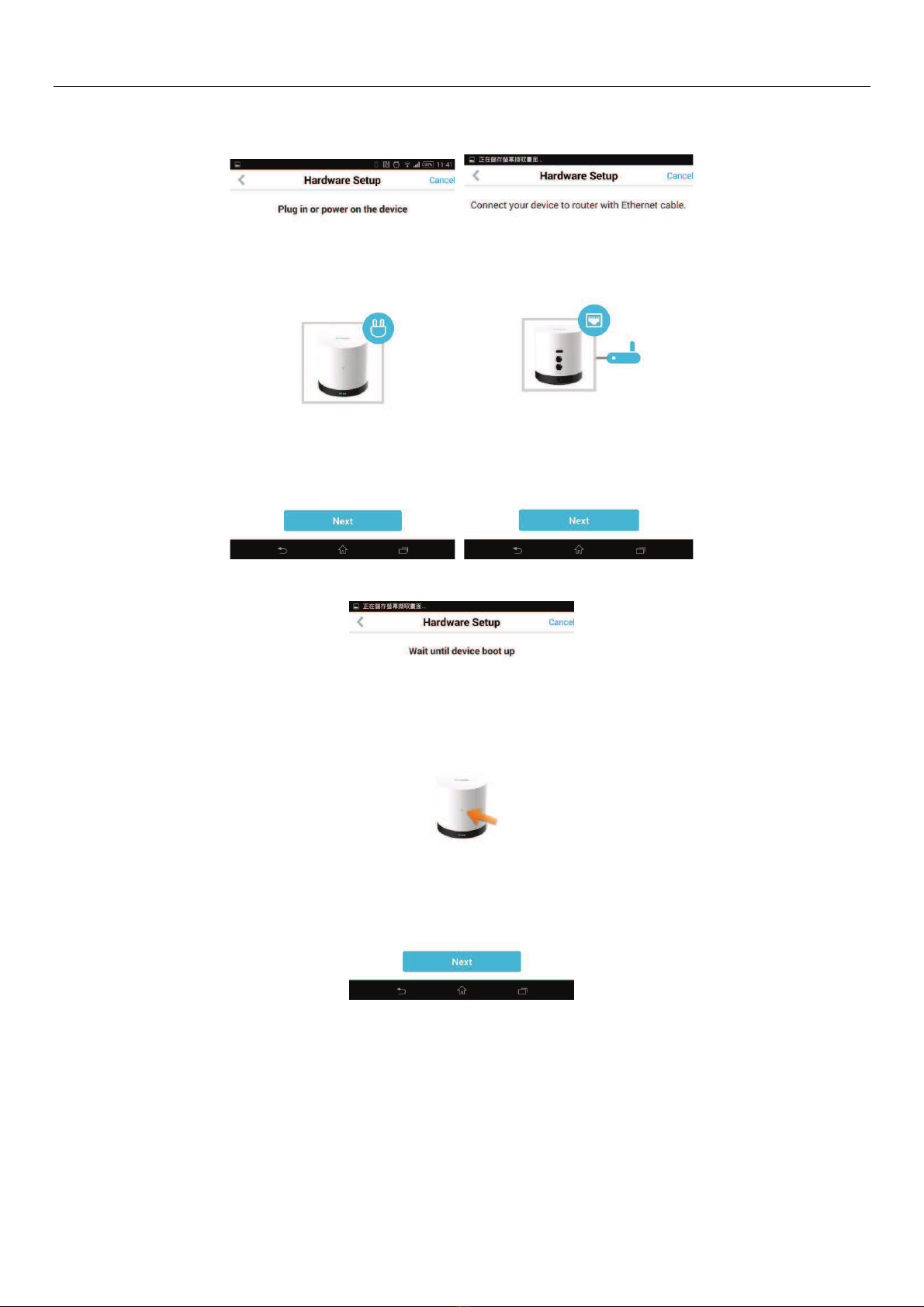

Step 6 Follow the instructions to setup the DCH-G020

DCH-G020 D-Link Corporation
Manual Page 6 10/16/2014

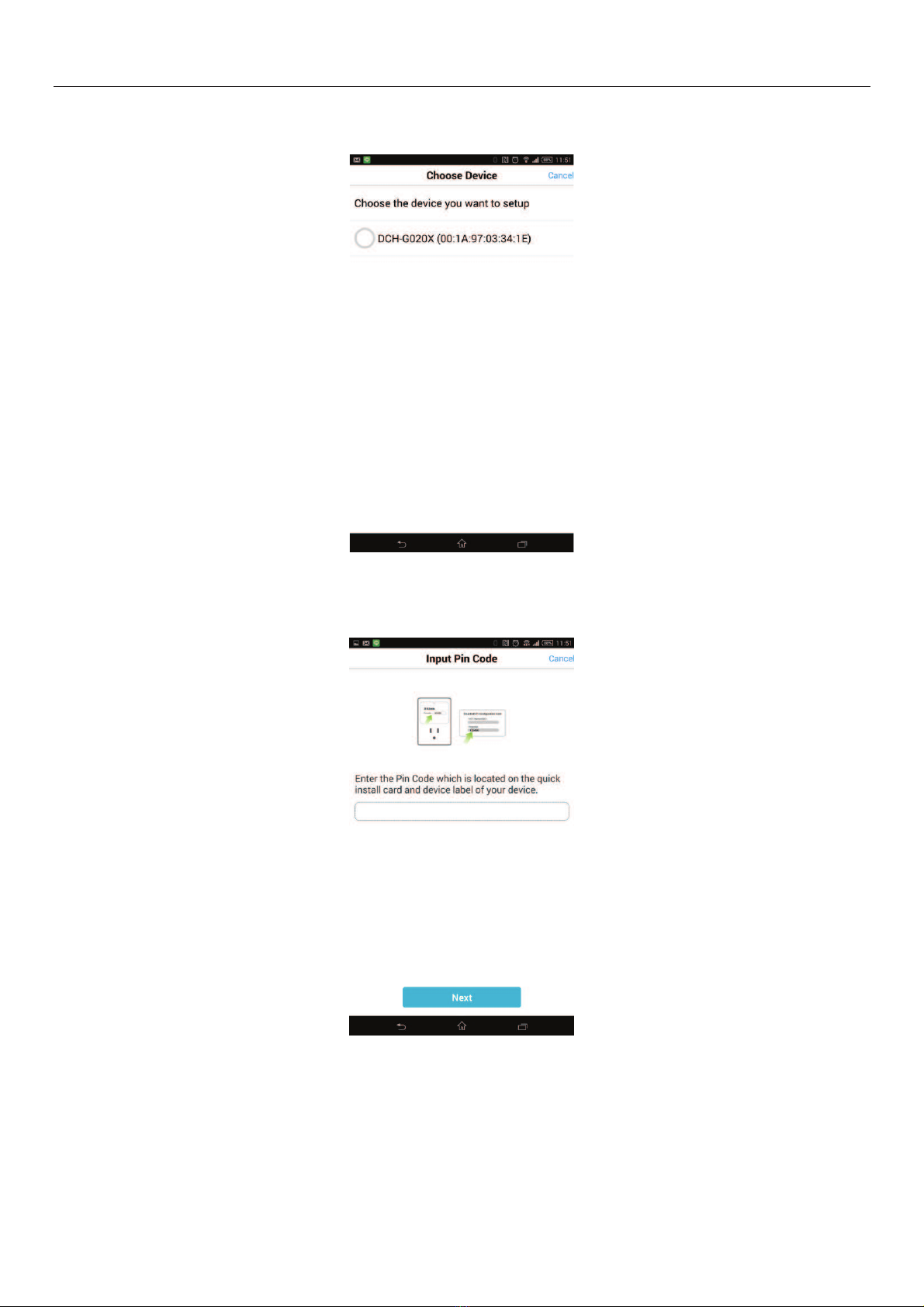

Step 7 Find the DCH-G020 and click to select it.
Step 8 Enter the Pin Code of your DCH-G020.

DCH-G020 D-Link Corporation
Manual Page 7 10/16/2014

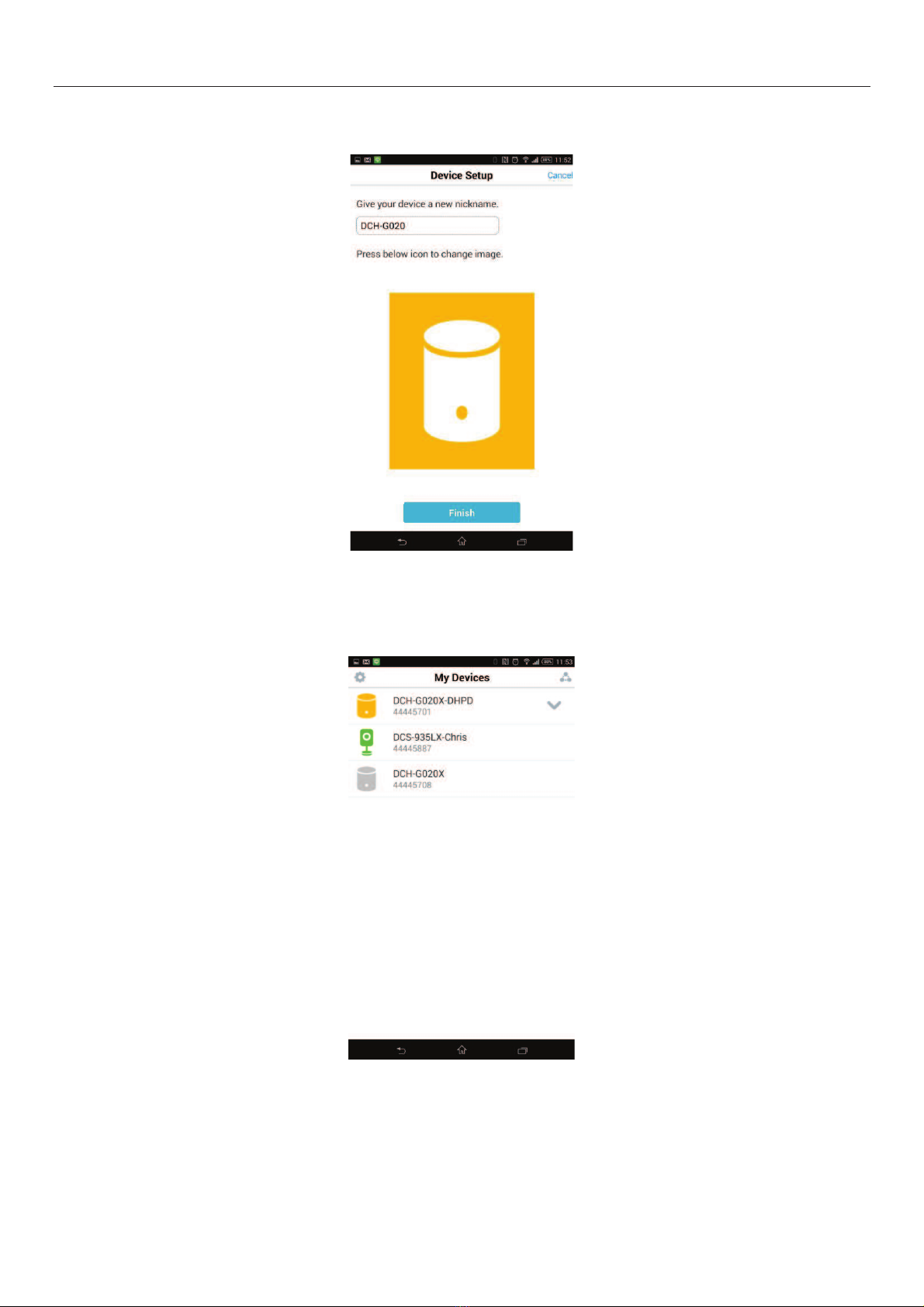

Step 9 Give a name of your DCH-G020.
Step 10 See a DCH-G020 on the device list, then you can continue to add Z-wave
sensors or other D-Link Connected Home devices.

DCH-G020 D-Link Corporation
Manual Page 8 10/16/2014

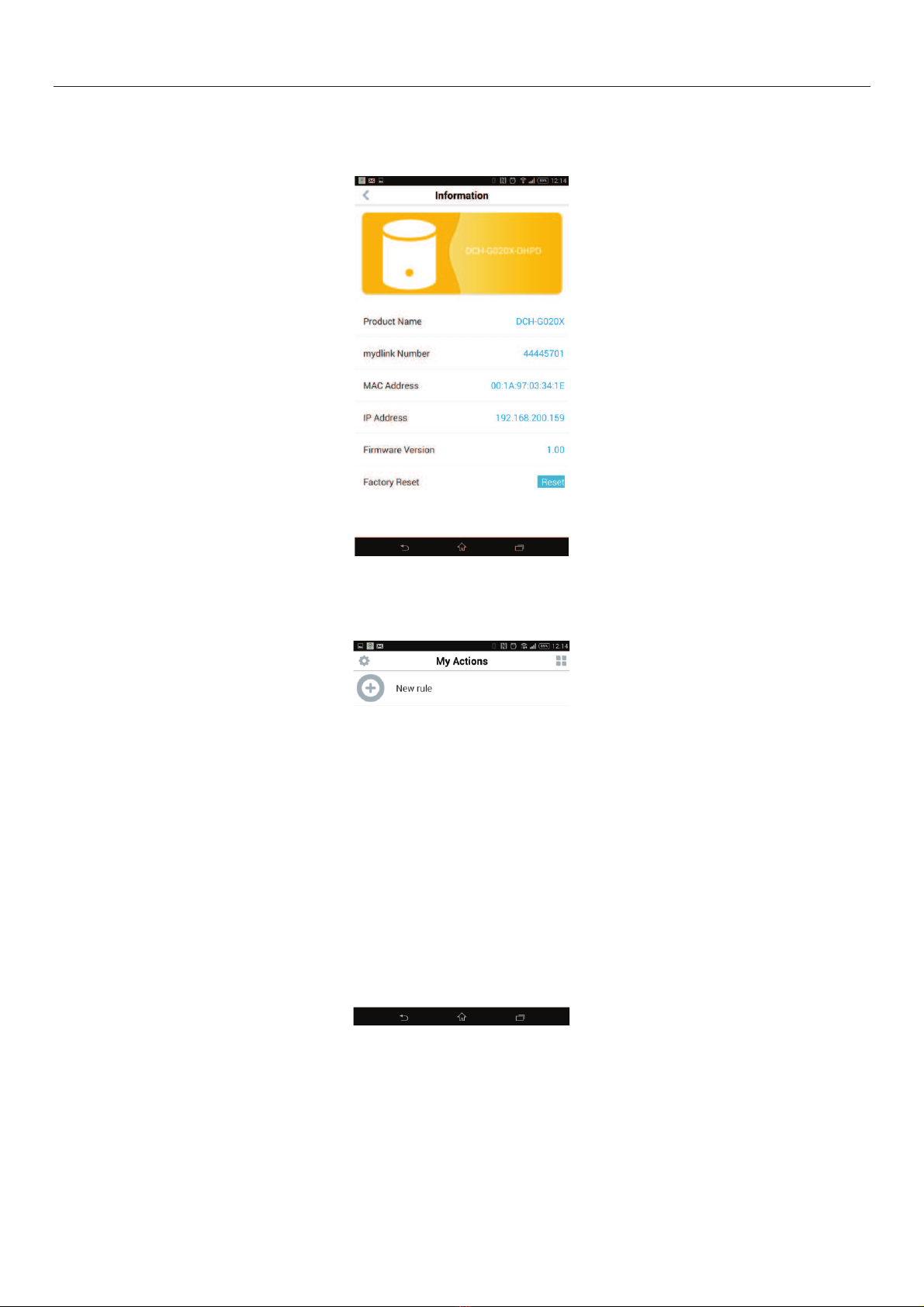

Click the device to see more information of the device.
Make a Policy for Devices

DCH-G020 D-Link Corporation
Manual Page 9 10/16/2014
Make a Group for Devices
You can click the Notification to see the triggered information, click Schedule to
configure the device working schedule, and click Sign out to log out the device.
