D-Link DG-104SH User manual

Manual
Building Networks for People

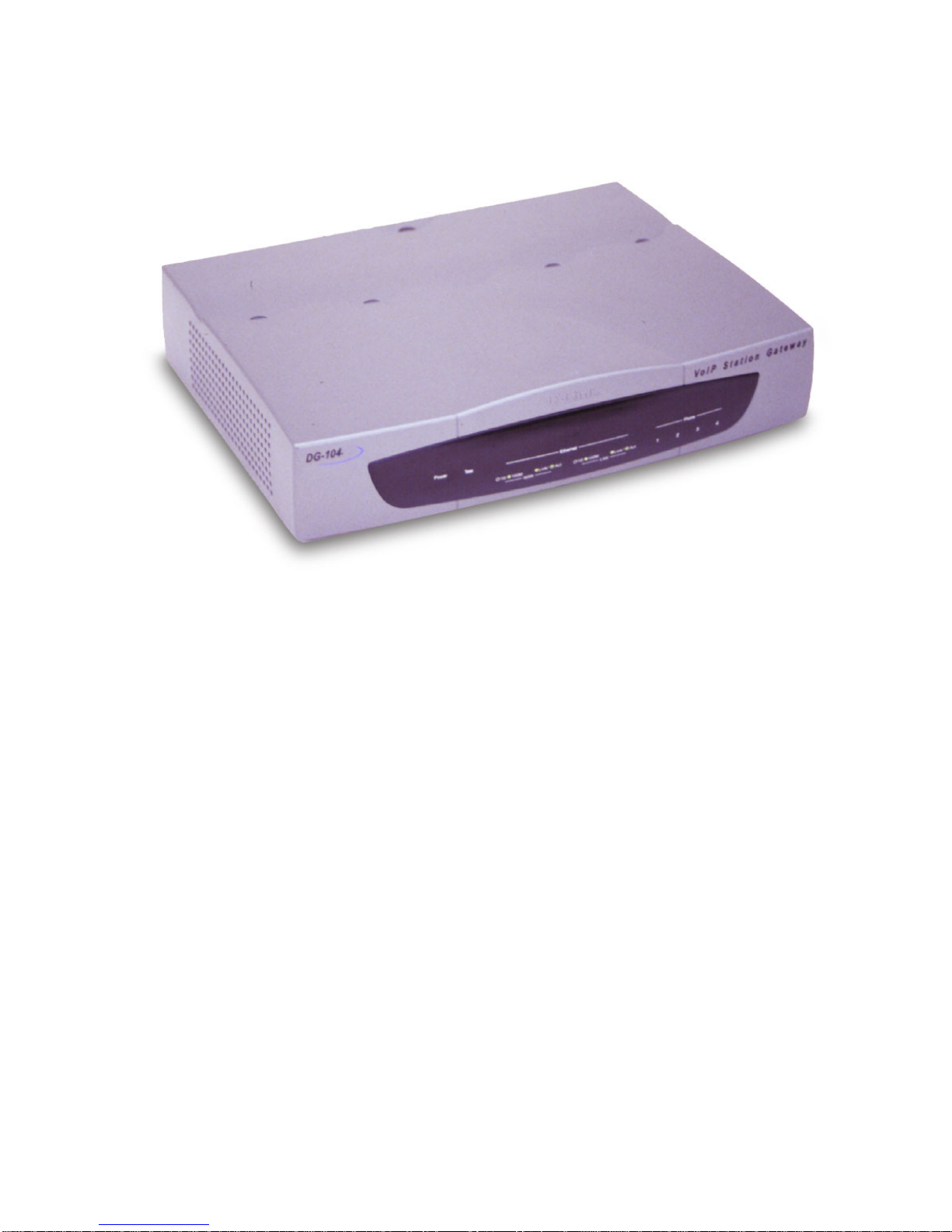

D-Link DG-104SH
VoIP Station Gateway
Version 1.10

2
Contents
PackageContents ................................................................................3
Introduction............................................................................................4
Features andBenefits ...........................................................................5
GettingStarted ......................................................................................6
UnderstandingIndicators.......................................................................9
Configuration ......................................................................................11
Usingthe BootMenu ...........................................................................21

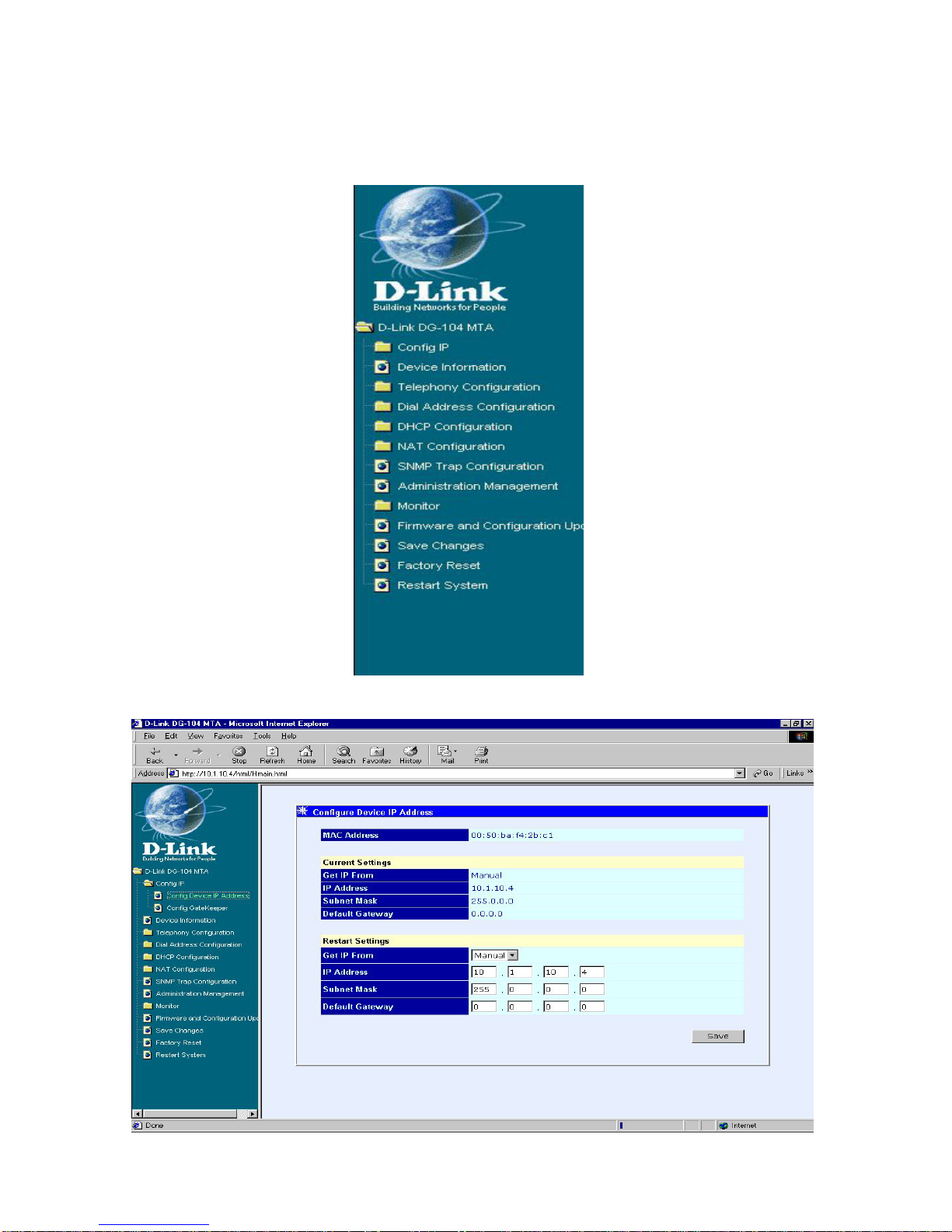

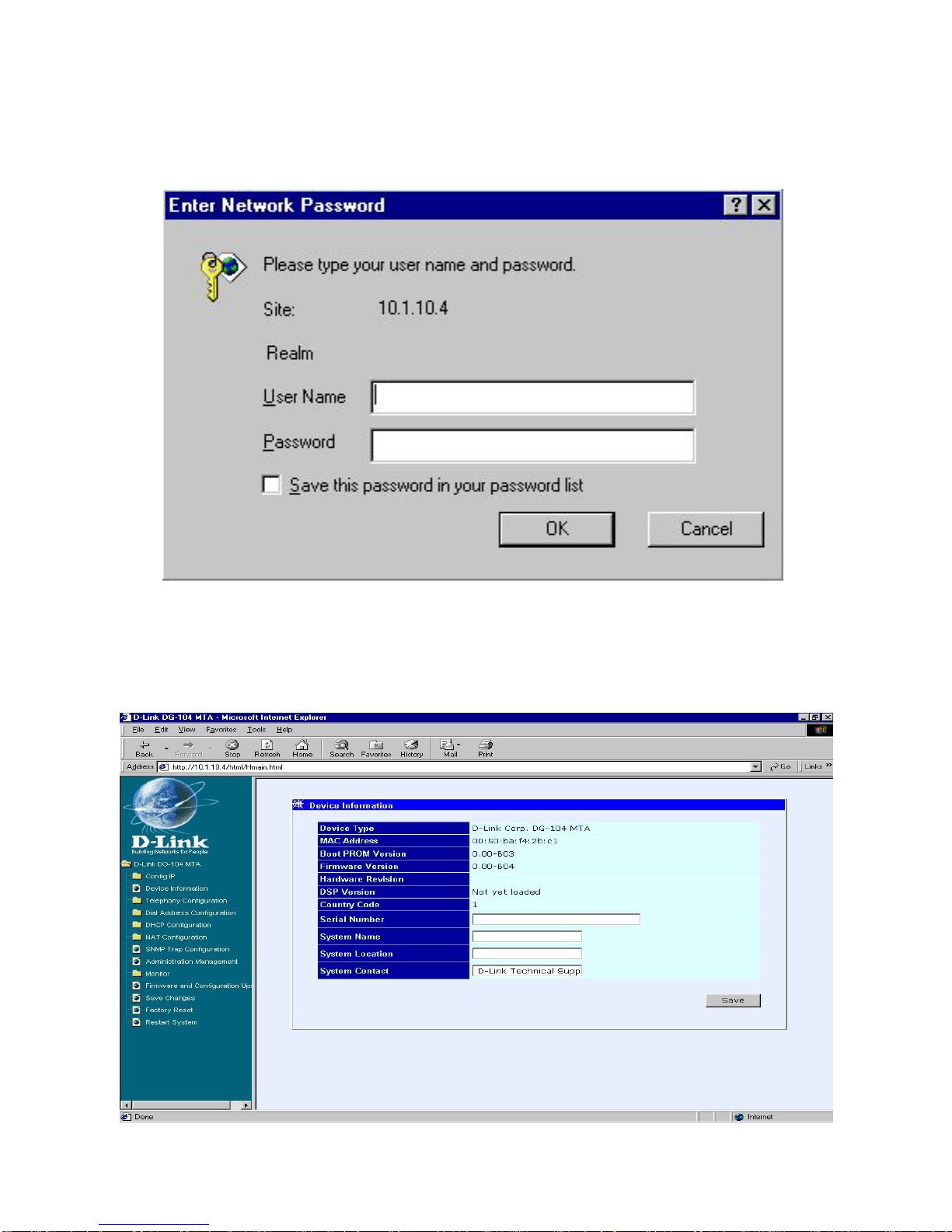

UsingWeb-Based Management .........................................................30
CommandLineInterface .....................................................................68
TechnicalSpecifications ......................................................................76
Waranty...............................................................................................79
Registration ........................................................................................82
ContactingTechnical Support ..............................................................83

3
Package Contents


Internet Explorer Version 6.0 or Netscape Navigator
Version6.0andAbove
Computers with Windows, Macintosh, or Linux-based
operating systems with an installed Ethernet adapter
System Requirements:
Contents of Package:
D-Link DG-104SH VoIP Station Gateway
Ethernet Cable (RJ-45)
A/C PowerAdapter
If any of the above items are missing, please contact your reseller.




4
Introduction
TheD-LinkDG-104SHVoIPStationGatewaylinkstraditionaltelephonynetworks
to IP networks with conventional telephony devices such as analog phones or
fax machines. The DG-104SH includes four loop start Foreign Exchange
Subscriber (FXS) interfaces with normal RJ-11 telephone connectors that
provide voice/fax communication over the IP network, and it also provides two
10/100MbpsFast Ethernet ports. OneEthernetportis for a DSL/CableModem
or other WAN devices and the other may function as a connection to create a
home or small office LAN network. Enabling NAT on the DG-104SH will allow
multiple clients to connect to the Internet. It can be configured/monitored via
theConsole, Webbrowser,orTelnetandSNMPmanagement isalsosupported.
By routing calls over the Internet or any IP network, this gateway can reduce or
eliminate long distance or inter-office phone charges. Corporations can also
enjoy the benefits of network consolidation and the reduction of leased lines by
relying on the Internet service providers to deliver toll-quality voice
communications over the IP networks.

5
Features and Benefits
Designedforversatility andperformance,the DG-104SHVoIPGatewayprovides
the following features:


One 10/100 Fast Ethernet LAN port for connecting to a local network

One 10/100 Fast Ethernet WAN port for connecting to a WAN device
Four analog loop-start FXS interfaces using female RJ-11 connectors
IP address assignment using DHCP (Dynamic Host Configuration
Protocol) or static configuration
Silence suppression to reduce bandwidth consumption
Comfort noise generation for a more natural feel
Adaptive jitter buffer for smooth voice reception
Lost packet recovery ability for improved voice quality
Command port for easy configuration
Remote Software download/update
Support IP sharing to allow multiple users to access the Internet
via a single IP address
CallerID
QoS support to ensure voice quality










Built-in PPPoE function to support dial-up connection for broadband
technology


6
Getting Started
Identifying External Components
LED Indicator Panel: Refer to the next section titled, “Understanding
Indicators,”fordetailedinformation abouteach oftheVoIPGateway’sLED
indicators.


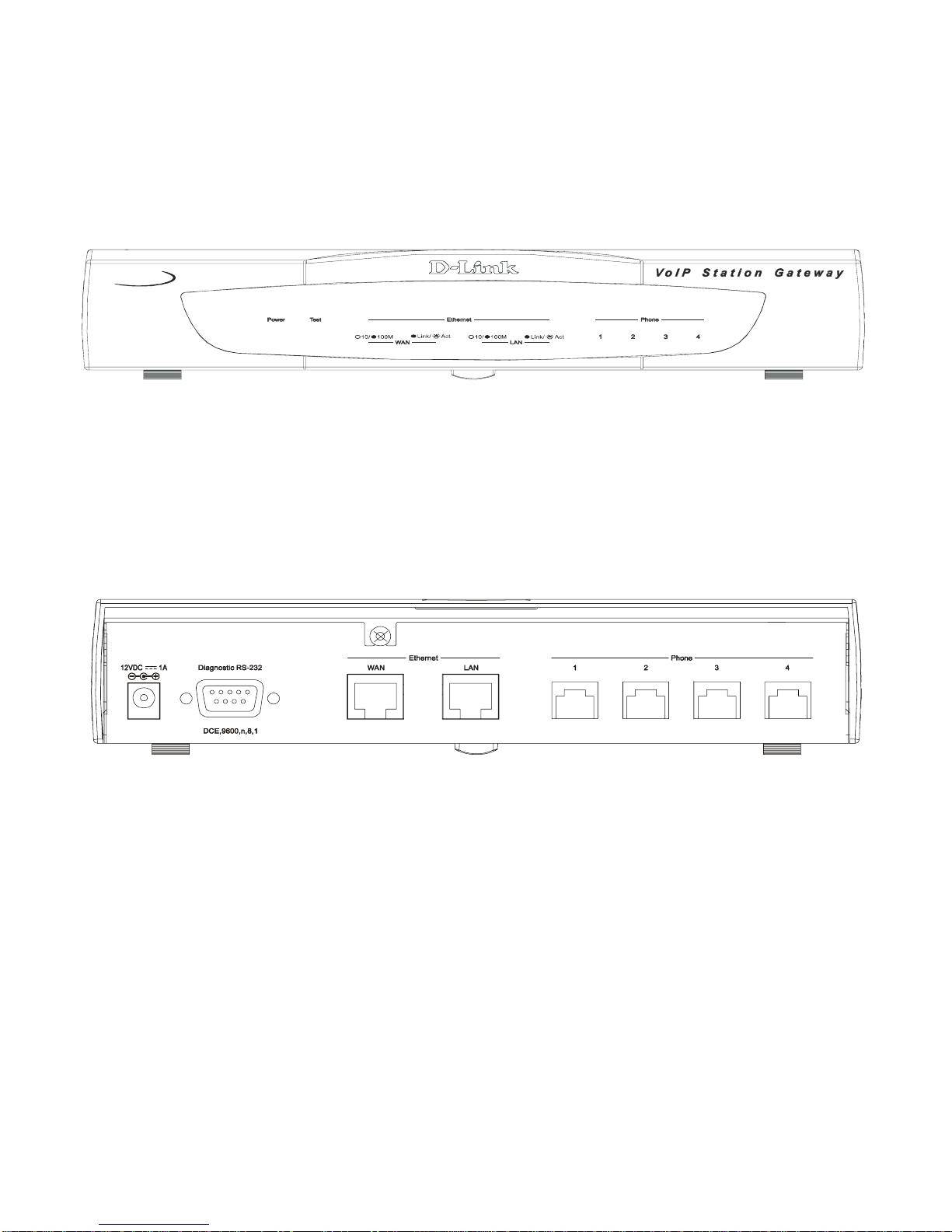

Front Panel
Rear Panel
AC Power Connector: For the included power adapter. If you use a
power adapter other than the one included with the product, please make
sure that it has a DC output of 12VDC/1A.
Diagnostic Port: An RS-232 serial port used to configure the device.
Plug one end of a straight-through wired RS-232 cable to the device and
the other end to a serial port of a PC running a terminal emulation pro-
gram (such as Microsoft HyperTerminal) or a VT-100 terminal.


DG-104SH

7
Getting Started
Identifying External Components
Fast Ethernet WAN: A 10/100 dual-speed Ethernet port fitted with an
RJ-45 connector used to connect the VoIP gateway to a WAN device
(usually a router). This port accepts Category 3, 4 or 5 UTP cabling with
an RJ-45 connector.
Fast Ethernet LAN: A10/100 dual-speed Ethernet port fittedwithan RJ-
45 connector used to connect the VoIP gateway to a LAN device (hub,
switch, PC, etc.). This port accepts Category 5 or better UTP cabling
with an RJ-45 connector.
Phone 1 to 4: Normal RJ-11 phone jacks used to connect analog (or
digital) telephones and fax machines. Plug your telephone(s) and/or fax
machine directly into any of these jacks.



Installation
When choosing a place to install the VoIP Gateway, please Use the following
guidelines:
The power outlet should be within 1.82 meters (6 feet) of the device.
Visually inspect the power cord and see that it is secured to the AC
power connector.
Donotplace heavy objects on theDG-104SHat any time. Placingthe
DG-104SH in a well ventilated area is very important. Not doing so
may cause damage to the unit.
When installing the unit on a desktop or shelf, the rubber feet in-
cluded with the device should be attached. These cushioning feet
should be attached to the bottom corners of the device.




8
Getting Started
Connecting the Network Cable
Category 3, 4, or 5 UTP cable can be used to make an Ethernet connection to
your router.
Connecting the VoIP Gateway to a Hub/Switch
Connecting the VoIP Gateway to a Computer
The DG-104SH requires a straight-through cable when connecting to a

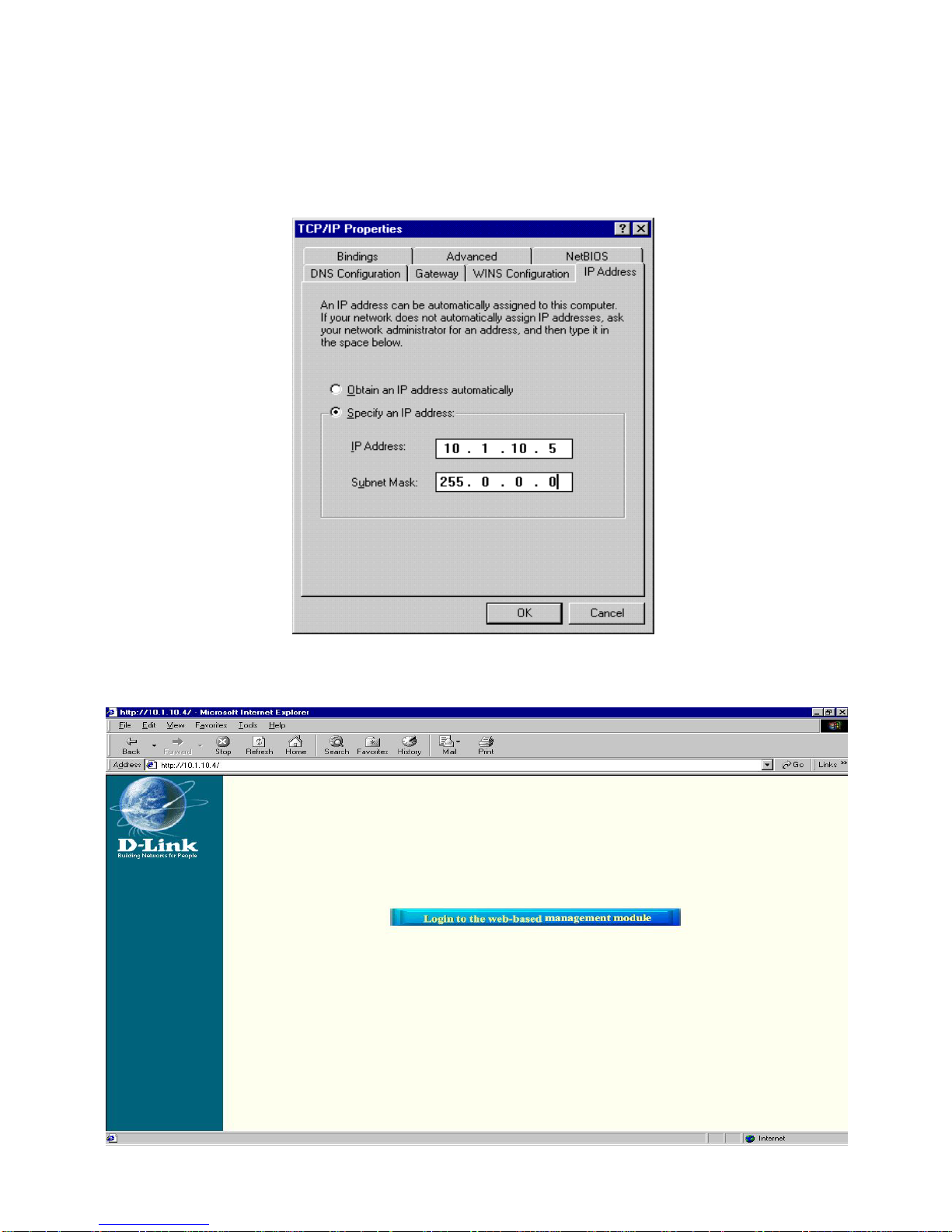

computer. Make sure that your IP address on your Ethernet card is in the same
subnet as the DG-104SH, otherwise it will not connect.
When connecting the LAN port to a Hub/Switch you will need to use a cross-
overcable.
Installation

9
Understanding Indicators

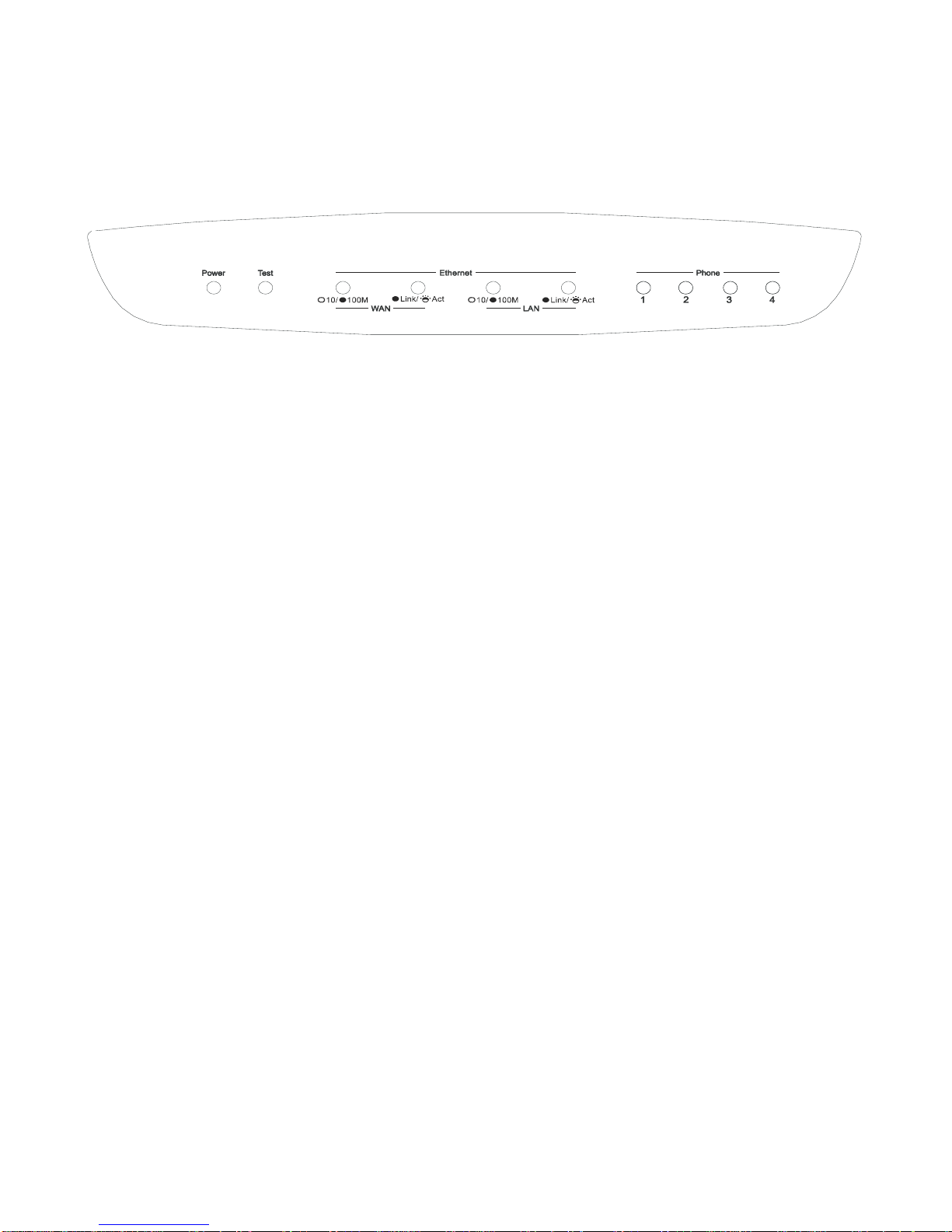

Before configuring your VoIP Gateway, take a few minutes to look over this
section and familiarize yourself with the front panel LED indicators depicted
below.
Power: This LED is lit when the device is receiving power; otherwise, it
is unlit.
WAN: This LED displays the connection speed, link status, and activity
on the 10/100 dual-speed Ethernet port that is used to connect to your
WAN device (usually a DSL/cable modem).
10/100M: This indicator remains unlit when there is no connection, or
the port is operating at 10Mbps through a connection to a 10BASE-T
device. It is lit when the port is operating at 100Mbps through a con-
nection to a dual-speed or 100BASE-TX Fast Ethernet device.
Link/Act: When a good link to a powered-up, but idle device is de-
tected on a port, this indicator shines steadily. When packets are re-
ceived from the device, the indicator blinks.


Test: This LED will flash quickly when the DG-104SH is either perform-
ing a self test or booting up. The LED will remain lit when the system is
ready for a connection with the Gatekeeper. It will remain dark when the
system is ready but can not receive an acknowledgement from the
Gatekeeper.

10
Line: Lights when PSTN line is in use.
Phone 1 to 4: Lights when standard phone port is in use.
Note: If a powered-up device is connected to a port and the port’s Link/Act status
indicator is unlit, the most probable cause is a cabling or connection problem
(for example, wrong cable type or bad contact) or a device malfunction.
LAN: ThisLEDdisplaysthe connection speed, link status, and activity on
the 10/100 dual-speed Ethernet port that is used to connect to your LAN.
10/100M: This indicator remains unlit when there is no connection, or
the port is operating at 10Mbps through a connection to a 10BASE-T
device. It is lit when the port is operating at 100Mbps through a con-
nection to a dual-speed or 100BASE-TX Fast Ethernet device.
Link/Act: When a good link to a powered-up but idle device is de-
tected on a port, this indicator shines steadily. When packets are re-
ceived from the device, the indicator blinks off and on.
Understanding Indicators




11
Configuration
Configuring the VoIP Gateway
Using a terminal or computer running terminal emulation software
connected to the diagnostic port via an RS-232 cable. In the discussion
below, the terminal (or computer) is referred to as a console and the
connection, a console connection.
Using a web browser on a computer connected to the device via the
WANor LANEthernetconnections. Inthediscussion below, thecomputer
running the browser is referred to as the management station.


There are two ways to configure the VoIP gateway:
Configuring the VoIP Gateway Using a Console
Setting up a Console
First-time configuration can be carried out through a “console,” that is, either
(a)a VT100-typeserial dataterminal, or(b) acomputer runningcommunications
software set to emulate a VT100. The console must be connected to the
Diagnostics port. This is an RS-232 port with a 9-socket D-shell connector and
DCE-type wiring. Make the connection as follows:
1. Obtain suitable cabling for the connection.
You can use either (a) a “null-modem” RS-232 cable or (b) an ordinary RS-
232cable anda null-modemadapter.Oneendofthecable(or cable/adapter
combination) must have a 9-pin D-shell connector suitable for the
Diagnostics port; the other end must have a connector suitable for the
console’s serial communications port.
2. Power down the devices, attach the cable (or cable/adapter combination)
to the correct ports, and restore power.
3. Set the console to use the following communication parameters for your
terminal:
9600baud
VT-100/ANSI compatible
No parity checking (sometimes referred to as “no parity”)




12
Configuration
Configuring the VoIP Gateway
8 data bits (sometimes called a “word length” of 8 bits)
1 stop bit (sometimes referred to as a 1-bit stop interval)
No Flow control
Arrow keys enabled





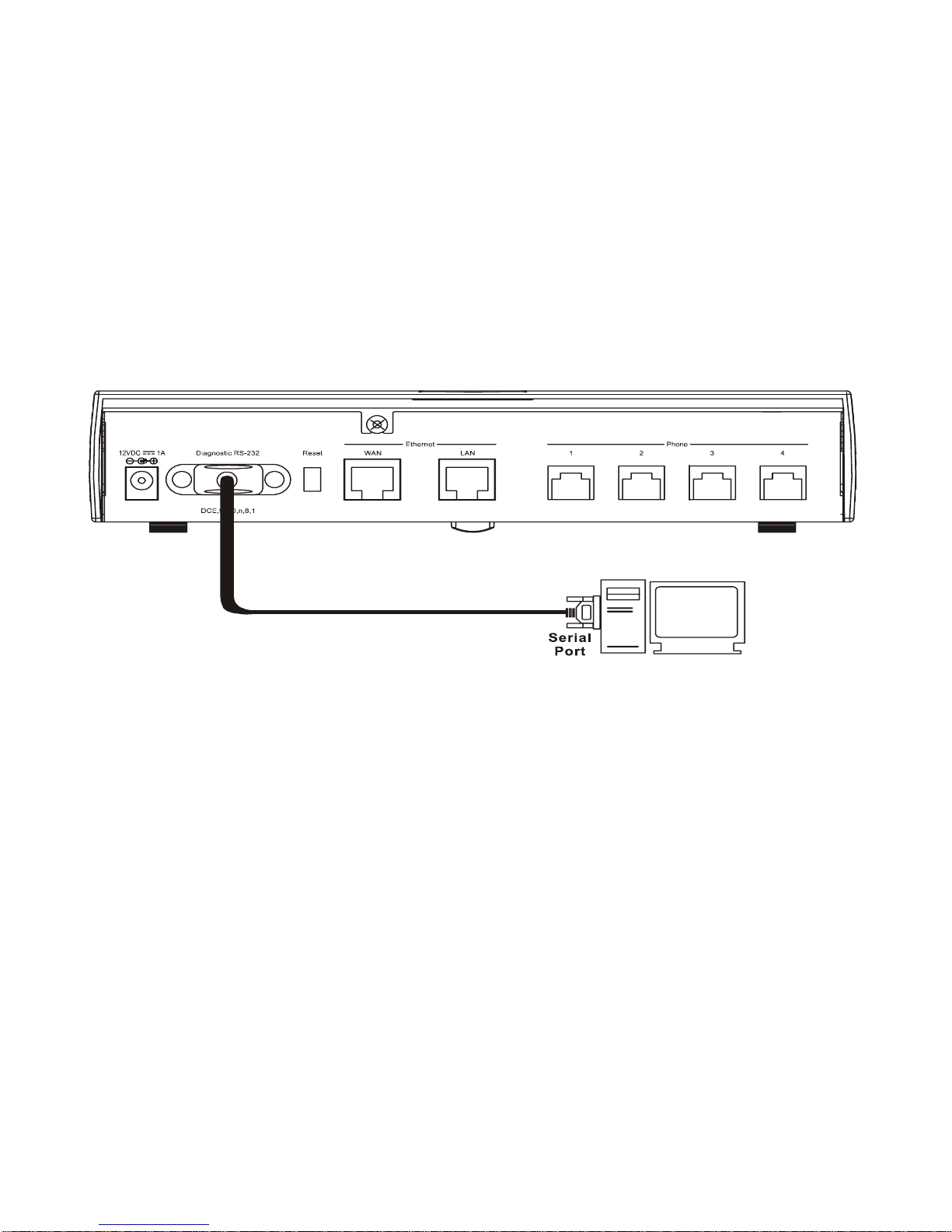

A typical console connection is illustrated below:
Example of a Console Connection
Configuring the VoIP Gateway Using Telnet
Once you have set an IP address for your device, you can use a Telnet pro-
gram (in a VT-100 compatible terminal mode) to access and configure it. Most
of the screens are identical, whether accessed from the console port or from a
Telnet interface.
Console Usage Conventions
The console interface uses the following conventions:
Items in <angle brackets>can be toggled on or off using the space bar.
Items in [square brackets] can be changed by typing in a new value. You
can use the Backspace and Delete keys to erase characters behind and
in front of the cursor.



13
Configuration
Configuring the VoIPGateway
The up and down arrow keys, the left and right arrow keys, the Tab key,
and the Backspace key can be used to move between selected items. It
isrecommendedthatyouusetheTabkeyandBackspacekeyfor moving
around the console.
Items in UPPERCASE are commands. Moving the selection to a com-
mand and pressing Enter will execute that command, e.g. APPLY, etc.
Note: The command APPLY only applies for the current session. Use Save
Changes from the Main Menu for permanent changes.


First Time Connecting to the VoIP Gateway
First make the console connection to the device and then power it on. If your
terminal (or terminal emulation program) is properly configured according to
the specifications defined above, you will see the POST test and the boot up

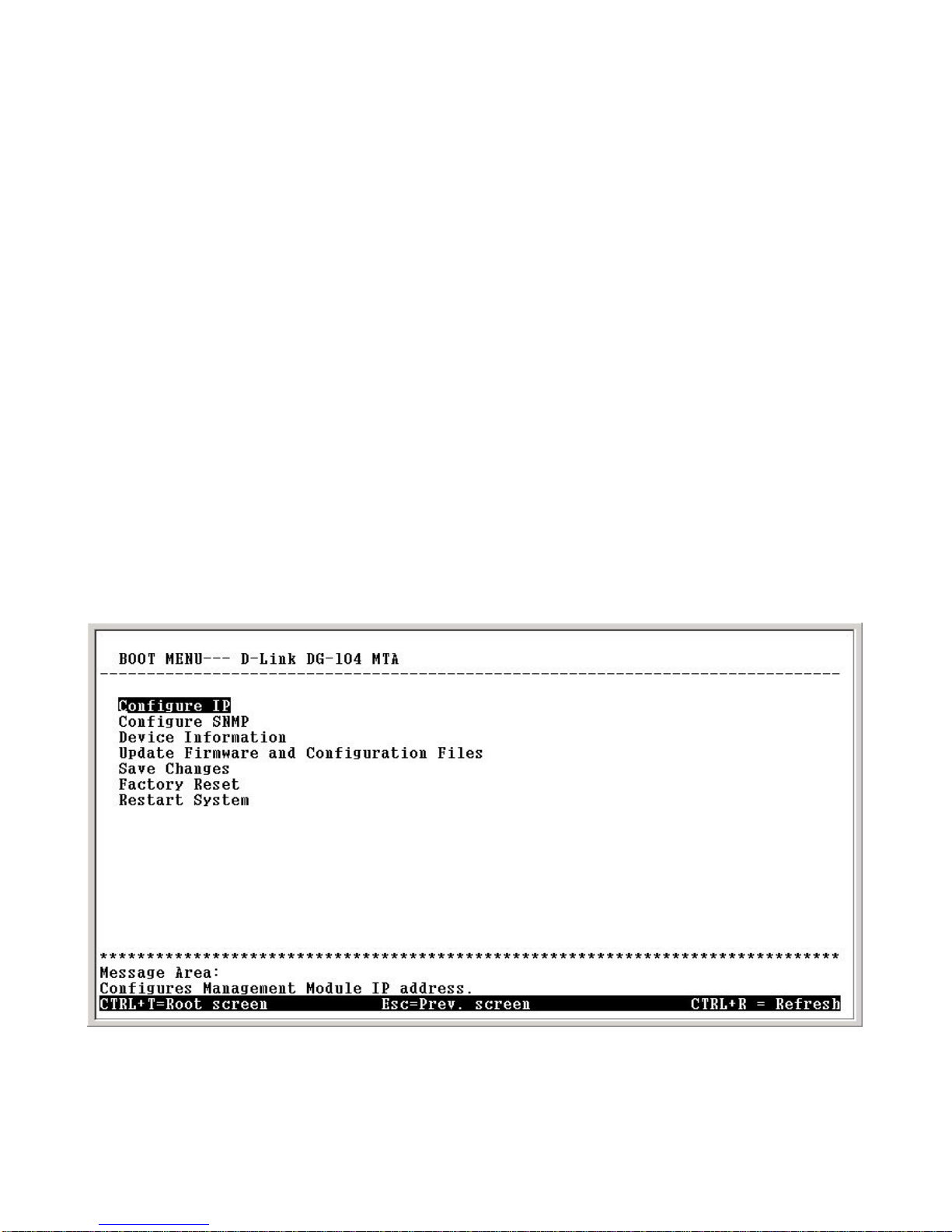

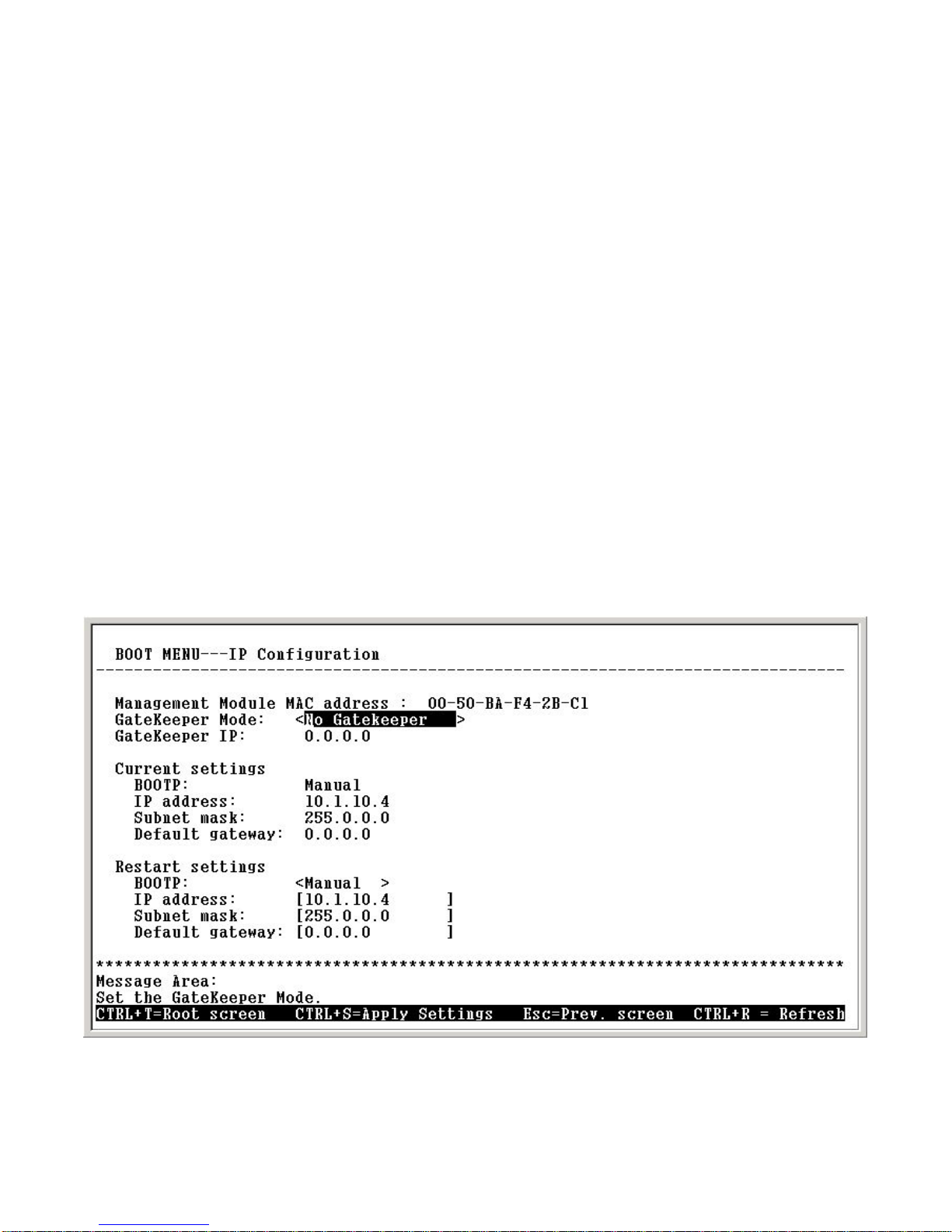

process. During this process, press <Ctrl+C> to reach the Boot Menu (shown
below).
If the boot up process has proceeded too far and the Boot Menu shown above
does not appear, unplug the device, plug it back in (to restart the boot up pro-
cess), and press <Ctrl+C> until the Boot Menu appears.
Initial Screen, First Time Connecting to the device

14
Configuration
Configuring the VoIP Gateway
Configuration Settings
In order for the VoIP to function, you must provide the device with the following
information:
Where the device receives its IP settings from.
IP settings – IPAddress, Subnet Mask, and Default Gateway
All of these settings are found in the first menu item in the Boot Menu named IP
Configuration.


Configure IP
Use the <Tab> key to highlight the first menu item Configure IP and press <En-
ter>. The IP Configuration screen will now be displayed:
Boot Menu—IP Configuration screen
Gatekeeper Mode– Choose the Gatekeeper mode
Gatekeeper IP –The Gatekeeper IP address is necessary if you chose
the <Manual Discovery> item within the Gatekeeper Mode


Gatekeeper Mode: Usethe<Space> key toselecttheGatekeeper mode
once the device is rebooted (restarted). Choices include:


15
Configuration
Configuring the VoIP Gateway
BOOTP: Use the <Space> key to select the method that the VoIP gate-
way will use to obtain its IP settings once it is rebooted. Choices include:
Manual: When Manual is selected, the VoIP gateway will obtain its IP
settings from the fields located just below.
BOOTP: When BOOTP is selected, the VoIP gateway will attempt to
obtain its IP settings from a BOOTP server located on your LAN.
DHCP: When DHCP is selected, the VoIP gateway will attempt to ob-
tain its IP settings from a DHCP server located on your LAN.
IPAddress: Enter an IP address for the VoIP gateway.
Subnet Mask: Enter a subnet mask for the VoIP gateway.
Default Gateway: Enter the IP address of the WAN device (usually a
router) you are using to make the WAN connection.




Your VoIP is now configured for use.
No Gatekeeper: When No Gatekeeper is selected, the VoIP gate-
way will not need Gatekeeper.
Auto Discovery: When Auto Discovery is selected, the VoIP gateway
will auto-search the Gatekeeper from your LAN or WAN.
Manual Discovery: When Manual Discovery is selected, the VoIP
gateway will attempt to obtain the Gatekeeper settings from the fields
located just below.
Configuring the VoIP Gateway Using a Web Browser
Setting Up the Connection
In order to use a web browser to configure the VoIP gateway, you must make
sure it has a valid Ethernet connection to a PC or LAN via its LAN or WAN
ports.
After you have finished, press <Ctrl+S> to save changes to RAM. Next, press
the <Esc> key to return to the Boot Menu. Position the cursor over the Save
Changes item and press <Enter>. This will save the settings to NV-RAM so
they will still be present after powering off or restarting the device. Position the
cursor over the Restart System item and press <Enter> for the changes to
takeeffect.

16
The VoIP gateway comes with a default IP address of 10.1.10.4. You must
make sure your computer is in the same subnet as the VoIP gateway. You can
do this by changing the IP address of the computer using the screen shown
below.
Configuration
Configuring the VoIP Gateway
Once this is done, run any browser on the computer and point it to the default
IP address of the VoIP as shown below.
Initial Window, First Time Connecting to the Web-Based Management Module

17
Click on the Login to the web-based management module button in the middle
of the window. The following window will be displayed:
Configuration
Configuring the VoIP Gateway
Initially, the VoIP gateway does not have a Username or Password. To log in,
simply click on the OK button.
The following window will be displayed:
Device Information window

18
Configuration
Configuring the VoIP Gateway
To begin configuring the device, click on the Config IP folder on the left-hand
side of the window (shown below).
Next, click on Config Device IP Address. The following window will appear:
Configure Device IP Address window

19
Configuration
Configuring the VoIPGateway
The items on this window are described below:
Restart Settings
Get IP From: Select the method the VoIP gateway will use to obtain its IP
settings once it is rebooted. Choices include:
Manual: When Manual is selected, the VoIP gateway will obtain its IP
settings from the fields located just below.
BOOTP: When BOOTP is selected, the VoIP will attempt to obtain its
IP settings from a BOOTP server located on your LAN.
DHCP: When DHCP is selected, the VoIP will attempt to obtain its IP
settings from a DCHP server located on your LAN.

IPAddress: Enter an IP address for the VoIP gateway.
Subnet Mask: Enter a subnet mask for the VoIP gateway.

Default Gateway: Enter the IP address of the WAN device (usually a
router) you are using to make the WAN connection.

Click on the Save button at the bottom right of the screen to save the settings.
Next, click on the Config Gatekeeper item in the list at the left of the screen.
Then, click on Server. The following window will appear:

20
Configuration
Configuring the VoIP Gateway
The items on this window are described below:

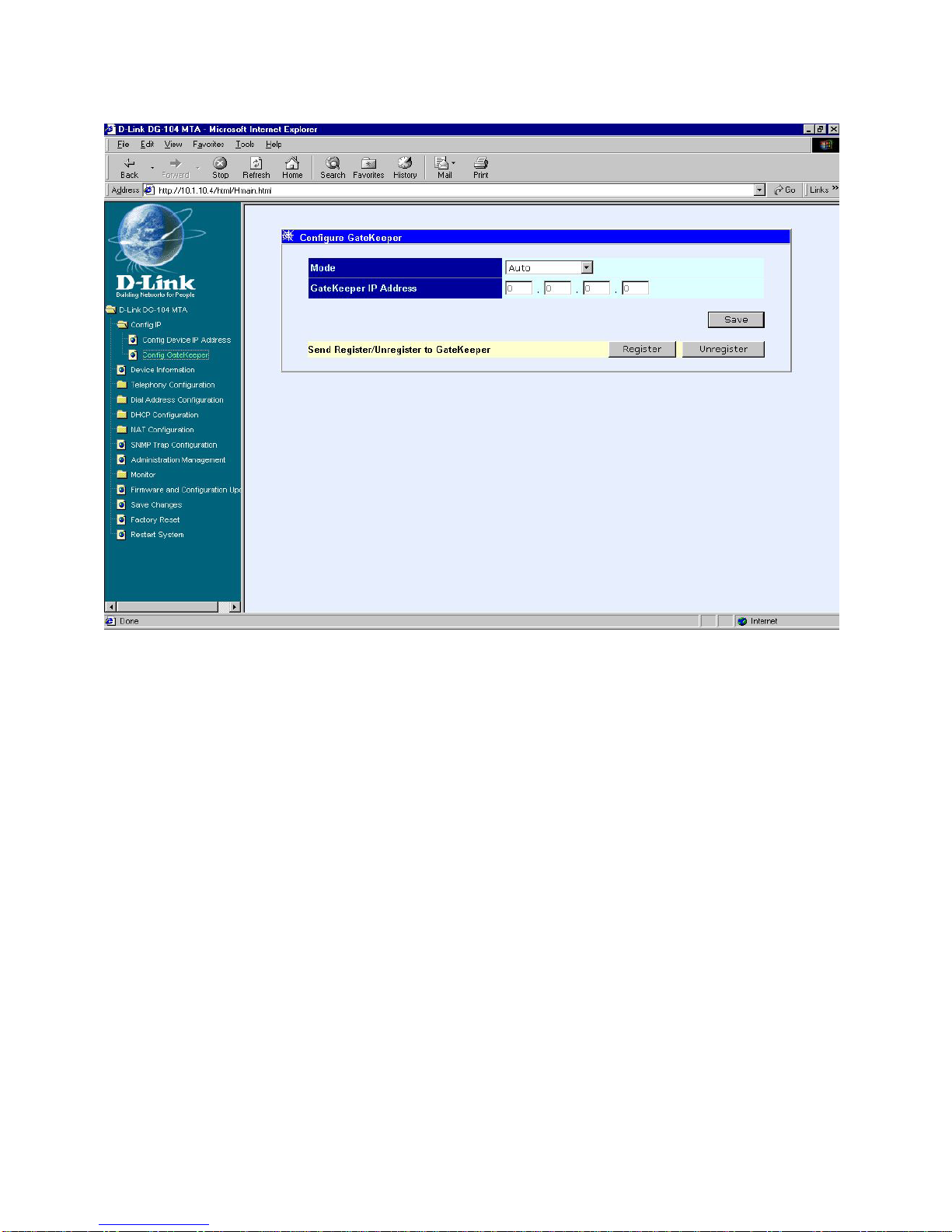

Configure Gatekeeper window
Mode: Select the Gatekeeper mode.(Default isAuto)
Gatekeeper IP Address: This IP address is necessary if you chose the
Manual mode defined as above.
Send Register/Unregister to Gatekeeper Determines whether or not
the device register to Gatekeeper.



Click on the Save button at the bottom right of the screen to save the settings.
