D-Link DFL-M510 User manual

Information
Security gateway(ISG)
This Quick Guide will guide you through the installation Process. You are
only moments away from using your new D-Link Network Security Product
Building Networks for People
DFL-M510

1.Before You Begin
1.1 Check Your Package Contents................................................................1
1.2 DFL-M510 Introduction...........................................................................2
1.3 DFL-M510 Architecture...........................................................................3
2.Identifying Components
2.1 Front View..............................................................................................4
2.2 Rear View...............................................................................................5
2.3 LCD Navigation Button Descriptio..........................................................5
2.4 LCD Panel .............................................................................................6
2.5 Status LEDs ............................................................................................7
3.Connecting the DFL-M510
3.1 Setting up without firewall.....................................................................8
3.2 Setting up with firewall..........................................................................9
4.Configure DFL-M510
4.1 Connect to DFL-510..............................................................................10
4.2 Setup Wizard.........................................................................................13
5.WARRANTY
Warranty...............................................................................................16
DFL-M510 Quick Installation Guide

01

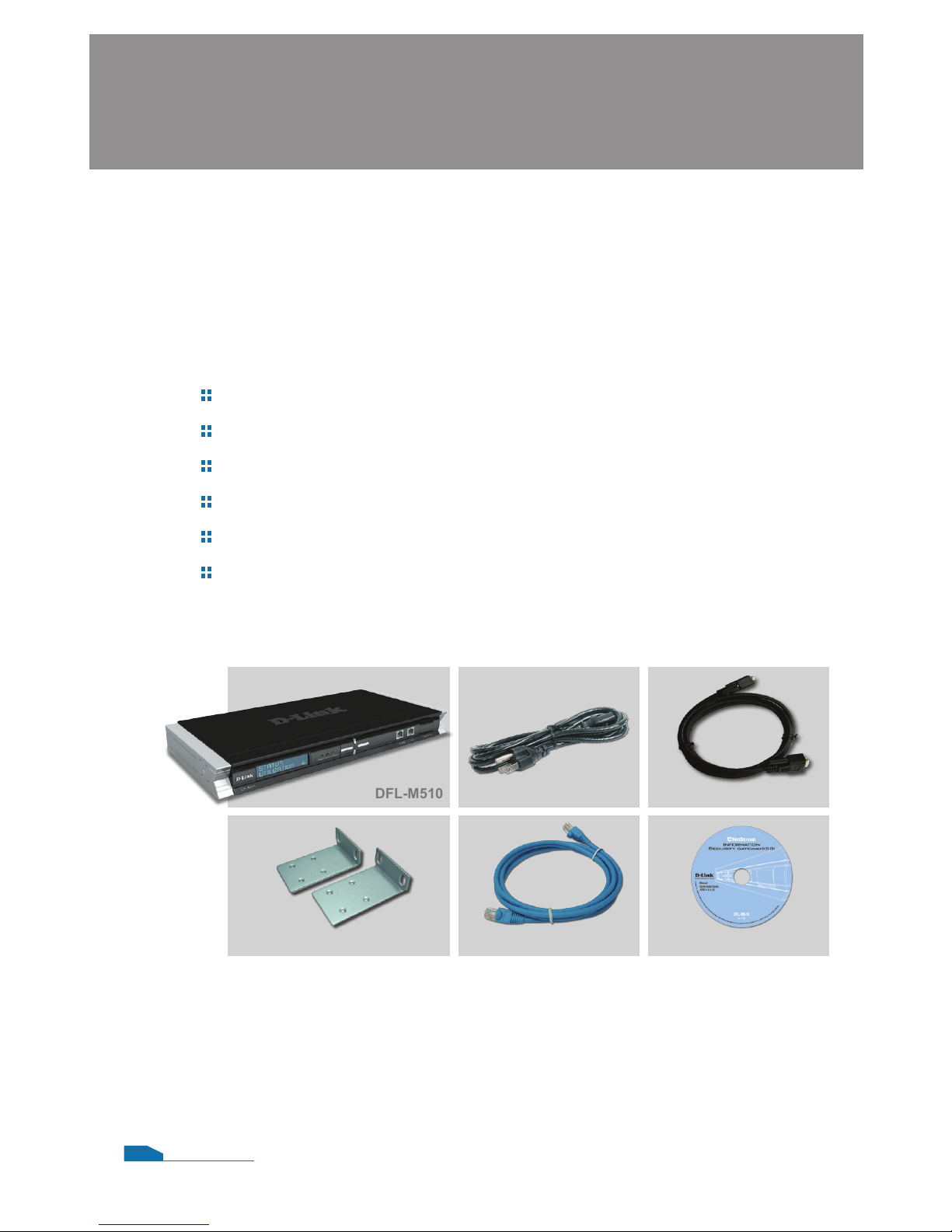

1.1 Check Your Package Contents
Thank you for purchasing DFL-M510 Information Security
Gateway. Before continuing, please check the contents of the
product package. This product package should contain the
following items:
One (1) DFL-M510 Information Security Gateway
One (1) Power Cord
One (1) Console Cable (RS-232 cable)
One (1) Ethernet (CAT5 UTP/Straight Through) Cable
One (1) CD-ROM (containing QIG/Manual )
Two (2) Rack Mount Brackets
If anything is missing, please contact your reseller immediately.
DFL-M510
Before You Begin 1
DFL-M510 Power Cord Console Cable
Ethernet Cable CD-ROMRack Mount Brackets

1.2 DFL-M510 Introduction
DFL-M510 is a transparent network device which is installed in
In-Line mode with “Hardware Bypass” function, without any
change of current network architecture to control/manage
information trafc ow (IM, P2P and Streaming Media … etc.)
from intranet and detect/drop the trafc with health concerns
(Trojan, Illegal agent and Network worm … etc.) Based on the
policy rules applied to specic Group/Hosts/subnet.
DFL-M510 provides very friendly user-interface to congure.
D-Link develops this product based on easy-to-use principle
without compromise any security protection issue.
02
DFL-M510 Quick Installation Guide

03
DFL-M510 Quick Installation Guide
1.3 DFL-M510 Architecture
Without Firewall
When there is no rewall involved, we suggest place DFL-M510
after the router or ADSL modem. Here is the recommended
structure illustration.
With Firewall
When there is a rewall, placing the DFL-M510 between the
rewall and the LAN is recommended. The recommended
structure is illustrated as following.
ADSL Router DFL-M510 Switch
ADSL Router DFL-M510Firewall
WAN Port LAN Port
WAN Port LAN Port

Identifying Components 2
The following illustrations show the front view, rear view,
LCD Panel and status LEDs of the DFL-M510.

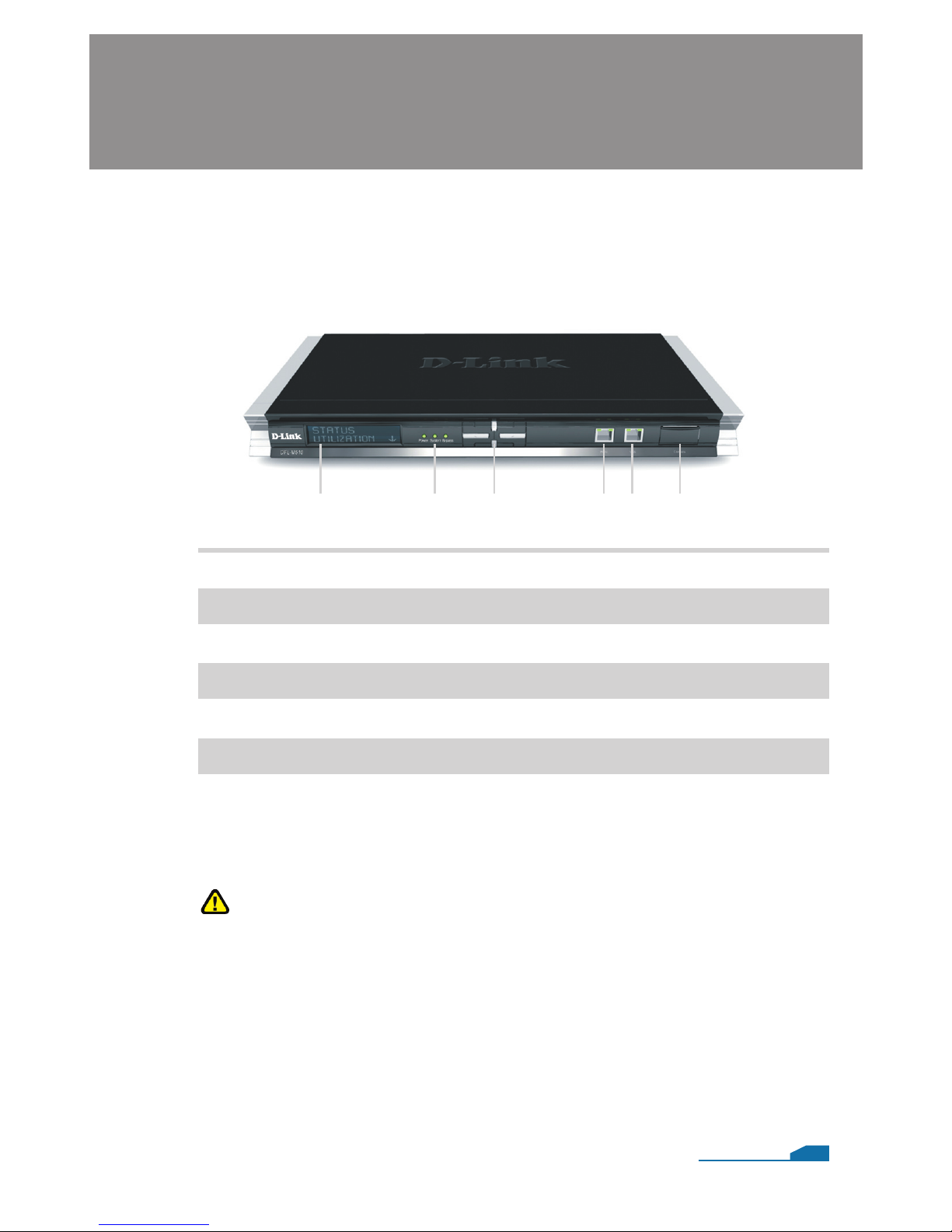

2.1 Front View
1 2 3 4 5 6
1. See “LCD Panel” below
2. See”Status LEDs” below
3. LCD Navigation Buttons
4. WAN Port with hardwave bypass
5. LAN Port with hardwave bypass
6. Console Port
Note:
Hardware Bypass – A built-in failure-proof function of the
DFL-M510. In an unlikely event of a hardware failure or an
accidental power-off, your network trafc will automatically skip
(bypass) the DFL-M510 and ow normally as if a DFL-M510 was
not deployed on your network at all in the rst place.
*
*
04
*

Button Name
UP
Down
ESC
Enter
Description
Scroll Up
Scroll Down
Go back to the previous screen
Next screen

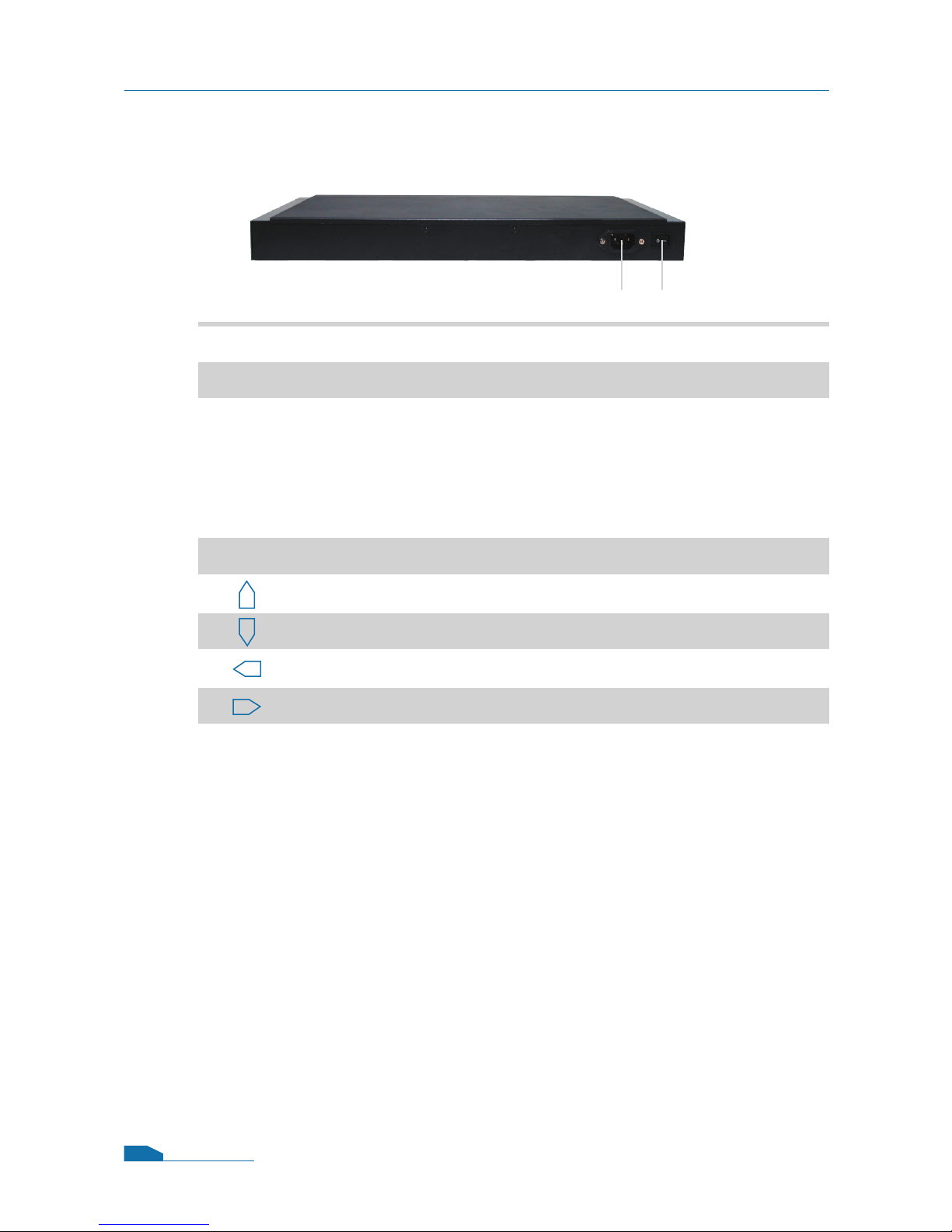

2.2 Rear View
2.3 LCD Navigation Button Description
DFL-M510 Quick Installation Guide
05
1 2
1. Power socket
2. Power switch

DFL-M510 Quick Installation Guide
2.4 LCD Panel
Main Menu
Device Status
Device Cong
Reset
Reboot
Description
Firmware Ver.:
Policy Ver.:
Policy Number:
Current Date:
Current Time:
Dev. Up Time:
CPU Load:
Memory Usage:
Current Session:
WAN RX:
WAN Drop:
LAN RX:
LAN Drop:
Trafc Level:
Trafc Alert:
Device Name:
IP Address:
IP Mask:
Gateway IP:
DNS IP:
Operation Mode:
LAN Link Mode:
LAN Stealth:
WAN Link Mode:
WAN Stealth:
Sub-Menu
System Info.
Trafc Info.
Alert Monitor
IP Info.
Interface Info.
Reset Conrm
Reboot Conrm
06

LED
Power
System
Bypass
Inbound
(LAN)
Outbound
(WAN)
Status
On
Off
On
Off
On
Off
On
Off
On
Off
Blinking
On
Off
On
Off
Blinking
Description
DFL-M510 is powered on
DFL-M510 is powered off
DFL-M510 is ready
DFL-M510 is not ready
Hardware Bypass is enabled
Hardware Bypass is not enabled
Link OK and the speed is 100Mbps
Link OK and the speed is 10Mbps
Link Present
No packets Send/Receive
Port is sending or receiving data
Link OK and the speed is 100Mbps
Link OK and the speed is 10Mbps
Link Present
No packets Send/Receive
Port is sending or receiving data
2.5 Status LEDs
Color
Green
Green
Red
Green
(Left)
Green
(Right)
Green
(Left)
Green
(Right)
DFL-M510 Quick Installation Guide
07

Connecting the DFL-M510 3
The client’s network structure can be set up with/without a rewall.

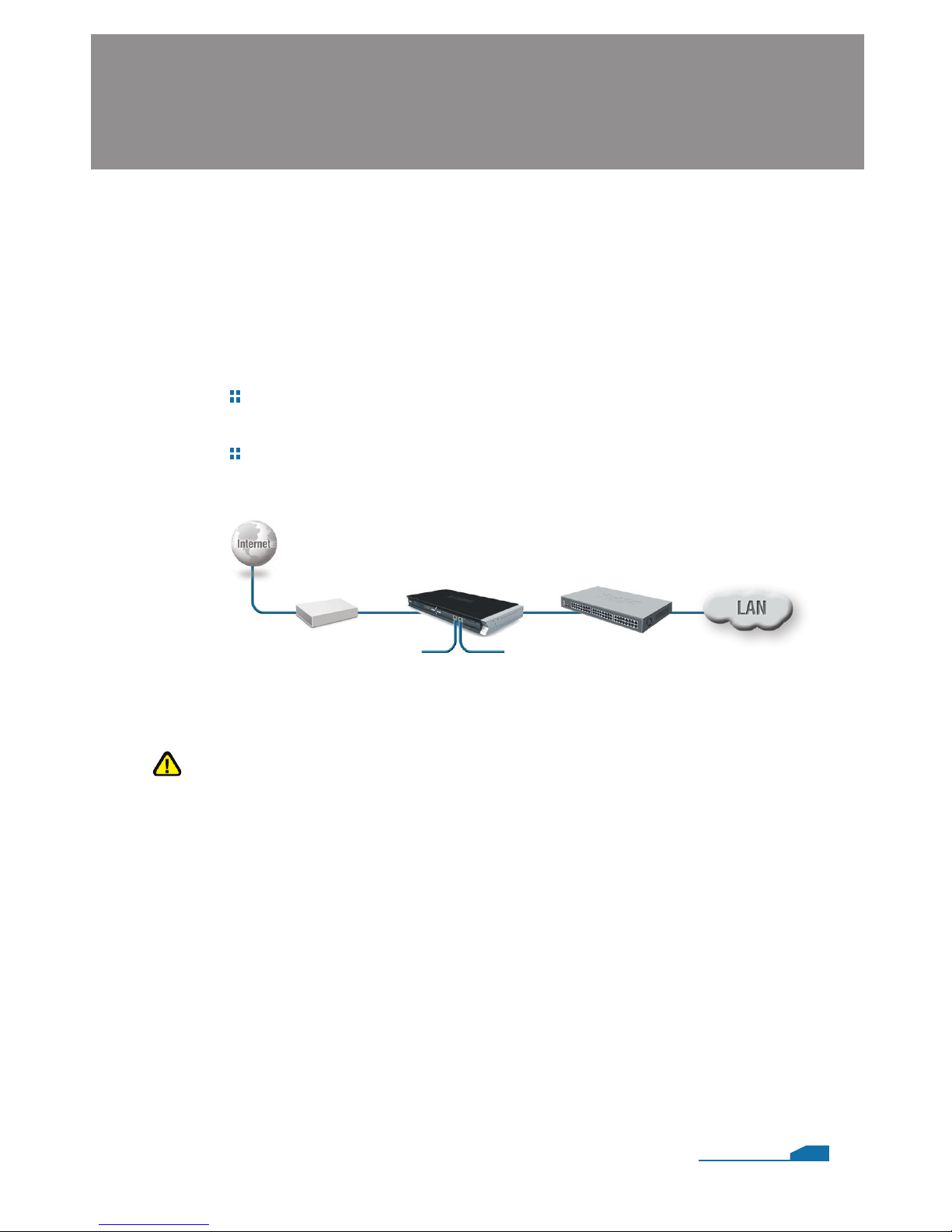

3.1 Setting up without a firewall
If your network is not behind a rewall, the DFL-M510 is
placed between the ADSL or router and switch. Refer to the
following:
Connect a UTP cable from the ADSL router to the WAN port
on the DFL-M510.
Connect a UTP cable from the LAN port on the DFL-M510 to
the switch.
Note:
Transparent Device – The DFL-M510 is a “transparent device” in
the sense that it can be deployed directly behind a rewall without
affecting your existing network conguration and architecture. It
can be added to or removed from your network anytime without
requiring you to re-congure or reset your network.
ADSL Router DFL-M510 Switch
WAN Port LAN Port
08

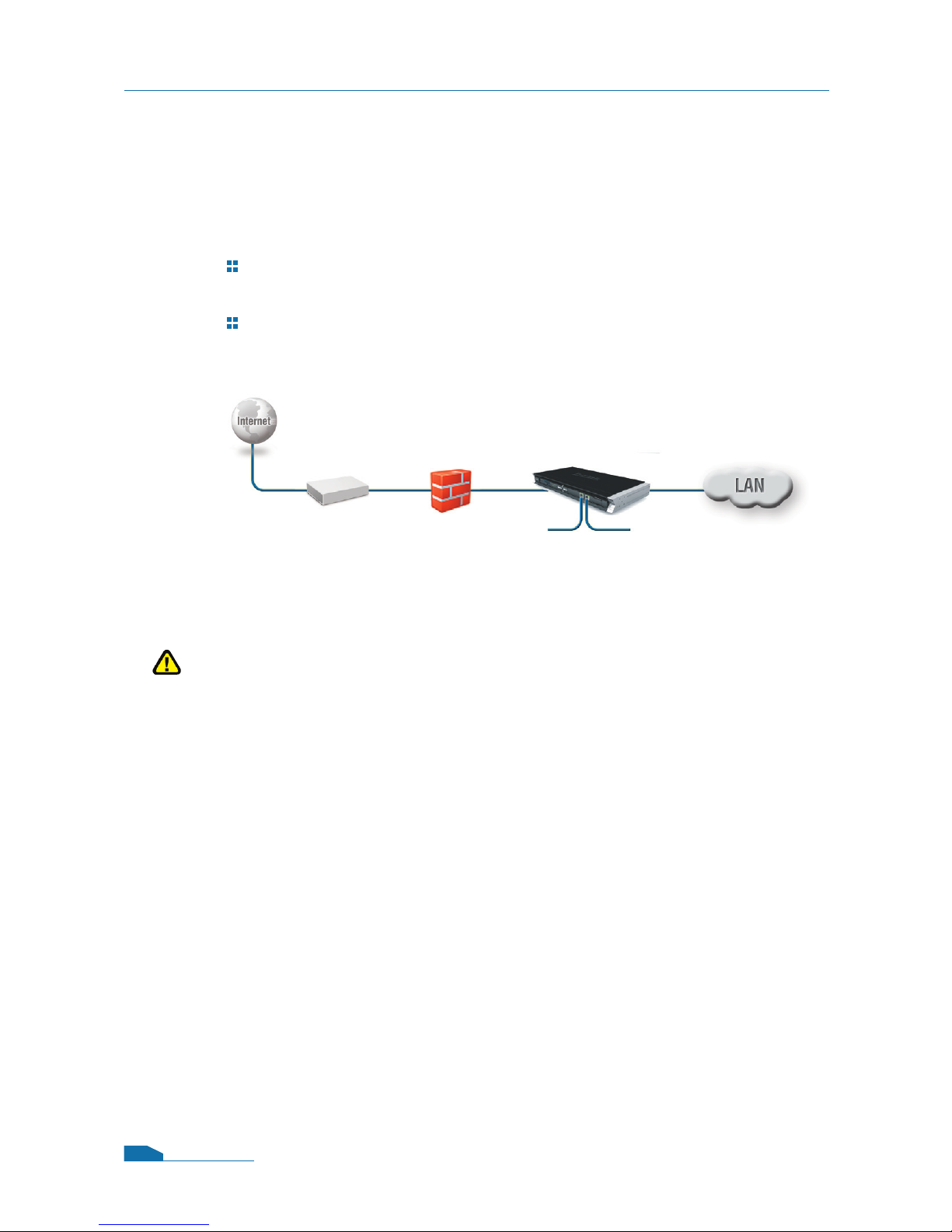

3.2 Setting up with a firewall
If your network is behind a rewall, the DFL-M510 is
placeed between rewall and LAN. Refer to the following:
Connect a UTP cable from the rewall to the WAN port on
the DFL-M510.
Connect a UTP cable from the LAN port on the DFL-M510 to
the LAN.
Note:
If you are deploying DFL-M510 over the VLAN (802.1q) network
, you have to congure the VLAN setting before putting in the
network. Please refer to the manual for detail conguration in
VLAN environment.
ADSL Router DFL-M510Firewall
WAN Port LAN Port
DFL-M510 Quick Installation Guide
09

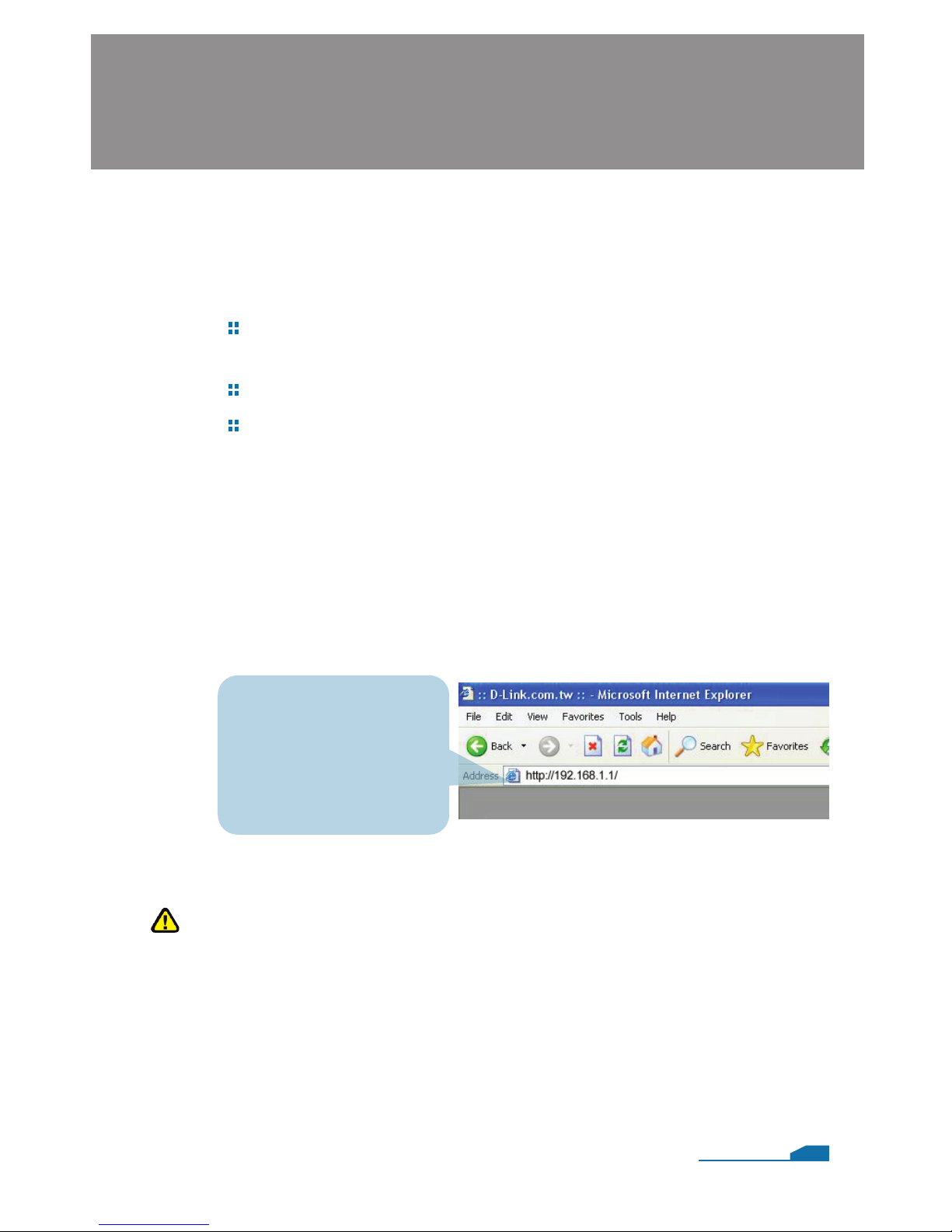

Configure DFL-M510 4
The DFL-M510 GUI is a Web-based application that allows you
to manage the DFL-M510. The GUI is a java applet application.
Before accessing the GUI from any PC, note the following:
You must install Java Runtime (1.4.2 or above) as
described below
Pentium 4, 2.0 GHz
512 MB RAM
Refer to the following to log on to the DFL-M510.
4.1 Connect to DFL-M510
After placing the DFL-M510 within your network transparently,
you could use web browser to connect the DFL-M510 with
Java Runtime installed.
Note:
1. The IP address shown in the example above is the default
setting. If you have change the IP address of the DFL-M510 to
conform to a network, then input that IP address in the web
brower, instead of the default IP address shown.
2. In order for this GUI to t well on your screen, please adjust
your screen to 1024x768.
Activate your browser.
Then type the default
IP(http://192.168.1.1)
and press enter.
10

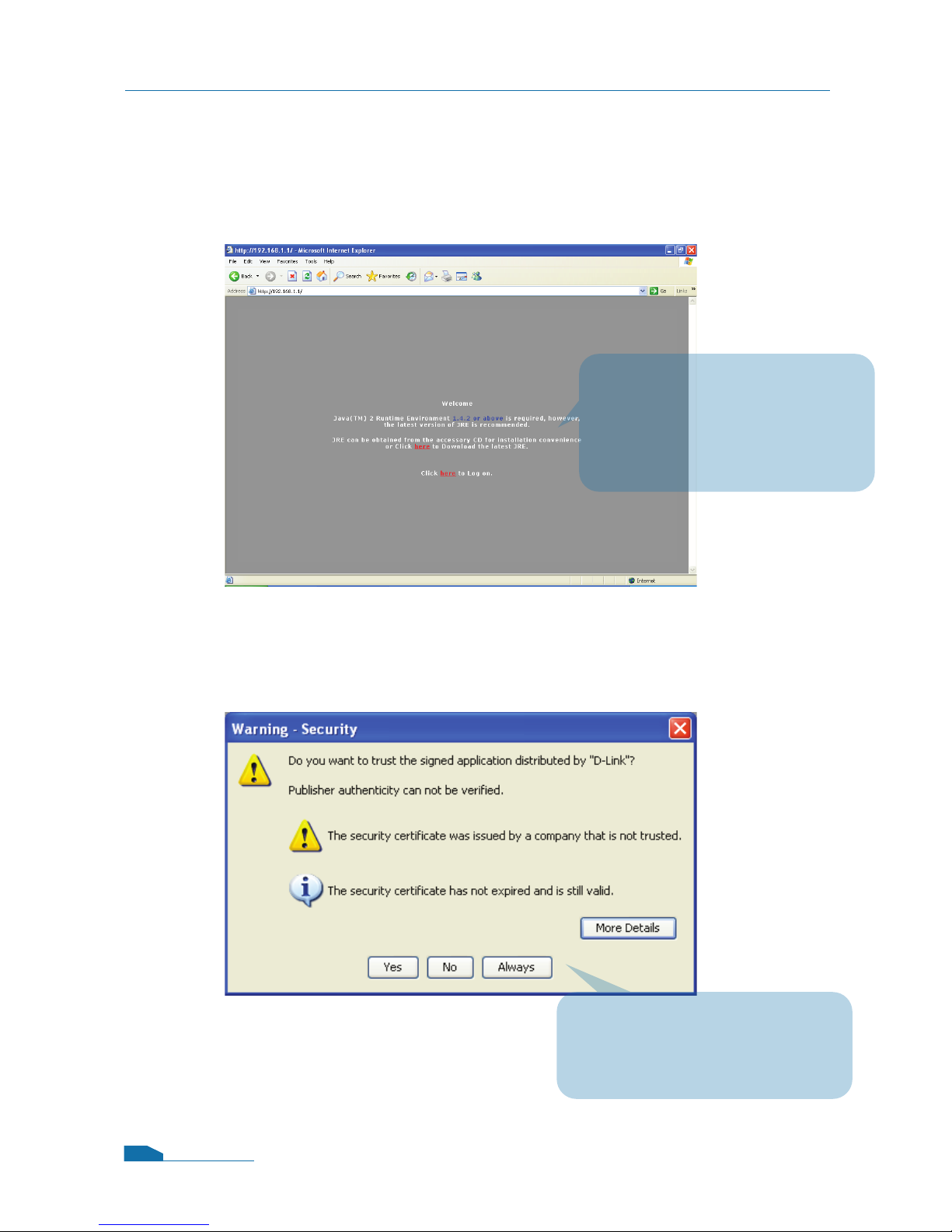

DFL-M510 Welcome page.
Either install the Java Runtime from the accessary CD rst or
login to DFL-M510 directly.
Click “Always” to continue and prevent screen appearing again,
The login screen appears.
DFL-M510 Quick Installation Guide
Java Runtime is required
to login DFL-M510 , Please
install the Java Runtime
program.
Click”Always” to trust the
signed applet distributed
by “D-Link”.
11

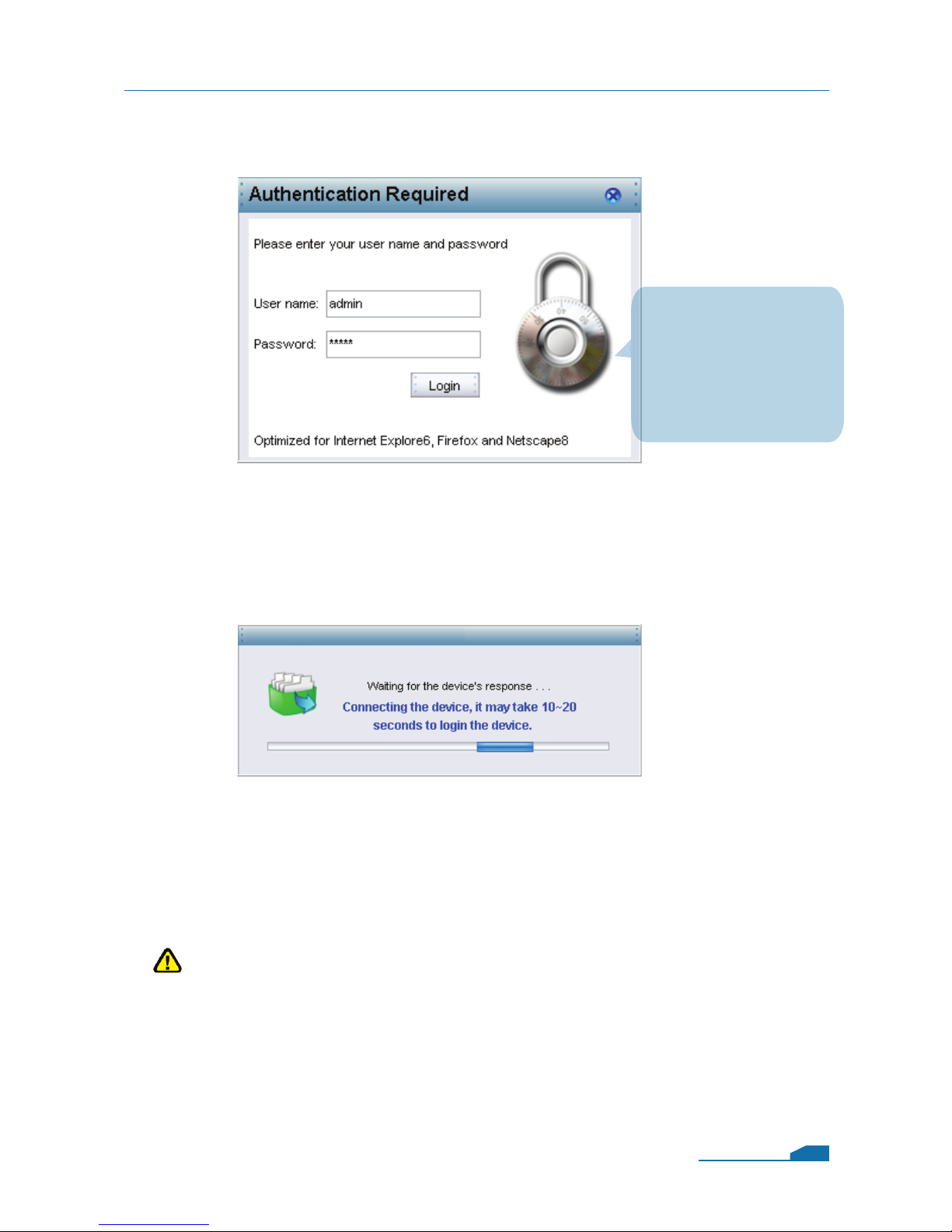

Login to the DFL-M510 with ID/Password.
The computer need to start Java Runtime therefore the log on time
would be around 20 seconds.
Note:
The Setup Wizard would be running automatically when you login
into DFL-M510 first time.
type the default
ID/Password
ID: admin
Password: admin
and click OK
DFL-M510 Installation Guide
12

4.2 Setup Wizard
Running the Setup Wizard
Welcome to the DFL-M510 Setup Wizard.
This wizard will guide you through the setup of your DFL-M510
Step1 - Setup Wizard welcome page
Step2 - Set up the IP/Subnet mask and default gateway
3 Steps to guide you
to nish the quick
conguration.
Click Next
After set up the IP
information for
DFL-M510.
Click Next
DFL-M510 Installation Guide
13

4.2 Setup Wizard (Continued)

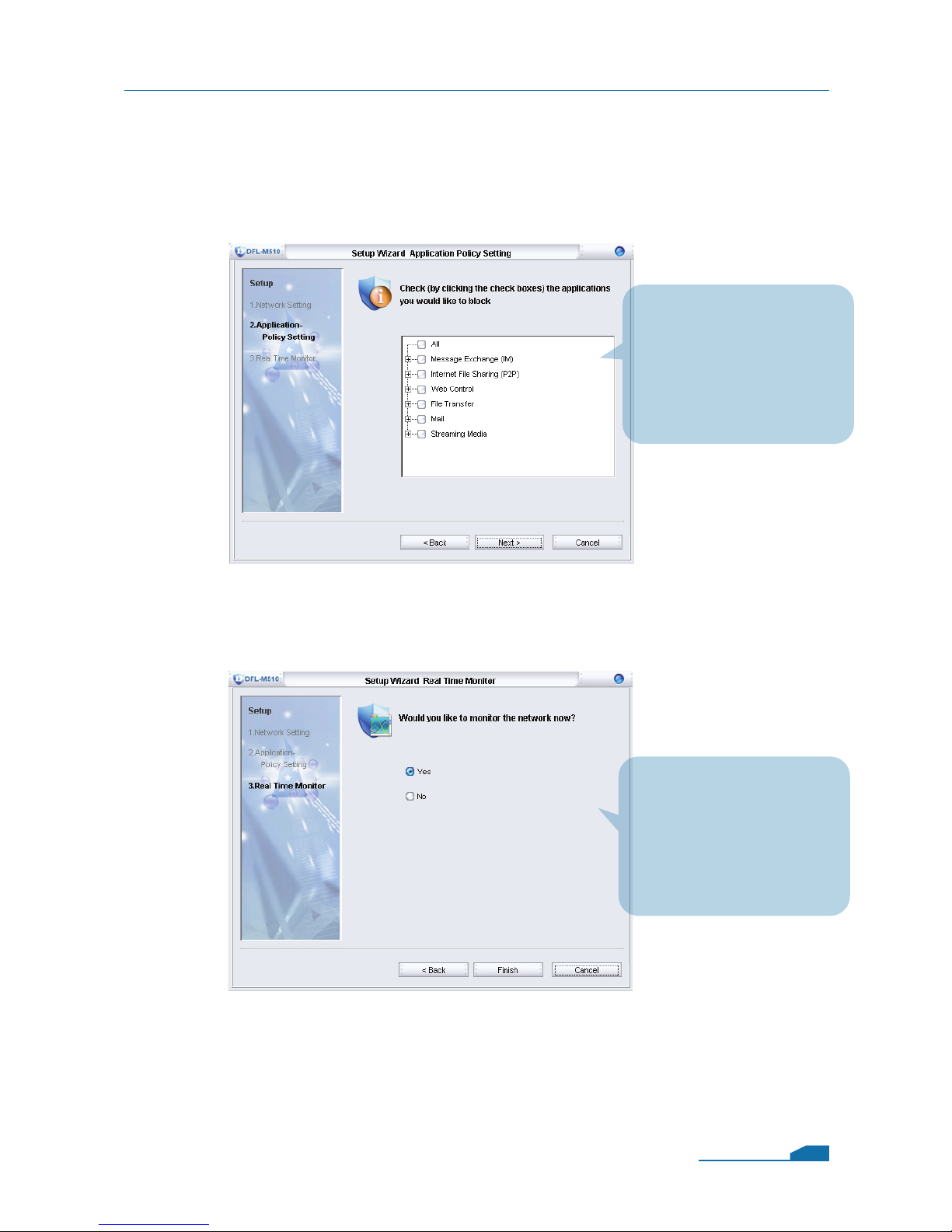

Step3 - Choose the Applications you want to block
Step4 - Go to Real-time Monitor or back to conguration page
Choose the
applications that you
want to Block in your
network.
Click Next
Select Yes to go to
Real-Time Monitor
directly or No to back
to Conguration page
Click Finish
DFL-M510 Installation Guide
14

4.2 Setup Wizard (Continued)

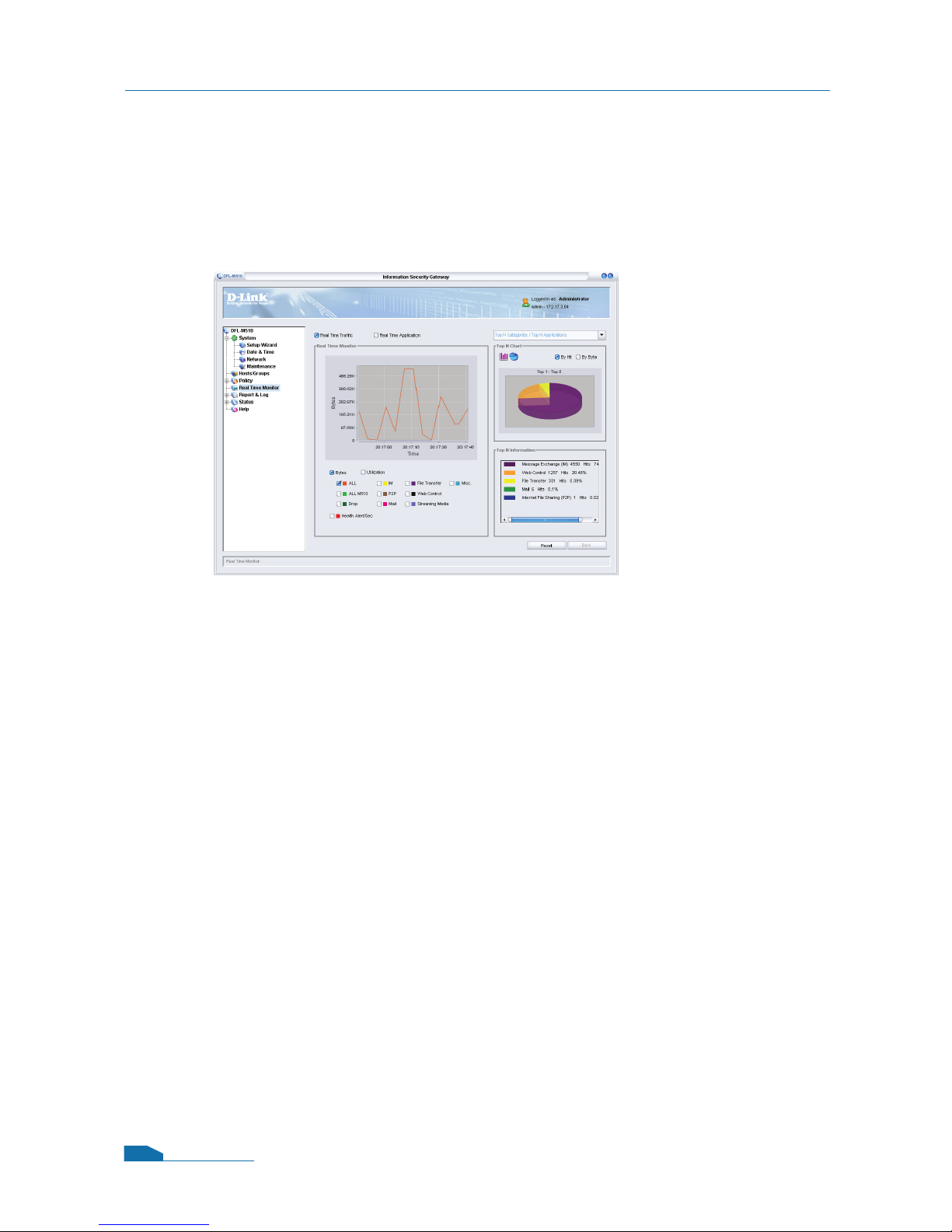

Step5 - Select ”Yes” to go to Real-Time Monitor your network.
DFL-M510 Installation Guide
15

WARRANTY 5
Warranty
FCC Warning
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with this manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product
may cause radio interference in which case the user may be required
to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses
Produkt Funkstoerungen verursachen. In diesem Fall kann
vom Benutzer verlangt werden, angemessene Massnahmen zu
ergreifen.
Precaución!
Este es un producto de Clase A. En un entorno doméstico, puede
causar interferencias de radio, en cuyo case, puede requerirse al
usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe A. Dans un environnement domestique,
ce produit pourrait causer des interférences radio, auquel cas
l`utilisateur devrait prendre les mesures adéquates.
16

Attenzione!
Il presente prodotto appartiene alla classeA. Se utilizzato in ambiente
domestico il prodotto può causare interferenze radio, nel cui caso è
possibile che l`utente debba assumere provvedimenti adeguati.

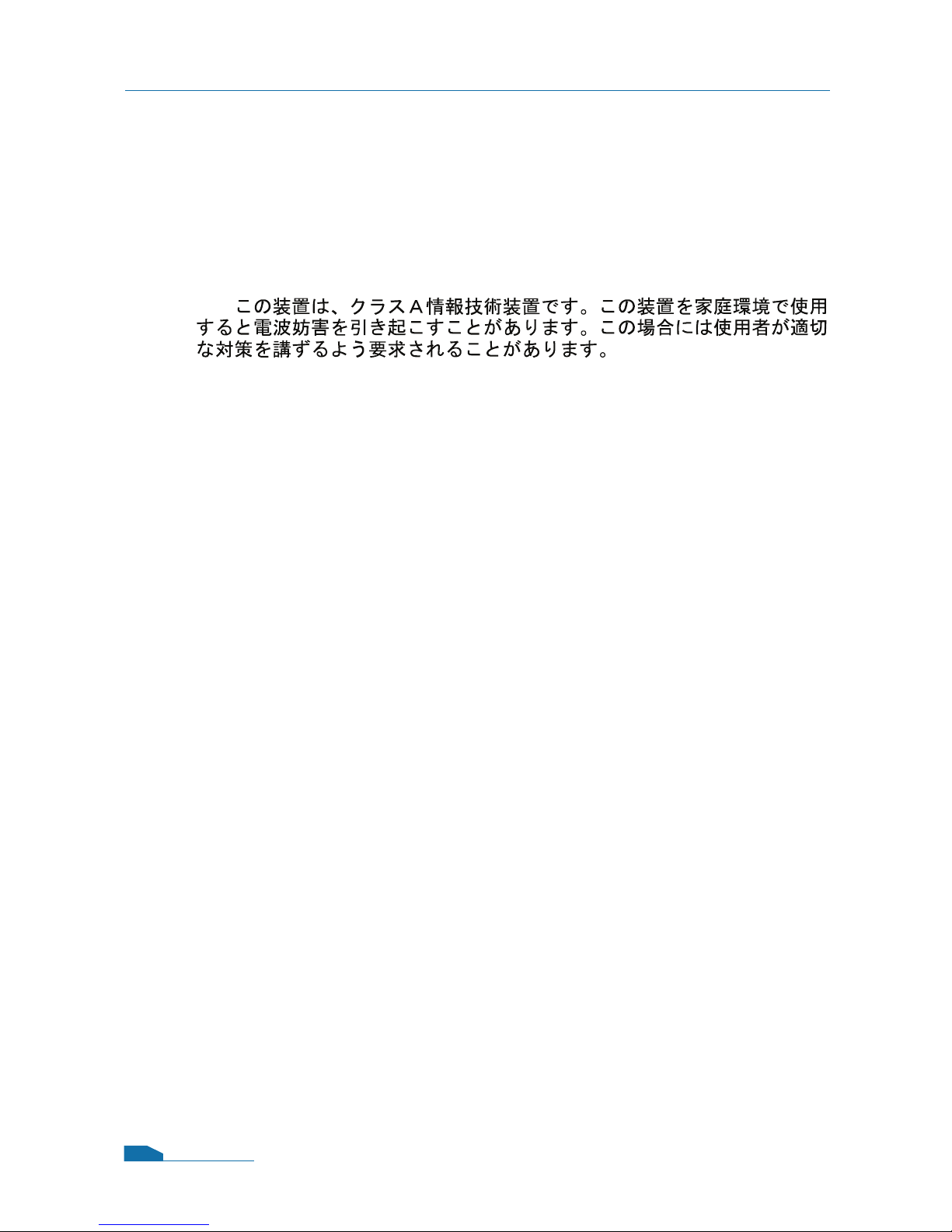

VCCI Warning
BSMI Warning
警告使用表
這是乙類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這
種情況下使用者會被要求採取某些適當的對策。
DFL-M510 Installation Guide
17
VCCI Warning
