2D-Link DIV-140 Quick Install Guide
Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
• Computers with Windows®, Macintosh®, or Linux-based operating systems
and an installed Ethernet Adapter
• Internet Explorer version 6.0 or Netscape Navigator 7.0 or higher
(for configuration)
• D-Link DIV-140 VoIP Gateway
• Power Adapter
• CAT5 Ethernet Cable
• RJ-45 to DB-9 Cable
• Four (4) RJ-11 Cables
• CD-ROM with Installation Guide, User Manual, and Special Offers
Note: Using a power supply with a different voltage than the one included with
the DIV-140 may damage the unit and will void the warranty for this product.

3 D-Link DIV-140 Quick Install Guide

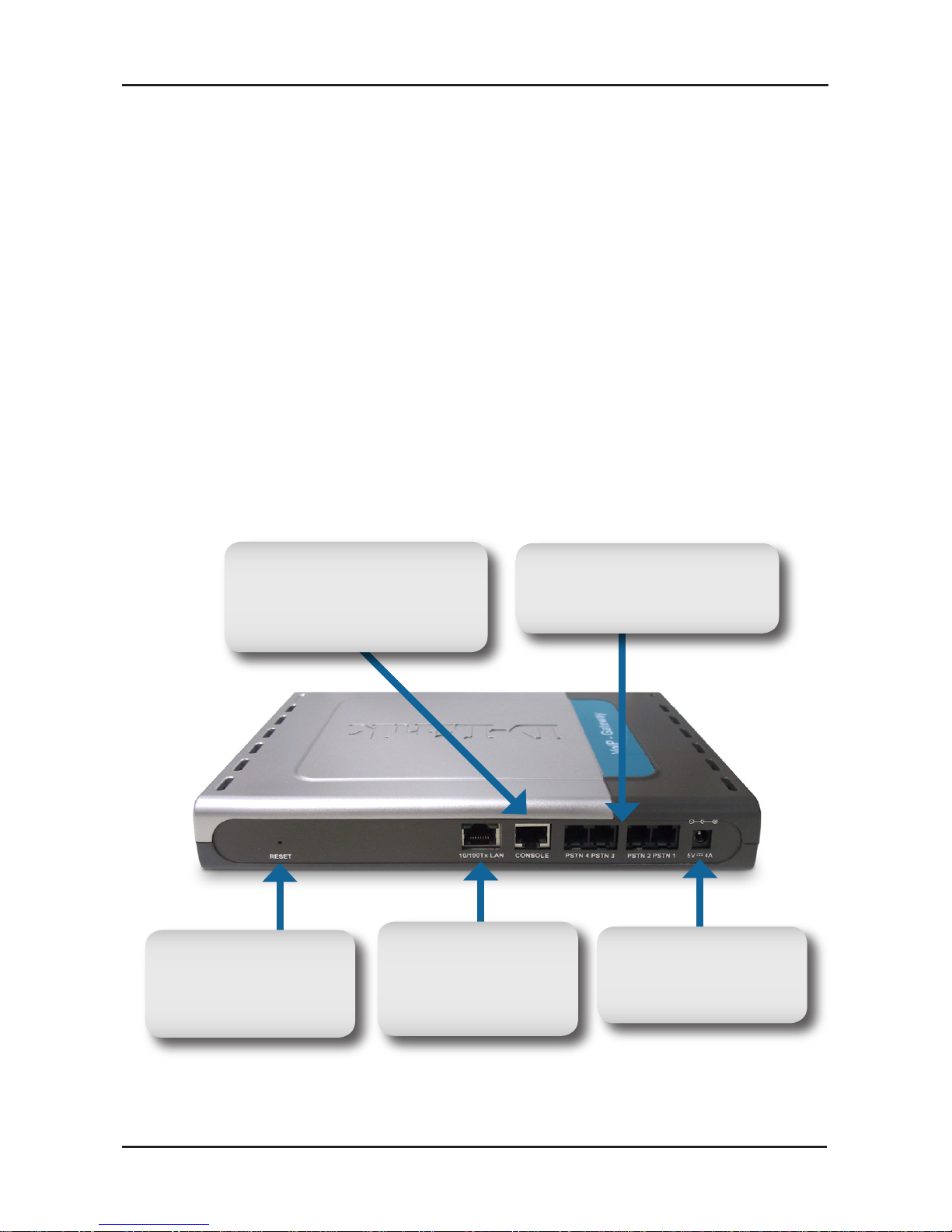

Connecting the DIV-140 to your network
B. LAN Port
Connects DIV-140
to Ethernet enabled
device or switch.
A. Connect the power adapter to the receptor on the rear panel of the
DIV-140 and then plug the other end of the power adapter to a wall
outlet or power strip. The power LED will turn ON to indicate proper
operation.
A. Power Receptor
Receptor for Power
Adapter.
B.
C.Connect the RJ-45 to DB-9 Console Cable from the Console port on the
DIV-140 to the Com Port on the computer that will be used to configure
the DIV-140.
Connect the LAN interface to the hub or switch connected to your internal
network using a CAT5 Ethernet cable. The LAN LED on the front of the
device should illuminate when a connection is made.
C. Console
U s e d t o c o n n e c t t h e
DIV-140 to the Com Port on
your computer.
PSTN Ports
Four (4) FXO ports used to
connect to wall phone jacks.
Reset Button
Press to reset the
DIV-140 to factory
default settings.

4D-Link DIV-140 Quick Install Guide

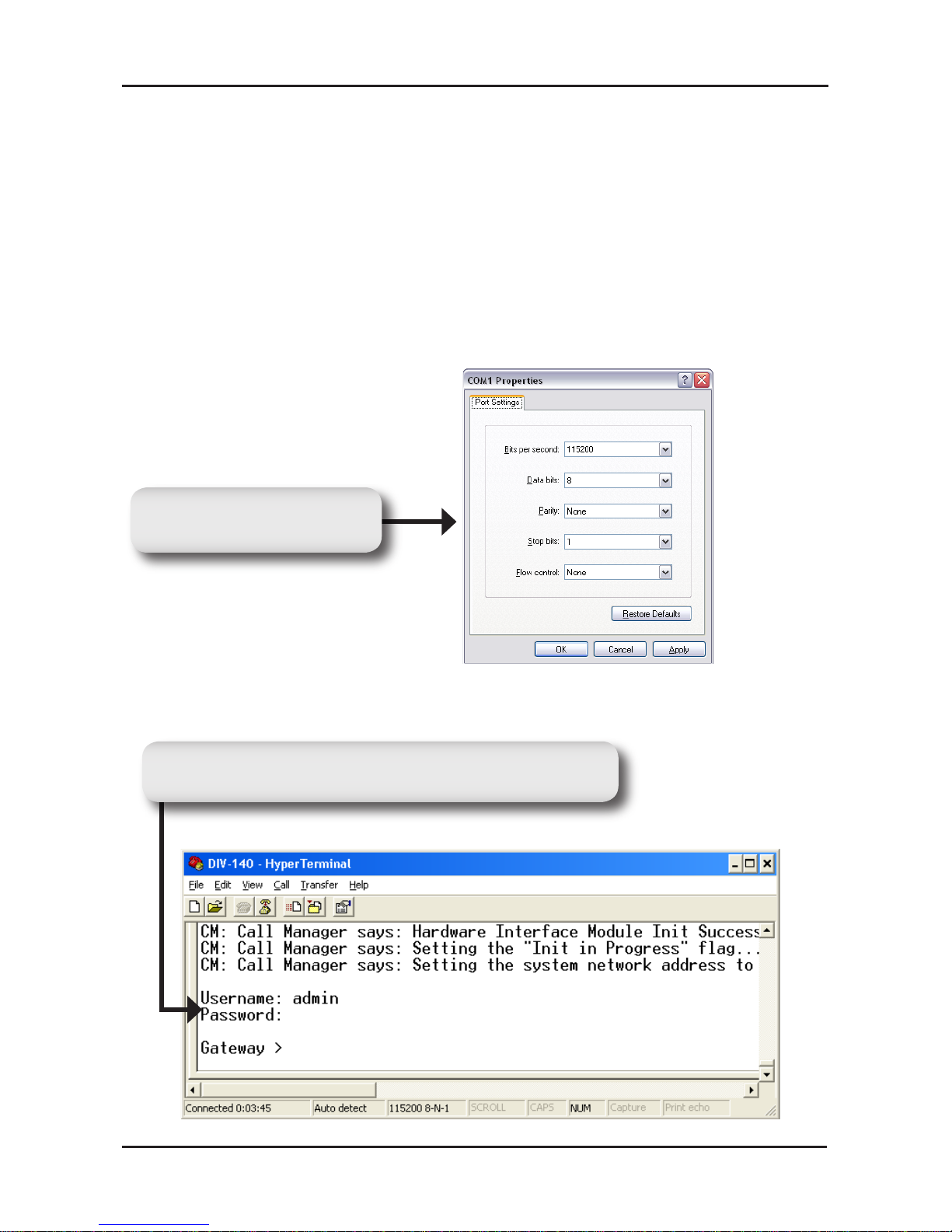

Configuring the DIV-140
The terminal settings should
be 115200 8-N-1-N.
With the console cable connected from the Console port of the DIV-140
to the Com port of your PC, launch the HyperTerminal program:
A computer on your LAN must be assigned an IP address and subnet mask
in the same range as the DIV-140. By default, the DIV-140 is assigned an IP
address of 10.0.0.1 with a subnet mask of 255.0.0.0. It can be configured in
two ways, through the web interface or command line interface (CLI).
Enter admin for the Username and password for the
Password.
Power on the DIV-140, after the device boots up, login when prompted:

5 D-Link DIV-140 Quick Install Guide

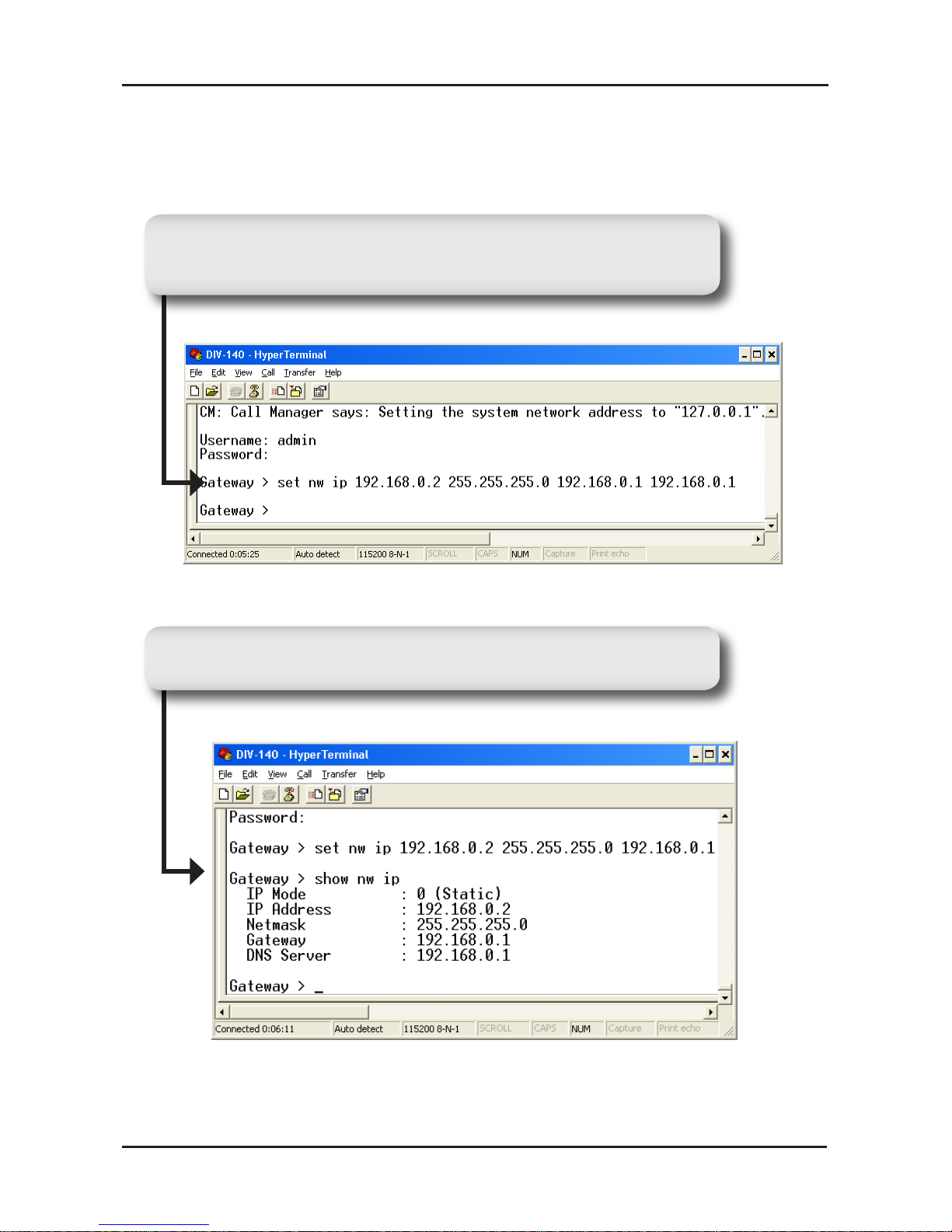

It may be necessary to change the IP address of the DIV-140 to match
your local network. To change the IP address of the DIV-140, use the
following commands and procedure below:
At the Gateway prompt, enter the command, “set nw ip
[IP address] [subnet mask] [gateway address] [DNS address]”
and press Enter.
Verify the IP settings by entering the command, “show nw ip” and
pressing Enter. The IP settings will display:

6D-Link DIV-140 Quick Install Guide

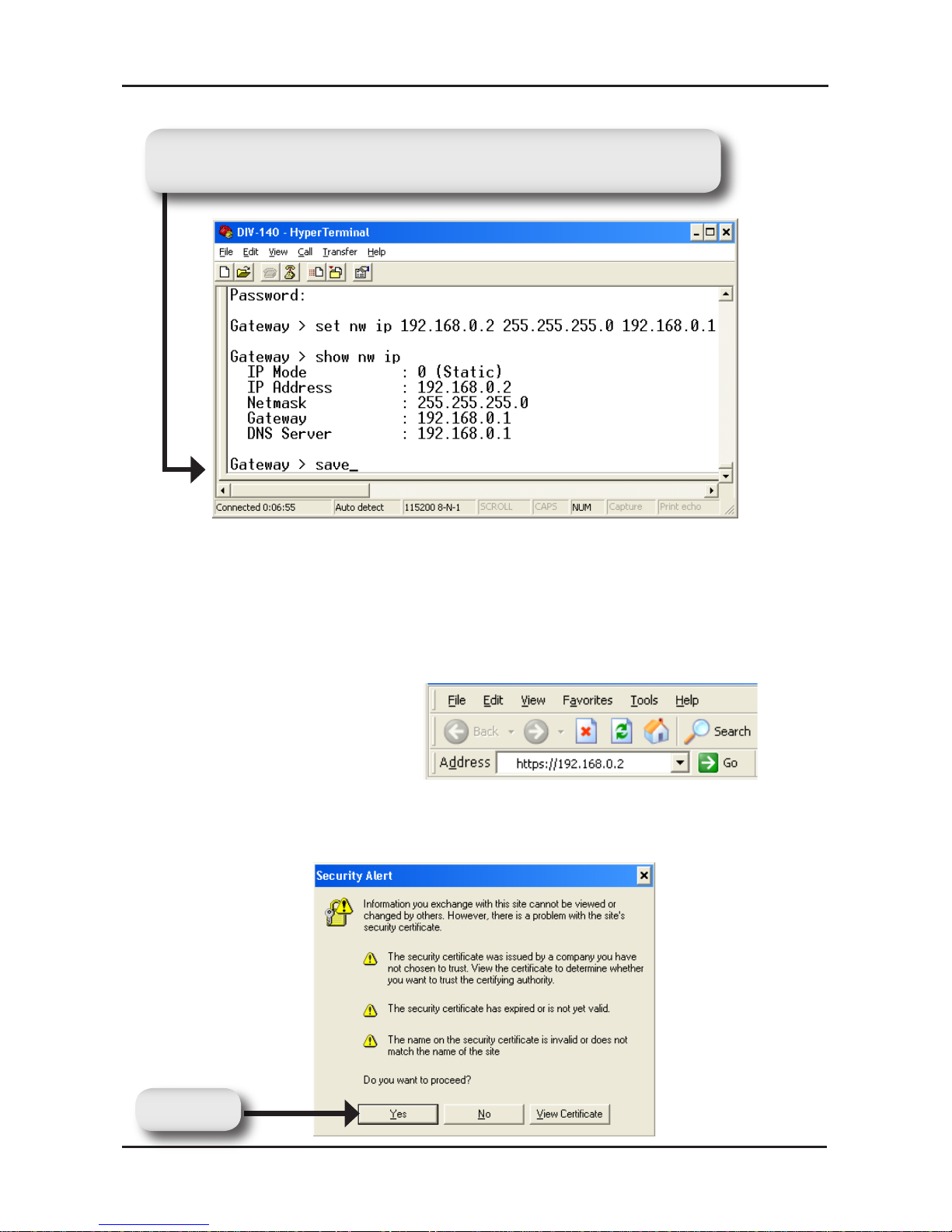

After setting the IP address, you can configure the DIV-140 from the web
configuration using a computer on your LAN. Open a web browser and
browse to the IP address of the DIV-140 using https.
Ex. https://192.168.0.2
Click Yes
Save the IP settings by using the “save” command. Press Enter,
and the DIV-140 will save the settings and reboot:
A Security Alert window will appear:

7 D-Link DIV-140 Quick Install Guide

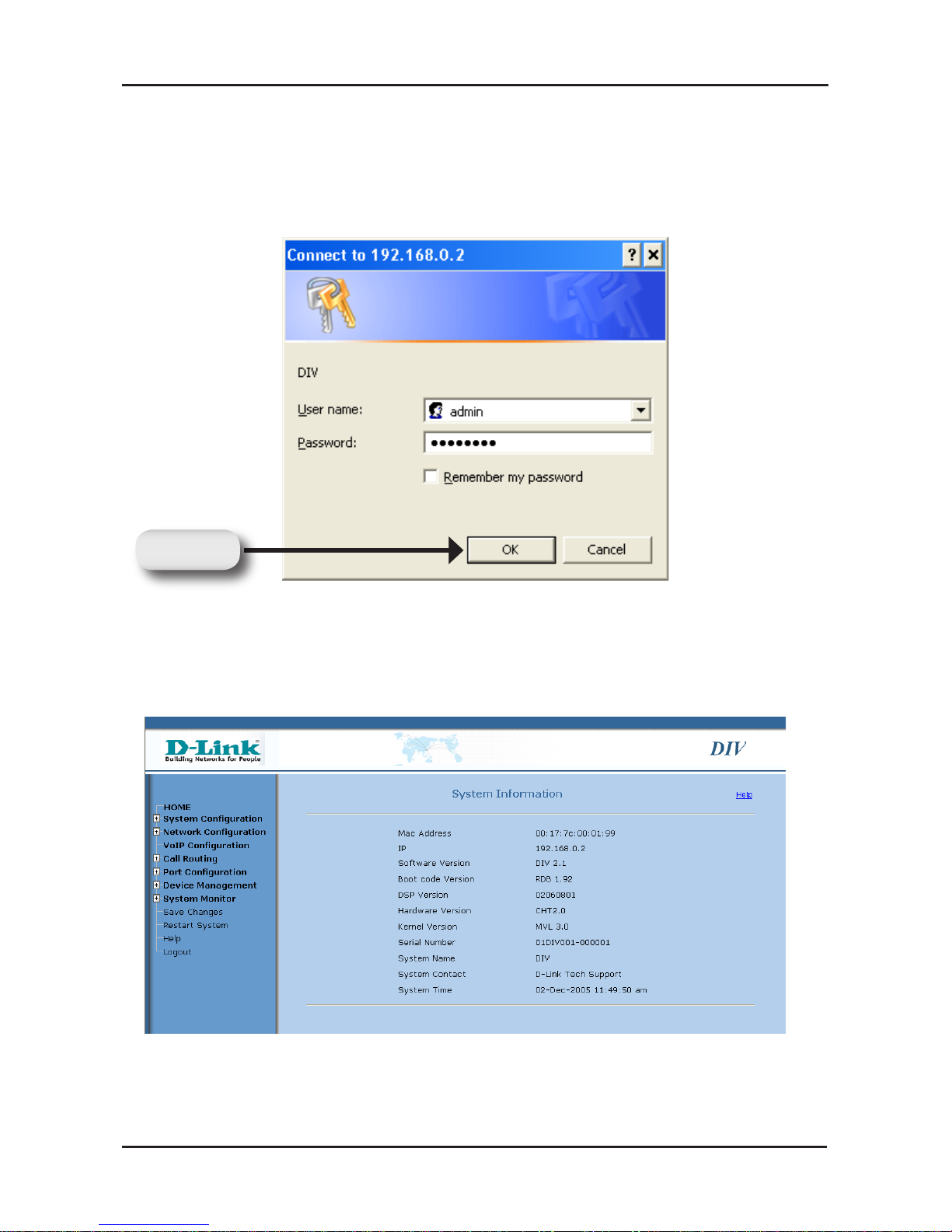

After logging in, the System Information page will appear:
A login box will appear. Enter the user name and password. The default
user name is admin, and the default password is password.
Click OK

8D-Link DIV-140 Quick Install Guide

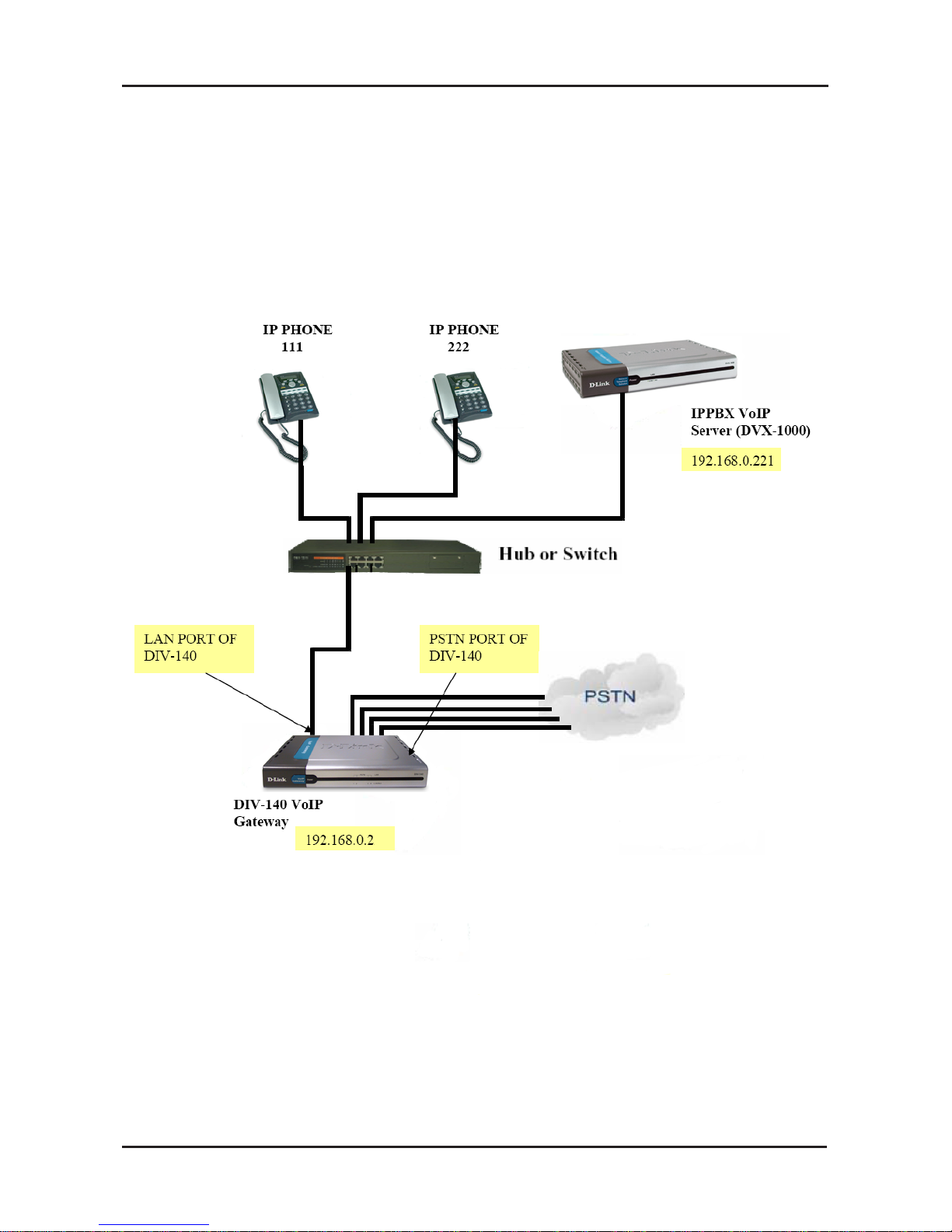

The following figure displays the setup for making VoIP to PSTN calls using
the DIV-140:

9 D-Link DIV-140 Quick Install Guide
The configuration settings on the DIV-140 are as follows:

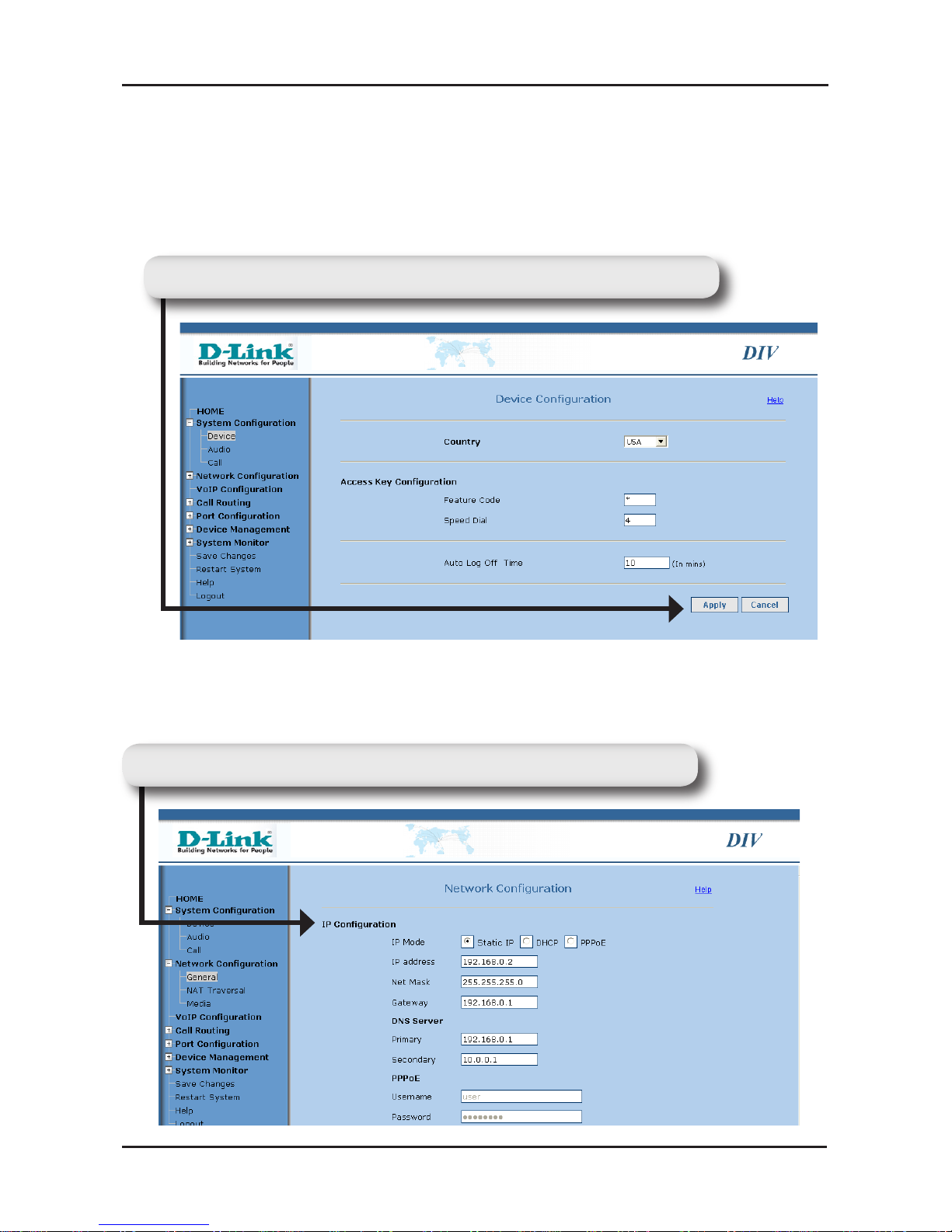

After logging into the DIV-140, browse to the System Configuration >
Device page:
Verify the Country is set to the correct region and click Apply:
Verify the IP Configuration settings are correct, and click Apply:
Browse to the Network Configuration > General page:

10D-Link DIV-140 Quick Install Guide

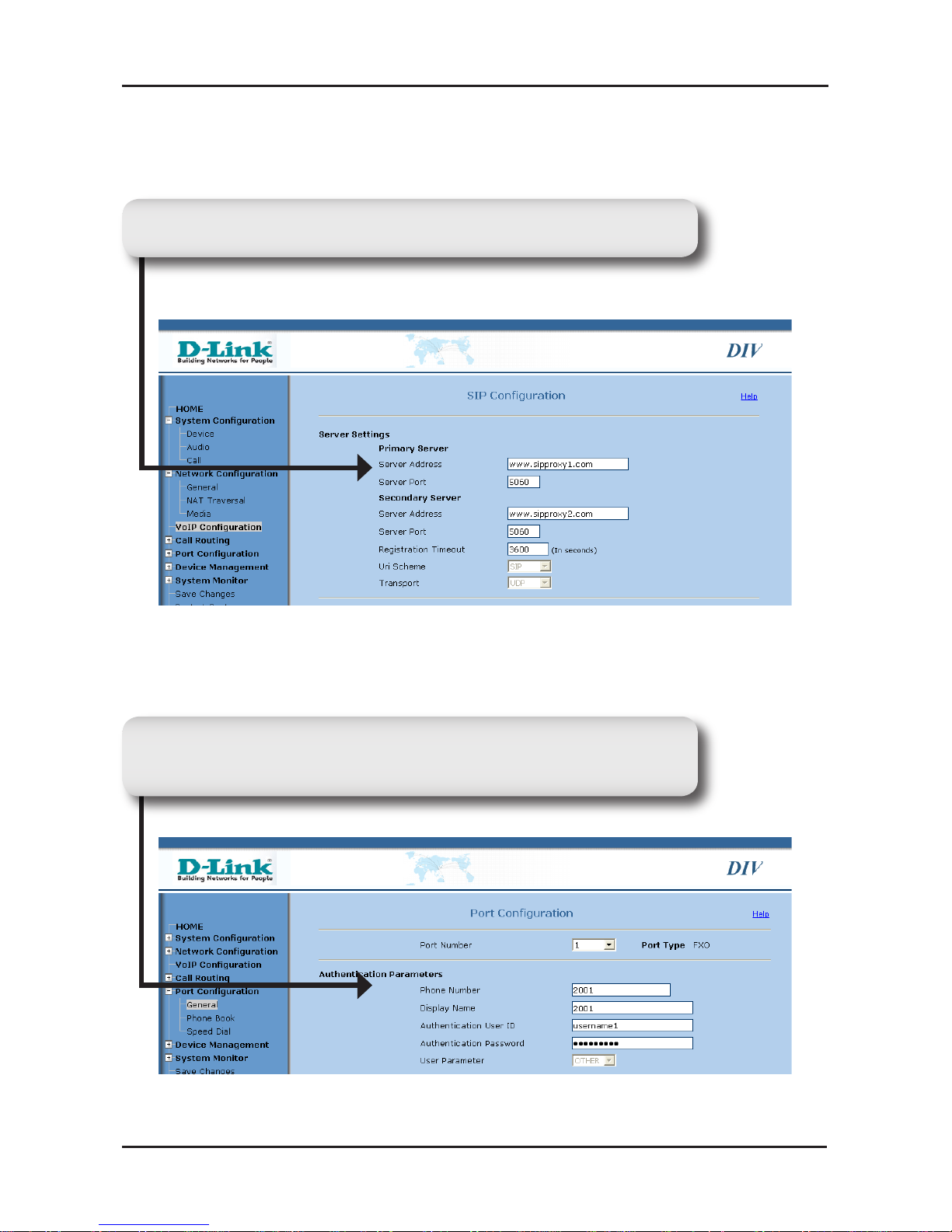

Enter the VoIP Server IP PBX IP address or domain name and
Server Port. The server port is 5060 by default. Click Apply:
Browse to the Network Configuration > General page:
Browse to the Port Configuration > General page:
The DIV-140 has four (4) PSTN ports numbered 1-4. Select port
1 and configure the Phone Number and Display Name as 2001
Click Apply:

11 D-Link DIV-140 Quick Install Guide
Configure PSTN ports 2-4 similarly, assigning them Phone Number and
Display Names of 2002, 2003 and 2004 resepctively:

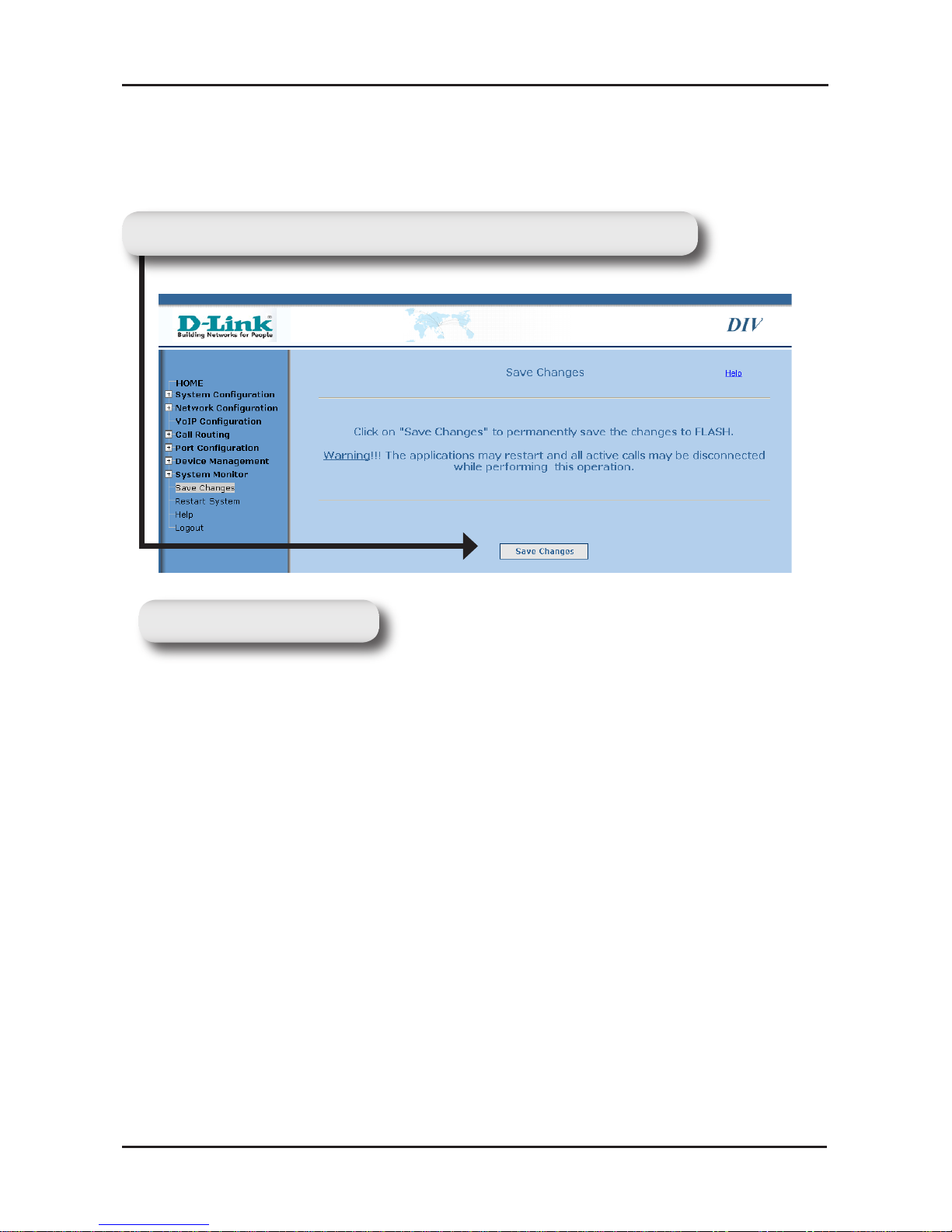

Browse to the Save Changes page anc click Save Changes:
The DIV-140 will reboot.
The VoIP server (IPPBX) needs to be configured as follows:
The PSTN Ports (2001-2004) must be added as gateways on the IPPBX.
The gateways should be added to the route used by the users of the
IPPBX.
When the DIV-140 reboots, it will register with the IPPBX.
Connect PSTN to port 1 of the DIV-140.
To make a VoIP call from 111 to a PSTN phone 437:
• Pick up the VoIP phone (111) handset and dial 2001#. This will cause
the VoIP Gateway FXO port 2001 to ring twice before going offhook.
• After 2001 goes offhook, you will be connected to the local PBX and
will get the PBX dialtone. Dial the PBX extention number 437.
• The PBX phone 437 will ring. When the user at 437 picks up the phone,
the call is established.
