2D-Link DVG-3104MS Quick Install Guide

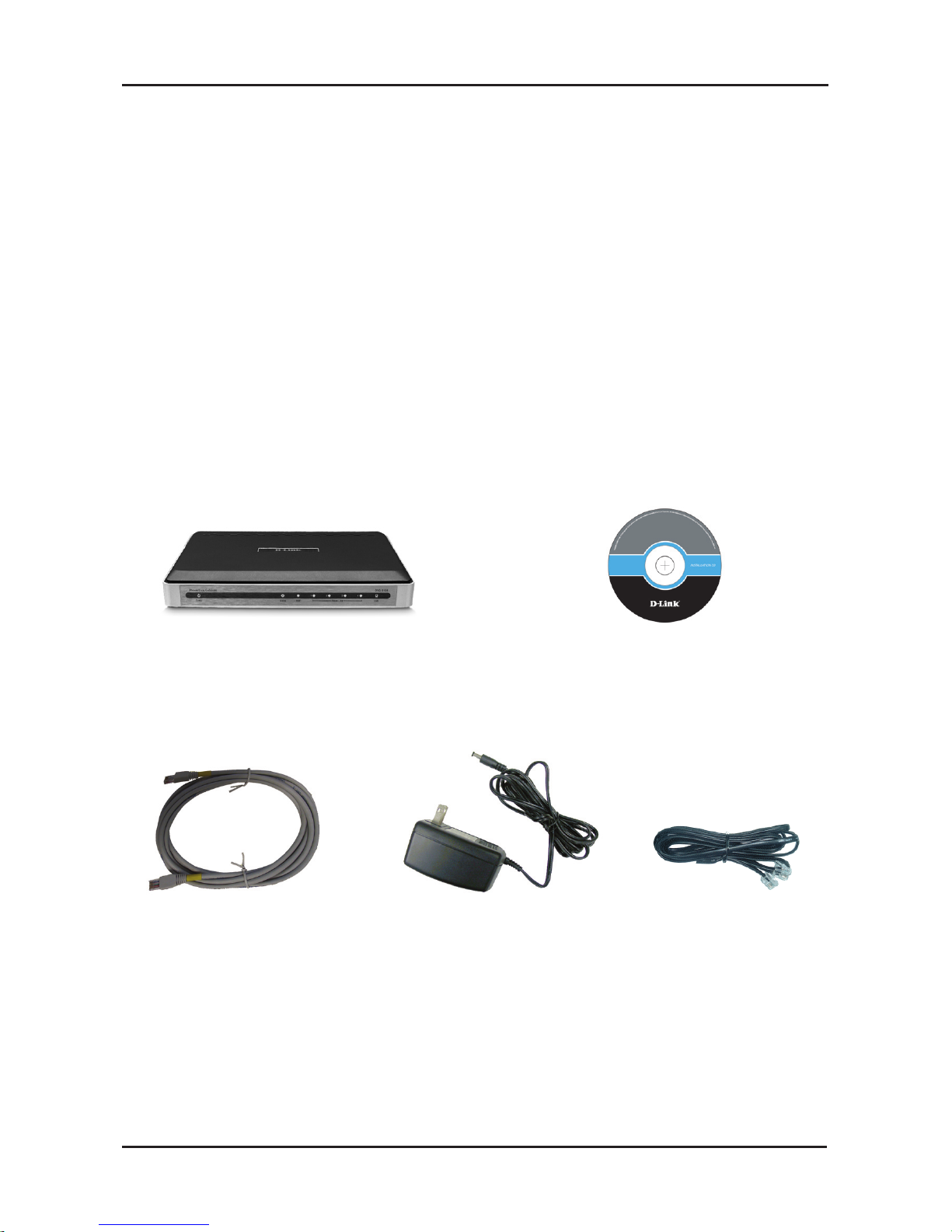

Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
Manual and QIG on CD
D-Link DVG-3104MS 4-Port
PSTN Gateway
CAT5 Ethernet Cable Power Adapter
Note: Using a power supply with a different voltage rating than the one included with
the DVG-3104MS will cause damage and void the warranty for this product.
Phone Cable
• Computers with Microsoft®Windows®XP or Windows Vista™
operating systems with an installed Ethernet adapter
• Internet Explorer Version 6.0, Mozilla 1.7.12 (5.0), or Firefox 1.5
and above (for configuration)

3 D-Link DVG-3104MS Quick Install Guide
Hardware Overview

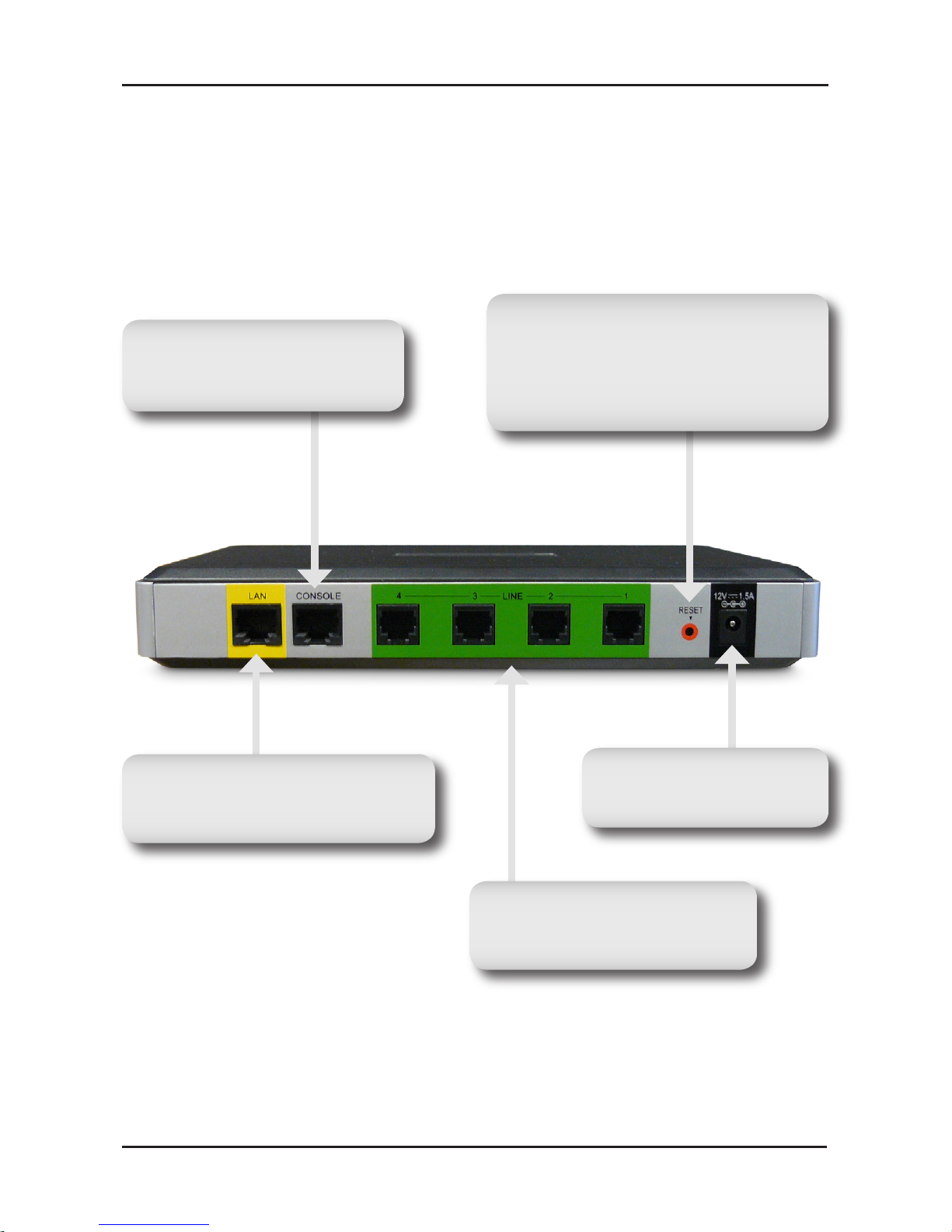

Connections
Reset Button
Press and hold less than 3 seconds
to reboot the system, or press and
hold more than 3 seconds to restore
the factory default settings.
Console Port
This port is used to debug the
DVG-3104MS device.
Power Receptor
Receptor for the supplied
Power Adapter.
PSTN Lines
Used to connect phone cables
to the PSTN lines.
LAN Port
Used to connect the DVG-3104MS
to the Local Area Network.

4D-Link DVG-3104MS Quick Install Guide
Hardware Overview

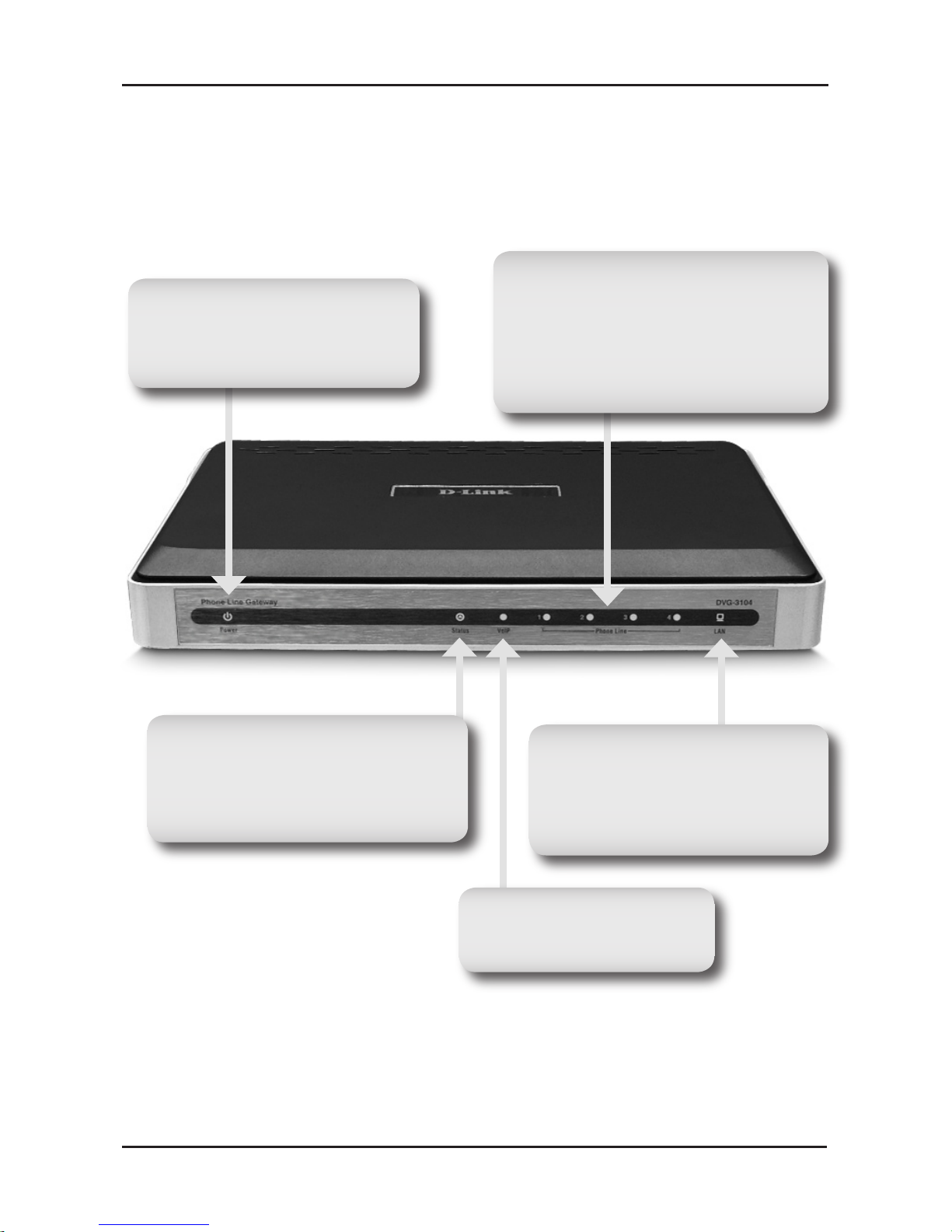

LEDs
Power LED
A solid green light indicates a
proper connection to the power
supply.
LAN LED
A solid green light indicates a
connection to the Local Area
Network. This LED blinks during
data transmission.
PSTN LEDs (1-4)
A solid green light indicates that
outbound calls and incomming calls
are available. If the LED light is off,
the reason may be either the port is
not connected or the line is inactive.
VoIP LED
A solid Green light indicates
the SIP is registered.
Status LED
A flashing green light indicates that
the DVG-3104MS is ready, while
an Off/Solid On light indicates an
error or the device is not ready.

5 D-Link DVG-3104MS Quick Install Guide
The DVG-3104MS Gateway translates incoming phone calls so they
can be sent over your organization’s LAN, and translates outgoing
calls into the format used by traditional phone service.
Note: Avoid disabling your existing phone service while setting up
VoiceCenter™. If you have an alternative jack available, use it to set
up and test the VoiceCenter phone system.
Plug the power adapter into an AC outlet or power strip and plug the
other end into the AC input on the back of the gateway. The power
LED will light up to indicate proper connection.
Connect one end of the Ethernet cable to the LAN Port on the back
of the gateway and connect the other end of the cable to your Local
Area Network via switch or hub.The LAN LED will light up to indicate
proper connection.
Connect the phone cable to an available PSTN (FXO) Port on the
back of the gateway and connect the other end to a phone jack.

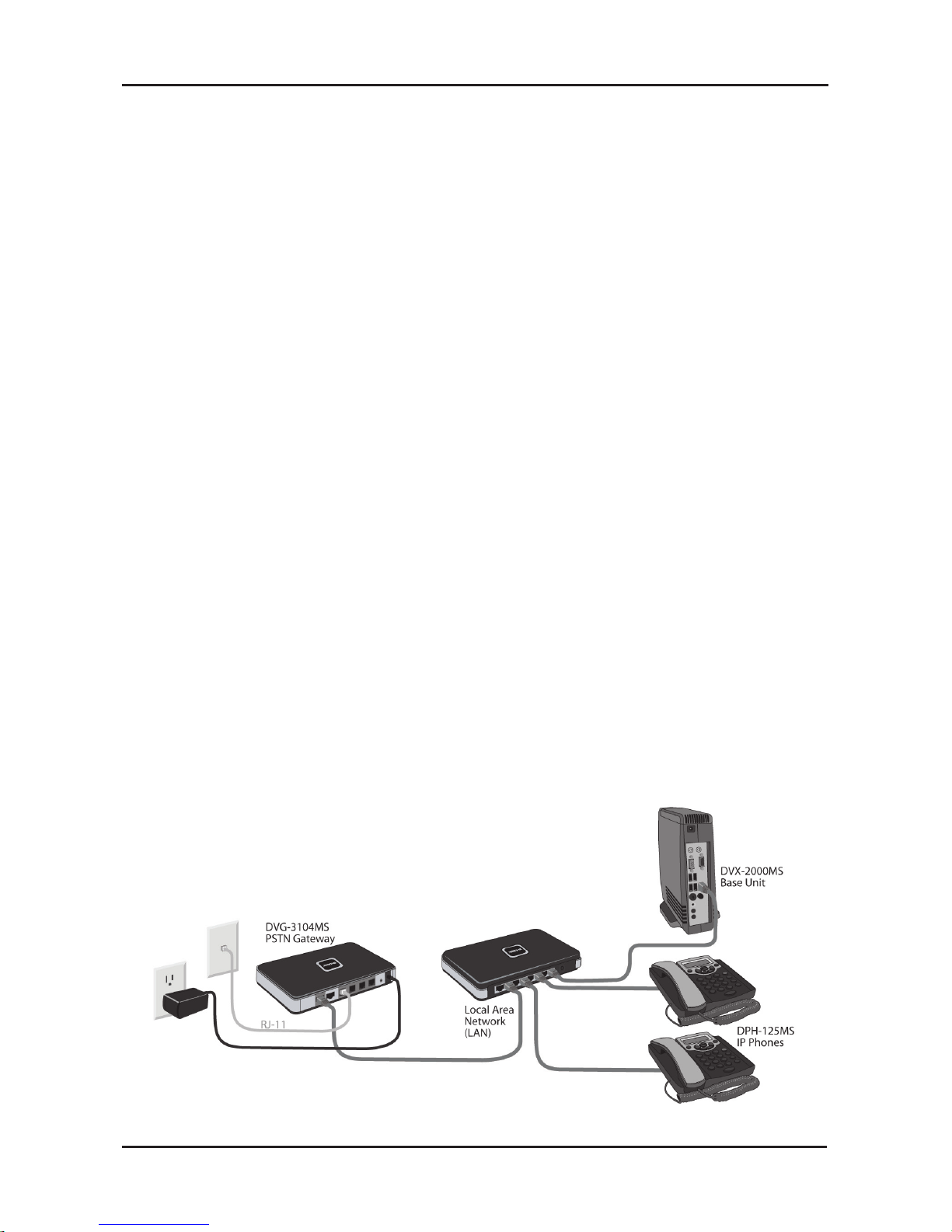

When you have made all the connections to the gateway, it should
look like the diagram below:
Installation

6D-Link DVG-3104MS Quick Install Guide
Note: Microsoft®Response Point™Administrator only operates with
Windows®XP SP2 or Windows Vista™.

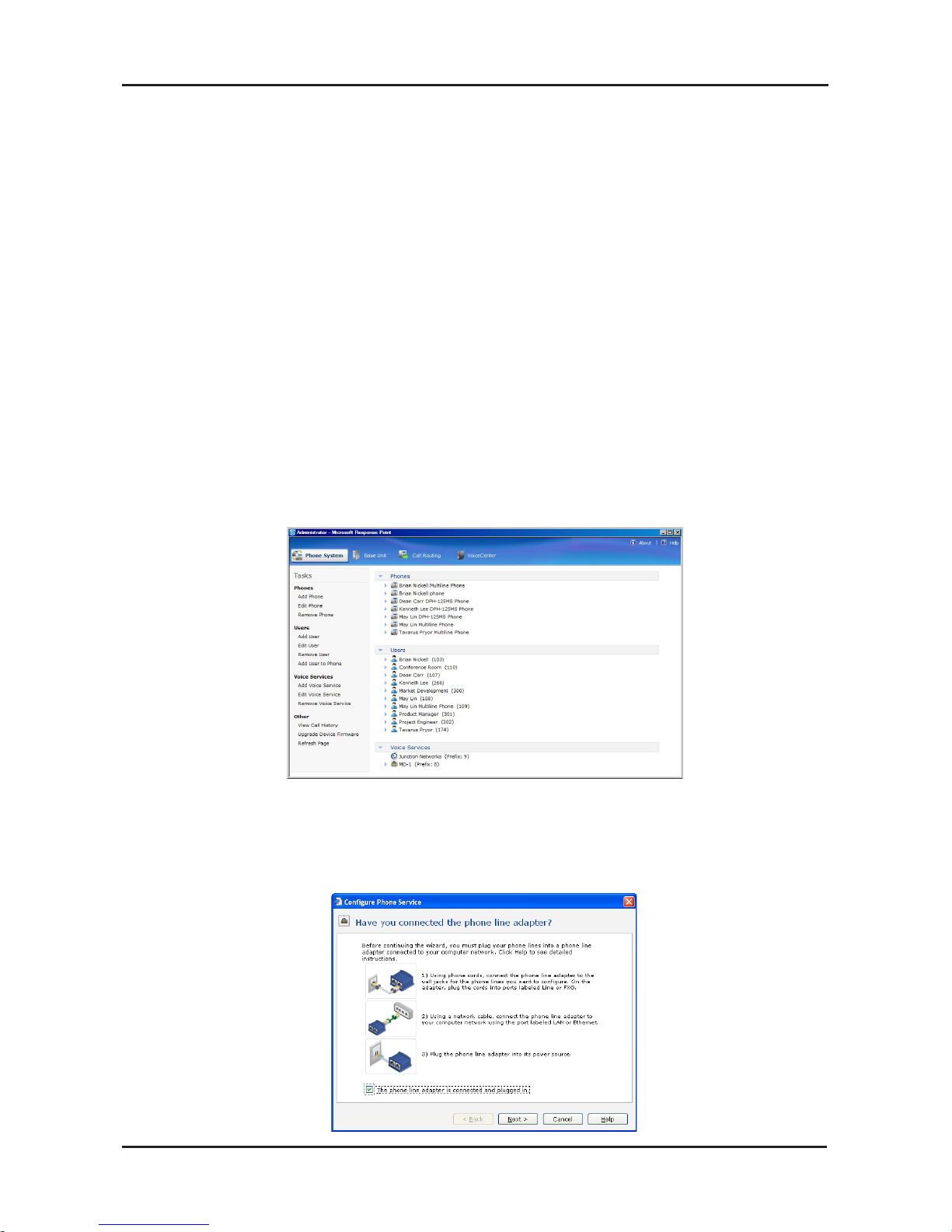

Open Microsoft Response Point Administrator to configure the
gateway using the Configure Phone Service Wizard. Follow these
steps to configure the gateway:
In Microsoft Response Point Administrator, click the Phone System
tab at the top of the screen if necessary.
In the Tasks panel, under Phone Service, click Add Phone Service
to launch the Configure Phone Service Wizard.
Configure the DVG-3104MS Gateway
Select the check box confirming the gateway is connected and
plugged in. Click Next to continue.

7 D-Link DVG-3104MS Quick Install Guide

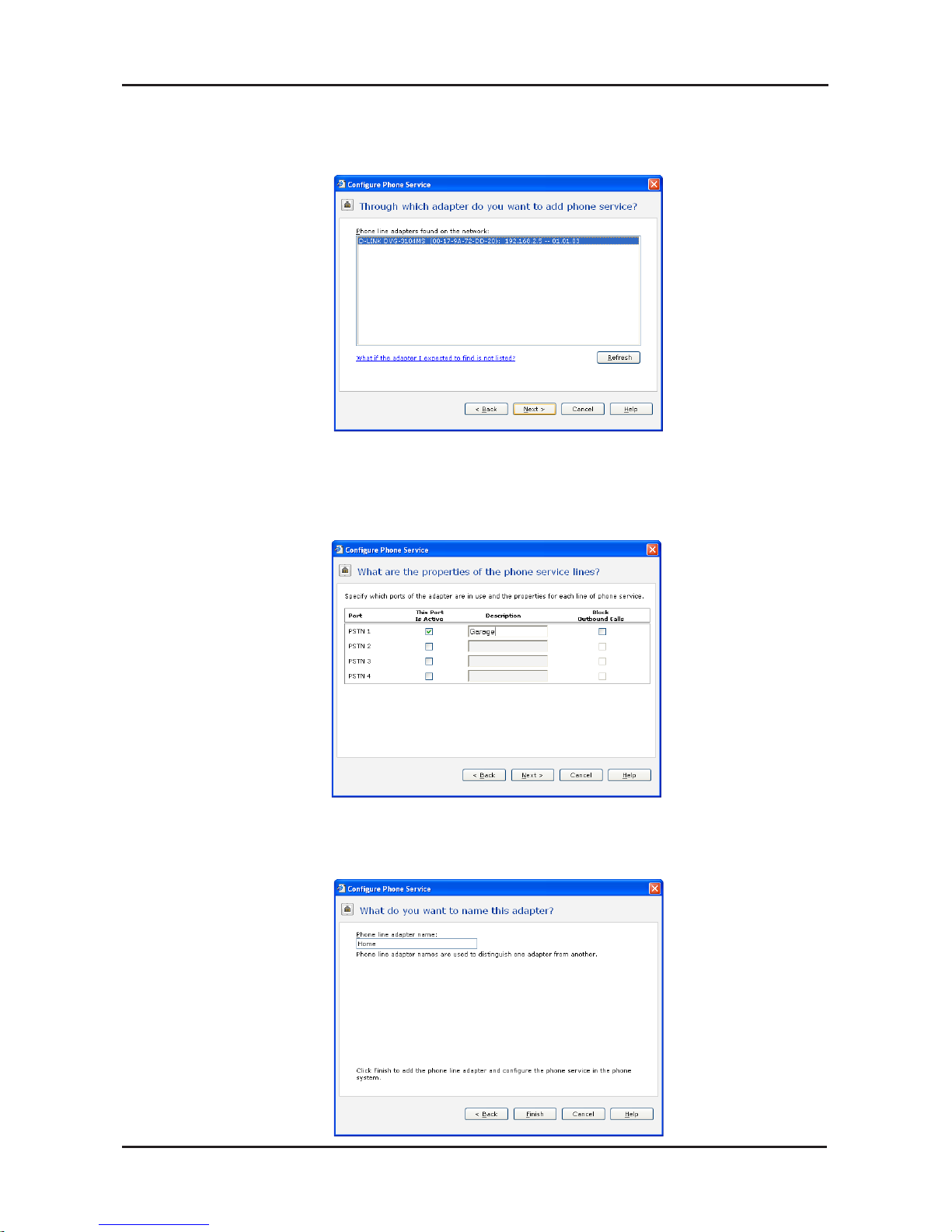

Select the D-Link DVG-3104MS Gateway you just connected and
click Next to continue.
Select the This Port Is Active check box. Enter in a phone number
or name associated with this line in the Description box. Click Next
to continue.
Enter a name for the phone line adapter and click Finish to complete
the configuration.

8D-Link DVG-3104MS Quick Install Guide
Technical Support
D-Link’s website contains the latest user documentation and
software updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical
Support through our website or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.com
Version 1.2
September 24, 2008
