D-Link Airspot DSA-3100 User manual

Manual
Building Networks for People
Hotspot Gateway
D-Link
DSA-3100
Express EtherNetworkTM
January 2004
Fourth Edition

2
Contents
Package Contents ................................................................................3
Introduction...........................................................................................4
Front Panel...........................................................................................5
Rear Panel ...........................................................................................6
Features ...............................................................................................7
Sample Scenarios ................................................................................8
Installation ..........................................................................................10
Setting Up the DSA-3100 ...................................................................11
Configure PCs on your LAN ...............................................................12
TCP/IP Network Setting .....................................................................12
Internet Access Configuration ............................................................13
Using the Configuration Utility ............................................................15
Networking Basics..............................................................................55
Technical Specifications .....................................................................68
Technical Support...............................................................................70
Warranty and Registration..................................................................71

3
Package Contents
Internet Explorer Version 6.0 or Netscape Navigator
Version 6.0 and Above
Computers with Windows, Macintosh, or Linux-based
operating systems with an installed Ethernet adapter
System Requirements for Configuration:


Contents of Package:
D-Link DSA-3100 Hotspot Gateway
CD-ROM (containing Manual and Warranty)
Quick Installation Guide
Two (2) CAT5 UTP/Straight-through (Ethernet) cables
One (1) CAT5 UTP/Cross-over cable
One (1) Console cable
5V DC, 3A Power Adapter
If any of the above items are missing, please contact your reseller.
1
2
3
4
5
6
7

4
Introduction
The D-Link DSA-3100 Hotspot Gateway is a simple-to-use network access control
system supporting Ethernet, Fast Ethernet or an IEEE 802.11 wireless LAN (WLAN)
separately and simultaneously.
TheDSA-3100canbeconfigured withastandardHTMLbrowser(i.e.,InternetExplorer,
Netscape Navigator) operating on Windows 98SE/Me/2000/XP, Macintosh OS 9, Mac
OS X (v10.1.5 or later), Linux, or Pocket PC 2000/2002. The DSA-3100 allows the
operator to offer wired or wireless networking services and access to the Internet
when used with a switch or wireless access point respectively. The device features
many management settings allowing for private and public access to the Internet and
the necessary privilege mechanisms to permit this usage.

5
The Power Indicator remains illuminated when the DSA-3100 is on. The indicators for
WAN, Local Network, Authentication each have two LED indicators. When CAT5
(Ethernet)cablesareplugged into thecorrespondingport,the upper LEDwillilluminate
to indicate that a connection has been established.The lower LED will blink whenever
data is transmitted or received.

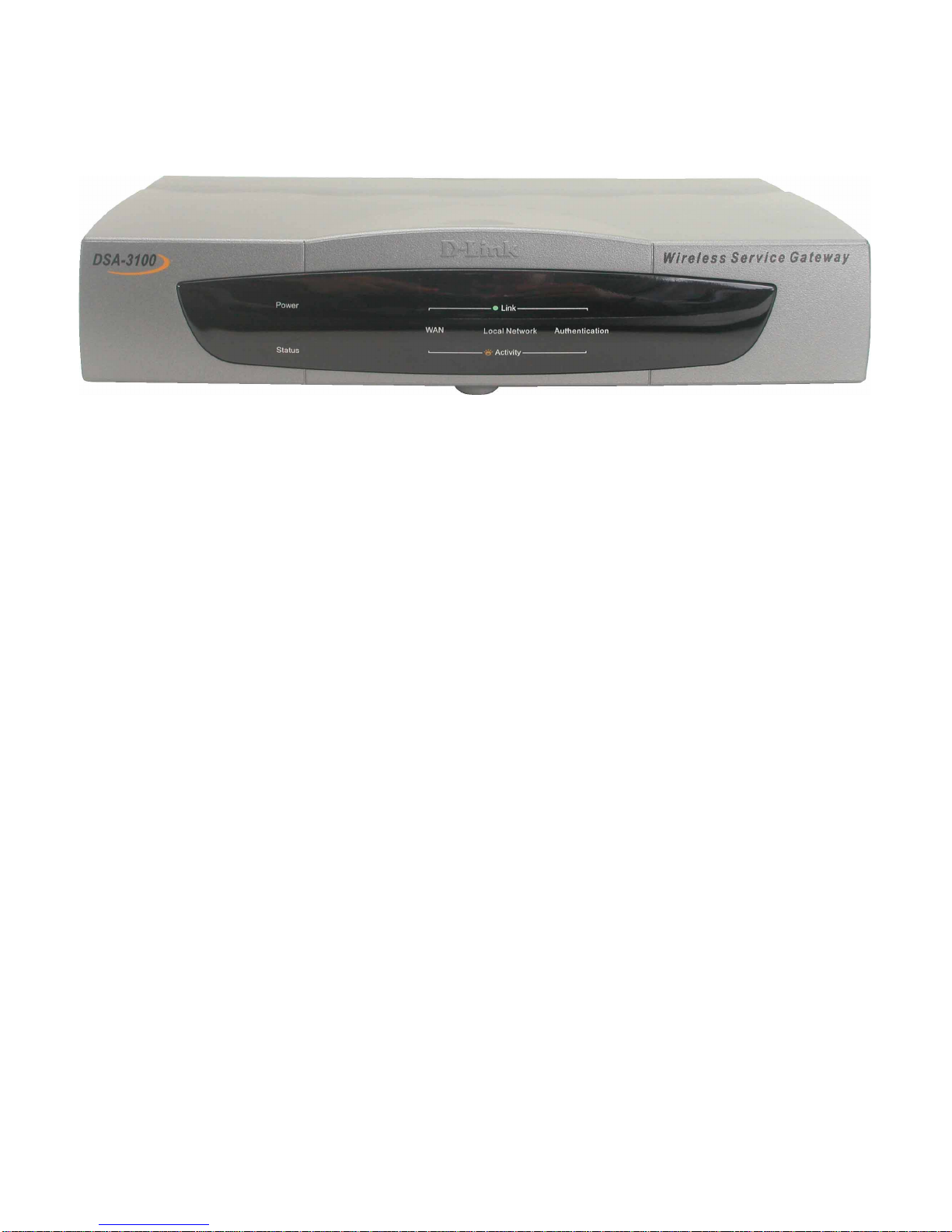

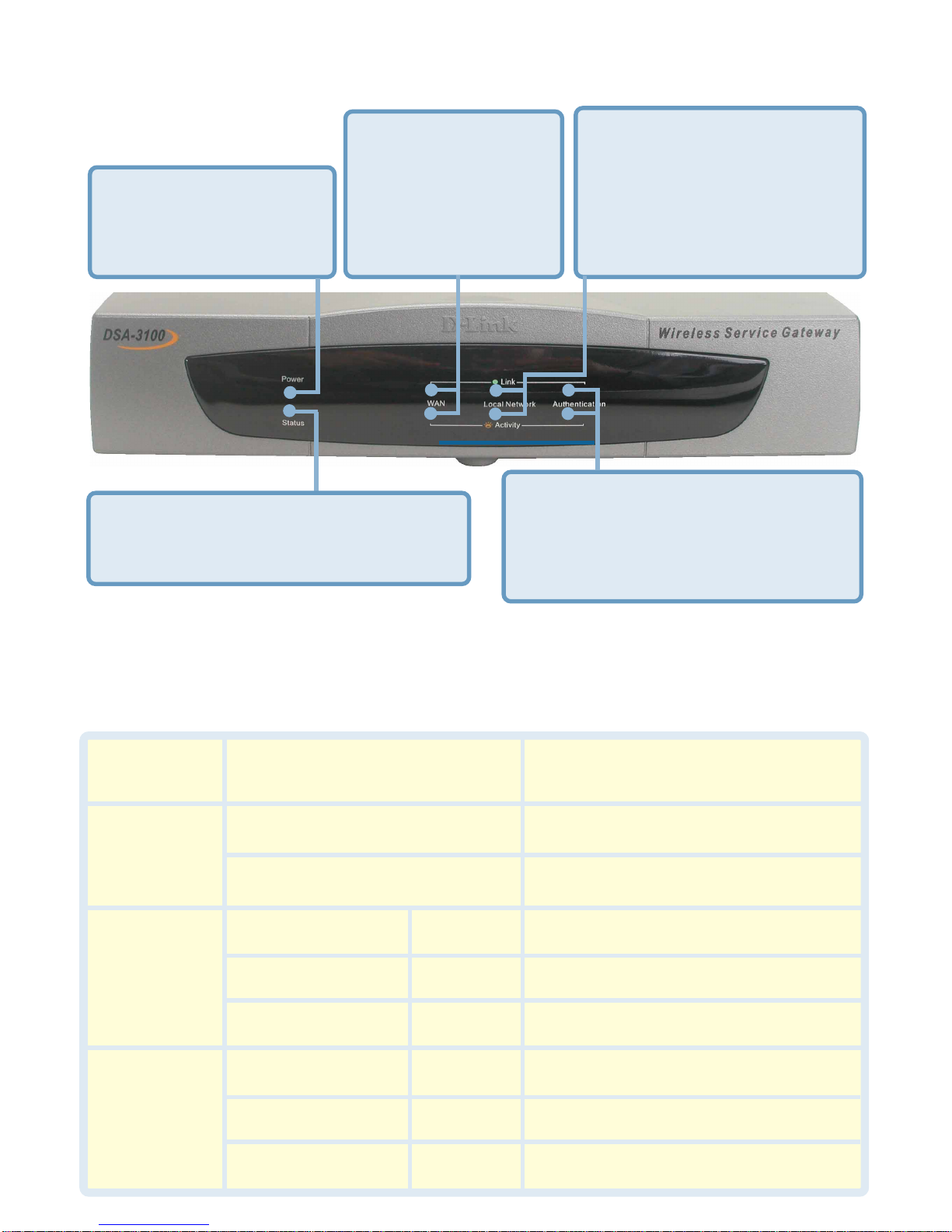

Front Panel
Authentication LEDs - a solid light
on the port indicates a connection
from the Authentication port for a
Public Network. The LED below
blinks during data transmission.
Status LED - a solid light on the port
indicates a connection to an Ethernet
network.
Power LED - a solid
light indicates a proper
connection to the power
supply.
Local Network LEDs - a
solid light on the port
indicates a connection from
the Local Network port for a
Private Network. The LED
below blinks during data
transmission.
WAN LEDs - a solid
light indicates
connection on the
WAN port. The LED
below blinks during
data transmission
Power
Status
Link
Activity
Green LED System is ready
Green LED System is ready
Blinking LED System is rebooting or
Firmware upgrading
WAN Green On line
Local Network Green On line
On line
Green
Authentication
WAN
Local Network
Authentication
Blinking
Blinking
Blinking
Data is being transmitted
Data is being transmitted
Data is being transmitted

6

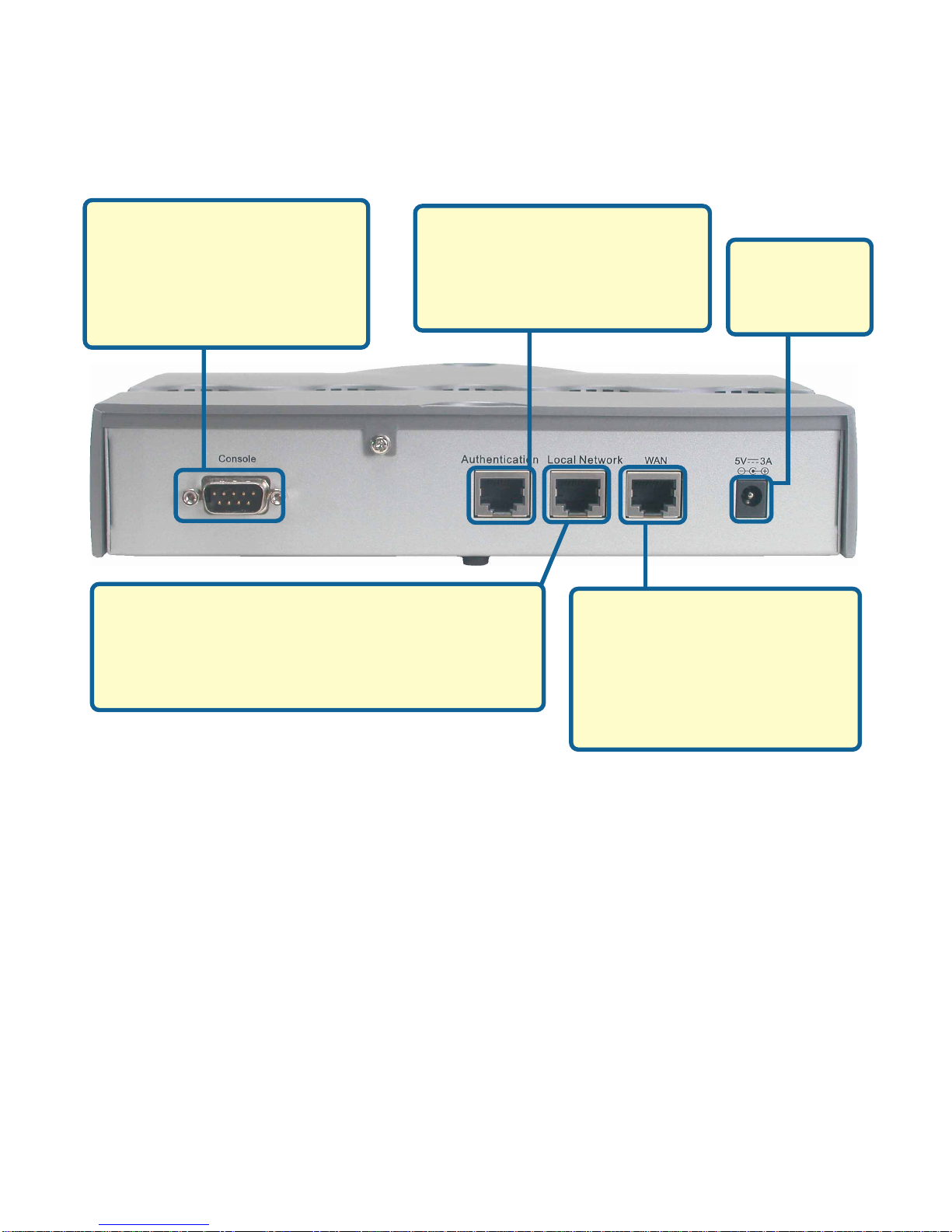

Rear Panel
Authentication Port
(Public LAN or WLAN with
Access Point) -
Connects to a switch or AP.
Local Area Network Port (Private LAN)-
Connects to a switch for a private network.
Does not require authentication to access
the Internet.
Console Port -
For resetting to factory
defaults, or reconfiguring
the device. For Advanced
users only!
WAN Port -
The port that connects to
your WAN connection
providing Internet access to
the Local and Managed
Networks.
Receptor for
Power
Adapter.

7
Features
Creates two separate and discreet networks allowing the owner/
administrator to create a wired or wireless hotspot and provide
Internet access to visitors, guests, or customers to your company or
organization.
Manages up to 250 user accounts with internal database.
Supports at least 50 users accessing the Internet at any given time.
Allows ID/Password-based authentication and authorization (can
also be combined with MAC address locking for even
stricter access control).
Supports either POP3, RADIUS, or LDAP external authentication
servers.
Provides on-line status monitoring and historical traffic data.
SSL-protected access to the administration interface and user
authentication interface.
Customizable user log-in and log-out Web interface.
Customizable user log-out timer.
Customizable target URL for users who successfully authenticate.
Console mode administration interface via serial console port.
Supports display of text messages on the log-in page. An
administrator could use the administration interface to input mes
sages (promotions, alerts, additional usage time/services with
corresponding fees).
Supports NAT for managed clients.
Supports static IP, DHCP client and PPPoE client on the WAN
interface.
Built-in DHCP server to manage clients.
Built-in, high-speed policy routing engine.
Customizable peremptory traffic redirection (IP and Port-Redirect).
Built-in NTP client.

8

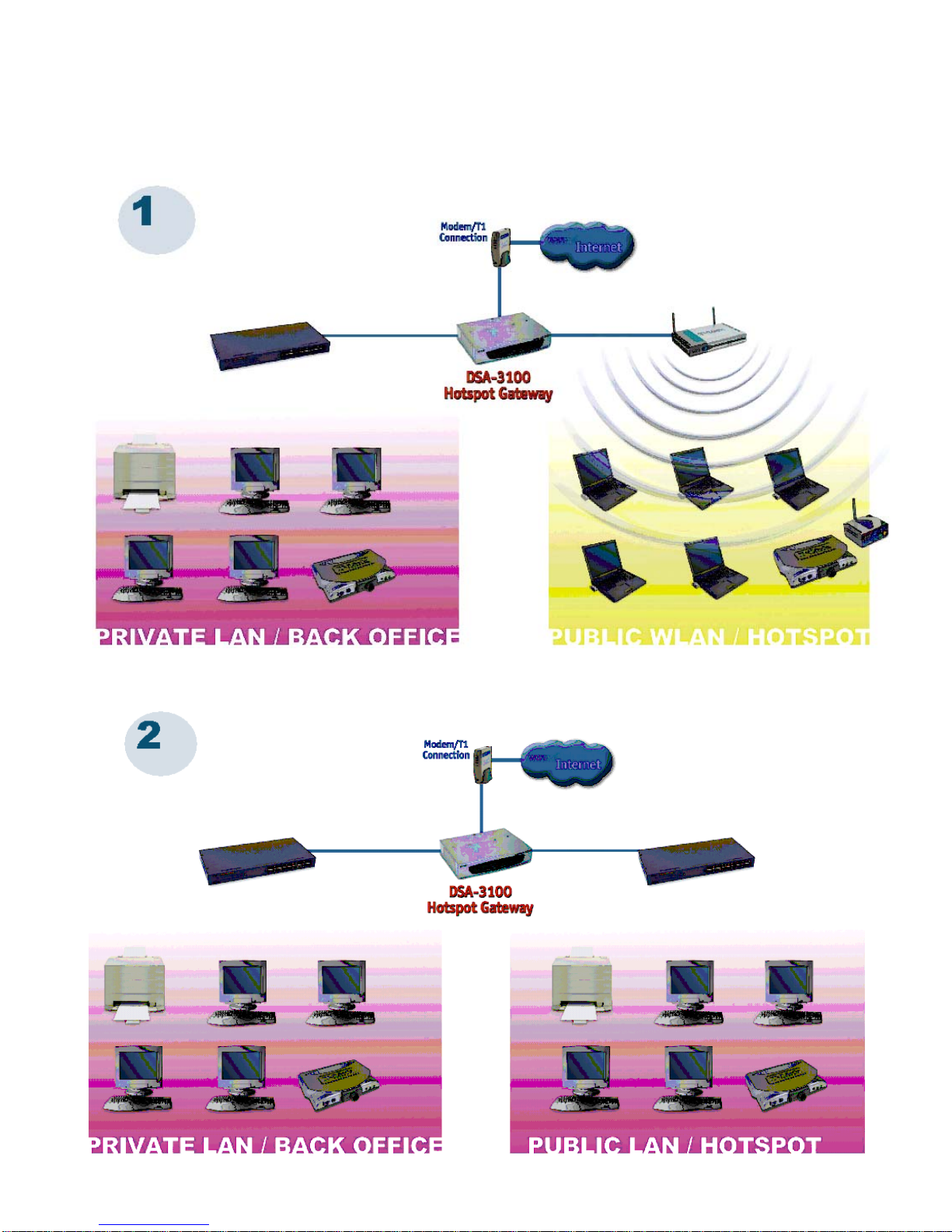

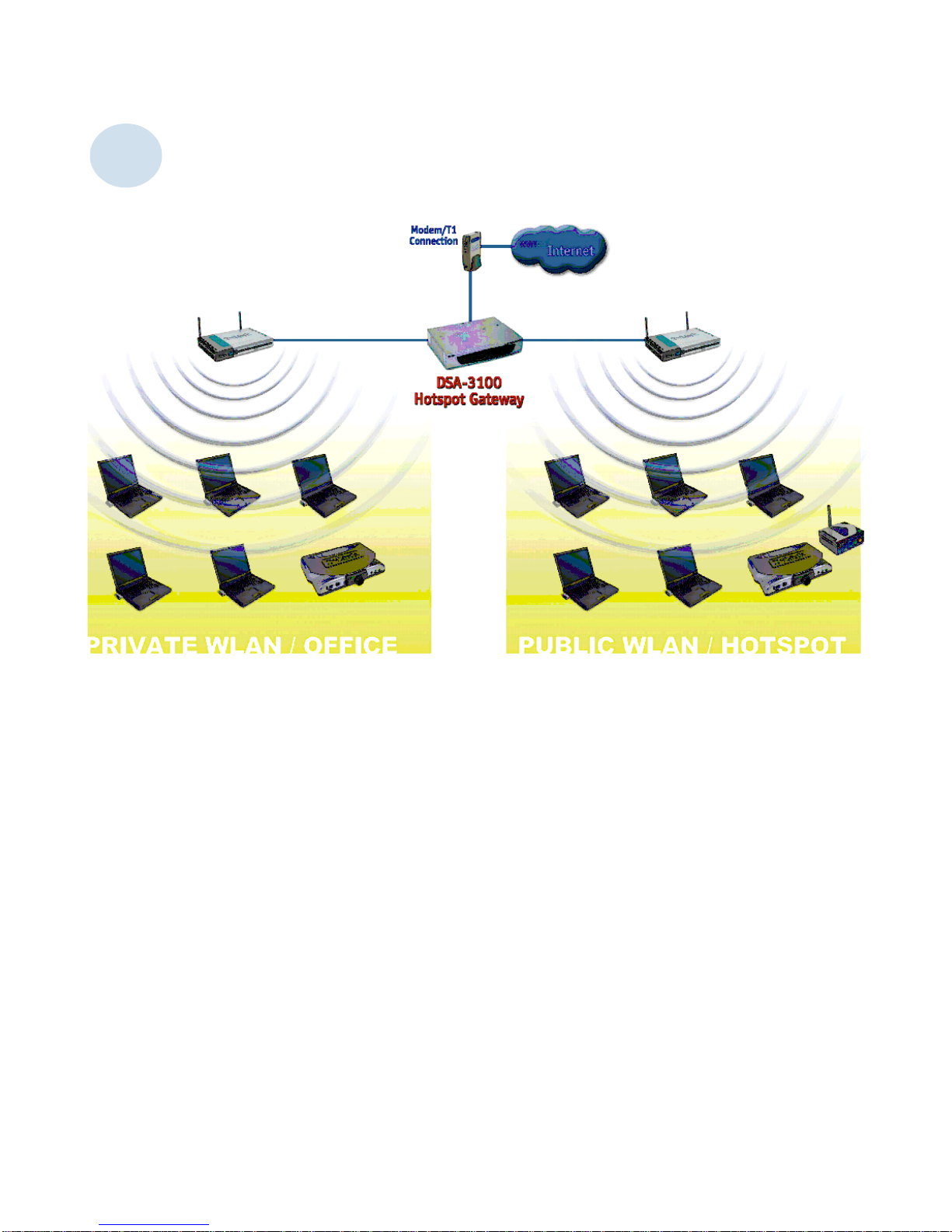

Sample Scenarios

9
Sample Scenarios (continued)
3

10
Installation
Standard 10/100Base-T network (UTP/Cat5 Ethernet) cable
with RJ45 connectors.
TCP/IP network protocol must be installed on all networked
computers and related devices.
Requirements

11

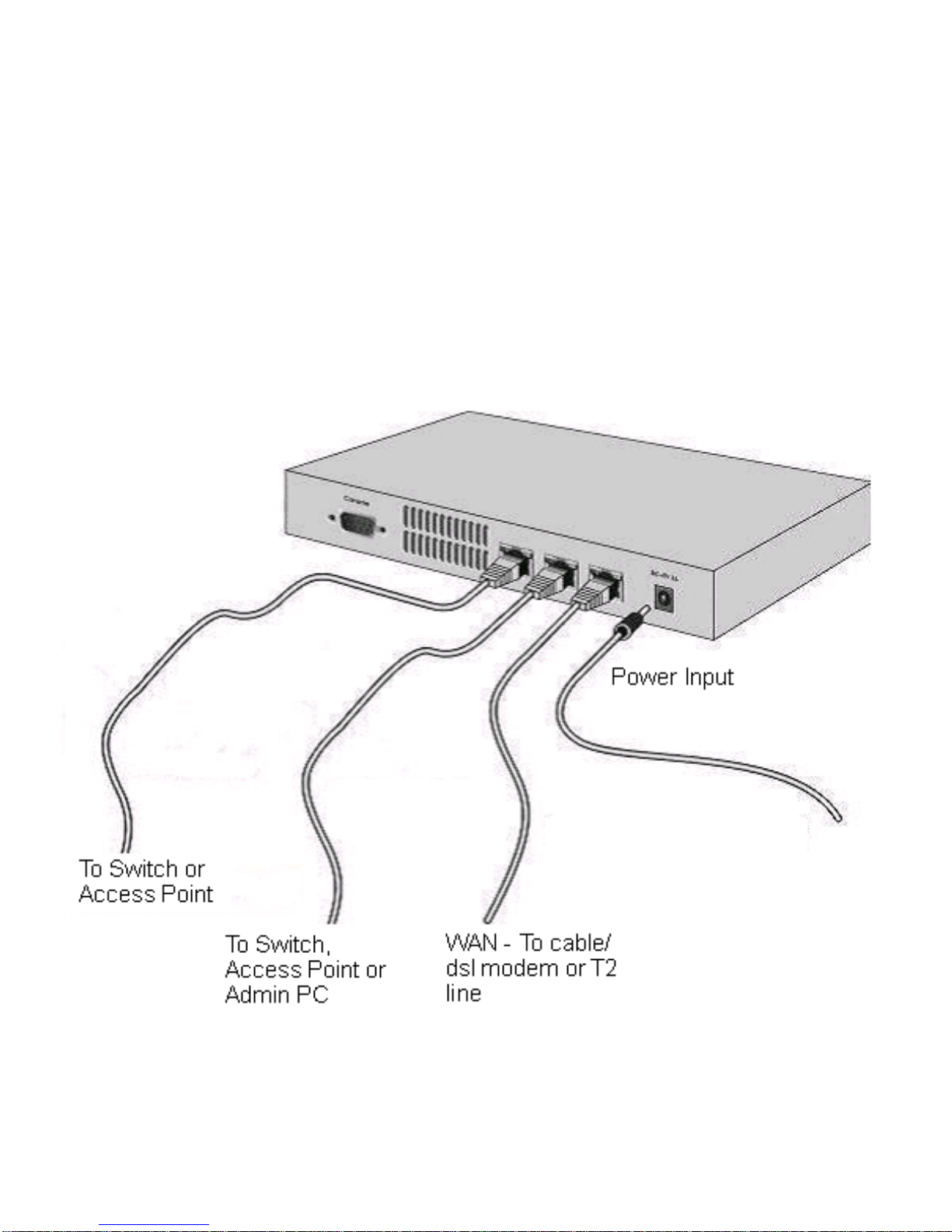

Setting up the DSA-3100
Make sure the DSA-3100 unit is not connected to the power
adapter and is powered OFF.
WAN port connection
Use 10/100BaseT connections to connect the unmanaged network.
The unmanaged network’s interface may be the ADSL router’s LAN
port, cable modem’s LAN port or Intranet switch port.
Private LAN port connection
Use a straight-through cable to connect your admin PC with the
internal switch or hub that is connected to the local network port on
the DSA-3100. If you want to directly connect the DSA-3100 to this
PC or the wireless AP, use a crossover cable.
Public LAN port connection
Use a straight-through cable to connect your client PC with the
internal switch or hub that is connected to the authentication port on
DSA-3100. If you want to directly connect the DSA-3100 to this PC or
the wireless AP, use a crossover cable.
Power ON
Connect the supplied power adapter to the DSA-3100 and insert the
plug on the other end into an electric outlet.
Check the LED
The power LED and WAN LED should be ON, if the
corresponding WAN port is connected to an active cable/DSL
modem or T1 line.
The corresponding local network or authentication indicator should
be ON if a network device is connected to the local network port or
the authentication internal port.

12
If your PC uses the default Windows XP/2000/Me/98SE setting, no
changes need to be made. Just start/restart your PC.
If you are running Mac OS 9 or OS X, set your network settings to
DHCP and select Apply.
DSA-3100 will act as a DHCP Server, automatically providing a
suitable IP address (and related information) to each computer
when the computer reboots or when the network settings refresh.
For all non-Server versions of Windows, the default TCP/IP setting
is to act as a DHCP client. In Windows, this is called Obtain an IP
address automatically.
If you are using a fixed IP address on your LAN, or if you want to check
your TCP/IP setting, refer to the Networking Basics section in
this manual.
Configure PCs on your LAN
After installing the DSA-3100, each computer’s TCP/IP network setting and Internet
access configuration may need to be re-configured:
TCP/IP network setting

13
Internet Access Configuration
To configure your PCs to use the DSA-3100 for Internet access, follow this
procedure.

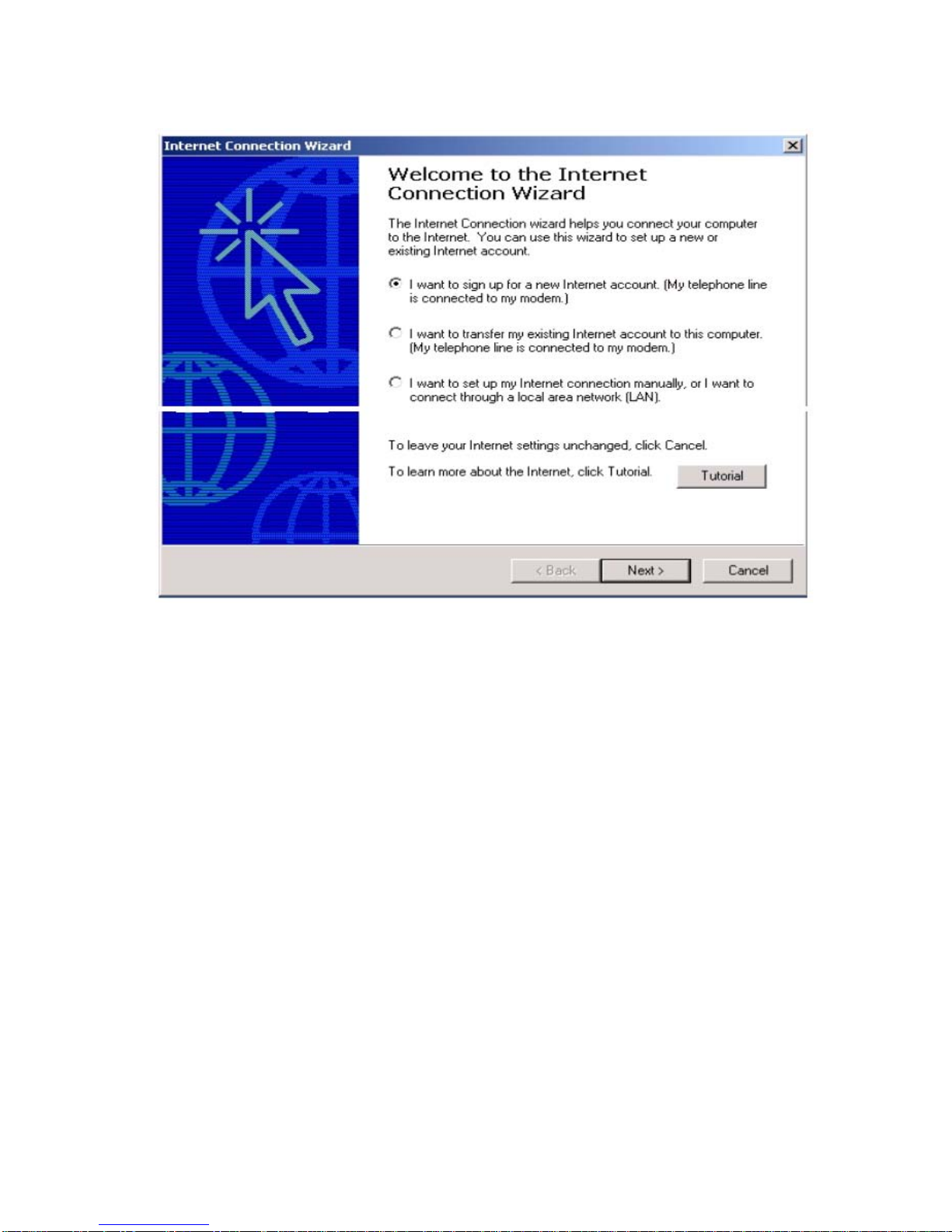

For Windows 9x/2000

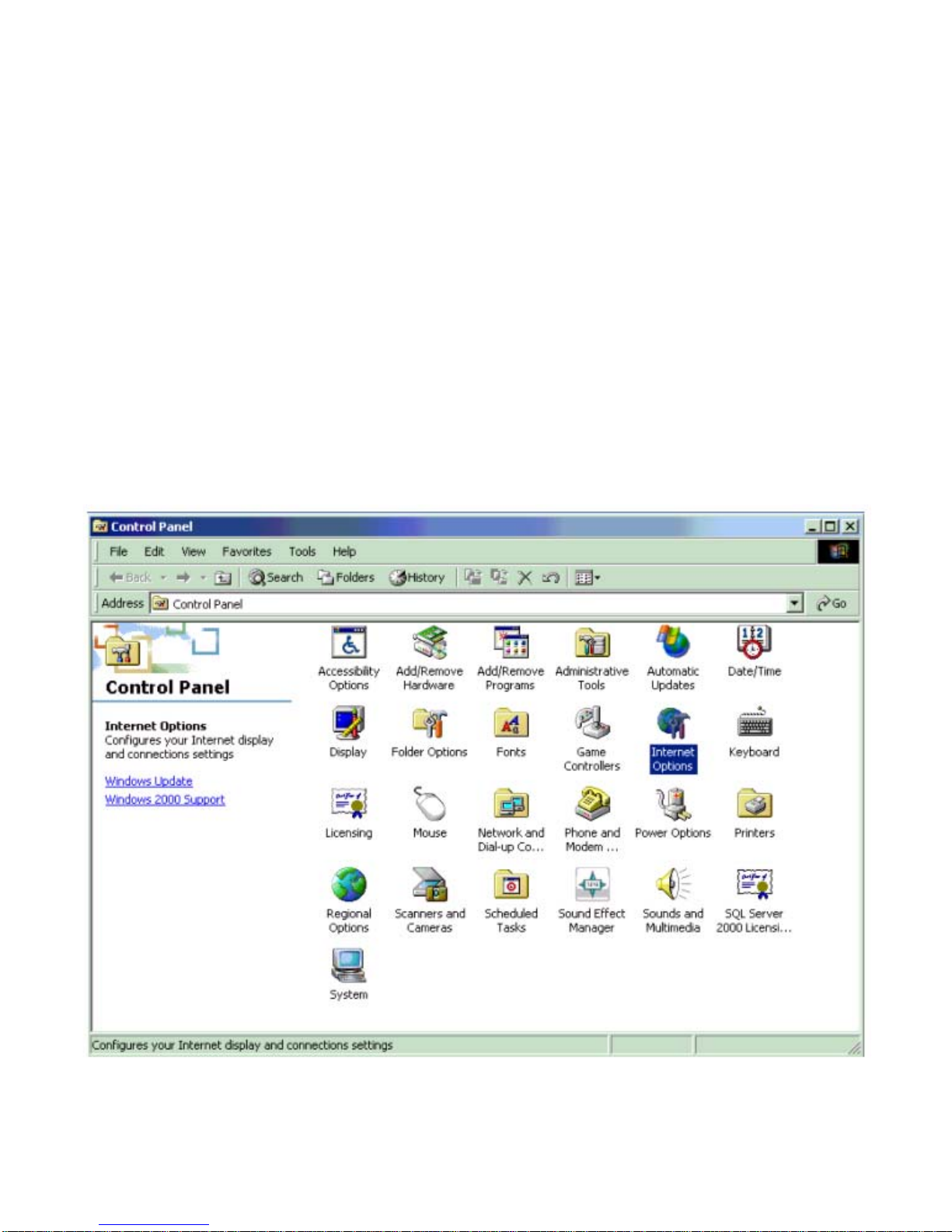

Please select Start Menu - Control Panel - Internet Options.
Select the Connection tab, and click the Setup button.
Select “I want to set up my Internet connection manually, or I want to
connect through a local Area network (LAN)” and click next.




14
Internet Access Configuration (continued)
Select “I connect through a local area network (LAN)” and click Next.
Ensure all of the boxes on the local area network Internet configuration
screen are unchecked.
Check No, when promoted “Do you want to set up an Internet mail
account now?”
Click Finish to close the Internet Connection Wizard. Setup is now
completed.
Please select Star Menu - Control Panel - Network and Internet
Connection.
Select the Connection tab, and click the Setup button.
Click Next on the New Connection Wizard screen.
Select Connect to the Internet and click Next.
Select Set up my connection manually and click Next.
Check Connect using a broadband connection this always on and click
Next.
Click Finish to close the New Connection Wizard. Setup is now completed.
For Windows XP













15

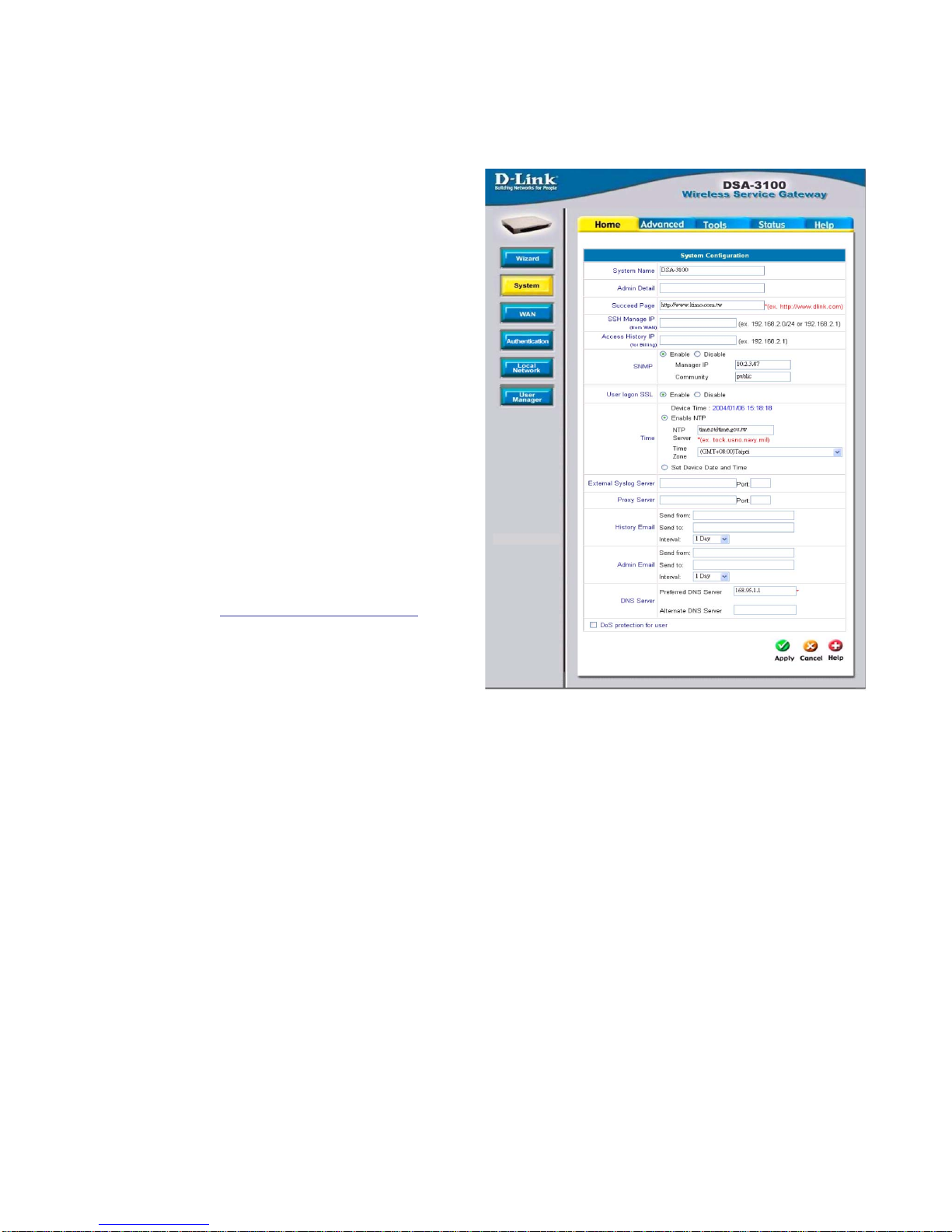

Using the Configuration Utility
To configure the DSA-3100, use a computer which is connected to the local network
port of the DSA-3100 with an Ethernet cable.



First, disable the Access the Internet using a proxy server function. To
disable this function, go to Control Panel > Internet Options > Connections
> LAN Settings and uncheck the enable box.

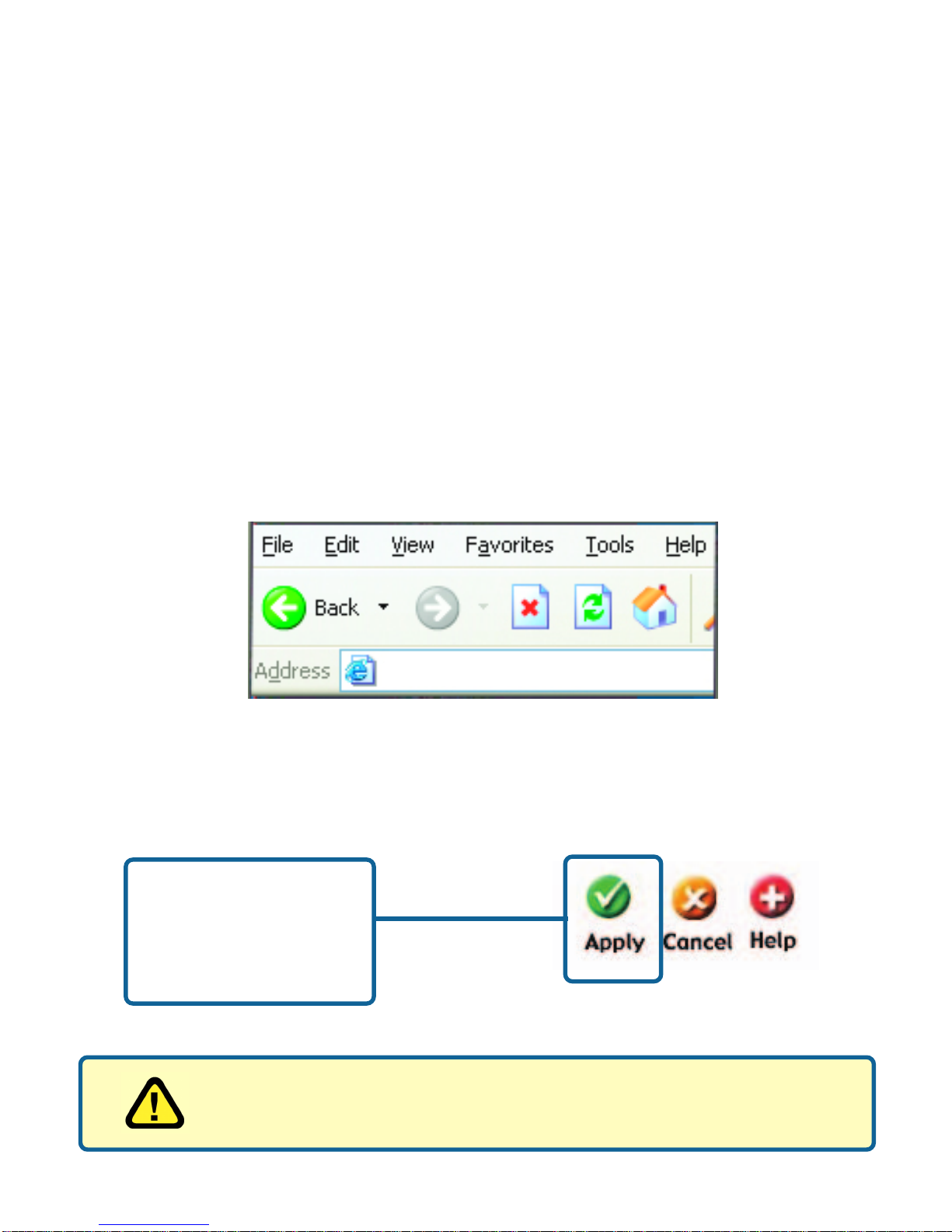

Start your Microsoft Internet Explorer Web browser program.
Type the IP address of the DSA-3100 (the default IP address is
192.168.0.40) in the address field and press Enter. Make sure that the IP
addresses of the DSA-3100 and your computer are in the same subnet.
On the bottom of each configuration screen you will find the buttons shown below.
https://192.168.0.40
Restart the DSA-3100 after completing any changes to its
configuration.
Click Apply in each
screen of the
Configuration Utility
in which you have
made changes.

16

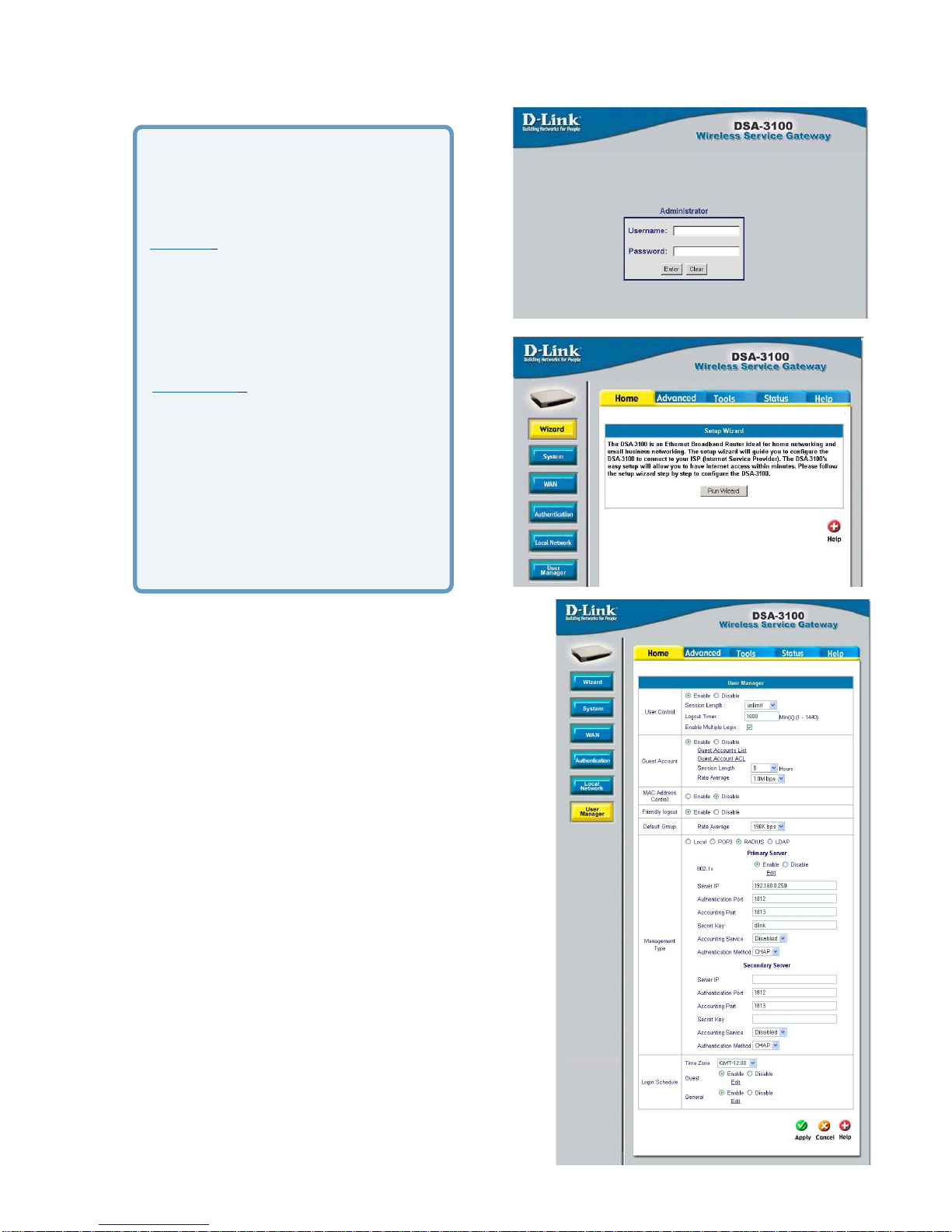

The Home>User Manager screen will appear
if you logged in as a manager. Please refer to
the Quick Installation Guide for more informa-
tion regarding the Setup Wizard. This screen
will be explained in more detail in the following
pages.
Using the Configuration Utility (continued)
Home > User Manager
Home > Wizard
The Home>Wizard screen will appear if you
logged in as an admin. For more information
on the Setup Wizard, please see the Quick In-
stallation Guide,included with your purchase.
You can access the configuration features from
this window.
manager - access to the man-
ager user account only.
User Name: manager
Password: manager
After you log in, click Enter.
User Name: admin
You can log in as admin or as
manager.
admin - the administrator of the
DSA-3100.
Password: admin
Log-in Screen

17
Using the Configuration Utility (continued)
Home > System
DSA-3100 is the default system name.
You may wish to rename it to indicate
your company, department, or the
service you would like to provide.
System Name:
Admin Detail:
You can edit the System Administrator’s
information here (e.g., name, phone
number,ande-mail).Ifauserencounters
a problem connecting to the WAN Port of
theDSA-3100,the systemadministrator’s
information will be shown on the user
login page
Succeed Page:
Enter a URL for all users to be directed
to after successful login, typically defined
as the home page of the host company,
for instance: http://www.dlink.com. No
matter to which URL a user originally
attempts to connect, he/she will be
directed to the URL defined here first.
Specify an IP address that connects to the WAN Port that will be allowed to configure
the DSA-3100. For instance, if 10.2.3.1 is specified, then the user will be allowed to
connecttotheWANPortandconfigure the DSA-3100onlyfromthe specified address.
SSH Manage IP:
continued -
Specify an IP address to be used by the billing system to connect to the DSA-3100
to get billing history information.
Access History IP:
Simple Network Management Protocol is a system for managing complex networks.
The DSA-3100 provides SNMP v2 Read-only(RO) management.
Manager IP: A trap manager is a management station that receives and
processes traps. When you configure a trap manager, assign the IP address
to the management station.
Community: Community strings serve as passwords for SNMP
messages. DSA-3100 allows Read-only (RO) as a password.
If you Enable SNMP, enter the IP address and the community string in the field.
SNMP:

18
You may use NTP (Network Time Protocol) or you may input the time
yourself. To use NTP please specify a timeserver’s domain name and
select the time zone.The time zone of the DSA-3100’s internal clock
is UTC (Coordinated Universal Time, formerly known as GMT,
Greenwich Mean Time).
Time:
Using the Configuration Utility (continued)
Home >System (continued)
Specify the IP address and the Port of the External Syslog server.
External
Syslog
Server:
Send from: Indicate the IP address from which the email will be sent
Send to: Indicate the IP address to which the email will be sent
Interval: Indicate the interval at which the email will be sent
History
Email:
The DSA-3100 protects users against various hacker attacks including:
NMAP FIN/URG/PSH
Xmas Tree
SYN/RST,
Ping of Death
Null Scan
SYN/FIN
DoS
protection
for user:
DNS: Specify DNS servers for the DSA-3100 for the Preferred DNS
(preferred IP address) and Alternate DNS (alternate IP address).
User Logon
SSL: Select Enable or Disable
Specify the IP address and the Port of the Proxy server. (The DSA-
3100 supports Http proxy.
Proxy
Server:
Send from: Indicate the IP address from which the email will be sent
Send to: Indicate the IP address to which the email will be sent
Interval: Indicate the interval at which the email will be sent
Admin
Email:

19
Using the Configuration Utility (continued)

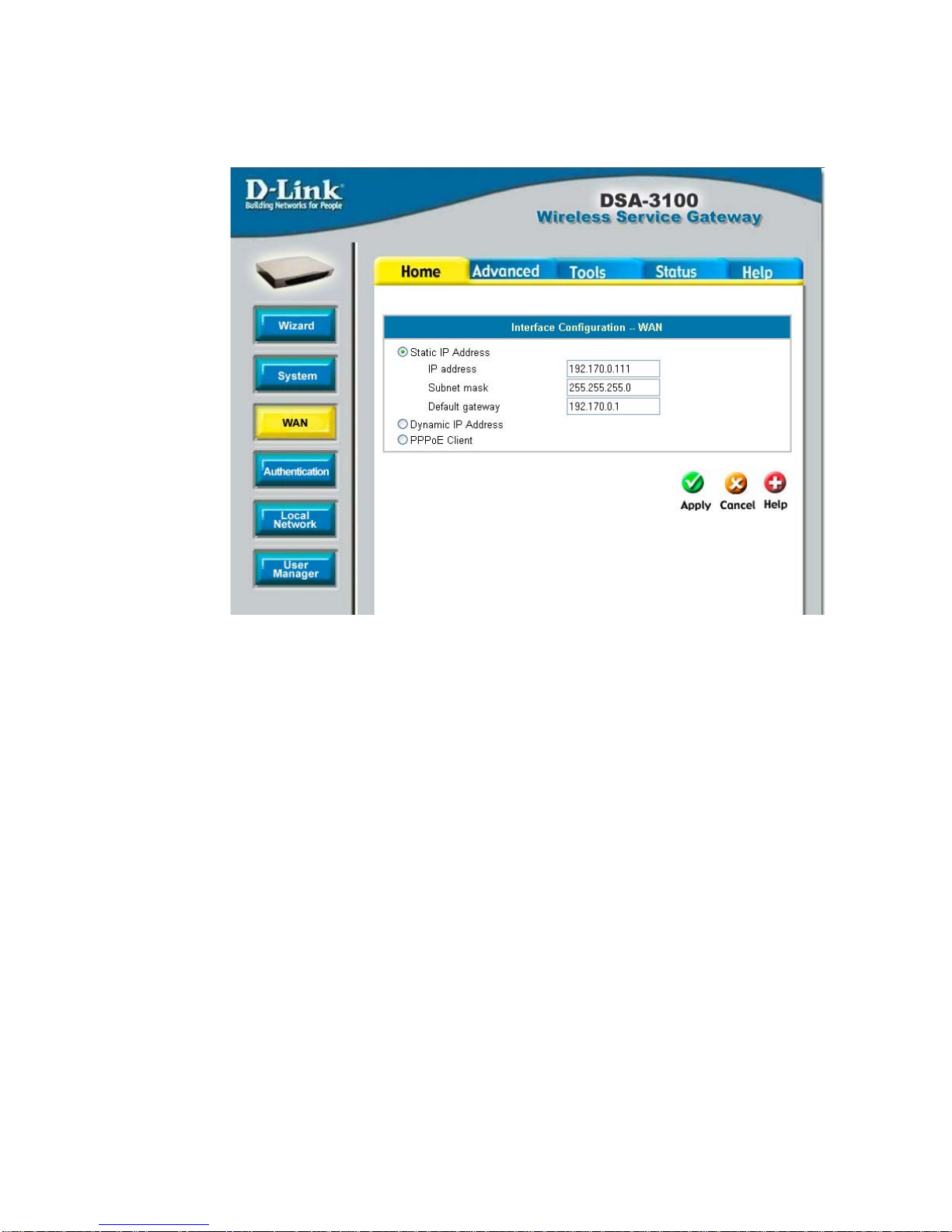

Home > WAN > Static IP Address
Enter the IP address provided to you by your ISP.
IP address:
Enter the subnetmask provided to you by your ISP. All
devices on the network must share the same netmask.
Subnet
mask:
Enter the IP address of the gateway, provided to you
by your ISP.
Default
Gateway:
Static IP
Address:
Dynamic IP
Address:
PPPoE
Client:
Make this selection if there is a DHCP server in the network.
(See the following pages.)
Make this selection if you connect to the Internet using DSL.
(See the following pages.)

20
Using the Configuration Utility (continued)

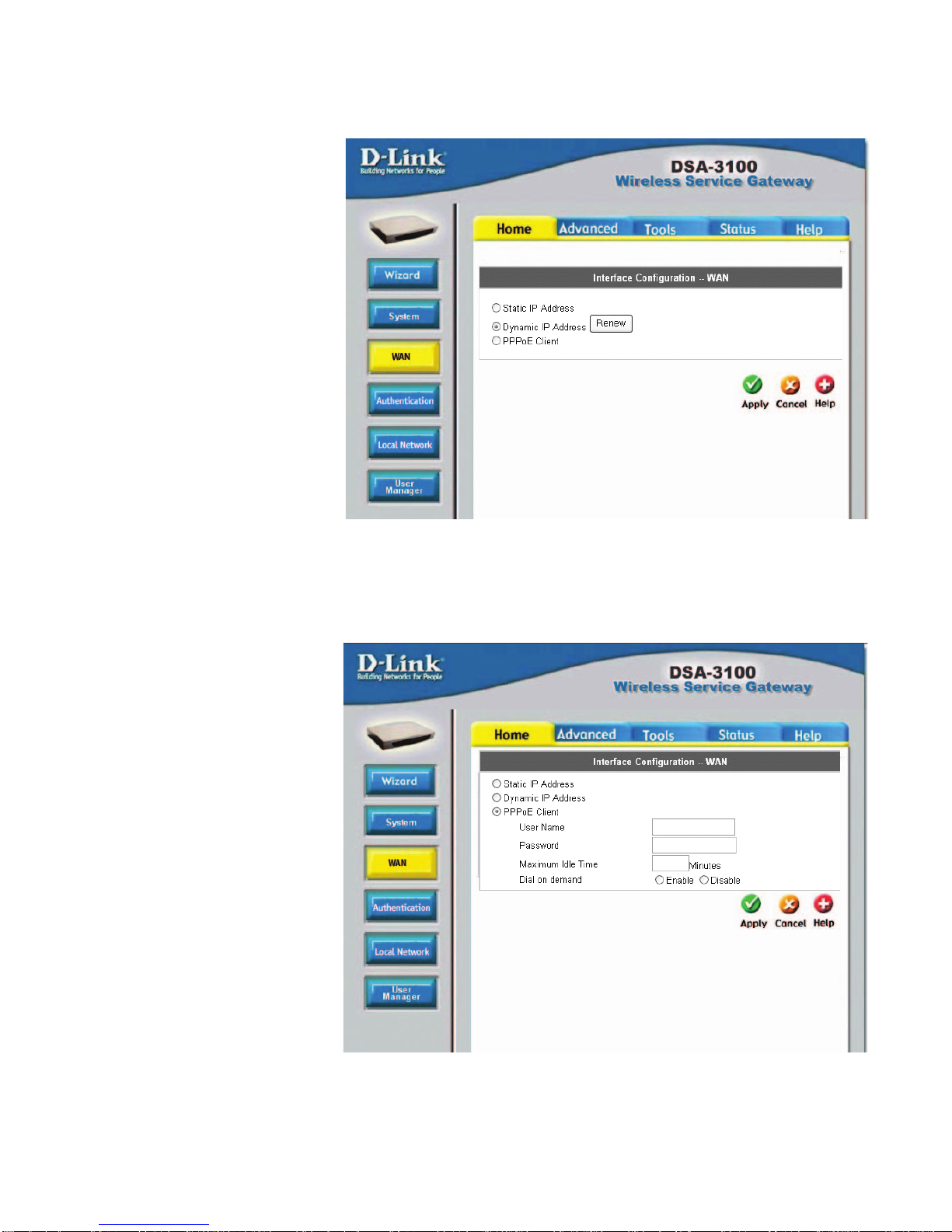

Home > WAN > Dynamic IP Address
Select this option to obtain an IP address automatically
from your ISP.
Enter the user name and password that is assigned by
your ISP.
User Name &
Password:
Home > WAN > PPPoE
These fields are optional.
Maximum Idle Time
& Dial on demand:
