D-Link Airspot DSA-3100 User manual

Manual
Building Networks for People
Public/Private Gateway
D-Link Airspot
DSA-3100
March 2006
Rev. B

2
Contents
Package Contents ................................................................................3
Introduction...........................................................................................4
Front Panel...........................................................................................5
Rear Panel ...........................................................................................6
Features ...............................................................................................7
Sample Scenarios ................................................................................8
Installation ..........................................................................................10
Setting Up the DSA-3100 ...................................................................11
Configure PCs on your LAN ...............................................................12
TCP/IP Network Setting .....................................................................12
Internet Access Configuration ............................................................13
Using the Configuration Utility ............................................................15
Networking Basics..............................................................................56
Technical Specifications .....................................................................71
Technical Support...............................................................................73
Warranty and Registration..................................................................74

3
Package Contents
Internet Explorer Version 6.0 or Netscape Navigator
Version 6.0 and above
Computers with Windows, Macintosh, or Linux-based
operating systems with an installed Ethernet adapter
System Requirements for Configuration:


Contents of Package:
D-Link DSA-3100 Airspot Gateway
CD-ROM (containing Manual and Warranty)
Quick Installation Guide
Two (2) CAT5 UTP/Straight-through (Ethernet) cables
One (1) CAT5 UTP/Cross-over cable
One (1) Console cable
5V DC, 3A PowerAdapter
If any of the above items are missing, please contact your reseller.
1
2
3
4
5
6
7

4

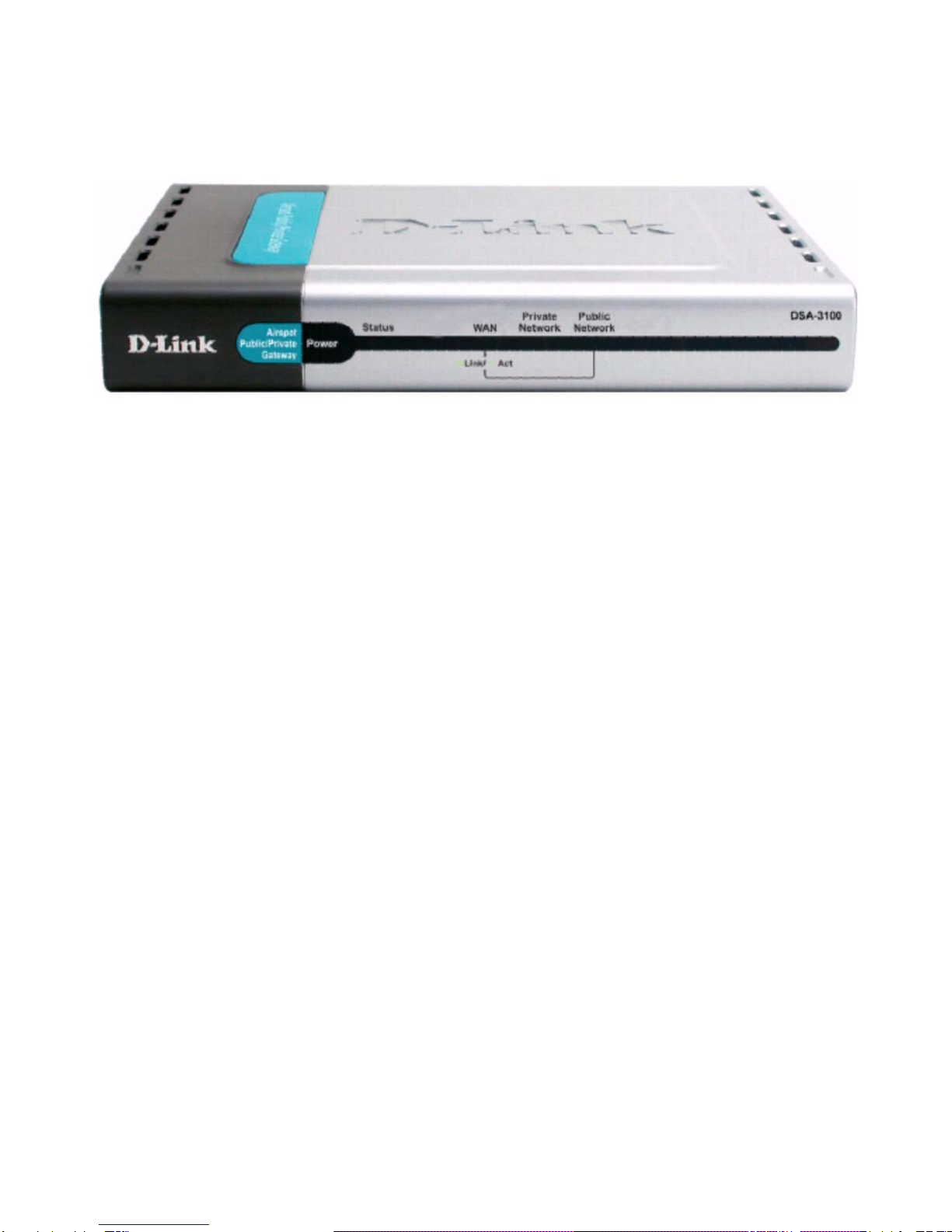

Introduction
The D-Link DSA-3100 Airspot Gateway is a simple-to-use network access control
system supporting Ethernet, Fast Ethernet or an IEEE 802.11 wireless LAN (WLAN)
separately and simultaneously.
TheDSA-3100canbeconfigured withastandardHTMLbrowser(i.e.,InternetExplorer,
Netscape Navigator) operating on Windows 98SE/Me/2000/XP, Macintosh OS 9, Mac
OS X (v10.1.5 or later), Linux, or Pocket PC 2000/2002. The DSA-3100 allows the
operator to offer wired or wireless networking services and access to the Internet
when used with a switch or wireless access point respectively. The device features
many management settings allowing for private and public access to the Internet and
the necessary privilege mechanisms to permit this usage.

5

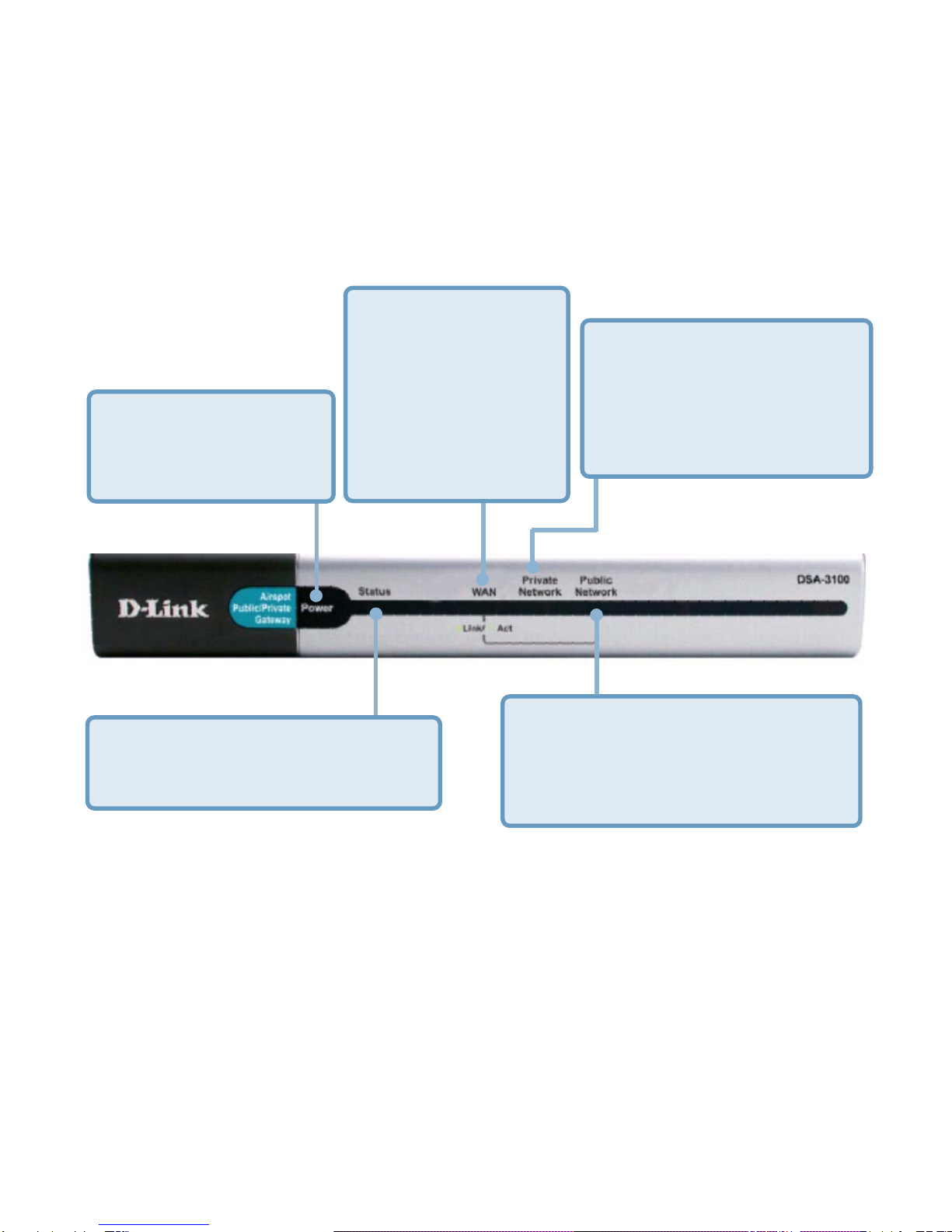

Front Panel
Public Network - A solid light
indicates a connection from the
Authentication port for a Public
Network. This LED blinks during
data transmission.
Status LED - A solid LED indicates
the DSA-3100 is working properly.
This LED will flash during reboot.
Power LED - A solid
light indicates a proper
connection to the power
supply.
WAN LED -
Link: A solid light
indicates a connection
on the WAN port.
Act: This LED blinks
during data
transmission.
Private Network - Asolid
light indicates a connection
on the Private Network. This
LED blinks during data
transmission.

6

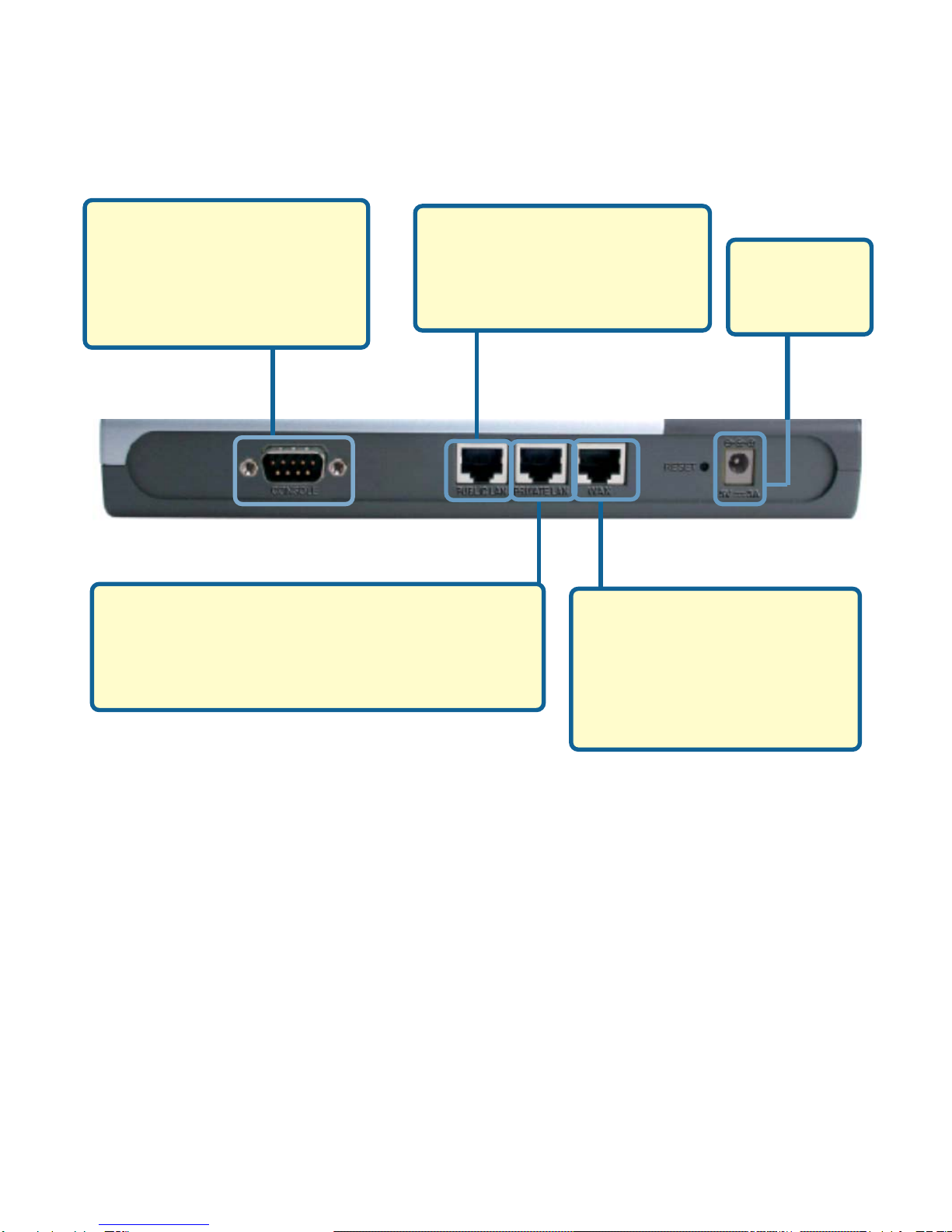

Rear Panel
Local Area Network Port (Private LAN)-
Connects to a switch for a private network.
Does not require authentication to access
the Internet.
Console Port -
For resetting to factory
defaults, or reconfiguring
the device. For Advanced
users only!
WAN Port -
The port that connects to
your WAN connection
providing Internet access to
the Local and Managed
Networks.
Authentication Port
(Public LAN or WLAN with
Access Point) -
Connects to a switch or AP.
Receptor for
Power
Adapter.

7
Features
Creates two separate and discreet networks allowing the owner/
administrator to create a wired or wireless hotspot and provide
Internet access to visitors, guests, or customers.
Manages up to 250 user accounts with an internal database.
Supports at least 50 users accessing the Internet at any given time.
Allows ID/Password-based authentication and authorization (can
also be combined with MAC address locking for even
stricter access control).
Supports either POP3, RADIUS, or LDAP external authentication
servers.
Provides on-line status monitoring and historical traffic data.
SSL-protected access to the administration interface and user
authentication interface.
Customizable user log-in and log-out Web interface.
Customizable user log-out timer.
Customizable target URL for users who successfully authenticate.
Console mode administration interface via serial console port.
Supports display of text messages on the log-in page. An
administrator could use the administration interface to input
messages (promotions, alerts, additional usage time/services with
corresponding fees).
Supports NAT for managed clients.
Supports static IP, DHCP client and PPPoE client on the WAN
interface.
Built-in DHCP server to manage clients.
Built-in, high-speed policy routing engine.
Customizable peremptory traffic redirection (IP and Port-Redirect).
Built-in NTP client.

8

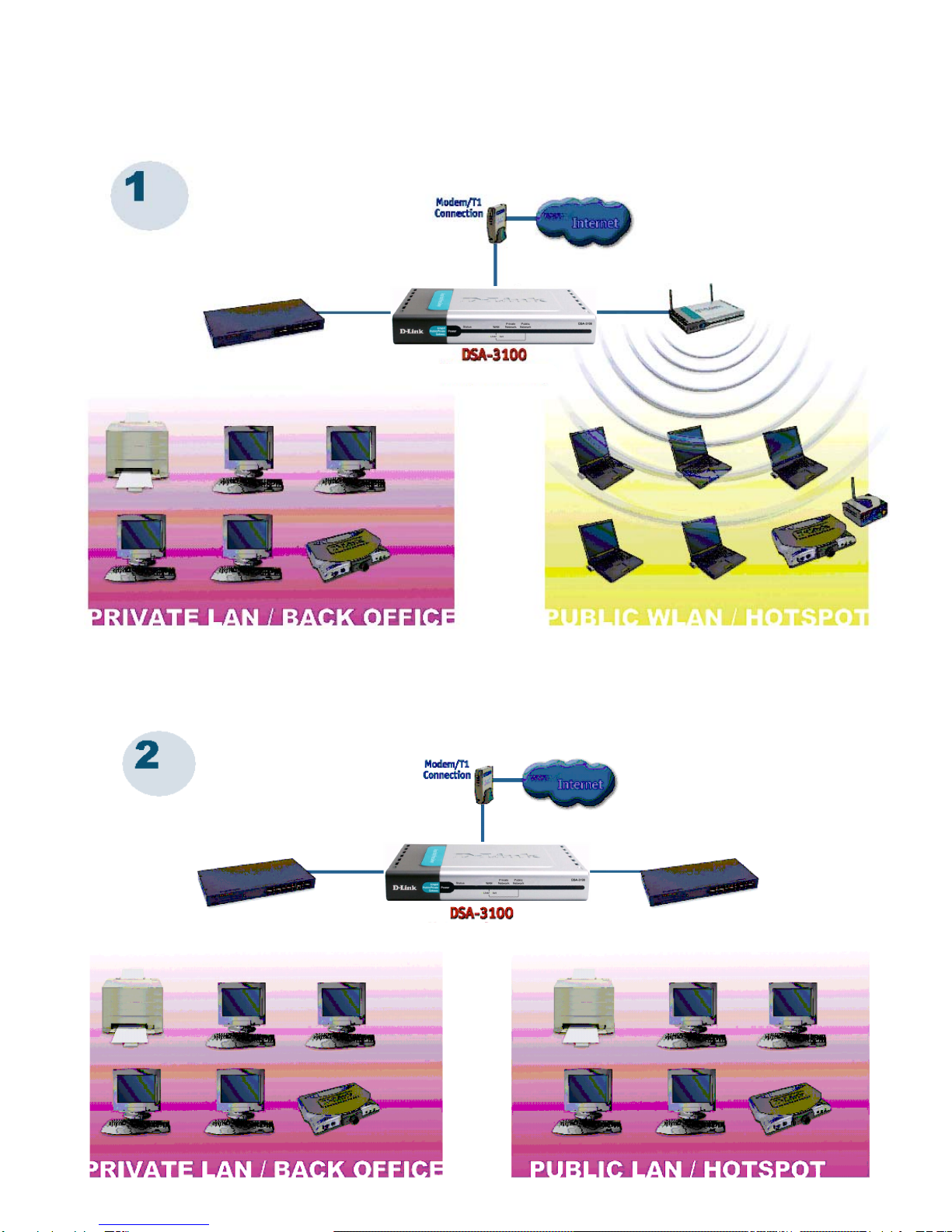

Sample Scenarios

9

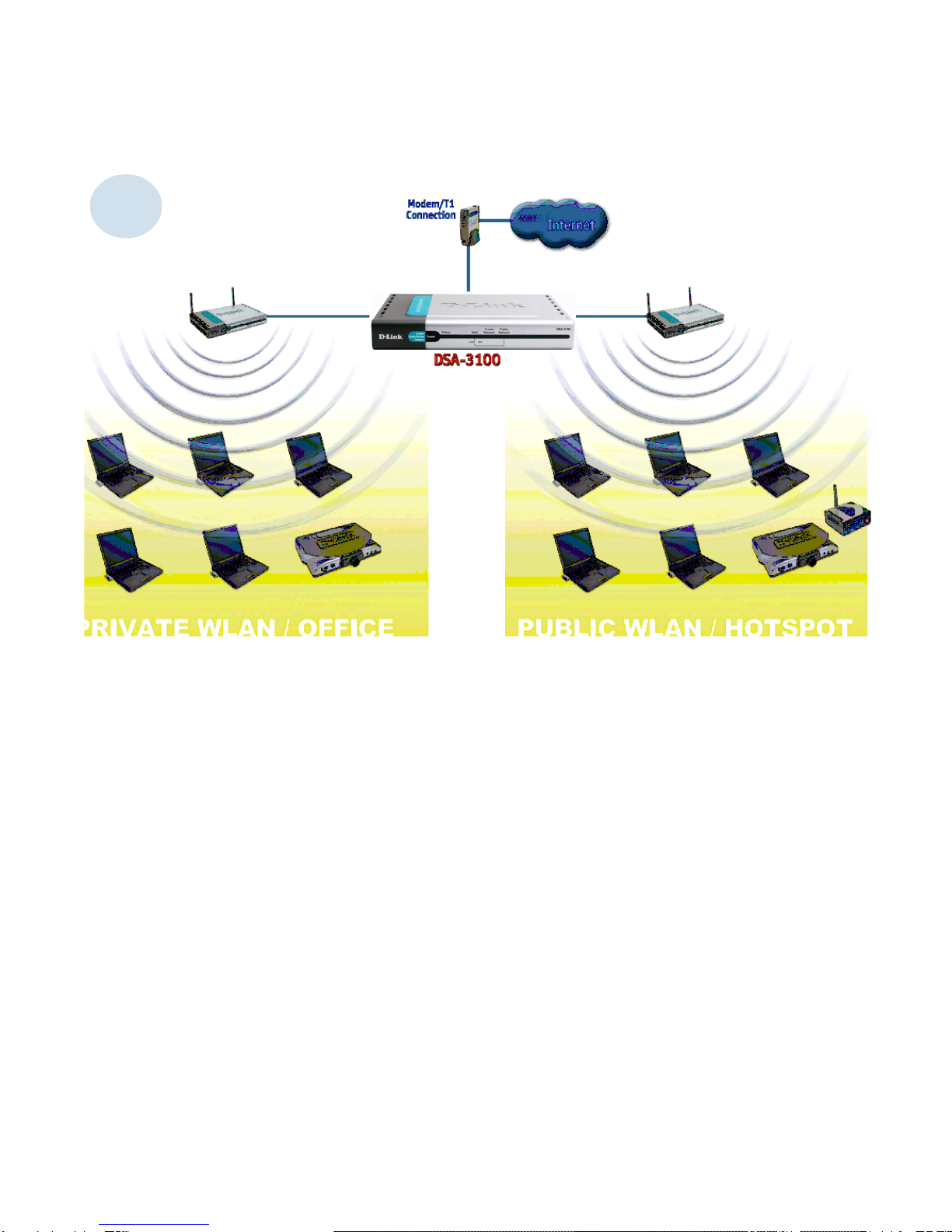

Sample Scenarios (continued)
3

10
Installation
Standard 10/100Base-T network (UTP/Cat5 Ethernet) cable
with RJ45 connectors.
TCP/IP network protocol must be installed on all networked
computers and related devices.
Requirements
T1

11

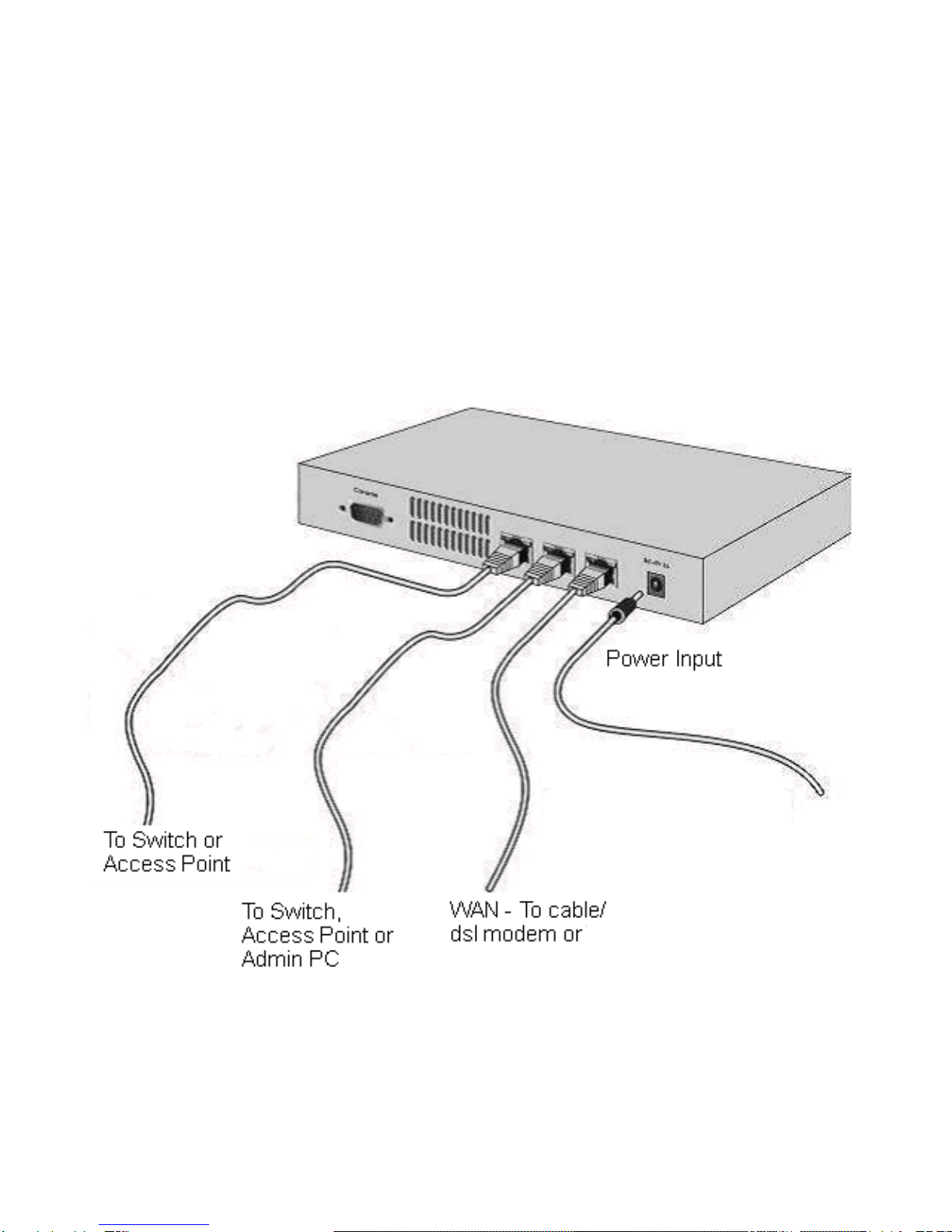

Setting up the DSA-3100
Make sure the DSA-3100 unit is not connected to the power
adapter and is powered OFF.
WAN port connection
Use 10/100BaseT connections to connect the unmanaged network.
The unmanaged network’s interface may be the ADSL router’s LAN
port, cable modem’s LAN port or Intranet switch port.
Private LAN port connection
Use to connect to a local network. All ports are auto-mdix, which means
that you can use a straight-through or a crossover cable for connections.
Public LAN port connection
Use to connect to a switch or an access point for Hotspot access. All ports
are auto-mdix, which means that you can use a straight-through or a
crossover cable for connections.
Power ON
Connect the supplied power adapter to the DSA-3100 and insert the
plug on the other end into an electric outlet.
Check the LEDs
The power LED and WAN LED should be ON, if the
corresponding WAN port is connected to an active cable/DSL
modem or T1 line.
The corresponding local network or authentication indicator should
be ON if a network device is connected to the private network port or
the public network port.

12
If your PC uses the default Windows XP/2000/Me/98SE setting, no
changes need to be made. Just restart your PC.
If you are running Mac OS 9 or OS X, set your network settings to
DHCP and select Apply.
DSA-3100 will act as a DHCP Server, automatically providing a
suitable IP address (and related information) to each computer
when the computer reboots or when the network settings refresh.
For all non-Server versions of Windows, the default TCP/IP setting
is to act as a DHCP client. In Windows, the setting for this is Obtain an
IP address automatically.
If you are using a fixed IP address on your LAN, or if you want to check
your TCP/IP setting, refer to the Networking Basics section in
this manual.
Configure PCs on your LAN
AfterinstallingtheDSA-3100, each computer’sTCP/IP network settings and Internet
access configuration may need to be re-configured:
TCP/IP network settings

13
Internet Access Configuration
To configure your PCs to use the DSA-3100 for Internet access, follow this
procedure.

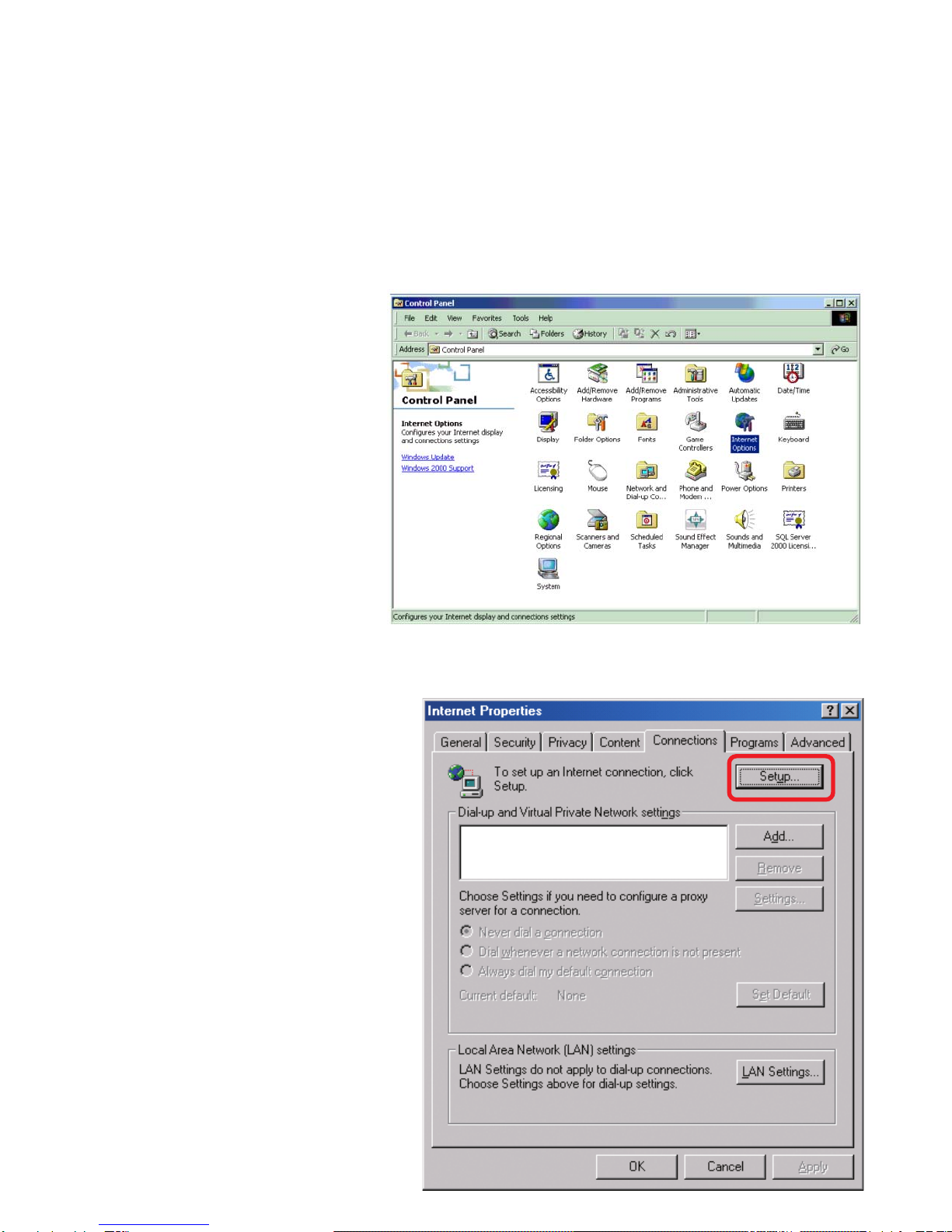

For Windows 98SE/2000
Select the Connection
tab, and click the Setup
button.

Please select Start
Menu - Control Panel -
Internet Options.

14
Internet Access Configuration (continued)
Select “I connect through a local area network (LAN)” and click Next.
Ensure all of the boxes on the local area network Internet configuration
screen are unchecked.
Check No, when promoted “Do you want to set up an Internet mail
account now?”
Click Finish to close the Internet Connection Wizard. Setup is now
completed.
Please select Star Menu - Control Panel - Network and Internet
Connection.
Select the Connection tab, and click the Setup button.
Click Next on the New Connection Wizard screen.
Select Connect to the Internet and click Next.
Select Set up my connection manually and click Next.
Check Connect using a broadband connection this always on and click
Next.
Click Finish to close the New Connection Wizard. Setup is now completed.

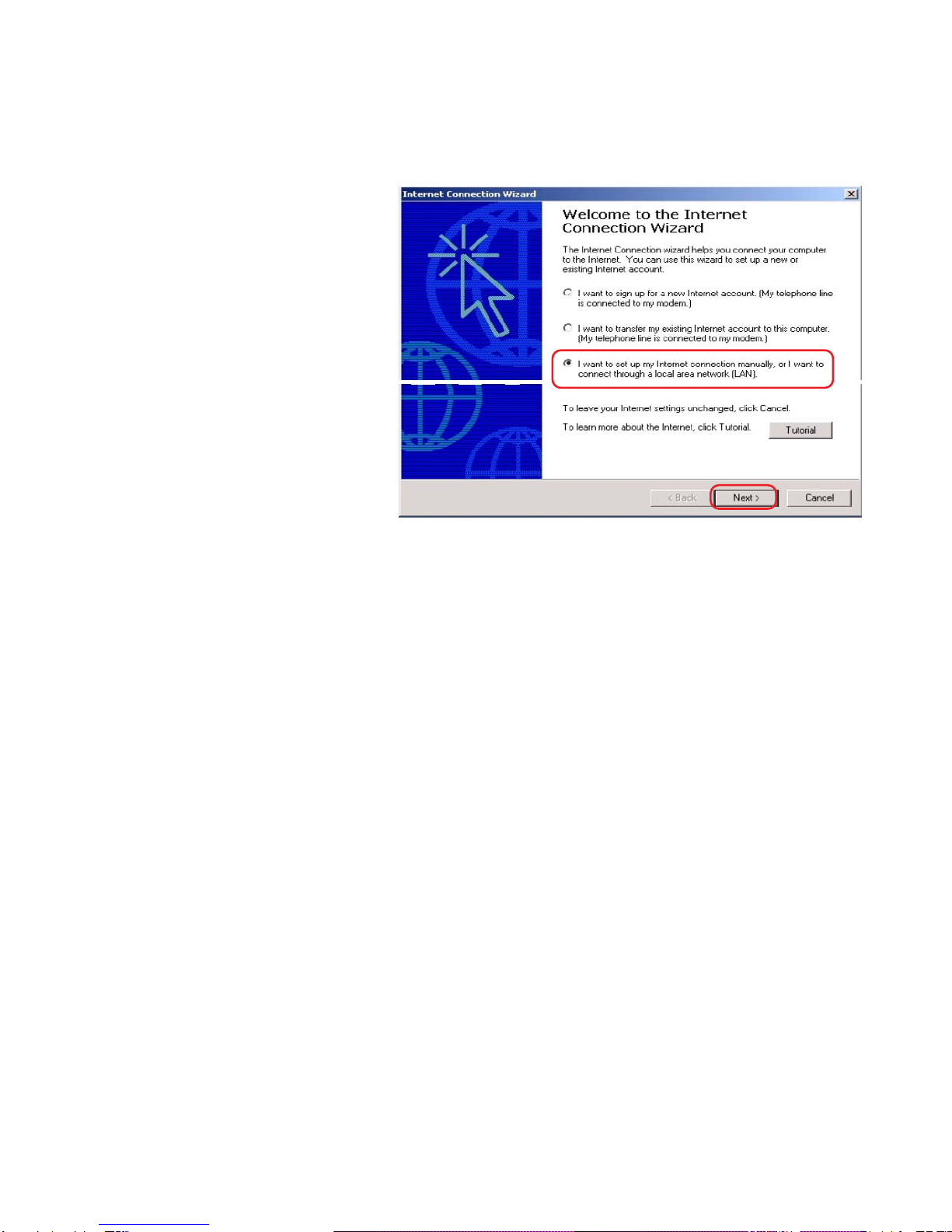

For Windows XP











Select “I want to set
up my Internet
connection manually,
or I want to connect
through a local Area
network (LAN)” and
click Next.



15
Using the Configuration Utility
To configure the DSA-3100, use a computer which is connected to the local network
port of the DSA-3100 with an Ethernet cable.



First, disable the Access the Internet using a proxy server function. To
disable this function, go to Control Panel > Internet Options > Connections
> LAN Settings and uncheck the enable box.

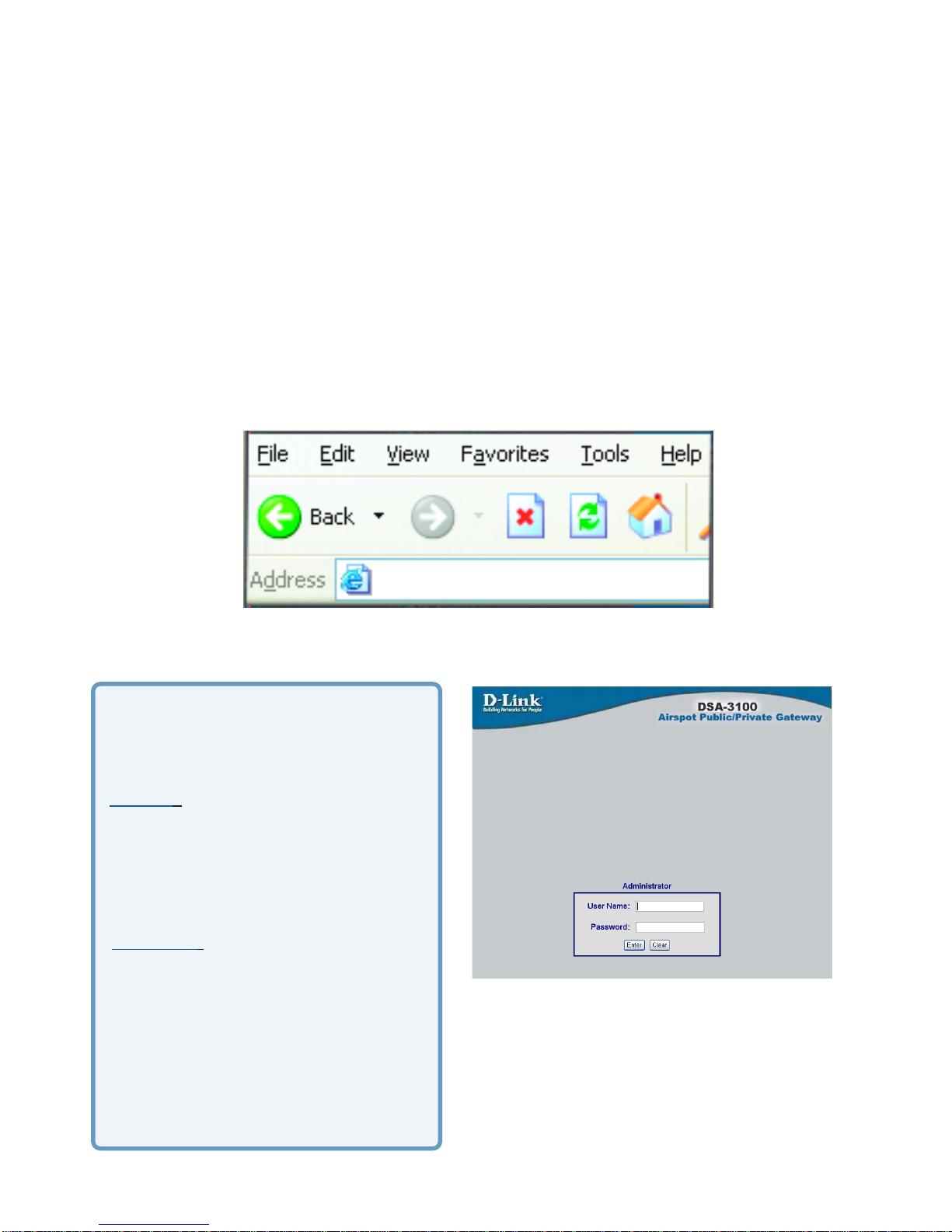

Start your Microsoft Internet Explorer Web browser program.
Type https://192.168.0.40, which is the default IP address of the DSA-3100, in
the address field and press Enter. Make sure that the IP addresses of the
DSA-3100 and your computer are in the same subnet.
https://192.168.0.40
manager - access to the manager
user account only.
User Name: manager
Password: manager
After you log in, click Enter.
User Name: admin
You can log in as admin or as
manager.
admin - the administrator of the
DSA-3100.
Password: admin
Log-in Screen
Login Screen

16

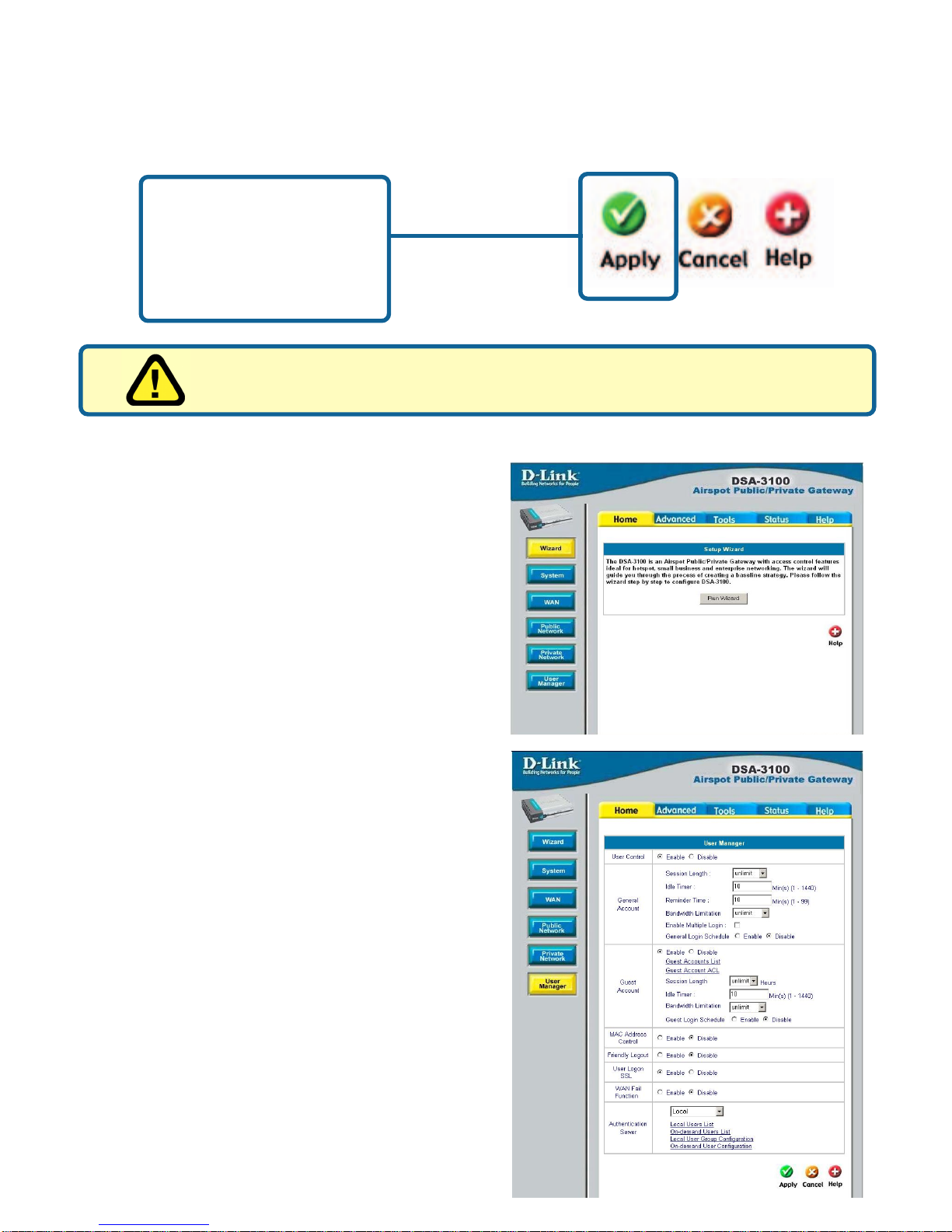

The Home>User Manager screen will ap-
pear if you logged in as a manager. Please
refer to the Quick Installation Guide formore
informationregardingthe SetupWizard.This
screen will be explained in more detail in the
following pages.
Using the Configuration Utility (continued)
Home > User Manager
Home > Wizard
The Home>Wizard screen will appear if you
logged in as an admin. For moreinformation
on the Setup Wizard, please see the Quick
Installation Guide, included with your pur-
chase. You can access the configuration
features from this window.
On the bottom of each configuration screen you will find the buttons shown below.
Restart the DSA-3100 after completing any changes to its
configuration.
Click Apply in each
screen of the
Configuration Utility
in which you have
made changes.

17
Using the Configuration Utility (continued)

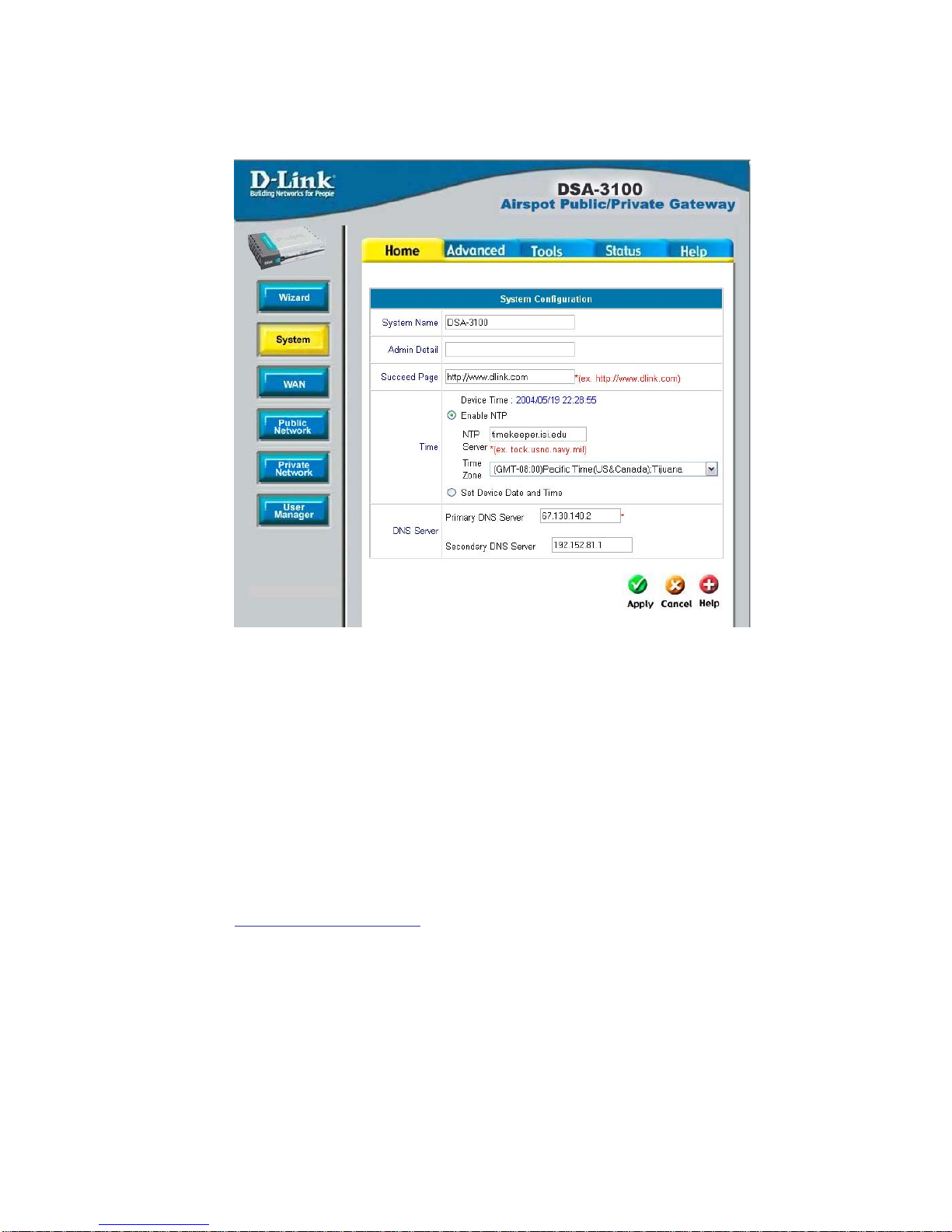

Home > System
DSA-3100 is the default system name. You may wish to rename it to
indicate your company, department, or the service you would like to
provide.
System
Name:
Admin
Detail: You can edit the SystemAdministrator’s information here (e.g., name,
phonenumber, and e-mail). Ifauserencountersa problem connecting
to the WAN Port of the DSA-3100, the system administrator’s
information will be shown on the user login page
Succeed
Page: Enter a URL for all users to be directed to after successful login. This
is typically defined as the home page of the host company, e.g.:
http://www.dlink.com. NomattertowhichURLauser originallyattempts
to connect, he/she will be directed to the URL defined here first.
DNS: Specify DNS servers for the DSA-3100 for the Preferred DNS
(preferred IP address) and Alternate DNS (alternate IP address).
You may use NTP (Network Time Protocol) or you may input the time
yourself. To use NTPplease specify a timeserver’s domain name and
select the time zone.
Time:

18
Using the Configuration Utility (continued)

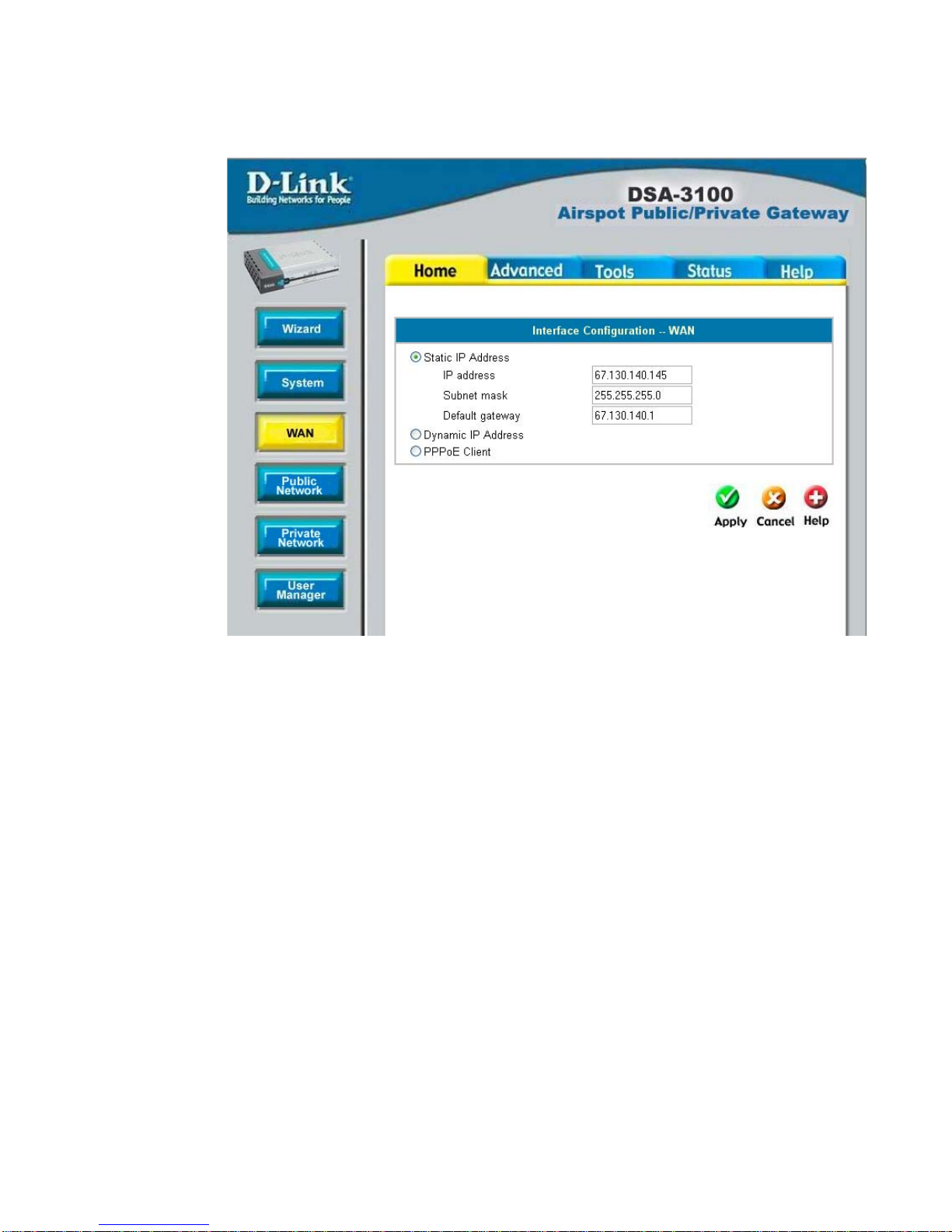

Home > WAN > Static IP Address
Enter the IP address provided to you by your ISP.
IP address:
Enter the subnet mask provided to you by your ISP. All
devices on the network must have the same netmask.
Subnet
mask:
Enter the IP address of the gateway, provided to you
by your ISP.
Default
Gateway:
Static IP
Address:
Dynamic IP
Address:
PPPoE
Client:
Make this selection if there is a DHCP server in the network.
(See the following pages.)
Make this selection if you connect to the Internet using DSL.
(See the following pages.)

19
Using the Configuration Utility (continued)
Home > WAN > Dynamic IP Address
Select this option to
obtain an IP address
automatically from
your ISP.
Enter the user name
and password that is
assigned by your ISP.
User Name &
Password:
Home > WAN > PPPoE
This field is optional.
Dial on demand:
Renew
Click Renew to renew
the IP configuration.
Most DSL users will
select this option.

20
Make this selection if you do not wish to use the built-in DHCP feature
in the DSA-3100.
The DSA-3100 allows the gateway to be set to one of three Authentication modes.
Using the Configuration Utility (continued)

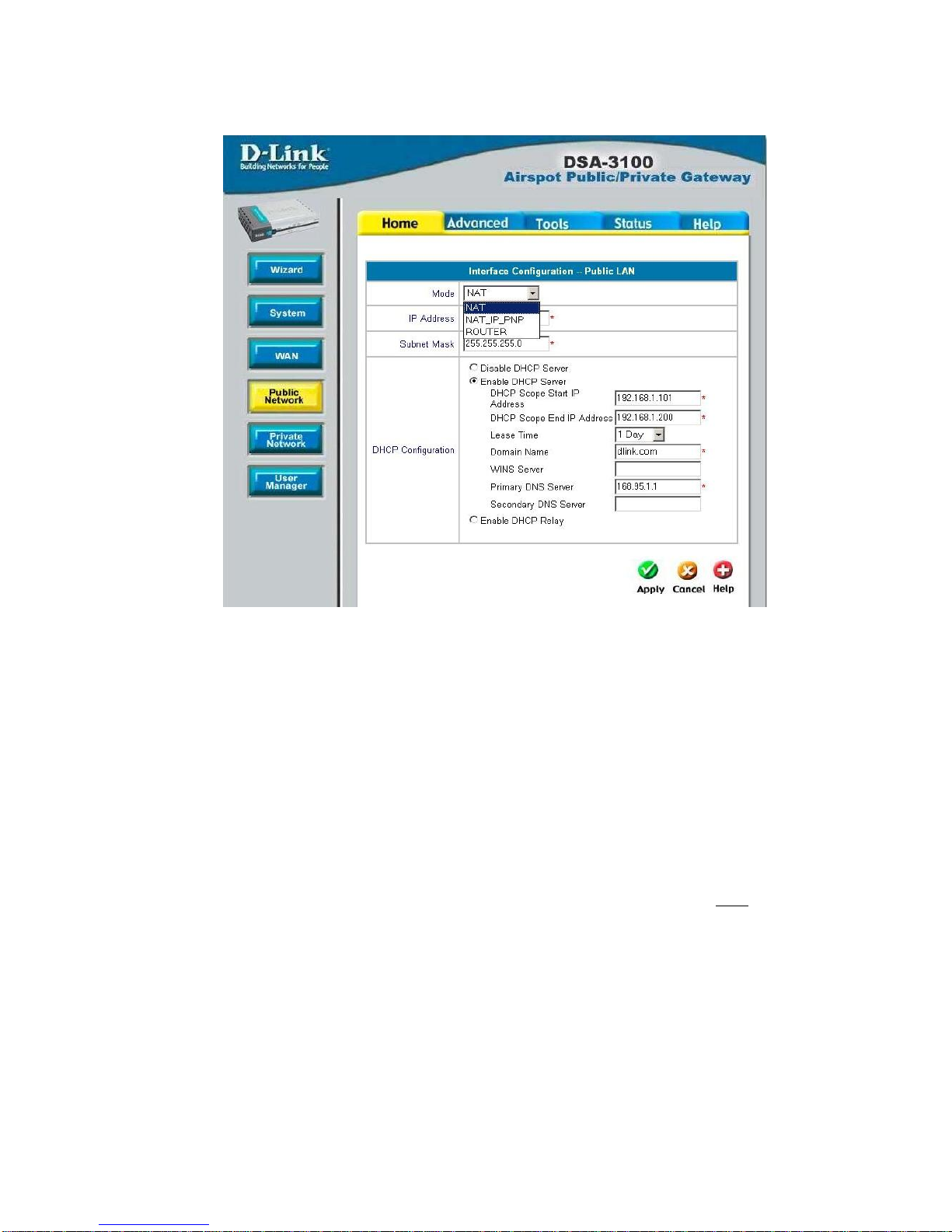

Home > Public Network
Select NAT; NAT_IP_PNP or Router
Mode:
continued -
Enter the IP address for the Authentication interface (the Public
Network).
IP Address:
Disable
DHCP
Server:
Enter the subnet mask for the Authentication interface.
Subnet
Mask:
This mode protects the identity of the devices within
the LAN from those devices outside the network.
NAT:
In this mode, the DSA-3100 will not protect the
identity of the connected devices by translating their
IP addresses and shielding them from detection
outside the LAN.
Router:
All devices, regardless of their IP address, can gain
access to the Internet through the DSA-3100 in this
mode.
NAT_IP_PNP:
