Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
BeforeYouBegin
You will need the following:
•PentiumIII,750MHzorabovebasedcomputerwithaCD-ROMDrive
andaminimumof64MBRAMwithWindows XP, 2000, Me, or 98SE.
•IEEE802.11gwirelessadapterwithanIPaddress.
•WebbrowserwithJavascriptenabled.InternetExplorer5.xorabove,
Netscape6.xorabove,Mozilla1.0orabove, orOpera6.05 orabove.
•ProjectororMonitorwithVGAconnectorandVGAcable.
DPG-2000W
This product contains software
for use with Windows XP, 2000,
Me, and 98SE.
Wireless Presentation
Gateway
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DPG-2000W.03232004
DPG-2000WWirelessPresentation Gateway
InstallationCD(Contains Software,Quick
InstallationGuide,andManual)
802.11g Antenna
AC Power Adapter
Using a power supply
with a different voltage
rating will damage this
productandvoidthewarranty.

2
Connections and LEDs
Front Panel
Rear Panel
Power LED: Lights solid green
whenconnectedtoapowersource.
Wireless LED:During boot-upthis
LEDwillremain unlit.While waiting
for a connection the LED blinks
amber rapidly. A solid green light
indicates a connection with a PC
hasbeen established.
AntennaConnector:The802.11g
antennaattaches here.
Projector / Monitor: Connects to
amonitororprojector’sVGAcable.
Reset button: Restores factory
defaultsettings.
Power Connector: The power
adapterattacheshere.

3

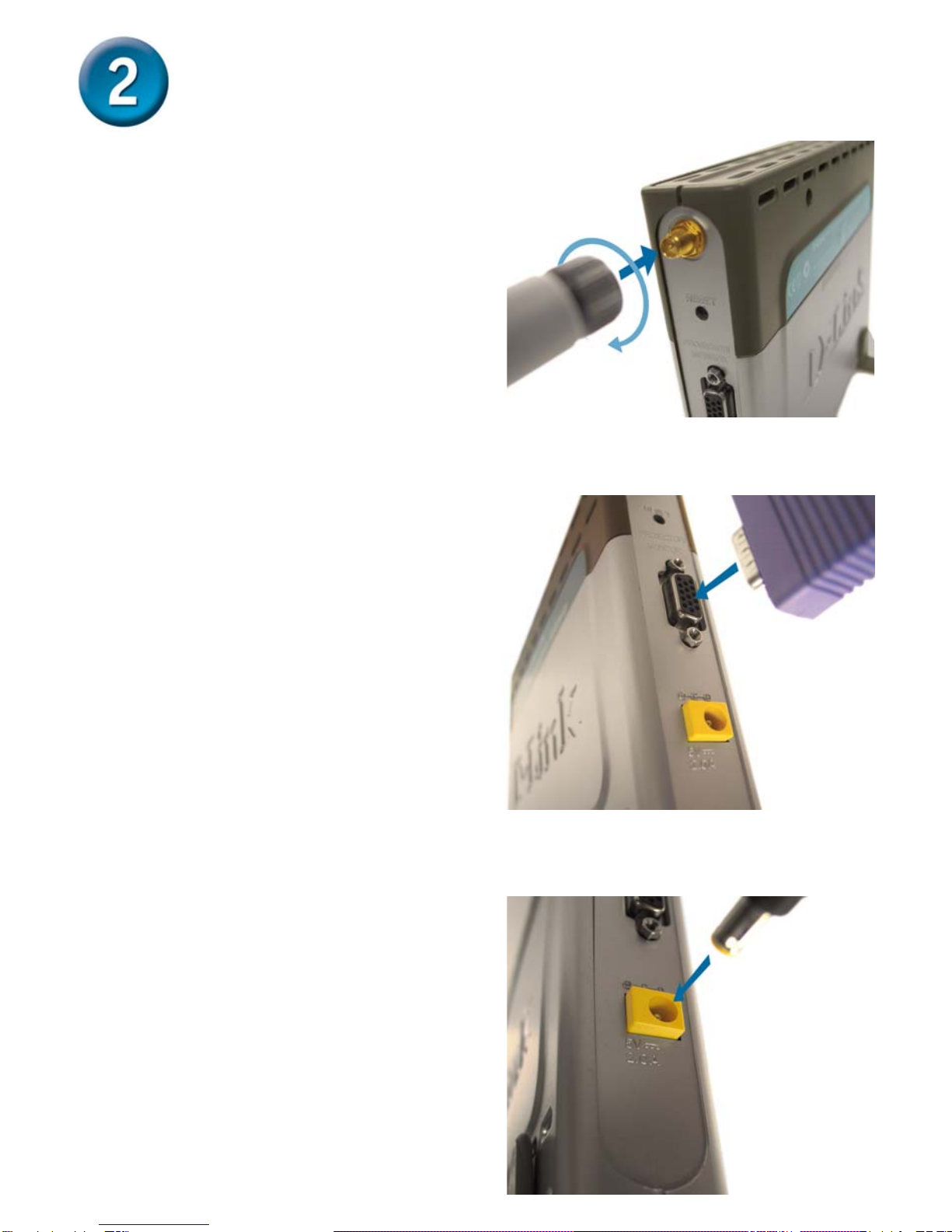

Connecting the DPG-2000W
Connect the DPG-2000W to a monitor
or projector
Connect a standard VGA monitor cable
tothe 15pinconnector labeledProjector/
Monitoron therear panel.
Attach the External Power Supply
Attach the external power adapter to the
powerconnectorlocatedontherearpanel
andplugthepoweradaptertoanACpower
outlet.
Attach the 802.11gAntenna
Attachthe802.11gantennatotheantenna
connector on the rear panel. Secure the
antenna in place by rotating the knob at
thebaseoftheantennaclockwise.Besure
the antenna is secure and in an upright
position.

4
Establishing a Wireless Link with the
DPG-2000W
Each wireless network adapter
manufacturer provides their own
wirelessconfigurationutility.Launch
theappropriate utilityand configure
the adapter with the following
settings:
•Infrastructuremode
•TheSSID displayedon the
DPG-2000Wbannerpage.

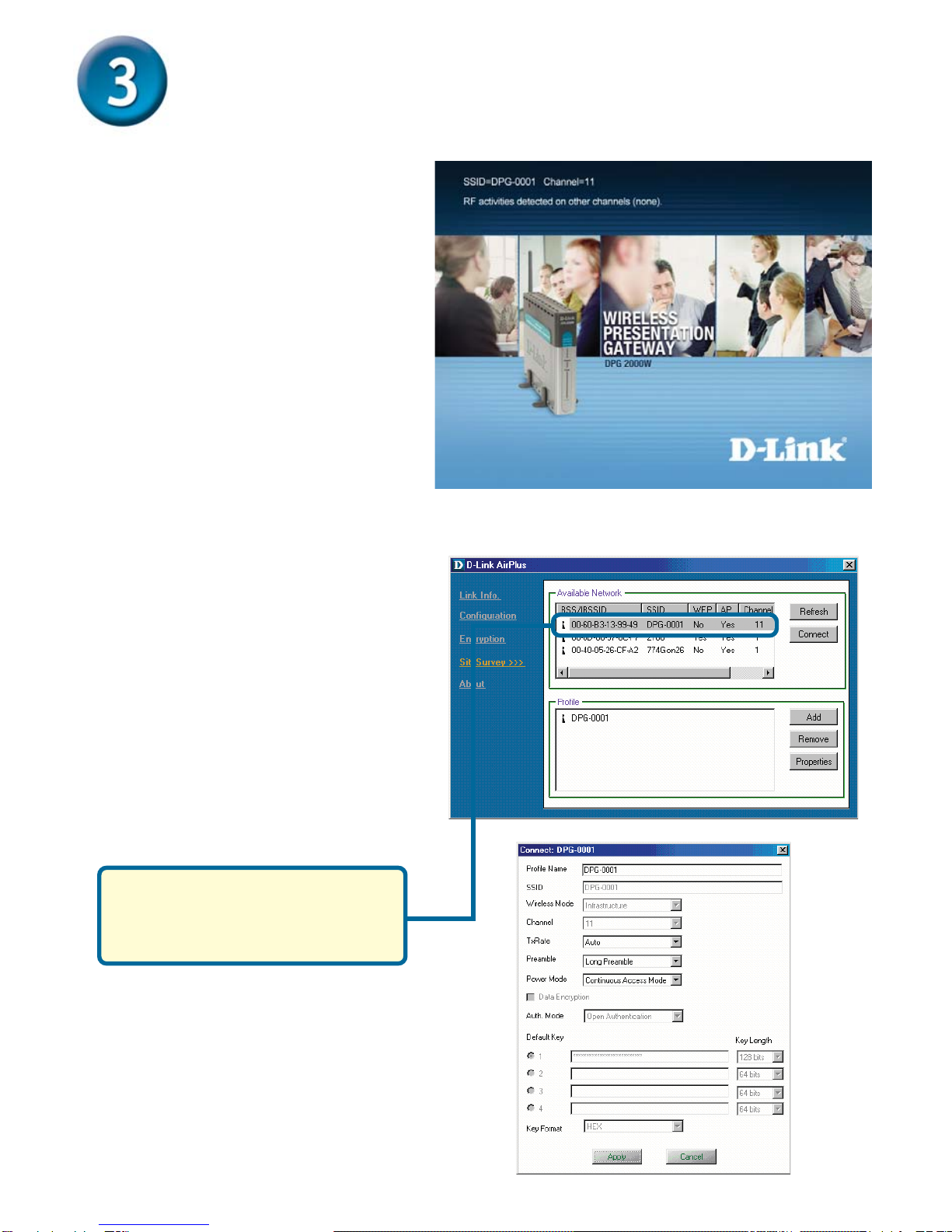

Wireless Utility Configuration
WhentheDPG-2000Wisconnected
to a monitor or projector and fully
booted,abannerscreenwillappear.
The SSID and channel information
are displayed at the top of the
screen.
Select the SSID matching the
DPG-2000W’s SSID displayed
onthe bannerscreen.

5
Installing the Presentation Session
Manager (PSM) Software

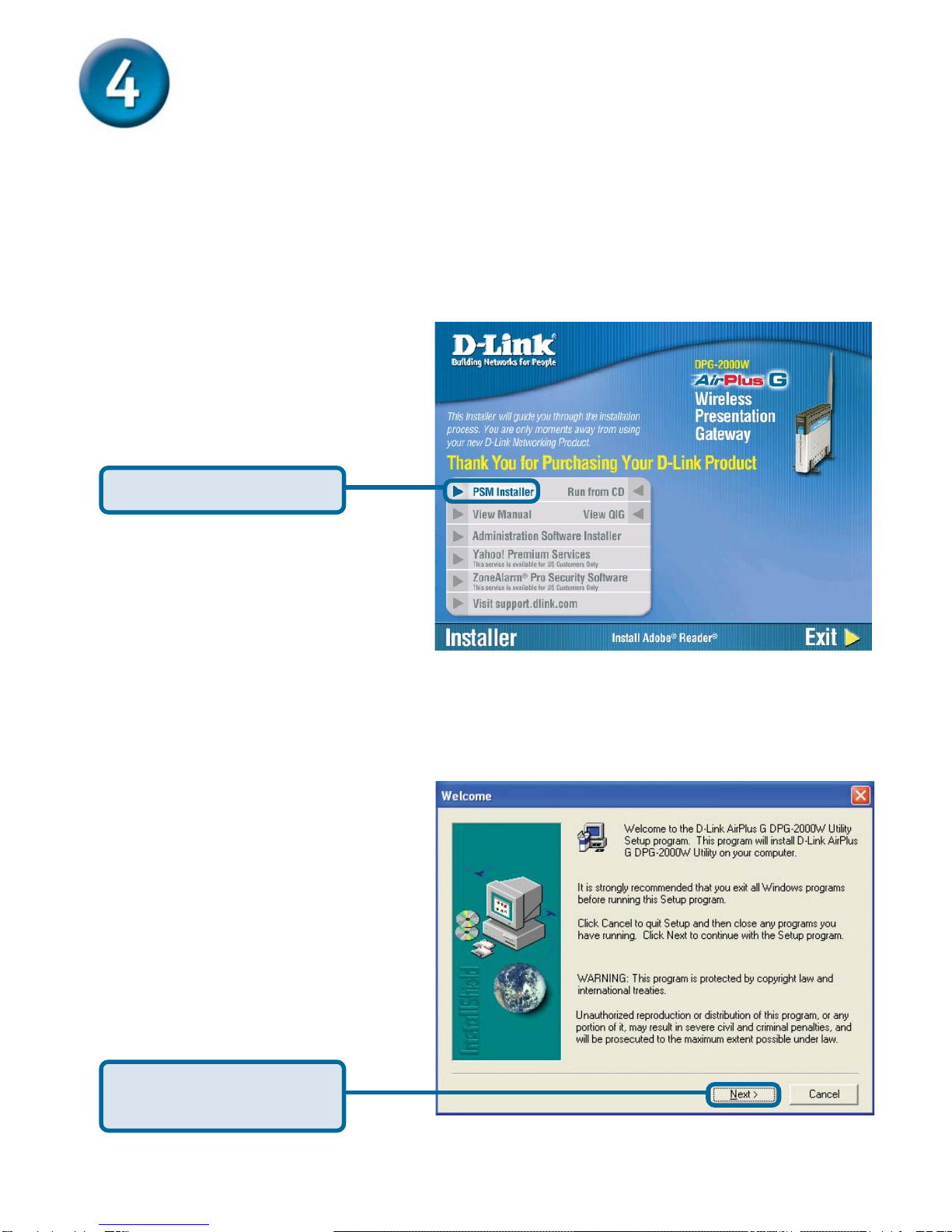

InserttheDPG-2000WCDintothe
CD-ROM drive and the following
screenwillappear.
Click on PSM Installer.
Click Next to begin the
softwareinstallation.
ThePSM software canbe installed onyour computeror run directlyfrom the CD-ROM.
Toinstallthe PresentationSessionManagersoftwareonyoursystem, followthescreens
inthissection. Ifyouwishto runthePresentation SessionManagerdirectly fromtheCD-
ROM, click on the Run from CD option and proceed to page 8.

6

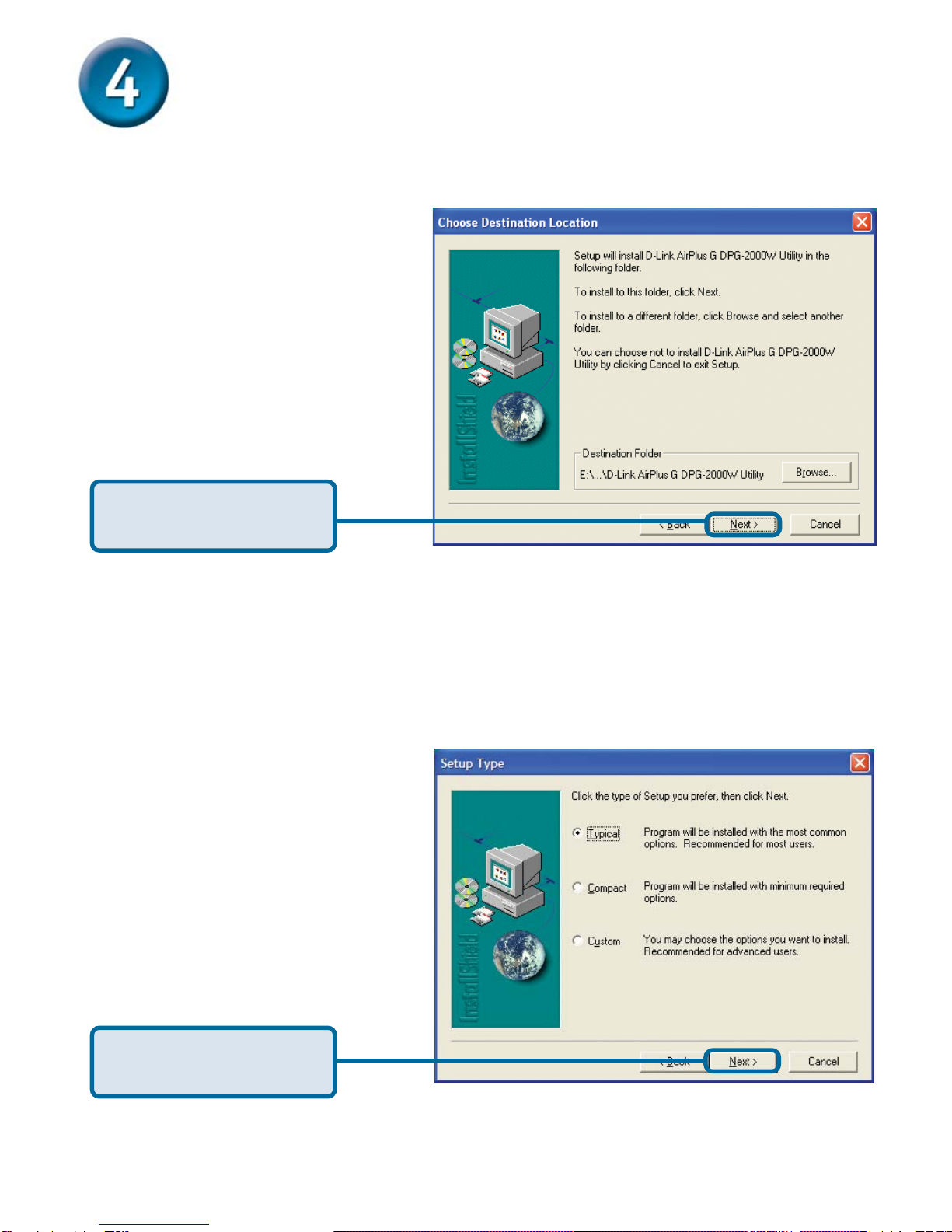

Installing the Presentation Session
Manager (PSM) Software (continued)
Click Next to proceed
with the Typical install.
Click Next to use the
defaultdestinationfolder.

7

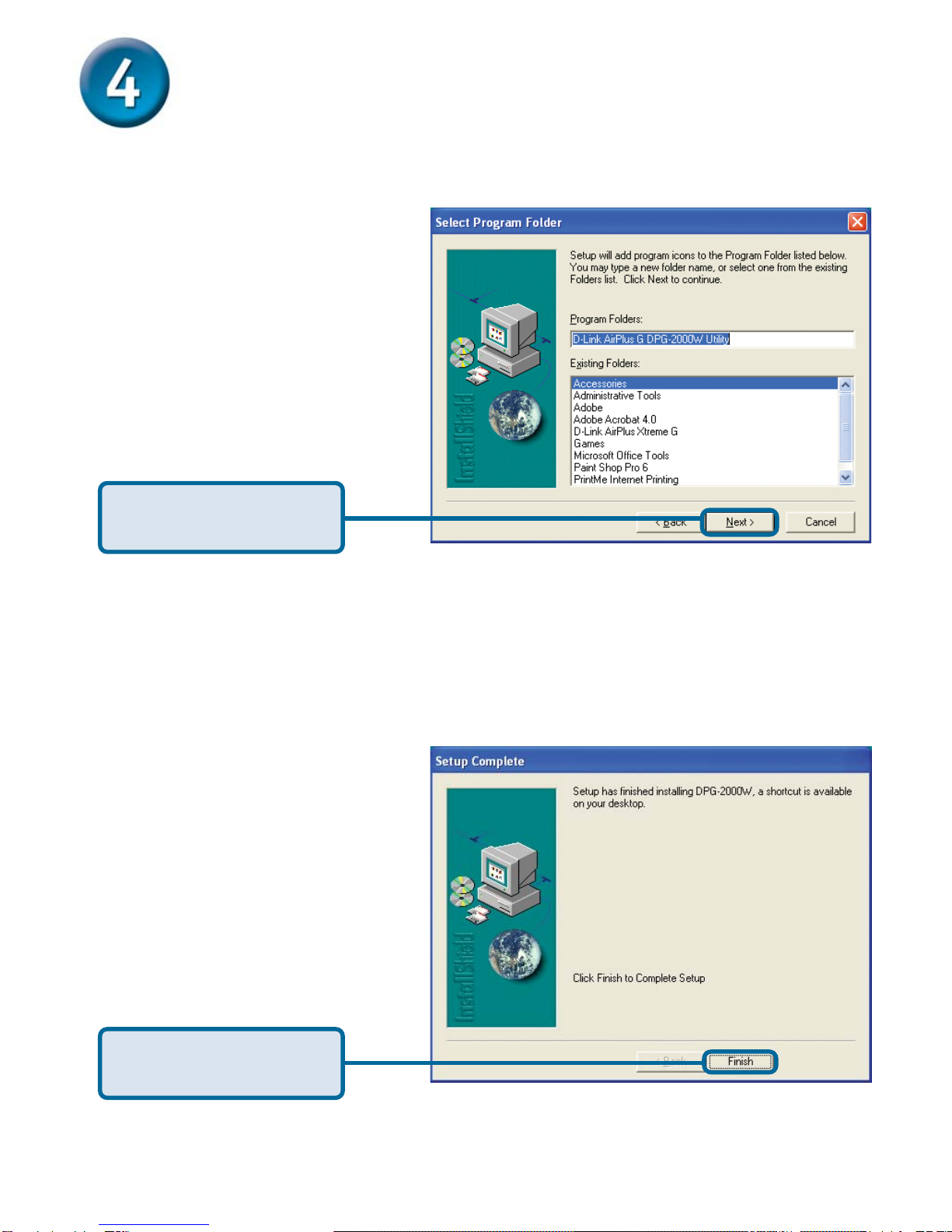

Click Next to use the
defaultprogramfolder.
Click Finish to complete
the installation.
Installing the Presentation Session
Manager (PSM) Software (continued)

8
Launching the Presentation Session
Manager (PSM) Software
Click OK toproceed.
BeforeStartingthe PresentationSessionManager,your system must
have a valid IP address.

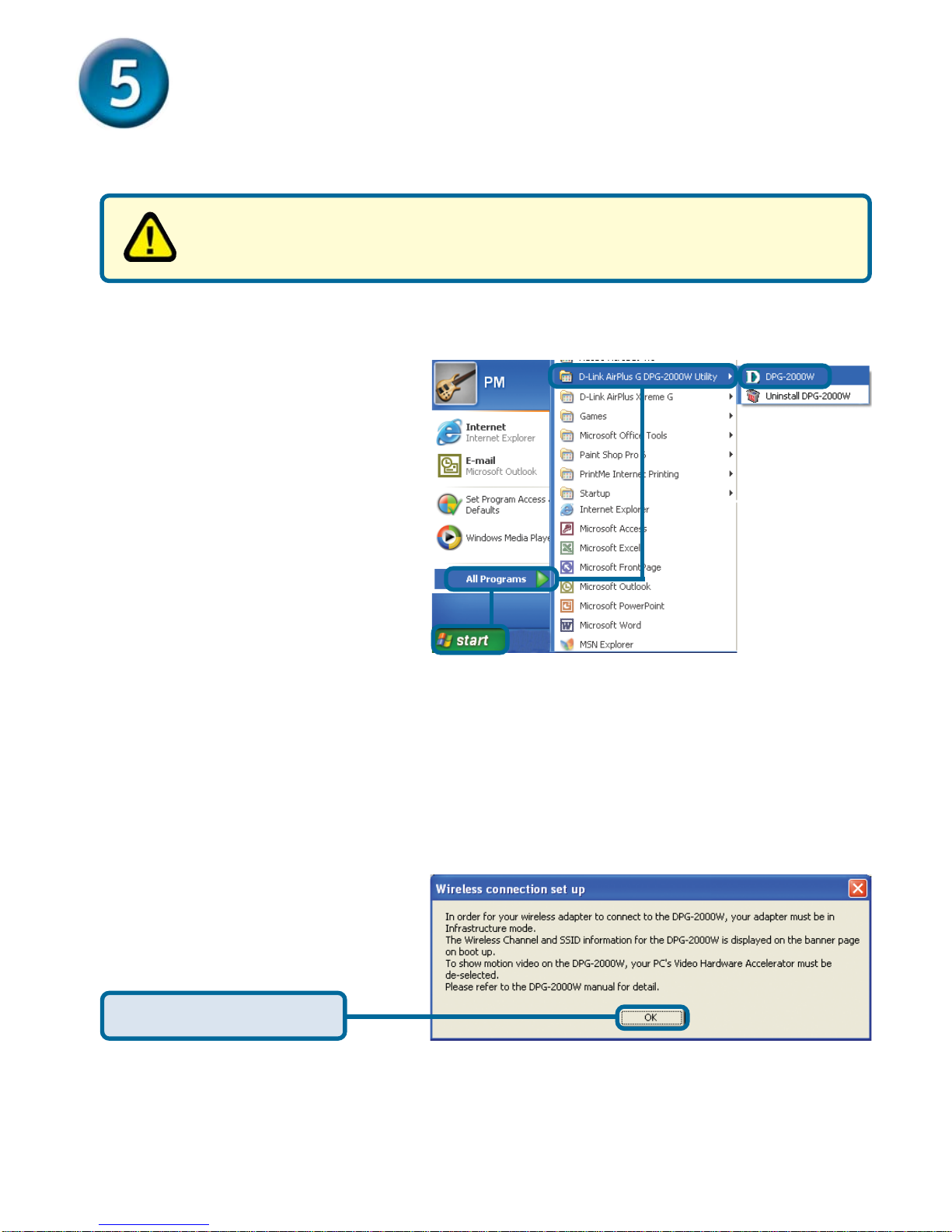

IfyouinstalledthePSMsoftware
on your computer, Go to:
Start > Programs > D-Link Air
Plus G DPG-2000W Utility >
DPG2000W to launch the PSM.

9
Launching the Presentation Session
Manager (PSM) Software (continued)
Note: The PSM window must
remainopenbutcanbeminimized.

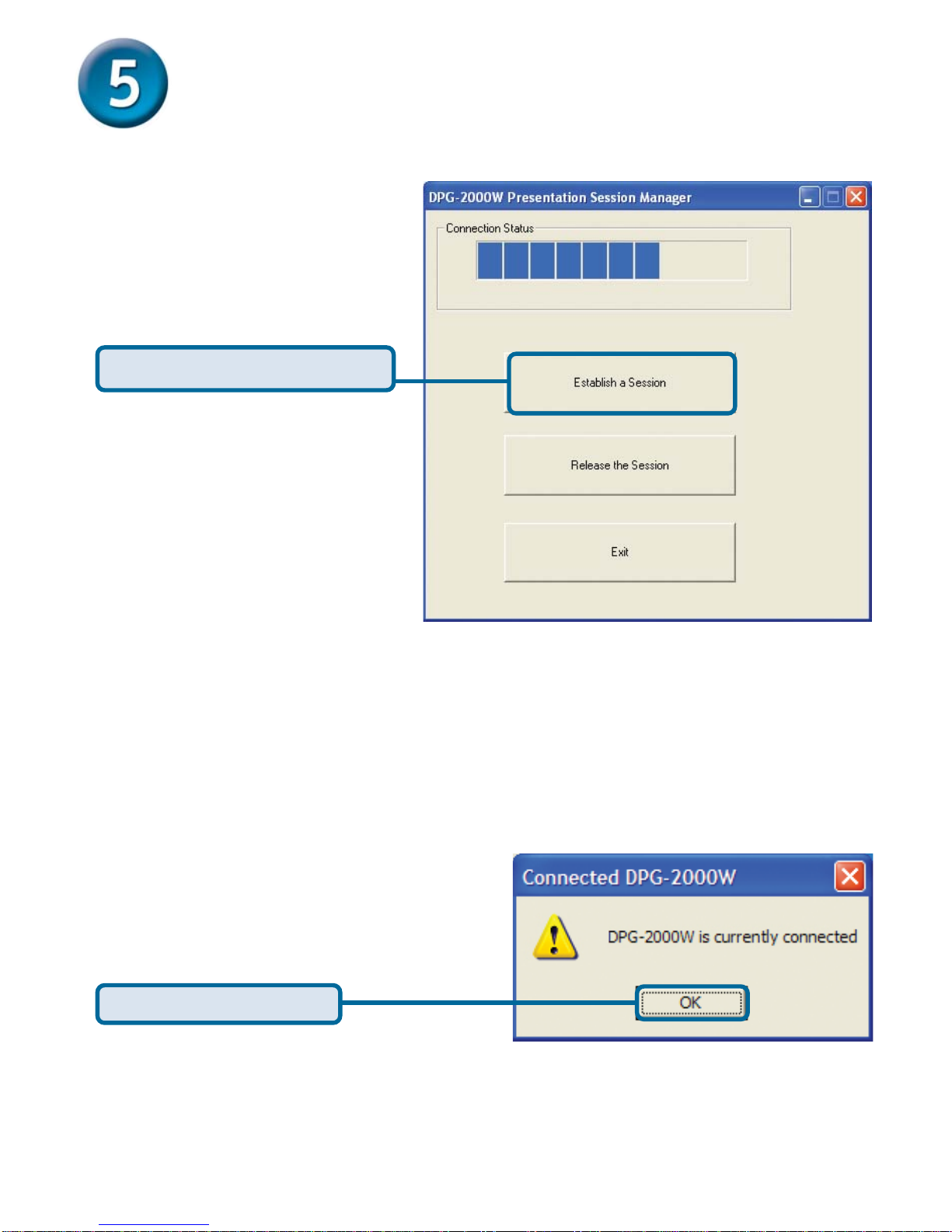

ClicktoEstablishaSession.
ClickOK
You should now be connected to the DPG-2000W. To install the administration software
andforadditionalinstallationandtroubleshooting information,pleasereferto theTechnical
Manualonthe CD-ROM.

10
Troubleshooting
If you are unable to connect or establish a session with the DPG-2000W.
•Verifythe SSIDofthe wirelessadaptermatches theSSIDof theDPG-2000W
displayed on the banner page on boot up.
•Ensurethecomputer’swirelessnetworkadapter is setfor Infrastructure mode.
•Ifthe DPG-2000W’sdefault encryptionsettings weremodified, verify thatthe
computer is using the same encryption settings.
•Try disconnecting power to the unit and then reconnecting it.
•Some DHCP-enabled wireless network adapters may take a while to obtain
a valid OS-assigned IP address. To verify whether a valid IP address has
been assigned:
In Windows 2000 and XP, go to Start > Programs >Accessories > Command
Prompt and at thecommand prompt type in ipconfig and hit enter.
In Windows 98SE and Me, go to Start > Run and type in winipcfg and click
ok.
Makesure thewireless network adapterconnecting tothe DPG-2000W does
notshow anIP addressof0.0.0.0. Ifso, tryreleasing the IPaddress andthen
renewing it. If the IP address remains 0.0.0.0, it may be necessary to assign
your wireless network adapter a static IP address. Please check with your
network administrator to assign the appropriate wireless settings.
•With certain brands of 802.11g cards, it might take a bit longer to link with
the DPG-2000W than with other brands of wireless cards. The reason for
this is that the drivers and features set of each brand might cause the link up
time between the DPG-2000W and the computer to take longer. Retry
establishing a session with the DPG-2000W using the PSM.
For more troubleshooting information, please refer to the Technical Manual on
the CD-ROM.
