D-Link MediaLounge DSM-320RD User manual

Ver
Version 1.3

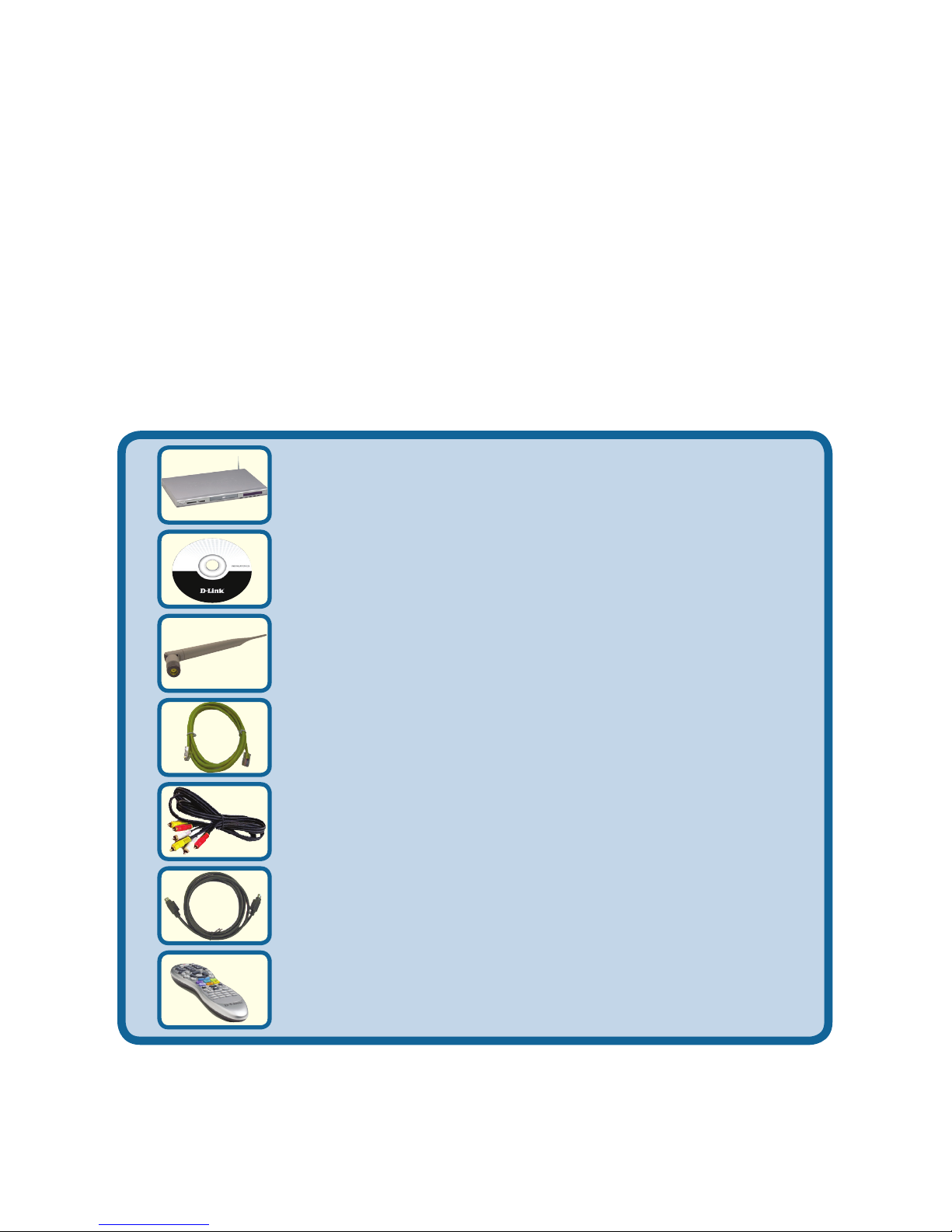

Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
Before You Begin
You will need the following:
• Windows®XP or 2000, 1GHz or above based computer with a minimum of 512MB
RAM, a CD-ROM drive, 100MB of available hard drive space and a wireless or
Ethernet network.
©2006 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their
respective holders. Software and specifications subject to change without notice. DSM-320RD.01102006
DSM-320RD Wireless Media Player with DVD
and Card Reader
Installation CD (Contains D-Link®Media Server
Software, Quick Installation Guide, and Manual)
Antenna
Ethernet (CAT 5 UTP/Straight Through) Cable
Standard Composite RCA Audio/Video Cable
Remote Control with 2 AAA Batteries
S-Video Cable
Patent Pending

3

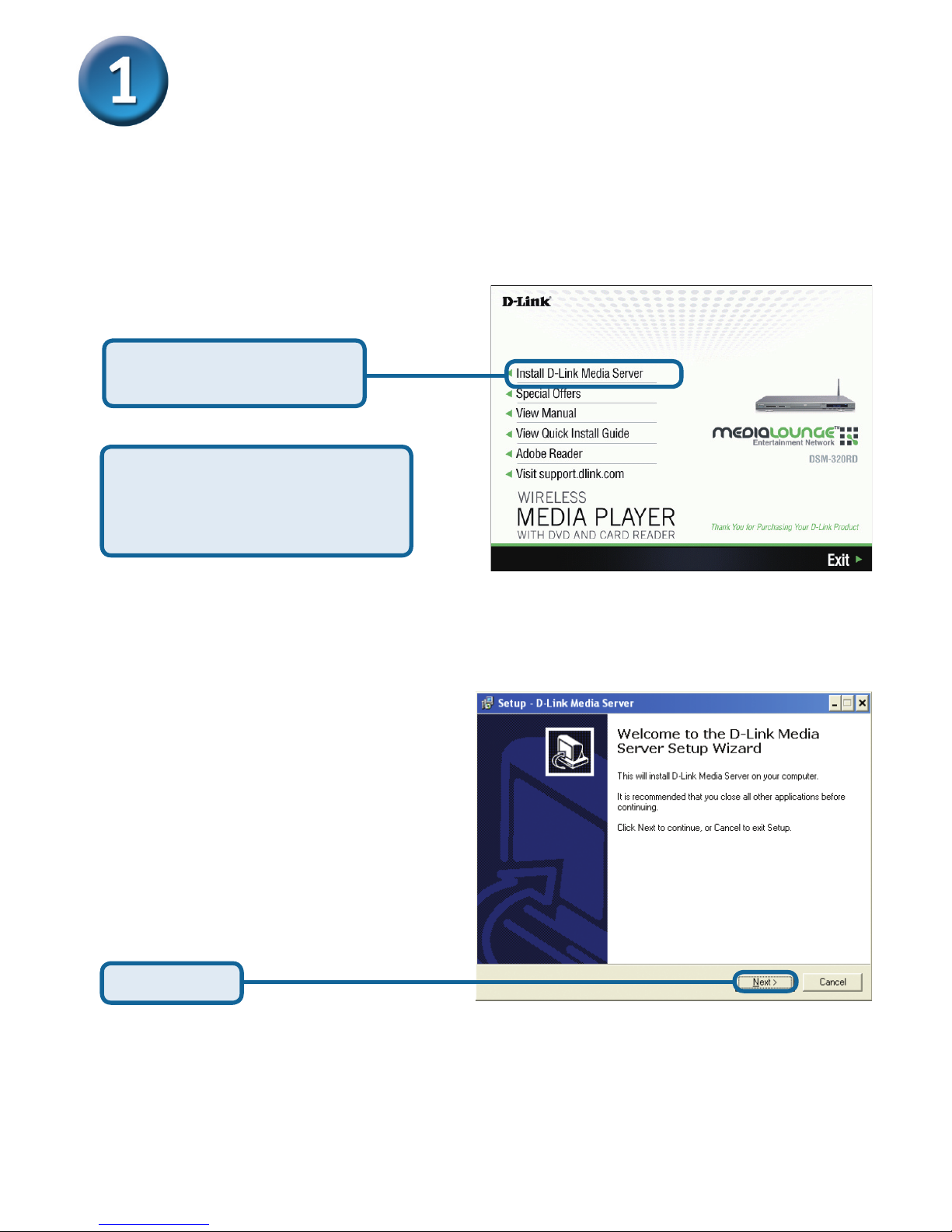

Installing the D-Link®Media Server
Software
Install the D-Link®Media Server Software on each PC that contains audio, video, or
photo les you wish to use with the DSM-320RD.
Follow the steps in this section to install the software.
Insert the DSM-320RD CD-ROM
into the CD-ROM drive and the
following screen will appear.
The D-Link®Media Server
Setup Wizard will appear.
Click Next
Click on Install D-Link®
Media Server
If the screen on the right does not
appear, go to My Computer and
double-click on the CD-ROM drive.
The screen at right will appear.

4

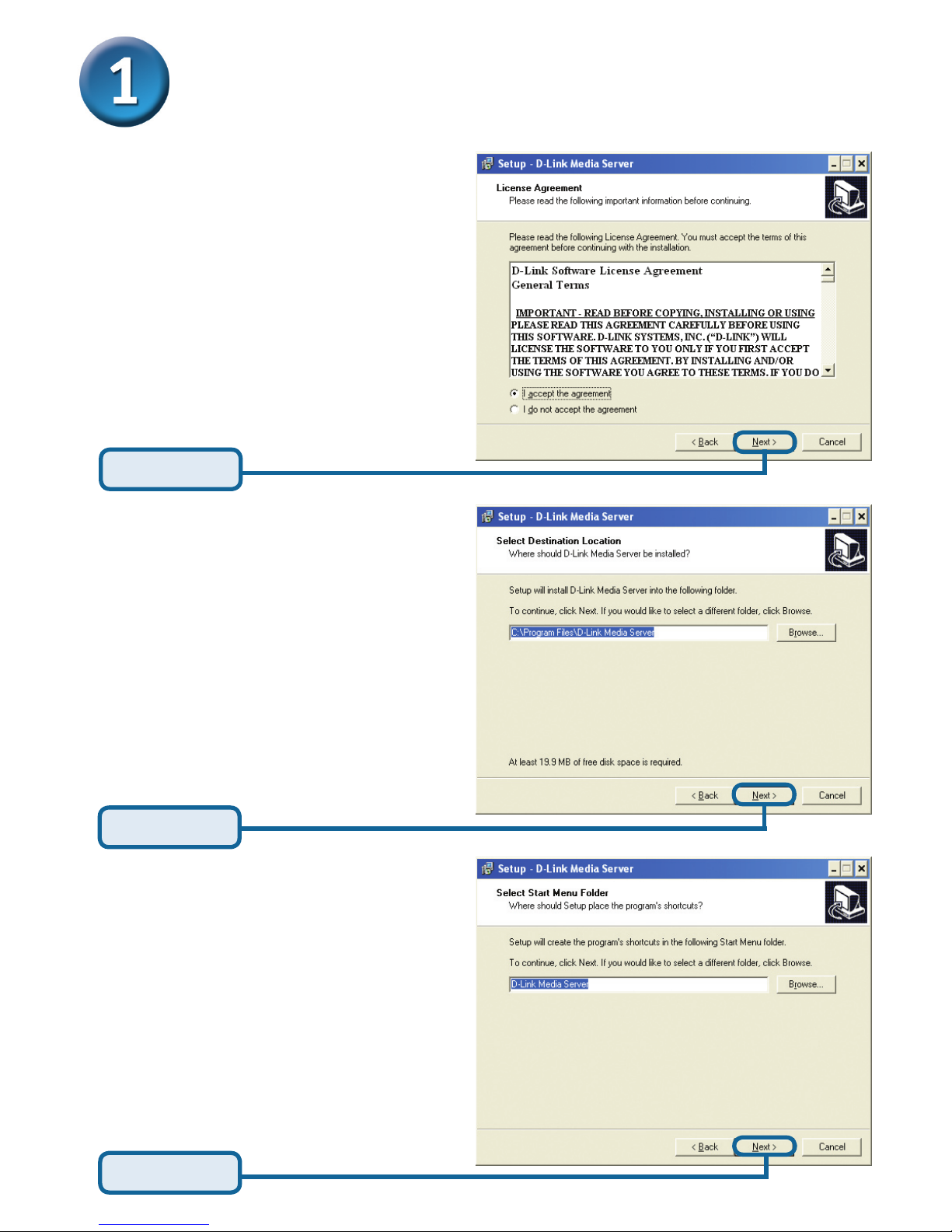

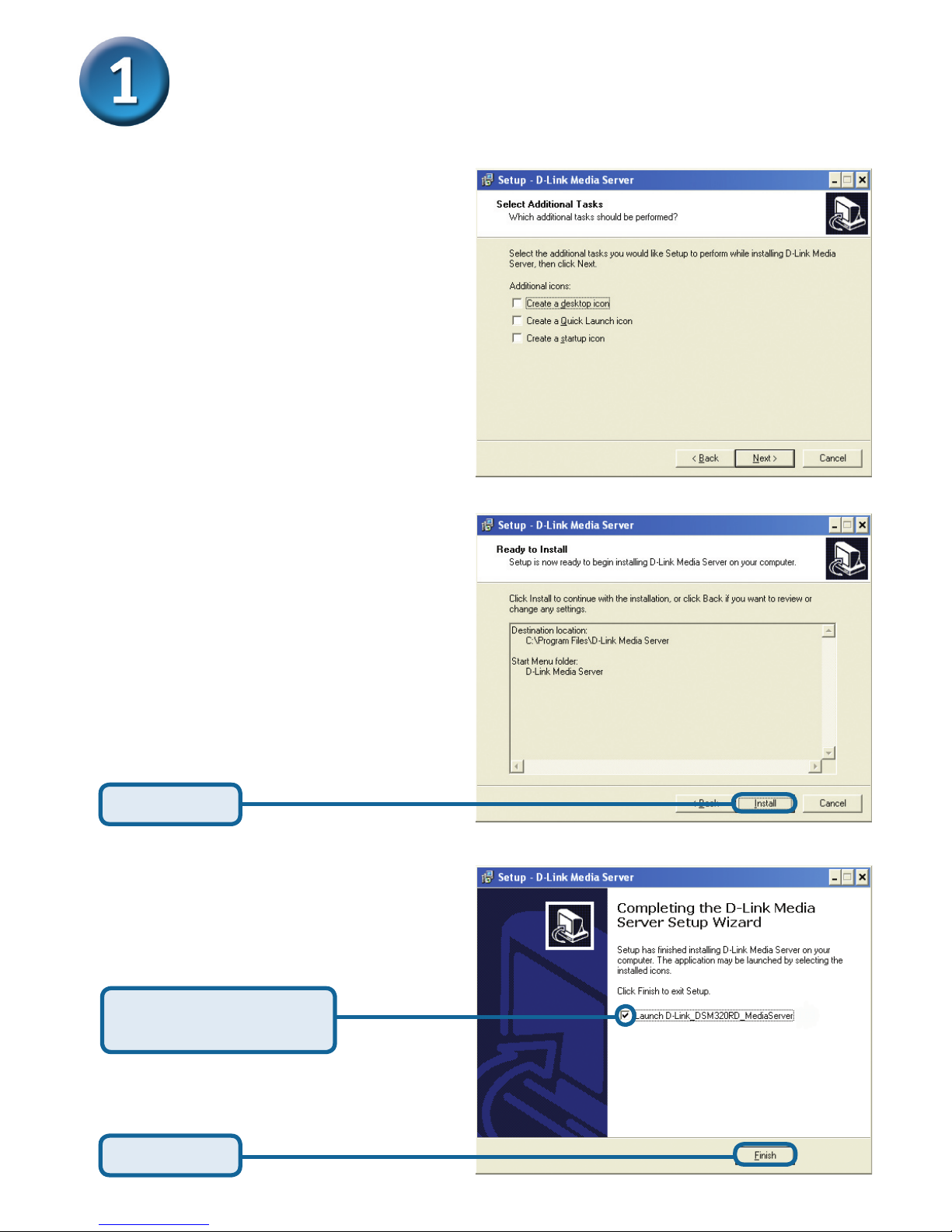

Installing the D-Link®Media Server
Software (continued)
The D-Link license agreement
screen appears.
Choose a Destination location
or accept the default location.
This is where the D-Link Media
Server software will be copied
to on your system.
Click Next
Click Next
Click Next
Choose a start menu folder or
accept the default location.

5
Check Launch D-Link
®Media Server
Installing the D-Link®Media Server
Software (continued)
The necessary software will be
copied to the specied locations
on your computer.
Click Install
Click Finish
Select the icons you want created.
Select Create a desktop icon
to access the program from your
desktop.
Select Create a Quick Launch
icon to access the program from
your taskbar.
Select Create a startup icon so
the program launches on startup.

6

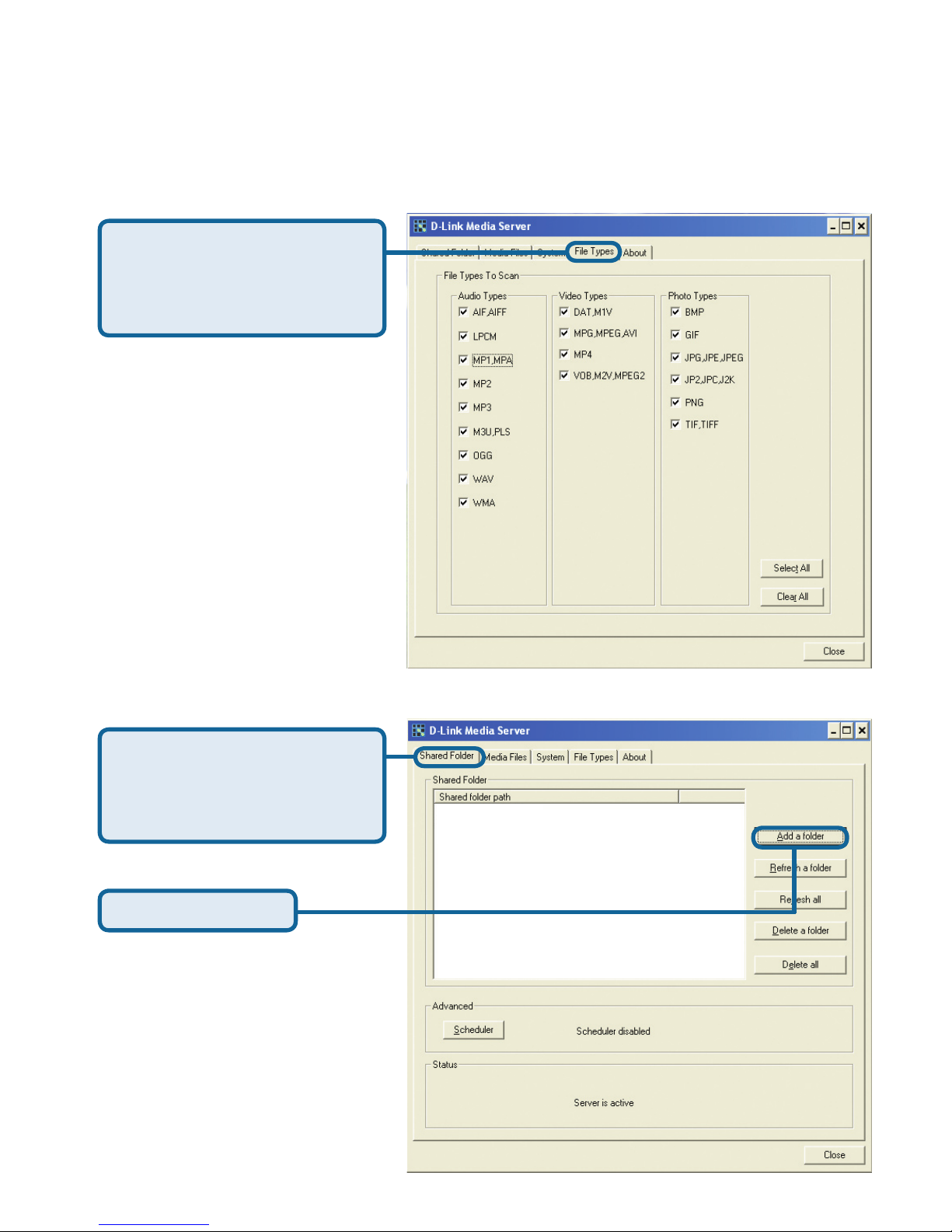

Conguring the D-Link®Media Server
Software
The File Types tab is where
you select the types of audio,
video, and photo files that
you want to share.
If you checked the Launch D-Link Media Server check box, the following screens
will be displayed.
The Shared Folders tab is
where you select the folders
that contain your audio,
video, and photo les.
Click Add a folder

7

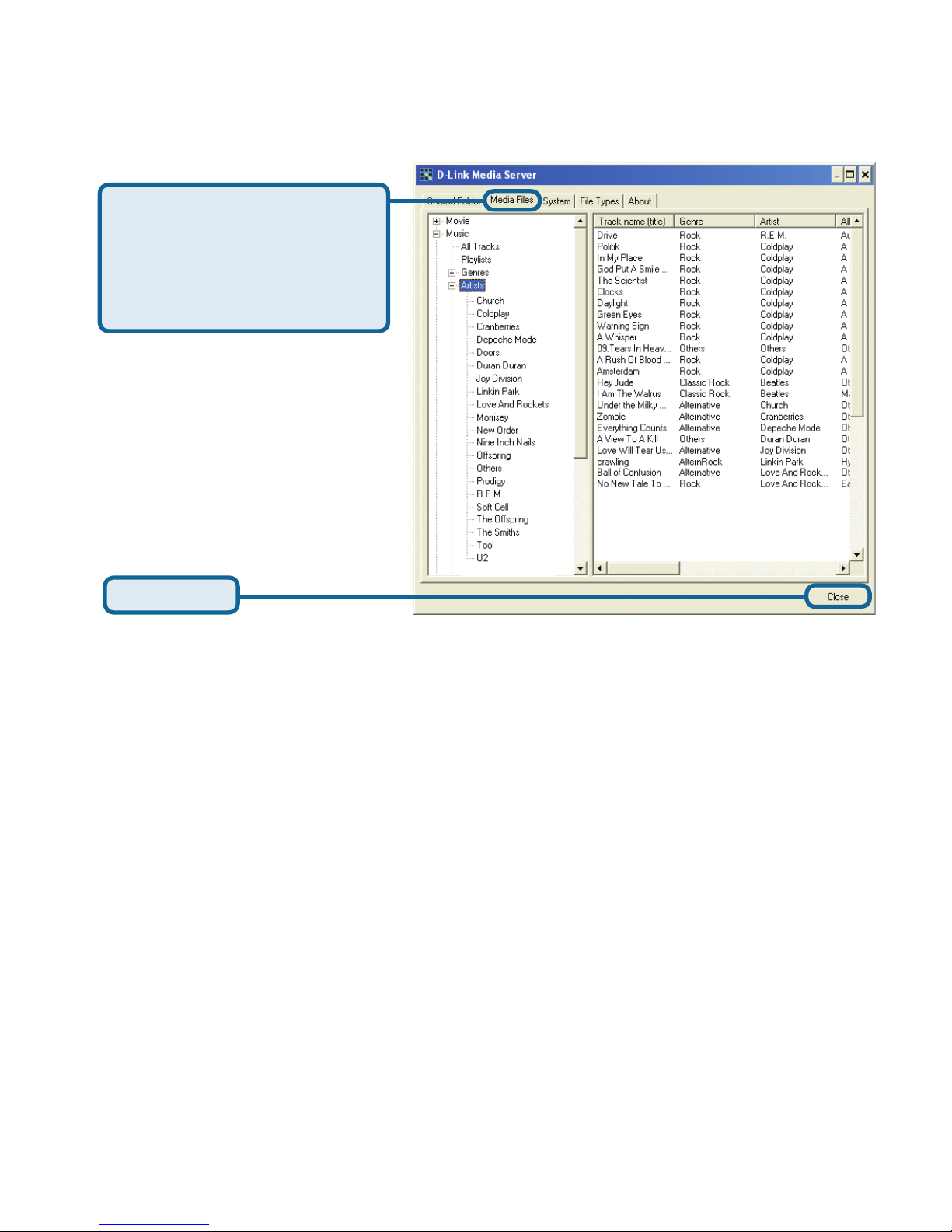

Conguring the D-Link®Media Server
Software (continued)
Repeat the steps until all of
the folders containing audio,
video, and photos you want to
share have been added.

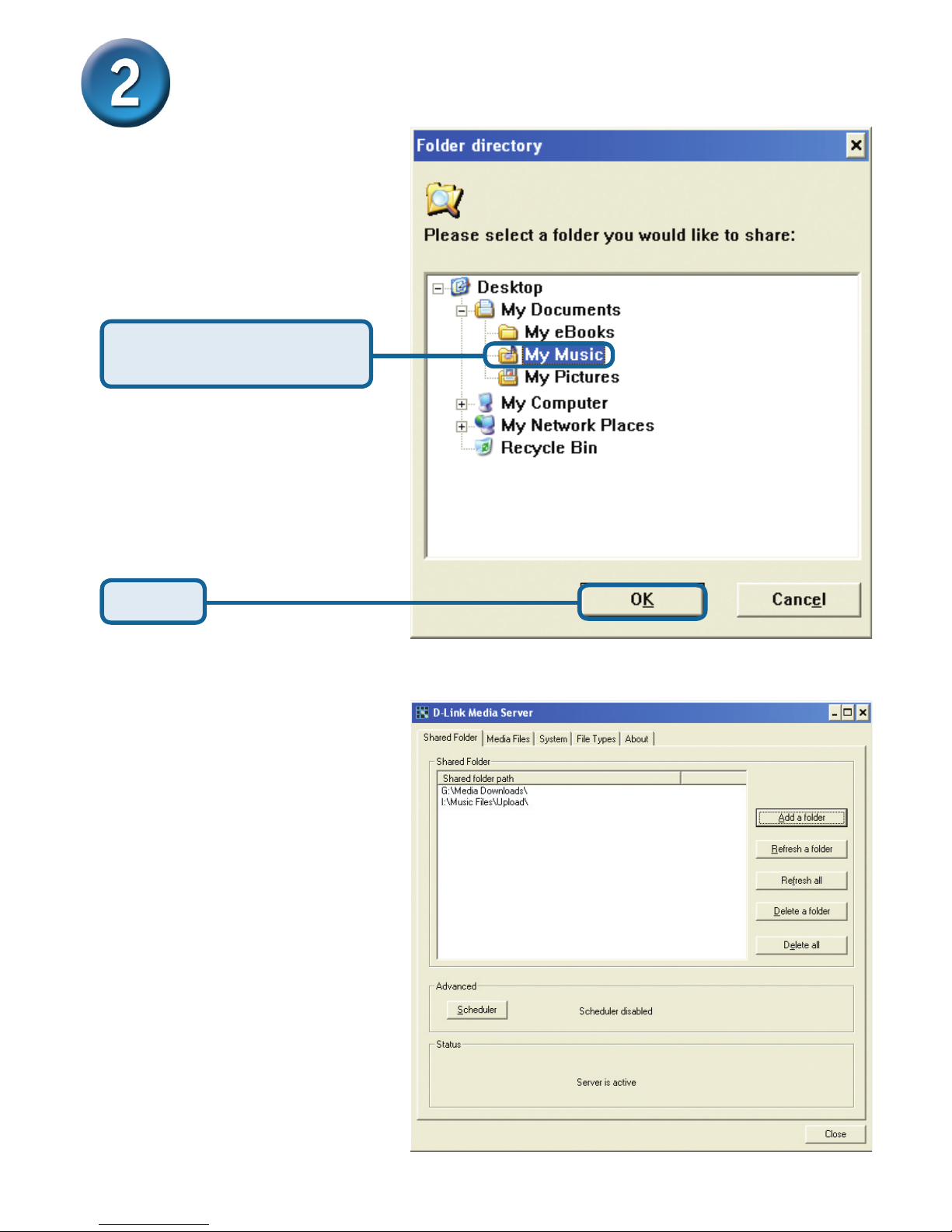

Select the folder containing
the les you wish to share.
Click OK

8
Conguring the D-Link®Media Server
Software (continued)
The Media Files tab will
show all your audio, video,
and photo files as well
as display important file
information.
Click Close

9
Connecting the DSM-320RD

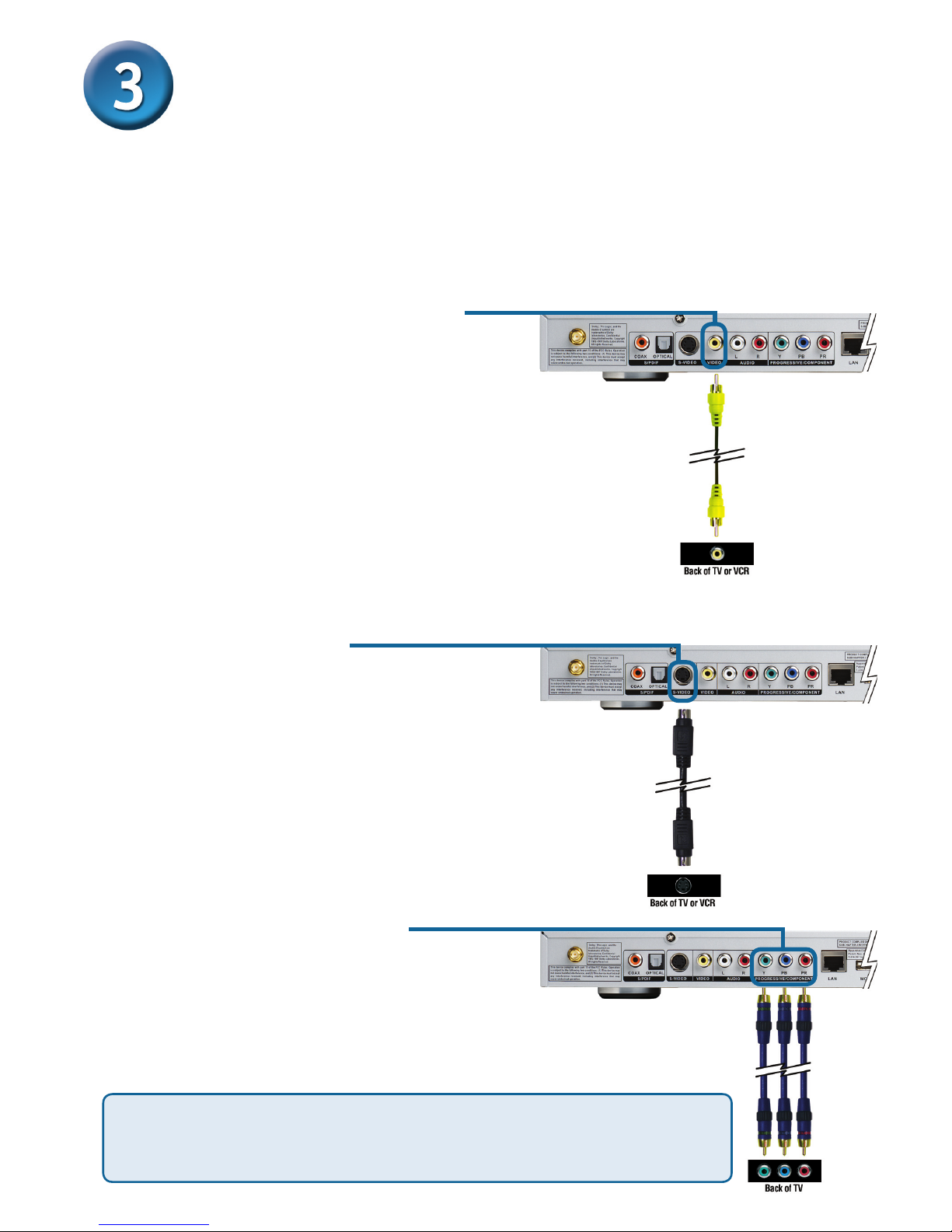

Select one of three ways to connect video to your DSM-320RD:
All audio, video, and networking connections are located on the rear panel of the
DSM-320RD.
The VIDEO OUT button on the remote control toggles between the
composite/S-Video output and the component output. If component
connectors are used but not selected, the screen will be tinted blue.
• Composite Video Connector
Plug the supplied yellow video cable
into the DSM-320RD and the matching
opposite end of the cable to your
television input.
• S-Video Connector
Plug the supplied S-Video cable
into the S-Video connector and
the opposite end into the S-Video
connector on your television.
• Component Connectors
Match the color coded cables to the
matching connectors on the DSM-
320RD and into the component video
input of your television.
Note: This cable is not supplied.
Video Connections

10

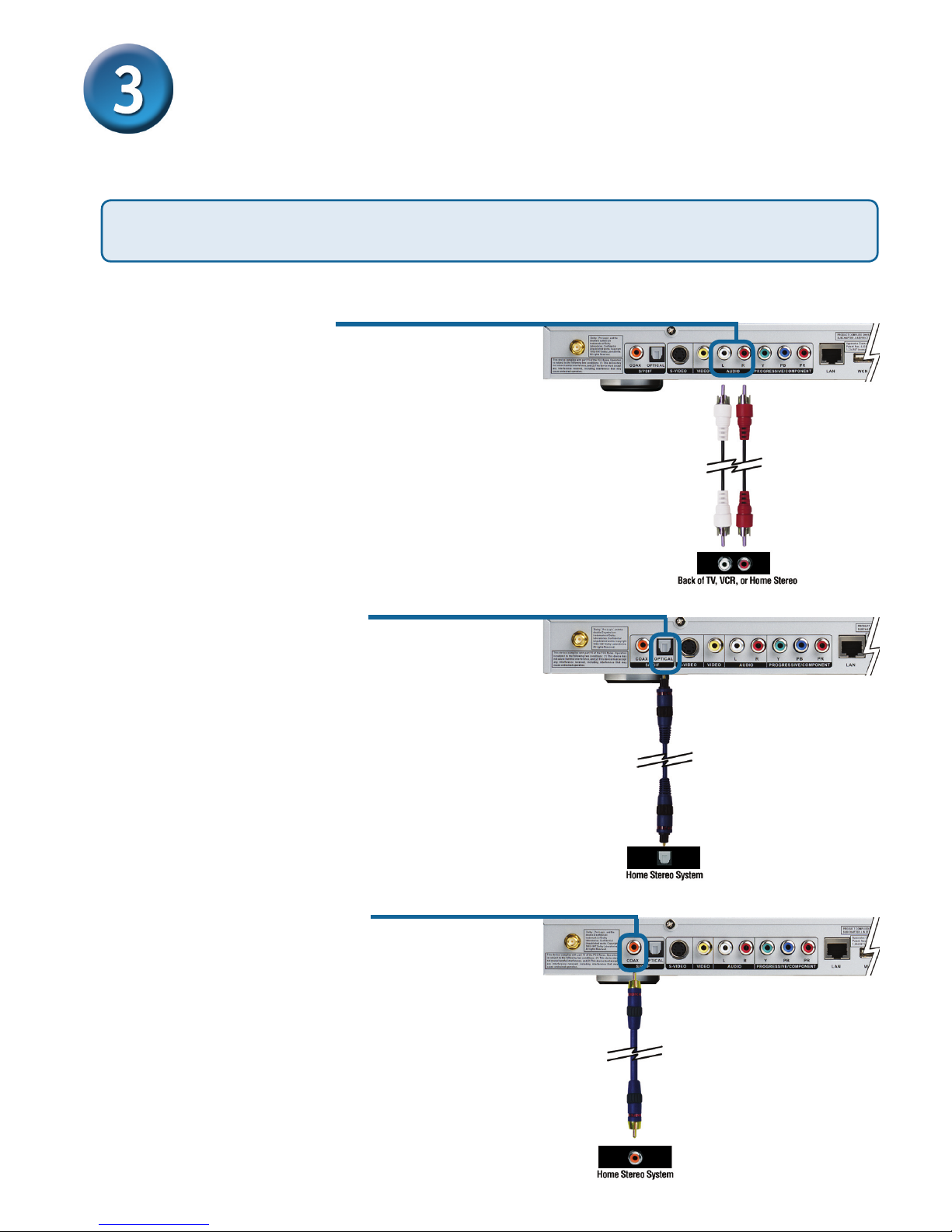

Connecting the DSM-320RD (continued)
Audio Connections
Select one of three ways to connect audio to your DSM-320RD:
The AUDIO OUT button on the remote control toggles between the composite
audio output and the digital audio output (optical/coaxial).
• Coaxial Digital Audio
Connect a coaxial audio connector
into the DSM-320RD and the
matching opposite end of the cable
to the audio input of your audio
system.
Note: This cable is not supplied.
• Optical Digital Audio
Connect an optical audio connector
into the DSM-320RD and the
matching opposite end of the cable
to the audio input of your audio
system.
Note: This cable is not supplied.
• Composite Audio
Plug the supplied red and white
connectors into the color-coded
matching jacks on the DSM-320RD.
Plug the opposite ends to the
matching jacks on your television or
audio/video system.

11

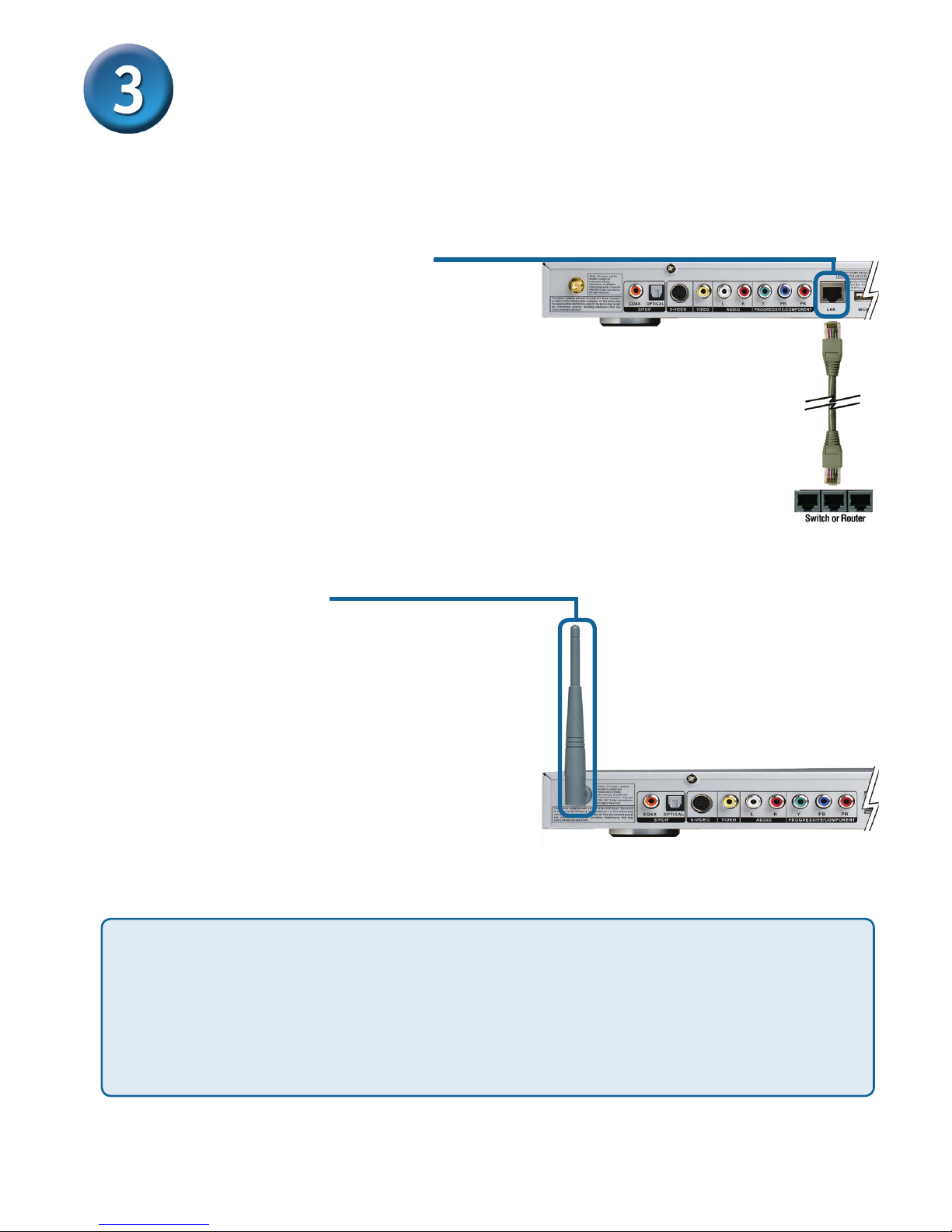

Connecting the DSM-320RD (continued)
Network Connections
• RJ-45 Ethernet Connector
Connect the supplied Ethernet cable
to the network cable connector, and
attach the other end to the network.
Select one of two ways to connect a network to your DSM-320RD:
• Wireless Antenna
Attach the supplied antenna by
threading it onto the antenna connector.
Be sure the antenna is secure and in
an upright position.
Note: You may have an Ethernet cable plugged into the unit and have
the wireless antenna connected. Neither will interfere with the other, but
only one network can be accessed at a time (wired or wireless). The
network connection type is selected in the Setup Wizard and can be
changed by going to the Setup Menu. To access the Setup Menu, press
the SETUP button on the remote control.

12
Connecting the DSM-320RD (continued)

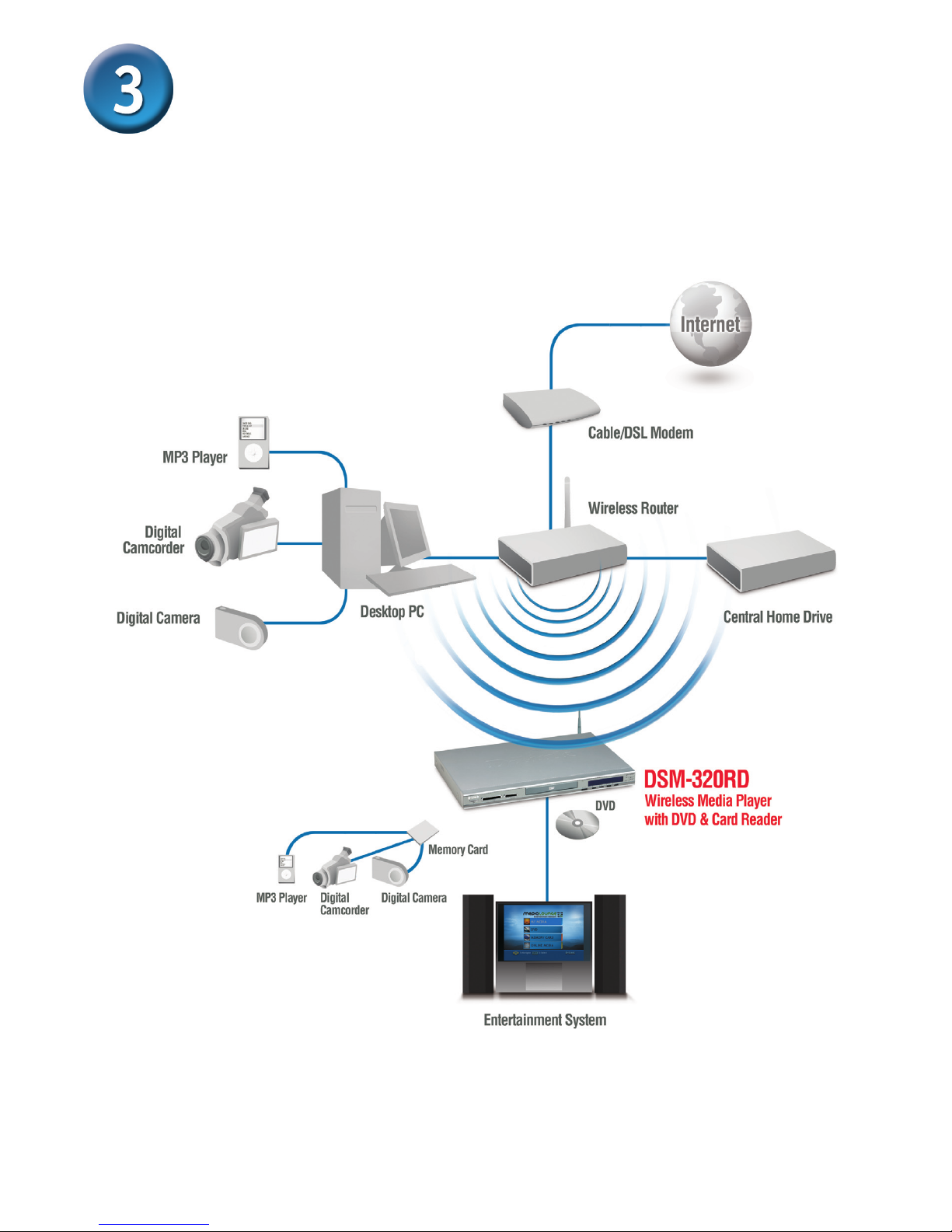

Below is a diagram displaying what your network might look like once all of the
connections have been made to the MediaLounge™ DSM-320RD Wireless Media Player.

13

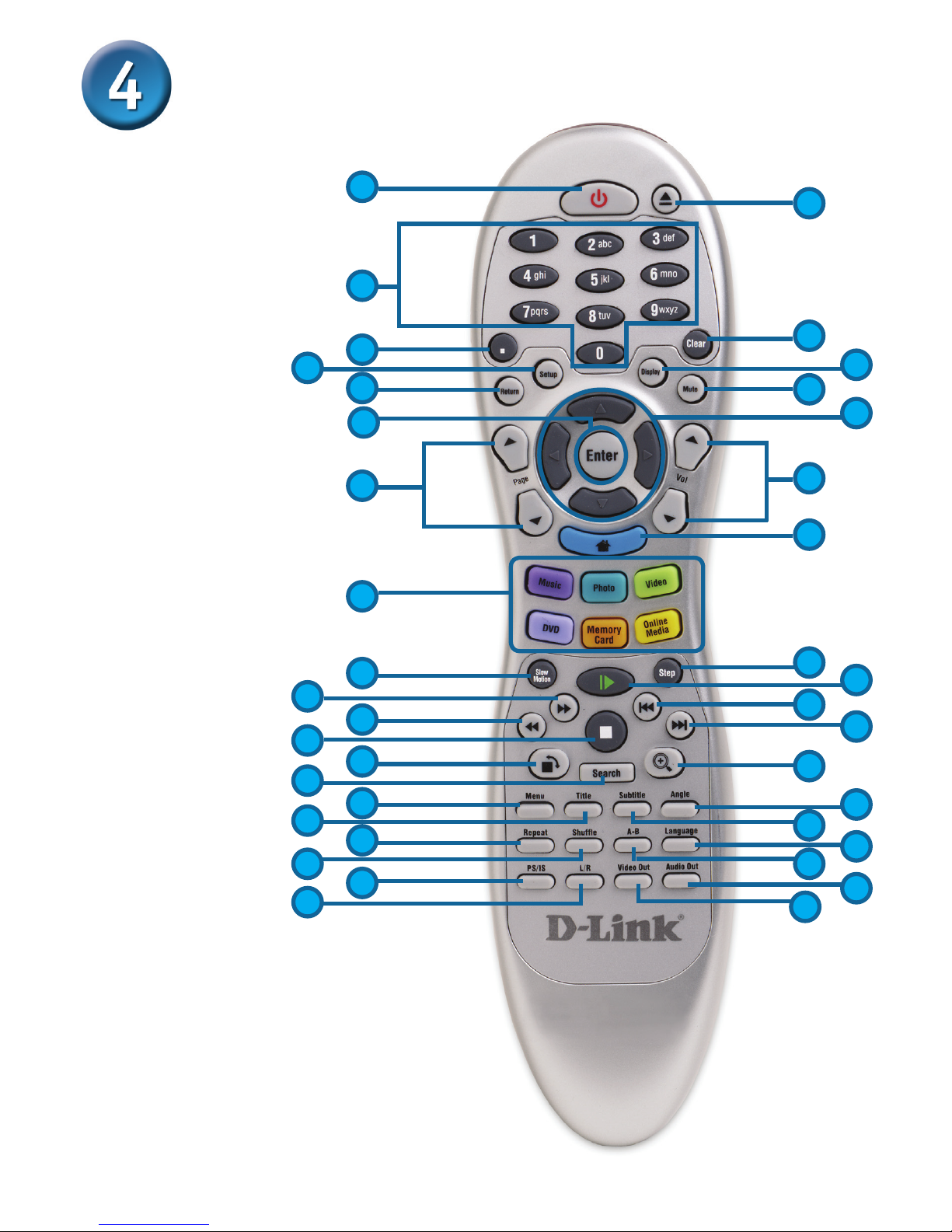

1. Power
2. Eject DVD
3. Numeric Keys
4. “.” (period or dot)
5. Clear
6. Setup
7. Display
8. Return
9. Mute
10. Enter
11. Navigation Buttons
12. Page Up & Down
13. Volume + & -
14. Home
15. Color-Coded Shortcut Keys
16. Step
17. Slow Motion
18. Play/Pause
19. Fast Forward
20. Previous
21. Rewind
22. Next
23. Stop
24. Zoom
25. Rotate
26. Angle
27. Search
28. Menu
29. Subtitle
30. Title
31. Repeat
32. Language
33. Shufe
34. A-B Video Replay
35. Progressive/Interlaced
36. Audio Out
37. Left/Right Audio Channel
38. Video Out
Using the Remote Control
12
3
4
9
7
10 11
12 13
14
17
15
18
19 20
21 22
5
6
8
23
24
25
26
29
32
34
36
38
27
28
30
31
33
35
37
16

14

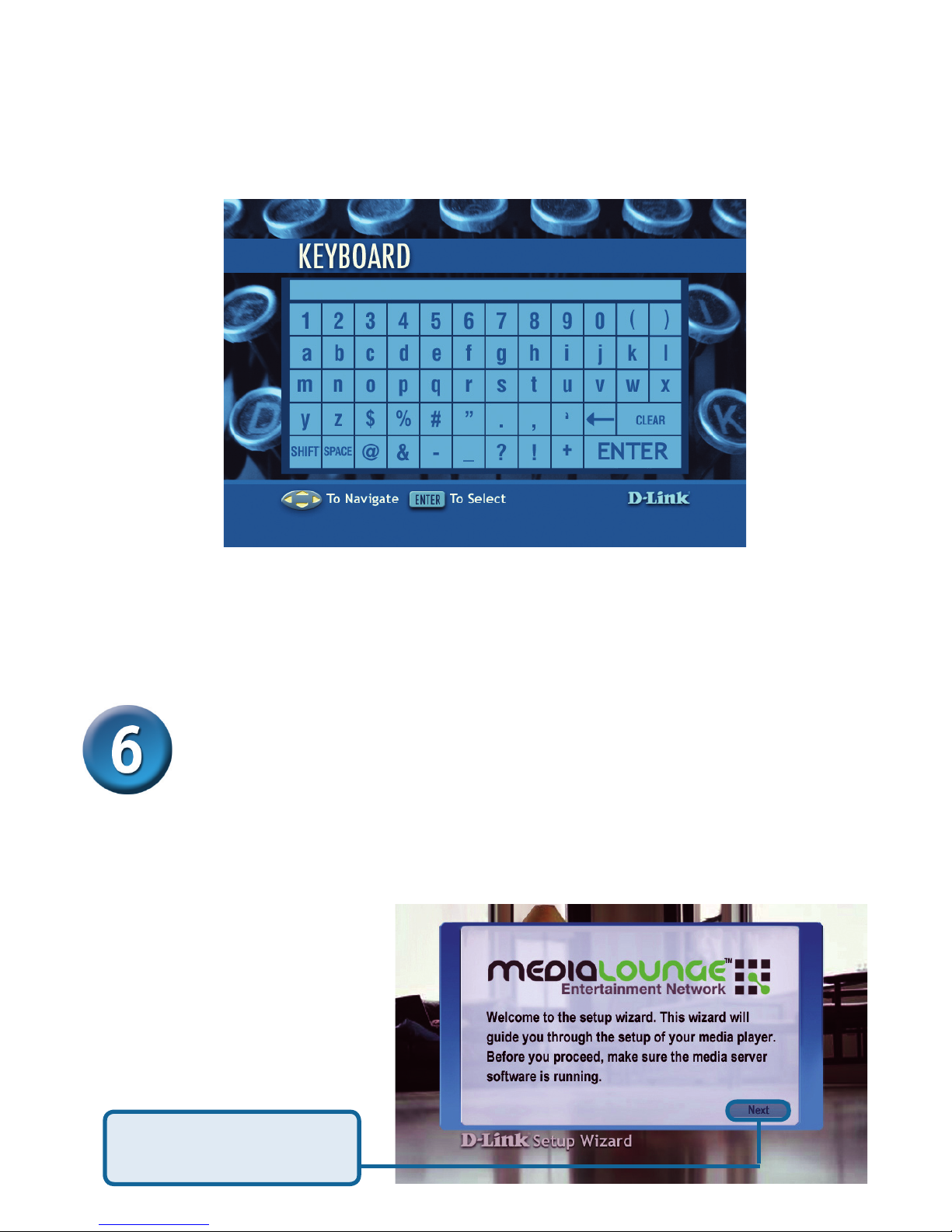

Using the On-Screen keyboard
Whenever you need to enter text, press ENTER on the remote and the on-screen
keyboard will appear.
DSM-320RD Setup Wizard
Upon initial startup, the DSM-320RD displays the Setup Wizard. The Setup Wizard will
guide you through the necessary steps for conguring the DSM-320RD. You can also use
Windows®Connect Now (WCN) to simplify the wireless setup, skip to step 7 on page 17.
Click Next to begin the
DSM-320RD Setup Wizard.
The keyboard is used for a variety of functions such as naming your DSM-320RD
and performing searches for music, photos or video. To use the keyboard, highlight a
character with the arrow buttons on the remote control and press the ENTER button.
Text can also be entered by using numbers 2-9 on the remote, just as you would on a
cell phone. Highlight ENTER and press ENTER when you’re nished entering text.

15

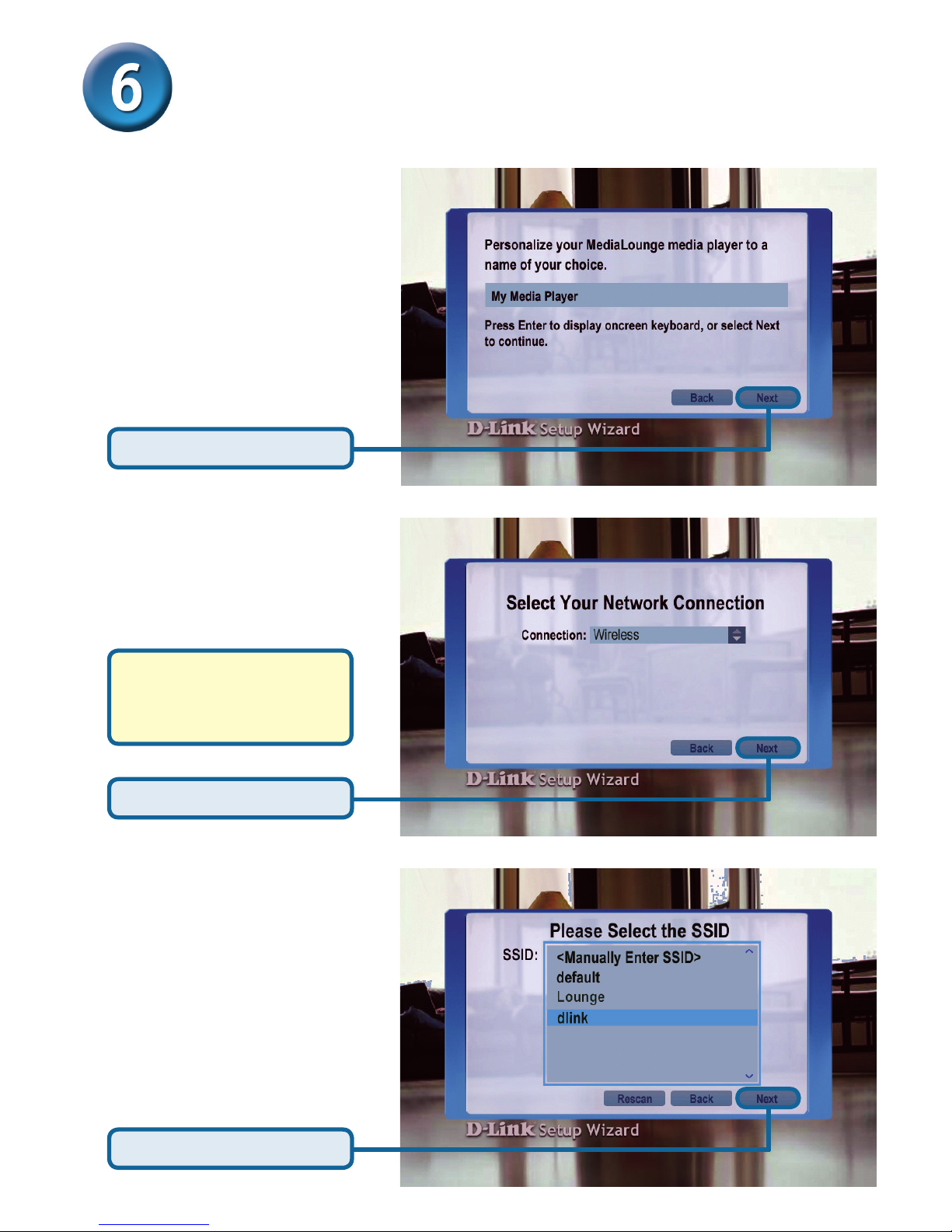

DSM-320RD Setup Wizard (continued)
Type in a name of your
choice or select the default
setting.
Select your network
connection type.
If you are using a wireless
network connection,
please select the SSID of
the network.
If selecting Wired, skip to
Your Current Network
Settings on page 15.
Click Next to continue
Click Next to continue
Click Next to continue

16

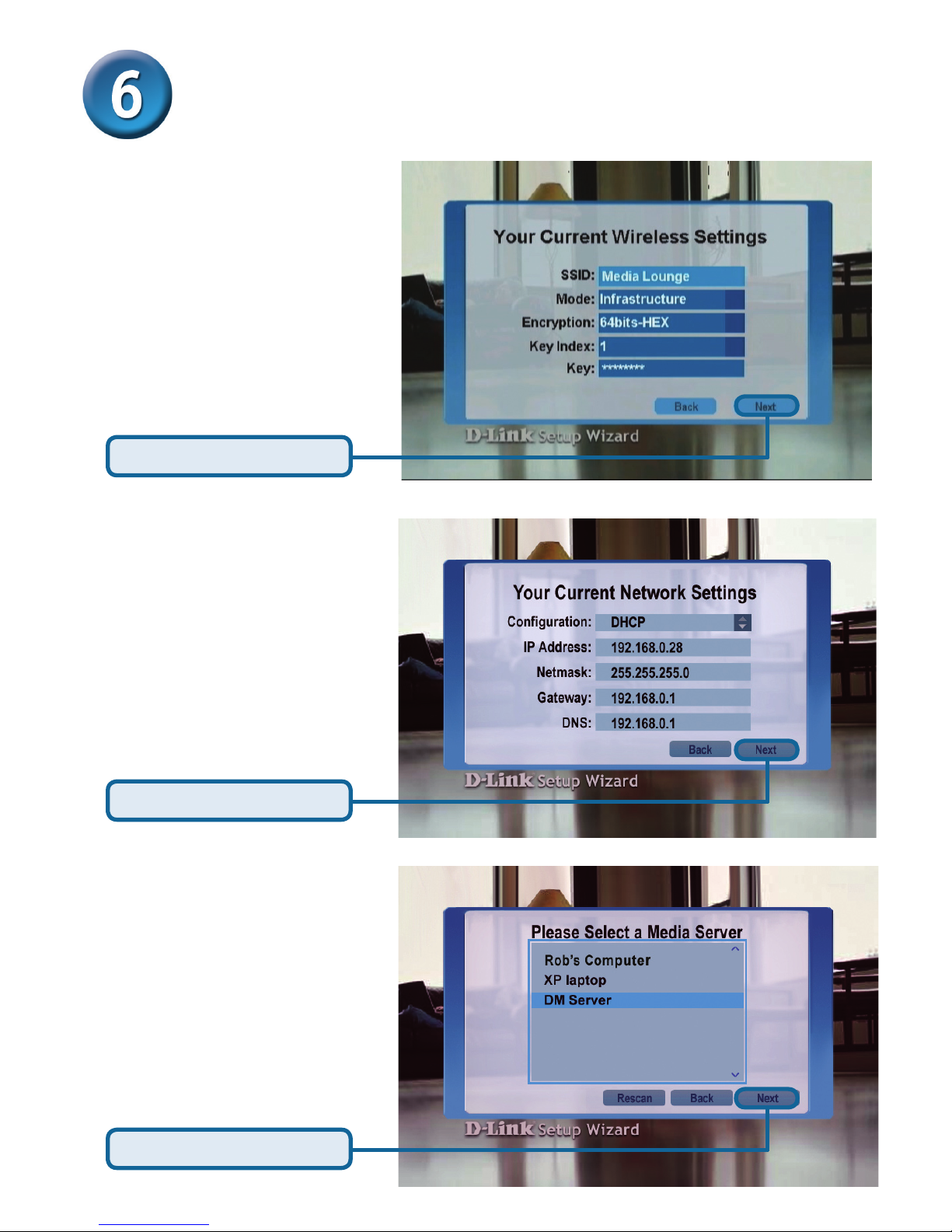

DSM-320RD Setup Wizard (continued)
Your current wireless
settings are displayed
and can be changed at
this point.
Keys can be entered in hex
or ASCII format. See the
User Manual located on
the CD-ROM for details.
Your current network
settings are displayed
and can be changed at
this point.
Please select a Media
Server from the list.
Click Next to continue
Click Next to continue
Click Next to continue

17

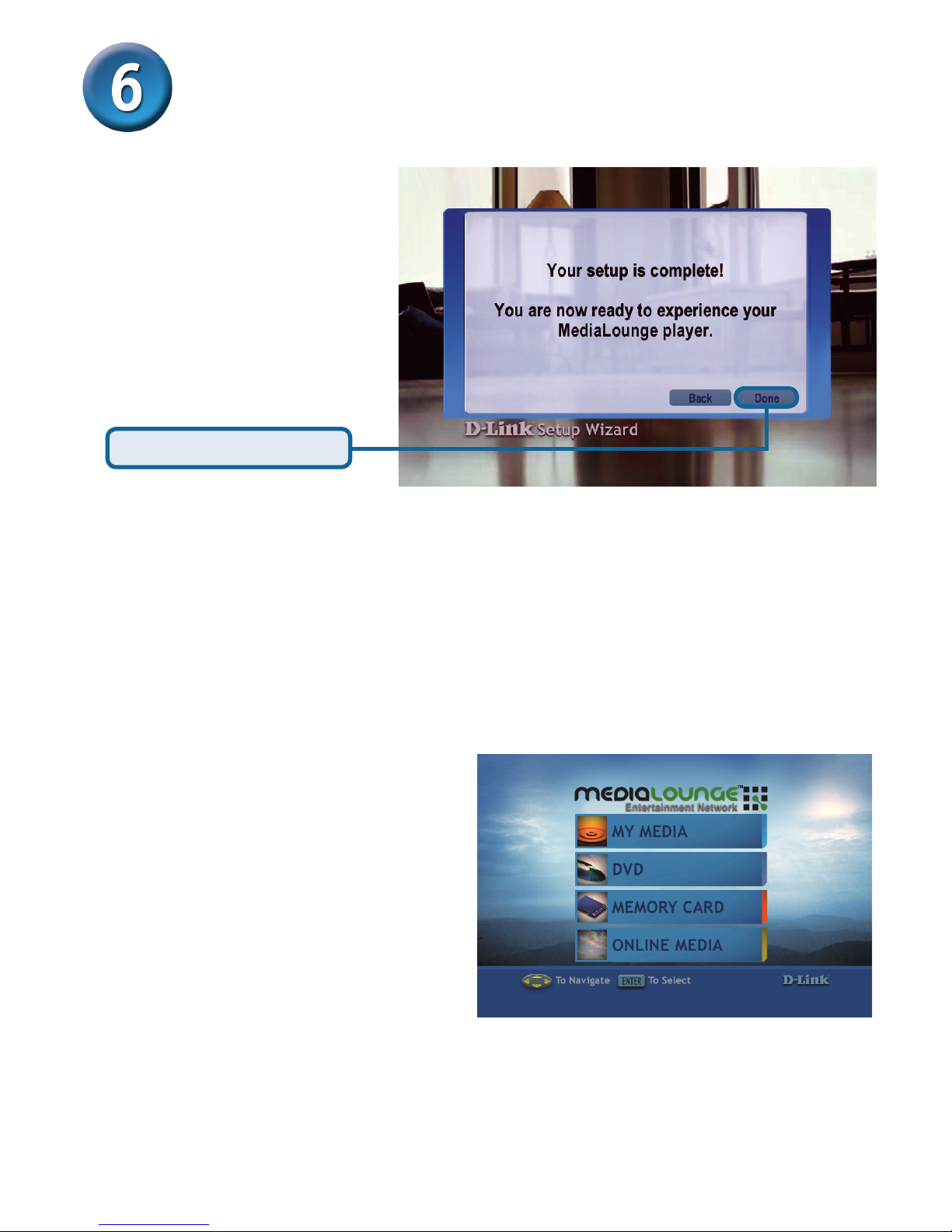

Your setup is complete!
DSM-320RD Setup Wizard (continued)
Yo u r M e d i a L o u n g e ™ D S M -
320RD is now ready to stream
music, photo, and video content
for enjoyment on your home
entertainment center.
From this home screen, you
can access MY MEDIA, DVD,
M E M O RY C A R D , o r O N L I N E
MEDIA. To jump directly to the
home screen, press the HOME
button on the remote control.
For detailed usage instructions and information on supported le types, please refer to
the User Manual that is located on the MediaLounge™ CD-ROM.
Click Done to nish

18

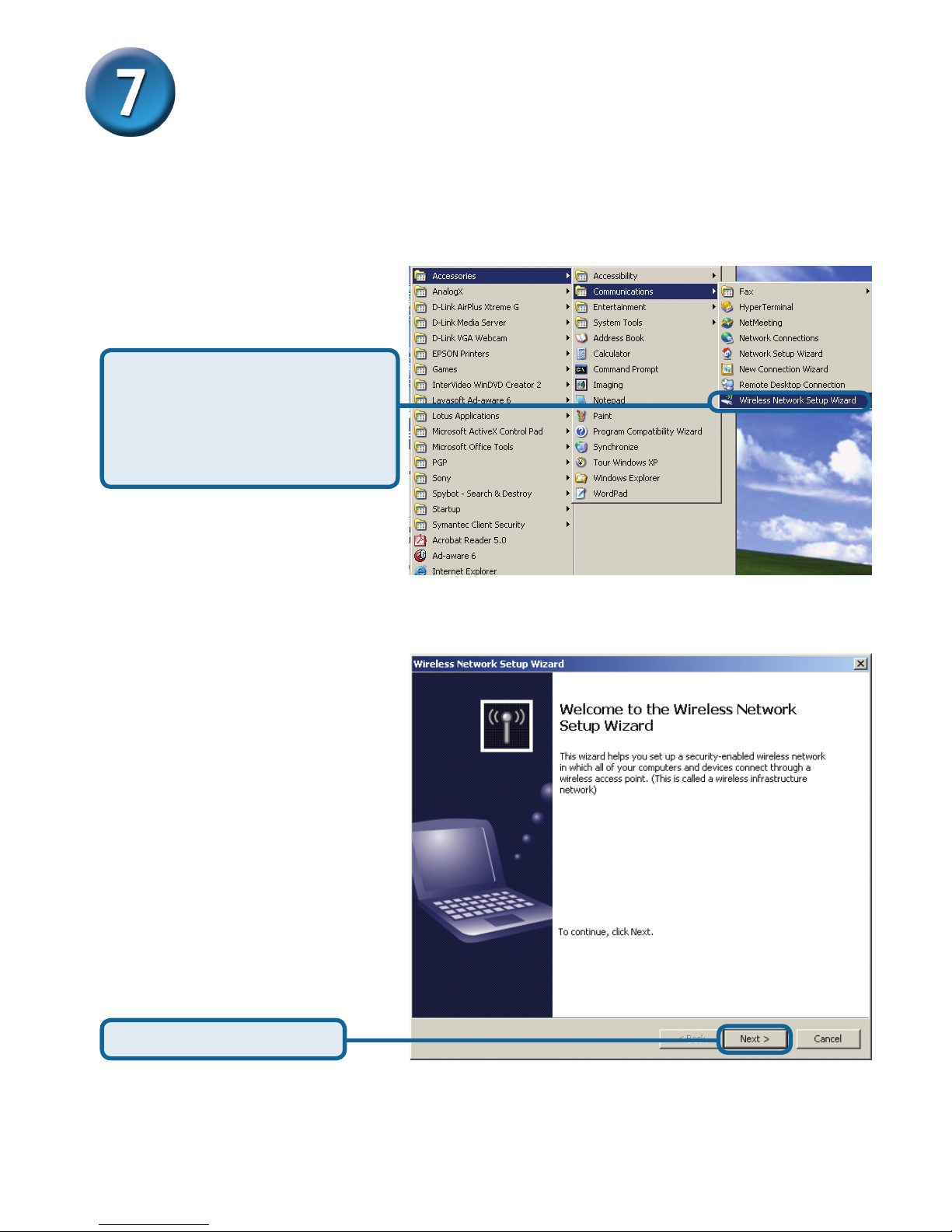

Conguring Your Wireless Settings
using Windows Connect Now (WCN)
If you already have wireless settings congured on your PC, instead of using the setup
wizard, you can use Windows® Connect Now (WCN) to congure the wireless settings
on your DSM-320RD. Note: WCN is only available on PCs running Windows®XP with
Service Pack 2 installed.
Go to Start > All Programs >
Accessories > Communications
and click Wireless Network
Setup Wizard.
Click Next to continue
®

19

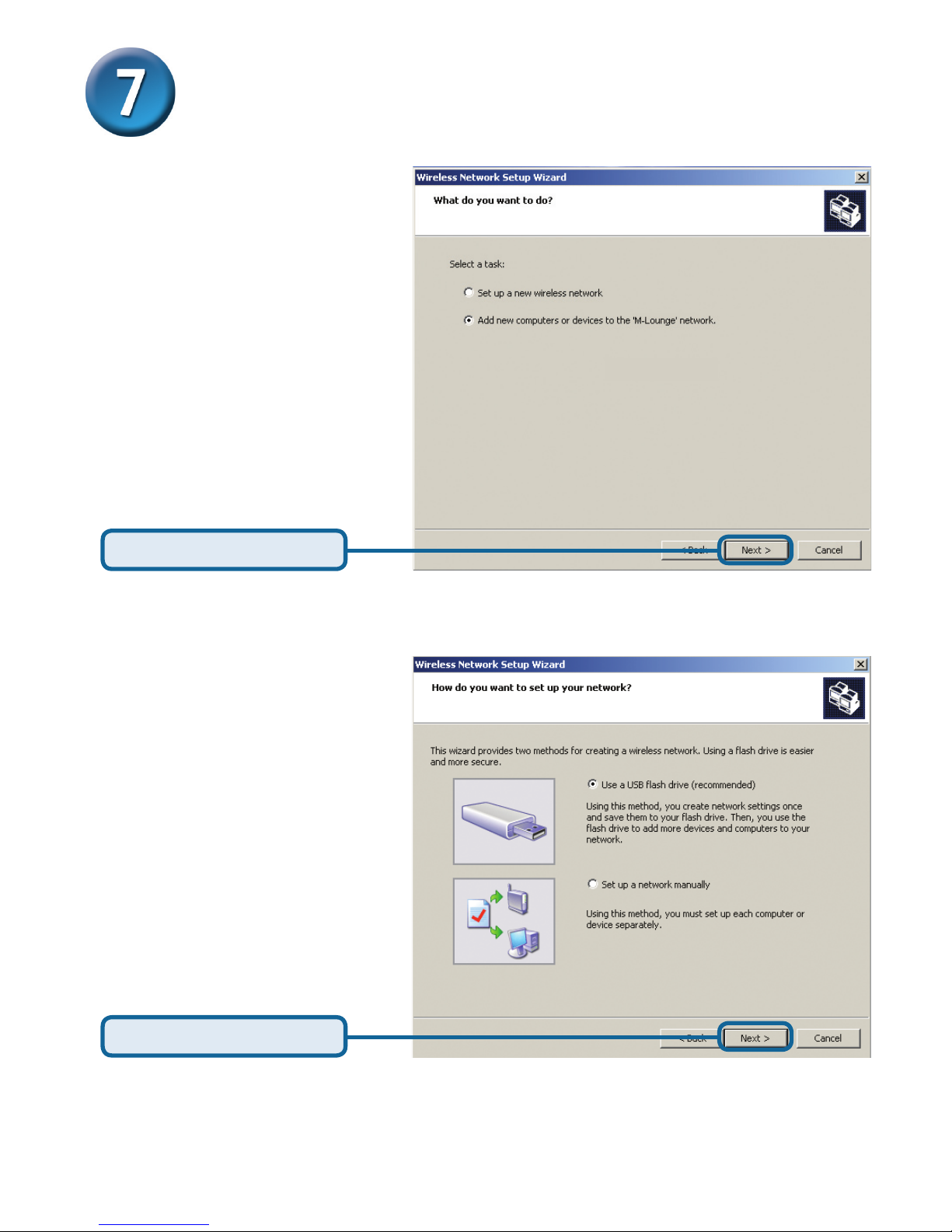

Conguring Your Wireless Settings
using WCN (continued)
Click Next to continue
Select the option to add new
computers or devices to your
existing wireless network.
Click Next to continue
Select the option Use a USB
flash drive, to save your
wireless network settings.

20
Conguring Your Wireless Settings
using WCN (continued)

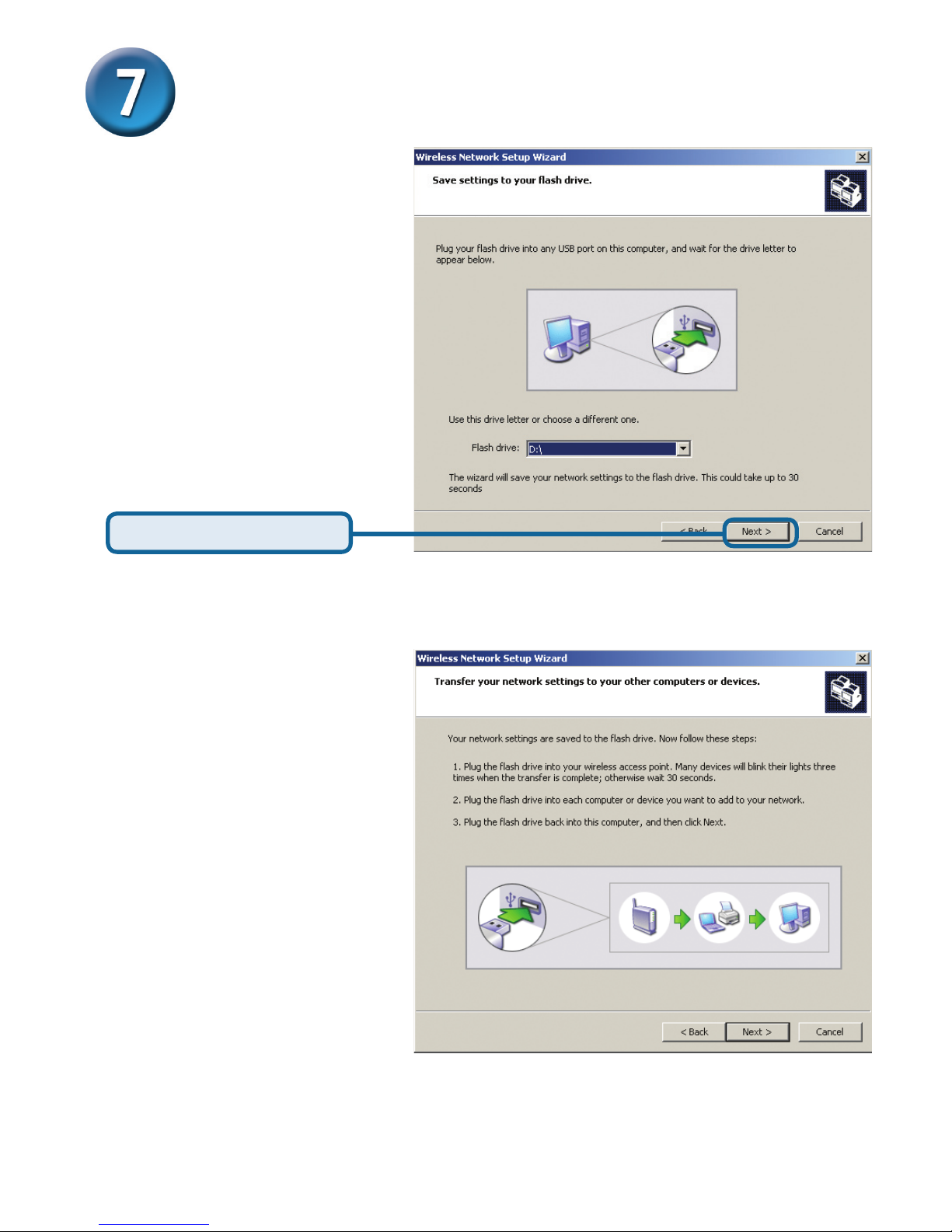

Plug your ash drive into a
USB port on this computer.
Click Next to continue
This screen will appear
when the wireless settings
have been saved to the
USB ash drive.
