2D-Link DCM-202 User Manual
Table of Contents
Product Overview ...................................................3
Package Contents..............................................................3
System Requirements .......................................................3
Introduction.......................................................................4
Features.............................................................................5
Hardware Overview ........................................................... 6
Front Panel LEDs ........................................................6
Back Panel Connectors ...............................................7
Before You Begin ...................................................8
Local Cable Network Service .............................................8
Prepare Your Workspace...................................................8
Installation...........................................................9
Using the Ethernet Port ...................................................10
Verify the TCP/IP Configuration ................................11
Network Overview ..................................................... 12
Connecting the Cable Modem ...................................13
Using the USB Port .........................................................14
Network Overview ..................................................... 15
Installing the Hardware .............................................15
Installing the Software Drivers..................................16
Verify USB Installation ..............................................21
Troubleshooting ................................................... 22
Technical Specifications ......................................... 25
Contacting Technical Support................................... 27
Warranty ........................................................... 28
Registration........................................................ 33
Table of Contents

3D-Link DCM-202 User Manual
Section 1 - Product Overview
• D-Link DCM-202
• Manual, Warranty and Drivers on CD
• Printed Quick Installation Guide
• One 12VDC/1.0A Power adapter
• 1 CAT 5 UTP Ethernet cable
• 1 USB cable
• 1 Cable modem stand to install the cable modem in a
vertical position
System Requirements
Verify that you have these items before beginning the installation:
• A cable-line splitter (not included), if you plan to have the cable modem and a television connected to the same
wall cable outlet.
• An active two-way cable line.
Package Contents
If any of the above items are missing, please contact your reseller.

4D-Link DCM-202 User Manual
Section 1 - Product Overview
Introduction
Thank you for purchasing the D-Link “Broadband Cable Modem with USB & Ethernet” DCM-202, which is an MCNS DOCSIS™ 2.0
cable modem featuring the latest DOCSIS technology.
The cable modem enables your network cable operator to provide you with broadband applications such as telecommunications, IP
dedication for your small ofce/home ofce (SOHO), or high-speed residential Internet access. The cable modem provides a downstream
speed of up to 38Mbps from the cable network to your computer and 30Mbps from your computer to the cable network.
The DES data encryption helps ensure privacy for the transmitted information. Another distinctive feature of the cable modem is its
easy installation, because DHCP and TFTP clients can obtain automatic access to the IP address and conguration from their network
servers via the modem. SNMP agents permit remote configuration and monitoring from a management station equipped with an
SNMP server.

5D-Link DCM-202 User Manual
Section 1 - Product Overview
• Full-featured compact, economical cable modem with Ethernet and USB ports.
• DOCSIS 2.0 compliant.
• Capable of handling downstream data transmission speeds up to 38Mbps; upstream to 30Mbps
User-friendly configuration and diagnostic utilities.
• RJ-45 10/100BaseT Ethernet port provides traditional industry standard connection.
• USB port allows easy plug-and-play attachment to PCs with the latest Windows®operating system.
• Extensive SNMP management support: MIB-II.
• Ethernet-like MIB, Bridge MIB, Cable Device MIB, Baseline privacy Interface MIB, RF Interface MIB.
• Easy-to-read front panel LED’s clearly display network status and activity.
Features

6D-Link DCM-202 User Manual
Section 1 - Product Overview
Hardware Overview

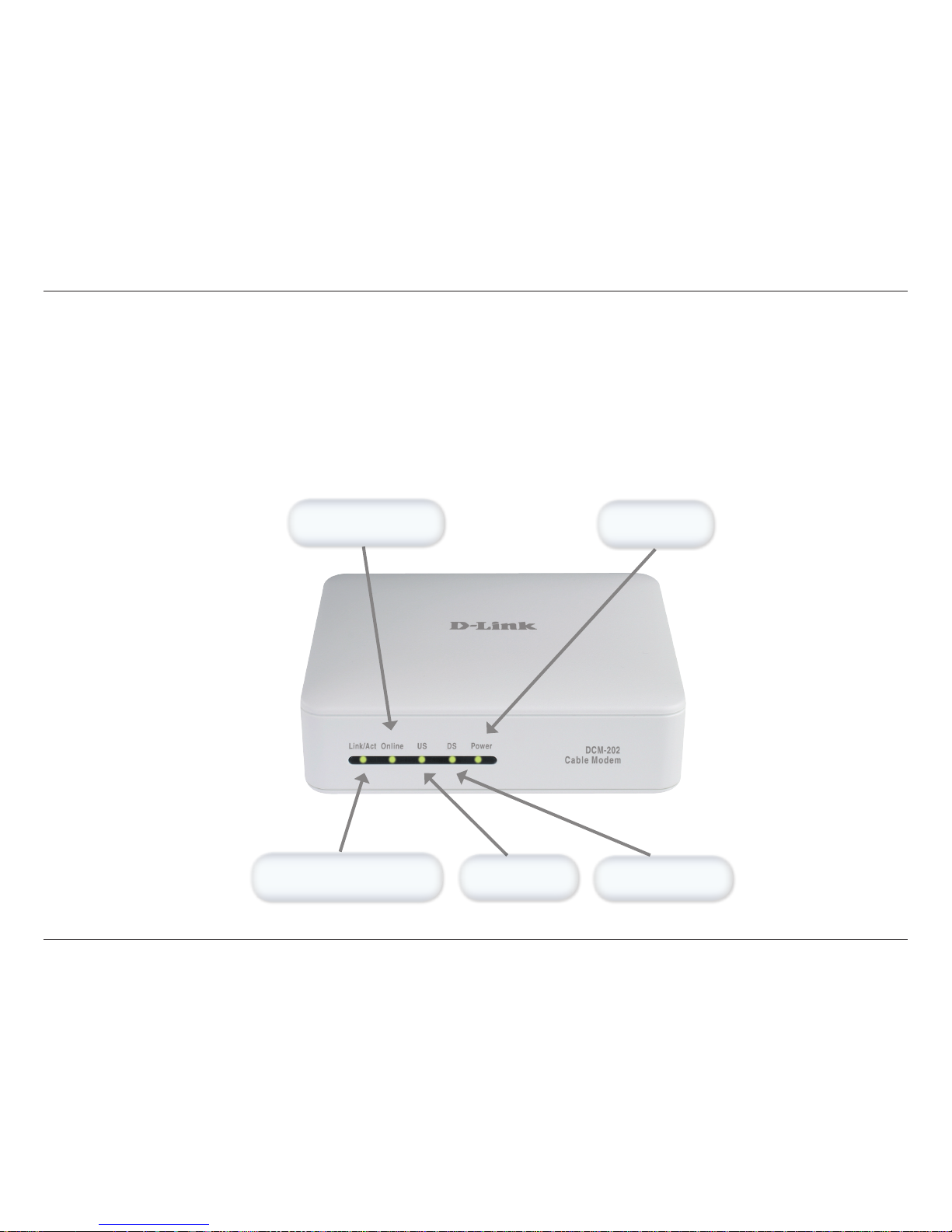

Front Panel LEDs
The LEDs on the cable modem indicate:
• The current performance of the cable modem.
• The condition of the network connection between the cable modem and your cable service provider.
• The condition of the connection between your cable modem and electrical power.
Power LED
Power receiving
Online LED
Carrier & Server Status
Link/Act LED
PC Connection/Data Status
DS LED
Downstream Status
US LED
Upstream Status

7D-Link DCM-202 User Manual
Section 1 - Product Overview
Hardware Overview

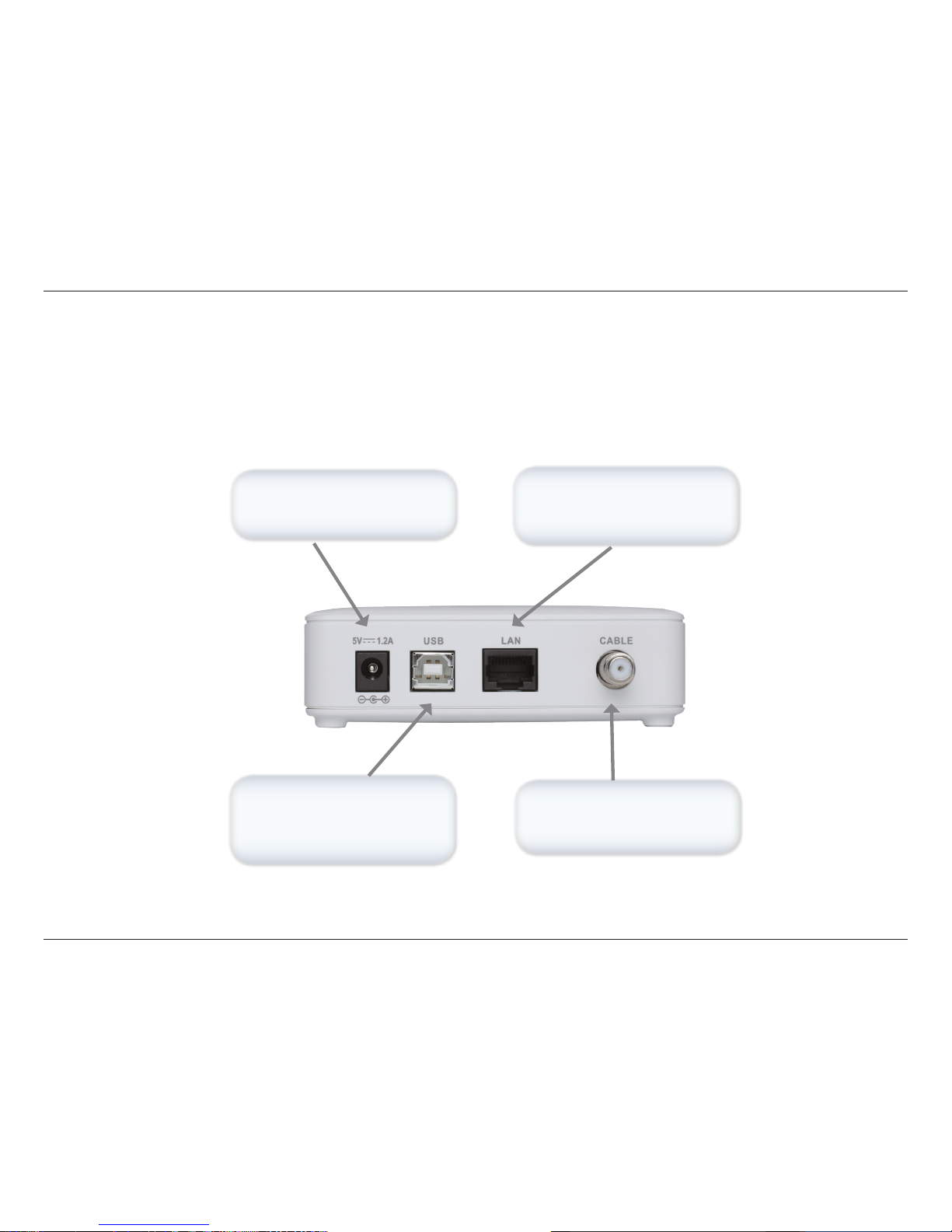

Back Panel Connectors
Power
Connect the power adapter
included in the product package
CABLE
RF connector to attach the cable
for broadband internet access.
USB
USB ’B’-type port.Connects through
USB cable to a computers’s USB
‘A’-type port.
LAN
RJ-45 female port for connection
of Ethernet cable.

8D-Link DCM-202 User Manual
Section 2 - Installation
Before You Begin
Local Cable Network Service
Before installing the modem:
• Remove any previous installations of wireless adapters
• Find the Serial Number, RF and Ethernet address located on a sticker on the cable modem and write them
here:
Serial Number S/N: ____________________
RF and ETH MAC: ____________________
• Contact your local cable service operator for Internet/cable network access. Your local cable operator will check
for cable access availability in your area, install a cable line (if necessary), provide you with an access account,
set up configuration and verify other technical details.
• Ask your local cable service provider about adding additional IP addresses to your account. See “ Which Installation
to Use?” for more information.
Prepare Your Workspace
To prepare your workspace:
• Position the cable modem so that it is located near the computer and the wall cable outlet. There should be plenty
of room to guide the cables away from the cable modem without crimping them.
Prepare the cable modem:
• For vertical installation: Place the cable modem securely in the included stand.
• For horizontal installation: Use the four included feet to install the cable modem. Remove the backing paper and
attach a foot to each of the corners on the cable modem; be sure to attach the feet on the surface that contains
the model information stickers, as shown.
• Do not restrict the airow around the cable modem.
• To enhance the best performance and proper function of the cable modem, place it on a horizontal surface or
workplace and make sure that the cable modem does not move when it is operating.

9D-Link DCM-202 User Manual
Section 2 - Installation
To install the cable modem using the Ethernet port:
• Any PC running Windows®, Macintosh®, or Linux with an Ethernet adapter.
• TCP/IP protocol installed.
To install the cable modem using the USB port:
• Any PC running Microsoft Windows Vista™, XP, or 2000 operating systems.
• Original Windows Vista, XP, or 2000 installation CD or diskettes.
• An active USB port on your computer.
The cable modem enables you to connect to the Internet using either your computer’s Ethernet or USB port.
Be sure to follow the installation steps for the setup you want to use. Using the Ethernet setup enables you to use a hub to connect
multiple computers to the cable modem. To do this, you might have to obtain additional IP addresses from your cable operator.
Using the USB port enables you to install the cable modem more quickly and easily than connecting to the Internet using the Ethernet
port, because you do not have to install a network interface card (NIC) into your computer. The USB port, however, only enables you
to connect one computer to the cable modem.
See “Installing the Cable Modem Using the Ethernet Port”, or see “Installing the Cable Modem Using the USB Port” in the following
pages, for more information.
Installation

10D-Link DCM-202 User Manual
Section 2 - Installation
Using the Ethernet Port
This section describes how to install the cable modem using the Ethernet port. Using the Ethernet port enables you to use a single
connection to the Internet or use a router to connect multiple computers to the cable modem. You can also use multiple IP addresses
from your cable operator when using the Ethernet connection. See “Installing the Cable Modem Using the USB Port” in this manual
to set up the USB Connection.
When using the Ethernet connection, do NOT install the modem drivers. They are only for the USB connection.

11D-Link DCM-202 User Manual
Section 2 - Installation
Verify the TCP/IP Configuration
Before installing the modem using the Ethernet setup, you must verify that your computer has the TCP/IP protocol installed. Follow
the procedure for your operating system to verify or install the TCP/IP protocol.
To configure TCP/IP on your Windows®Vista™PC:
1. Right click on Start->Network and select Properties
2. On the the following pop up window, select Tasks->Manage network connections.
3. Right-click Local Area Connection and click Properties. Look for an entry named TCP/IP. If you see TCP/IP listed next to your
Ethernet hardware device, you can now go to the section “Connecting the Cable Modem.” However, if TCP/IP is not listed, you
must complete the following steps.
• Scroll to the Internet Protocol version 4 TCP/IP option.
• Click to place a check mark in the Internet Protocol check box
• Click OK.
• You can now connect the cable modem.
To configure TCP/IP on your Windows 2000/XP PC:
1. Right-click the My Network Places icon on the Windows desktop.
2. Right-click Local Area Connection and click Properties. Look for an entry named TCP/IP. If you see TCP/IP listed next
to your Ethernet hardware device, you can now go to the section “Connecting the Cable Modem.” However, if TCP/IP is
not listed, you must complete the following steps.
• Scroll to the Internet Protocol TCP/IP option.
• Click to place a check mark in the Internet Protocol check box
• Click OK.
• You can now connect the cable modem.

12D-Link DCM-202 User Manual
Section 2 - Installation

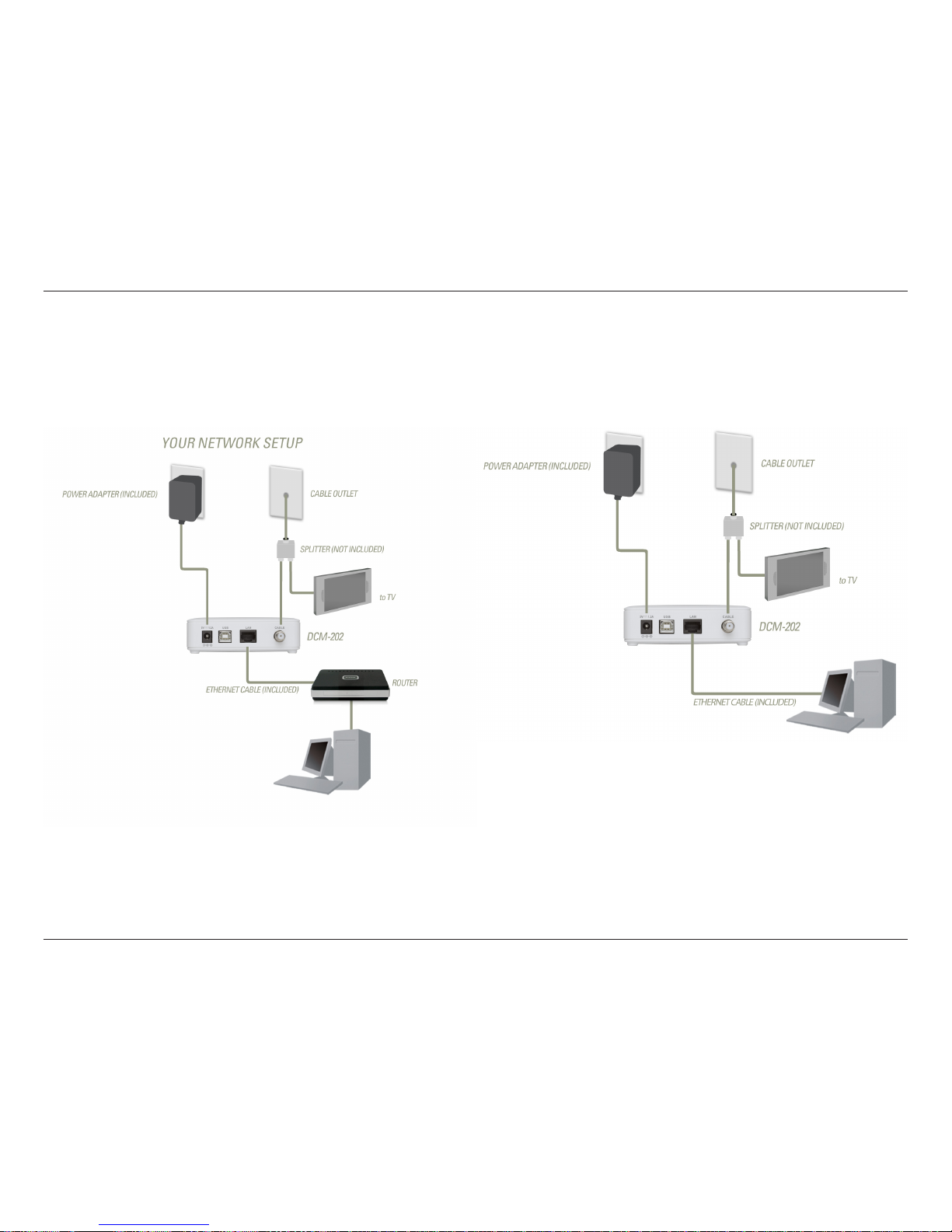

Network Overview
Below are two common ways to connect your DCM-202 modem to your network. The diagram on the left shows the connection with
a broadband router. The diagram on the right shows the connection directly to a computer.

13D-Link DCM-202 User Manual
Section 2 - Installation
Connecting the Cable Modem
Install the cable modem according to the following procedure:
1. Power off the computer.
2. Unplug the computer from the electrical wall outlet.
3. Make these connections:
• Connect the coaxial cable to the cable modem’s CATV cable connector. If you plan to have the cable connected
to a television as well as the cable modem, you must use a cable line splitter (not included).
• Plug the cable modem’s power adapter into a wall outlet or surge protector and into the cable modem’s
power jack.
• Plug one end of the Ethernet cable into the cable modem’s Ethernet port and the other end of the cable into
the existing NIC.
4. Plug in the computer.
5. Power on the computer. When installation is complete, your setup should resemble the illustration above. The
modem is operating properly if the Power, Cable, Status and ETH light emitting diodes (LEDs) are solid green
(lit and not blinking).

14D-Link DCM-202 User Manual
Section 2 - Installation
Using the USB Port
This section describes how to install the cable modem using the USB port. First you connect the hardware (cable modem and power
adapter). You then install the software drivers and verify that the modem is operating properly. The USB port does not support the
Macintosh®operating system. Using the USB port to connect to the Internet enables you to install the cable modem more quickly
and easily than connecting to the Internet using the computer’s Ethernet port, because you do not have to remove the case from the
computer to install a network interface card (NIC). Using the USB port, however, enables you to connect only one computer to the
cable modem. See “Installing the Cable Modem Using the Ethernet Port” if you wish to install the cable modem using the Ethernet
port.
If you have or plan on purchasing a router, please refer to the “Using the Ethernet Port” section on page 11. You cannot use the USB
connection with a router.
Note: Do not plug the USB modem into an external USB hub. Plug directly to your computer.

15D-Link DCM-202 User Manual
Section 2 - Installation

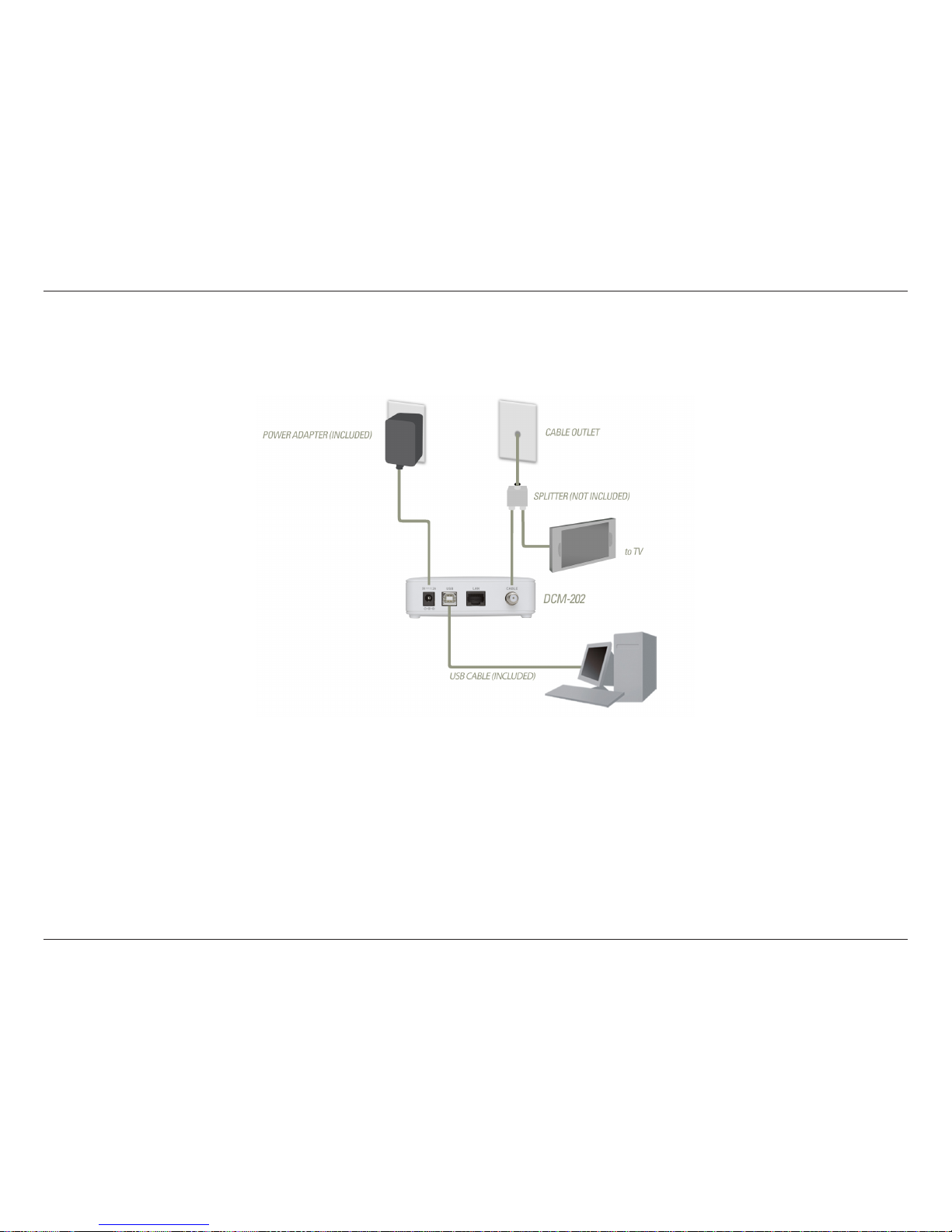

Network Overview
The diagram below displays the connect of your DCM-202 modem to your computer using the USB cable.
Installing the Hardware
To install the hardware:
1. Connect the coaxial cable to the cable modem’s CATV cable connector.
2. Connect the USB cable to the modem (not the computer).
3. Plug the power adapter into the modem. Plug the other end into a wall outlet or power strip.

16D-Link DCM-202 User Manual
Section 2 - Installation
Power on the computer. After windows boots up, insert the DCM-202 CD-ROM. If the Welcome window opens, click Close. Plug
the other end of the USB cable into an available USB slot on your computer. It is strongly recommended that you do not plug this
modem into an USB hub.

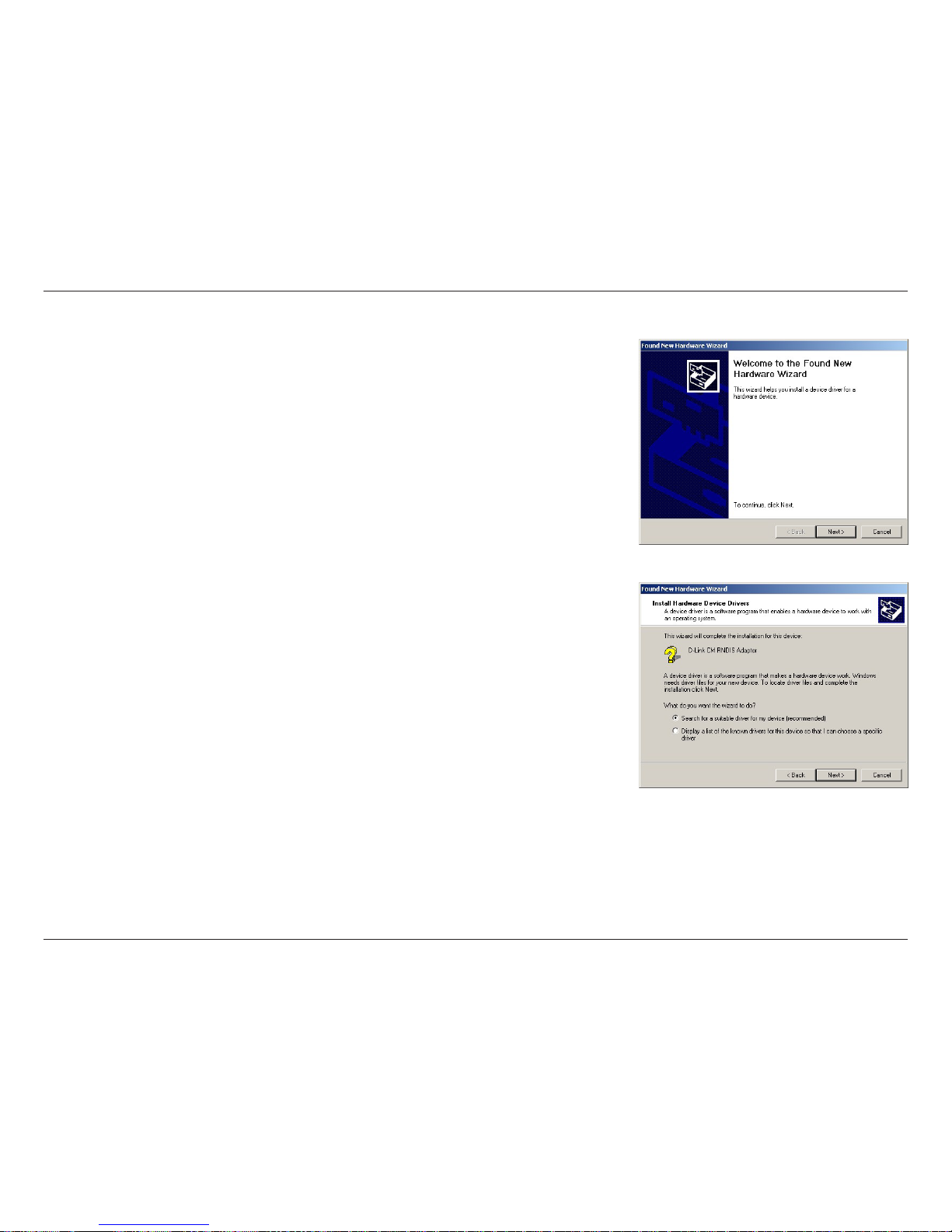

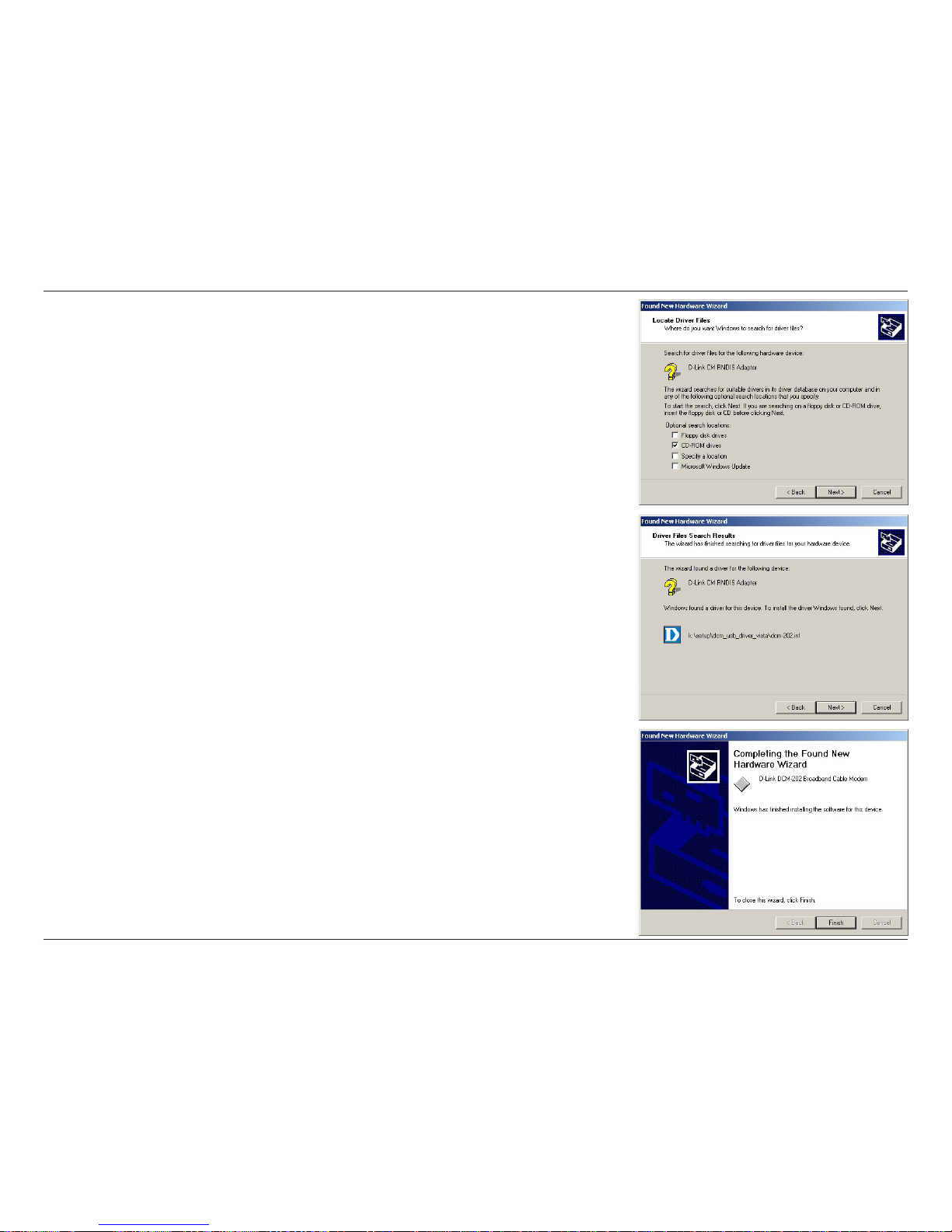

Installing the Software Drivers
This section explains how to install the cable modem using the USB Connections with the Windows®Vista™, XP, or 2000 operating
system (OS). Do not install these drivers if you are using the Ethernet connection.

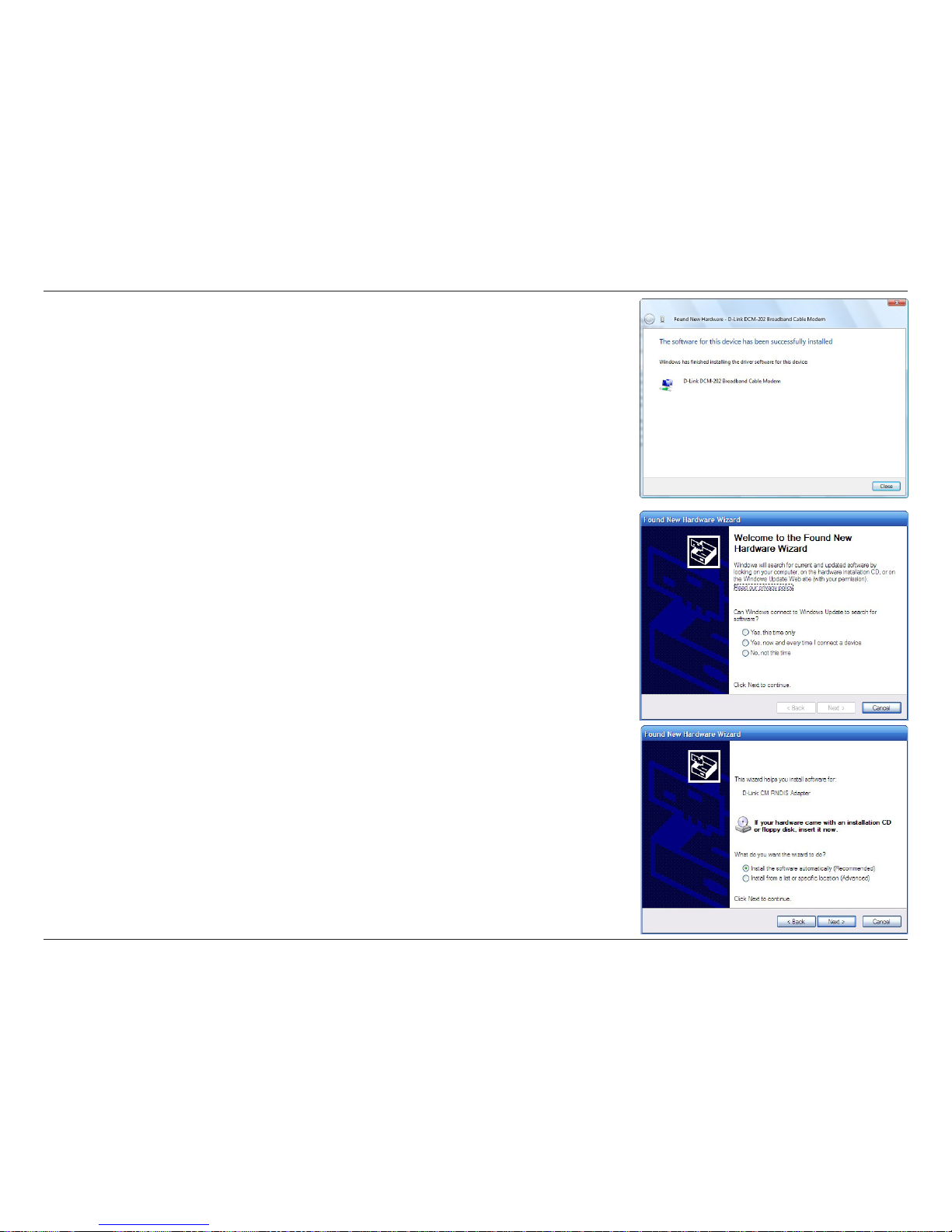

WINDOWS®VISTA™:

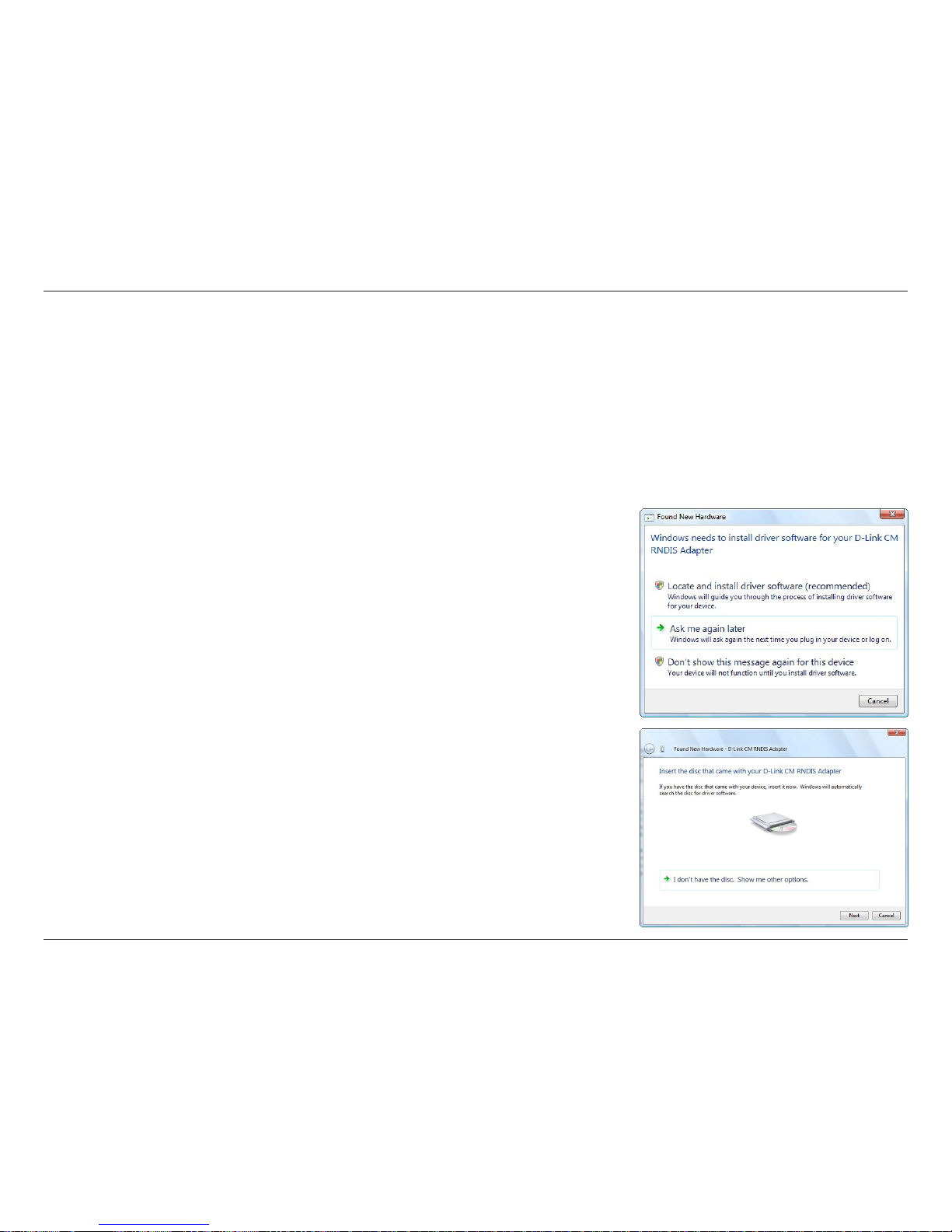

The Found New Hardware screen will appear. Click on Locate and install driver software
(recommended).
Click Next to continue.

17D-Link DCM-202 User Manual
Section 2 - Installation

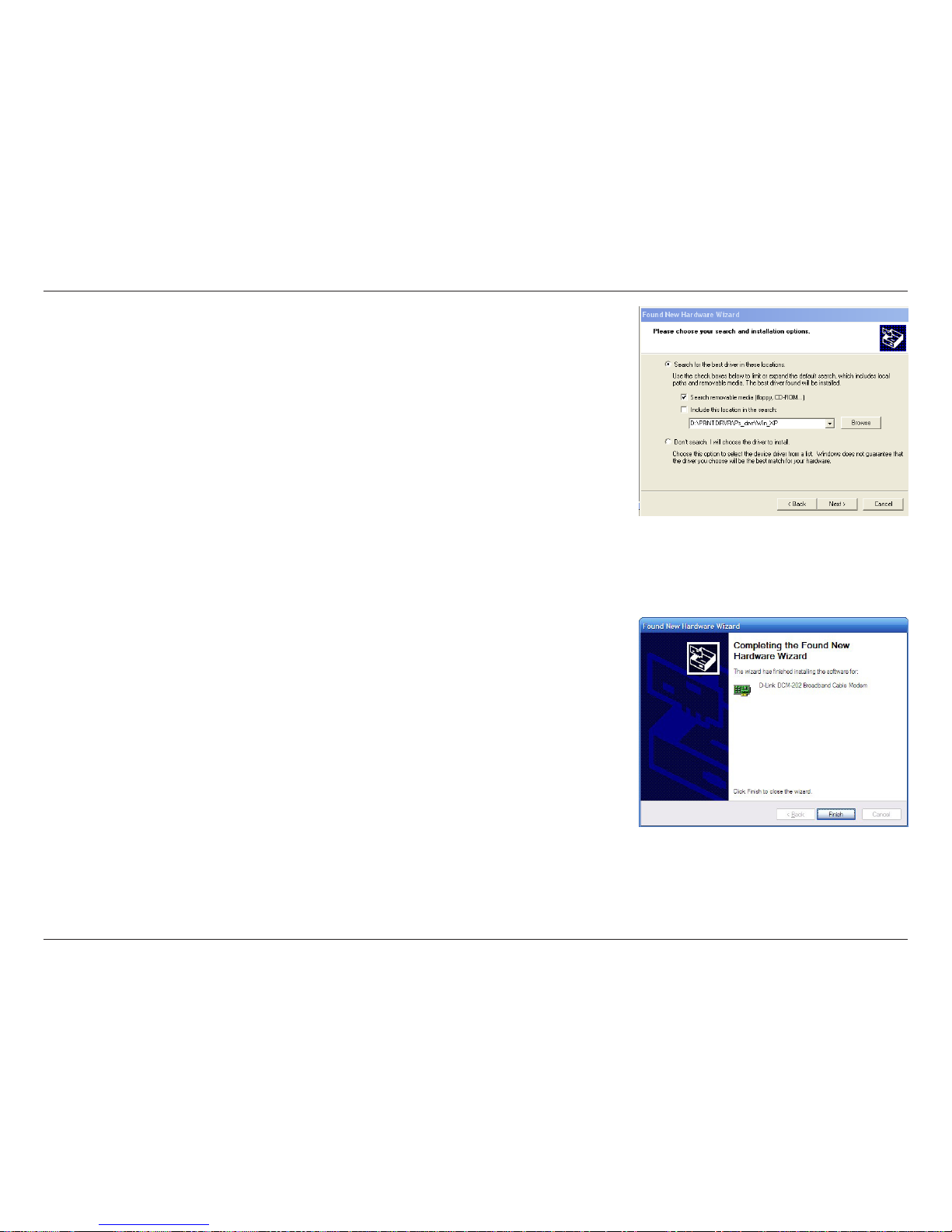

WINDOWS®XP:
The Found New Hardware screen will appear. If you receive a Can Windows connect to
Windows Update to search for software message, select No, not this time.
Click Next to continue.
Select Install from a list or specific location (advanced) and then click Next.
Click Close

18D-Link DCM-202 User Manual
Section 2 - Installation
Check Search removable media (floppy, CD-ROM...) and then click Next to search for
the necessary driver files from the D-Link CD-ROM.
Once the drivers are installed, click Finish.

19D-Link DCM-202 User Manual
Section 2 - Installation
WINDOWS®2000:
The Found New Hardware Wizard screen appears. Click Next to Continue.
Select Search for a suitable driver for my device (recommended) and click Next.
Check the CD-ROM Drives check box and click Next to search for the necessary driver

20D-Link DCM-202 User Manual
Section 2 - Installation
files.
When the correct location of the driver le appears, click OK.
The Found New Hardware Wizard displays the search results.
Click Next to install the driver files for the cable modem.
Click Finish to continue.
