Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements
* Subject to services and service terms available from your carrier.
• An active LTE service plan from a compatible carrier.*
• Computer with Windows or Linux-based operating system with an installed Ethernet adapter
or compatible USB port.
•Java-enabled browser such as Internet Explorer 11, Chrome 20.0, or Firefox 7 or above
(for configuration).
Mini-USB AC adaptor
DWM-311 4G LTE M2M Modem [2] Interchangeable blade antennas
RJ-45 cable
[2] Magnetic antenna mounts
Quick Installation Guide

2D-Link DWM-311 User Manual
Section 1 - Product Overview
Introduction
D-Link’s DWM-311 4G LTE M2M Modem is a robust 4G LTE modem that provides blazing fast connection speeds for
embedded Machine-to-Machine (M2M) applications. The single mode LTE modem provides an economical and reliable
high-speed connection suitable for the most demanding Internet of Things (IoT) applications. This cost-eective device is
pre-congured to provide a complete connectivity solution out of the box.
The industrial-grade casing means the DWM-311 provides reliable high-speed connectivity in extreme conditions. The
corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance mean that the DWM-311
is ready for the most demanding M2M applications in virtually any environment. Wall mounts and exible interfaces allow
the DWM-311 to be mounted virtually anywhere for optimal connectivity.
The DWM-311’s USB and Ethernet interfaces allow connectivity to be added to virtually any device. Ethernet means
driverless, instant access for any Ethernet-enabled device, without the need for pre-conguration or special software.
Standard USB protocols allow you to add high-speed Internet access to devices not traditionally equipped with network
adapters. Ethernet makes the DWM-311 a true plug-and-play solution, suitable for mass deployment or small scale use.
Should unique settings be required, the easy-to-use web interface can be congured through any web browser.

3D-Link DWM-311 User Manual
Section 1 - Product Overview
Hardware Overview

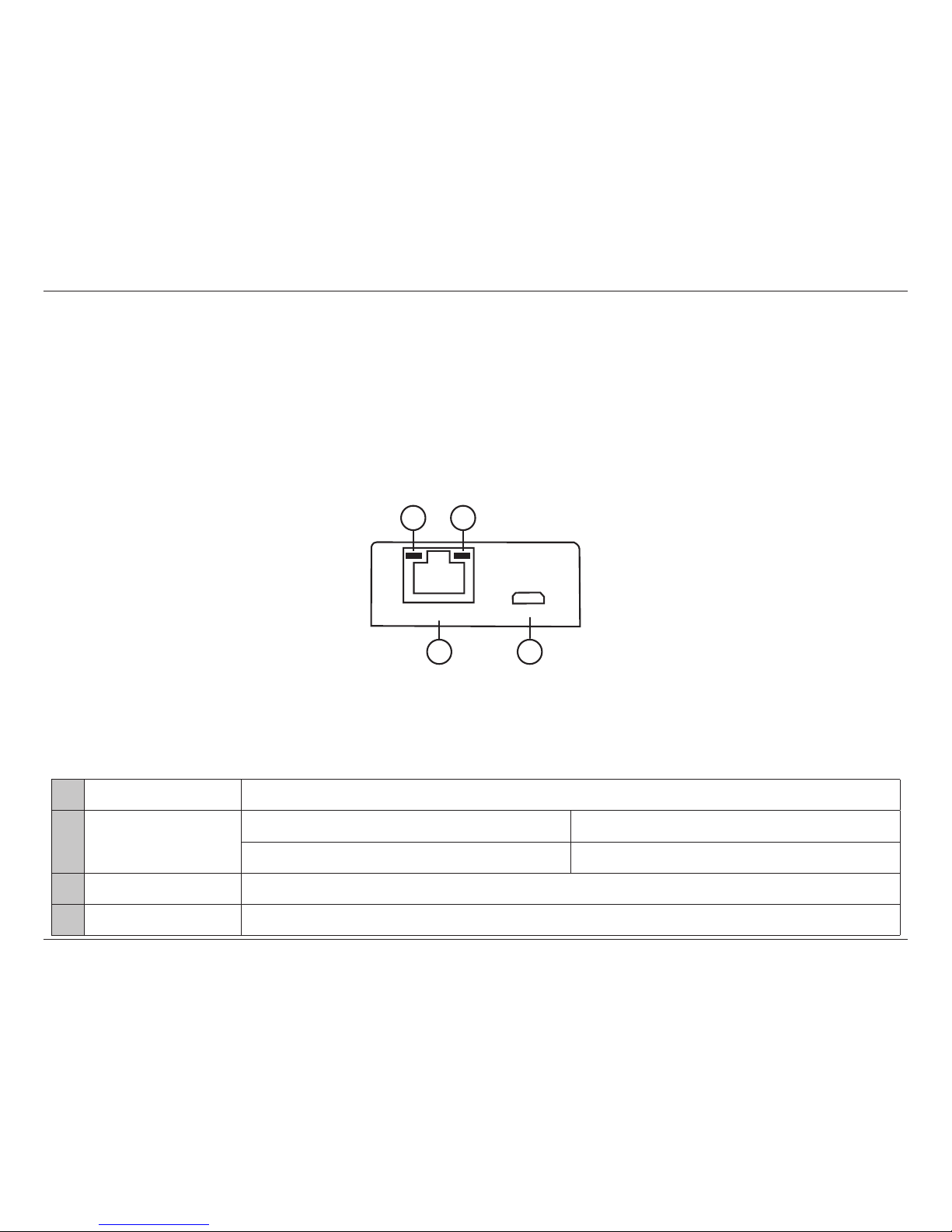

Front View
1 Ethernet Activity Flashes yellow when there is Ethernet trac.
2 Link Status
Solid Green Indicates active links
O No active links
3 Ethernet Port This is a standard 10/100 Mbps Ethernet port to connect any device via a Cat 5/5e/6 RJ-45 cables.
4 Micro-USB 2.0 Port This is a micro-USB 2.0 port for connecting any device via a standard micro-USB cable.
1
3
2
4
DATA1 DATA2

4D-Link DWM-311 User Manual
Section 1 - Product Overview
1 Mini-USB Power The DWM-311 accepts power through a mini-USB coonector.
2 Status LED
Solid green Indicates strong signal.
Flashing Indicates weak signal.
O Indicates no signal.
3 Power LED Solid green indicates the modem is receiving power.

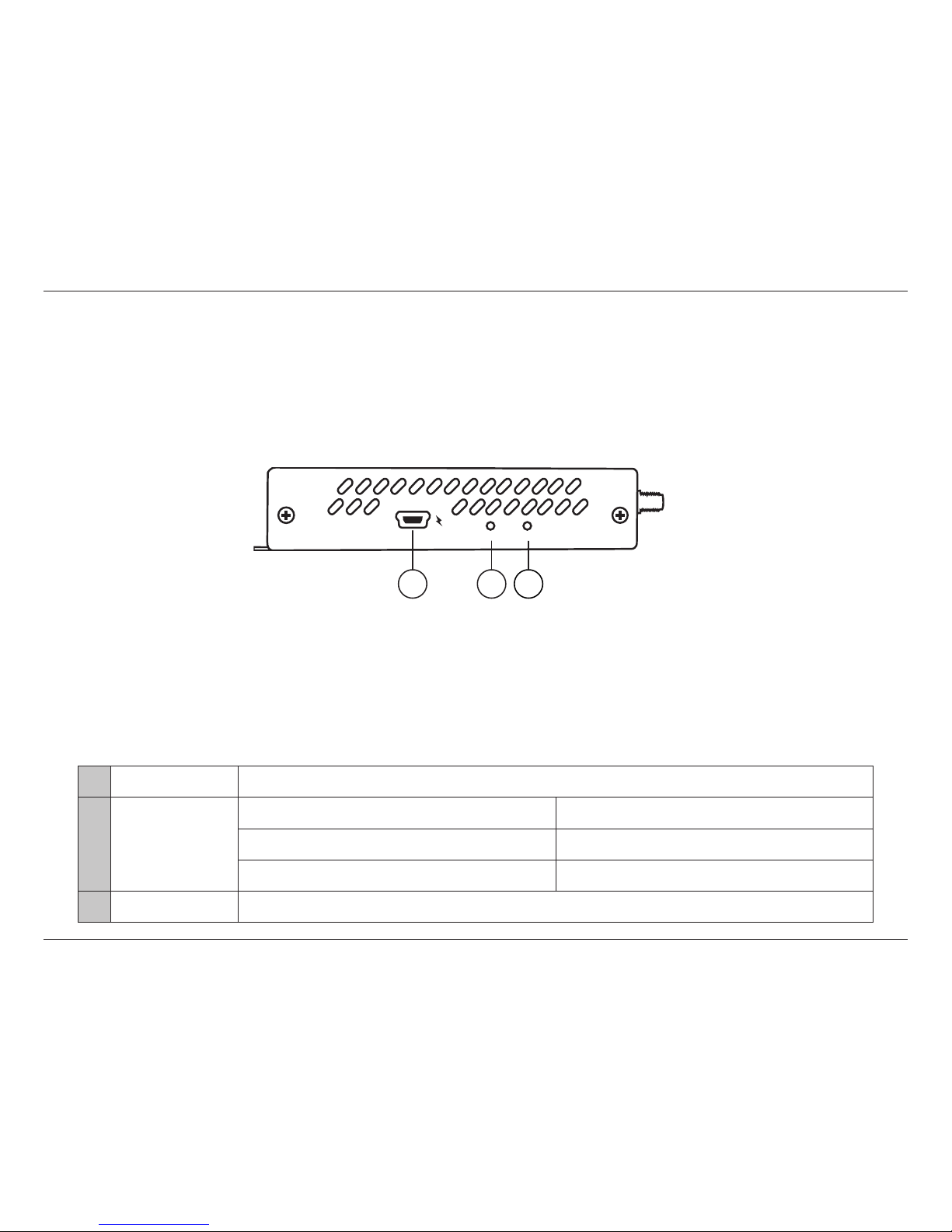

Side View
STATUS PWR
12 3

5D-Link DWM-311 User Manual
Section 1 - Product Overview
1 Wall Mounts Wall mounts for standard 8 gauge (4 mm) screws.
2 SMA Connector PRI SMA female connector - Primary antenna.
3 SMA Connector DIV SMA female connector - Antenna Diversity.

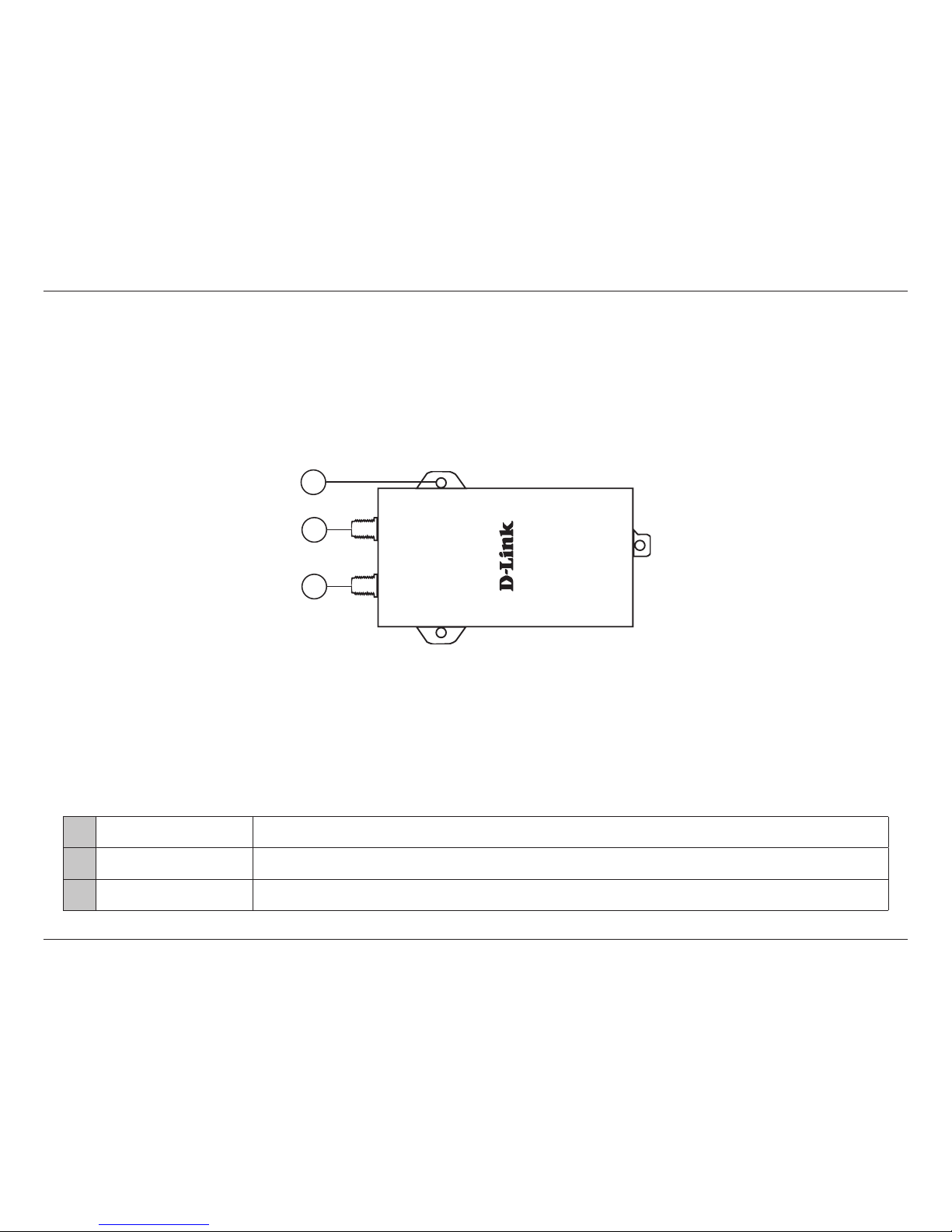

Top view
PRIDIV
2
3
1

6D-Link DWM-311 User Manual
Section 2 - Installation
Before You Begin
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
Observe the following precautions to help prevent shutdowns, equipment failures, and personal injury:
• Install the DWM-311 in a cool and dry place. Refer to the technical specications in the user manual for the acceptable operating temperature
and humidity ranges.
• Install the modem in a site free from strong electromagnetic sources, vibration, dust, excessive moisture, and direct sunlight.
• Place antennas in an unobstructed area with clear LTE signal. Avoid metal boxes, brick walls, and other dense materials. Use the web interface
to conrm signal strength before permanent installation.
• Visually inspect the power connector and make sure that it is fully secure.
• Do not stack any devices on top of the modem.
Attach the External Antennas

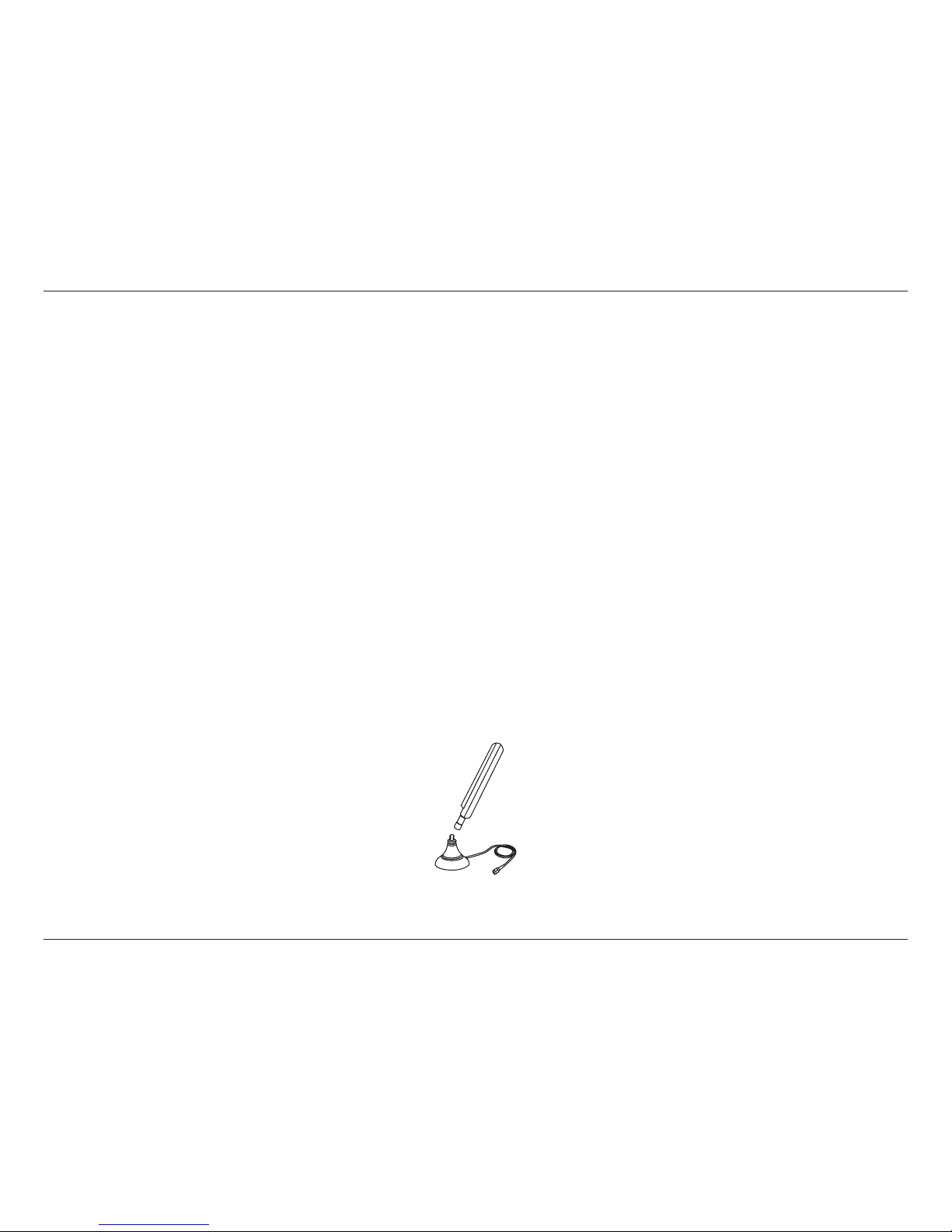

The DWM-311 requires two external antennas to function correctly. The included antennas are interchangeable, but third party antennas may
require connection to specic ports.
1. Attach the antennas to the included magnetic mounts. Turn the hex nut clockwise to fasten the antenna.
2. Place antennas where they will receive optimal signal. Arrange them so they point upward.

7D-Link DWM-311 User Manual
Section 2 - Installation
Powering the Modem
The modem can be powered either directly via mini-USB or via Power over Ethernet (PoE) using a PoE splitter.
Using included Mini-USB cable
Use the included mini-USB AC adaptor to power the modem. Attach the USB connector to the included AC adaptor. Attach the AC adaptor to a wall
socket. Insert the mini-USB connector into the port on the modem labelled with the symbol.The power LED will turn green to indicate the modem
is receiving power.
Using Power over Ethernet (PoE)
The DWM-311 can be powered via Power over Ethernet (PoE) (sold separately) by connecting a 5.5 mm DC to mini-USB adaptor (sold separately)
to a PoE splitter. This may be useful when long cable lengths required. Standard PoE has a range of up to 330 ft (100 m). The following steps outline
setting up the modem with a PoE Splitter/Injector kit.
1. Verify your PoE splitter is set to output 5 volts.
Warning: Higher voltages may damage the DWM-311.
2. Attach the PoE splitter’s DC-OUT to the DWM-311’s mini-USB power input using the DC-to-Mini-USB adaptor (sold separately). The power input
is labelled with the symbol.
3. Once the antennas are placed, attach both antenna cables to the DWM-311’s external SMA connectors, labelled DIV and PRI. Turn the hexnut
clockwise to secure the cables.
Note: The included antennas are interchangeable. Third party antennas may require connection to specic ports.

8D-Link DWM-311 User Manual
Section 2 - Installation
3. Attach the PoE splitter’s LAN OUT to the DWM-311’s DATA1 port on the DWM-311.
4. Finally, connect the PoE injector’s LAN-IN port to an available Ethernet port on
your end device and plug in the injector’s power cord into a power outlet as
shown in the diagram.
Note: the above case assumes you are using a D-Link DPE-301GI 1-Port Gigabit PoE
Injector and D-Link DPS-301GS 1-Port Gigabit 30W PoE Splitter (sold separately).
Other PoE congurations may vary.
Connecting Devices

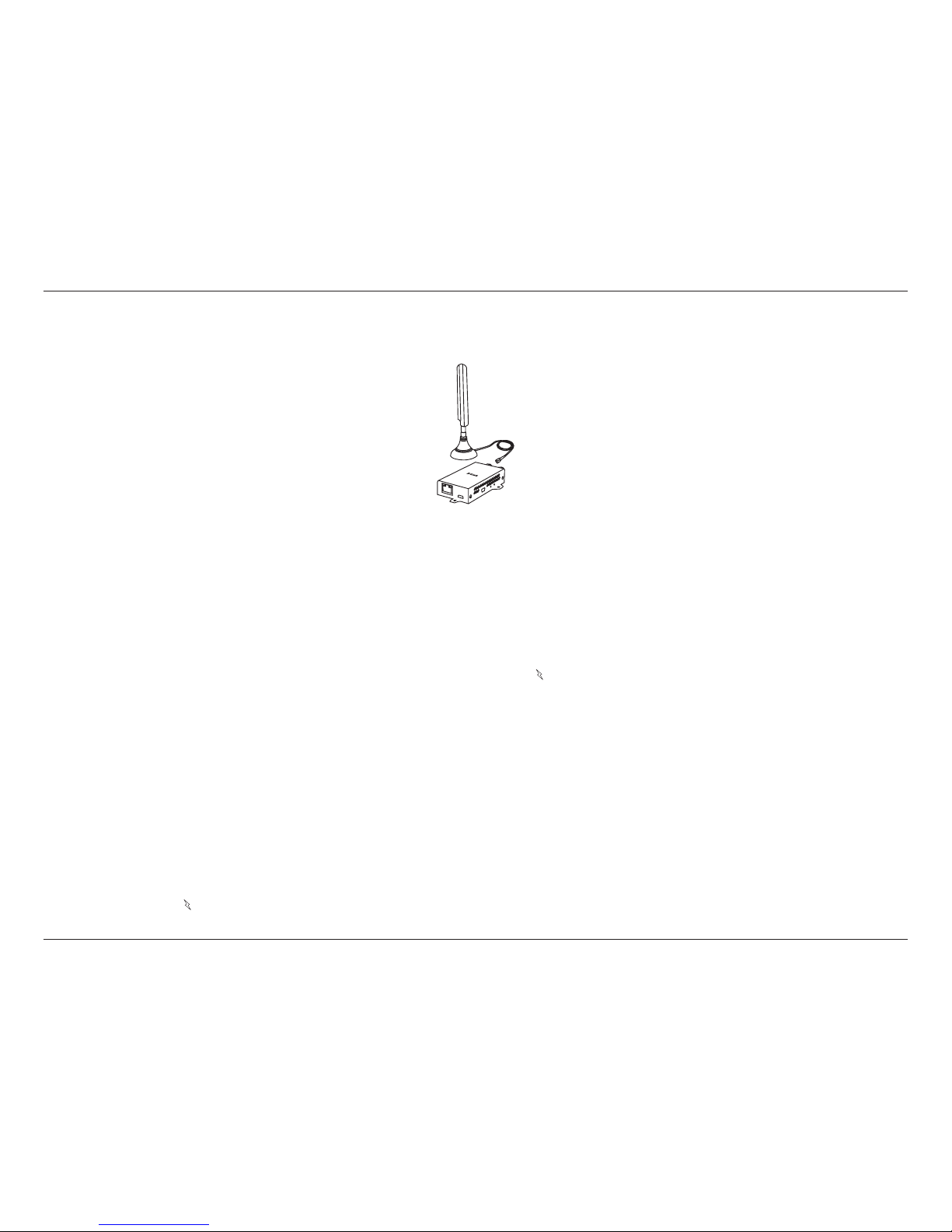

After the DWM-311 has been successfully installed, the modem can be connected
to the end device via either of the following connection methods:
Over Ethernet
The Ethernet port can be connected to an end device. Use a standard Category 5/5e/6
RJ-45 Ethernet cable to connect the end device to the modem. The port will auto-
negotiate to the highest possible port speed based on the connected device. Note
that the DWM-311 supports a maximum transfer speed over Ethernet of 100 Mbps.
Over USB 2.0
To connect the modem over USB, connect a micro-USB cable (not included) to the
port marked DATA2 on the back panel. Insert the other end of the cable into a free
USB port of the device you wish to connect.
Note: The modem cannot accept power over micro-USB, only over mini-USB through
the port labelled with the symbol.
Connect DATA1 on the
DWM-311 to the Ethernet
port labelled PoE OUT on the
PoE injector. Connect the
Mini-USB port to the
splitter’s DCOUT using an
adaptor (sold separately)
DWM-311
Connect a device to the
Ethernet port labelled LAN
IN on the PoE injector
PoE Injector
Connect the power
adapter to the PoE injector
and a power outlet
End Device Power In
54V INLAN IN
PoE Splitter
PRIDIV
PoE Splitter 30W
PoE IN
DC OUTL AN OUT
PoE Injector 30W
PoE OUT
54V IN LAN IN

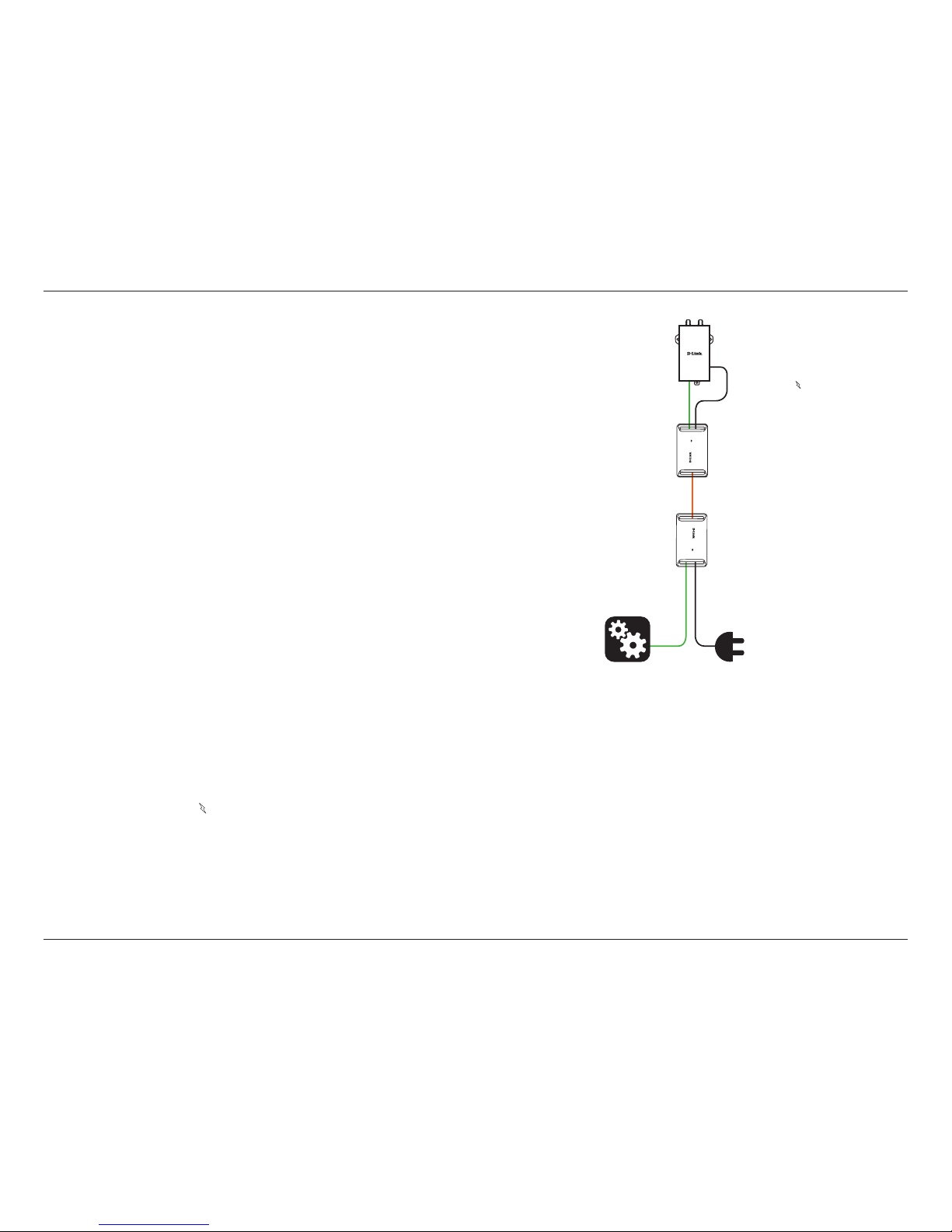

Powering the modem using a PoE Kit (sold separately)

9D-Link DWM-311 User Manual
Section 3 - Conguration
Conguration

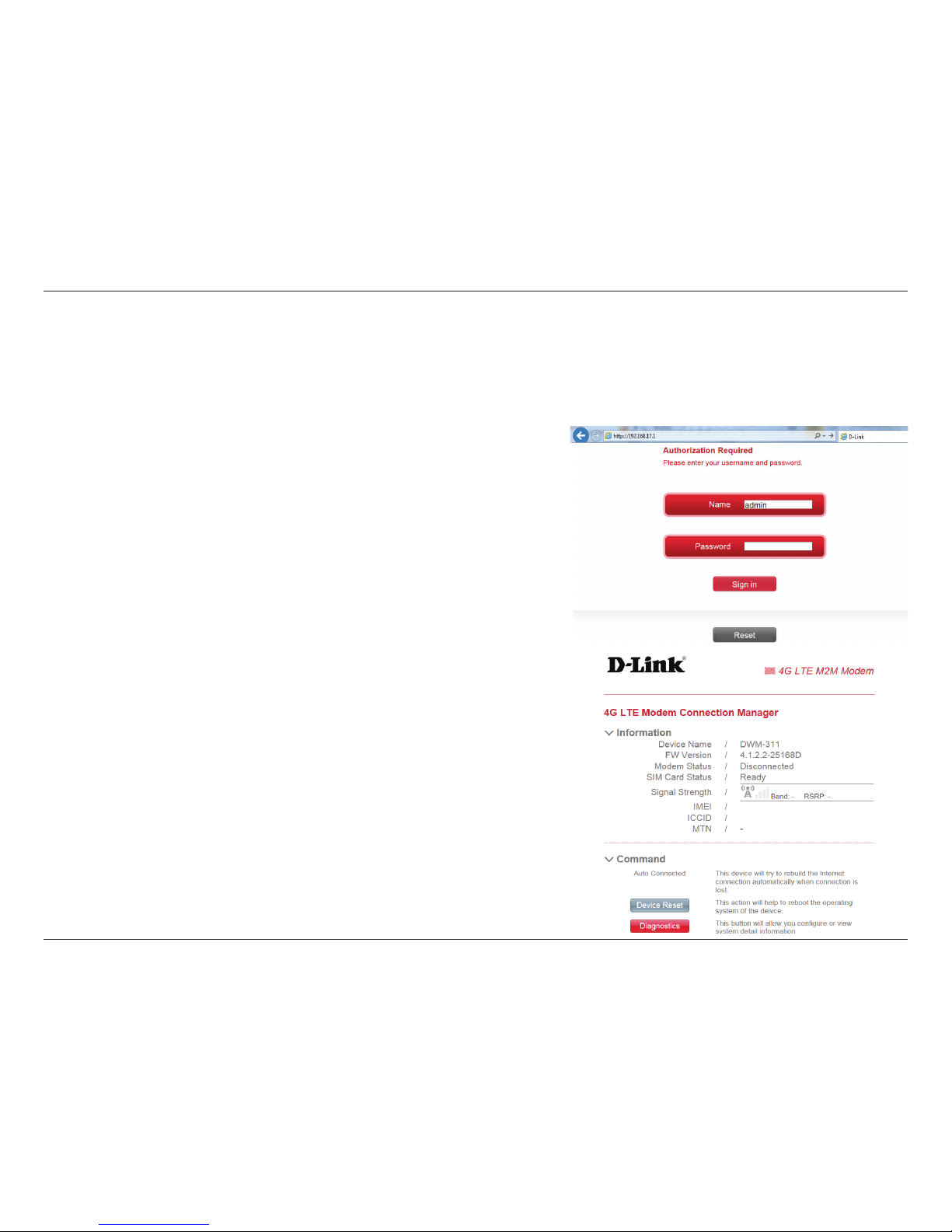

To access the conguration utility, open a web browser such as Internet Explorer
and enter the address of the router (192.168.17.1 by default for connections over
Ethernet, and 192.168.15.1 for connections over micro-USB).
To login to the conguration utility, admin is the default username and the default
password is printed on the label on the back of the modem.The Reset button causes
the password eld to be reset to blank.
Note: If you get a Page Cannot be Displayederror, please refer to the Troubleshooting
section for assistance.
Once you have successfully logged in, you will see the Home page. On this page
you can view information about your LTE connection and system information. The
LTE Signal Strength indicator can be used to place your device. The IMEI and ICCID
are unique identiers for your device and may be required by your service provider.
At the bottom of the page, Device Reset allows you to reboot the device, while
Diagnostics brings up diagnostic and advanced configuration options. The
Diagnostics panel is intended for advanced users and debugging, and should not
be necessary in the course of normal usage.
Getting Started

10D-Link DWM-311 User Manual
Section 3 - Conguration
Diagnostics

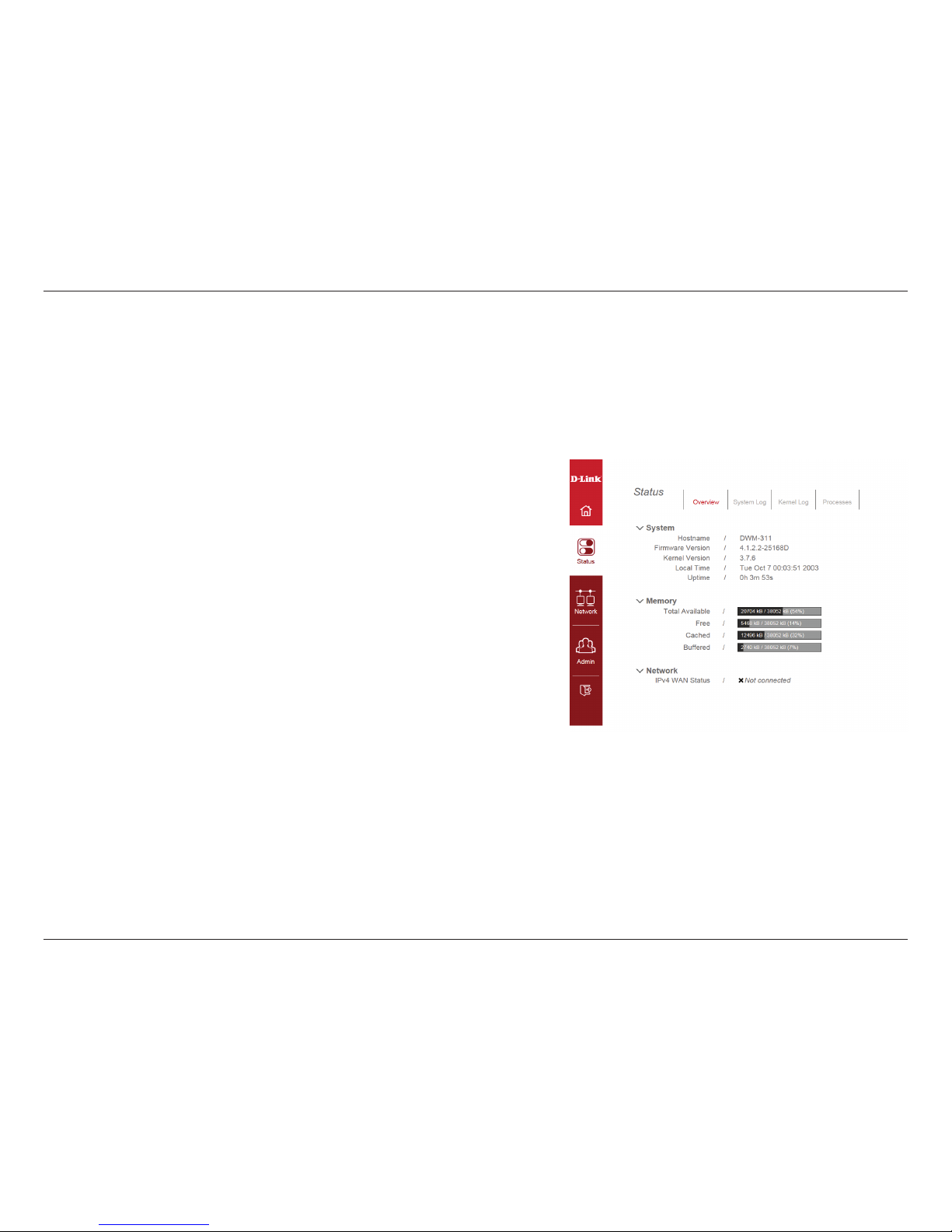

Status
The diagnostics screen has a read bar with dierent sections along the side. Subsections are listed as tabs across the top

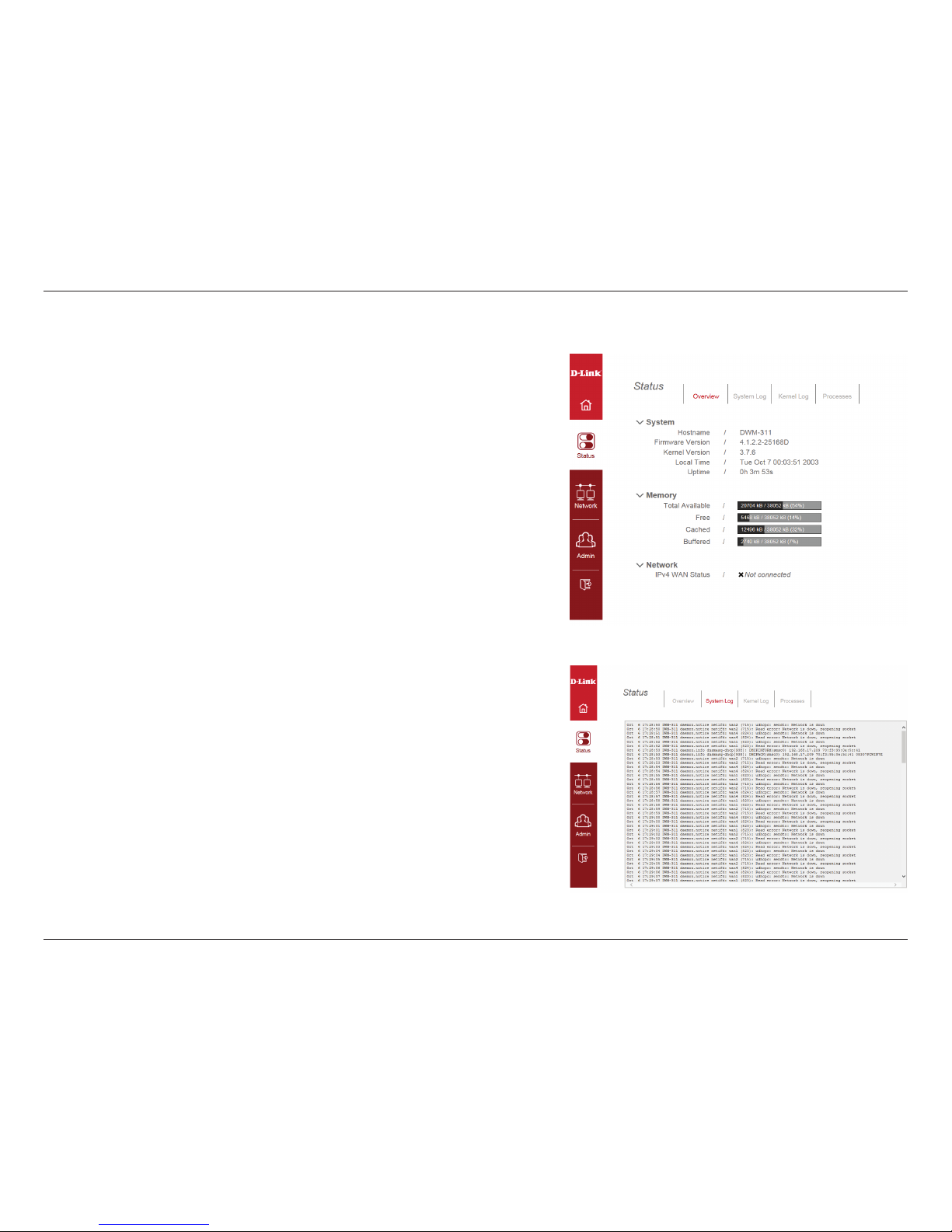

Overview
System
The Network Hostname as it will appear on a LAN. This setting in
congurable in the admin panel and discussed on page 19.
Current rmware version. This is upgraded via Firmware Over the
Air (FOTA) or manually using the Upgrade tab on the Admin Page.
If the device malfunctions, you may need to provide this number
to your support representative.
Current Linux Kernel version of your DWM-311. This may be
needed for debugging purposes.
Lists current time according to the modem’s internal clock. If this
is incorrect, it can be congured in the Admin section. See page
19.
The amount of time since the last reboot.
Note: This is not the amount of time connected to the Internet,
only since last reboot.
Hostname:
Firmware
Version:
Kernel Version:
Local Time:
Uptime:

11D-Link DWM-311 User Manual
Section 3 - Conguration
Memory
This section provides details about rmware memory usage.
Memory management will not be necessary for normal usage and
is beyond the scope of this manual.
Network
When connected, this will list the external IP address from your
LTE network provider. This may be necessary for certain advanced
applications such as private networking, diagnostics, or VPNs.
IPv4 WAN Status:
System Log
This section provides a full log of system events, including
information about WAN connectivity and LTE Module status.
The logging features are intended for diagnostics and advanced
users only, and are beyond the scope of this manual. Log entries
are time stamped based on the modem’s internal clock. The level
of detail in the system log and the size of the log buer can be
adjusted in the Admin panel, and is discussed in ”System: Log
Settings”on page 20.

12D-Link DWM-311 User Manual
Section 3 - Conguration

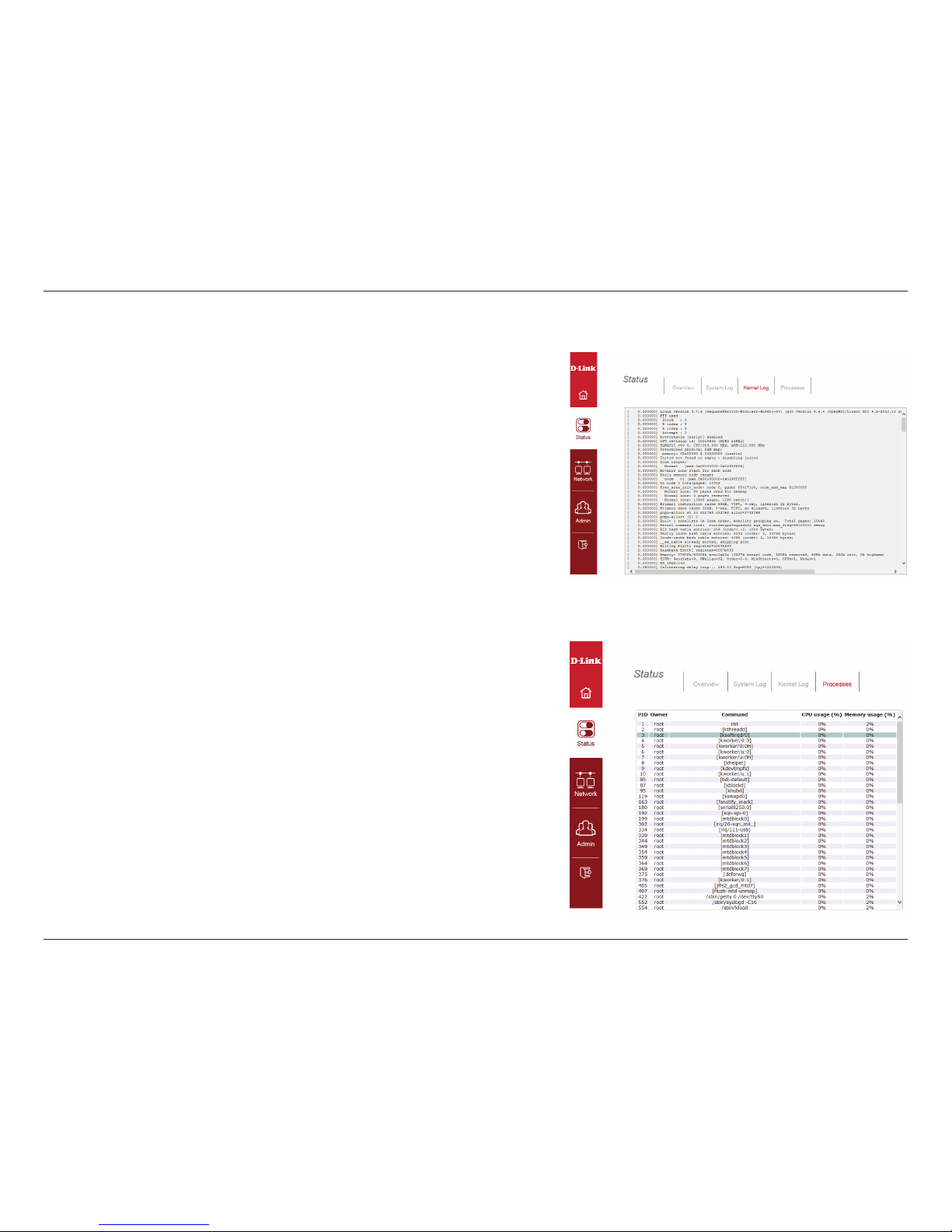

Kernel Log
The Kernel log provides a full log of kernel level events. Kernel
events are time stamped based on number of seconds from boot.
The logging features are intended for diagnostics and advanced
users only, and are beyond the scope of this manual.
Processes
The Processes screen lists all running processes on the modem’s
internal operating system. This may be useful when testing
experimental software or troubleshooting. This feature is intended
for diagnostics and advanced users only, and is beyond the scope
of this manual.

13D-Link DWM-311 User Manual
Section 3 - Conguration
Manufacturer
Board name:
Serial number:
IMEI
Duplexing
Scheme
Supported
bands.
Lists the modem’s manufacturer.
Lists the type of LTE module used in the DWM-311.
Lists the device’s serial number. This may be required for warranty
claims.
International Mobile Equipment Identiers, a unique number
that identies your modem to your operator. This is condential
information and should not be shared except with your operator.
The type of LTE duplexing scheme supported by the LTE chipset.
Currently, only Frequency Division Duplex (FDD) is supported.
Lists bands supported by the LTE module. Currently bands 2, 4,
and 13 are supported.

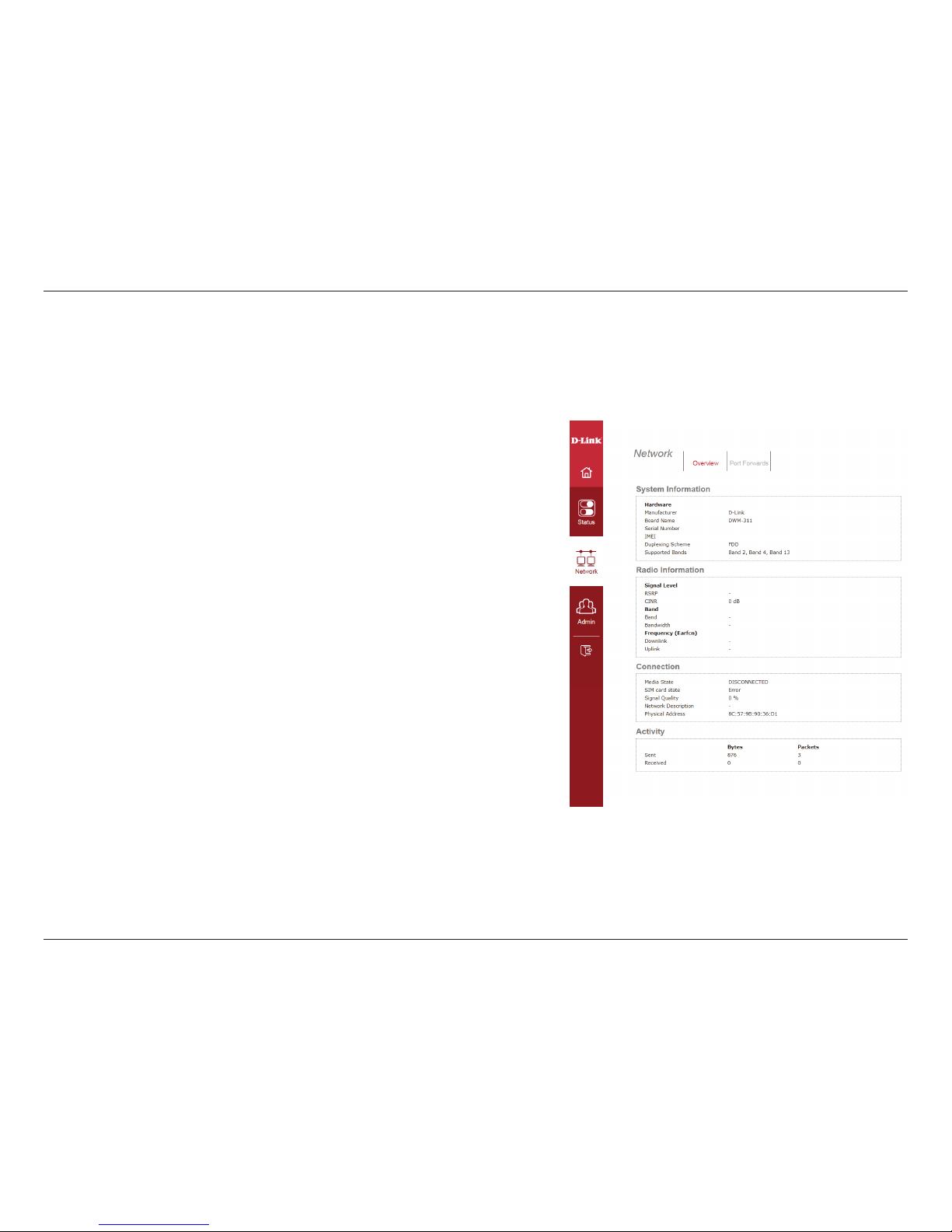

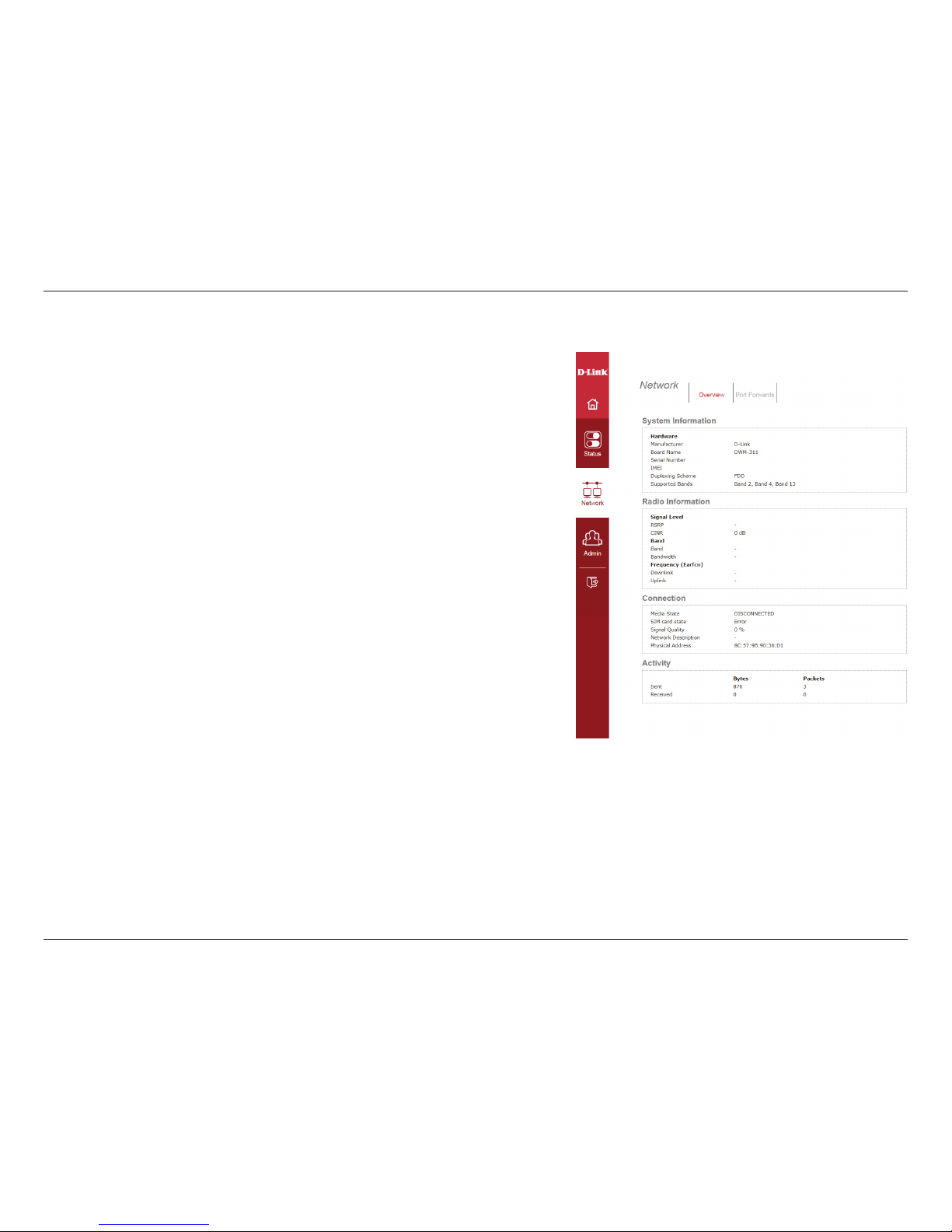

Network
Overview
System Information
RSRP:
CINR:
Band:
Bandwidth:
Reference Signal Received Power, a measure of signal strength.
Carrier to Interference Noise Ratio, a measure of signal clarity.
Currently used LTE frequency band. This is managed by your ISP.
Width of current channel (in Mhz). Wider channels have higher
theoretical maximum speeds.
Radio Information

14D-Link DWM-311 User Manual
Section 3 - Conguration
Overview (continued)
Radio Information Continued
Connection
Frequency
(EARFCN):
Downlink:
Uplink:
Media State:
SIM card state:
Signal Quality:
Network
Description:
Physical
Address:
Sent:
Received:
EUTRA Absolute radio-frequency channel number, a measure of
the center of an LTE carrier signal. Used for network diagnostics.
The downlink frequency used to calculate EARFCN.
The uplink frequency used to calculate EARFCN.
Connected or Disconnected to cellular network.
Displays the status of the integrated SIM card.
Displays the LTE signal quality as a simple percentage.
Description of the connected network.
The MAC Address of the modem for IP routing purposes.
Displays the number of bytes and packets sent over LTE.
Displays the number of bytes and packets received over LTE.
The connection information in this section refers only to cellular status, not to Ethernet
or USB networking.
Activity

15D-Link DWM-311 User Manual
Section 3 - Conguration
Name:
Match:
Forward to:
Enable:
Sort:
Edit:
Delete:
Indicates the user-specied name of the port forward.
Indicates the criteria that must be met for trac to be forwarded
to the specied IP address on the local network.
Indicates the IP address, port, and interface to which the matched
trac will be forwarded.
Check this box to enable this port forward. Uncheck this box to
disable it.
When multiple port forwards with overlapping criteria are
enabled, the user can specify the order which the rules are
applied.
Clicking this button will allow detailed modications of the port
forward. For details, see“Edit a Port Forward” on page 17.
Clicking this button will delete the associated port forward.

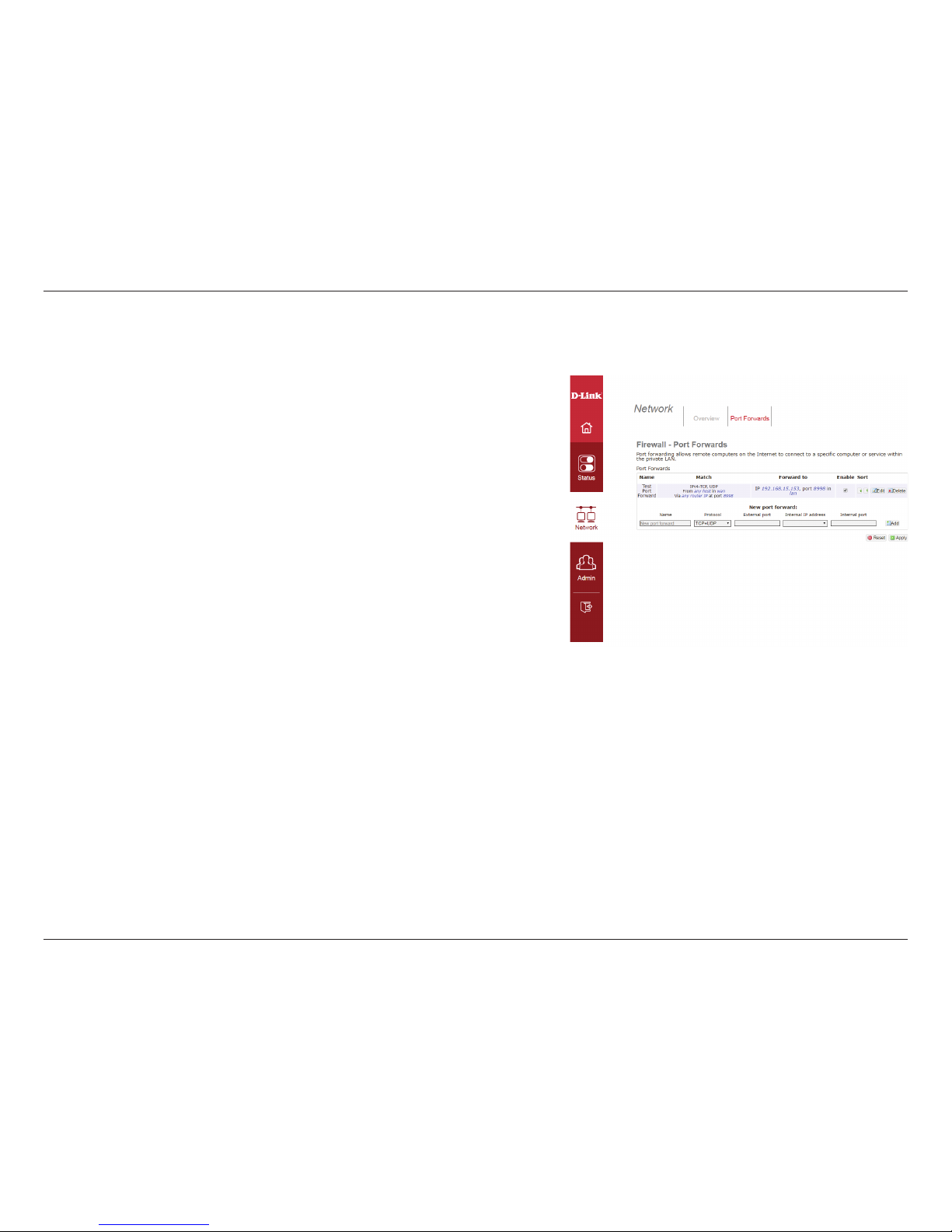

Port Forwards
This section is only available in Router Mode. To enable Router Mode, see “Router Mode” on page 23.
By default, Network Address Translation (NAT) blocks all remote requests. For cases where remote requests are needed, such as for remote access
or servers, port forwarding allows specic ports and protocols to travel from the Internet to specically designated hosts on the private network.
The device accepts remote requests for these services at your global IP address. It uses the specied TCP or UDP protocol and port number, and
redirects these requests to the server on your LAN with the LAN IP address you specify.
On each screen, click Apply to save changes or Reset to revert changes.

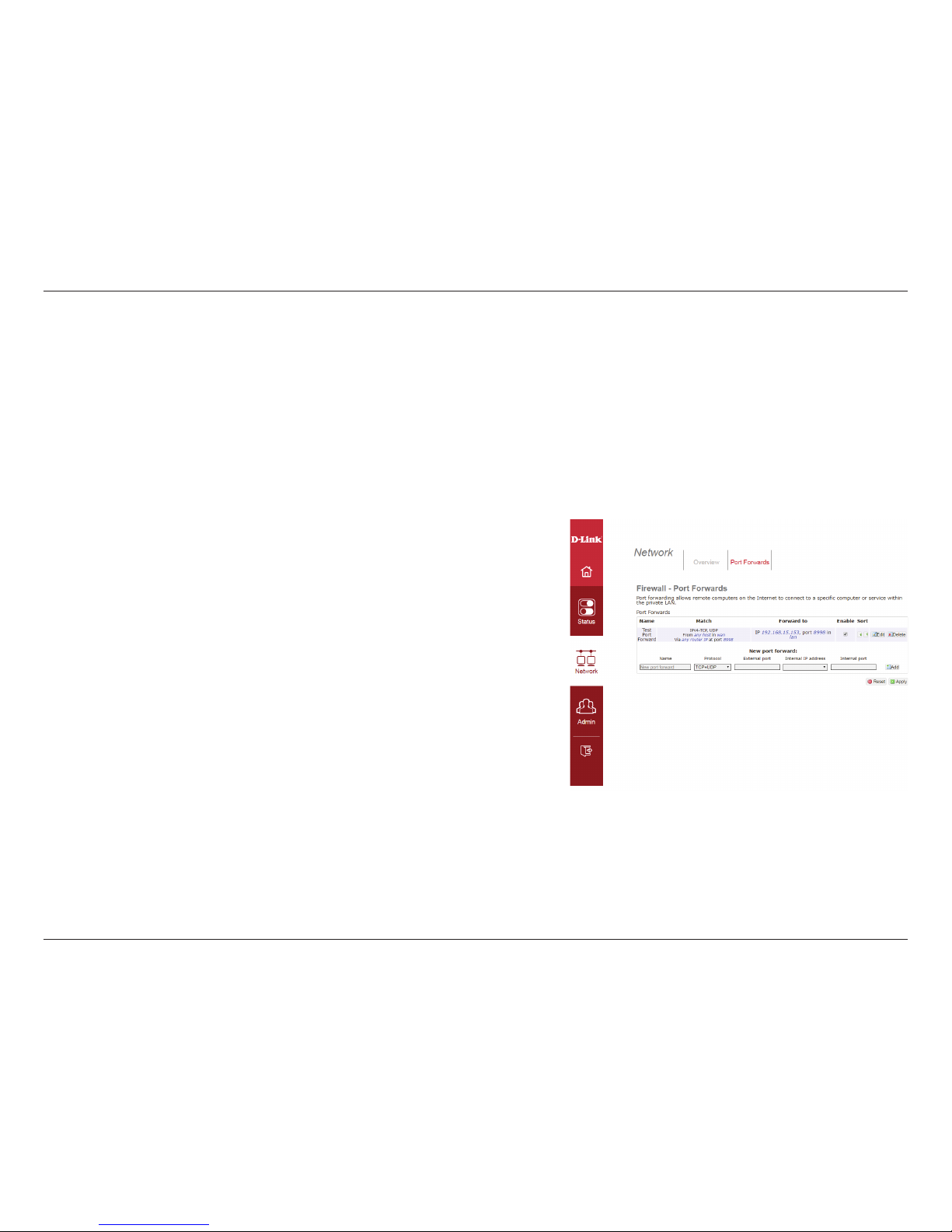

If port forwards have been set up, they will be listed here.
Port Forwards:

16D-Link DWM-311 User Manual
Section 3 - Conguration
Name:
Protocol:
External port:
Internal IP
address
Internal port:
Add:
Select a name for the new port forward. This does not aect
functionality.
Select which protocol the port forwarding rule will be applied to.
Select TCP+UDP,TCP, or UDP. If you need a protocol which isn’t
listed, select any protocol here and then edit the corresponding
rule as detailed in “Edit a Port Forward” on page 17.
Select the external port used by the incoming service. The external
port will be exposed directly to the internet.
Specify the IP of the LAN-connected host to which trac will be
forwarded using this rule.
Specify the internal port to forward to. This is the port to which the
LAN-connected client should be listening.
Once the information has been entered, click Add to add the port
forward to the list.
Click Apply to save changes or Reset to revert changes.
Port Forwards (Cont)
New port forward:

17D-Link DWM-311 User Manual
Section 3 - Conguration

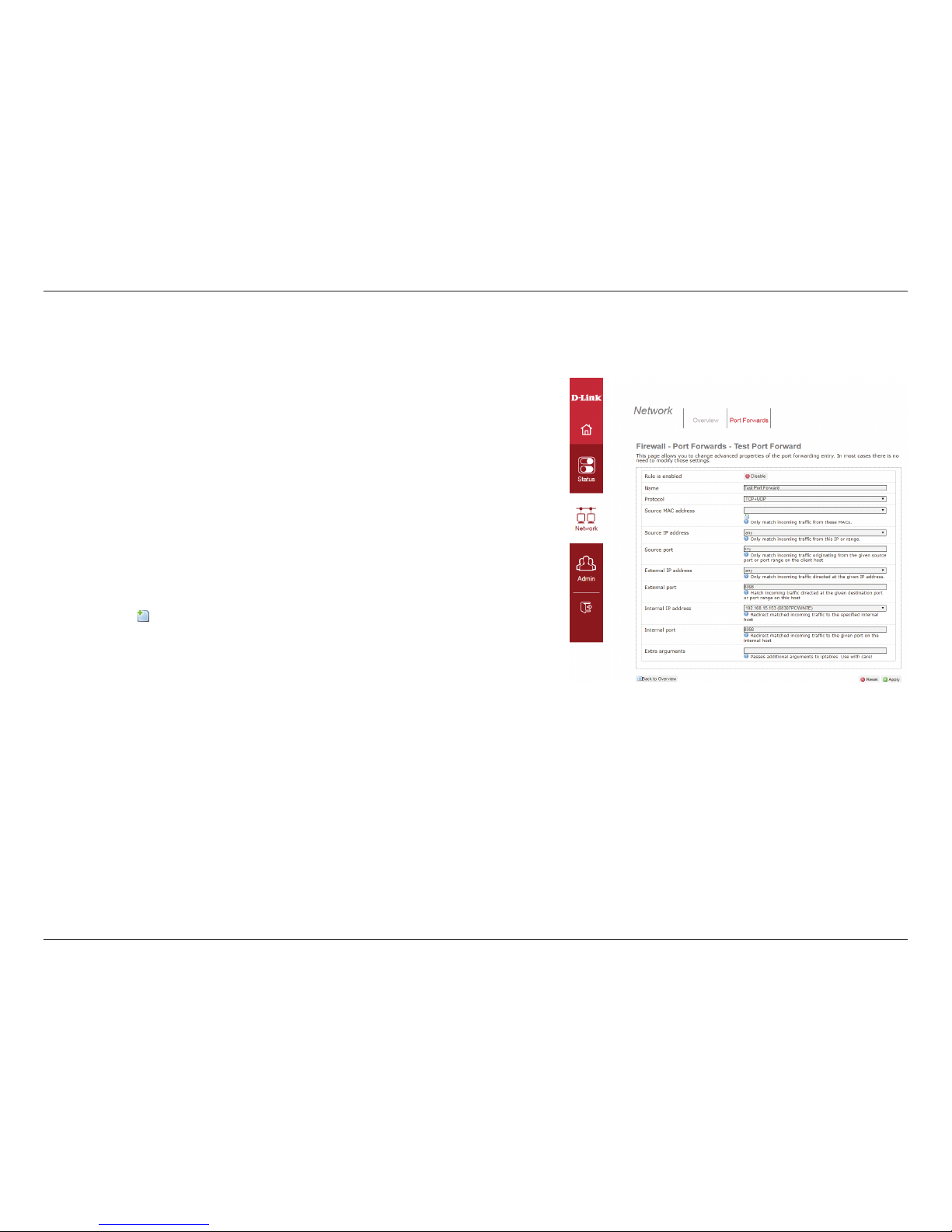

Rule is enabled:
Name:
Protocol:
Source MAC
address:
Source IP
address:
Source port:
External IP
address:
External Port:
If the port forward rule is enabled, click Disable to disable it. If
the rule is disabled, click Enable to enable it. Note that only one
button appears at a time.
Displays the current name assigned to the port forward and allows
the name to be changed.
Select the protocols aected by the port forward rule. Choose
TCP+UDP, TCP, UDP, ICMP, or select -- custom -- to enter a
protocol manually. This setting is required.
Allows the user to apply the rule based on the source MAC
address. Users can enter MAC addresses manually by selecting
-- custom --. Users can add multiple MAC address by clicking the
button. Leaving this blank applies the rule to incoming packets
from all MAC addresses. This setting is optional.
Allows the user to apply the rule based on the source IP address
or source IP address range to apply the rule to. This setting is
optional. Leave blank to allow any IP.
Allows the user to apply the rule based on the port used by the
source of the packet. Note that this is not the same as the external
port. Leave this blank to forward packets from any source port.
Allows the user to apply the rule based on the external IP address
or “target IP address”of the packet. Leave this set to any to apply
the rule regardless of external IP address. The default setting is
any.
Select the external port used by the incoming service. The
external port will be exposed directly to the internet. This setting
is required.
Port Forwards (Cont)
Edit a Port Forward
