D-Link DSL-100D User manual

DSL-100D for PPPoEDSL-100D for PPPoE
PCI ADSL ModemPCI ADSL Modem
Quick Install GuideQuick Install Guide

DSL-100D for PPPoE
PCI ADSL Modem
Quick Install GuideQuick Install Guide
for Windows 98/SE/ME/2000
DSL100D.-05-08-01
Replace the cover and
POWER ON your computer.
Windows will recognize the
DSL-100D modem and
prompt for drivers.
Click Next
POWER OFF your computer.
Disconnect its power, and remove its case.
(Follow your PC manufacturer's instructions to prevent damage
or injury.)

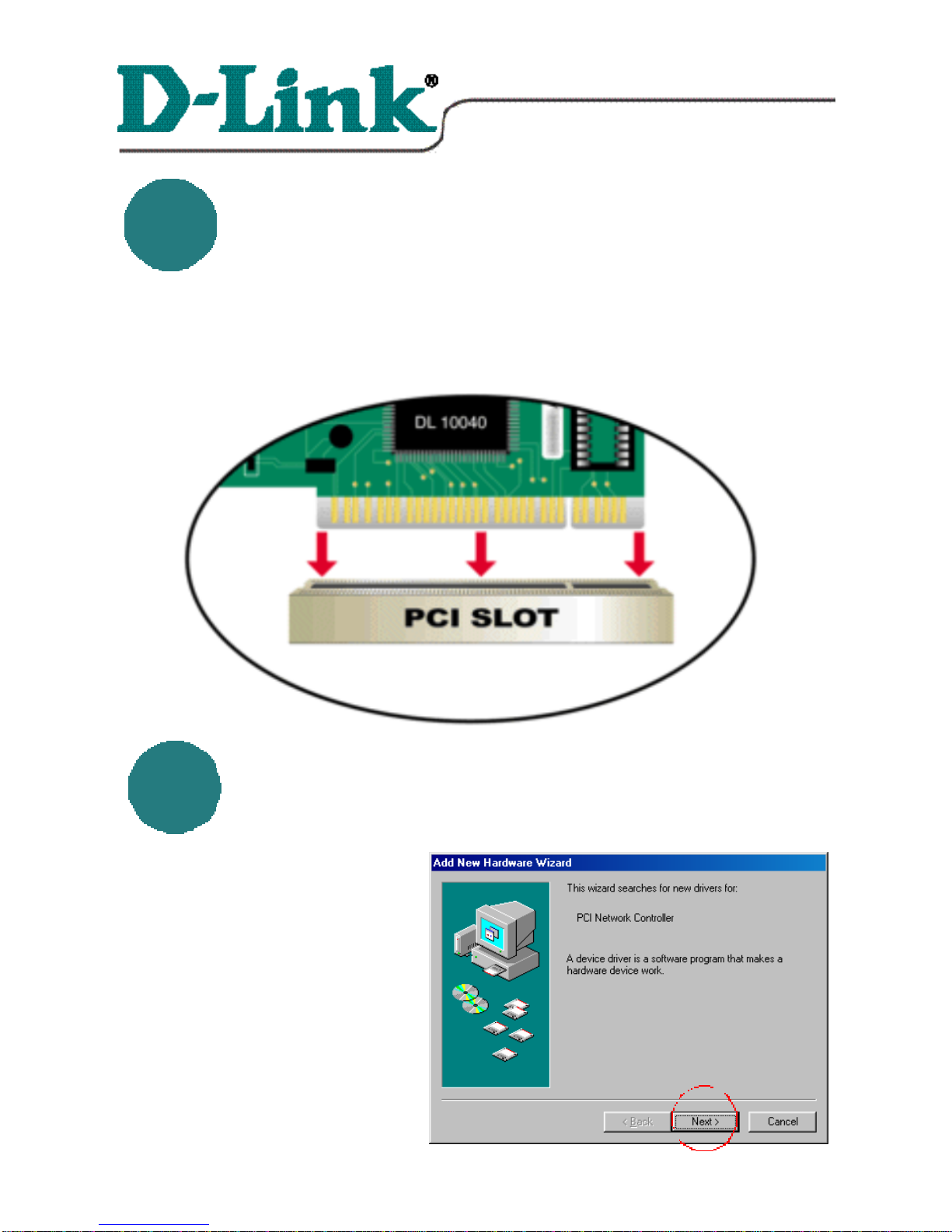

Place the DSL-100D into an available PCI slot.
DSL-100D Hardware InstallationDSL-100D Hardware Installation
DSL-100D Driver InstallationDSL-100D Driver Installation
11
22
* Please refer to the Manual on the CD-ROM for more detailed information.

22 DSL-100D Driver InstallationDSL-100D Driver Installation continued

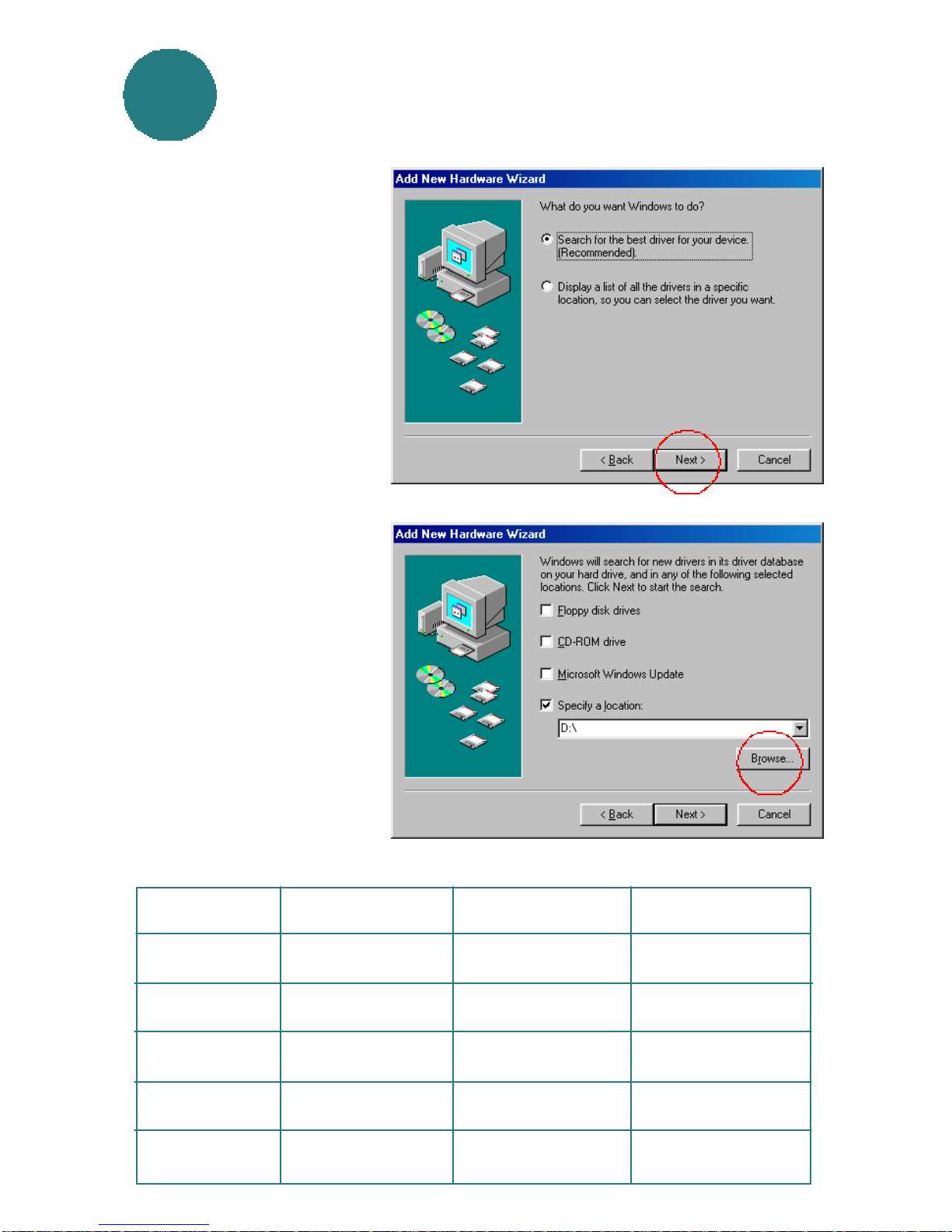

At this screen, make sure
that
“Search for the best
driver for your
device...” is selected.
Click Next
At this window, check
“Specify a location.”
Click Browse
Windows OS RFC 1483(MPoA) RFC 1577(IPoA) RFC 2364(PPPoA)
Windows 95 1483W95 1577W95 2364W95
Windows 98/SE 1483W98 1577W98 2364W98
Windows NT 4.0 1483NT4 1577NT4 2364NT4
Windows 2000 1483W2K 1577W2K 2364WME
Windows ME 1483WME 1577WME 2364WME

22
Match your OS with the correct RFC series (as shown in the table on the
previous page) to select the proper drivers for the DSL-100D modem.
Then select the proper folder in the “Browse for Folder” screen, as shown
below. If you are uncertain of the correct RFC series, please contact your
ISP(Internet Service Provider.)
DSL-100D Driver InstallationDSL-100D Driver Installation continued

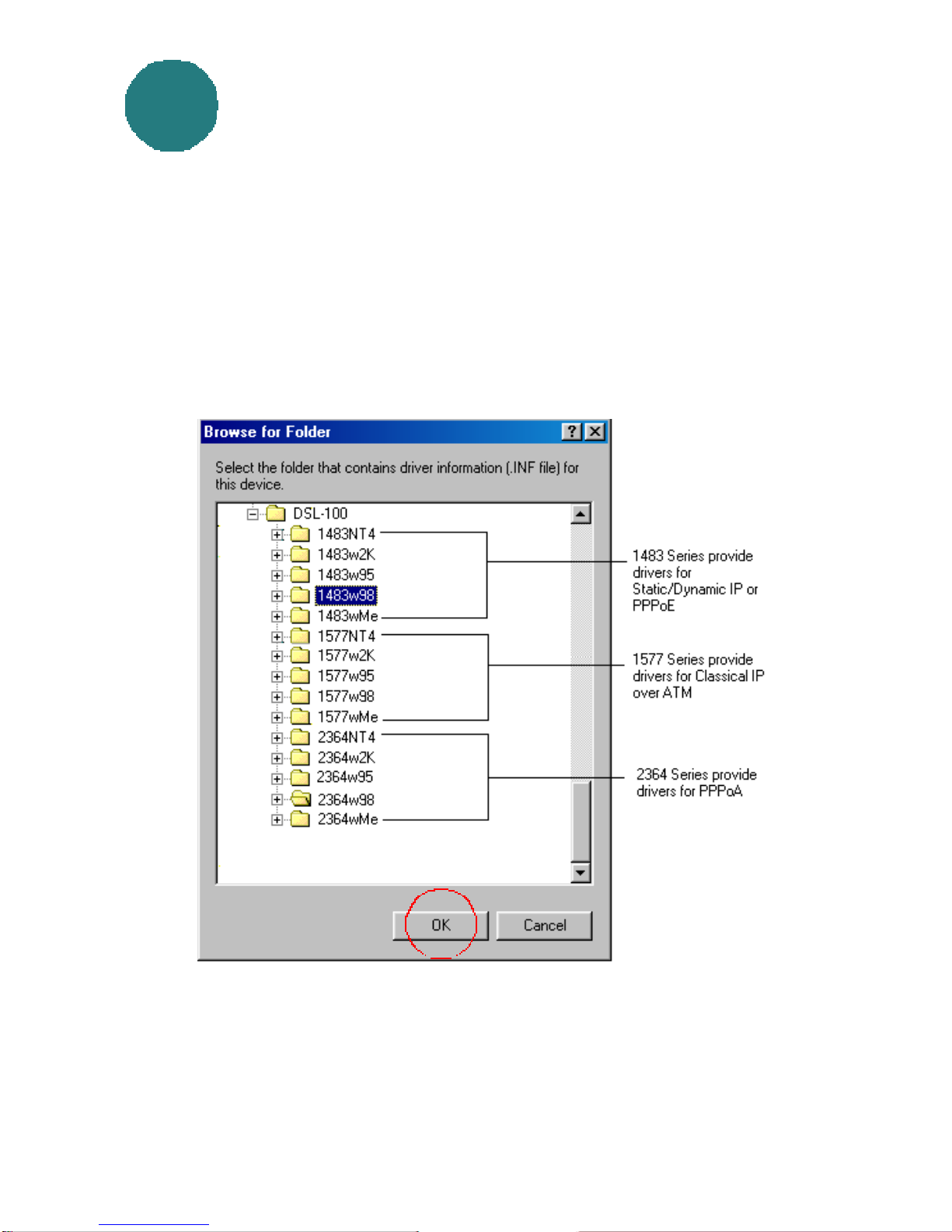

Using the chart on the previous page, please highlight the folder, as shown
below, that corresponds to both your OS and your RFC series.
Click OK

22 DSL-100D Driver InstallationDSL-100D Driver Installation continued

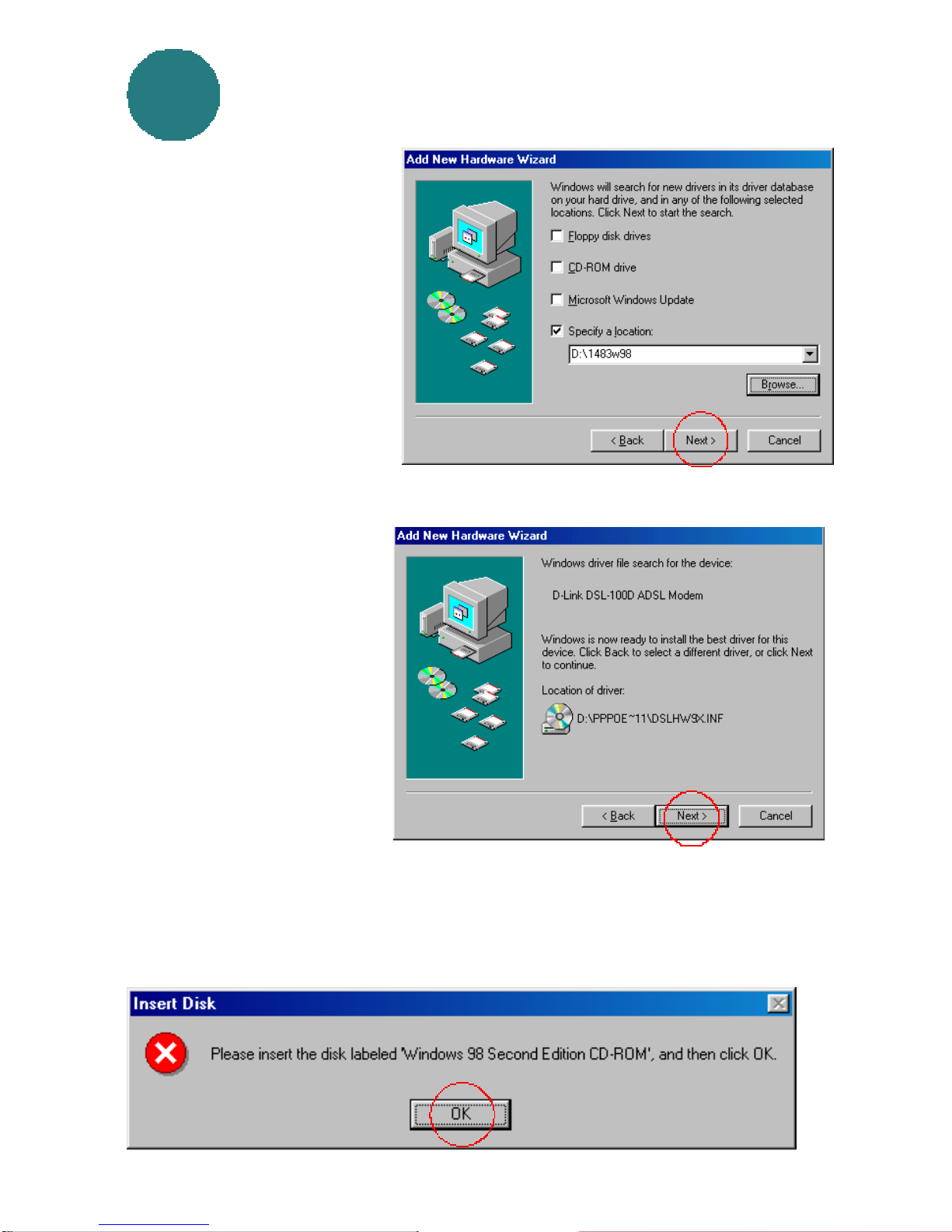

Click Next
The computer will now
install and build the drivers
information database.
If this screen appears, place your Windows Operating System CD into
your CD drive.
Click OK
Click Next

22
33
DSL-100D Driver InstallationDSL-100D Driver Installation continued

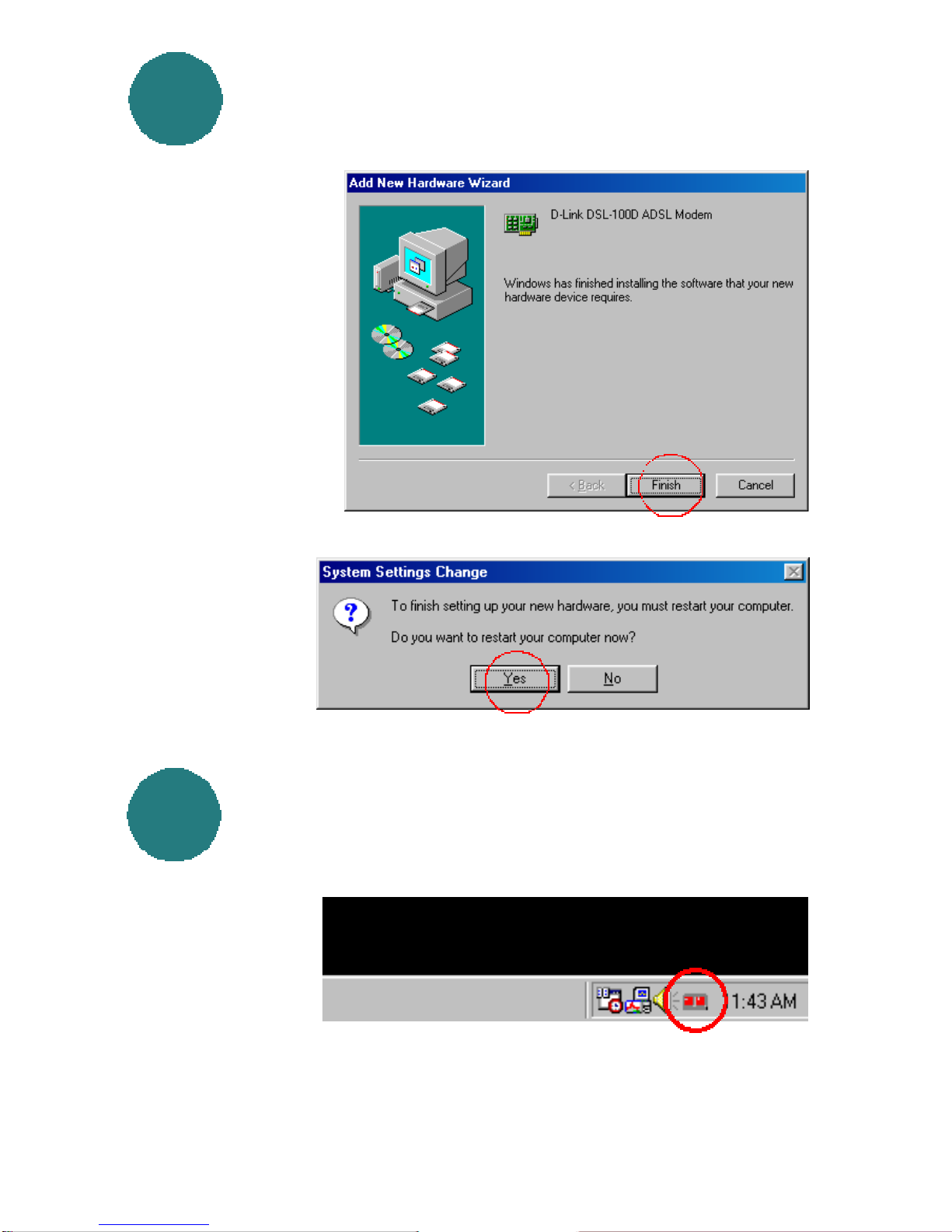

Click Finish
Click Yes and the
computer will
restart automatical-
ly.
DSL-100D Modem ConfigurationDSL-100D Modem Configuration
Right click on the
icon, circled here,
located in the lower
right hand corner of
your computer
screen, in the
systray box.

DSL-100D Modem ConfigurationDSL-100D Modem Configuration
continued
33

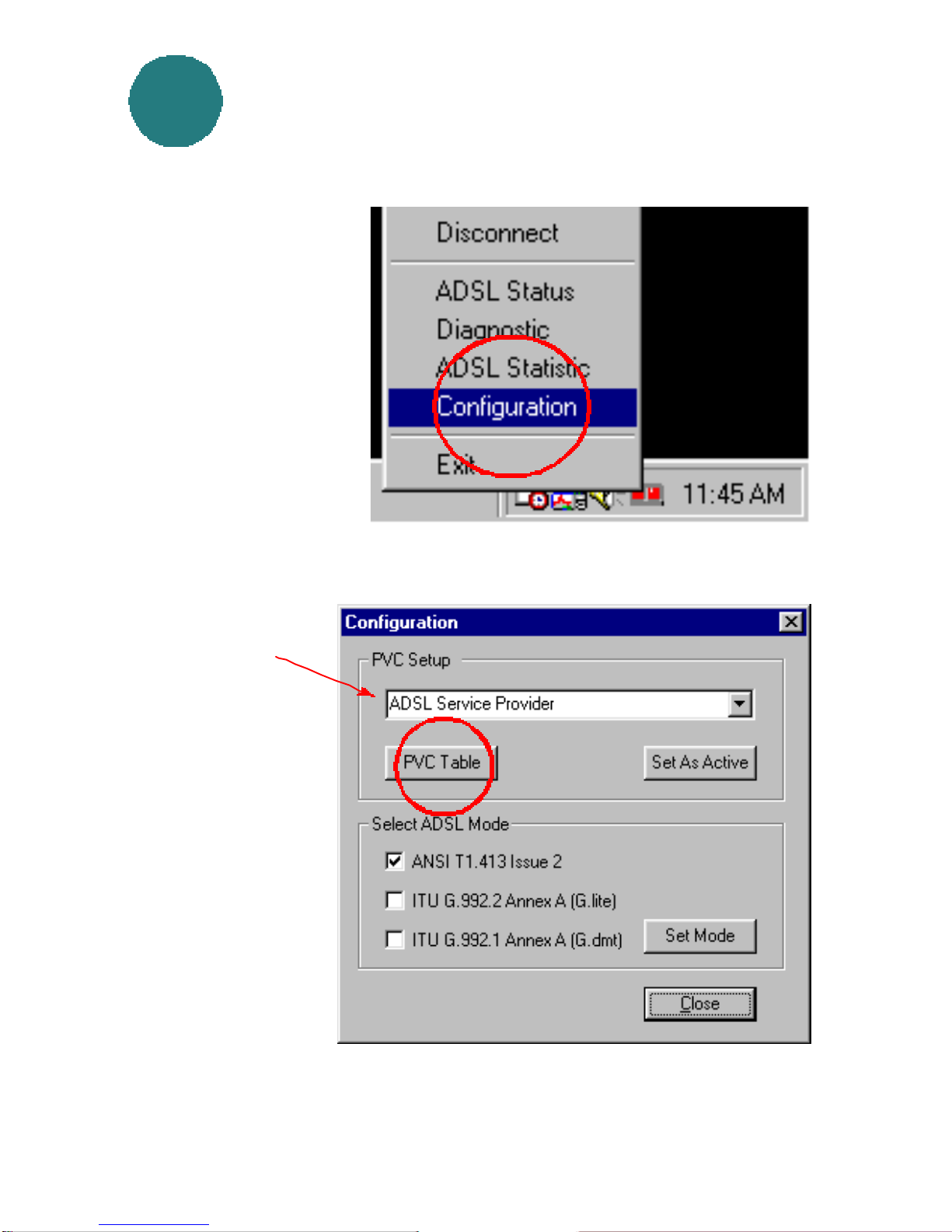

Select Configuration
When this screen
appears, make sure
that the ADSL
Service Provider is
selected.
Click on “PVC
Table,” to edit the
connection type.

44

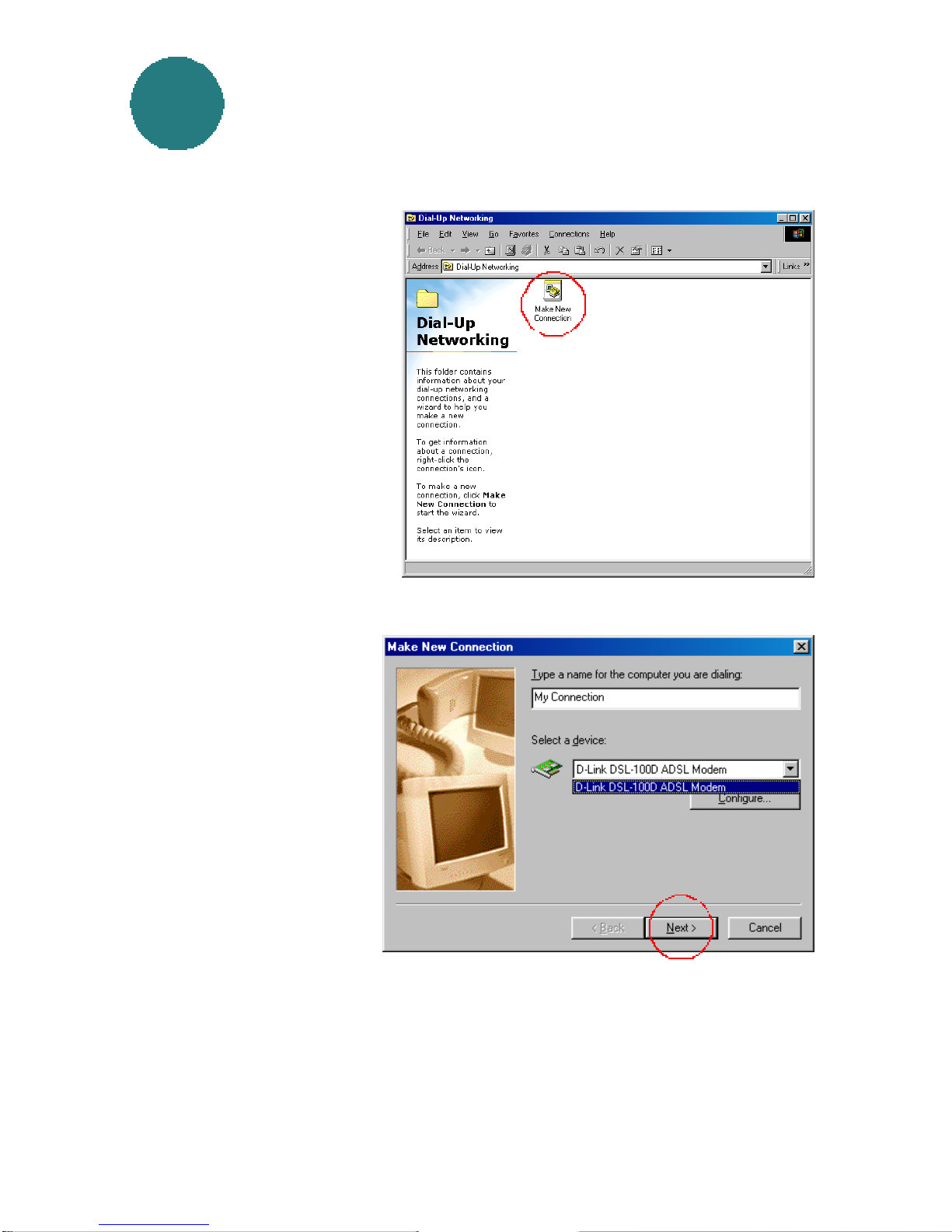

Double Click on “Make
New Connection.”
Go to
START>PRO-
GRAMS>COMMUNI-
CATIONS>DIAL-UP
NETWORKING
Manually Setting up Dial-Up NetworksManually Setting up Dial-Up Networks
Click Next
Make sure that “D-Link
DSL-100D ADSL
Modem” is selected in the
“Select a device” menu.

44 Setting up Dial-Up NetworksSetting up Dial-Up Networks
continuedcontinued

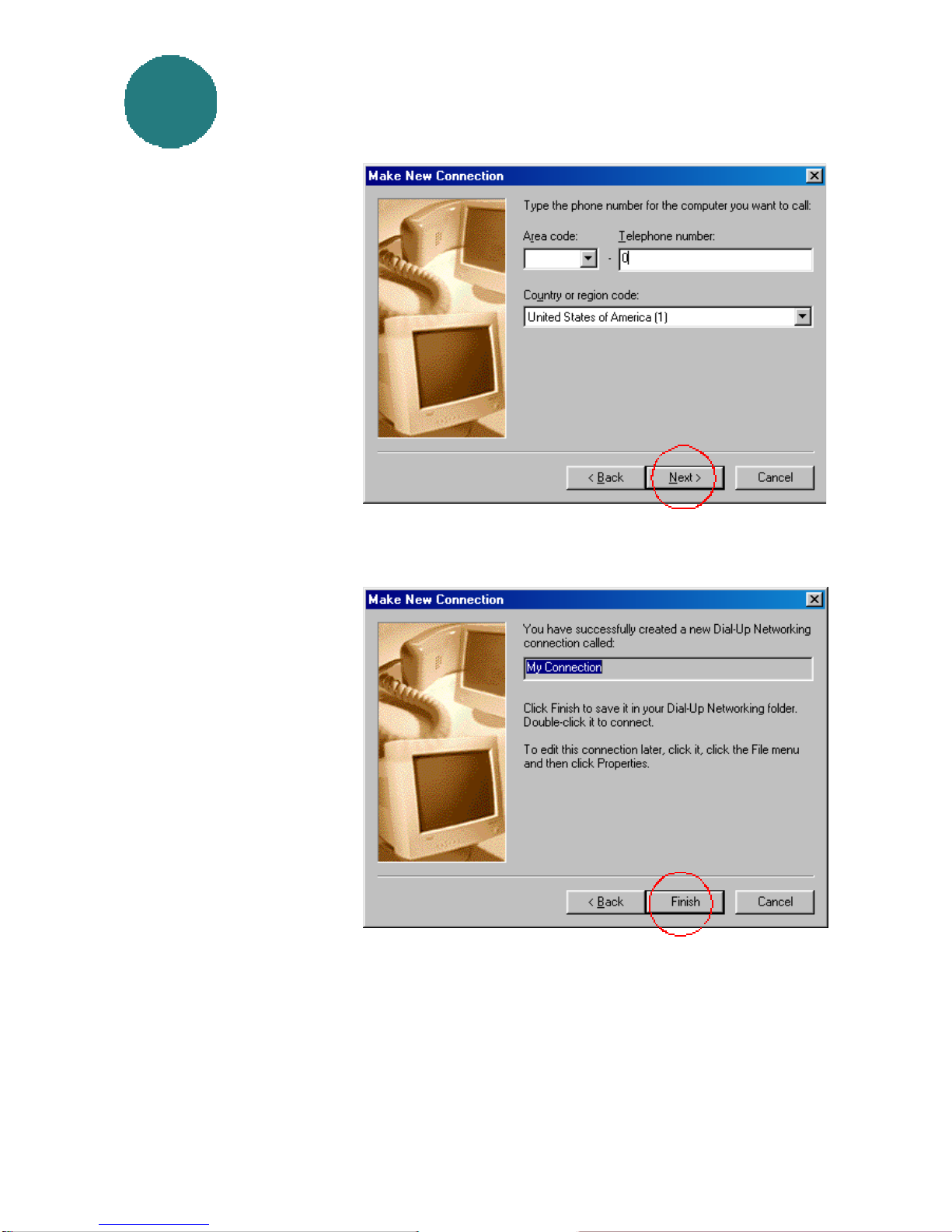

Enter “0” in the tele-
phone number section.
Click Next
Click Finish

55 Logging OnLogging On

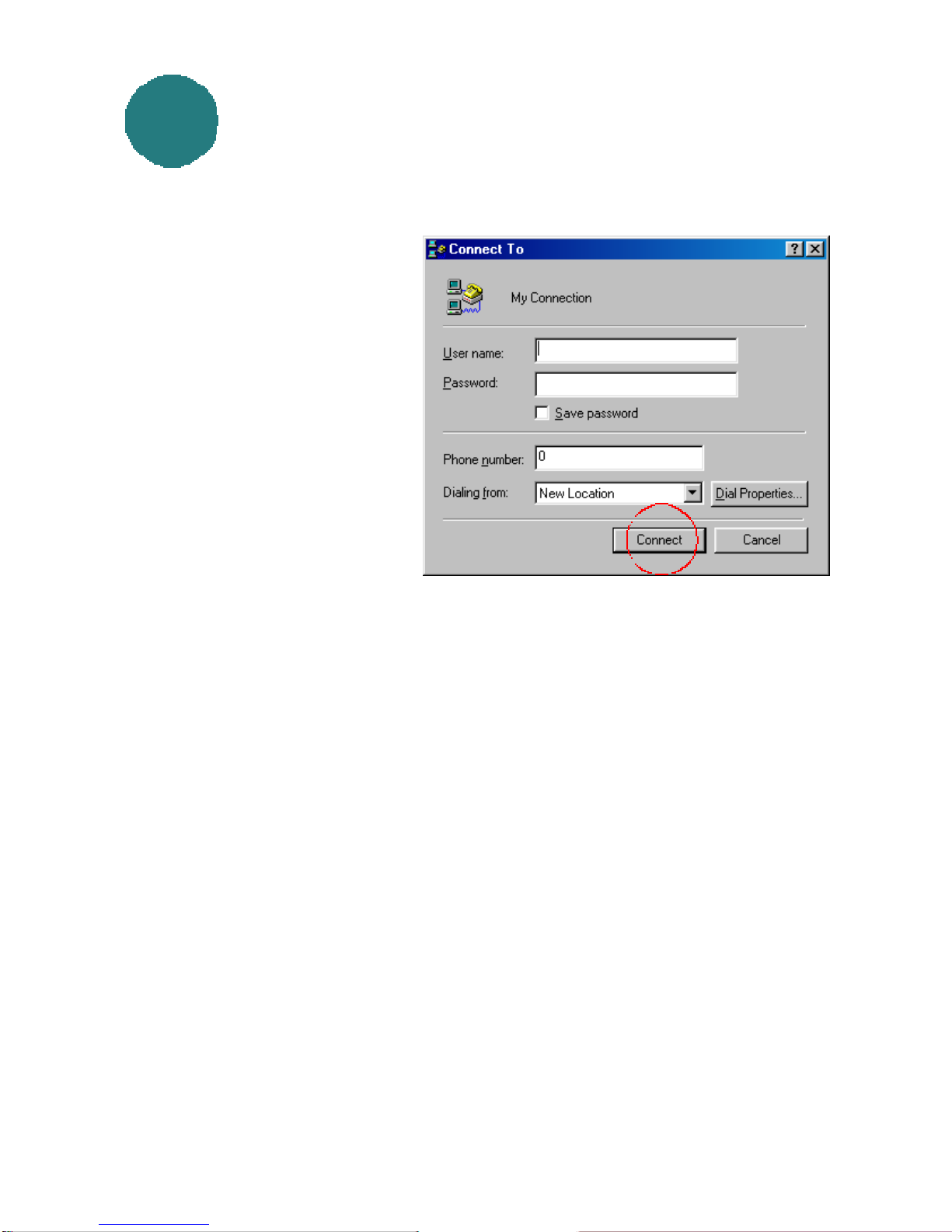

Enter User name and
Password.
Click Connect
You can now access the Internet using your DSL-100D ADSL modem!
