D-Link DSL-2870B User manual

Version 3.11 | 6/05/2014

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 2
Table of Contents
Table of Contents................................................................................................... 2
Product Overview................................................................................................... 4
Package Contents ................................................................................................ 4
System Requirements.......................................................................................... 4
Features................................................................................................................ 5
Hardware Overview.............................................................................................. 6
Front Panel ....................................................................................................... 6
Rear Panel........................................................................................................ 7
Basic Installation.................................................................................................... 8
Before You Begin ................................................................................................. 8
Installation Notes.................................................................................................. 8
Information you will need from your ADSL service provider........................... 10
Information you will need about this Router.................................................... 11
Information you will need about your LAN or computer.................................. 11
Device Installation .............................................................................................. 12
Power on Router............................................................................................. 12
Factory Reset Button...................................................................................... 12
Network Connections...................................................................................... 13

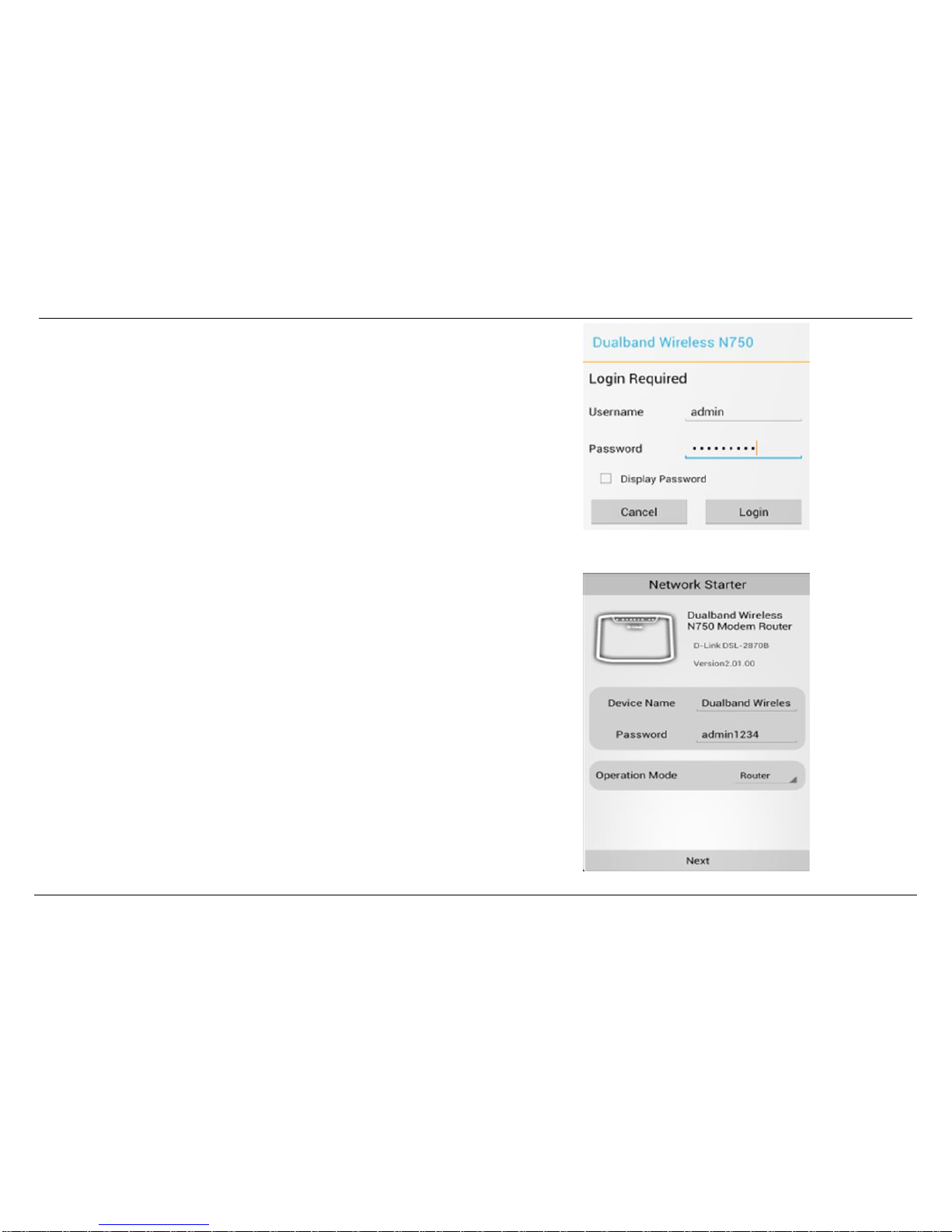

D-Link One-Touch APP...................................................................................... 14

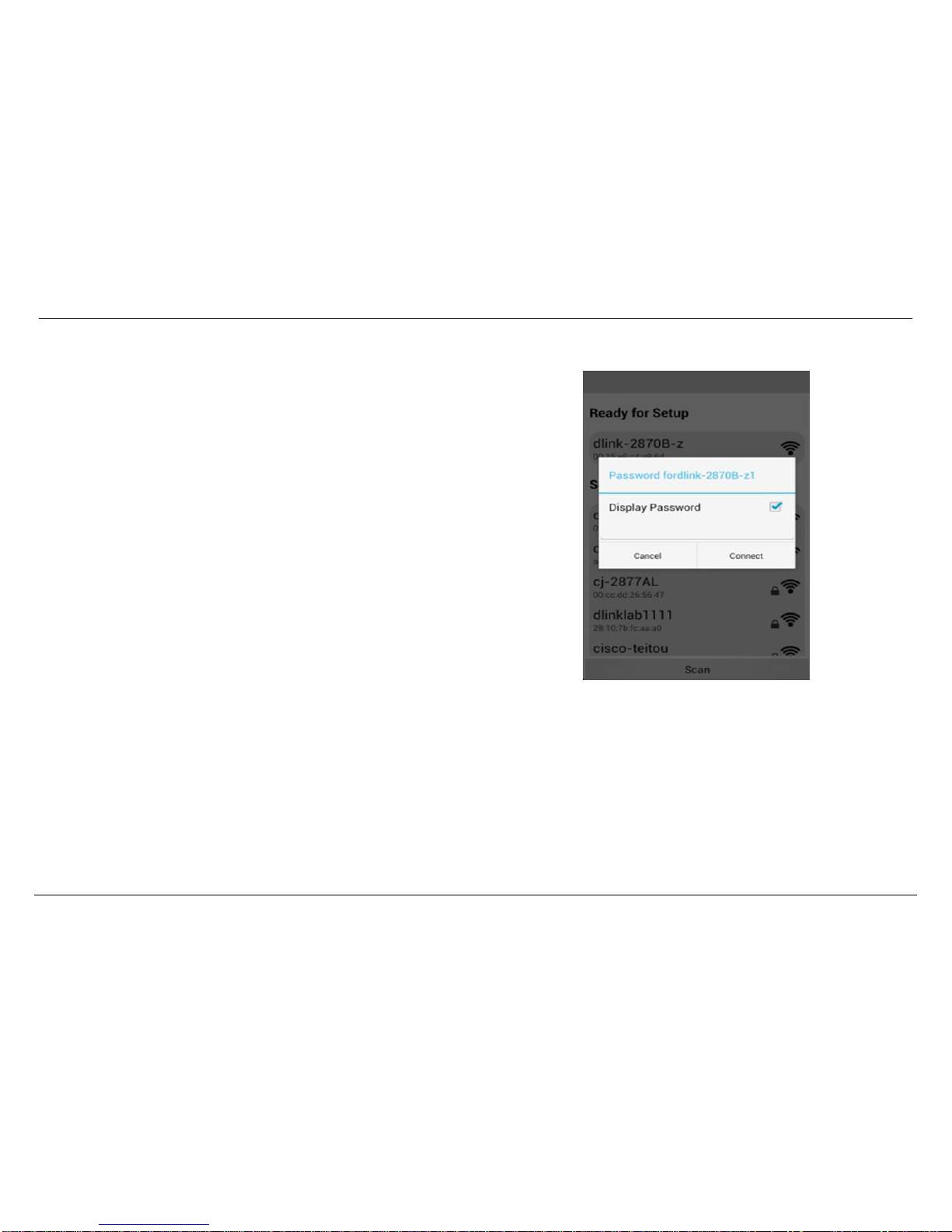

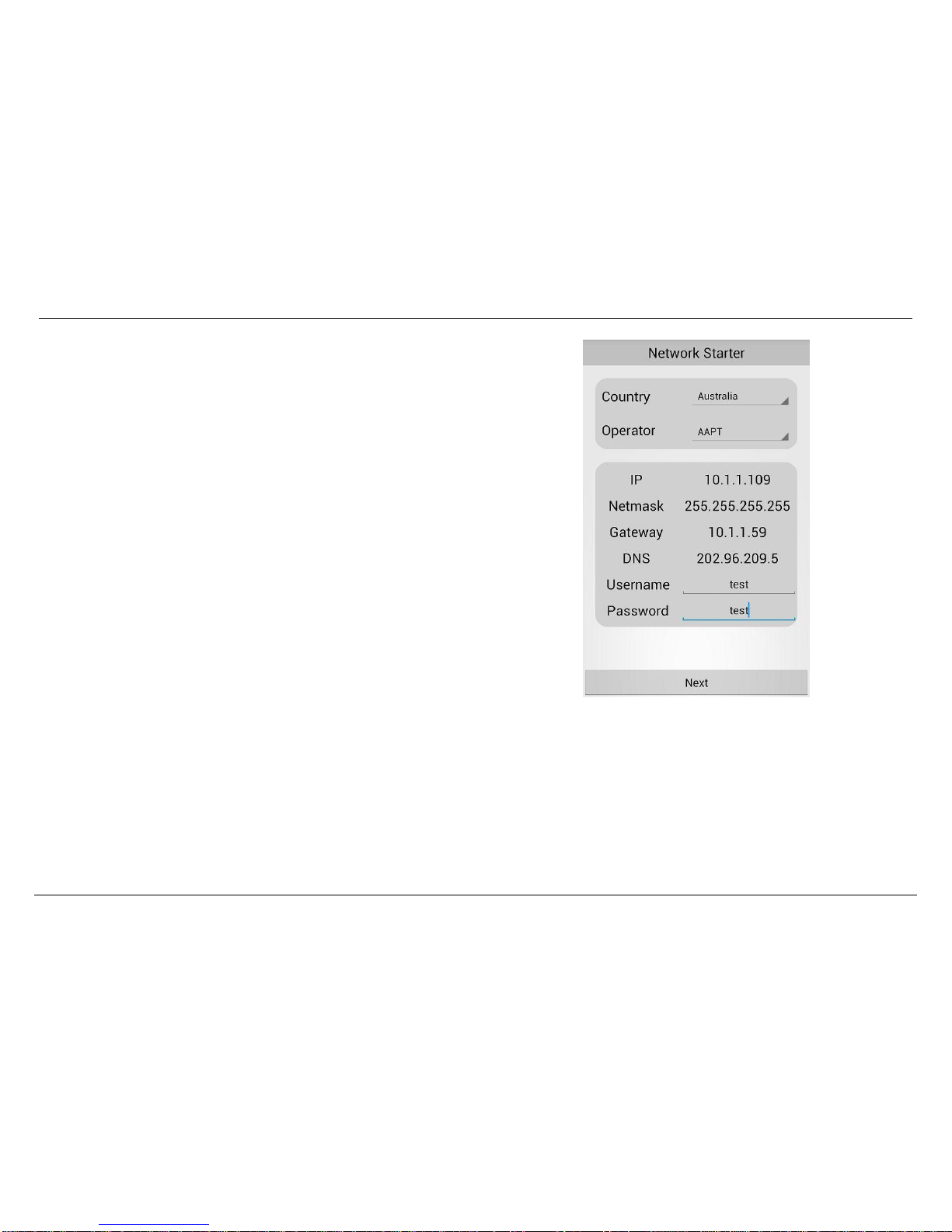

Network Starter............................................................................................... 17
Software Upgrader.......................................................................................... 21
Getting Started ................................................................................................... 24
How to connect to the Web User Interface..................................................... 24
Web User Interface Configuration...................................................................... 25
Setup Category................................................................................................... 26
Wizard............................................................................................................. 27
WAN Setup ..................................................................................................... 33
Network Map................................................................................................... 39
Wireless 2.4G ................................................................................................. 42
Wireless 5G Setup.......................................................................................... 46
LAN Setup....................................................................................................... 50
Time and Date ................................................................................................ 52
IPv6................................................................................................................. 54
MydlinkTM Settings .......................................................................................... 56
Advanced Category............................................................................................ 58
Virtual Server .................................................................................................. 60
DNS................................................................................................................. 62
Dynamic DNS ................................................................................................. 63
Port Trigger..................................................................................................... 64
IP&MAC Filtering ............................................................................................ 65
Parental Control.............................................................................................. 67
Firewall............................................................................................................ 69
DMZ ................................................................................................................ 71
RIP.................................................................................................................. 72
IGMP............................................................................................................... 74
QoS................................................................................................................. 75
Advanced Wireless 2.4G ................................................................................ 79
Advanced Wireless 5G ................................................................................... 84
Routing............................................................................................................ 89
SNMP.............................................................................................................. 93
UPnP............................................................................................................... 95
Samba............................................................................................................. 96
DSL Line Settings........................................................................................... 98
URL Redirect ................................................................................................ 100
ALG Setting................................................................................................... 101
Budget Quota................................................................................................ 102
Maintenance Category ..................................................................................... 104
Administrator................................................................................................. 105
Access Control.............................................................................................. 107
System Settings............................................................................................ 109
Firmware Update .......................................................................................... 111
Diagnostics ................................................................................................... 113
System Log................................................................................................... 115
Status Category................................................................................................ 117
Device Info.................................................................................................... 118
System Log................................................................................................... 121
Statistics........................................................................................................ 123
ARP Table Info.............................................................................................. 126
Routing Table................................................................................................ 127
DHCP Table.................................................................................................. 128
Wireless Table .............................................................................................. 129
Internet Session............................................................................................ 130

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 3
Storage Service ............................................................................................ 131
Help Category................................................................................................... 132
Knowledge Base ................................................................................................ 133
Networking Basics............................................................................................ 133
Wireless Basics ................................................................................................ 135
Wireless Modes ............................................................................................ 137
Wireless Security.............................................................................................. 137
What is WPA?............................................................................................... 137
Frequently Asked Questions ............................................................................ 139
Technical Specifications ................................................................................... 140

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 4

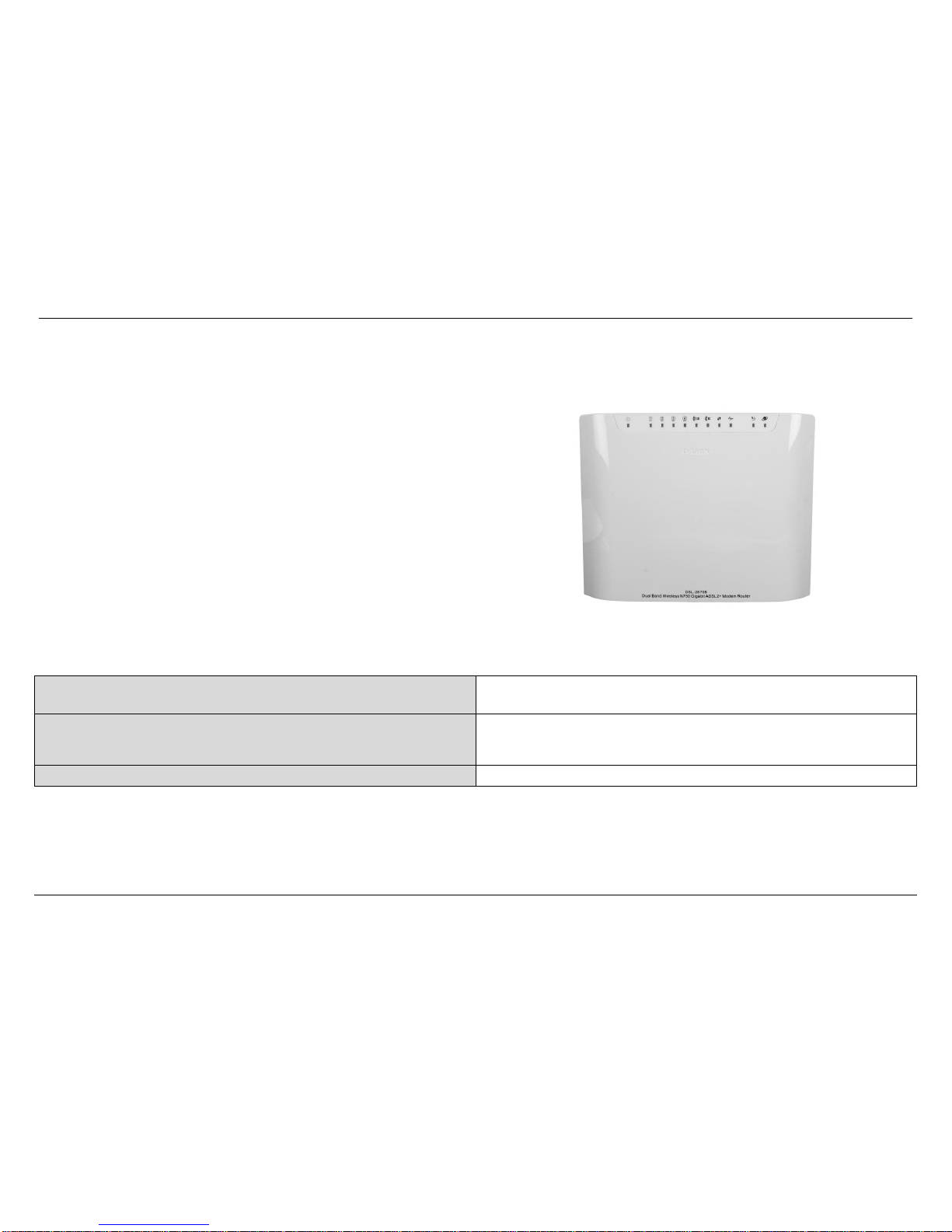

Product Overview
Package Contents
This product should contain all of the below mentioned items within its packaging:
One DSL-2870B Wireless ADSL2+ Router
One Power Adapter
One CD containing the User Manual
One twisted-pair telephone cable used for DSL connection
One straight-through Ethernet cable
One Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage rating than the one included with
the DSL-2870B will cause damage to this product and void the warranty for this
product.
System Requirements
Network Requirements:
Ethernet Adapter at 10/100/1000Mbps.
Wireless Adapter with IEEE 802.11n, 802.11a, or 802.11b/g Protocols.
Web User Interface Requirements:
Windows®, Macintosh, or Linux-based Operating System.
Internet Browser like Internet Explorer 7 or higher, Firefox 3.5 or higher,
Safari 4 or higher, or Chrome 8 or higher.
Internet Requirements:
ADSL Internet Connection Service from an ISP.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 5
Features
Faster Wireless Networking - The DSL-2870B provides up to 300Mbps* for the 2.4GHz band and 450Mbps* for the 5GHz band wireless connection with other
802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.
Compatible with 802.11b and 802.11g Devices - The DSL-2870B is still fully compatible with the IEEE 802.11b and IEEE 802.11g standards, so it can connect with
existing 802.11b and 802.11g PCI, USB and Cardbus adapters.
DHCP Support - Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your network. This eliminates the
need to reconfigure every host whenever changes in network topology occur.
Network Address Translation (NAT) - For small office environments, the DSL-2870B allows multiple users on the LAN to access the Internet concurrently through a
single Internet account. This provides Internet access to everyone in the office for the price of a single user. NAT improves network security in effect by hiding the
private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.
Precise ATM Traffic Shaping - Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the Quality of Service for
ATM data transfer.
High Performance - Very high rates of data transfer are possible with the router. Up to 24Mbps downstream bit rate using the G.dmt standard. (For ADSL2+)
Full Network Management - The DSL-2870B incorporates SNMP (Simple Network Management Protocol) support for web-based management and text-based
network management via a Telnet connection.
Easy Installation - The DSL-2870B uses a web-based graphical user interface program for convenient management access and easy set up. Any common web
browsing software can be used to manage this router.
USB Support- The DSL-2870B provides a USB port to easily share files and printers. The DSL-2870B supports a USB storage option that shares files through a
SAMBA file server and in addition also supports sharing USB printers to network members. Please note that the USB storage device is not included in this package
and must be bought separately.
Maximum wireless signal rate derived from IEEE standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building
materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 6
Hardware Overview

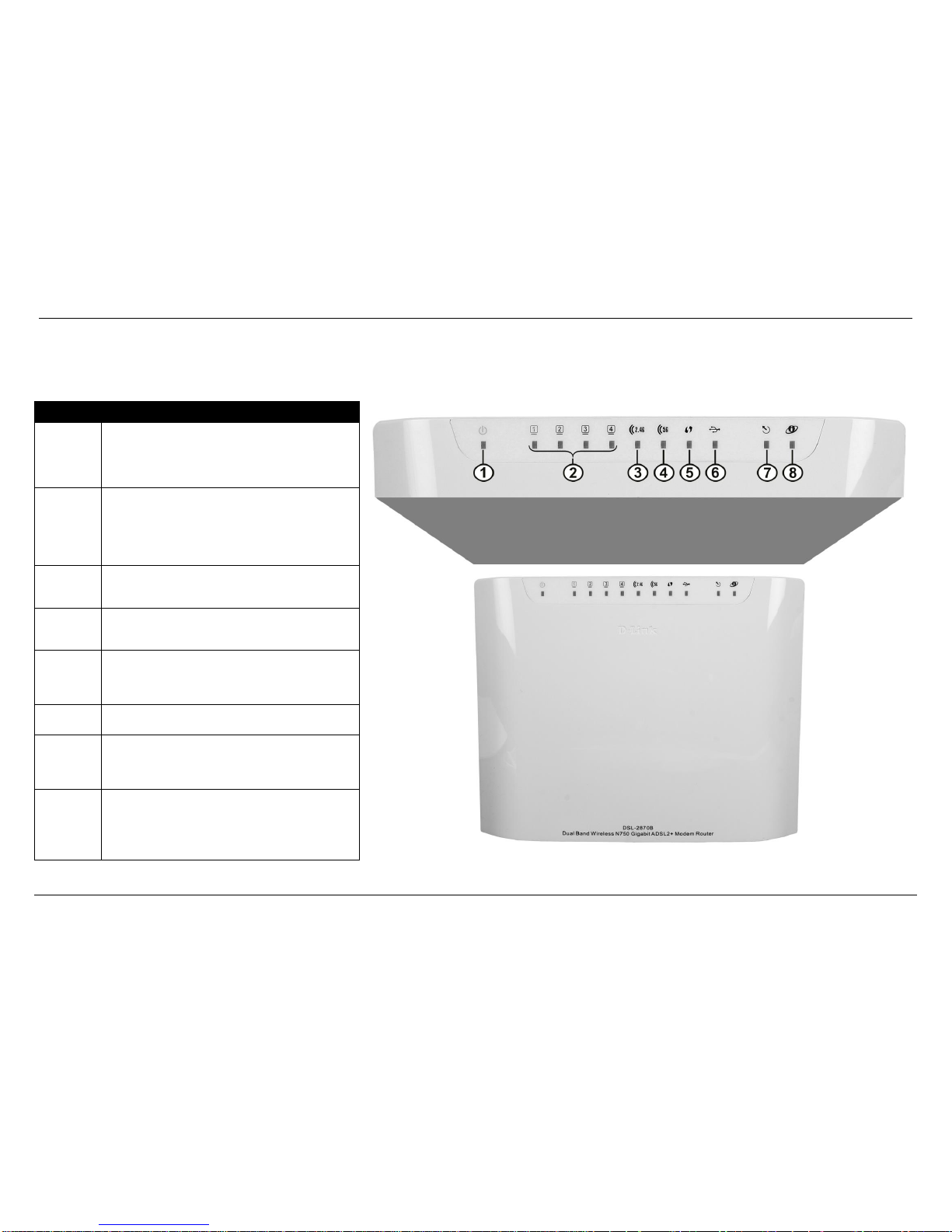

Front Panel
Number
Description
1
Power - A steady green light indicates the unit is
powered on. When the device is powered off this
remains dark. During the Power On Self Test this light
will be red. If this light remains red after the POST, a
malfunction has occurred.
2
LAN - A solid light indicates a valid link on startup.
This light will blink when there is activity currently
passing through the Ethernet port. A green light will be
illuminated for a 10/100Mbps connection and an
amber light will be illuminated for a 1000Mbps
connection.
3
2.4GHz WLAN - Steady green light indicates a
wireless connection. A blinking green light indicates
activity on the WLAN
4
5GHz WLAN - Steady green light indicates a wireless
connection. A blinking green light indicates activity on
the WLAN
5
WPS - The light will flash while a WPS connection is
being established. The light will light solid for 5
seconds if a successful WPS connection has been
made.
6
USB - Steady green light indicates a successful USB
connection. Dark if no USB device is connected.
7
DSL - Steady green light indicates a valid ADSL
connection. This will light after the ADSL negotiation
process has been settled. A blinking green light
indicates activity on the WAN (ADSL) interface.
8
Internet - Steady green light indicates a successful
Internet connection. Steady red light indicates failed
Internet connection. Dark if no WAN protocol is
configured.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 7
Rear Panel
Number
Description
1
ADSL Port - Use the DSL cable to connect to
your telephone line (RJ-11 port).
2
USB Port - Use the USB port to connect your
USB device.
3
Ethernet Ports - Use the Ethernet ports to
connect the router to your Ethernet LAN or
Ethernet devices.
4
5GHz Wireless On/Off Switch Button - Please
press and hold on for 3 seconds to turn on/turn
off.
5
2.4GHz Wireless On/Off Switch Button -
Please press and hold on for 3 seconds to turn
on/turn off.
6
Reset Button - Press and hold the button for 10-
15 seconds to restore the device to its original
factory default settings.
7
Power Button - Push in to power-on the router.
Push again to power-off the router.
8
Power Receptor - Receptor for the supplied
power adapter.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 8
Basic Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or
in the attic or garage.
Before You Begin
Please read and make sure you understand all the prerequisites for proper installation of your new router. Have all the necessary information and equipment on hand before
beginning the installation.
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the router that will be stored in its memory. For some users, only their account
information (Username and Password) is required. For others, various parameters that control and define the Internet connection will be required.
Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference. A
low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL
device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation.
Operating Systems
The DSL-2870B uses an HTML-based web interface for setup and management. The Web configuration manager may be accessed using any operating system capable of
running web browser software, including Windows®, Macintosh, and Linux-based Operating Systems.
Web Browser
Any common Web browser can be used to configure the router using the Web configuration management software. The program is designed to work best with more recently
released browsers such as Internet Explorer 7 or higher, Firefox 3.5 or higher, Safari 4 or higher, or Chrome 8 or higher.. The Web browser must have JavaScript enabled.
JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages)
that may be running on your computer.
Ethernet Port (NIC Adapter)
Any computer that uses the router must be able to connect to it through one of the Ethernet ports on the router. This connection is an Ethernet connection and therefore
requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully
assembled desktop computers come with an Ethernet adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC
adapter before you can use the router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 9
Additional Software
It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the device a
simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway device, not in the
router itself.
If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection can be stored in the
router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account information
used to identify and verify the connection.
All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled device on the LAN side of
the bridge, such as a PC, a server, a gateway device such as a router or similar firewall hardware. The IP address can be assigned in a number of ways. Your network
service provider will give you instructions about any additional connection software or NIC configuration that may be required.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 10
Information you will need from your ADSL service provider
Username
This is the Username used to log on to your ADSL service provider’s network. Your ADSL service provider uses this to identify your account.
Password
This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.
WAN Setting / Connection Type
These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use the default settings. You
may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed in parenthesis):
PPPoE/PPPoA (PPPoE LLC, PPPoE VC-Mux, PPPoA LLC or PPPoA VC-Mux)
Static IP Address (1483 Routed IP LLC or 1483 Routed IP VC-Mux)
Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux)
Modulation Type
ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the type of modulation used for
their service. The default DSL modulation (Autosense) used for the router automatically detects all types of ADSL, ADSL2, and ADSL2+ modulation.
Security Protocol
This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your router supports the PAP and CHAP
protocols.
VPI
Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI) to identify the data path
between your ADSL service provider’s network and your computer. If you are setting up the router for multiple virtual connections, you will need to configure the VPI and VCI
as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.
VCI
Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path between your ADSL
service provider’s network and your computer. If you are setting up the router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your
ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 11
Information you will need about this Router
Username
This is the Username needed access the router’s web management interface. When you attempt to connect to the device through a web browser you will be prompted to
enter this Username. The default Username for the router is “admin”.
Password
This is the Password you will be prompted to enter when you access the router’s web management interface. The default Password is “admin”.
LAN IP Addresses for the DSL-2870B
This is the IP address you will enter into the Address field of your web browser to access the router’s configuration Graphical User Interface (GUI) using a web browser. The
default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP service on
the LAN when DHCP is enabled.
LAN Subnet Mask for the DSL-2870B
This is the subnet mask used by the DSL-2870B, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be changed later.
Information you will need about your LAN or computer
Ethernet NIC
If your computer has an Ethernet NIC, you can connect the DSL-2870B to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the DSL-2870B
to connect to other computer or Ethernet devices.
DHCP Client status
Your DSL-2870B ADSL router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address to
computers on your LAN. The default range of IP addresses the DSL-2870B will assign are from 192.168.1.2 to 192.168.1.254. Your computer (or computers) needs to be
configured to obtain an IP address automatically (that is, they need to be configured as DHCP clients.)
Once you have the above information, you are ready to setup and configure your DSL-2870B ADSL router.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 12
Device Installation
The DSL-2870B connects two separate physical interfaces, an ADSL (WAN) and an Ethernet (LAN) interface. Place the router in a location where it can be connected to the
various devices as well as to a power source. The router should not be located where it will be exposed to moisture or excessive heat. Make sure the cables and power cord
are placed safely out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety procedures.
The router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.
Power on Router
The router must be used with the power adapter included with the device.
1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the router and plug the adapter into a suitable nearby power source.
2. Press the Power button into the on position. You should see the Power LED indicator light up and remain lit.
3. If the Ethernet port is connected to a working device, check the Ethernet LED indicators to make sure the connection is valid. The router will attempt to establish the
ADSL connection, if the ADSL line is connected and the router is properly configured this should light up after several seconds. If this is the first time installing the
device, some settings may need to be changed before the router can establish a connection.
Factory Reset Button
The router may be reset to the original factory default settings by using a ballpoint pen or paperclip to gently push down the reset button in the following sequence:
1. Press and hold the reset button while the device is powered on for 10-15 seconds.
2. Release the reset button.
Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings will be restored to the
factory default IP address 192.168.1.1 and the subnet mask is 255.255.255.0. The default management username is “admin” and the default password is “admin”.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 13
Network Connections
Connect ADSL Line
Use the ADSL cable included with the router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the
rear panel of the router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to
you by your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s network
backbone and ultimately to the Internet.
Connect Router to Ethernet
The router may be connected to a single computer or Ethernet device through the Ethernet ports on the rear panel. Any connection to an Ethernet concentrating device such
as a switch or hub must operate at a speed of 10/100/1000Mbps. When connecting the router to any Ethernet device that is capable of operating at speeds higher than
10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 ports on the
router are a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the router directly
to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the router to a normal (MDI-X) port on a switch or hub. Use a normal
straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch. The rules governing Ethernet cable lengths apply to the LAN to router connection. Be
sure that the cable connecting the LAN to the router does not exceed 100 meters.
Hub or Switch to Router Connection
Connect the router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable. If you wish to reserve the uplink port on the switch or hub for another
device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.
Computer to Router Connection
You can connect the router directly to an Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 14
D-Link One-Touch APP
D-Link offers you a fast and easy way to get connected, by utilizing the free One-Touch APP for your Android or iOS mobile device which walks you step-by-step through
installation of your D-Link One-Touch enabled device.
You also have the ability to configure/change WAN and Wi-Fi settings and even upgrade the firmware.
You can search for the D-Link One-Touch APP directly in the Google Play or iOS
APP Store, and install it.
The D-Link One-Touch icon will be displayed in the mobile device (Android, iOS).
Note:
The following steps are for the Android version of the app.
From your iOS mobile device, choose Settings, and Click Wi-Fi, select the Wi-
Fi Network Name that you created during setup and then enter default Wi-Fi
password located on your Wi-Fi configuration note.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 15
1. Tap on the One-Touch icon, the following screen will appear.
2. Tap the Wi-Fi Network Name to select the router.
If your Wi-Fi Network Name is not shown here, you can tap the Scan button to re-
search.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 16
3. Tap the Wi-Fi Network Name to configure or upgrade the router.
Here contains two functions:
Network Starter - the function is mainly to configure WAN and Wi-Fi settings
of the router.
Software Upgrader - the function is mainly to upgrade the firmware for the
router.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 17
Network Starter
1. Tap the Network Starter to configure WAN or Wi-Fi settings for the router.
If your mobile device has saved the router’s wireless password, it will be
automatically associated to your router, otherwise D-Link One Touch will pop-up a
password dialog, you need enter correct Wi-Fi password and tap Connect button
associate your router.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 18
2. The D-Link One Touch will login router, if login router is fail, the D-Link One touch
will pop-up a login UI, you need enter correct username and password to login the
router.
3. Modify the device Name, login password and operation mode.
Device Name: The user changes the device name; the main title beside the ICON
also will be changed.
Password: the login password can’t be empty and “admin” and the password
string length should be between 4 –24 characters.
Note: If the router setting is factory default setting, the D-Link One Touch will
provide a random string to login password; users can also modify the login
password.
Operation Mode: Select the operation mode for the router, DSL-2870B has only
one operation mode: Router
Click Next button to configure Country, Operator, and PPPoA or PPPoE
username, password for the router.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 19
4. Selecting your country and ISP provider from dropdown boxes, and enters PPPoE
or PPPoA username and password.
Country: Select your country in this drop-down menu, you can select one of two
country options. They are Australia and New Zealand.
Operator: After selecting a country in the previous option, a list of ISP connections
will be available here. If your ISP is in the list, select it here and the correct
parameters will be set.
IP: Displays the public IP address here.
Netmask: Displays the public Netmask here.
Gateway: Displays the public gateway here.
DNS: Displays the DNS address here.
Username: Enter the PPPoE or PPPoA username for your ADSL account.
Password: Enter the PPPoE or PPPoA password for your ADSL account.
Click Next button to configure the wireless settings.

D-Link DSL-2870B Dual Band Wireless N750 Gigabit VDSL2+/ADSL2+ Modem Router User Manual
Page 20
5. Configure the wireless 2.4G and the wireless 5G for the router.
Tap the ON button to enable the wireless 2.4G
Wireless Name: Displays the wireless name for your 2.4G wireless network.
Encryption Mode: You can select the None, WPA2 and WPAWPA2 encryption
mode.
Encryption Key: Enter the password for your 2.4G wireless network.
Tap the ON button to enable the wireless 5G
Wireless Name: Displays the wireless name for your 5G wireless network.
Encryption Mode: You can select the None, WPA2 and WPAWPA2 encryption
mode.
Encryption Key: Enter the password for your 5G wireless network.
Tap Finish button to commit the configuration, and Configuration Successfully
dialog will be pop-up. Tap the Ok button of the dialog, the Wi-Fi Profile will be
saved to D-Link One Touch installation directory.
Note: If the router setting is factory default setting, the D-Link One Touch will
provide a random string to the Wireless Name and Encryption Key, the default
Encryption mode is set to WPAWPA2.
