D-Link DHP-W310AV User manual

Quick Installation Guide
DHP-W310AV
PowerLine AV+ Wireless N
Mini Extender
Version 1.10 | April 11, 2013
Краткое руководство по установке
Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat

DHP-W310AV
2
ENGLISH
Package Contents
Wi-Fi Conguration Note Wi-Fi Conguration Card
CAT5 Ethernet Cable
PowerLine AV+ Wireless N Mini Extender
Installation CD-ROM

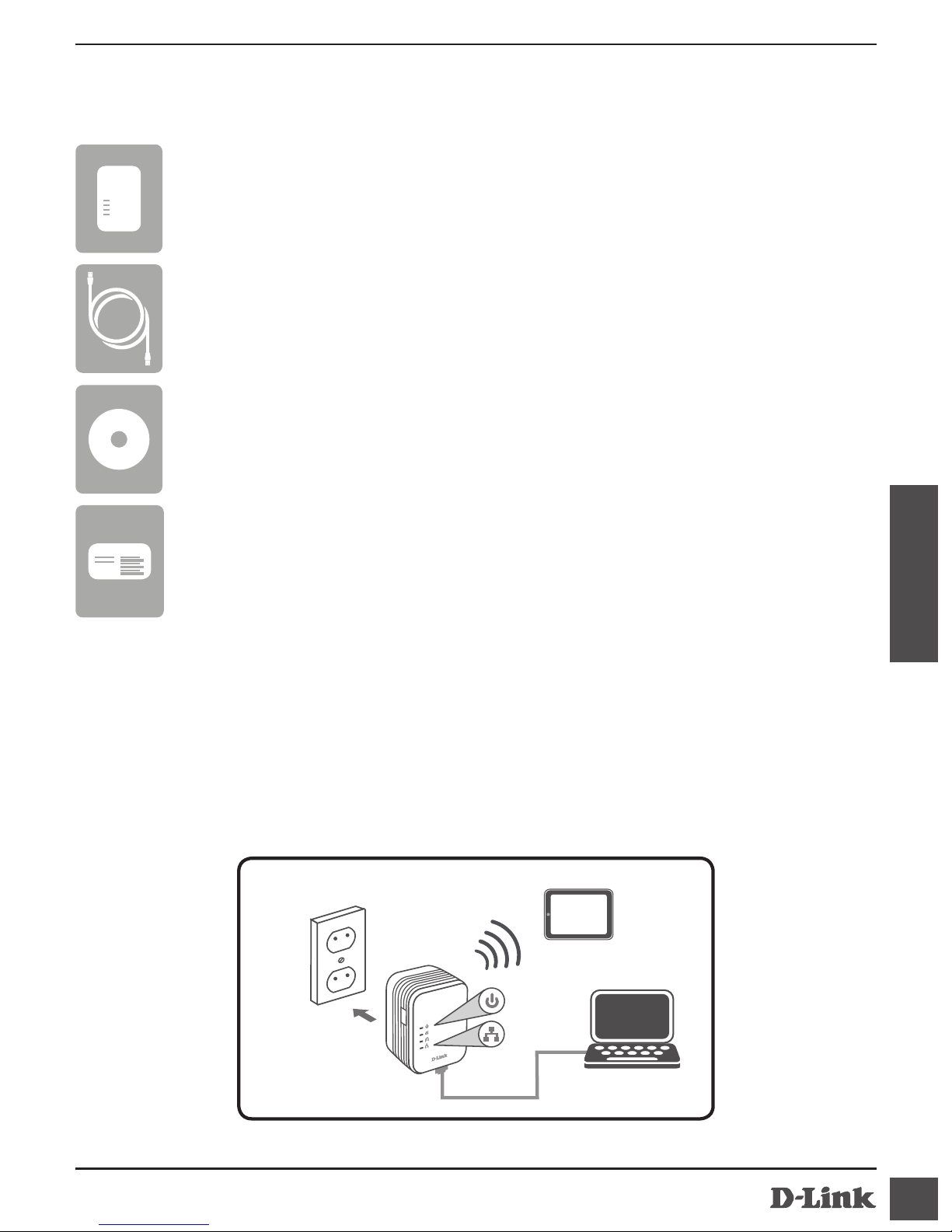

Hardware Installation

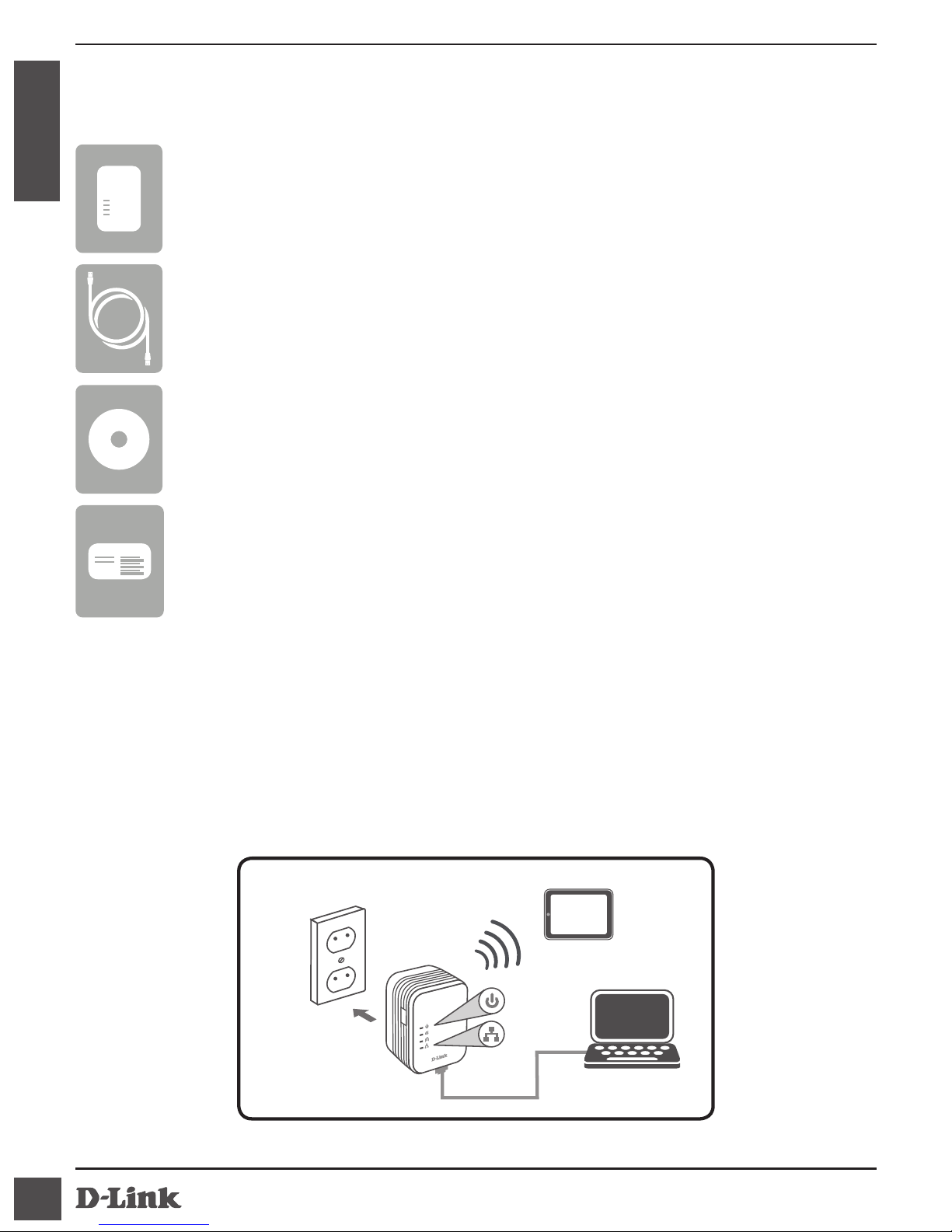

1. Plug the DHP-W310AV Powerline AV+ Wireless N Mini Extender into a wall
outlet in a place you want to extend your network.
ROOM C
DHP-W310AV
iPad
Notebook

3
DHP-W310AV
ENGLISH

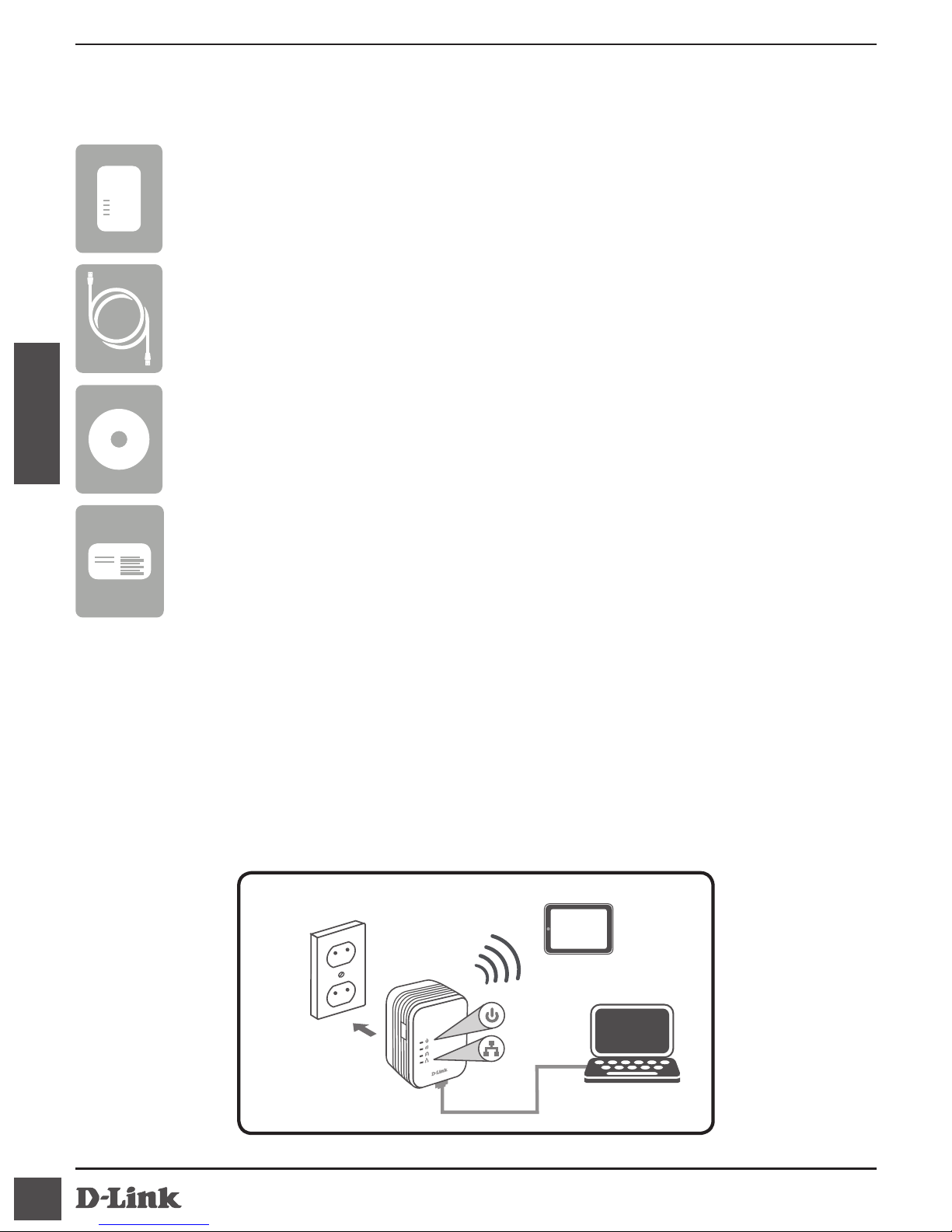

Hardware Installation
2. Connect the included Ethernet cable to your DHP-W310AV and computer.
You may also connect to the DHP-W310AV over Wi-Fi with the information
on the Wireless Conguration Card.
3. Your computer and DHP-W310AV are now connected. Please refer to “First-
time Conguration” on the next page to connect your DHP-W310AV with
your existing Powerline network.

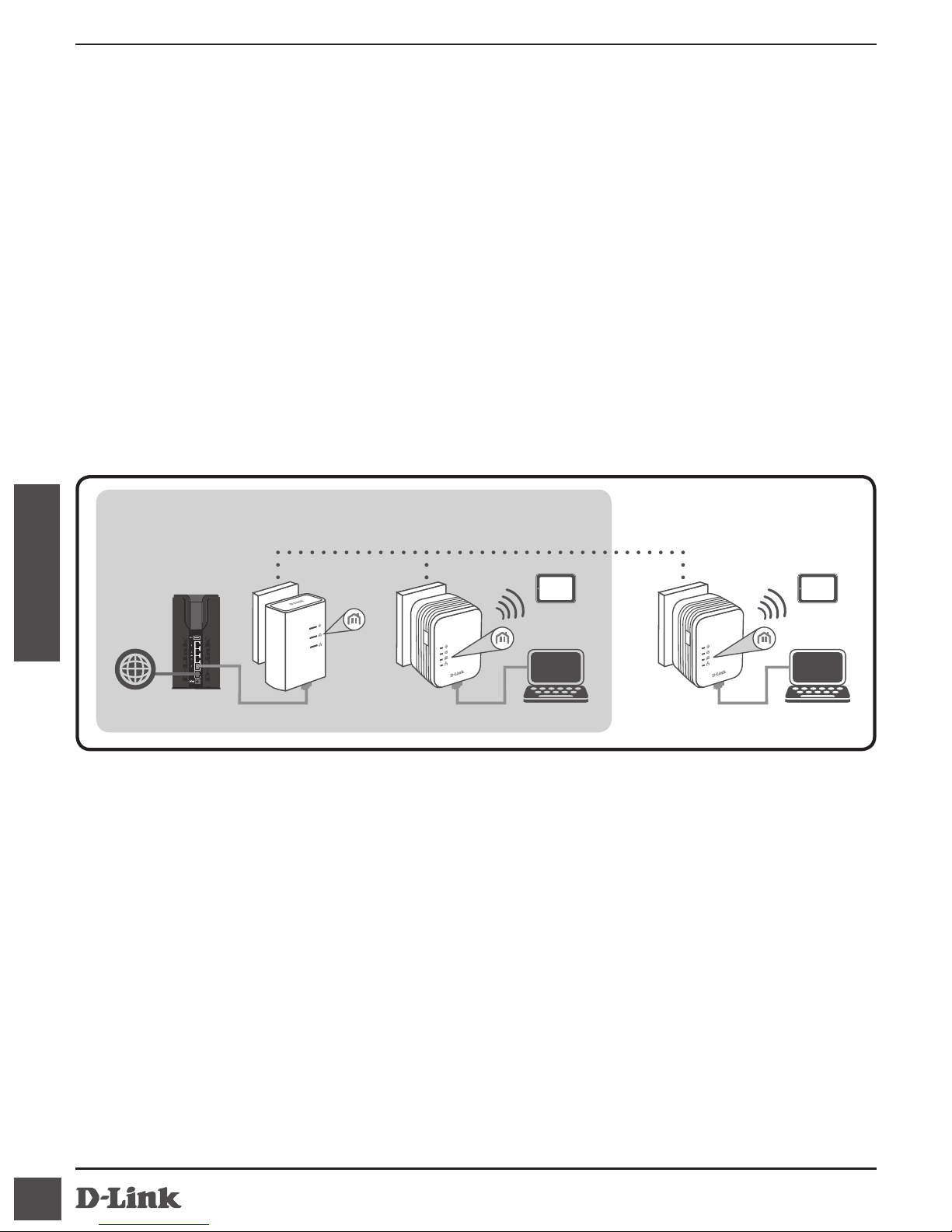

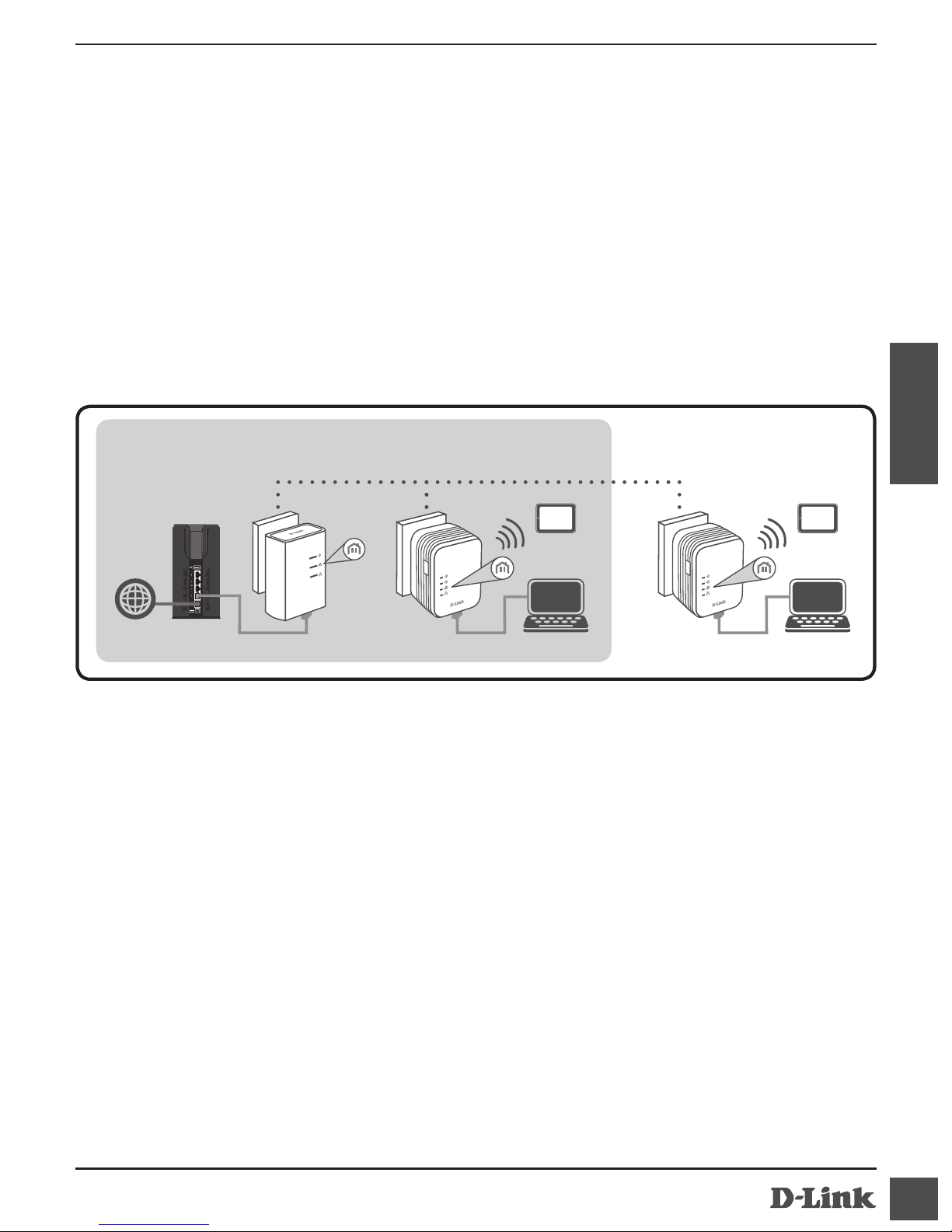

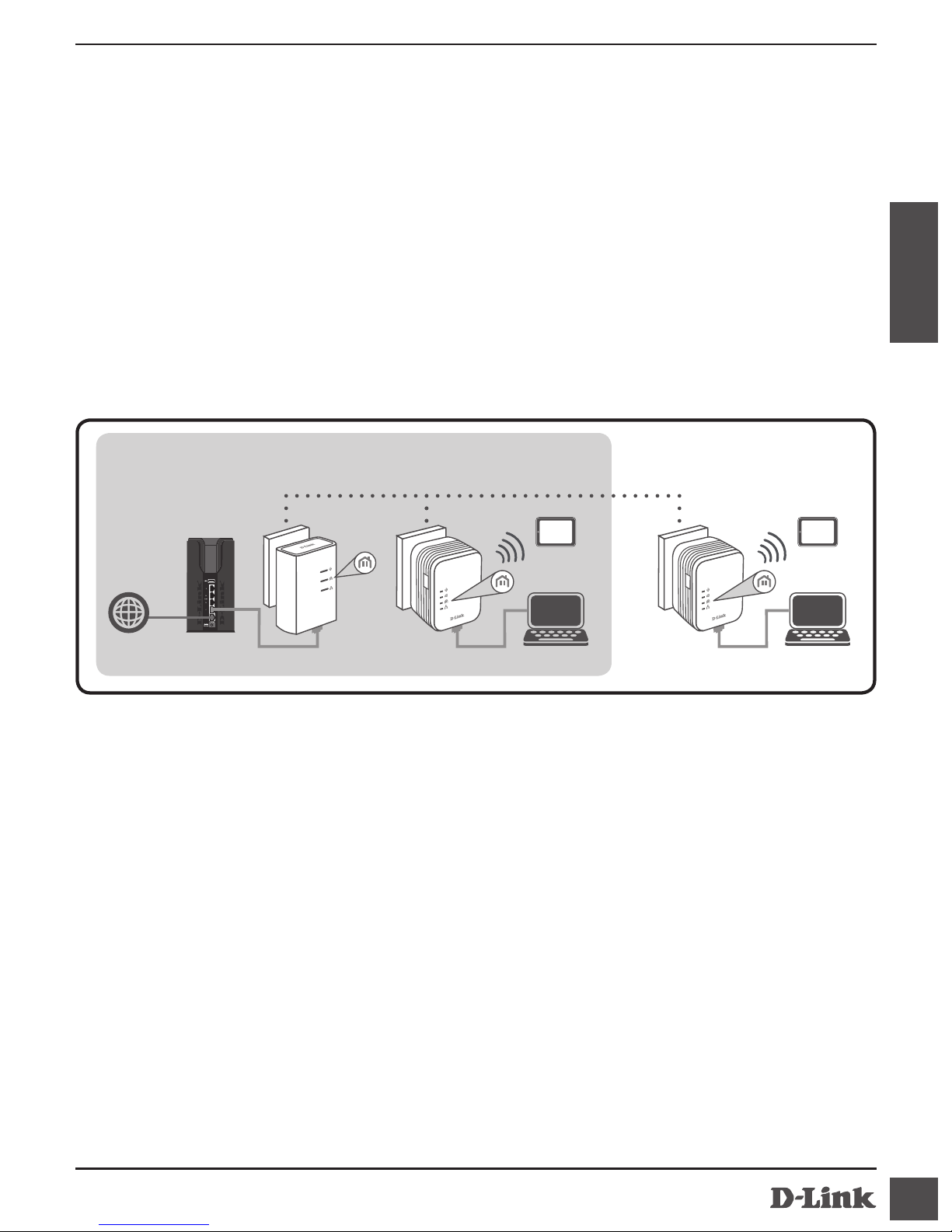

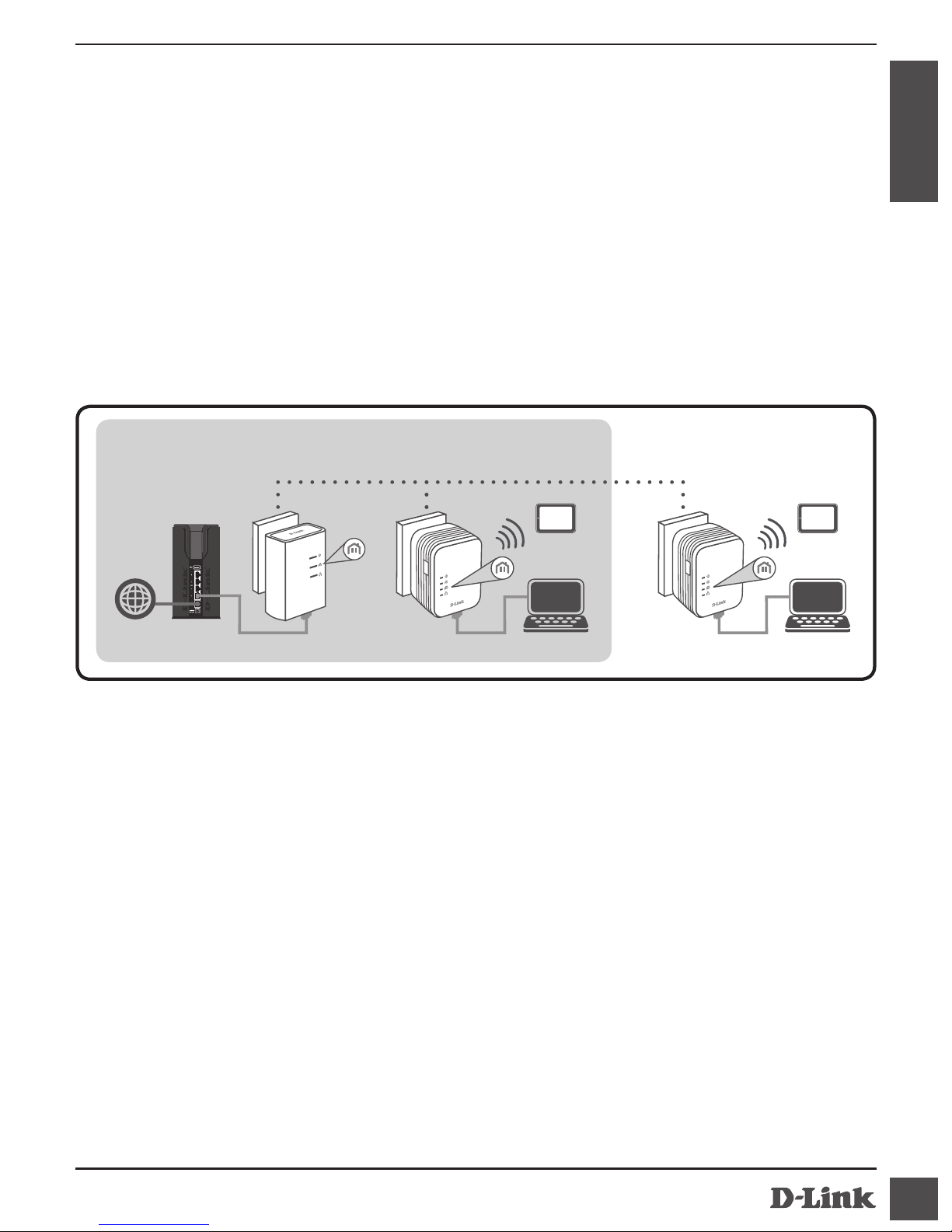

ROOM A ROOM B ROOM C
DHP-W310AV DHP-W310AV
DHP-308AV
RouterInternet Notebook Notebook
iPad iPad

DHP-W310AV
4
ENGLISH
First-time Conguration
1. Use your web browser to go to:
Windows: http://dlinkapWXYZ or http://dlinkap
Mac OS: http://dlinkapWXYZ.local. or http://dlinkap.local.
Where WXYZ is the last 4 digits of the MAC address. The full address is available
on the included Wireless Conguration Card.

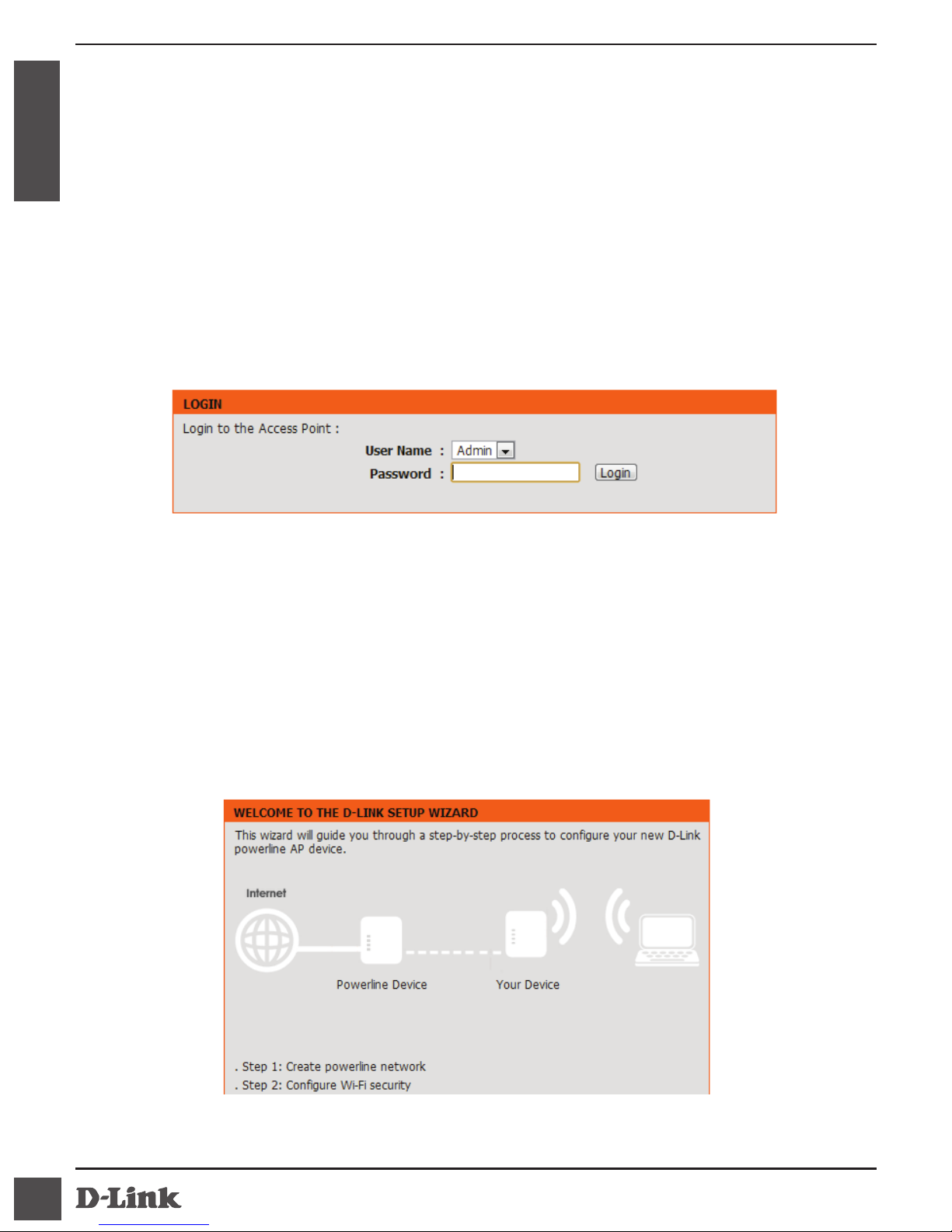

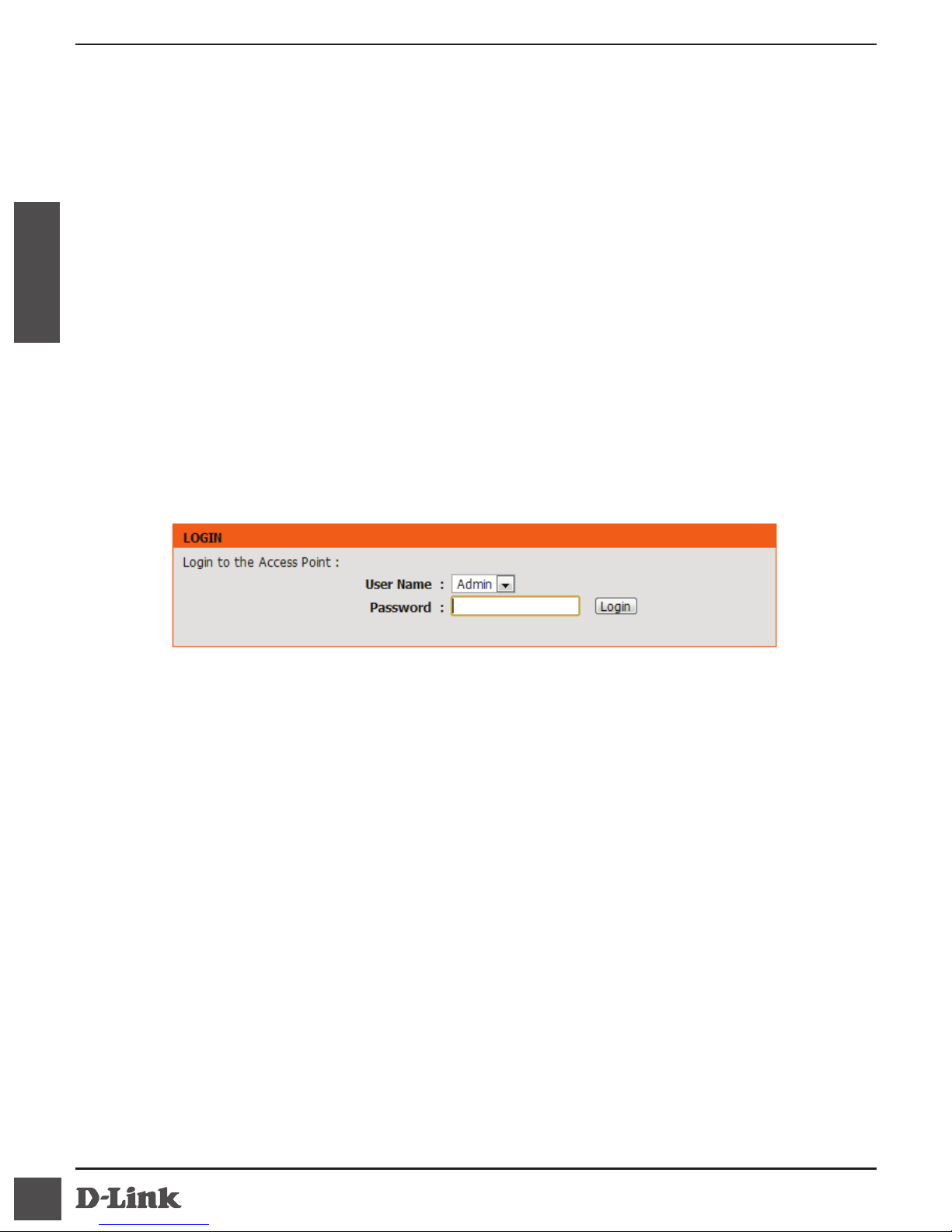

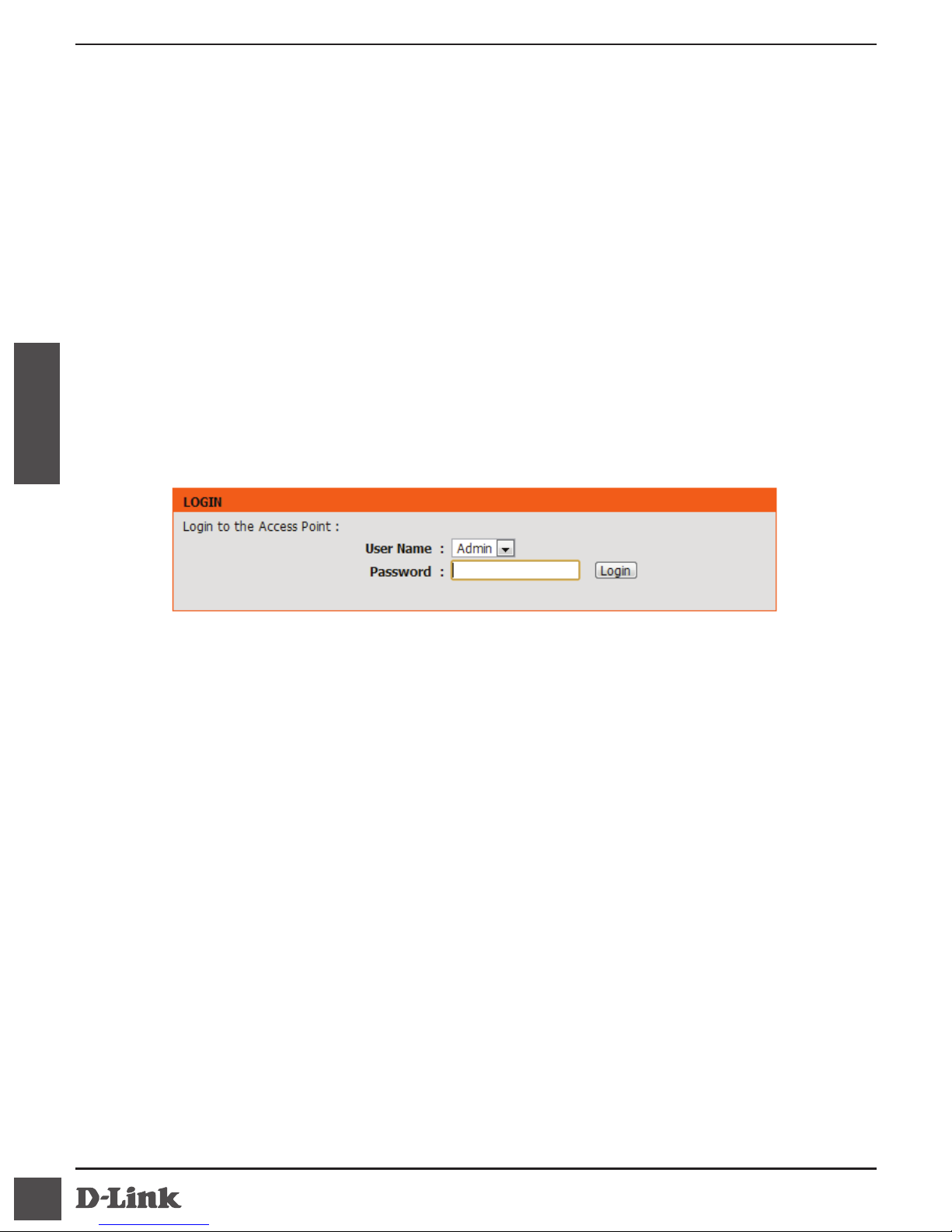

2. Select ADMIN for the User Name and leave the Password blank.

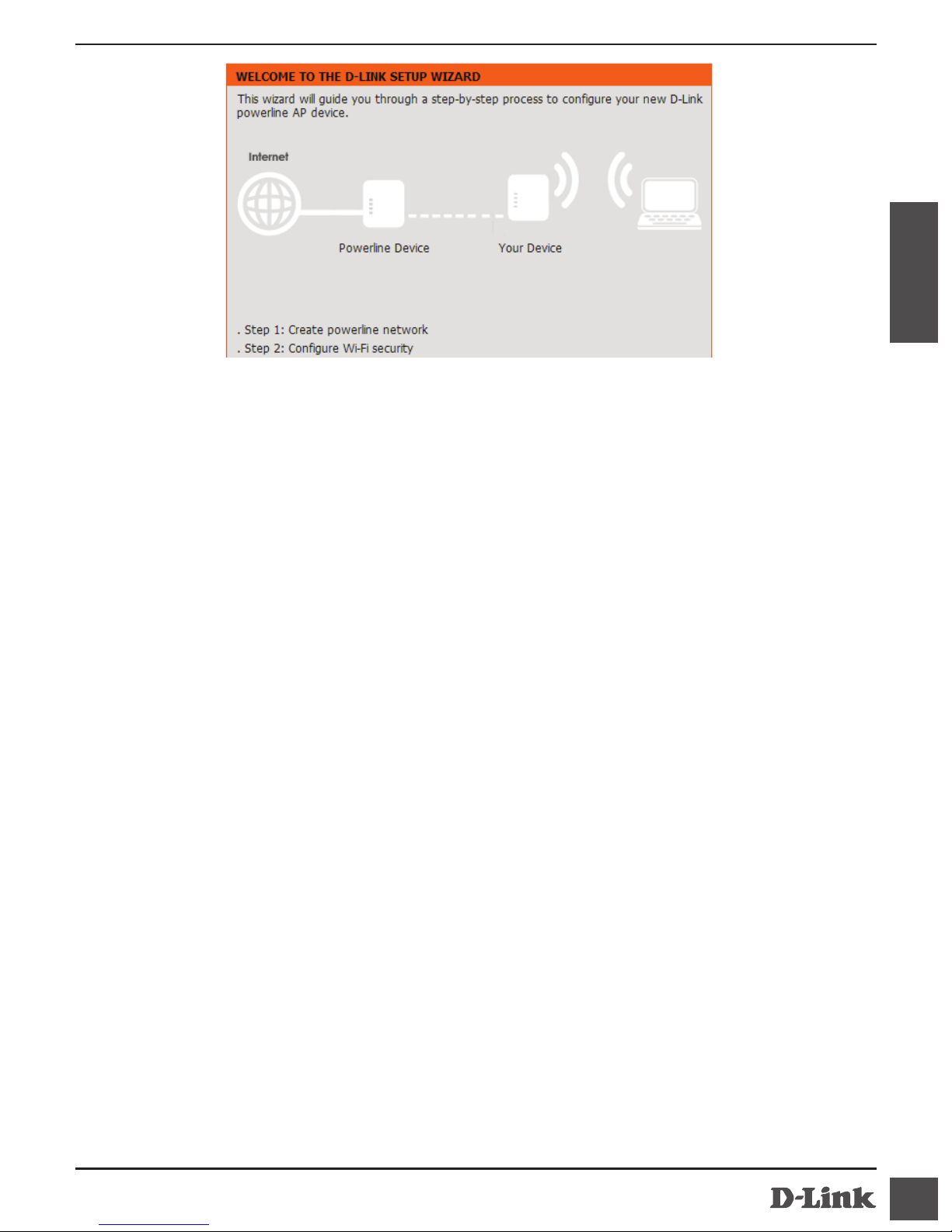

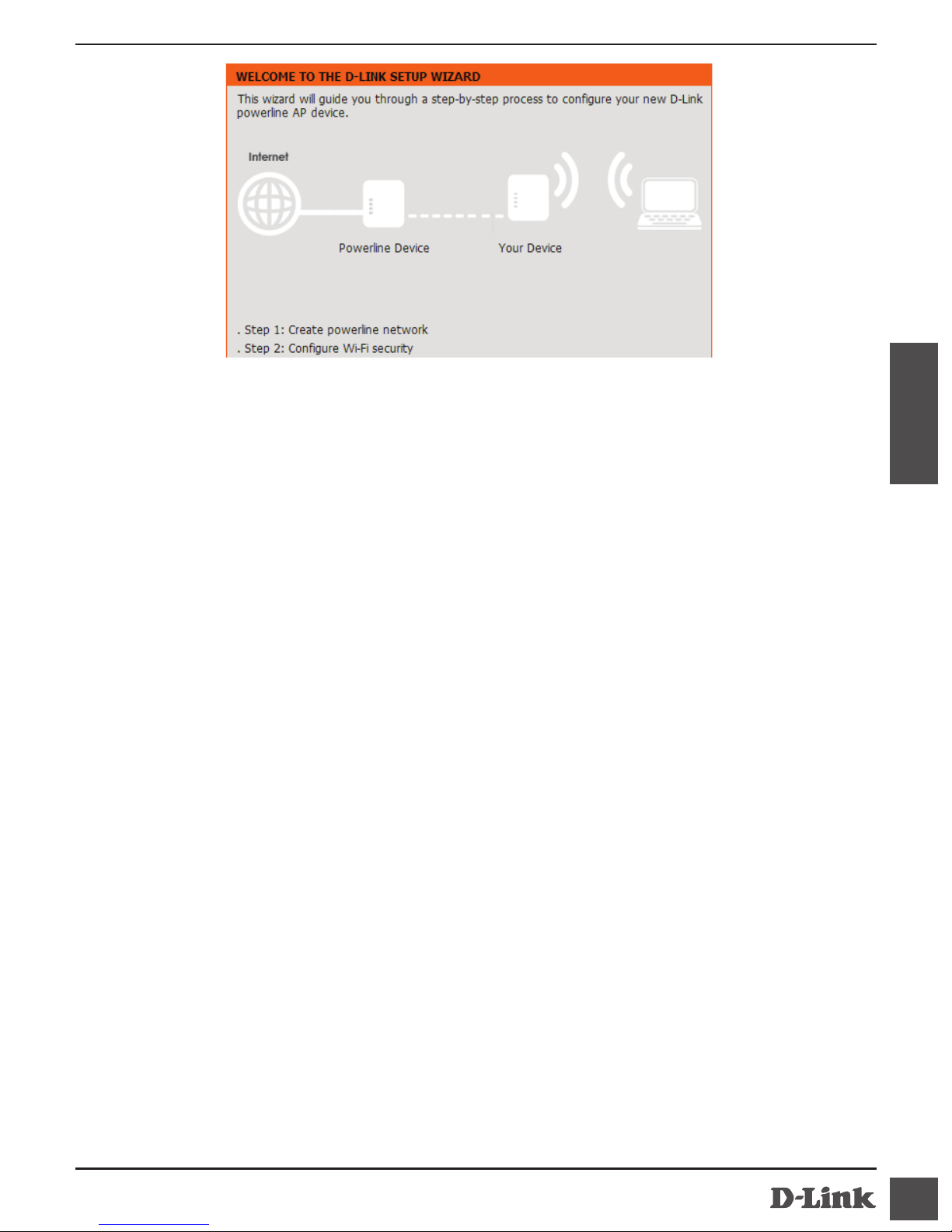

3. From the landing page, start the Setup Wizard for Powerline Connection.
4. When prompted, press the Common Connect Button for 2 seconds on your
existing device to connect it to the DHP-W310AV.
Note: If you have not previously secured your existing Powerline network, you
will need to set up security for all of your existing Powerline devices. Perform
the following steps for each device: press the Common Connect Button on
the DHP-W310AV, then press the Simple Connect Button on your existing
Powerline device within 2 minutes.
5. Follow the wizard’s steps to set up your Powerline network. For more detailed
support, please refer to the User Manual.

5
DHP-W310AV
ENGLISH
Frequently Asked Questions
Q: Why can’t my DHP-W310AV nd my Powerline network?
• Be sure you are plugging directly into a wall outlet. Plugging into anything
else may slow or stop the connection.
• The electrical wiring must have a direct connection. For example, Powerline
connections may not be available across a street or to dierent units in an
apartment building.
Q: My connection is erratic and sometimes cuts out or is slow, why?
• Try to keep nearby outlets free of other devices, especially chargers and hair
dryers, to minimize electrical interference.
Q: How do I nd my wireless network? Why does it have such a weird
name? Can I change it?
• You can nd the Wi-Fi name (SSID) and password on the Wireless Congura-
tion Card. Common names and passwords like dlink or password are avoided
for security purposes.
• You can change your wireless settings by navigating a web browser to
http://dlinkapWXYZ.local. then Setup then Wireless Settings. WXYZ is an
example, the real address is on your conguration card.
Q: Can I use only the DHP-W310AV to get online?
• At least two Powerline devices work together to create a network. They com-
municate over your electrical wiring, but you still need an Internet connec-
tion from a router and/or modem.
Q: Can I use more than one DHP-W310AV device at a time?
• Yes you can! D-Link oers a host of Powerline devices that include adapters,
extenders, and routers.

DHP-W310AV
6
ENGLISH
Technical Support
