Before You Begin
This product can be set up
using any current web
browser, i.e., Internet
Explorer 6 or Netscape
Navigator 6.2.3.
DSL-300T
ADSL Modem
Make sure you have all the necessary information and equipment on hand
before beginning the installation.

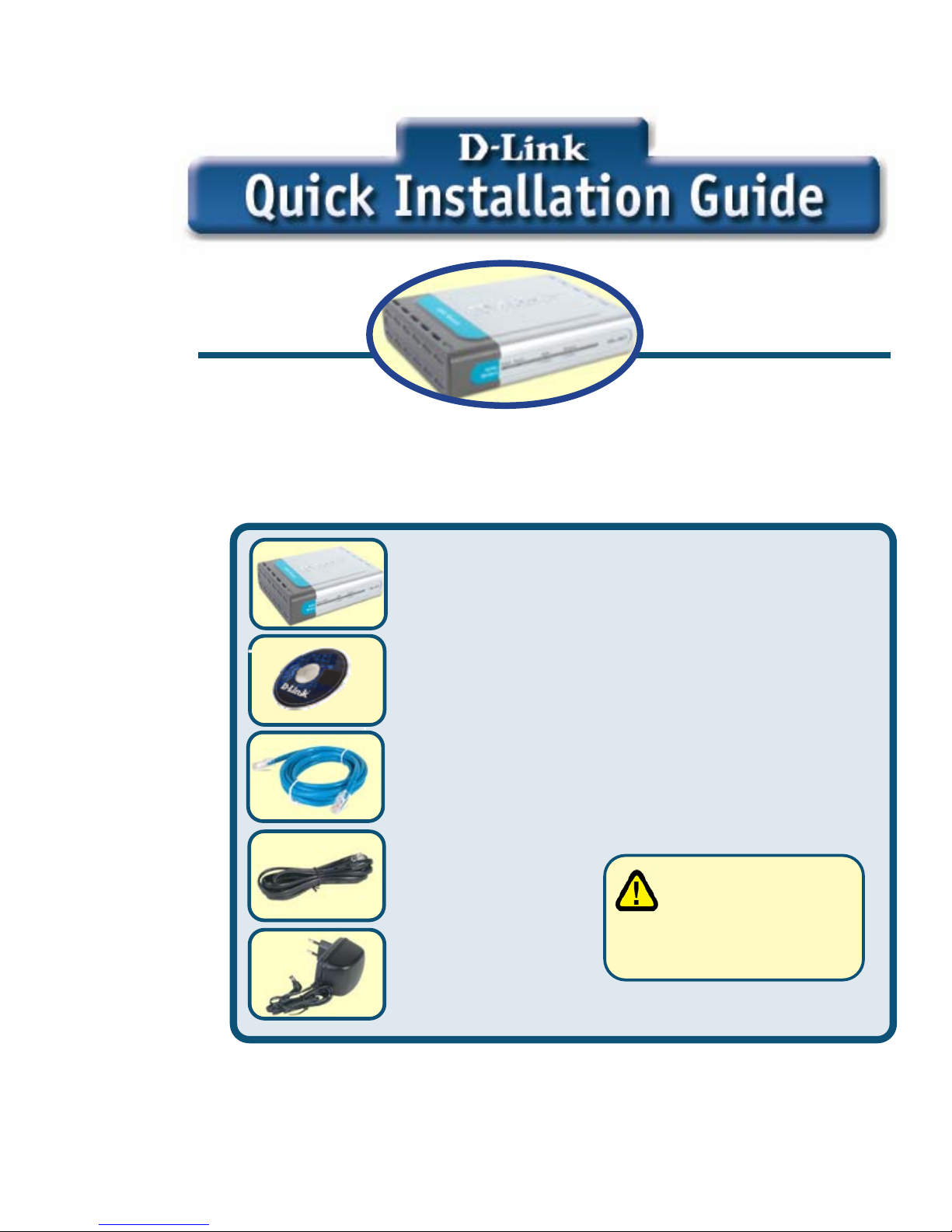

Check Your Package Contents
DSL-300T ADSL Modem
CD-ROM (containing Manual)
Ethernet (CAT5 UTP) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty for this product.
Telephone Cable
Power Adapter
If any of the above items are missing, please contact your reseller

Connecting the Modem to Your
Computer

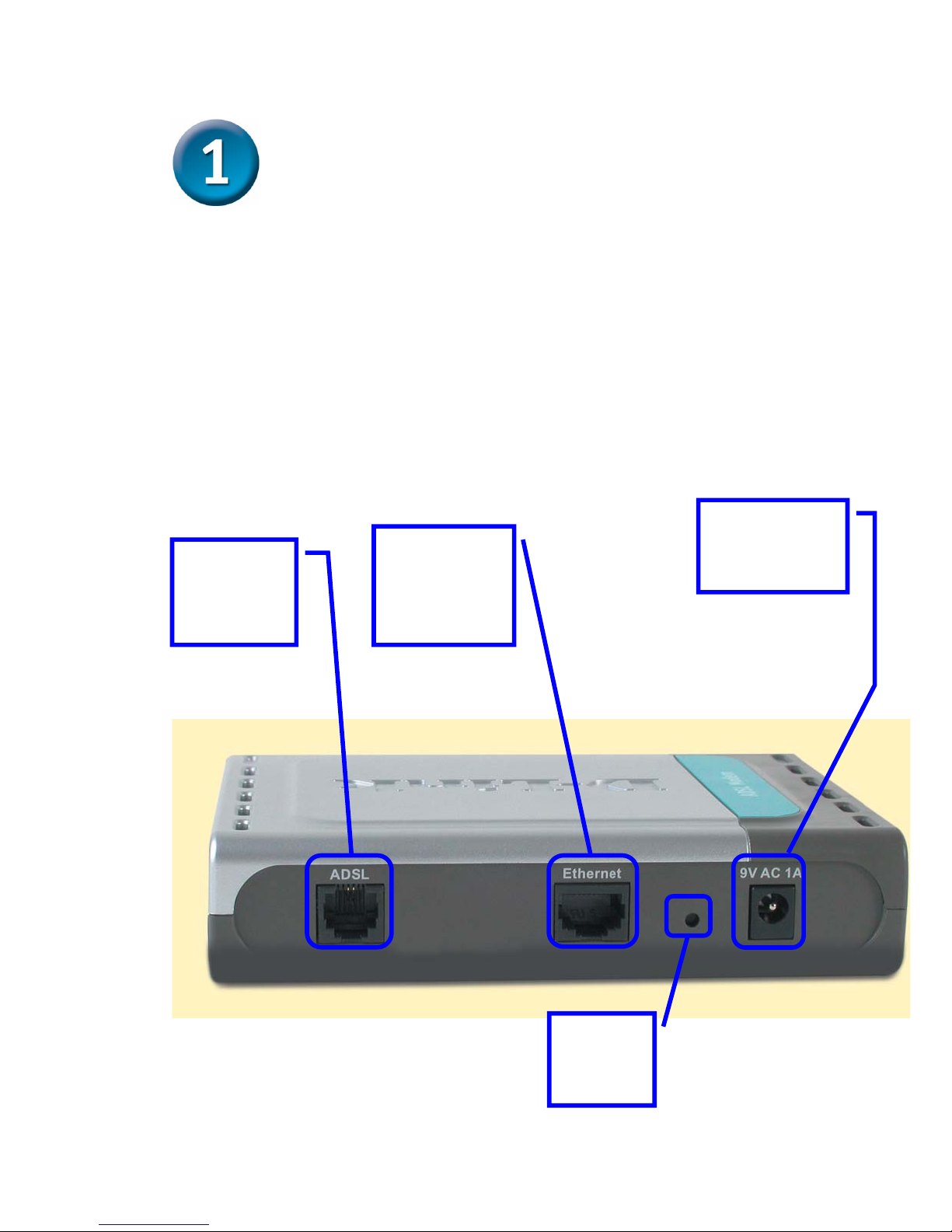

A. First, connect the power adapter to the receptor at the back panel of the
DSL-300T and then plug the other end of the power adapter to a wall outlet or
power strip. The Power LED will turn ON to indicate proper operation.
B. Insert one end of the cable into the Ethernet port on the back panel of the
DSL-300T and the other end of the cable to an Ethernet Adapter or available
Ethernet port on your computer.
Ethernet port -
connect to
Ethernet cable
Factory
Reset
button
Power input -
connect to power
ada
p
te
r
ADSL port -
connect to
ADSL line

Configuring the Modem
To use your Web browser to access the web pages used to setup the Modem,
your computer must be configured to “Obtain an IP address automatically”,
that is, you must change the IP network settings of your computer so that it is a
DHCP Client. If you are using Windows XP and do not know how to change
your network settings, skip ahead to Appendix A and read the instructions
provided. You may also read the User Manual for instructions on changing IP
settings for computers running Windows operating systems.

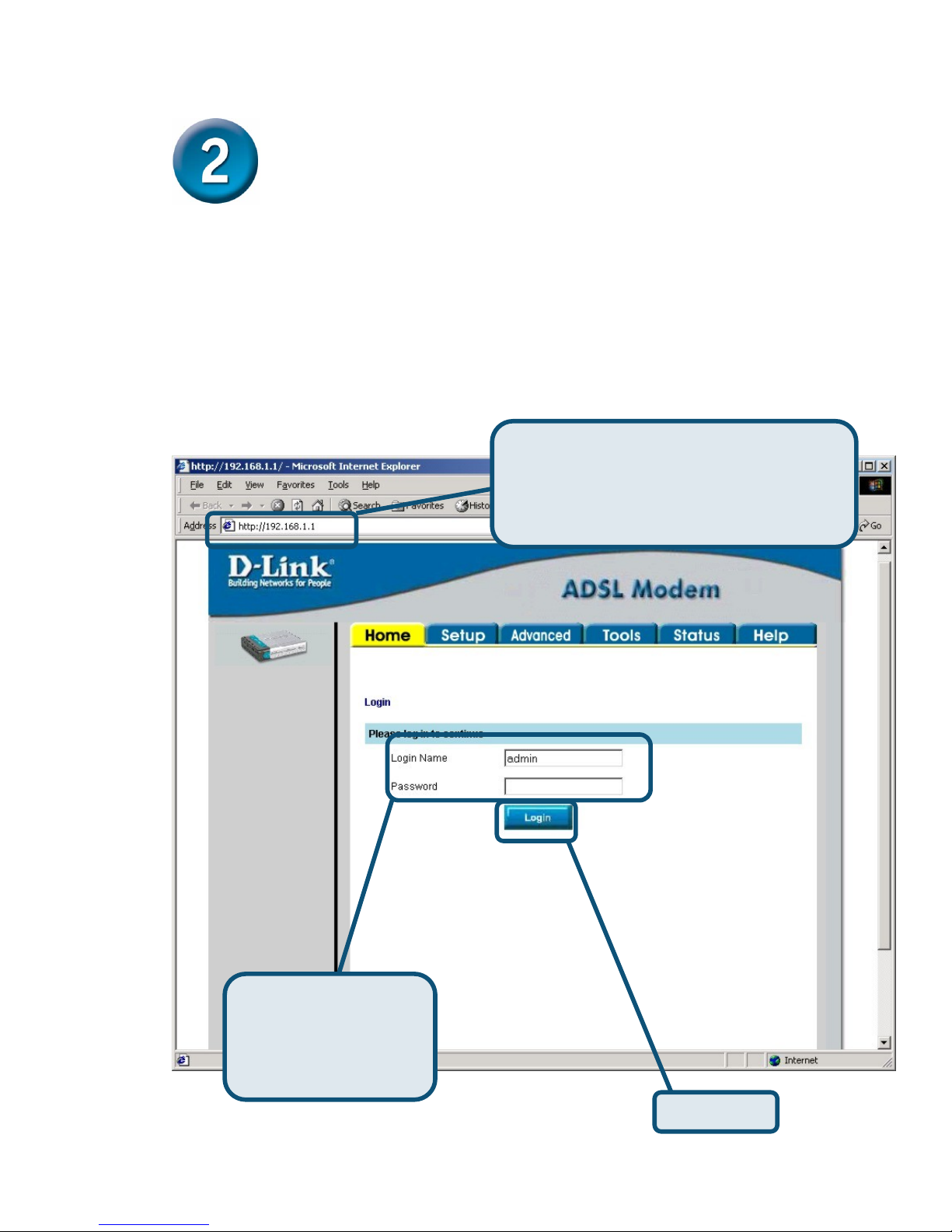

Open your Web browser and type
“http://192.168.1.1” into the URL address
press the Enter or Return key.
age appears.
box. Then
The Login p
Type “admin” for
“admin” in the
the
Login Name and
Password field.
LoginClick

Configuring the Modem (continued)

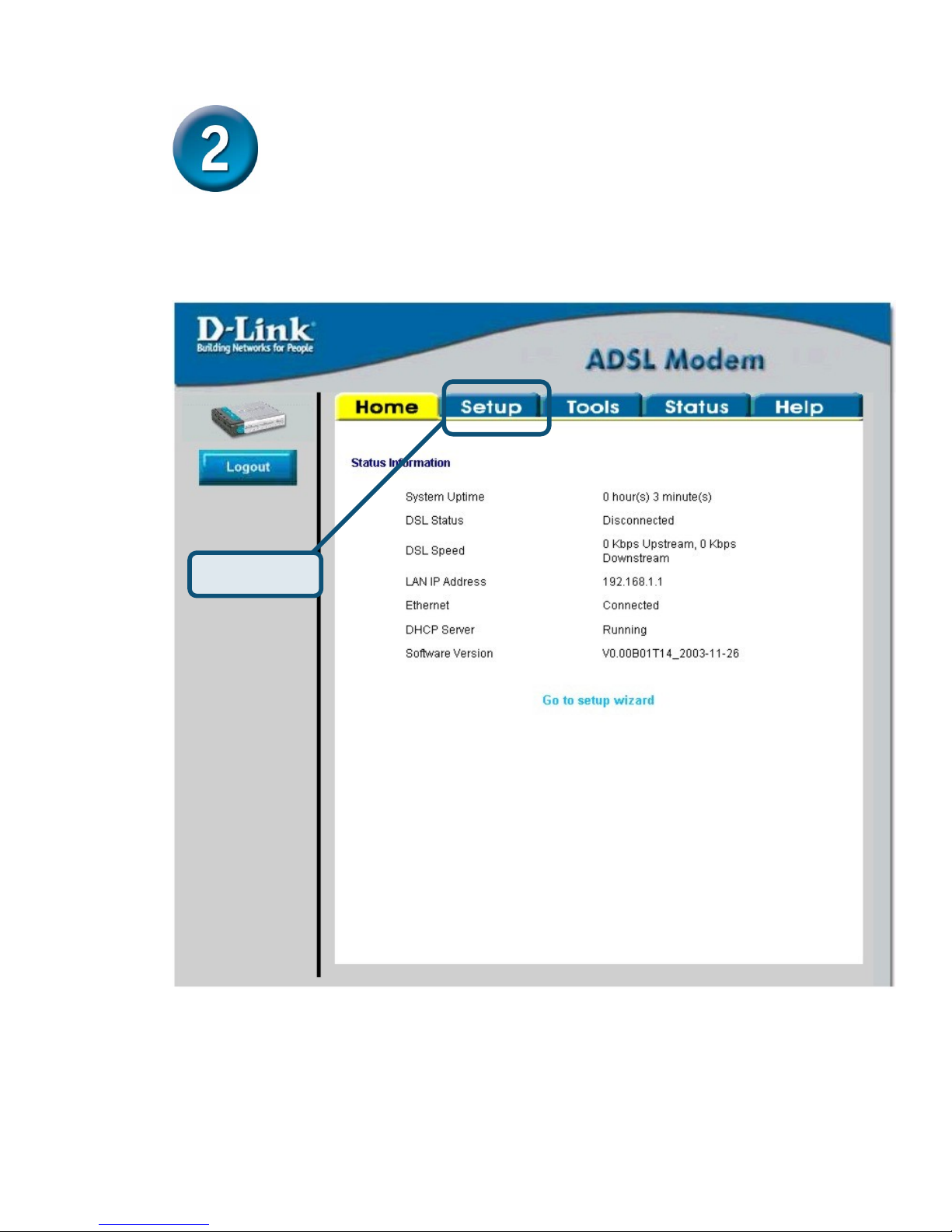

Once you have logged in, the Home screen will appear. Click the Setup tab to
go to the Setup menu and configure the Modem.
Click Setup

Configuring the Modem (continued)

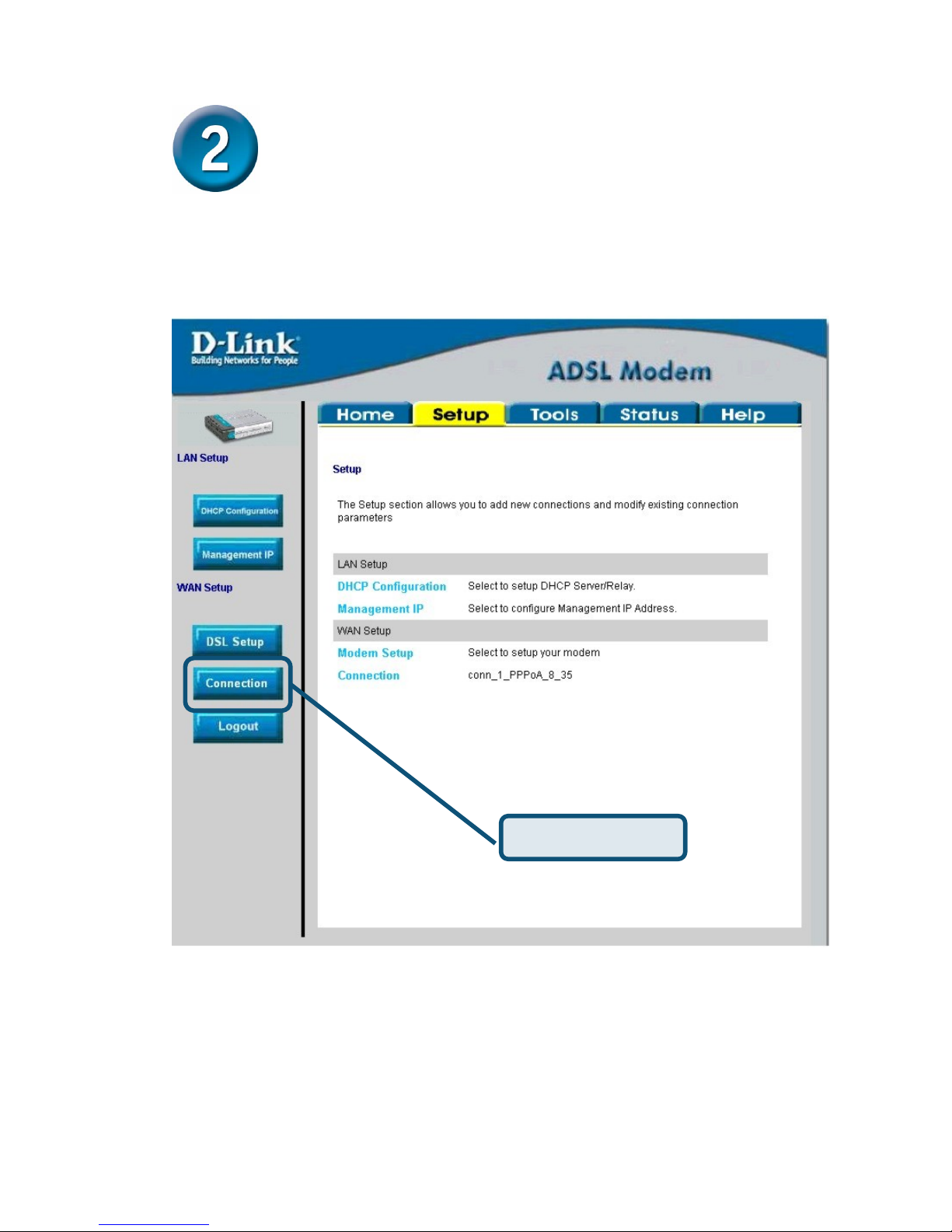

In the Setup menu, click the Connection button to go to the configuration
menu for the Internet connection.
ConnectionClick

Configuring the Modem (continued)

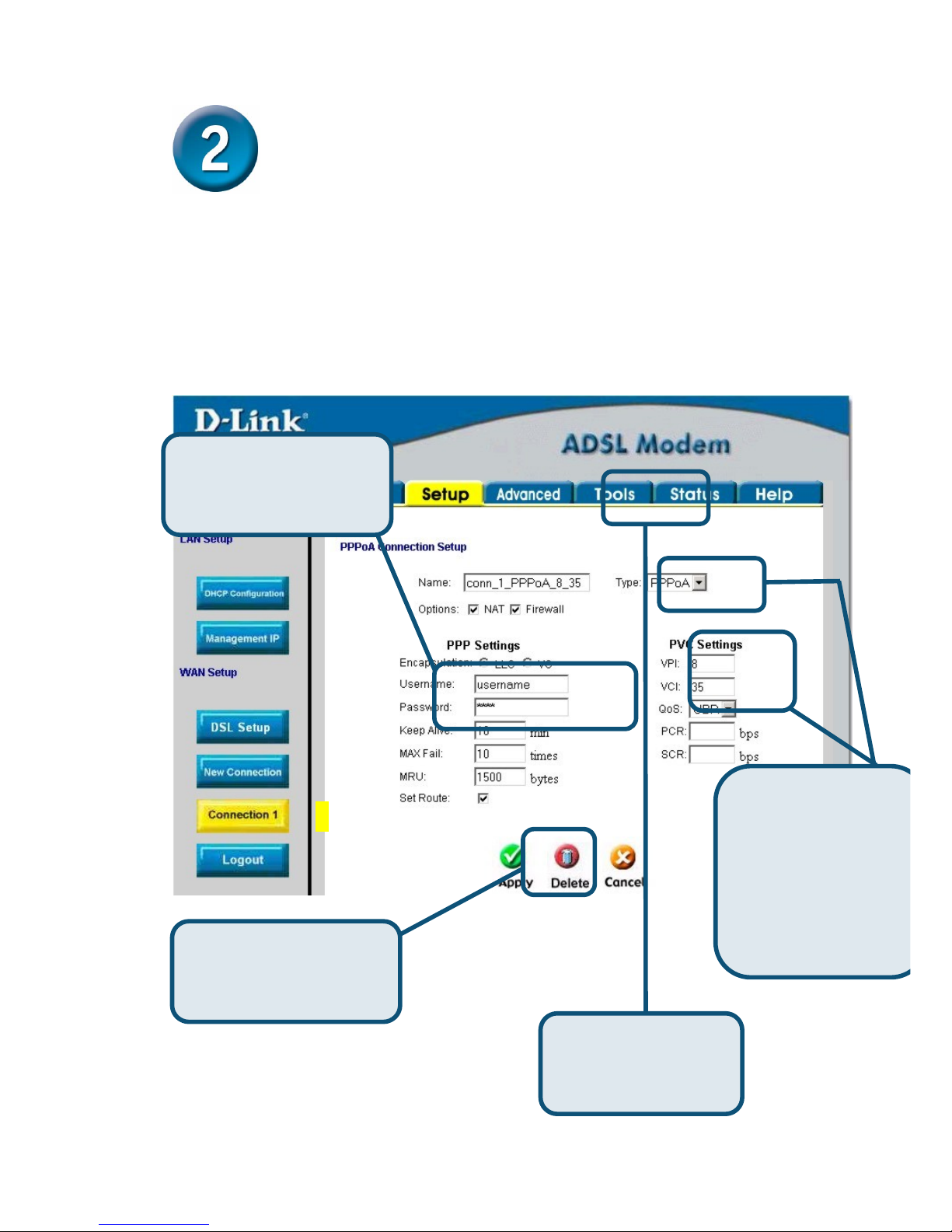

In the Connection menu, type the Username and Password used to verify
the identity of your ISP account. It may be necessary to change the PPP
encapsulation Type used for your connection. You may also need to change
the VPI or VCI value. Your ISP will give these settings to you if they need to be
changed. Click the Apply button when you have entered all the information. To
save the changes made to Connection, click the Tools tab and follow the
instructions on the next page.
A. Username
Password used for
Type the
and
your account.
D. Tools whenClick
you have applied the
new settings.
C. Apply buttonClick the
after you have entered the
account information.
B. Type,
VPI: and VCI: -
Check the PPP
encapsulation if these
values are not correct,
change these accordin
g
to the instructions of
your ISP.

Configuring the Modem (continued)

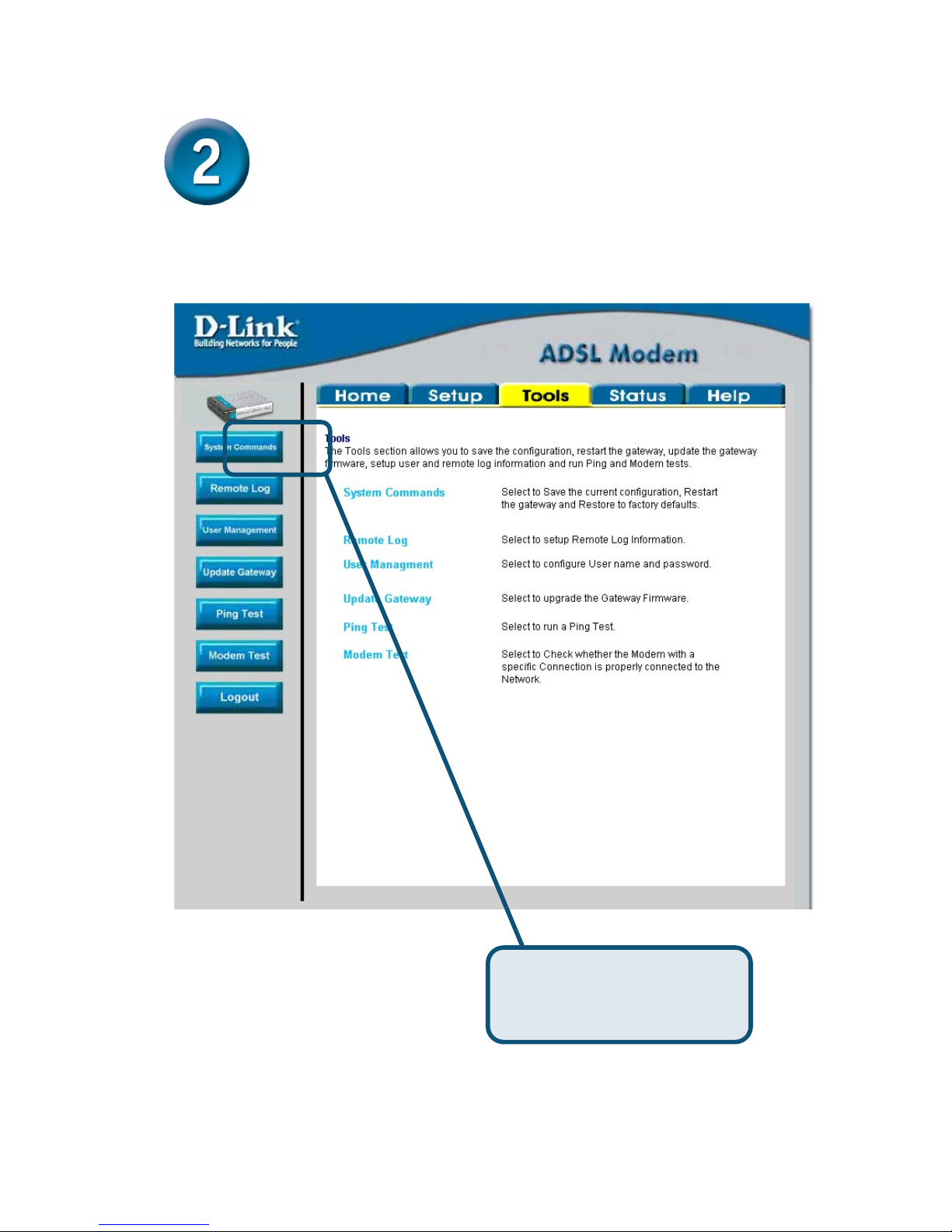

Now save the changes you have just made. The Save function is accessed
from the System Commands menu. Click the System Commands button to
view that menu.
Click to
view the menu used to save
changes.
System Commands

Configuring the Modem (continued)

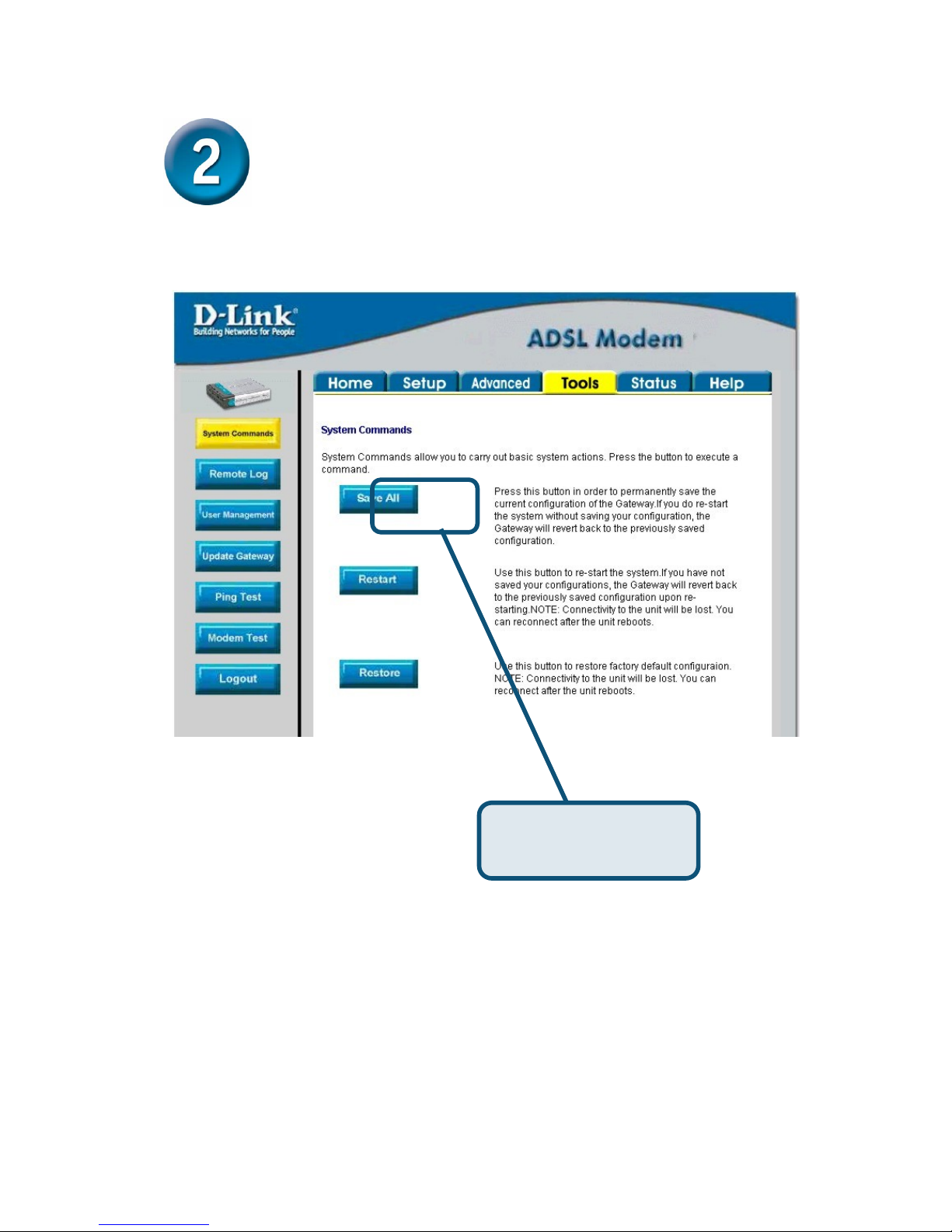

To save the new settings, click the Save All button in the System Commands
menu. After a few seconds, the changes will be saved. The Modem will
automatically establish the Internet connection after a few more seconds.
Click
the new settings.
Save All to save
Wait a few seconds for the Internet connection to be established and proceed
to access the Internet via your web browser.

Appendix
For additional settings or information, refer to the Advanced, Tools, or Status
tabs on the web-management interface; or to the manual located on the
Configu
CD-ROM.
ring IP Settings in Windows XP
XP to be a
e Start menu on your desktop, go to Settings, then click on
2. ions window, right-click on LAN (Local Area
Use the following steps to configure a computer running Windows
DHCP client.

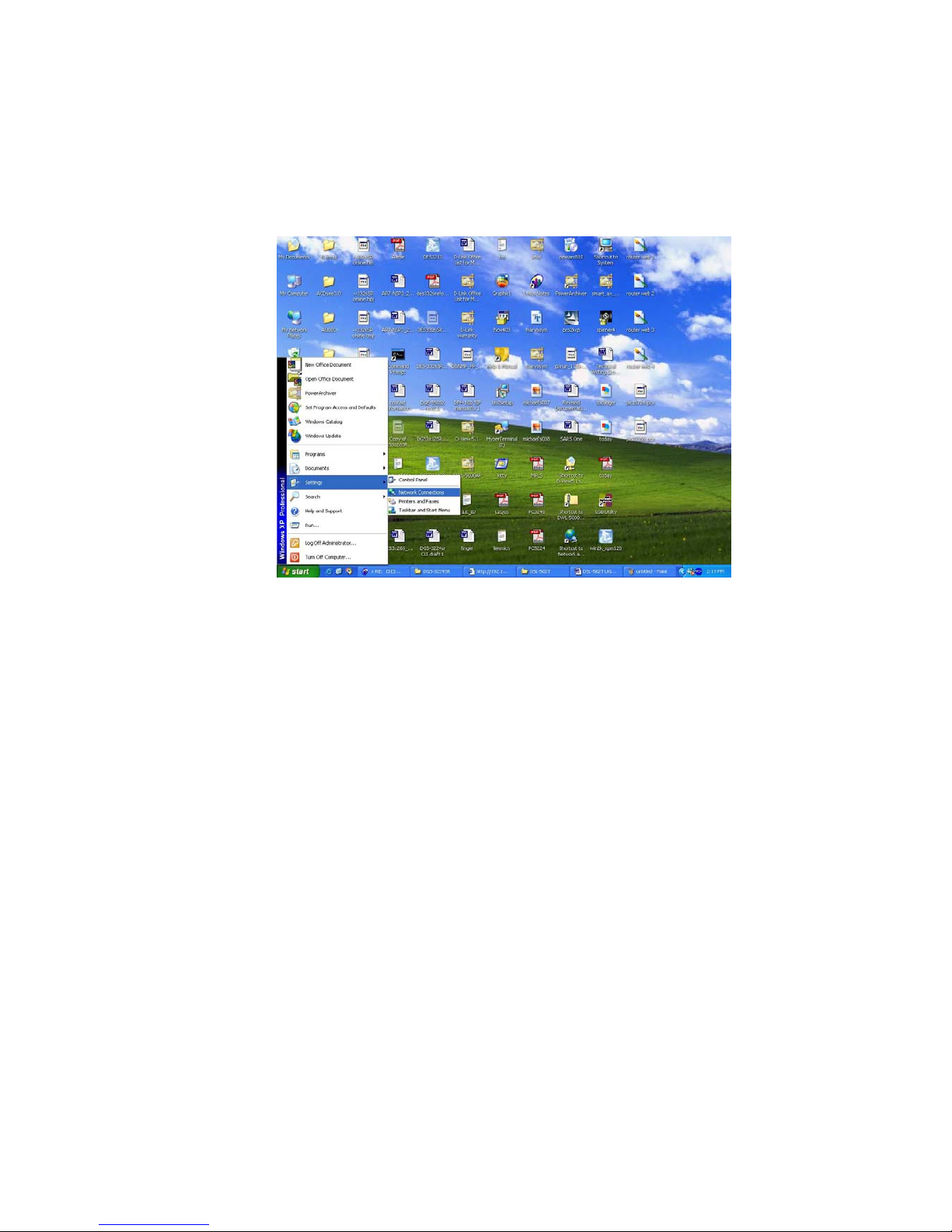

1. From th
Network Connections.
In the Network Connect
Connection), then click Properties.

3. In the General tab of the Local Area Connection Properties menu,
highlight Internet Protocol (TCP/IP) under “This connection uses the
following items:” by clicking on it once. Click on the Properties button.

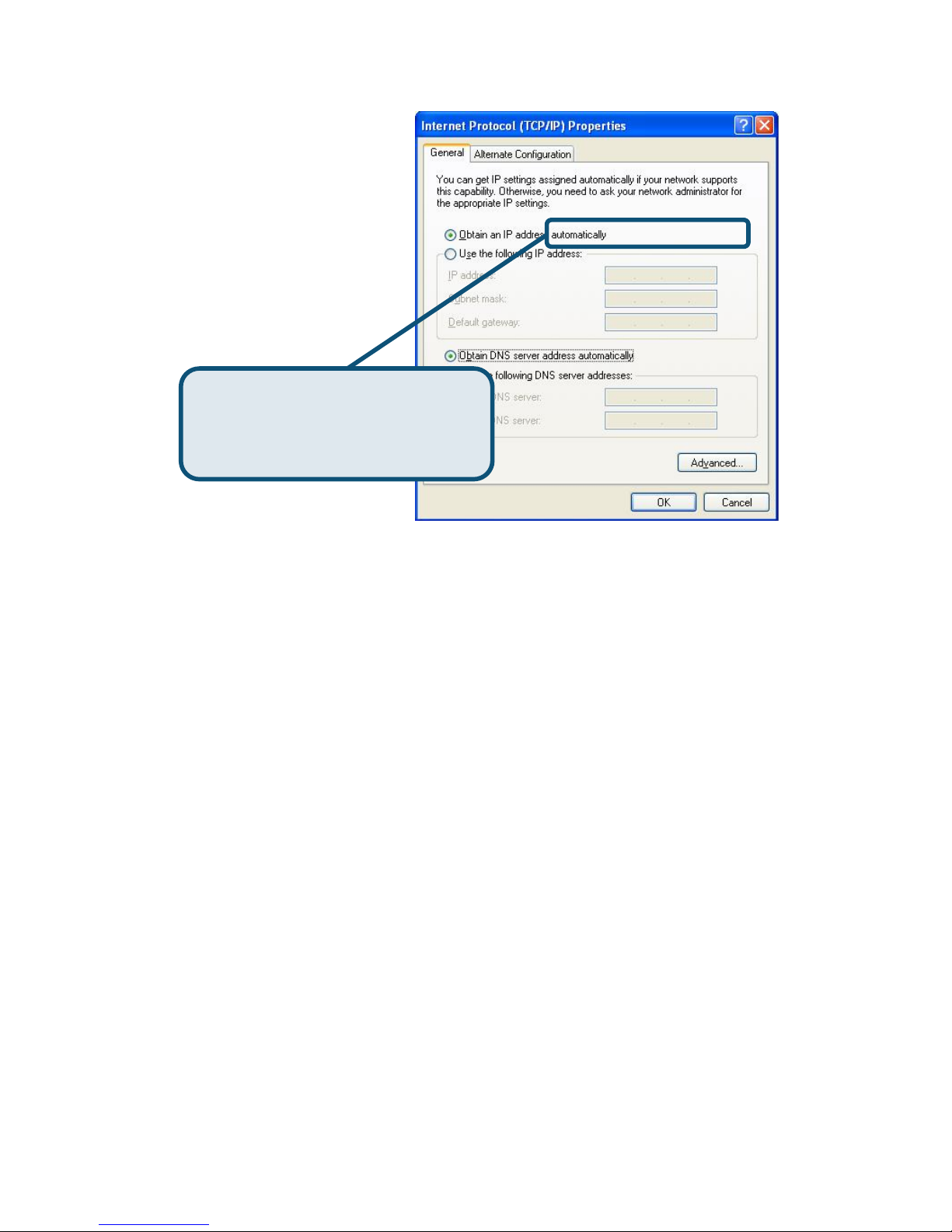

4. Select “Obtain an IP address automatically”by clicking once in the
circle. Click the OK button.

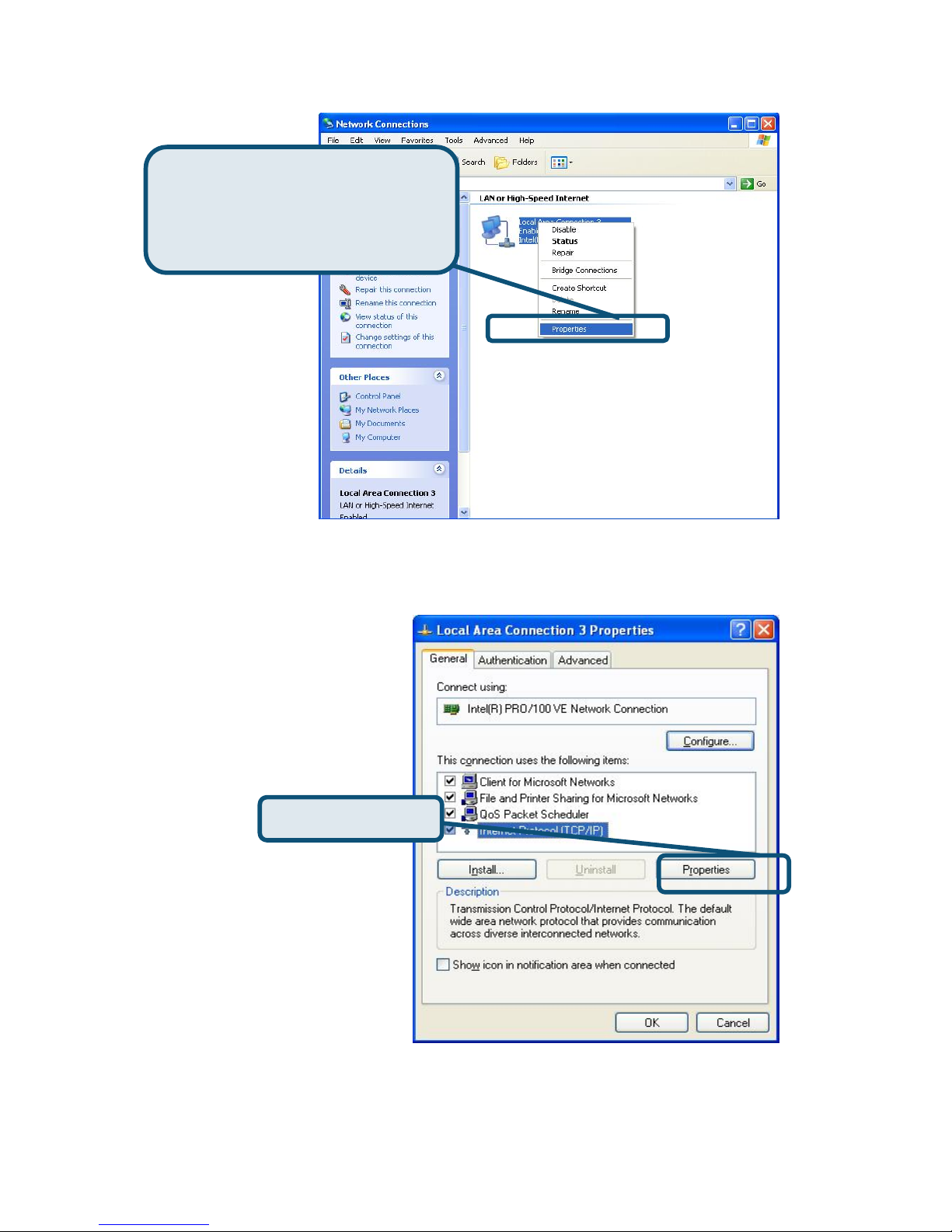

Click Properties
Right-click on the Local Area
Connection icon and Select the
Properties option from the pull-down
menu.

Select
Protocol (TCP/IP) Properties window
Obtain an IP address
automatically in the Internet
Your computer is now ready to use the Modem’s DHCP server.
