D-Link DWM-156 User manual

2D-Link DWM-156 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright © 2009 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 March 18, 2009 DWM-156 Revision A1 with rmware version 1.00
Preface

3D-Link DWM-156 User Manual
Table of Contents
Preface..........................................................................2
Manual Revisions .................................................... 2
Trademarks ............................................................. 2
Introduction .............................................................. 5
Features .................................................................. 5
Product Overview ........................................................ 6
Package Contents ................................................... 6
System Requirements ............................................. 6
Hardware Overview ................................................. 7
LED Indicator Information........................................8
Installation....................................................................9
SIM Card Installation ...............................................9
MicroSD Card Installation......................................10
Software Installation .............................................. 11
Basic Functions......................................................... 12
Software Overview ................................................ 12
New Prole ............................................................ 13
Use Default Prole (Preset)................................... 13
User-Dened Prole .............................................. 14
Establishing a Connection .....................................14
Ending a Connection .............................................14
Prole Management .................................................. 15
Connection Management.......................................... 16
Current Connection ............................................... 16

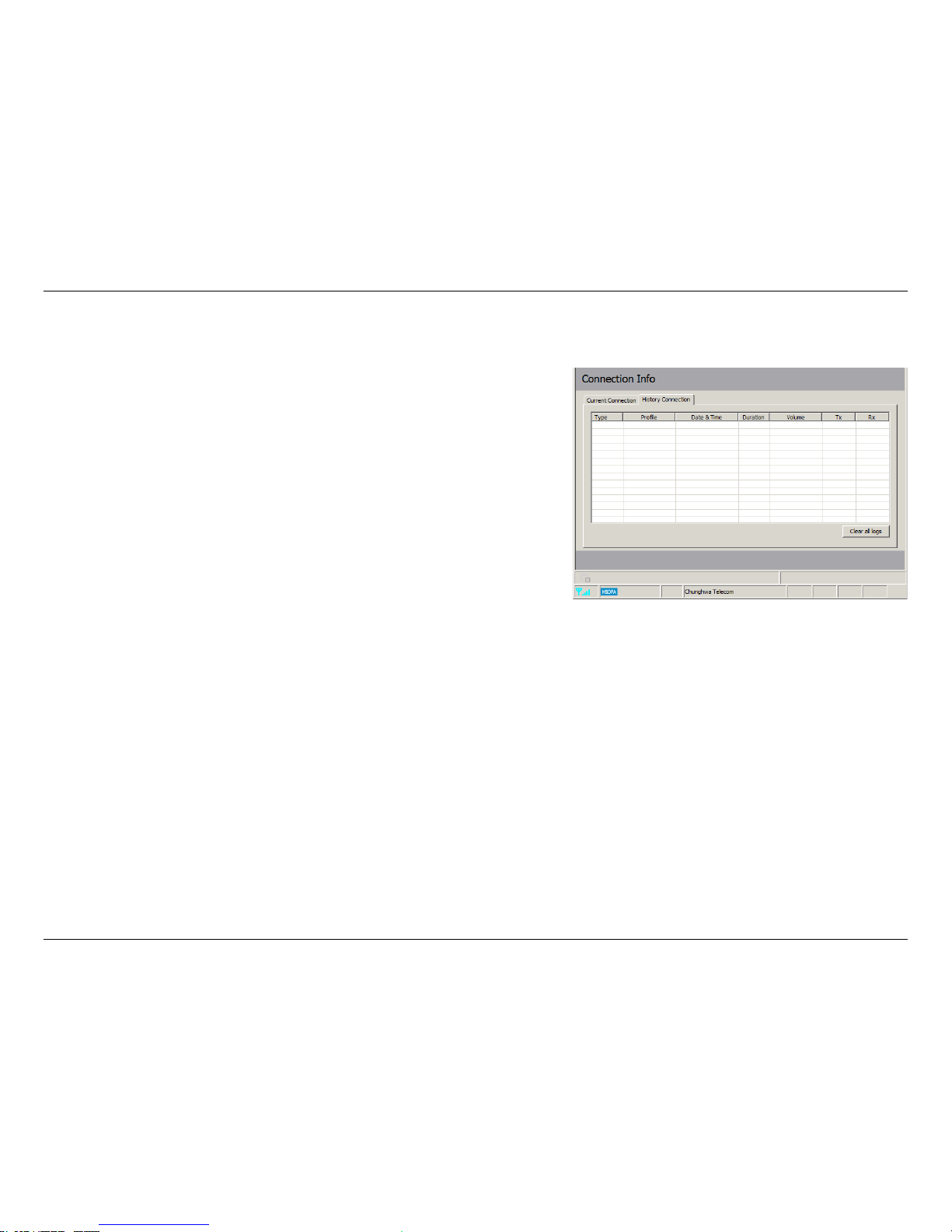

Connection History ................................................ 17

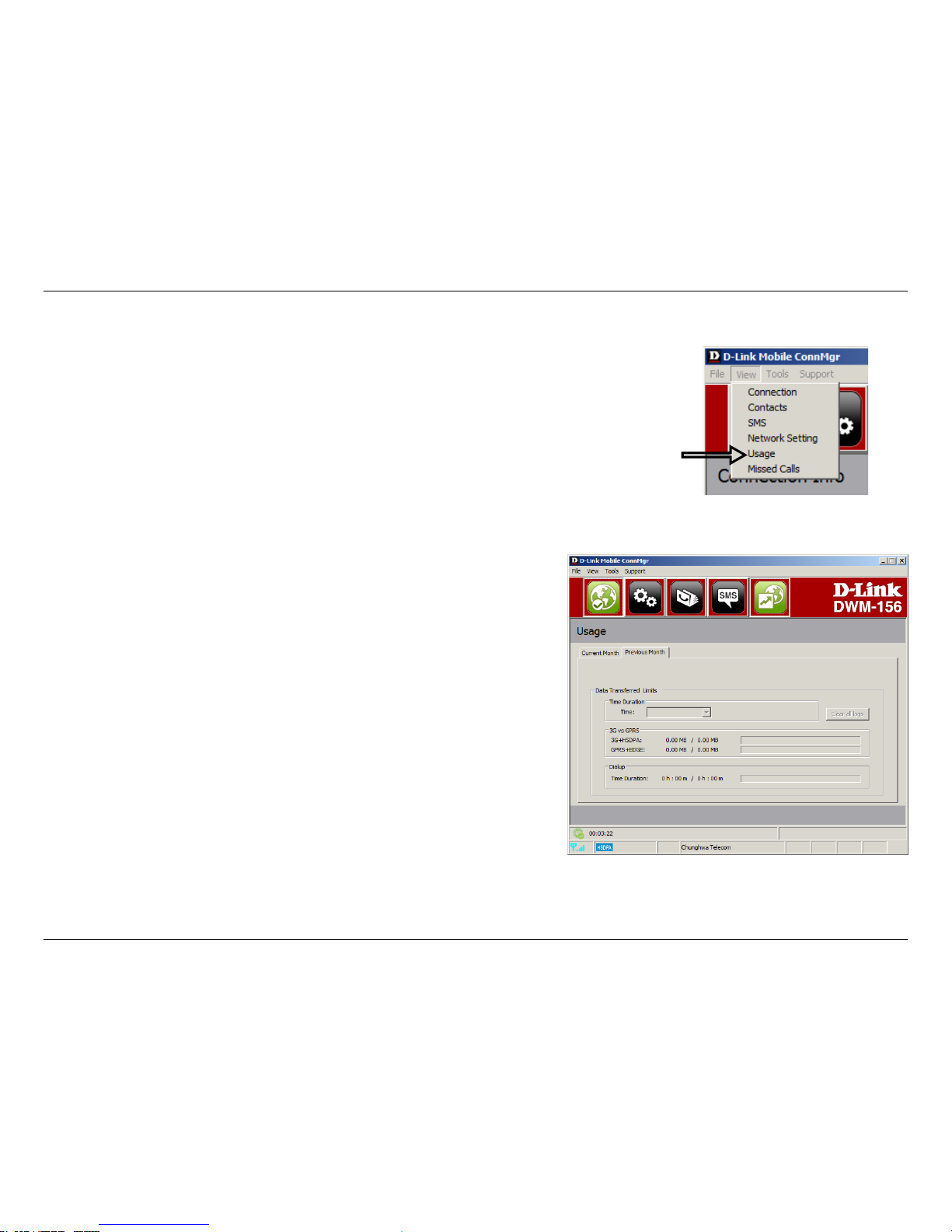

Usage Management................................................... 18
Usage .................................................................... 18
Usage Statistics ..................................................... 19
Text Messaging (SMS) .............................................. 20
New/Reply/Forward Text Message .......................21
Deleting a Message...............................................21
Saving a Sender to Contacts.................................21
SMS Settings ......................................................... 22
Contact Management ................................................ 23
Adding Contacts .................................................... 23
Editing Contacts .................................................... 23
Deleting Contacts .................................................. 23
Importing vCards to Contacts ................................24
Exporting Contacts to vCards................................24
SIM Management ....................................................... 25
SIM Information ..................................................... 25
Enabling or Disabling a PIN Code .........................26
Changing a PIN Code............................................27
Unlocking a PIN Code ...........................................27

4D-Link DWM-156 User Manual
Prole Settings .......................................................... 28
Band Settings ........................................................ 28
Network Selection.................................................. 29
Call Settings .......................................................... 30
Missed Calls .......................................................... 30
Startup Options ......................................................... 31
Version Information................................................... 31
Troubleshooting ........................................................ 32
Glossary .....................................................................33
Technical Specications........................................... 36

5D-Link DWM-156 User Manual
Section 1 - Product Overview
Introduction
Compact and sleek mobile adapter easily ts in your pocket•
Provides HSUPA/HSDPA/UMTS/GPRS/GSM/EDGE network support•
GSM circuit-switched (CSD) data transfer for multimedia•
Plug-and-Play: No CD-ROM required•
Connection software launches quickly and automatically•
Convenient USB connector requires no additional cables•
MicroSD card reader slot for optional removable storage•
Send group SMS messages to up to 25 contacts simultaneously•
Store up to 1000 outgoing SMS (depending on SIM card capacity)•
Control incoming calls with forwarding, busy tone, or continuous ringing•
The 3.75G HSUPA USB Adapter allows users with a computer to connect to mobile broadband networks (HSUPA/
HSDPA/UMTS/GPRS/GSM). While connected, users can transfer data, stream media, and send SMS messages. The
adapter uses a standard USB interface for fast and simple installation.
Features

6D-Link DWM-156 User Manual
Section 1 - Product Overview
Windows 2000/XP/VISTA or Mac OS X 10.4.0• +
Pentium III or greater•
128MB RAM or greater•
50MB available disk space•
Internet Explorer v6.0• +/ Firefox v1.5+
A computer with an available USB 2.0 port•

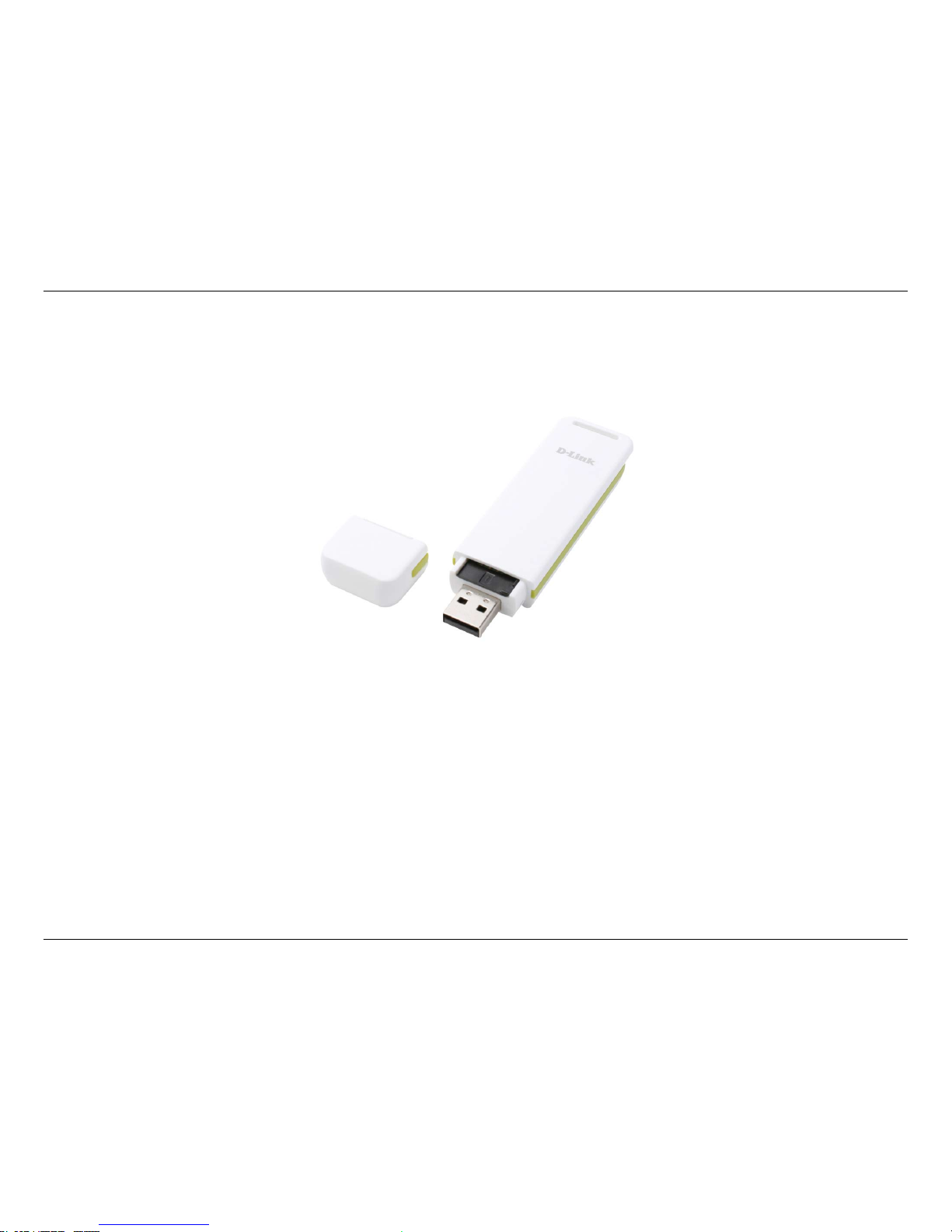

Product Overview
D-Link DWM-156 - 3.75G HSUPA USB Adapter
System Requirements
Package Contents

7D-Link DWM-156 User Manual
Section 1 - Product Overview

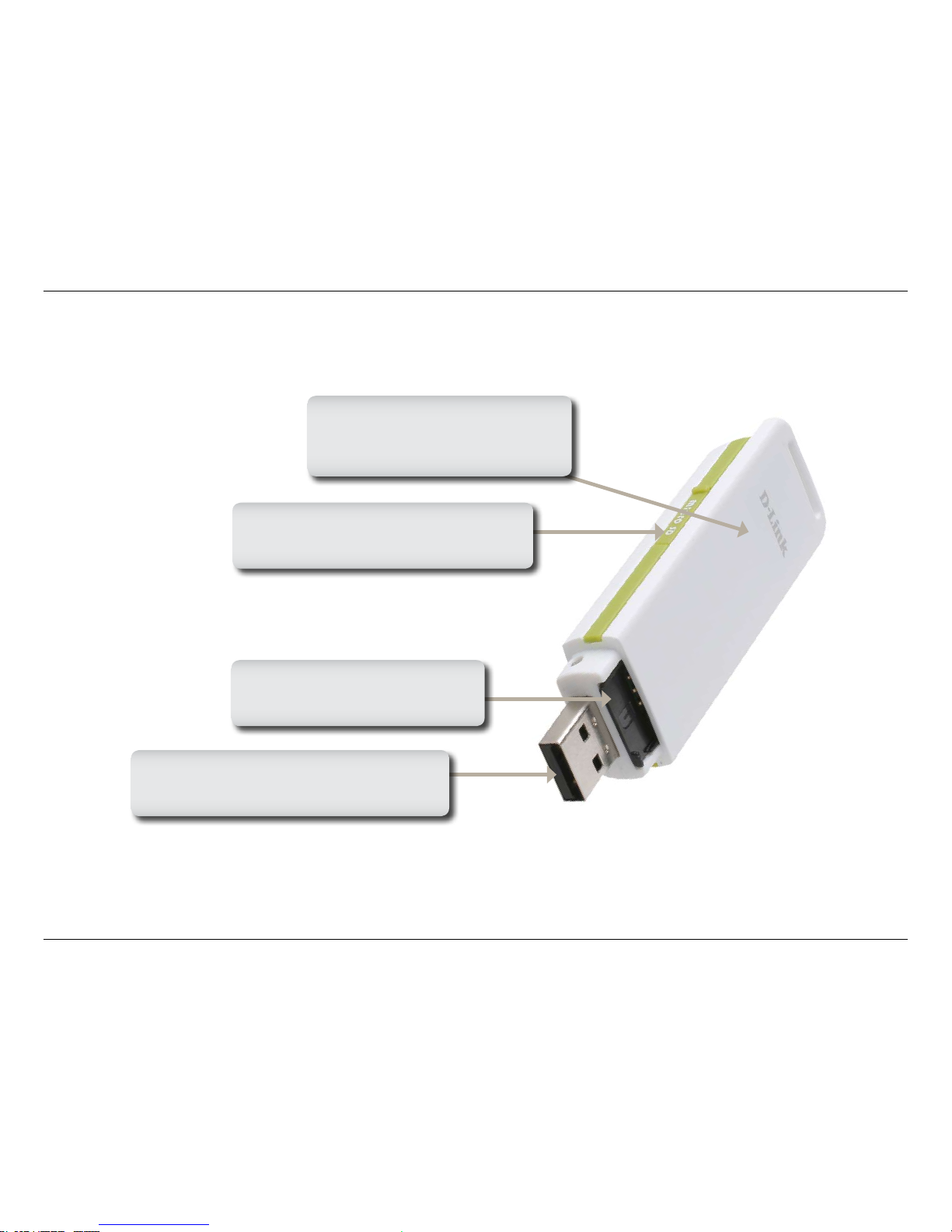

Hardware Overview
USB Port
Connects the DWM-156 to a computer.
Status Indicator
A multi-colored LED indicates
connection status information.
SIM Card Slot
Accepts a standard SIM Card.
MicroSD Card Slot
Accepts a MicroSD card (up to 8GB).

8D-Link DWM-156 User Manual
Section 1 - Product Overview
Color Service Blinking Solid
Yellow System –Device Initializing / No Signal
Red SIM Card
Service Searching Error (No SIM / Invalid SIM)
Green WCDMA Registered Connected
Blue HSDPA/
HSUPA –Connected
Purple GPRS/
EDGE Registered Connected
LED Indicator Information

9D-Link DWM-156 User Manual
Section 2 - Installation
Installation

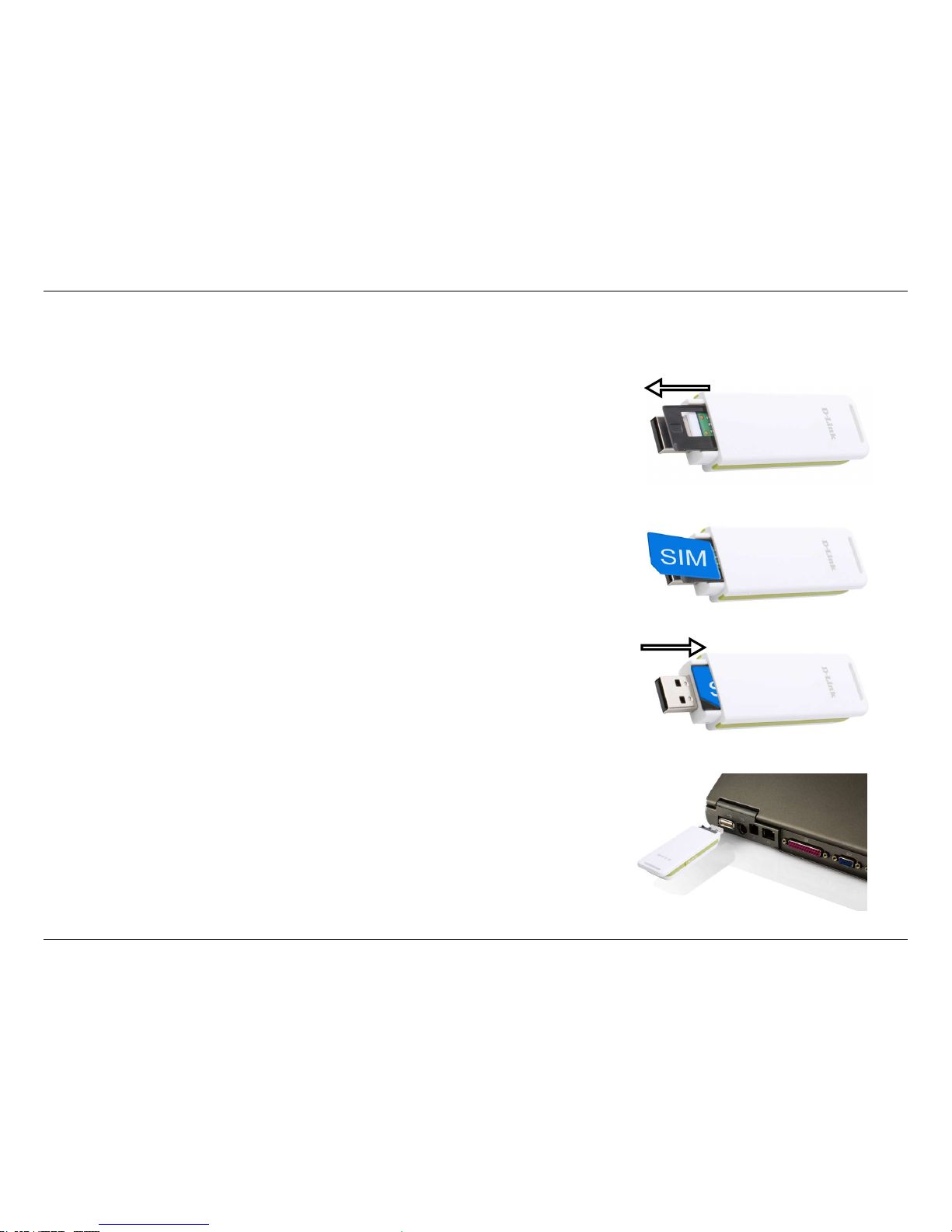

Follow the steps below to install a SIM card:
Remove the cover from the end of the adapter.1.
Pull out the SIM card tray. (Figure 1)2.
Insert the SIM card with the gold contacts facing down. (Figure 2)3.
Push the SIM card tray back into the adapter. (Figure 3)4.
Connect the adapter to a USB port on your computer. (Figure 4)5.
Note: To remove an installed SIM card, pull out the SIM card tray
and gently lift the card.
Figure 1
Figure 2
Figure 3
Figure 4
SIM Card Installation 


10D-Link DWM-156 User Manual
Section 2 - Installation

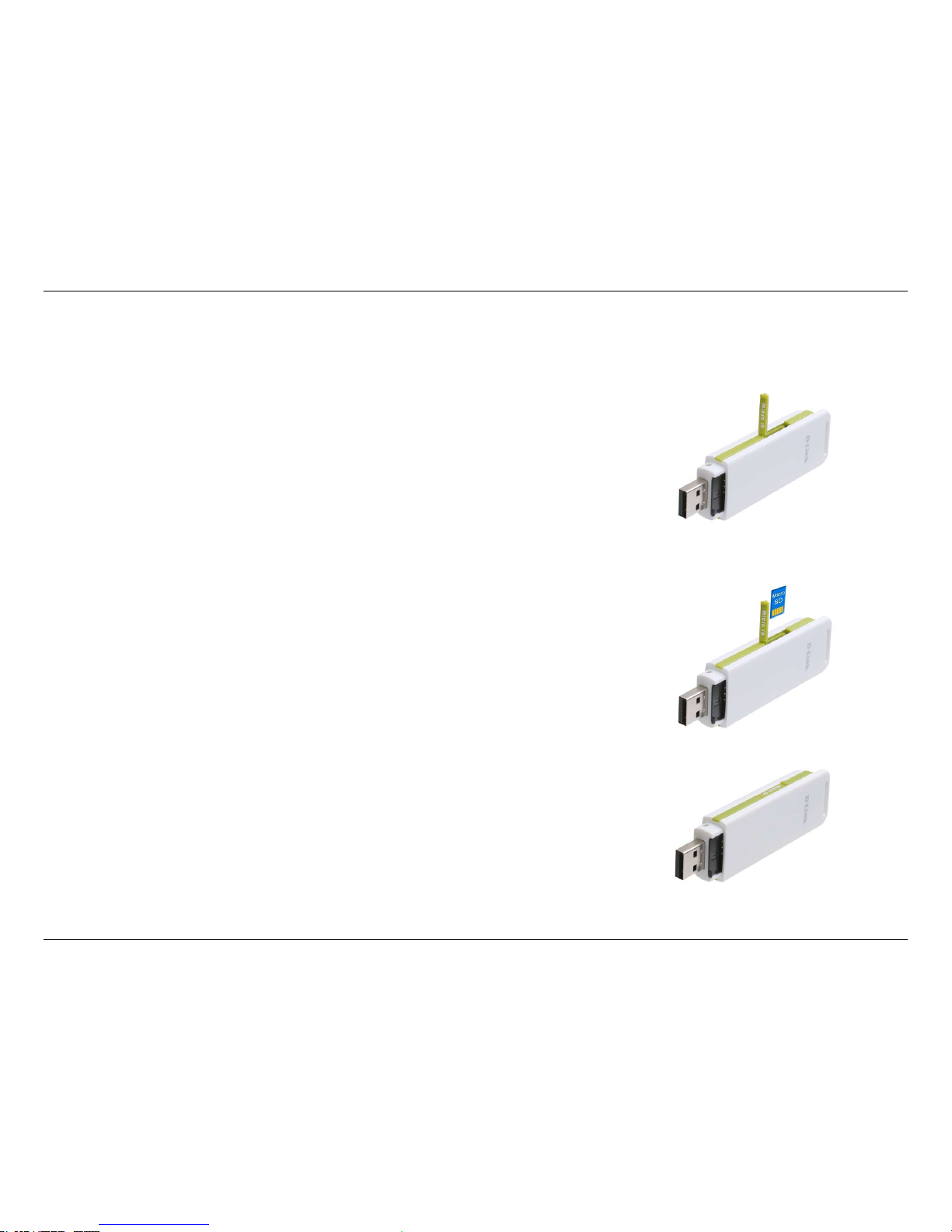

MicroSD Card Installation
Follow the steps below to install a MicroSD card:
Unplug the DWM-156 USB adapter from the computer.1.
Gently lift the upper left corner of the MicroSD card slot2.
cover. (Figure A)
Insert the MicroSD card with the gold contacts facing3.
towards the top of the adapter. (Figure B)
Close the MicroSD card slot cover. (Figure C)4.
Plug the DWM-156 into a USB port on your computer.5.
The computer may take a moment to recognize the6.
device.
A new removable disk will appear in your computer’s list7.
of storage drives.
Note: To remove a MicroSD card, unplug the device from the
computer. Open the card slot cover and gently push
the card in to eject it.
Figure A
Figure B
Figure C
The DWM-156 has a slot which can read MicroSD cards with capacities of up to 8GB.

11D-Link DWM-156 User Manual
Section 2 - Installation

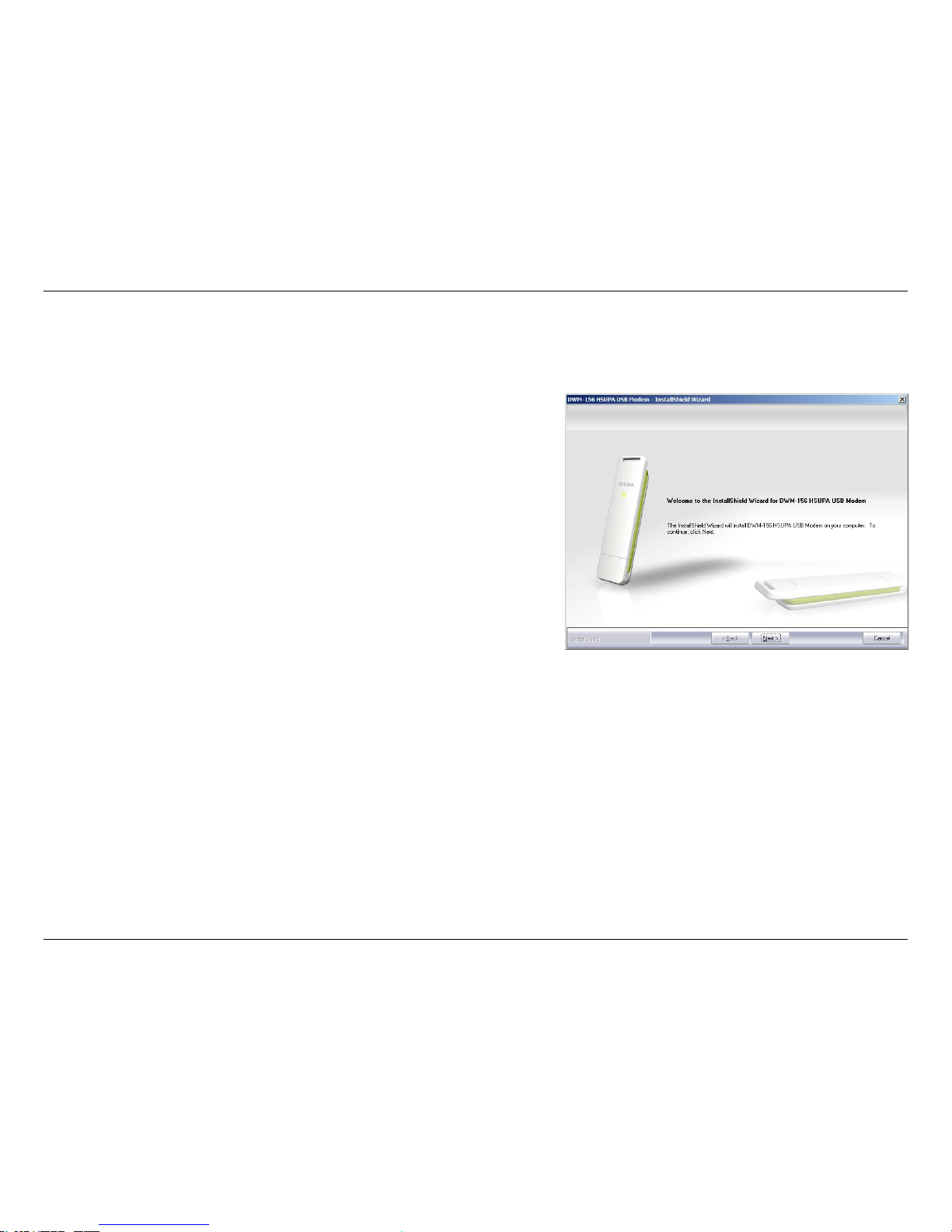

Open1. My Computer.
Double click on the removable drive labeled2. ConnMgr.
Double click the file labeled3. setup.exe to start the
installation.
Follow the step-by-step instructions on the Installation4.
Wizard.
The D-Link Mobile Connection Manager will launch5.
automatically.
Software Installation
Before you install the software, you must rst install a SIM card into the USB adapter and connect the adapter to a
USB port on your computer.

12D-Link DWM-156 User Manual
Section 3 - Basic Functions
Basic Functions

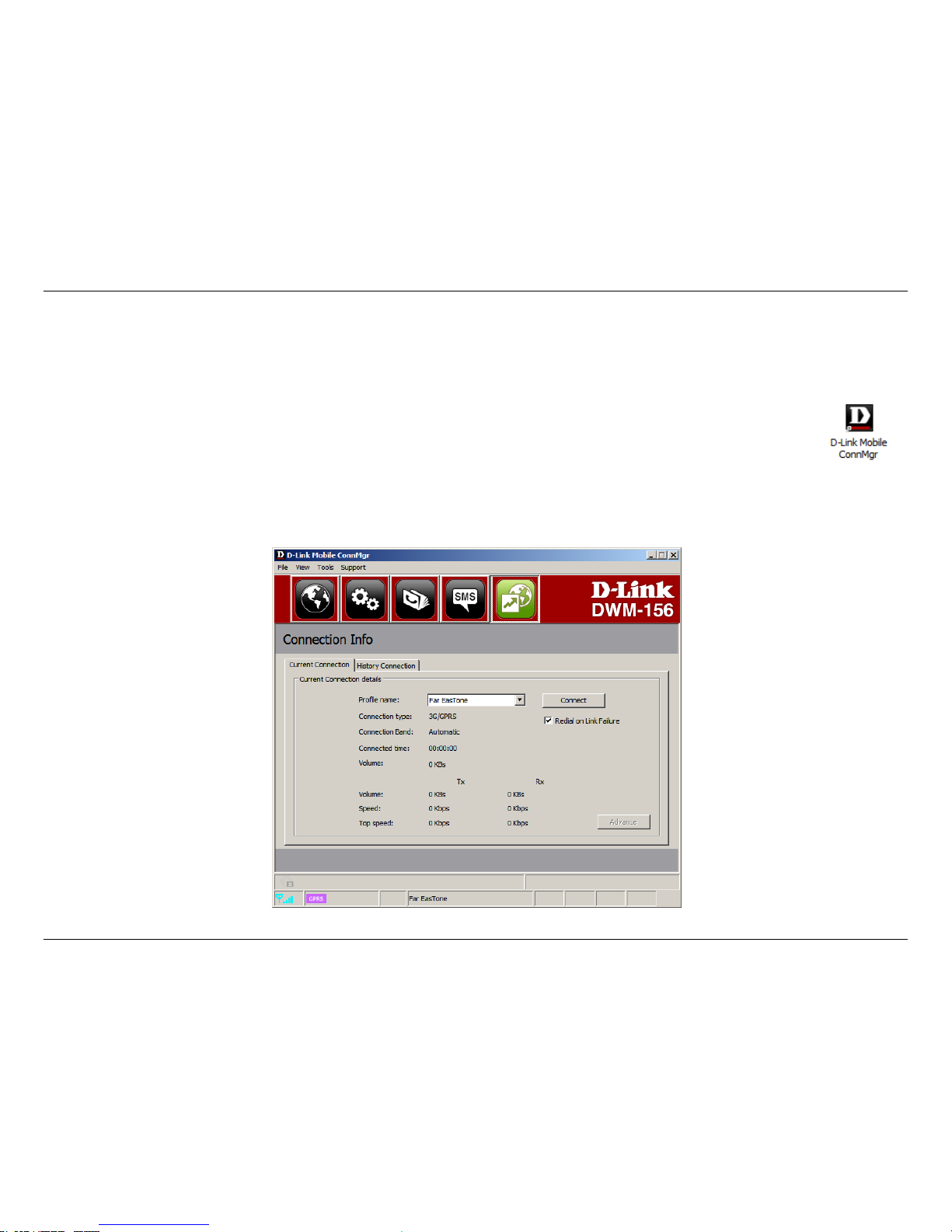

Software Overview

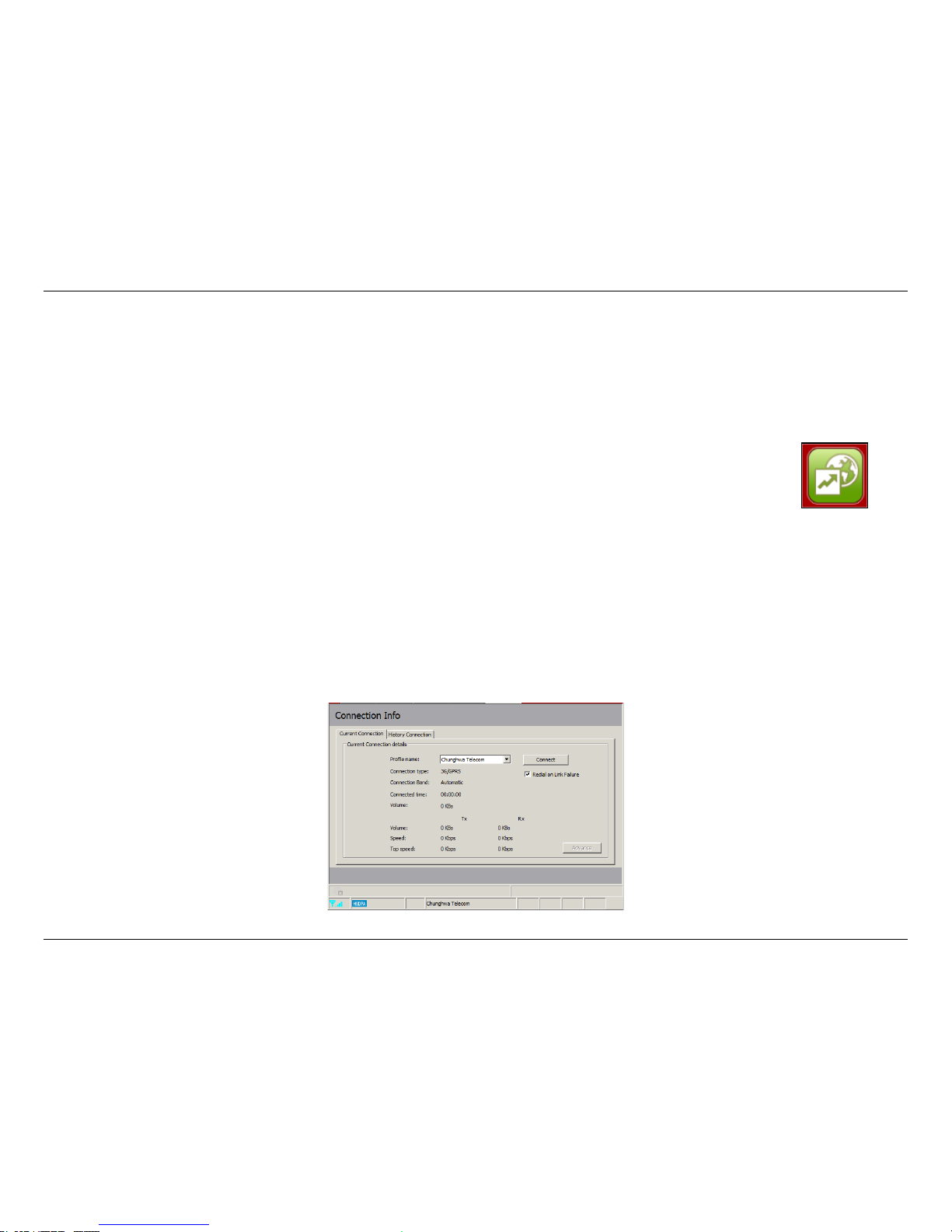

Once the program has been installed, you may launch the DWM-156 USB Modem application by double
clicking on its desktop icon, or via Start > Programs > D-Link > D-Link USB Modem.
Once launched, the D-Link Mobile Connection Manager icon will be displayed in the windows notication area. The
D-Link Mobile Connection Manager provides all of the functions needed to manage your connection to a mobile
service network.

13D-Link DWM-156 User Manual
Section 3 - Basic Functions

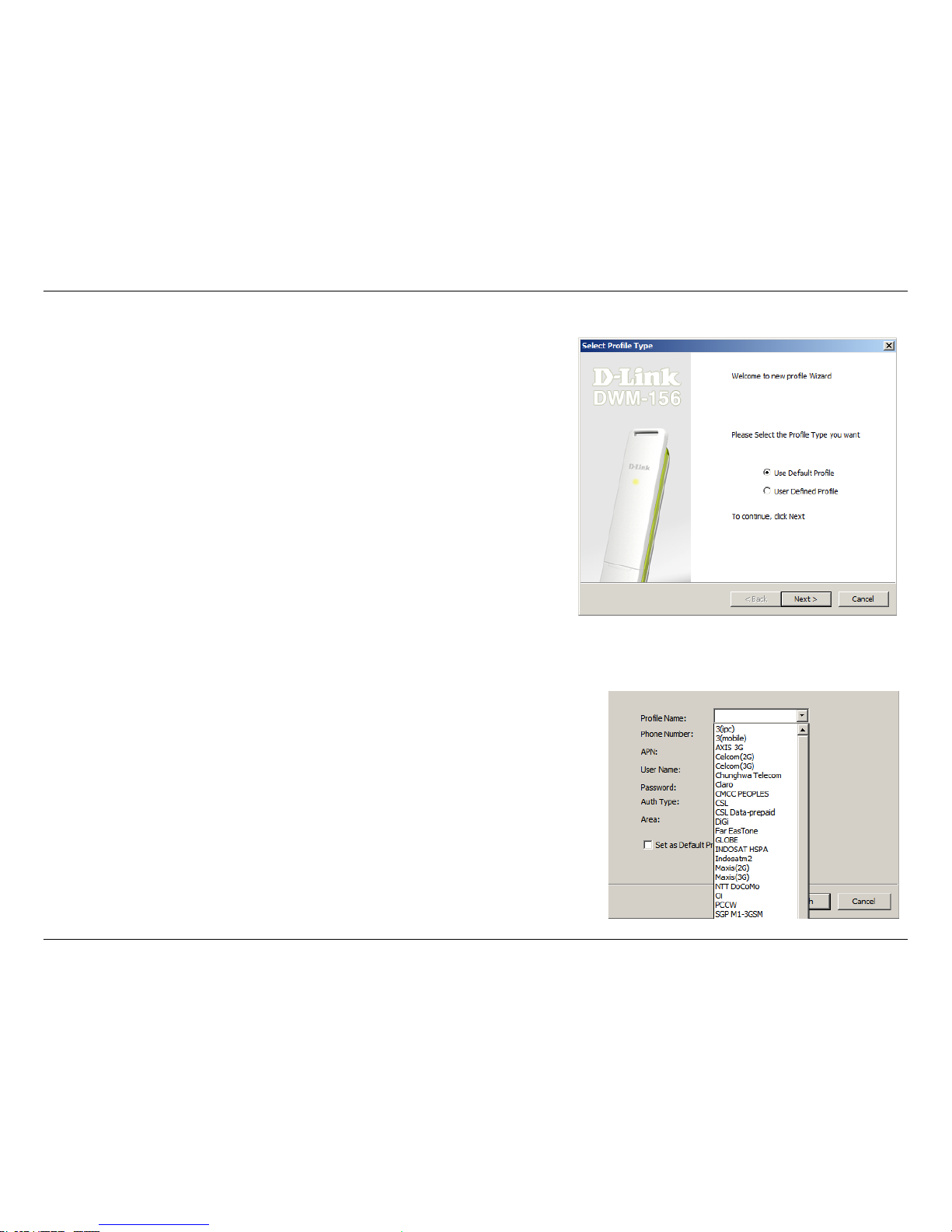

New Prole
Before starting, if the mobile service provider associated with your
SIM card is listed in the preset prole list, you can directly connect
to the desired network using its pre-dened prole.
You also can create your own prole by following the steps
below:
Click the1. Prole button.
Click the2. New button to activate the wizard which will help you
create a new prole.
Select the prole type, 3. Use Default Prole or User-Dened
Prole. Click Next to continue.
Use Default Prole (Preset)
Select a Prole Name from the drop-down menu. Most of 1.
the required information will be populated into the fields
automatically.
If needed, ll in the Phone Number, APN (Access Point Network), 2.
User Name, and Password.
If desired, click the check box to set this as the default prole.3.
Click4. Next to continue.

14D-Link DWM-156 User Manual
Section 3 - Basic Functions
Ending a Connection
Establishing a Connection
The Connect/Disconnect button will be black when you are ofine. You can click the Connect button
to connect to the network via the default prole. After you are connected, the button will turn green
with a checkmark. Once connected, you can use the mobile service network to browse the Internet,
send e-mail, send text messages, and perform other tasks online.
If you wish to disconnect, click the button again, and the button will turn black to indicate you have
successfully disconnected and are ofine.

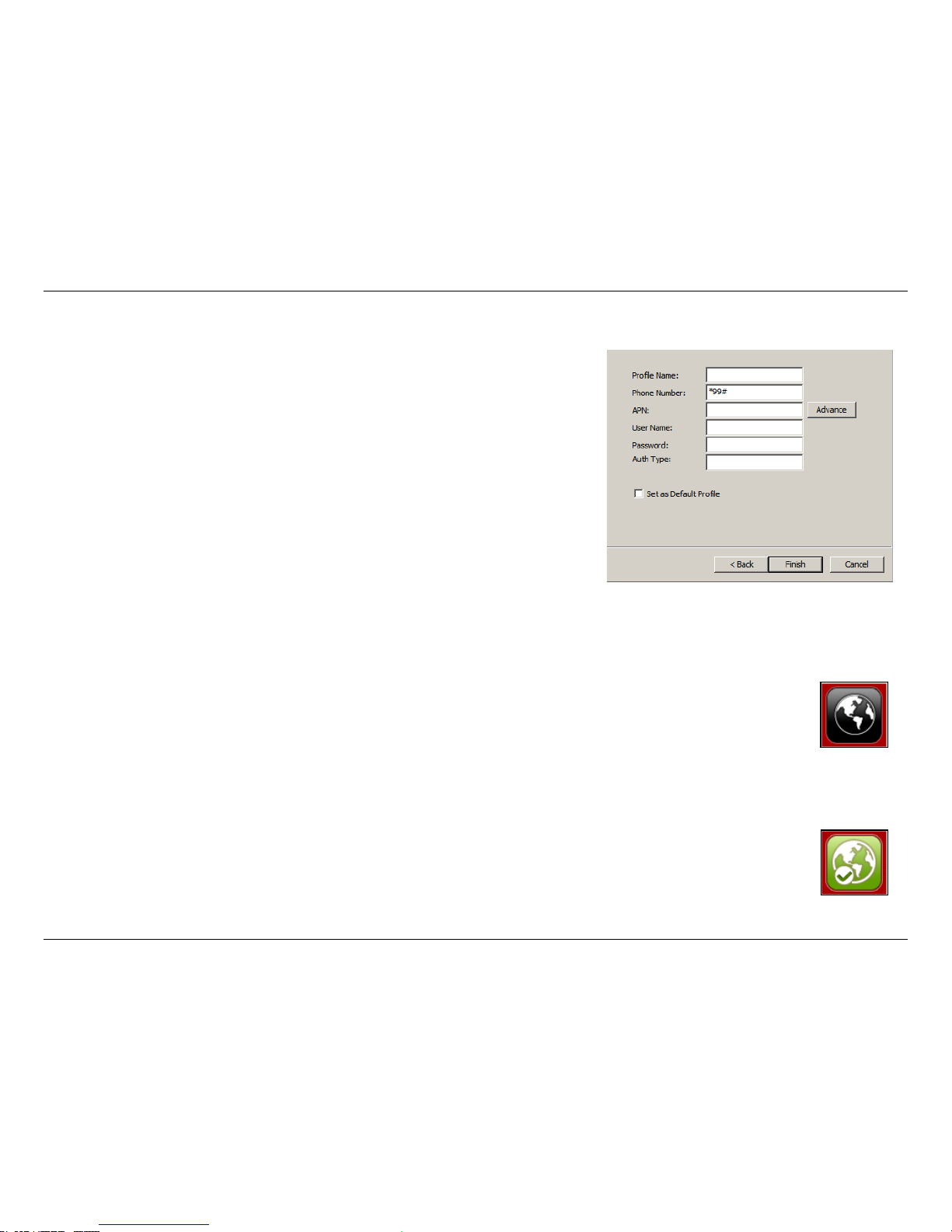

User-Dened Prole
Fill in the Prole Name, Phone Number, APN, User Name, 1.
Password, and Authorization Type.
Click2. Finish to complete.
Click the3. Advanced button to display APN details.
Highlight an APN and click4. OK.
Click5. Next to continue.
Connect
Disconnect

15D-Link DWM-156 User Manual
Section 4 - Prole Management
Prole Management
Editing
Click the1. Prole button.
Select a prole and click the 2. Edit button.
Click the appropriate tab and enter the information in the elds.3.
Click the4. Advanced button to display a list of operators and their
areas in the window below.
Click5. OK to close the APN window.
Click6. OK to close the Edit Prole window.
Note: Proles may only be edited when you are disconnected.
Deleting a Prole
Click the1. Prole button.
Select a user-dened prole and click the 2. Delete button.
Click3. Yes to conrm the deletion.
Deleting All Proles
Click the1. Prole button.
Click the2. Delete All button.
Setting the Default Prole
Click the1. Prole button.
Highlight the prole to use when the DWM-156 is started.2.
Click3. Set as Default prole.
Reset to Factory Default
Click the1. Prole button.
Click2. Set as Factory Default to return the DWM-156 to the factory
settings.
Under the Proles icon, users can create, edit and delete proles as well as preset proles.
Prole

16D-Link DWM-156 User Manual
Section 5 - Connection Management
Connection Management
Current Connection
The Connection Information window allows users to manage not only the current connection (if connected), but also
their connection history. Click the Connection Info button to open the Connection Information window.
The Current Connection tab displays the following information:
Prole Name - Displays the current prole. Select other proles from the drop down menu.
Connection Type: Displays the mobile service technology that the service network uses.
Connection Band - Displays the band of the current connection.
Connected Time - Displays how long the current session has been active for.
Volume - Displays the total amount of data received (Rx) and transmitted (Tx).
Speed - Displays the speeds for both transmitted and received data.
Top Speed - Displays the maximum transmitted and received speeds attained.
Redial on Link Failure - Redial if the connection is somehow disconnected.
Note: Windows Vista requires your conrmation to redial on link failure.
Connection
Information

17D-Link DWM-156 User Manual
Section 5 - Connection Management
Connection History
The History Connection tab displays the following information:
Type - The type of connections made.
Prole - The names of the proles used.
Date & Time - The date and time of the connection.
Duration - The duration of the connection in hours, minutes,
and seconds.
Volume - The total amount of data transmitted and received.
Tx - The total number of bytes transmitted.
Rx - The total number of bytes received.
Follow the steps below to clear the Connection History:
Click1. Clear All Logs to clear the logs.
Click2. Yes to conrm.

18D-Link DWM-156 User Manual
Section 6 - Usage Management
Usage Management
Usage
Limits can be set on how long a connection will last. These limits can either be set by usage (3G/GPRS connections)
or by time (Dialup connections).

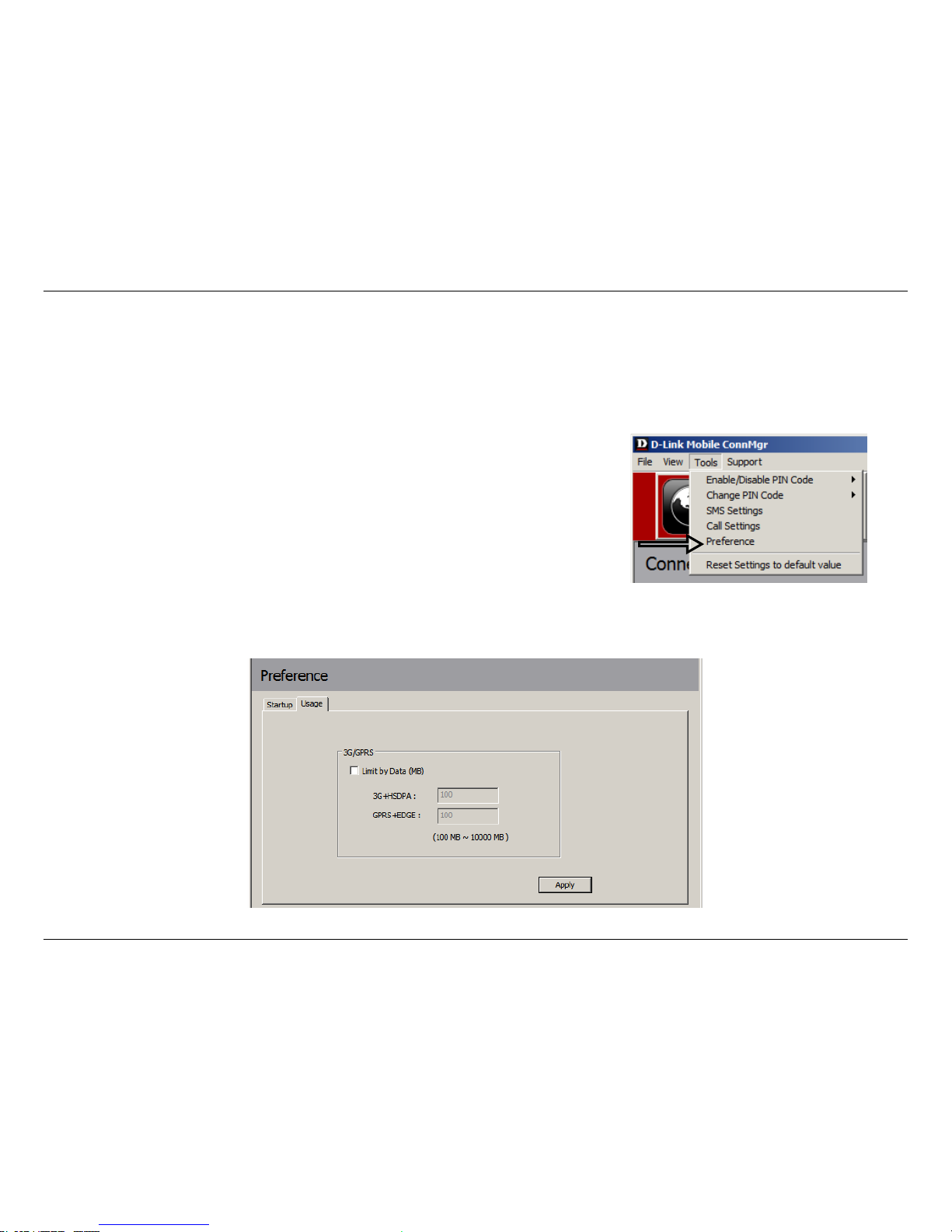

Select1. Tools > Preference.
Select the2. Usage tab.
Check the3. Limit by Data checkbox.
Enter the desired value between 100MB and 10,000MB.4.
Click5. Apply to save the settings. 

19D-Link DWM-156 User Manual
Section 6 - Usage Management
Usage Statistics
Statistics for both usage and time can be viewed from the usage menu.
Select1. View > Usage.
Select either the2. Current Month or Previous Month tab.
Follow the steps below to clear the Previous month’s logs:
Select1. View > Usage.
Select2. Previous Month tab.
Click3. Clear all logs.
Click4. Yes to conrm.


20D-Link DWM-156 User Manual
Section 7 - Text Messaging (SMS)

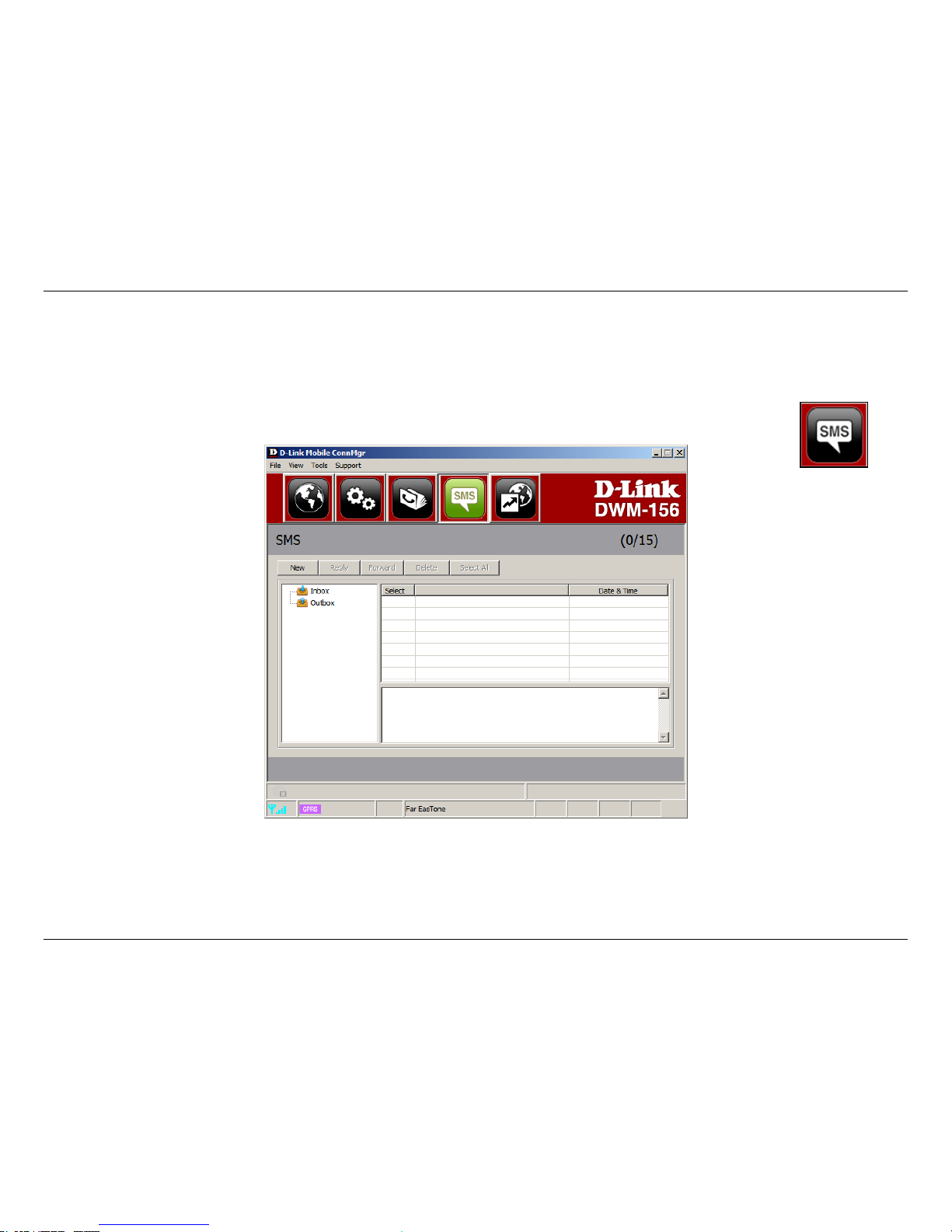

Text Messaging (SMS)
The DWM-156 can be used to perform all the text messaging functions that can be done on a mobile phone such
as sending, receiving, replying, forwarding and deleting.
SMS
