D-Link DIM-128 - 56 Kbps Fax User manual

ISDN TA
56k FAX/ MODEM
PC Card
User Manual

- 1 -
INTRODUCTION
The ISDN TA PC Card brings the latest in mobile communication technology
with flexibility and convenience. With the wide range ISDN signaling
protocols switches supports, mobile experts may enjoy the mobile
communication across the world and the high speed digital service.
System Requirements
Pentium 75 or above
At least 30MB free hard disk space
At least 16MB RAM
PCMCIA Type II/III slot
PCMCIA Card Services and Socket Services v.2.1 or higher pre-
installed
Windows 95/98/2000 or Windows NT pre-installed
Specifications
Standard
PCMCIA 2.1 & JEIDA 4.1 compliant
ISDN standards
Basic Rate Access (2B+D)
U-Interface:
Compliant with ANSI TI.601
S/T-Interface:
Compliant with ITU-T I.430
D-channel:
ITU-T Q.921, Q.931
ETSI NET3
B-channel:
V.120,
V.110,
X.75/T.70NL/ISO8208
Async-to-Sync PPP conversion
Multilink PPP,
56 K Modem (CAPI only)

- 2 -
G3 fax (CAPI only)
Voice (CAPI only)
Line Rate
64/56 Kbps on 1 B-channel
128/112 Kbps on 2 B-channel (PPP/MP)
64/56Kbps on 1 B-channel
16Kbps on D-channel
ISDN Network & Switch Compatibility
National ISDN-1 (NI-1)
AT&T 5ESS Custom
Northen Telecom DMS-100 Custom
DSS1 (Euro-ISDN)
INS-Net 64
Application Program Interface Supported
VCOMM
WinISDN
CAPI 2.0
NDIS WAN
Operating System Supported
Windows 95 and OSR2
Windows 98
Windows 2000
Windows NT 4.0
Physical Specifications
RJ-45 ISDN line interface
Dimension: 85.6 x 54 x 5 (mm) PCMCIA Type II

- 3 -

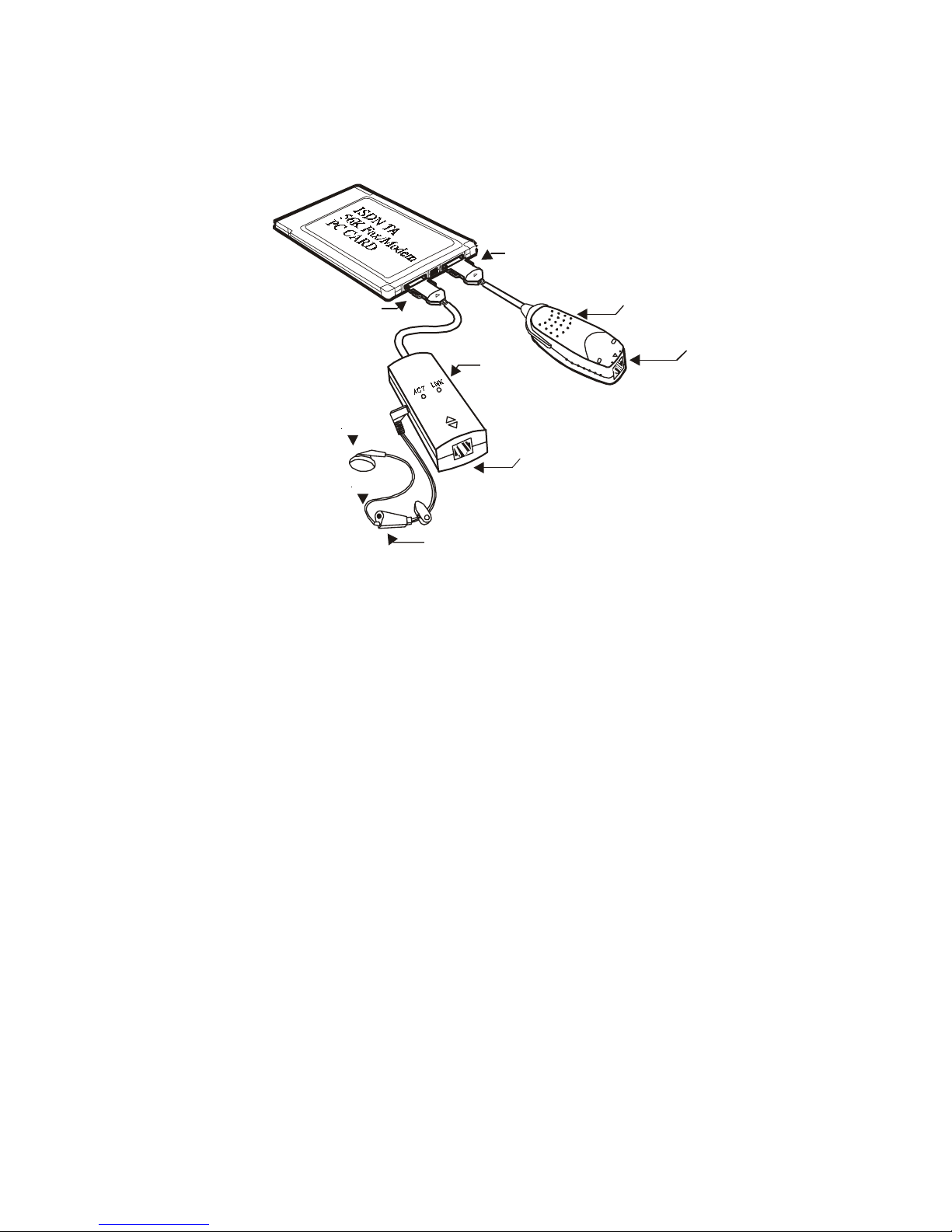

Parts Names
15-pin PC Card
Connector
Analog Fax/Modem DAA
Connccet to PSTN
Telephone Line
15-pin PC Card Connector
ISDN Network
Connection Cable
Ear-piece
ISDN Phone Kit
Microphone
Connect to
ISDN Line

- 4 -

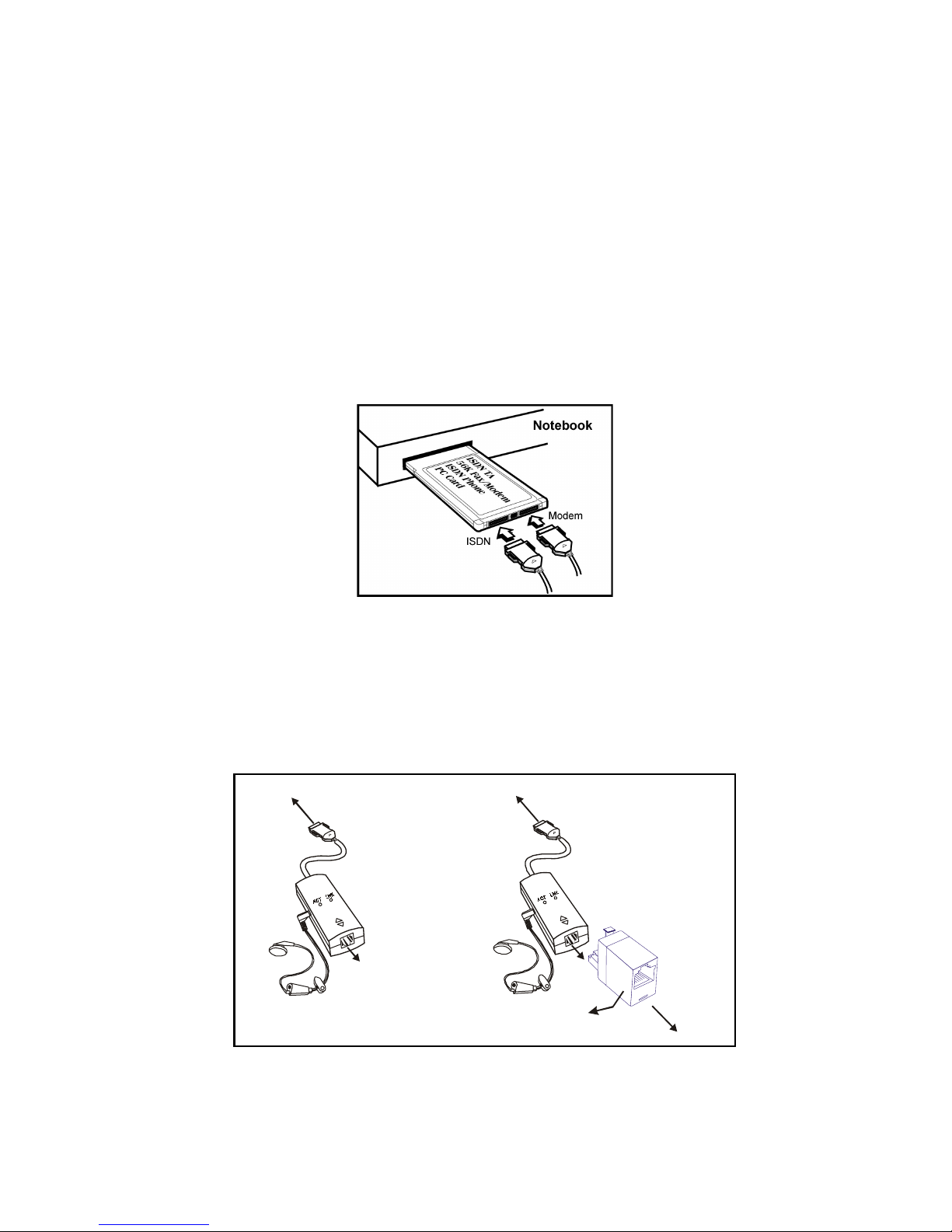

HARDWARE INSTALLATION
If you are using the ISDN TA PC Card under Windows 95/98, Do NOT insert the PCMCIA card until
after the software installation is completed.
1. Align the PC card with the arrow sign pointing toward the computer’s
PCMCIA slot.
2. Connect the 15-pin PC card connectors with the two exposed end of the
PC card. Precautions have been made so that you won’t install your two
cables backwards, relying on unique groves at the connectors. These
‘groves’ will insure a cable will not be installed in the wrong place. The
modem cable is on the right, while the ISDN cable is on the left. Push
evenly and steadily until the units ‘click’.
3. Connect the ISDN line to the opposite end of the ISDN Network
Connection Cable. Note: If your NT1 box does not have 100 ohm resistor,
then the 100
Ω
ΩΩ
Ω
terminator resistor (optional) is required and should be
used as a connector to connect the ISDN line with the ISDN Network
Connection Cable. Consult your dealer if the 100
Ω
terminator resistor is
not included in the package.
Connect to ISDN Line
Connect to ISDN TA 56K
FAX/MODEM PC Card
Connect to ISDN Line
Connect to ISDN TA 56K
FAX/MODEM PC Card
Terminal resistor
or

- 5 -
FIRST THING TO KNOW BEFORE SOFTWARE INSTALLATION
The ISDN TA PC Card is designed to support a wide bandwidth of
interfaces/drivers for a total solution in different environments. The software
setup procedures accordingly vary from interfaces/drivers to interfaces/drivers.
To help you set up the software efficiently, the software installation is
organized by interfaces under Windows 95/98/2000 and Windows NT
respectively.
The following figures are illustrated as guideline-like flow charts. If something
goes wrong, track down the flow to check if there is any procedure missing
while setting up; and move to the corresponding section for details.
VCOMM Port
Hyper Terminal
CAPI 2.0
RVS-COM
NDIS Port
ISDN Low
Driver
DUN
CAPI NDISVCOMM
Interface
Center
Driver
Level Driver
* PPP
*
V.120
V.110
*
* PPP
* V.110
*
X.75
*
V.120
*
Modem
* Eurofile Transfer
* G3 FAX over ISDN
* PPP

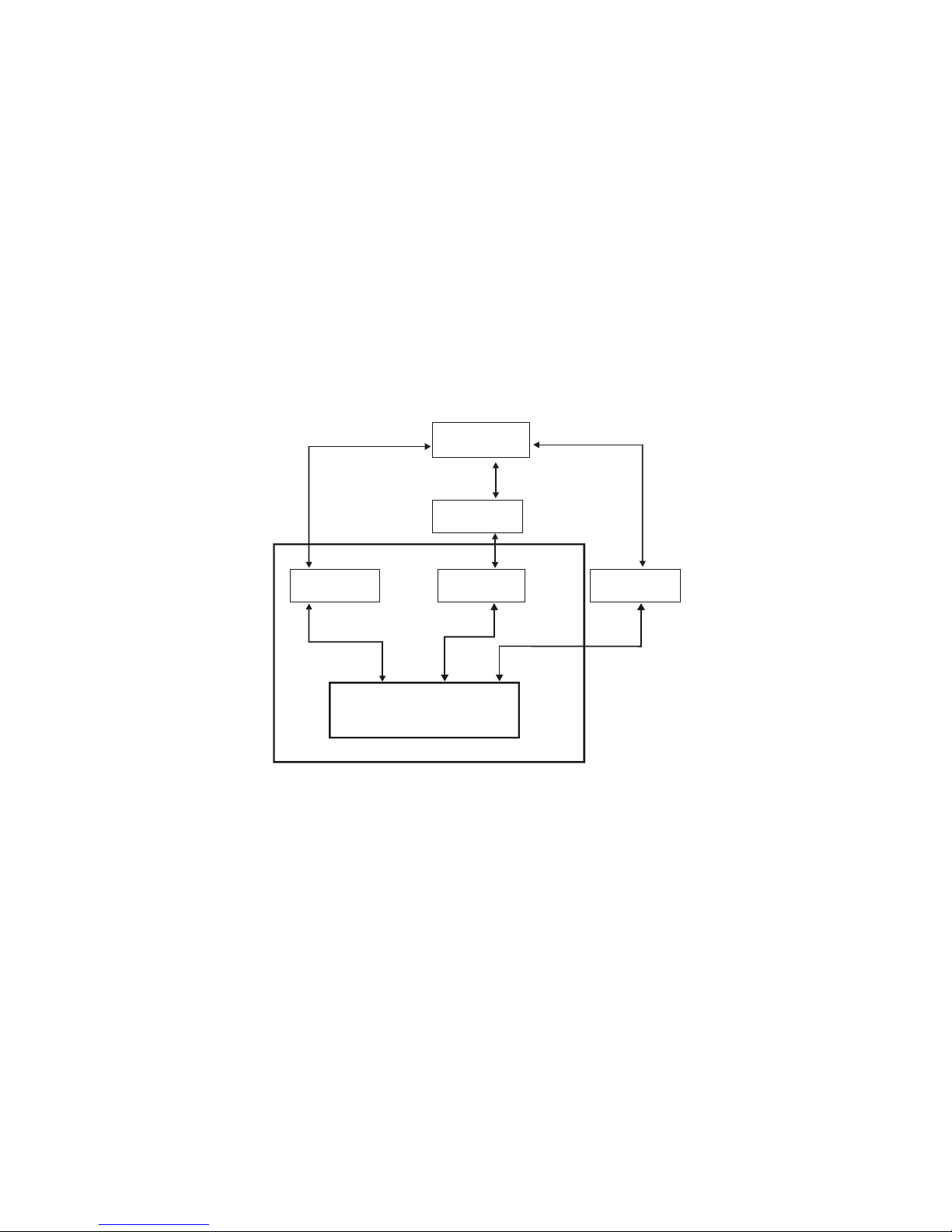

Windows 95/98/2000

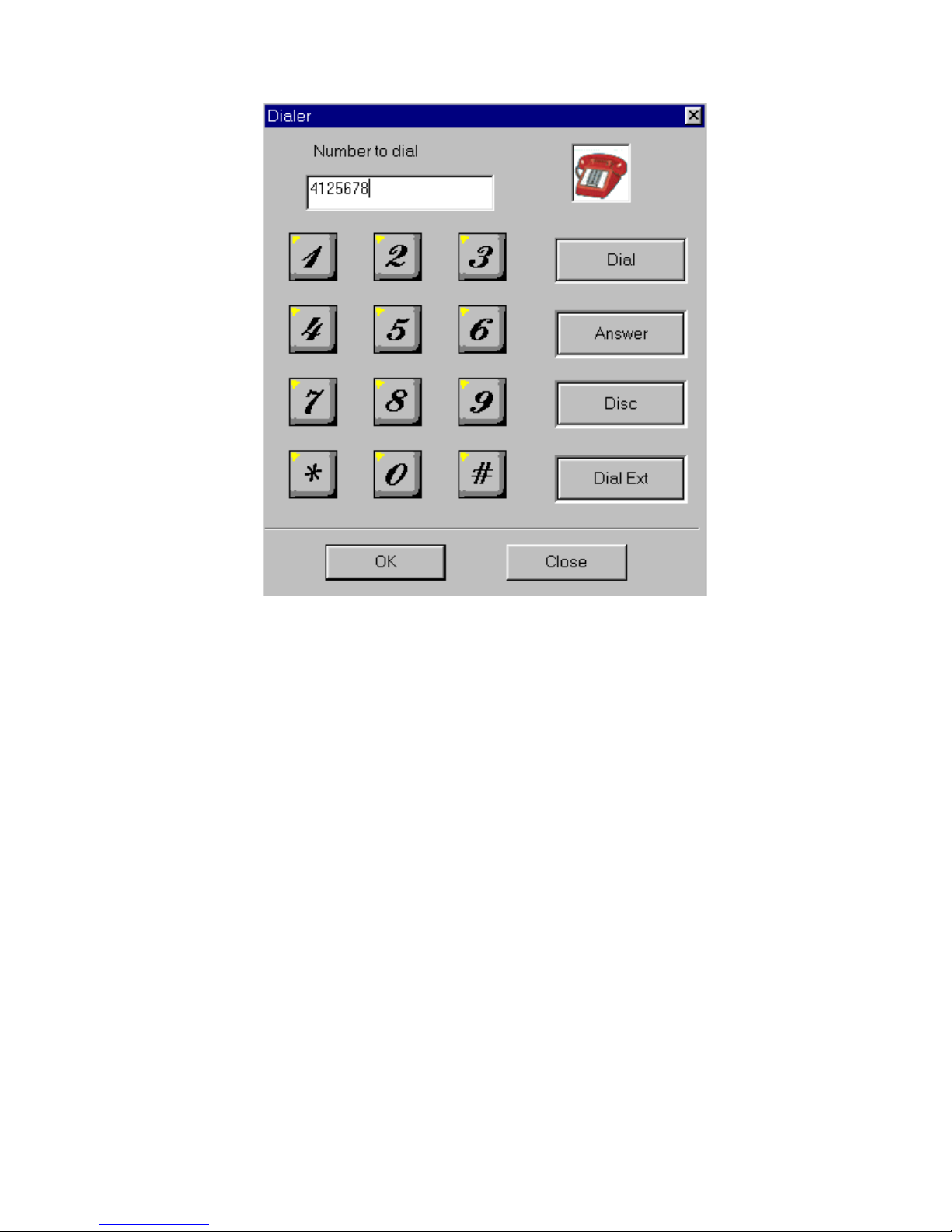

The blocked area indicate that after when setup.exe has been executed
(see section titled “Installing Device Driver”), the Phone Dialer
VCOMM Port driver, CAPI 2.0 and the ISDN Low Level Driver were
also installed. You may then use Phone Dialer or the functions with
VCOMM directly.
For CAPI mode, however, it is required to install RVS.COM Center
beforehand to enable the functions with CAPI.
For NDIS mode, unless the NDIS Port Driver has been installed, the
ISDN Low level Driver won’t be able to work.

- 6 -
Hyper Terminal
CAPI 2.0
RVS-COM
NDIS Port
ISDN Low
DUN
CAPI NDIS
Windows NT
Interface
Center
Driver
Level Driver
* PPP
* Modem over ISDN
* G3 Fax
* Voice application
* PPP
The blocked area indicate that after when setup.exe has been executed
(see section titled “Installing Device Driver”), the Phone Dialer CAPI
mode and NDIS were also installed. You may then use Phone Dialer or
the functions with NDIS mode directly.
For CAPI mode, however, it is required to install RVS.COM Center
beforehand to enable the functions with CAPI.

- 7 -
SOFTWARE INSTALLATION FOR WINDOWS 95/98/2000
Installing the Device Driver
1. Insert the device driver compact disc or disks by sequence into your
computer.
2. Double-click My Computer.
3. Double-click the drive whichever contains the device driver. For example,
if you are using disks, insert the disks into drive A, double-click “3½
Floppy (A:)”. Or if you are using compact disc, select the CD-ROM drive
and double-click folder Win9x when in Windows 95/98, or Win2000 for
Windows 2000.

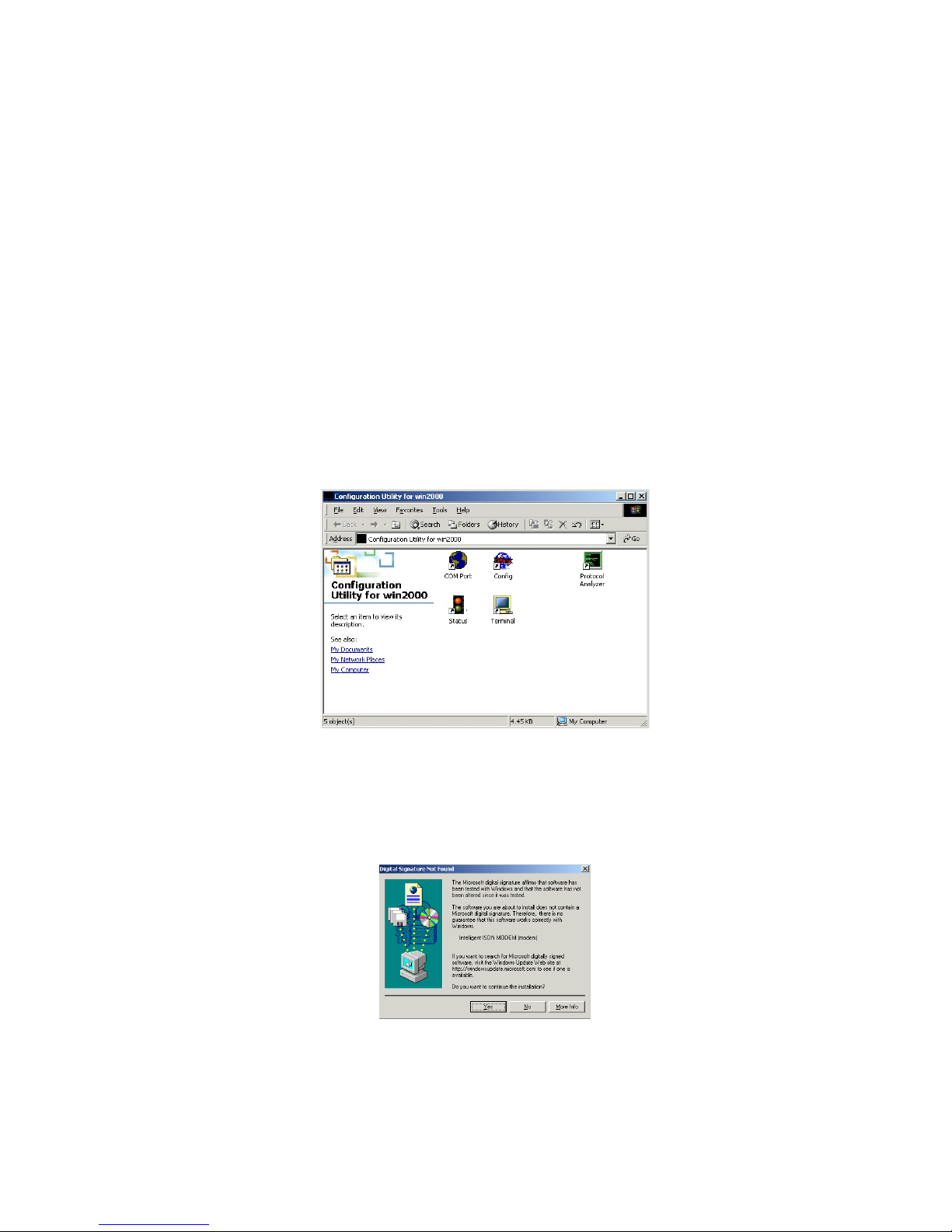

4. Double-click Setup.exe. The installation program will proceed
automatically. Follow the on-screen instruction. While for installation
under Windows 2000, remember to close the following window to
continue.
5. When finished, click the Finish button, and you will be asked to restart
your computer. Before your computer is reset, insert the PCMCIA card
into your PCMCIA socket. (Refer to hardware installation.)
6. When Windows restart, Windows will automatically detect the new
device.

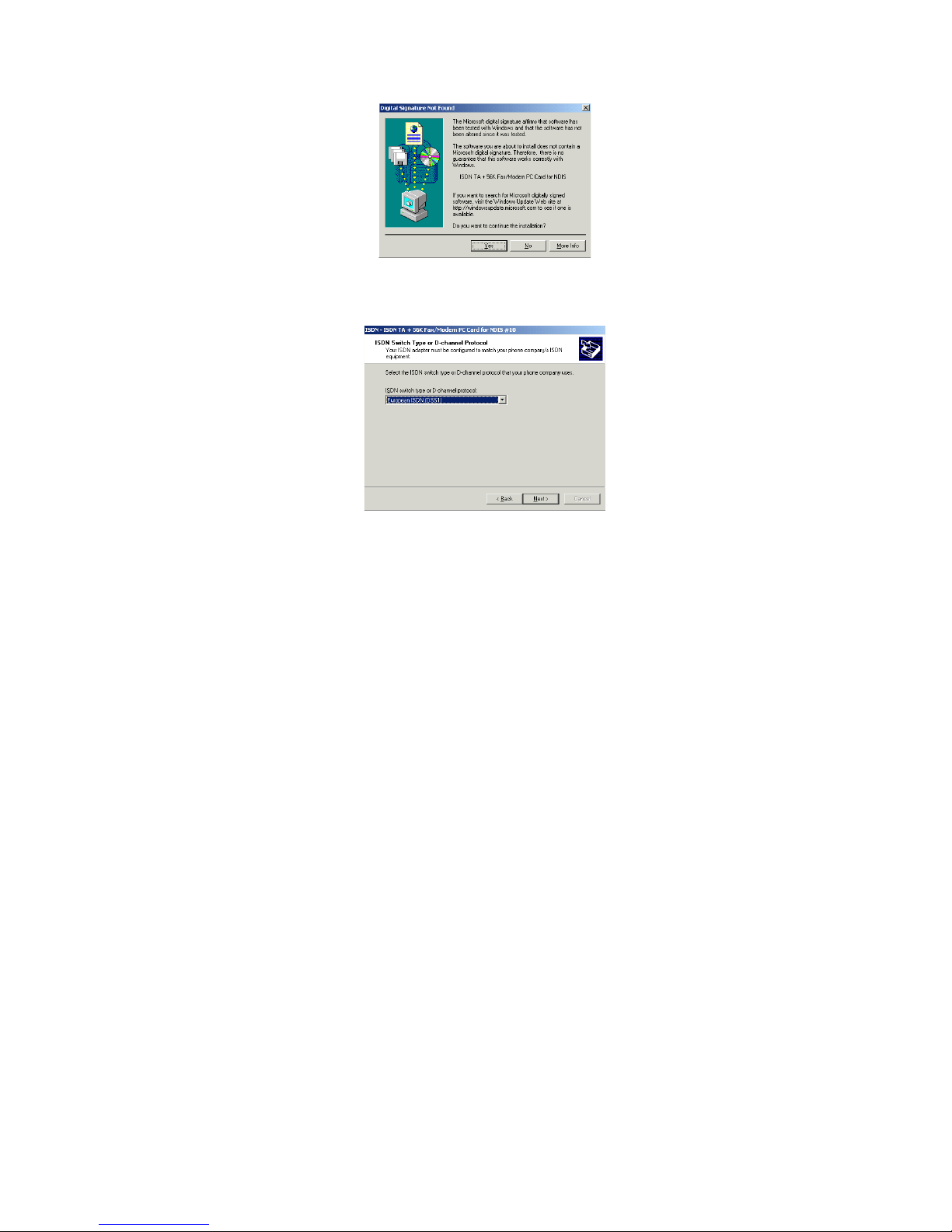

7. For Windows 2000, the following picture will also appear afterwards.
Click Yes to continue.

- 8 -
8. Select the appropriate protocol in Windows 2000. Click Next. Follow the
on-screen instruction to finish setting.
Installing the Application Programs
Before you start, make sure the type of your Application Program Interface. The Application
Program Interface (API) is used as the interface between the hardware (ISDN TA PC Card) and the
application programs. Before performing the installation, make sure the type of API matching your
system. The currently supported APIs are VCOMM, NDIS, and CAPI. Move to the specific section titled
the appropriate API for your need for installation.
VCOMM Mode
COM port is commonly used for connecting to the external ISDN devices.
With the VCOMM COM port emulation, the ISDN multifunction PC Card
works exactly like an ISDN TA (Terminal Adapter) external box, which can
run with traditional terminal program packages, such as Windows 95 Hyper
Terminal, Procom Plus for Windows, Telix, pcAnywhere, etc., to hook up to
the on-line services and bulletin boards. In this mode, ISDN AT commands are
usually used to drive the ISDN multifunction PC Card.

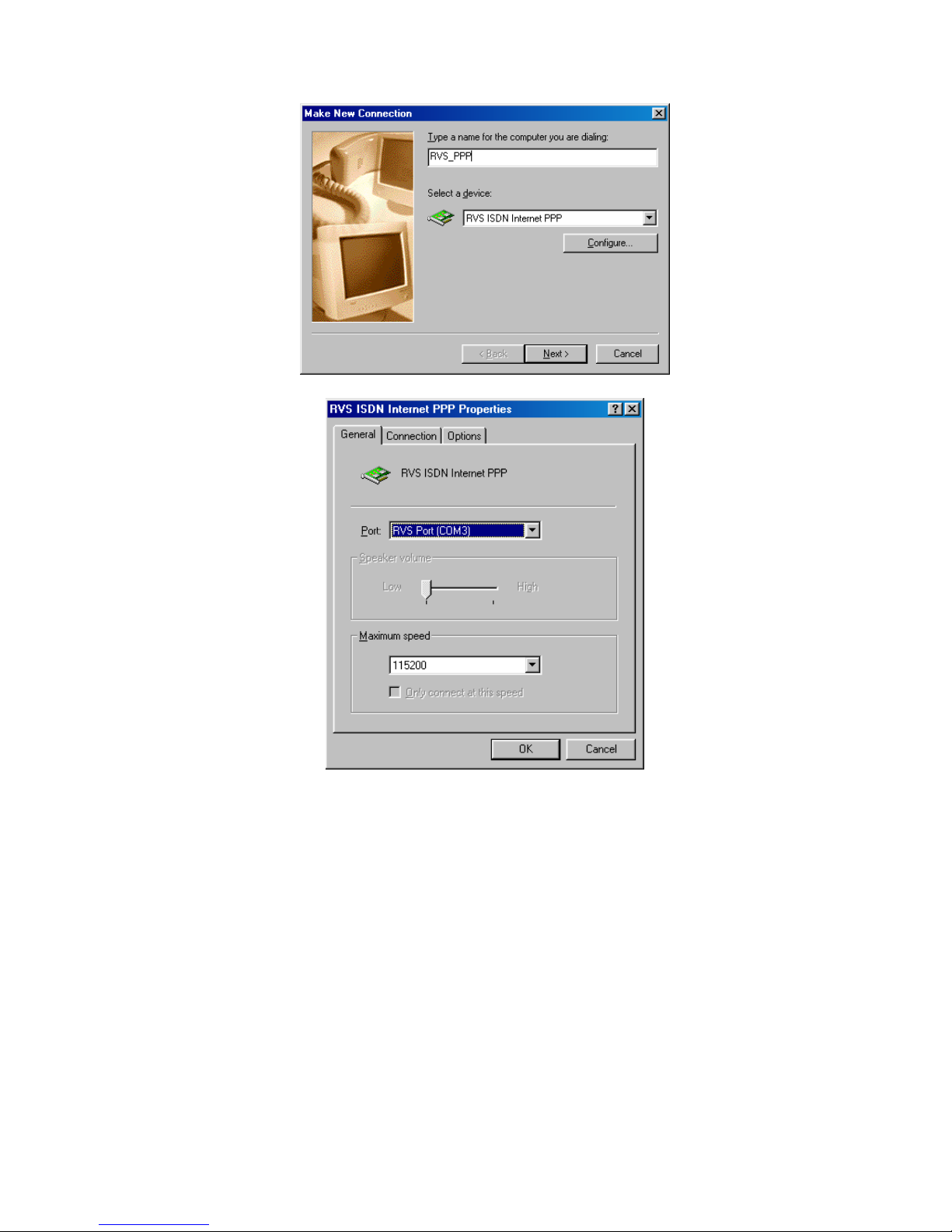

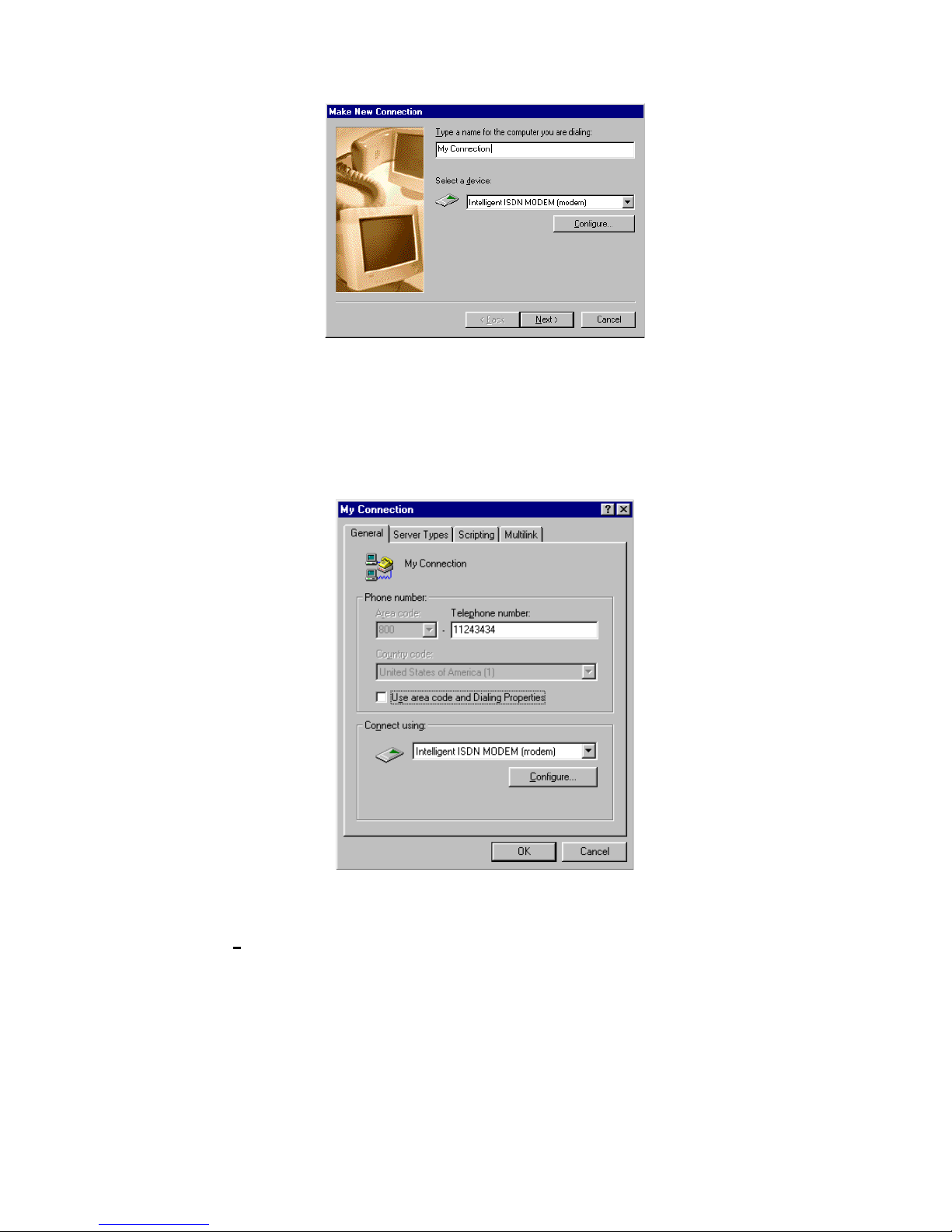

Making PPP Connection (Basic Internet)
1. Go to My Computer.
2. Select Dial-Up Networking. Double-click Make a New Connection, a
dialogue box will appear as shown below.

- 9 -
3. Name the new connection appropriately.
4. Select Intelligent ISDN MODEM (modem).
5. Enter in the area code and phone number of your Internet Service Provider
(ISP). Leave out the ‘-‘. (Example: ‘1234567’ NOT ‘123-4567’ )
Typically, the country and area codes are not required and should be
disabled.
6. From the Dial-Up Networking window right-click your newly created
connection. Select Properties. On the General tab, cancel the selection
of “Use area code and Dialing Properties” and click OK.

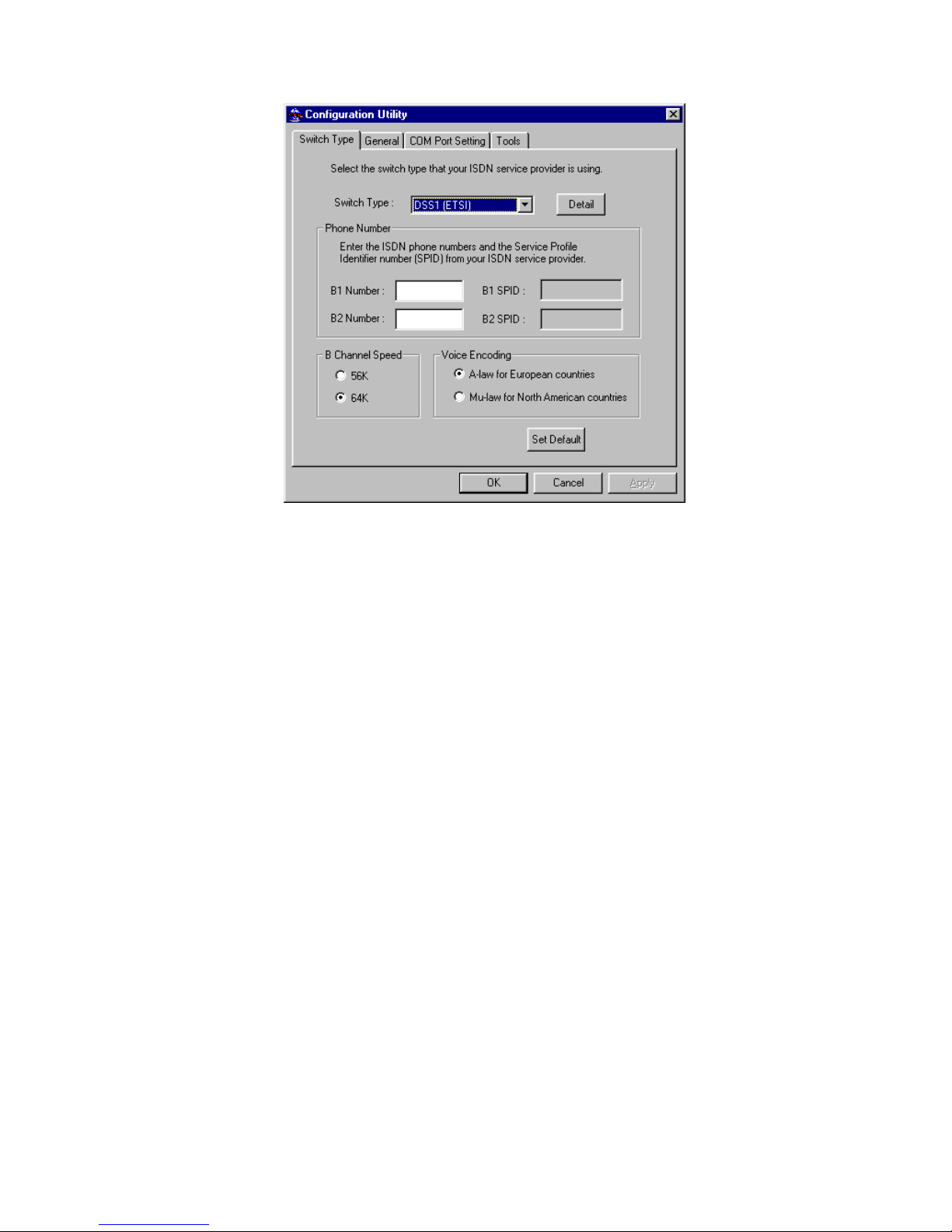

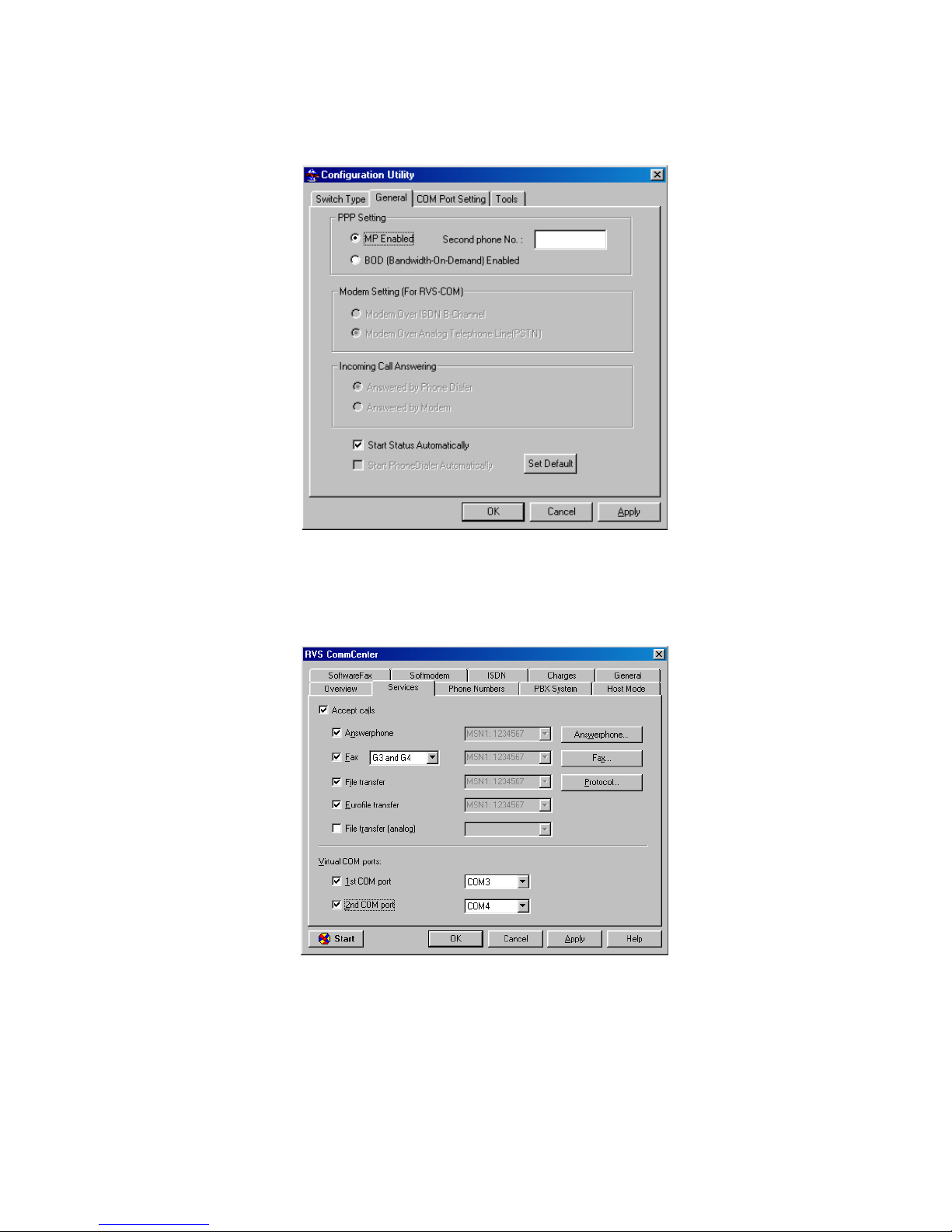

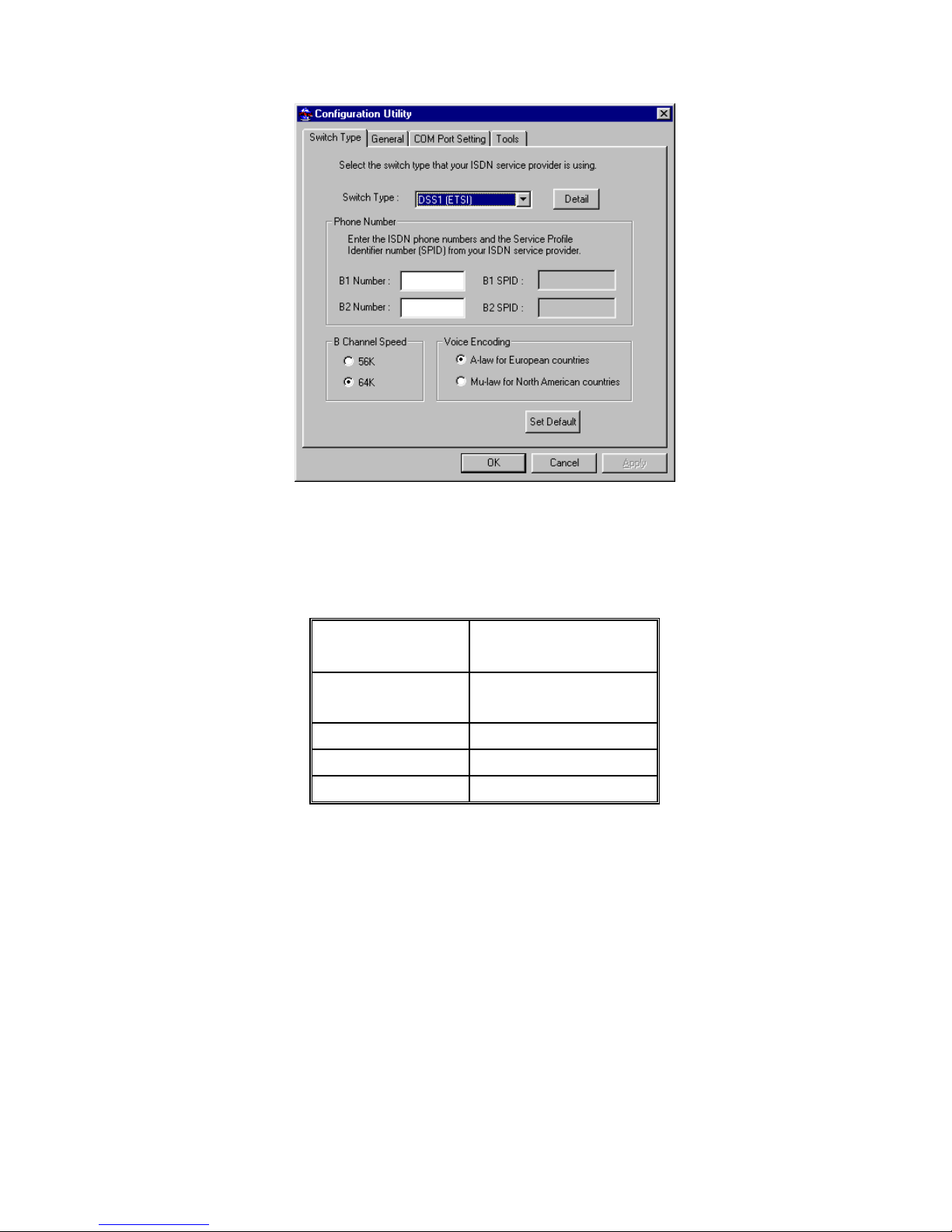

7. From the Start menu, select Programs. Select Configuration Utility.
Click Config. A dialogue box will prompt you to change the settings to
fit your needs.
