D-Link AC750 User manual

Wireless AC750
Dual Band Router
Quick Install Guide
DIR-813

2
If any of the above items are missing, please contact your reseller.
DIR-813 Wireless AC750 Dual Band Router
Power Adapter
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide
Network Requirements:
Web-based Conguration Requirements
Supported Browsers:
• Internet Explorer® 11 or higher, Safari® 7 or higher*, Firefox® or Chrome™
Package Contents
Minimum Requirements
• An Ethernet-based broadband modem
Computer with the following:
• Windows® or Mac OS® X operating system
• An installed Ethernet adapter or wireless adapter
Make sure you have the latest version of Java installed. Visit www.java.com
to download the latest version.
* We recommend using the latest available browser version for the best performance.

3

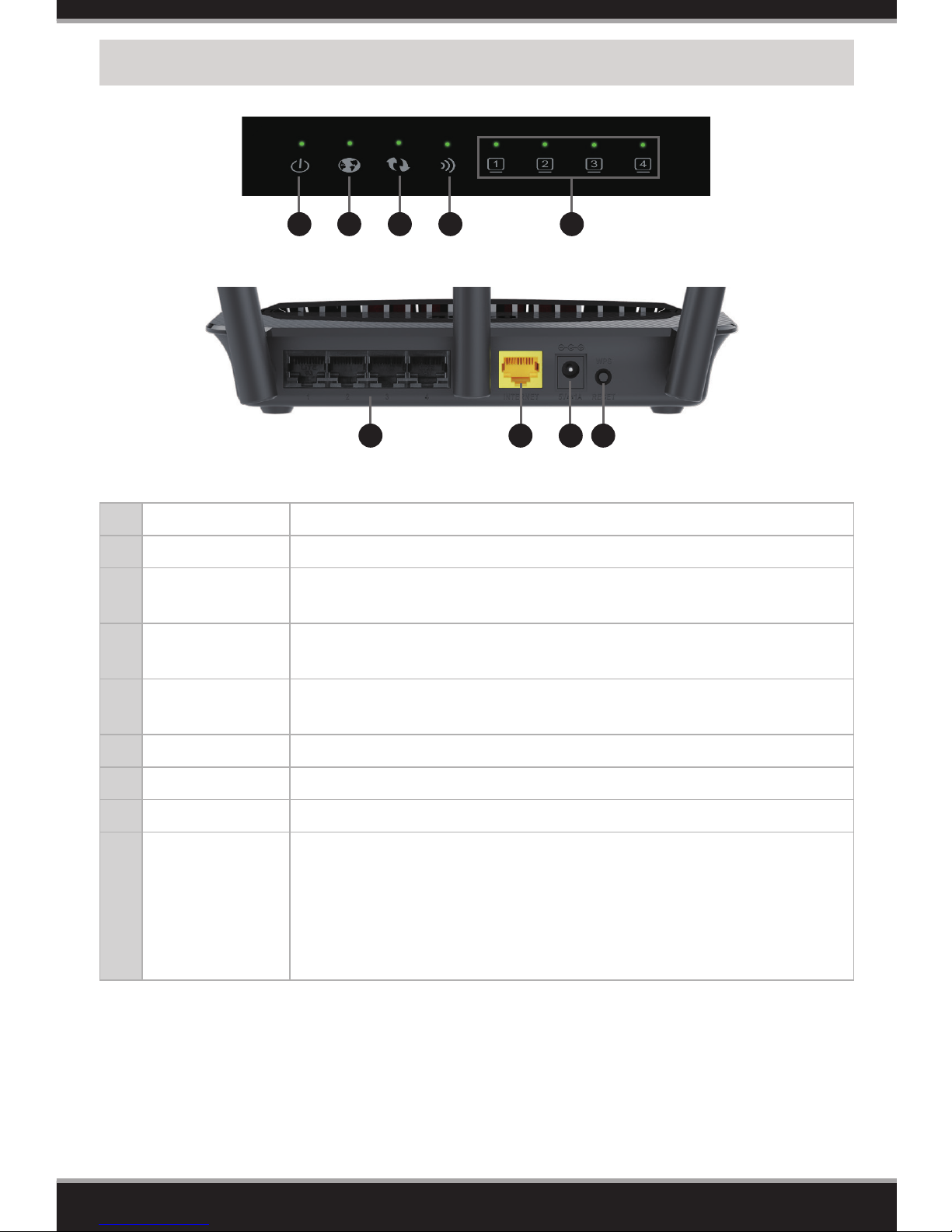

Hardware Overview
1Power LED A solid green light indicates a proper connection to the power supply.
2Internet LED A solid green light indicates a connection to the Internet port.
3WPS LED A solid green light indicates a successful connection using WPS. The light
will blink during the WPS process.
4Wireless LED A solid green light indicates the wireless function is working properly. This
light will blink during data transmission.
5LAN LEDs (1-4) A solid green light indicates a connection to a device is working properly.
The LED will blink during data transmission.
6LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and game consoles.
7Internet Port Connect a broadband modem to this port using an Ethernet cable.
8Power Port Connect the supplied power adapter.
9WPS/Reset
Button
WPS - Press for one second to start the WPS process. The WPS LED will
blink during the process. The light will turn solid green when successfully
connecting to a device.
Reset - Press and hold the reset button for eight seconds to reset the router
back to the factory default settings.
1 432
6
5
78 9

4
• Users with DSL providers - If you are using a PPPoE connection, you will need
your PPPoE user name and password. If you do not have this information, contact
your Internet provider. Do not proceed until you have this information.
• Users with Cable providers - Make sure you unplug the power to your modem.
In some cases, you may need to turn it o for up to ve minutes.
•Advanced Users - If your ISP provided you with a modem/router combo, you will
need to set it to “bridge” mode so the DIR-813 router can work properly. Please
contact your ISP or refer to the user manual for your modem/router device.
Before you Start

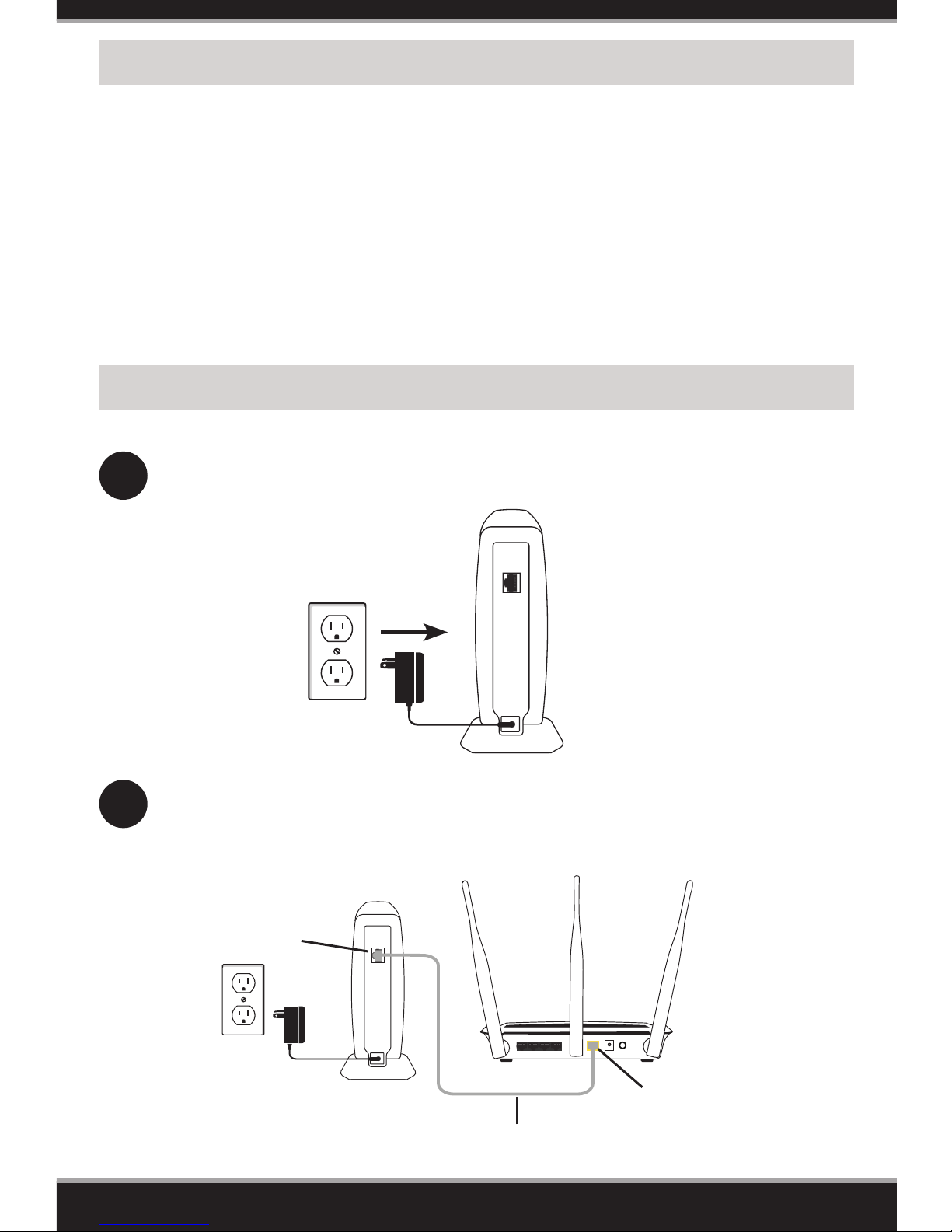

1Unplug the power to your DSL or Cable modem.
2Connect an Ethernet cable from the Internet port of the router to the
Ethernet port on your DSL or Cable modem.
Modem
Connect your Router
1 2 3 4 INTERNET 5V --1A POWER
WPS
Ethernet Port
Modem
Ethernet Cable
DIR-813
Internet Port (yellow)

5

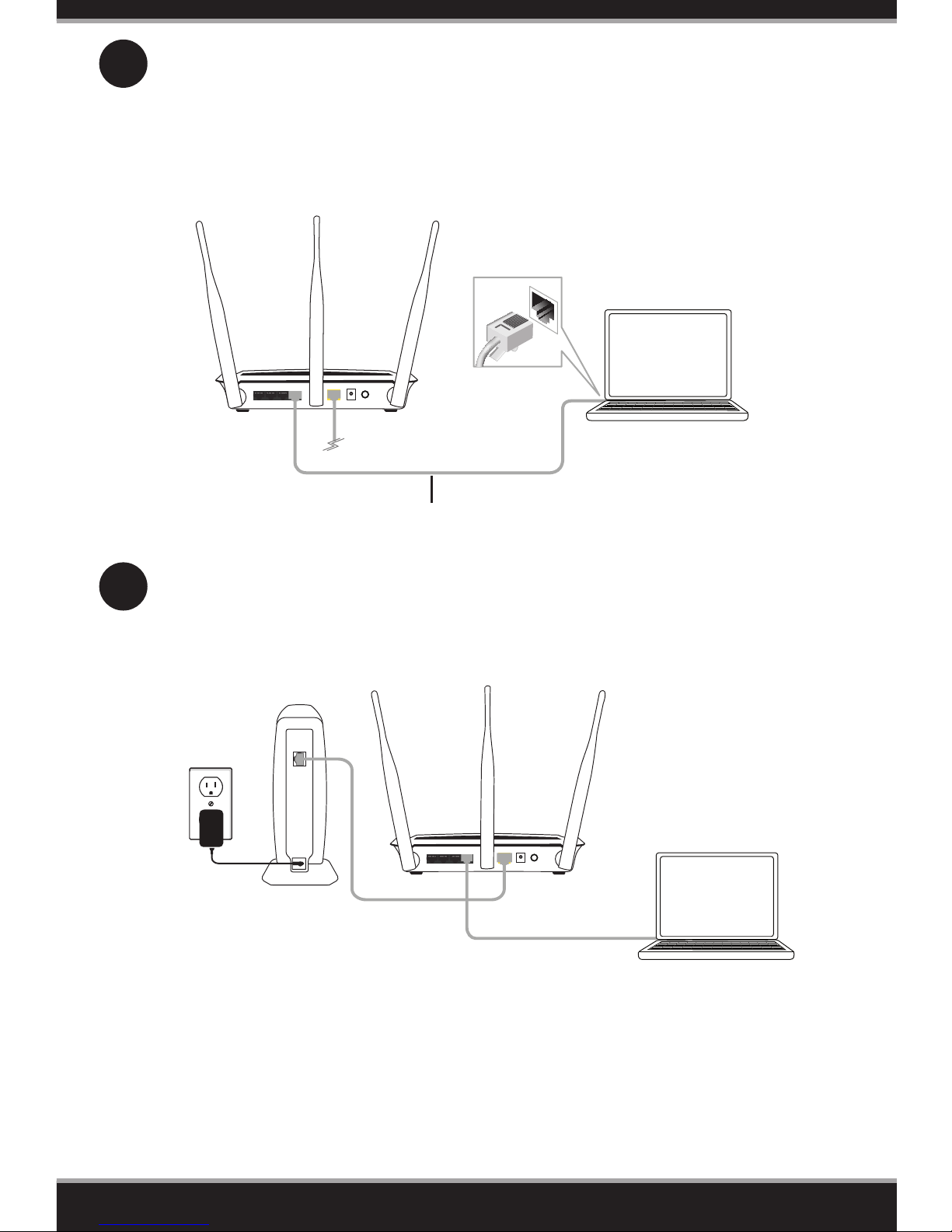

3Connect another Ethernet cable from the Ethernet port on your computer
to one of the LAN ports on the router. You can also connect wirelessly
to the router with your computer. Use the supplied Wi-Fi Conguration
Card for the Wi-Fi network name (SSID) and Wi-Fi password of the router.
Complete steps 4 and 5 before attempting to connect.
4Plug the power back into your DSL or cable modem. Please wait about one
minute before continuing.
1 2 3 4 INTERNET 5V --1A POWER
WPS
1 2 3 4 INTERNE T 5V --1A POWER
WPS
Computer
Computer
Modem
Ethernet Cable
DIR-813
DIR-813

6

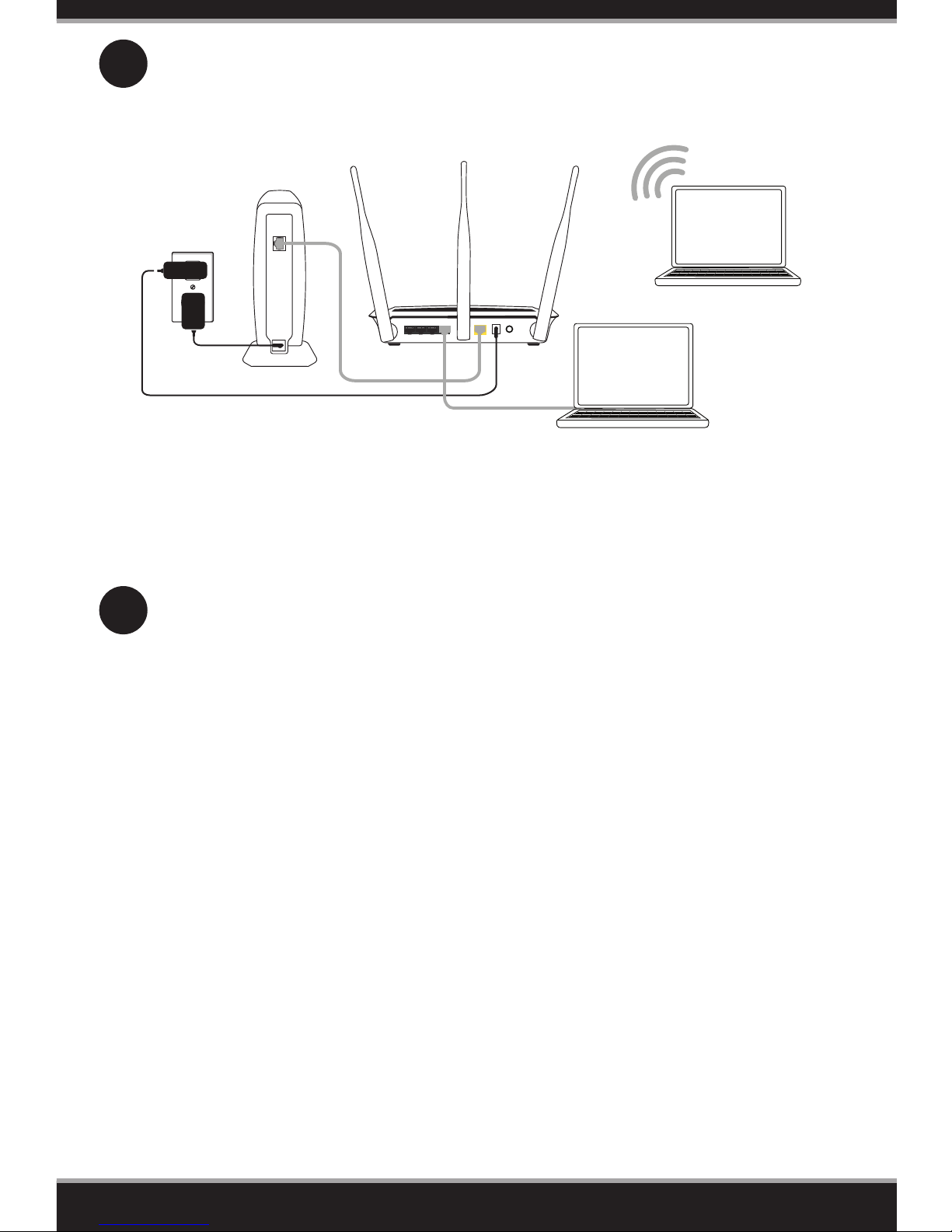

5Plug the power adapter into your router and connect to an available
power outlet or surge protector. If the Power LED does not light up, verify
the power adapter is plugged in a working outlet or power strip.
6After the router has powered up, verify that the Power and Internet LEDs are
both lit. Proceed with router conguration.
1 2 3 4 INTERNET 5V--1A POWER
WPS
Computer
Modem DIR-813
1 2 3 4 INTERNET 12V --1.5A POWER WPS
Wireless
Computer*
* If you are connecting wirelessly, you may now connect to the router using the supplied Wi-Fi
Conguration Card for the Wi-Fi network name (SSID) and Wi-Fi password.

7

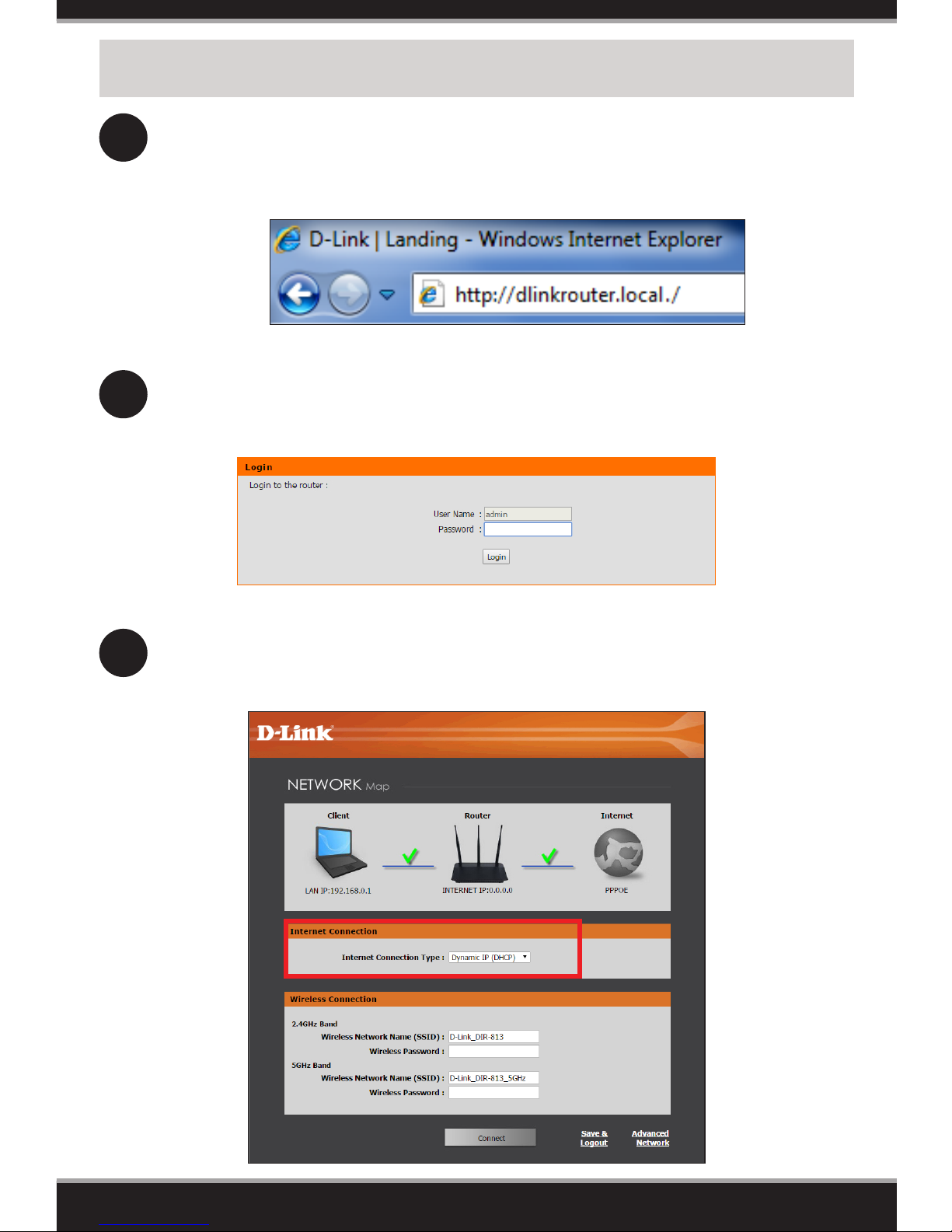

Open a web browser (e.g., Internet Explorer, Chrome, Firefox, or Safari)
and enter http://dlinkrouter.local./ or the IP address of the router
(http://192.168.0.1).
1
Enter your router password. If you have not created a password yet, leave the
password blank and click Login to continue.
2
3
Conguration

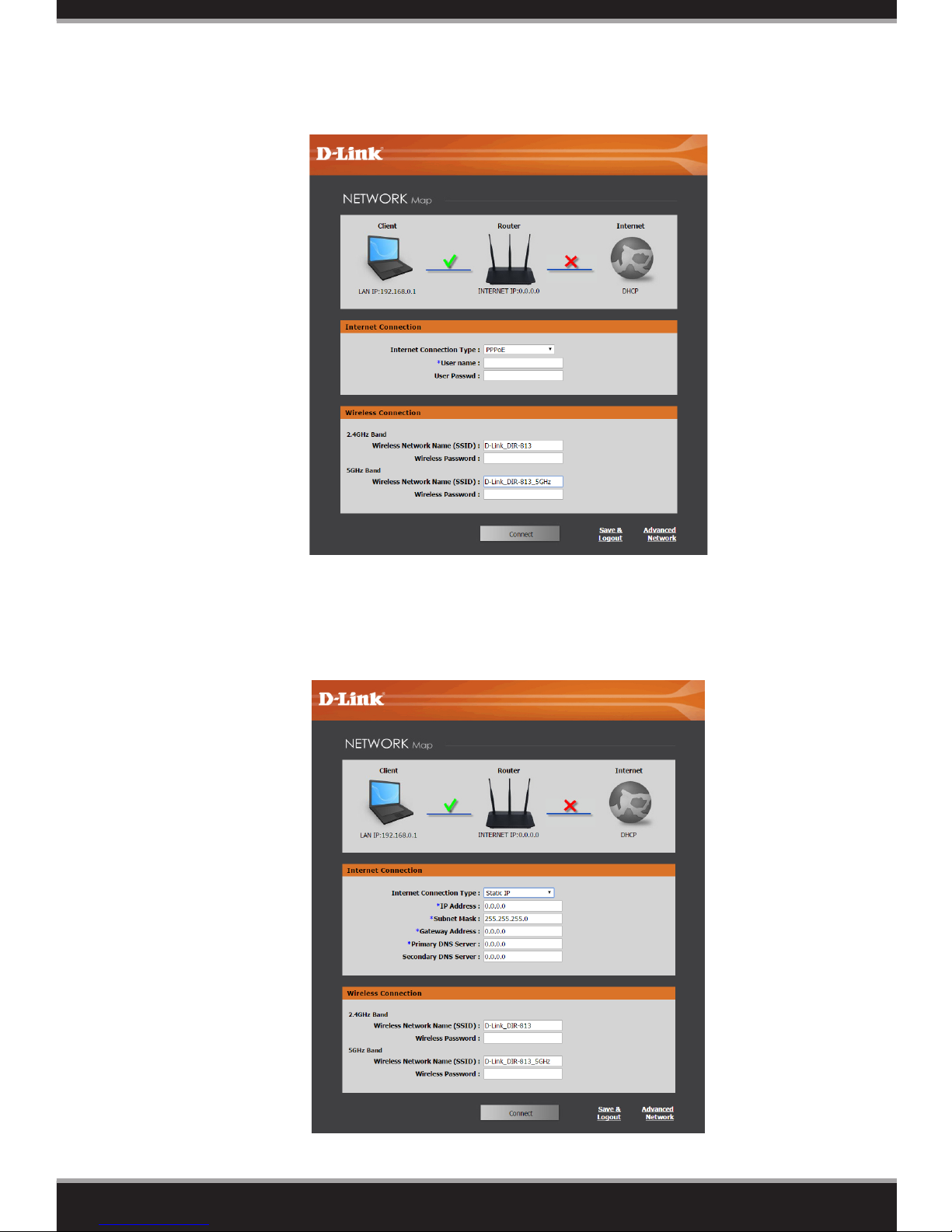

Select your Internet type from the drop-down menu: DHCP (dynamic) is most
commonly used with cable Internet, PPPoE (common with DSL), or Static.

8
If you selected DSL (PPPoE), enter your PPPoE user name and password
supplied by your ISP (Internet Service Provider).
If you selected Static IP, enter the IP information and DNS settings supplied
by your ISP.

9
5

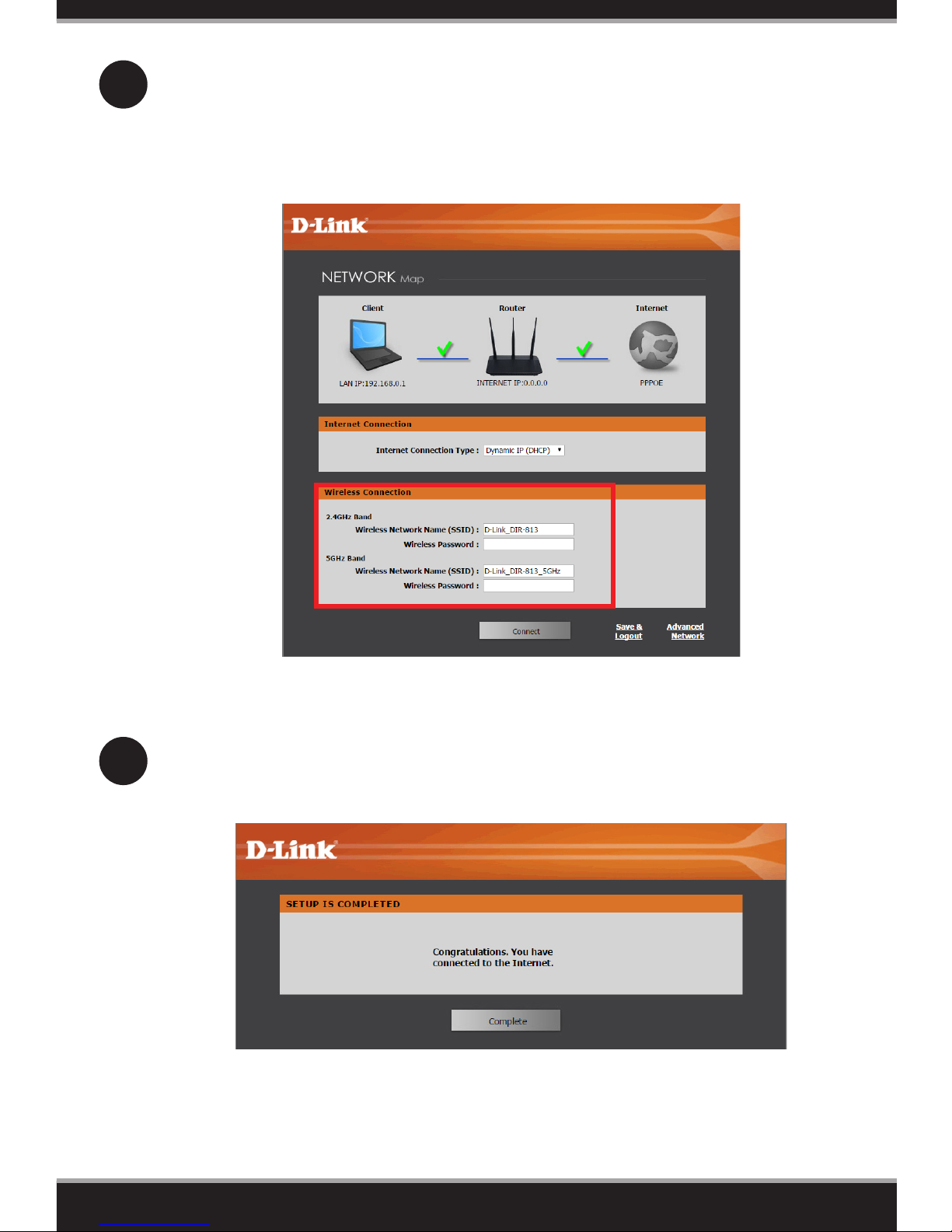

For both the 2.4GHz and 5GHz bands, create a name for your Wi-Fi Network
and a password. Your wireless devices (i.e., tablets, smartphones, and
laptops) will need to have this information entered to be able to connect to
your wireless network. Click Connect at the bottom to continue.
4
Your router will now connect to the Internet. Please allow 1-2 minutes. Once
the Setup is Completed message appears, click Complete.

10
How do I connect my wireless devices to the DIR-813 router?
1. Open your wireless network utility that displays available wireless networks.
2. Select the Wi-Fi Network name you assigned in the wizard and connect.
Note: If you did not run the setup wizard or you reset the router to its default
settings, refer to the Wi-Fi Conguration Card included for the default Wi-Fi
Network Name and Wi-Fi Password.
You can also connect wireless devices to the DIR-813 router using WPS:
1. Press the WPS button on the DIR-813 for one second.
2. Within one minute press the WPS button on your wireless device.
3. Allow up to two minutes to connect.
Note: Some devices may require you to log in to a utility to start the WPS process.
Refer to the user manual of the device you want to connect to the router if you do
not know how to start the WPS process.
How do I change the wireless settings on the DIR-813 router?
1. Open a web browser (e.g., Internet Explorer, Chrome, Firefox, or Safari) and
enter http://dlinkrouter.local./ You can also enter the IP address of the
router (http://192.168.0.1).
2. At the login screen, enter the router password you created in the wizard (no
password by default).
3. Go to Setup > Wireless Settings > Manual Wireless Network Setup to
create a new Wi-Fi network name (SSID) and Wi-Fi password.
*Documentation available at http://support.dlink.com/DIR-813.
Troubleshooting

11
GPL Code Statement
This D-Link product includes software code developed by third parties, including
software code subject to the GNU General Public License (“GPL”) or GNU Lesser
General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL,
and information on obtaining access to the GPL code and LGPL code used in this
product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY
WARRANTY and is subject to the copyrights of one or more authors. For details,
see the GPL code and the LGPL code for this product and the terms of the GPL and
LGPL.
Written Oer for GPL and LGPL Source Code
Where such specic license terms entitle you to the source code of such software,
D-Link will provide upon written request via email and/or traditional paper mail
the applicable GPL and LGPLsource code les via CD-ROM for a nominal cost to
cover shipping and media charges as allowed under the GPL and LGPL.
Please direct all inquiries to:
Email:
GPLC[email protected]
Snail Mail:
Attn: GPLSOURCE REQUEST
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright (C) 2007 Free Software Foundation, Inc. <http://fsf.org/>
View the full GPL Code Statement at http://www.gnu.org/licenses/gpl.html

12
