D-Link DSL-G604T User manual

Before You Begin
Make sure you have all the necessary information and equipment on hand before beginning
the installation.
DSL-G604T
WirelessADSLRouter
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6, Netscape
Navigator 6.2.3, Mozilla or Firefox.

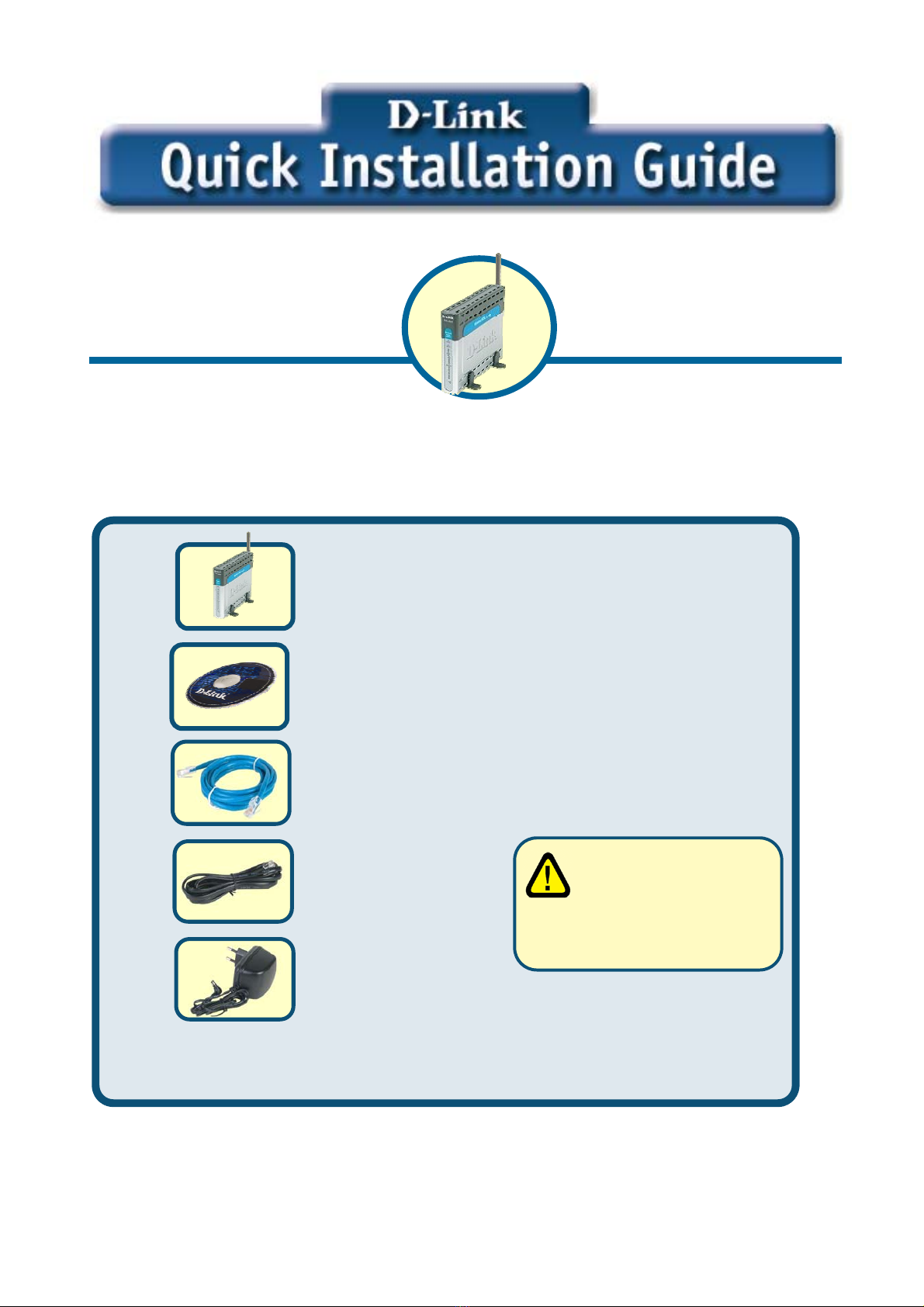

Check Your Package Contents
©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specifications subject to change without notice.

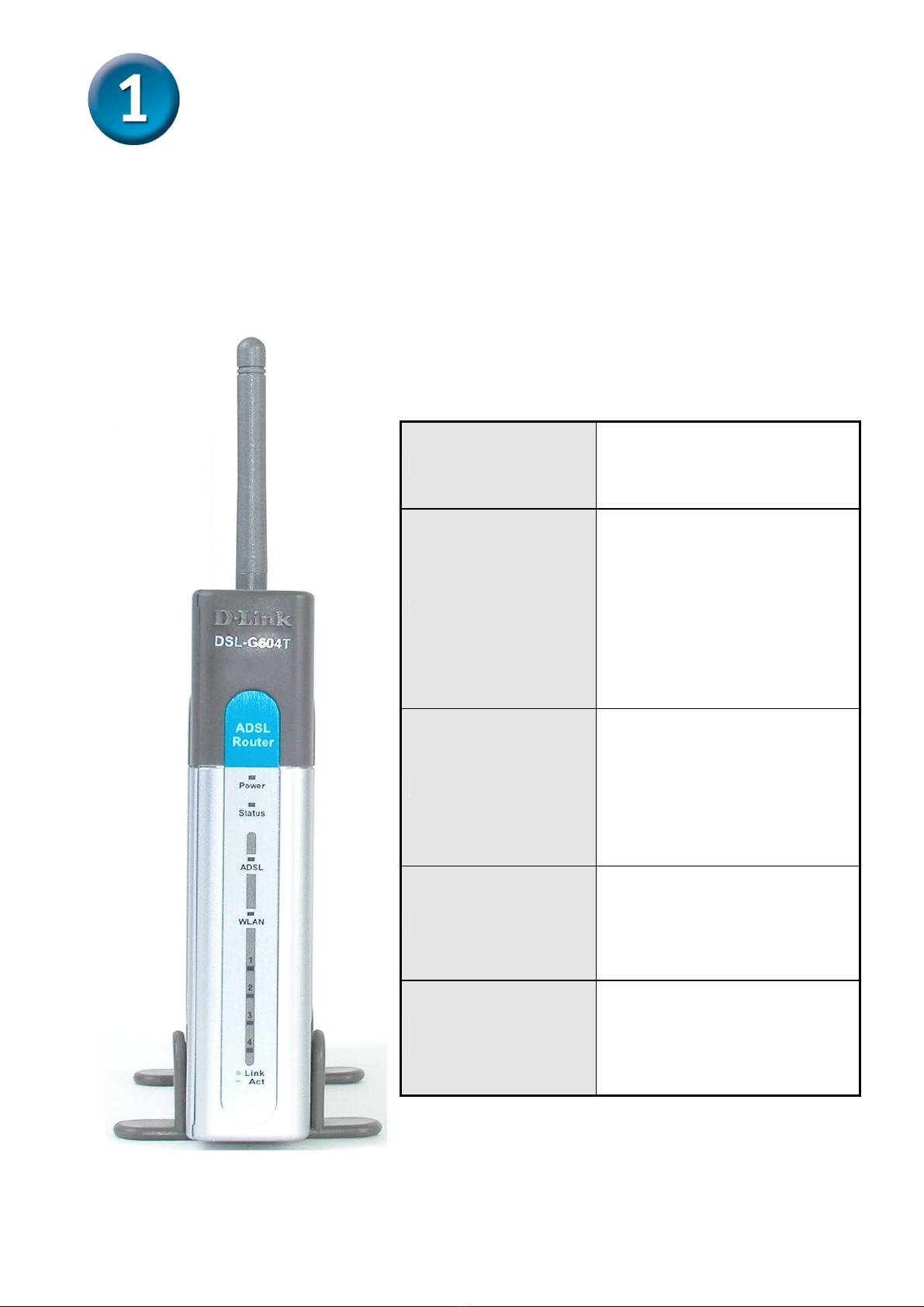

DSL-G604T ADSL Router
CD-ROM (containing User Manual)
Ethernet (CAT5 UTP) Cable
Telephone Cable
Power Adapter
Using a power supply
with a different voltage
rating will damage and void
the warranty for this product.
If any of the above items is missing,
please contact your reseller.
1

Connecting the Router to Your Computer
A. First, connect the power adapter to the power input at the back panel of the DSL-
G604T and then plug the other end of the power adapter to a wall outlet or power strip.
On the front of the device, the Power LED will turn ON to indicate proper operation.
B. Insert one end of the Ethernet cable into an Ethernet (LAN) port on the back panel of
the DSL-G604T and the other end of the cable to an Ethernet Adapter or available
Ethernet port on your computer.
C. Insert the telephone cable included with the Router into the ADSL port, then connect
the cable to your telephone line.
D. Check the LED display on the front of the Router to confirm that the connections have
been made.

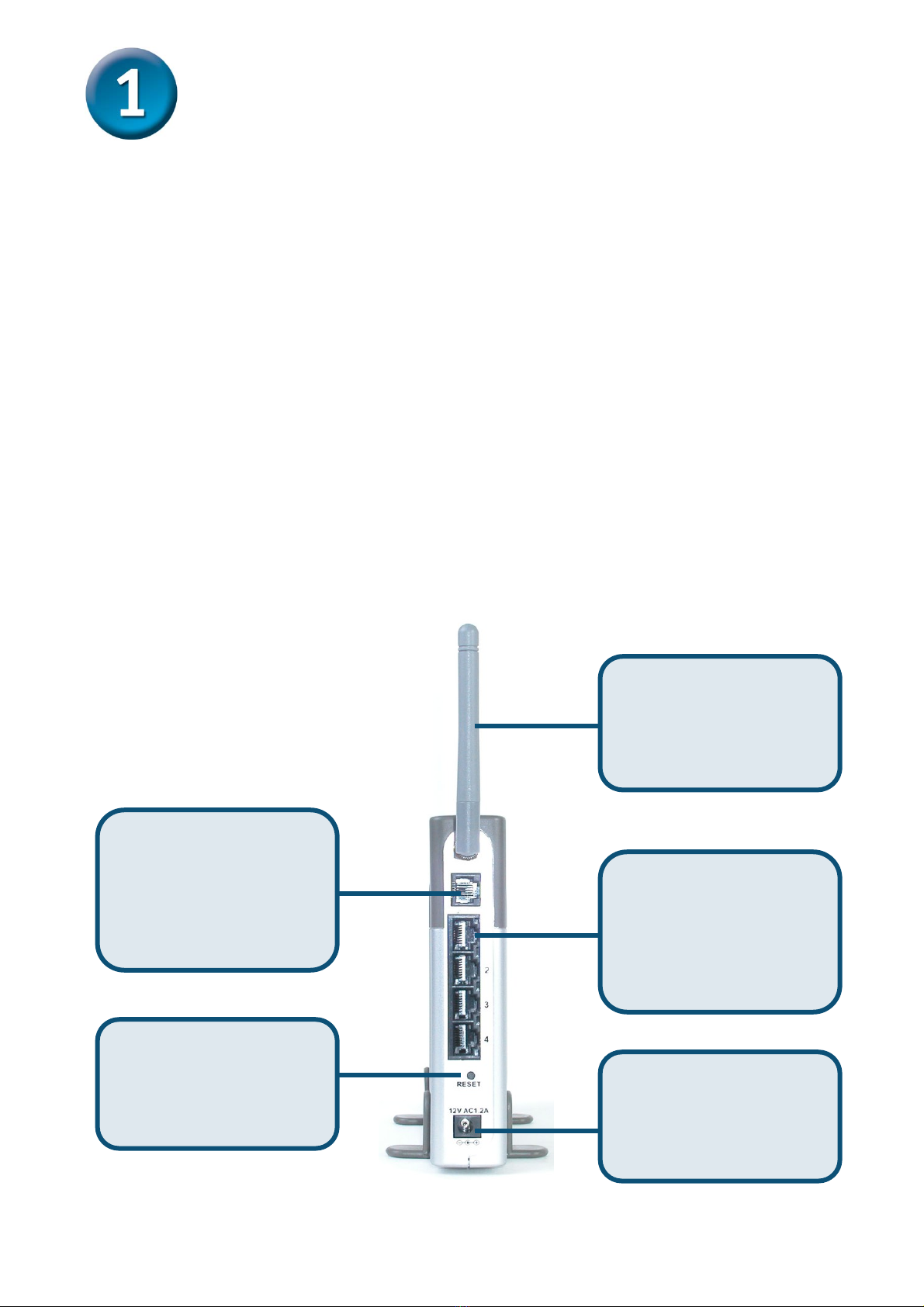

Rear Panel Connections
All cable connections to the Router are made at the rear panel. Connect the power adapter
here to power on the Router. Use the Reset button to restore the settings to the factory
default values in the next chapter for instructions on using the reset button).
Antenna
For wireless operation,
mount the antenna on the
threaded antenna post.
Ethernet ports
2
Use the Ethernet ports to
connect the Router to
your Ethernet LAN or
Ethernet devices.
Power Insert
Use the adapter shipped
with the Router to connect
to power source.
ADSL Port
Use the ADSL cable to
connect to the your
port).
telephone line (RJ-11
Reset button
To manually reset,
depress button with the
power on for a few
d

Connecting the Router to Your Computer
(continued)
Front Panel LEDs
The LED indicators on the front panel include the Power, Status, ADSL, WLAN, and
Ethernet indicators. The ADSL and Ethernet indicators monitor link status and activity
(Link/Act).
3
Power
Steady green light indicates
the unit is powered on. When
the device is powered off this
remains dark.
Status
Lights steady green during
power on self-test (POST).
Once the connection status
has been settled, the light will
blink green. If the indicator
lights steady green after the
POST, the system has failed
and the device should be
rebooted.
ADSL (Link/Act)
Steady green light indicates a
valid ADSL connection. This
will light after the ADSL
negotiation process has been
settled. A blinking green light
indicates activity on the WAN
(ADSL) interface.
WLAN (Link/Act)
Steady green light indicates a
wireless connection. A
blinking green light indicates
activity on the WLAN
interface.
Ethernet (Link/Act)
1 - 4
A solid green light indicates a
valid link on startup. This light
will blink when there is
activity currently passing
through the Ethernet ports.

Connecting the Router to Your Computer
(continued)
Your setup should resemble the one shown below.
The illustration below shows the DSL-G604T connected to Ethernet LAN devices, Wireless
LAN devices and the Internet.
4

Configuring the Router
To use your Web browser to access the web pages used to setup the Router, your computer
must be configured to “Obtain an IP address automatically”, that is, you must change the
IP network settings of your computer so that it is a DHCP Client. If you are using Windows
XP and do not know how to change your network settings, skip ahead to Appendix and read
the instructions provided. You may also read the User Manual for instructions on changing IP
settings for computers running Windows operating systems.
5

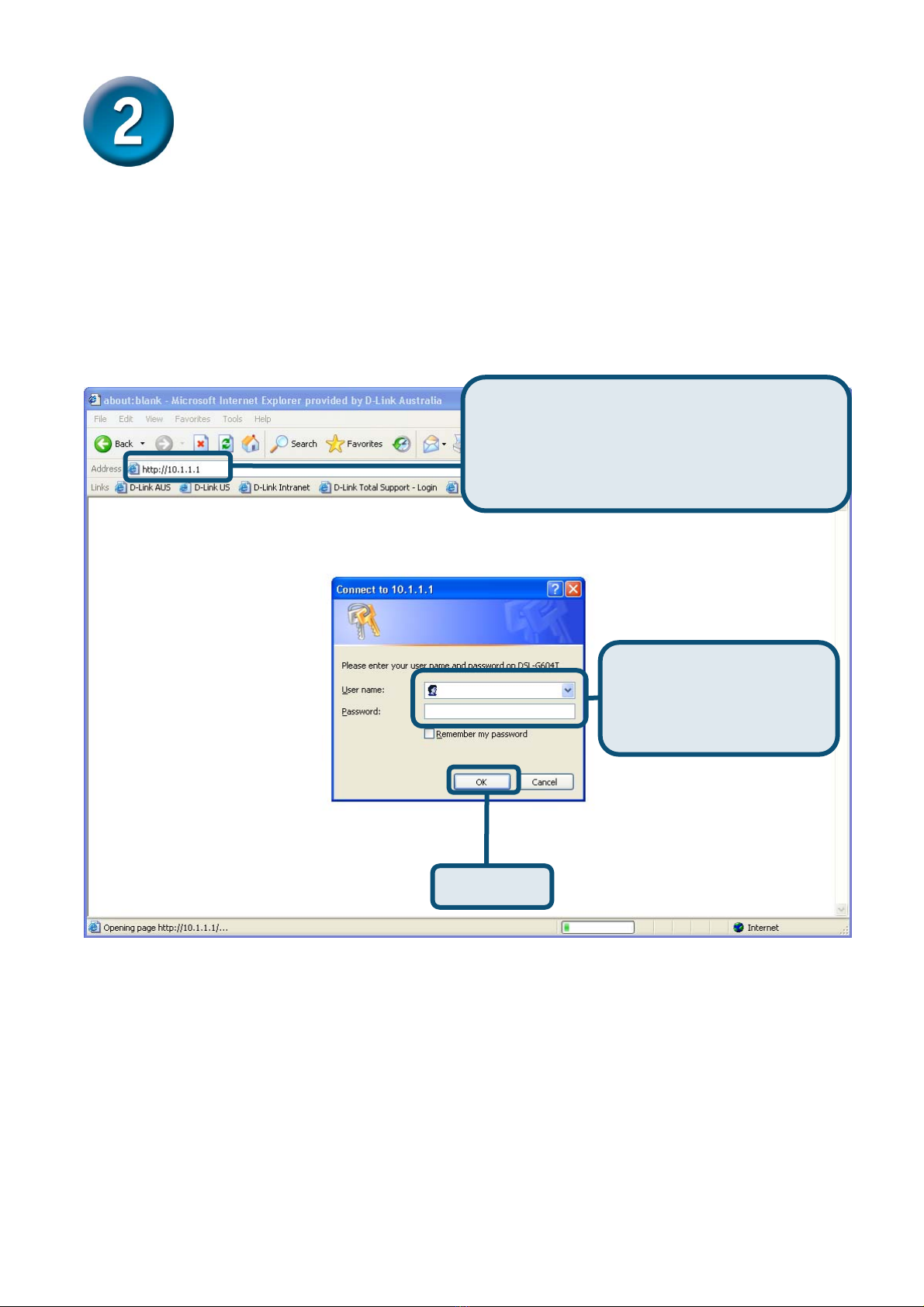

Open your Web browser and type
Then press the Enter or Return key.
The Login page appears.
“http://10.1.1.1” into the URL address box.
“admin” for
“admin”
Type the
User Name and
in the Password field.
OKClick

6
Configuring the Router (continued)

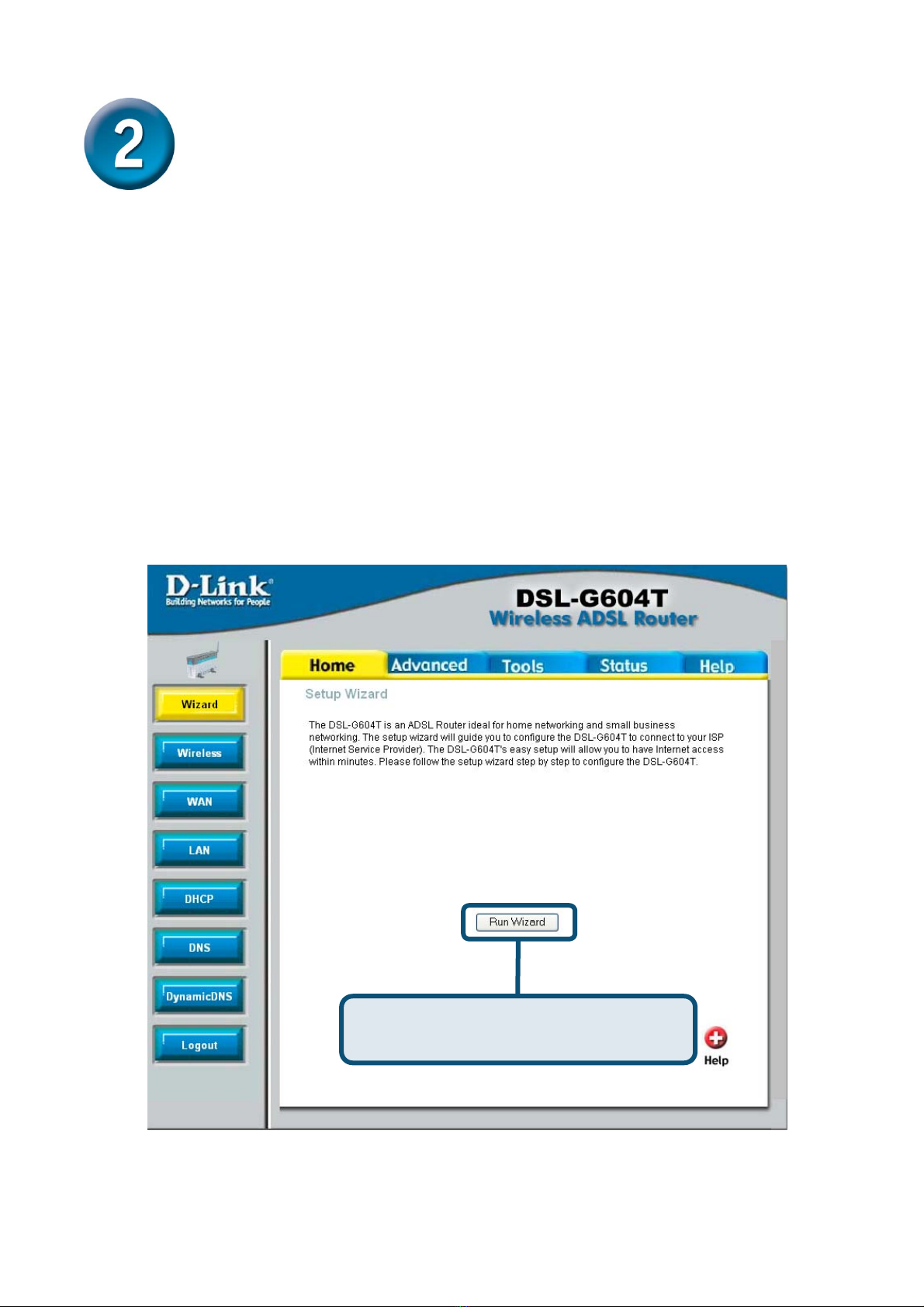

Once you have logged in, the Home directory tab is prominent with the Setup Wizard menu
displayed. Most users will be able to use the Setup Wizard to establish the ADSL connection
to your ISP. To begin using the Setup Wizard, click on the Run Wizard button in the middle
of the web page. A pop-up menu will appear. This pop-up menu is the Setup Wizard. The
Setup Wizard procedure consists of four general steps:
1. Set the system password
2. Set the time zone
3. Set the Internet connection
4. Restart the Router
When you setup the Internet connection, you will need to enter information provided by your
ISP. The type of information you need depends on the type of connection you are setting up.
Click on the Run Wizard button.

Configuring the Router (continued)

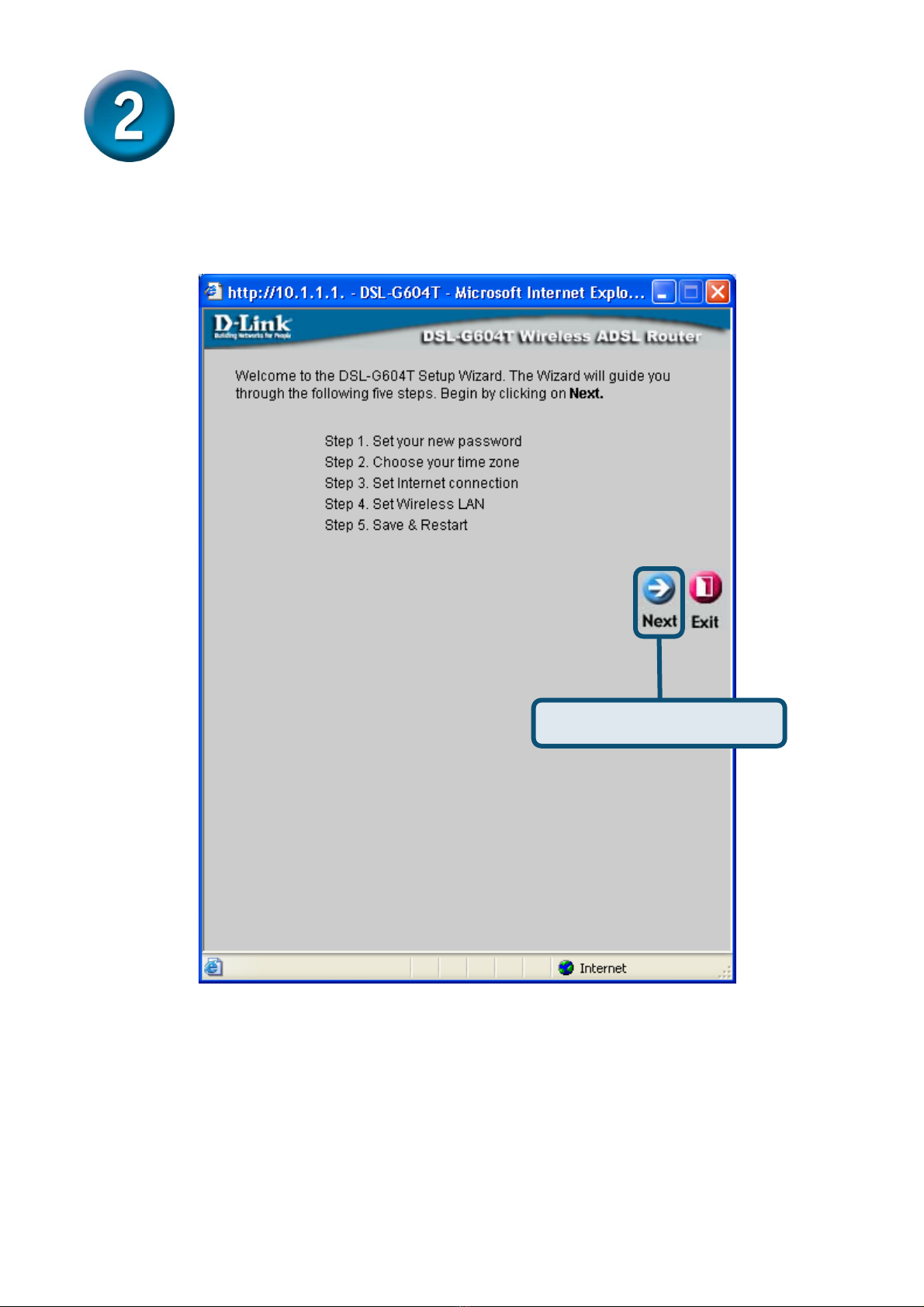

The first window of the Setup Wizard menu lists a summary of the steps required to complete
the setup. Click the Next button to begin setup and go on to step 1.
Click the Next button.
7

Configuring the Router (continued)

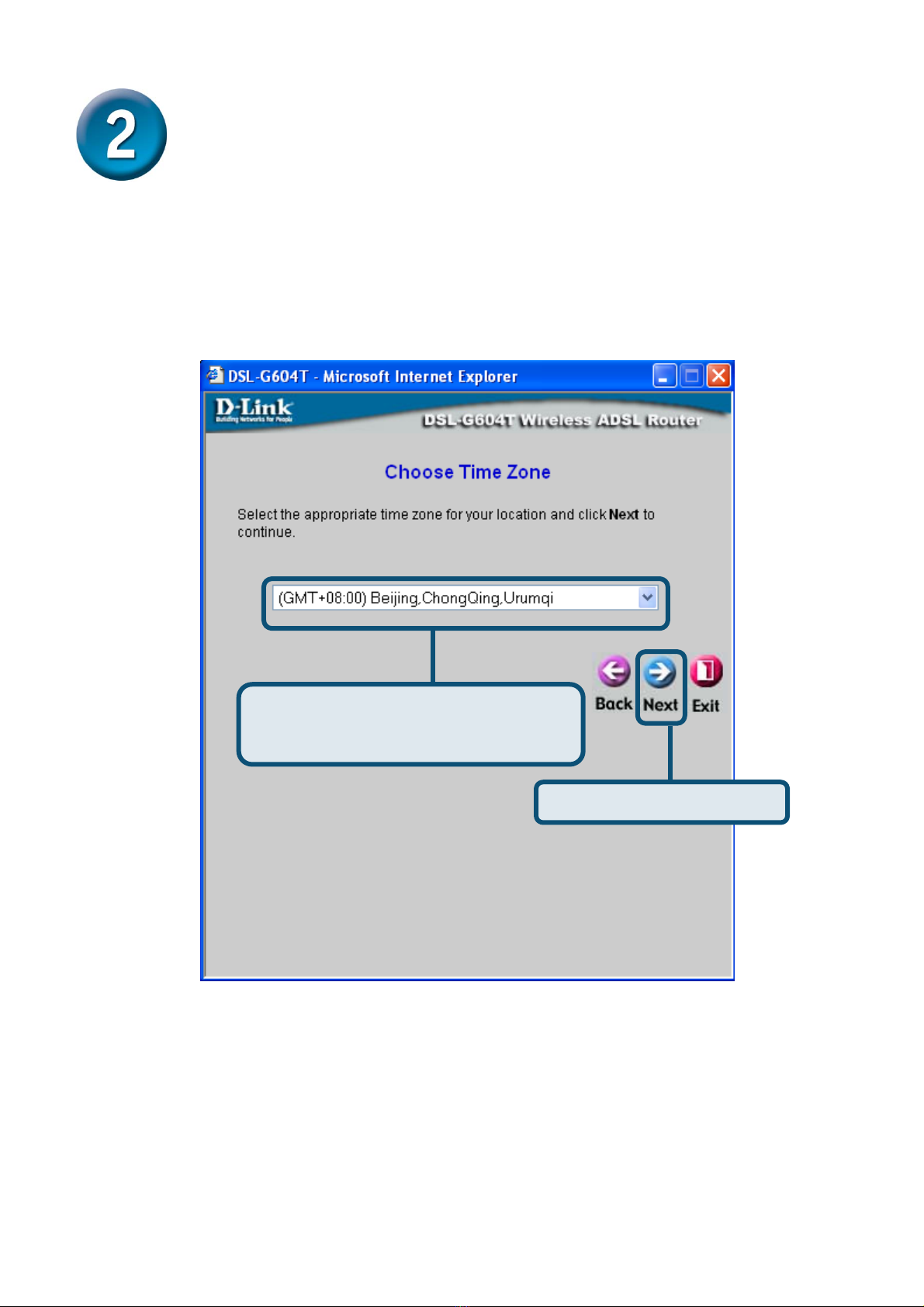

Choosing the Time Zone
Now configure the Time Zone used for the Router’s system clock. Select the appropriate
time zone and Daylight Saving Time setting for your location.
Select the Time Zone you are located
in by using the pull-down menu.
Click the Next button.
8

Configuring the Router (continued)

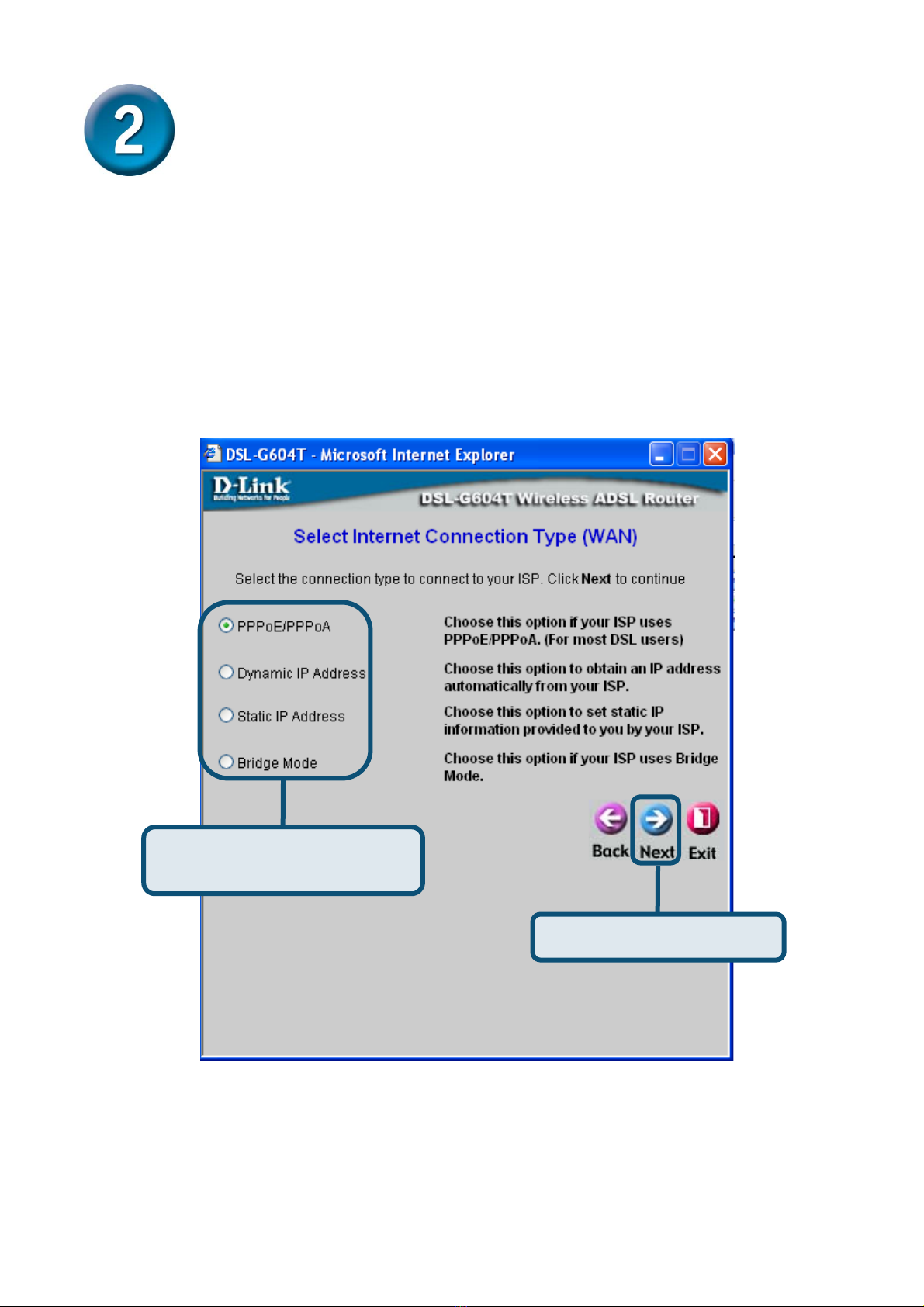

Selecting the Connection Type
Next, you will Set the Internet Connection Type for the WAN interface. Your ISP has given
this information to you. If you do not know what type of connection to use, exit the Setup
Wizard and contact your ISP for the information. The Setup wizard menu that appears when
you click the Next button depends on what connection type you select.
Select the Connection Type
used for your ADSL service.
Click the Next button.
9

Configuring the Router (continued)
PPPoE/PPPoA Connections

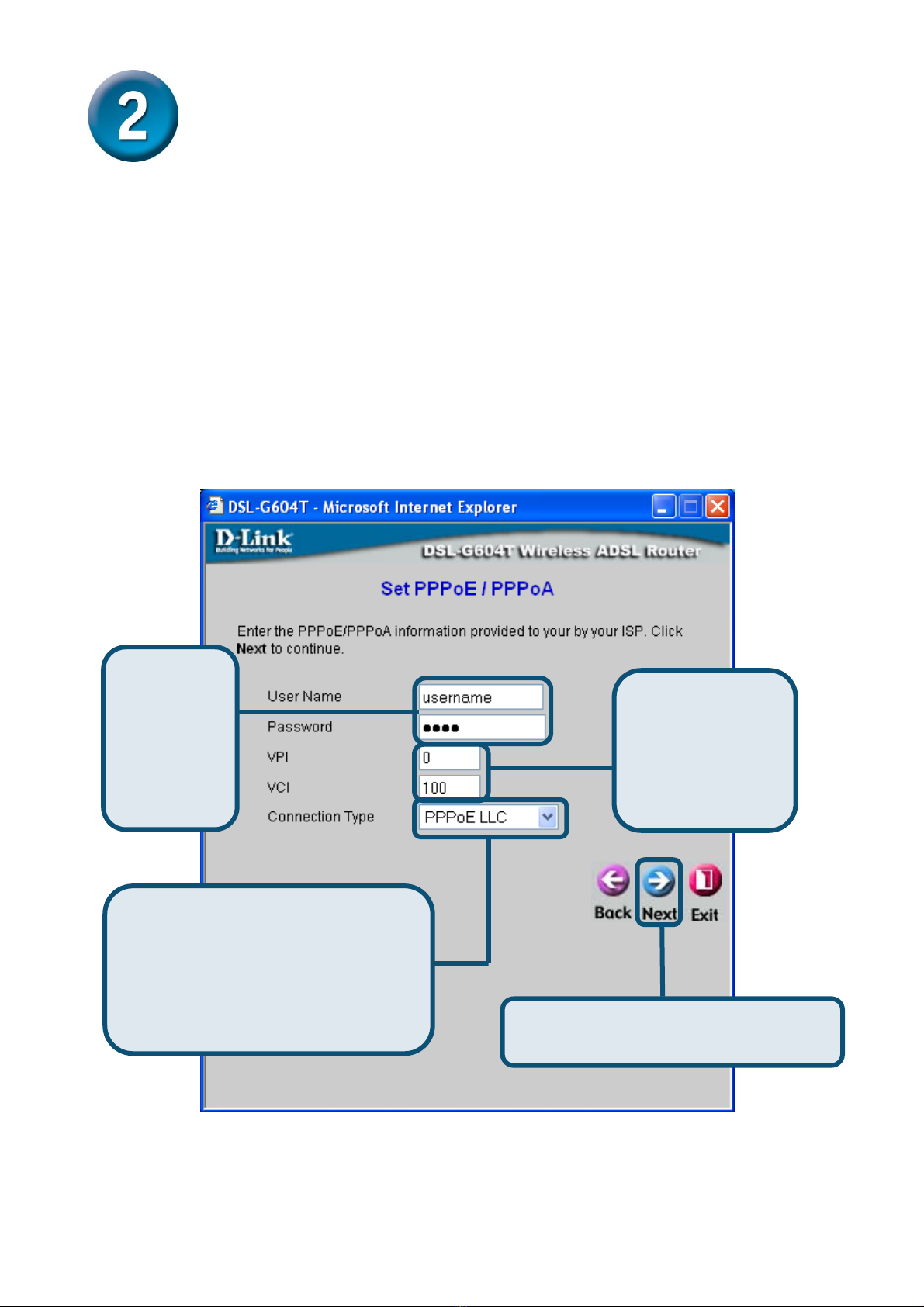

If you selected the PPPoE/PPPoA connection type in the previous menu, you will see the
Setup Wizard menu pictured here. Type in the Username and Password used to identify
and verify your account to the ISP. The VPI number and VCI number should not be changed
unless you have been instructed to change them. Select the Connection Type used for
encapsulation specific to your service. Click Next when you are ready to continue to the
Setup Completed menu.
If you are not sure what Connection Type,VPI and VCI to use, please check with your ISP.
Type the If you have been
told by your ISP to
change the Type
the new values.
Username
Password
and
for your ISP
account.
10
VPI or
VCI number,
Click the ad to
the Setup Completed menu below.
Next button. Skip ahe
Use the pull-down menu to choose
the correct The
user may choose between
or
as instructed by your ISP.
Connection Type.
PPPoA
VC-Mux, PPPoE LLC PPPoA
LLC,

Configuring the Router (continued)
Dynamic IP Address Connections
For this connection type, the user may choose Bridged IP LLC or Bridged IP VC-Mux. Both
of these connections require the user to have additional software located on their computer
to negotiate the connection with the ISP. Both Bridged modes will automatically set the
network connections. If you selected the Dynamic IP Address connection type, select the
Connection Type used for encapsulation and if you have been instructed to change the VPI
number and VCI number, type in the new values. Click Next when you are ready to continue
the Setup Completed menu.
Select the
If you have
been told by
your ISP,
change the
Encapsulation
1483
Bridged IP
LLC or 1483
Bridged IP
VcMux as
as
instructed by
your ISP.
11
VPI or VCI
number,
Type the
new values.
The Cloned MAC Address field is
used to copy the MAC Address of
your Ethernet Adapter to the router.
Simply enter the
the space provided and click the
Clone Mac Address button.
MAC Address into Click the
to the Setup Completed menu.
Next button to skip ahead

Configuring the Router (continued)
Bridged Connections

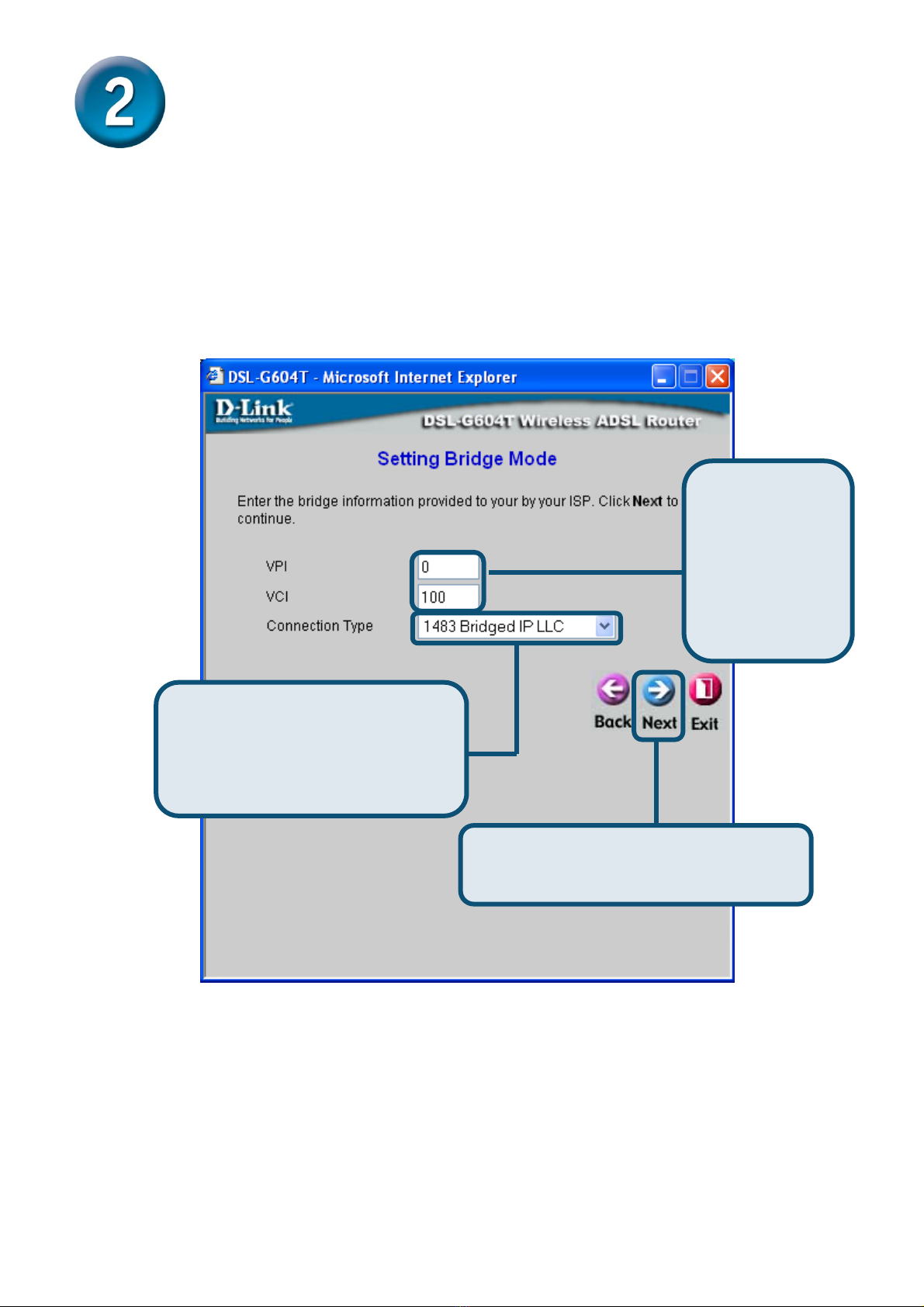

Bridged is used to set the Bridged mode for the Router. This window is for users who have
software on their computer or other network device to take the connection from your ISP.
You may change the PVC (Permanent Virtual Channel) settings and the Connection Type.
If you have been
told by your ISP
to change the
12
Click the Next button. Skip ahead to
VPI or VCI
the Setup Completed menu below.
number, Type
the new values.
Select the as
or
by your ISP.
Connection Type
1483 Bridged IP LLC 1483
Bridged IP VC-Mux as instructed

Configuring the Router (continued)
Static IP Connections

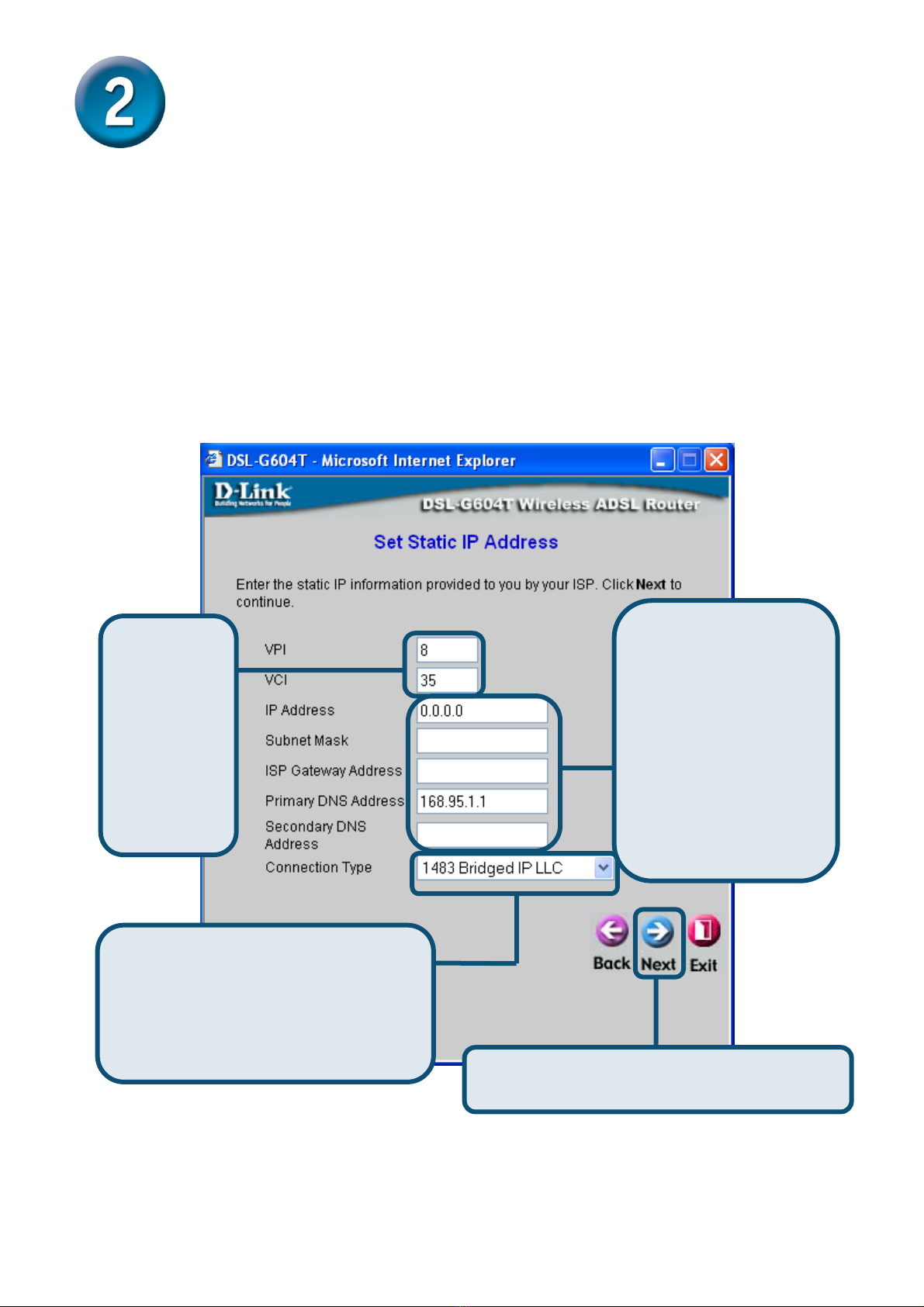

Static IP is used to set the Static IP mode for the Router. Static IP is used whenever a
known static IP address is assigned. The accompanying information such as the Subnet
mask and the gateway should also be specified in order to be able to connect. These are the
servers would enable you to have access to other web servers. Information entered here
must come from your ISP. You may change the PVC (Permanent Virtual Channel) settings
and the Encapsulation.
Type the IP addresses
for the
13
WAN IP
Address, Subnet
Mask, ISP Gateway
A
ddress, Primary DNS
Address and/or
Secondary DNS
Address, as instructed
by your ISP.
If you have
been told by
your ISP to
change the
number,
Type the
new values.
VPI or VCI
Select the Co 1483
VC-Mux, 1483 Routed IP LLC, 1483
instructed by your ISP.
nnection Type as
Bridged IP LLC, 1483 Bridged IP
Routed IP VC-Mux or IPoA, as
Click the to the
Setup Completed menu below.
Next button. Skip ahead

Configuring the Router (continued)
Wireless LAN Connection

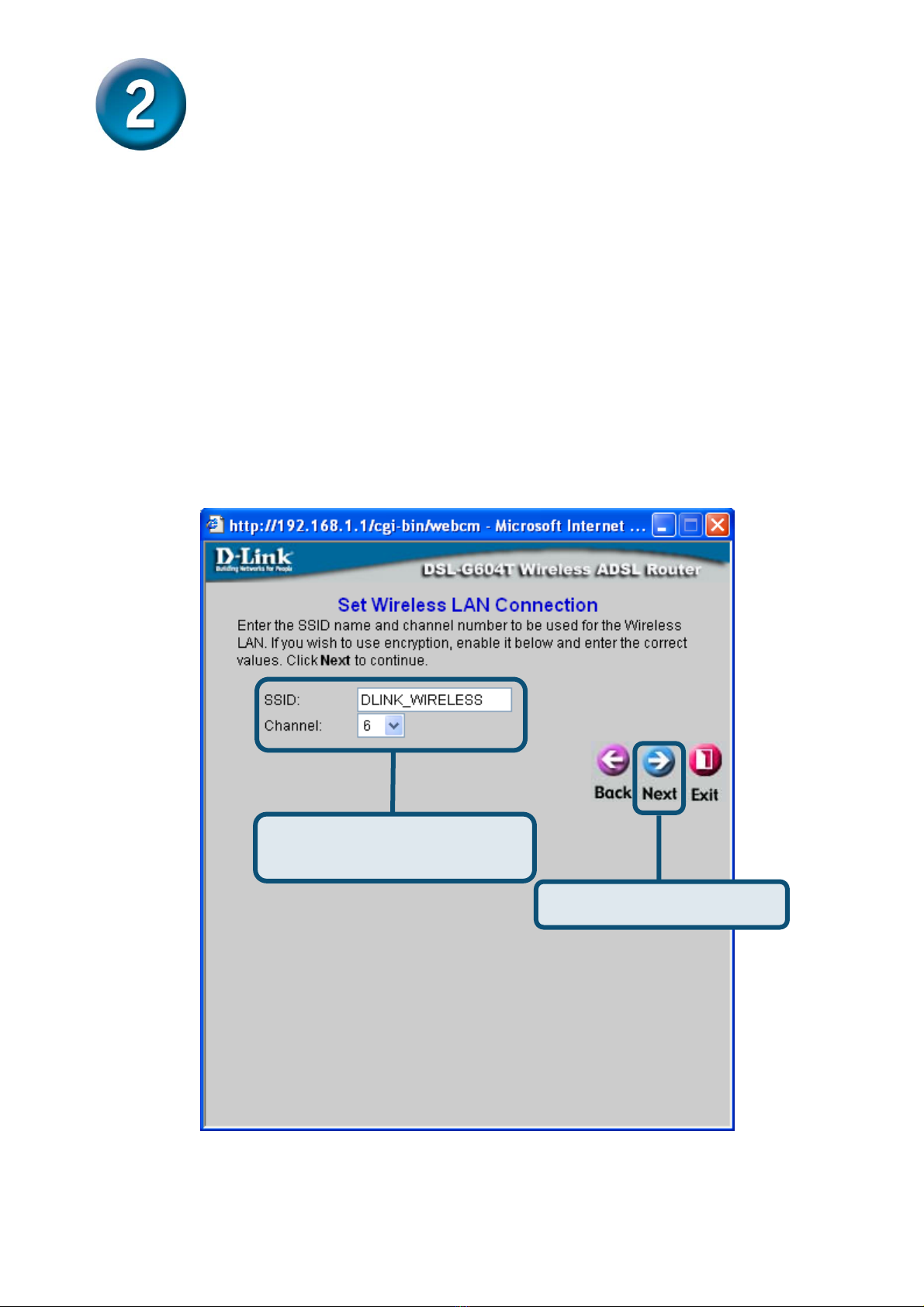

In the following window, the user must set the wireless configuration. The SSID can be
changed to suit your wireless network. Remember that any wireless device using the access
point must have the same SSID and use the same channel. The SSID can be a continuous
character string (i.e. no spaces) of up to 16 characters in length. To disable SSID sharing,
use the Advanced Wireless Setup menu (see next chapter). The Channel may be changed
to channels that are available in your region. Channels available for wireless LAN
communication are subject to regional and national regulation. After setting the values listed,
click the Next button to go to Step 4 of the Configuration Wizard.
Select the Connection Type
used for your ADSL service.
Click the Next button.
14

Configuring the Router (continued)

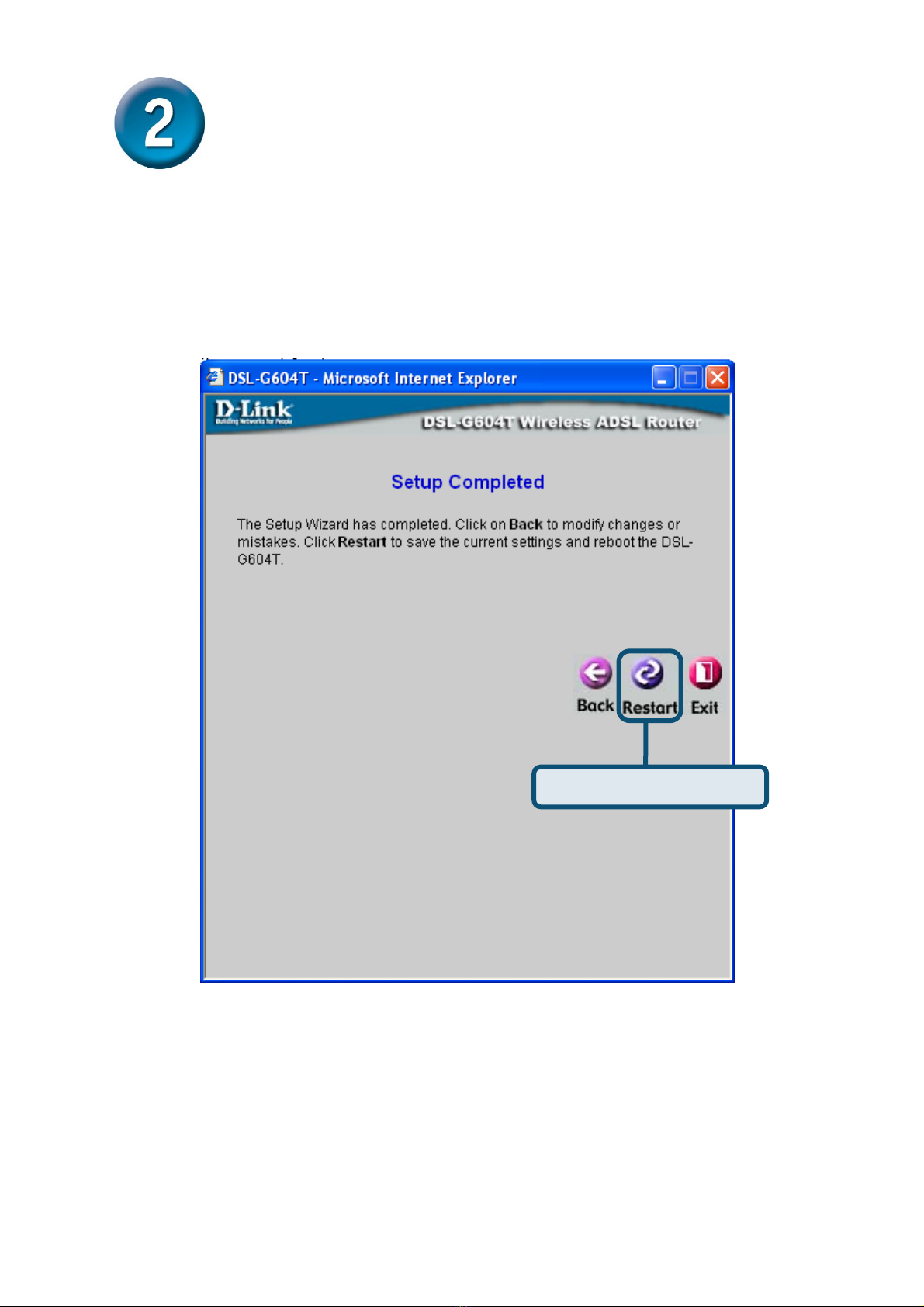

Setup Completed
All the settings for the ADSL connection are now completed. Click the Restart button to save
the new settings and restart the Router. It will take about two minutes to restart the Router.
Restart button.Click the
Click the Exit button when the message appears informing you that the “device has rebooted
successfully”. You can now launch your web browser to access the Internet.
15

Appendix
Configuring IP Settings in Windows XP
Use the following steps to configure a computer running Windows XP to be a DHCP client.

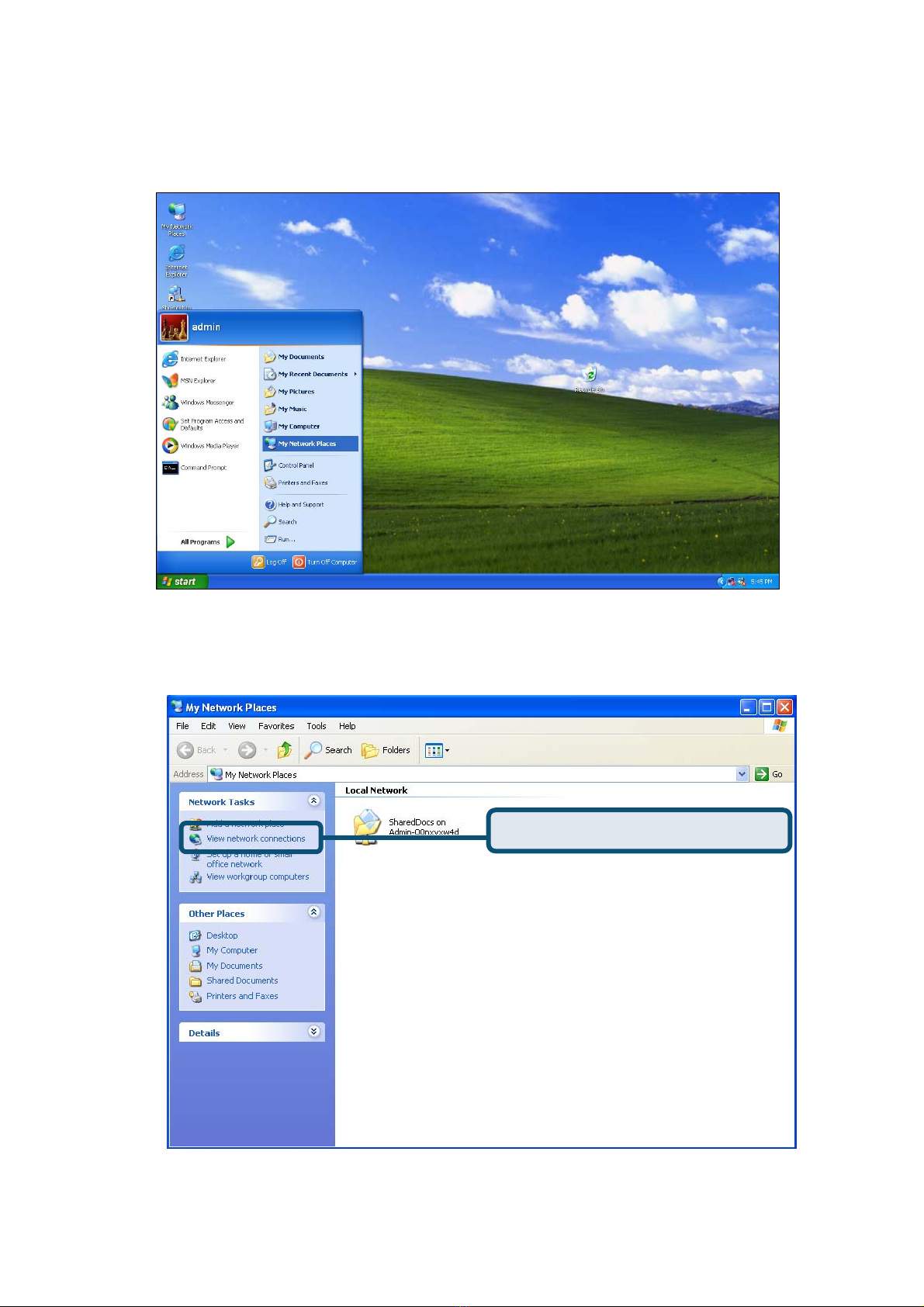

1. From the Start menu on your desktop, go to Settings, then click on My Network
Places.
Click View Network Connections.
16

17

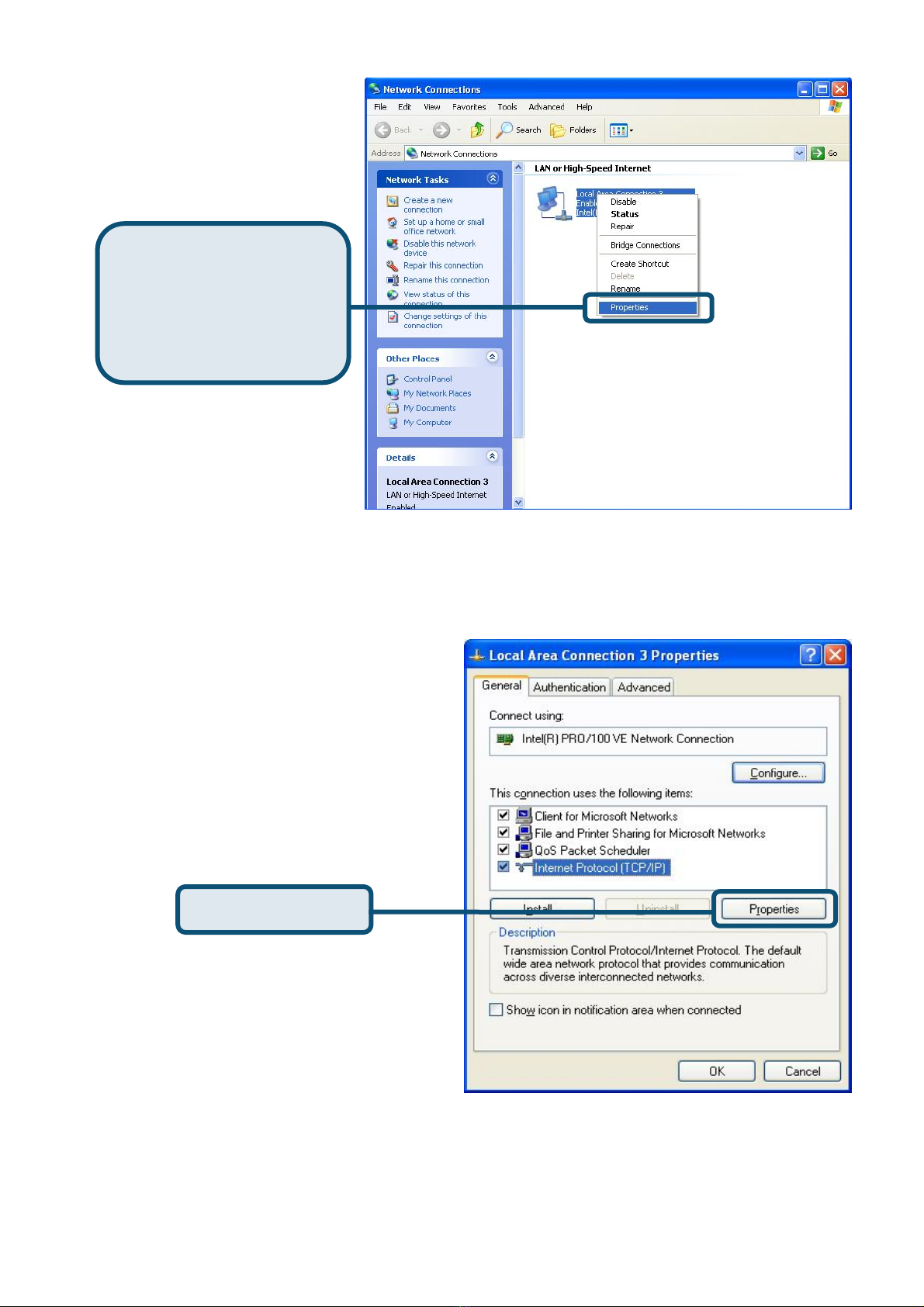

2. In the General tab of the Local Area Connection Properties menu, highlight
Internet Protocol (TCP/IP) under “This connection uses the following items:” by
clicking on it once. Click on the Properties button.
Click Properties
Right-click on the Local
Area Connection icon and
Select the Properties
option from the pull-down
menu.

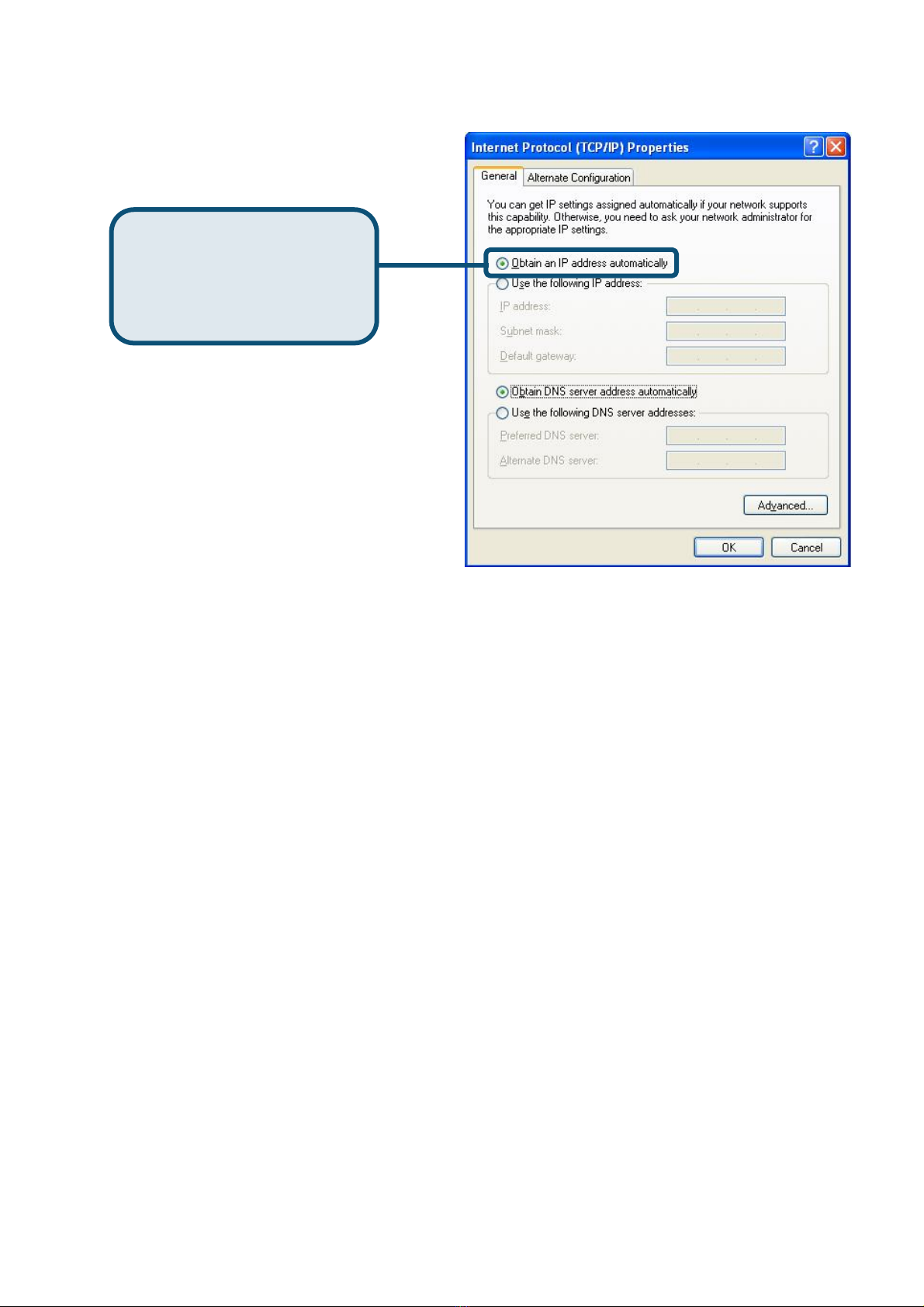

3. Select “Obtain an IP address automatically” by clicking once in the circle. Click the
OK button.
Select Obtain an IP
address automatically in
the Internet Protocol
(TCP/IP) Properties window.
Your computer is now ready to use the Router’s DHCP server.
18

Technical Support
You can find software updates and user documentation on the D-Link website.
Tech Support for customers within Australia:
D-Link Technical Support over the Telephone:
1300-766-868
Monday to Friday 8:00am to 8:00pm EST
Saturday 9:00am to 1:00pm EST
D-Link Technical Support over the Internet:
http://www.dlink.com.au
email:[email protected]
Tech Support for customers within New Zealand:
D-Link Technical Support over the Telephone:
0800-900-900
Monday to Friday 8:30am to 8:30pm
Saturday 9:00am to 5:00pm
D-Link Technical Support over the Internet:
http://www.dlink.co.nz
email:[email protected]
19
