D-Link Express EtherNetwork DI-604 User manual

1
DI-604
Express EtherNetwork™
Broadband Router
5V 2A DC Power Adapter
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-604. 08122003
Before You Begin
Check Your Package Contents
DI-604 Ethernet Broadband Router
CD-ROM (containing Manual and Warranty)
Ethernet (Straight Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
1. If you purchased this router to share your high-speed Internet connection with
other computers, you must have either an Ethernet-based Cable or a DSL modem
with an established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for
configuring the DI-604 router. The DI-604 Router acts as a DHCP server and will
assign all the necessary IP address information on your network. See Appendix
at the end of this Quick Installation Guide or the Manual on the CD-ROM
for setting each network adapter to automatically obtain an IP address.
These are the items included with your DI-604 purchase:

2

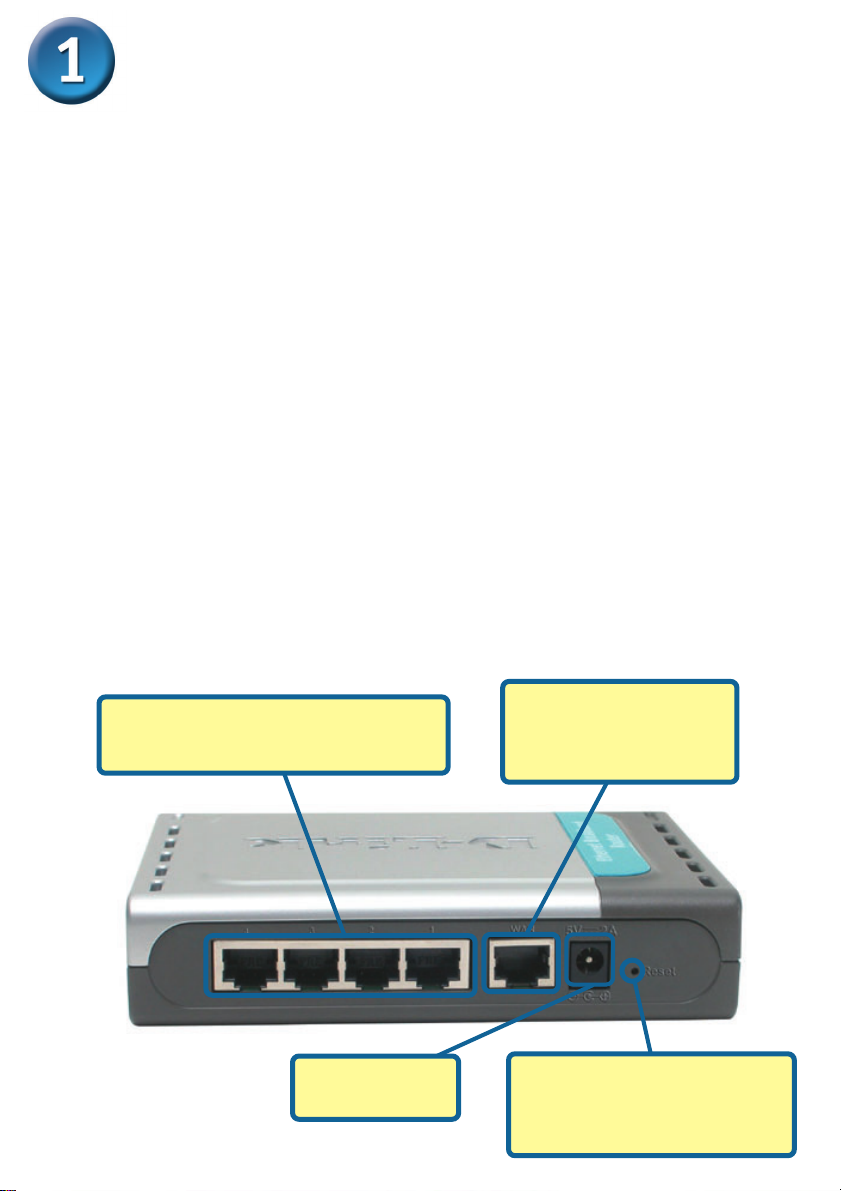

Connecting The DI-604 Broadband
Router To Your Network
C. LAN PORTS
These are the connections for Ethernet
cables to Ethernet enabled computers.
Reset Button
Pressing this button restores
the Router to its original factory
default settings.
A. First, connect the power adapter to the receptor at the back panel of the DI-604
and then plug the other end of the power adapter to a wall outlet or power strip.
The Power LED will turn ON to indicate proper operation.
B. 1. Power off your Cable or DSL modem; some devices may not have a on/off
switch and will require you to unplug the power adapter. Now, the DI-604 should
be powered on and the Cable / DSL modem should be turned off.
2. Cable / DSL modem (Power Off) – DI-604 (Power On)
Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL
modem. After the Ethernet cable is securely connected, power on the Cable /
DSL modem by turning on the unit or plugging in the power adapter.
3. Cable / DSL modem (Power On) – DI-604 (Power On)
Insert the other end of the Ethernet cable to the WAN PORT on the back panel
of the DI-604. The WAN LED light will illuminate to indicate proper connection. If
the WAN LED is not illuminated, please go back and step B and repeat its
instructions.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-604 and an
available Ethernet port on the network adapter in the computer you will use to
configure the DI-604. The LED light for LAN Port 1 will illuminate to indicate
proper connection. (Note: The LAN Ports on the DI-604 are Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover-Ethernet cable to the LAN
Ports.)
B. WAN PORT
This is for the connection
of an Ethernet cable to
the Cable or DSL modem
A. Receptor for
Power Adapter.

3
Restart Your Computer
Connecting Additional Computers To
The DI-604
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped
computers to the remaining Ethernet LAN ports on the back panel of the DI-604.

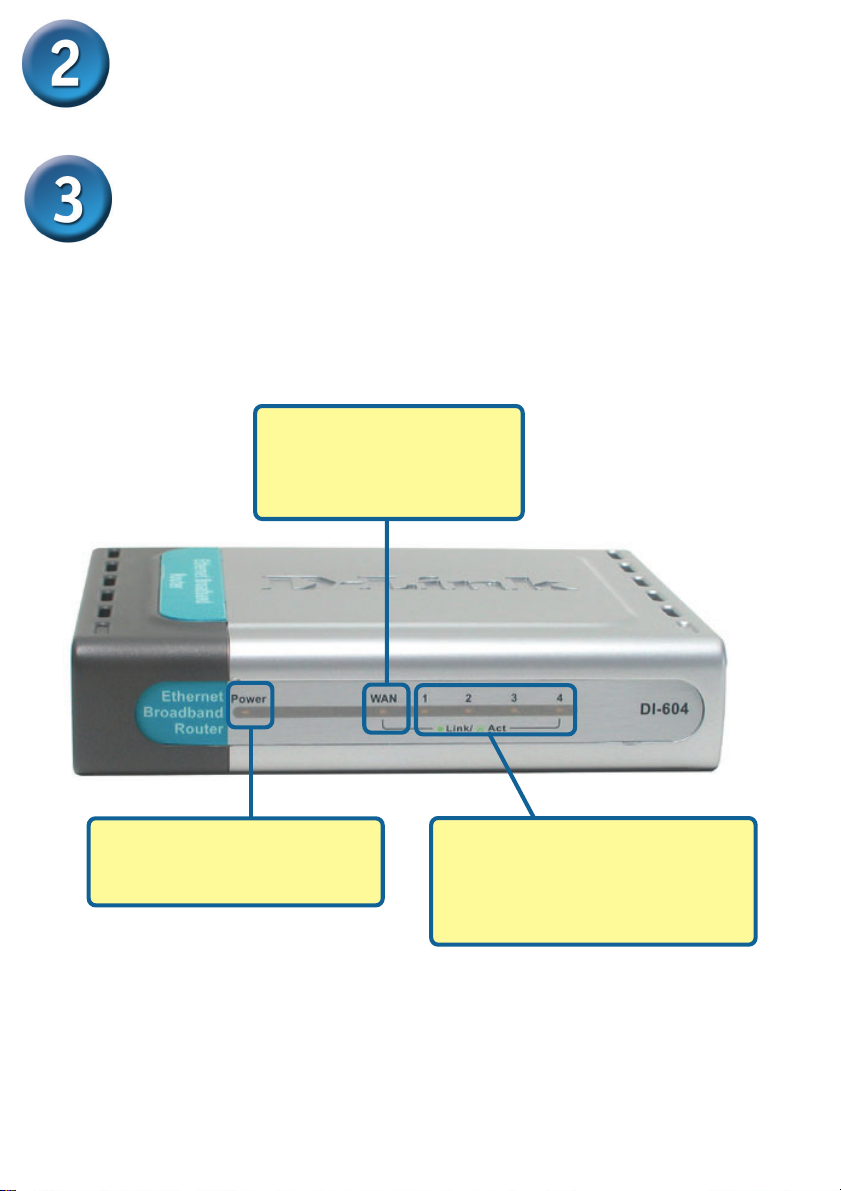

WAN LED – a solid light
indicates connection on the
WAN port. This LED blinks
during data transmission.
LOCAL NETWORK LEDs – a solid
light on the port indicates a
connection to an Ethernet enabled
computer on ports 1-4. This LED
blinks during data transmission.
POWER LED – a solid light
indicates a proper connection to
the power supply.

4

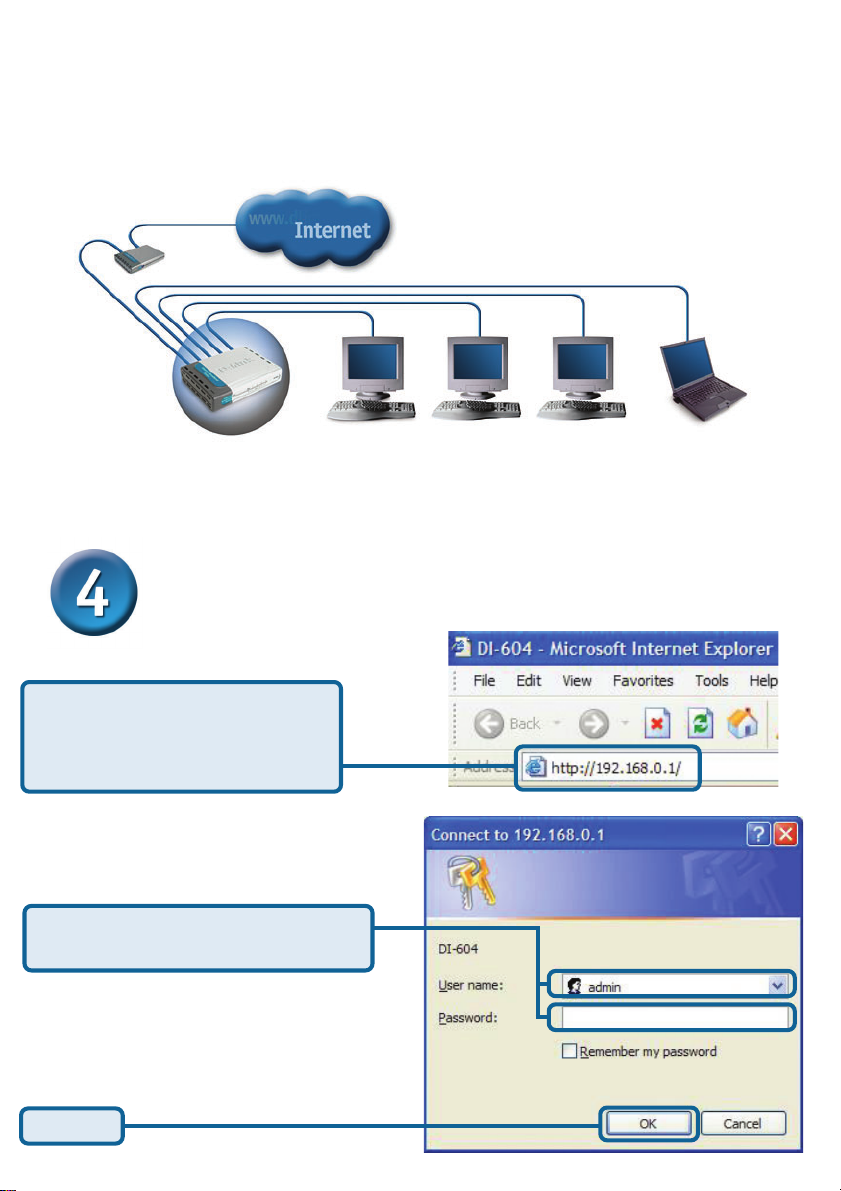

When you have completed the steps in this Quick Installation
Guide, your connected network should look similar to this:
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK

5

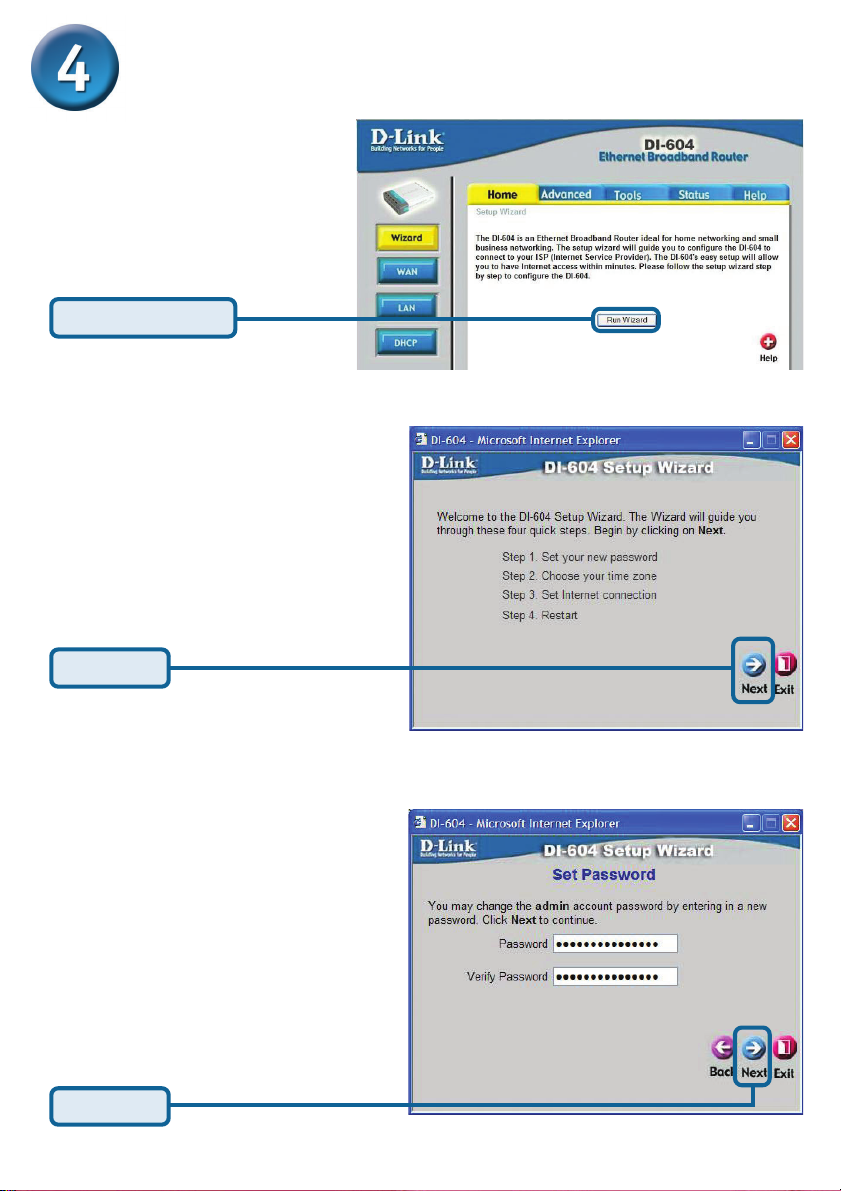

The Setup Wizard (continued)
Once you have logged in, the
Home screen will appear.
You will see the following screens
Set up your new password.You have
the option to establish a password.
Click Run Wizard
Click Next
Click Next

6

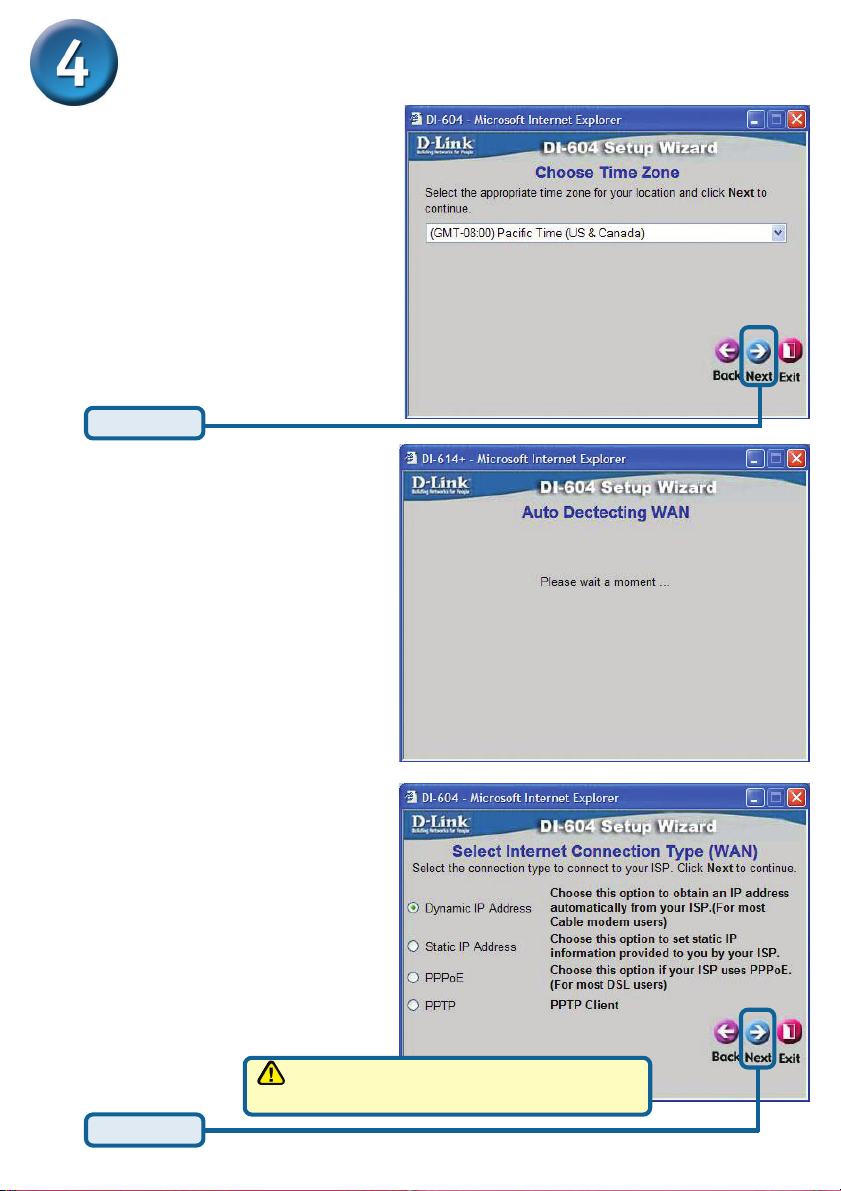

The Setup Wizard (continued)
Select your Internet Connection.
You will be prompted to select the
type of Internet connection for your
router.
Click Next
Choose your time zone from the
drop down list.
Click Next
If you are unsure of which setting to select,
please contact your Internet Service Provider.
A this point, the setup wizard will try
to auto-detect your Internet connection
type. If you have a Dynamic or
PPPoE connection, you will be
brought to the corresponding page.

7
The Setup Wizard (continued)
If your ISP requires a Static IP Address,
and this option is selected, then this
screen will appear:
Enter the IP address information originally
provided to you by your ISP. You will need
to complete all the required fields.
Click Next
If you selected Dynamic IP Address, this
screen will appear: (Used mainly for
Cable Internet service.)
Click the “Clone MAC Address”
button to automatically copy the
MAC address of the network
adapter in your computer. You can
also manually type in the MAC
address.
Click Next
If your ISP uses PPPoE (Point-to-Point
Protocol over Ethernet), and this option is
selected, then this screen will appear:
(Used mainly for DSL Internet service.)
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Enter in the username and password
provided to you by your ISP.
Click Next
This setup should be done on
the computer that is registered
on the ISP’s network.

8

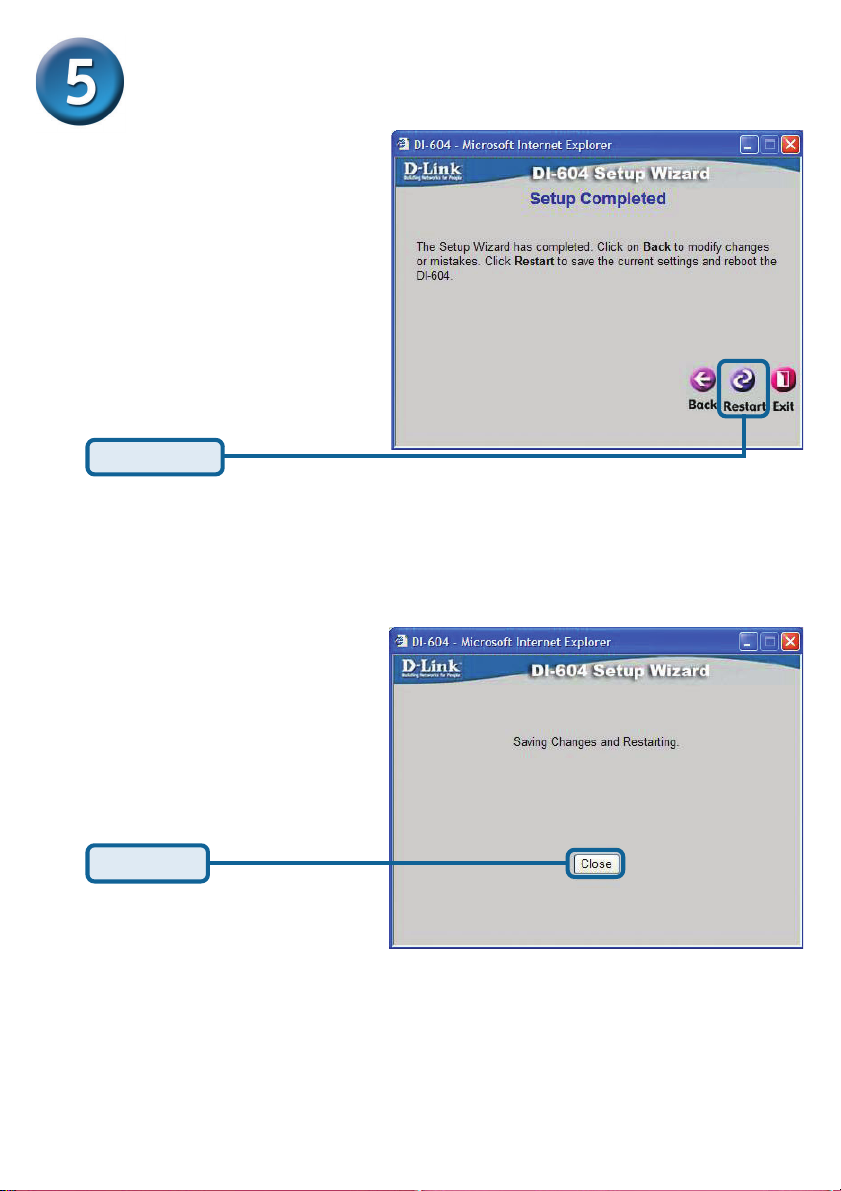

Your Setup is Complete!
Click Restart
Click Close

9

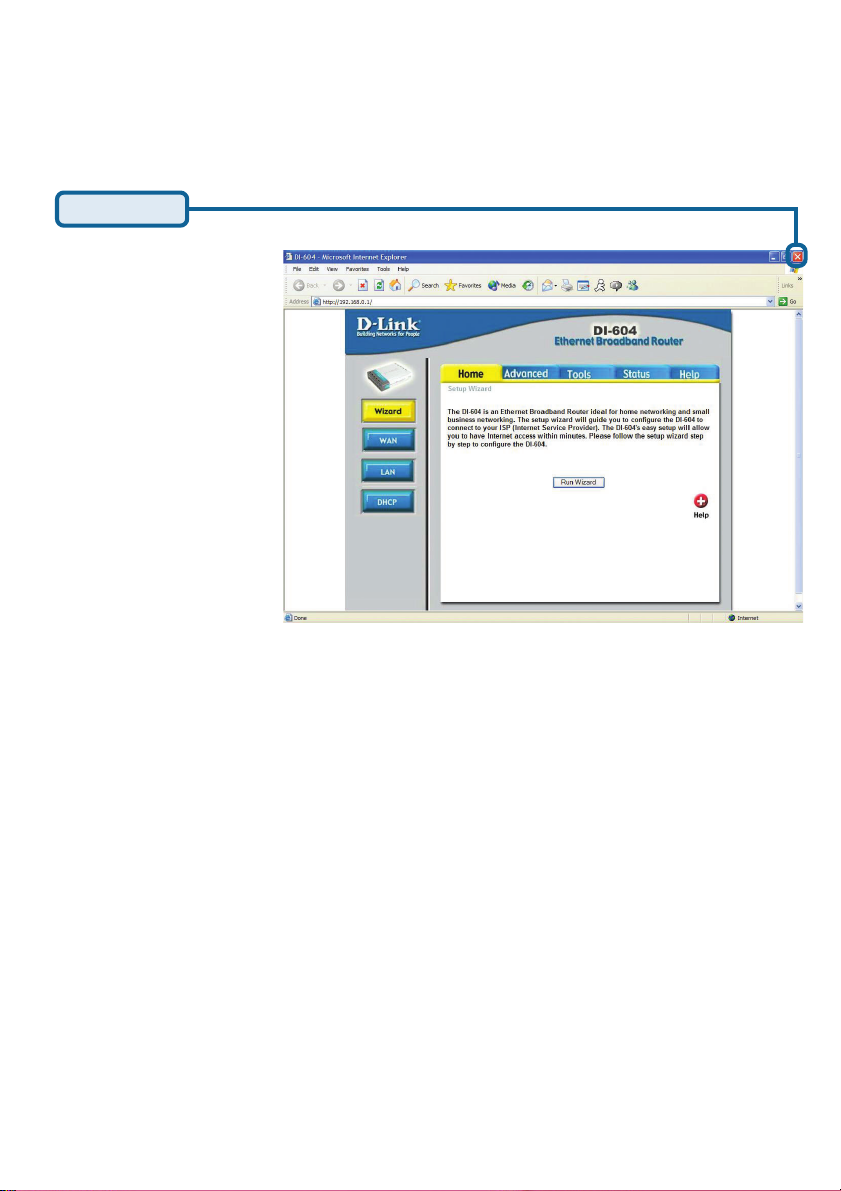

Test Internet Connection.
You will be returned to the Home tab.
Then relaunch your Web
browser (i.e., Internet
Explorer or Netscape
Navigator), to link to your
favorite Web site to test
your Internet connection.
Click to Exit
For additional settings or
information, refer to the
Advanced, Tools, or
Status tabs on the web-
management interface; or
to the Manual located on
the CD.

10
To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-604 Broadband Router.

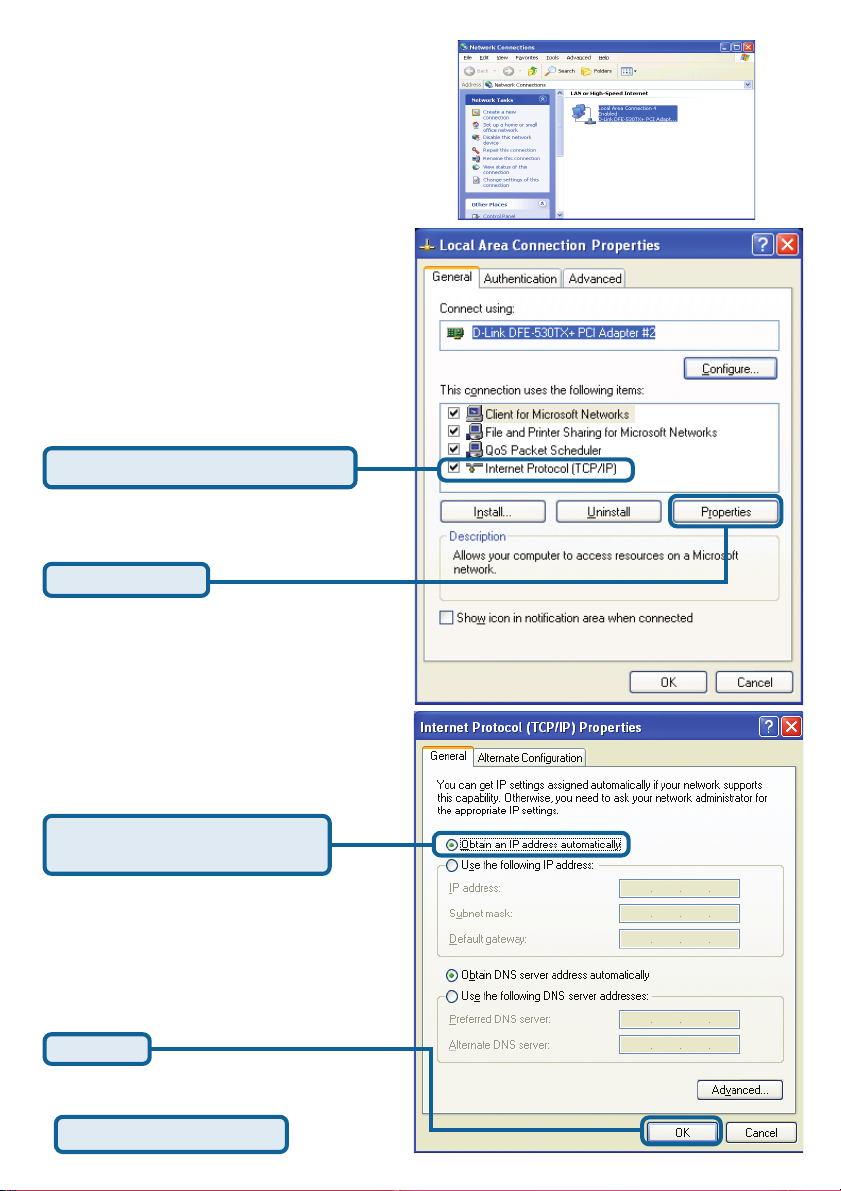

For Microsoft Windows XP: Go to Start
> right click on My Network Places >
select Properties > Right click on the
Network Connection associated with the
Ethernet adapter and select Properties
(i.e., D-Link DFE-530TX+).
APPENDIX (continued)
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically
Restart your computer
Click OK

11

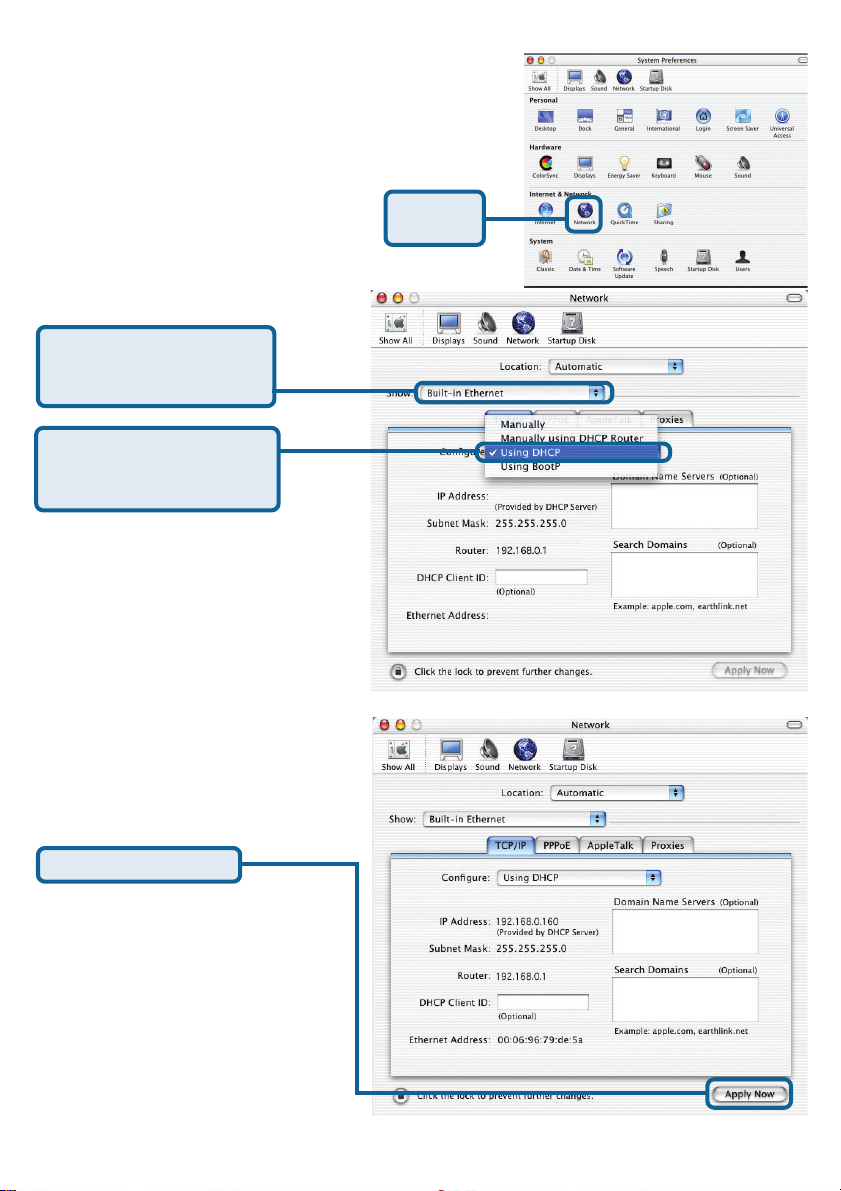

For Apple Macintosh OS X:
Go to the Apple Menu Click
on System Preferences and
Select Network
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear
Select Built-in Ethernet
in the show pull down
menu
Click on
Network
Click on Apply Now
Select Using DHCP in
the Configure pull down
menu

12
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
