DMC-1001
Redundant Power Supply
User’s Guide
Rev. 01 (JAN. 2002)
Printed In Taiwan
RECYCLABLE

2
INTRODUCTION
Thank you for choosing the DMC-1001 Redundant
Power Supply of Chassis-Based Media Converter.
When the chassis is equipped with two power supplies,
both power supplies are switched on and share the
current load. In case that one of them should fail, the
other will instantaneously take 100% of the load
without any loss. Similarly, if one power supply is
removed from servicing, it can be switched off and
removed while the chassis continues functioning.
Product Features
9Efficiency: The efficiency is higher than 70% by
measured at nominal line and rated load.
9Protection: Over voltage protection; short circuit
protection.
9Power sharing and redundancy.
9Fan failure Signal: The power supply will provide
a predictive fan failure signal that detects a failure
based on reduced fan RPM.

INSTALLATION
Step 1: Connect the supplied AC power cord to the back of the
chassis.
Step 2: Attach the plug into a standard AC outlet with a voltage
range from 100~240Vac.
Step 3: Turn on the chassis system by flipping the switch beside the
receptacle to ON position. The LED on the front panel of
power supply will come on then.
.Installing and Removing the Power Supply
zTo remove a power supply out the chassis, you have to loose
the hand screw counter clockwise and pull out the power
supply from the chassis.
zTo install a power supply to the chassis, you have to fasten
the hand screw clockwise and slide in the power supply to
the chassis.
Youcanslide inand outthepowersupplyfrom thebay,
fastenorloose thehand screwclockwise orcounter
clockwise byusing hand orscrewdriver.

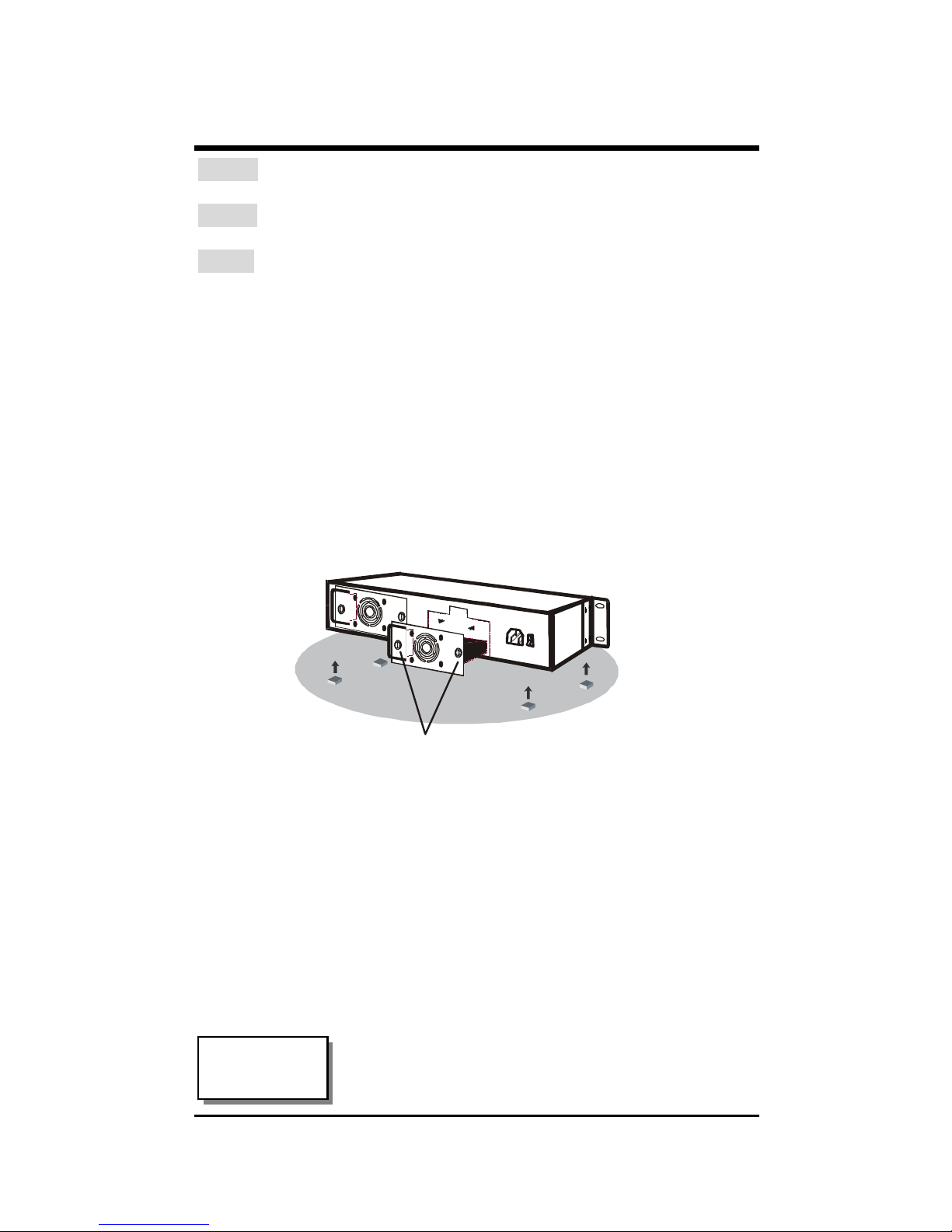

If the Chassis System needs to work alone, you can
stick up four Rubber foot below the chassis!
Attention!
3

4
SPECIFICATIONS
Power Supply
Input Voltage: 85VAC(60Hz)/264VAC(50Hz) label:
110V-240V
Output
Voltage: +12V
Power
Consumption 150 watts. (max.)
Dimension 185 x 160 x 85 mm
Temperature Operating: 0°~40°C,
Storage: -10°~50°C
Humidity Operating: 10% ~ 90%,
Storage: 5% ~ 90%
Overload
Protection
All outputs protected from short circuit
condition, automatic recovery
Emissions FCC Class A, CE Mark Class A,
VCCI Class A
Safty
Standard
UL 1950CSA
CSA 22.2 No.234
