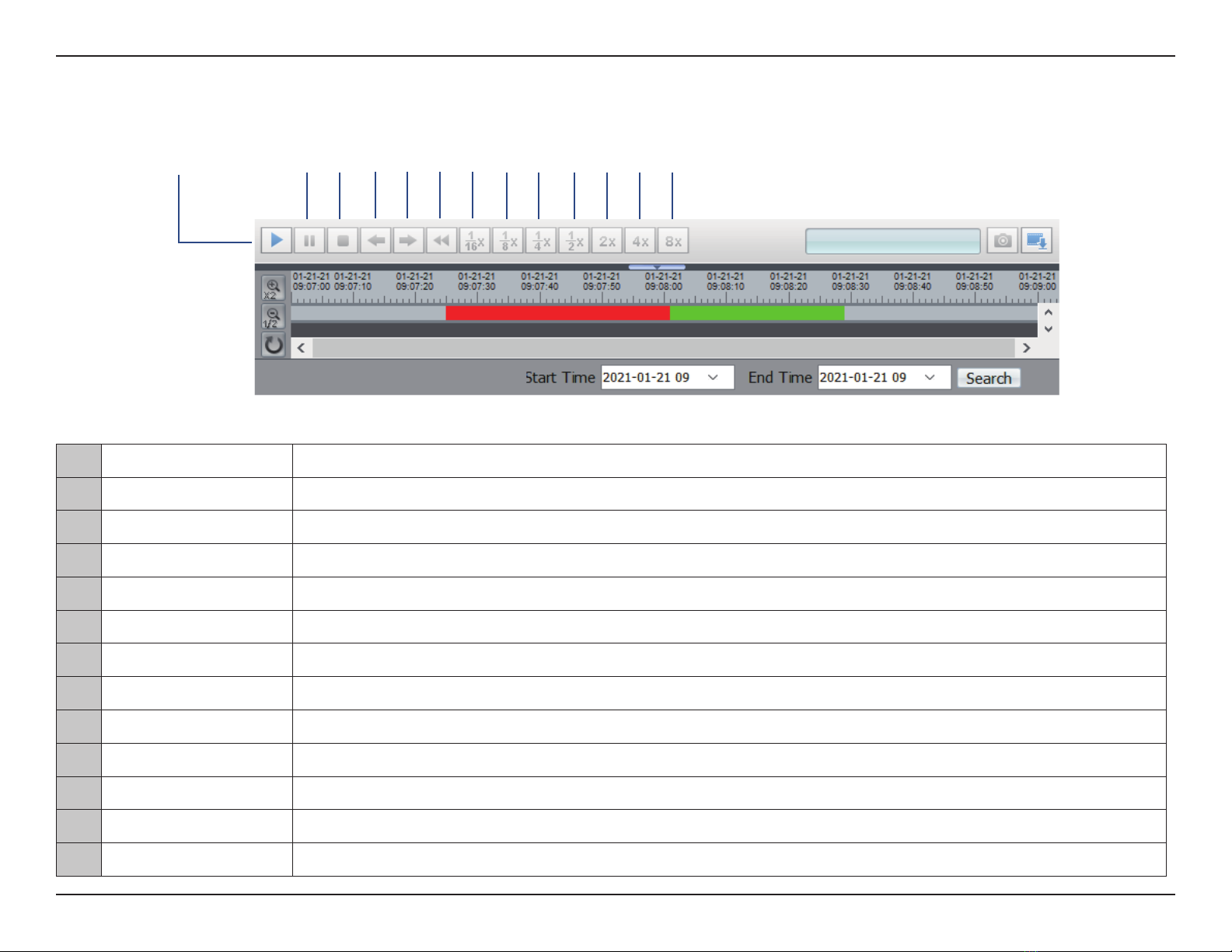

Live Video ..............................................................................17
Playback.................................................................................18
Controlling the Playback..............................................19
Setup Wizard ........................................................................21
Network Setup Wizard ..................................................22
Motion Detection Setup Wizard................................28
Settings ..................................................................................33
Network Settings ...........................................................33
Camera Settings..............................................................38
Advanced Setup..................................................................51
Advanced...........................................................................51
Camera Configuration...................................................58
Camera Options ..................................................................61
Camera Info.......................................................................61
Date and Time..................................................................62
Administration Settings ...............................................63
Camera Log.......................................................................65
Camera Log / Alarm .......................................................66
Technical Specifications - DCS-4712E ......................69
Technical Specifications - DCS-4714E ......................71
Technical Specifications - DCS-4718E ......................73
Regulatory Information............................................75

4D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Safety Notice: Installation and servicing should be done by certified technicians to conform with all local codes and prevent voiding
your warranty.
Vigilance H.265 Outdoor Bullet Camera
Mounting Kit
• Allen Key
• Alignment Sticker
Documentation
Cable Waterproofing Connector

5D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 1: Product Overview
Introduction
The Vigilance H.265 2/4/8 Megapixel Outdoor Bullet Camera is a professional surveillance and security solution for small, medium, and large
enterprises. It uses a full-HD progressive scan CMOS sensor to deliver low-noise video and low-light capability ideal for surveillance applications. It
offers a complete surveillance solution featuring a built-in IR cut filter and IR LEDs effective up to 30 meters with built-in smart IR function, avoiding
overexposure of near objects at night, allowing it to stream simultaneous real-time full-HD resolution video 24/7. In addition, the IP66 certified
weatherproof housing make this camera ideal for both indoor and outdoor applications.
To maximize bandwidth efficiency and improve image quality, it provides real-time video compression using H.265, H.264, and MJPEG codecs for
simultaneous video streaming and recording. It also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations,
especially with D-Link Surveillance Switches.
This camera can be accessed remotely, controlled, and configured from any computer over your local network or through the Internet via a web
browser. The simple installation and intuitive web-based interface offer easy configuration across the full range of its advanced feature set and
make it an ideal choice for a dependable and cost-effective surveillance solution with easy clutter-free installation.
• Computer running Microsoft Windows® 10
• Internet Explorer 11, Google Chrome or Firefox (MJPEG only)
System Requirements

6D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 1: Product Overview
H.265/H.64 Compression
This camera supports the H.265 and H.264 compression algorithms to bring out the best combination of performance, quality, bandwidth, and
storage space.
Better Night Vision
Supports night vision technology from Sony which optimizes the display for increased image quality in low-light environments.
microSD Card
The camera comes equipped with an optional microSD card slot for local storage. Recordings can be saved to the microSD card.
IR LEDs for Day and Night Functionality
The built-in infrared LEDs enable night time viewing of up to 30 meters. With built-in smart IR function, it can avoid overexposure of near objects
at night.
IP66 Weatherproof and Vandal-Proof Housing
This camera uses IP66 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide round-the-
clock surveillance.
PoE (Power over Ethernet) for Flexible Installation
Your camera can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation. You can also power it with
an optional 12 V / 1.5 A power adapter.
Remote Monitoring Utility
The D-Link D-ViewCam™ application adds enhanced features and functionality for the camera and allows administrators to configure and access
the camera from a separate site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to
64 cameras on one screen, and taking snapshots.
Features

7D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 1: Product Overview

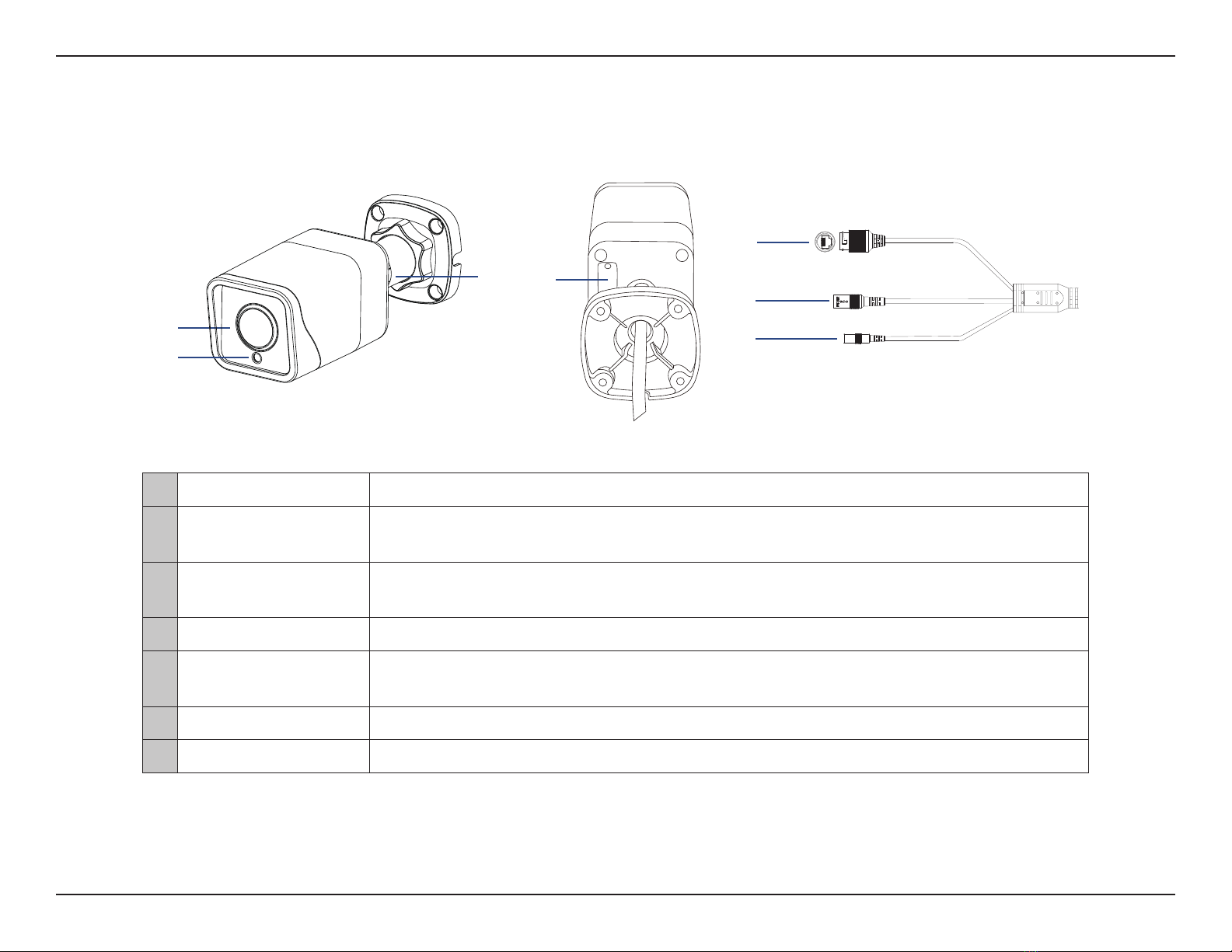

Hardware Overview (DCS-4712E/DCS-4714E)
1 Camera Lens Fixed camera lens.
2 Light Sensor The IR-Cut removable sensor monitors lighting conditions and switches between color and
infrared accordingly.
3 Adjustment Mount Loosen the screw with the included Allen key to adjust the camera angle. Tighten it to lock
the camera angle.
4 microSD Slot Slot for a microSD card.
5 Ethernet Jack RJ-45 connector for Ethernet. Can also be used to power the camera using Power over
Ethernet (PoE).
6 Power Connector Connects to an optional 12 V / 1.5 A power adapter (not included).
7 Reset Button Press and hold for more than five seconds, then release to perform a factory reset.
1
2
3 4
5
6
7

8D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 1: Product Overview

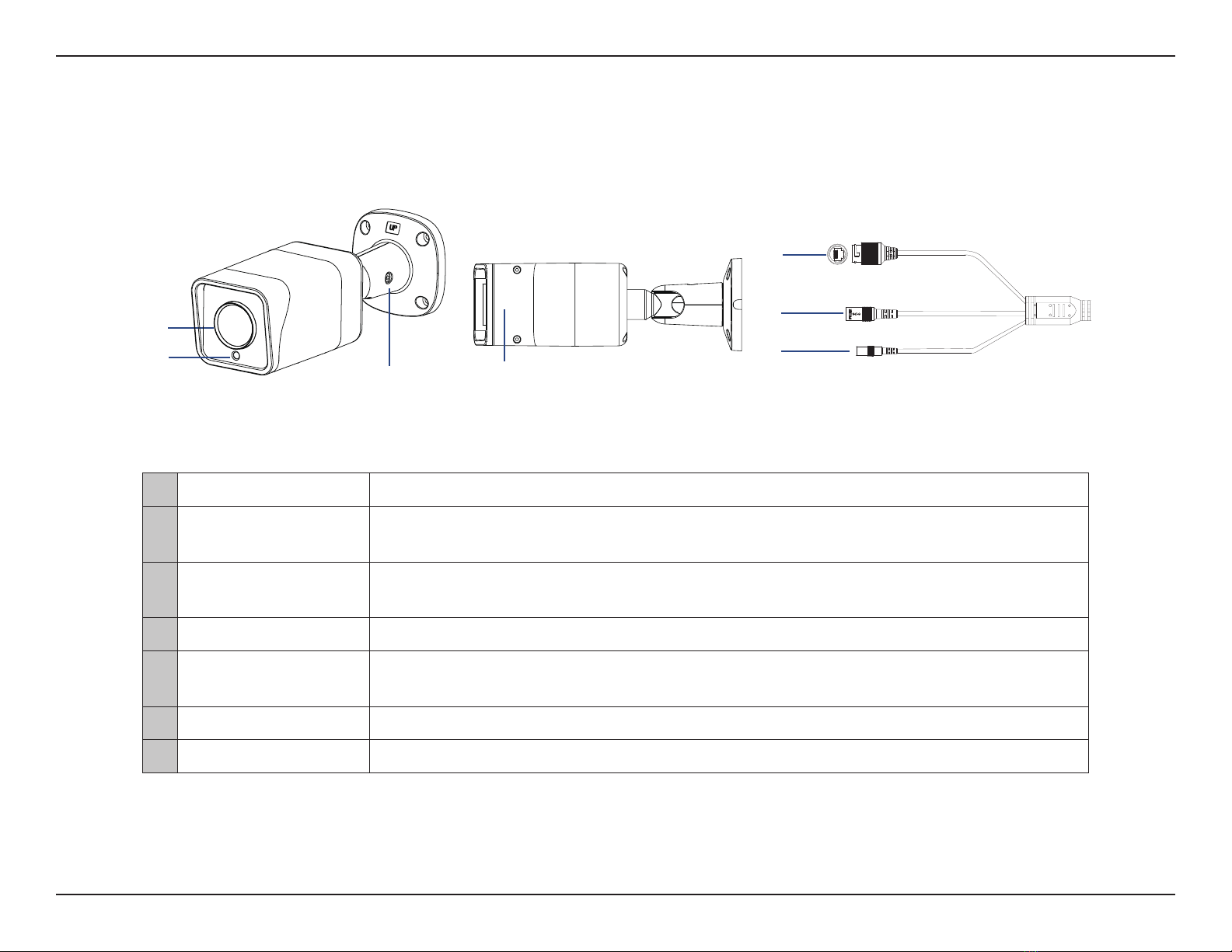

Hardware Overview (DCS-4718E)
1 Camera Lens Motorized vari-focal lens.
2 Light Sensor The IR-Cut removable sensor monitors lighting conditions and switches between color and
infrared accordingly.
3 Adjustment Mount Loosen the screw with the included Allen key to adjust the camera angle. Tighten it to lock
the camera angle.
4 microSD Slot Slot for a microSD card.
5 Ethernet Jack RJ-45 connector for Ethernet. Can also be used to power the camera using Power over
Ethernet (PoE).
6 Power Connector Connects to an optional 12 V / 1.5 A power adapter (not included).
7 Reset Button Press and hold for more than five seconds, then release to perform a factory reset.
1
2
34
5
6
7

9D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 2: Installation
Installation
Mounting the Camera
It is highly recommended that you configure and test your camera before mounting it. Refer to "Inserting the microSD Card" on page 14 and
"Software Installation" on page 15 for more information.

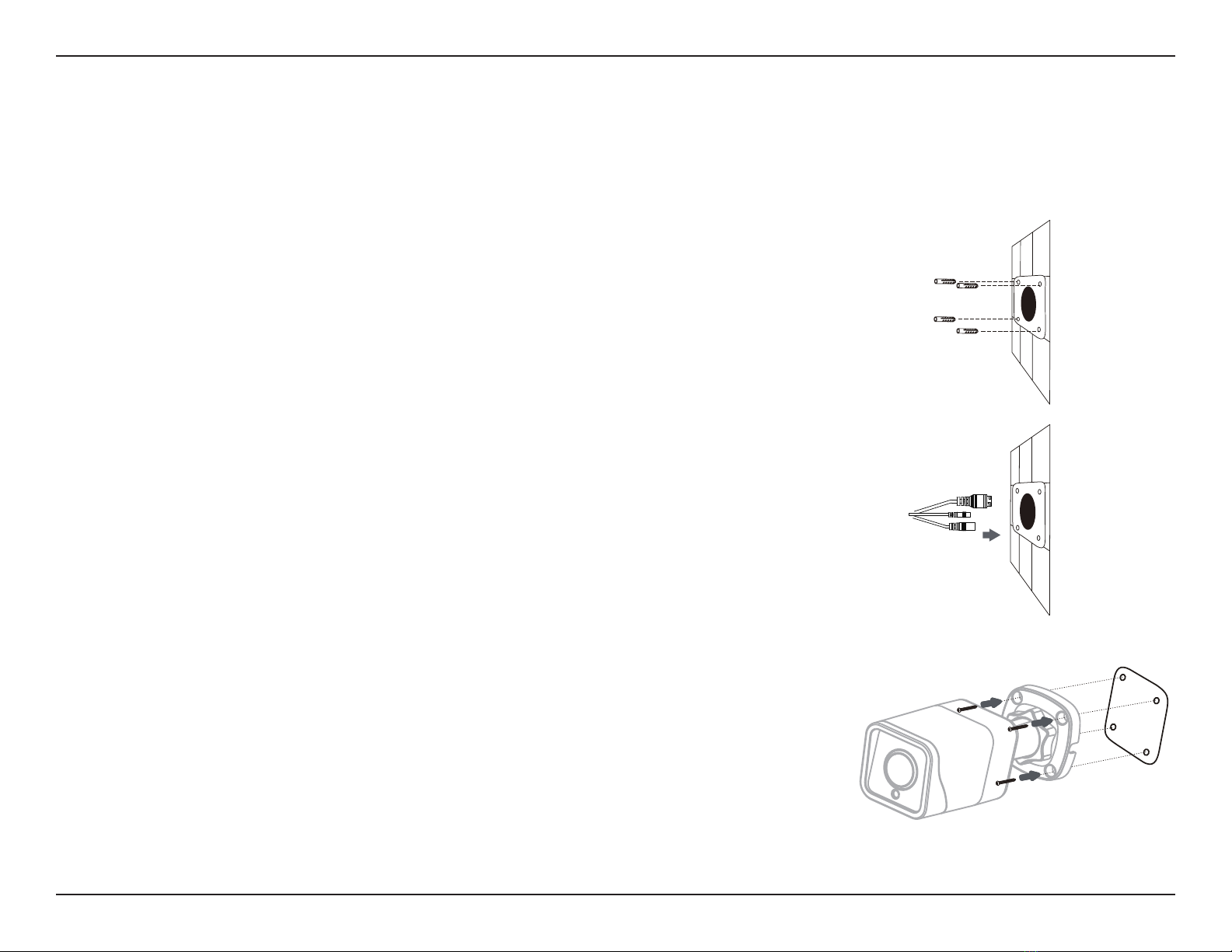

Step 1
Place the mounting sticker where you want to position the camera.
Use a 4 mm drill bit to make the required holes approximately 30 mm deep, then insert the
wall anchors into the holes.
Step 2
If you are running the camera cables out the side of the camera, guide the camera cables
through the cable channel on the base.
Step 3
Use the screws provided to mount the camera to the wall.

10D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 2: Installation
Step 5
To adjust the camera’s monitoring direction, use the Allen key to turn the adjustment screw
counterclockwise to loosen it, then move the camera to the desired position and angle.When
you are finished, turn the adjustment screw clockwise to tighten it.
Step 4
Connect the power and Ethernet cables, or just the Ethernet cable if you are using a PoE
connection.

11D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 2: Installation
Waterproofing Your Installation
Step 1

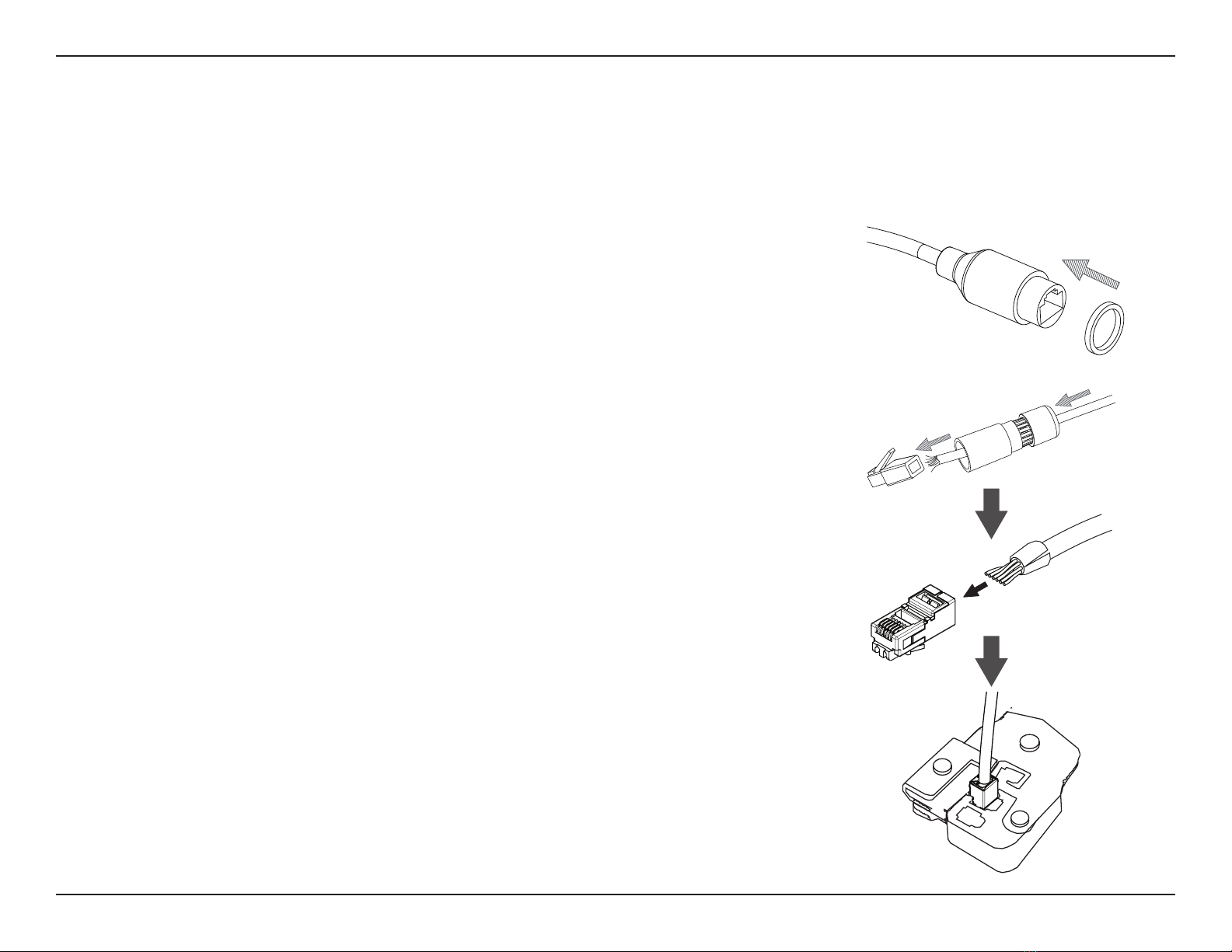

Place the washer around the base of the Ethernet connector as shown.
To waterproof your camera, follow the instructions below. A round Ethernet cable, a crimping tool, and RJ-45 plugs are required for this procedure.
Step 2
Thread the bare Ethernet cable through the waterproof connector as shown, then crimp an
RJ-45 plug onto the cable.

12D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 2: Installation

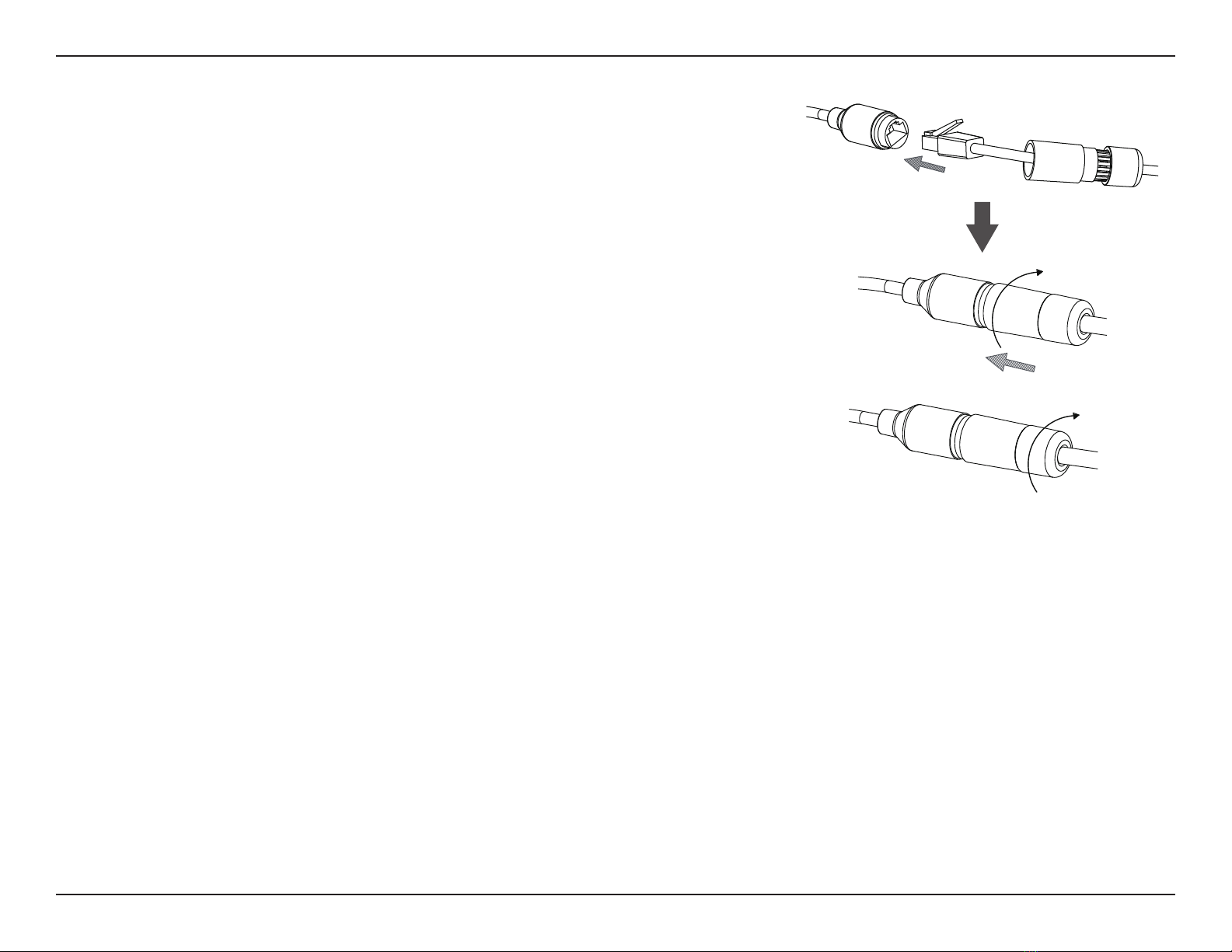

Step 4
Screw the back part of the waterproof connector clockwise until there is a tight seal around
the Ethernet cable.
Step 3
Connect the RJ-45 plug into the Ethernet connector, then screw the waterproof connector to
the Ethernet connector by turning it about a half-turn clockwise.

13D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 2: Installation

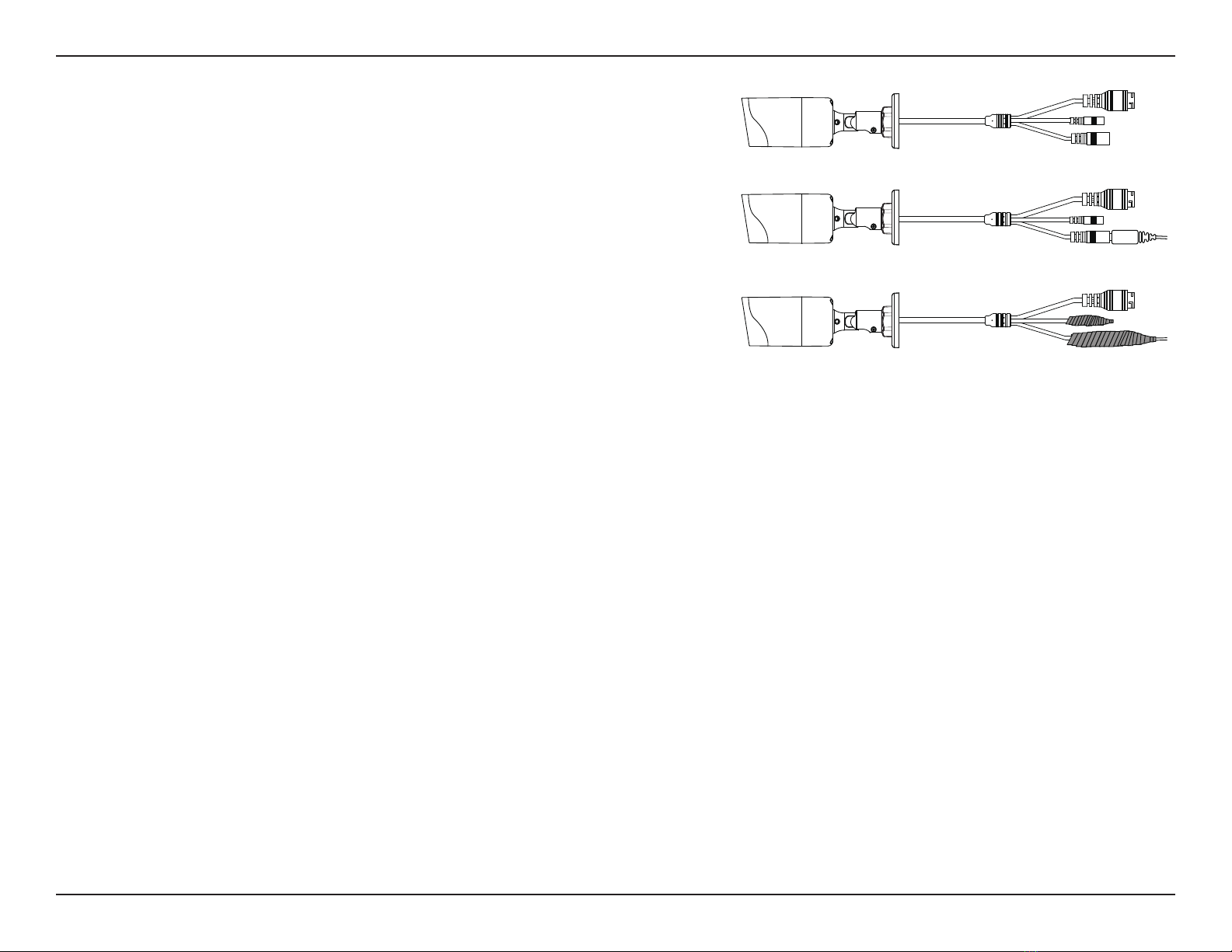

Step 5
The power connector and reset button cables are not waterproof. It is recommended
to use waterproof tape to protect them. Wind the tape around each cable in an
overlapping manner to cover them.

14D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 2: Installation
Inserting the MicroSD Card

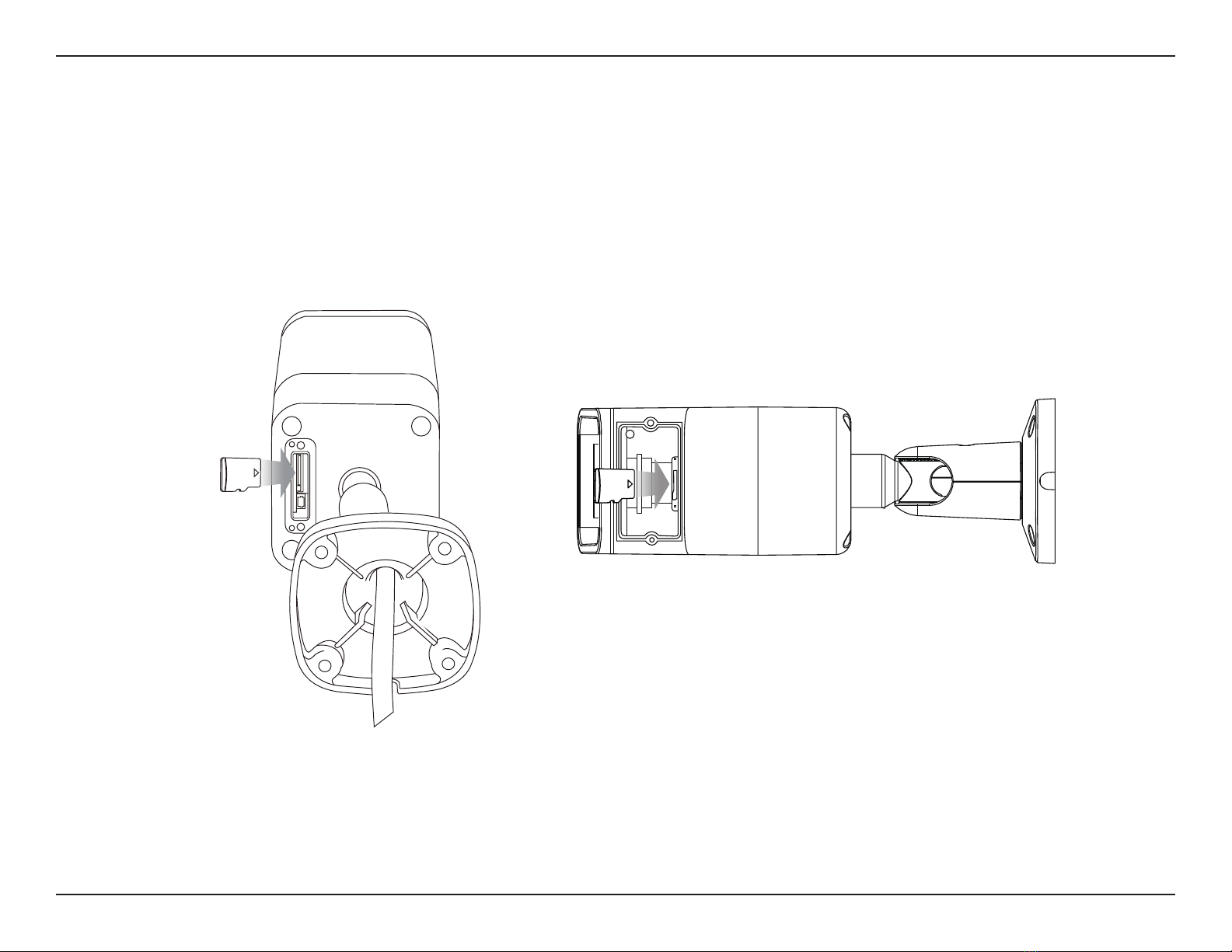

You can insert an (optional) microSD card to store recordings. To insert the microSD card, first remove the screws from the small panel on the back
of the camera (for the DCS-4712E/DCS-4714E) or the bottom of the camera (for the DCS-4718E). Open the panel, insert a microSD card into the slot,
and replace the panel and the screws.
DCS-4712E/DCS-4714E
DCS-4718E

15D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 3: Configuration
Configuration
Installing the Setup Wizard
1. Using a web browser, navigate to dlink.com/support/ and select your region.
2. On the next screen, enter the model number of your camera in the search bar and click Search. Click the picture of your camera. On the product
page, click the Download button next to Setup Wizard.
3. Once the executable file has finished downloading, click it and follow the instructions to install the Setup Wizard.

16D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 3: Configuration
1. Ensure that your camera is plugged in (either using a 12V 1.5 A power adapter or a PoE-
enabled device) and connected to your computer with an Ethernet cable.
2. Open the Setup Wizard. It will display the MAC address and IP address of your camera.
If you have a DHCP server on your network, this will be a dynamic IP address. If your
network does not use a DHCP server, the network camera's default static IP 192.168.0.20
will be displayed. Select your camera, then click the Link button to continue.
3. If this is your first time logging in, you will be prompted to create a password, which
must be between 8 and 30 characters and must contain both letters and numbers.
Press Saves.
4. To view the camera display and configure the camera, on the main screen of the Setup
Wizard, click the Search button, then select your camera and click the Link button to
open the Web UI. Alternatively, open a web browser and type the camera's IP address
(displayed in step 2) into the URL bar and press Enter.
5. Enter the password you created, and click Login to continue.
Accessing the Admin Interface

17D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 3: Configuration

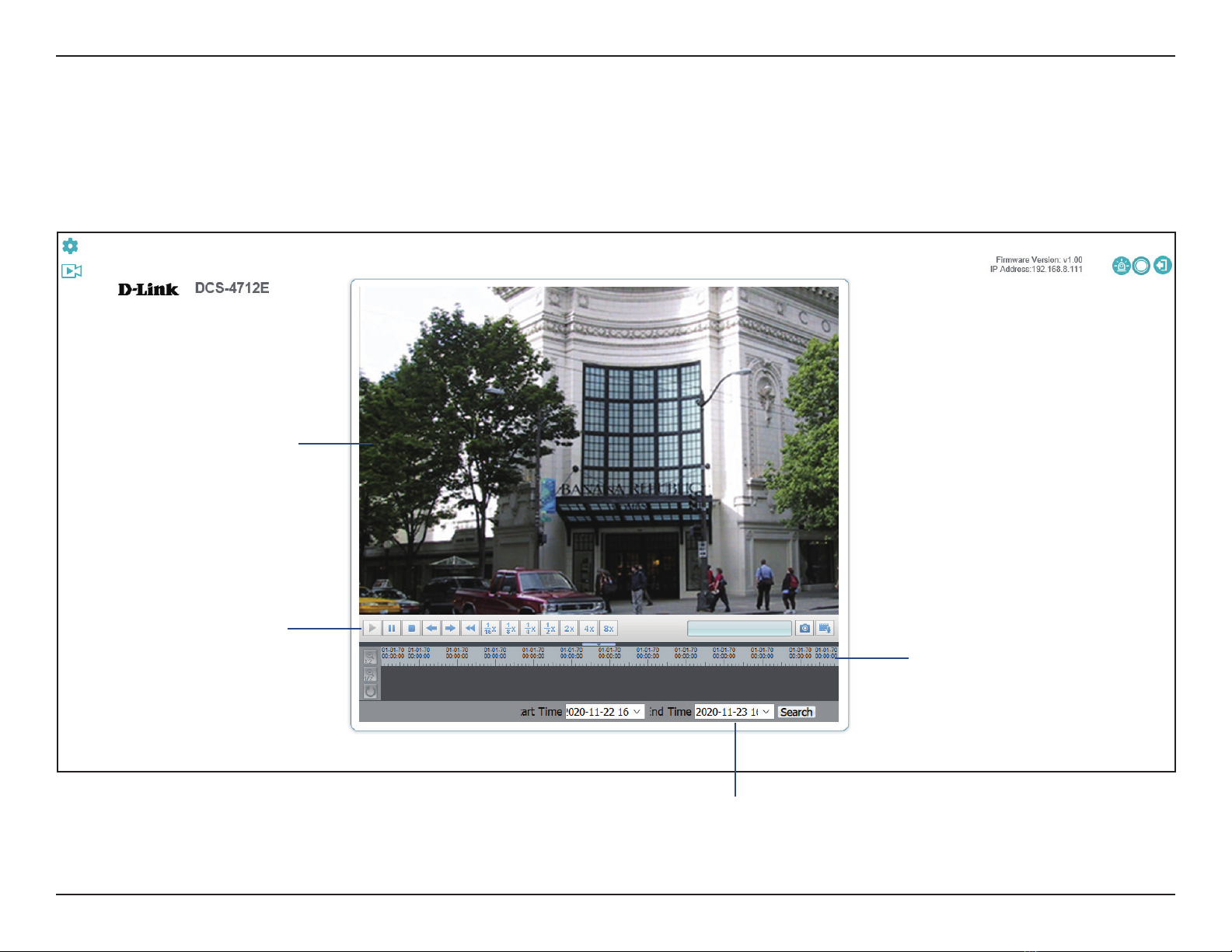

On the Home screen, you can view the camera display and use the icons at the top of the
screen to navigate to different pages of the web UI. The icons are:
Live Video
Setup: Clicking this will take you to the camera configuration
pages.
Playback: Click this to view saved recordings.
Video Stream: Select a video profile to use. For more on setting
up video profiles, refer to Video Stream on page 45.
Snapshot: This will save a snapshot to your PC using the storage
folder you have selected.
Record: This will start recording a video clip to a selected folder
on your computer.
Select a Folder: Select a storage folder to save snapshots and
video clips to.
Alarm: This will flash red when motion is detected.
RecordingStatus:Thiswill turn red when the camera is recording.
Logout: Click this to log out of the web interface.

18D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 3: Configuration
Playback
On this page you can view recorded video stored on your camera's microSD card. Use the buttons below the image to control the playback, and
use the bar below the buttons to select which period of time you would like to view recordings from.
Displays the
video playback
Controls the
playback Display the date
and time by
adjusting the start/
end time settings.
Use this to select
the date and
time to play the
recording from

19D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 3: Configuration
1 2 3 4567
1Play Play the recording from the selected location.
2 Pause Pause the playback.
3Stop Stop the playback.
4 Frame back Step back a frame
5 Frame play Step forward a frame
6 Go back Play in reverse
7 1/16x speed Play at 1/16x speed.
8 1/8x speed Play at 1/8x speed.
9 1/4x speed Play at 1/4x speed.
10 1/2x speed Play at 1/2x speed.
11 2x speed Play at 2x speed.
12 4x speed Play at 4x speed.
13 8x speed Play at 8x speed.
Controlling the Playback
8 9 10 11 12 13

20D-Link Vigilance H.265 Outdoor Bullet Camera User Manual
Section 3: Configuration
14 Current Time Displays the current playback time.
15 Snapshot Take a snapshot of the current frame.
16 Backup Display the backup file.To back up the video, click the right mouse button and select the desired date/time range
to back up.
17 Zoom In Narrow the range of dates being displayed.
18 Zoom Out Widen the range of dates being displayed.
19 Default Reset the zoom settings to the default view.
20 Select Date and Time Click this bar to start the playback from a particular date and time.
21 Video File Indicator A red bar indicates recording triggered by a motion alarm, a green bar indicates scheduled recording.
22 Select Time Select a range of dates and times to view in the bar above.
15 16
20
22
14
17
18
19
21
