Introduction
Features and Benefits
InstantDiscoveryoftheDSM-602H/604H on UPnP or Rendezvous-Enabled
NetworkedComputers

InstantNetworkStorageandFileSharing


Fast10/100Base-TXEthernetPerformance
TM
Versatile, Stackable, Compact size
NoConfigurationRequired

OptionalConfiguration via WebbrowserforAdvanced Features
The D-Link MediaLoungeTM 10/100Base-TX Fast Ethernet Digital Media Storage is a
20Gigabyte (DSM-602H)ora40 Gigabyte(DSM-604H)portable HDD(HardDiskDrive)
devicethatconnectstoahub,switch,orrouteronalocalareanetwork(LAN) thatincludes
aDHCPserver.
The DSM-600 series Digital Media Storage provides a fast and easy way to add high
performancestorage capacitytohome, smallbusinessor schoolnetworks.These Digital
MediaStoragedevicesareideal for sharing archived digitalphotosoffamilyandfriends,
digitalvideos,music, games, important documents or other files among computersand
otherdeviceson your network.
Thesearetrue Universal Plug and Play products,providinghighdatatransferrates over
a Fast Ethernet connection and are compatible with Windows, Mac OS X and Linux-
based computers. For supported Windows operating systems, the UPnP protocol
allowsforinstantaneousdiscoverywithnoconfigurationrequired.
With Mac OS X, the DSM-602H/604H uses Apple’s Rendezvous for instant detection
withnoconfiguration.
Foradded convenience,thesedigital mediastoragedevices arealsohot-swappable and
their Fast Ethernet ports are Auto MDI/MDI-X, meaning that you can use any type of
standard Ethernet cable — either straight-through or crossover cable to connect the
DSM-602H/604Htoyournetwork.
WiththeDSM-602H&604HconnectedtoyourDHCP-capablerouter—allthecomputers
in your LAN will have instant access to extra data storage and file sharing!
TM
Up to 250 CDs ofAudio

Upto20,000JPEGImages
Upto20/40G of storage space


4
D-Link MediaLounge DSM-602H/604H
DigitalMedia Storage
Manual and Warranty on CD
PrintedQuickInstallationGuide
Vertical Stands (2 pcs.)
Stackable Stands (4 pcs.)
5V DC PowerAdapter
Ethernet CAT5 Cable
Package Contents
If any of the above items are missing, please contact your reseller.
Minimum System Requirements:



Windows XP/2000/Me/98SE, Mac OS X, Linux

A DHCP server in the network





Internet Explorer 5.0 or above;Apple Safari; Linux
Nautilus or Netscape 6.2.x or above

TM

5
Auto MDI/MDI-X LAN Port
This port allows you to connect
the DSM-602H/604H to your
Ethernet network.
Connector for
PowerAdapter.
Reset Button
Pressing this button restores
the DSM-602H/604H to its
original factory default settings.
Power
Indicates when the
DSM-602H/604H is
powered ON.
HDD
Indicates when
there is activity on
the hard disk drive.
LAN
Displays activity
on the Local Area
Network.
Status
Status light blinks
steadily to indicate
that it is functioning
normally.
Hardware Overview
Front Panel
Rear Panel

6
Getting Started
BelowisasamplenetworkusingtheDSM-602H/604H.
BEFORE YOU BEGIN...
It is required that you have a DHCP server assigning IP addresses for
initialconfiguration.
oror
oror
or
DSM-604H
40GB Digital Media Storage40GB Digital Media Storage
40GB Digital Media Storage40GB Digital Media Storage
40GB Digital Media Storage
20GB Digital Media Storage20GB Digital Media Storage
20GB Digital Media Storage20GB Digital Media Storage
20GB Digital Media Storage

7

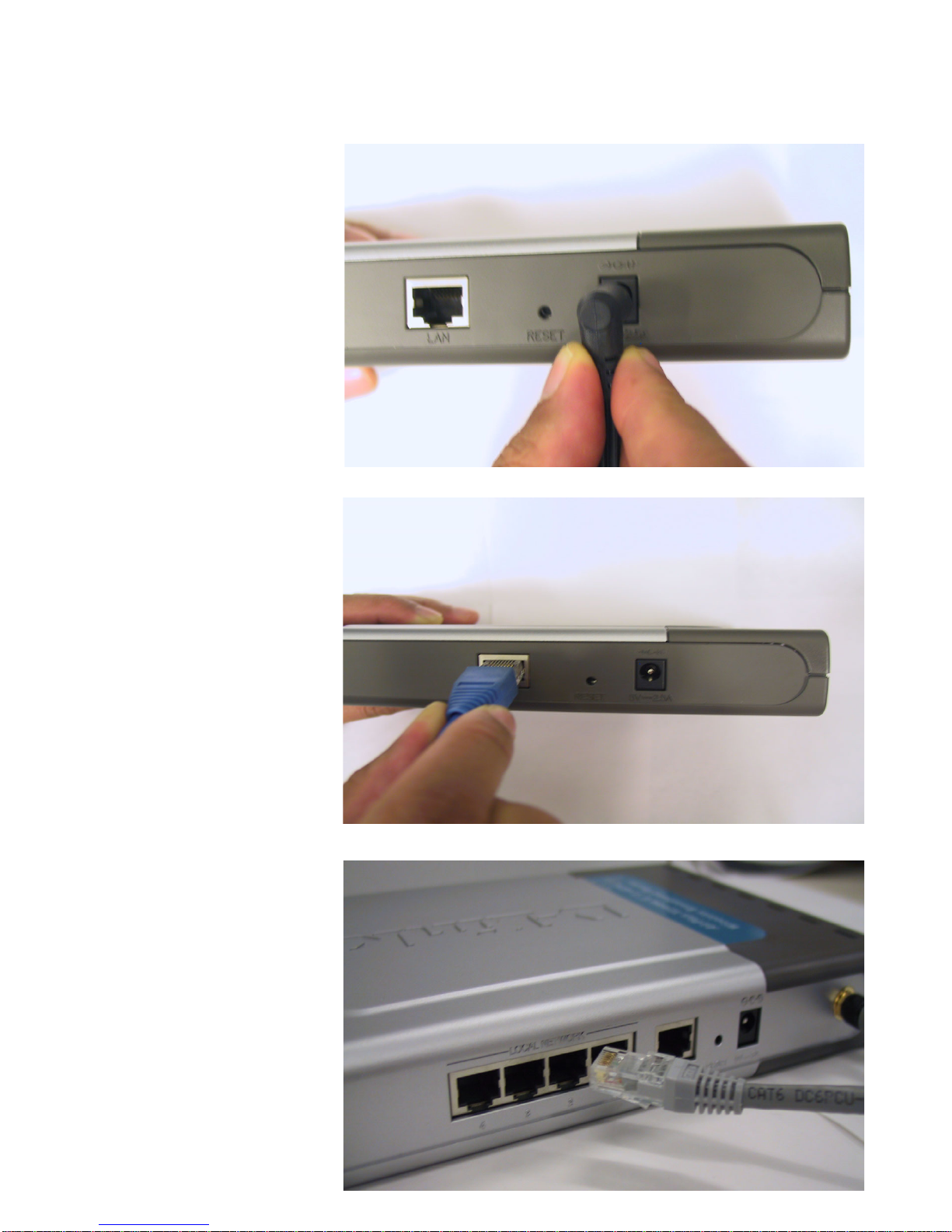

Connectthepower
adapterto the connector
on the back panel of the
DSM-602H/604H.Then
plug the other end of the
poweradapter into a wall
outletor power strip. The
Power LED will be ON to
indicateproper
operation.
Connect an Ethernet
cableto the Ethernet jack
locatedon thebackofthe
DSM-602H/604H.
After the Ethernet cable
is securely connected,
connect the other end of
theEthernetcabletoyour
networkrouter or switch.
Hardware Installation
1
2
3

8
Double Click My Network
Places on the Windows
Desktop.
We recommend that Windows XP or Me users activate UPnP for ease of
use.To learn how to activate UPnP, please refer to page 14.
Accessing the DSM-602H/604H
in Windows XP/Me
Onceconnected, the DSM-
602H/604Hwillappearonthe
My Network Places screen
as UPnP E-Storage if UPnP
is activated in your Windows
XP/Me. Double-click this icon
to access the drive.
Your setup in Windows XP or Me is now complete!
TM
TM
TM

9
Double-clickMy
Computer on the
WindowsDesktop.
Accessing the DSM-602H/604H
in Windows 2000/98
Under Tools,select
Map Network Drive.
Select the drive name
to which you wish to
mapyour DSM-602H/
604H.
Select Browse to
connect to your
DSM-602H/604H
fromthenetwork.

10
Accessing the DSM-602H/604H in
Windows 2000/98 (continued)
Select your DSM-
602H/604Hshare
folder.
Click OK.
ClickFinish.
You will see your
DSM-602H/604H
mappedasone of
yourhard drives
within the My
Computer screen.
Your setup in Windows 2000/98 is now complete!

11
Click Safari
UndertheBookmarks
menu select Show
AllBookmarks
SelectRendezvous
fromtheleftwindow
pane.
Intherightwindow
panehighlightDSM-
602H/604H.
Accessing the DSM-602H/604H
in Mac OS X

12
Accessing the DSM-602H/604H in Mac OS X
(continued)
Select Connect to Server.
OnceSafariloads,the DSM-602H/
604Hwillautomaticallybefound.
Oncefound,highlighttheDSM-
602H/604Hintheleftpanewindow.
ClickConnect
Under Finder select the Go menu.

13
Accessing the DSM-602H/604H in Mac OS X
(continued)
Click OK
Bydefault there is no password.
TheDSM-602H/604Hwillappearonyour
desktop. Double-click on the shared
drive to access your Digital Media
Storage!
Your setup in Mac OS X is now complete!
ClickOK

14
Click Details
Enabling UPnP
To enable UPnP, go to the Start
menu,selectSettings andlaunch
Control Panel.InsideoftheControl
Panel, select Add or Remove
Programs.The screen ontheright
willappear.
On the left hand side, click Add/
Remove Windows Components.
Pleasenote that UPnP isonlyavailable in WindowsXPand Me.
Itis highlyrecommendedthat youenableUPnP foreaseofuse,
although it is not required.
TheNetworking Services screenal-
lowsyou toaddor removenetworking
componentsinWindows.
TheWindows Components Wizard
screenwillappear,allowingyoutoadd
orremove Windowscomponents.
HighlightNetworking Services.
ClickOK
Select Universal Plug and Play
TM
TM
TM
TM

15
Enabling UPnP (continued)
Click Next.
Double-click on My Network
Places onyour desktop.
UPnP is now enabled!
Click Finish.
Your DSM-602H/604H network
hard drive appears as UPnP E-
Storage.
TM
TM

16
The DSM-602H/604H is a true plug and play device.You do not need to configure the
deviceif you plan to useit inanetworkwith a DHCPswitch/router. Right out of thebox,
the DSM-602H/604H will be accessible to network computers with UPnP compatible
operatingsystems in a DHCP-enabled network.
However,if you wish to usethe advancedconfiguration featuresthatincludeassigning
folderand access rights; or ifyou wanttouse the DSM-602H/604H attached directlyto
one computer, and not in a DHCP network, you will need to configure it.
To use the DSM-602H/604H outside of a networkandlinked to only one computer, first
you must connect it to a DHCP-enabled network. Once the DHCP switch or router
assigns an IP address to the DSM-602H/604H, you can then enter the Web-based
configuration utility and change the IP address of the DSM-602H/604H to a static IP
addressthat is within therangeofyour computer’s IP address.Onceyouhave assigned
the static IP address, you can then disconnect the DSM-602H/604H from the network
and connect it directly to the Ethernet port on your computer. You can then use the
DSM-602H/604Hasanextraportable hard drive for your computer.
Using the Configuration Utility
TM
TolookuptheIPaddressofyourDSM-602H/604H,youmaysimplyaccessyourDHCP
switchorrouter’s DHCPclienttable.Or, ifyouare connectedthroughUPnP in Windows
XP/Me, you may do so by right-clicking on the UPnP E-Storage icon and selecting
Properties.The screen below willappear withthecorrect IP address ofyour device.
The IP address of your
DSM-602H/604His
locatedhere.
TM
TM

17
To use the Configuration Utility, please do the following:

Startyour Web browserprogram..
Type the IP address of the DSM-602H/604H in the address field and press
Enter (your IP address may be different than the one illustrated here). Make
sure that the IP addresses of the DSM-602H/604H and your computer are in
the same subnet.
*Althoughyourdevicemayhaveadifferentproductnumberthantheoneonthesescreens,
these images apply to all of the DSM-600 series of products, including the DSM-602H
andDSM-604H.
Using the Configuration Utility* (continued)
Enter the user name: admin.Leave
the password field blank.You can set
oneinthe Web-based configuration, if
you wish.
Click OK.
Onceyou have logged in,the
Home screenwill appear.
Thescreen belowwillappear.

TheDSM-604Hisaportableexternalharddriveidealforadditionalstoragecapacityover
thenetwork.Please click belowonthe“Run Wizard” button andfollowthe setup wizard
toconfigure the DSM-604H.

18
Using the Configuration Utility (continued)

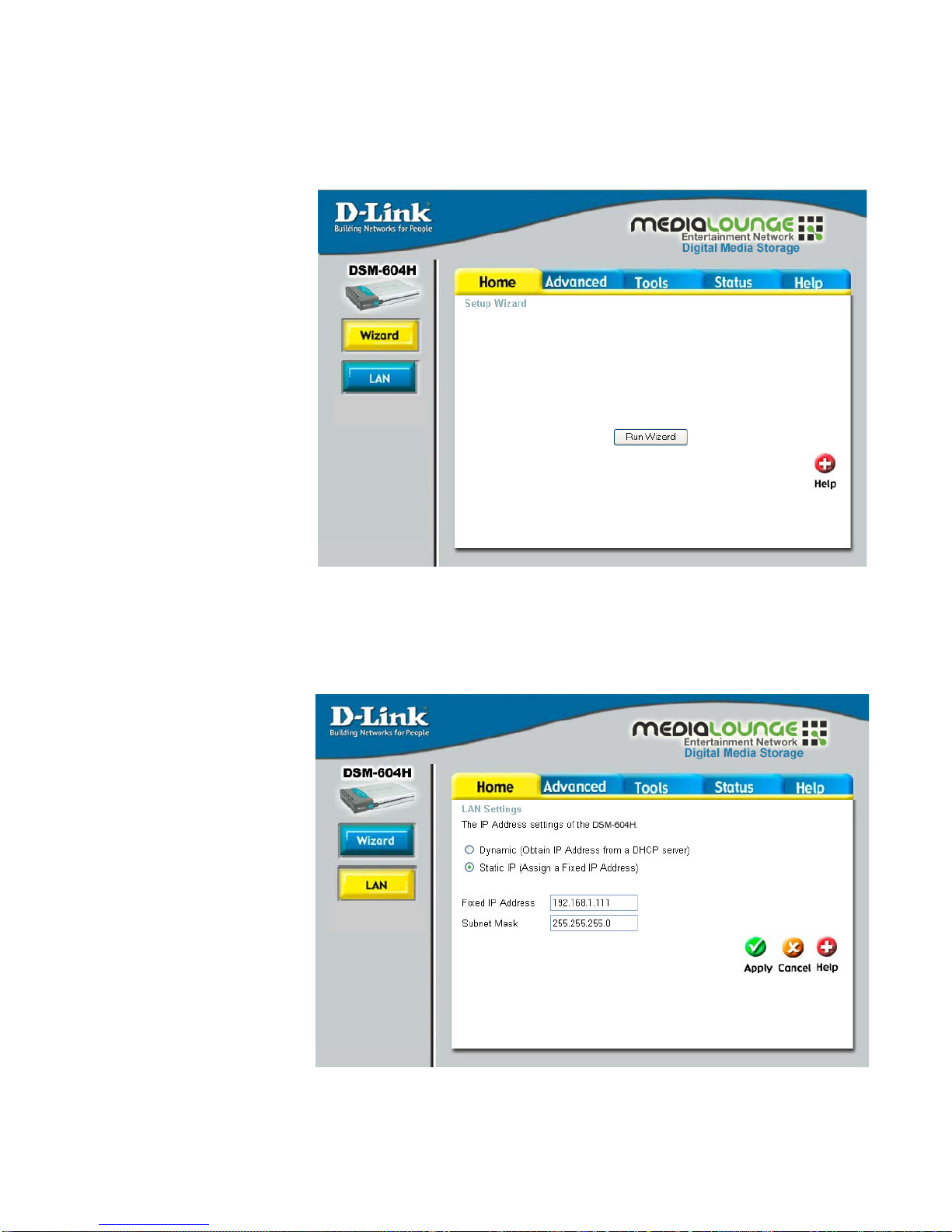

Home > Wizard
Home > LAN
This Setup Wizard
screenwillappear.Click
Run Wizard and the
utility will guide you
througha simple setup.
In this screen you can
chooseto Obtain an IP
address from a DHCP
server (recommended
for ease of use in
Windows XP or Me
throughUPnP )oryou
can assign a static IP
address.
Home
TheDSM-604Hisaportableexternalharddriveidealforadditionalstoragecapacityover the
network. Please click below on the “Run Wizard” button and follow the setup wizard to
configuretheDSM-604H.
TM

19
Using the Configuration Utility (continued)
Advanced
Storage Name: Enterthe name
forthestorage.
Work Group: Enter the work
groupname.
Advanced > Storage
Advanced > Folder
Advanced > Disk
Createnew foldersand
determine access rights to
foldershere:
New Folder Name: Enter the
nameof the new folder andclick
Create.
Write: Checkheretoallowwrite
privileges to the folder. This
means that contents within the
foldercanbechangedbyviewers.
Share: Check here to allow the
folder to be shared on the
network.
Format: Clicktoformat the hard
disk.
UPnP Settings: Enable or
Disable UPnP here.
UPnP offers plug and play
connectivityamongstand-alone
devicesand PCs from many
differentvendors.
TM
TM
TM
Check: Clickto scan the diskfor
errors.
UPnPTMSettings
This will delete any data
stored inside of the Digital
Media Storage device.
WARNING!

20
Using the Configuration Utility (continued)
Tools
ConfirmPassword: Enterthenewpassword
again.
Tools >Admin
Save:Clicktosavetheconfigurationsettings
tothe local hard drive.
Click here to check for any new
firmware upgrade on our support site:
Click on this link to find information about
firmwareupgrades on D-Link’s supportsite.
Download the firmware upgrade from the
support site to your computer’s hard drive.
Browse: After you have downloaded the
firmware upgrade to your hard drive, click
Browsetofindtheupgrade.When youhave
found it, click Open in the browser window
and click Apply in this screen to begin the
firmwareupgrade.
Reboot: Click to reboot the DSM-602H/
604H.
Tools > System
Tools > Firmware
Tools > Misc.
The administrator can change his/her login
passwordhere.
Browse: Clickto browse for settingssaved
onyour hard drive.
Load: Click to load the settings.
Restore: Click to restore the DSM-602H/
604H to its factory default settings.You will
lose any current settings.
New Password: Enter the new password
here.
