D-Link xStack Storage DSN-5210 Operating and maintenance manual

xStack Storage TM
D-Link xStack Storage iSCSI SAN Array
Managed SAN Solution
DSN-5210, DSN-5410 & DSN-5000
Hardware Reference Guide
Version 1.0

ii
© 2009 D-Link Networks, Inc. All Rights Reserved
D-Link Systems, Inc. makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. D-Link Systems, Inc. shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use of this
material.
This document contains proprietary information, which is protected by copyright. No part of
this document may be photocopied, reproduced, or translated into another language without
the prior written consent of D-Link Systems, Inc.
The information is provided “as is” without warranty of any kind and is subject to change
without notice. The only warranties for D-Link products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. D-Link shall not be liable for
technical or editorial errors or omissions contained herein.
Copyright © 2009 D-Link Systems, Inc.™
Trademarks
Includes one or more of the following United States patents: 6,941,396; 7,353,306; and
7,389,462. Other patents pending.
Adobe®and Acrobat®are trademarks of Adobe Systems, Incorporated.
Java™ is a U.S. trademark of Sun Microsystems, Incorporated.
Microsoft Windows is a U.S. registered trademark of Microsoft Corporation.
Oracle®is a registered U.S. trademark of Oracle Corporation, Redwood City, California.
UNIX®is a registered trademark of The Open Group.
All other brand or product names are or may be trademarks or service marks, and are used
to identify products or services, of their respective owners.
D-Link Systems, Inc.
17595 Mount Herrmann Street
Fountain Valley, CA 92708

DSN-5000 series HardwareReference Guide iii
Safety Information
There is a danger of a new battery exploding if it is incorrectly installed.
Replace the battery pack only with the same or equivalent type recommended
by the manufacturer. Do not dispose of the battery along with household waste.
Contact your local waste disposal agency for the address of the nearest battery
deposit site.
This product also uses a lithium coin cell battery. The lithium coin cell battery is a long-life
battery, and it is very possible that you will never need to replace it. However, should you
need to replace it, consult your service documentation. Do not dispose of the battery along
with household waste. Contact your local waste disposal agency for the address of the
nearest battery deposit site.
Following are the safety agency certifications that the xStack Storage enclosure has met:
CSA 60950-1
UL 60950-1
IEC 60950-1
EN 60950-1
Compliance Information
FCC Class A
CE Class A
C-Tick Class A
VCCI Class A
Notice of Export Controls
Export of technical data contained in this document may require an export license from the
United States government. Please contact D-Link Systems, Inc. for any export compliance
questions.

iv
Document Revision Level
Revision Date Description
Version 1.0 January27, 2009 Version 1.0

DSN-5000 series HardwareReference Guide v
Preface
This document is intended to assist users with installing the primary array and expansion
array of the xStack Storage system from D-Link. This document assumes that users are
computer literate, familiar with Storage Array Products, and have a basic understanding of
storage products and concepts.
Typographic Conventions
Notes
Notes provide information that deserves special attention. They are preceded by:
Cautions
Cautions contain information which, if not followed, can cause damage to the
xStack storage system. They are preceded by:
Warnings
Warnings contain information which, if not followed, can cause damage to the
xStack storage system and to the person installing it. They are preceded by:
Related Documentation
In addition to this document, the following documents are available from D-Link.
xStack StorageSoftware User's Guide. This guide provides the information needed to
configure and manage storage on the xStack Storage system using the xStack graphical
user interface.

vi Preface
Contact Information
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and within
Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our website, or
by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone
Please see our support site for current number:
http://support.dlink.com
Monday to Friday 8:00am – 5:00pm PST/PDT
D-Link Technical Support over the Internet:
http://support.dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone
Please see our support site for current number:
http://support.dlink.ca
Monday to Friday 7:30am to 9:00pm EST/EDT
D-Link Technical Support over the Internet:
http://support.dlink.ca

DSN-5000 seriesHardwareReference Guide vii
Contents
Chapter 1 Introduction..................................................................................................................................1
1.1 Models 2
1.2 Benefits and Features ............................................................................ 3
1.3 System Overview .................................................................................. 4
Chapter 2 DSN-5000 Series Primary Array Layout ...................................................................................5
2.1 Front Panel Components......................................................................... 6
2.2 Rear Panel Components.......................................................................... 8
2.3 Side and Bottom Panel Components ..........................................................11
Chapter 3 Installing the DSN-5000 Series Primary Array.......................................................................13
3.1 Site Considerations...............................................................................14
3.1.1 General Considerations ................................................................14
3.1.2 Desktop or Shelf Installation..........................................................14
3.1.3 Rack-mount Guidelines ................................................................15
3.2 Safety Considerations............................................................................15
3.3 Unpacking the DSN-5000 series Primary Array ..............................................16
3.4 Items Supplied by the User.....................................................................16
3.5 Connecting to the iSCSI Data Ports............................................................16
3.5.1 xStack Storage DSN-5210 series Data Ports.........................................17
3.5.2 xStack Storage DSN-5410 Data Port..................................................17
3.6 Connecting to the Management Port..........................................................17
3.7 Connecting the Power Cords ...................................................................20
3.8 Powering-on the DSN-5000 series Primary Array............................................20
Chapter 4 DSN-5000 Expansion Array Layout and Installation............................................................21
4.1 Expansion Array Front Panel Components ...................................................22
4.2 Expansion Array Rear Panel Components ....................................................24
4.3 Site, Safety, and Rack-Mount Considerations ...............................................24
4.4 Unpacking the DSN-5000 Expansion Array....................................................24
4.5 Items Supplied by the User.....................................................................25
4.6 Installing the DSN-5000 Expansion Array.....................................................25
4.7 Connecting to the DSN-5000 Series Primary Array..........................................26
4.8 Connecting the AC Power Cords ...............................................................27
4.9 Powering-on the DSN-5000 Expansion Array.................................................27
Appendix A Replacing and Upgrading FRUs..............................................................................................29
A.1 Installing or Replacing Drives ..................................................................30
A.2 Replacing a Power Supply Module in the Primary or Expansion Array ..................31
A.3 Replacing the Controller Module on the Primary Array....................................32
A.4 Replacing the I/O Module on the Expansion Array .........................................33
A.5 Connecting to the Diagnostic Serial Port.....................................................34
Appendix B Installing the System in a Rack...............................................................................................37

viii Contents
This Page Left Intentionally Blank

DSN-5000 seriesHardwareReference Guide 1
Chapter 1 Introduction
The xStack Storage DSN-5000 series storage system is an intelligent, high-performance
multiple Gigabit Ethernet storage solution designed for businesses that want to improve the
reliability, availability, serviceability, and performance of their storage systems. It provides
a range of benefits and features from its ability to use familiar, proven, and widespread
networking technologies like IP and Ethernet for storage solutions.
The DSN-5000 series storage system is highly scalable. To add more storage capacity, simply
connect one or two additional expansion arrays to the xStack Storage primary array. This
plug-and-play approach to storage expansion enables you to form a scalable enterprise
storage grid of up to 36 drives and up to 36 terabytes using 1TB drives quickly and easily
(larger drives supported as they become available).
Based on an Internet Protocol-Storage Area Network (IP-SAN) architecture, the DSN-5000
series primary array is built around an iSCSI RAID processor System-On-A-Chip and has the
following features:
Up to 12 internal Serial Attached SCSI (SAS) per chassis and up to 36 drives per system.
The DSN-5210, DSN-5410 and DSN-5000 units can all support SATA hard drives
when a single controller is used. However, the use of SAS hard drives is
recommended, and required for High Availability (HA) operation.
Support for redundant controllers for High Availability (HA). For HA operation, a second
controller must be installed. The DSN-5210 will require the DSN-520 controller and the
DSN-5410 will require the DSN-540 controller. Please see previous note for SAS drive
requirement.
512MB of system memory
2 GB of buffer (cache) memory
Eight GbE iSCSI connectors (DSN-5210) or one 10 Gigabit Ethernet iSCSI connector (DSN-
5410)
A 10/100/1000 Mbps Ethernet management port
Two expansion connectors for attaching up to two additional expansion arrays
A 115.2 Kbps RS-232-C stereo mini-jack diagnostic port for troubleshooting purposes
Complete configuration and management of the storage system are available through the
intuitive, graphical-based xStack Storage Management Center.
For the latest information about supported drives, consult the
Interoperability Matrix found on the D-Link Support Web site:
support.dlink.com

2 Chapter 1 Introduction
1.1 Models
The xStack Storage DSN-5000 series storage array is available in various models. The models
differ according to the speed and host network interface. Table 1-1 lists the xStack Storage
DSN-5000 series array models.
Table 1-1. DSN-5000 series Storage Array Models
Model Description
DSN-5210 (single controller) System
DSN-520 (additional controller) Number of host network connections:Eight RJ-45 ports Speed: 1 Gbps
Maximum number of internal SAS drives: 12
System memory: 512 MB
Buffer (cache)memory: 2 GB
Single or Dual controllers are allowed
A DSN-520controller is installed in the empty bay of the DSN-5210 for High Availability
DSN-5410 (single controller) System
DSN-540 (additional controller) Number of host network connections: One optical XFPtransceiver host network connection - XFP transceiver sold separately
Speed: 10 Gbps
Maximum number of internal SAS drives: 12
System memory: 512 MB
Buffer (cache)memory: 2 GB
Single or Dual controllers are allowed
A DSN-540controller is installed inthe empty bay of the DSN-5410for High Availability
- XFP transceiver sold separately
DSN-5000 (single I/O module) Expansion
DSN-500 (additional I/O module) This is an expansion array with asingle I/Omodule that is used witha DSN-5210 or DSN-5410 Maximum number of SAS drives: 12
Each I/O module provides twoSAS expansion ports
Single or Dual I/O modules are allowed
A DSN-500 I/O module is installed inthe empty bay ofthe DSN-5000 for High Availability
High Availability (HA) Note: A system using a single controller (DSN-5210 or
DSN-5410) and its expansion array(s) may use SAS or SATA drives. A system
using dual controllers for High Availability operation (DSN-520 for the 5210
or DSN-540 for the 5410) requires SAS drives be used in both the primary
array and any expansion array(s).
If you anticipate upgrading to HA with the addition of a second controller,
then it is recommended you install SAS drives.

DSN-5000 seriesHardwareReference Guide 3
1.2 Benefits and Features
High-performance, low-latency iSCSI storage system, with a highly integrated
multifunction ASIC for fully featured, integrated storage virtualization
High Availability with automatic failover when configured with dual controllers
Modular design with expansion up to three chassis
Easy setup and configuration – can be installed anywhere on a Gigabit or 10 Gigabit
Ethernet network for improved access to critical information
In-band or out-of-band management via direct connection or the Web
Delivers Ethernet economics to storage for lower total cost of ownership and rapid
deployment using known and trusted technologies
Proven transport infrastructure for increased reliability, investment protection, and
reduced training and administrative costs
Ability to add up to two hot-swappable 12-drive expansion arrays for up to 36 drives
Scalability over long distances - ideal for remote data replication and disaster recovery
High availability - redundant fans and 2 redundant, hot-swappable, auto-sensing, load-
sharing power supplies
Intelligent battery pack ensures that a charged battery is on hand to preserve buffer
cache contents if a power failure occurs. Contents are backed up for approximately 72
hours with the standard 2GB data cache.

4 Chapter 1 Introduction
1.3 System Overview
Figure 1-1 shows a typical DSN-5000 series storage system (primary array DSN-5210 or 5410)
configuration in a Storage Area Network (SAN). The SAN shown is an Ethernet network used solely
for exchanging data between the customer's host servers and the DSN-5000 series storage system.
The Ethernet bandwidth used by the servers exchanging data with the DSN-5000 series storage
system can be very high. Using a separate Ethernet network to act as a SAN keeps that data from
interfering with the customer's existing LAN and improves security.

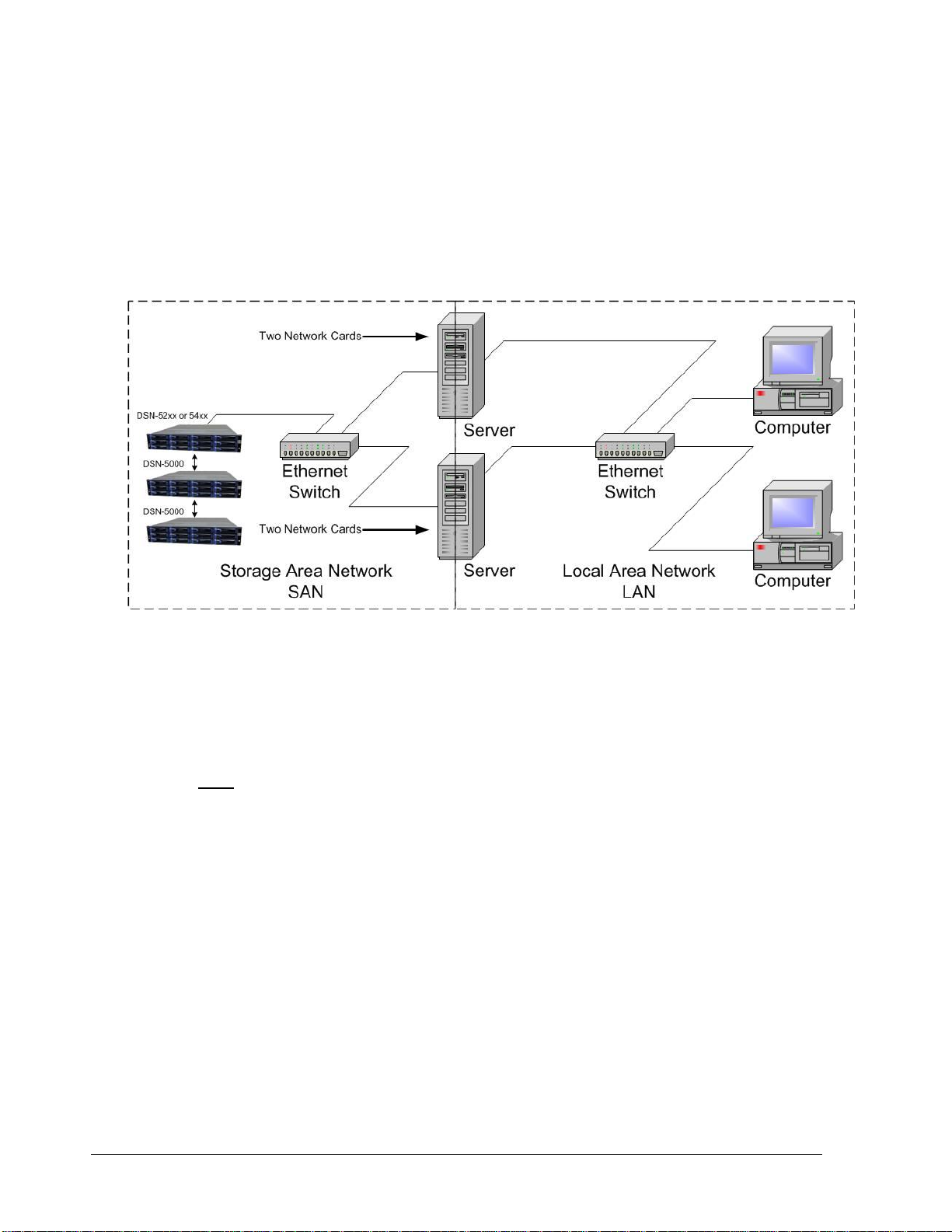

Figure 1-1. Example of a DSN-5000 series Storage System Configuration
When equipped with dual controllers, the DSN-5210 or 5410 system provides High Availability
(HA) with automatic failover to the redundant controller. When a failure occurs on the primary
controller, the Management Port and all of the iSCSI data ports will be automatically redirected
to the equivalent ports on the redundant controller, without any interruption to your host
server applications. To accomplish the redirection of network traffic on those ports, a network
switch must be used between the host server(s) and the DSN-5210 or DSN-5410 systems.
A Field Upgrade Kit is available to add a redundant controller (DSN-520 for the 5210 or DSN-540
for the 5410) to any existing single-controller system (DSN-5210 or DSN-5410). Similarly, a
Field Upgrade Kit is available to add a second I/O Module to the DSN-5000 expansion array (The
expansion array with a single I/O module is the DSN-5000. An additional I/O module for the
DSN-5000 is the DSN-500), which is required when the DSN-5210 or DSN-5410 system is
equipped with dual controllers.
To clarify: A DSN-5210 or DSN-5410 system each has a single controller. For additional storage
array expansion, each would require a DSN-5000 expansion array which itself has a single I/O
module. A single external SAS to mini-SAS cable (provided with the DSN-5000) will then
connect the controller in the DSN-5210 or DSN-5410 to the I/O module in the DSN-5000.
A DSN-5210 with dual controllers (an additional controller DSN-520 is inserted in the second bay)
or a DSN-5410 with dual controllers (an additional controller DSN-540 is inserted in the second
bay) will require a DSN-5000 expansion array with two I/O modules (an additional I/O module
DSN-500 is inserted in the second bay of the DSN-5000). An additional SAS to mini-SAS cable
(provided with the DSN-500) will connect the second controller in the DSN-5210 or DSN-5410 to
the second I/O module (DSN-500) installed in the DSN-5000 expansion array. You will now have
dual redundancy between the DSN-5210 or DSN-5410 and the DSN-5000 expansion array.

DSN-5000 seriesHardwareReference Guide 5
Chapter 2 DSN-5000 Series Primary Array Layout
This chapter describes the hardware components on the DSN-5000 series primary array (DSN-
5210 & DSN-5410). The topics covered in this chapter are:
Section 2.1, Front Panel Components
Section 2.2, Rear Panel Components
Section 2.3, Side and Bottom Panel Components

6 Chapter 2 DSN-5000 Series Primary Array Layout
2.1 Front Panel Components
The front of the DSN-5000 series primary array enclosure has the following components (see
Figure 2-1):
Enclosure LEDs - four enclosure LEDs at the right side of the front panel provide status
information about the DSN-5000 series primary array enclosure. For a description of
these LEDs, see Table 2-1.
Drive slots – the front panel provides access to 12 drive slots. The drive slots are
arranged in four columns of 3 slots.
Drive carriers - drives are mounted on a drive carrier. Drive carriers have a push-button
lever for installing and removing drives, and three status LEDs (see Figure 2-2 and Table
2-2). Each carrier has a corresponding drive slot number (see Figure 2-3).

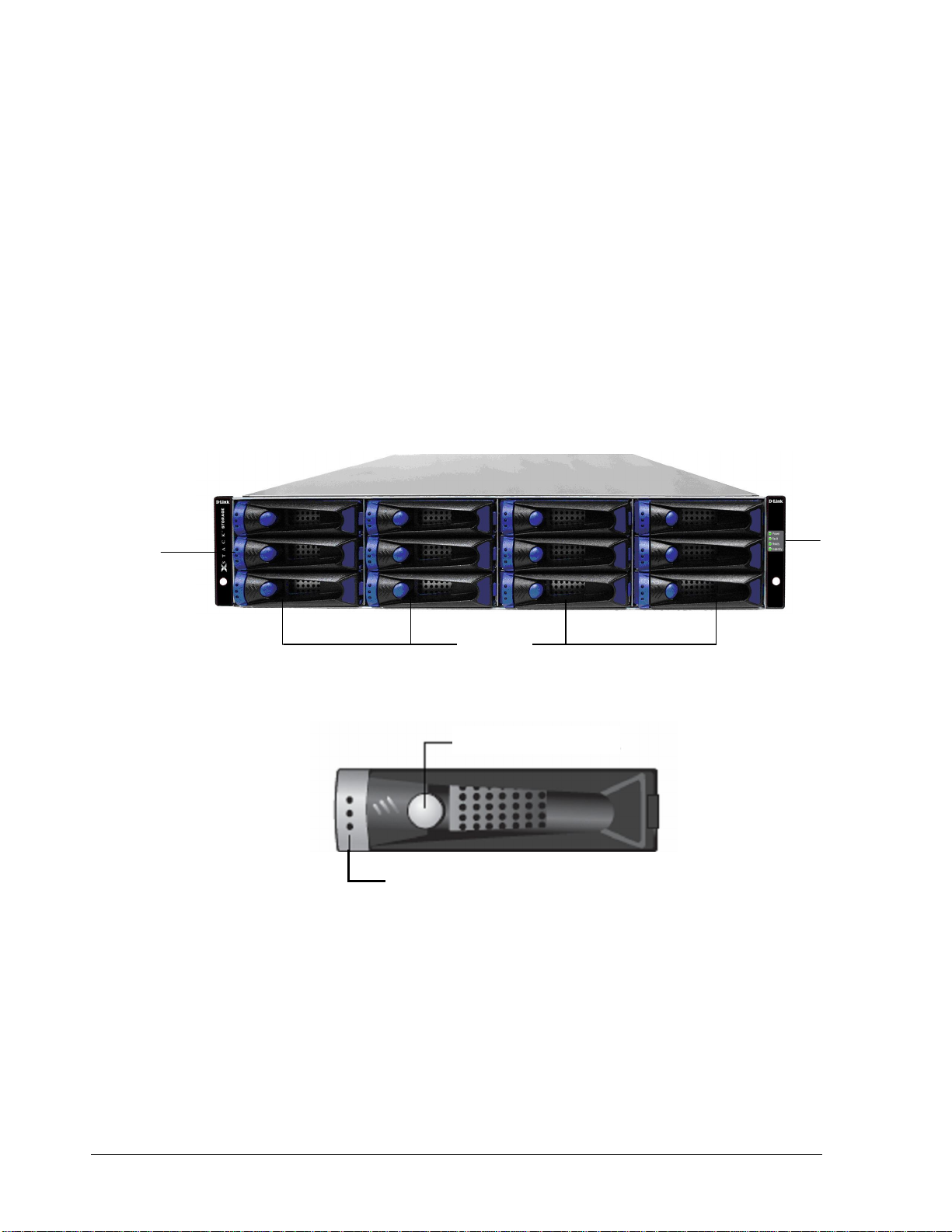

Figure 2-1. Front View of the DSN-5000 series Primary Array
Figure 2-2. Close-up View of the LeverRelease Button and Status LEDs on a Drive Carrier
Enclosure
LEDs
Drive Slots
Drive Carrier
(see Figure 2-2 for
Close-up View)
Drive Status LEDs
Lever Release Button

DSN-5000 seriesHardwareReference Guide 7
Table 2-1. Enclosure LEDs
LED Color Description
ON = DSN-5000 series primary array is powered on.Power Green
OFF = power is not beingreceived.
ON = a fault occurred with the power supply, fan, overtemperature, internal module, or
controllers.
Fault Amber
OFF = normal operation.
ON = normal operation.Ready Green
OFF = normalwhile DSN-5000 series primary array is booting. After initialization,this
status indicates aproblem with theDSN-5000 series primary array.
Blink = usedto visually identify the enclosure.Identify Blue
OFF = no intent of identification is being performed.

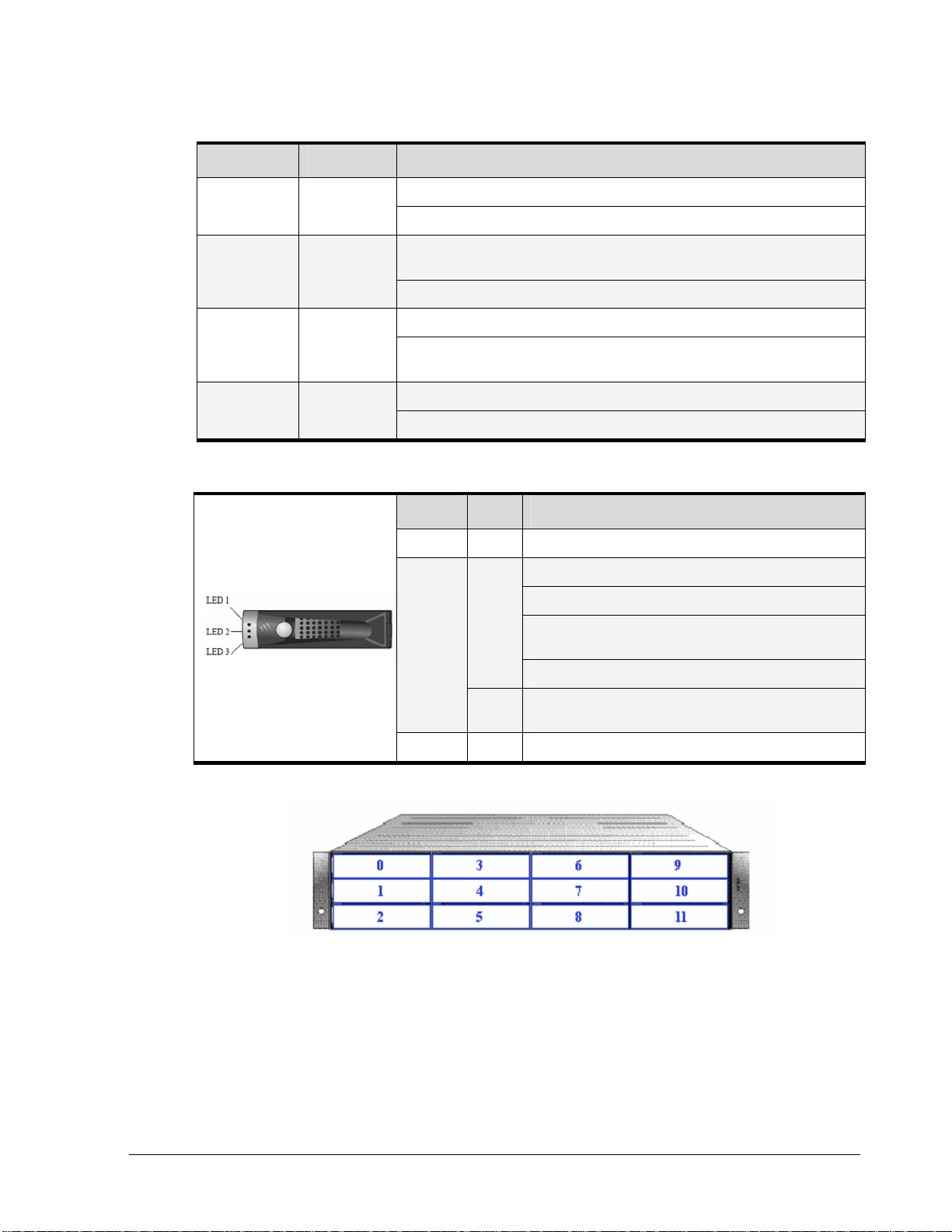

Table 2-2. Drive Carrier Status LEDs
LED Color Description
LED 1 Green This LED is reservedfor future use.
OFF = no driveis installed (drive slot is empty).
ON = drive is online, ready for operation.
Slow Flash = drive is being prepared for removal or is being
rebuilt.
Green
Fast Flash = drive is beingidentified.
LED 2
Amber Fast Flash = drive failed andshould be replaced (seeAppendix
A for information about installingor replacing drives)
LED3 Green Flash =driveactivity is occurring.
Figure 2-3. Drive Numbers on the Primary Array

8 Chapter 2 DSN-5000 Series Primary Array Layout
2.2 Rear Panel Components
The rear panel of the DSN-5000 series primary array controller has the following components
(see Figure 2-4 and Figure 2-5):
Eight 1-Gigabit RJ-45 iSCSI data ports (iSCSI 0 through iSCSI 7 for the DSN-5210) or one
10-Gigabit XFP iSCSI data port (iSCSI 0 for the DSN-5410) are located on the rear panel
of the DSN-5000 series chassis controllers. Each iSCSI data port has port speed and port
activity LEDs (see Table 2-3 for the xStack Storage DSN-5210 and Table 2-4 for the
xStack Storage DSN-5410).
Management port (MGMT) - one 10/100/1000 RJ-45 management is located to the right
of the iSCSI data ports. The management port has port speed and port activity LEDs (see
Table 2-3 for the xStack Storage DSN-5210 and Table 2-4 for the xStack Storage DSN-
5410).
Diagnostic port (DIAG) - one 115.2 Kbps RS-232-C diagnostic port (stereo mini-jack) is
located above the top-right corner of the management port. To connect to this port, use
the diagnostic cable supplied with your xStack Storage system.
Expansion ports (EXP0 and EXP1) - two expansion ports are located to the right of the
management port. These connectors let you attach up to two expansion arrays to the
primary array to increase the array’s storage capabilities (see Section 4.7 for more
information).
Reset switch and restart switch - are located above the expansion ports. For an
explanation of these switches, see Table 2-5.
Ready/fault, battery status and A/B LEDs - are located above the expansion ports (see
Table 2-6).
The rear panel of the DSN-5000 series primary array enclosure has two AC power receptacles
and power switches. For an explanation of the power receptacles and power switches.

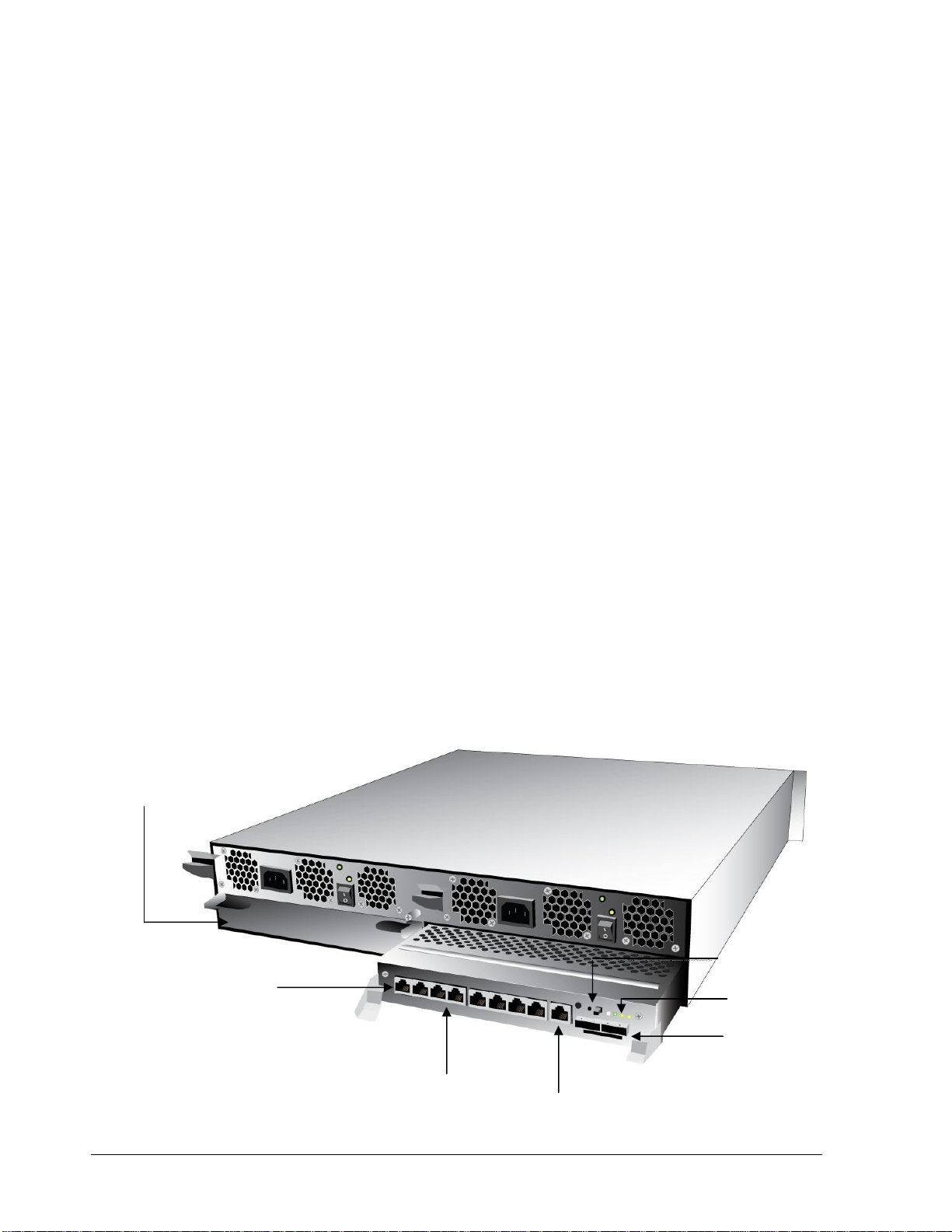

Figure 2-4. Rear View of the DSN-5210 series Primary Array
Eight 1-Gigabit iSCSI
RJ-45 Ports
One Management Port
Two SAS Expansion Ports
Rear Panel Status LEDs
Rear Panel Switches
Redundant Controller or
Filler Plate in Slot #1
Primary Controller in Slot #0

DSN-5000 seriesHardwareReference Guide 9

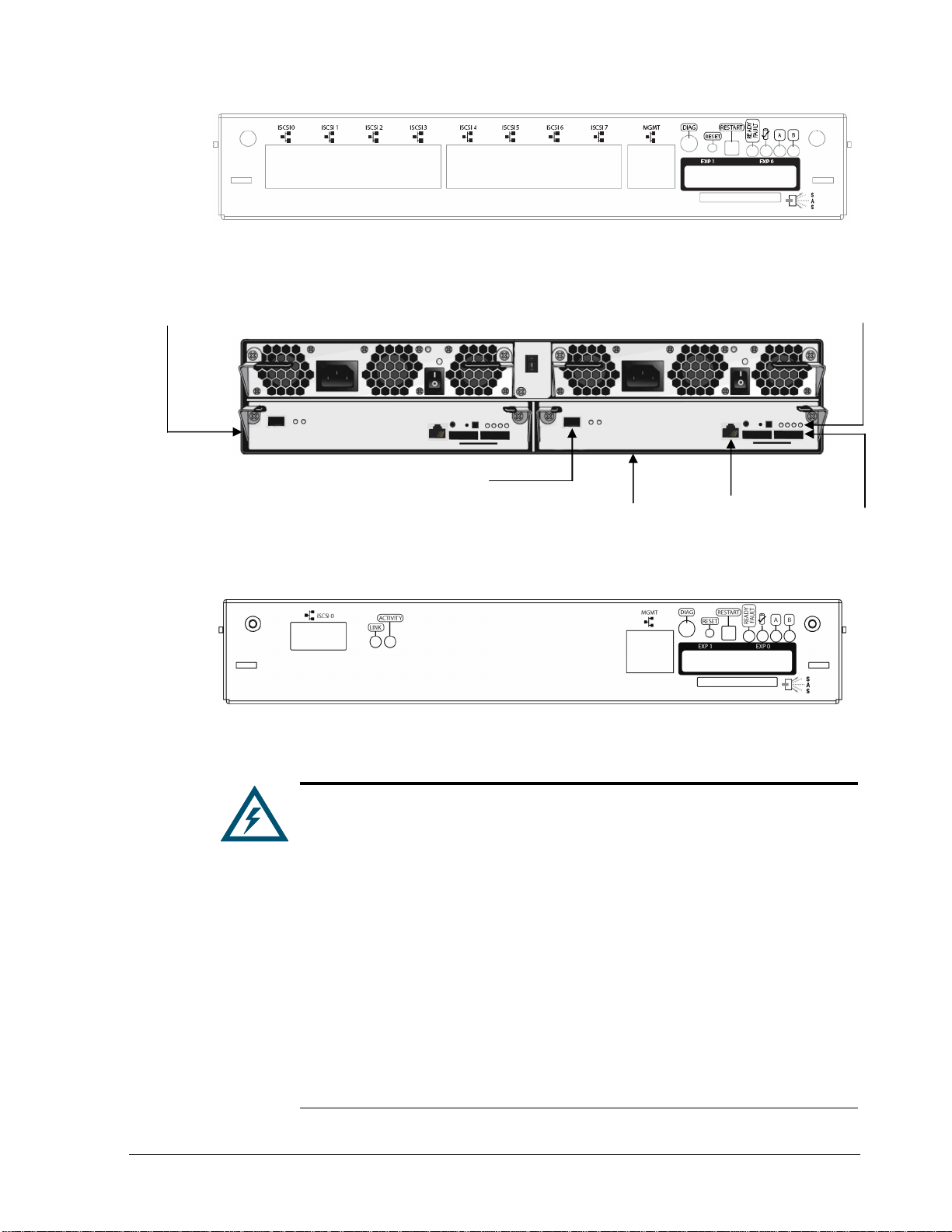

Figure 2-5. Close-up View of DSN-5000 series Controller Rear Panel
Figure 2-6. Rear View of the DSN-5410 with two controllers installed
Figure 2-7. Close-up View of DSN-5000 series-10G Controller Rear Panel
The DSN-5000 series primary array is “HA-capable” (High Availability) and
can be equipped with dual controllers for automatic failover in the event of
a hardware or software failure on the primary controller. For systems with
dual controllers, both controllers must have the same number and type of
data ports.
To allow the automatic re-direction of the network connections to the
redundant controller when a failure occurs on the primary controller, the
network cables for the Management Port and each of the Data Ports must be
connected to both controllers before the system starts up.
The network connections for the Management Port and each of the Data
Ports must be connected to the same network switch to allow the failover
mechanism to function correctly. For example, the Management Port of
both controllers must be connected to the same switch, and Data Port 0 on
both controllers must be connected to the same switch, although that switch
can be different than the one used for the Management Port. The same
method should be used for all other data ports.
10G Data Port Management Port Two Expansion Ports
Redundant Controller or Filler Plate in Slot #1
Rear Panel Switches & LED’s
Primary Controller in Slot #0

10 Chapter 2 DSN-5000 Series Primary Array Layout

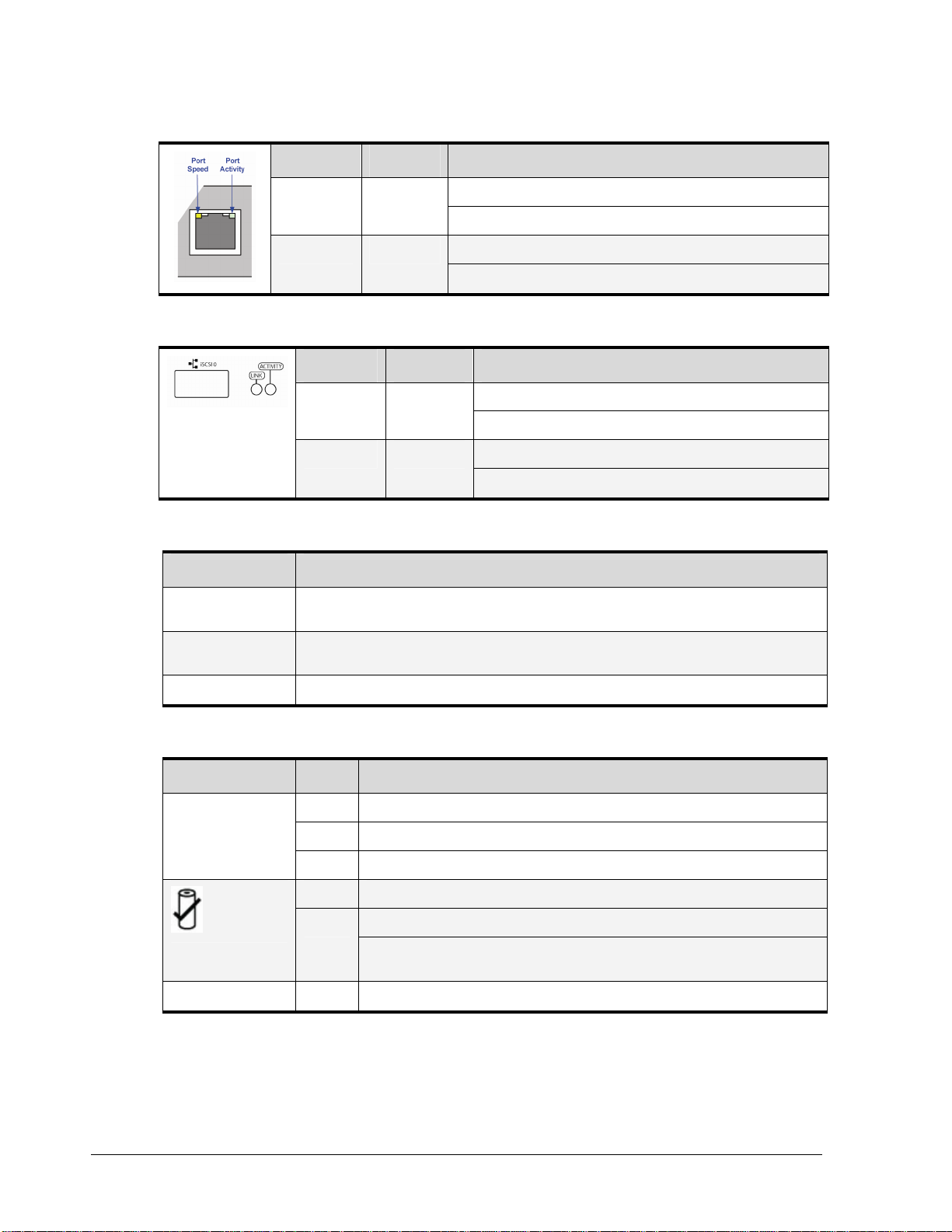

Table 2-3. Port Speed andPort Activity LEDs (xStackStorageDSN-5210)
LED Color Description
ON =link is operatingat 1Gbps.PortSpeed Yellow
OFF = link is operating at either 10 Mbps or 100 Mbps.
ON = link is operational. Port Activity Green
Blink = data is beingsent or received.
Table 2-4. Port Speed andPort Activity LEDs (xStackStorageDSN-5410)
LED Color Description
ON = link is operating at 10 GbpsPort Speed Yellow
OFF = link is not operating
ON = link is operational Port Activity Green
Blink = data is beingsent or received
Table 2-5. Rear Panel Switches
Switch / LED Description
Power Applies power tothe DSN-5000 series primary array. The DSN-5000series primary array has two
power switches. Both must be turned on.
Reset Resets thesystem. This switchis recessedto prevent against accidental resets. Note:Thisswitch
simply reboots the system without changing your configuration.
Restart This switch is reservedfor future use.
Table 2-6. RearPanel LEDs (xStack StorageDSN-5210 and xStack Storage DSN-5410)
Switch / LED Color Description
OFF Primary array is powered off or performingits Power OnSelf Test.
Red ON = a fault has occurred. Please contact D-Link Technical Support.
Ready/Fault
Green ON = normal operation.
OFF Battery is fully charged and not sustainingcache.
ON = battery is good or being charged.
Green
Flash = contents of system cache memory is being preserved by the battery subsystem
after an unexpectedloss of power orsystemfailure has occurred.
“A” and “B” LEDs Yellow These LEDs are reserved for futureuse.

DSN-5000 seriesHardwareReference Guide 11
2.3 Side and Bottom Panel Components
The left and right sides of the DSN-5000 series primary array enclosure have rails for rack-
mounting the unit. Product information labels will be found on the side, bottom, or rear of
the unit. For rack-mount instructions, refer to Appendix B and to the documentation for the
rack.

12 Chapter 2 DSN-5000 Series Primary Array Layout
This Page Left Intentionally Blank
