D-Link DSM-600 User manual

2D-Link DSM-600 Quick Install Guide
• Internet Explorer 6.x or Netscape®Navigator 7.0 and above
• Windows®2000 or XP
• Internal 3.5” PATA/IDE Hard Drive and/or External USB Hard Drive(s)
• An available Ethernet port on the network*
CAT5 Ethernet Cable

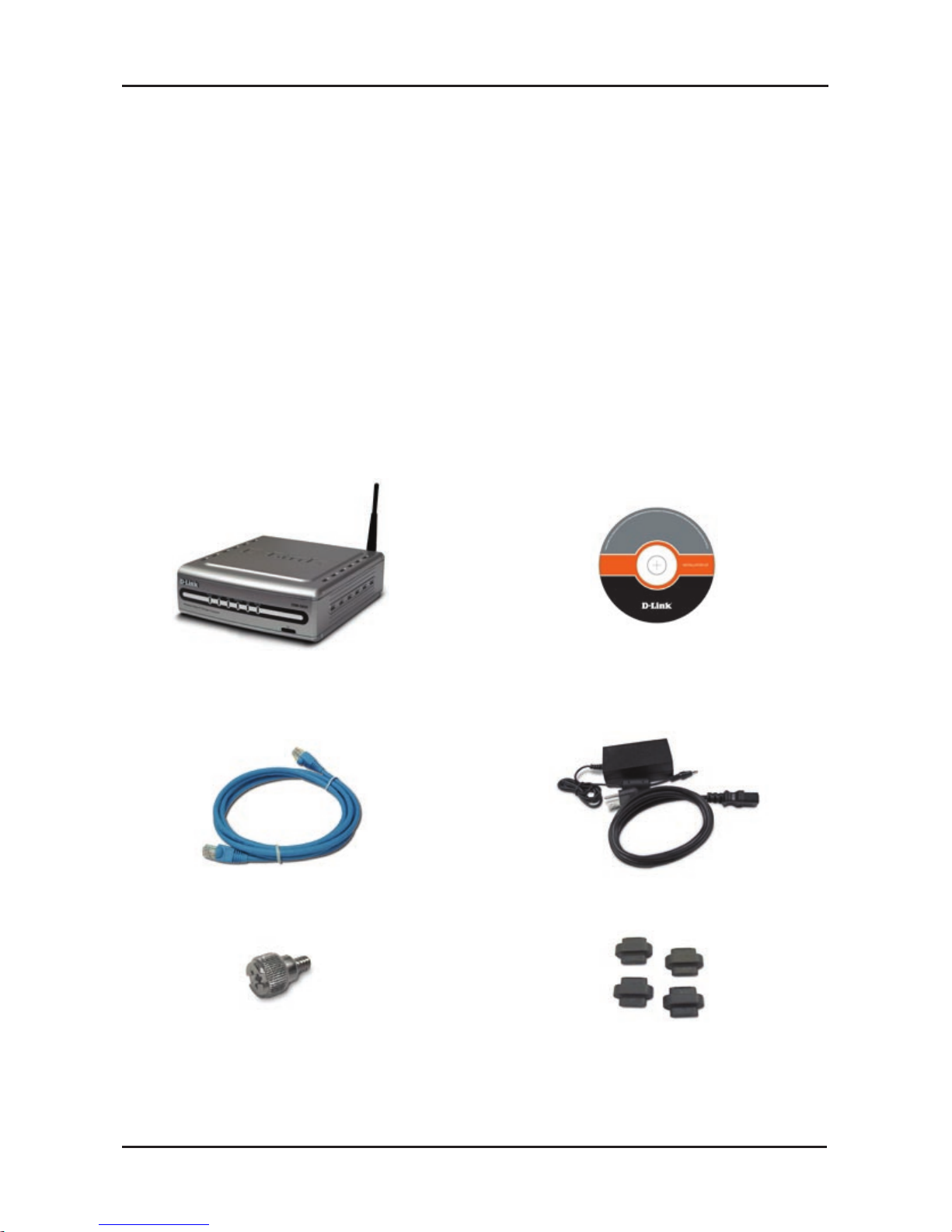

Package Contents
D-Link DSM-600
Storage Enclosure
System Requirements
If any of the above items are missing, please contact your reseller.
CD-ROM Manual
and Installation Wizard
12V 3A Power Supply
* It is required that an Ethernet cable is used during initial setup.
Screw Rubber Feet

3 D-Link DSM-600 Quick Install Guide

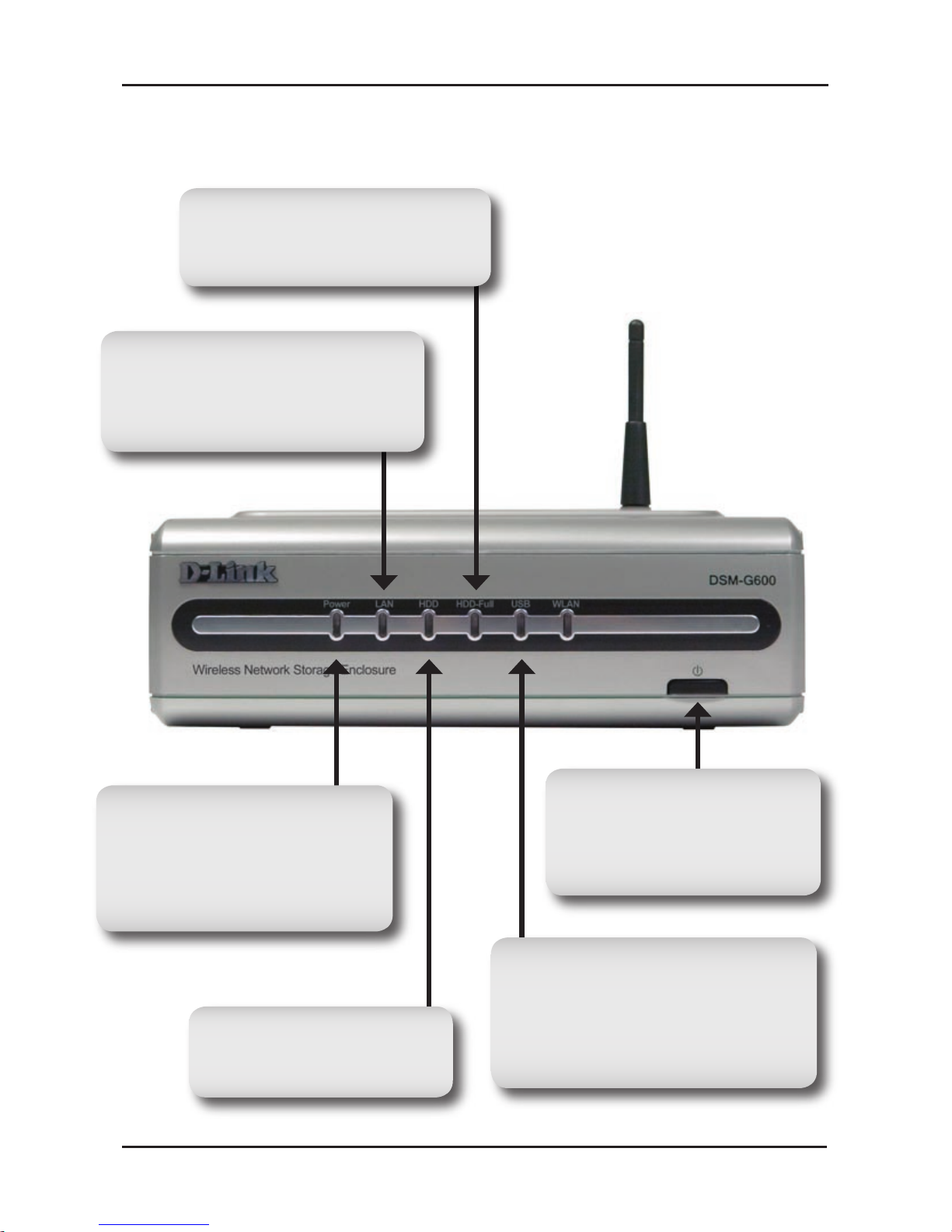

Hardware Overview
Power Button
Press to turn the device on.
To turn off, hold button in
until the unit shuts off.
Power LED
Solid indicates a connection
to a good power source.
Blinking indicates startup,
rebooting, or formatting.
USB LED
A solid light indicates that a
USB drive is connected. Blinking
indicates the USB drive is being
detected when rst plugged in.
LAN LED
Solid indicates an Ethernet
connection. Blinking indicates
trafc at the Ethernet port.
HDD-Full LED
Indicates that the internal hard
drive is out of space.
HDD LED
Indicates activity on the
internal hard drive.

4D-Link DSM-600 Quick Install Guide

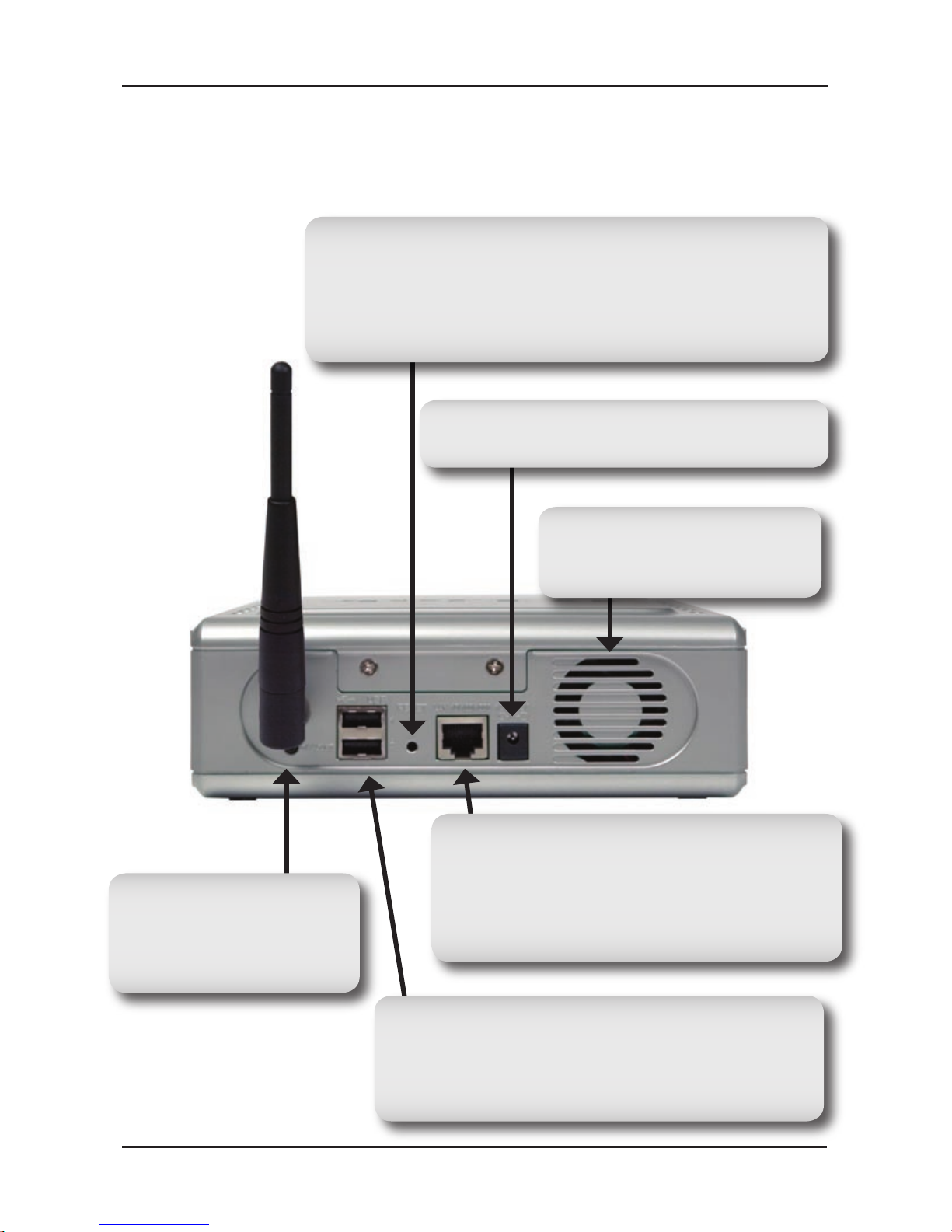

Reset Button
Pressing the reset button for 10 seconds with a paper
clip will restore the unit to the original factory default
settings. The button is inside the hole to prevent an
accidental reset.
Power Receptor
Receptor for the supplied power adapter.
Fan/Vent
Fan to cool the internal hard
drive.
Dismount Button
Press to safely remove
USB drives from the
DSM-600.
USB 2.0 Ports
Use these ports to connect USB 2.0 drives.
USB 1.1 drives may also be connected but
will be limited to USB 1.1 speed.
LAN Port
Connects to your Ethernet network. The
LAN port supports Auto MDI/MDI-X,
allowing you to connect a straight-through
or crossover cable.

5 D-Link DSM-600 Quick Install Guide

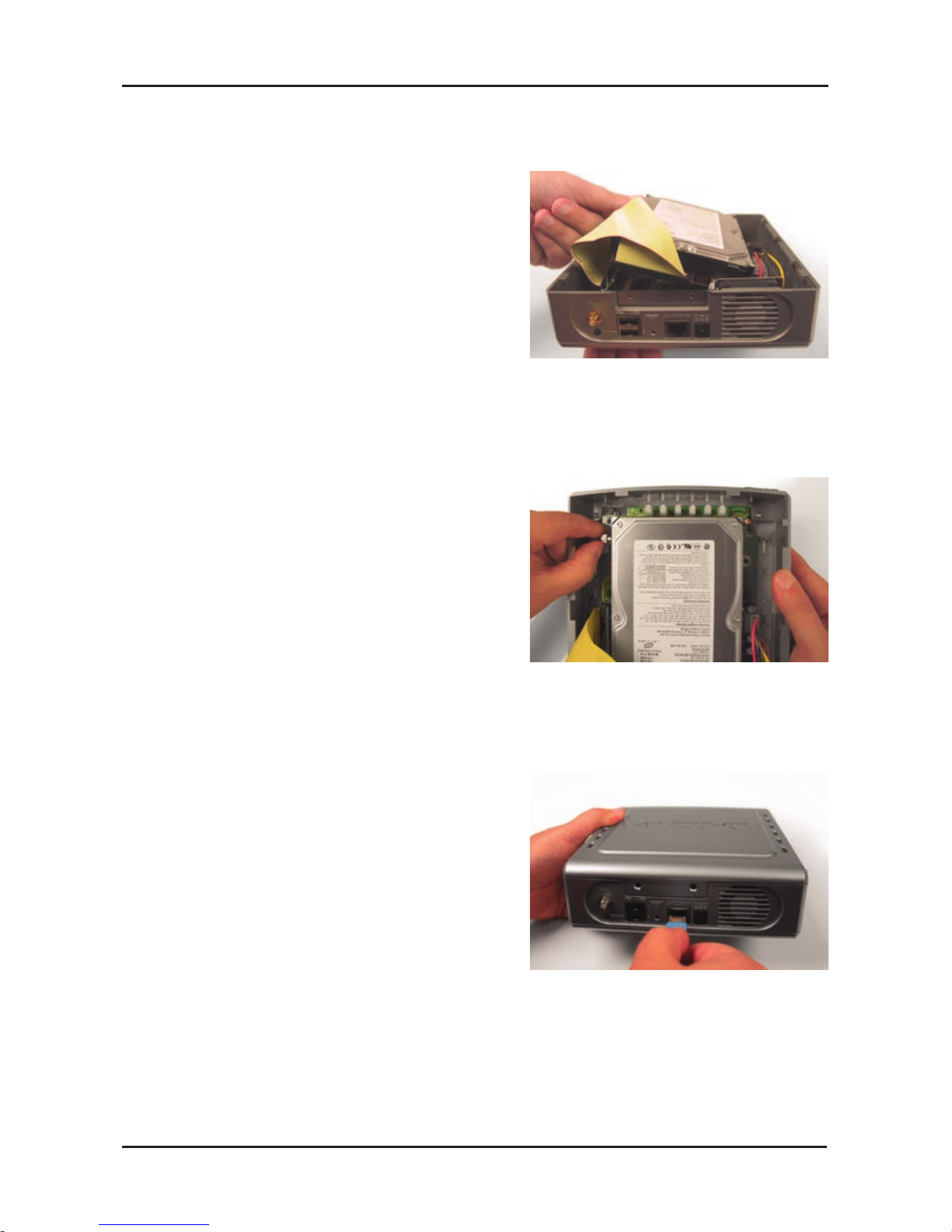

Hardware Installation
Unscrew the two screws on the back panel
of the DSM-600 to remove the cover.
Connect the IDE cable to the IDE cable
connector on your hard drive.
Note: Make sure the jumper setting on
your hard drive is set to Master or Cable
Select.
Connect the power cable to the power
connector on your hard drive.

6D-Link DSM-600 Quick Install Guide

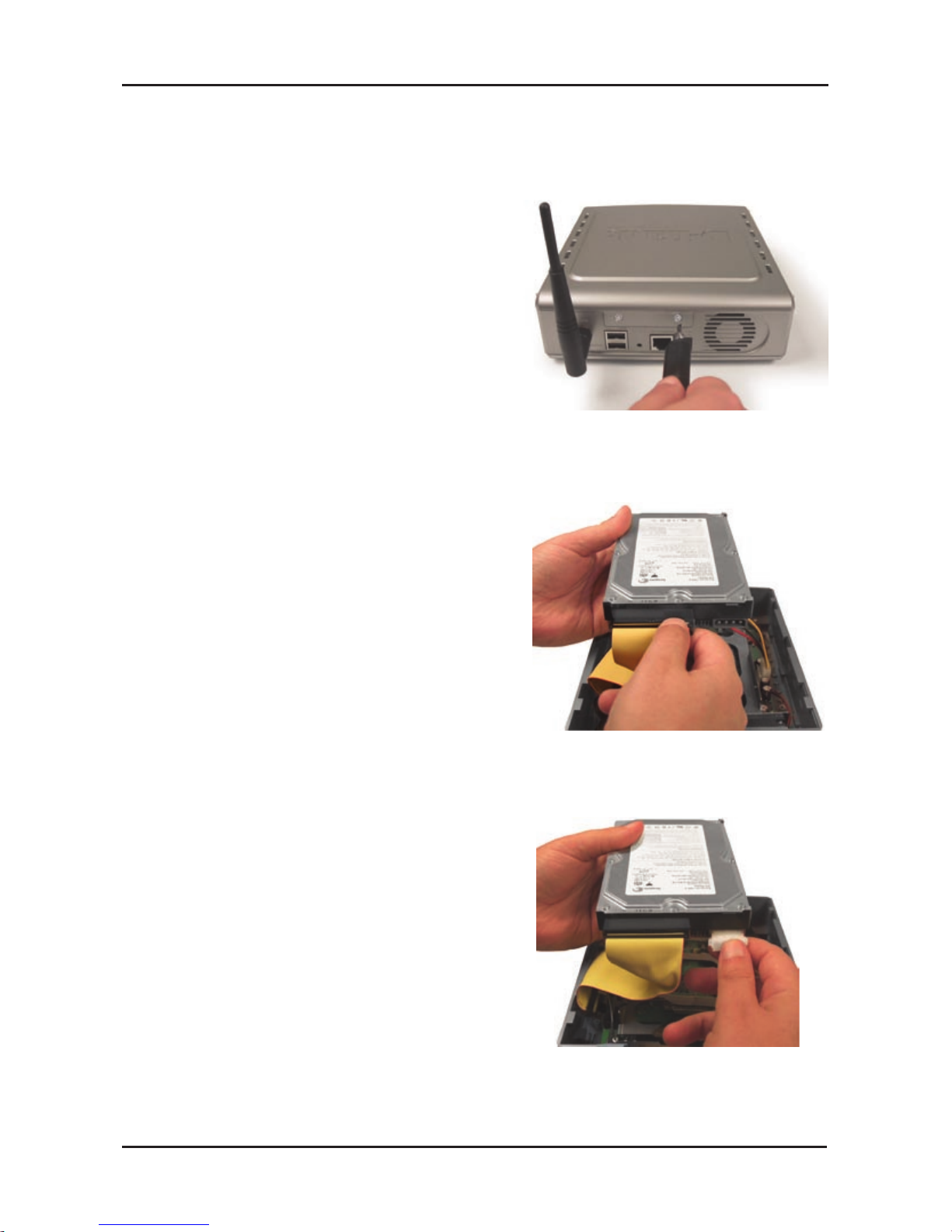

While facing the back of the DSM-600,
insert the right side of the hard drive into
the case. Once in place, snap down the
left side.
Use the mounting screw to secure the
hard drive to the DSM-600. Replace the
cover and screw the two screws on the
back panel of the DSM-600.

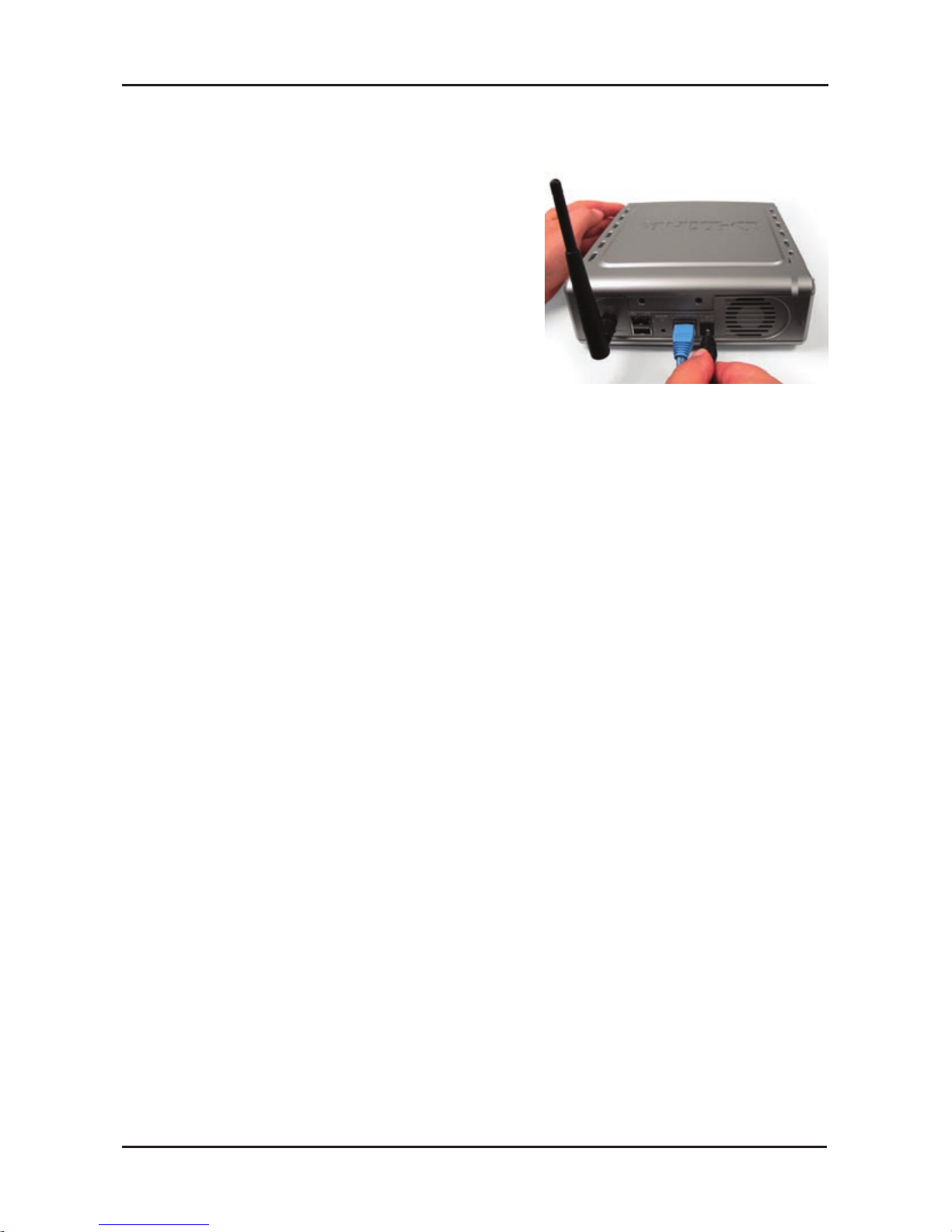

Connect an Ethernet cable to the Ethernet
port located on the back of the DSM-600.
Note: It is required that an Ethernet cable is used during initial setup.

7 D-Link DSM-600 Quick Install Guide
Connect the power adapter to the power
receptor on the back panel. Then plug
the other end of the power adapter into a
wall outlet or power strip. After pressing
the power button, the power LED will
blink as the device is starting. The power
LED will become solid when the device is
ready for use.
Note: When you rst power on and access the Web-Interface, the DSM-600
will offer to format your hard drive if it is unformatted. This process may take
several minutes depending on the size of your hard drive. During this process,
the power LED will blink. Do not power the unit off during the formatting process.
Once the power LED is solid, you may then access the web based conguration
of the DSM-600.

8D-Link DSM-600 Quick Install Guide
Installation Overview
Client Mode

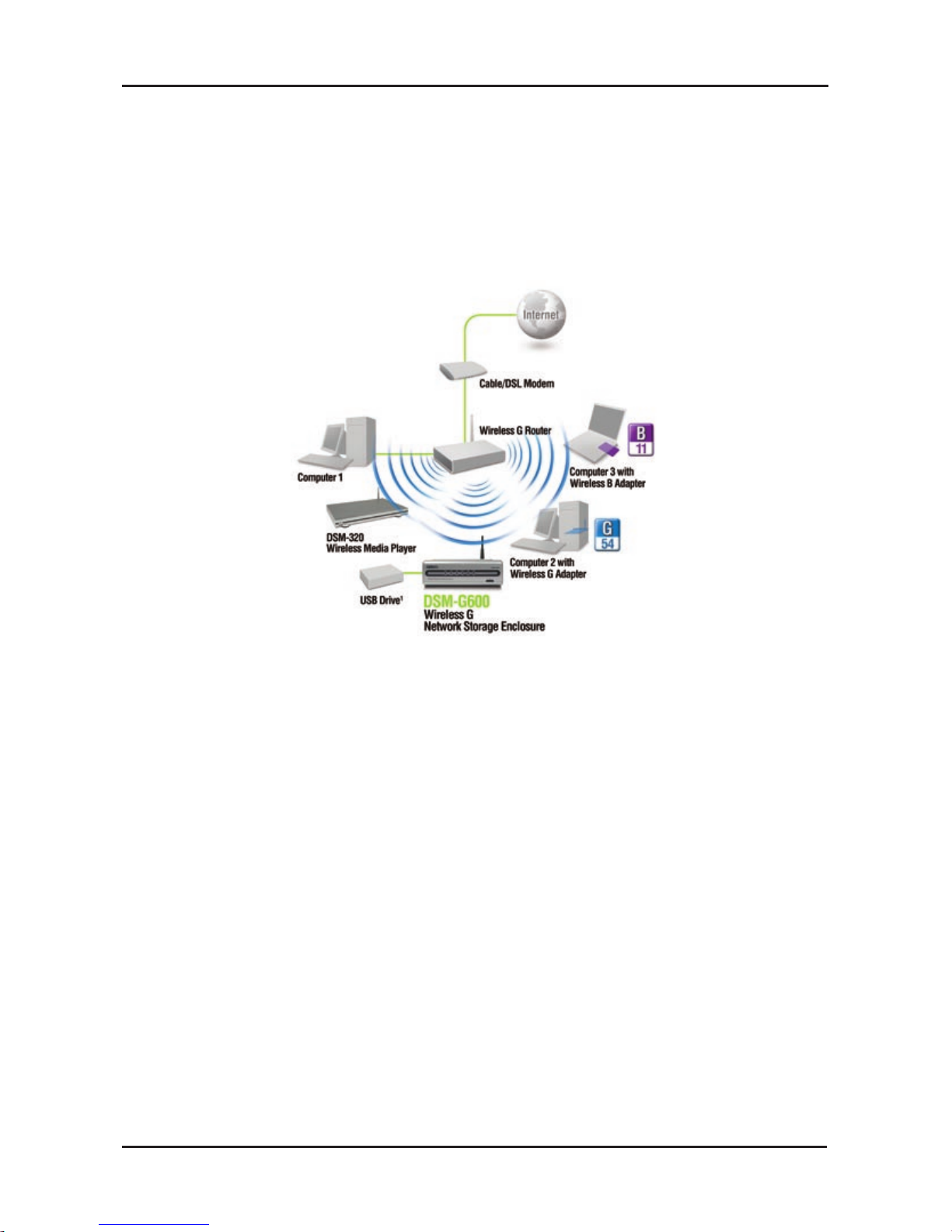

Once you’ve completed your DSM-600 installation, your network may appear
simular to one of the diagrams below.

9 D-Link DSM-600 Quick Install Guide
Configuration

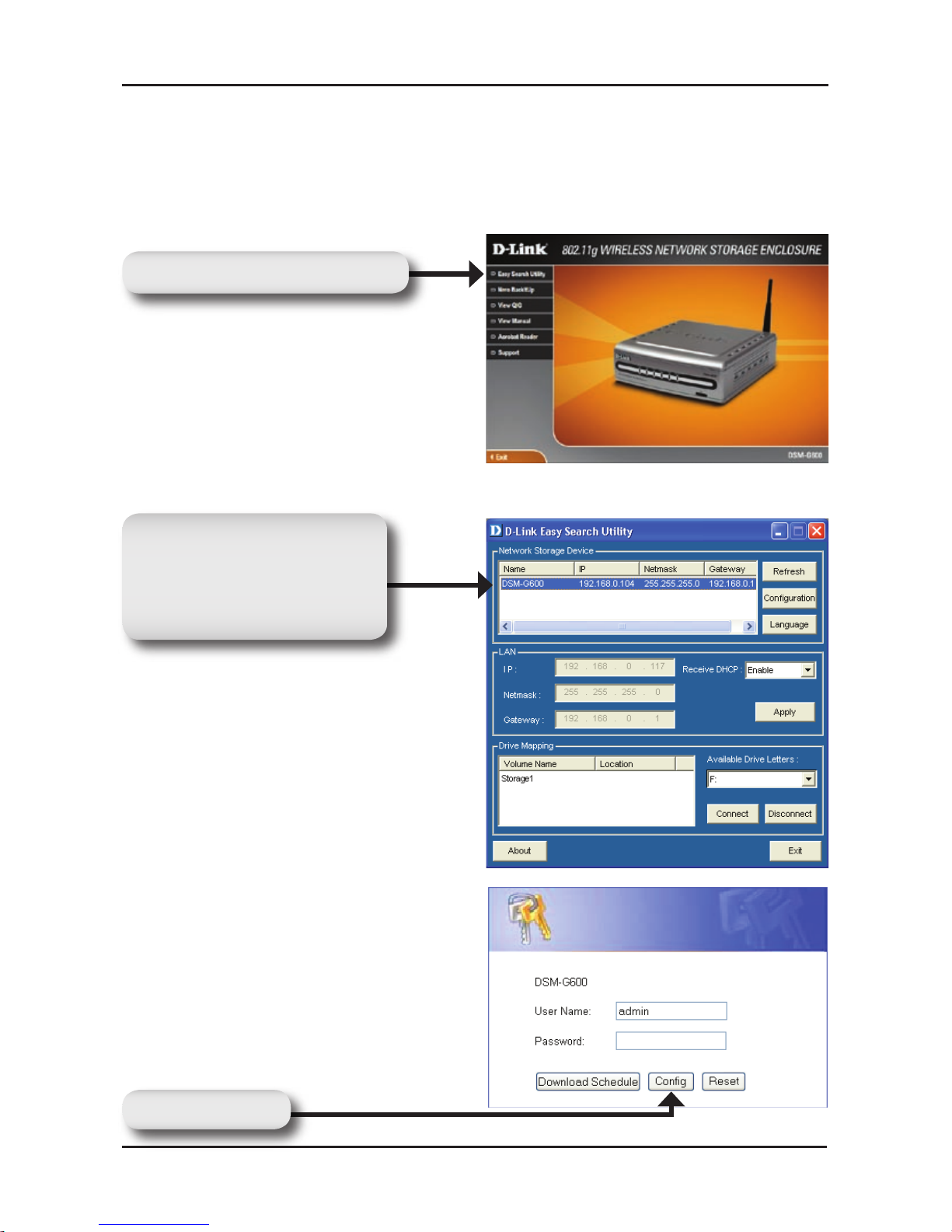

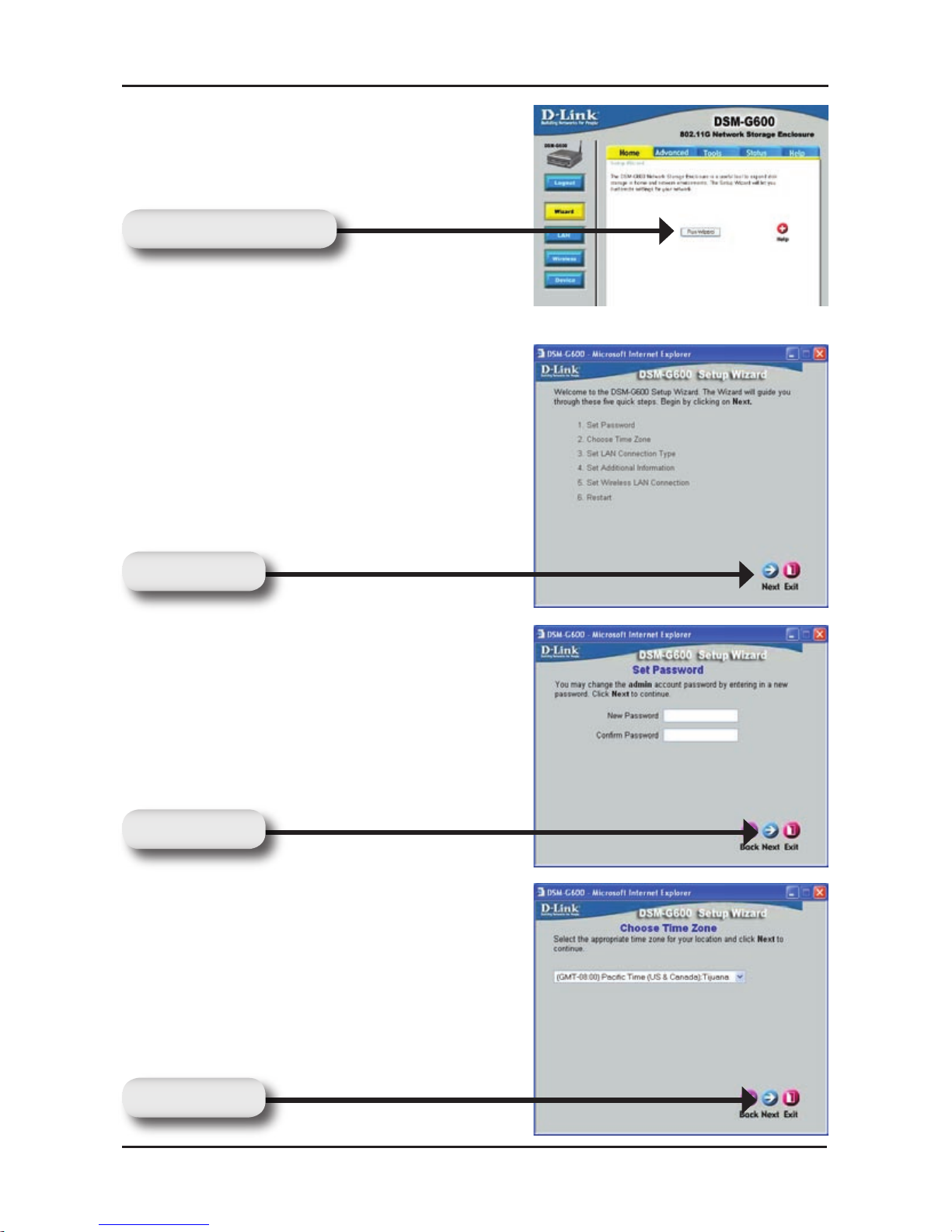

To access the web-based conguration, insert the DSM-600 CD into your
CD-ROM drive.
Click Easy Search Utility.
Type admin for the user name and
leave the password eld blank.
Click Cong
Highlight an available
D S M - 6 0 0 a n d c l i c k
Conguration to access
the web-based utility.

10D-Link DSM-600 Quick Install Guide
Enter and conrm a new
Password
Click Next.
Select the appropriate Time
Zone in the pulldown menu.
Click Run Wizard.
Click Next.
Click Next.

11 D-Link DSM-600 Quick Install Guide
Static IP Address
Subnet Mask
Gateway Address - Usually the
LAN address of your router.
DNS Address - A Domain Name
Server translates Domain names
into IP addresses.

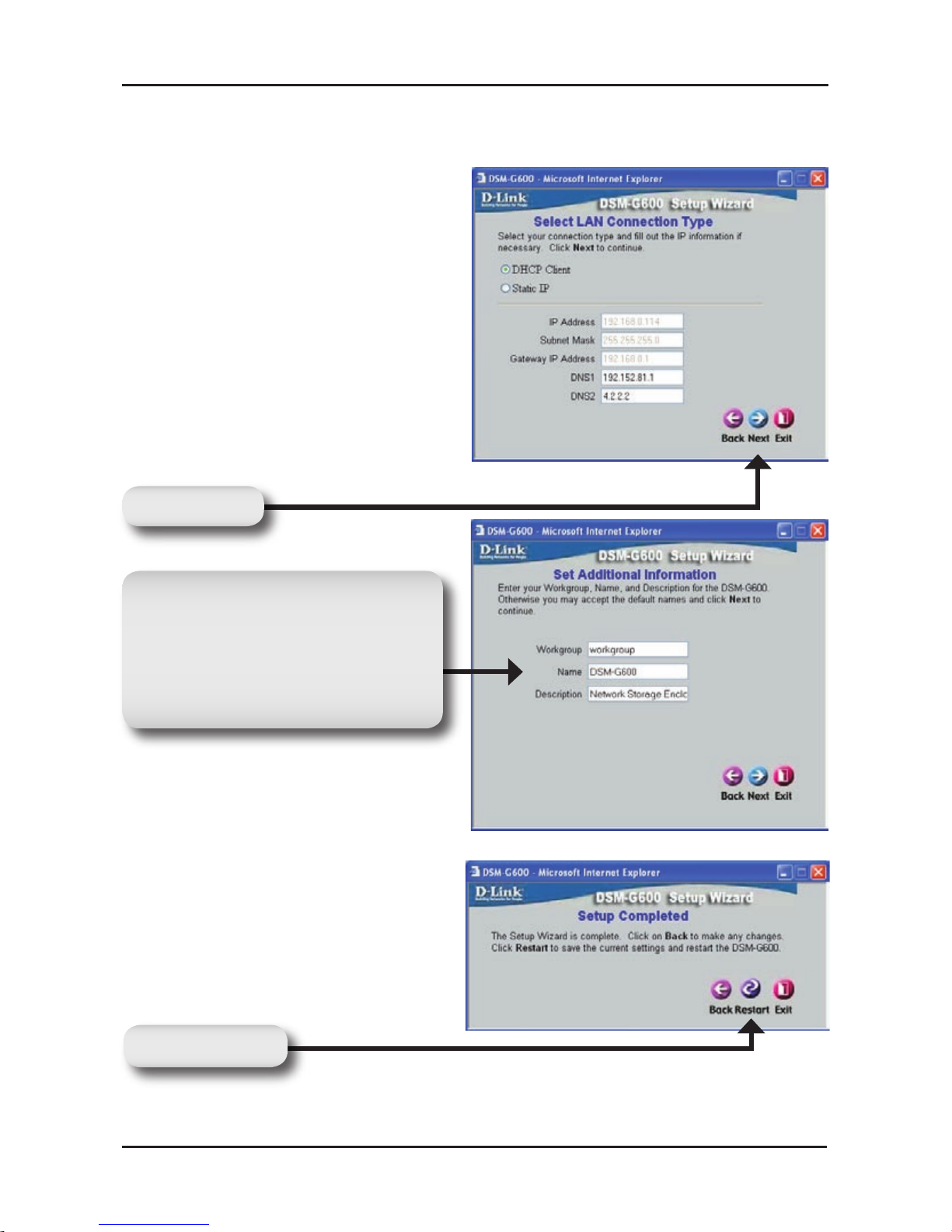

Select either Static or Dynamic IP address. When Static is selected, you will
ll in these elds:
Select DHCP Client when you have
a DHCP server in your network.
No other conguration is required
on this screen when Dynamic IP
address is selected.
Click Next
Enter the Workgroup name, a
Name for the DSM-600 (useful
if you have multiple storage
enclosures on your network),
and a Description.
You have completed the basic conguration using the setup wizard!
Click Restart

12D-Link DSM-600 Quick Install Guide
Viewing Files and Folders

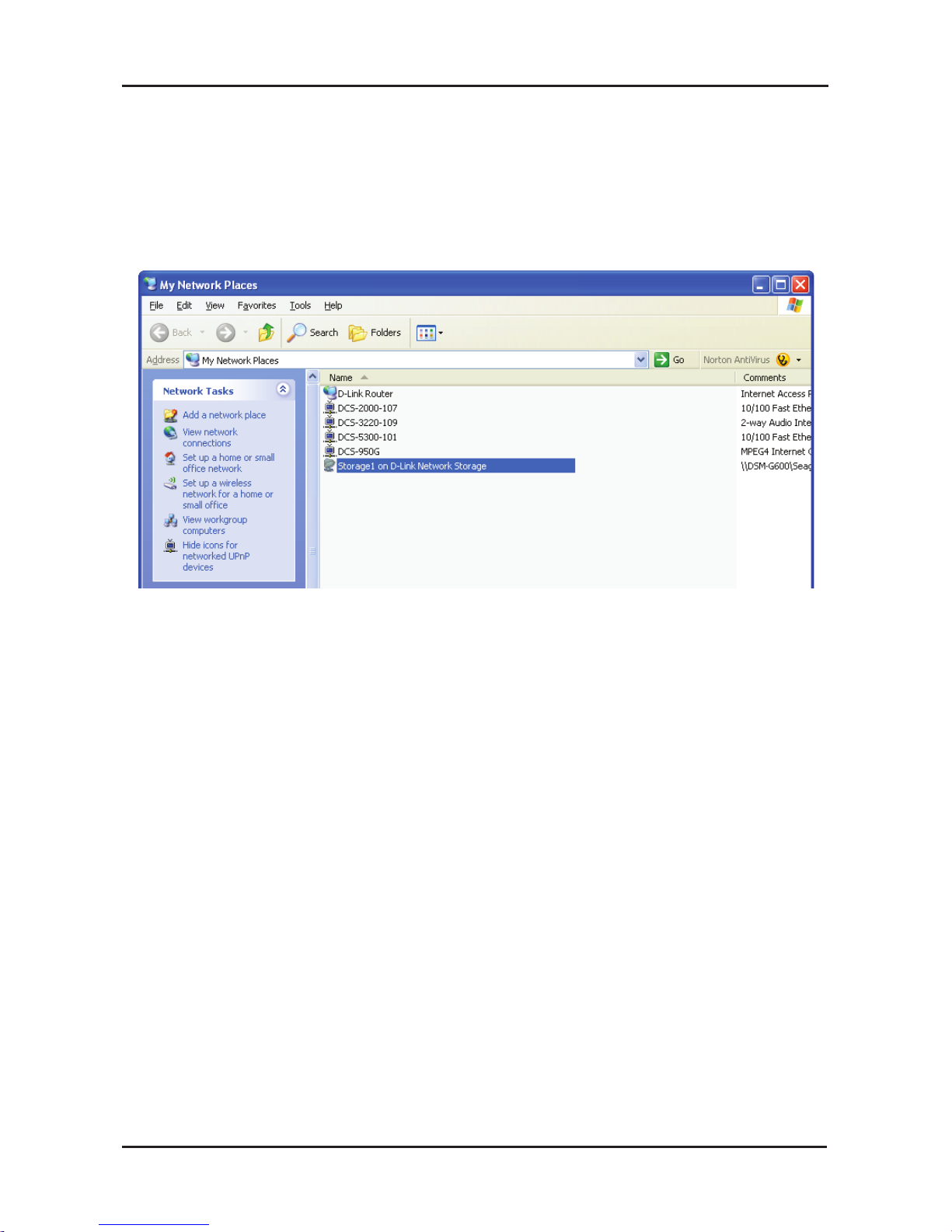

To view the content on your internal/USB drive, double-click on the My
Network Places icon on your desktop and double-click on the folder that
represents your internal/USB drive.
By default, all users on your network will have read/write permissions to all
folders and les on the internal/USB drive(s).
For information on creating users and assigning permissions, please refer
to the Using the Conguration Utility section in the manual included on
your DSM-600 CD.

13 D-Link DSM-600 Quick Install Guide

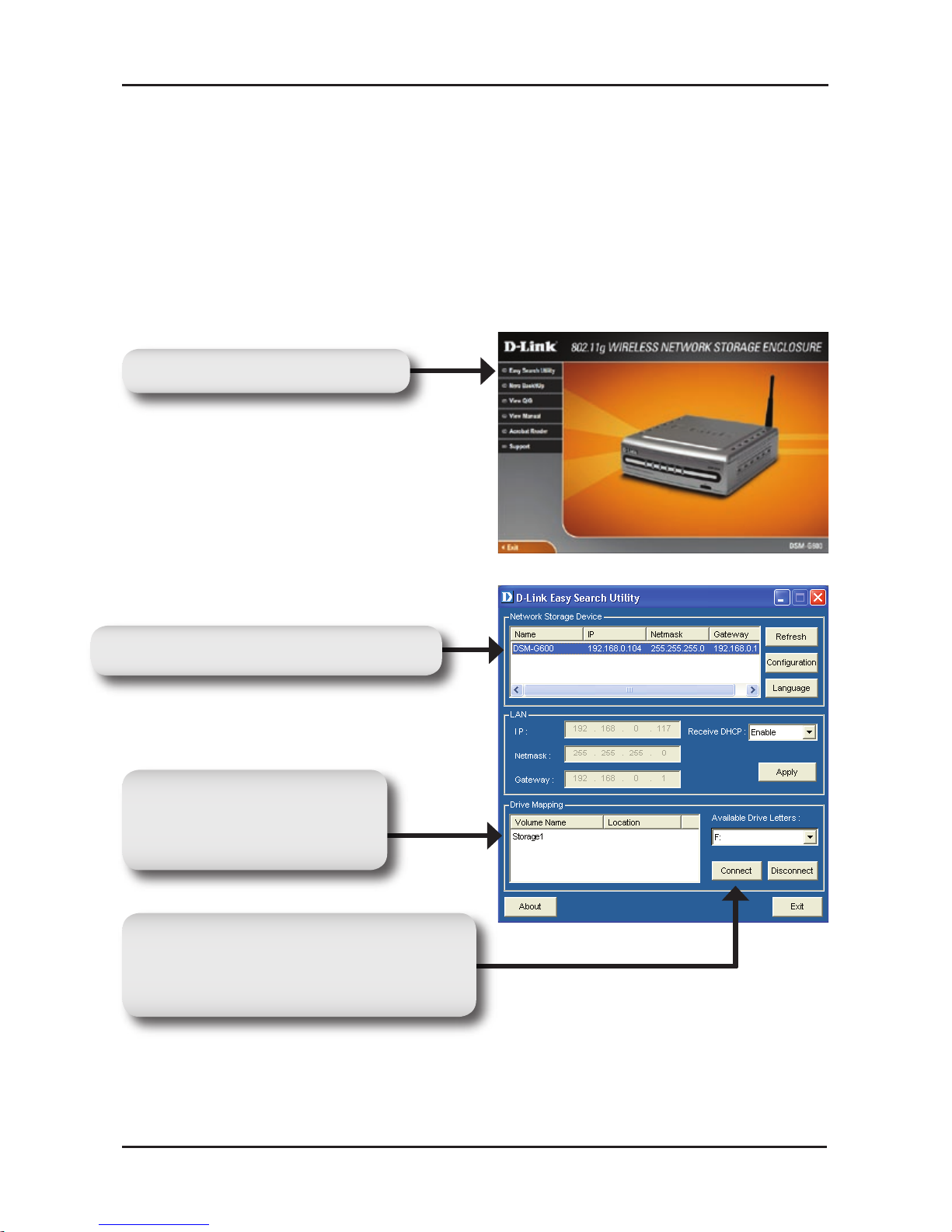

Mapping Drives
You can assign a drive letter (e.g. E:) to a specic folder on your internal/USB
drive(s) that are connected to your DSM-600.
Insert the D-Link DSM-600 CD into
your CD drive.
Click Easy Search Utility.
Highlight an available DSM-600
Available shares will be
displayed. Highlight the
share you want to map.
Select an available drive letter from
the drop-down menu and click
Connect.

14D-Link DSM-600 Quick Install Guide

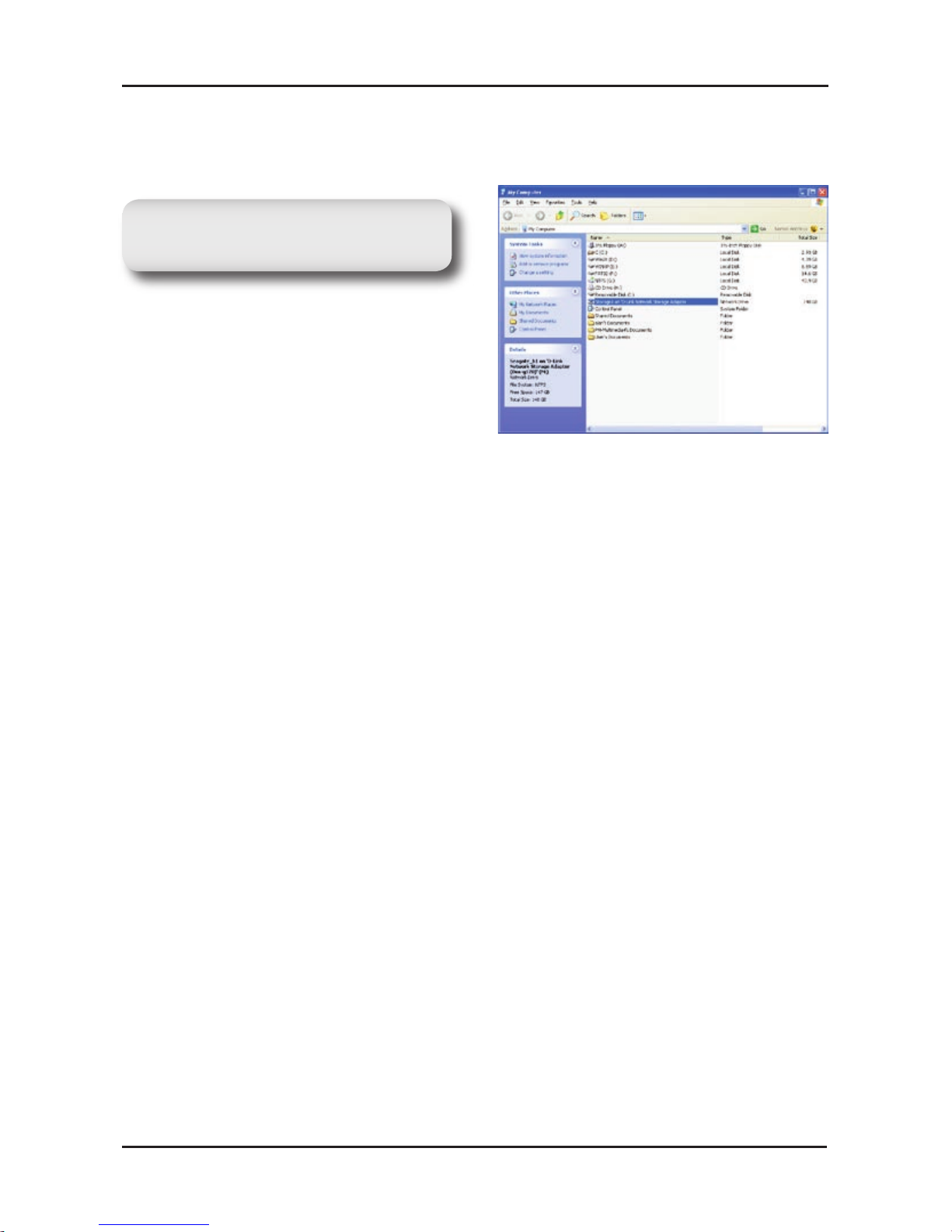

Once you click Connect, your mapped drive will be available. Double-click
on the My Computer icon on your desktop.
You can assign a drive letter (e.g. E:)
to a specic folder on your internal/
USB drive(s) that is connected to your
DSM-600.
Double-click the mapped drive
to access the drive.

15 D-Link DSM-600 Quick Install Guide
(Note that changing the language encoding scheme will NOT change the
display language of the user interface.)
Selecting a Language
You should select a compatible language encoding for your DSM-G600.
Some computer operating systems are unable to recognize or display non-
Roman alphabets such as Cyrillic or character-based languages such as
Chinese. The DSM-G600 can be congured to recognize a different language
encoding scheme.

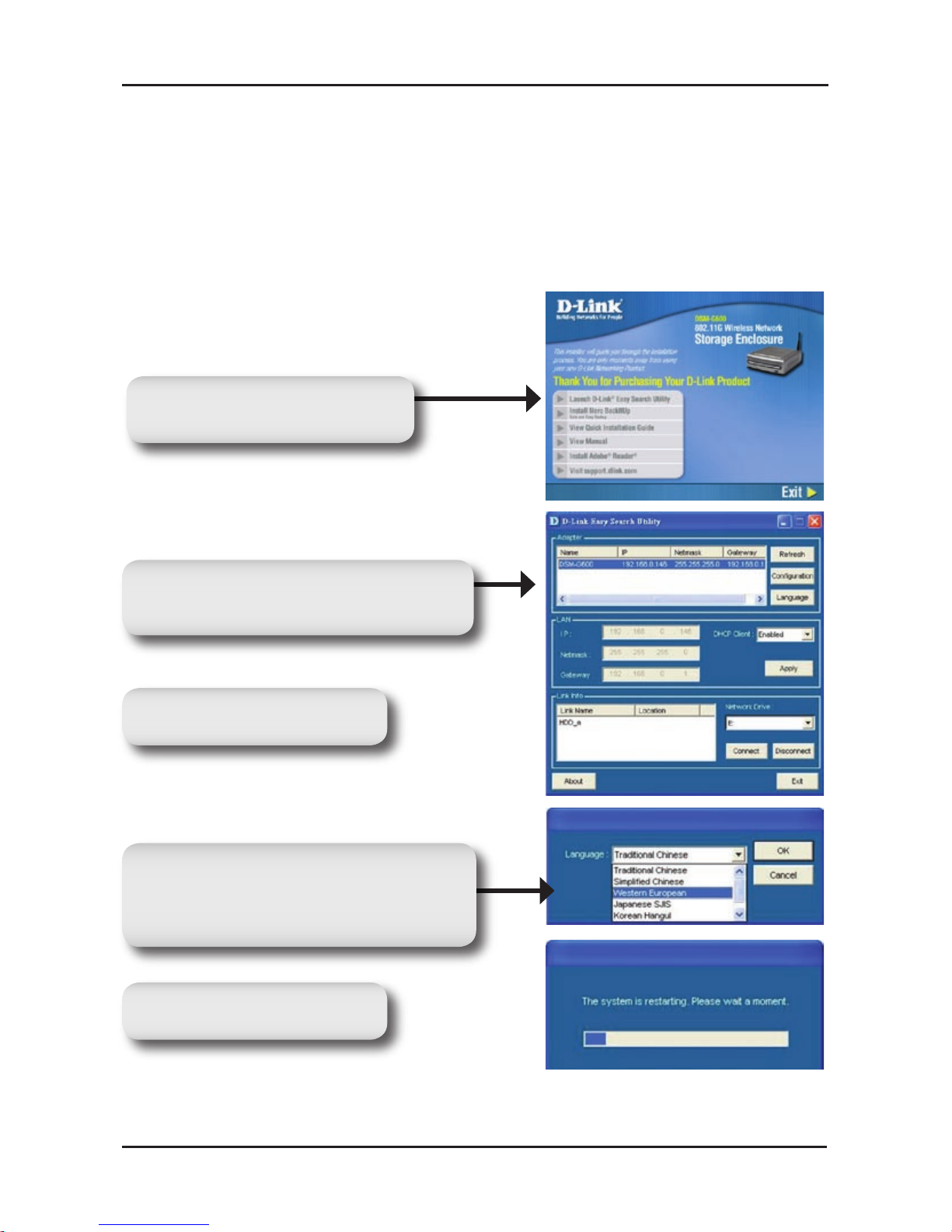

Click Launch D-Link Easy
Search Utility.
Highlight an available DSM-600
Click Language.
Select the appropriate language
from the drop-down menu and
click OK.
The system will restart.
