D-Link DNS-321 - Network Storage Enclosure Hard Drive... User manual

Document Created by Nick Schuster

i
D-Link DNS-321 User Manual
Table of Contents
Table of Contents
Product Overview ........................................................ 1
Package Contents ................................................... 1
System Requirements ............................................. 1
Introduction .............................................................. 2
Features .................................................................. 3
Hardware Overview ................................................. 4
Front View.......................................................... 4
Rear View (Connections)................................... 5
Basic Installation ......................................................... 6
Hardware Setup....................................................... 6
Software Setup ........................................................ 8
Easy Search Utility............................................. 8
Getting Started ........................................................ 9
Web User Interface.................................................... 14
Setup ..................................................................... 14
Wizard ................................................................... 15
LAN........................................................................ 17
Device Settings...................................................... 18
Advanced............................................................... 19
Users/Groups ........................................................ 20
Quotas ................................................................... 22
Network Access - SMB.......................................... 23
Network Access - NFS ..........................................25
FTP Server ............................................................ 26
FTP over TLS ..................................................28
UPnP AV Server.................................................... 32
iTunes Server ........................................................ 32
DHCP Server ......................................................... 34
LLTD...................................................................... 34
Add-Ons ................................................................ 35
Language Pack...................................................... 36
Tools...................................................................... 37
Admin .................................................................... 38
Time....................................................................... 39
System................................................................... 40
Firmware................................................................ 41
E-Mail Alerts .......................................................... 42
Power Management .............................................. 44
RAID ...................................................................... 45
DDNS .................................................................... 46
Disk Diagnostics .................................................... 47
Status .................................................................... 48
Device Information................................................. 49
Hard Drive Information ..........................................50
Logs....................................................................... 51
Schedule Downloads............................................. 52
Scheduling ............................................................. 53
Schedule List ......................................................... 54
Peer 2 Peer Application (P2P)............................... 55
Downloads ............................................................. 56
Settings.................................................................. 57
Knowledge Base........................................................ 58

ii
D-Link DNS-321 User Manual
Table of Contents
Mapping a Drive ....................................................58
Replacing or Adding a New Hard Drive................. 59
Secure HTTP Login ...............................................59
What is RAID? .......................................................60
RAID1 - Conguration ........................................... 61
RAID1 - Auto Rebuilding .......................................63
Yahoo! Widget Installation..................................... 65
Yahoo! Widget Display .......................................... 66
Technical Specications........................................... 67

Section 1 - Product Overview
1
D-Link DNS-321 User Manual
Product Overview
Package Contents
D-Link DNS-321 ShareCenter• ™2-Bay Network Storage
CD-ROM with Manual and Software•
Quick Installation Guide•
Power Adapter•
CAT5 Ethernet Cable•
Note: Using a power supply with a different voltage than the one included with the DNS-321 will cause damage and void the warranty for
this product.
If any of the above items are missing, please contact your reseller.
System Requirements
For best results, the following system requirements are recommended:
Computer with: 1GHz processor / 512 MB RAM / 200 MB available space / CD-ROM drive•
Internet Explorer version 6.0 or Mozilla Firefox 1.0 and above•
3.5” SATA Hard Drive(s)•
Windows• ®XP (with Service Pack 2) or Vista™

Section 1 - Product Overview
2
D-Link DNS-321 User Manual
Introduction
The D-Link DNS-321 ShareCenter™2-Bay Network Storage shares your documents, photos, music, and videos across the network and
on the Internet (via FTP server) so family members, friends, or employees can access them. This enclosure, which can hold two 3.5”
SATA hard drives of up to 2TB each, creates a central network point for backing up valuable les. The built-in RAID 1 mirroring technology
protects these les from drive failure. Other options such as Standard, JBOD, and RAID 0 are also available.
The DNS-321 shares les over the Internet via the built-in FTP server. Users and groups can be created and assigned to folders with
either read or read/write permissions. Quotas can be set per user or group to restrict space usage. In addition, the DNS-321 can be used
to stream photos, music, and videos to UPnP AV compatible network media players.
The included CD contains D-Link’s Easy Search Utility. This utility allows you to locate the DNS-321 on the network and map drives
to your computer. Backup software is also included on the CD. This software allows you to backup your les from a computer to the
DNS-321 manually, or by a schedule.
Combining ease of use with practical and high performance features, the DNS-321 is an organized solution for any network. Free up drive
space on computers and centralize data on your network with the DNS-321 ShareCenter™2-Bay Network Storage!

Section 1 - Product Overview
3
D-Link DNS-321 User Manual
Features
Two Hard Drive Bays for 3.5” SATA Hard Drives up to 2TB•
each
Simplified Hard Drive Installation Process – No Tools•
Required
Four Hard Drive Congurations: Standard, JBOD (Linear), •
RAID 0, and RAID 1
High Performance Gigabit Ethernet Connectivity•
Built-in FTP Server for File Access Over the Internet•
Scheduled Downloads from Web or FTP Sites•
Full or Incremental Backups•
Recover your computer using the bundled backup software•
Users and Groups Can Be Assigned to Folders with Read or•
Read/Write Permissions
Quotas For Users and Groups•
Automatic E-Mail Notications•
Power Management for Conserving Energy and Extending•
Hard Drive Life
UPnP AV Server for Streaming Music, Photos, and Video to•
Compatible Media Players
iTunes• ® Software will automatically nd and play music
directly from the DNS-321
D-Link Easy Search Utility•
Congurable by Web Browser•
Supports HTTPS management function•
Supports DHCP server•
Supports Conguration le save/load•
Supports DDNS•
Supports Add-On software and Multi-language packages•
Supports Jumbo Frame•
Supports UPnP for Windows• ®XP
Supports PnP-X / LLTD•
The DNS-321 is designed for easy installation and allows remote access to important data via LAN or WAN:
Supports Uni-code for both Samba and FTP Server•
Supports P2P Download•
Supports Yahoo! Widget•
Supports NFS Server•
Support Auto Power Recovery (for A3 version only)•
Support System Logging/FTP Logging•
Supports EXT3•
FTP Server supports FTP over SSL/TLS and FXP•

Section 1 - Product Overview
4
D-Link DNS-321 User Manual

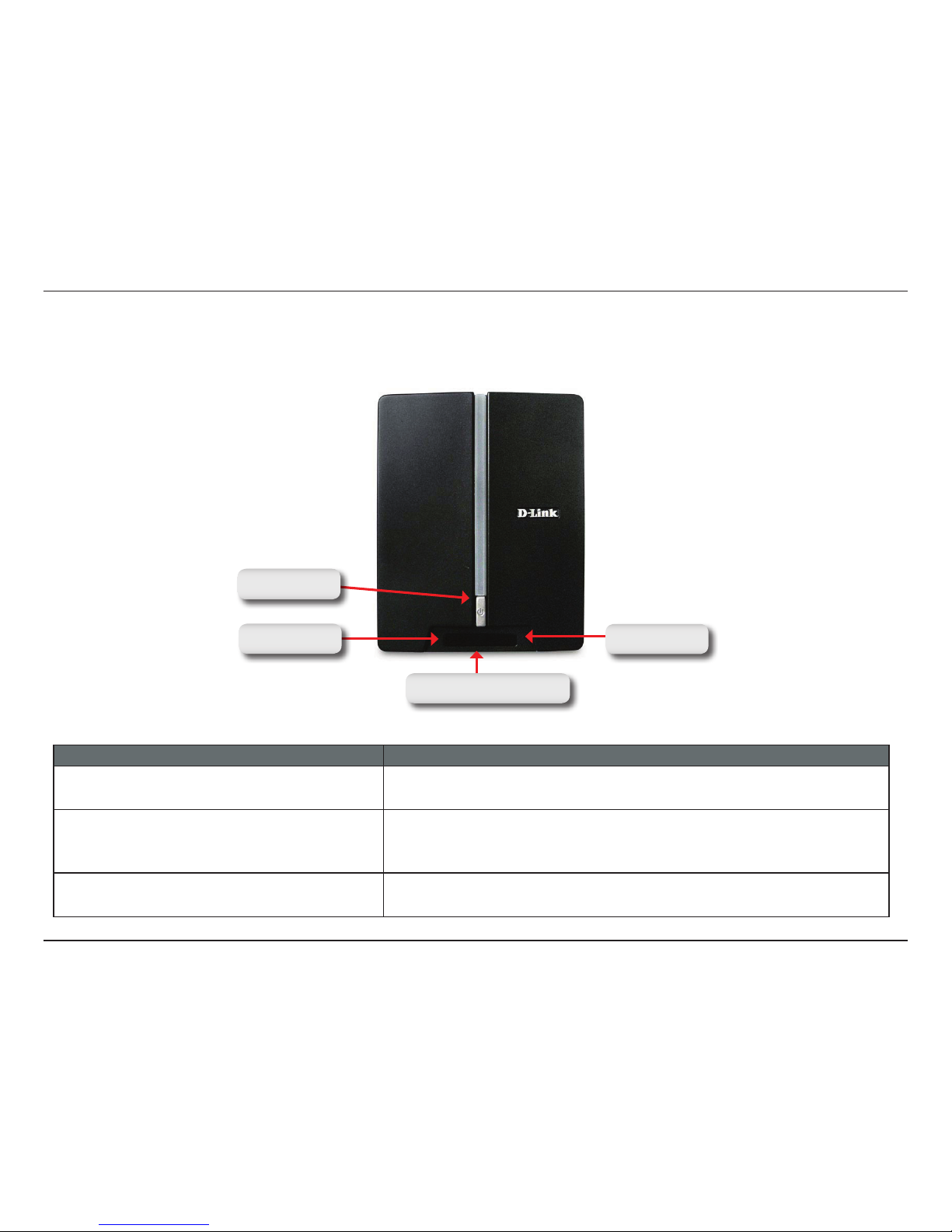

Hardware Overview
Front View
Power Button
Drive Light
Network Activity Light
Drive Light
COMPONENT DESCRIPTION
Power Button Press once to power on the DNS-321. Press and hold the button until it begins
blinking to power down the device.
Drive LEDs These LEDs will be solid BLUE when drives are connected. The LEDs will
blink when the drives are being accessed, formatted or synchronized. They will
illuminate AMBER if a drive has failed.
Activity LED This LED will illuminate solid BLUE when there is an Ethernet connection. It will
blink to indicate LAN trafc.

Section 1 - Product Overview
5
D-Link DNS-321 User Manual

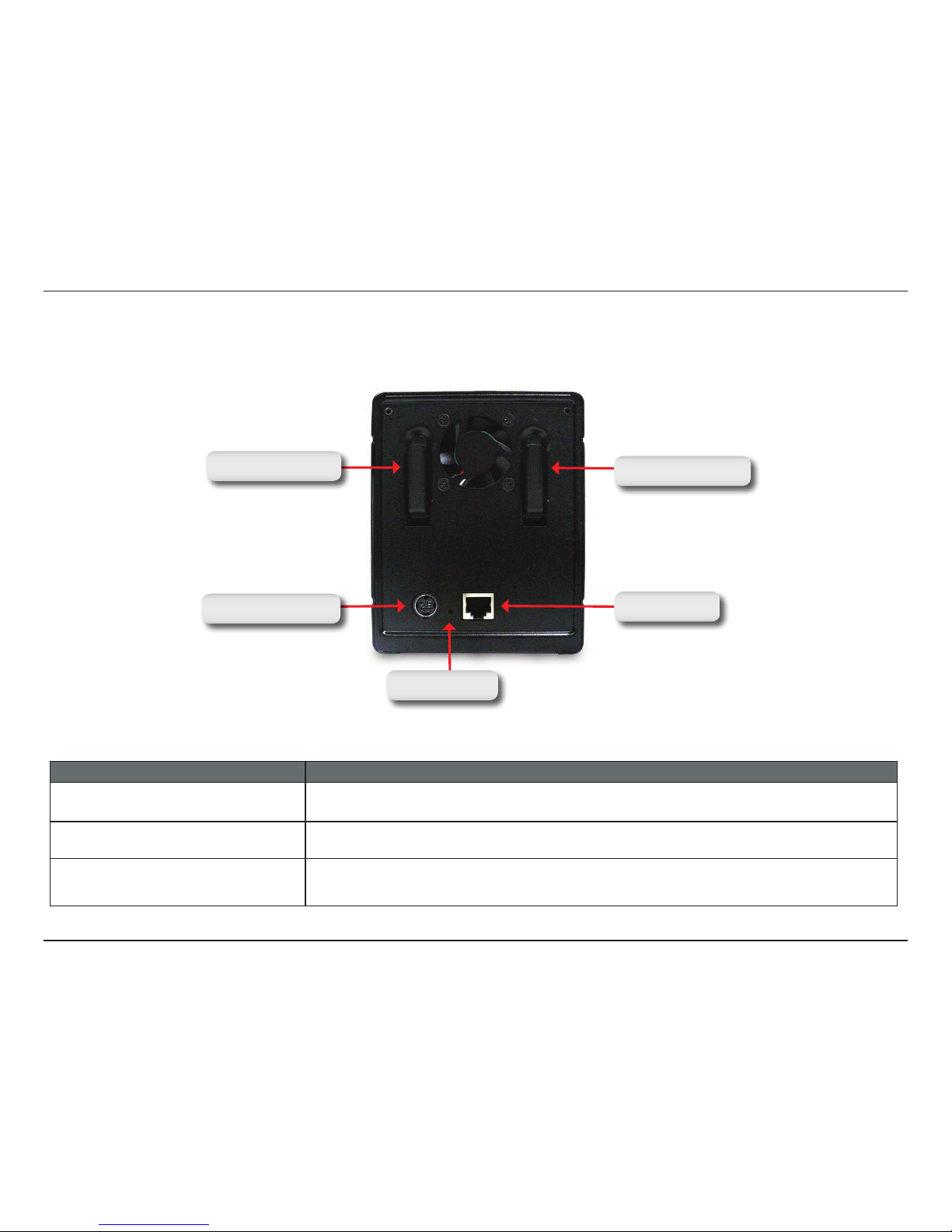

Rear View (Connections)
Power Receptacle Ethernet Port
Drive Eject Lever
Drive Eject Lever
Reset Button
COMPONENT DESCRIPTION
Power Receptacle The supplied power adapter connects here.
Ethernet Port A Gigabit Ethernet port that connects the DNS-321 to the local network.
Drive Eject Lever Use the provided levers to eject the SATA hard drives.

Section 2 - Installation
6
D-Link DNS-321 User Manual
Basic Installation

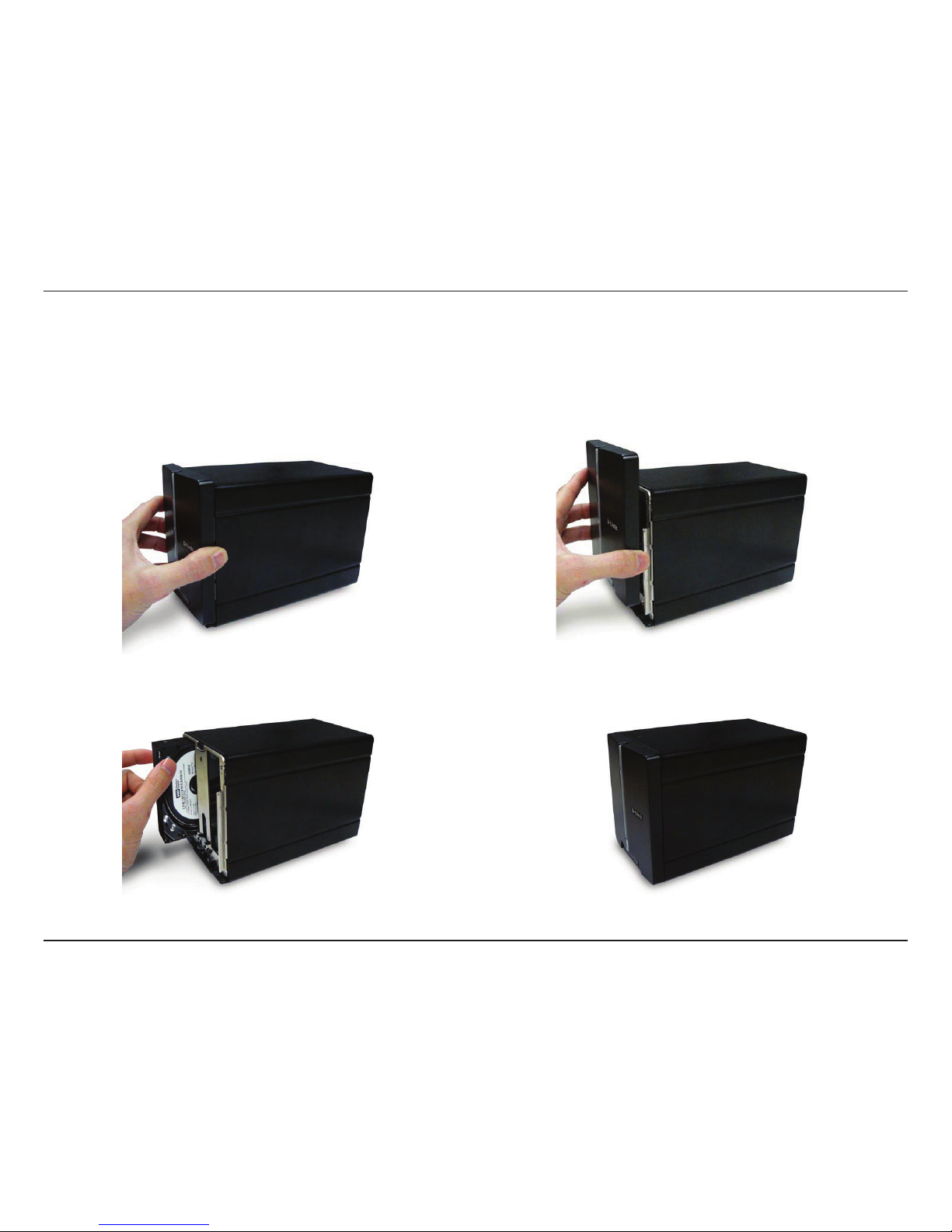

Hardware Setup
This section provides installation information for the DNS-321. To install the DNS-321 on your local network, refer to the steps below:
3. Insert a 3.5” SATA hard drive into an available drive bay.
2. Once the faceplate is unlatched, pull it off the device, exposing
the drive bays.
1. Slide the faceplate up until it unlatches from the device.
4. Attach the faceplate to the front of the device.

Section 2 - Installation
7
D-Link DNS-321 User Manual

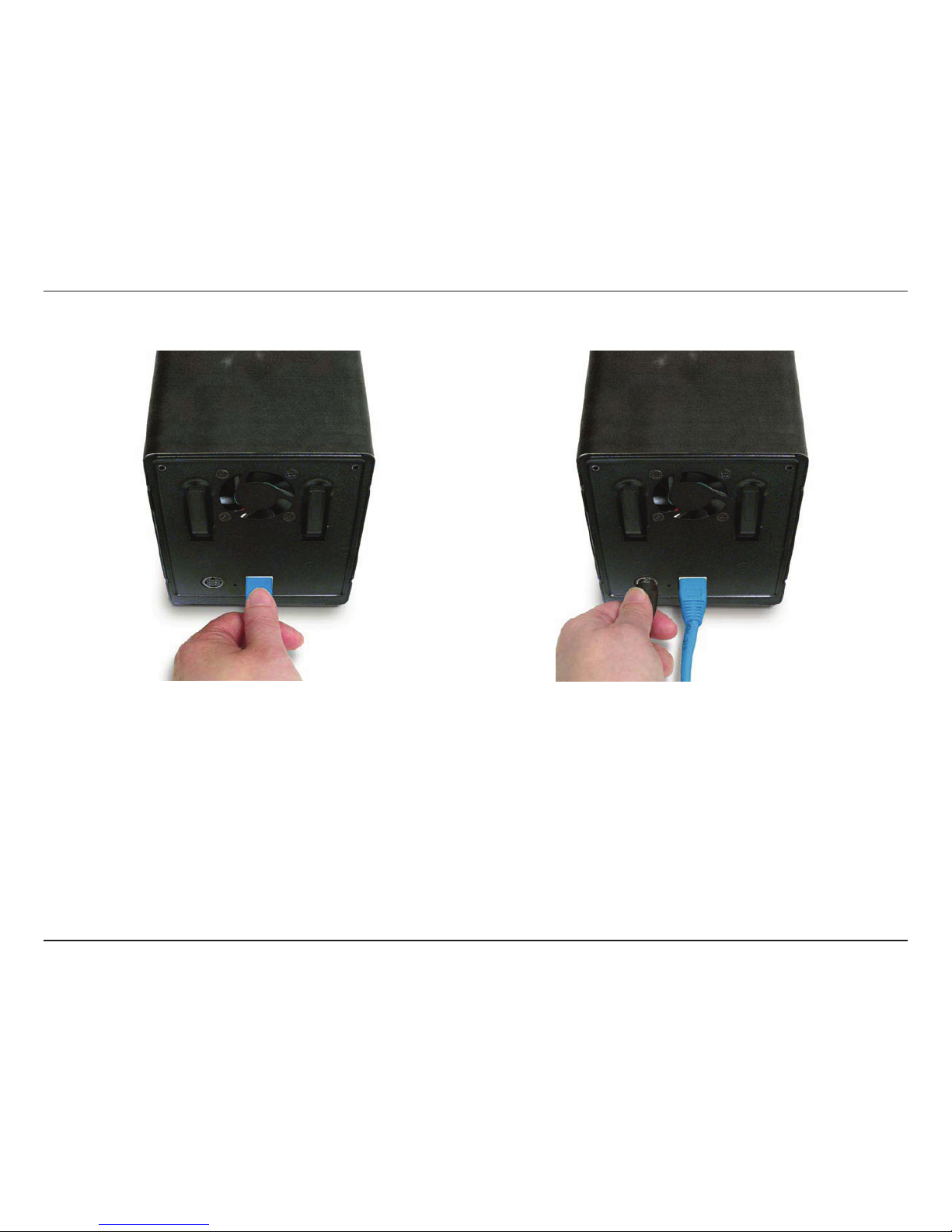

6. Connect the power adapter to the power receptacle.5. Connect an Ethernet cable to the available Ethernet port. This
cable should connect the DNS-321 to your local network via a
router or switch, or directly to a computer for conguration.
Make sure to align the drive connector to the SATA connector on the bottom edge inside the drive bay of the DNS-321. Gently push the
drive in until it connects. When a drive is inserted properly, you will feel it “seat” into the connector. Some hard drives that are thin or oddly
shaped may need to be guided carefully into position. If a drive is not properly seated, the light will not illuminate after powering on the
device.

Section 3 - Installation
8
D-Link DNS-321 User Manual
Software Setup
When rst powered on, during the initial boot sequence, the DNS-321 will wait to be assigned an IP address via DHCP. If it does not
receive a DHCP assigned IP address, by default it will have a self-assigned IP address of 192.168.0.32. It is recommended to use the
included D-Link Easy Search Utility when accessing and conguring the DNS-321 for the rst time. If you want to change the IP address
before logging in or if you are unable to connect to the DNS-321 IP address, you can use the Easy Search Utility provided on the product
CD to locate the device on your network and make any needed changes.
Network Storage
Device:
Refresh:
Configuration:
LAN:
Apply:
Drive:
Available Drive
Letters:
Exit:

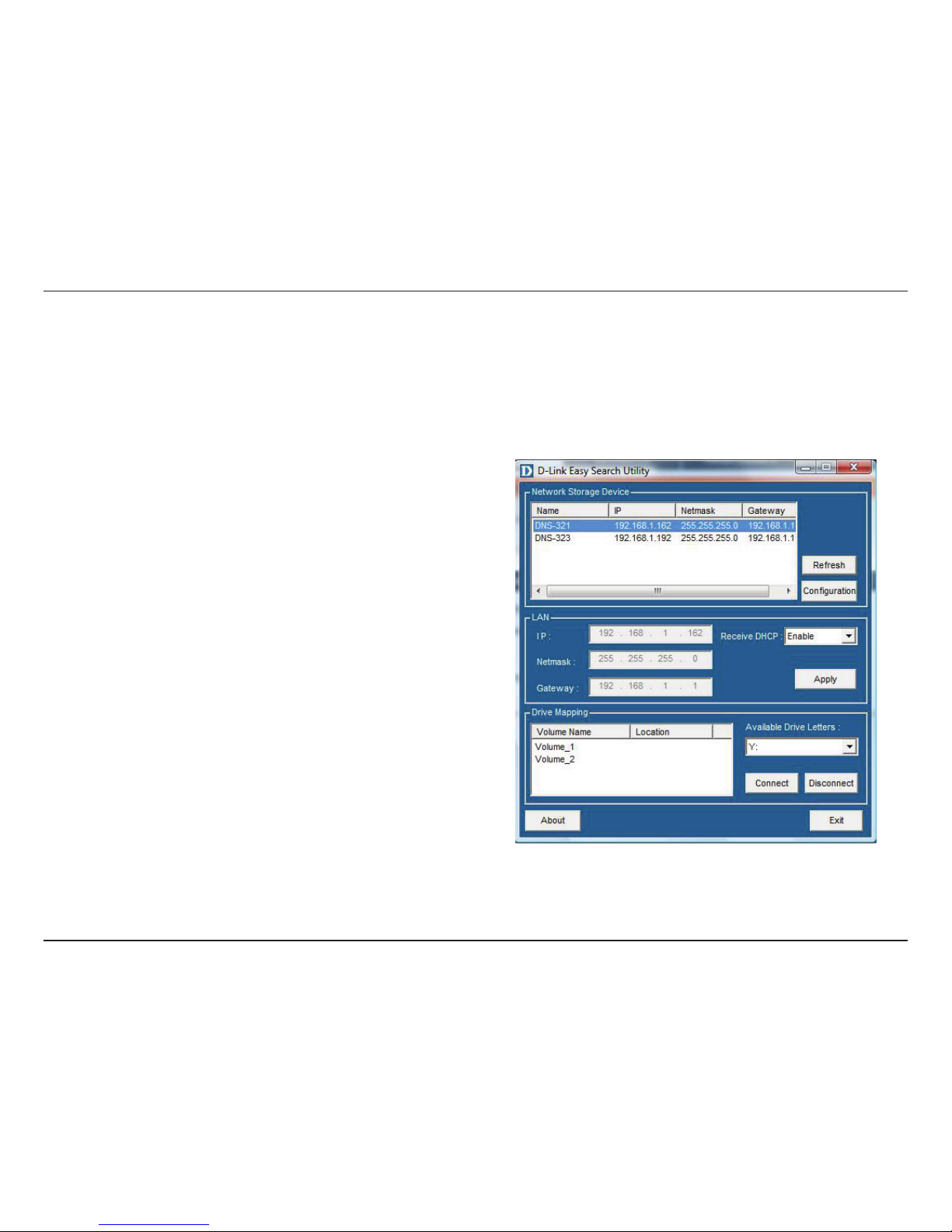

The Easy Search Utility displays the available
DNS-321 devices on the network.
Refreshes the device list.
Click Conguration to access the Web-based
conguration utility of the DNS-321.
Congure the LAN Settings for the DNS-321
here.
Click Apply to save changes to the LAN
Settings.
Volumes available for mapping are displayed
here.
Choose an available drive letter. Click Connect
to map the selected volume. Click Disconnect
to disconnect the selected mapped volume.
Click Exit to close the utility.
Easy Search Utility

Section 3 - Configuration
9
D-Link DNS-321 User Manual

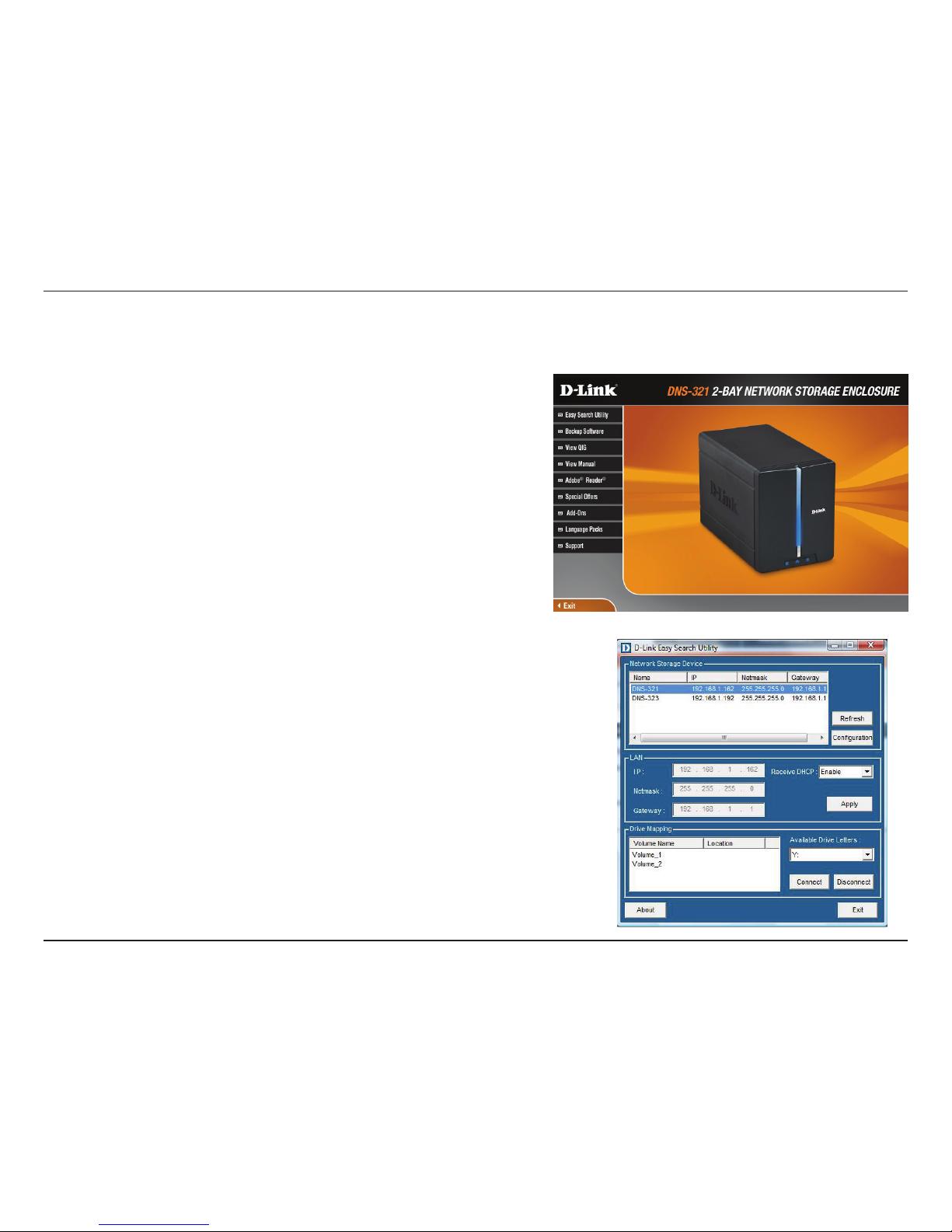

To run the Easy Search Utility, insert the DNS-321 CD into your CD-ROM drive:
Getting Started
Step 1:
Step 2:
Click Easy Search Utility.
Highlight an available DNS-321 and click Conguration
to access the web-based utility.

Section 3 - Configuration
10
D-Link DNS-321 User Manual

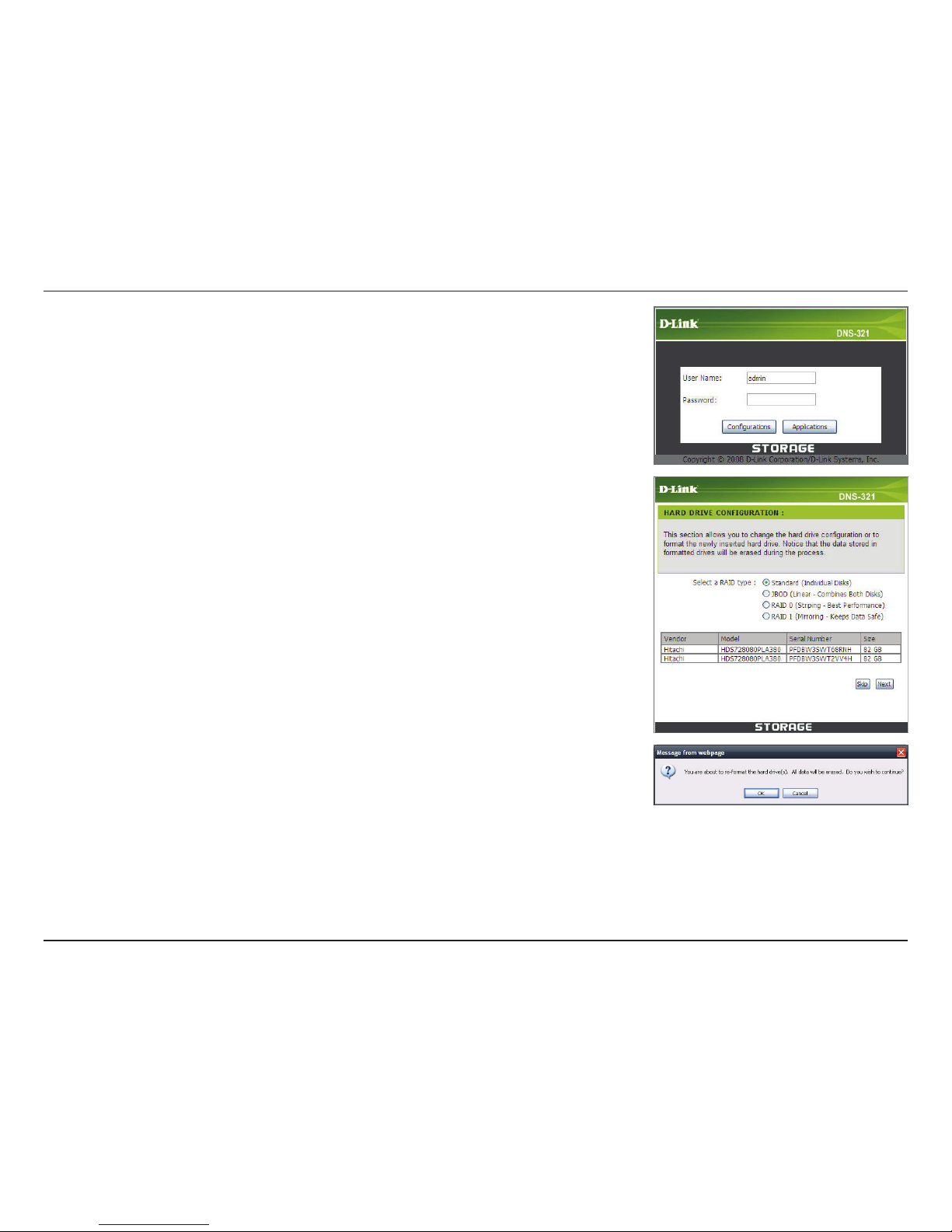

Step 3:
Step 4:

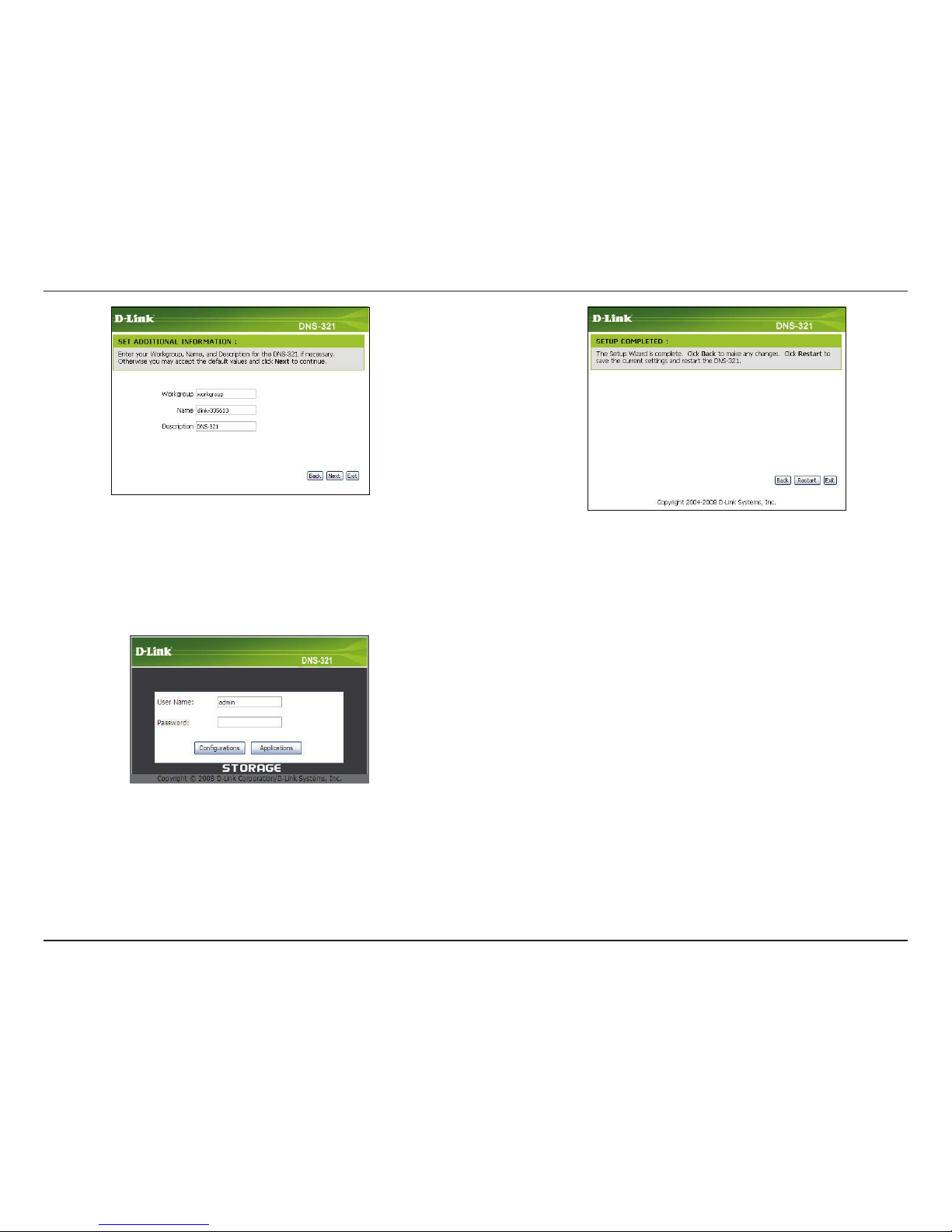

The Login screen will appear: Type admin for the username and leave the password
eld blank.
Click Conguration.

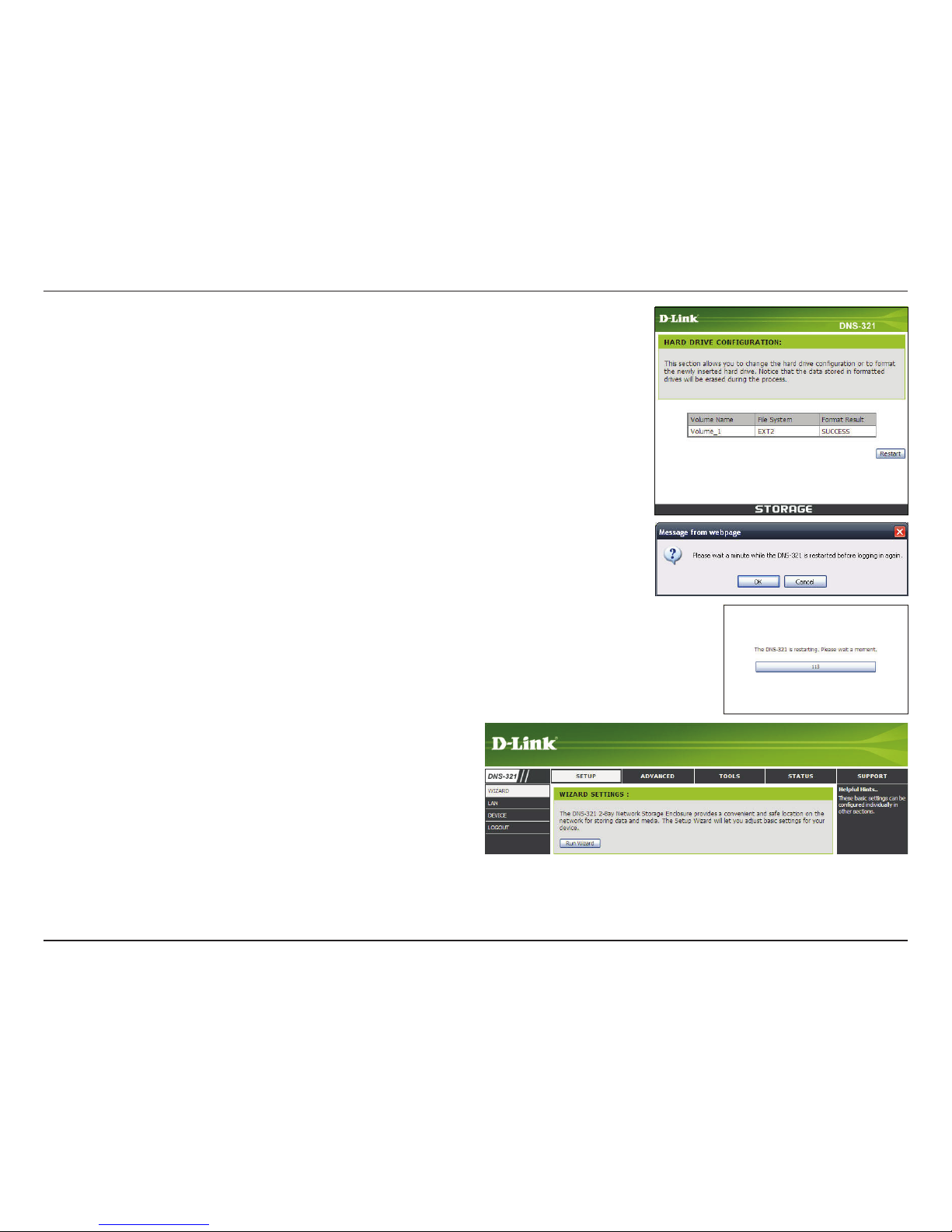

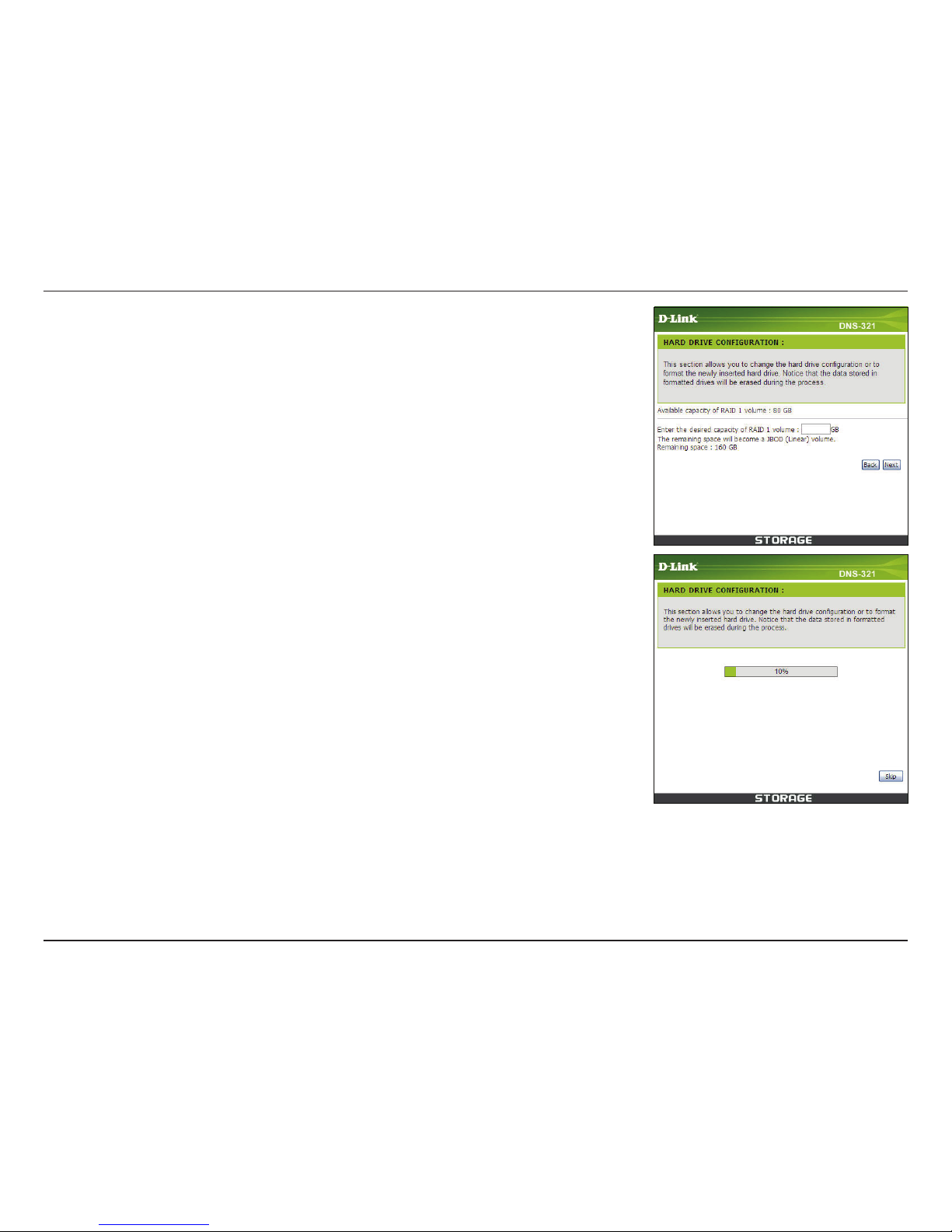

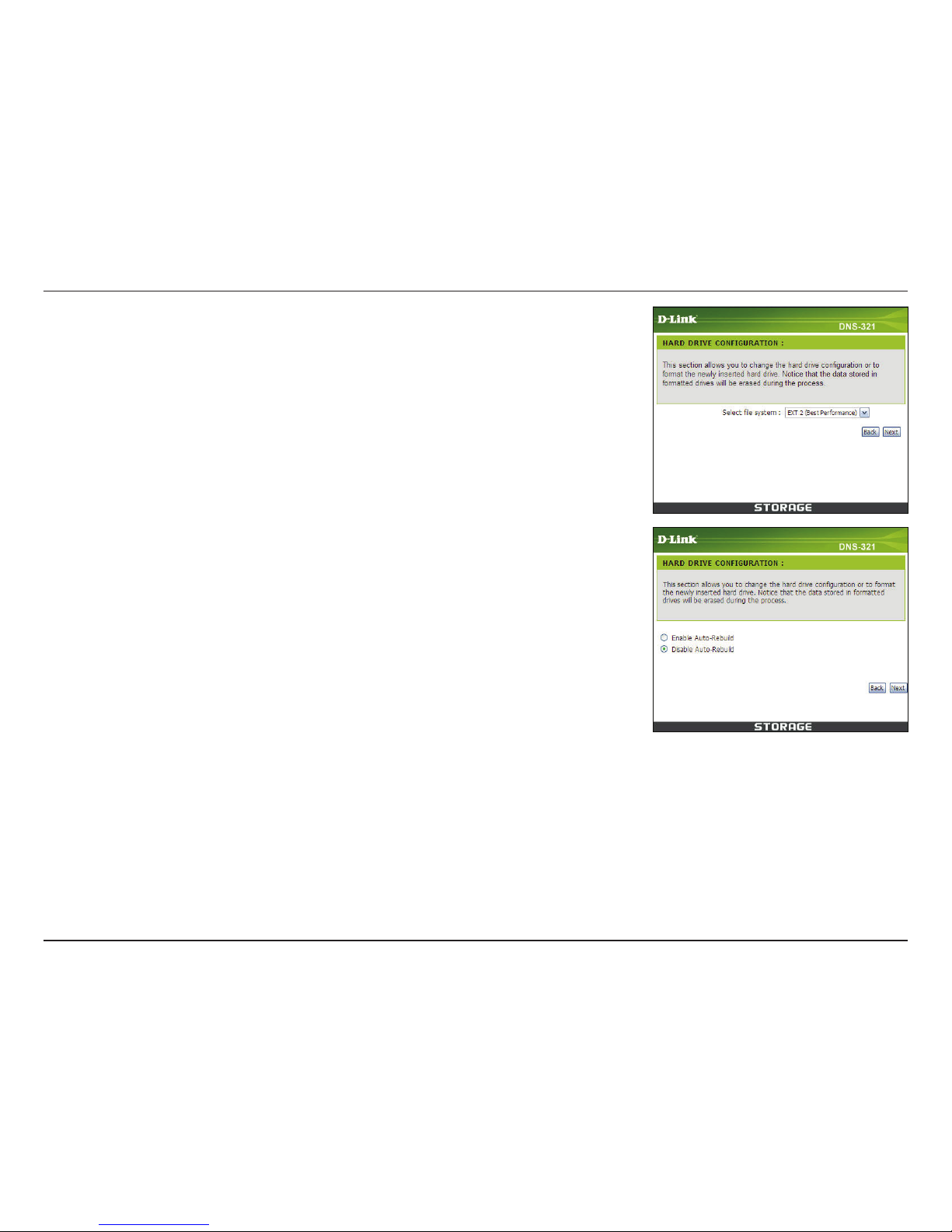

When logging into the DNS-321 for the rst time, you will be asked to choose a
drive conguration type and format the drives. There are four options: Standard,
JBOD, RAID 0 and RAID 1. Standard congures each disk as a separate volume,
while JBOD combines both disks into a single volume. See further for more details
on using the RAID congurations.
Note: All data will be erased during the format process.
When prompted to congure the Hard Drive Settings:
Select the type of hard drive conguration, Standard, JBOD, RAID 0 or RAID 1.
A warning message appears informing you that your drives will be formatted and all
data will be erased. Click OK to continue.

Section 3 - Configuration
11
D-Link DNS-321 User Manual
Step 5:
Step 6:
The user will be prompted to choose a le system. Select the appropriate one
and click Next.
The user can choose to Enable or Disable Auto-Rebuild. See the manual for
more details. Select the appropriate option and click Next.
Note: If RAID 1 is not selected, this option will be skipped.

Section 3 - Configuration
12
D-Link DNS-321 User Manual
Step 7: The user must specify the RAID volume size. Check the available capacity for a
reference to what size can be chosen.
Note: if RAID is not selected, this option will be skipped.
Click Next to continue.
The DNS-321 will format the disks in the device and setup the chosen RAID or
JBOD setup.

Section 3 - Configuration
13
D-Link DNS-321 User Manual
Step 8:
Step 9:
When formatting and setup of the drive are complete, the
DNS-321 will prompt the user to restart.
Click the Restart button.
A restart countdown screen will appear, and when the
restart is complete, the login screen will appear:
Press OK to restart the DNS-321.
Type admin for the username and leave the password eld
blank. Click Conguration.
Note: After logging in to the DNS-321 for the first time it is
recommended to add a password to the admin account.
After login, you will be redirected to the DNS-321 web
UI:

Section 3 - Configuration
14
D-Link DNS-321 User Manual
Web User Interface
The DNS-321 web UI defaults to the Setup page. The main categories for conguration are located in the menu tabs at the top of the
page. These categories include:
Setup• - Contains the DNS-321 setup wizard, as well as the LAN conguration settings and device settings.
Advanced• - Allows the DNS-321 administrator to congure users, groups of users and their storage quotas. The UPnP AV server,
iTunes server, FTP server and DHCP server settings are all contained here as well.
Tools• - Contains the conguration options for Admin account, time and system settings, and e-mail alerts. Power management options
and RAID conguration options are also available.
Status• - Contains a summary of DNS-321.
Support• - Contains the DNS-321 help les.
Logout• - Clicking this button will log the admin out and end the DNS-321 conguration session.
These pages and their conguration options will be discussed in detail in the following pages of this manual.
Wizard:
LAN:
Device:
The DNS-321 ShareCenter™2-Bay Network Storage
provides a convenient and safe location on the network
for storing data and media. The Setup Wizard will let you
adjust basic settings for your device.
The LAN Settings allows you to congure the Link Speed
and to congure the IP address as a DHCP client or
Static IP.
Enter a workgroup, name, and description.
Setup

Section 3 - Configuration
15
D-Link DNS-321 User Manual
The DNS-321 has a Setup Wizard that allows you to quickly congure some of the basic device settings.

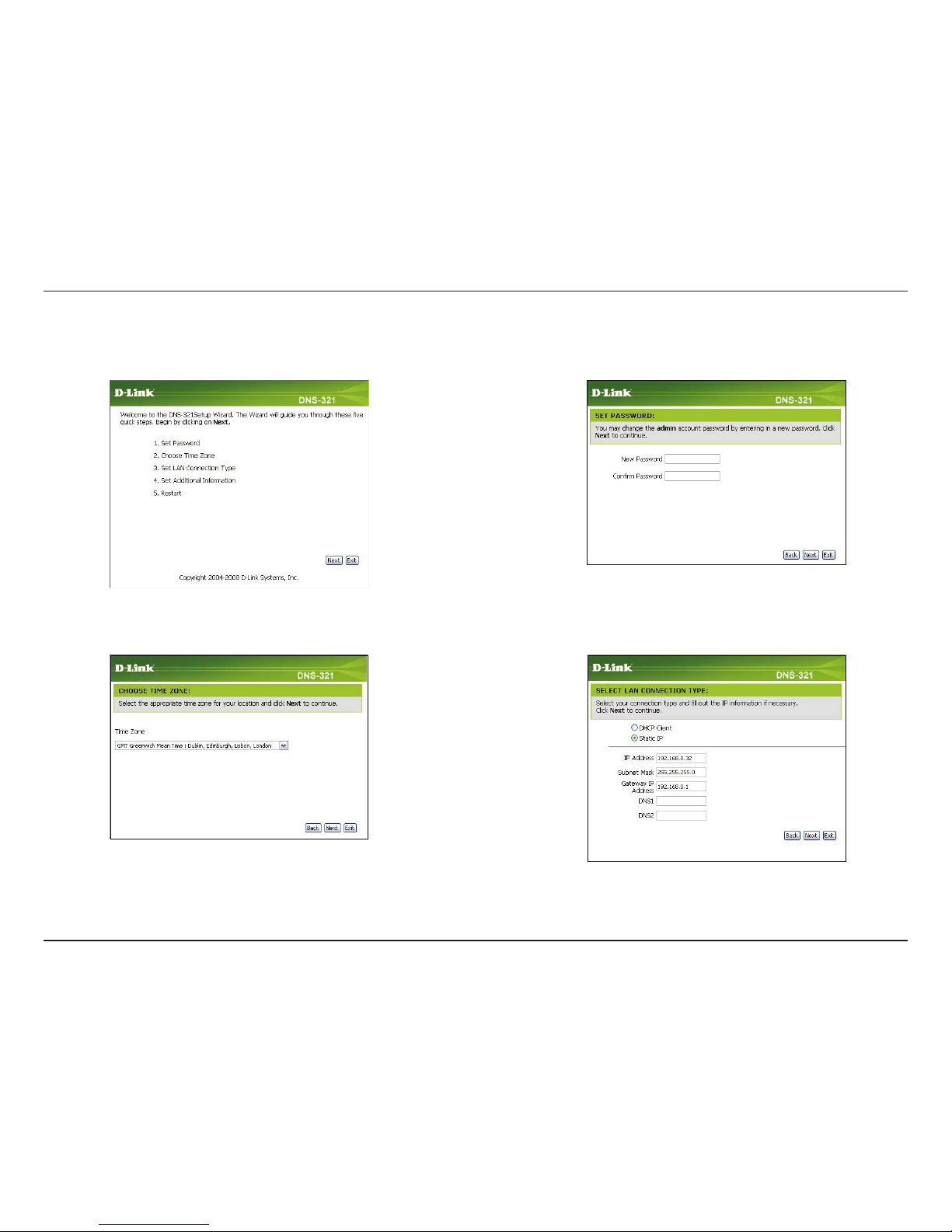

1. When running the DNS-321 setup wizard, the welcome screen
details the ve steps of the wizard. Click Next to continue.
Wizard
2. It is recommended you set an admin password here. Enter the
new password and re-enter it for conrmation. Click Next to
continue.
3. Set the appropriate Time Zone and click Next to continue. 4. Edit or change the DNS-321 LAN information, or keep the current
settings, click Next to continue.

Section 3 - Configuration
16
D-Link DNS-321 User Manual
7. When the login prompt appears, log in using the new administrator
password.
5. Enter a workgroup, name, and description for the DNS-321, or
leave the default values and click Next to continue.
6. When the wizard completes, click Back to go back and make
changes or click Restart to restart the DNS-321 and save the
conguration. While the DNS-321 is restarting, a countdown
screen will appear.

Section 3 - Configuration
17
D-Link DNS-321 User Manual

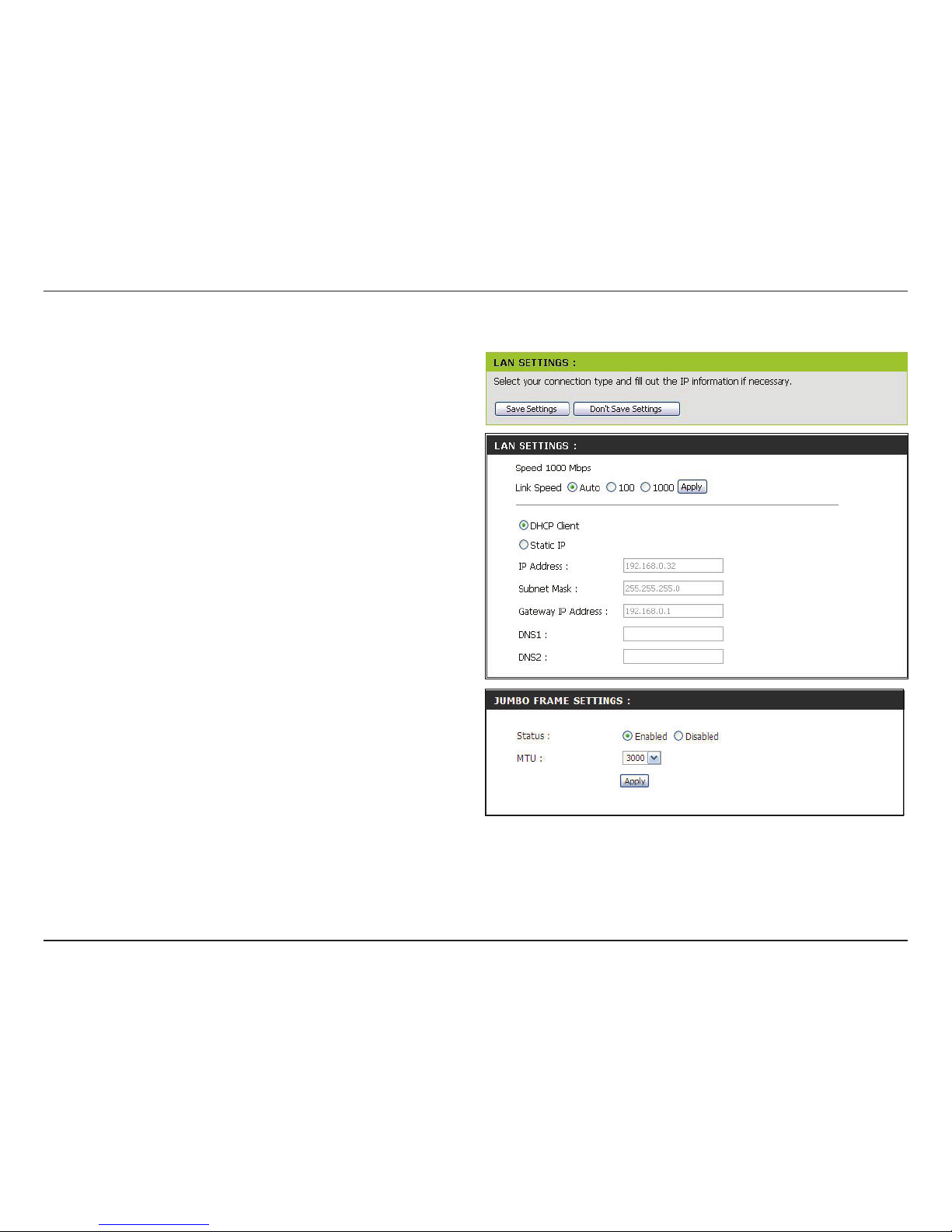

LAN
The Local Area Network settings for the DNS-321 can be congured
on the LAN page.
Link Speed:
DHCP Client:
Static IP:
Jumbo Frames:
The LAN Link Speed is set to Auto by default, but
can be manually set to 100Mbps or 1000Mbps.
Selecting DHCP Client will cause the DNS-321 to
obtain an IP address from the local DHCP server,
such as your router.
Selecting Static IP requires you to assign the IP
information for the DNS-321 manually.
The DNS-321 can support Jumbo Frames that are
between 3000 and 9000 bytes in size. In order to
enable Jumbo Frames on the DNS-21, click the
Enable radio button and select the MTU size from
the drop-down menu. Click the Apply button to save
any changes made.
