D-Link EasySmart DGS-1100-08 User manual

DGS-1100-08/16/ 24
Manual
EasySmart Switch
Ver. 1.02

D-Link EasySmart Switch User Manual
i
i
Table of Contents
Table of Contents ............................................................................................................................................. i
About This Guide............................................................................................................................................. 1
Terms/Usage.................................................................................................................................................. 1
Copyright and Trademarks ............................................................................................................................ 1
1 Product Introduction................................................................................................................................... 2
DGS-1100-08................................................................................................................................................. 2
Front Panel................................................................................................................................................. 2
Rear Panel.................................................................................................................................................. 2
DGS-1100-16................................................................................................................................................. 3
Front Panel................................................................................................................................................. 3
Rear Panel.................................................................................................................................................. 3
DGS-1100-24................................................................................................................................................. 3
Front Panel................................................................................................................................................. 3
Rear Panel.................................................................................................................................................. 4
2 Hardware Installation .................................................................................................................................. 5
Step 1: Unpacking.......................................................................................................................................... 5
Packing contents of DGS-1100-08............................................................................................................. 5
Packing contents of DGS-1100-16/24........................................................................................................ 5
Step 2: Switch Installation.............................................................................................................................. 5

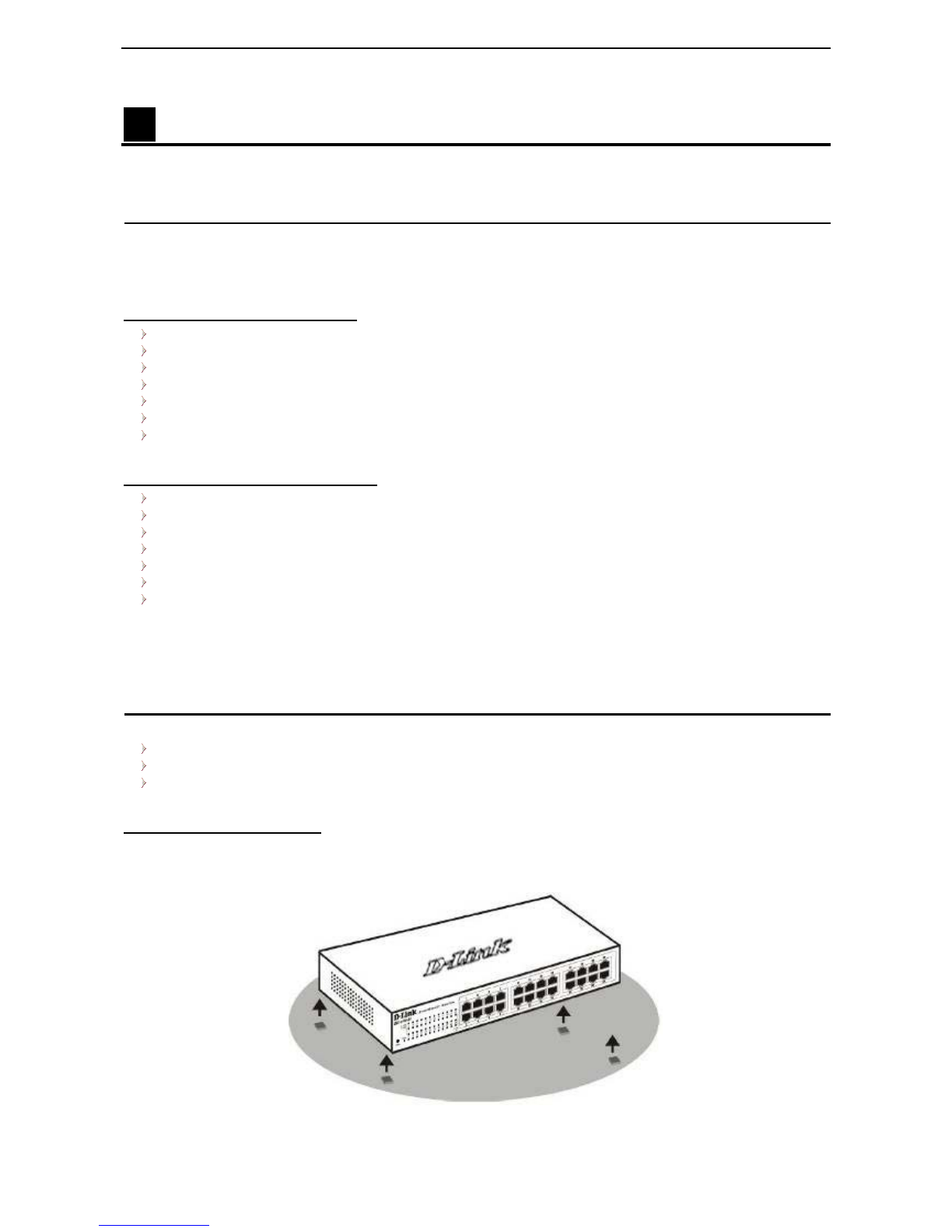

Desktop or Shelf Installation....................................................................................................................... 5

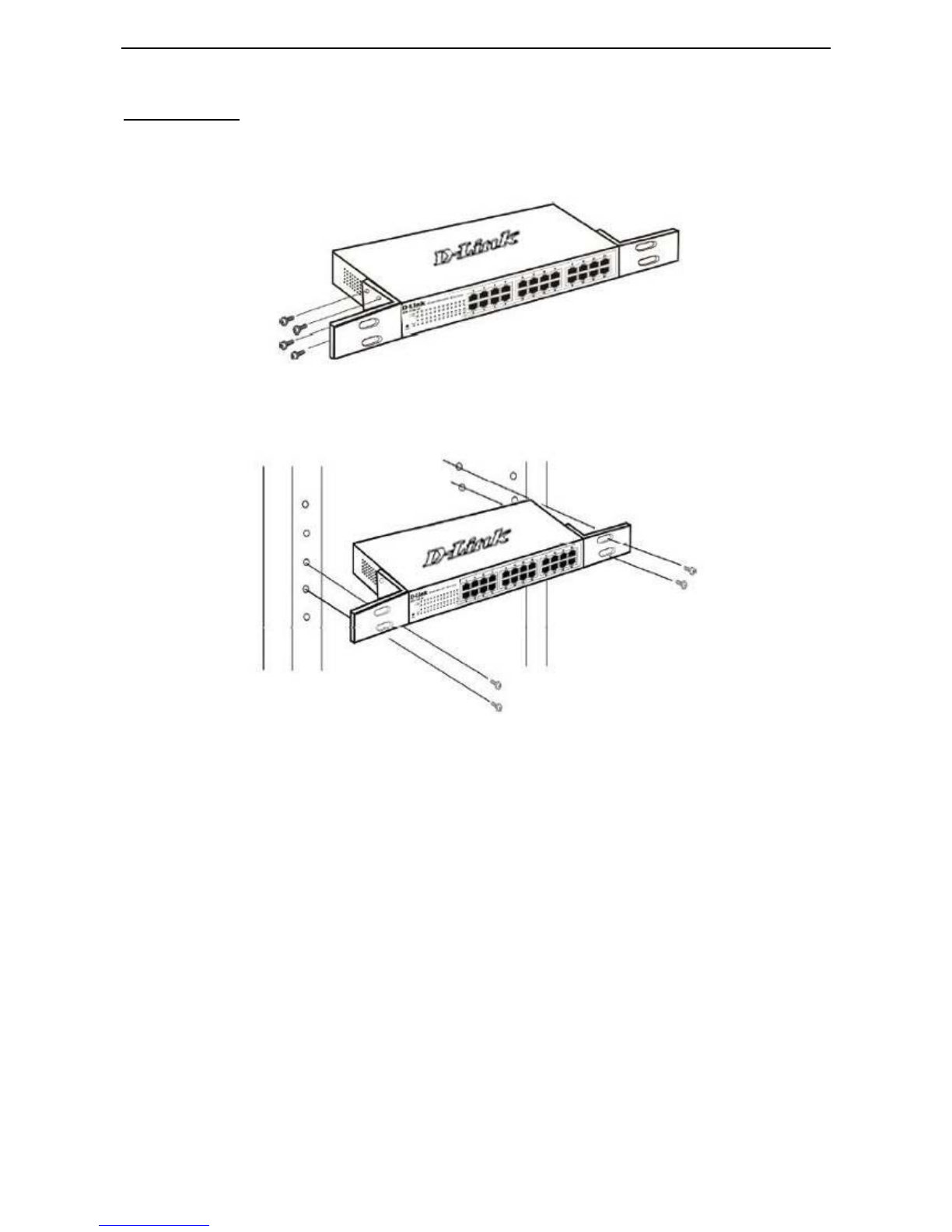

Rack Installation......................................................................................................................................... 6

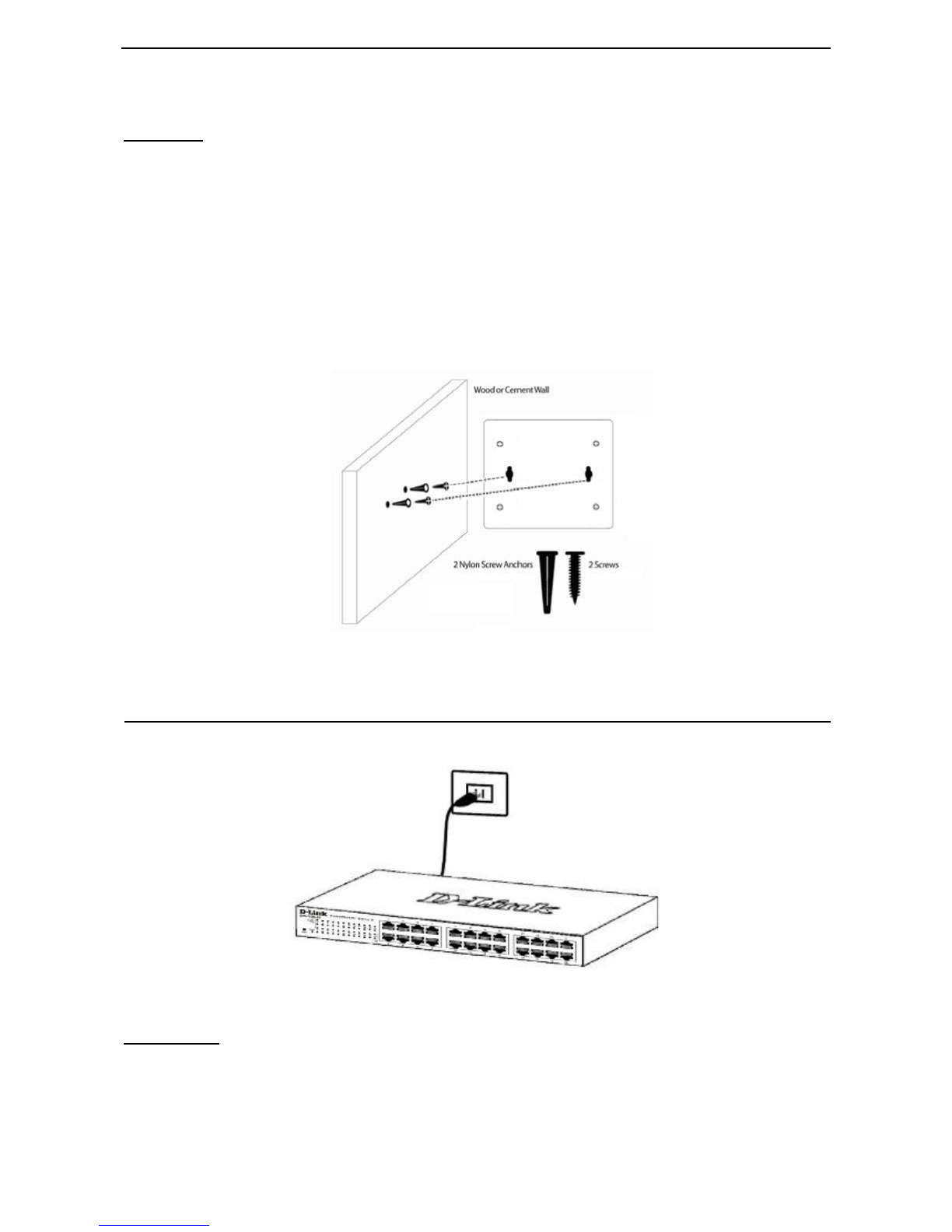

Wall-mount ................................................................................................................................................. 7
Step 3 – Plugging in the AC Power Cord....................................................................................................... 7
Power Failure ............................................................................................................................................. 7

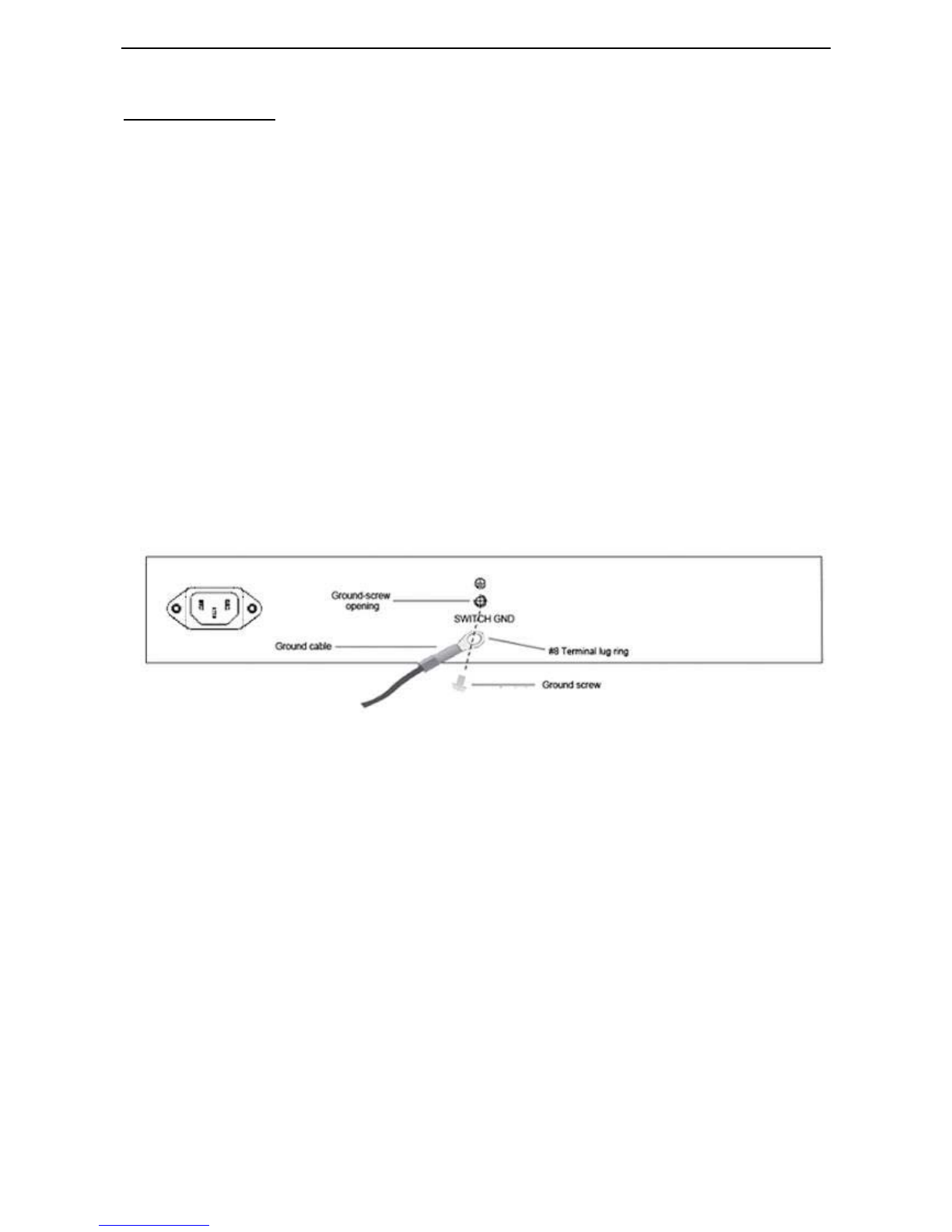

Grounding the Switch................................................................................................................................. 8
3 Getting Started............................................................................................................................................. 9
Management Options..................................................................................................................................... 9
Using Web-based Management .................................................................................................................... 9
Supported Web Browsers .......................................................................................................................... 9

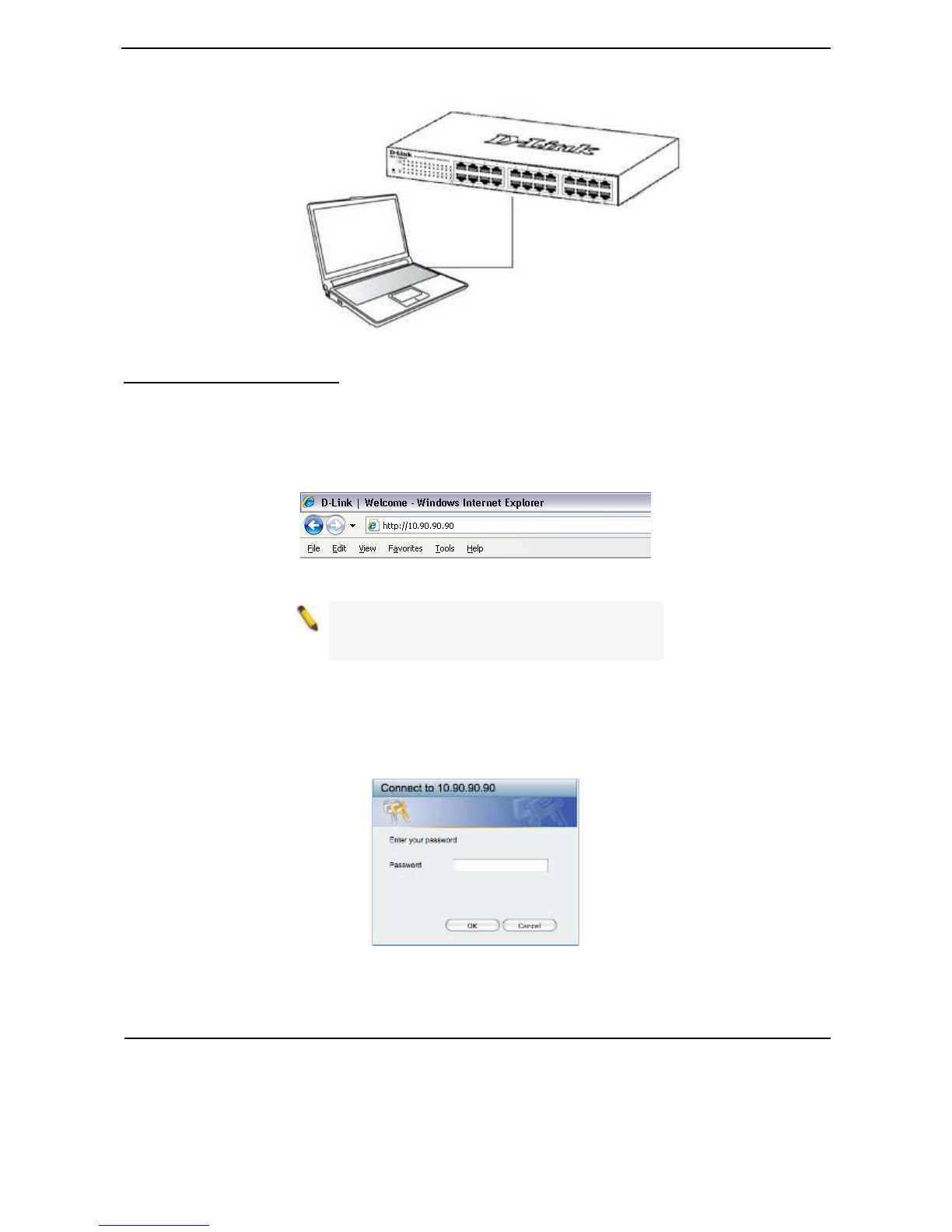

Connecting to the Switch............................................................................................................................ 9
Login Web-based Management............................................................................................................... 10
SmartConsole Utility..................................................................................................................................... 10

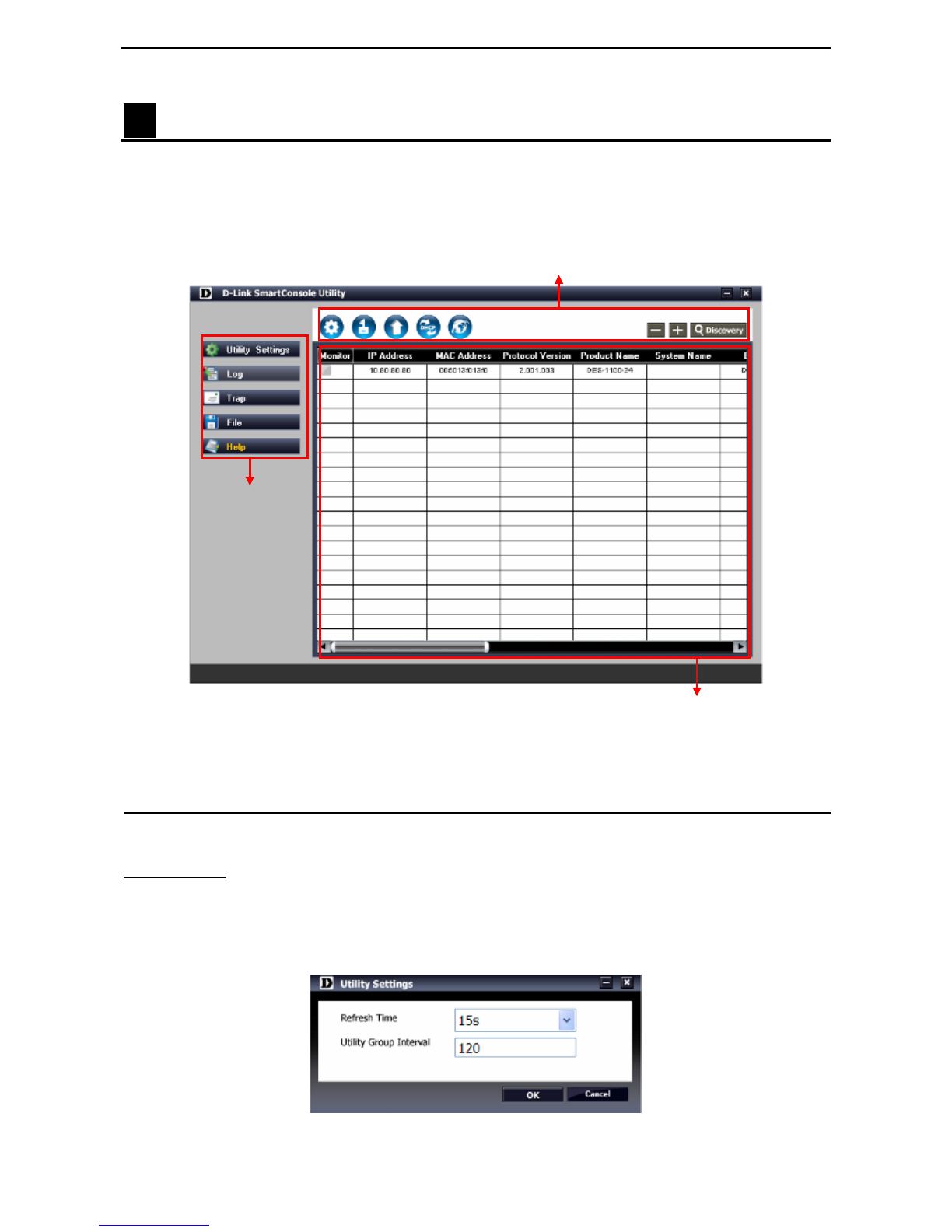

4 SmartConsole Utility ................................................................................................................................. 12
SmartConsole Settings ................................................................................................................................ 12
Utility Settings........................................................................................................................................... 12

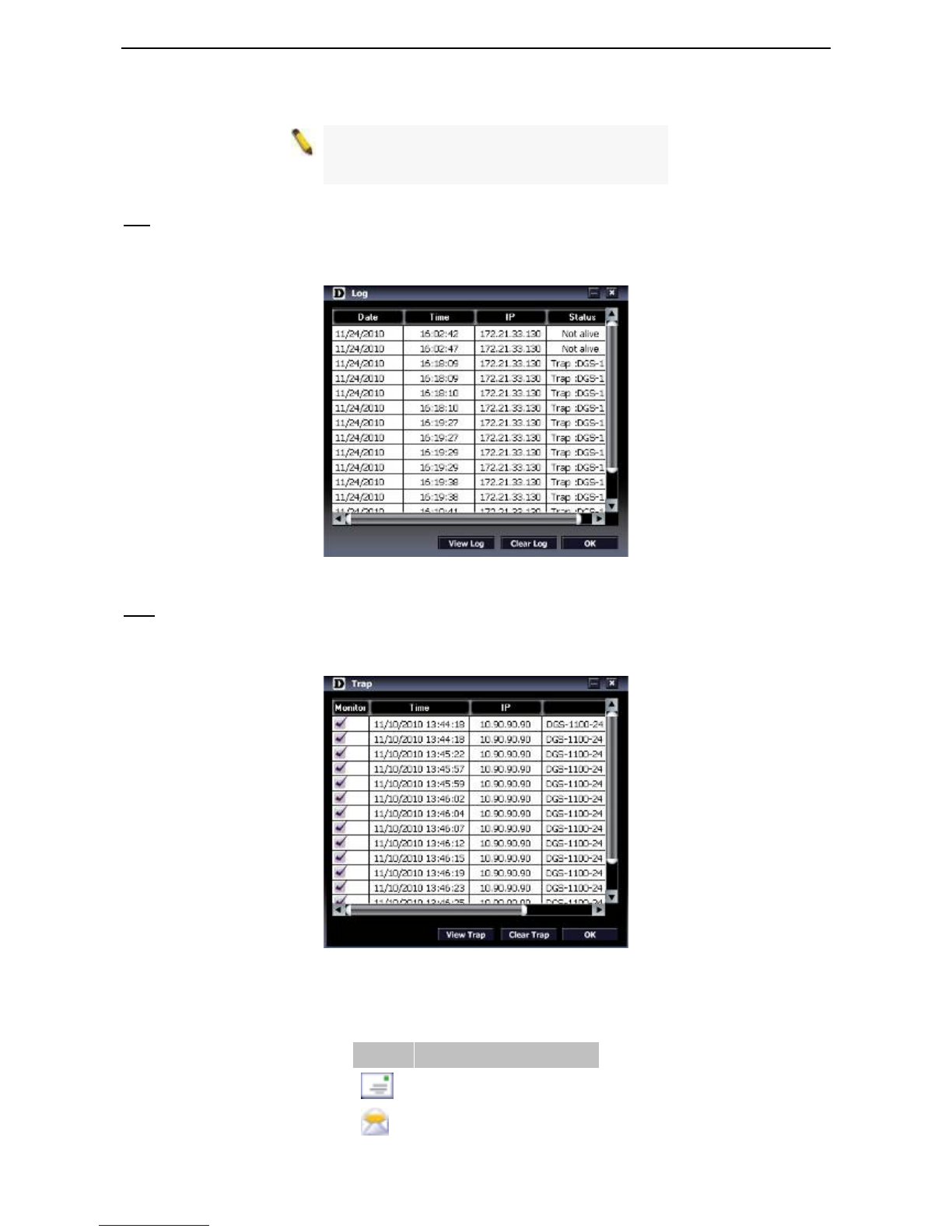

Log............................................................................................................................................................ 13
Trap .......................................................................................................................................................... 13

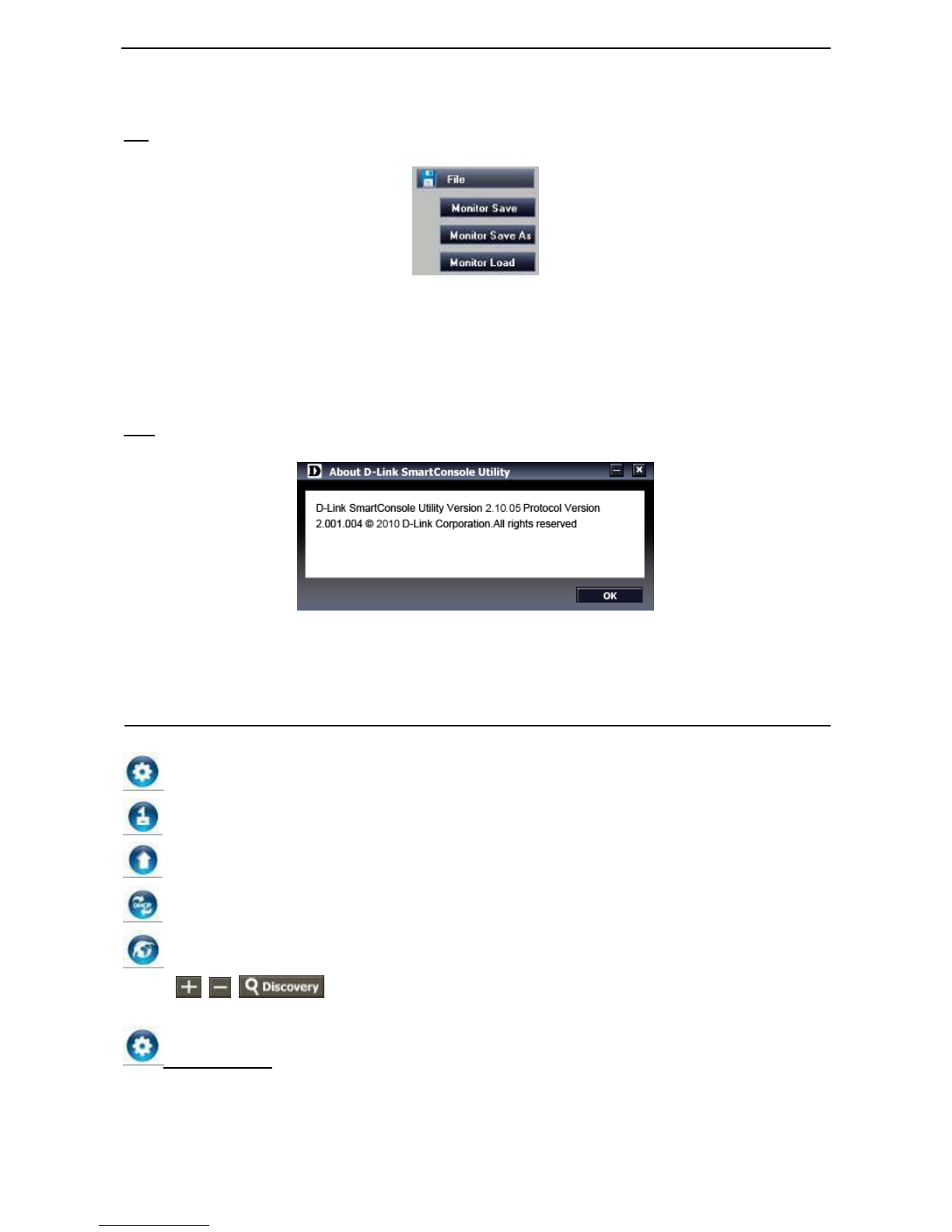

File............................................................................................................................................................ 14
Help .......................................................................................................................................................... 14
Device Configuration.................................................................................................................................... 14

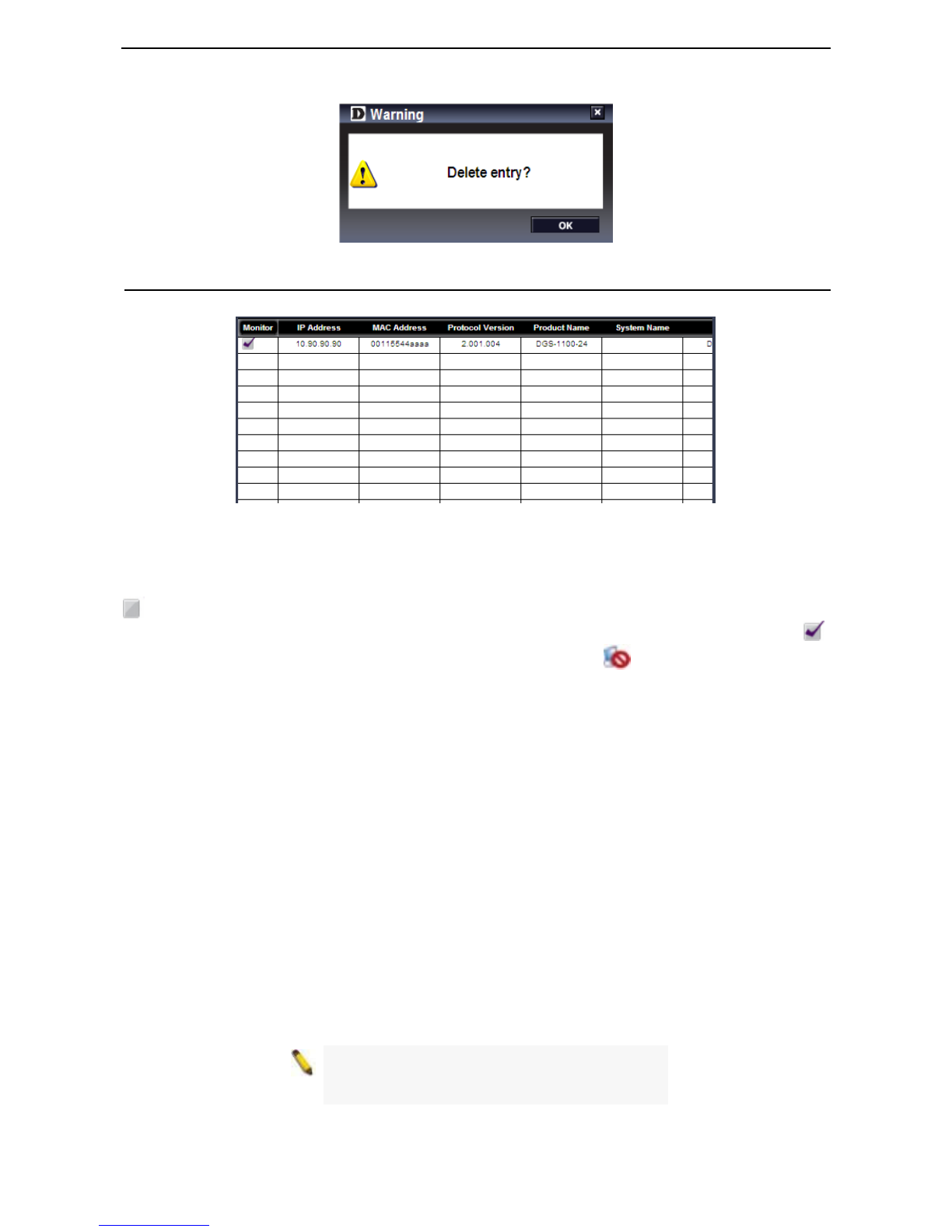

Add(+), Delete(-) and Discover the device............................................................................................... 16
Device List.................................................................................................................................................... 17
5 Configuration ............................................................................................................................................. 18
Web-based Management............................................................................................................................. 18
Tool Bar > Save Menu ................................................................................................................................. 19
Save Configuration................................................................................................................................... 19
Tool Bar > Tool Menu .................................................................................................................................. 19

D-Link EasySmart Switch User Manual
i
ii i
Reboot Device.......................................................................................................................................... 19
Reset System........................................................................................................................................... 19

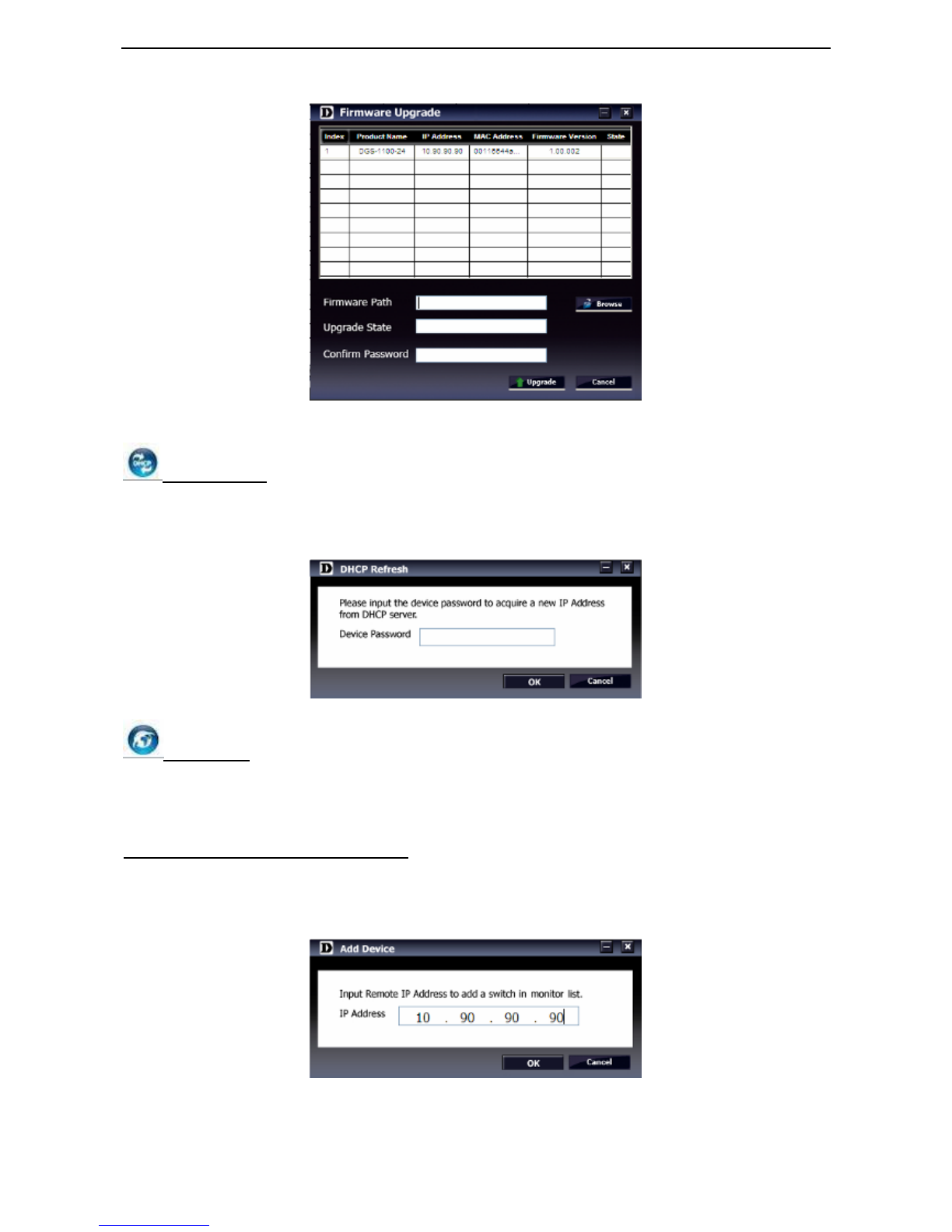

Firmware Backup & Upgrade ................................................................................................................... 19
Configuration Backup & Restore.............................................................................................................. 20
Function Tree............................................................................................................................................... 21
Device Information.................................................................................................................................... 21
System > System Settings ....................................................................................................................... 22
System > Port Settings............................................................................................................................. 23
System > Trap Settings For SmartConsole.............................................................................................. 23
System > Password Access Control ........................................................................................................ 24
L2 Features > Port Trunking..................................................................................................................... 24
L2 Features > IGMP Snooping................................................................................................................. 24
L2 Features > Port Mirroring .................................................................................................................... 25
L2 Features > Loopback Detection .......................................................................................................... 25
L2 Features > Statistics............................................................................................................................ 26
L2 Features > Surveillance VLAN............................................................................................................ 27
L2 Features > Voice VLAN....................................................................................................................... 28
L2 Features > Cable Diagnostics............................................................................................................. 28
VLAN > 802.1Q VLAN.............................................................................................................................. 29
VLAN > 802.1Q Management VLAN........................................................................................................ 31
VLAN > Port-Base VLAN.......................................................................................................................... 31
QoS > 802.1p Default Priority................................................................................................................... 32
QoS > Storm Control................................................................................................................................ 33
QoS > Bandwidth Control......................................................................................................................... 33
Security > MAC Address Table > Static MAC.......................................................................................... 34
Security > MAC Address Table > Dynamic Forwarding Table................................................................. 35
Appendix A - Ethernet Technology.............................................................................................................. 37
Gigabit Ethernet Technology ....................................................................................................................... 37
Fast Ethernet Technology............................................................................................................................ 37
Switching Technology.................................................................................................................................. 37
Appendix B - Technical Specifications ....................................................................................................... 38
Hardware Specifications .............................................................................................................................. 38
Key Components / Performance.............................................................................................................. 38
Port Functions .......................................................................................................................................... 38
Physical & Environment ........................................................................................................................... 38
Emission (EMI) Certifications ................................................................................................................... 38
Safety Certifications.................................................................................................................................. 38
Features....................................................................................................................................................... 38
L2 Features .............................................................................................................................................. 38
VLAN ........................................................................................................................................................ 38
QoS (Quality of Service)........................................................................................................................... 38
Management............................................................................................................................................. 38
Power Saving ........................................................................................................................................... 38
Appendix C – Rack mount Instructions ...................................................................................................... 39

D-Link EasySmart Switch User Manual
1
About This Guide
This guide provides instructions to install the D-Link Gigabit Ethernet EasySmart Switch DGS-1100-08/16/24,
how to use the Web Utility, and to configure Web-based Management step-by-step.
Note:T
he model you have purchased may
appear slightly different from the illustrations
shown in the document. Refer to the Product
Instruction and Technical Specification sections
for detailed information about your switch, its
components, network connections, and technical
specifications.
This guide is mainly divided into four parts:
1. Hardware Installation: Step-by-step hardware installation procedures.
2. Getting Started: A startup guide for basic switch installation and settings.
3. Smart Console Utility: An introduction to the central management system.
4. Configuration: Information about the function descriptions and configuration settings.
Terms/Usage
In this guide, the term “Switch” (first letter capitalized) refers to the EasySmart Switch, and “switch” (first
letter lower case) refers to other Ethernet switches. Some technologies refer to terms “switch”, “bridge” and
“switching hubs” interchangeably, and both are commonly accepted for Ethernet switches.
A NOTE indicates important
information that
helps a better use of the device.
A CAUTION indicates potential property damage
or personal injury.
Copyright and Trademarks
Information in this document is subjected to change without notice.
© 2010 D-Link Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly
forbidden.
Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Corporation; Microsoft
and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and
trade names other than its own.

D-Link EasySmart Switch User Manual
2
1 Product Introduction
Thank you and congratulations on your purchase of D-Link EasySmart Switch Products.
D-Link's next generation EasySmart Ethernet switch series blends plug-and-play simplicity with exceptional
value and reliability for small and medium-sized business (SMB) networking. All models are housed in a new
style rack-mount metal case with easy-to-view front panel diagnostic LEDs.
The brand-new DGS-1100 series are born to be green by design of IEEE 802.3az Energy Efficient Ethernet
compliant (abbreviated as EEE) and D-Link Green Technologies. It allows significant power saving during
periods of low data activity. In most of use cases and environments, switches are idle in 90% or more of time.
While no traffic in a short period of time, ports on DGS-1100 switch get into power saving mode automatically.
Once if a packet is received, the switch wakes and works immediately. Connecting to EEE compliant devices,
such as PCs and servers, the network can save energy without compromising any performance. While
connecting to legacy devices which do not support IEEE 802.3az, D-Link Green Technologies can reduce
power consumption by detecting short cable and link-down devices.
DGS-1100-08
8-Port 10/100/1000Mpbs EasySmart Switch
Front Panel

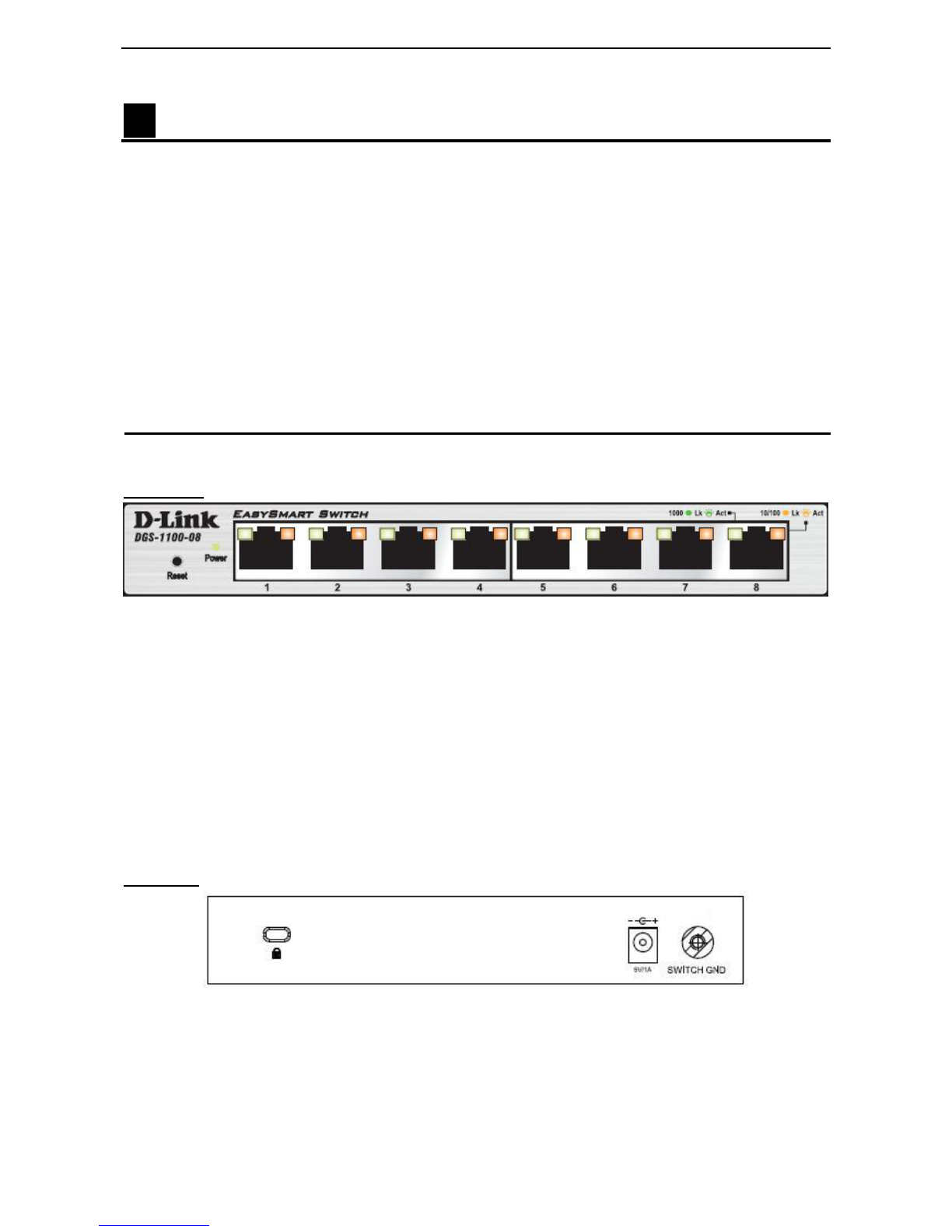

Figure 1 – DGS-1100-08 Front Panel
Power LED:The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-8):
Flashing: Indicates a network link through the corresponding port.
Blinking: Indicates that the Switch is either sending or receiving data to the port.
Green: Indicates that the port is running at 1000M.
Amber: Indicates that the port is running at 10/100M.
Light off: No link.
Reset: By pressing the Reset button for 5 seconds the Switch will change back to the default configuration
and all changes will be lost.
Rear Panel
Figure 2 – DGS-1100-08 Rear Panel
5V/1A AC adapter: The port is where to connect the 5V/1A AC adapter.

D-Link EasySmart Switch User Manual
3
3
DGS-1100-16
16-Port 10/100/1000Mpbs EasySmart Switch
Front Panel

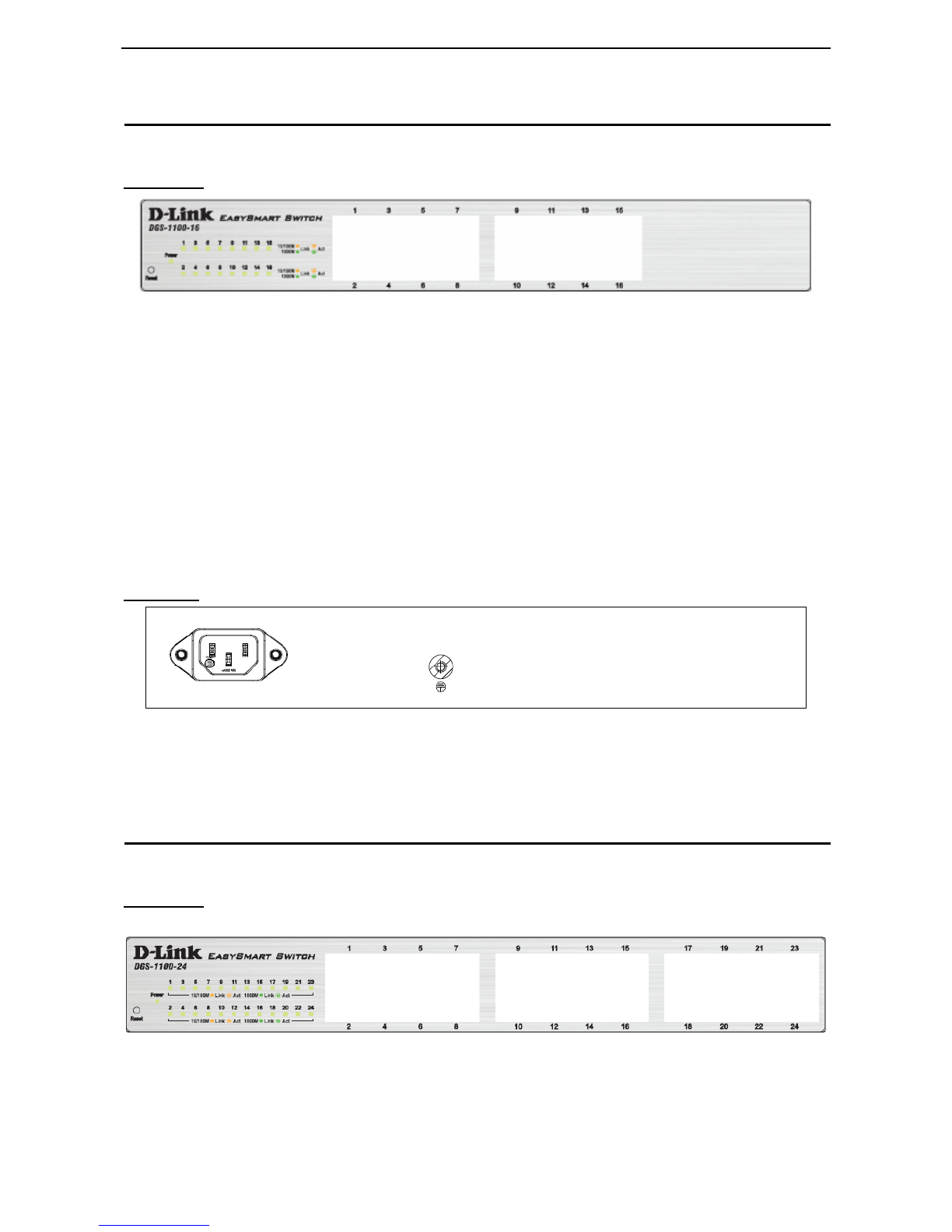

Figure 3 - DGS-1100-16 Front Panel
Power LED:The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-16):
Flashing: Indicates a network link through the corresponding port.
Blinking: Indicates that the Switch is either sending or receiving data to the port.
Green: Indicates that the port is running at 1000M.
Amber: Indicates that the port is running at 10/100M.
Light off: No link.
Reset: By pressing the Reset button for 5 secondsthe Switch will change back to the default configuration
and all changes will be lost.
Rear Panel

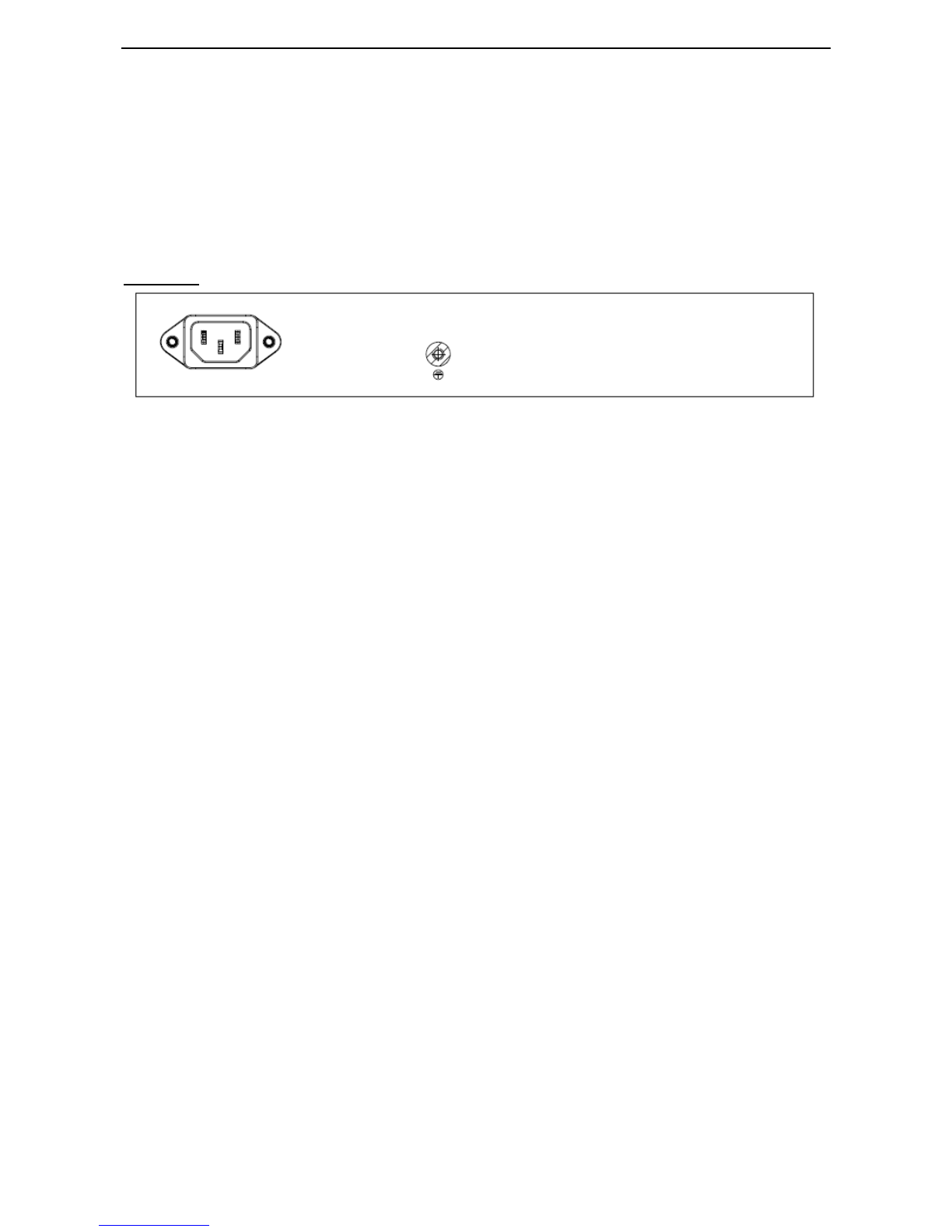

Figure 4– DGS-1100-16 Rear Panel
Power: The power port is where to connect the AC power cord.
DGS-1100-24
24-Port 10/100/1000Mpbs EasySmart Switch
Front Panel
Figure 5 – DGS-1100-24 Front Panel
Power LED: The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-24):
Flashing: Indicates a network link through the corresponding port.

D-Link EasySmart Switch User Manual
4
Blinking: Indicates that the Switch is either sending or receiving data to the port.
Green: Indicates that the port is running at 1000M.
Amber: Indicates that the port is running at 10/100M.
Light off: No link.
Reset: Press the reset button for 5 seconds to reset the Switch back to the default settings. All previous
changes will be lost.
Rear Panel
Figure 6– DGS-1100-24 Rear Panel
Power: Connect the supplied AC power cable to this port.

D-Link EasySmart Switch User Manual
5
5
2 Hardware Installation
This chapter provides unpacking and installation information for the D-Link EasySmart Switch.
Step 1: Unpacking
Open the shipping carton and carefully unpack its contents. Please consult the packing list located in the
User Manual to make sure all items are present and undamaged. If any item is missing or damaged, please
contact your local D-Link reseller for replacement.
Packing contents of DGS-1100-08
One D-Link EasySmart Switch
One AC Power Adapter
Four rubber feet
One accessory kit for wall-mount installation
One ground screw that screw on the D-Link EasySmart Switch
One Multi-lingual Getting Started Guide
One CD with User Manual and SmartConsole Utility program
Packing contents of DGS-1100-16/24
One D-Link EasySmart Switch
One AC power cord
Four rubber feet
Screws and two mounting brackets
One accessory kit for a ground screw
One Multi-lingual Getting Started Guide
One CD with User Manual and SmartConsole Utility program
If any item is found missing or damaged, please contact the local reseller for replacement.
Step 2: Switch Installation
For safe switch installation and operation, it is recommended that you:
Visually inspect the power cord to see that it is secured fully to the AC power connector.
Make sure that there is proper heat dissipation and adequate ventilation around the switch.
Do not place heavy objects on the switch.
Desktop or Shelf Installation
When installing the switch on a desktop or shelf, the rubber feet included with the device must be attached
on the bottom at each corner of the device’s base. Allow enough ventilation space between the device and
the objects around it.
Figure 7 – Attach the adhesive rubber pads to the bottom

D-Link EasySmart Switch User Manual
6
Rack Installation
The switch can be mounted in an EIA standard size 11-inch rack, which can be placed in a wiring closet with
other equipment. To install, attach the mounting brackets to the switch’s side panels (one on each side) and
secure them with the screws provided (please note that these brackets are not designed for palm size
switches).
Figure 8 – Attach the mounting brackets to the Switch
Then, use the screws provided with the equipment rack to mount the switch in the rack.
Figure 9– Mount the Switch in the rack or chassis
Please be aware of following safety Instructions when installing:
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should be
given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit (e.g. use
of power strips)."

D-Link EasySmart Switch User Manual
7
7
Wall-mount
The Switch can be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this
purpose.
Please follow the installation steps to complete wall-mount process.
Mounting on a cement wall
Step 1: Mount the nylon screw anchors ø5 x 22L mm (included in the accessory kit ) into a cement wall
Step 2: Drive the T3 x 15L screws into the nylon screw anchors.
Step 3: Hook the mounting holes of the switch back on the screws.
Mounting on a wood wall
Step 1: Drive the T3 x 15L screws into a wood wall.
Step 2. Hook the mounting holes of the switch back on the screws.
Figure 10 –Wall mount installation
Step 3 – Plugging in the AC Power Cord
Users may now connect the AC power cord into the rear of the switch and to an electrical outlet (preferably
one that is grounded and surge protected).
Figure 11 –Plugging the switch into an outlet
Power Failure
As a precaution, the switch should be unplugged in case of power failure. When power is resumed, plug the
switch back in.

D-Link EasySmart Switch User Manual
8
Grounding the Switch
This section describes how to connect the EasySmart Switch to ground. You must complete this procedure
before powering your switch.
Required Tools and Equipment
Ground screws (included in the accessory kit): One M4 x 6 mm (metric) pan-head screw
Ground cable (not included in the accessory kit): The grounding cable should be sized according to
local and national installation requirements. Depending on the power supply and system, a 12 to 6
AWG copper conductor is required for U.S installation. Commercially available 6 AWG wire is
recommended. The length of the cable depends on the proximity of the switch to proper grounding
facilities.
A screwdriver (not included in the accessory kit)
The following steps let you connect the switch to a protective ground:
Step 1: Verify if the system power is off.
Step 2: Use the ground cable to place the #8 terminal lug ring on top of the ground-screw opening, as seen
in the figure below.
Step 3: Insert the ground screw into the ground-screw opening.
Step 4: Using a screwdriver, tighten the ground screw to secure the ground cable to the switch.
Step 5: Attach the terminal lug ring at the other end of the grounding cable to an appropriate grounding stud
or bolt on rack where the switch is installed.
Step 6: Verify if the connections at the ground connector on the switch and the rack are securely attached.
Figure 12 –Ground cable, screw and #8 terminal lug ring

D-Link EasySmart Switch User Manual
9
9
3 Getting Started
This chapter introduces the management interface of D-Link EasySmart Switch.
Management Options
The D-Link EasySmart Switch can be managed through any port on the device by using the Web-based
Management or through any PC using the SmartConsole Utility.
Each switch must be assigned its own IP Address, which is used for communication with Web-Based
Management. The PC’s IP address should be in the same range as the switch. Each switch can allow only
one user to access the Web-Based Management at a time.
The PC should have an IP address in the same range as the switch. Each switch can allow one user to
access to the Web-Based Management at a time.
However, if you want to manage multiple D-Link EasySmart Switches, the SmartConsole Utility is a more
convenient choice. By using the SmartConsole Utility, you do not need to change the IP address of your PC
and it is easier to initialize multiple EasySmart Switches.
Please refer to the following installation instructions for the Web-based Management and the SmartConsole
Utility.
Using Web-based Management
After a successful physical installation, you can configure the Switch, monitor the network status, and display
statistics using a web browser.
Supported Web Browsers
The embedded Web-based Management currently supports the following web browsers:
Internet Explorer 6 or later version
Netscape 8 or later version
Firefox 3.0 or later version
Chrome 5.0 or later version
Safari 4.0 or later version
Opera 10 or later version
Connecting to the Switch
You will need the following equipment to begin the web configuration of your device:
1. A PC with a RJ-45 Ethernet connection
2. A standard Ethernet cable
Connect the Ethernet cable to any of the ports on the front panel of the switch and to the Ethernet port on the
PC.

D-Link EasySmart Switch User Manual
10
Figure 13 –Connected Ethernet cable
Login Web-based Management
In order to login and configure the switch via an Ethernet connection, the PC must have an IP address in the
same subnet as the switch. For example, if the switch has an IP address of 10.90.90.90, the PC should have
an IP address of 10.x.y.z (where x/y is a number between 0 ~ 254 and z is a number between 1 ~ 254), and
a subnet mask of 255.0.0.0. There are two ways to launch the Web-based Management, you may either click
the Web Access button at the top of the SmartConsole Utility or open the web browser and enter 10.90.90.90
(the factory-default IP address) in the address bar. Then press <Enter>.
Figure 14 –Enter the IP address 10.90.90.90 in the web browser
NOTE:The switch's factory default IP address is
10.90.90.90 with a subnet mask of 255.0.0.0 and
a default gateway of 0.0.0.0.
The web configuration can also be accessed through the SmartConsole Utility. Open the SmartConsole
Utility and double-click the switch as it appears in the Monitor List. This will automatically load the web
configuration in your web browser.
When the following logon dialog box appears, enter the password then click OK. The default password is
admin.
Figure 15 – Logon Dialog Box
SmartConsole Utility
The SmartConsole Utility included in the installation CD is a program for discovering D-Link Smart Switches
and EasySmart Switches within the same L2 network segment connected to your PC. This tool is only for
computers running Windows 2000, Windows XP, Windows Vista x64/32 or Windows 7 x64/32 operating
systems. There are two options for the installation of the SmartConsole Utility; one is through the autorun
program on the installation CD and the other is manual installation.

D-Link EasySmart Switch User Manual
1
11 1
NOTE: Please be sure to uninstall any existing
SmartConsole Utility from your PC before
installing the latest SmartConsole Utility.
Option 1: Follow these steps to install the SmartConsole Utility via the autorun program on the installation
CD.
1. Insert the Utility CD into your CD-Rom/DVD-Rom Drive.
2. The autorun program will appear automatically.
3. Click on the ”Install SmartConsole Utility” button and an installation wizard will guide you through the
process.
4. After successfully installing the SmartConsole Utility, you can open the utility by clicking Start >
Programs > D-Link SmartConsole Utility.
5. Connect the Smart Switch to the same L2 network segment of your PC and use the SmartConsole
Utility to discover the Smart Switches.
Option 2: Follow these steps to install the SmartConsole Utility manually.
1. Insert the Utility CD into your CD-Rom/DVD-Rom Drive.
2. From the Start menu on the Windows desktop, click Computer.
3. Double click on you CD-Rom/DVD-Rom Drive to start the autorun menu, or right click on the Drive to
open the folder. Select SmartConsole Utility and double click on the .exe file.
4. Follow the on-screen instructions to install the utility.
5. Upon completion, go to Start > Programs > D-Link SmartConsole Utility and open the SmartConsole
Utility.
6. Connect the Smart Switch to the same L2 network segment of your PC and use the SmartConsole
Utility to discover the Smart Switches.
For detailed explanations of SmartConsole’s functions, please refer to Chapter 4 SmartConsole Utility

D-Link EasySmart Switch User Manual
12
4 SmartConsole Utility
The D-Link SmartConsole Utility allows the administrator to quickly discover all D-Link Smart Switches and
EasySmart Switches which are in the same domain of the PC, collect traps and log messages, and quick
access to basic configurations of the switch.
The SmartConsole Utility consists of three parts, Device Configurations at the top, Device List as the main
body, and SmartConsole Settings at the left.
Figure 16– SmartConsole Utility
SmartConsole Settings
The SmartConsole Settings at the left has five icons, Utility Settings, Log, Trap, File, and Help.
Utility Settings
Click this icon to launch the Utility Settings window. Refresh time refreshes the devices which were selected
as monitored device in the Device List. Choices include 15 secs, 30 secs, 1mins, 2mins, and 5 mins for
selecting the monitoring time intervals. Utility Group Interval establishes the intervals (in seconds) that the
Switch will be discovered in the SmartConsole Device List.
Figure 17– SmartConsole Utility Settings
Device Configuration
Device List
SmartConsole
Settings

D-Link EasySmart Switch User Manual
1
13 3
NOTE: If the Group Interval is set to 0, IGMP
Snooping must be disabled in the Switch or the
switches will not be discovered.
Log
Click this icon to launch the Log window. Click View Log to show the events of the SmartConsole Utility and
the device. Date/Time indicates when the message was received, IP denotes where it comes from and
Status shows the content of this log message. Click Clear Log to clear all log entries. Click OK to exit.
Figure 18– SmartConsole Log
Trap
Click this icon to launch the Trap window. Click View Trap to show the events of the SmartConsole Utility
and the device. Date/Time indicates when the trap message was received, IP denotes where it comes from
and Status shows the content of this trap message. Click Clear Trap to clear all entries. Click OK to exit
Figure 19 – SmartConsole Trap
The trap icon in the SmartConsole Settings will change while receiving new trap messages. Please see
below for detailed description.
Icon Description
No new traps
New traps was received

D-Link EasySmart Switch User Manual
14
File
By clicking on this icon you will see below options:
Figure 20– SmartConsole File
Monitor Save: Records the setting of the Device List as default for the next time the SmartConsole Utility is
used.
Monitor Save As: Records the setting of the Device List in an appointed filename and file path.
Monitor Load: Manually load a Device List setting file.
Help
Click this icon to launch the SmartConsole Info window.
Figure 21– SmartConsole Help
Device Configuration
The Device Configuration in the SmartConsole Utility has five icons:
Device Settings
Device Password Manager
Multi Firmware Upgrade
DHCP Refresh
Web Access
and the , , device buttons for the Device List.
Device Settings
Select a switch from the Device List. Click on this icon to launch the Device Settings window. Here you can
configure the Product Name, IP Address, Gateway, Subnet Mask, System Name, Location, Trap Host IP,
and DHCP Client Setting of the Switch.

D-Link EasySmart Switch User Manual
1
15 5
To apply the configuration, insert the correct device password in the Confirm Password box and then click
OK

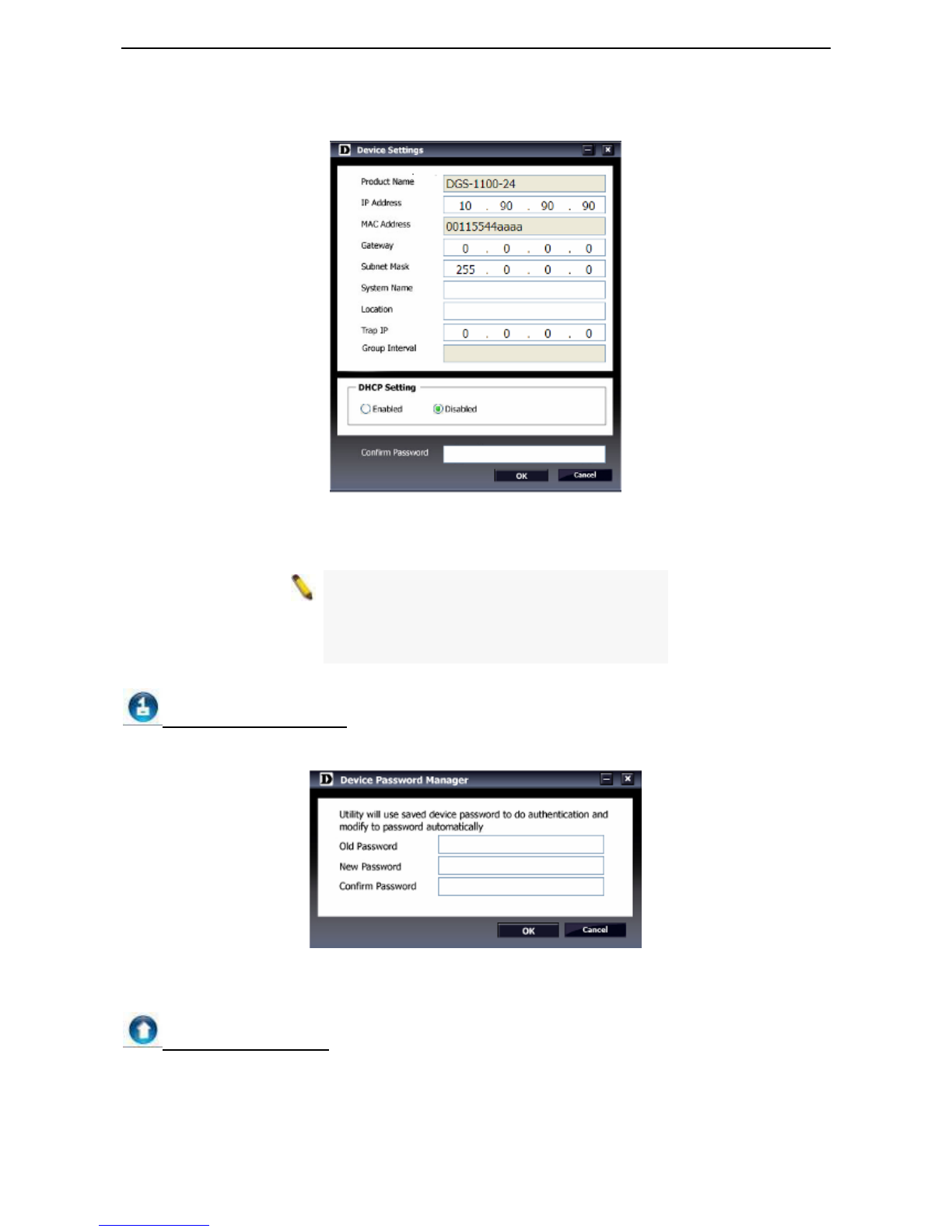

Figure 22 – SmartConsole Device Settings
NOTE: The EasySmart Switch automatically
sends out discovery packets to maintain the
connection between the devices and
SmartConsole Utility. Theref
ore, ensure to
configure the Group Interval setting.
Device Password Manager
Select a switch from the Device List. Click on this icon to launch the Device Password Manager window.
Here you can enter a new password and confirm it.
Figure 23– SmartConsole Device Password Manager
Multi Firmware Upgrade
Select one or many switches of same model name from the Device List. Click on this icon to launch the
Firmware Upgrade window. Specify the Firmware Path (or Browse for one) that you are going to use. Input
the correct password of device, and then click Upgrade. The state will show "OK" after completion, and “Fail”
is firmware upgrade fails or cannot be completed for any reason.

D-Link EasySmart Switch User Manual
16
Figure 24 – Multi Firmware Upgrade
DHCP Refresh:
If a DHCP-client enabled switch in the Device List shows the default IP is still used, it means the device did
not receive an IP address from the DHCP server successfully. Select that switch and click the DHCP refresh
icon. Enter the correct Device Password and then click OK.The device will renew the IP address from the
DHCP server.
Figure 25 – DHCP Refresh
Web Access
Select a switch from the Device List. Click this icon to launch your internet browser (eg. The Internet
Explorer). Here you can configure the Switch through the Web-based Management utility. You may also get
into the Web-based Management by double-clicking the device in the device list.
Add(+), Delete(-) and Discover the device
Click the Discovery button to display all the Web Smart and EasySmart switches located in the same
domain with the management PC.
Click the +and insert a device IP address to add a device into Discover List, or select a device and click
the –button to remove it.
Figure 26 – SmartConsole Add device

D-Link EasySmart Switch User Manual
1
17 7
Figure 27– SmartConsole Delete device
Device List
This list displays all discovered Web Smart and EasySmart switches on the network.
Figure 28– SmartConsole Device List
Definitions of the Device List features:
Monitor: Check the Monitor box and the SmartConsole will collect the trap and log data from the device. The
in the monitor means the device was discovered by SmartConsole. Click the icon to have the device keep
updating the information such as system log or trap to the SmartConsole Utility. The icon will become .
When the device was detected as not reachable, the icon will change to . Please check if the power or
the cable of this device is disconnected.
IP Address: Displays the current IP addresses of devices.
MAC Address: Displays the device MAC Addresses.
Protocol version: Displays the software version of the Utility.
Product Name: Displays the device product name.
System Name: Displays the appointed device system name.
DHCP:Specify if the device gets the IP address from a DHCP server.
Location: Displays where the appointed device location.
Trap IP: Displays the IP address of host where the Trap information will be sent to.
Subnet Mask: Displays the Subnet Mask setting of the device.
Gateway: Displays the Gateway setting of the device.
Device Group Interval: Displays the intervals (in seconds). This feature is not available for EasySmart
switches.
Firmware version: Displays the current Firmware version of this device.
LLDP: Displays the LLDP (Link Layer Discovery Protocol)status of the device. This feature is available only
for PoE models of Web Smart switches.
SNMP: Displays the SNMP status of the device. This is not available for EasySmart switches.
NOTE: If the devices are marked red in the device
list, it means that the devices require upgrading
firmware again.
