D-Link DES-1008PA User manual




8-Port 10/100 Unmanaged metal
desktoP switch with 4 Poe Ports
des-1008Pa

des-1008Pa
2
ENGLISH



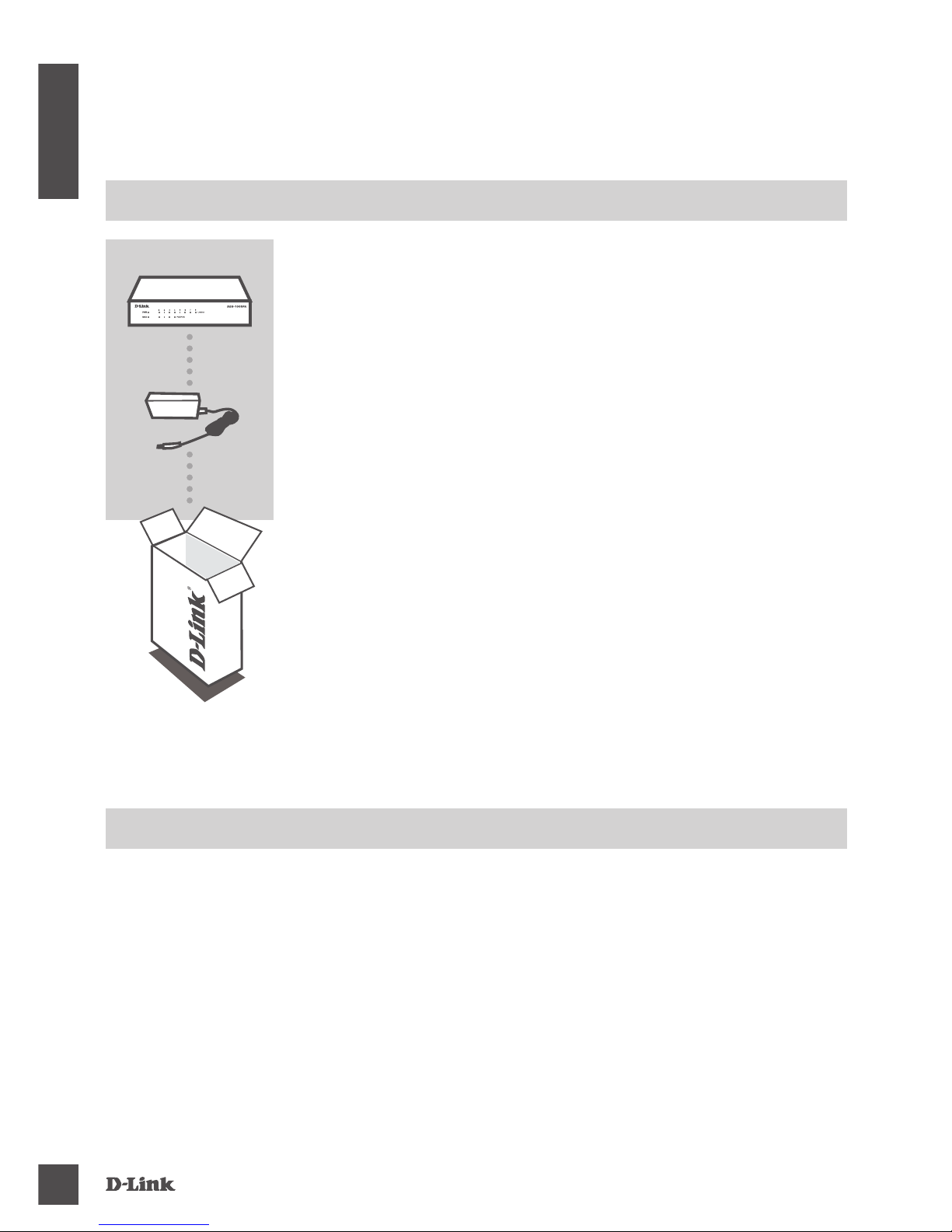

contents


51 V DC 1.25 A
If any of these items are missing from your packaging, contact
your reseller.
Warning: Using a power adapter with a different voltage rating
will damage and void the warranty of this product.


DES-1008PA
introdUction
The D-Link DES-1008PA is a 10/100 Unmanaged Metal Desktop Switch with 4 PoE Ports
capable of feeding power to Power over Ethernet (PoE) enabled devices such as network
cameras. The DES-1008PA has 8 ports operating at 10/100Mbps with 4 PoE ports (Ports 1 to 4),
making it ideal for home and small ofce business with limited budget.
For the full product manual, please refer to the website: www.dlink.com

des-1008Pa 3
ENGLISH



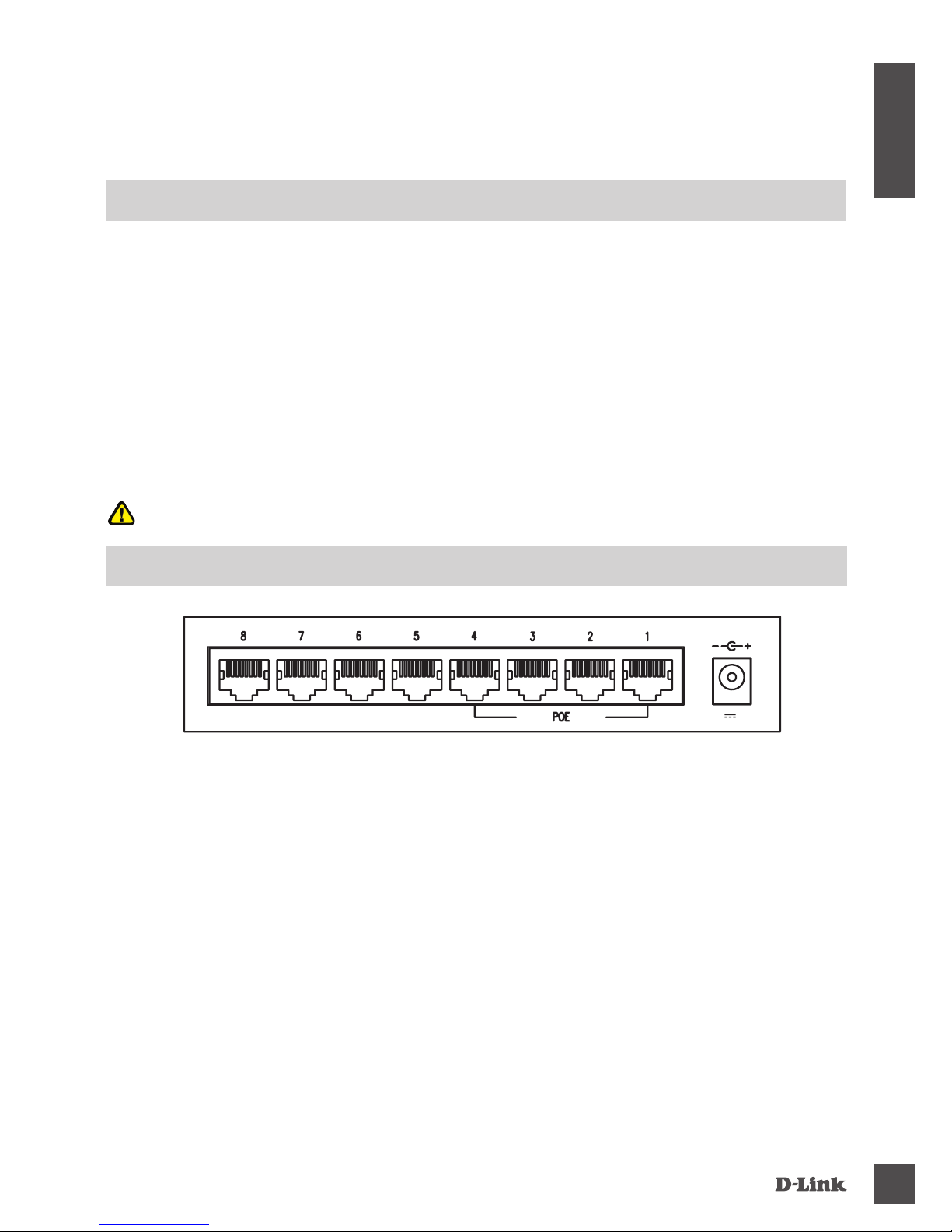

BeFore setting UP the des-1008Pa
connecting the des-1008Pa to YoUr network
51V 1.25A
Please follow the steps below to set up the switch:
1. Install the DES-1008PA in a cool and dry place. Refer to the Technical Specications for the
acceptable operating temperature and humidity ranges.
2. Install the switch in a site free from strong electromagnetic sources, vibration, dust, and direct
sunlight.
3. Leave at least 10 cm of space on the left and right-hand side of the switch for ventilation.
4. Visually inspect the power jack and make sure that it is securely connected to the power
adapter.
Do not stack any devices on top of the switch.
 
Plug the AC power cord into a free wall socket, then plug the other end of the DC power jack
into the power outlet of the DES-1008PA. The Power LED will illuminate, conrming that the
device has powered up successfully.
 
The PoE ports can supply up to 15.4 watts, with a total PoE budget of 58 watts, allowing users
to attach IEEE 802.3af compliant devices to the DES-1008PA.
 
These ports offer network speeds of either 10Mbps or 100Mbps and can operate in half and full-
duplex transfer modes. These ports also support automatic MDI/MDIX crossover, eliminating the
need for crossover cables or uplink ports. Each port can be connected directly to a server, hub,
router, or switch using regular straight-through twisted-pair Ethernet cables.

des-1008Pa
4
ENGLISH

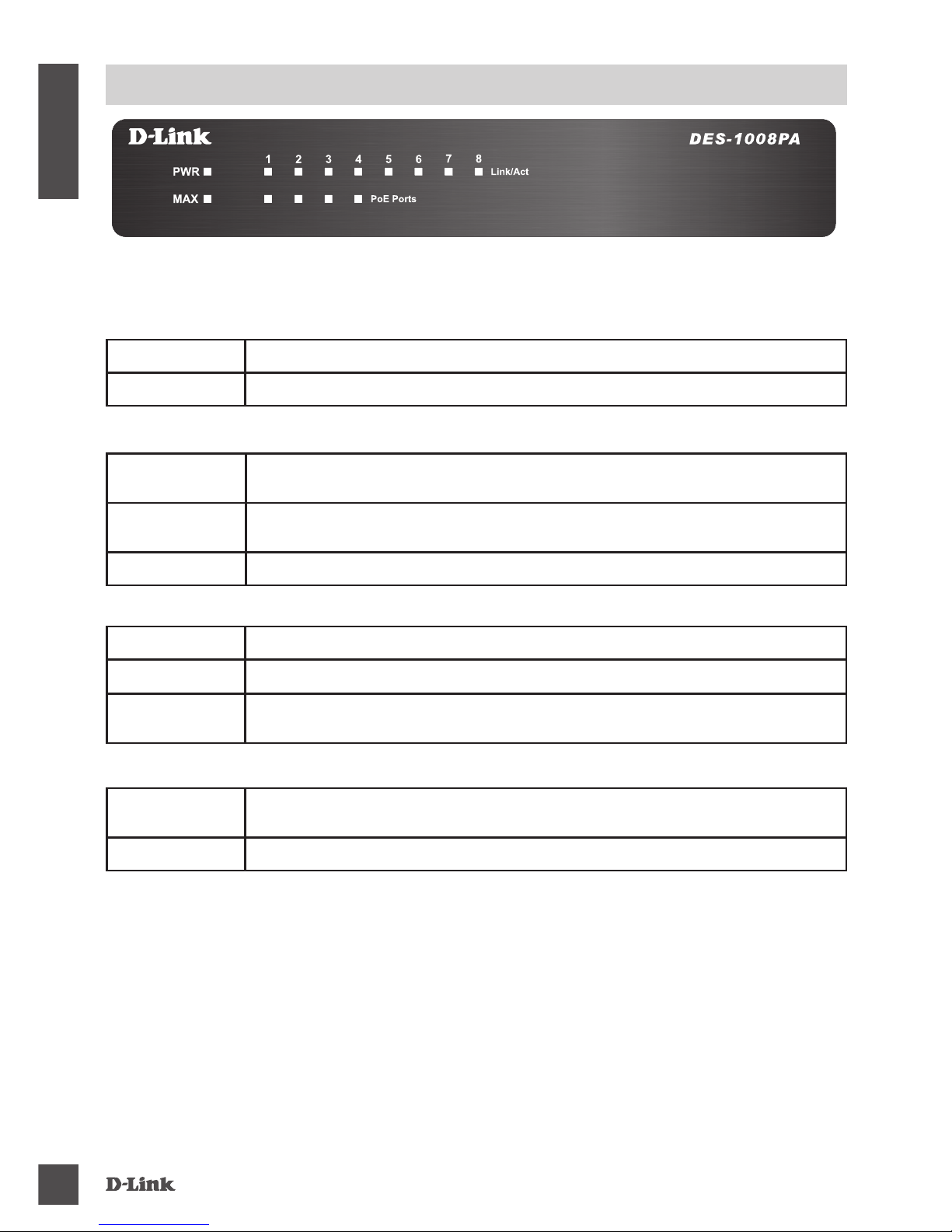

led indicators
The LED indicators allow you to monitor, diagnose, and troubleshoot any potential problem within the
switch, connection, or attached devices.
 Power on
 Power off

 When the Link/ACT LED lights on, the port is successfully connected to Ethernet
network.
 When the Link/ACT LED is blinking, the port is transmitting or receiving data on the
Fast Ethernet network.
 No link.

 The power output to PDs has reached 43W,The PoE MAX is green.
 When the system is using less than 43W.
 The power output to PDs has reached maximum power 58W,the PoE MAX will blink.
No additional PDs can be powered.

 When the PoE powered device (PD) is connected and the port supplies power
successfully.
 No PoE powered device (PD) connected.


des-1008Pa 5
ENGLISH

setUP and conFigUration ProBlems
 
- Check if the power adapter is connected properly to the wall socket and the back of the device.
 
- Ensure the Link/Act LED for the port the device is connected to is illuminated or ashing. If not,
try using a new LAN cable.
 
- Ensure that the PoE device is connected to one of the four PoE enabled ports (1 to 4) and the
connected PoE devices do not exceed the maximum power budget of 58 W.

des-1008Pa
6
NOTES

des-1008Pa 7
NOTES

Technical Support
Having trouble installing your new product? D-Link’s website contains the latest
user documentation and software updates for D-Link products. U.S. customers
can contact D-Link Technical Support through our website.
http://support.dlink.com
