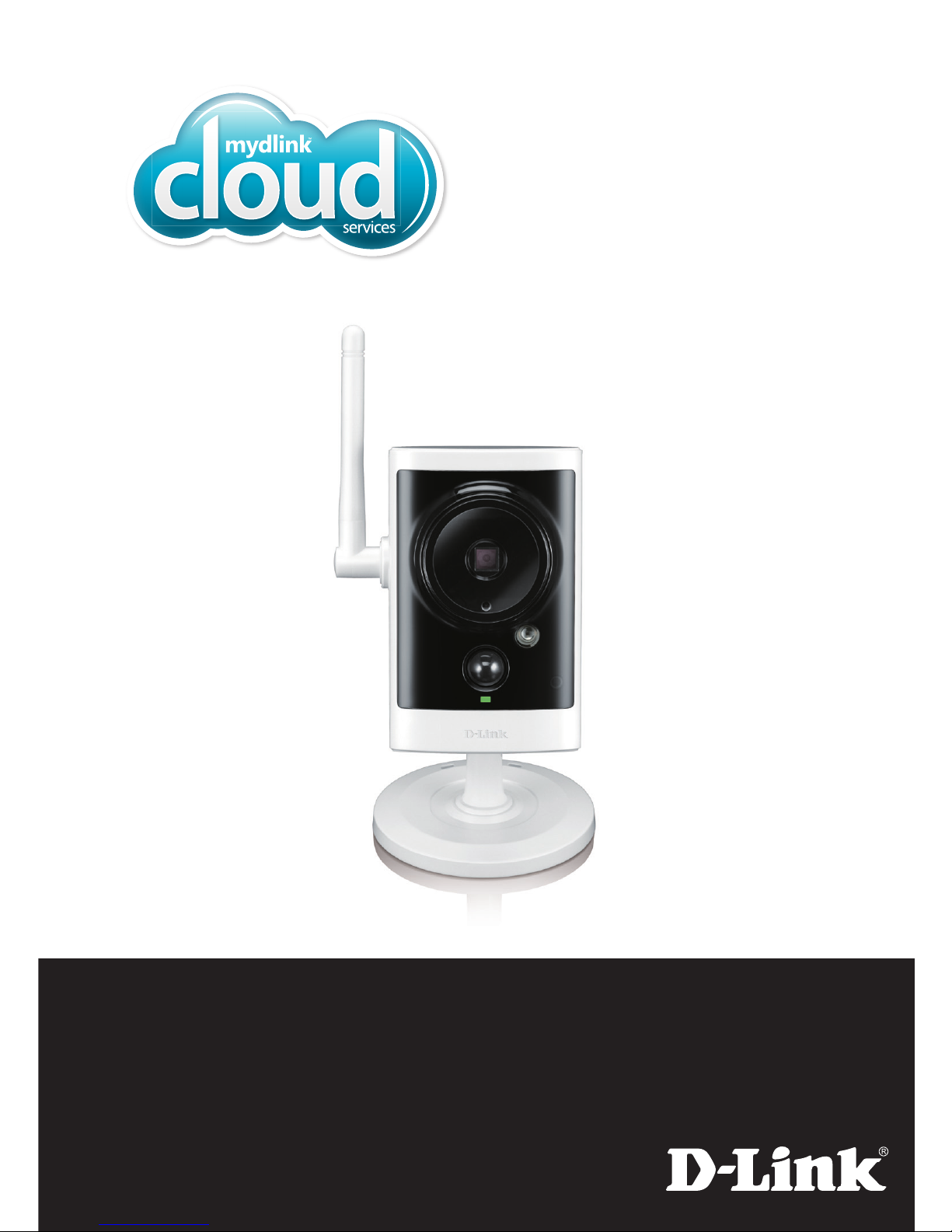

D-Link DCS-2330L User manual

DCS-2330L
Quick Install Guide
Outdoor HD Wireless Network Camera
Cloud Camera

If any of the above items are missing, please contact your reseller.
Minimum Requirements
DCS-2330L Outdoor HD Wireless Network Camera
Power Adapter
Package Contents
Computer with:
• 1.3GHz processor or above
• 128MB of memory
• Windows® 8, 7, Vista® or XP SP3, Mac OS® X (10.5 and above)
• Internet Explorer® 8, Mozilla Firefox® 12, Google Chrome™ 20, or Safari® 4
• Cable or ADSL Internet Service
• Cable or ADSL modem/router with Ethernet Connection
For Internet Access:
• Wired 10/100 Fast Ethernet or Wireless 802.11g/n network
(Wireless N network recommended for optimum performance)
For mydlink and mydlink app requirements refer to:
• http://www.mydlink.com
CAT5 Ethernet Cable
Quick Install Guide
2
ENGLISH

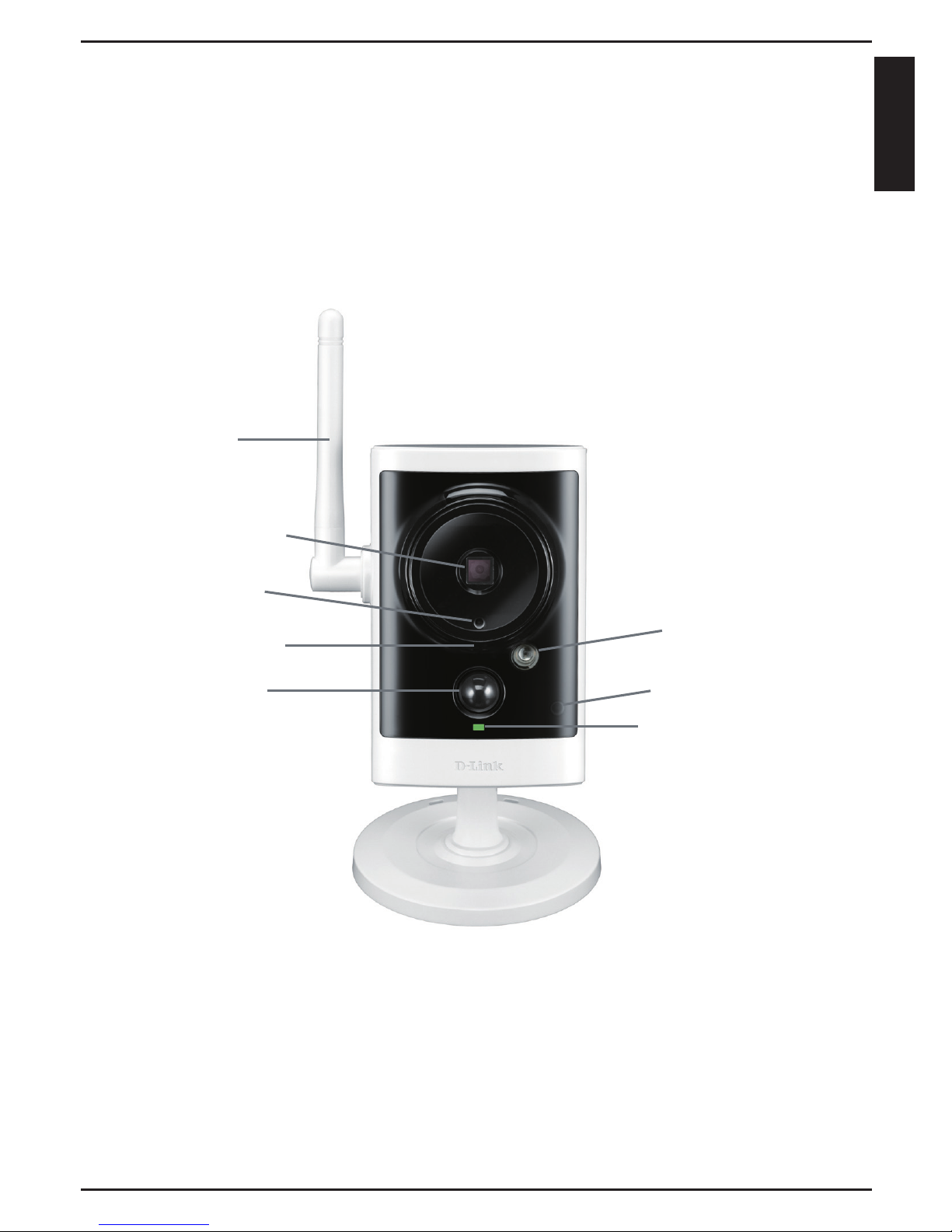

Product Overview
Camera Lens
Microphone IR LED
Power/Status LED
PIR Sensor WPS Status LED
Front
Light Sensor
Antenna
3
ENGLISH

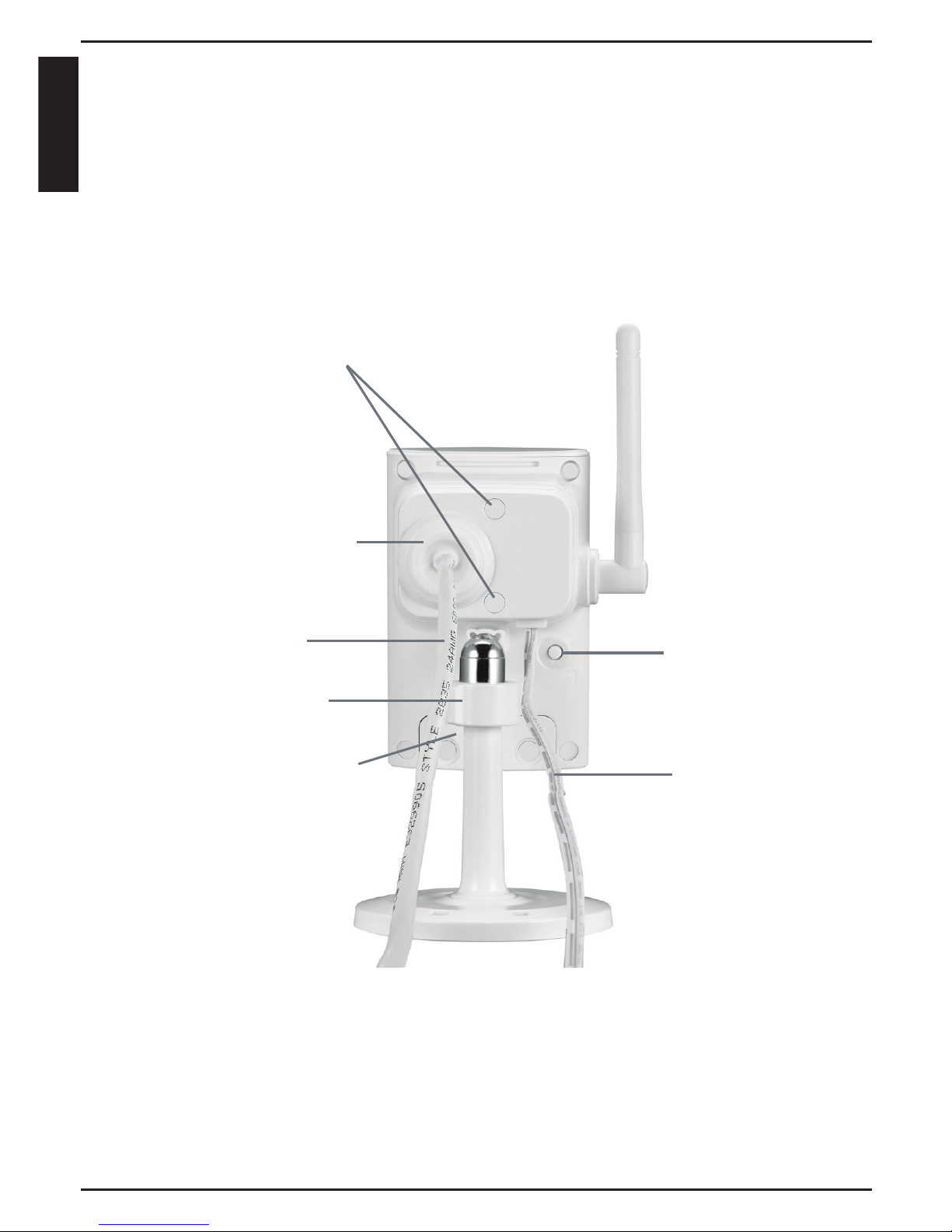

Power Cable
Ethernet Cable WPS Button
Back
Weatherproof Cover
Adjustment Ring
Weatherproof Cover
Weatherproof Screw
Coverings
Product Overview
4
ENGLISH

The Zero Conguration Setup will only work with a registered
Cloud Router and an active mydlink account. Your Cloud Router will
automatically assign your network settings (both wired and wireless)
to your camera, and add it to your mydlink account.
If you do not have a D-Link Cloud Router, skip to the Easy Setup section.

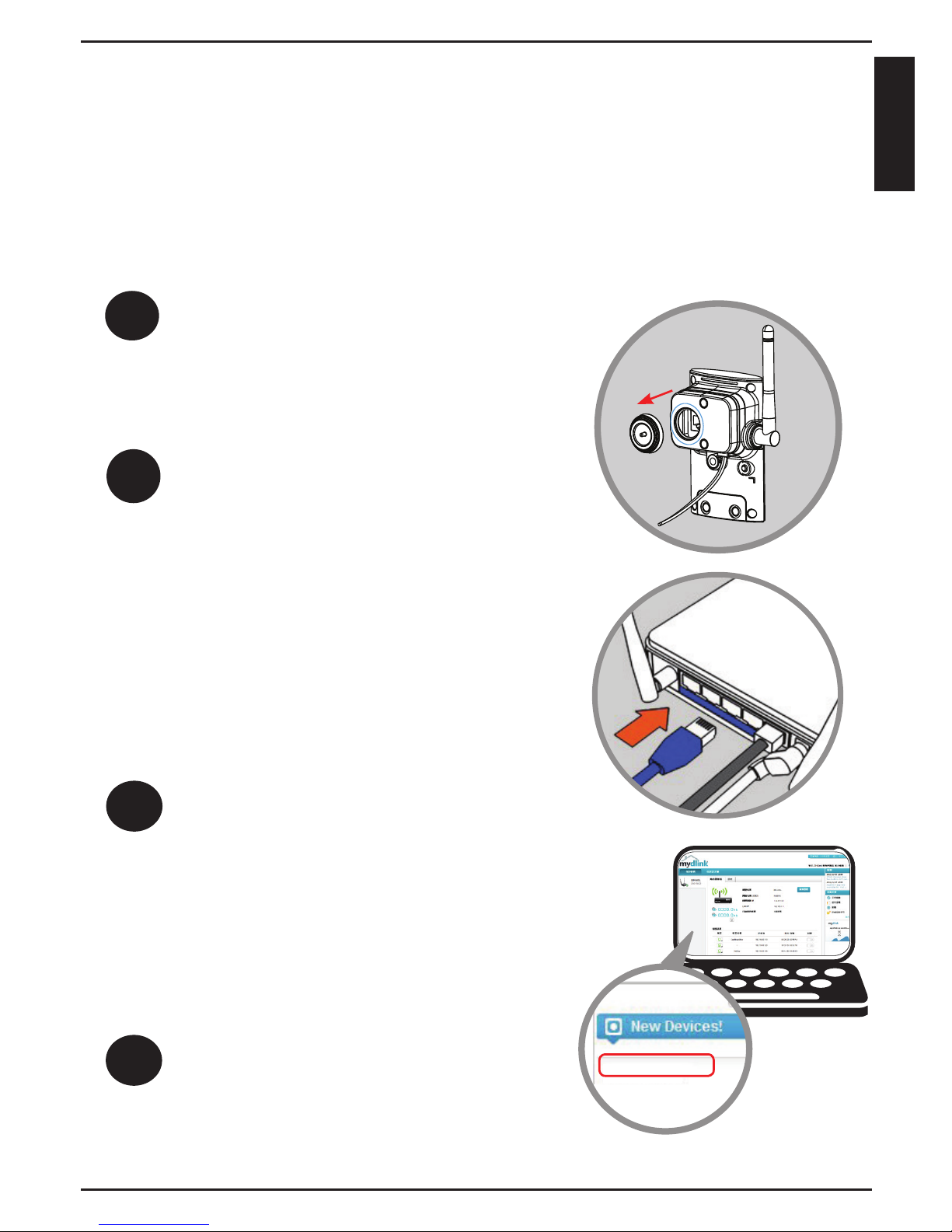

Zero Conguration Setup
Connect the other end of the Ethernet
cable to your D-Link Cloud Router and
connect the camera’s power adapter to
a power outlet.
If using a wireless connection: Press
and hold the WPS button on the back
of the camera for ve seconds. The
blue WPS status LED will start to blink.
Then, press the WPS button on your
Cloud Router within two minutes.
Remove the rubber plug on the back of
the camera. Then connect the Ethernet
cable to the Ethernet port and press the
rubber gasket that is attached to the
cable rmly into the hole.
From any computer, open a web
browser, go to http://www.mydlink.
com and log into your account. Once
mydlink detects your camera, a notice
will appear that there is a new device
detected. Click on your camera name
from the New Devices list and then
click Yes to add your camera.
Your setup is complete!
1
2
3
DCS-2330L
4For wireless connection, remove the
Ethernet cable and reinstall the rubber
cover for proper weatherproong.
5
ENGLISH

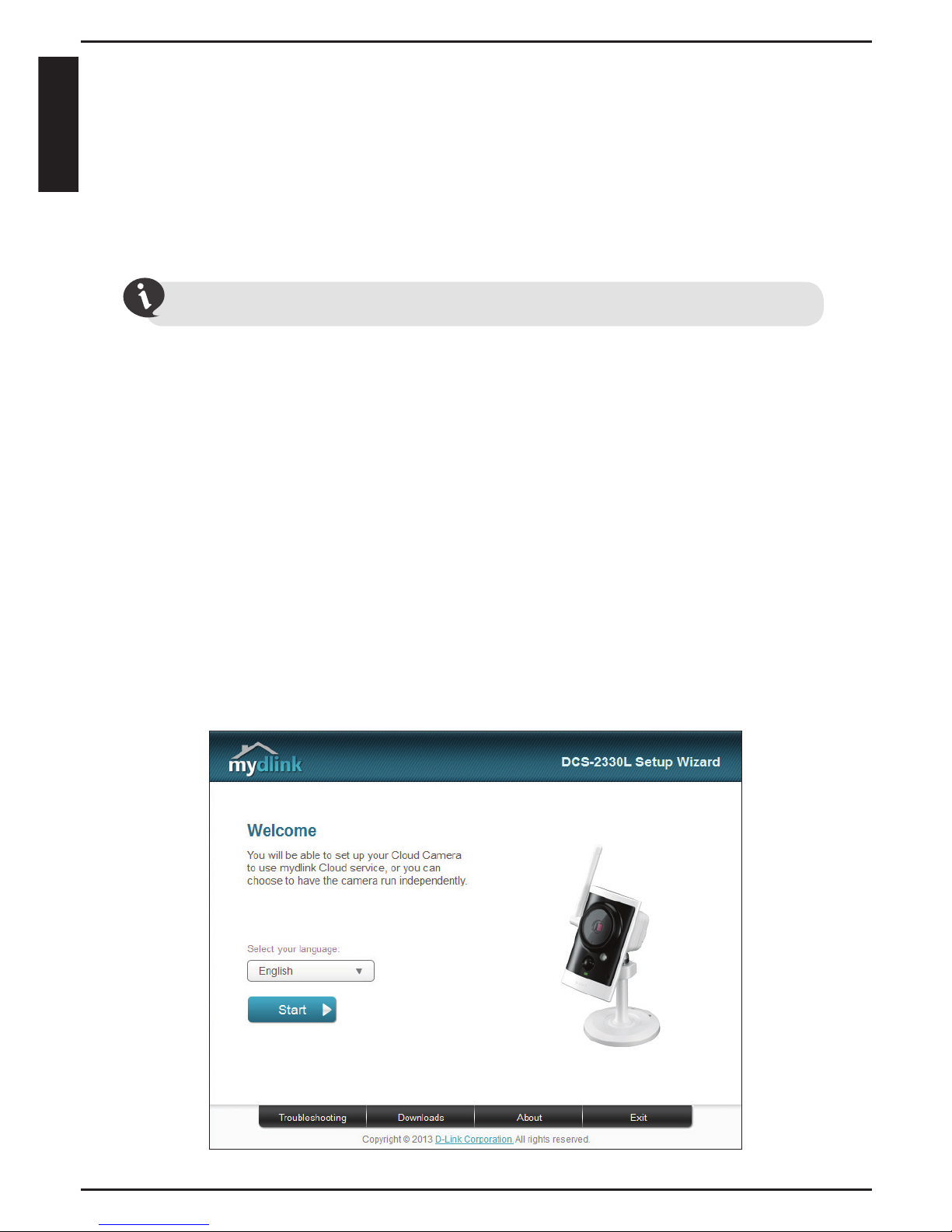

Easy Setup (All Other Routers)
Download the Setup Wizard from http://www.mydlink.com/support
If you do not have a D-Link Cloud Router, you can use anyWindows
or Mac computer to go through the Setup Wizard, which will
guide you through the installation process, from connecting your
hardware to conguring your camera.
Windows Users - Extract (“unzip”) the les to a folder on your
computer and then double-click the autorun.exe le.
Mac Users - Download the Mac OS Setup Wizard. Open the
SetupWizard le and launch the application.
After about 20-30 seconds, the Setup Wizard will open, which
will guide you step-by-step through the installation process
from connecting your hardware to conguring your camera and
registering it with your mydlink account.
6
ENGLISH

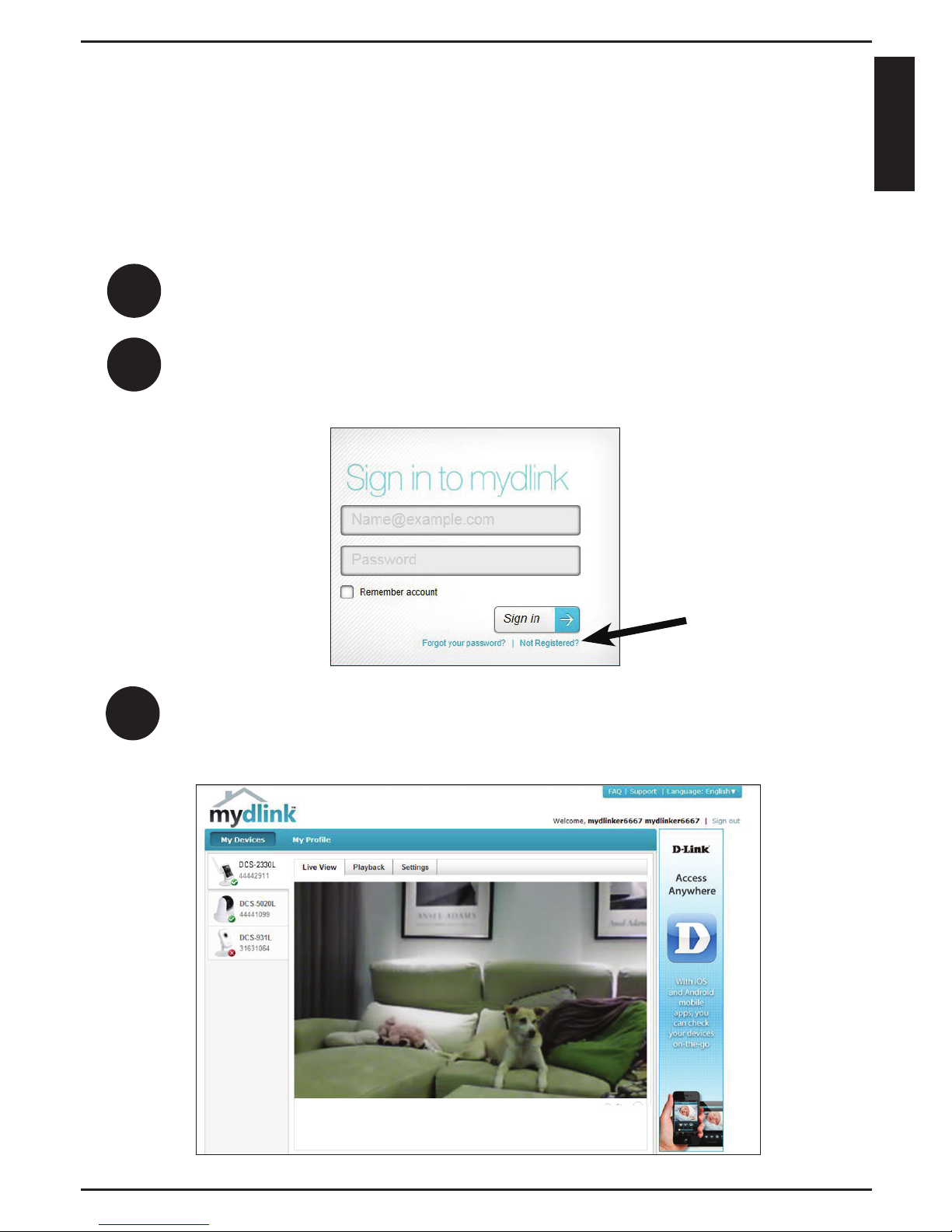

Launch mydlink
Open a web browser and go to http://www.mydlink.com.
Sign into your mydlink account. (If you don’t have an account,
click on Not Registered? and follow the instructions.)
Registering your DCS-2330L camera with mydlink will allow you
to use mydlink Cloud Services, including free online access to the
mydlink portal website. You will be able to remotely access your
camera from the www.mydlink.com website.
1
2
3Select your camera from the device list, and your camera’s
Live Video will appear.
7
ENGLISH

• Windows does not have Java installed by default. Download it from
http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by default. Click the Finder
> Applications > Utilities > Java Preferences and check the Enable
applet plug-in and Web Start applications option.
• The ActiveX® controls in IE will install automatically if needed. We
suggest that you make sure that you have enabled the related options
in Tools > Internet Options > Security > Custom Level.
mydlink Lite App (Free)
Search for “mydlink lite” to download and install the app on your
smartphone or tablet when connected to the Internet. You can
also nd the app by scanning the QR code below with a QR code
scan app.
mydlink+ App (Paid - Tablet Only)
Search for the word “mydlink+”to download and install the app
on your tablet when connected to the Internet. You can also nd
the app by scanning the QR code below with a QR code scan app.
mydlink Apps
8
ENGLISH

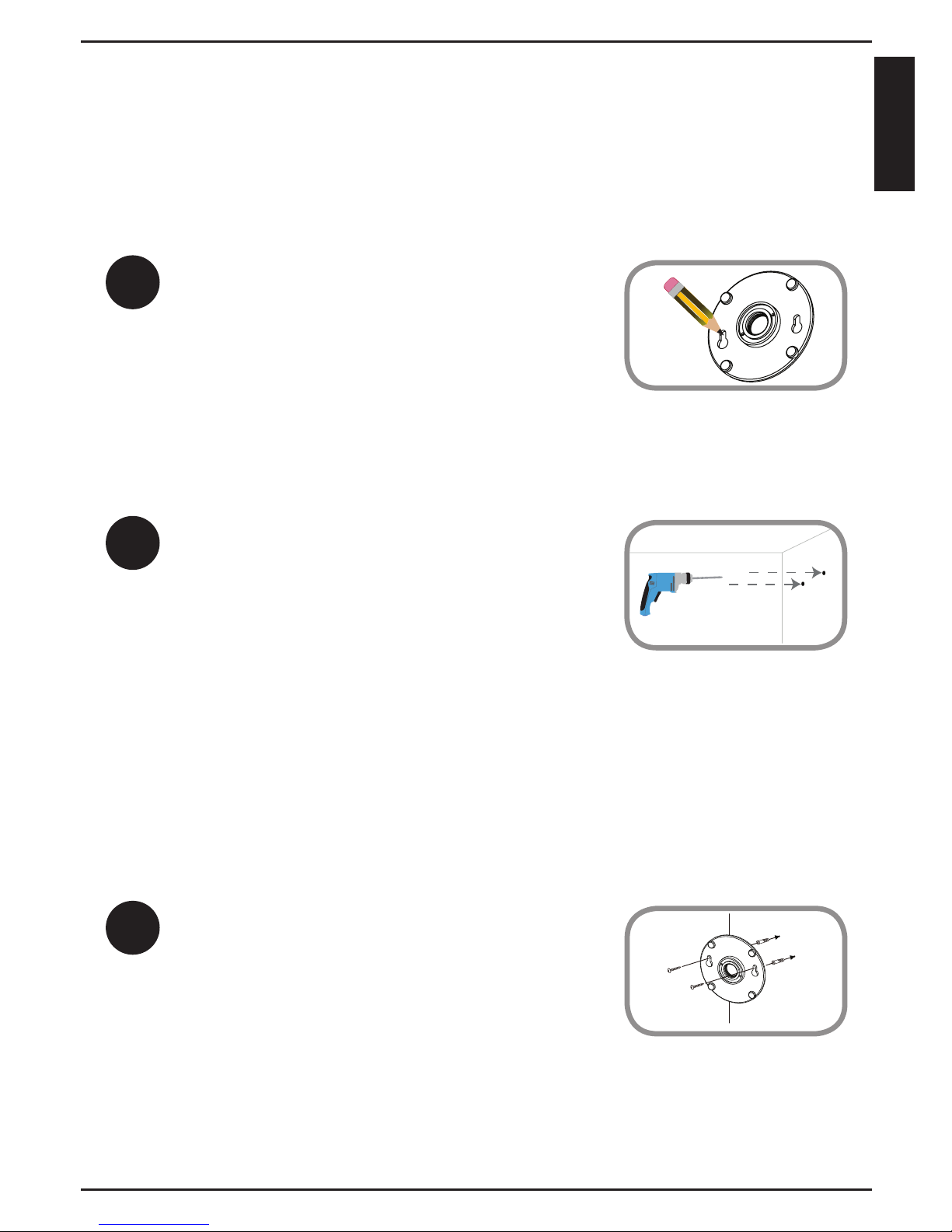

Mount the Camera
Refer to the steps below to assist you with mounting the
camera. We recommended that you congure the camera rst,
before mounting it.
1
2
3
Place the mounting plate where you
want to position the camera and
mark the holes where you will place
the screws.
When you place the mounting plate
over the holes that you drilled in the
wall, make sure you align the holes.
Use the supplied screws to attach
the mounting base to the surface of
the wall.
Depending on the material of the
wall or ceiling, use the proper tools
to drill two holes where you drew
the marks.
Note: If the wall is made out of concrete,
drill the holes first and insert the plastic
anchors to support the screws.
9
ENGLISH

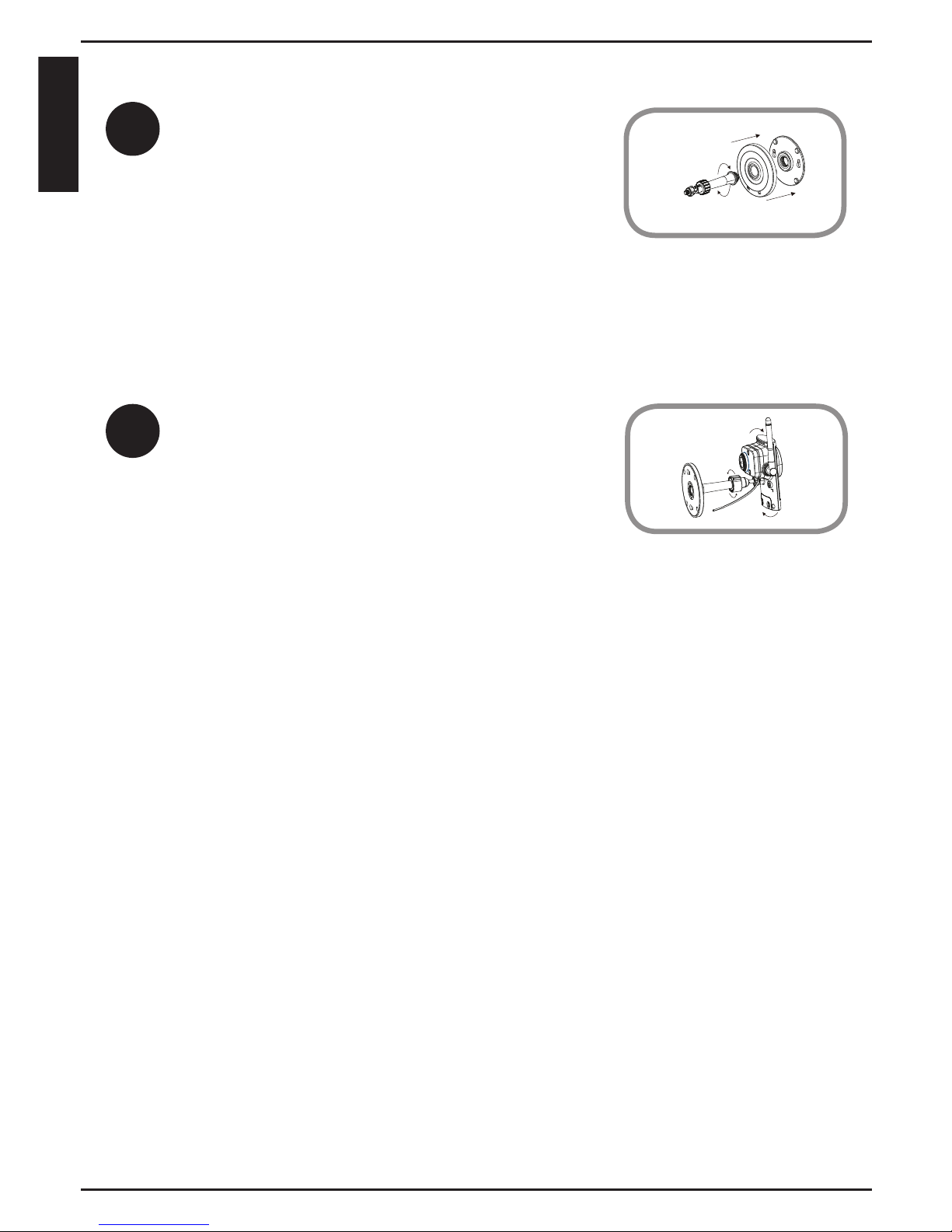

4Place the mounting base cover on
the mounting plate. Reattach the
camera mount onto the mounting
base by holding the camera mount
and twisting the camera mount
clockwise into the mounting base.
Adjust the direction of the camera
as desired, then tighten the collar
on the cameara mount to lock it in
place.
5
10
ENGLISH

Notes
11
ENGLISH

Technical Support
This guide is only for the rst time conguration. Please refer to the
user manual to learn more or visit http://www.mydlink.com for more
information. Also feel free to contact us. U.S. and Canadian customers
can contact D-Link Technical Support through our website.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.0
December 12, 2013
RMN0101122
