Before You Begin
You must have at least the following:
zPentium III 500 MHz, Celeron, AMD Athlon processor, or higher
z64MB RAM (or minimum OS requirement whichever is higher)
zMicrosoft Windows XP/2000/ME/98SE
zMicrosoft DirectX 8.1b or higher
zUpdate Service Pack
z200MB free hard drive space
zCD-ROM drive
zUSB Port (USB specificaiton version 1.1)
z24Bit color display adapter
zWindows compatible sound card and speakers (full duplex sound card
recommended)
Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
©2004 D-Link System, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice.
This product works with the
following operating system
software: Windows
XP/2000/ME/98SE
D
S
B-
C
120 U
S
B P
C
C
AMERA
DSB-C120
D-Link 100K Pixel
USB PC Camera
CD-ROM(containing Drivers, Application
Software, PDF Installation Guide, PDF
Manual, and Warranty)
USB 1.1 Cable
Run the Driver CD
before you install
the PC Camera.The Driver
CD contains an
installation program that
simplifies your
installation process.

2
DSB-C120 Driver Installation
Please bring out the attached CD-ROM and follow the steps listed
below carefully to insure the installation of DSB-C120 will be
complete.
If the Autorun screen does not automatically start, click on Start >
Run, enter ”D:\Autorun.exe” and click OK. ”D” represents the letter
of your CD-ROM drive. Replace it if your CD-ROM drive is a different
letter.
Windows XP Users
Click Install DSB-C120
Driver
Insert the software CD into
CD-ROM. As you can see
the below picture,D-Link
DSB-C120 startup window
will be displayed.
Click Next

3
Windows XP Users (Continued)
Click Finish
Plug the USB cable into camera
and USB port on the PC directly.

4
Windows 2000 Users
Click Next
Click Finish
Plug the USB cable into camera
and USB port on the PC directly.

5
Windows 2000 Users (Continued)
Windows ME & 98 Users
The DSB-C120 driver installation will proceed automatically for Windows
ME & 98SE users.
Click Next
Click Finish

6
Windows ME & 98 Users(Continued)
After the DSB-C120 is
connected to your
computer and all set up
procedures are completed,
you MUST restart the
operating system manually.
Plug the USB cable into camera
and USB port on the PC directly.

7
Driver Installation is Completed!

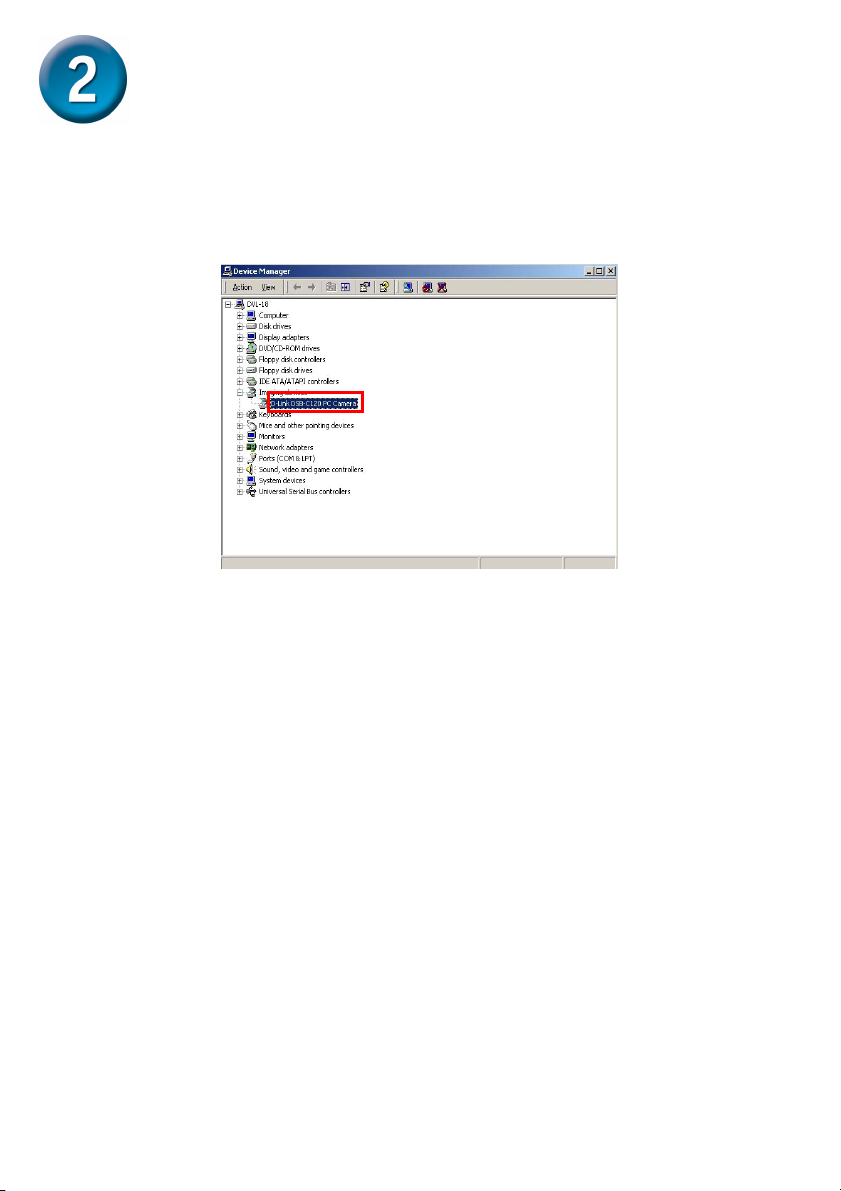

To confirm the DSB-C120 is properly installed, click “START”
→”SETTINGS”→”CONTROL PANEL”. Double-click ”SYSTEM”.
Select the ”HARDWARE” tab and click the ”DEVICE MANAGER”
button. Confirm that ”D-Link DSB-C120” appears in the ”IMAGE
DEVICES” section.
Once properly installed, you are ready to start immediately capturing
images and acreating video with the DSB-C120.
Please refer to the DSB-C120 Manual on the CD included with this
product for information on how to install and use the VP-EYE 4.0
software

8
Attention:
1. Make sure to install the driver and software BEFORE plugging the
camera into USB port.
2. We recommend plugging the cable connector to USB port on PC directly
to avoid low voltage.
3. If a dialog box pops up and request to have the language setting file
replaced after plugging the camera into USB port, please simply click
“Yes” to continue.
4. Please download the latest update of “Service Pack” (from Start Æ
Windows Update) to keep the camera running smoothly.
5. If you have more than one image device in your system, please select the
“D-Link DSB-C120” as the PC Camera device. In this way, you can use
this camera to capture images.

9
