D-Link AirPlus Xtreme G DWL-2000AP User manual

1
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
DWL-2000AP
D-Link AirPlus Xtreme GTM
Wireless Access Point
5V 2.0A DC Power Adapter
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DWL-2000AP. 04022003
Before You Begin
Check Your Package Contents
DWL-2000AP Wireless Access Point
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP) Cable
If any of the above items are missing, please contact your reseller.
It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for
configuring the DWL-2000AP. The default IP address for the DWL-2000AP is
192.168.0.50 with a Subnet Mask of 255.255.255.0. You will need to assign your
computer a Static IP address within the same range as the DWL-2000AP’s IP address
for the purpose of configuring the DWL-2000AP. See the Appendix if you need
assistance in assigning a Static IP address for your network adapter.
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.

2

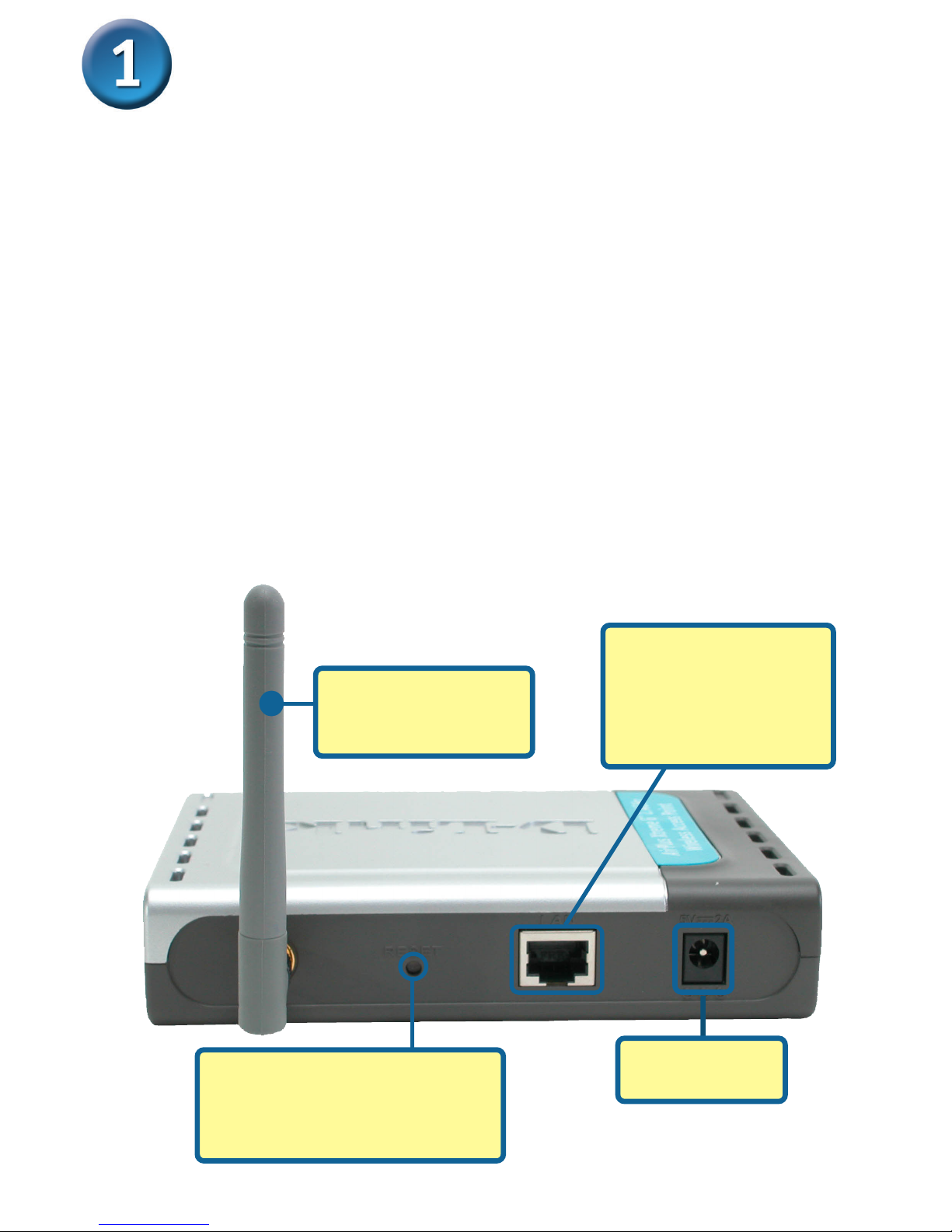

A. Receptor for
Power Adapter.
Reset Button
Pressing this button restores
the Access Point to its original
factory default settings.
B. LAN PORT 1 for
connecting the access
point to a switch on the
local network with an
ethernet cable
A. First, connect the power adapter to the receptor at the back panel of the
DWL-2000AP and then plug the other end of the power adapter to a wall outlet or
power strip. The Power LED will turn ON to indicate proper operation.
B. Insert one end of the cable to the Ethernet port on the back panel of the
DWL-2000AP and the other end of the cable to an Ethernet Broadband Router
(i.e., D-Link DI-604) or Switch (i.e., D-Link DSS-5+). Note: You also have the option
of connecting the DWL-2000AP directly to the computer that will be used for
configuration. The Link LED light will illuminate to indicate a proper Ethernet
connection. (Note: The Ethernet Port on the DWL-2000AP is Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover-Ethernet cable to connect to
the Ethernet port on the DWL-2000AP.)
C. The DWL-G650 AirPlus Xtreme G Wireless Cardbus Adapter and the DWL-G520
AirPlus Xtreme G Wireless PCI Adapter will connect, out of the box , with the
DWL-2000AP, using their default wireless settings. Computers with 802.11b wireless
adapters can also connect to the DWL-2000AP.
Connecting the DWL-2000AP Wireless
Access Point to Your Network
C. Antennas Used to
wirelessly connect to
802.11b adapters.

3

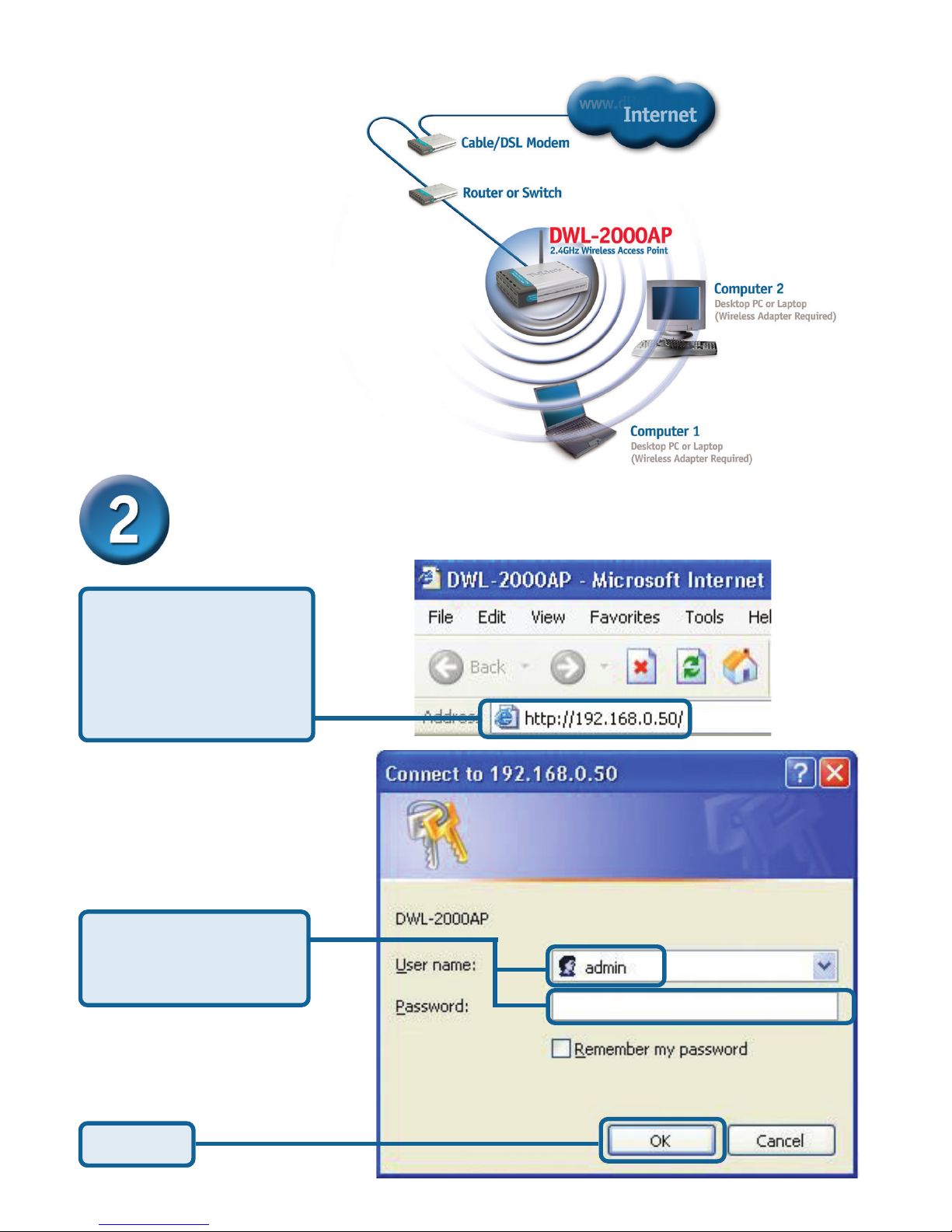

Using the Setup Wizard
Open your Web
browser and type
“http://192.168.0.50”
into the URL address
box. Then press the
Enter or Return key.
The logon pop-up
screen will appear.
Type “admin” for the
username and leave the
password field blank.
Click OK
When you have completed the
steps in this Quick Installation
Guide, your connected network
should look similar to this:

4

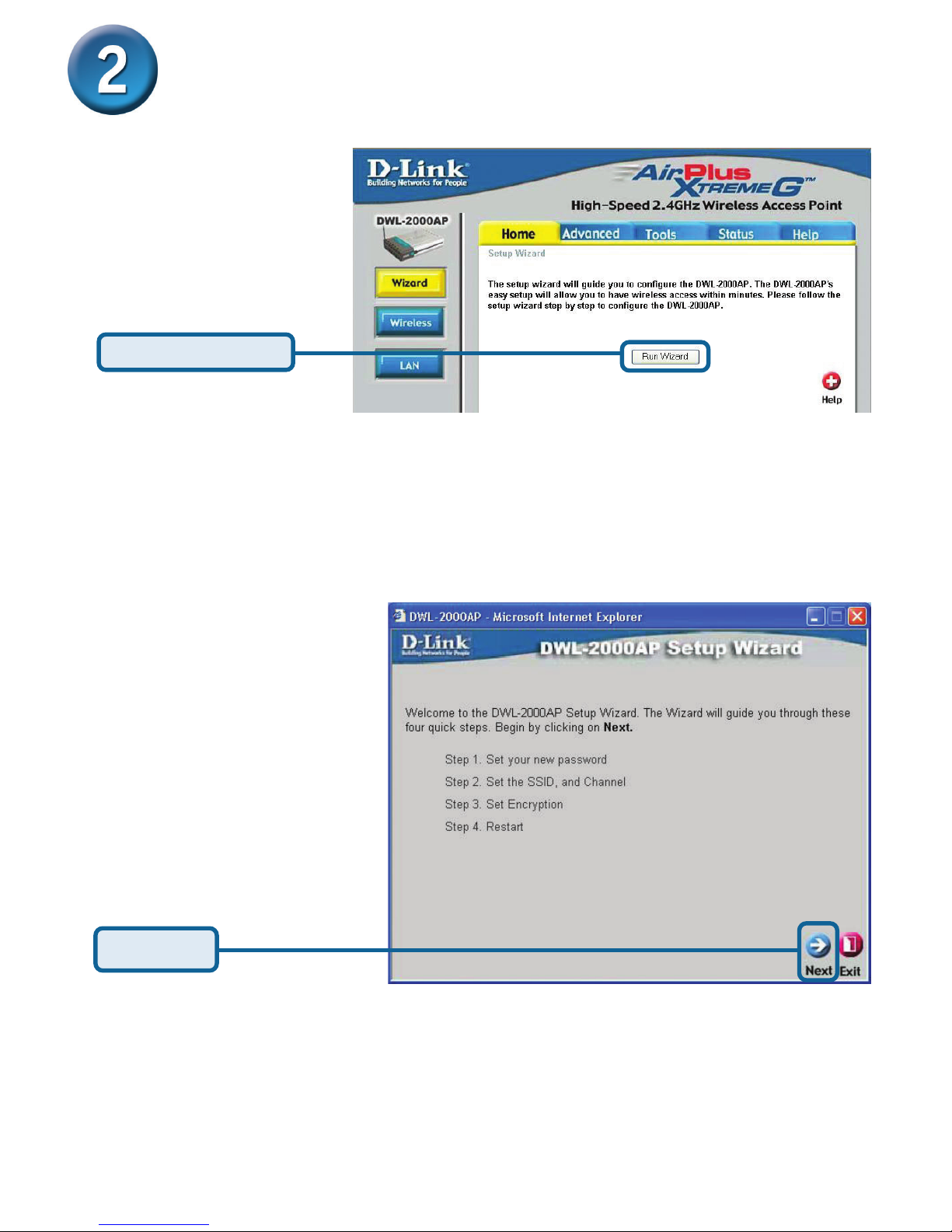

Once you have
logged in, the Home
screen will appear.
You will see the
following screens.
Click Run Wizard
Click Next
Using The Setup Wizard (continued)

5
Click Next

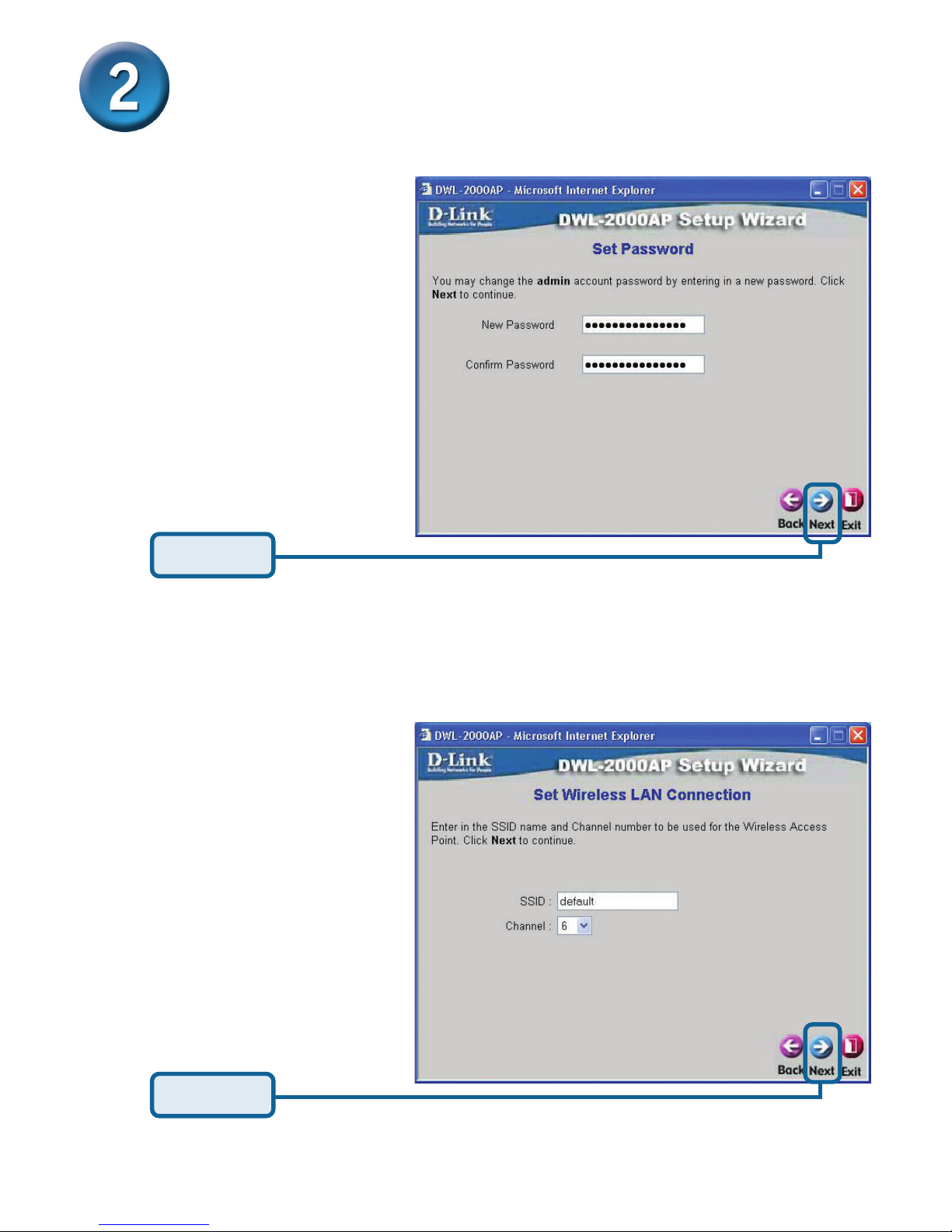

Step 1 - Set up your new
password. You have the
option to establish a password.
Step 2 - Wireless Setup
The default wireless
settings are:
SSID = default
Channel = 6
You can change these
settings to match an
existing wireless network.
Click Next
Using The Setup Wizard (continued)

6

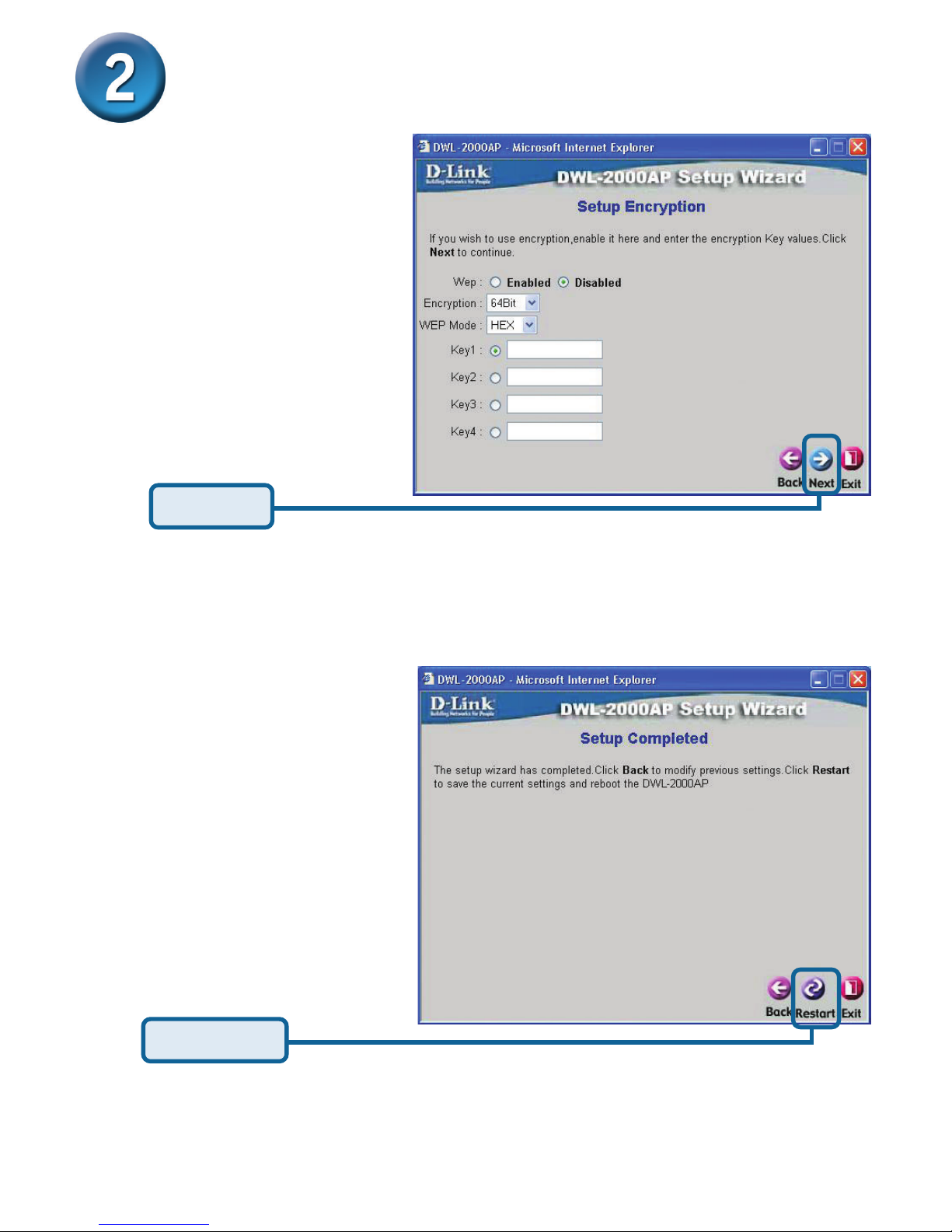

Step 3 - Encryption
The DWL-2000AP is capable of
two levels of wireless encryption
64-bit and 128-bit. By default
the encryption is disabled.
You can change the encryption
settings for more secure
wireless communication.
Your Setup is Complete!
Using The Setup Wizard (continued)
Click Next
Click Restart

7

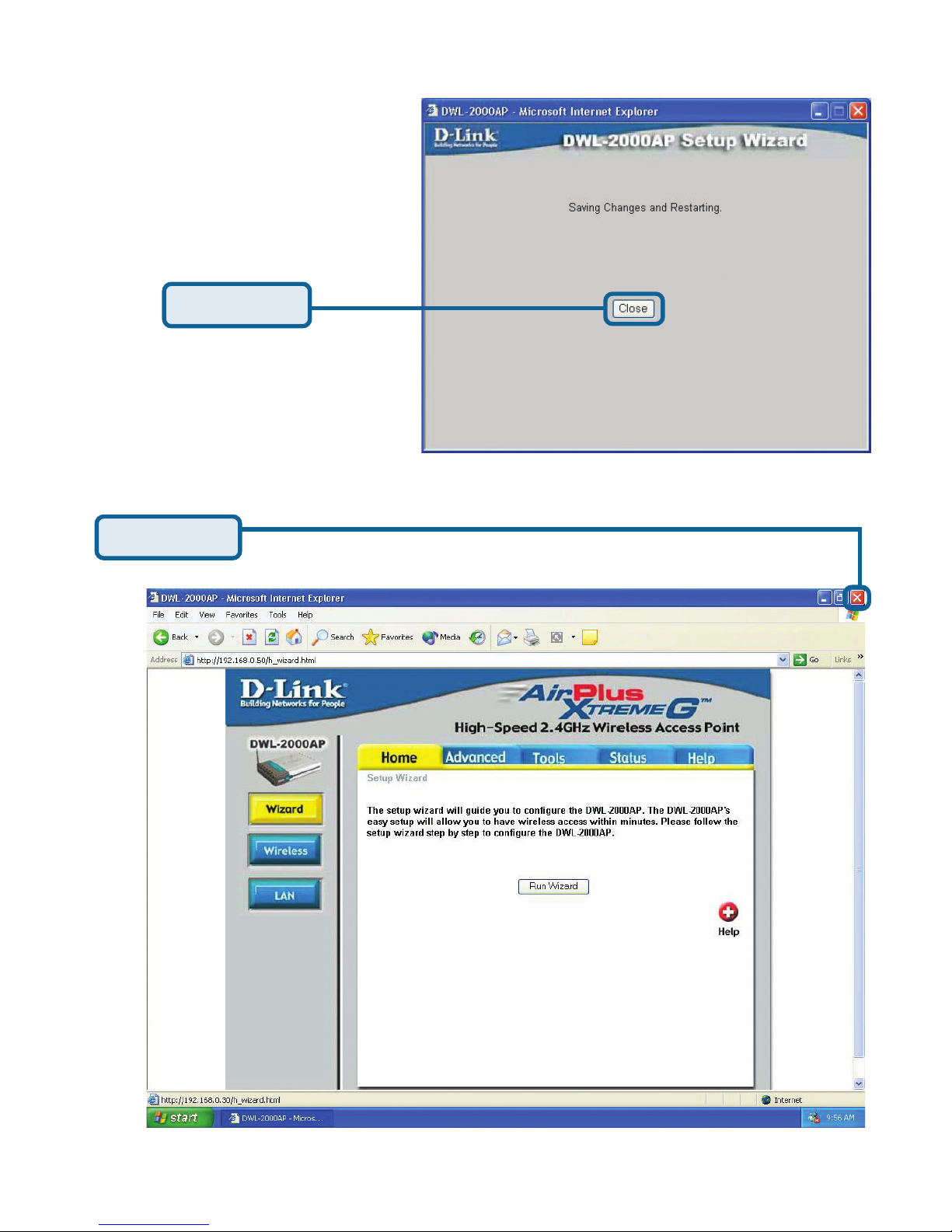

Click Close
You will be returned to the Home tab.
Click to Exit
For additional settings or information, refer to the Advanced, Tools, or Status
tabs on the web-management interface; or to the manual located on the CD-ROM.

8
Appendix

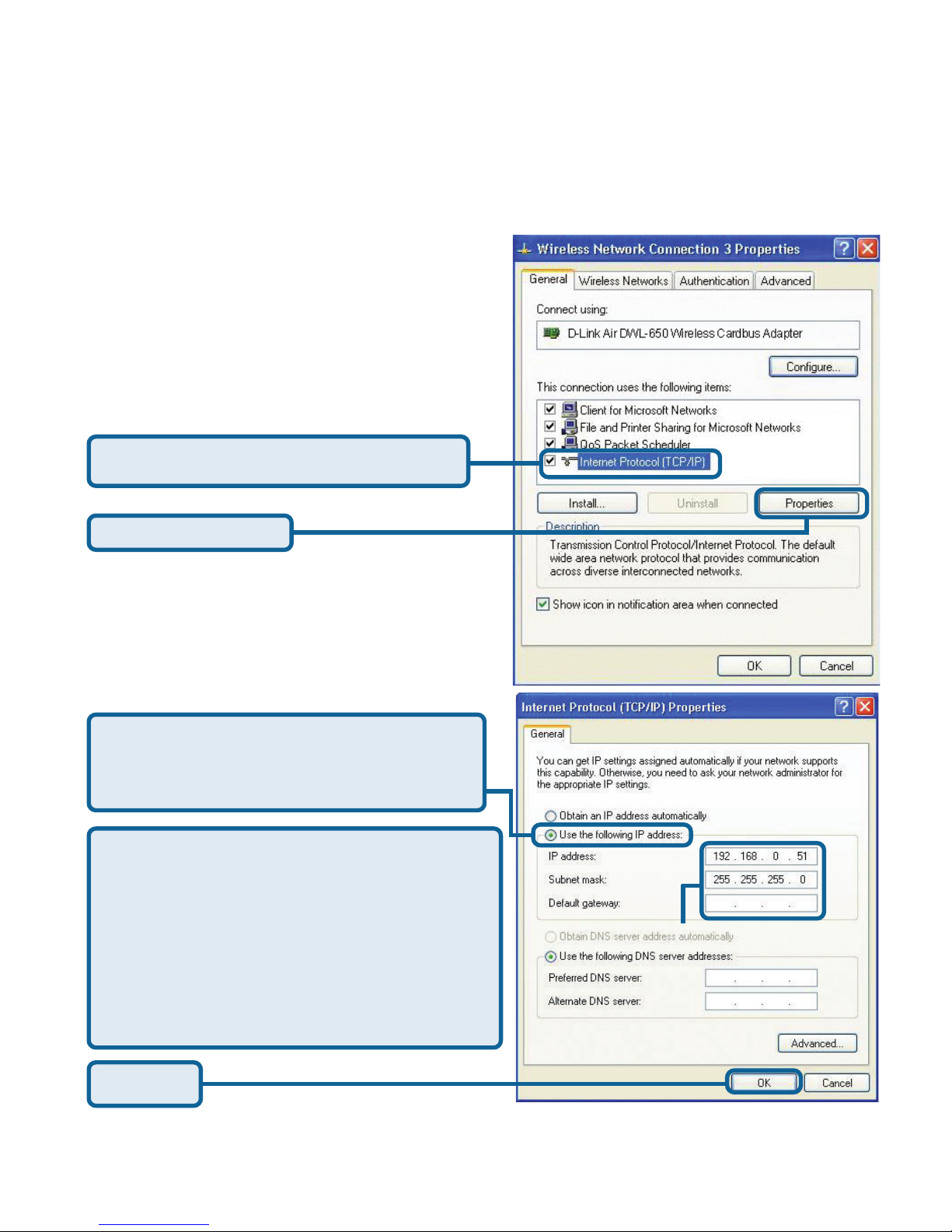

To assign a Static IP Address to the laptop or computer that you are using to configure
the DWL-2000AP, please do the following:
Assigning a Static IP Address in Windows
Go to Start > Double- click on Control
Panel > Double-click on Network
Connections > Right-click on Local
Area Connections > Click Properties
Highlight Internet Protocol (TCP/IP)
Click Properties
Select Use the following IP address in
the Internet Protocol (TCP/IP) Properties
window
Click OK
Input your IP address and subnet mask.
(The IP Address must be within the same
range as the DWL-2000AP. The IP Address
of the DWL-2000AP is 192.168.0.50. You
can assign 192.168.0.51 for your computer.
No two computers can have the same IP
Address. Assign a subnet mask of
255.255.255.0.)

9

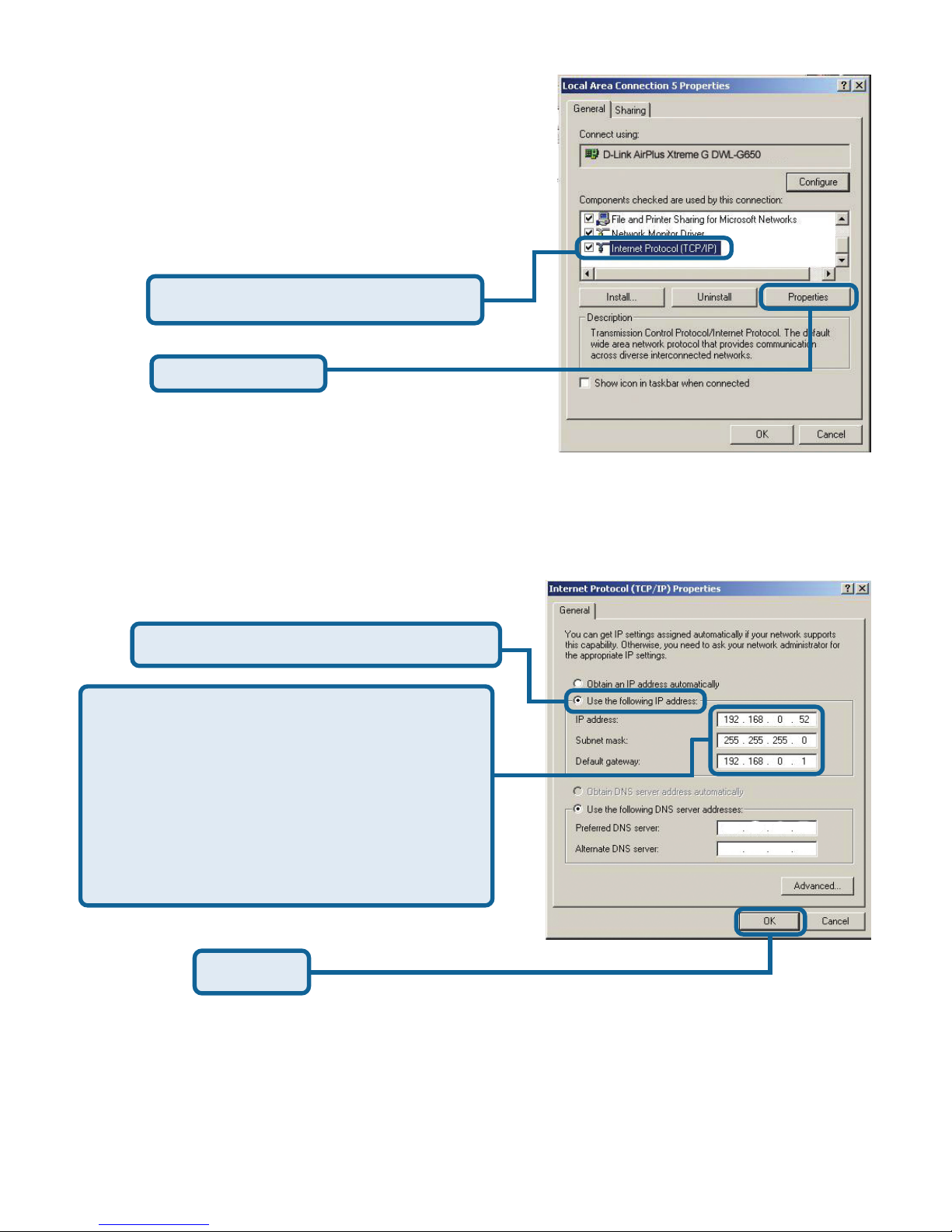

For Windows 2000 users:
Go to Start > Settings > Network and
Dial-up Connections > Double-click on the
Local Area Connection associated with
the Network Adapter installed on your
system> select Properties
Click Properties
Click Internet Protocol (TCP/IP)
Select Use the following IP address
Input your IP address and subnet mask.
(The IP Address must be within the same
range as the DWL-2000AP. The IP Address
of the DWL-2000AP is 192.168.0.50. You
can assign 192.168.0.52 for your computer.
No two computers can have the same IP
Address. Assign a subnet mask of
255.255.255.0.)
Click OK

10
Click Internet Protocol (TCP/IP)
Go to Start > Settings > Control Panel >
Double-click on the Local Area Connection
associated with the Network Adapter installed
on your system > select Properties

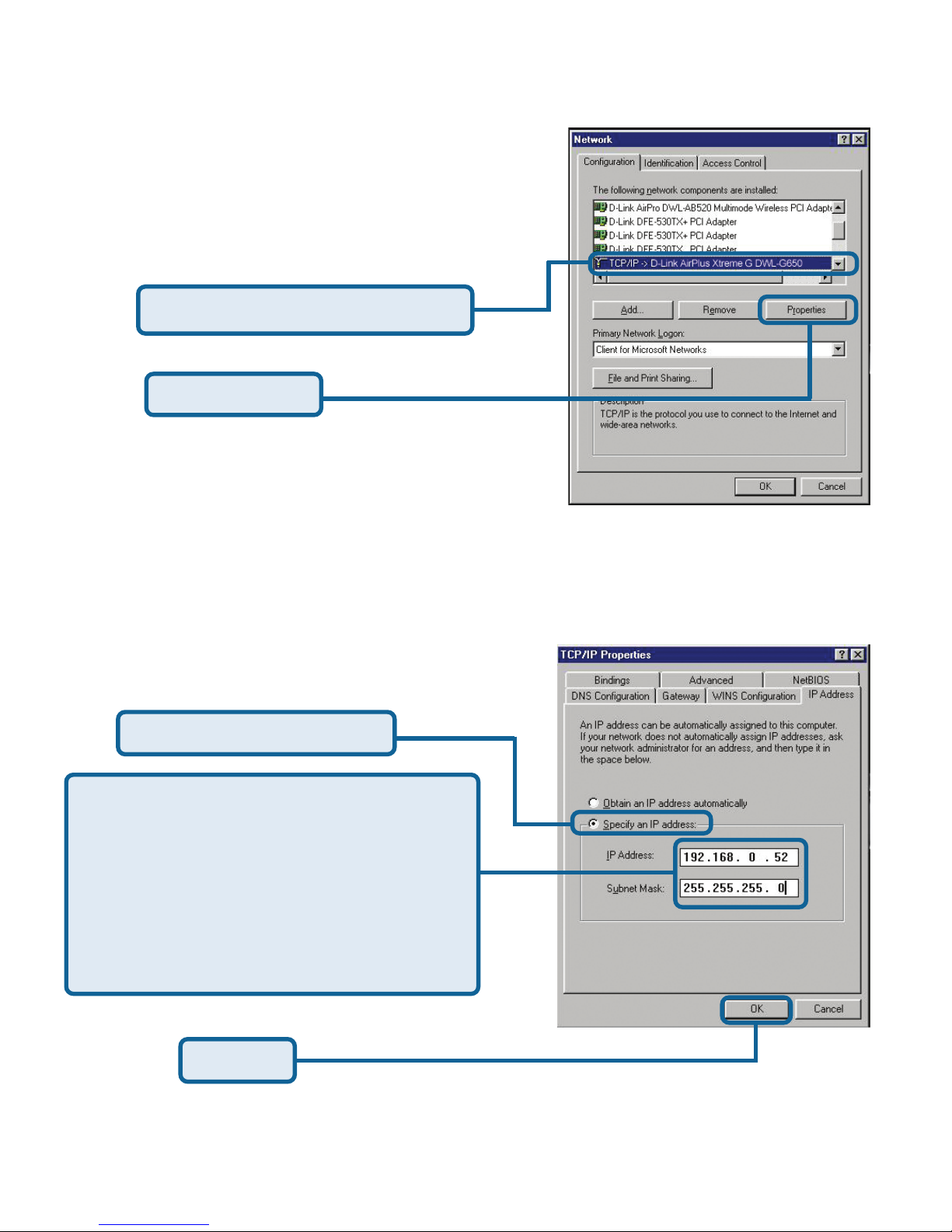

For Windows Me and 98se users:
Click Properties
Click Internet Protocol (TCP/IP)
Select Specify IP Address
Input your IP address and subnet mask.
(The IP Address must be within the same
range as the DWL-2000AP. The IP Address
of the DWL-2000AP is 192.168.0.50. You
can assign 192.168.0.52 for your computer.
No two computers can have the same IP
Address. Assign a subnet mask of
255.255.255.0.)
Click OK

11

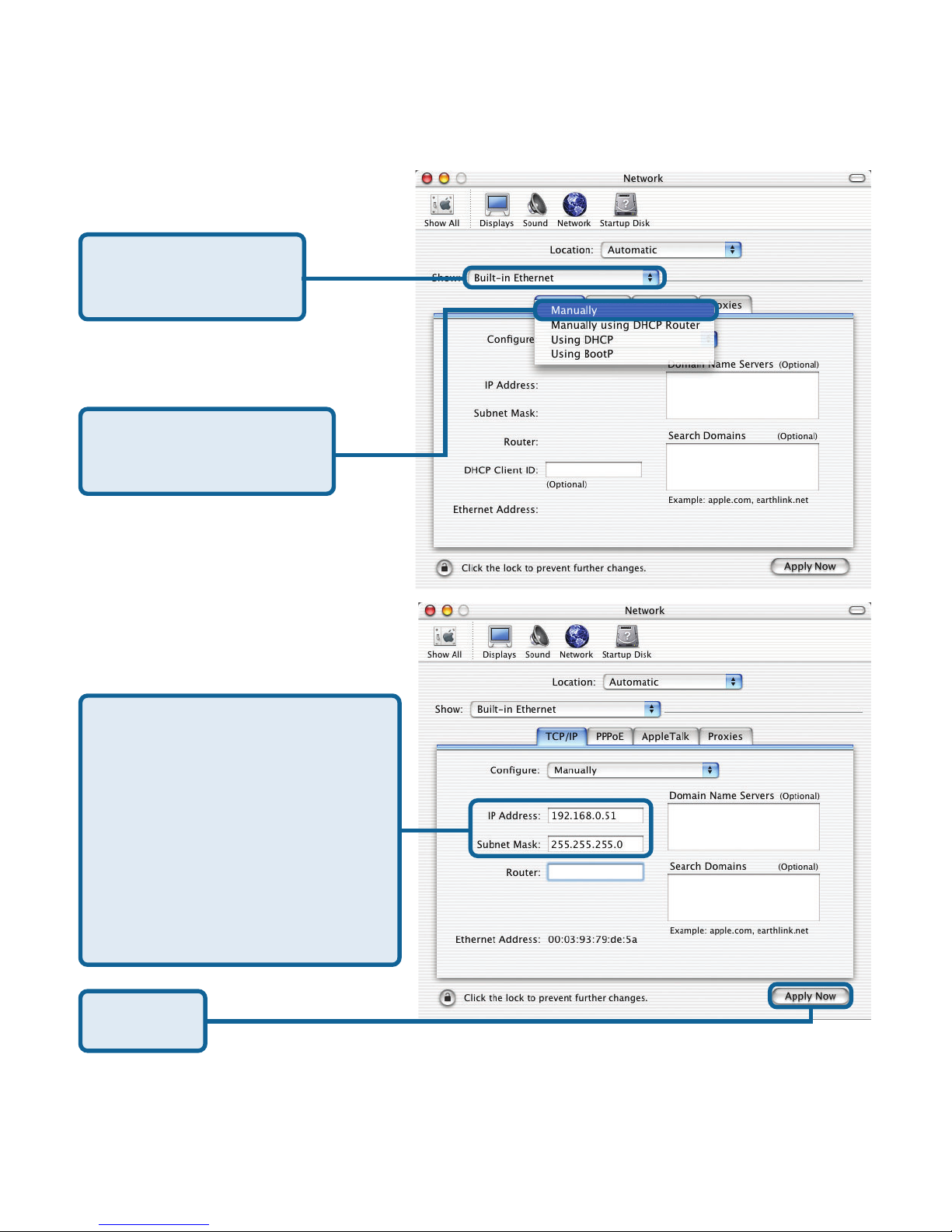

For Apple Macintosh OS X:
Go to the Apple Menu Click on Network
and Select System Preferences
Select Built in
Ethernet in the Show
pull-down menu
Click on
Apply Now
Select Manually in the
Configuration pull-down
menu
Input your IP address and
subnet mask. (The IP Address
must be within the same range as
the DWL-2000AP. The IP Address
of the DWL-2000AP is
192.168.0.50. You can assign
192.168.0.51 for your Macintosh.
No two computers can have the
same IP Address. Assign a
subnet mask of 255.255.255.0.)

12
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
