D-Link DWL-700AP - Air - Wireless Bridge User manual

1
Contents
1. Package Contents ............................................. 2
2. Introduction........................................................ 3
3. Wireless Basics ................................................. 6
4. Getting Started ................................................ 9
5. Using the Configuration Menu......................... 11
6. Using the Air AP Manager ............................... 24
7. Troubleshooting............................................... 28
8. Networking Basics........................................... 33
9. Technical Specifications .................................. 62
10. Contacting Technical Support .......................... 64
11. Warranty and Registration ............................... 65

1. Package Contents
Contents of Package:
D-Link Air DWL-700AP Enhanced 2.4GHz Wireless Access
Point
Power Supply – 5V DC, 2.0A
Manual on CD
Quick Installation Guide
Ethernet Cable
Note: Using a power supply with a different voltage rating than the one included with
the DWL-700AP will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements:
Computer with Windows, Macintosh, or Linux-based operating
system with an installed Ethernet adapter
Internet Explorer or Netscape Navigator version 4.0 or above, with
JavaScript enabled
2

2. Introduction
The D-Link Air DWL-700 AP Wireless Access Point is a standard
802.11b high-performance wireless access point. It is an ideal way to
extend the reach and number of computers connected to your wireless
network.
Like most 802.11b access points, the DWL-700AP is capable of data
transfer speeds of up to 11 Mbps when used with other D-Link Air
products such as the DWL-610 Wireless CardBus Adapter.
After completing the steps outlined in the Quick Installation Guide (included
in your package) you will have the ability to share information and resources,
such as files and printers, and enjoy the freedom that wireless networking
delivers.
The DWL-700AP is compatible with most popular operating systems,
including Macintosh, Linux and Windows, and can be integrated into a large
network. This Manual is designed to help you connect the Access Point and
the D-Link Air 2.4GHz Wireless Adapters into a network in Infrastructure
mode. Please take a look at the Getting Started section in this manual to
see an example of an Infrastructure network using the DWL-700AP.
This manual provides a quick introduction to wireless technology and its
application as it relates to networking. Please take a moment to read
through this manual and get acquainted with wireless technology.
MDII RJ-45 Ethernet
Port
Straight-Through
cable is required
when connecting to a
router or switch
Cross-Over
cable is required to
connect to a compute
r
Reset Button
Power
Connections
3

Features & Benefits
High-speed wireless data transfer rates up to 11Mbps.
With the data rate and capacity, the DWL-700AP delivers media rich
content such as digital images, videos, and MP3 files as the standard
802.11b networks
Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b
standard and interoperable with all existing 802.11b compliant
devices
Improved Performance – Up to 20% faster data transfer rates on
standard 802.11b networks
Supports 64/128-bit WEP encryption for security for your data
and wireless communication.
Web-based interface for Managing and Configuring – Easy-to-use
interface independent of the operating system
3 Different Operation Modes – Capable of operating in one of four
different operation modes to meet your wireless networking
requirements: Access Point, Wireless Client, and Wireless Repeater.
4

LEDS
LED stands for Light-Emitting Diode. The DWL-700AP Wireless Access
Point has 3 LEDs as shown below:
Power
LAN
WLAN
Power: solid green light indicates connection
LAN: blinking green light indicates activity; solid green light
indicates connection
WLAN: blinking green light indicates wireless activity; solid
green light indicates connection
5

6
3. Wireless Basics
D-Link Air wireless products are based on industry standards to provide
easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the
IEEE standard, the D-Link Air wireless family of products will allow you to
securely access the data you want, when and where you want it. You will
be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that
transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and office environments, and
public areas such as airports, coffee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate
more efficiently. Increased mobility and the absence of cabling and other
fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop and desktop systems support the
same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices
to link to a conventional Ethernet LAN in order to use servers, printers or an
Internet connection supplied through the wired LAN. A Wireless Access
Point (AP) is a device used to provide this link.
People use wireless LAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any
location within the operating range of the WLAN. Management decisions
based on real-time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs (Wireless Local Area Networks) are
easy to set up, manage, change and relocate. Networks that frequently
change, both physically and logically, can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring
may be impractical.
Installation Speed and Simplicity - Installing a wireless LAN system can
be fast and easy and can eliminate the need to pull cable through walls and
ceilings.

Wireless Basics
Network Expansion - Wireless technology allows the network to go where
wires cannot go.
Reduced Cost-of-Ownership - While the initial investment required for
wireless LAN hardware might be higher than the cost of wired LAN hardware,
overall installation expenses and life-cycle costs will be significantly lower.
Long-term cost benefits are greatest in dynamic environments requiring
frequent moves, adds, and changes.
Scalability – Wireless Local Area Networks (WLANs) can be configured in a
installations. Configurations are easily changed and range from peer-to-peer
networks suitable for a small number of users to full infrastructure networks
of thousands of users that allow roaming over a broad area.
D-Link Air Wireless Family of LAN products include:
2.4GHz Wireless Cardbus Adapters used with laptop
computers (DWL-610)
2.4GHz Wireless PCI cards used with desktop computers
(DWL-510)
2.4GHz Wireless Access Points (DWL-700AP)
2.4GHz Wireless Broadband Router (DI-514)
Standards - Based Technology
The IEEE standard-based technology assures that the D-Link Air
Products are interoperable with existing compatible 2.4GHz wireless
technology. This means you will be able to transfer large files quickly or
even watch a movie in MPEG format over your network without noticeable
delays. The technology works by using multiple frequencies in the 2.4GHz
range at speeds up to 11 Mbps.
7

Installation Considerations
Designed to go up to 984 feet (300 meters) outdoors and up to 328 feet
(100 meters) indoors, D-Link’s Air DWL-700AP lets you access your
network using a wireless connection from virtually anywhere. Keep in mind,
however, that the number, thickness and location of walls, ceilings or other
objects that the wireless signals must pass through may limit the range.
Typical ranges vary depending on the types of materials and background RF
(radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the wireless Access
Point and your receiving device (e.g., the DWL-610) to a minimum -
Each wall or ceiling can reduce your D-Link Air Wireless product’s
range from 3-90 feet (1-30 meters.) Position your Access Points,
Residential Gateways, and computers so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between Access Points, Residential
Gateways (routers) and computers. A wall that is 1.5 feet thick (.5
meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.
At a 2-degree angle it looks over 42 feet (14 meters) thick! Try to make
sure that the Access Points and adapters are positioned so that the
signal will travel straight through a wall or ceiling for better reception.
3. Building Materials make a difference - A solid metal door or aluminum
studs may have a negative effect on range. Try to position Access Points,
and computers with wireless adapters so that the signal passes through
drywall or open doorways and not other materials.
4. Make sure that the device’s antenna is positioned for best reception by
using the software signal strength tools included with your product.
5. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that may generate extreme RF noise.
For the average home, signal range should not be an issue. If you
experience low or no signal strength in areas of your home that you wish to
access, consider positioning the Access Point in a location directly between
the computers with wireless adapters. Additional Access Points can be
connected to provide better coverage in rooms where the signal does not
appear as strong as desired.
8

4. Getting Started
For the price of a single IP Address from your Broadband Internet Service
provider you can share the Internet with all the computers on your local
network, without sacrificing speed or security, using D-Link Air
networking products.
IP ADDRESS
An Infrastructure network contains an Access Point. The Infrastructure
Network example shown on the next page contains the following D-Link
network devices:
A wireless Access Point - D-Link Air DWL-700AP
An Ethernet Broadband Router - D-Link DI-604
A laptop computer with a wireless adapter - D-Link Air DWL-610
A desktop computer with a wireless adapter - D-Link Air DWL-510
A Cable modem - D-Link DCM-200
DHCP stands for Dynamic Host Configuration Protocol.
It is a protocol for assigning dynamic IP addresses “automatically.”
With a DHCP-capable gateway/router, there is
no need to manually assign an IP address.
Please note: If you have a DHCP-capable router, such as the D-
Link DI-604 or DI-614+, there is no need to assign an IP Address.
If you need to assign IP Addresses to the computers on the
network, please remember that the IP Address for each
computer must be in the same IP Address range as all the
computers in the network, and the Subnet mask must be exactly
the same for all the computers in the network.
For example: If the first computer is assigned an IP Address o
f
192.168.0.2 with a Subnet Mask of 255.255.255.0, then the second
computer can be assigned an IP Address of 192.168.0.3 with a
Subnet Mask of 255.255.255.0, etc.
IMPORTANT: If computers or other devices are assigned the
same IP Address, one or more of the devices may not be
visible on the network.
Right out of the box, with its default settings, the DWL-700AP will
automatically connect with other D-Link Air or AirPlus products.
9

Getting Started
Setting Up an Infrastructure Network
Please remember that D-Link Air wireless devices are pre-configured to
connect together, right out of the box, with the default settings.
You will need a broadband Internet access (Cable/DSL)
subscription.
Consult with your Cable/DSL provider for proper installation of the
modem.
Connect the modem to an Ethernet Broadband Router (such as the
D-Link DI-604)See the Quick Installation Guide included with the
DI-604.
Connect the router to the D-Link Air DWL-700AP.Refer to
the Quick Installation Guide for setting up the DWL-700AP.
If you are connecting a desktop computer in your network, you can
install the D-Link Air DWL-510 wireless PCI adapter into an
available PCI slot. See the Quick Installation Guide included with the
DWL-510.
Please refer to the following sections
of this manual for additional
information about setting up a network:
Networking Basics- learn how to
check your IP Address; share printers
and files.
Using the Configuration Utility- learn
the settings you must use on each
computer in your network for
successful communication.
Troubleshooting- learn how to chec
k
for the proper installation of the
network adapters’ drivers and othe
r
tips for troubleshooting the network.
Install the drivers for the wireless cardbus adapter (D-Link
A
ir DWL-610) into the laptop computer. See the Quick
Installation Guide included with the DWL-610 for installation
instructions.
10
700AP

5. Using the Configuration Menu
The Configuration Menu for the DWL-700AP is web-based. When using
the configuration program, please consider the following:
Factory Default Settings for the DWL-700AP
SSID
Channel
Encryption disabled
User Name admin
Password (no password, leave field blank)
IP Address 192.168.0.50
You will need a JavaScript-enabled web-browser such as Internet Explorer
4.0 or higher, or Netscape Navigator 4.0 or higher.
The computer that you are using for initial configuration must have an IP
Address within the same range as the IP Address of the DWL-700AP.
The DWL-700AP has a default IP Address of 192.168.0.50 with subnet
mask of 255.255.255.0
If you are using a D-Link router in your network, such as the DI-604, with the
factory default settings, you will not need to assign a static IP Address to the
computer that you are using to configure the Access Point. (Skip to Fig. 5.1:
entering the IP address)
If you are not using a D-Link router in your network, you will need to assign a
Static IP Address to the computer that you are using to configure the DWL-
700AP, with in the IP Address Range of the DWL-900AP+. Assign a static IP
address of 192.168.0.2 with subnet mask of 255.255.255.0 (Please see
Networking Basics in this manual for information on Assigning a Static IP
Address.) Note: Please write down the current IP address settings of the
computer. You may need to revert back to these settings after configuring the
DWL-900AP+.
After you have assigned a Static IP Address to the computer you are using for
configuration (if necessary), next you will assign the DWL-7000AP an IP
Address within the range of your existing network.
After changing the IP Address of the DWL-700AP you will need to enter the
IP into the address bar of your web browser to access the configuration page
of the DWL-700AP
If the computer had a static IP address, re-input that same address.
If the computer had a dynamic IP Address (i.e., a DHCP capable router
automatically assigns the IP Address) then change the setting of your
network adapter to receive a Dynamic IP Address.
11
6
default

Using the Configuration Menu (continued)
Whenever you want to configure your network or the DWL-700AP, you can
access the Configuration Utility by opening the web-browser and typing in
the IP Address of the DWL-700AP. The DWL-700AP’s default IP Address
is shown below:
(The IP Address shown in the example above is the default setting. Use this IP address when
connecting to a network consisting of other D-Link devices set to their default settings. If you
have changed the IP Address of the DWL-700AP to conform to a network other than one
with D-Link devices, then input that IP Address in the web browser, instead of the default IP
Address shown.)
Open the web browser
Type in the IP Address of
the Access Point
Type admin in the
User Name field
Leave the
Password blank
Click OK
The Configuration window will
appear. You can select from
several options in this
window. Here the Home >
Wireless tab is displayed. If
youwishtochangethe
default settings, you can
make changes to the
following items:
AP name
SSID
Channel
WEP Encryption
Key Type
Home > Wireless
12

Using the Configuration Menu (continued)
AP Name: You may choose to rename your Access Point, especially if you
have more than one Access Point on your network.
SSID: (Service Set Identifier)“default” is the default setting. The SSID
is a unique name that identifies a network. All devices on a network must
share the same SSID name in order to communicate on the network. If you
choose to change the SSID from the default setting, input your new SSID
name in this field. The SSID can be up to 32 characters in length.
Channel: Channel 6 is the default channel. Input a new number if you
want to change the default setting. All devices on the network must be set to
the same channel to communicate on the network.
WEP Encryption: Select Enable Encryption to use WEP (Wired Equivalent
Privacy) on the network. All devices on the network, and the Access Point,
must share the same WEP selection – either Enable or Disable,andthey
must share the same WEP key. The WEP key is generated from ASCII or
Hexadecimal entries that are either 64, 128 bit in length. When enabling
encryption, select the Key Type (ASCII or Hexadecimal) and then input
the appropriate digits or letters. You can create up to 4 keys. Select the key
you wish to use.
Click Help at any time
for more information.
Click Apply if you have
made any changes or
additions.

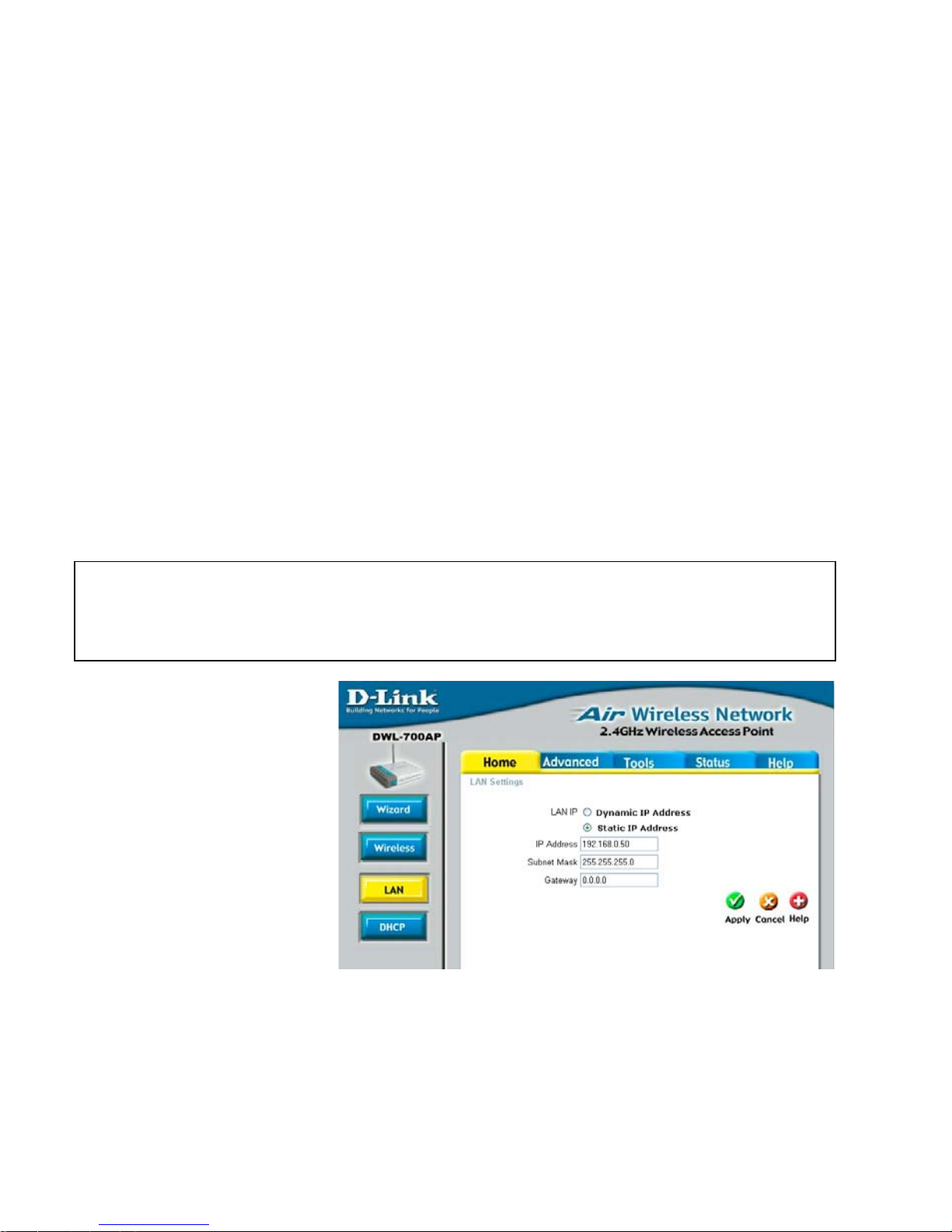

This window displays
the default settings of
the DWL-700AP.
The default IP Address
is 192.168.0.50. If you
select Dynamic
IP Address,you
will obtain a dynamic IP Address from a DHCP server on your network.
(This is not advisable since it will be difficult to determine the dynamic IP
address assigned to the DWL-700AP.) The Subnet Mask is
255.255.255.0. Input the IP Address of the Gateway (the router on your
network.)
Click Apply if you have made any changes.
Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code
for representing English letters as numbers from 0-127
13

Dynamic IP Address on the network, you will select enabled.
DHCP Server:
Home > DHCP
Select Enabled or Disabled. Disabled is the default setting.
If you want to use the Access Point as a DHCP server to automatically assign
Starting IP Address: If you have enabled the DHCP server function, enter the
starting point of the IP Address range for your network.
Ending IP Address: Enter the ending IP Address of your IP Address range,
if you have enabled the DHCP function of the Access Point.
Lease Time: Choose the length of time at which the DHCP function of the
DWL-700AP automatically regenerates the IP Addresses to the devices in
your network.
DHCP Client Table: Lists the devices on your network that are receiving
dynamic IP Addresses from the Access Point.
Using the Configuration Menu (continued)
DHCP Server:Select Enabled or Disabled. Disabled is the default setting.
If you want to use the Access Point as a DHCP server to automatically assign
Starting IP Address: If you have enabled the DHCP server function, enter the
starting point of the IP Address range for your network.
Ending IP Address: Enter the ending IP Address of your IP Address range,
if you have enabled the DHCP function of the Access Point.
Lease Time: Choose the length of time at which the DHCP function of the
DWL-700AP automatically regenerates the IP Addresses to the devices in
your network.
DHCP Client Table: Lists the devices on your network that are receiving
dynamic IP Addresses from the Access Point.
14
Dynamic IP Address on the network, you will select enabled.

Using the Configuration Menu (continued)
The DWL-700AP can be configured to perform in any one of three modes, as
a wireless access point, as a wireless client, or as a wireless repeater.
Advanced > Mode
MAC Address
(Media Access
Control Address)
A
unique
hardware address
that identifies a
device on a
network. It is
assigned at the
factory and
cannot be
changed. Usually
you will find this
address on a
sticker on the
device or on the
packaging.
Fig 5.5
Access Point: This mode is used to create a wireless LAN. Access Point is the
default setting.
15
Wireless Client: Will
transform any IEEE 802.3
Ethernet device into an
802.11b wireless client as
long you are connecting to a
DWL-700AP acting as an
Access Point. The Site
Survey function will allow you
to scan for available wireless
networks.
Advanced > Mode > Site Survey

Using the Configuration Menu (continued)
Repeater: This mode will allow
you to extend the range of your
wireless network. The repeater
mode will work with another
D-Link Air DWL-700AP.
Note! If you use the DWL-700AP
in Wireless Client or Repeater
Mode, make sure that you enter the
Ethernet Mac Address (LAN MAC
A
ddress) of the unit that you want to
extend the wireless coverage.
16

Using the Configuration Menu (continued)
The default
Performance settings
are shown here.
Beacon Interval:
Beacons are packets
sent by an Access
Point to synchronize a
wireless network.
Specify a Beacon
interval value. Default
(100) is recommended.
RTS Threshold: This
value should remain at
its default setting of
2,432. If you
encounter inconsistent
data flow, only minor
modifications to the value range between 256 and 2,432 are recommended.
Fragmentation: This value should remain at its default setting of 2,346. If you
experience a high packet error rate, you may slightly increase your Fragmentation
Threshold within the value range of 256 to 2,346. Setting the Fragmentation
Threshold too low may result in poor performance.
DTIM Interval (Beacon Rate): (Delivery Traffic Indication Message) Enter a value
between 1 and 16384 for the Delivery Traffic Indication Message (DTIM.) A DTIM is
a countdown informing clients of the next window for listening to broadcast and
multicast messages.
Basic Rates: Select the basic rate for the network
TX Rates: Select the transmission rate for the network
Preamble Type: Long Preamble is the default setting. (High traffic networks should
use the shorter preamble type.) The preamble defines the length of the CRC block
(Cyclic Redundancy Check is a common technique for detecting data transmission
errors) used in communication between the Access Point and the roaming wireless
Network adapters.
Authentication:
Open System – communicates the key across the network
Shared Key – devices must have identical WEP settings to communicate
Auto – automatically adjusts to the Authentication mode of the wireless client
SSID Broadcast: (Service Set Identifier) Enable or Disable (default) the broadcast
of the SSID name across the network. SSID is a name that identifies a wireless
network. All devices on a network must use the same SSID to establish
communication.
Advanced > Performance
17

Using the Configuration Menu (continued)
Advanced > Filters
Use MAC Filters to allow o
r
deny wireless connection
to the DWL-700AP.
Select Disable MAC Filters
(default) to disable this
feature. Select Only allow
the MAC address… or Only
deny the MAC address…
and enter the MAC Address
of the selected computer into
the field above. Or you can
click on the
p
ull-down arrow
18

19
Using the Configuration Menu (continued)
Tools > Admin
Change your password in this
window. It can be up to 14
characters in length. Please
keep a copy of your password in
a safe place.
Click Apply, if you have made
any changes.
Tools > System
The current
system settings
can be saved as a
file onto the local
hard drive by
clicking Save. The
saved file can be
loaded back on the
DWL-700AP by
clicking Browse.
When you have
selected the
settings file, click
Load.
Click Restore to
return to Factory
Default Settings.
