D-Link AirPremier DWL-7700AP User manual

DWL-7700AP
802.11a/b/g Access Point
Command Line Interface Reference Manual
Ver. 3.2 (February 2009)
RECYCLABLE

Table of Contents
Using the CLI ......................................................................................................................................................................................................................1
Command Syntax................................................................................................................................................................................................................5
Utility Commands ...............................................................................................................................................................................................................7
Ethernet Commands ...........................................................................................................................................................................................................8
Wireless Commands............................................................................................................................................................................................................9
Multi-SSID and VLAN Commands .....................................................................................................................................................................................14
Access Control List Commands .........................................................................................................................................................................................16
Radius Server Commands .................................................................................................................................................................................................18
DHCP Server Commands...................................................................................................................................................................................................19
Snmp Commands..............................................................................................................................................................................................................20
Time Display & SNTP Commands ......................................................................................................................................................................................22
Telnet & SSH Commands ..................................................................................................................................................................................................23
System Log & SMTP Command .........................................................................................................................................................................................25
First-Time Configuration Examples ...................................................................................................................................................................................26

802.11 a/b/g Access Point Command Line Interface Manual
1
1
USING THE CLI

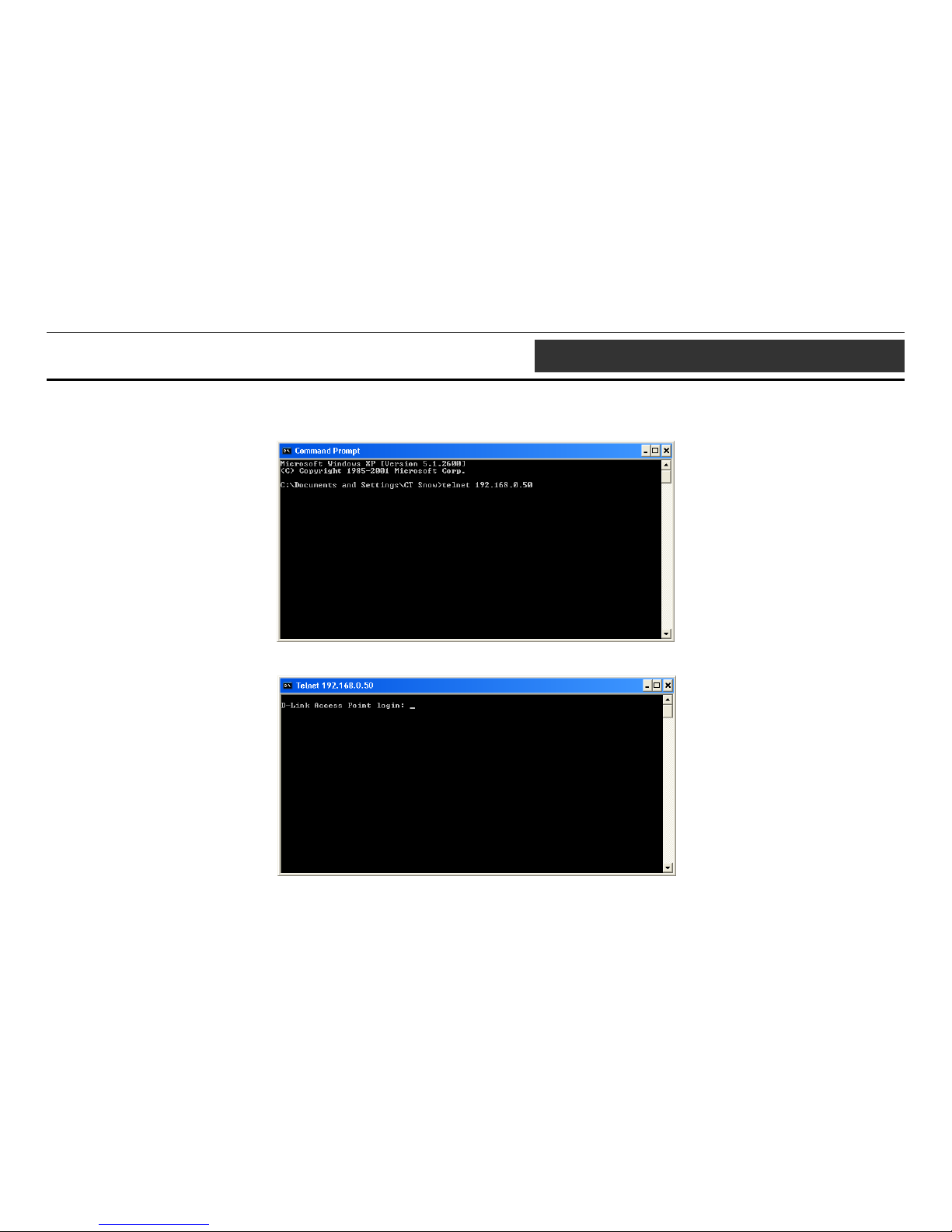

The DWL-7700AP can be accessed by Telnet. Using Microsoft Windows Operation system as example, open the Command Prompt on the computer that will be used for configuring and
managing the AP and enter telnet and IP address of DWL-7700AP in the first line. Using the default IP address as example, enter telnet 192.168.0.50 to cause the following screen to open:
Press Enter in the screen above. The following screen opens:
Type “admin” for the D-Link Access Point login username in the screen above and press Enter. The following screen opens:

802.11 a/b/g Access Point Command Line Interface Manual
2
Press Enter as there is no initial password.

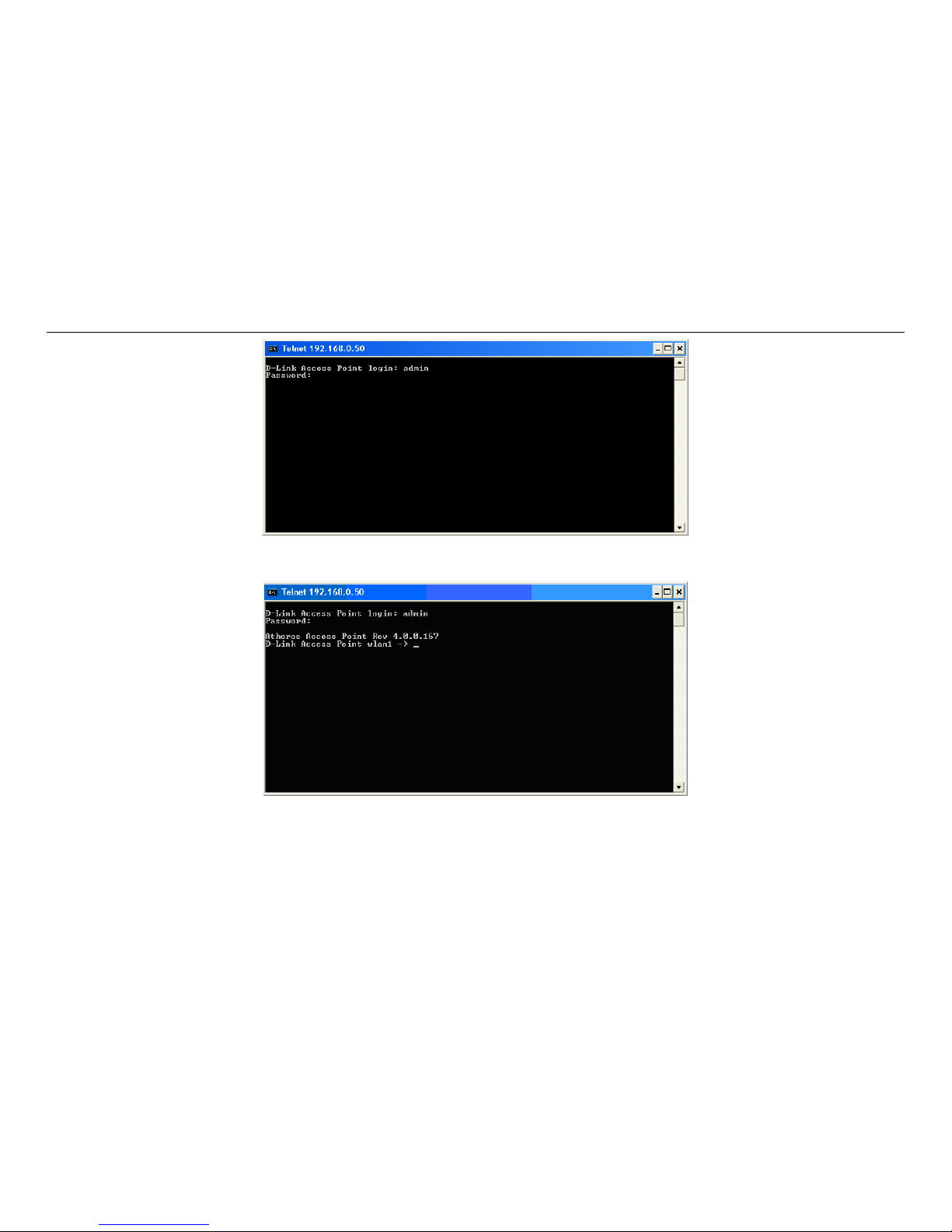

The following screen opens to indicates you have successfully logged into the DWL-7700AP.
Commands are entered at the command prompt, D-Link Access Point wlan1 – >

802.11 a/b/g Access Point Command Line Interface Manual
3

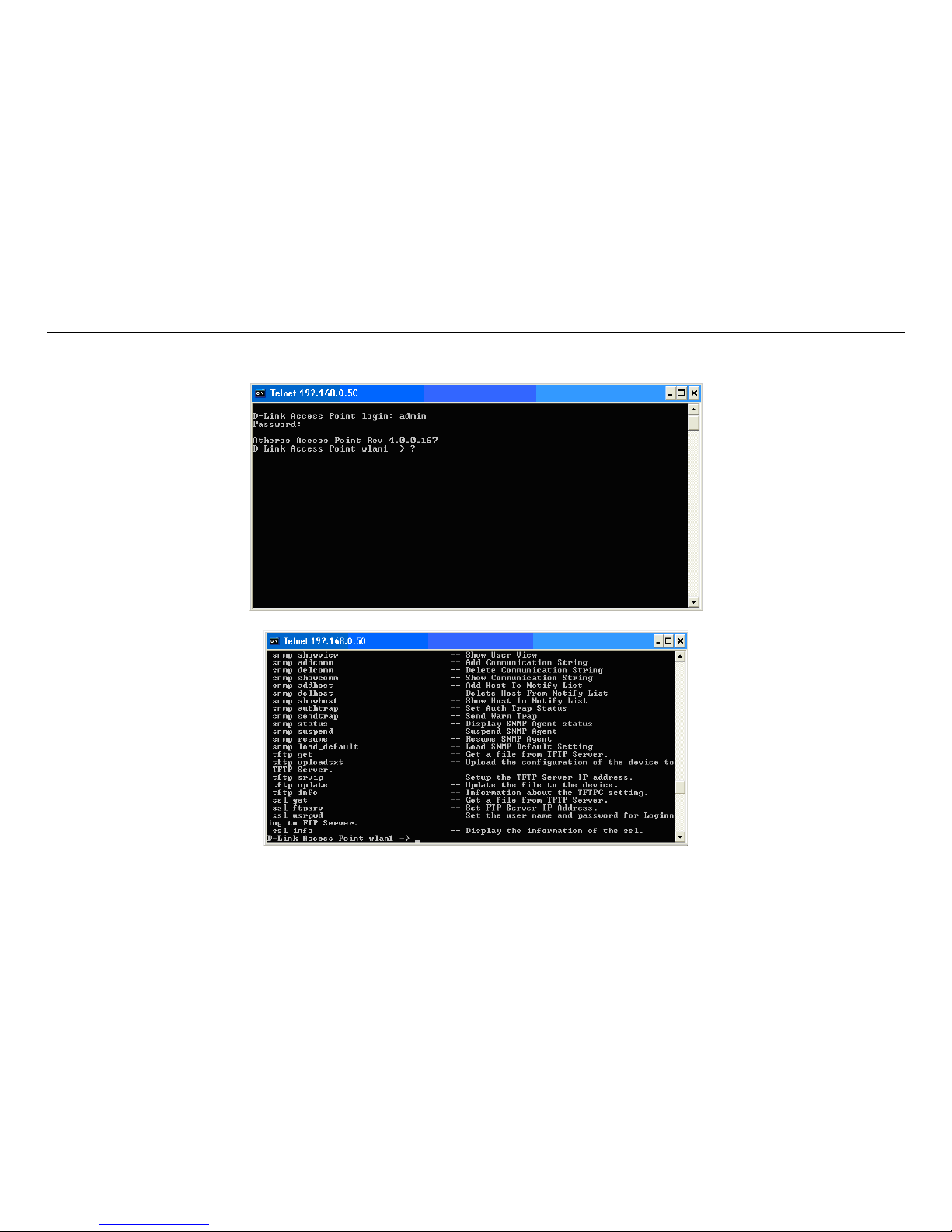

There are a number of helpful features included in the CLI. Entering the “?” command and then pressing Enter will display a list of all of the top-level commands. The same information
can also be displayed by entering “help”.
Press Enter to see a list of all the available commands. Alternatively, you may enter “help” and the press Enter.
When you enter a command without all of its required parameters, the CLI will prompt you with a list of possible completions. For example, if “tftp” was entered, the following screen
opens:

802.11 a/b/g Access Point Command Line Interface Manual
4

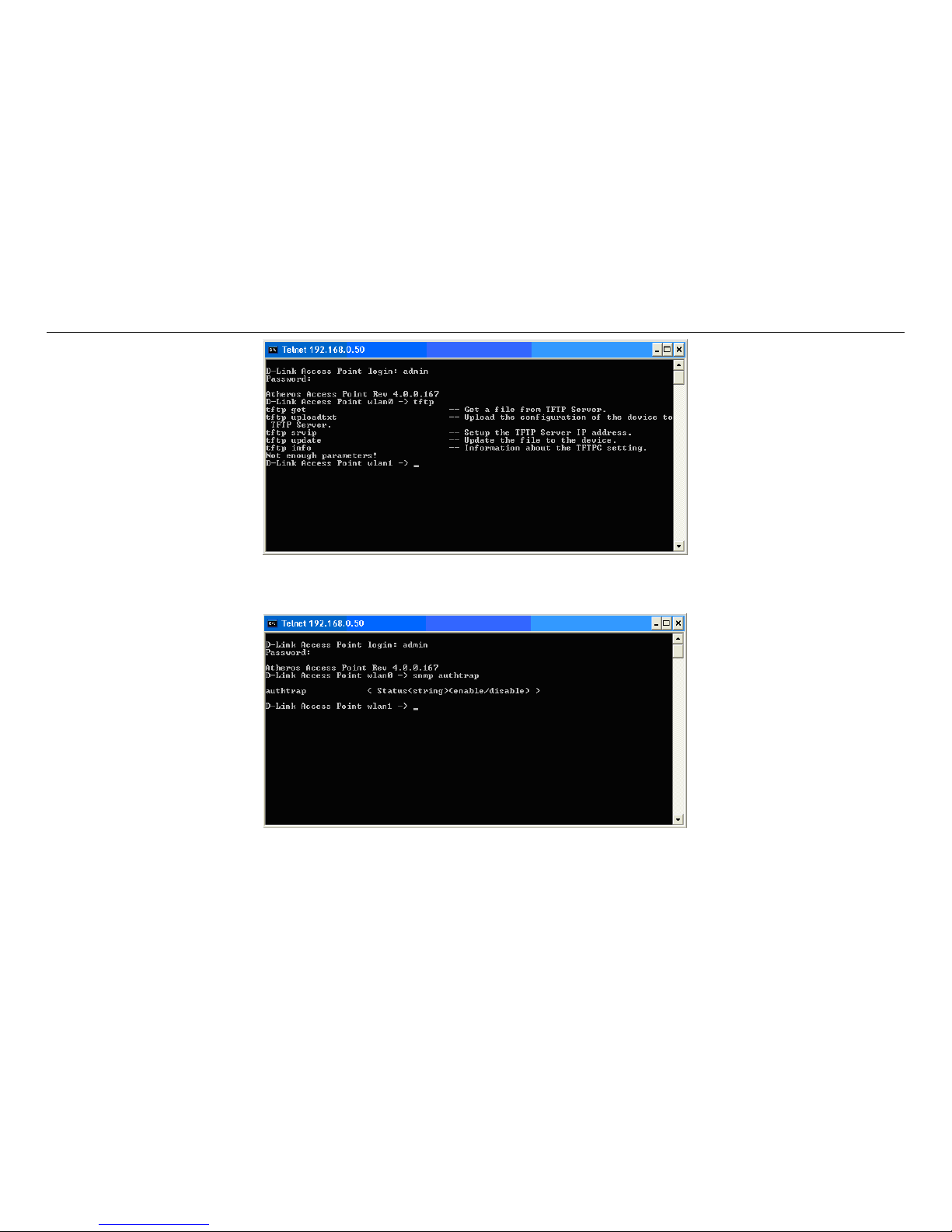

This screen displays all the possible command completions for “tftp”
When you enter a command without a variable or value that needs to be specified, the CLI will prompt you with further information about what is needed to complete the command. For
example, if “snmp authtrap” was entered, the following screen opens:
The missing value for the “snmp authtrap”command, “enable/disable,” is displayed in the screen above.

802.11 a/b/g Access Point Command Line Interface Manual
5
2
COMMAND SYNTAX
The following symbols are used to describe how command entries are made and values and arguments are specified in this manual. The online help contained in the CLI and available
through the console interface uses the same syntax.
Note: All commands are case-insensitive.
<angle brackets>
Purpose Encloses a variable or value that must be specified.
Syntax set login <username>
Description In the above syntax example, you must specify the username.
Do not type the angle brackets.
Example Command set login accounting
[square brackets]
Purpose Encloses a required value or set of required arguments. One
value or argument can be specified.
Syntax get multi-authentication [index]
Description In the above syntax example, you must specify an index to be
created. Do not type the square brackets.
Example Command get multi-authentication 2

802.11 a/b/g Access Point Command Line Interface Manual
6
: colon
Purpose Separates two or more mutually exclusive items in a list, one of
which must be entered.
Syntax set antenna [1:2:best]
Description In the above syntax example, you must specify either 1,2 or
best. Do not type the colon.
Example Command set antenna best

802.11 a/b/g Access Point Command Line Interface Manual
7
3
UTILITY COMMANDS
Help Command: Function Syntax
help Display CLI Command List help or ?
Ping Command: Function Syntax
ping Ping ping <xxx.xxx.xxx.xxx>
Restart and Exit Commands: Function Syntax
set factorydefault Restore to Default Factory Settings set factorydefault
reboot Reboot Access Point. It is necessary to reboot the AP after making
configuration changes for those changes to take effect. reboot
quit Logoff quit
Version Display Command: Function Syntax
version Displays the currently loaded firmware version version
System Status Command: Function Syntax
get bdtempmode Display Monitor Board Temperature Mode get bdtempmode
set bdtempmode Set Monitor Board Temperature Mode (In Centigrade) set bdtempmode [enable:disable]
get bdalarmtemp Display Monitor Board Temperature Alarm Limitation (In Centigrade) get bdalarmtemp
set bdalarmtemp Set Monitor Board Temperature Alarm Limitation (In Centigrade) set bdalarmtemp <temperature>
get bdcurrenttemp Display Current Board Temperature (In Centigrade) get bdcurrenttemp
set detectlightmode Set HW Detect Light Mode set detectlightmode [enable:disable]
Addminstration Command: Function Syntax
get login Display Login User Name get login
get uptime Display UpTime get uptime
set login Modify Login User Name set login <username>
set password Modify Password set password
get wlanManage Display manage AP with WLAN Mode get wlanManage
set wlanmanage Set manage AP with WLAN Mode set wlanmanage [enable:disable]
get systemname Display Access Point System Name get systemname
set systemname Specify Access Point System Name set systemname <name>
Other Command: Function Syntax
radar! Simulate radar detection on current channel radar!

802.11 a/b/g Access Point Command Line Interface Manual
8
4
ETHERNET COMMANDS
Get Command: Function Syntax
get ipaddr Display IP Address get ipaddr
get ipmask Display IP Network/Subnet Mask get ipmask
get gateway Display Gateway IP Address get gateway
get lcp Display Link Integrate state get lcp
get lcplink Display Ethernet Link State get lcplink
get dhcpc Display DHCP Client State of enabled or disabled get dhcpc
get domainsuffix Display Domain Name Server Suffix get domainsuffix
get nameaddr Display IP Address Of Name Server get nameaddr
Set Command: Function Syntax
set hostipaddr Set Boot Host IP Address set hostipaddr <xxx.xxx.xxx.xxx>
Explanation:<xxx.xxx.xxx.xxx>is IP address
set ipaddr Set IP Address set ipaddr <xxx.xxx.xxx.xxx>
Explanation: <xxx.xxx.xxx.xxx> is IP address
set ipmask Set IP Network/Subnet Mask set ipmask < xxx.xxx.xxx.xxx>
Explanation: <xxx.xxx.xxx.xxx> is Network mask
set lcp Set Lcp State set lcp [0:1]
Explanation:0=disable 1=enable
set gateway Set Gateway IP Address set gateway <xxx.xxx.xxx.xxx>
Explanation: <xxx.xxx.xxx.xxx> is Gateway IP address
set dhcpc Set DHCP Clinet State of enable or disabled set dhcp[disable:enable]
set domainsuffix Set Domain Name Server Suffix set domainsuffix <suffix>
set nameaddr Set Name Server IP Address set nameaddr [1:2] <xxx.xxx.xxx.xxx>
set ethctrl ethernet control Speed and FullDuplex
set ethctrl[0:1:2:3:4]
Explanation:
0: Auto
1: 100M FullDuplex
2: 100M HalfDuplex
3: 10M FullDuplex
4: 10M HalfDuplex

802.11 a/b/g Access Point Command Line Interface Manual
9
5
WIRELESS COMMANDS
Fundamental
Config Commands: Function Syntax
config wlan Select WLAN Adapter to configure. config wlan [0:1]
Find Commands:
find bss Perform Site Survey, Wireless service will be disrupted find bss
find channel Channel spanning to select the Preferred Channel find channel
find all Perform Site Survey including Super G and Turbo, Wireless service will
be disrupted find all
find rogue Find Rogue BSS find rogue
Get Command: Function Syntax
get apmode Display current AP Mode get apmode
get ssid Display Service Set ID get ssid
get ssidsuppress Display SSID Suppress Mode is enabled or disabled get ssidsuppress
get station Display Client Station Connection Status get station
get wdsap Display WDS Access Point List get wdsap
get remoteAp Display Remote AP's Mac Address get remoteAp
get association Display Association Table that indicates the information of associated
client devices get association
get autochannelselect Display state of Auto Channel Selection feature (enabled, disabled) get autochannelselect
get channel Display Radio Frequency (MHz) and Channel Designation get channel
get availablechannel Display available Radio channels get availablechannel
get rate Display current Data Rate selection. Default is best. get rate
get beaconinterval Display Beacon Interval get beaconinterval
get dtim Display Delivery Traffic Indication Message Beacon Rate get dtim
get fragmentthreshold Display Fragment Threshold in bytes get fragmentationthreshold
get rtsthreshold Display RTS/CTS Threshold get rtsthreshold
get power Display Transmit Power Setting: Full, half, quarter, eighth, min get power
get wlanstate Display Wireless LAN state status (enabled or disabled) get wlanstate
get shortpreamble Display Short Preamble Usage state: enabled or disabled get shortpreamble
get wirelessmode Display Wireless LAN Mode (11b or 11g) get wirelessmode

802.11 a/b/g Access Point Command Line Interface Manual
10
get 11gonly Display 11g Only Mode operational state of enabled or disabled get 11gonly
get antenna Display Antenna Diversity of 1, 2, or best get antenna
get sta2sta Display wireless STAs to wireless STAs connect state get sta2sta
get eth2sta Display ethernet to wireless STAs connect state get eth2sta
get trapsevers Get trap server state get trapsevers
get eth2wlan Display Eth2Wlan Broadcast packet filter state get eth2wlan
get macaddress Display Mac Address get macaddress
get config Display Current AP Configuration Settings get config
get countrycode Display Country Code setting get countrycode
get hardware Display Hardware Revisions of WLAN Components get hardware
get aging Display Aging Interval in seconds get aging
get MulticastPacketControl Display Multicast Packet Control state get MulticastPacketControl
get
MaxMulticastPacketNumber Display Max Multicast Packet Number get MaxMulticastPacketNumber
get 11goptimize Display 11g Optimization Level get 11goptimize
get 11goverlapbss Display Overlapping BSS Protection get 11goverlapbss
get assocnum Display Number Of Association STA get assocnum
get eth2wlanfilter Display Eth2WLAN BC & MC filter type get eth2wlanfilter
get extendedchanmode Display Extended Channel Mode get extendedchanmode
get iapp Display IAPP State get iapp
get iapplist Display IAPP Group List get iapplist
get iappuser Display IAPP User Limit Number get iappuser
get minimumrate Display Minimum Rate get minimumrate
get dfsinforshow Display DFS infor get dfsinforshow
get wdsrssi Display WDS Access Point RSSI get wdsrssi
get ackmode Display Variable Ack Time Mode get ackmode
get acktimeout Display Ack Time Out Number get acktimeout
Set Command: Function Syntax
set apmode Set AP Mode to Normal AP, WDS with AP Mode,WDS without AP Mode
or AP Client set apmode [ap:wdswithap:wds:apc]
set ssid Set Service Set ID set ssid <SSID>
set ssidsuppress Set SSID Suppress Mode enable or disable set ssidsuppress [disable:enable]
set autochannelselect Set Auto Channel Selection to enable or disable set autochannelselect [disable:enable]
set rate Set Data Rate set rate [best:1:2:5.5:6:9:11:12:18:24:36:48:54]
set beaconinterval Modify Beacon Interval 20-1000 set beaconinterval [20-1000]

802.11 a/b/g Access Point Command Line Interface Manual
11
set dtim Set Delivery Traffic Indication Message Beacon Rate. Default is 1 set dtim [1-255]
set fragmentthreshold Set Fragment Threshold set fragmentationthreshold [256-2346]
set rtsthreshold Set RTS/CTS Threshold in bytes set rtsthreshold [256-2346f]
set power Set Transmit Power in predefined increments set power [full:half:quarter:eighth:min]
set roguestatus Set Rogue AP status set roguestatus [enable:disable]
set roguebsstypestatus Set Rogue AP BSS type status set roguebsstypestatus [enable:disable]
set roguebsstype Set ROGUE AP BSS Type set roguebsstype [apbss:adhoc:both']
set roguesecuritystatus Set Rogue AP Security Type status set roguesecuritystatus [enable: disable]
set roguesecurity Set ROGUE AP Security Type set roguesecurity
set roguebandselectstatus Set Rogue AP Band Select status set roguebandselectstatus [enable:disable]
set roguebandselect Set ROGUE AP Band Select set roguebandselect
set wlanstate Select the operational state of wlan: enabled or disabled set wlanstate [disable:enable]
set shortpreamble Set Short Preamble set shortpreamble [disable: enable]
set wirelessmode set wirelessmode to 11b/11g. set wirelessmode [11a:11b:11g]
NOTE:11a is not supported.
set 11gonly Only 802.11g clients will be Allowed to connect to this BSS set 11gonly [disable:enable]
set antenna Set Antenna selection of 1, 2, or best set antenna [1:2:best]
set aging Set Aging Interval set aging <seconds>
set channel Select Radio Channel of Operation set channel [1:2:3:4:5:6:7:8:9:10:11]
set eth2wlan Enable or Disable the Eth2Wlan Broadcast packet filter feature set eth2wlan [0:1]
Explanation: 0=disable:1=enable
set sta2sta Set wireless STAs to wireless STAs connect state (WLAN Partition) set sta2sta [disable: enable]
set eth2sta Set ethernet to wireless STAs connect state set eth2sta [disable: enable]
set trapsevers Set trap server state set trapsevers [disable:enable]
set MulticastPacketControl Enable or Disable Multicast Packet Control set MulticastPacketControl [0:1]
Explanation: 0=disable:1=enable
set
MaxMulticastPacketNumber Set Max Multicast Packet Number set MaxMulticastPacketNumber [0-1024]
set extendedchanmode Set Extended Channel Mode set extendedchanmode [disable:enable]
set eth2wlanfilter Set Eth2WLAN Broadcast & Multicast Filter type set eth2wlanfilter [1:2:3] Explanation: 1=Broadcast filter: 2=Multicast filter: 3=Both of BC and
MC.
set ackmode Set Ack Mode set ackmode [enable:disable]
set acktimeout Set Ack Timeout Number set acktimeout <timeout>
set iapp Set IAPP State. set iapp [0:1]
Explanation: 0=close 1=open
set iappuser Set IAPP User Limit Number set iappuser [0-64]

802.11 a/b/g Access Point Command Line Interface Manual
12
Security
Del Command: Function Syntax
del key Delete Encryption key del key [1-4]
Get Command: Function Syntax
get encryption Display (WEP) configuration state (enabled or disabled) get encryption
get authentication Display Authentication Type get authentication
get cipher
Display Encryption cipher type
Explanation:
Response WEP for choosing WEP
Response Auto for choosing WPA-Auto
Resopnse AES for choosing WPA-AES
Response TKIP for choosing WPA-TKIP
get cipher
get keysource
Display Source Of Encryption Keys:
Explanation:
Response Flash Memory for static key
Response Key Server for dynamic key
Response mixed for mix static and dynamic key
get keysource
get key Display specified WEP encryption Key get key [1-4]
get keyentrymethod Display Encryption Key Entry Method ASCII or Hexadecimal get keyentrymethod
get groupkeyupdate Display WPA Group Key Update Interval (in Seconds) get groupkeyupdate
get defaultkeyindex Display Active Key Index get defaultkeyindex
get dot1xweptype Display 802.1x Wep Key Type get dot1xweptype
get reauthperiod Display Manual Reauthentication Period get reauthperiod
Set Command: Function Syntax
set encryption Enable or Disable Encryption Mode set encryption [disable: enable]
set authentication Set Authentication Type set authentication [open-system: shared-key: auto:8021x: WPA:
WPA-PSK: WPA2: WPA2-PSK:WPA-AUTO:WAP2-AUTO-PSK]
set cipher Set Cipher of wep, aes, tkip, or auto negotiate set cipher [wep:aes:tkip:auto]
set groupkeyupdate Set Group Key Update Interval (in Seconds) for TKIP set groupkeyupdate <seconds>
set key Used to set the specified wep key value and size set key [1-4] default
set key [1-4] [40:104:128] < value>
set keyentrymethod Select Between ASCII or HEX encryption key format set keyentrymethod [asciitext : hexadecimal]
set keysource Select Source of Encryption Keys: static(flash), dynamic (server), mixed set keysource [flash:server:mixed]
set passphrase Modify Passphrase set passphrase <new passphrase>
set dot1xweptype Set 802.1x Wep Key Type set dot1xweptype [static: dynamic]
set reauthperiod Set Manual Reauthentication Period set reauthperiod <xxxx>
Explanation: <xxxx> is new priod.

802.11 a/b/g Access Point Command Line Interface Manual
13
WMM
Get Command: Function Syntax
get wmm Display WMM mode status (enabled or disabled) get wmm
get wmmParamBss Display WMM parameters used by STA in this BSS get wmmParamBss
get wmmParam Display WMM parameters used by this AP get wmmParam
Set Command: Function Syntax
set wmm Enable or Disable WMM Features set wmm [disable:enable]
set wmmParamBss ac Set WMM (EDCA) parameters used by STAs in this BSS
set wmmParamBss ac [AC number] [logCwMin] [logCwMax] [aifs]
[txOpLimit] [acm]
Explanation:
AC number: 0->AC_BE
1->AC_BK
2->AC_BK
3->AC_BK
Exampble:
set wmmParamBss ac 0 4 10 3 0 0
set wmmParam ac Set WMM (EDCA) parameters used by this AP
set wmmParamBss ac [AC number] [logCwMin] [logCwMax] [aifs]
[txOpLimit] [acm] [ack-policy]
Explanation:
AC number: 0->AC_BE
1->AC_BK
2->AC_BK
3->AC_BK

802.11 a/b/g Access Point Command Line Interface Manual
14
6
MULTI-SSID AND VLAN COMMANDS
Get Command: Function Syntax
get vlanstate Display Vlan State status (enabled or disabled) get vlanstate
get vlanmanage Display manage AP with VLAN Mode get vlanmanage
get nativevlan Display Native Vlan tag get nativevlan
get Vlantag Display Vlan tag get Vlantag
get multi-state Display Multi-SSID Mode (enabled or disabled) get multi-state
get multi-ind-state [index] Display Individual Multi-SSID State get multi-ind-state [index]
get multi-ssid [index] Display SSID of the specify Multi-SSID get multi-ssid [index]
get multi-ssidsuppress [index] Display SSID Suppress Mode of the specify Multi-SSID get multi-ssidsuppress [index]
get multi-authentication [index] Display Authentication Type for Multi-SSID get multi-authentication [index]
get multi-cipher [index] Display Encryption cipher for Multi-SSID get multi-cipher [index]
get multi-encryption [index] Display Encryption Mode for Multi-SSID get multi-encryption [index]
get multi-keyentrymethod Display Encryption Key Entry Method for Multi-SID get multi-keyentrymethod
get multi-vlantag [index] Display Vlan tag for Multi-SSID get multi-vlantag [index]
get multi-key [index] Display Encryption Key for Multi-SSID get multi-key [index]
get multi-keysource [index] Display Key Source for Multi-SSID get multi-keysource [index]
get multi-config [index] Display AP Configuration for Multi-SSID get multi-config [index]
get multi-passphrase [index] Display Passphrase for Multi-SSID get multi-passphrase [index]
get multi-dot1xweptype [index] Display 802.1x Wep Key Type For Multi-SSID get multi-dot1xweptype [index]
Set Command: Function Syntax
set vlanstate Enable or Disable VLAN set vlanstate [disable:enable]
Note: Must Enable Multi-SSID firstly
set vlanmanage Set Enabled or Disable manage AP with VLAN set vlanmanage [disable:enable]
Note: Must Enable vlanstate firstly
set nativevlan Set Native Vlan Tag set nativevlan [1-4096]
set Vlantag Set VLAN Tag set vlantag <tag value>
set Vlanpristate Set Vlan Priority State set Vlanpristate [enable:disable]
set Vlanpri Modify Vlan Priority set Vlanpri [0-7]
set ethnotag Set Primary Eth No Tag Stat set ethnotag [enable:disable]
set multi-vlantag Set VLAN Tag for Multi-SSID set multi-vlantag <tag value> [index]

802.11 a/b/g Access Point Command Line Interface Manual
15
set multi-ethnotag Set Individual Eth No Tag State set multi-ethnotag [index] [disable:enable]
set multi-vlanpri Set Vlan-Priorityi for Multi-SSID set multi-vlanpri [pri value] [index]
set VlantagType Modify Vlantag Type set VlantagType [1:2]
set multi-vlantagtype Set Vlan-Tag Typefor Multi-SSID set multi-vlantagtype [tagType value] [index]
set multi-state Enable or Disable Multi-SSID Features set multi-state [disable:enable]
set multi-ind-state Enable or Disable specifically Mulit-SSID set multi-ind-state [disable:enable] [index]
set multi-ssid Set Service Set ID for Multi-SSID set multi-ssid [index] <ssid name>
set multi-ssidsuppress Enable or Disable to broadcast SSID of Multi-SSID set multi-ssidsuppress [disable:enable]
set multi-authentication Set Authentication Type for Multi-SSID set multi-authentication [open-system:shared-key:wpa:wpa-psk:wpa2:wpa2-psk:wpa-auto:w
pa-auto-psk:8021x] [index]
set multi-cipher Set Cipher for Multi-SSID set multi-cipher [wep:aes:tkip:auto] [index]
set multi-encryption Set Encryption Mode for Multi-SSID set multi-encryption [disable:enable] [index]
set multi-keyentrymethod Select Encryption Key Entry Method for Multi-SSID set multi-keyentrymethod [hexadecimal:asciitext] [index]
set multi-vlantag [tag value]
[index] Set VLAN Tag For Multi-SSID set multi-vlantag [tag value] [index]
set multi-key Set Encryption Key for Multi-SSID set multi-key default [key index] [Multi-SSID index]
set multi-keysource Set Source Of Encryption Key For Multi-SSID
set multi-dot1xweptype [flash:server:mixed] [index]
Explanation:
flash=Set All Keys Will Be Read From Flash:
server=Set All Keys Will Be Derived From Authentication Server
mixed= Set Keys Read From Flash Or Derived From Authentication
Server
set multi-passphrase Set PassPhrase for Multi-SSID set multi-passphrase [index] <passphrase>
set multi-dot1xweptype Set 802.1x Wep Key Type For Multi-SSID set multi-dot1xweptype [static: dynamic] [index]
Routing Commands (Spaning Tree Protocol)
Set Command: Function Syntax
rstp getstate Show Spanning Tree State rstp getstate
rstp getstp Show Spanning Tree Settings rstp getstp
rstp getport Show STP Port Settings rstp getport

802.11 a/b/g Access Point Command Line Interface Manual
16
7
ACCESS CONTROL LIST COMMANDS
Del Command: Function Syntax
del acl Delete specified Access Control List entry del acl [1-16]
del wdsacl Delete specified WDS ACL entry: 1-8 del wdsacl [1-8]
Get Command: Function Syntax
get acl Display Access Control Setting of Enabled or disabled get acl
get wdsacl Display WDS Access Control List get wdsacl
Set Command: Function Syntax
set acl enable Select ACL restricted access to specified MAC addresses set acl enable
set acl disable Select Unrestricted access set acl disable
set acl allow Add specified MAC address to the allow ACL set acl allow <xx:xx:xx:xx:xx:xx>
set acl deny Add specified MAC address to the deny ACL set acl deny <xx:xx:xx:xx:xx:xx>
set acl strict Select Restricted Access, only clients with authorized MAC will
communicate set acl strict
set acl keymap Add WEP Encryption Key mapping for MAC Address set acl keymap <xx:xx:xx:xx:xx:xx> [1-4] set acl keymap <xx:xx:xx:xx:xx:xx> default
set acl keymap <xx:xx:xx:xx:xx:xx> [40:104:128] < value>
set wdsacl allow Add MAC Address to WDS List set wdsacl allow <xx:xx:xx:xx:xx:xx>
IPfilter Command: Function Syntax
ipfilter state Display or Set Remote IP Acl State ipfilter state
ipfilter state [accept:disable:reject]
ipfilter add Add a IP Entry ipfilter add <xxx.xxx.xxx.xxx>
ipfilter del Del a IP Entry ipfilter del <xxx.xxx.xxx.xxx>
ipfilter clear Clear IP Pool ipfilter clear
Ipfilter list Display IP Pool ipfilter list
Ethacl Command: Function Syntax
ethacl state Display Or Set Ethernet Acl State ethacl state
ethacl state [accept:off:reject]
ethacl add Add Mac <xx:xx:xx:xx:xx:xx> Entry ethacl add < xx:xx:xx:xx:xx:xx >
ethacl del Del Mac <xx:xx:xx:xx:xx:xx> Entry ethacl del < xx:xx:xx:xx:xx:xx >
ethacl clear Clear MAC Pool ethacl clear
ethacl list Display MAC Pool ethacl list

802.11 a/b/g Access Point Command Line Interface Manual
17
Ipmanager Command: Function Syntax
ipmanager state Display Or Set Remote IP Management State ipmanager state
ipmanager state [on:off]
ipmanager add Add a IP Entry ipmanager add <xxx.xxx.xxx.xxx> <xxx.xxx.xxx.xxx>
ipmanager del Del a IP Entry ipmanager del <xxx.xxx.xxx.xxx> <xxx.xxx.xxx.xxx>
ipmanager clear Clear IP Pool ipmanager clear
ipmanager list Display IP Pool ipmanager list
IGMP snooping Command: Function Syntax
igmp state IGMP snooping state igmp state [enable,disable]
igmp enable IGMP snooping enable igmp enable
igmp disable IGMP snooping disable igmp disable
igmp dump IGMP MDB dump igmp dump
igmp setrssi set igmp snp rssi threshold igmp setrssi [0-100]
igmp getrssi get igmp snp rssi threshold igmp getrssi
igmp setportagingtime set igmp snp port aging time igmp setportagingtime [0-65535]
igmp getportagingtime get igmp snp port aging time igmp getportagingtime
rogue Command: Function Syntax
rogue add Add a Rogue Access Point Result <index> Entry rogue add [index]
rogue del Del a Rogue Access Point Result <index> Entry rogue del [index]
rogue deleep Del a Rogue Access Point Result <index> Entry rogue deleep [index]
rogue list Display Rogue Access Point Detection Result rogue list
rogue listeep Display Rogue Access Point Detection Result rogue listeep

802.11 a/b/g Access Point Command Line Interface Manual
18
8
RADIUS SERVER COMMANDS
Get Command: Function Syntax
get radiusname Display RADIUS server name or IP address get radiusname
get radiusport Display RADIUS port number get radiusport
get accountingstate Display Accounting Mode get accountingstate
get accountingname Display Accounting server name or IP address get accountingname
get accountingport Display Accounting port number get accountingport
get accounting2ndstate Display second Accounting Mode get accounting2ndstate
get accounting2ndname Display second Accounting server name or IP address get accounting2ndname
get accounting2ndport Display second Accounting port number get accounting2ndport
get accountingcfgid Display the configuration of Accounting now get accountingcfgid
Set Command: Function Syntax
set radiusname Set RADIUS Server name or IP address set radiusname <DNS name::xxx.xxx.xxx.xxx>
Explanation: <xxx.xxx.xxx.xxx> is IP address
set radiusport Set RADIUS port number set radiusport <xxxxx>
Explanation: <xxxxx> is port number, default value is 1812
set radiussecret Set RADIUS shared secret set radiussecret
set accountingstate Set Accounting Mode set accountingstate [enable:disable]
set accountingname Set Accounting name or IP address set accountingname [xxx.xxx.xxx.xxx : servername]
set accountingport Set Accounting port number set accountingport <xxxxx>
Explanation: <xxxxx> is port number, default value is 1813.
set accounting2ndstate Set second Accounting Mode set accounting2ndstate [enable:disable]
set accounting2ndname Set second Accounting server name or IP address set accounting2ndname [xxx.xxx.xxx.xxx : servername]
set accounting2ndport Set second Accounting port number set accounting2ndport <xxxxx>
set accountingcfgid Set the configuration of Accounting now set accountingcfgid
