D-Link AirPremier N DAP-2310 User manual

Air Premier®N ACCESS POINT
DAP-2310
QUICK
INSTALLATION
GUIDE
КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ
GUÍA DE INSTALACIÓN RÁPIDA
GUIA DE INSTALAÇÃO RÁPIDA
快速安裝指南
PETUNJUK PEMASANGAN CEPAT

2
ENGLISH

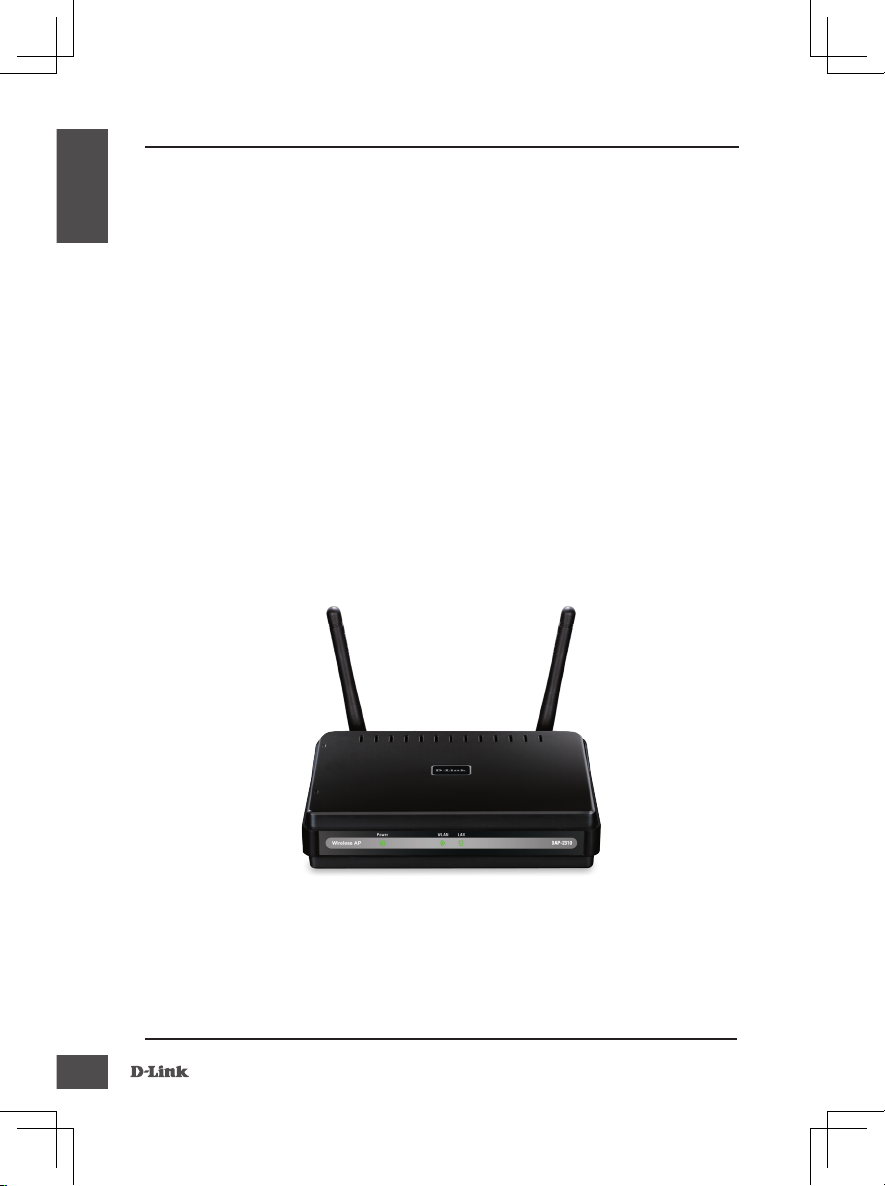

Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
• Computers with Windows®, Macintosh®, or Linux-based
operating systems and an installed Ethernet Adapter
•InternetExplorerversion7.0orFirefox3.0orhigher(forconguration)

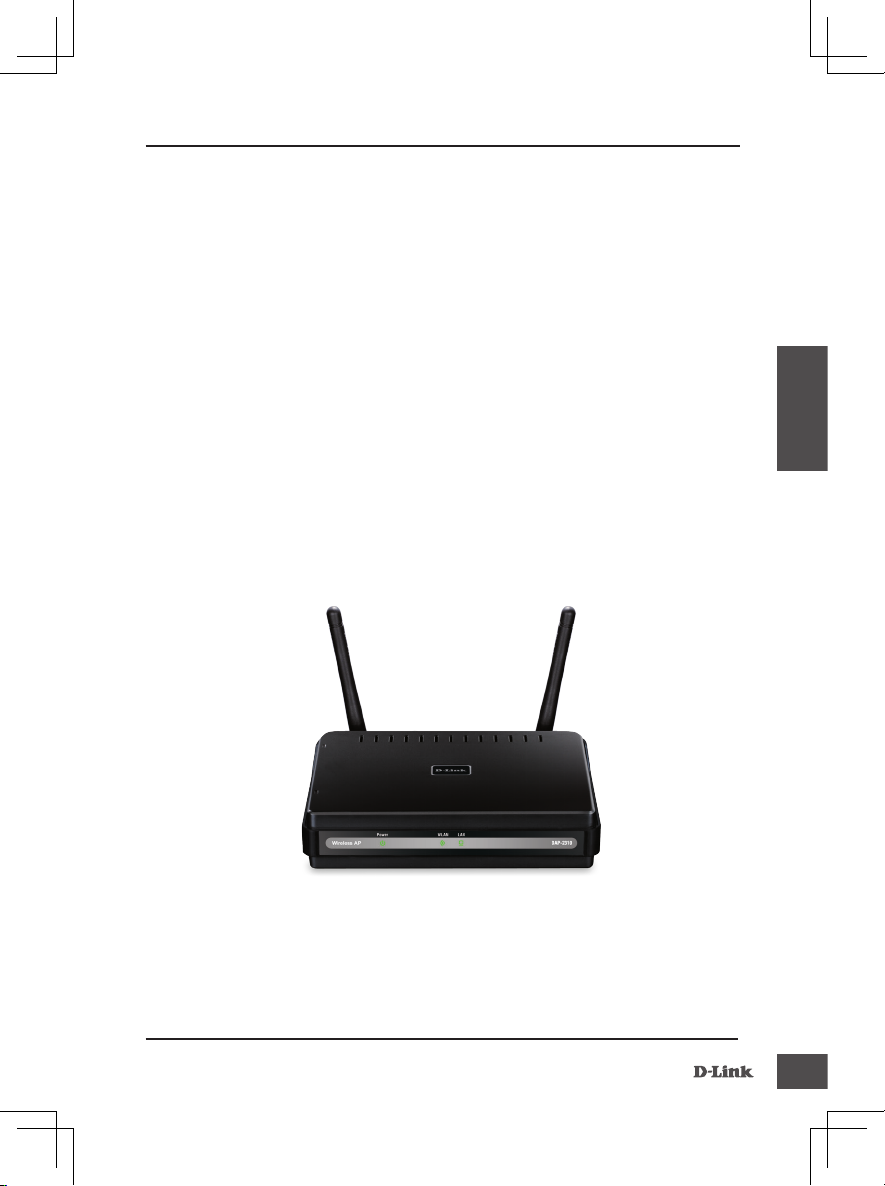

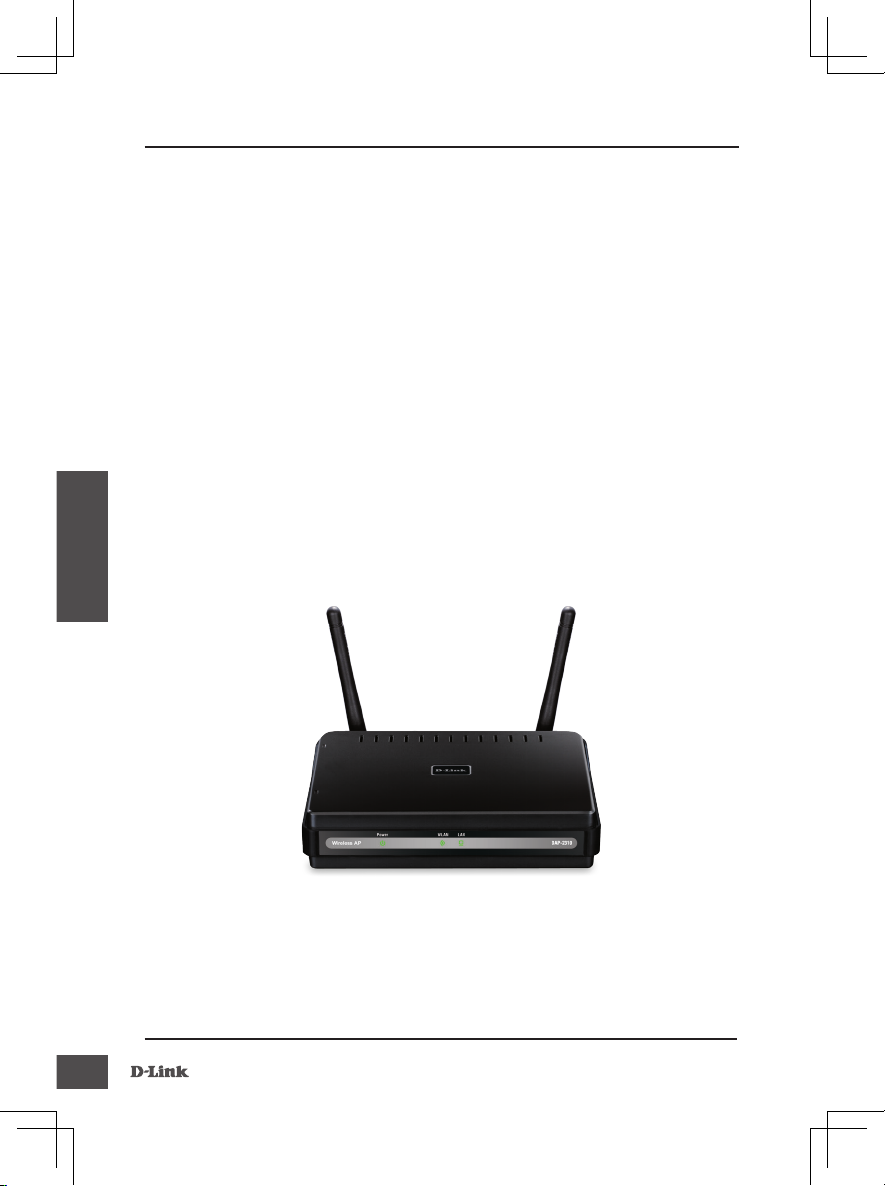

• D-Link DAP-2310 AirPremier®N Access Point
• 2 Detachable Antennas
• Power Adapter
• CAT5 Ethernet Cable
• CD-ROM with Installation Guide, User Manual, and Special Offers
Note: Using a power supply with a different voltage than the one included with
the DAP-2310 may damage the unit and will void the warranty for this product.

3
ENGLISH
If any of the above items are missing, please contact your reseller.

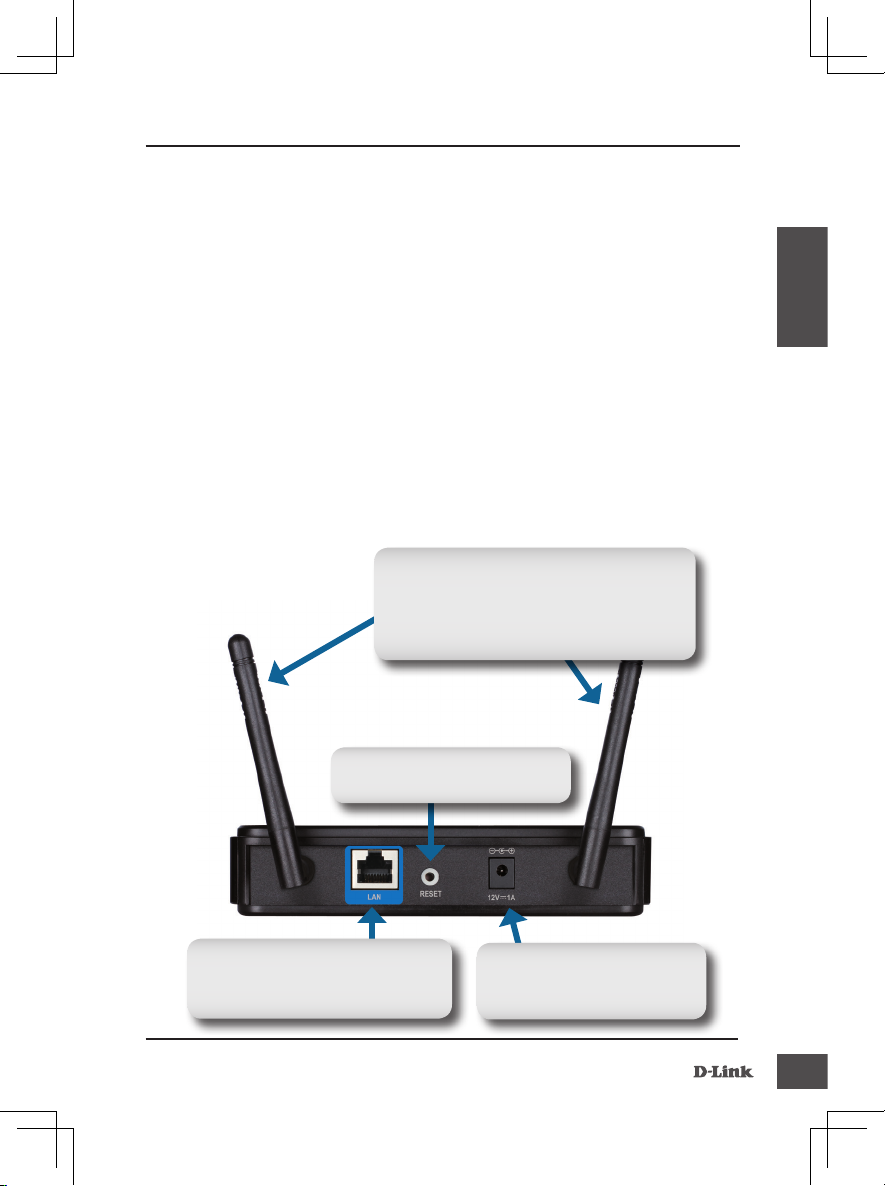

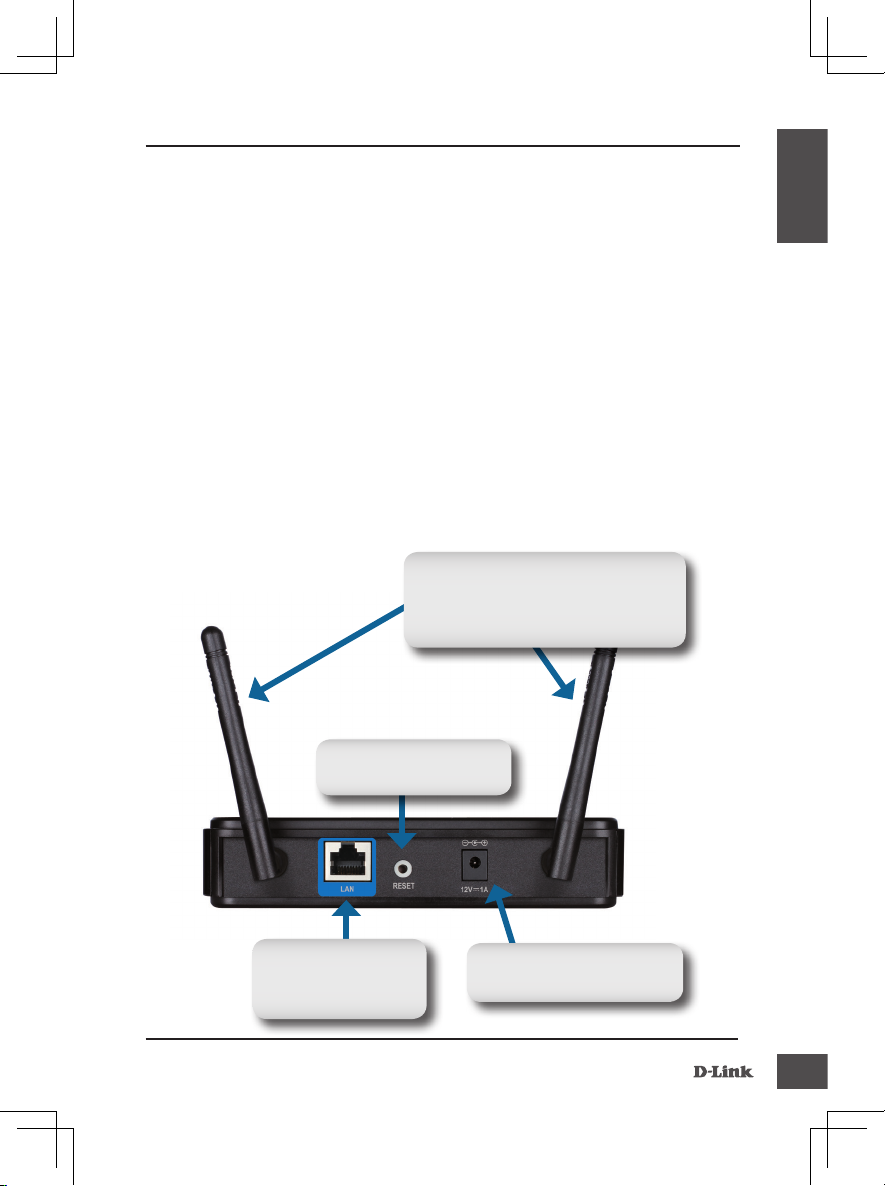

Connecting the
DAP-2310 to your network
C. Antennas
Used to broadcast wireless network
and recieve connections from
802.11 b/g/n wireless clients.
B. LAN Port
Connects DAP-2310
to a switch or PC.
A. Connect the power adapter to the receptor on the rear panel of the
DAP-2310 and then plug the other end of the power
adapter to a wall outlet or power strip. The power
LED will turn ON to indicate proper operation.
Using an Ethernet cable, insert one end of the cable
to the LAN port on the rear panel of the DAP-2310
and the other end of the cable to a switch.
Note: You can also connect the DAP-2310 directly to the
computerthatwillbeusedforconguration.TheLANLED
will illuminate to indicate a proper Ethernet connection.
Computers with 802.11 b/g/n wireless adapters
can connect to the DAP-2310.
B.
A. Power Receptor
Receptor for Power Adapter.
C.
D. Reset
Reset the Access Point.

4
ENGLISH

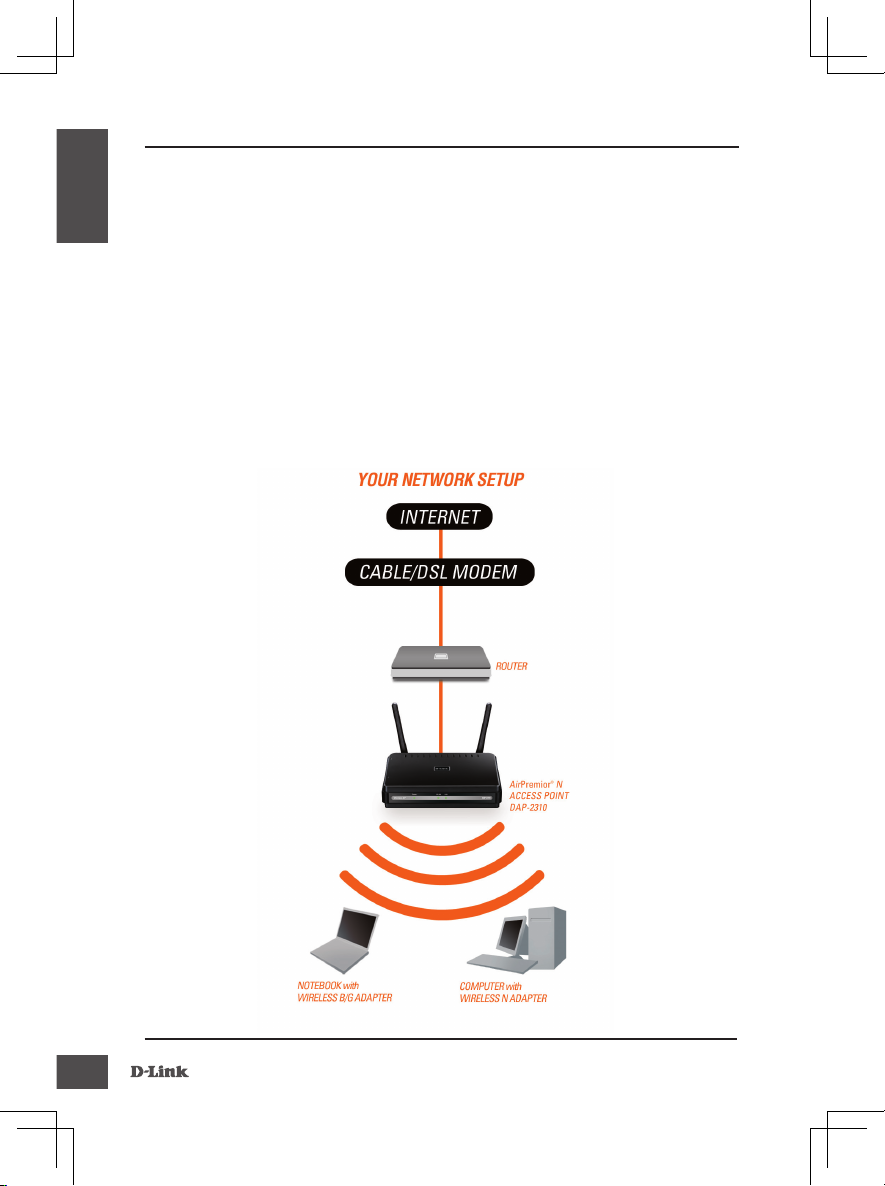

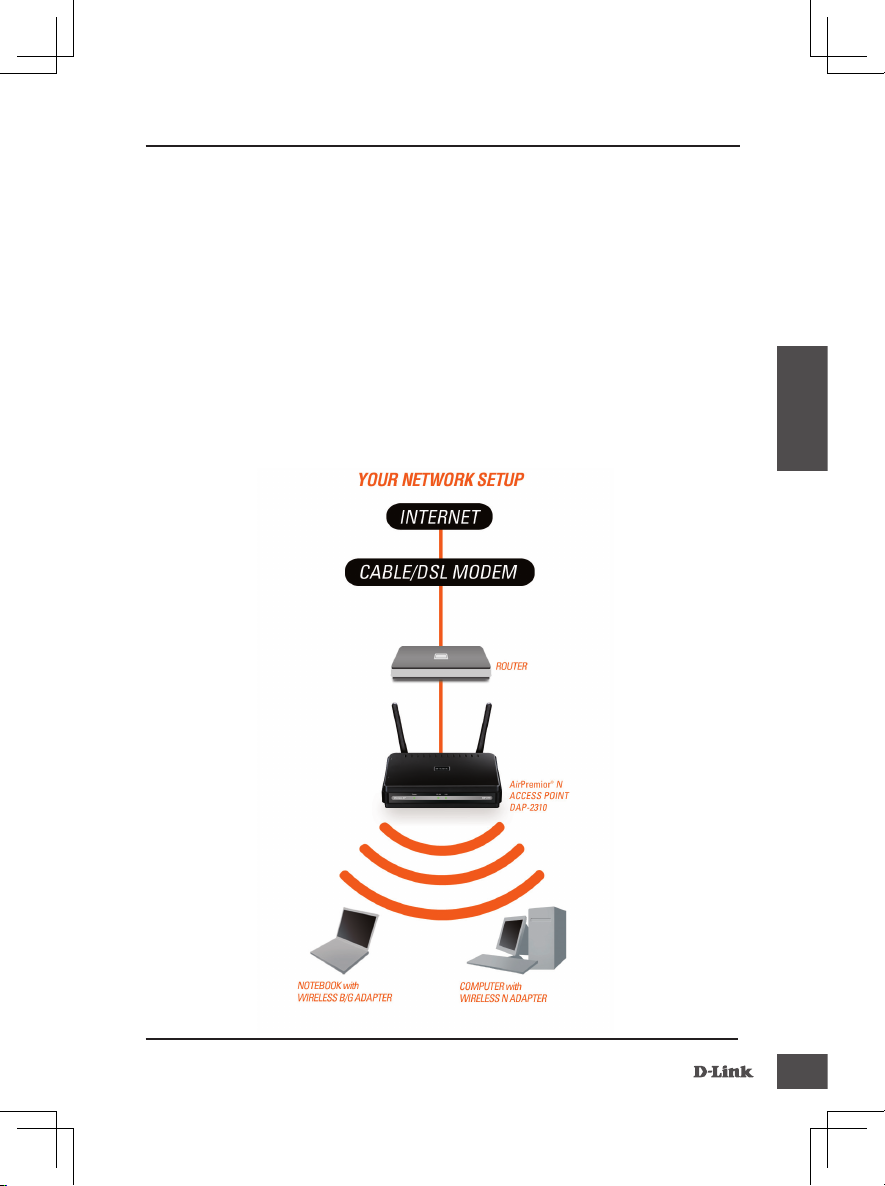

1. You will need broadband Internet access.
2. Consult with your cable or DSL provider for
proper installation of the modem.
3. Connect the Cable or DSL modem to a router.
4. If you are connecting a desktop computer to your
network, install a wireless PCI adapter into an
available PCI slot on your desktop computer.
5. Install the drivers for your wireless CardBus
adapter into a laptop computer.
Getting Started

5
ENGLISH

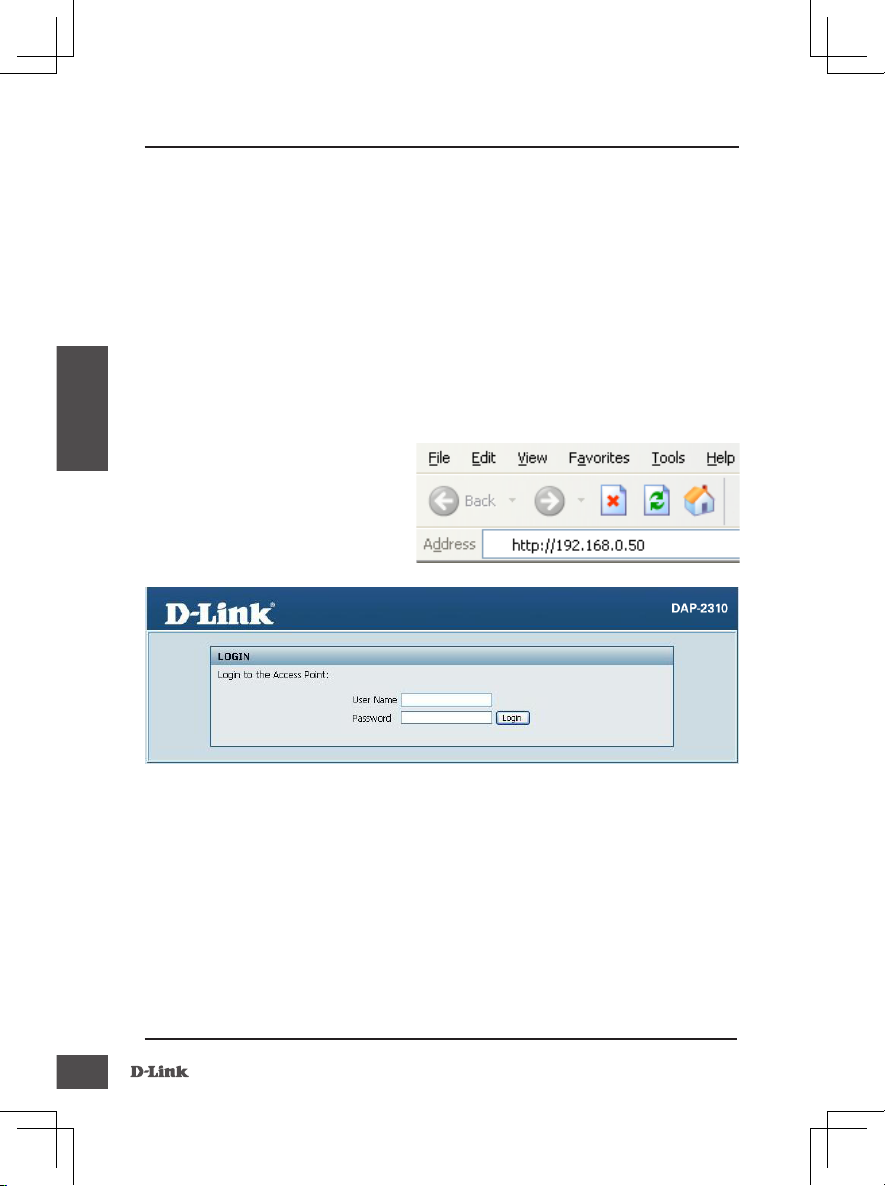

Using the Conguration Menu
First, disable the Access the Internet using a proxy server function.
To disable this function, go to Control Panel > Internet Options >
Connections > LAN Settings and uncheck the enable box.

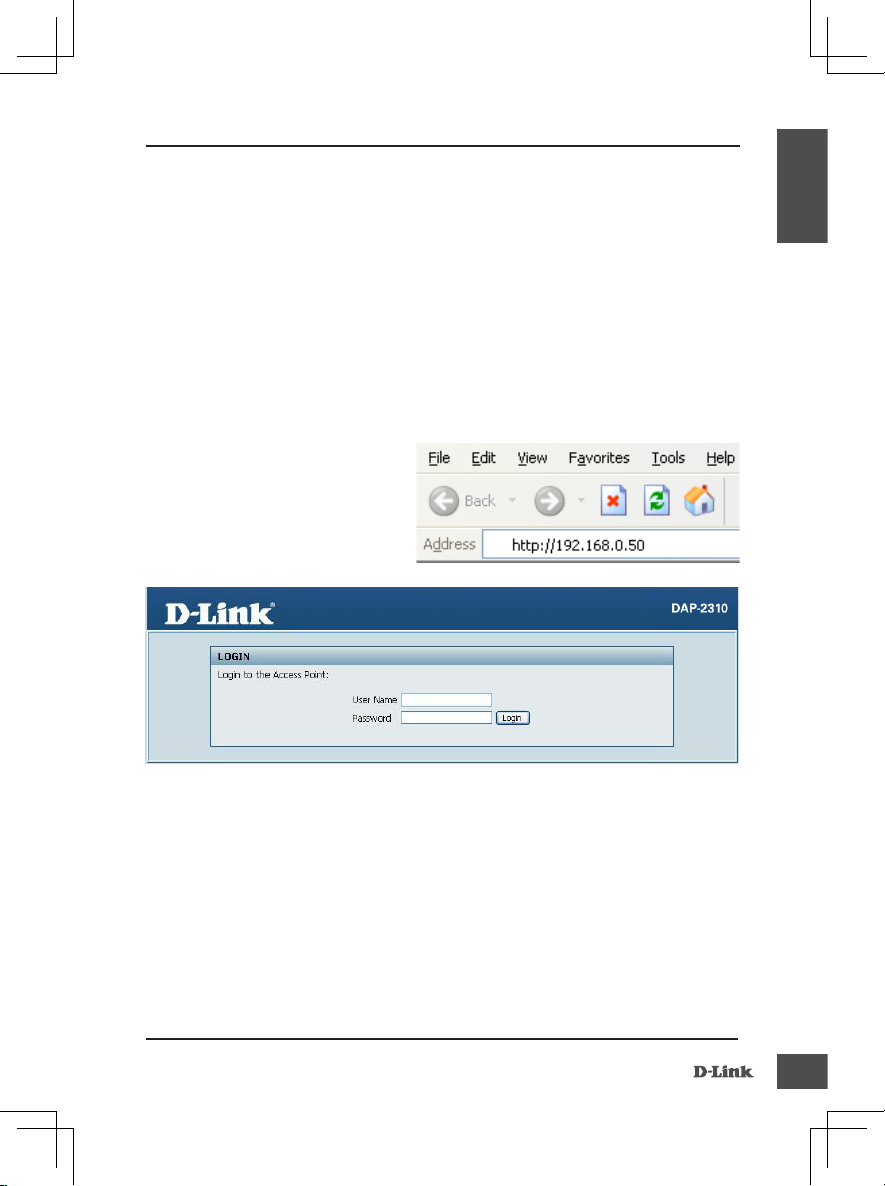

Startyourwebbrowserprogram(InternetExplorer,MozillaFirefox).
Please start your web browser program, type the IP address
ofthedevice(http://192.168.0.50)andpressEnter. Make sure
that the IP addresses of the device and the computer are in the
samesubnet.Then,refertothemanualforconguration.
Note: If you have changed the
default IP address assigned to
the DAP-2310, make sure to
enter the correct IP address.
• Type admin in the User Nameeld.
• Leave the Passwordeldblank.
• Click the Login button.
Note: If you have changed the password, make
sure to enter the correct password.

6
ENGLISH
TECHNICAL SUPPORT
YoucanndsoftwareupdatesanduserdocumentationontheD-Linkwebsite.
Tech Support for customers in
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: [phone]
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : [phone]
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
E-mail : [email protected]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: [phone]
 08600DLINK(forSouthAfricaonly)
Monday to Friday 8:30am to 9:00pm South
Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
Saudi Arabia (KSA):
Tel: [phone]
Fax: [phone]
Saturday to Wednesday 9.30AM to 6.30PM
Thursdays 9.30AM to 2.00 PM
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Egypt
1, Makram Ebeid Street - City Lights Building
Nasrcity - Cairo, Egypt
Floor6,ofceC2
Tel.: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Kingdom of Saudi Arabia
Ofce#84,
AlKhaleejBuilding(MujamathuAl-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: [phone]
Technical Support:
[phone] / [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Pakistan
IslamabadOfce:
61-A, Jinnah Avenue, Blue Area,
Suite#11,EBC,SaudiPakTower,
Islamabad - Pakistan
Tel.: [phone]
Fax: [phone]
KarachiOfce:
D-147/1,KDAScheme#1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: [phone]
Fax: [phone]
Technical Support: [phone], 34305069
General Inquiries: [email protected]
Tech Support: [email protected]

7
ENGLISH
TECHNICAL SUPPORT
Iran
Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest
St. , Argentine Sq. ,
Tehran IRAN
Postal Code : 1513833817
Tel: [phone],19
+98-21-88706653,54
General Inquiries: [email protected]
Tech Support: [email protected]
Morocco
M.I.T.C
Route de Nouaceur angle RS et CT 1029
Bureau N° 312 ET 337
Casablanca , Maroc
Phone : [phone]
Email: [email protected]
Lebanon RMA center
Dbayeh/Lebanon
PO Box:901589
Tel: [phone] Ext:14
Fax: [phone] Ext:12
Email: [email protected]
Bahrain
Technical Support: [phone]
Kuwait:
Technical Support: + 965 22453939 / +965
22453949
Türkiye Merkez İrtibat Ofisi
AyazağaMaslakyolu
ErdebilCevahirİşMerkeziNo:5/AAyazağa/
Maslakİstanbul
Tel: [phone]
ÜcretsizMüşteriDestekHattı:08002110065
Web:www.dlink.com.tr
Teknik Destek: [email protected]
073-796-2797

8
PYCCКИЙ

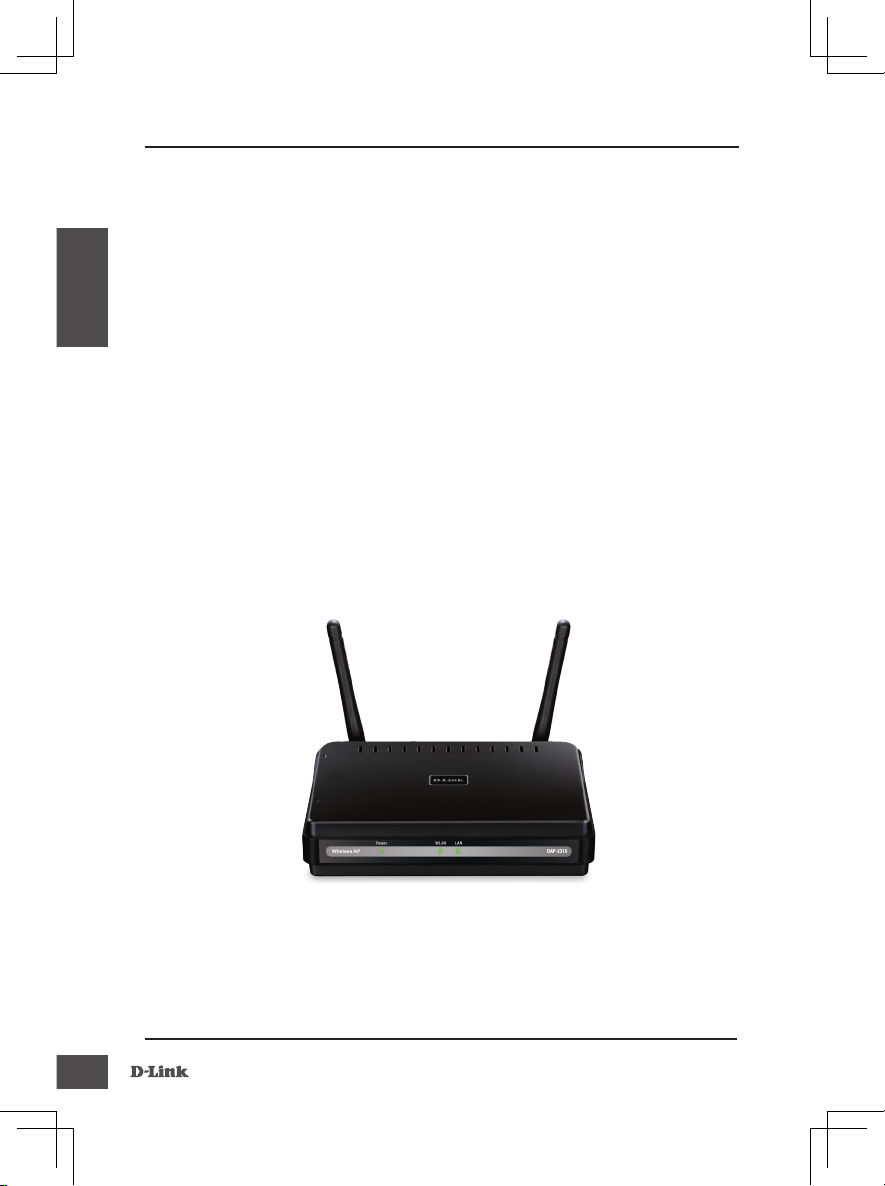

Комплект поставки
Системные требования
Если что-либо из перечисленного отсутствует обратитесь,
пожалуйста, к поставщику.
•КомпьютерподуправлениемОСWindows®, Macintosh®
илиLinuxсустановленнымEthernet-адаптером
•InternetExplorerверсии7.0илиFirefox3.0ивыше(длянастройки)
•ТочкадоступаD-LinkangeBoosterN650DAP-2310
•2съемныеантенны
•Адаптерпитания
•КабельEthernet5категории
•Компакт-дисксруководствомпоустановке,руководством
пользователяиспециальнымидополнениями
Примечание: Использование источника питания с другими
характеристиками может повлечь выход из строя устройства и
потерю гарантии.

9
PYCCКИЙ

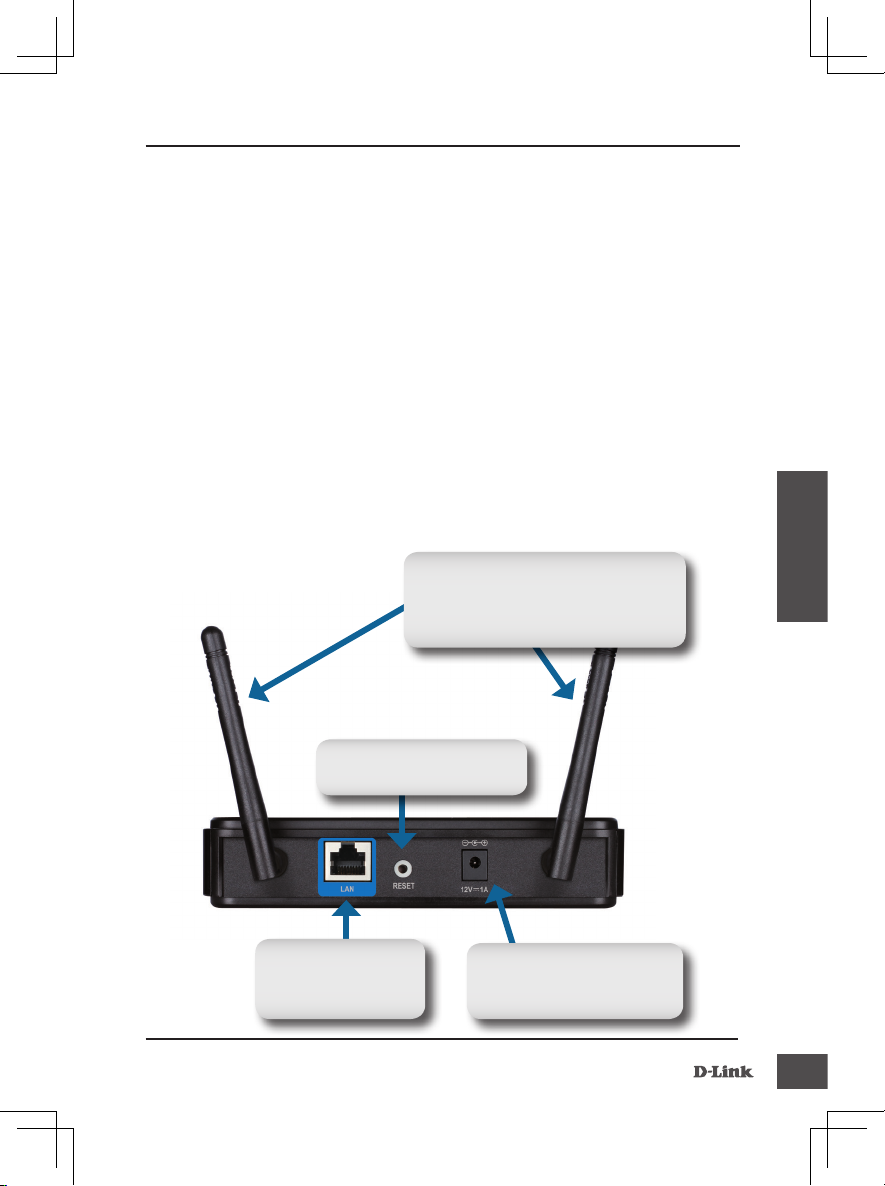

Подключение DAP-2310 к сети

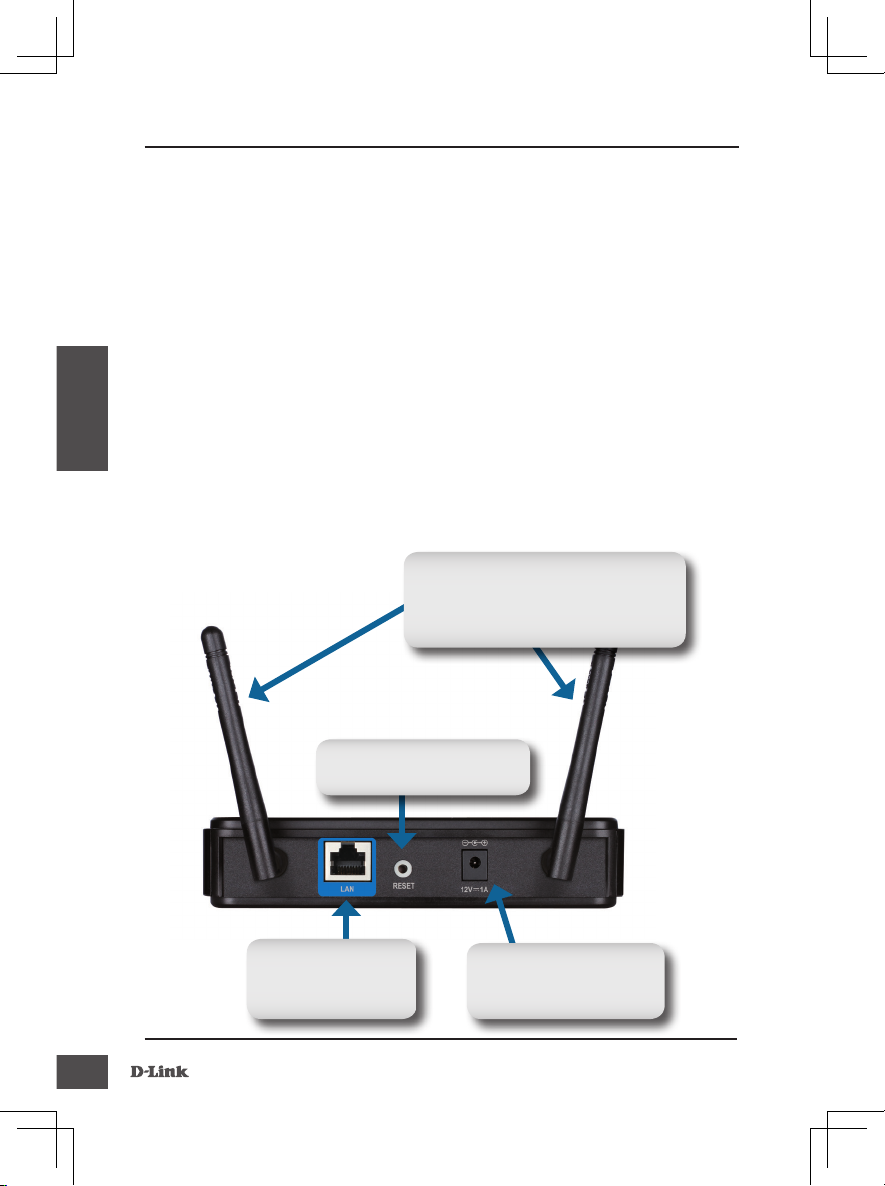

C. Антенны
Используютсядляприемаипередачи
беспроводныхсигналовиустановки
соединениясбеспроводными
клиентами802.11b/g/n.
B. Порт LAN
ДляподключенияDAP-2310к
коммутаторуиликомпьютеру.
A. Подключитеадаптерпитаниякразъемупитанияназадней
панелиDAP-2310изатемподключитедругойконецадаптера
питаниякнастеннойрозеткеилисетевомуфильтру.Индикатор
Powerзагорится,чтоговоритоправильнойработе.
ПодключитеодинконецкабеляEthernetкпортуLANназадней
панелиDAP-2310идругойконецкабеляккоммутатору.
Примечание:DAP-2310можнотакжеподключить
непосредственноккомпьютеру,которыйиспользуется
длянастройки.ИндикаторLANзагорится,что
говоритоправильномEthernet-соединении.
КDAP-2310могутподключатьсякомпьютерыс
беспроводнымиадаптерами802.11b/g/n.
B.
A. Разъем питания
Разъемдляадаптера
питания.
C.
D. Кнопка Reset
Перезагружаетточкудоступа.

10
PYCCКИЙ

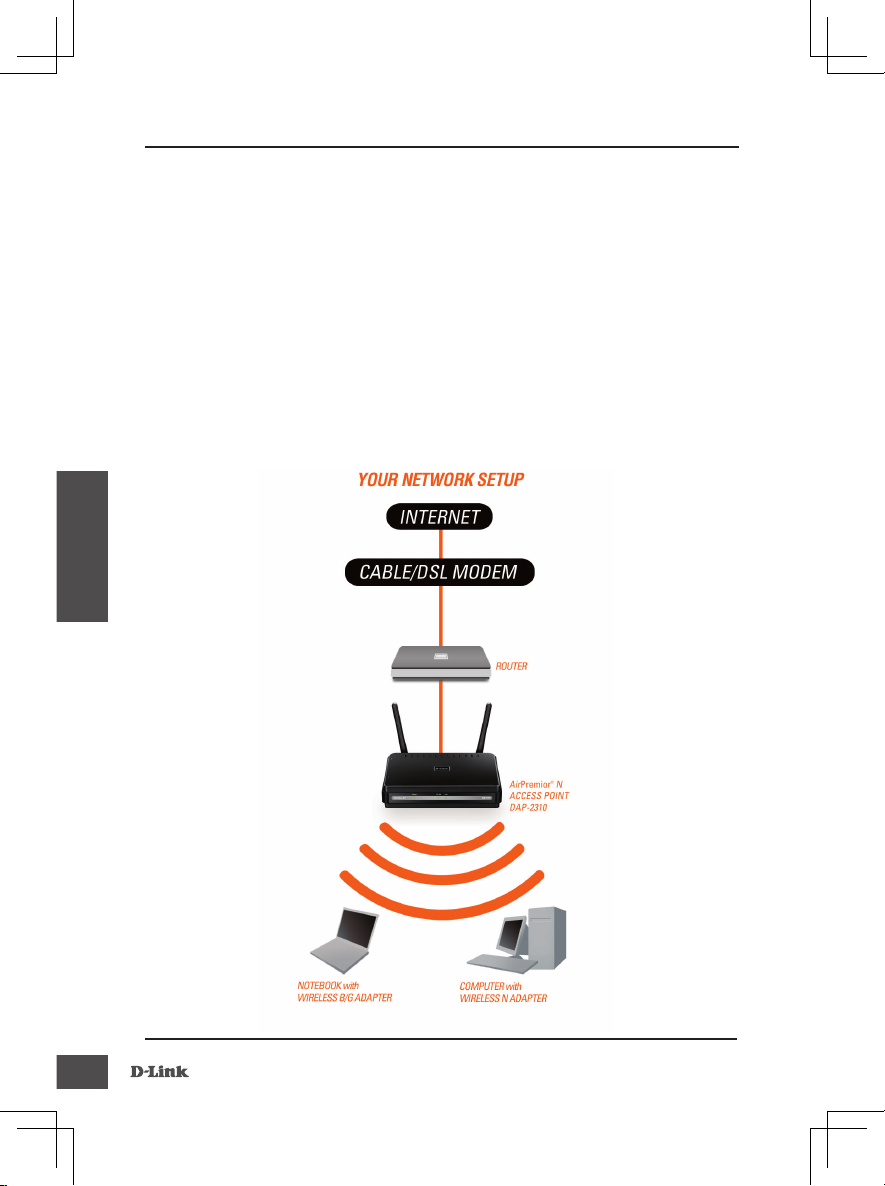

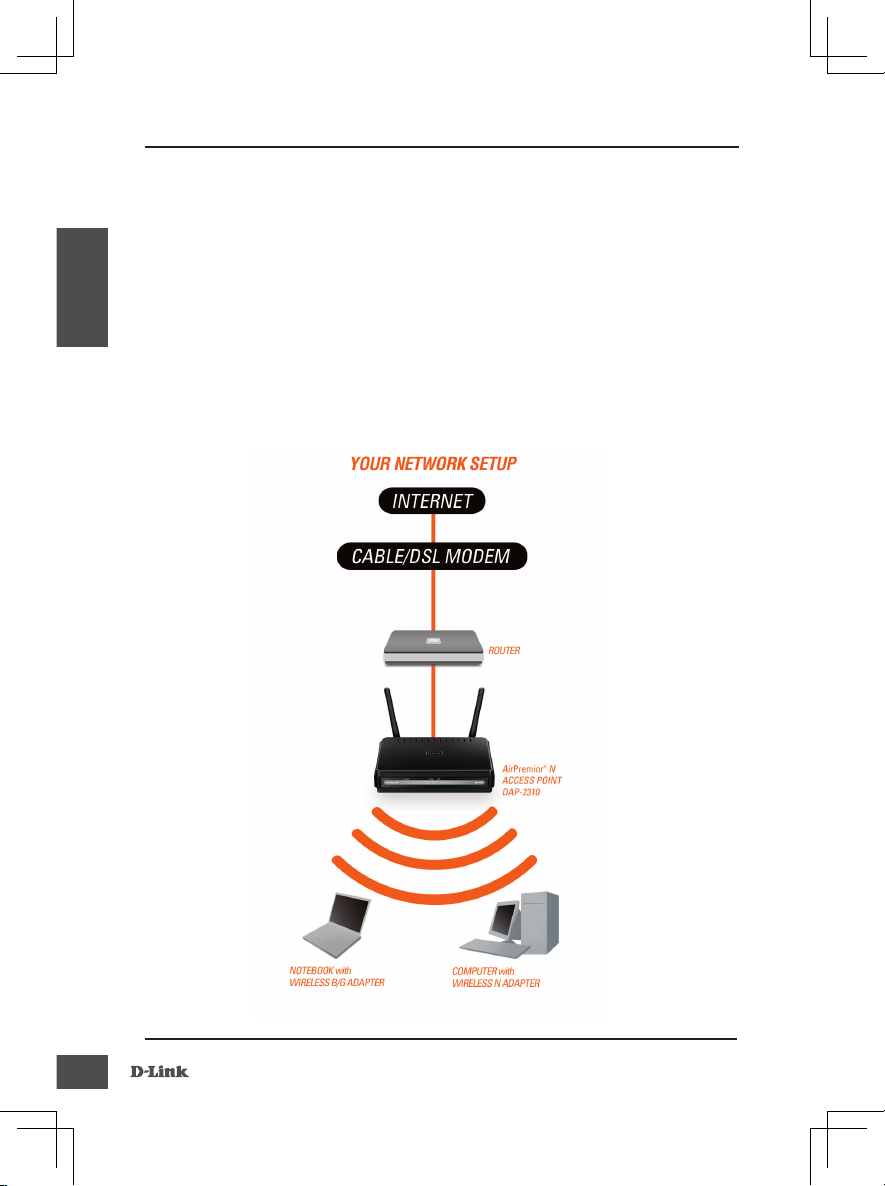

1.НеобходимоширокополосноеподключениекИнтернет
2.ПроконсультируйтесьскабельнымилиDSL-провайдером
поповодукорректнойустановкимодема.
3.ПодключитекабельныйилиDSL-модемкмаршрутизатору.
4.Передподключениемнастольногокомпьютераксети,установите
беспроводнойPCI-адаптервдоступныйPCI-слоткомпьютера.
5.Установитедрайверыдлябеспроводного
адаптераCardBusвноутбук.
Начало работы
