D-Link AirPremier N DAP-2360 User manual

2D-Link DAP-2360 User Manual
Table of Contents
Product Overview.............................................................. 4
Package Contents......................................................................... 4
System Requirements................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 7
Wireless Basics ................................................................... 8
Standards-Based Technology................................................... 9
Wireless Installation Considerations....................................10

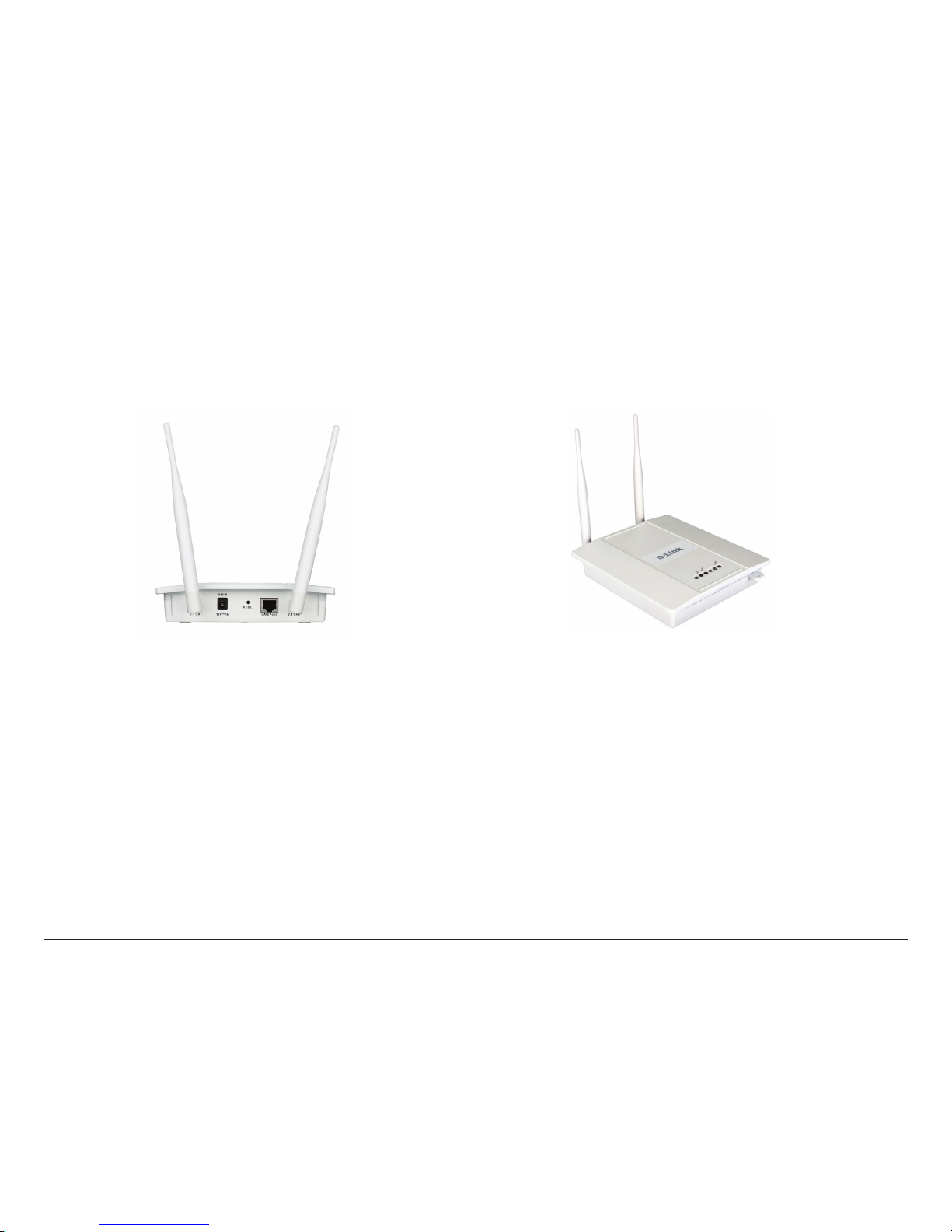

Hardware Overview...................................................................11

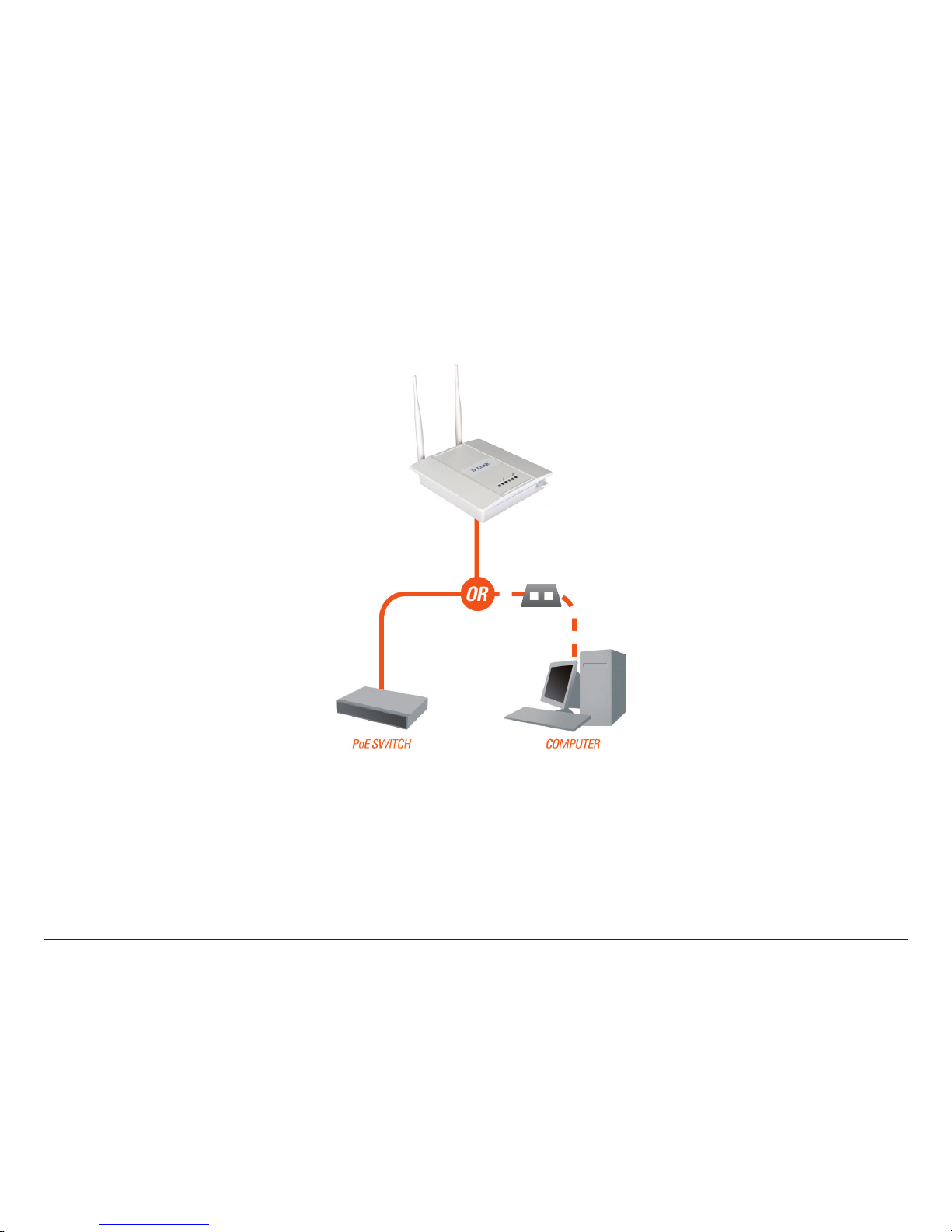

Connect Power over Ethernet (PoE).............................12

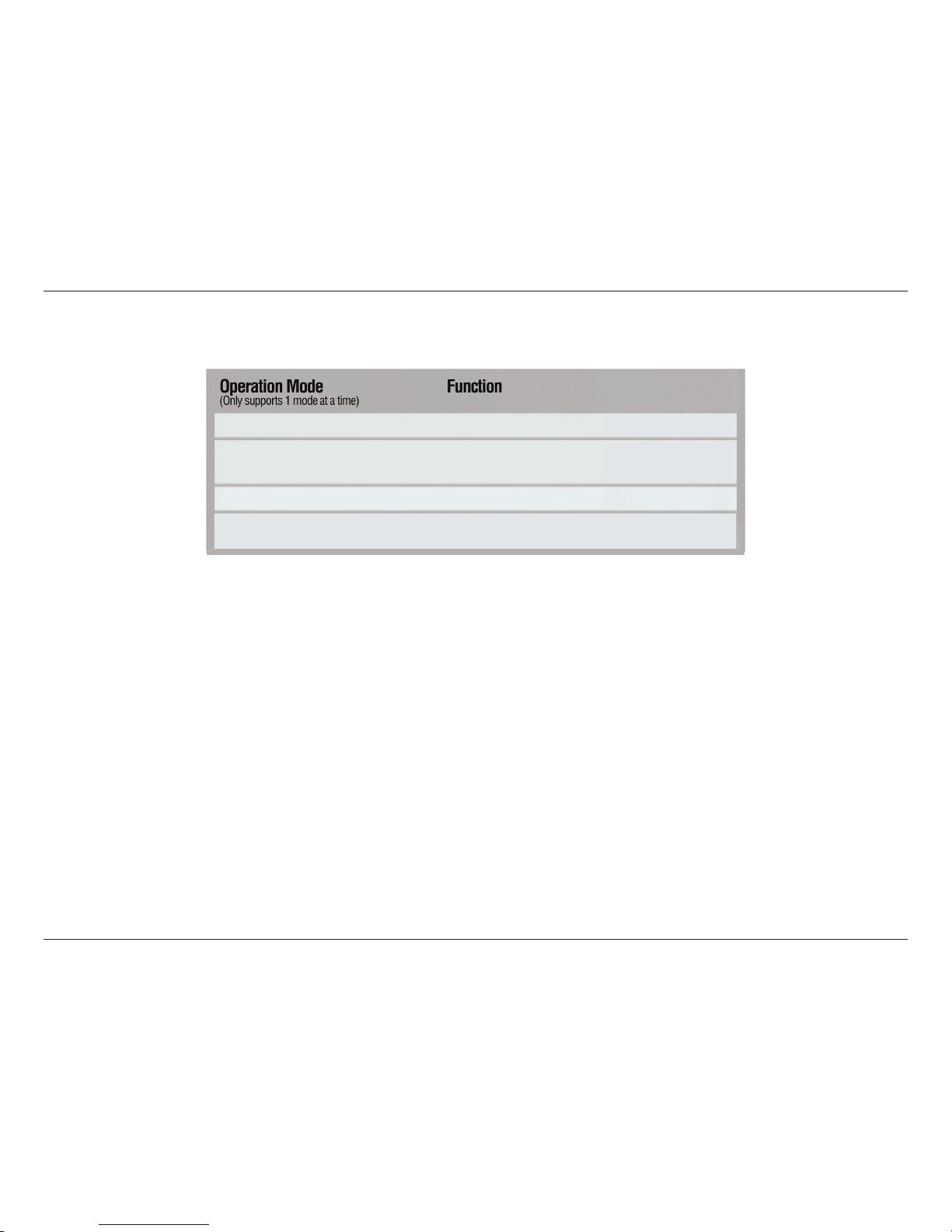

Four Operational Modes .................................................13

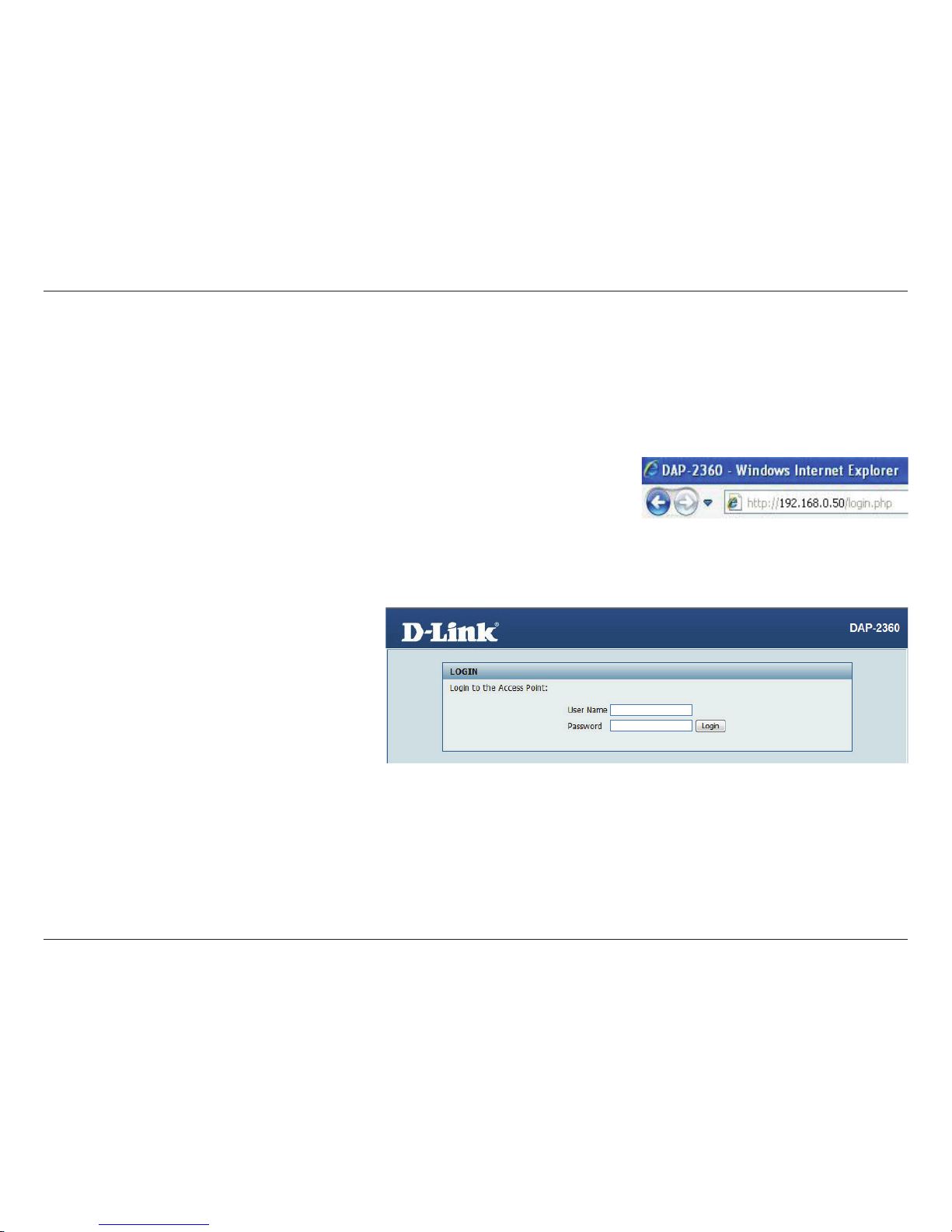

Getting Started ................................................................14
Conguration...................................................................15

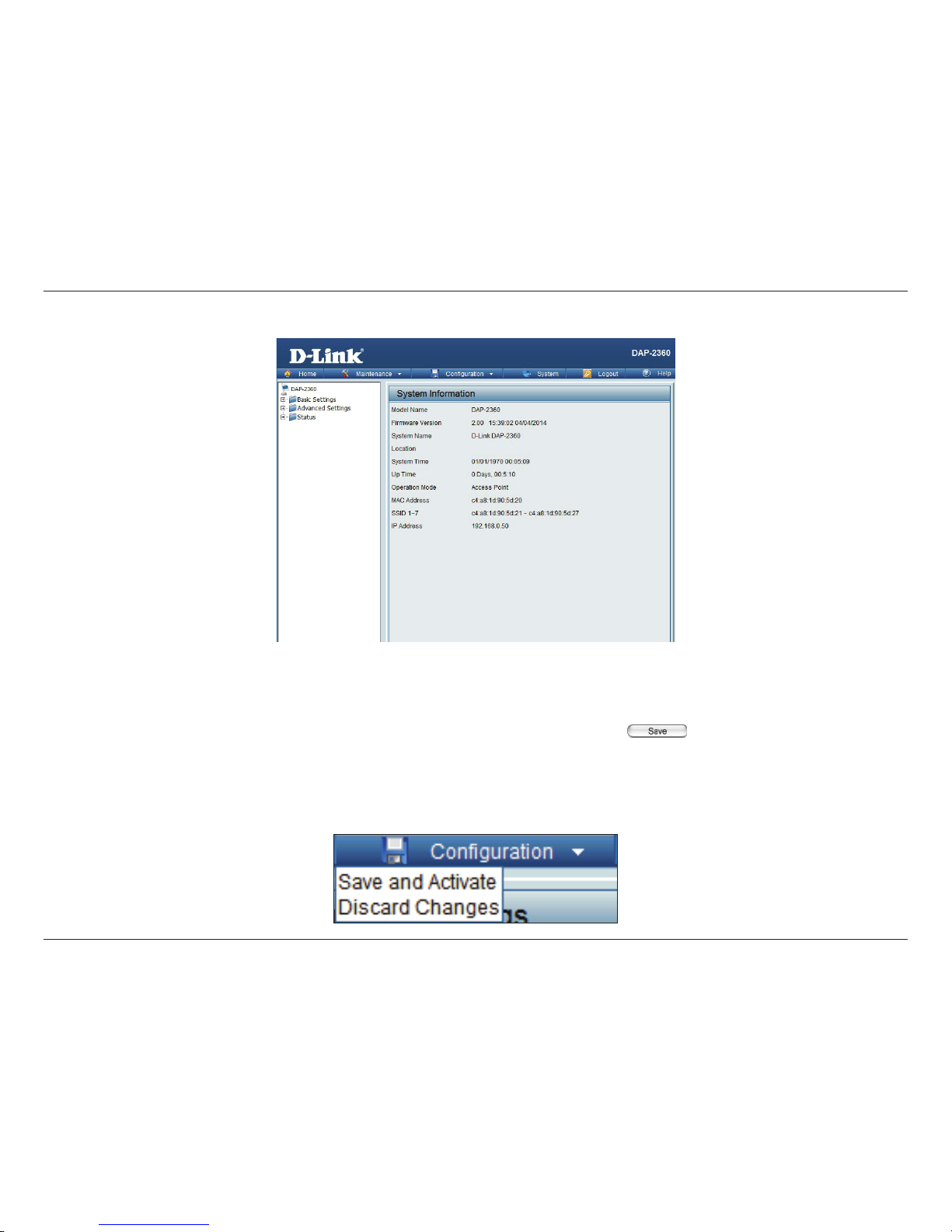

Save and Activate Settings......................................................16
Basic Settings ...............................................................................17

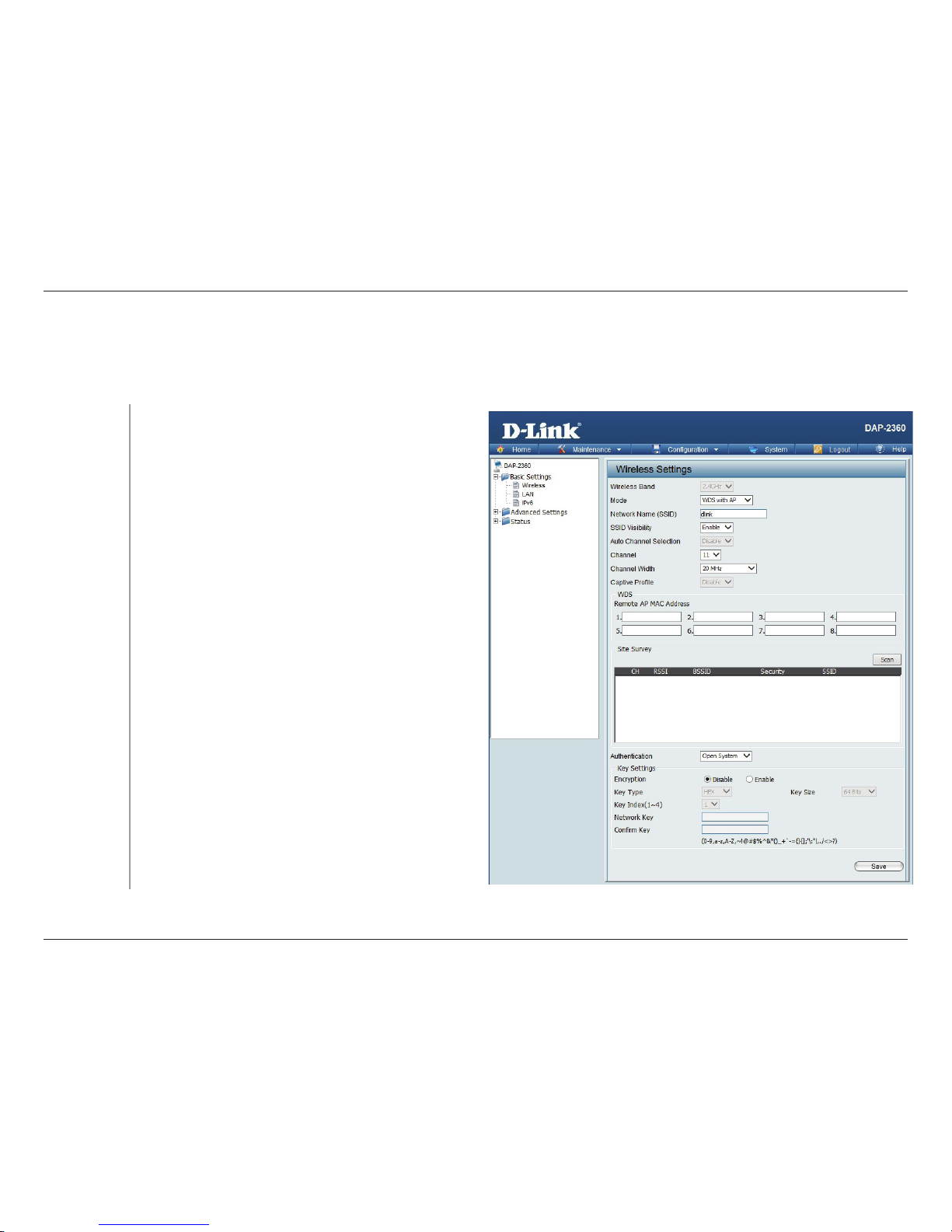

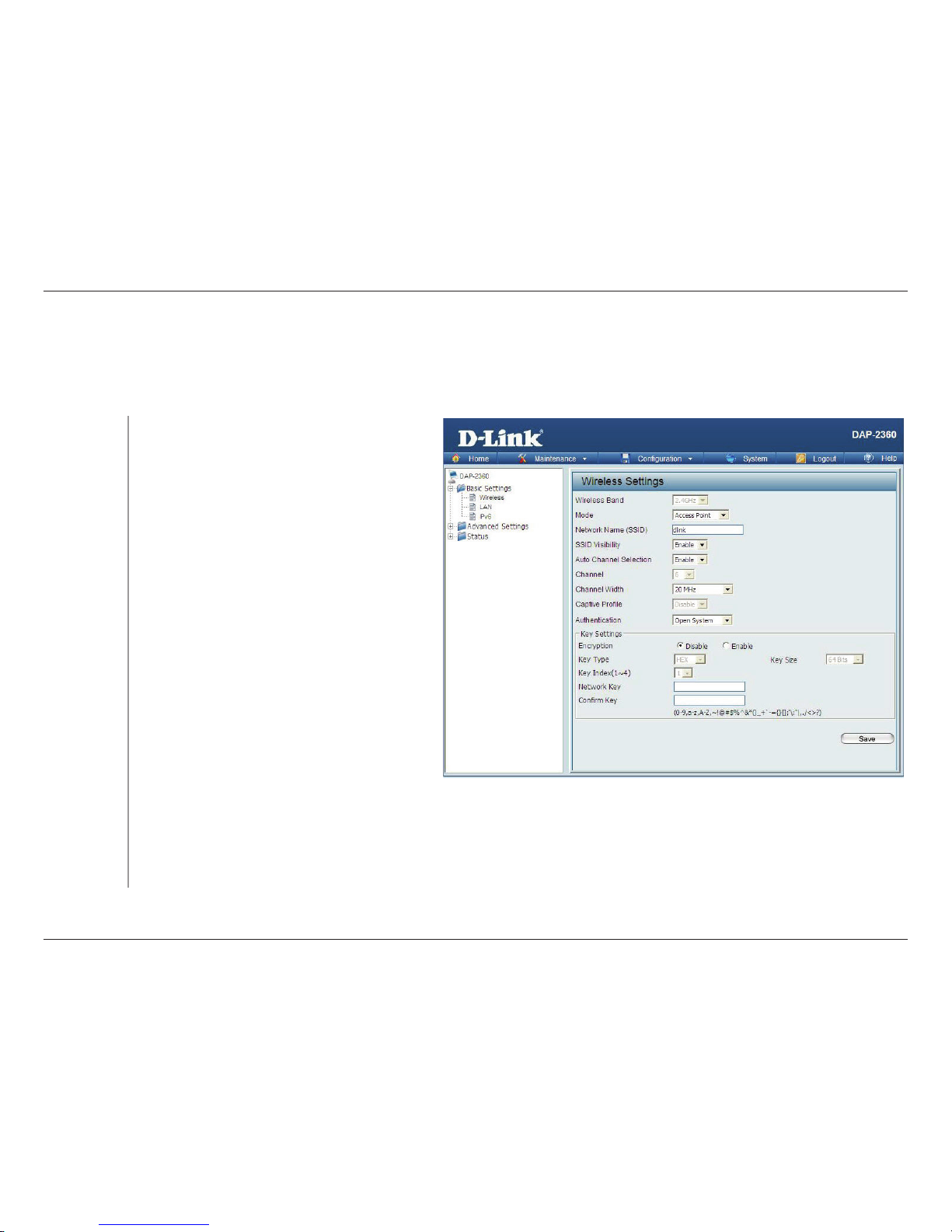

Wireless .................................................................................17
Access Point mode ........................................................17
WDS with AP mode ......................................................19
WDS mode .......................................................................21
Wireless Client mode....................................................23
Open System/Shared Key Authentication ...........24
WPA/WPA2-Personal Authentication......................25
WPA/WPA2-Enterprise Authentication ..................26
802.1x Authentication..................................................27
LAN .........................................................................................28
IPv6 .........................................................................................29
Advanced Settings.....................................................................30
Performance.........................................................................30
Wireless Resource...............................................................32
Multi-SSID..............................................................................34
VLAN........................................................................................36
VLAN List...........................................................................36
Port List..............................................................................37
Add/Edit VLAN ................................................................38
PVID Setting.....................................................................39
Intrusion.................................................................................40
Schedule ................................................................................41
Internal RADIUS Server.....................................................42
ARP Spoong Prevention ................................................43
Bandwidth Optimization .................................................44
AP Array..................................................................................46
AP Array Scan ..................................................................46
Conguration Settings.................................................47
Auto-RF..............................................................................48
Load Balance ...................................................................49
Captive Portal ......................................................................50
Authentication Settings - Passcode .............................50
Authentication Settings - Username/Password.......51
Authentication Settings - Remote RADIUS ...............52
Authentication Settings - LDAP.....................................53
Authentication Settings - POP3.....................................54
Table of Contents

3D-Link DAP-2360 User Manual
Table of Contents
Login Page Upload.............................................................55
Web Redirection..................................................................56
DHCP Server ........................................................................57
Dynamic Pool Settings.................................................57
Static Pool Setting .........................................................59
Current IP Mapping List...............................................61
Filters.......................................................................................62
Wireless MAC ACL..........................................................62
WLAN Partition ...............................................................63
Trac Control.......................................................................64
Uplink/Downlink Settings ..........................................64
QoS......................................................................................65
Trac Manager...............................................................66
Status .............................................................................................67
Device Information ............................................................67
Client Information ..............................................................68
Channel Analyze .................................................................69
WDS Information ................................................................70
Stats.........................................................................................71
Ethernet.............................................................................71
WLAN Trac ....................................................................72
Log ...........................................................................................73
View Log............................................................................73
Log Settings.....................................................................74
Maintenance ...............................................................................75
Administration Settings ...................................................75
Limit Administrator.......................................................76
System Name Settings.................................................77
Login Settings .................................................................78
Console Settings ............................................................79
SNMP Settings ................................................................80
Central WiFiManager Settings...................................81
Firmware and SSL Certication Upload..............................82
Conguration File Upload .......................................................83
Time and Date .............................................................................84
Conguration and System.......................................................85
System ....................................................................................86
System Settings..............................................................86
Help .................................................................................................87
Troubleshooting ..............................................................88
Networking Basics...........................................................90
Check your IP address...............................................................90
Statically Assign an IP address...............................................91
Technical Specications ..................................................93
Antenna Pattern ..............................................................95
Central WiFiManager.......................................................96

4D-Link DAP-2360 User Manual
Section 1 - Product Overview
• DAP-2360 802.11n Power over Ethernet (PoE) Access Point
• CAT5 Ethernet Cable
• CD-ROM with User Manual
• Install Guide
• two detachable antennas
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-2360
will cause damage and void the warranty for this product.
NOTE no PSU supplied. To power the units use an D-Link PoE switch or the D-Link DPE-101GI PoE
injector.
System Requirements
• Computers withWindows®, Macintosh®, or Linux-based operating systems with an installed Ethernet Adapter
• For conguration, the following web browsers are supported:
• Microsoft®Internet Explorer®7.0 and higher
• Mozilla Firefox 3.5 and higher
• Google™ Chrome 20 and higher
• Apple Safari 5.0 and higher
Product Overview
Package Contents

5D-Link DAP-2360 User Manual
Section 1 - Product Overview

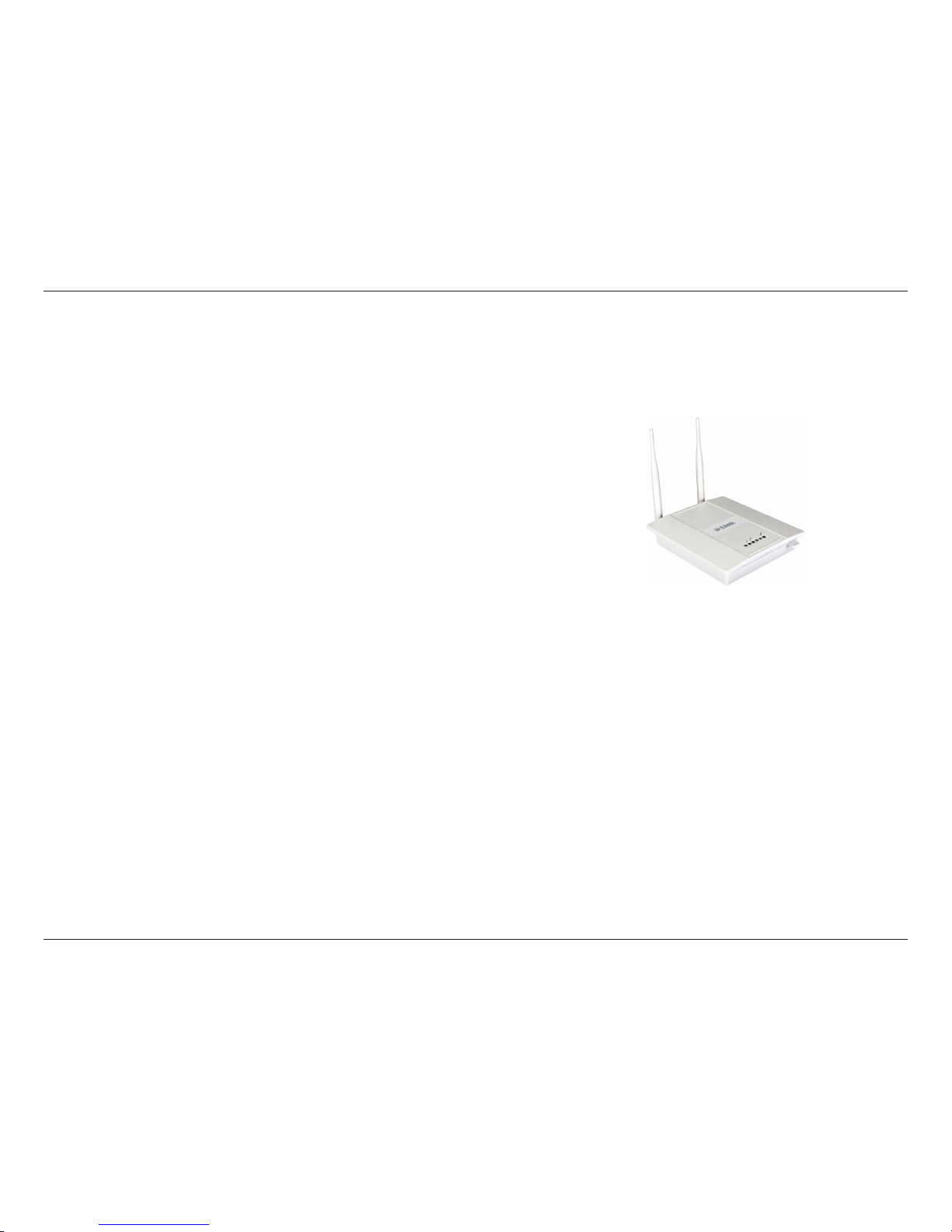

Introduction
The DAP-2360 802.11n AP increases productivity by allowing you to work faster and more eciently. With the DAP-2360,
bandwidth-intensive applications like graphics or multimedia will benet signicantly because large les are now able to move
across the network quickly.
The DAP-2360 is capable of operating in one of four dierent wireless networking modes: access point,WDS (Wireless Distribution
System) with AP, WDS, or Wireless Client mode.
Use less wiring, enjoy increased exibility, save time and money with PoE (Power over Ethernet).With PoE, the DAP-2360 shares
power and data over the CAT5 cable, making the setup of your network less expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local area network (WLAN) in oces or other workplaces, trade
shows, and special events, the DAP-2360 provides data transfer rates up to 300Mbps. (The 802.11n standard is backwards
compatible with 802.11g and 802.11b devices.)
WPA/WPA2 is oered in two options: Enterprise (used for corporations) and Personal (used for home users).
WPA-Personal and WPA2-Personal are directed towards home users who do not have the server-based equipment required
for user authentication. This method of authentication is similar to WEP because you dene a“Pre-Shared Key”on the wireless
router/AP. Once the pre-shared key is conrmed and satised at both the client and access point, access is then granted. The
encryption method used is referred to as theTemporal Key Integrity Protocol (TKIP), which oers per-packet dynamic hashing. It
also includes an integrity checking feature which ensures that the packets were not tampered with during wireless transmission.
WPA-Enterprise and WPA2-Enterprise are ideal for businesses that already have existing security infrastructures established.

6D-Link DAP-2360 User Manual
Section 1 - Product Overview
Management and security implementation can now be centralized on a server participating on the network. Utilizing 802.1X
with a RADIUS (Remote Authentication Dial-in User Service) server, a network administrator can dene a list of authorized
users who can access the wireless LAN. When attempting to access a wireless LAN with WPA-Enterprise congured, the new
client will be requested to enter a username with a password. If the new client is authorized by the administration, and enters
the correct username and password, then access is granted. In the case where an employee leaves the company, the network
administrator is able to remove the previous employee from the authorized list to avoid compromising the network.
EAP (Extensible Authentication Protocol) is available through the Windows®XP operating system.You will need to use the same
type of EAP protocol on all devices in your network when using the 802.1X feature.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead can lower actual data
throughout rate.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network Standby
mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not needed.
Network Standby: 1.91 watts
Switched O: 0.13 watts

7D-Link DAP-2360 User Manual
Section 1 - Product Overview
•Four dierent operation modes - Capable of operating in one of four dierent operation modes to meet your wireless
networking needs: Access Point, WDS with AP, WDS, or Wireless Client.
• Faster wireless networking with the 802.11n standard to provide a maximum wireless signal rate of up to 300 Mbps*.
• Compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps, allowing you to migrate your
system to the 802.11n and 802.11g standards on your own schedule without sacricing connectivity.
• Compatible with the 802.11g standard to provide a wireless data rate of up to 54Mbps in the 2.4GHz frequency range.
• Better security with WPA - The DAP-2360 can securely connect wireless clients on the network usingWPA (Wi-Fi Protected
Access) to provide a much higher level of security for your data and communications than its previous versions.
• D-Link Central WiFiManager software - The real-time display of the network's topology and AP’s information makes
network conguration and management quick and simple.
• SNMP for management - The DAP-2360 is not just fast, but also supports SNMP v.3 for better network management.
• Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
• Supports 802.3af Power over Ethernet.
• Supports one 10/100/1000M Ethernet port.
• Operates in the 2.4 ~ 2.4835GHz frequency ranges.
• Web-based interface for managing and conguring.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead can lower actual data throughout rate.
Features

8D-Link DAP-2360 User Manual
Section 2 - Installation
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within
your home, business or public access wireless networks. D-Link wireless products provides you with access to the data you
want, whenever and wherever you want it. Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and oce environments, but in public areas as well, such as airports, coee
shops and universities. Innovative ways to utilize WLAN technology are allowing people to work and communicate more
eciently. Increased mobility and the absence of cabling and other types of xed infrastructure have proven to be benecial
to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards, allowing
wireless users to use the same applications as those used on a wired network.
People use WLAN technology for many dierent purposes:
Mobility - productivity increases when people can have access to data in any location within the operating range of
their WLAN. Management decisions based on real-time information can signicantly improve the eciency of a worker.
Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change
can benet from WLAN's ease of implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and network expansion - by avoiding the complications of troublesome cables, aWLAN system can be fast
and easy during installation, especially since it can eliminate the need to pull cable through walls and ceilings. Wireless
technology provides more versatility by extending the network beyond the home or oce.
Inexpensive solution - wireless network devices are as competitively priced as conventional Ethernet network devices.
The DAP-2360 saves money by providing users with multi-functionality congurable in four dierent modes.
Scalability - Congurations can be easily changed and range from Peer-to-Peer networks, suitable for a small number
of users to larger Infrastructure networks to accommodate hundreds or thousands of users, depending on the number
of wireless devices deployed.

9D-Link DAP-2360 User Manual
Section 2 - Installation
Standards-Based Technology
The DAP-2360 Wireless N PoE Access Point utilizes the 802.11b, 802.11g, and 802.11n standards.
The IEEE 802.11n standard is an extension of the 802.11b and 802.11g standards that came before it. It increases the maximum
wireless signal rate up to 300Mbps* within the 2.4GHz bands, utilizing OFDM technology.
This means that in most environments - within the specied range of this device - you will be able to transfer large les quickly,
or even watch a movie in MPEG format over your network without noticeable delays. This technology works by transmitting
high-speed digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM
works by splitting the radio signal into multiple smaller sub-signals that are then simultaneously transmitted at dierent
frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in signal transmissions.
The D-Link DAP-2360 will automatically sense the best possible connection speed to ensure the greatest possible speed and
range.
IEEE 802.11n oers the most advanced network security features available today, including WPA.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions and environmental factors, including volume of network trac, building
materials and construction, and network overhead can lower actual data throughout rate.

10D-Link DAP-2360 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless N wireless access point lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on
the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14
meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on the
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks),
mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.

11D-Link DAP-2360 User Manual
Section 2 - Installation
Hardware Overview
Power LED
This light will be solid green when the unit is powered on.
2.4 GHz LED
This light will be ickering green when the 2.4GHz frequency is in use.
LAN LED
This light will be ickering green when there is active LAN trac.
Power Receptacle (*Note no longer used, replaced by PoE)
The supplied power adapter connects here.
Reset Button
A pinhole button located beside the Ethernet socket is used to reset the
system or restore the factory default settings.
Note: After resetting the unit, you will still be able to access the data
on your hard drives.
LAN (PoE) Port
An Gigabit Ethernet port that connects the unit to a network. This port
can also be used to supply power to this unit using Power over Ethernet.

12D-Link DAP-2360 User Manual
Section 2 - Installation
Connect Power over Ethernet (PoE)
Connect one end of an Ethernet cable (included with your access point) to the LAN port on the DAP-2360 and the other end of the Ethernet cable
to either your computer or to your PoE switch. The AP can be powered on by a PoE switch or by the DPE-101GI.
PoE Injector

13D-Link DAP-2360 User Manual
Section 2 - Installation
Wireless Client AP acts as a wireless network adapter for your Ethernet-
enabled device
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still
functioning as a wireless AP
WDS Wirelessly connect multiple networks
Four Operational Modes

14D-Link DAP-2360 User Manual
Section 2 - Installation
Getting Started
1. You will need broadband Internet access.
2. Consult with your cable or DSL provider for proper installation of the modem.
3. Connect the cable or DSL modem to a router. See the printed Install Guide included with your router.
4. If you are connecting a desktop computer to your network, install a wireless PCI adapter into an available PCI
slot on your desktop computer.
5. Install the drivers for your wireless CardBus adapter into a laptop computer.

15D-Link DAP-2360 User Manual
Section 3 - Conguration
Conguration
To congure the DAP-2360, use a computer that is connected to the DAP-2360 with an Ethernet cable (see the Network Layout
diagram ).
Launch your web browser.
Type the IP address of the DAP-2360 in the address eld (http://192.168.0.50) and
press Enter. Make sure that the IP addresses of the DAP-2360 and your computer are
in the same subnet.
Note: If you have changed the default IP address assigned to the DAP-2360, make sure to enter the correct IP address.
Enter the user name (admin) and your password. Leave the password eld blank by default and click Login.
Note: If you have changed the password, make sure
to enter the correct password.

16D-Link DAP-2360 User Manual
Section 3 - Conguration
After successfully logging into the DAP-2360, the following screen will appear:
When making changes on most of the conguration screens in this section, use the button at the bottom of each
screen to save (not activate) your conguration changes.
You may change settings to multiple pages before activating. Once you are nished, click the Conguration button located
at the top of the page and then click Save and Activate.
Save and Activate Settings

17D-Link DAP-2360 User Manual
Section 3 - Conguration
Basic Settings
Wireless
Access Point mode
Select Access Point from the drop-down menu.
The other three choices are WDS with AP, WDS,
and Wireless Client.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network. The SSID can be up to 32 characters and
is case-sensitive.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Enabling this feature automatically selects
the channel that provides the best wireless
performance. Enable is set by default.The channel
selection process only occurs when the AP is booting up.
All devices on the network must share the same channel. To change the channel, rst toggle the Auto Channel Selection setting to
Disable, and then use the drop-down menu to make the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Wireless Band: Select 2.4GHz from the drop-down menu.

18D-Link DAP-2360 User Manual
Section 3 - Conguration
Channel Width:
Captive Prole:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g wireless devices on your network.
Disable or select a Captive Portal prole for Primary SSID.
Use the drop-down menu to choose Open System, Shared Key, WPA-Personal, WPA-Enterprise,or 802.11x.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
Select 802.1x to secure your network using 802.1x authentication.

19D-Link DAP-2360 User Manual
Section 3 - Conguration
WDS with AP mode
WDS with AP mode is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated for
a specic wireless local area network (WLAN). The SSID’s
factory default setting is dlink. The SSID can be easily
changed to connect to an existing wireless network or to
establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature
broadcasts the SSID across the network, thus making it
visible to all network users.
Enabling this feature automatically selects the channel
that will provide the best wireless performance. This
feature is not supported in WDS with AP mode. The
channel selection process only occurs when the AP is
booting up.
To change the channel, use the drop-down menu to make
the desired selection. (Note: The wireless adapters will
automatically scan and match the wireless settings.)
Indicates whether the device is capable of 20MHz
operation only or both 20MHz and 40MHz operation.
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Wireless Band:
In WDS with AP mode, the DAP-2360 wirelessly connects multiple networks while still functioning as a wireless AP.
Select 2.4GHz from the drop-down menu.

20D-Link DAP-2360 User Manual
Section 3 - Conguration
Disable or select a Captive Portal prole for Primary SSID.
Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with.
Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Captive Prole:
Remote AP MAC
Address:
Site Survey:
Authentication:
