D-Link AirPremier N DAP-2360 User manual

DAP-2360
AirPremier N Dual Band PoE Access Point
Command Line Interface Reference Manual
Second Edition (October 2009)
RECYCLABLE

Table of Contents
Using the CLI ......................................................................................................................................................................................................................... 1
Wireless Commands ............................................................................................................................................................................................................... 9
LAN Commands ................................................................................................................................................................................................................... 16
WLAN Partition Commands .................................................................................................................................................................................................. 17
SNTP Commands.................................................................................................................................................................................................................. 18
TFTP Commands .................................................................................................................................................................................................................. 19
DHCP Server Commands ..................................................................................................................................................................................................... 20
Limit Administrator Commands ........................................................................................................................................................................................... 24
Intrusion Commands ........................................................................................................................................................................................................... 25
Multiple SSID and VLAN Commands ................................................................................................................................................................................... 26
IGMP Commands ................................................................................................................................................................................................................. 30
Traffic Control ...................................................................................................................................................................................................................... 31
System Log Commands ........................................................................................................................................................................................................ 32
Access Control List Commands............................................................................................................................................................................................ 34
Schedule Commands ........................................................................................................................................................................................................... 35
SNMP Commands ................................................................................................................................................................................................................ 36
Utility and Miscellaneous Commands.................................................................................................................................................................................. 37

First-Time Configuration Examples ..................................................................................................................................................................................... 39

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
1
1
USING THE CLI
The DAP-2360 can be accessed by Telnet. Using a Microsoft Windows system as an example, open the Command Prompt on the computer that will be used for
configuring and managing the AP and enter telnet and the IP address of DAP-2360 in the first line. Using the default IP address as example, enter telnet 192.168.0.50 to

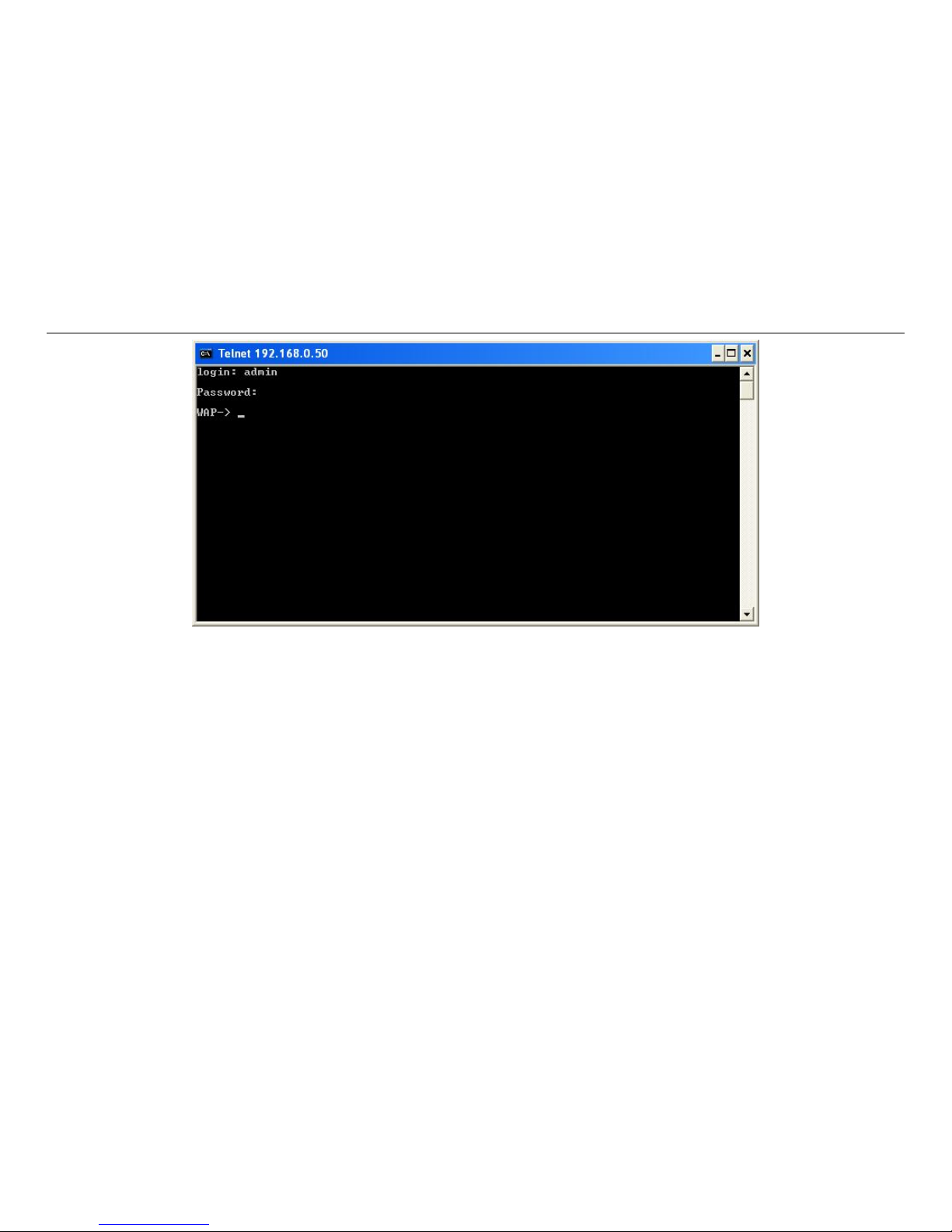

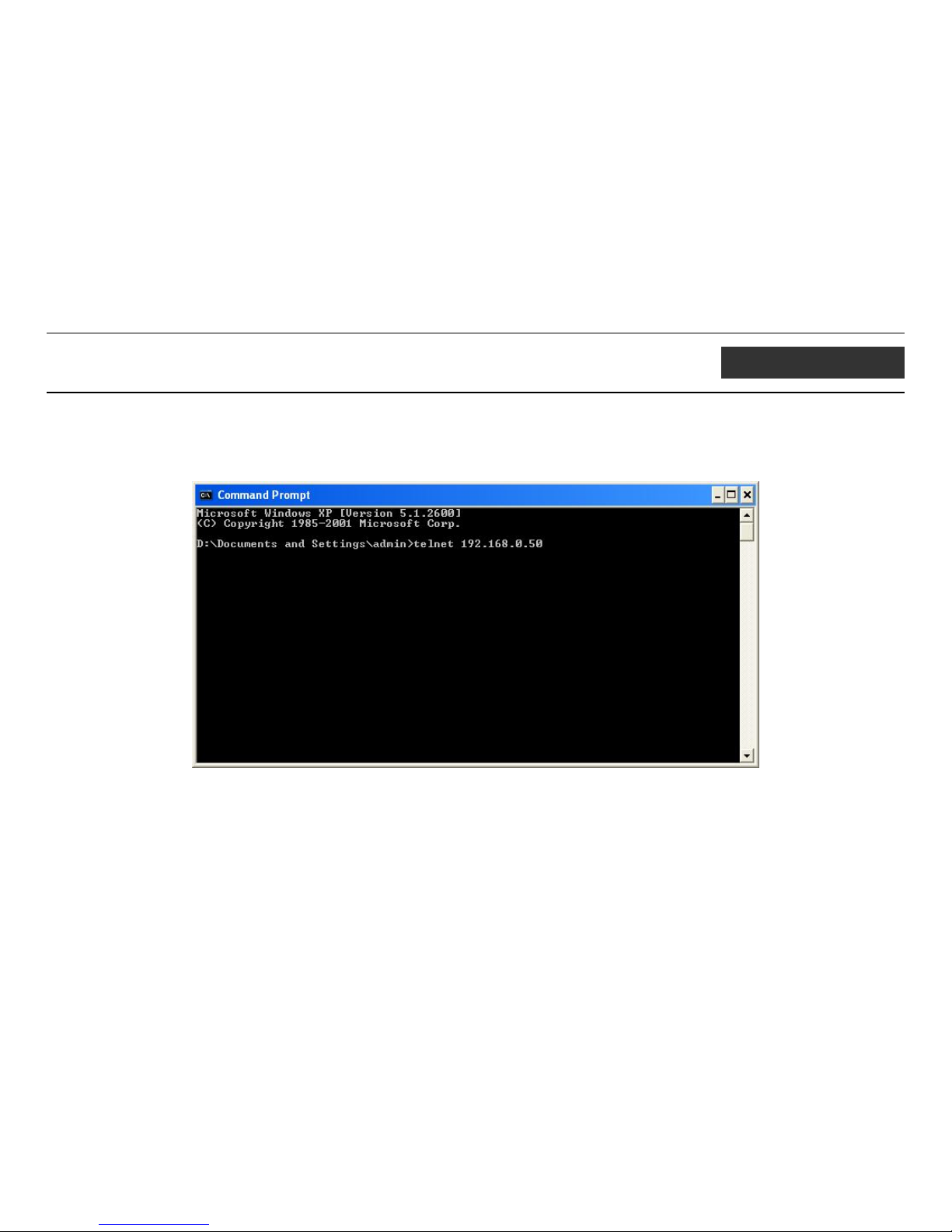

cause the following screen to open:
Press Enter in the screen above. The following screen opens:

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
2
Type admin for the D-Link Access Point login username in the screen above and press Enter. The following screen opens:

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
3
Press Enter as there is no initial password.
The following screen opens to indicates you have successfully logged into the Access Point.

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
4
Commands are entered at the command prompt, WAP– >

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
5
There are a number of helpful features included in the CLI. Entering the ? command and then pressing Enter will display a list of all of the top-level commands. The same
information can also be displayed by entering help.
Press Enter to see a list of all the available commands. Alternatively, you may enter help and then press Enter.

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
6
When you enter a command without all of its required parameters, the CLI will prompt you with a list of possible completions. For example, if tftp was entered, the
following screen opens:

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
7

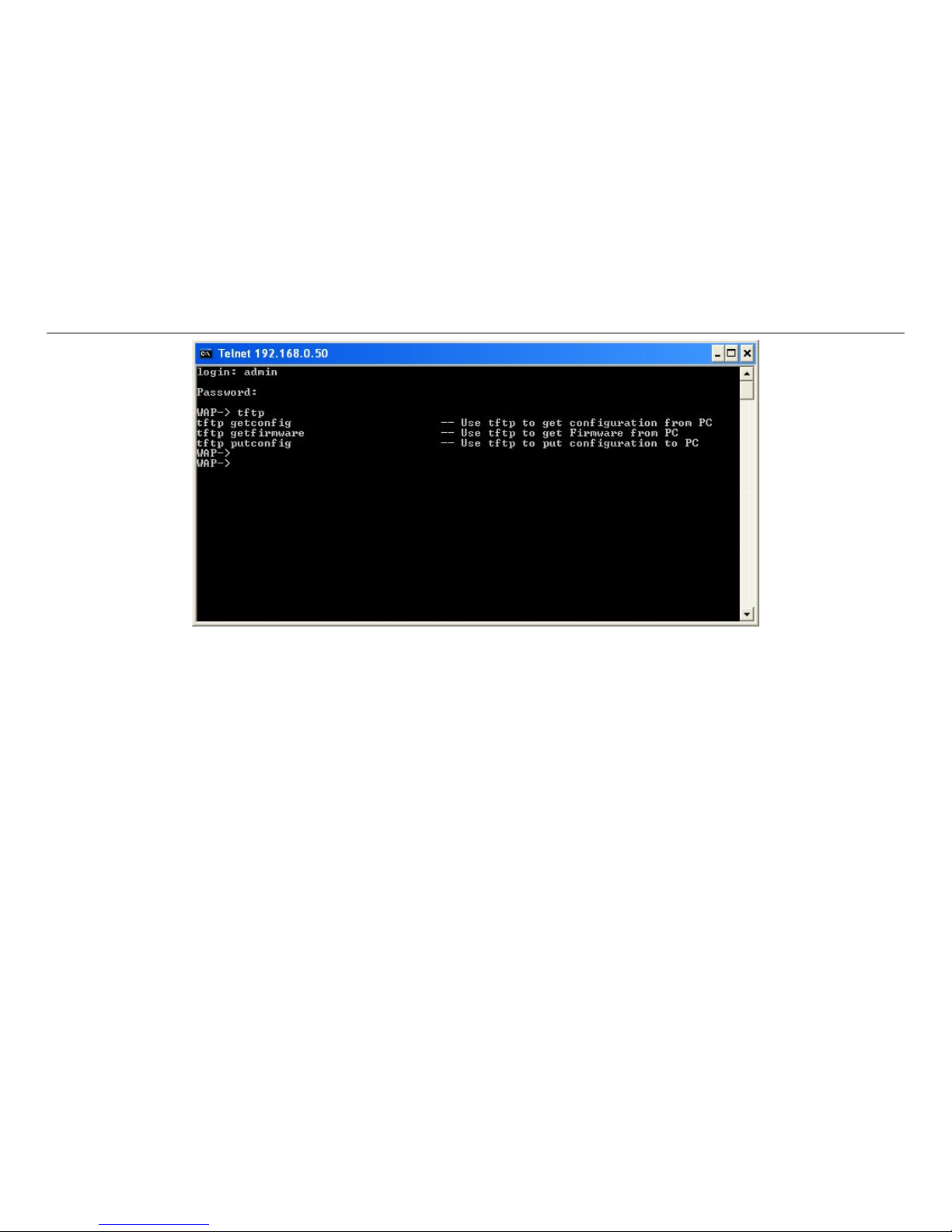

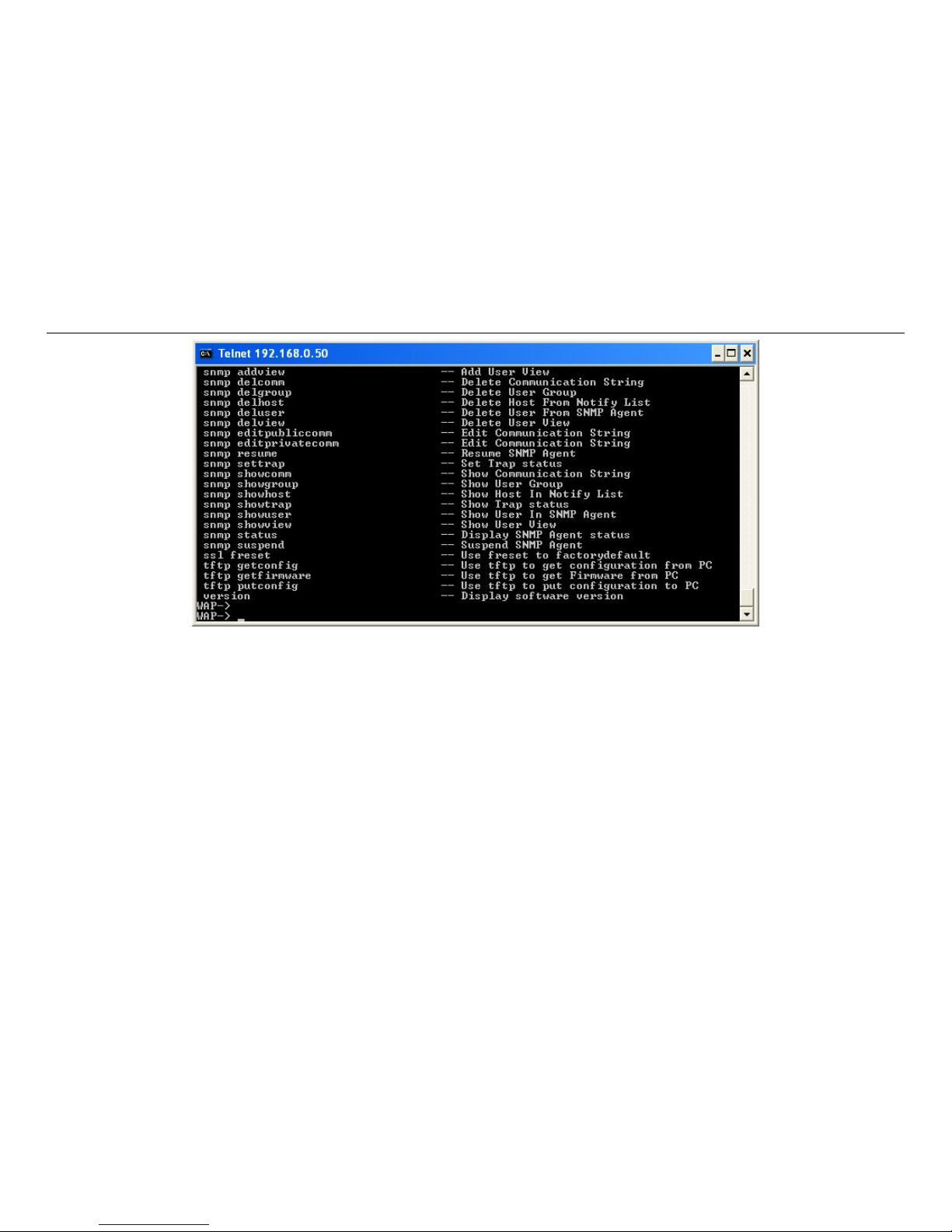

This screen displays all the possible command completions for tftp.
When you enter a command without a variable or value that needs to be specified, the CLI will prompt you with further information about what is needed to complete the

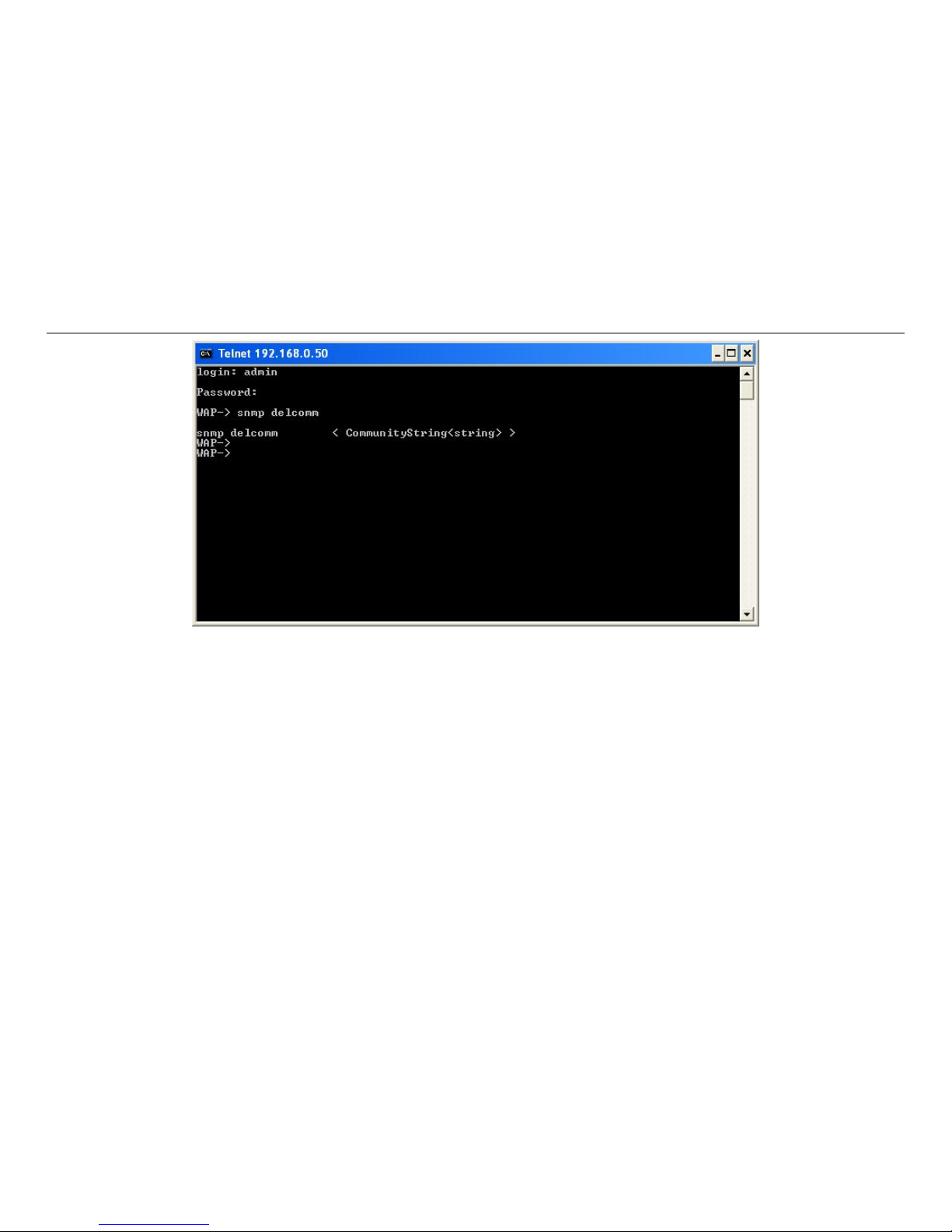

command. For example, if snmp delcomm was entered, the following screen opens:

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
8
The missing value for the snmp delcomm command, “CommunityString<string>,” is displayed in the screen above.

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
9
2
WIREL ESS COMMANDS
Wireless Commands Description
get array-sync-ssid Display AP Array sync ssid state
get array-sync-ssidhidden Display AP Array sync ssidhidden state
get array-sync-autochannel Display AP Array sync autochannel state
get array-sync-channelwidth Display AP Array sync channelwidth state
get array-sync-security Display AP Array sync security state
get array-sync-fixedrate Display AP Array sync fixedrate state
get array-sync-beaconinterval Display AP Array sync beaconinterval state
get array-sync-dtim Display AP Array sync dtim state
get array-sync-txpower Display AP Array sync txpower state
get array-sync-wmm Display AP Array sync wmm state
get array-sync-acktimeout Display AP Array sync acktimeout state
get array-sync-shortgi Display AP Array sync shortgi state
get array-sync-igmpsnoop Display AP Array sync igmpsnoop state
get array-sync-connectionlimit Display AP Array sync connectionlimit state
get array-sync-linkintegrity Display AP Array sync linkintegrity state
get array-sync-multissid Display AP Array sync multissid state
get array-sync-multissid_hidden Display AP Array sync multissid_hidden state
get array-sync-multisecurity Display AP Array sync multiwmm state
get array-sync-multiwmm Display AP Array sync multiwmm state
get array-sync-qos Display AP Array sync qos state

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
10
get array-sync-vlan Display AP Array sync vlan state
get array-sync-schedule Display AP Array sync schedule state
get array-sync-time Display AP Array sync time state
get array-sync-log Display AP Array sync log state
get array-sync-adminlimit Display AP Array sync adminlimit state
get array-sync-system Display AP Array sync system state
get array-sync-consoleprotocol Display AP Array sync consoleprotocol state
get array-sync-snmp Display AP Array sync snmp state
get array-sync-pingctl Display AP Array sync pingctl state
get array-sync-dhcp Display AP Array sync dhcp state
get array-sync-login Display AP Array sync login state
get array-sync-acl Display AP Array sync acl state
get array-sync-band Display AP Array sync band state
get beaconinterval Display beacon interval
get channel Display channel
get cipher Display encryption cipher
get clientinfo Display client information
get cwm Display CWM
get defkeyindex Display default key index
get dtim Display DTIM
get fixedrate Display fixed rate
get groupkeyupdate Display group key update interval (in seconds)
get keyentrymethod Display encryption key entry method (index: 1-4)
get keylength Display encryption key length (in bits) (index: 1-4]
get macclonetype Display MAC address clone type
get maccloneaddr Display MAC clone address
get shortgi Display shortgi

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
11
get ssid Display Service Set ID
get ssidhidden Display SSID hidden
get txpower Display TX power
get wdsinfo Display WDS information
get wdsmac Display WDS MAC address list
get wdsscaninfo Display WDS site survey info
set wds-pvid Set PVID of WDS[index]
get wds-pvid Get PVID of WDS[index]
set wds-groupvid Set group VID of WDS[index]
get wds-groupvid Get group VID of WDS[index]
get wireless Display wireless
get wlmode Display wireless mode
get wmm Display WMM
set acktimeout_g Set acktimeput in G band (range:64--200)
set aparray-state Set AP Array state
set aparray-state enable Enable array state
set aparray-state disable Disable array state
set arrayname Set AP array name
set arrayrole Set AP Array role[master:1, backup master:2, slaver:3]
set arrayrole Master Array role is master
set arrayrole BackupMaster Array role is backup master
set arrayrole Slaver Array role is slave
set array_syncnode_enable set array_syncnode enable
set array_syncnode_disable set array_syncnode disable
set arraypassword Set AP array password
set apmode Set AP Operate Mode
set apmode AP AP mode

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
12
set apmode APC Wireless client mode
set apmode WDSAP WDS with AP mode
set apmode WDS WDS without AP mode
set assoclimit Set Association Limit
set assoclimit enable Enable ASSOC limit
set assoclimit disable Disable ASSOC limit
set assoclimit number Set ASSOC limit number
set authentication Set Authentication Type
set authentication open-system Set authentication type to Open-System
set authentication shared-key Set authentication type to Shared-Key
set authentication wpa-eap Set authentication type to WPA-EAP
set authentication wpa-psk Set authentication type to WPA-PSK
set authentication wpa2-eap Set authentication type to WPA2-EAP
set authentication wpa2-psk Set authentication type to WPA2-PSK
set authentication wpa2-auto-eap Set authentication type to WPA/WPA2-EAP
set authentication wpa2-auto-psk Set authentication type to WPA/WPA2-PSK
set autoChannel Set AutoChannel
set autoChannel enable Enable auto channel
set autoChannel disable Disable auto channel
set autorekey Set autorekey enable
set beaconinterval Set beacon interval (range: 25-500)
set channel Set channel (1-11)
set cipher Set Cipher of wep,tkip,aes, or auto
set cipher no Disable wireless security
set cipher wep Set cipher of WEP
set cipher aes Set cipher of AES
set cipher tkip Set cipher of TKIP

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
13
set cipher auto Set cipher of auto (AES/TKIP)
set cwm Set CWM
set cwm auto CWM auto
set cwm 20MHz CWM 20MHz
set defkeyindex Set default key Index (1-4)
set dtim Set DTIM (1-15)
set 2.4g-fixedrate Set Fixed Rate
set 2.4g-fixedrate auto Set fixed rate to auto
set 2.4g-fixedrate 54M Set fixed rate to 54M
set 2.4g-fixedrate 48M Set fixed rate to 48M
set 2.4g-fixedrate 36M Set fixed rate to 36M
set 2.4g-fixedrate 24M Set fixed rate to 24M
set 2.4g-fixedrate 18M Set fixed rate to 18M
set 2.4g-fixedrate 12M Set fixed rate to 12M
set 2.4g-fixedrate 9M Set fixed rate to 9M
set 2.4g-fixedrate 6M Set fixed rate to 6M
set 2.4g-fixedrate 11M Set fixed rate to 11M
set 2.4g-fixedrate 5.5M Set fixed rate to 5.5M
set 2.4g-fixedrate 2M Set fixed rate to 2M
set 2.4g-fixedrate 1M Set fixed rate to 1M
set groupkeyupdate Set Group Key Update Interval (in Secs: 300-9999999)
set key Set encryption key index (1-4)[value]
set keyentrymethod Select Encryption Key Entry Method of key [index 1--4]
set keyentrymethod hexadecimal Key contains (0 - 9, a - f, A - F)
set keyentrymethod asciitext Key contains keyboard characters
set keylength Set Encryption Key Length of key Index [1--4]
set keylength 64Bit Key index (1-4) Set 64-bit encryption key

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
14
set keylength 128Bit Key index (1-4) Set 128-bit encryption key
set macclonetype Set MAC address clone type
set maccloneaddr Set MAC clone address
set passphrase Modify passphrase (size: 8-63)
set shortgi Set Shortgi
set shortgi enable Enable shortgi
set shortgi disable Disable shortgi
set ssid Set Service Set ID
set ssidhidden Set SSID hidden
set ssidhidden enable Enable SSID hidden
set ssidhidden disable Disable SSID hidden
set txpower Set TX power
set txpower 100% TX power 100%
set txpower 50% TX power 50%
set txpower 25% TX power 25%
set txpower 12.5% TX power 12.5%
set wdsmacadd Add WDS MAC Addr <macaddress xx:xx:xx:xx:xx:xx> [index]
set wdsmacdel DEL WDS MAC Addr[index]
set wdsscan Set WDS site survey
set wireless Set wireless
set wireless enable Enable wireless
set wireless disable Disable wireless
set wlmode Set wireless mode
set wlmode ngb Wireless mode mixed n/b/g
set wlmode only-n2.4G Wireless mode 802.11n with 2.4 GHz
set wlmode gb Wireless mode mixed 80211b and 802.11g
set wmm Set WMM

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
15
set wmm enable Enable WMM
set wmm disable Disable WMM

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
16
3
LAN COMMANDS
LAN Commands Description
set arpspoofing Set ARP Spoofing
get arpspoofing Display ARP Spoofing
get ethernetcount Display Ethernet count
get gateway Display gateway IP address
get ipaddr Display IP address
get ipmask Display IP subnet mask
get ipmode Display IP mode
set gateway Set gateway IP address
set ipaddr Set IP address
set ipmask Set IP subnet mask
set ipmode static Static mode
set ipmode dynamic DHCP mode

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
17
4
WLAN PARTITION COMMANDS
WLAN Partition Commands Description
get ethlink Display Ethernet integration
get ethernet_partition Display ethernet_partition
set ethernet_partition Set ethernet_partition
set ethernet_partition enable Enable Ethernet_partition
set ethernet_partition disable Disable Ethernet_partition
set ethlink Set ethernet integration
set ethlink enable Enable Ethernet integration
set ethlink disable Disable Ethernet integration
set ethlink enable Enable Ethernet integration
set ethlink disable Disable Ethernet integration
