DAP-1360
Wireless N Access Point
Quick Installation Guide
Version 1.00

2
System Requirements

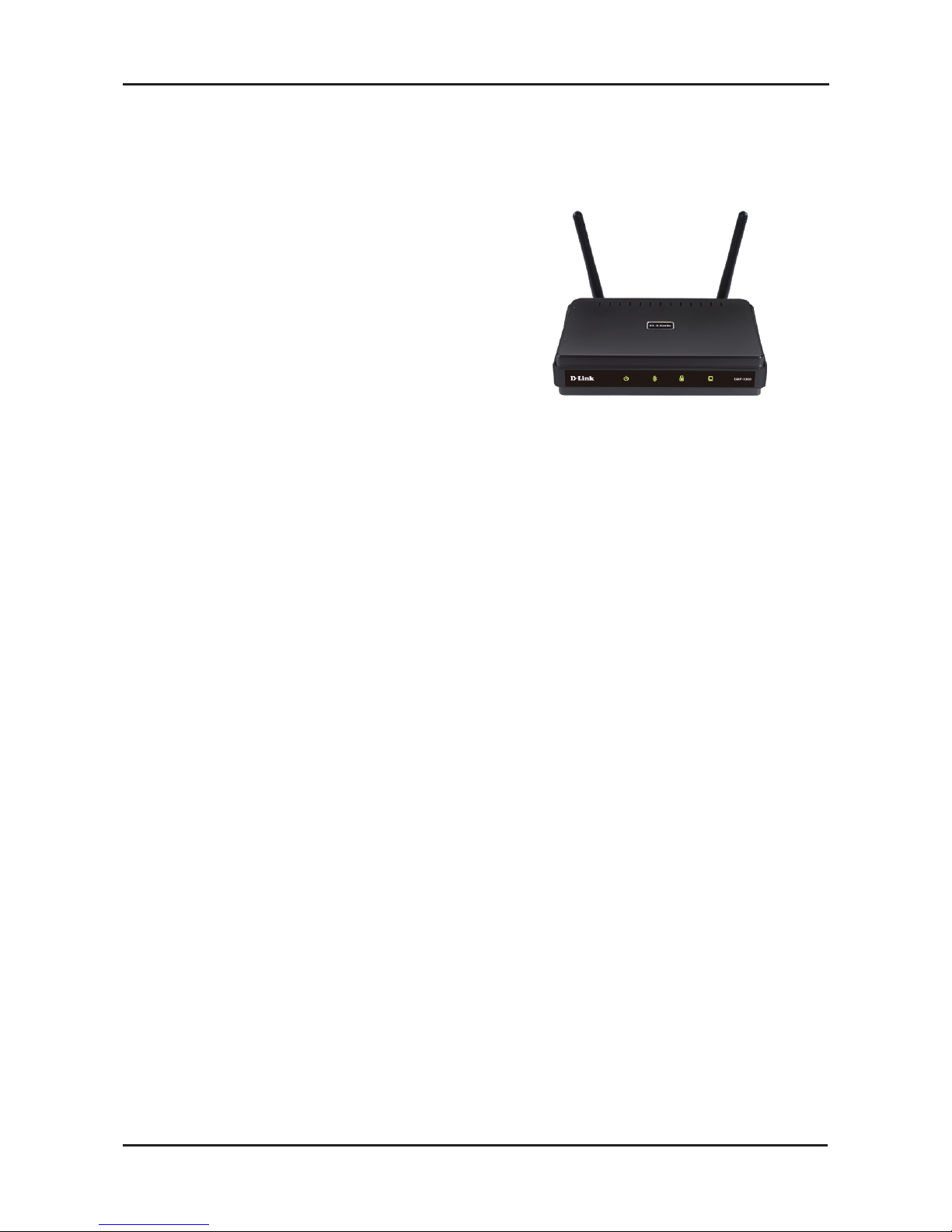

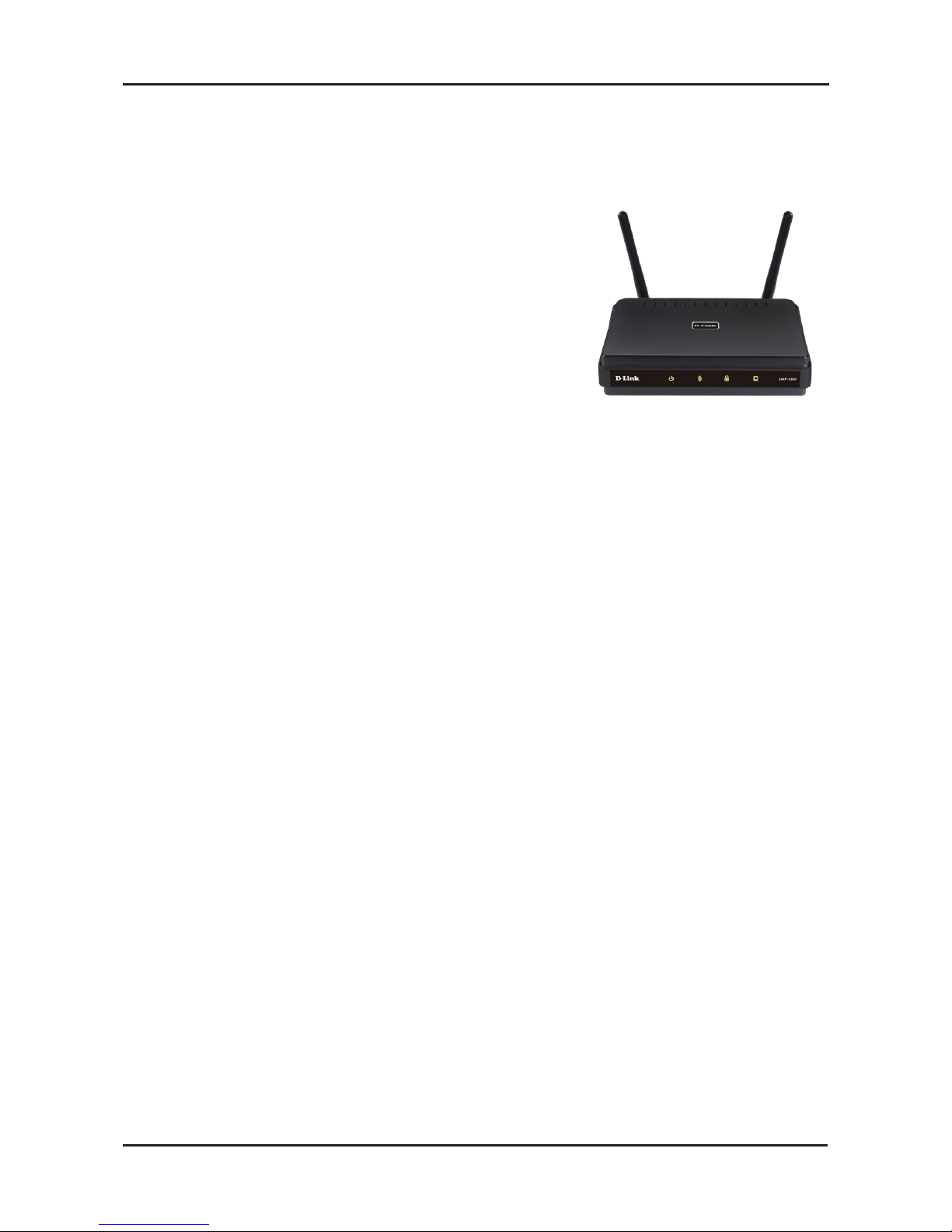

Package Contents
Open the DAP-1360 package and check to see if all of the following items are
included inside:
• DAP-1360 Wireless N Access Point
• Two detachable antennas
• Power adapter
• Cat. 5 Ethernet cable
• CD-ROM containing the User’s Manual
and this Quick Installation Guide
If any of the above item is missing or damaged, contact the reseller from
whom you purchased this package immediately.

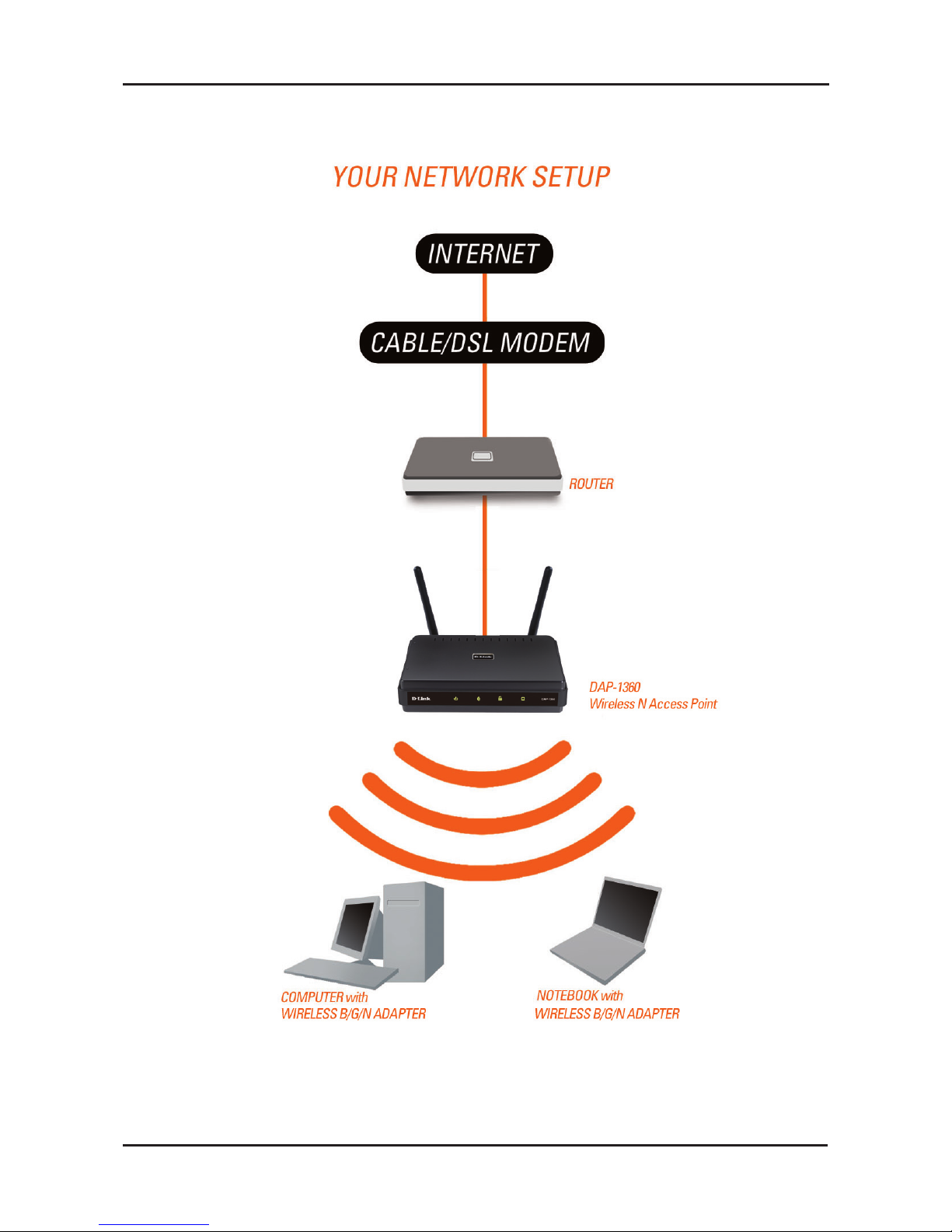

The DAP-1360 Wireless N Access Point is designed to work with computers
equipped with Windows®, Macintosh®, or Linux-based operating systems.
To congure this Wireless N Access Point, you need a computer with an Ethernet
interface and an Internet browser such as Microsoft Internet Explorer 6.0 or above,
Netscape Navigator 7.0 or above, or FireFox 1.5 or above.
Setting Up the DAP-1360
Step 1: Connect the Power Adapter.
Check the AC voltage of your AC power outlet against the AC power input of
the power adapter. Connect the power adapter supplied with the DAP-1360 to
the power socket on the back of this device rst, then plug it to your AC power
outlet. Check to see that the Power LED on the front panel of the DAP-1360 is
turned ON.

3

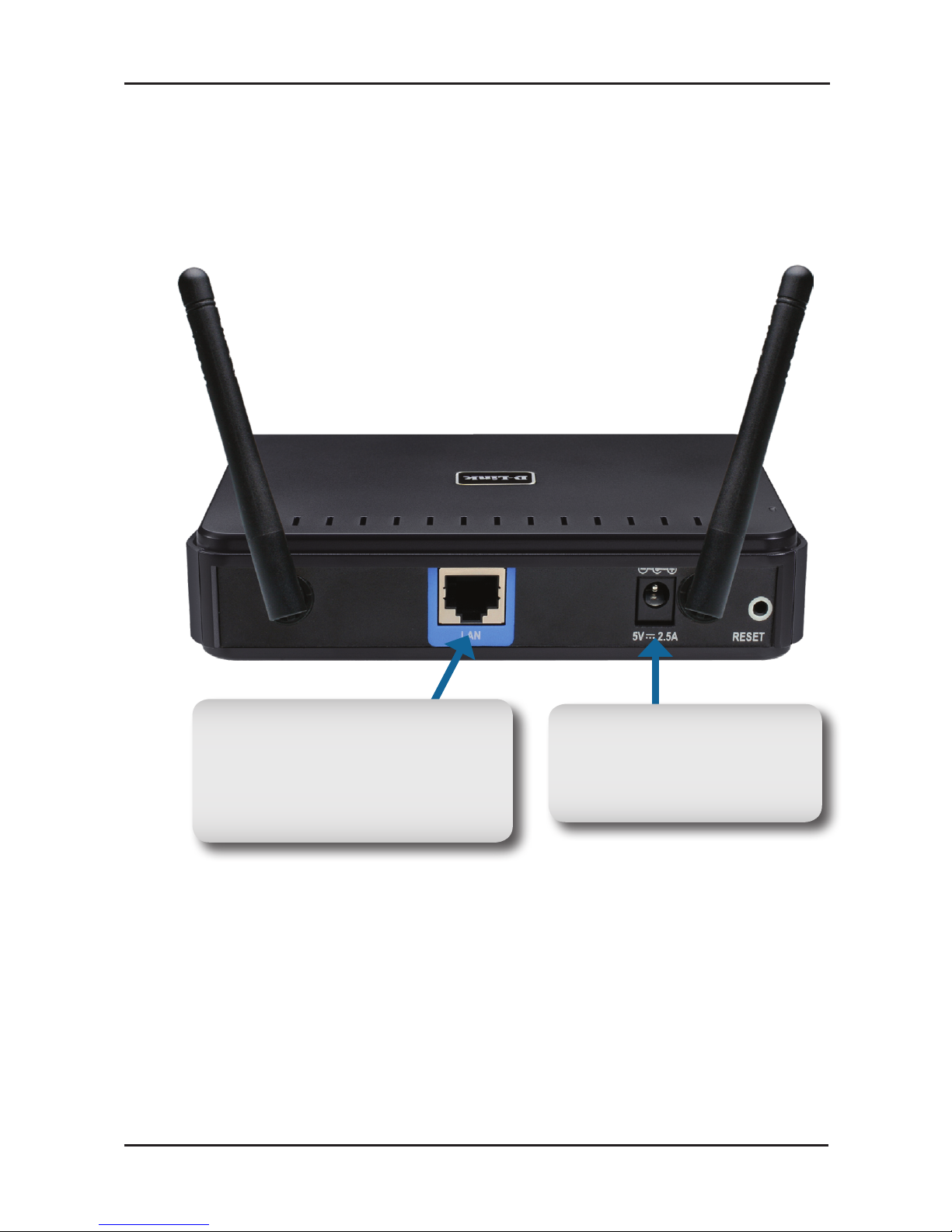

Ethernet LAN Port
Can be connected to Ethernet
port of computer, or to an Ethernet
switch or LAN port of a router.
Power Socket
Connect to a 5VDC 2.5Apower
adapter.
WARNING! The DAP-1360’s power output is 5 volts DC, 2.5 Ampere. Use only
the power adapter supplied with this DAP-1360 or one with the same power
specications. Using a power adapter with a different voltage or plugging your
DAP-1360 to a wrong AC voltage outlet will damage this device and will void
the warranty for this product.
Step 2: Connect the Antenna and Ethernet Cable.
Connect both antennas to the antenna connectors on the back of the DAP-1360.
Connect one end of the Ethernet cable to the LAN port on the back panel of the
DAP-1360, and the other end of this cable to your computer’s Ethernet port. If your
computer is connected to an Ethernet network via an Ethernet switch, connect
this end of the cable to the switch’s port.

4

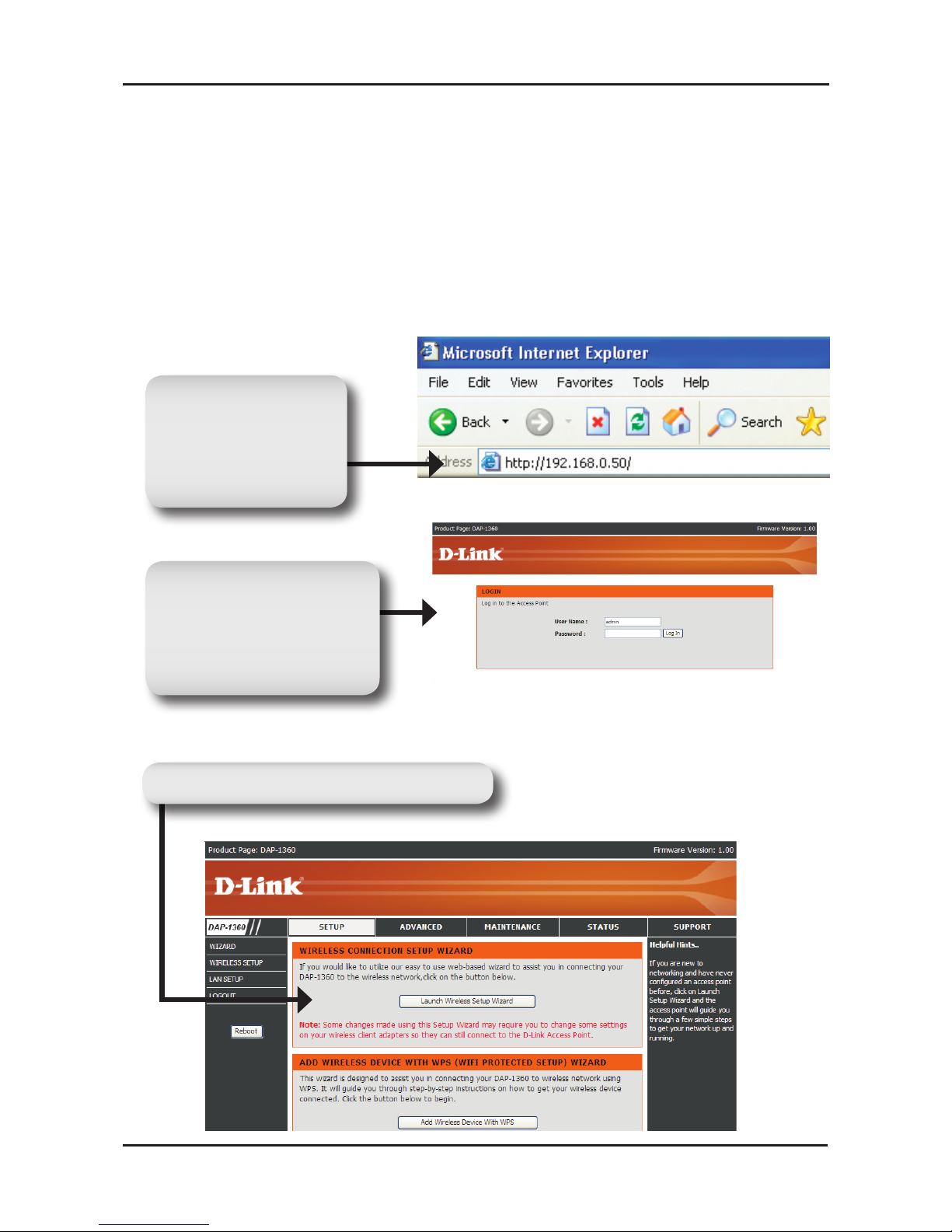

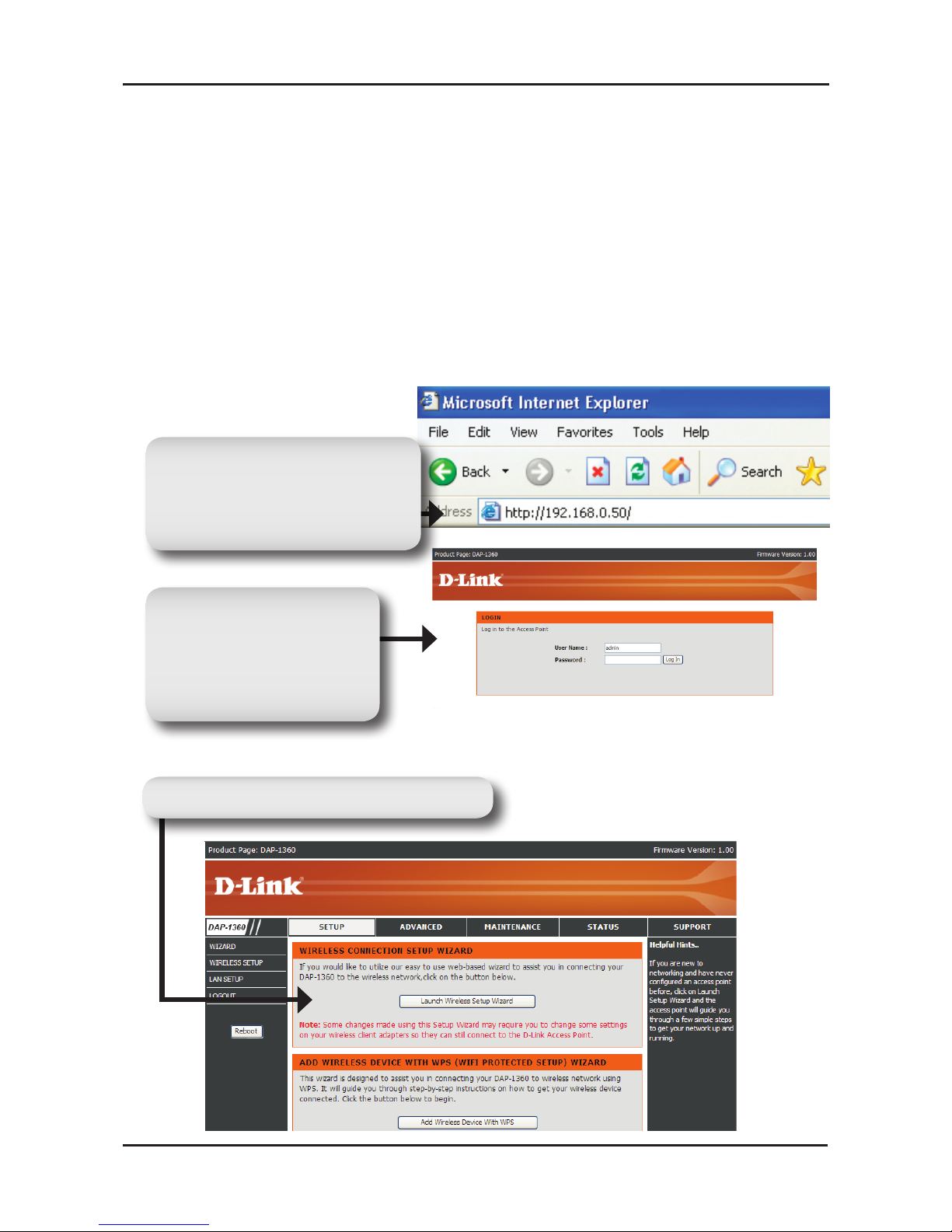

In the Address
eld, type in the
default ip address
http://192.168.0.50
Type Return.
In the User Name field,
type in the default name
admin
Leave the Password
eld blank.
Once you have logged in, the following Setup screen will appear:
Click Launch Wireless Setup Wizard
Step 3: Begin Conguring your DAP-1360.
This configuration step presumes that you will use the DAP-1360’s default
factory setting of operation mode of AP (access point). This mode allows
computers and devices equipped with 802.11n standard wireless LAN
interfaces to communicate with other wireless computers and devices through
the DAP-1360. In addition, the default factory setting provides no wireless
security. To set the DAP-1360 to another operation mode and to set its wireless
security, refer to its User’s Manual.
Run a web browser on your computer.
The following login screen will appear:

5
Click Next

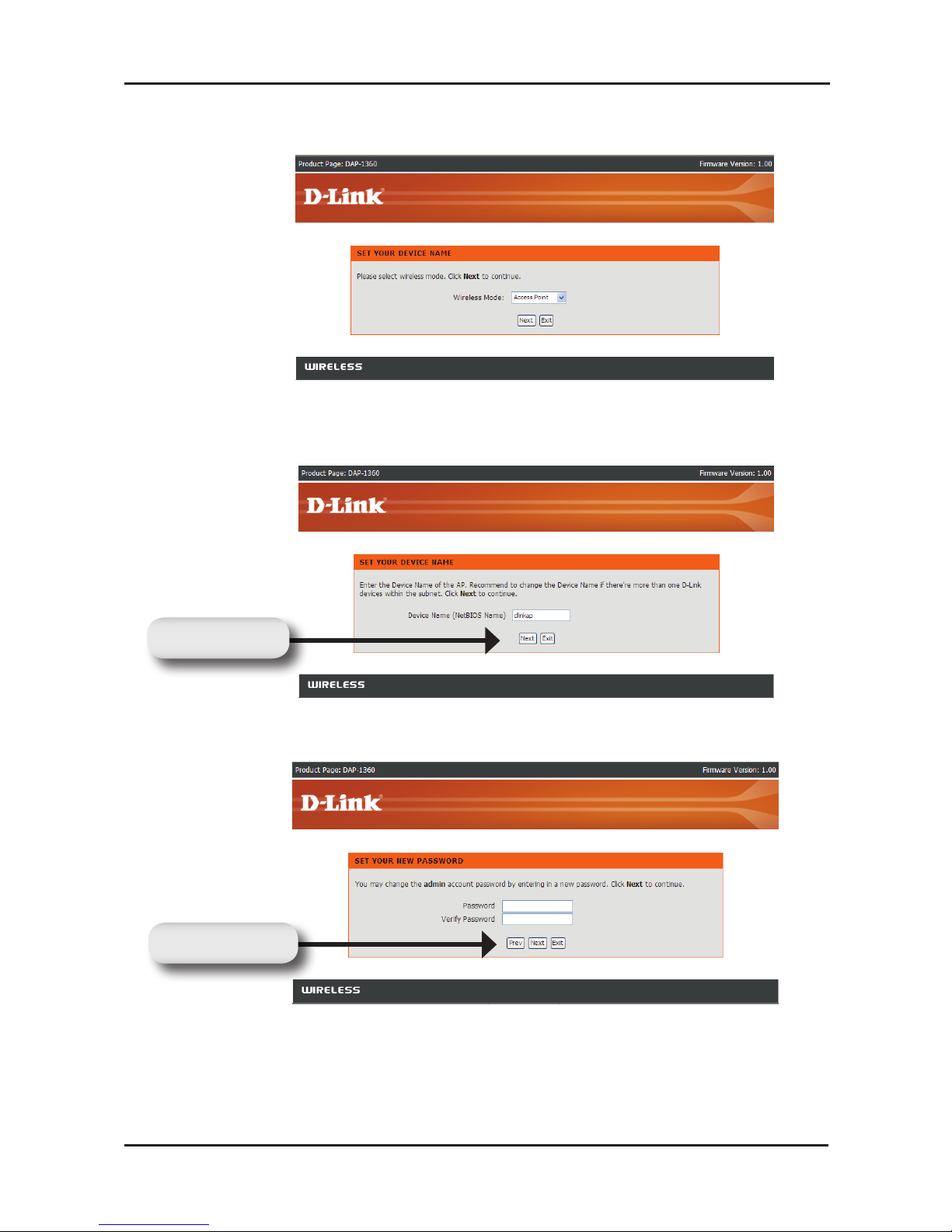

Enter the device name of AP and click Next to continue. It is recommended
to change the Device Name if there is more than one D-Link device within
the subnet.
Customize your own password and click Next.
Select Access Point as the wireless mode.
Click Next

6
Click Save to save your network settings.

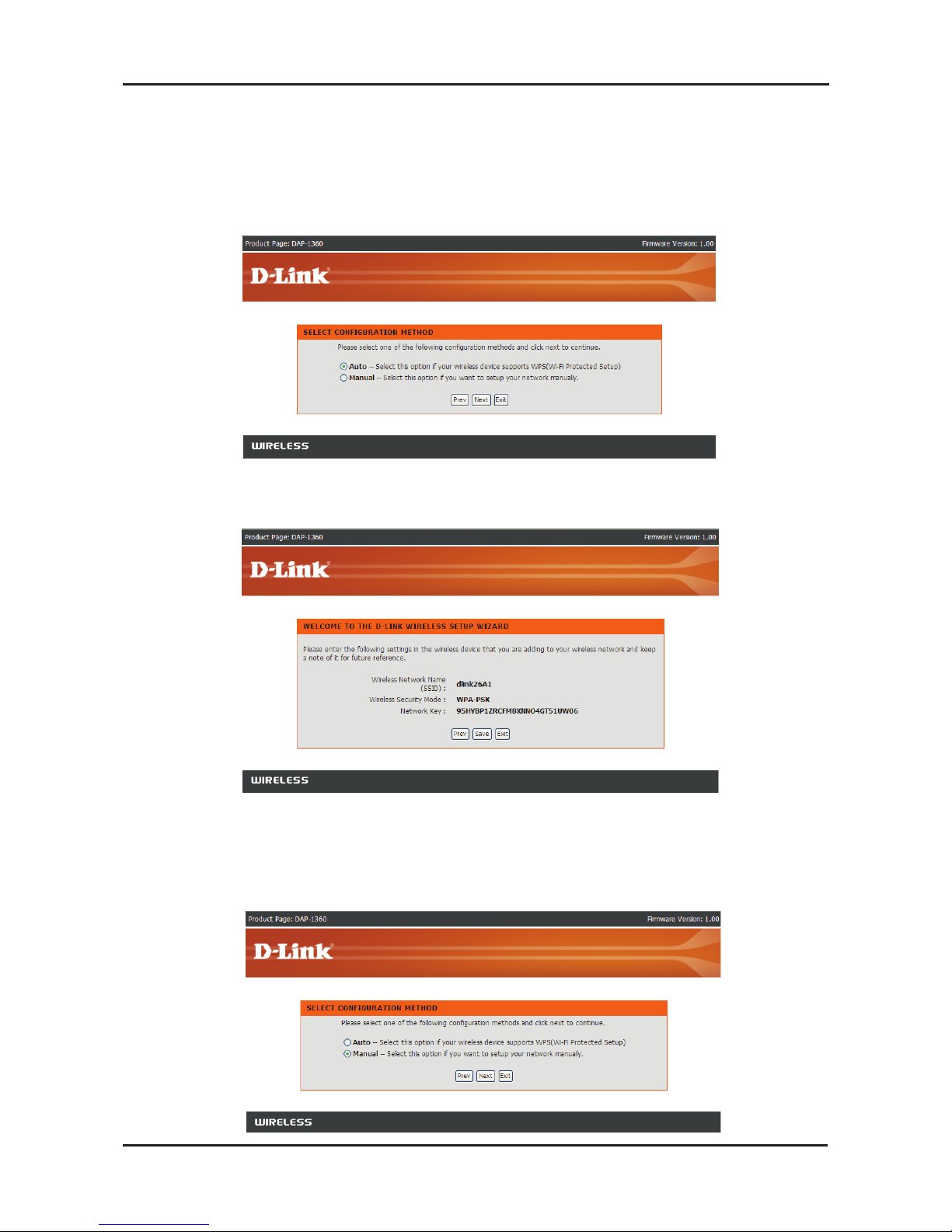

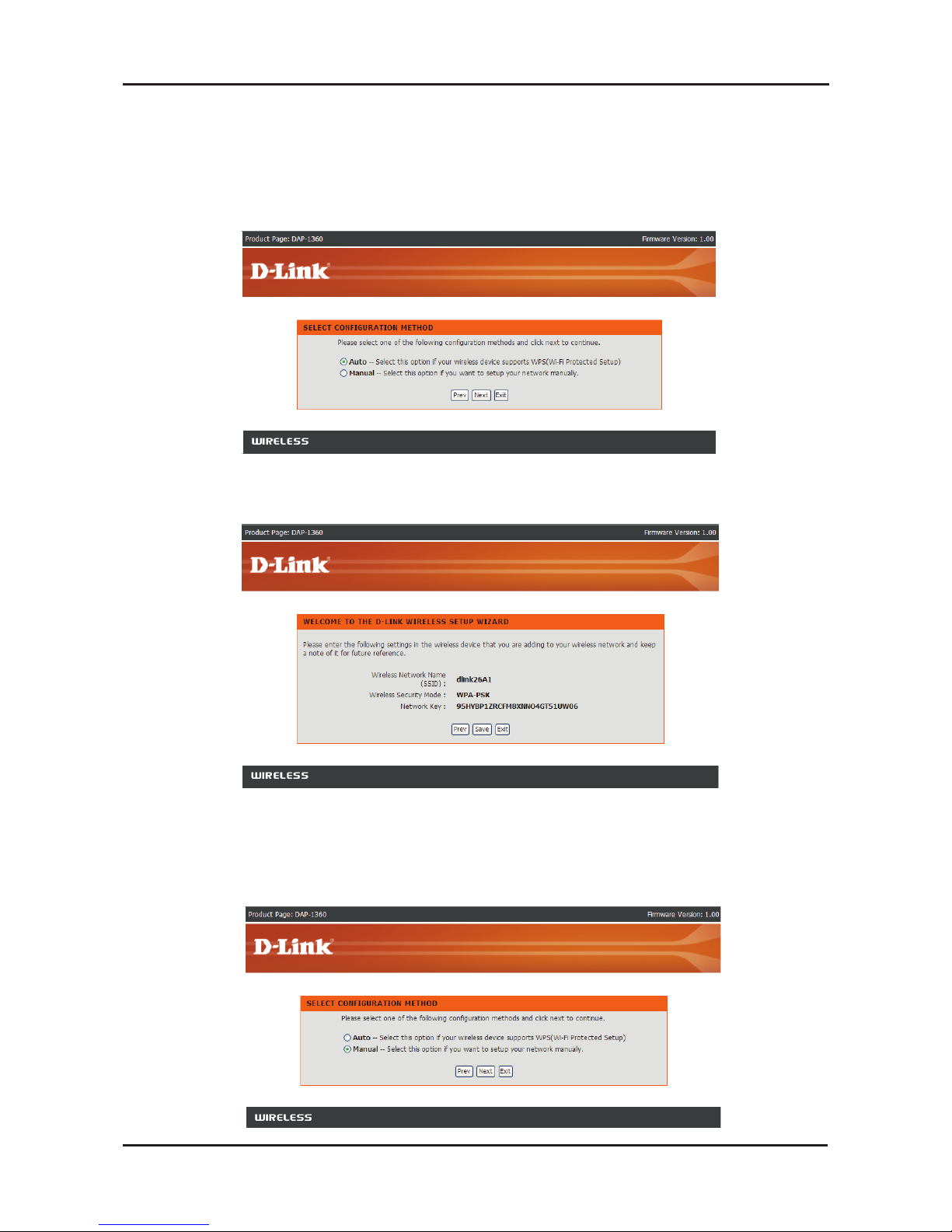

Select Manual as the configuration method to setup your network
manually.
Click Next to continue.
Select Auto as the conguration method only if your wireless device
supports Wi-Fi Protected Setup.
Click Next to continue.

7
If you choose WPA-PSK encryption, the following screen will display the
Network Key to be entered on your wireless clients.
Click Save to nish the Setup Wizard.

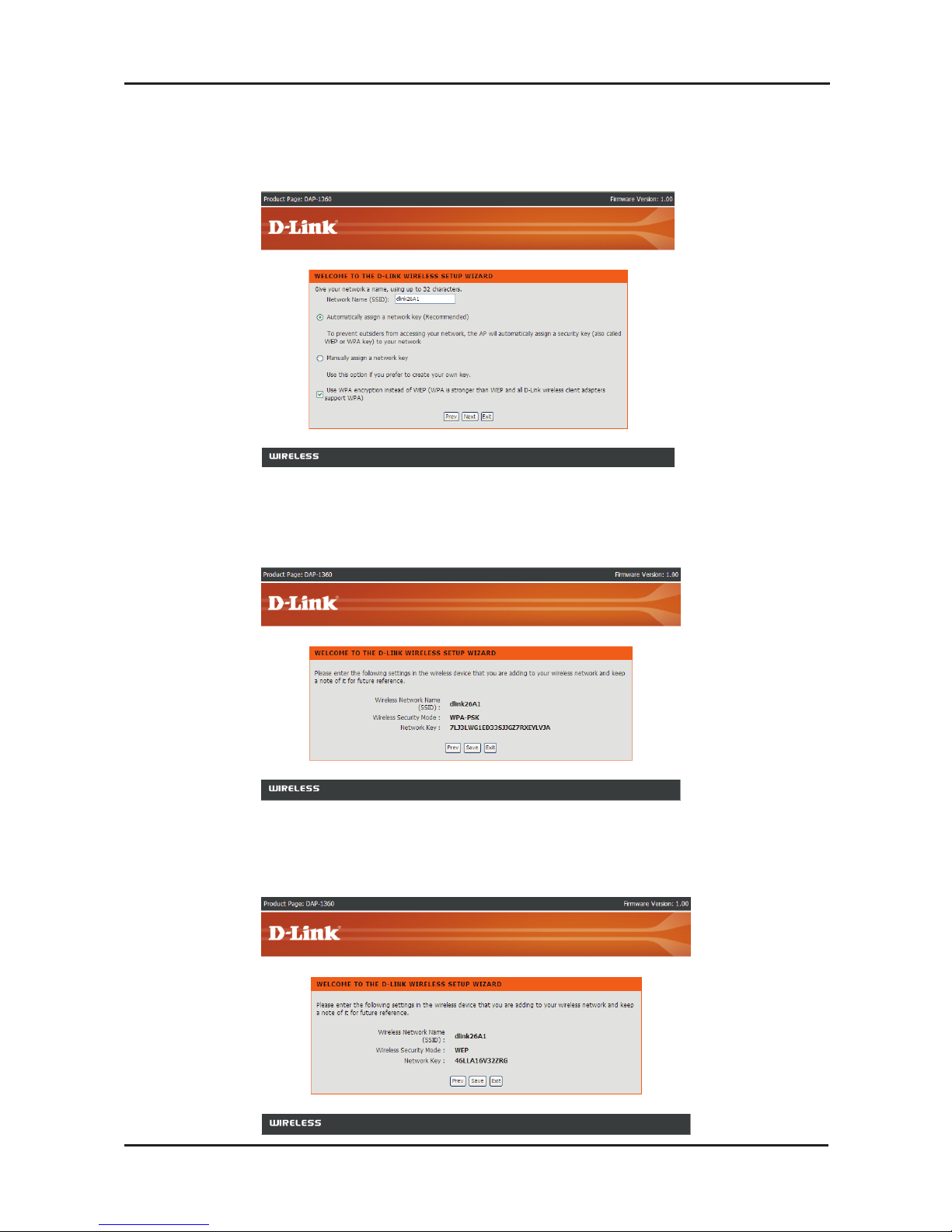

Enter a network name and choose the option to Automatically assign a
network key. To Manually assign a network key, skip to page 8.
Click Next to continue.

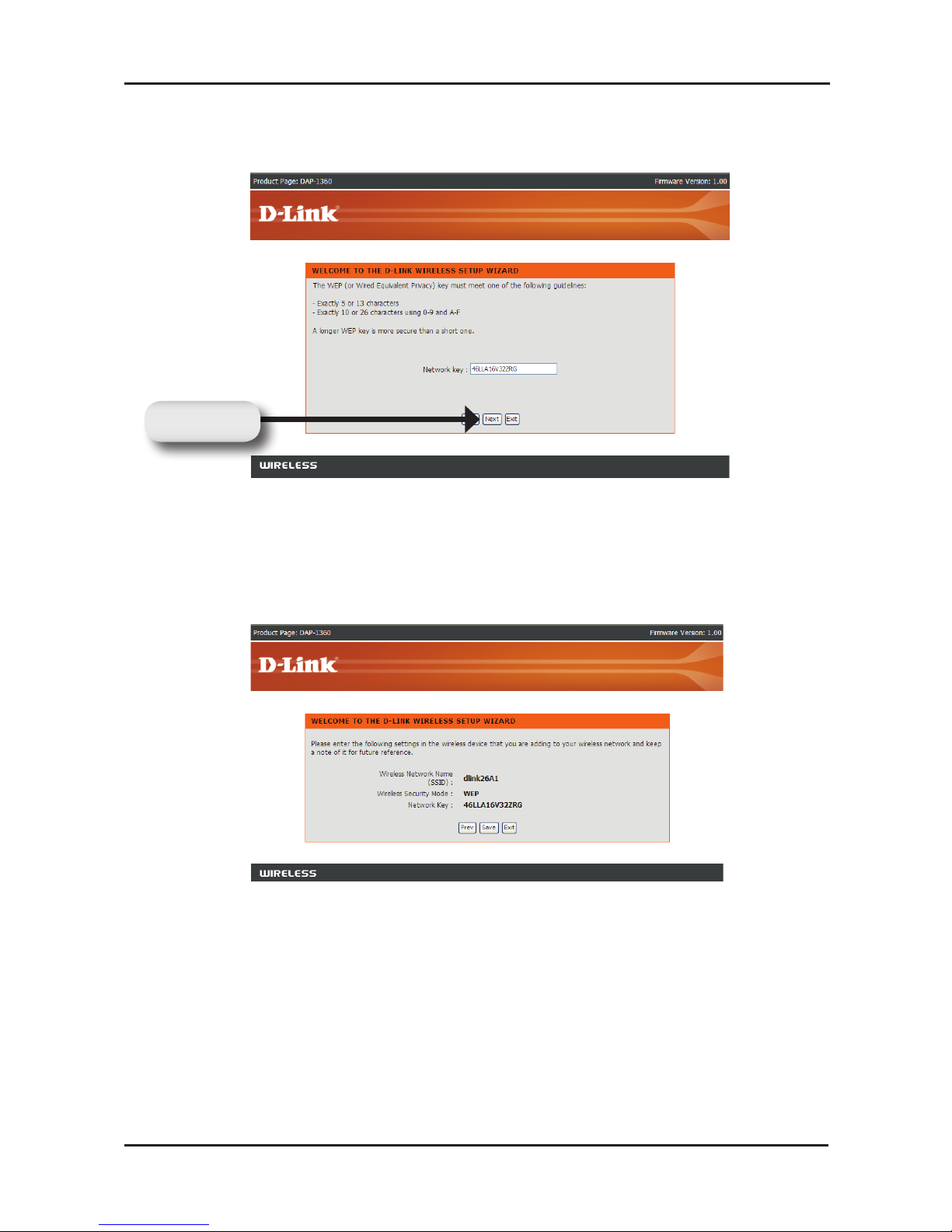

If you choose WEP encryption, a following screen will show you your
Network Key to enter on your wireless clients.
Click Save to nish the Setup Wizard.

8

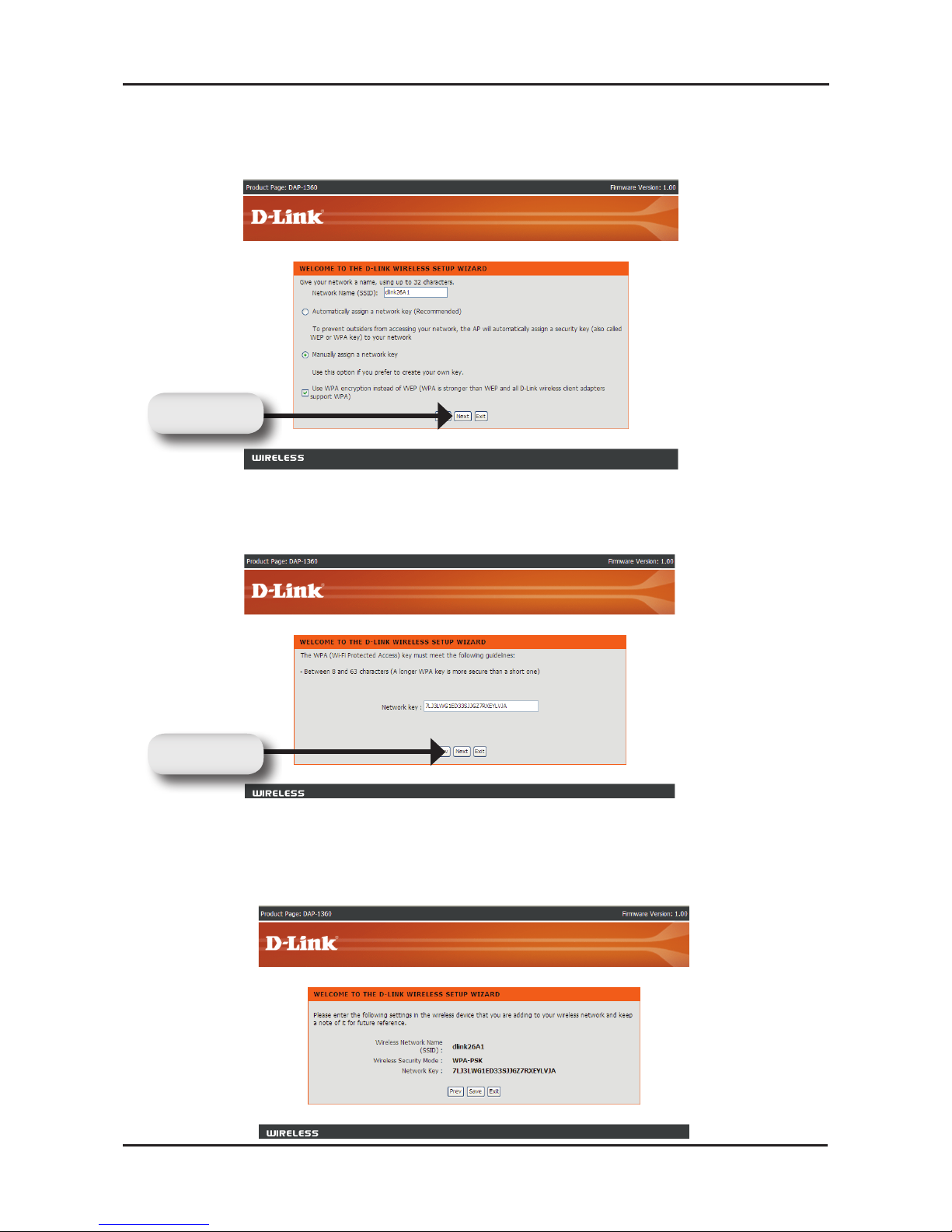

For WPA encryption, enter a Network Key between 8 and 63 characters
long or enter exactly 64 characters using 0-9 and A-Z.
Choose Manually assign a network key to create your own key and click
Next to continue.
If you select WPA encryption, the following screen will display the network
key to be entered on your wireless clients.
Click Save to nish the Setup Wizard.
Click Next
Click Next
