2D-Link DWL-2100AP Quick Install Guide
System Requirements
Package Contents
• Access Point
• Antenna
• CD-ROM (with software, manual, and warranty)
• Ethernet Cable
• 5V/2A Power Adapter
• Rubber Feet
• A Network with 802.11g/b wireless devices
It’s best to use a computer (with an Ethernet adapter)
that is connected to a switch or router for configuring the
DWL-2100AP.The default IP address for the DWL-2100AP
is 192.168.0.50 with a Subnet Mask of 255.255.255.0.
You will need to assign your computer a Static IP address
within the same range as the DWL-2100AP’s IP address
for the purpose of configuring the DWL-2100AP. See the
Appendix if you need assistance in assigning a Static IP
address for your network adapter.
Before You Begin

3 D-Link DWL-2100AP Quick Install Guide
Installation Considerations
D-Link wireless devices allow you access your network using a wireless connection
from virtually anywhere within the operating range of your wireless network. Keep
in mind, however, that the number, thickness and location of walls, ceilings, or
other objects that the wireless signals must pass through, may limit the range.
Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point
and other network devices to a minimum - each wall or ceiling can reduce
your adapter’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5
feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum
studs may have a negative effect on range. Try to position access points,
wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete
will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as
ceiling fans, lights, and home security systems), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz
phone base is as far away from your wireless devices as possible. The
base transmits a signal even if the phone in not in use.

4D-Link DWL-2100AP Quick Install Guide

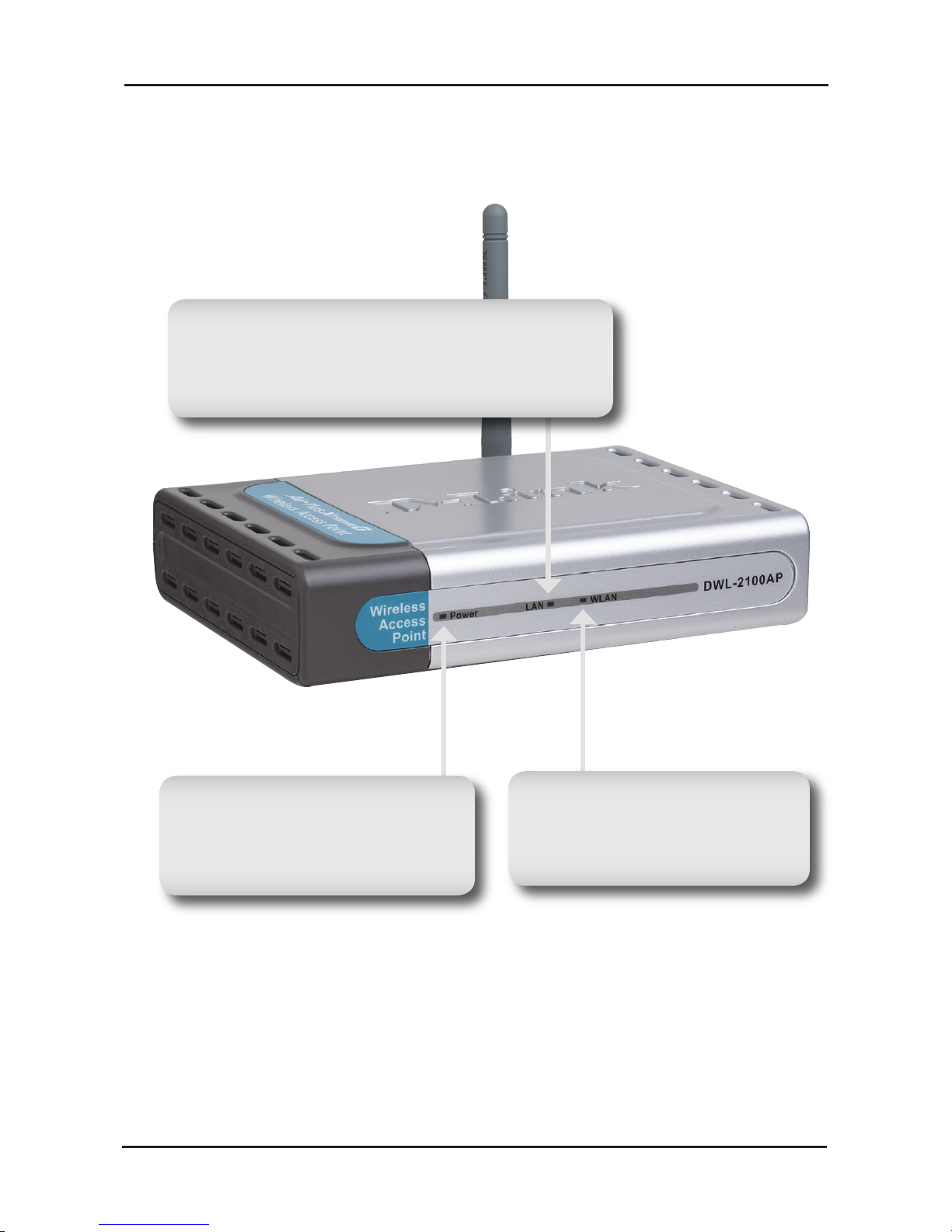

Front Panel
LAN
A blinking light indicates data is being
transmitted via the Ethernet port.
Power
A solid light indicates the
unit is properly powered.
WLAN
Blinking green indicates
wireless network activity.

5 D-Link DWL-2100AP Quick Install Guide

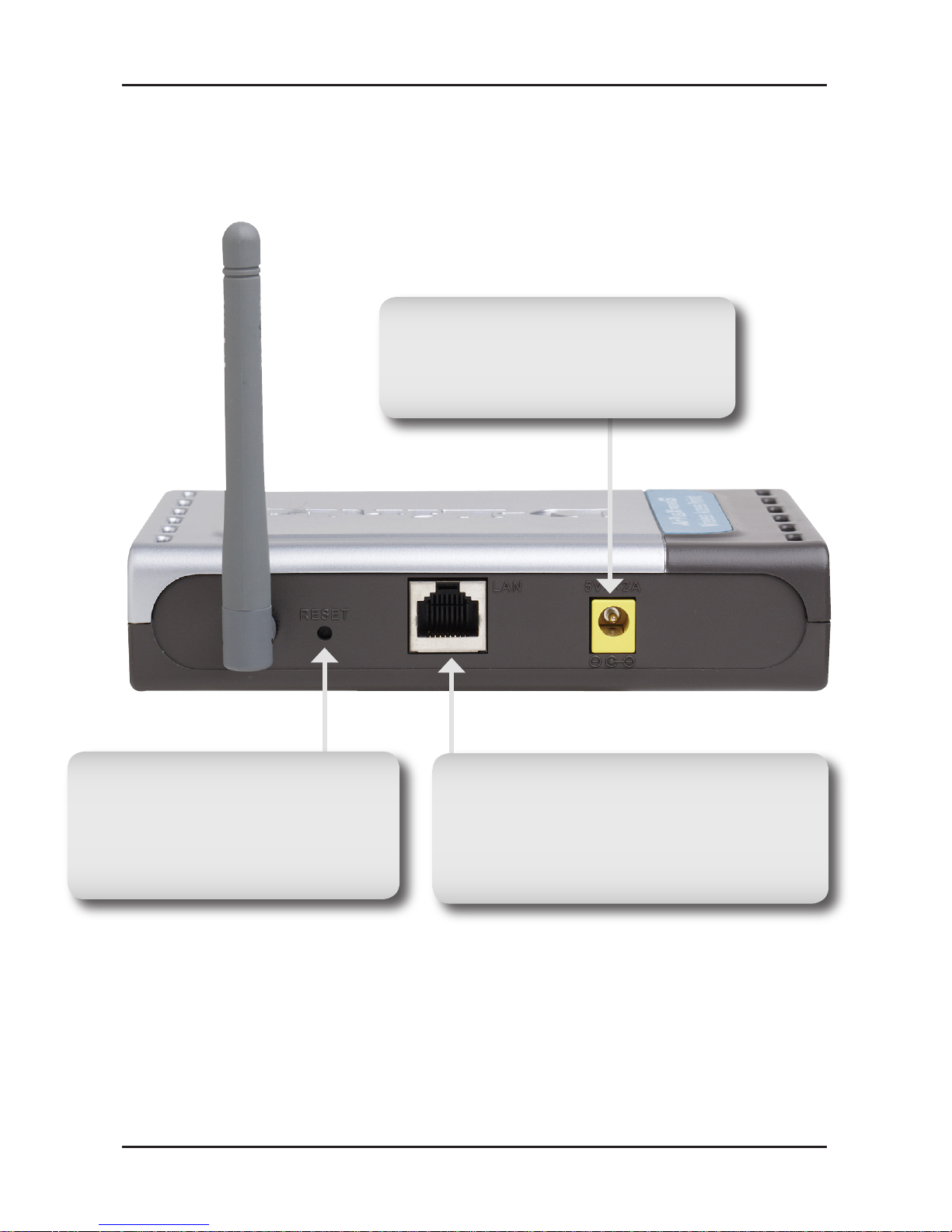

Rear Panel
Ethernet Port
Connects the DWL-2100AP to a
router or switch using an Ethernet
cable.
Reset Button
Pressing this button restores
the Access Point to its original
factory default settings.
Power Receptor
Used to connect the supplied
power adapter.

6D-Link DWL-2100AP Quick Install Guide
A. First, connect the power adapter to the receptor at the
back panel of the DWL-2100AP and then plug the other
end of the power adapter to a wall outlet or power strip.The
Power LED will turn ON to indicate proper operation.
B. Insert one end of the cable to the Ethernet port on the
back panel of the DWL-2100AP and the other end of the
cable to your network (switch or router).
Note: You also have the option of connecting the
DWL-2100AP directly to the computer that will be used
for configuration. The Link LED light will illuminate
to indicate a proper Ethernet connection. (Note: The
Ethernet Port on the DWL-2100AP is Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover
Ethernet cable to connect to the Ethernet port on the
DWL-2100AP.)
C. The DWL-G650 AirPlus Xtreme G Wireless Cardbus
Adapter and the DWL-G520 AirPlus Xtreme G Wireless
PCI Adapter will connect, out of the box, with the
DWL-2100AP, using their default wireless settings.
Computers with 802.11b wireless adapters can also
connect to the DWL-2100AP.
Connecting the DWL-2100AP Wireless
Access Point to Your Network

7 D-Link DWL-2100AP Quick Install Guide

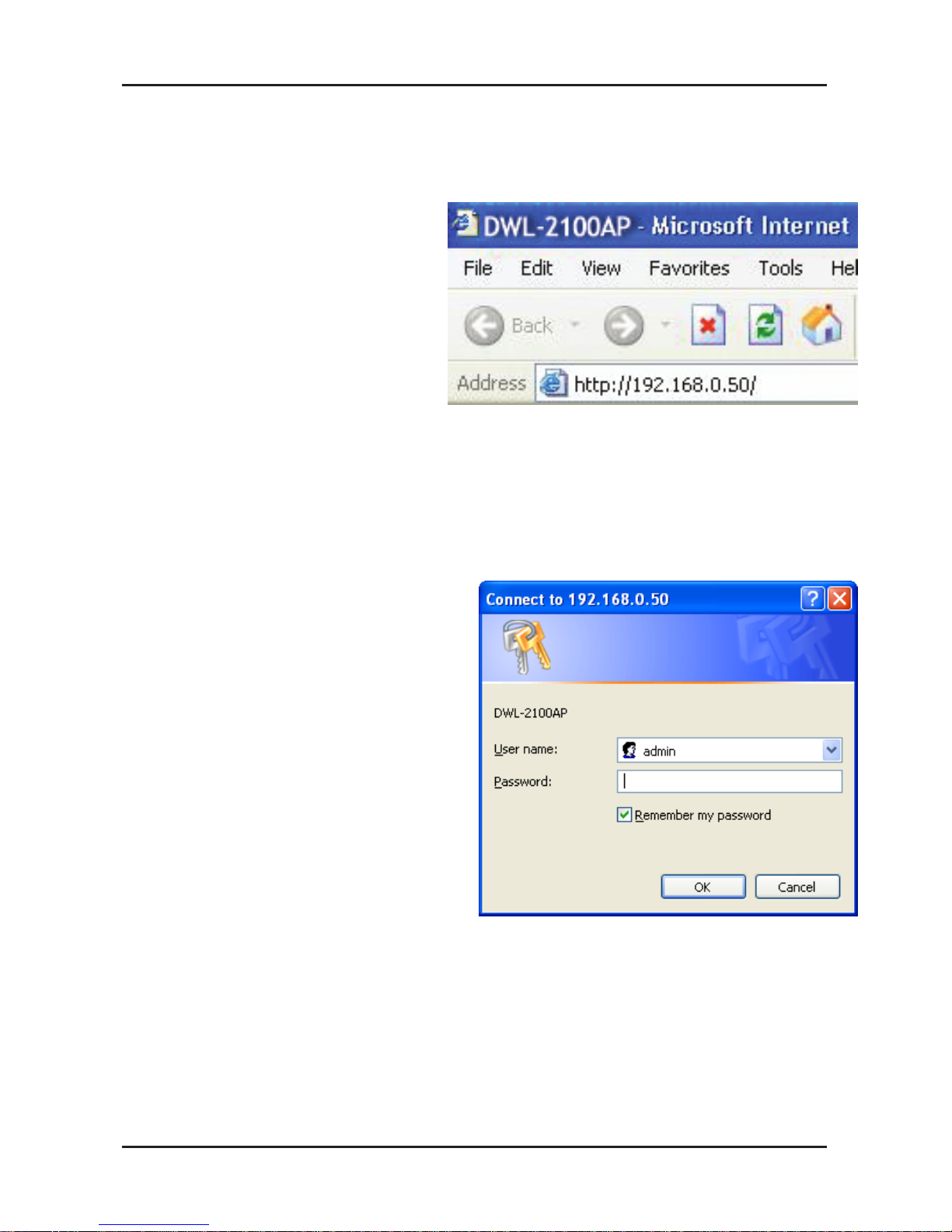

Open your Web browser and
type http://192.168.0.50
into the URL address box.
Then press the Enter or
Return key.
Type admin for the username
and leave the password field
blank.
Click OK
Setup Wizard

8D-Link DWL-2100AP Quick Install Guide

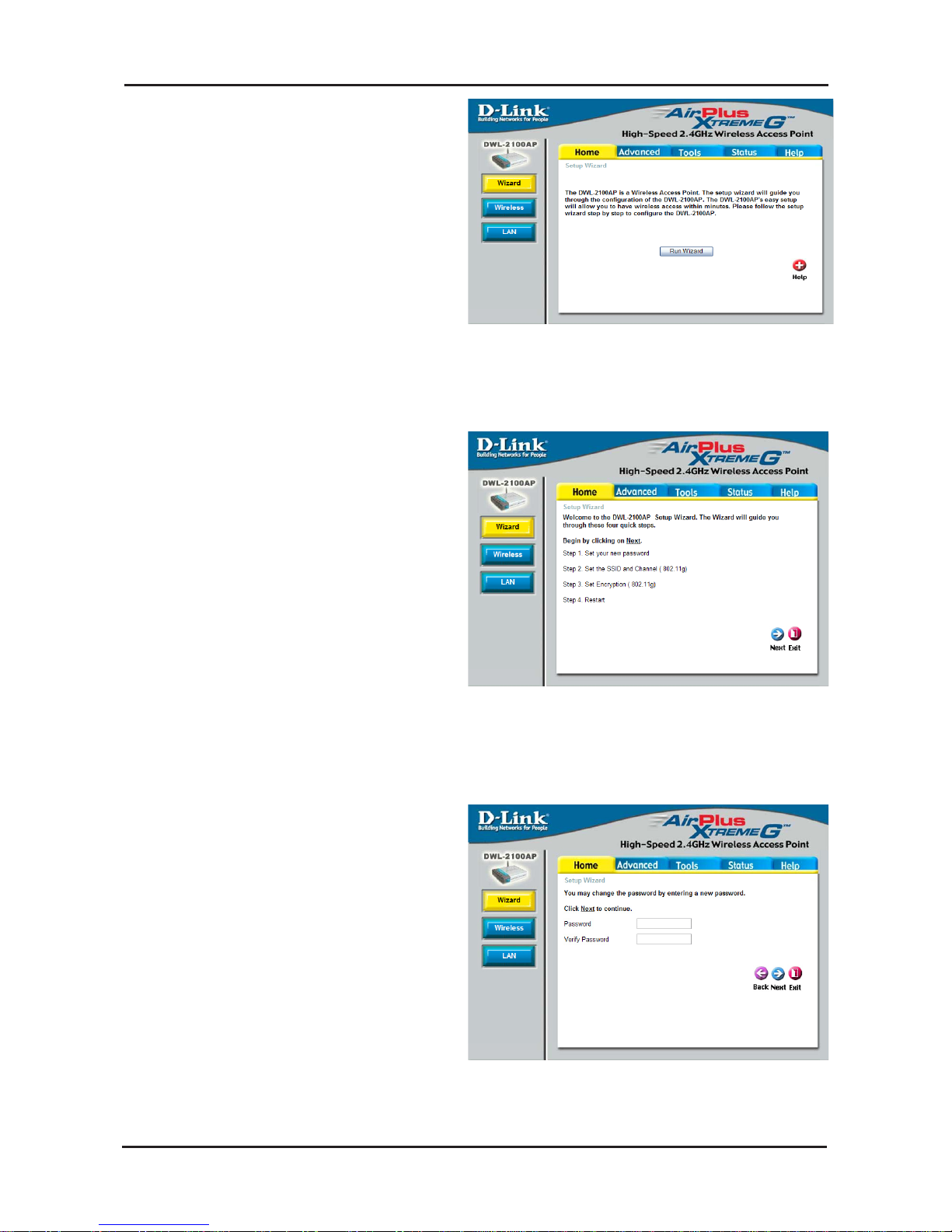

Once you have logged
in, the Home screen will
appear.
You will see the following
screen.
Click Run Wizard
Click Next
Click Next
Step 1 - Set up your new
password. You have the option
to establish a password.

9 D-Link DWL-2100AP Quick Install Guide

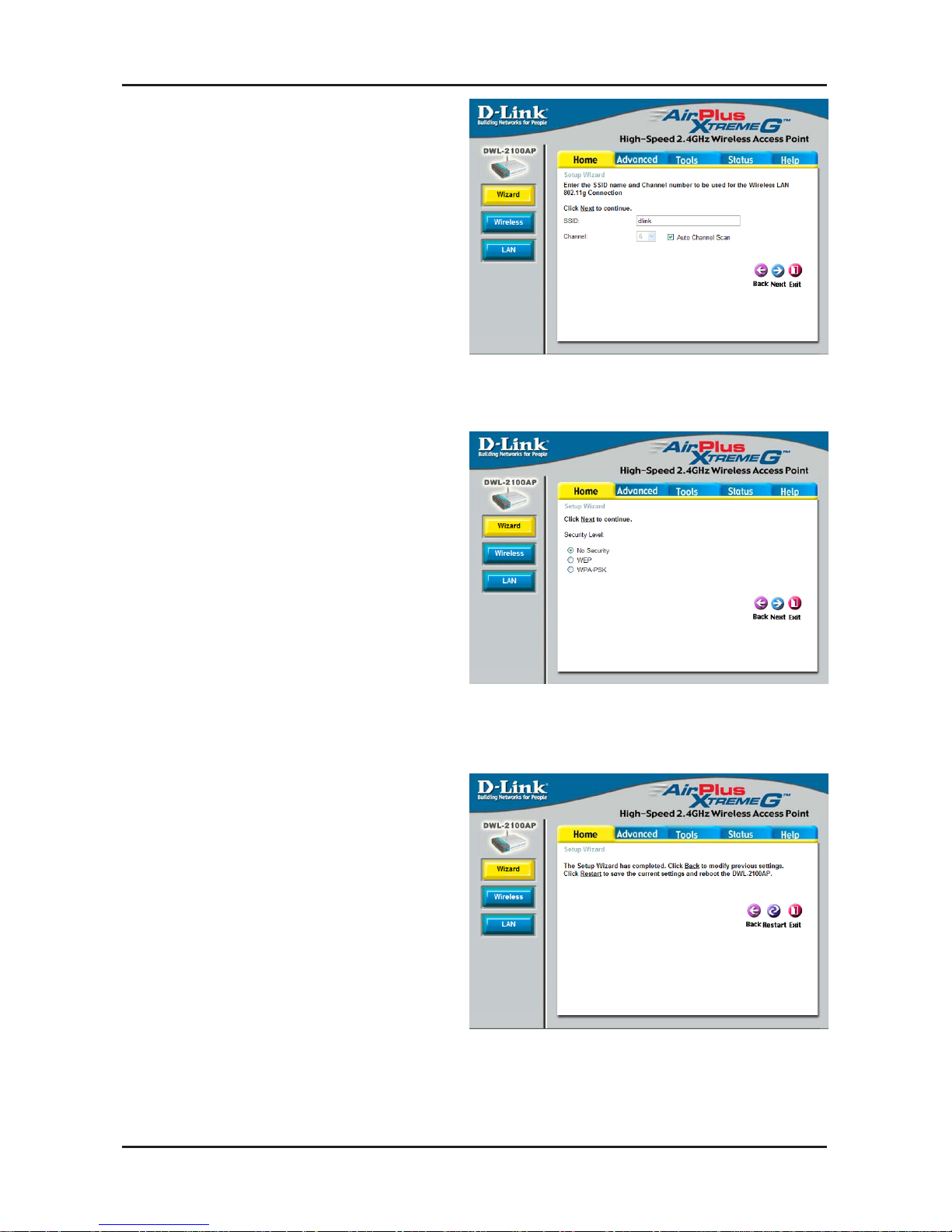

Step 2 - Wireless Setup
The default wireless settings
are:
SSID = dlink
You can change these settings
to match an existing wireless
network.
Click Next
Step 3 - Encryption
The DWL-2100AP is capable of
two levels of wireless encryption
WEP and WPA-PSK. By default
the encryption is disabled. You
can change the encryption
settings for more secure wireless
communication.
Your Setup is Complete!
Click Next
Click Restart

10D-Link DWL-2100AP Quick Install Guide

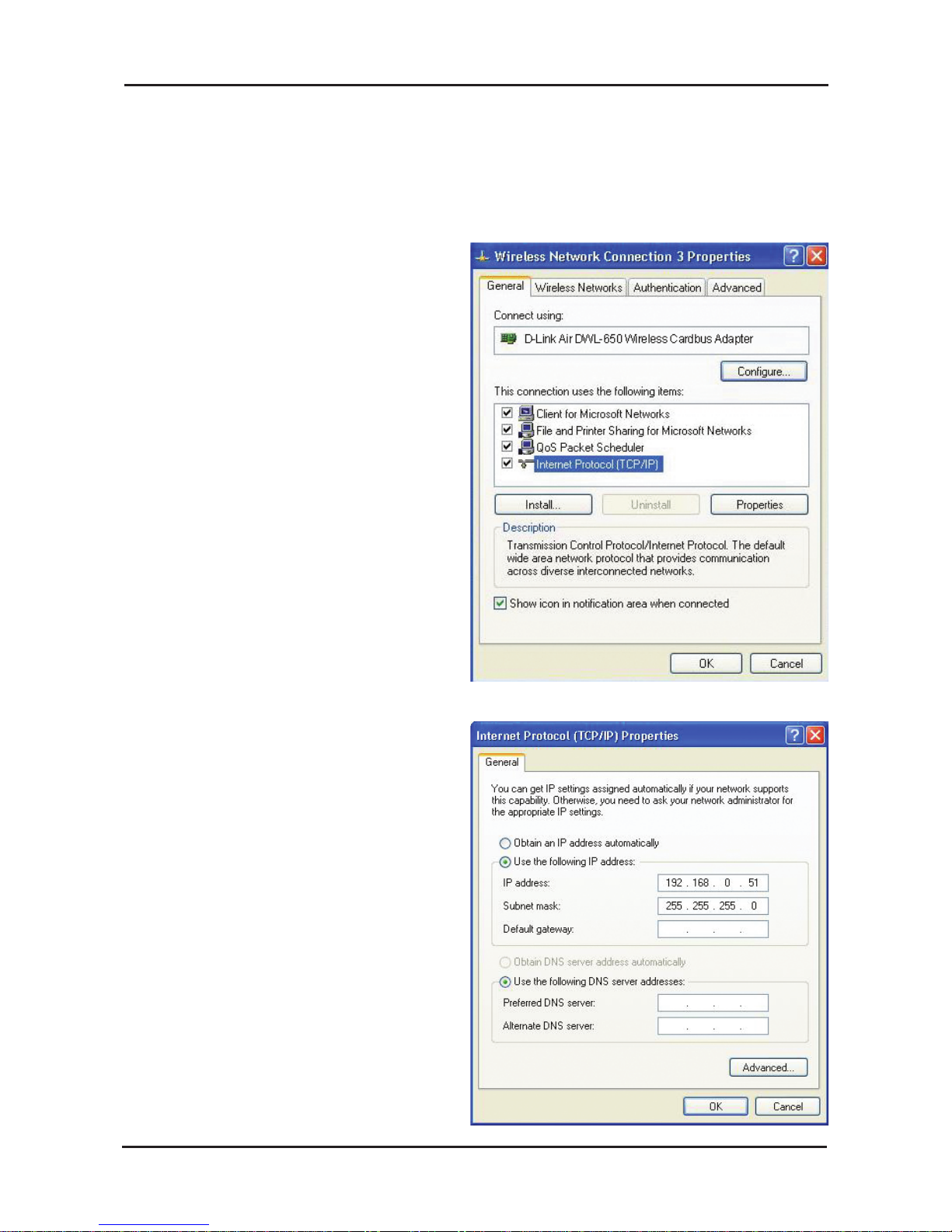

To assign a Static IP Address to the laptop or computer that you are
using to configure the DWL-2100AP, please do the following:
Assigning a Static IP Address in Windows®
Go to Start > Double-click Control
Panel > Double-click Network
Connections > Right-click on
Local Area Connections > Click
Properties
Highlight Internet Protocol
(TCP/IP)
Click Properties
Select Use the following IP
address in the Internet Protocol
(TCP/IP) Properties window
Click OK
Input your IP address and
subnet mask. (The IP Address
must be within the same range
as the DWL-2100AP. The IP
Address of the DWL-2100AP is
192.168.0.50. You can assign
192.168.0.51 for your computer.
No two computers can have
the same IP Address. Assign a
subnet mask of 255.255.255.0.)

11 D-Link DWL-2100AP Quick Install Guide
Notes

12D-Link DWL-2100AP Quick Install Guide
Version 2.0
May 24, 2006
