D-Link DWL-2600AP Service manual

UNIFIED ACCESS POINT
ADMINISTRATOR’S GUIDE
PRODUCT MODEL: DWL-2600AP, DWL-3600AP, DWL-6600AP, DWL-6700AP,
DWL-8600AP, DWL-6610AP, DWL-8610AP
UNIFIED WIRED &WIRELESS ACCESS SYSTEM
RELEASE 6.00
January 2015
© COPYRIGHT 2015. ALL RIGHTS RESERVED

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 2
January 2015
Table of Contents
Section 1 - About This Document ............................................................................................9
Document Organization......................................................................................................................................... 9
Additional Documentation ..................................................................................................................................... 9
Document Conventions......................................................................................................................................... 9
Online Help, Supported Browsers, and Limitations............................................................................................. 10
Section 2 - Getting Started......................................................................................................11
Administrator’s Computer Requirements ............................................................................................................ 11
Wireless Client Requirements............................................................................................................................. 12
Dynamic and Static IP Addressing on the AP...................................................................................................... 13
Recovering an IP Address............................................................................................................................. 13
Discovering a Dynamically Assigned IP Address .......................................................................................... 13
Installing the UAP................................................................................................................................................ 13
Basic Settings...................................................................................................................................................... 16
Connecting to the AP Web Interface by Using the IPv6 Address.................................................................. 17
Using the CLI to View the IP Address..................................................................................................................17
Conguring the Ethernet Settings ....................................................................................................................... 18
Using the CLI to Congure Ethernet Settings ............................................................................................... 18
Conguring IEEE 802.1X Authentication............................................................................................................. 19
Using the CLI to Congure 802.1X Authentication Information..................................................................... 20
Verifying the Installation ...................................................................................................................................... 20
Conguring Security on the Wireless Access Point............................................................................................. 21
Section 3 - Viewing Access Point Status...............................................................................22
Viewing Interface Status...................................................................................................................................... 22
Wired Settings (Internal Interface) ................................................................................................................ 22
Wireless Settings .......................................................................................................................................... 22
Viewing Events.................................................................................................................................................... 23
Conguring Persistent Logging Options........................................................................................................ 23
Conguring the Log Relay Host for Kernel Messages .................................................................................. 24
Enabling or Disabling the Log Relay Host on the Events Page .................................................................... 24
Viewing Transmit and Receive Statistics............................................................................................................. 25
Viewing Associated Wireless Client Information ................................................................................................. 26
Viewing TSPEC Client Associations.................................................................................................................... 26
Link Integrity Monitoring ................................................................................................................................ 28
Viewing Rogue AP Detection............................................................................................................................... 28
Saving and Importing the Known AP List ...................................................................................................... 30
Viewing Managed AP DHCP Information ............................................................................................................ 31
Viewing TSPEC Status and Statistics Information .............................................................................................. 31
Viewing TSPEC AP Statistics Information ........................................................................................................... 32
Viewing Radio Statistics Information................................................................................................................... 33
Viewing Email Alert Operational Status............................................................................................................... 34
Section 4 - Managing the Access Point .................................................................................35
Ethernet Settings................................................................................................................................................. 35
Wireless Settings................................................................................................................................................. 37
Using the 802.11h Wireless Mode................................................................................................................. 39
Enabling AeroScout™ Engine Support ......................................................................................................... 39
Modifying Radio Settings..................................................................................................................................... 40
Conguring Radio and VAP Scheduler................................................................................................................ 44
Scheduler Association Settings........................................................................................................................... 46
Virtual Access Point Settings............................................................................................................................... 47
None (Plain-text) ........................................................................................................................................... 50
Static WEP .................................................................................................................................................... 50
IEEE 802.1X.................................................................................................................................................. 51
WPA Personal ............................................................................................................................................... 53
WPA Enterprise ............................................................................................................................................. 54
Conguring the Wireless Distribution System (WDS) ......................................................................................... 56
WEP on WDS Links ...................................................................................................................................... 57
WPA/PSK on WDS Links .............................................................................................................................. 58

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 3
January 2015
Controlling Access by MAC Authentication ......................................................................................................... 58
Conguring a MAC Filter and Station List on the AP..................................................................................... 59
Conguring MAC Authentication on the RADIUS Server .............................................................................. 59
Conguring Load Balancing ................................................................................................................................ 60
Managed Access Point Overview........................................................................................................................ 60
Transitioning Between Modes ....................................................................................................................... 61
Conguring Managed Access Point Settings ................................................................................................ 61
Conguring 802.1X Authentication ...................................................................................................................... 62
Creating a Management Access Control List (ACL)............................................................................................ 63
Section 5 - Conguring Access Point Services ....................................................................65
Web Server Settings ........................................................................................................................................... 65
Conguring SNMP on the Access Point .............................................................................................................. 66
Setting the SSH Status........................................................................................................................................ 68
Setting the Telnet Status ..................................................................................................................................... 69
Conguring Quality of Service............................................................................................................................. 69
Conguring Email Alert........................................................................................................................................ 72
Enabling the Time Settings (NTP) ....................................................................................................................... 73
Section 6 - Conguring SNMPv3............................................................................................75
Conguring SNMPv3 Views ................................................................................................................................ 75
Conguring SNMPv3 Groups .............................................................................................................................. 76
Conguring SNMPv3 Users ................................................................................................................................ 77
Conguring SNMPv3 Targets .............................................................................................................................. 78
Section 7 - Maintaining the Access Point..............................................................................79
Saving the Current Conguration to a Backup File ............................................................................................. 79
Restoring the Conguration from a Previously Saved File.................................................................................. 80
Performing AP Maintenance................................................................................................................................ 81
Resetting the Factory Default Conguration ................................................................................................. 81
Rebooting the Access Point .......................................................................................................................... 81
Upgrading the Firmware...................................................................................................................................... 81
Packet Capture Conguration and Settings ........................................................................................................ 83
Packet Capture Status .................................................................................................................................. 83
Packet Capture Parameter Conguration ..................................................................................................... 84
Packet File Capture....................................................................................................................................... 84
Remote Packet Capture................................................................................................................................ 85
Packet Capture File Download...................................................................................................................... 87
Section 8 - Conguring Client Quality of Service (QoS) ......................................................88
Conguring VAP QoS Parameters ...................................................................................................................... 88
Managing Client QoS ACLs................................................................................................................................. 89
IPv4 and IPv6 ACLs ...................................................................................................................................... 89
MAC ACLs..................................................................................................................................................... 90
ACL Conguration Process ........................................................................................................................... 90
Creating a DiffServ Class Map ............................................................................................................................ 95
Dening DiffServ ........................................................................................................................................... 96
Creating a DiffServ Policy Map ......................................................................................................................... 100
Client QoS Status.............................................................................................................................................. 101
Conguring RADIUS-Assigned Client QoS Parameters ................................................................................... 102
Section 9 - Clustering Multiple APs .....................................................................................104
Managing Cluster Access Points in the Cluster................................................................................................. 104
Clustering APs............................................................................................................................................. 104
Viewing and Conguring Cluster Members................................................................................................. 104
Removing an Access Point from the Cluster............................................................................................... 106
Adding an Access Point to a Cluster ........................................................................................................... 106
Navigating to Conguration Information for a Specic AP........................................................................... 106
Navigating to an AP by Using its IP Address in a URL................................................................................ 106
Managing Cluster Sessions............................................................................................................................... 106
Sorting Session Information ........................................................................................................................ 107
Conguring and Viewing Channel Management Settings ................................................................................. 108
Stopping/Starting Automatic Channel Assignment...................................................................................... 108
Viewing Current Channel Assignments and Setting Locks ......................................................................... 109

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 4
January 2015
Viewing the Last Proposed Set of Changes................................................................................................ 109
Conguring Advanced Settings ................................................................................................................... 109
Viewing Wireless Neighborhood Information .................................................................................................... 110
Viewing Details for a Cluster Member......................................................................................................... 112
Appendix A - Default AP Settings.........................................................................................113
Appendix B - Conguration Examples ................................................................................115
Conguring a VAP ............................................................................................................................................. 115
VAP Conguration from the Web Interface ................................................................................................. 115
VAP Conguration from the CLI .................................................................................................................. 116
VAP Conguration Using SNMP ................................................................................................................. 116
Conguring Radio Settings................................................................................................................................ 117
Radio Conguration from the Web Interface............................................................................................... 117
Radio Conguration from the CLI................................................................................................................ 117
Radio Conguration Using SNMP............................................................................................................... 118
Conguring the Wireless Distribution System ................................................................................................... 118
WDS Conguration from the Web Interface................................................................................................ 118
WDS Conguration from the CLI................................................................................................................. 119
WDS Conguration Using SNMP................................................................................................................ 119
Clustering Access Points................................................................................................................................... 119
Clustering APs by Using the Web Interface ................................................................................................ 119
Clustering APs by Using the CLI ................................................................................................................. 120
Clustering APs by Using SNMP .................................................................................................................. 120
Conguring Client QoS ..................................................................................................................................... 121
Conguring QoS by Using the Web Interface ............................................................................................. 121
Conguring QoS by Using the CLI .............................................................................................................. 124
Appendix C - DWL-6700AP Prole and Conguration Table .............................................127
Appendix D - Statements ......................................................................................................129

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 5
January 2015
List of Figures
Figure 1 - Administrator UI Online Help................................................................................................................... 10
Figure 2 - Web UI Login Prompt.............................................................................................................................. 14

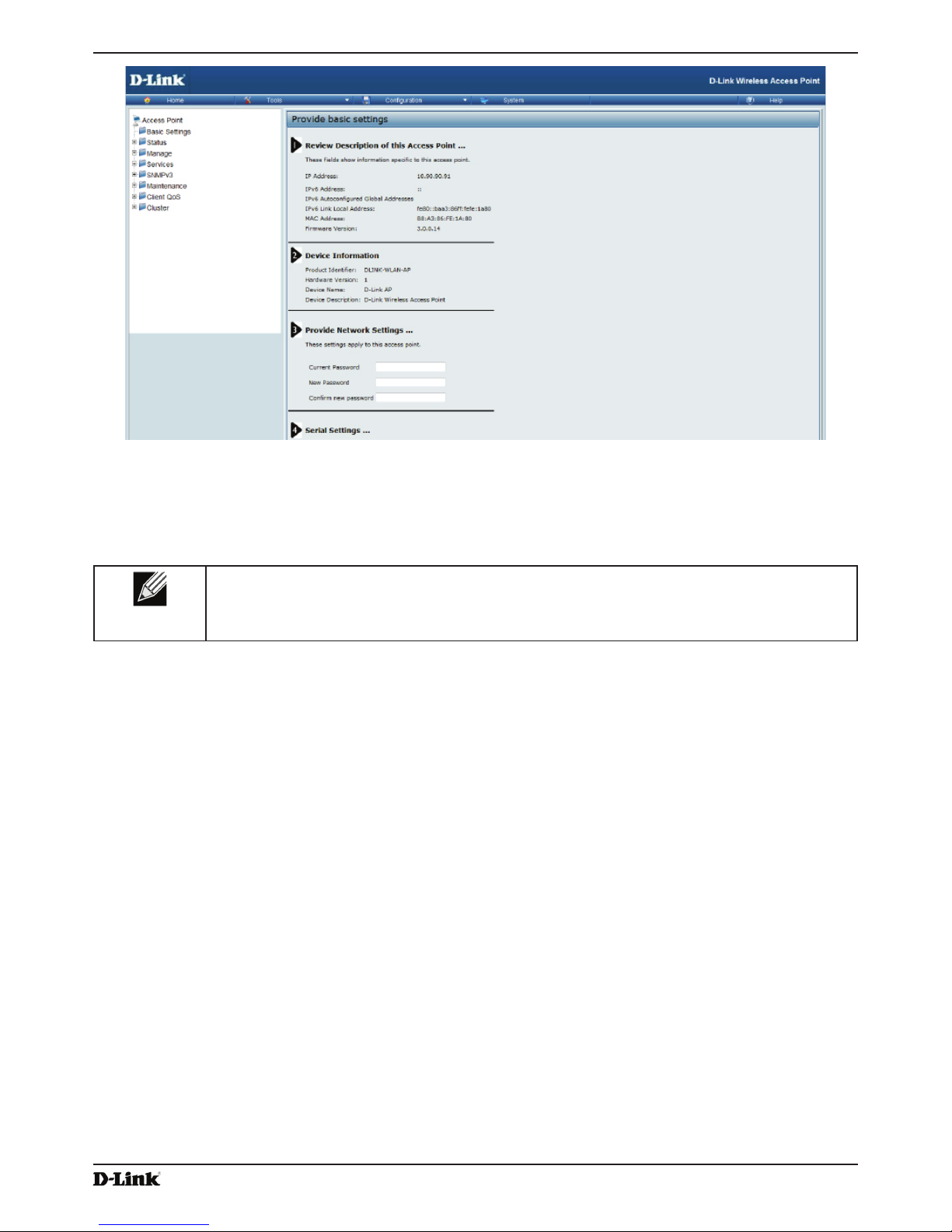

Figure 3 - Provide Basic Settings ............................................................................................................................ 15
Figure 4 - Command Line Interface (CLI) Connection ............................................................................................ 18
Figure 5 - Viewing Interface Status ......................................................................................................................... 22
Figure 6 - Viewing Events........................................................................................................................................ 23
Figure 7 - Viewing Trafc Statistics ......................................................................................................................... 25
Figure 8 - Viewing Client Association Information ................................................................................................... 26
Figure 9 - Viewing TSPEC Client Associations ....................................................................................................... 27
Figure 10 - Viewing Rogue and Known Access Points............................................................................................ 28
Figure 11 - Managed AP DHCP Information............................................................................................................ 31
Figure 12 - Viewing TSPEC Status and Statistics ................................................................................................... 31
Figure 13 - View TSPEC Status and Statistics........................................................................................................ 32
Figure 14 - View Radio Statistics............................................................................................................................. 33
Figure 15 - Email Alert Operational Status .............................................................................................................. 34
Figure 16 - Modify Ethernet (Wired) settings........................................................................................................... 35
Figure 17 - Modify Wireless Settings....................................................................................................................... 37
Figure 18 - Modify Radio Settings ........................................................................................................................... 40
Figure 19 - Scheduler Conguration ....................................................................................................................... 45
Figure 20 - Scheduler Conguration (Modify Rule) ................................................................................................. 46
Figure 21 - Scheduler Association Settings............................................................................................................. 46
Figure 22 - Modify Virtual Access Point Settings..................................................................................................... 48
Figure 23 - Modify Virtual Access Point Settings (Static WEP) ............................................................................... 50
Figure 24 - Modify Virtual Access Point Settings (IEEE802.1X).............................................................................. 52
Figure 25 - Modify Virtual Access Point Settings (WPA Personal) .......................................................................... 53
Figure 26 - Modify Virtual Access Point Settings (WPA Enterprise) ........................................................................ 54
Figure 27 - Congure WDS Bridges........................................................................................................................ 57
Figure 28 - Congure MAC Authentication.............................................................................................................. 59
Figure 29 - Modify Load Balancing Settings............................................................................................................ 60
Figure 30 - Congure Managed AP Wireless Switch Parameters........................................................................... 62
Figure 31 - Modify 802.1X Supplicant Authentication Settings................................................................................ 63
Figure 32 - Congure Management Access Control Parameters............................................................................ 64
Figure 33 - Congure Web Server Settings............................................................................................................. 65
Figure 34 - SNMP Conguration ............................................................................................................................. 67
Figure 35 - Set SSH Status ..................................................................................................................................... 68
Figure 36 - Set Telnet Status ................................................................................................................................... 69
Figure 37 - Modify QoS Queue Parameters............................................................................................................ 70
Figure 38 - Email Alerts Conguration..................................................................................................................... 72
Figure 39 - Time Settings (NTP).............................................................................................................................. 74
Figure 40 - SNMPv3 Views Conguration............................................................................................................... 75
Figure 41 - SNMPv3 Groups Conguration............................................................................................................. 76
Figure 42 - SNMPv3 User Conguration................................................................................................................. 77
Figure 43 - SNMPv3 Targets Conguration............................................................................................................. 78
Figure 44 - Manage this Access Point’s Conguration - Save (TFTP) .................................................................... 79
Figure 45 - Manage this Access Point’s Conguration - Save (HTTP).................................................................... 79
Figure 46 - Conrmation Prompt ............................................................................................................................. 80
Figure 47 - Manage this Access Point’s Conguration - Restore (TFTP)................................................................ 80
Figure 48 - Manage this Access Point’s Conguration - Restore (HTTP) ............................................................... 80
Figure 49 - Performing AP Maintenance ................................................................................................................. 81
Figure 50 - Manage Firmware (TFTP)..................................................................................................................... 82
Figure 51 - Manage Firmware (HTTP) .................................................................................................................... 82
Figure 52 - Packet Capture Conguration & Settings ............................................................................................. 83
Figure 53 - Packet Capture Status .......................................................................................................................... 84
Figure 54 - Packet Capture Conguration............................................................................................................... 84
Figure 55 - Packet File Capture .............................................................................................................................. 85
Figure 56 - Remote Packet Capture........................................................................................................................ 86
Figure 57 - Packet Capture File Download ............................................................................................................. 87
Figure 58 - Congure Client QoS VAP Settings ...................................................................................................... 88
Figure 59 - Congure Client QoS ACL Settings ...................................................................................................... 90

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 6
January 2015
Figure 60 - Congure Client QoS DiffServ Class Map Settings .............................................................................. 96
Figure 61 - Congure Client QoS DiffServ Policy Map Settings............................................................................ 100
Figure 62 - QoS Conguration Status For Associated Clients .............................................................................. 101
Figure 63 - Manage Access Points In The Cluster (Passive) ................................................................................ 104
Figure 64 - Manage Access Points In The Cluster (Active)................................................................................... 105
Figure 65 - Manage Sessions Associated With The Cluster ................................................................................. 107
Figure 66 - Automatically Manage Channel Assignments ..................................................................................... 108
Figure 67 - View Neighboring Access Points..........................................................................................................111
Figure 68 - Viewing Details For A Cluster Member................................................................................................ 112
Figure 69 - VAP Conguration from the Web Interface ......................................................................................... 115
Figure 70 - Radio Conguration from the Web Interface....................................................................................... 117
Figure 71 - WDS Conguration from the Web Interface........................................................................................ 118
Figure 72 - Clustering APs by Using the Web Interface (Passive) ........................................................................ 119
Figure 73 - Clustering APs by Using the Web Interface (Active)........................................................................... 120
Figure 74 - Conguring QoS by Using the Web Interface (ACL Name) ................................................................ 121
Figure 75 - Conguring QoS by Using the Web Interface (Rule1) ........................................................................ 121
Figure 76 - Conguring QoS by Using the Web Interface (Rule2) ........................................................................ 122
Figure 77 - Conguring QoS by Using the Web Interface (VAP QoS Parameters) ............................................... 122
Figure 78 - Conguring QoS by Using the Web Interface (Class Map Name) ...................................................... 123
Figure 79 - Conguring QoS by Using the Web Interface (Rule) .......................................................................... 123
Figure 80 - Congure Client QoS DiffServ Policy Map Settings (Policy Map Name) ............................................ 123
Figure 81 - Congure Client QoS DiffServ Policy Map Settings (Rule)................................................................. 124
Figure 82 - Congure Client QoS VAP Settings .................................................................................................... 124

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 7
January 2015
List of Tables
Table 1 - Typographical Conventions ...................................................................................................................... 10
Table 2 - Requirements for the Administrator’s Computer....................................................................................... 12
Table 3 - Requirements for Wireless Clients ........................................................................................................... 12
Table 4 - Basic Settings Page ................................................................................................................................. 17
Table 5 - CLI Commands for Ethernet Setting ........................................................................................................ 19
Table 6 - CLI Commands for the 802.1X Supplicant ............................................................................................... 20
Table 7 - Logging Options ....................................................................................................................................... 24
Table 8 - Log Relay Host ......................................................................................................................................... 24
Table 9 - Transmit/Receive...................................................................................................................................... 26
Table 10 - Associated Clients .................................................................................................................................. 26
Table 11 - TSPEC Client Associations..................................................................................................................... 28
Table 12 - Rogue AP Detection ............................................................................................................................... 30
Table 13 - TSPEC Status and Statistics .................................................................................................................. 32
Table 14 - TSPEC AP Statistics............................................................................................................................... 33
Table 15 - Radio Statistics Information.................................................................................................................... 34
Table 16 - Email Alert Status ................................................................................................................................... 34
Table 17 - Ethernet Settings .................................................................................................................................... 36
Table 18 - Wireless Settings.................................................................................................................................... 39
Table 19 - Radio Settings ........................................................................................................................................ 44
Table 20 - Scheduler Conguration ......................................................................................................................... 45
Table 21 - Scheduler Association Settings .............................................................................................................. 47
Table 22 - Virtual Access Point Settings.................................................................................................................. 50
Table 23 - Static WEP.............................................................................................................................................. 51
Table 24 - IEEE 802.1X ........................................................................................................................................... 53
Table 25 - WPA Personal......................................................................................................................................... 54
Table 26 - WPA Enterprise....................................................................................................................................... 56
Table 27 - WDS Settings ......................................................................................................................................... 57
Table 28 - WEP on WDS Links................................................................................................................................ 58
Table 29 - WPA/PSK on WDS Links........................................................................................................................ 58
Table 30 - MAC Authentication ................................................................................................................................ 60
Table 31 - RADIUS Server Attributes for MAC Authentication................................................................................. 60
Table 32 - Load Balancing....................................................................................................................................... 61
Table 33 - Managed Access Point ........................................................................................................................... 62
Table 34 - IEEE 802.1X Supplicant Authentication.................................................................................................. 63
Table 35 - Management ACL................................................................................................................................... 64
Table 36 - Web Server Settings............................................................................................................................... 66
Table 37 - SNMP Settings ....................................................................................................................................... 68
Table 38 - SSH Settings .......................................................................................................................................... 69
Table 39 - Telnet Settings ........................................................................................................................................ 69
Table 40 - QoS Settings .......................................................................................................................................... 72
Table 41 - Email Alert Conguration ........................................................................................................................ 73
Table 42 - NTP Settings........................................................................................................................................... 74
Table 43 - SNMPv3 Views....................................................................................................................................... 75
Table 44 - SNMPv3 Groups..................................................................................................................................... 77
Table 45 - SNMPv3 Users ....................................................................................................................................... 77
Table 46 - SNMPv3 Targets..................................................................................................................................... 78
Table 47 - Packet Capture Status............................................................................................................................ 84
Table 48 - Packet Capture Conguration ................................................................................................................ 84
Table 49 - Packet File Capture ................................................................................................................................ 85
Table 50 - Remote Packet Capture ......................................................................................................................... 87
Table 51 - Packet Capture File Download ............................................................................................................... 87
Table 52 - VAP QoS Parameters ............................................................................................................................. 89
Table 53 - ACL Conguration................................................................................................................................... 95
Table 54 - DiffServ Class Map................................................................................................................................. 99
Table 55 - DiffServ Policy Map .............................................................................................................................. 101
Table 56 - Client QoS Status ................................................................................................................................. 102
Table 57 - Client QoS RADIUS Attributes.............................................................................................................. 103
Table 58 - Access Points in the Cluster ................................................................................................................. 105
Table 59 - Cluster Options..................................................................................................................................... 105

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 8
January 2015
Table 60 - Session Management........................................................................................................................... 107
Table 61 - Channel Assignments........................................................................................................................... 109
Table 62 - Last Proposed Changes ....................................................................................................................... 109
Table 63 - Advanced Channel Management Settings ........................................................................................... 110
Table 64 - Wireless Neighborhood Information ......................................................................................................111
Table 65 - Cluster Member Details ........................................................................................................................ 112
Table 66 - UAP Default Settings............................................................................................................................ 114

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 9
January 2015
Section 1 - About This Document
Section 1 - About This Document
This guide describes setup, conguration, administration and maintenance for the D-Link DWL-x600AP Unied Access
Point (UAP) on a wireless network.
Document Organization
The Unied Access Point Administrator’s Guide contains the following sections:
•) “Section 1 - About This Document” on page 9
•) “Section 2 - Getting Started” on page 11
•) “Section 3 - Viewing Access Point Status” on page 22
•) “Section 4 - Managing the Access Point” on page 35
•) “Section 5 - Conguring Access Point Services” on page 65
•) “Section 6 - Conguring SNMPv3” on page 75
•) “Section 7 - Maintaining the Access Point” on page 79
•) “Section 8 - Conguring Client Quality of Service (QoS)” on page 88
•) “Section 9 - Clustering Multiple APs” on page 104
•) “Appendix A - Default AP Settings” on page 113
•) “Appendix B - Conguration Examples” on page 115
Additional Documentation
The following documentation provides additional information about Unied Access Point software:
•) The Unied Access Point CLI Command Reference describes the commands available from the command-line
interface (CLI) for managing, monitoring, and conguring the switch.
•) The User Manual for the D-Link Unied Wired and Wireless System provides information about setting up and
managing the Unied Wireless Switch (UWS), including information about how to use the switch to manage
multiple UAPs.
•) Release notes for the D-Link Unied Wired and Wireless System detail the platform-specic functionality of the
software packages, including issues and workarounds.
Document Conventions
This section describes the conventions this document uses.
Note: A note provides more information about a feature or technology and cross-references to
related topics.
Caution! A caution provides information about critical aspects of AP conguration, combinations of
settings, events, or procedures that can adversely affect network connectivity, security, and so on.
The following table describes the typographical conventions used in this guide.
Symbol Example Description
Bold Click Apply to save your settings. Menu titles, page names, and button names.
Blue Text See “Document Conventions” on
page 9
Hyperlink text.
Courier Font WLAN-AP# show network Screen text, le names, commands, user-typed
command-line entries.
Courier Font
Italics
Value Command parameter, which might be a variable or
xed value.
Square Brackets [ ] [Value] Indicates an optional xed parameter.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 10
January 2015
Section 1 - About This Document
Symbol Example Description
Curly Braces {} {Choice1 | Choice2} Indicates that you must select a parameter from the
list of choices.
Vertical Bars | Choice1 | Choice2 Separates the mutually exclusive choices.
Braces within square
brackets [{}]
[{Choice1 | Choice2}] Indicate a choice within an optional element.
Table 1 - Typographical Conventions
Online Help, Supported Browsers, and Limitations
Online help for the UAP Administration Web pages provides information about all elds and features available from
the user interface (UI). The information in the online help is a subset of the information available in the Unied Access
Point Administrator’s Guide.
Online help information corresponds to each page on the UAP Administration UI.
For information about the settings on the current page, click the Help link on the upper right side of a page.
The following gure shows an example of the online help available from the links on the user interface.
Figure 1 - Administrator UI Online Help

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 11
January 2015
Section 2 - Getting Started
Section 2 - Getting Started
The D-Link DWL-x600AP unied access point (UAP) provides continuous, high-speed access between wireless
devices and Ethernet devices. It is an advanced, standards-based solution for wireless networking in businesses of
any size. The UAP enables wireless local area network (WLAN) deployment while providing state-of-the-art wireless
networking features.
The UAP can operate in two modes: Standalone Mode or Managed Mode. In Standalone Mode, the UAP acts
as an individual access point in the network, and you manage it by using the Administrator Web User Interface
(UI), command-line interface (CLI), or SNMP. In Managed Mode, the UAP is part of the D-Link Unied Wired and
Wireless System, and you manage it by using the D-Link Unied Wireless Switch. If an AP is in Managed Mode, the
Administrator Web UI, Telnet, SSH, and SNMP services are disabled.
This document describes how to perform the setup, management, and maintenance of the UAP in Standalone Mode.
For information about conguring the AP in Managed Mode by using the D-Link Unied Wireless Switch, see the User
Manual for the switch.
Before you power on a new UAP, review the following sections to check required hardware and software components,
client congurations, and compatibility issues. Make sure you have everything you need for a successful launch and
test of your new or extended wireless network.
The DWL-6600AP and DWL-8600AP are dual-radio access points and support the IEEE 802.11a, 802.11b, 802.11g,
and 802.11n modes. The DWL-2600AP and DWL-3600AP are single-radio access points and support the IEEE
802.11b, IEEE 802.11g, and 802.11n (2.4 GHz) modes.
This section contains the following topics:
•) “Administrator’s Computer Requirements” on page 11
•) “Wireless Client Requirements” on page 12
•) “Dynamic and Static IP Addressing on the AP” on page 13
•) “Installing the UAP” on page 13
•) “Basic Settings” on page 16
•) “Using the CLI to View the IP Address” on page 17
•) “Conguring the Ethernet Settings” on page 18
•) “Conguring IEEE 802.1X Authentication” on page 19
•) “Verifying the Installation” on page 20
•) “Conguring Security on the Wireless Access Point” on page 21
To manage the UAP by using the Web interface or by using the CLI through Telnet or SSH, the AP needs an IP
address. If you use VLANs or IEEE 802.1X Authentication (port security) on your network, you might need to congure
additional settings on the AP before it can connect to the network.
Note: The WLAN AP is not designed to function as a gateway to the Internet. To connect your
WLAN to other LANs or the Internet, you need a gateway device.
Administrator’s Computer Requirements
The following table describes the minimum requirements for the administrator’s computer for conguration and
administration of the UAP through a Web-based user interface (UI).
Required Software or Component Description
Serial or Ethernet Connection to the
Access Point
The computer used to congure the rst access point must be connected
to the access point by a serial cable or an Ethernet cable.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 12
January 2015
Section 2 - Getting Started
Required Software or Component Description
Wireless Connection to the Network After initial conguration and launch of the rst access point on your
new wireless network, you can make subsequent conguration changes
through the Administration Web pages using a wireless connection to the
internal network.
For wireless connection to the access point, your administration device will
need Wi-Fi capability similar to that of any wireless client:
•) Portable or built-in Wi-Fi client adapter that supports one or more of
the IEEE 802.11 modes in which you plan to run the access point.
•) Wireless client software congured to associate with the UAP.
Web Browser and Operating System Conguration and administration of the UAP is provided through a Web-
based user interface hosted on the access point.
We recommend using one of the following supported Web browsers to
access the access point Administration Web pages:
•) Microsoft® Internet Explorer®version 7.x or 8.x (with up-to-date patch
level for either major version)
•) Mozilla® Firefox version 3.5 or later
•) Safari 5 and later versions
The administration Web browser must have JavaScript™ enabled to
support the interactive features of the administration interface.
Security Settings Ensure that security is disabled on the wireless client used to initially
congure the access point.
Table 2 - Requirements for the Administrator’s Computer
Wireless Client Requirements
The UAP provides wireless access to any client with a properly congured Wi-Fi client adapter for the 802.11 mode
in which the access point is running. The UAP supports multiple client operating systems. Clients can be laptop or
desktop computers, personal digital assistants (PDAs), or any other hand-held, portable or stationary device equipped
with a Wi-Fi adapter and supporting drivers.
To connect to the access point, wireless clients need the software and hardware described in the following table.
Required Component Description
Wi-Fi Client Adapter Portable or built-in Wi-Fi client adapter that supports one or more of the
IEEE 802.11 modes in which you plan to run the access point.
Wireless Client Software Client software, such as Microsoft Windows Supplicant, congured to
associate with the UAP.
Client Security Settings Security should be disabled on the client used to do initial conguration of
the access point.
If the Security mode on the access point is set to anything other than plain
text, wireless clients will need to set a prole to the authentication mode
used by the access point and provide a valid username and password,
certicate, or similar user identity proof. Security modes are Static WEP,
IEEE 802.1X, WPA with RADIUS server, and WPA-PSK.
For information about conguring security on the access point, see “Virtual
Access Point Settings” on page 47.
Table 3 - Requirements for Wireless Clients

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 13
January 2015
Section 2 - Getting Started
Dynamic and Static IP Addressing on the AP
When you power on the access point, the built-in DHCP client searches for a DHCP server on the network in order
to obtain an IP Address and other network information. If the AP does not nd a DHCP server on the network, the AP
continues to use its default Static IP Address (10.90.90.91) until you re-assign it a new static IP address (and specify a
static IP addressing policy) or until the AP successfully receives network information from a DHCP server.
To change the connection type and assign a static IP address by using the CLI, see “Conguring the Ethernet
Settings” on page 18 or, by using the Web UI, see “Ethernet Settings” on page 35.
Caution! If you do not have a DHCP server on your internal network, and do not plan to use one,
the rst thing you must do after powering on the access point is change the connection type from
DHCP to static IP. You can either assign a new static IP address to the AP or continue using the
default address. We recommend assigning a new static IP address so that if you bring up another
WLAN AP on the same network, the IP address for each AP will be unique.
Recovering an IP Address
If you experience trouble communicating with the access point, you can recover a static IP address by resetting the AP
conguration to the factory defaults (see “Resetting the Factory Default Conguration” on page 81), or you can get
a dynamically assigned address by connecting the AP to a network that has a DHCP server.
Discovering a Dynamically Assigned IP Address
If you have access to the DHCP server on your network and know the MAC address of your AP, you can view the new
IP address associated with the MAC address of the AP.
If you do not have access to the DHCP server that assigned the IP address to the AP or do not know the MAC address
of the AP, you might need to use the CLI to nd out what the new IP address is. For information about how to discover
a dynamically assigned IP address, see “Using the CLI to View the IP Address” on page 17.
Installing the UAP
To access the Administration Web UI, you enter the IP address of the AP into a Web browser. You can use the default
IP address of the AP (10.90.90.91) to log on to the AP and assign a static IP address, or you can use a DHCP server
on you network to assign network information to the AP. The DHCP client on the AP is enabled by default.
To install the UAP, use the following steps:

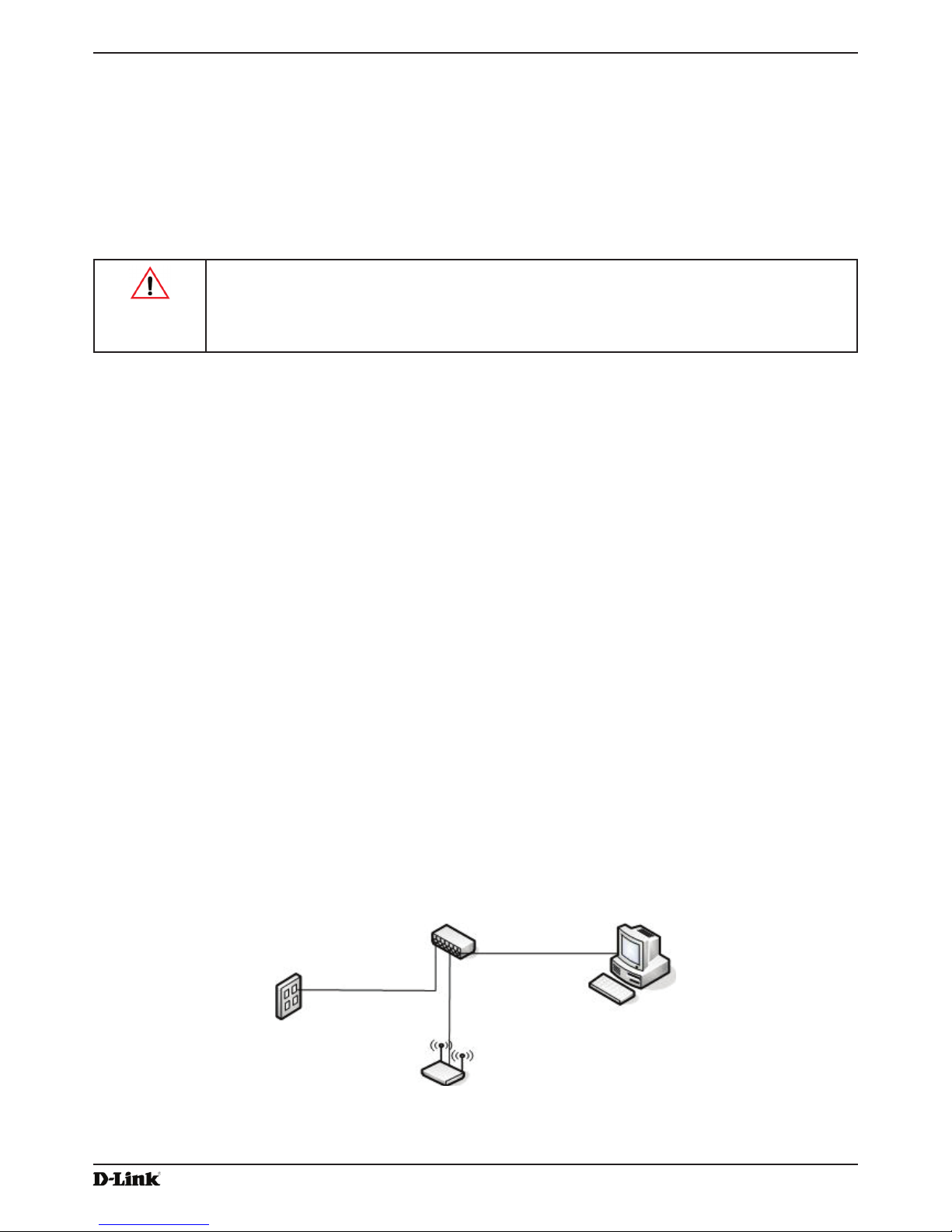

1.) Connect the AP to an administrative PC by using a LAN connection or a direct-cable connection.
•) To use a LAN connection, connect one end of an Ethernet cable to the network port on the access point and
the other end to the same hub where your PC is connected, as shown in the following gure.
The hub or switch you use must permit broadcast signals from the access point to reach all other devices on
the network.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 14
January 2015
Section 2 - Getting Started

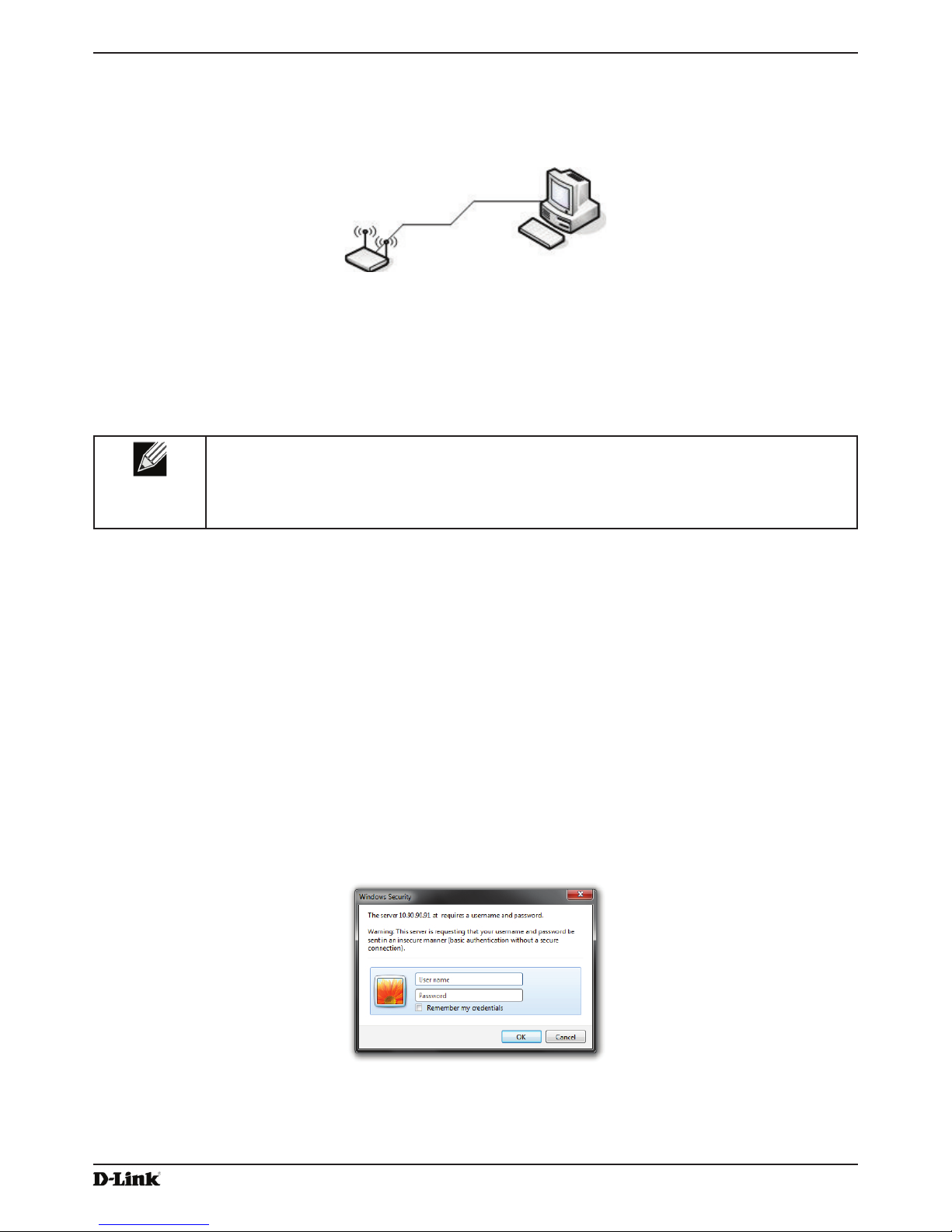

•) To use a direct-cable connection, connect one end of an Ethernet straight-through or crossover cable to the
network port on the access point and the other end of the cable to the Ethernet port on the PC, as shown in
the following gure. You can also use a serial cable to connect the serial port on the AP to a serial port on the
administrative computer.
For initial conguration with a direct Ethernet connection and no DHCP server, be sure to set your PC to a
static IP address in the same subnet as the default IP address on the access point. (The default IP address for
the access point is 10.90.90.91.)
If you use this method, you will need to recongure the cabling for subsequent startup and deployment of the
access point so that the access point is no longer connected directly to the PC but instead is connected to the
LAN (either by using a hub or directly).
Note: It is possible to detect access points on the network with a wireless connection. However,
we strongly advise against using this method. In most environments you may have no way
of knowing whether you are actually connecting to the intended AP. Also, many of the initial
conguration changes required will cause you to lose connectivity with the AP over a wireless
connection.
2.) Connect the power adapter to the power port on the back of the access point, and then plug the other end of the
power cord into a power outlet.
3.) Use your Web browser to log on to the UAP Administration Web pages.
•) If the AP did not acquire an IP address from a DHCP server on your network, enter 10.90.90.91 in the address
eld of your browser, which is the default IP address of the AP.
•) If you used a DHCP server on your network to automatically congure network information for the AP, enter the
new IP address of the AP into the Web browser.
•) If you used a DHCP server and you do not know the new IP address of the AP, use the following procedures to
obtain the information:
•) Connect a serial cable from the administrative computer to the AP and use a terminal emulation program to
access the command-line interface (CLI).
•) At the login prompt, enter admin for the user name and admin for the password. At the command prompt,
enter get management.
•) The command output displays the IP address of the AP. Enter this address in the address eld of your browser.
For a more detailed explanation about how to log on to the CLI by using the console port, see “Using the CLI
to View the IP Address” on page 24.
4.) When prompted, enter admin for the user name and admin for the password, then click Logon.
Figure 2 - Web UI Login Prompt
When you rst log in, the Basic Settings page for UAP administration is displayed, as the following gure
shows.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 15
January 2015
Section 2 - Getting Started
Figure 3 - Provide Basic Settings
5.) Verify the settings on the Basic Settings page.
•) Review access point description and provide a new administrator password for the access point if you do not
want to use the default password, which is admin.
•) Click the Apply button to activate the wireless network with these new settings.
Note: The changes you make are not saved or applied until you click Apply. Changing some
access point settings might cause the AP to stop and restart system processes. If this happens,
wireless clients will temporarily lose connectivity. We recommend that you change access point
settings when WLAN trafc is low.
For information about the elds and conguration options on the Basic Settings page, see “Basic Settings” on
page 16.
6.) If you do not have a DHCP server on the management network and do not plan to use one, you must change
the Connection Type from DHCP to Static IP.
You can either assign a new Static IP address to the AP or continue using the default address. We recommend
assigning a new Static IP address so that if you bring up another UAP on the same network, the IP address
for each AP will be unique. To change the connection type and assign a static IP address, see “Conguring the
Ethernet Settings” on page 18 (CLI) or “Ethernet Settings” on page 35 (Web).
7.) If your network uses VLANs, you might need to congure the management VLAN ID or untagged VLAN ID on
the UAP in order for it to work with your network.
For information about how to congure VLAN information, see “Conguring the Ethernet Settings” on page 18
(CLI) or “Ethernet Settings” on page 35 (Web).
8.) If your network uses IEEE 802.1X port security for network access control, you must congure the 802.1X
supplicant information on the AP.
For information about how to congure the 802.1X user name and password, see “Conguring IEEE 802.1X
Authentication” on page 19.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 16
January 2015
Section 2 - Getting Started
Basic Settings
From the Basic Settings page, you can view various information about the UAP, including IP and MAC address
information, and congure the administrator password for the UAP. The following table describes the elds and
conguration options on the Basic Settings page.
Field Description
IP Address Shows the IP address assigned to the AP. This eld is not editable on this page because
the IP address is already assigned (either by DHCP, or statically through the Ethernet
Settings page).
IPv6 Address Shows the IPv6 address assigned to the AP. This eld is not editable on this page because
the IP address is already assigned (either by DHCPv6, or statically through the Ethernet
Settings page).
IPv6 Address Status Shows the operational status of the static IPv6 address assigned to the management
interface of the AP. The possible values are Operational and Tentative.
IPv6 Autocongured
Global Addresses
Shows each automatically-congured global IPv6 address for the management interface of
the AP.
IPv6 Link Local
Address
Shows the IPv6 Link Local address, which is the IPv6 address used by the local physical
link. The link local address is not congurable and is assigned by using the IPv6 Neighbor
Discovery process.
MAC Address Shows the MAC address of the AP. The address shown here is the MAC address
associated with the management interface. This is the address by which the AP is known
externally to other networks.
Firmware Version Shows version information about the rmware currently installed on the AP. As new
versions of the WLAN AP rmware become available, you can upgrade the rmware on
your APs.
Product Identier Identies the AP hardware model.
Hardware Version Identies the AP hardware version.
Serial Number Shows the AP serial number.
Device Name Generic name to identify the type of hardware.
Device Description Provides information about the product hardware.
Current Password Enter the current administrator password. You must correctly enter the current password
before you are able to change it.
New Password Enter a new administrator password. The characters you enter are displayed as bullet
characters to prevent others from seeing your password as you type.
The administrator password must be an alphanumeric string of up to 8 characters. Do not
use special characters or spaces.
Note: As an immediate rst step in securing your wireless network, we recommend that
you change the administrator password from the default.
Conrm New
Password
Re-enter the new administrator password to conrm that you typed it as intended.
Baud Rate Select a baud rate for the serial port connection. The baud rate on the AP must match the
baud rate on the terminal or terminal emulator to connect to the AP command-line interface
(CLI) by using a serial (console) connection.
The following baud rates are available:
•) 9600
•) 19200
•) 38400
•) 57600
•) 115200
System Name Enter a name for the AP. This name appears only on the Basic Settings page and is a
name to identify the AP to the administrator. Use up to 64 alphanumeric characters, for
example My AP.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 17
January 2015
Section 2 - Getting Started
Field Description
System Contact Enter the name, e-mail address, or phone number of the person to contact regarding
issues related to the AP.
System Location Enter the physical location of the AP, for example Conference Room A.
Table 4 - Basic Settings Page
Connecting to the AP Web Interface by Using the IPv6 Address
To connect to the AP by using the IPv6 global address or IPv6 link local address, you must enter the AP address into
your browser in a special format.
Note: The following instructions and examples work with Microsoft Internet Explorer 7 (IE7) and
might not work with other browsers.
To connect to an IPv6 global address, add square brackets around the IPv6 address. For example, if the AP
global IPv6 address is 2520::230:abff:fe00:2420, type the following address into the IE7 address eld: http://
[2520::230:abff:fe00:2420].
To connect to the iPv6 link local address, replace the colons (:) with hyphens (-), add the interface number preceded
with an “s,” then add “.ipv6-literal.net.” For example, if the AP link local address is fe80::230:abff:fe00:2420, and the
Windows interface is dened as “%6,” type the following address into the IE7 address eld: http://fe80--230-abff-fe00-
2420s6.ipv6-literal.net.
Using the CLI to View the IP Address
The DHCP client on the UAP is enabled by default. If you connect the UAP to a network with a DHCP server, the
AP automatically acquires an IP address. To manage the UAP by using the Administrator UI, you must enter the IP
address of the access point into a Web browser.
If a DHCP server on your network assigns an IP address to the UAP, and you do not know the IP address, use the
following steps to view the IP address of the UAP:
1.) Using a null-modem cable, connect a VT100/ANSI terminal or a workstation to the console (serial) port.
If you attached a PC, Apple, or UNIX workstation, start a terminal-emulation program, such as HyperTerminal or
TeraTerm.
2.) Congure the terminal-emulation program to use the following settings:
•) Baud rate: 115200 bps
•) Data bits: 8
•) Parity: none
•) Stop bit: 1
•) Flow control: none
3.) Press the return key, and a login prompt should appear.
The login name is admin. The default password is admin. After a successful login, the screen shows the
(Access Point Name)# prompt.
4.) At the login prompt, enter get management.
Information similar to the following prints to the screen.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 18
January 2015
Section 2 - Getting Started

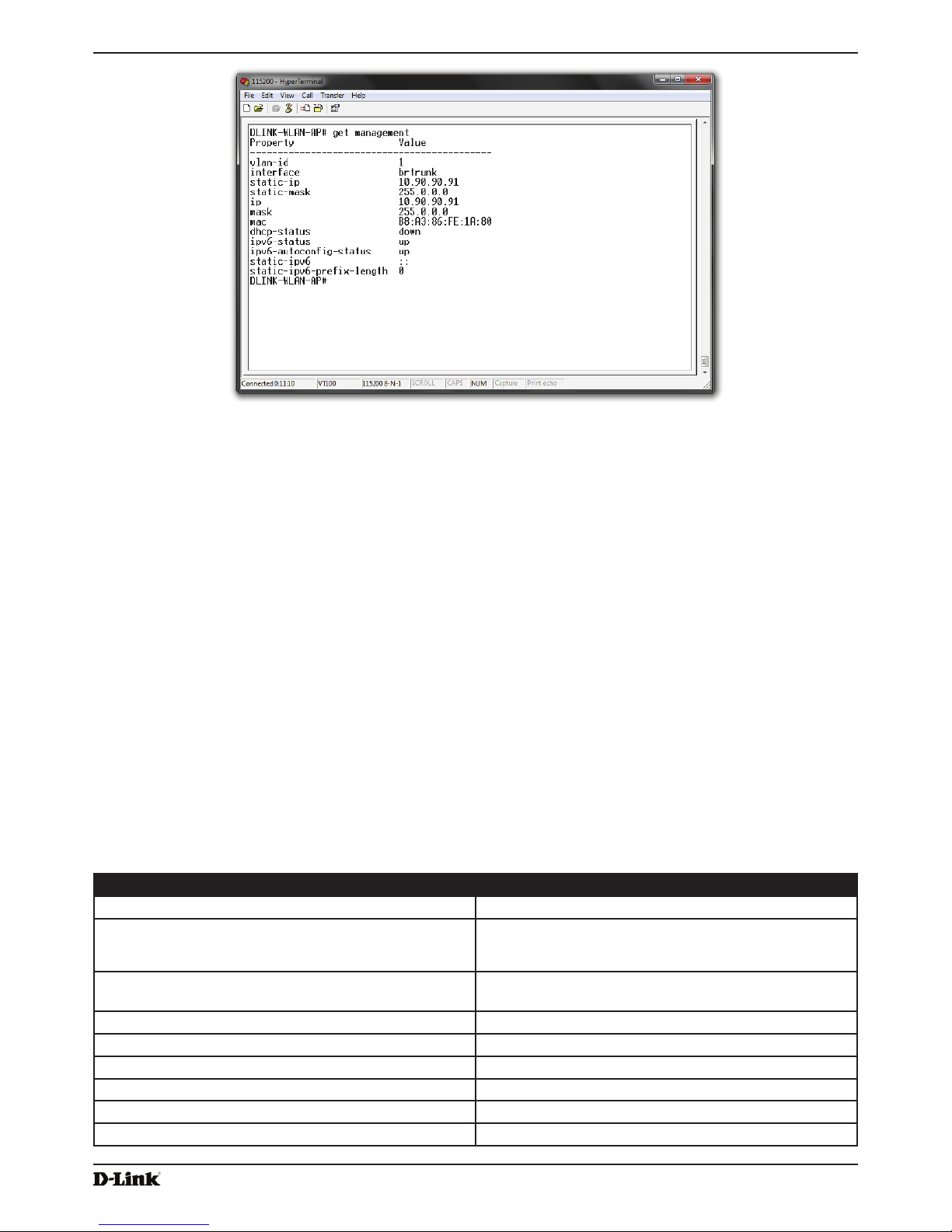

Figure 4 - Command Line Interface (CLI) Connection
Conguring the Ethernet Settings
The default Ethernet settings, which include DHCP and VLAN information, might not work for all networks.
By default, the DHCP client on the UAP automatically broadcasts requests for network information. If you want to
use a static IP address, you must disable the DHCP client and manually congure the IP address and other network
information.
The management VLAN is VLAN 1 by default. This VLAN is also the default untagged VLAN. If you already have
a management VLAN congured on your network with a different VLAN ID, you must change the VLAN ID of the
management VLAN on the access point.
For information about using the Web interface to congure the Ethernet settings, see “Ethernet Settings” on page
35. You can also use the CLI to congure the Ethernet settings, which the following section describes.
Using the CLI to Congure Ethernet Settings
Use the commands shown in the following table to view and set values for the Ethernet (wired) interface. For more
information about each setting, see the description for the eld in the following table.
Action Commands
Get the DNS Name get host id
Set the DNS Name set host id <host_name>
For example:
set host id lab-ap
Get Current Settings for the Ethernet (Wired) Internal
Interface
get management
Set the management VLAN ID set management vlan-id <1-4094>
View untagged VLAN information get untagged-vlan
Enable the untagged VLAN set untagged-vlan status up
Disable the untagged VLAN set untagged-vlan status down
Set the untagged VLAN ID set untagged-vlan vlan-id <1-4094>
View the connection type get management dhcp-status

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 19
January 2015
Section 2 - Getting Started
Action Commands
Use DHCP as the connection type set management dhcp-status up
Use a Static IP as the connection type set management dhcp-status down
Set the Static IP address set management static-ip <ip_address>
For example:
set management static-ip 10.10.12.221
Set a Subnet Mask set management static-mask <netmask>
For example:
set management static-mask 255.255.255.0
Set the Default Gateway set static-ip-route gateway <ip_address>
For example:
set static-ip-route gateway 10.10.12.1
View the DNS Nameserver mode Dynamic= up
Manual=down
get host dns-via-dhcp
Set DNS Nameservers to Use Static IP Addresses
(Dynamic to Manual Mode)
set host dns-via-dhcp down
set host static-dns-1 <ip_address>
set host static-dns-2 <ip_address>
For example:
set host static-dns-1 192.168.23.45
Set DNS Nameservers to Use DHCP IP Addressing
(Manual to Dynamic Mode)
set host dns-via-dhcp up
Table 5 - CLI Commands for Ethernet Setting
In the following example, the administrator uses the CLI to set the management VLAN ID to 123 and to disable the
untagged VLAN so that all trafc is tagged with a VLAN ID.
DLINK-WLAN-AP# set management vlan-id 123
DLINK-WLAN-AP# set untagged-vlan status down
DLINK-WLAN-AP# get management
Property Value
--------------------------------------------
vlan-id 123
interface brtrunk
static-ip 10.90.90.91
static-mask 255.0.0.0
ip 10.90.90.91
mask 255.0.0.0
mac 00:05:5E:80:70:00
dhcp-status down
ipv6-status up
ipv6-autocong-status up
static-ipv6 ::
static-ipv6-prex-length 0
DLINK-WLAN-AP# get untagged-vlan
Property Value
---------------
vlan-id 1
status down
DLINK-WLAN-AP#
Conguring IEEE 802.1X Authentication
On networks that use IEEE 802.1X, port-based network access control, a supplicant (client) cannot gain access to
the network until the 802.1X authenticator grants access. If your network uses 802.1X, you must congure 802.1X
authentication information that the AP can supply to the authenticator.
If your network uses IEEE 802.1X see “Conguring IEEE 802.1X Authentication” on page 19 for information about
how to congure 802.1X by using the Web interface.

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 20
January 2015
Section 2 - Getting Started
Using the CLI to Congure 802.1X Authentication Information
The following table shows the commands used to congure the 802.1X supplicant information using the CLI.
Action Command
View 802.1X supplicant settings get dot1x-supplicant
Enable 802.1X supplicant set dot1x-supplicant status up
Disable 802.1X supplicant set dot1x-supplicant status down
Set the 802.1X user name set dot1x-supplicant user <name>
Set the 802.1X password set dot1x-supplicant password <password>
Table 6 - CLI Commands for the 802.1X Supplicant
In the following example, the administrator enables the 802.1X supplicant and sets the user name to wlanAP and the
password to test1234.
DLINK-WLAN-AP# set dot1x-supplicant status up
DLINK-WLAN-AP# set dot1x-supplicant user wlanAP
DLINK-WLAN-AP# set dot1x-supplicant password test1234
DLINK-WLAN-AP# get dot1x-supplicant
Property Value
--------------------------
status up
user wlanAP
eap-method md5
debug off
cert-present no
cert-exp-date Not Present
DLINK-WLAN-AP#
Verifying the Installation
Make sure the access point is connected to the LAN and associate some wireless clients with the network. Once you
have tested the basics of your wireless network, you can enable more security and ne-tune the AP by modifying
advanced conguration features.
1.) Connect the access point to the LAN.
•) If you congured the access point and administrator PC by connecting both into a network hub, then your
access point is already connected to the LAN. The next step is to test some wireless clients.
•) If you congured the access point by using a direct cable connection from your computer to the access point,
do the following procedures:
•) Disconnect the cable from the computer and the access point.
•) Connect an Ethernet cable from the access point to the LAN.
•) Connect your computer to the LAN by using an Ethernet cable or a wireless card.
2.) Test LAN connectivity with wireless clients.
Test the UAP by trying to detect it and associate with it from some wireless client devices. For information about
requirements for these clients, see “Wireless Client Requirements” on page 12.
3.) Secure and congure the access point by using advanced features.
Once the wireless network is up and you can connect to the AP with some wireless clients, you can add in layers
of security, create multiple virtual access points (VAPs), and congure performance settings.
Note: The WLAN AP is not designed for multiple, simultaneous conguration changes. If more
than one administrator is logged onto the Administration Web pages and making changes to the
conguration, there is no guarantee that all conguration changes specied by multiple users will
be applied.
By default, no security is in place on the access point, so any wireless client can associate with it and access
your LAN. An important next step is to congure security, as described in “Virtual Access Point Settings” on page
47.
